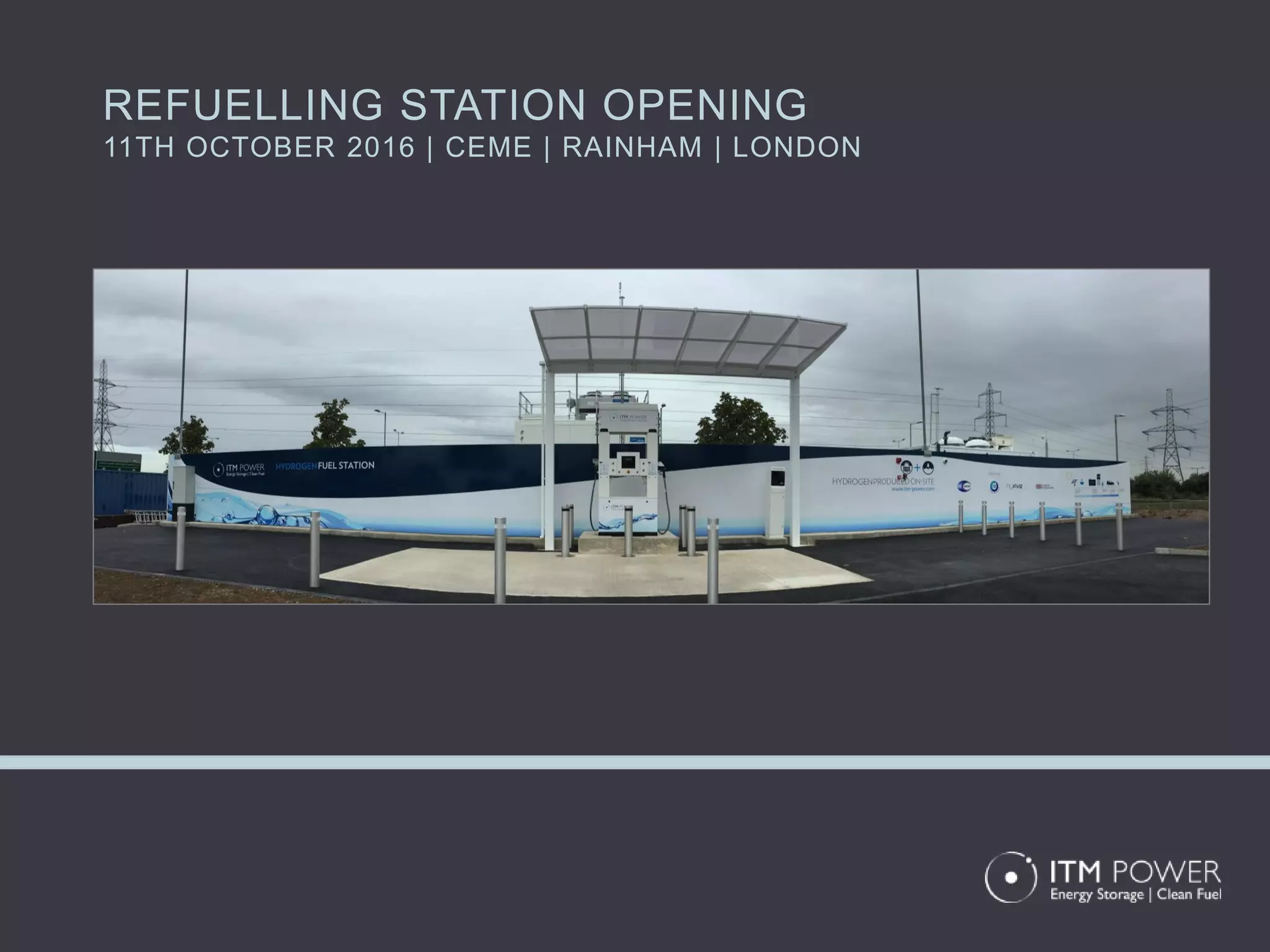

1. REFUELLING STATION OPENING
11TH OCTOBER 2016 | CEME | RAINHAM | LONDON

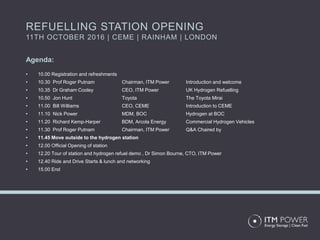

2. Agenda:
• 10.00 Registration and refreshments
• 10.30 Prof Roger Putnam Chairman, ITM Power Introduction and welcome
• 10.35 Dr Graham Cooley CEO, ITM Power UK Hydrogen Refuelling
• 10.50 Jon Hunt Toyota The Toyota Mirai
• 11.00 Bill Williams CEO, CEME Introduction to CEME
• 11.10 Nick Power MDM, BOC Hydrogen at BOC
• 11.20 Richard Kemp-Harper BDM, Arcola Energy Commercial Hydrogen Vehicles
• 11.30 Prof Roger Putnam Chairman, ITM Power Q&A Chaired by
• 11.45 Move outside to the hydrogen station
• 12.00 Official Opening of station
• 12.20 Tour of station and hydrogen refuel demo , Dr Simon Bourne, CTO, ITM Power
• 12.40 Ride and Drive Starts & lunch and networking
• 15.00 End
REFUELLING STATION OPENING
11TH OCTOBER 2016 | CEME | RAINHAM | LONDON

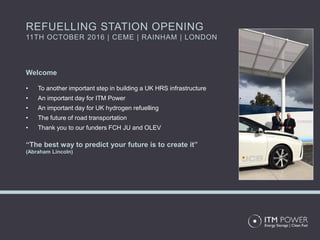

3. Welcome
• To another important step in building a UK HRS infrastructure
• An important day for ITM Power
• An important day for UK hydrogen refuelling
• The future of road transportation
• Thank you to our funders FCH JU and OLEV
“The best way to predict your future is to create it”
(Abraham Lincoln)
REFUELLING STATION OPENING
11TH OCTOBER 2016 | CEME | RAINHAM | LONDON

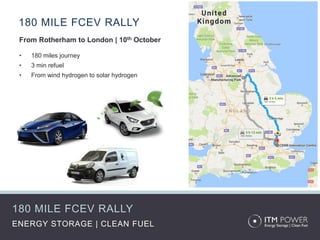

4. 180 MILE FCEV RALLY
180 MILE FCEV RALLY
ENERGY STORAGE | CLEAN FUEL
From Rotherham to London | 10th October
• 180 miles journey
• 3 min refuel
• From wind hydrogen to solar hydrogen

5. HYDROGEN
REFUELLING
IN THE UK
DR GRAHAM COOLEY
CEO, ITM POWER

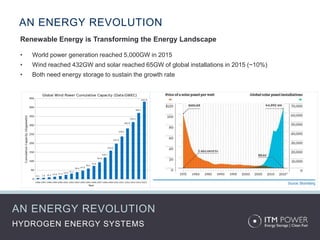

6. AN ENERGY REVOLUTION
HYDROGEN ENERGY SYSTEMS
AN ENERGY REVOLUTION
Renewable Energy is Transforming the Energy Landscape
• World power generation reached 5,000GW in 2015
• Wind reached 432GW and solar reached 65GW of global installations in 2015 (~10%)
• Both need energy storage to sustain the growth rate

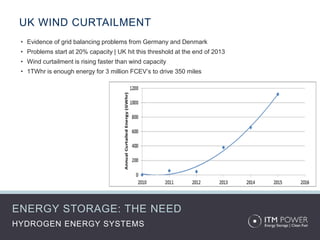

7. ENERGY STORAGE: THE NEED
HYDROGEN ENERGY SYSTEMS
UK WIND CURTAILMENT
• Evidence of grid balancing problems from Germany and Denmark
• Problems start at 20% capacity | UK hit this threshold at the end of 2013
• Wind curtailment is rising faster than wind capacity
• 1TWhr is enough energy for 3 million FCEV’s to drive 350 miles

8. RAPID RESPONSE
HYDROGEN ENERGY SYSTEMS
RAPID RESPONSE ELECTROLYSER
ITM Electrolyser
Clean Fuel
Energy StorageWind Power
Grid
Available in 1MW modules | responds in 1sec | self pressurises to 80bar

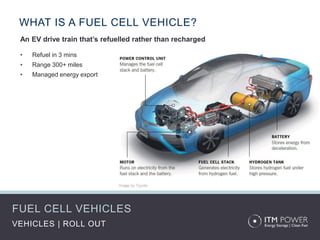

9. FUEL CELL VEHICLES
VEHICLES | ROLL OUT
WHAT IS A FUEL CELL VEHICLE?
An EV drive train that’s refuelled rather than recharged
• Refuel in 3 mins
• Range 300+ miles
• Managed energy export

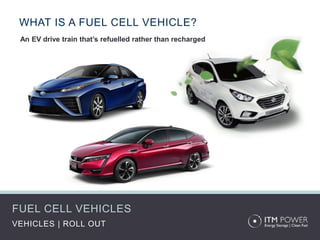

10. FUEL CELL VEHICLES
VEHICLES | ROLL OUT
WHAT IS A FUEL CELL VEHICLE?
An EV drive train that’s refuelled rather than recharged

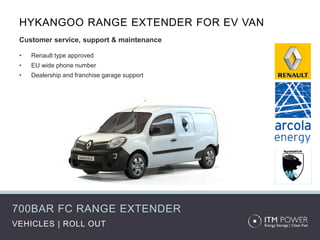

11. 700BAR FC RANGE EXTENDER
HYKANGOO RANGE EXTENDER FOR EV VAN
Customer service, support & maintenance
• Renault type approved
• EU wide phone number
• Dealership and franchise garage support
VEHICLES | ROLL OUT

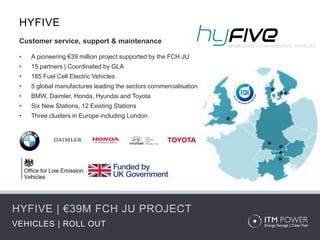

12. HYFIVE | €39M FCH JU PROJECT
HYFIVE
Customer service, support & maintenance
• A pioneering €39 million project supported by the FCH JU
• 15 partners | Coordinated by GLA
• 185 Fuel Cell Electric Vehicles
• 5 global manufactures leading the sectors commercialisation
• BMW, Daimler, Honda, Hyundai and Toyota
• Six New Stations, 12 Existing Stations
• Three clusters in Europe including London
VEHICLES | ROLL OUT

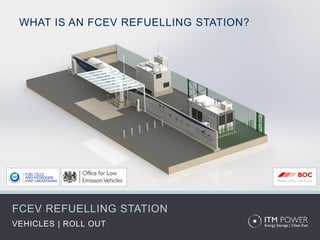

13. FCEV REFUELLING STATION
VEHICLES | ROLL OUT
WHAT IS AN FCEV REFUELLING STATION?

14. FCEV REFUELLING STATION
VEHICLES | ROLL OUT
WHAT IS AN FCEV REFUELLING STATION?
ITM Power Electrolyser
80kg/day expandable to
500kg/day in 20ft container
Dispenser
350 and 700 bar refuelling point
Buffer Tank
20bar 15m3 tank
BOC | Linde Compression
Ionic Compressor and gas storage,
600kg/day
Payment Unit
Card reader, touchscreen and
printer for cash register receipt

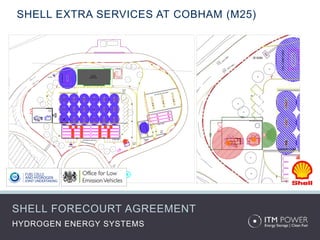

15. HYDROGEN ENERGY SYSTEMS
SHELL FORECOURT AGREEMENT
SHELL EXTRA SERVICES AT COBHAM (M25)

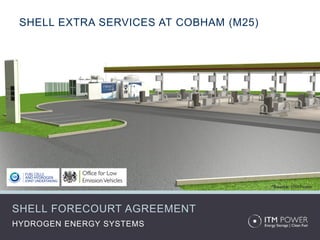

16. HYDROGEN ENERGY SYSTEMS
SHELL EXTRA SERVICES AT COBHAM (M25)
SHELL FORECOURT AGREEMENT
*Source: ITM Power

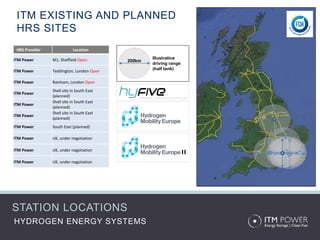

17. HYDROGEN ENERGY SYSTEMS
ITM EXISTING AND PLANNED
HRS SITES
STATION LOCATIONS
HRS Provider Location
ITM Power M1, Sheffield Open
ITM Power Teddington, London Open
ITM Power Rainham, London Open
ITM Power
Shell site in South East
(planned)
ITM Power
Shell site in South East
(planned)
ITM Power
Shell site in South East
(planned)
ITM Power South East (planned)
ITM Power UK, under negotiation
ITM Power UK, under negotiation
ITM Power UK, under negotiation
200km
Illustrative
driving range
(half tank)
II

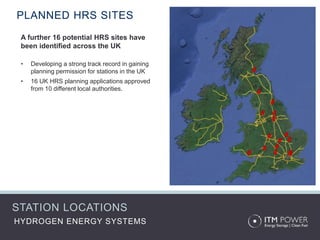

18. HYDROGEN ENERGY SYSTEMS
PLANNED HRS SITES
A further 16 potential HRS sites have
been identified across the UK
• Developing a strong track record in gaining
planning permission for stations in the UK
• 16 UK HRS planning applications approved
from 10 different local authorities.
STATION LOCATIONS

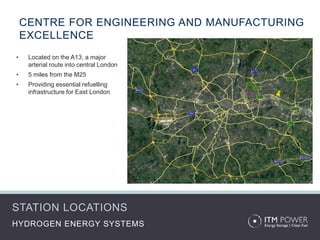

19. CENTRE FOR ENGINEERING AND MANUFACTURING
EXCELLENCE
HYDROGEN ENERGY SYSTEMS
• Located on the A13, a major
arterial route into central London
• 5 miles from the M25
• Providing essential refuelling
infrastructure for East London
STATION LOCATIONS

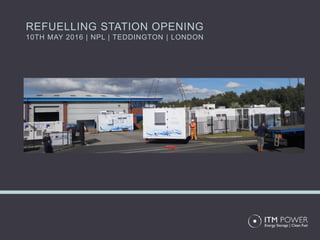

20. REFUELLING STATION OPENING
10TH MAY 2016 | NPL | TEDDINGTON | LONDON
