1. REFUELLING STATION OPENING
10TH MAY 2016 | NPL | TEDDINGTON | LONDON

2. Agenda:
• 10.30 Introduction and Welcome Sir Roger Bone, NXD, ITM Power
• 10.35 Hydrogen Refeulling in the UK Dr Graham Cooley ,CEO, ITM Power
• 10.45 The Toyota Mirai Jon Hunt, Manager Toyota & Lexus Fleet Marketing
• 10.55 The Hyundai ix35 FCEV Robin Hayles, Product PR Manager
• 11.05 The Honda Clarity FCX Nik Pearson, European PR Communications Manager Honda Motor Europe
• 11:15 Kangoo ZE H2 700 bar van Fabio Ferrari, CEO, Symbio FCell
• 11.25 Q&A Chaired by Sir Roger Bone, NXD, ITM Power
• 11.40 Move outside to see the station
• 12.00 Official Opening of station Andrew Jones MP, Parliamentary Under Secretary of State for Transport
• 12.20 Tour of station Dr Simon Bourne, CTO ITM Power and refuel demo
• 12.45 Ride and Drive Starts
• 12.50 Lunch and networking
• 15.00 End
REFUELLING STATION OPENING
10TH MAY 2016 | NPL | TEDDINGTON | LONDON

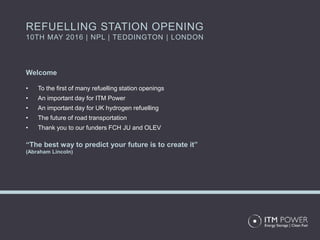

3. Welcome
• To the first of many refuelling station openings
• An important day for ITM Power
• An important day for UK hydrogen refuelling
• The future of road transportation
• Thank you to our funders FCH JU and OLEV
“The best way to predict your future is to create it”
(Abraham Lincoln)
REFUELLING STATION OPENING
10TH MAY 2016 | NPL | TEDDINGTON | LONDON

4. ITM Power | History
• First AIM listed fuel cell & hydrogen company
• 2004 IPO | £10m | ITM.L
• 2006 Secondary | £30m
• 2012 -16 Expansion | £23m
• Two facilities in Sheffield | 70 staff
• Manufacturing business model
£13.94m projects under contract | £6.52m in negotiation | £20.46m total
REFUELLING STATION OPENING
10TH MAY 2016 | NPL | TEDDINGTON | LONDON

5. HYDROGEN
REFUELLING
IN THE UK
DR GRAHAM COOLEY
CEO, ITM POWER

6. AN ENERGY REVOLUTION
HYDROGEN ENERGY SYSTEMS
AN ENERGY REVOLUTION
Renewable Energy is Transforming the Energy Landscape
• World power generation reached 5,000GW in 2015
• Wind reached 432GW and solar reached 65GW of global installations in 2015 (~10%)
• Both need energy storage to sustain the growth rate

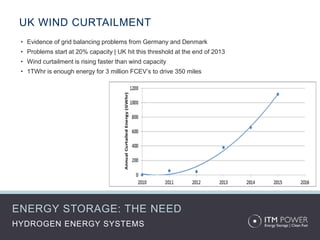

7. ENERGY STORAGE: THE NEED
HYDROGEN ENERGY SYSTEMS
UK WIND CURTAILMENT
• Evidence of grid balancing problems from Germany and Denmark
• Problems start at 20% capacity | UK hit this threshold at the end of 2013
• Wind curtailment is rising faster than wind capacity
• 1TWhr is enough energy for 3 million FCEV’s to drive 350 miles

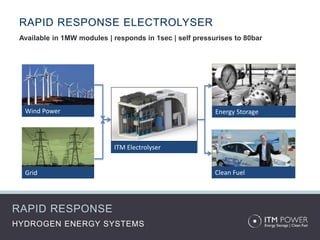

8. RAPID RESPONSE
HYDROGEN ENERGY SYSTEMS
RAPID RESPONSE ELECTROLYSER
ITM Electrolyser
Clean Fuel
Energy StorageWind Power
Grid
Available in 1MW modules | responds in 1sec | self pressurises to 80bar

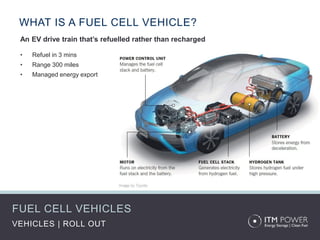

9. FUEL CELL VEHICLES
VEHICLES | ROLL OUT
WHAT IS A FUEL CELL VEHICLE?
An EV drive train that’s refuelled rather than recharged
• Refuel in 3 mins
• Range 300 miles
• Managed energy export

10. FUEL CELL VEHICLES
VEHICLES | ROLL OUT
WHAT IS A FUEL CELL VEHICLE?
An EV drive train that’s refuelled rather than recharged

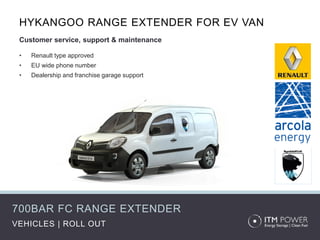

11. 700BAR FC RANGE EXTENDER
HYKANGOO RANGE EXTENDER FOR EV VAN
Customer service, support & maintenance
• Renault type approved
• EU wide phone number
• Dealership and franchise garage support
VEHICLES | ROLL OUT

12. FCEV REFUELLING STATION
VEHICLES | ROLL OUT
WHAT IS AN FCEV REFUELLING STATION?

13. FCEV REFUELLING STATION
VEHICLES | ROLL OUT
WHAT IS AN FCEV REFUELLING STATION?
ITM Power Electrolyser
80kg/day expandable to
500kg/day in 20ft container
Dispenser
350 and 700 bar refuelling point
Buffer Tank
20bar 15m3 tank
BOC | Linde Compression
Ionic Compressor and gas storage,
600kg/day
Payment Unit
Card reader, touchscreen and
printer for cash register receipt
Tube trailer connection
Off take of hydrogen for back up
supply and other applications

14. HYDROGEN ENERGY SYSTEMS
SHELL FORECOURT AGREEMENT
SHELL EXTRA SERVICES AT COBHAM (M25)

15. HYDROGEN ENERGY SYSTEMS
SHELL EXTRA SERVICES AT COBHAM (M25)
SHELL FORECOURT AGREEMENT
*Source: ITM Power

16. HYDROGEN ENERGY SYSTEMS
UK INFRASTRUCTURE ROLL OUT
ITM POWER | STATION ROLL OUT
15 UK stations | 2000 kg/day by the end of 2018
UK Government plan to deploy 65 refuelling stations by 2020

17. HYDROGEN ENERGY SYSTEMS
ITM EXISTING AND PLANNED
HRS SITES
STATION LOCATIONS
HRS Provider Location
ITM Power M1, Sheffield
ITM Power
Teddington, London (under
construction)
ITM Power
Rainham, London (planning
approved)
ITM Power
Shell site in South East
(planned)
ITM Power
Shell site in South East
(planned)
ITM Power
Shell site in South East
(planned)
ITM Power South East (planned)
ITM Power UK, under negotiation
ITM Power UK, under negotiation
ITM Power UK, under negotiation
200km
Illustrative
driving range
(half tank)

18. HYDROGEN ENERGY SYSTEMS
PLANNED HRS SITES
A further 16 potential HRS sites have
been identified across the UK
• Developing a strong track record in gaining
planning permission for stations in the UK
• 16 UK HRS planning applications approved
from 10 different local authorities.
STATION LOCATIONS

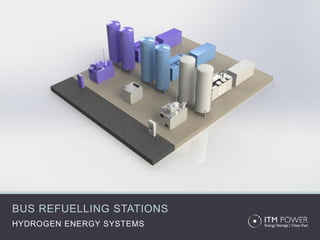

19. BUS REFUELLING STATIONS
HYDROGEN ENERGY SYSTEMS

20. ENERGY STORAGE | CLEAN FUEL
GREEN HYDROGEN
GREEN HYDROGEN
Strategy alternatives to ensure low carbon footprint
• Direct coupling AMP | EMEC | CEME
• Grid balancing NPL
• Renewable contracts Forecourts

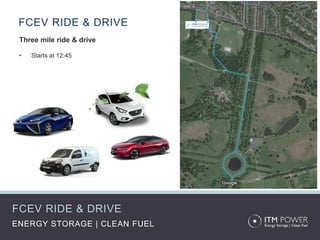

21. FCEV RIDE & DRIVE
FCEV RIDE & DRIVE
ENERGY STORAGE | CLEAN FUEL
Three mile ride & drive
• Starts at 12:45
