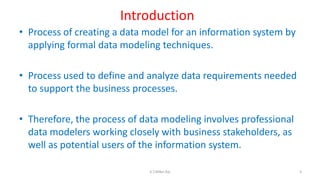

Introduction
• Process of creating a data model for an information system by
applying formal data modeling techniques.
• Process used to define and analyze data requirements needed
to support the business processes.
• Therefore, the process of data modeling involves professional
data modelers working closely with business stakeholders, as
well as potential users of the information system.
3K.T.Mikel Raj

What is Data Model?
• Data Model is a collection of conceptual tools for describing data,
data relationships, data semantics and consistency constraint.
• A data model is a conceptual representation of data structures
required for data base and is very powerful in expressing and
communicating the business requirements.
• A data model visually represents the nature of data, business rules
governing the data, and how it will be organized in the database.
4K.T.Mikel Raj

• A data model provides a way to describe the design of a
database at the physical, logical and view levels.
• There are three different types of data models produced while
progressing from requirements to the actual database to be
used for the information system
5K.T.Mikel Raj

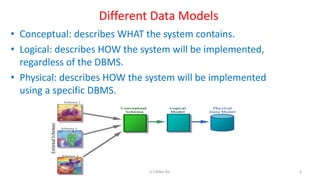

• Conceptual: describes WHAT the system contains.
• Logical: describes HOW the system will be implemented,
regardless of the DBMS.
• Physical: describes HOW the system will be implemented
using a specific DBMS.
Different Data Models
6K.T.Mikel Raj

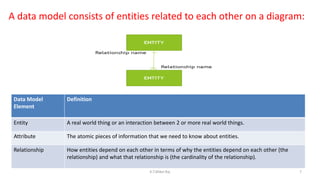

A data model consists of entities related to each other on a diagram:
Data Model
Element
Definition
Entity A real world thing or an interaction between 2 or more real world things.
Attribute The atomic pieces of information that we need to know about entities.
Relationship How entities depend on each other in terms of why the entities depend on each other (the
relationship) and what that relationship is (the cardinality of the relationship).
7K.T.Mikel Raj

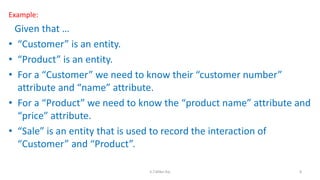

Example:
Given that …
• “Customer” is an entity.
• “Product” is an entity.
• For a “Customer” we need to know their “customer number”
attribute and “name” attribute.
• For a “Product” we need to know the “product name” attribute and
“price” attribute.
• “Sale” is an entity that is used to record the interaction of
“Customer” and “Product”.
8K.T.Mikel Raj

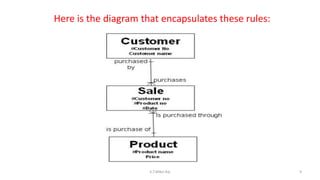

Here is the diagram that encapsulates these rules:
9K.T.Mikel Raj

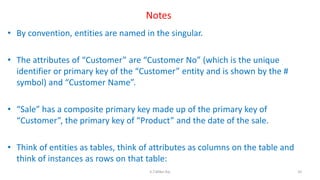

Notes
• By convention, entities are named in the singular.
• The attributes of “Customer” are “Customer No” (which is the unique
identifier or primary key of the “Customer” entity and is shown by the #
symbol) and “Customer Name”.
• “Sale” has a composite primary key made up of the primary key of
“Customer”, the primary key of “Product” and the date of the sale.
• Think of entities as tables, think of attributes as columns on the table and
think of instances as rows on that table:
10K.T.Mikel Raj

• If we want to know the price of a Sale, we can ‘find’ it by using the “Product
Code” on the instance of “Sale” we are interested in and look up the
corresponding “Price” on the “Product” entity with the matching “Product
Code”.
11K.T.Mikel Raj

Types of Data Models
• Entity-Relationship (E-R) Models
• UML (unified modeling language)
12K.T.Mikel Raj

Entity-Relationship Model
• Entity Relationship Diagrams (ERD) as this is the most widely used
• ERDs have an advantage in that they are capable of being normalized
• Represent entities as rectangles
• List attributes within the rectangle
UniversityStudent
PK StudentID
StudentName
StudentDOB
StudentAge
Entity
Attributes
Primary key
13K.T.Mikel Raj

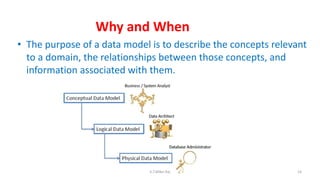

Why and When
• The purpose of a data model is to describe the concepts relevant
to a domain, the relationships between those concepts, and
information associated with them.
14K.T.Mikel Raj

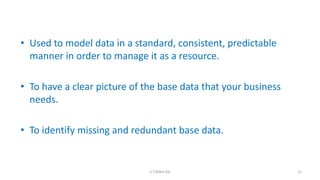

• Used to model data in a standard, consistent, predictable
manner in order to manage it as a resource.
• To have a clear picture of the base data that your business
needs.
• To identify missing and redundant base data.

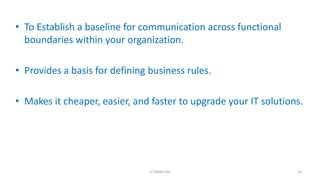

15K.T.Mikel Raj

• To Establish a baseline for communication across functional
boundaries within your organization.
• Provides a basis for defining business rules.
• Makes it cheaper, easier, and faster to upgrade your IT solutions.
16K.T.Mikel Raj

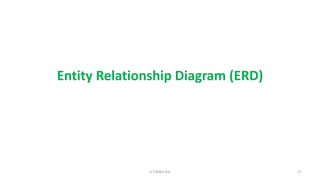

Entity Relationship Diagram (ERD)
17K.T.Mikel Raj

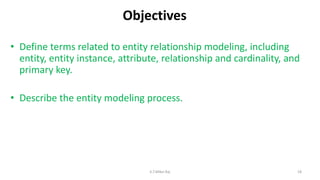

Objectives
• Define terms related to entity relationship modeling, including
entity, entity instance, attribute, relationship and cardinality, and
primary key.
• Describe the entity modeling process.
18K.T.Mikel Raj

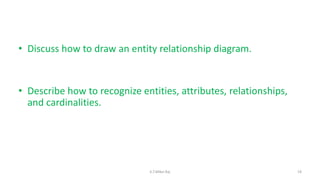

• Discuss how to draw an entity relationship diagram.
• Describe how to recognize entities, attributes, relationships,
and cardinalities.
19K.T.Mikel Raj

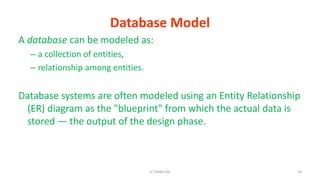

Database Model
A database can be modeled as:
– a collection of entities,
– relationship among entities.
Database systems are often modeled using an Entity Relationship
(ER) diagram as the "blueprint" from which the actual data is
stored — the output of the design phase.
20K.T.Mikel Raj

Entity Relationship Diagram (ERD)

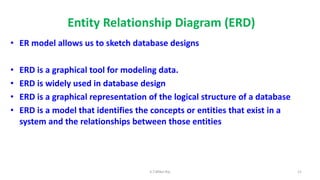

• ER model allows us to sketch database designs
• ERD is a graphical tool for modeling data.
• ERD is widely used in database design
• ERD is a graphical representation of the logical structure of a database
• ERD is a model that identifies the concepts or entities that exist in a
system and the relationships between those entities
21K.T.Mikel Raj

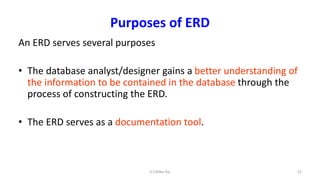

Purposes of ERD
An ERD serves several purposes
• The database analyst/designer gains a better understanding of
the information to be contained in the database through the
process of constructing the ERD.
• The ERD serves as a documentation tool.
22K.T.Mikel Raj

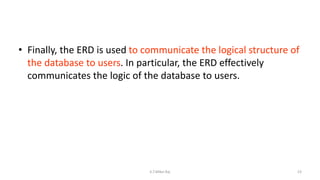

• Finally, the ERD is used to communicate the logical structure of
the database to users. In particular, the ERD effectively
communicates the logic of the database to users.
23K.T.Mikel Raj

Components of an ERD
An ERD typically consists of four different graphical components:
1. Entity
2. Relationship
3. Cardinality
4. Attribute
24K.T.Mikel Raj

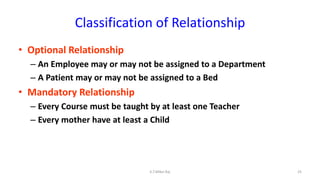

Classification of Relationship
• Optional Relationship
– An Employee may or may not be assigned to a Department
– A Patient may or may not be assigned to a Bed
• Mandatory Relationship
– Every Course must be taught by at least one Teacher
– Every mother have at least a Child
25K.T.Mikel Raj

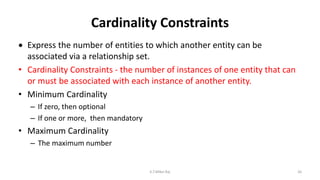

Cardinality Constraints
 Express the number of entities to which another entity can be
associated via a relationship set.
• Cardinality Constraints - the number of instances of one entity that can
or must be associated with each instance of another entity.
• Minimum Cardinality
– If zero, then optional
– If one or more, then mandatory
• Maximum Cardinality
– The maximum number
26K.T.Mikel Raj

Cardinality Constraints (Contd.)

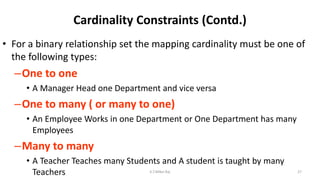

• For a binary relationship set the mapping cardinality must be one of
the following types:
–One to one
• A Manager Head one Department and vice versa
–One to many ( or many to one)
• An Employee Works in one Department or One Department has many
Employees
–Many to many
• A Teacher Teaches many Students and A student is taught by many
Teachers 27K.T.Mikel Raj

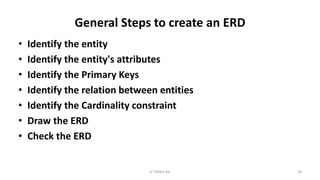

General Steps to create an ERD
• Identify the entity
• Identify the entity's attributes
• Identify the Primary Keys
• Identify the relation between entities
• Identify the Cardinality constraint
• Draw the ERD
• Check the ERD
28K.T.Mikel Raj

Steps in building an ERD
29K.T.Mikel Raj

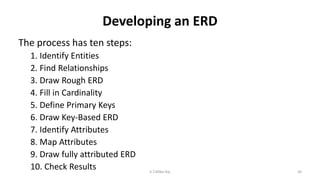

Developing an ERD
The process has ten steps:
1. Identify Entities
2. Find Relationships
3. Draw Rough ERD
4. Fill in Cardinality
5. Define Primary Keys
6. Draw Key-Based ERD
7. Identify Attributes
8. Map Attributes

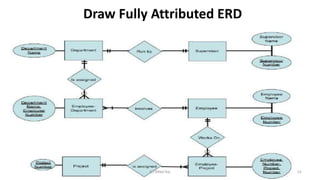

9. Draw fully attributed ERD
10. Check Results 30K.T.Mikel Raj

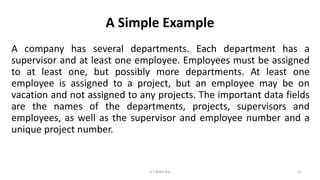

A Simple Example
A company has several departments. Each department has a
supervisor and at least one employee. Employees must be assigned
to at least one, but possibly more departments. At least one
employee is assigned to a project, but an employee may be on
vacation and not assigned to any projects. The important data fields
are the names of the departments, projects, supervisors and
employees, as well as the supervisor and employee number and a
unique project number.
31K.T.Mikel Raj

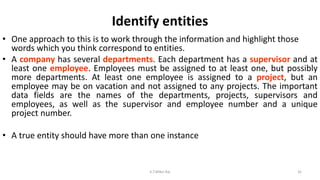

Identify entities
• One approach to this is to work through the information and highlight those
words which you think correspond to entities.
• A company has several departments. Each department has a supervisor and at
least one employee. Employees must be assigned to at least one, but possibly
more departments. At least one employee is assigned to a project, but an
employee may be on vacation and not assigned to any projects. The important
data fields are the names of the departments, projects, supervisors and
employees, as well as the supervisor and employee number and a unique
project number.
• A true entity should have more than one instance
32K.T.Mikel Raj

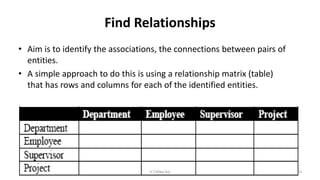

Find Relationships
• Aim is to identify the associations, the connections between pairs of
entities.
• A simple approach to do this is using a relationship matrix (table)
that has rows and columns for each of the identified entities.
33K.T.Mikel Raj

Find Relationships (Contd.)

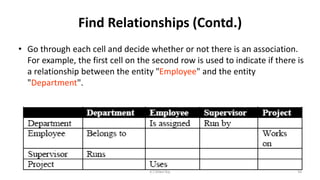

• Go through each cell and decide whether or not there is an association.
For example, the first cell on the second row is used to indicate if there is
a relationship between the entity "Employee" and the entity
"Department".
34K.T.Mikel Raj

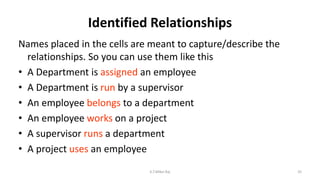

Identified Relationships
Names placed in the cells are meant to capture/describe the
relationships. So you can use them like this
• A Department is assigned an employee
• A Department is run by a supervisor
• An employee belongs to a department
• An employee works on a project
• A supervisor runs a department
• A project uses an employee
35K.T.Mikel Raj

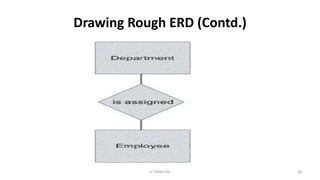

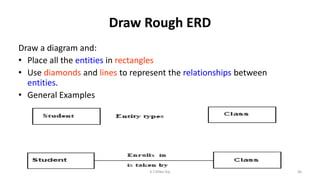

Draw Rough ERD
Draw a diagram and:
• Place all the entities in rectangles
• Use diamonds and lines to represent the relationships between
entities.
• General Examples
36K.T.Mikel Raj

Drawing Rough ERD (Contd.)
37K.T.Mikel Raj

38K.T.Mikel Raj

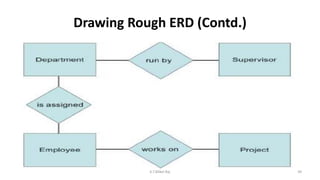

39K.T.Mikel Raj

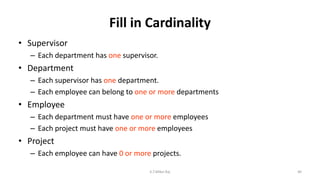

Fill in Cardinality
• Supervisor
– Each department has one supervisor.
• Department
– Each supervisor has one department.
– Each employee can belong to one or more departments
• Employee
– Each department must have one or more employees
– Each project must have one or more employees
• Project
– Each employee can have 0 or more projects.
40K.T.Mikel Raj

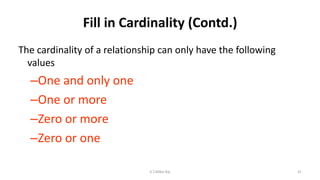

Fill in Cardinality (Contd.)
The cardinality of a relationship can only have the following
values
–One and only one
–One or more
–Zero or more
–Zero or one
41K.T.Mikel Raj

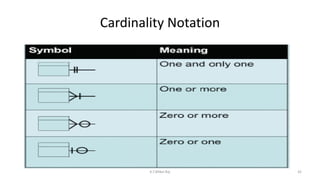

Cardinality Notation
42K.T.Mikel Raj

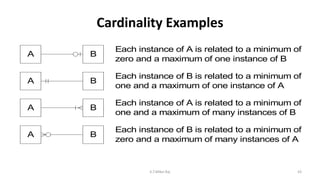

Cardinality Examples
A
A
A
A
B
B
B
B
Each instance of A is related to a minimum of
zero and a maximum of one instance of B
Each instance of B is related to a minimum of
one and a maximum of one instance of A
Each instance of A is related to a minimum of
one and a maximum of many instances of B
Each instance of B is related to a minimum of
zero and a maximum of many instances of A
43K.T.Mikel Raj

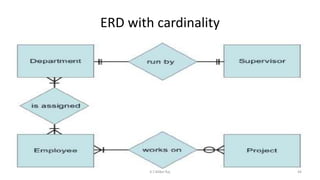

ERD with cardinality
44K.T.Mikel Raj

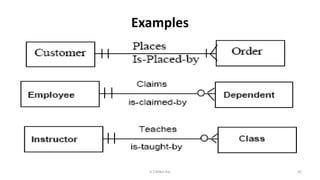

ERD for Course Enrollment
46K.T.Mikel Raj

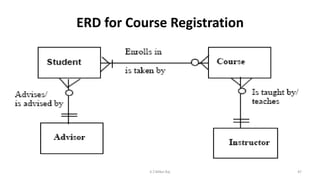

ERD for Course Registration
47K.T.Mikel Raj

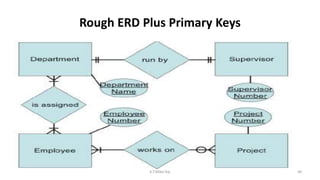

Rough ERD Plus Primary Keys
48K.T.Mikel Raj

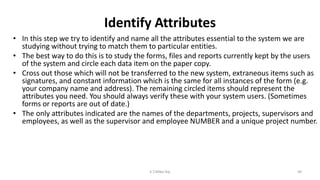

Identify Attributes
• In this step we try to identify and name all the attributes essential to the system we are
studying without trying to match them to particular entities.
• The best way to do this is to study the forms, files and reports currently kept by the users
of the system and circle each data item on the paper copy.
• Cross out those which will not be transferred to the new system, extraneous items such as
signatures, and constant information which is the same for all instances of the form (e.g.
your company name and address). The remaining circled items should represent the
attributes you need. You should always verify these with your system users. (Sometimes
forms or reports are out of date.)
• The only attributes indicated are the names of the departments, projects, supervisors and
employees, as well as the supervisor and employee NUMBER and a unique project number.
49K.T.Mikel Raj

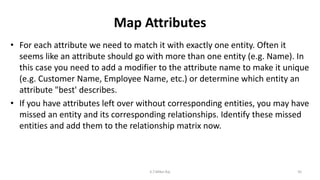

Map Attributes
• For each attribute we need to match it with exactly one entity. Often it
seems like an attribute should go with more than one entity (e.g. Name). In
this case you need to add a modifier to the attribute name to make it unique
(e.g. Customer Name, Employee Name, etc.) or determine which entity an
attribute "best' describes.
• If you have attributes left over without corresponding entities, you may have
missed an entity and its corresponding relationships. Identify these missed
entities and add them to the relationship matrix now.
50K.T.Mikel Raj

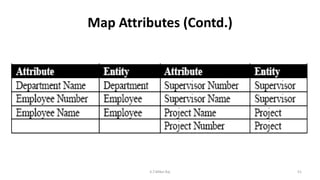

Map Attributes (Contd.)
51K.T.Mikel Raj

Draw Fully Attributed ERD
52K.T.Mikel Raj

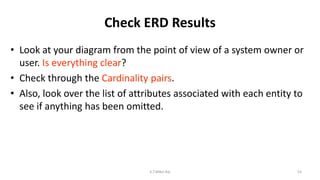

Check ERD Results
• Look at your diagram from the point of view of a system owner or
user. Is everything clear?
• Check through the Cardinality pairs.
• Also, look over the list of attributes associated with each entity to
see if anything has been omitted.
53K.T.Mikel Raj

Java Database Connectivity (JDBC)
54K.T.Mikel Raj

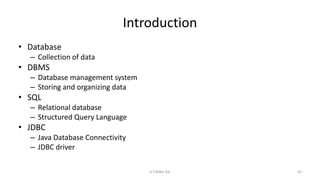

Introduction
• Database
– Collection of data
• DBMS
– Database management system
– Storing and organizing data
• SQL
– Relational database
– Structured Query Language
• JDBC
– Java Database Connectivity
– JDBC driver
55K.T.Mikel Raj

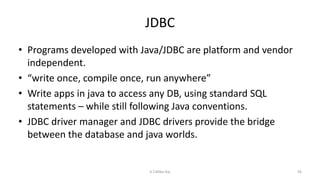

JDBC
• Programs developed with Java/JDBC are platform and vendor
independent.
• “write once, compile once, run anywhere”
• Write apps in java to access any DB, using standard SQL
statements – while still following Java conventions.
• JDBC driver manager and JDBC drivers provide the bridge
between the database and java worlds.
56K.T.Mikel Raj

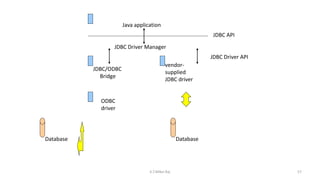

Java application
JDBC Driver Manager
JDBC/ODBC
Bridge
vendor-
supplied
JDBC driver
ODBC
driver
DatabaseDatabase
JDBC API
JDBC Driver API
57K.T.Mikel Raj

ODBC
• JDBC heavily influenced by ODBC
• ODBC provides a C interface for database access on Windows
environment.
• ODBC has a few commands with lots of complex options. Java
prefers simple methods but lots of them.
58K.T.Mikel Raj

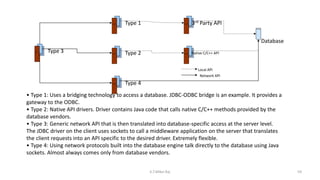

• Type 1: Uses a bridging technology to access a database. JDBC-ODBC bridge is an example. It provides a
gateway to the ODBC.
• Type 2: Native API drivers. Driver contains Java code that calls native C/C++ methods provided by the
database vendors.
• Type 3: Generic network API that is then translated into database-specific access at the server level.
The JDBC driver on the client uses sockets to call a middleware application on the server that translates
the client requests into an API specific to the desired driver. Extremely flexible.
• Type 4: Using network protocols built into the database engine talk directly to the database using Java
sockets. Almost always comes only from database vendors.
Type 3
Type 1
Type 2
Type 4
3rd Party API
Native C/C++ API
Database
Local API
Network API
59K.T.Mikel Raj

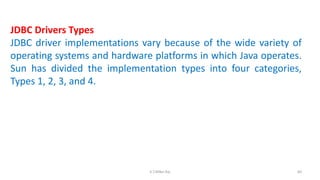

JDBC Drivers Types
JDBC driver implementations vary because of the wide variety of
operating systems and hardware platforms in which Java operates.
Sun has divided the implementation types into four categories,
Types 1, 2, 3, and 4.
60K.T.Mikel Raj

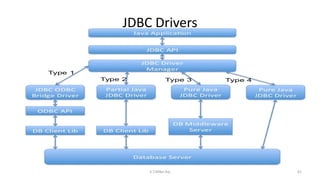

Common JDBC Components
The JDBC API provides the following interfaces and classes −
DriverManager:
This class manages a list of database drivers.
 Matches connection requests from the java application with the proper database
driver using communication sub protocol.
 The first driver that recognizes a certain subprotocol under JDBC will be used to
establish a database Connection.
.
62K.T.Mikel Raj

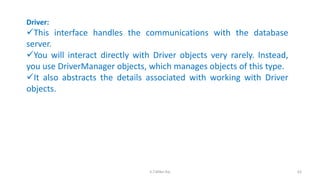

Driver:
This interface handles the communications with the database
server.
You will interact directly with Driver objects very rarely. Instead,
you use DriverManager objects, which manages objects of this type.
It also abstracts the details associated with working with Driver
objects.
63K.T.Mikel Raj

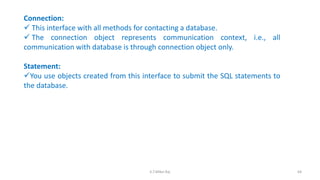

Connection:
 This interface with all methods for contacting a database.
 The connection object represents communication context, i.e., all
communication with database is through connection object only.
Statement:
You use objects created from this interface to submit the SQL statements to
the database.
64K.T.Mikel Raj

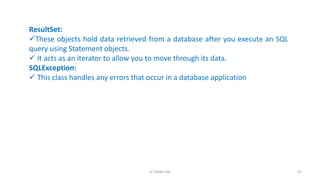

ResultSet:
These objects hold data retrieved from a database after you execute an SQL
query using Statement objects.
 It acts as an iterator to allow you to move through its data.
SQLException:
 This class handles any errors that occur in a database application
65K.T.Mikel Raj

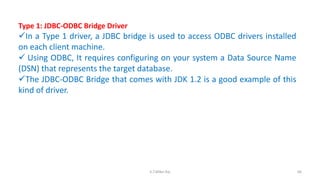

Type 1: JDBC-ODBC Bridge Driver
In a Type 1 driver, a JDBC bridge is used to access ODBC drivers installed
on each client machine.
 Using ODBC, It requires configuring on your system a Data Source Name
(DSN) that represents the target database.
The JDBC-ODBC Bridge that comes with JDK 1.2 is a good example of this
kind of driver.
66K.T.Mikel Raj

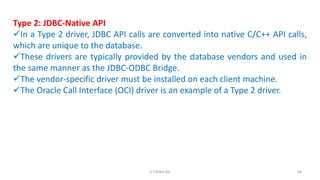

Type 2: JDBC-Native API
In a Type 2 driver, JDBC API calls are converted into native C/C++ API calls,
which are unique to the database.
These drivers are typically provided by the database vendors and used in
the same manner as the JDBC-ODBC Bridge.
The vendor-specific driver must be installed on each client machine.
The Oracle Call Interface (OCI) driver is an example of a Type 2 driver.
68K.T.Mikel Raj

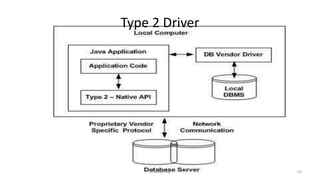

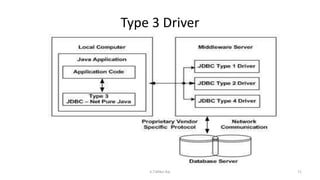

Type 3: JDBC-Net pure Java
In a Type 3 driver, a three-tier approach is used to access databases.
The JDBC clients use standard network sockets to communicate with a
middleware application server.
 The socket information is then translated by the middleware application
server into the call format required by the DBMS, and forwarded to the
database server.
70K.T.Mikel Raj

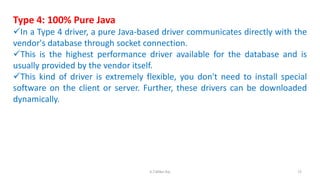

Type 4: 100% Pure Java
In a Type 4 driver, a pure Java-based driver communicates directly with the
vendor's database through socket connection.
This is the highest performance driver available for the database and is
usually provided by the vendor itself.
This kind of driver is extremely flexible, you don't need to install special
software on the client or server. Further, these drivers can be downloaded
dynamically.
72K.T.Mikel Raj

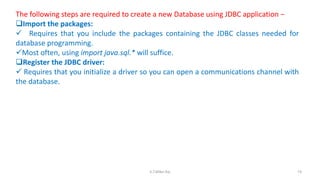

The following steps are required to create a new Database using JDBC application −
Import the packages:
 Requires that you include the packages containing the JDBC classes needed for
database programming.
Most often, using import java.sql.* will suffice.
Register the JDBC driver:
 Requires that you initialize a driver so you can open a communications channel with
the database.
74K.T.Mikel Raj

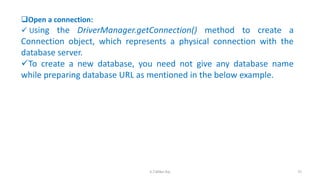

Open a connection:
 Using the DriverManager.getConnection() method to create a
Connection object, which represents a physical connection with the
database server.
To create a new database, you need not give any database name
while preparing database URL as mentioned in the below example.
75K.T.Mikel Raj

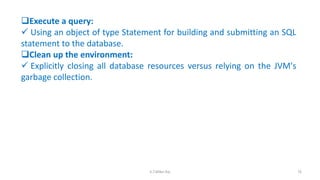

Execute a query:
 Using an object of type Statement for building and submitting an SQL
statement to the database.
Clean up the environment:
 Explicitly closing all database resources versus relying on the JVM's
garbage collection.
76K.T.Mikel Raj

STORED PROCEDURES
77K.T.Mikel Raj

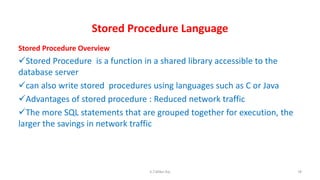

Stored Procedure Language
Stored Procedure Overview
Stored Procedure is a function in a shared library accessible to the
database server
can also write stored procedures using languages such as C or Java
Advantages of stored procedure : Reduced network traffic
The more SQL statements that are grouped together for execution, the
larger the savings in network traffic
78K.T.Mikel Raj

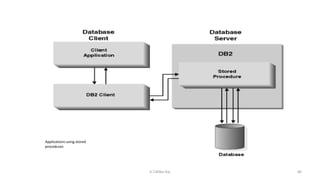

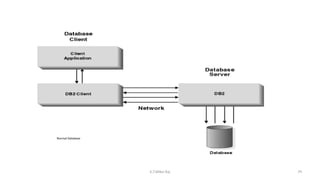

Normal Database
79K.T.Mikel Raj

Applications using stored
procedures
80K.T.Mikel Raj

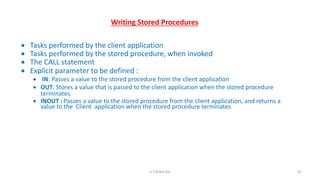

Writing Stored Procedures
 Tasks performed by the client application
 Tasks performed by the stored procedure, when invoked
 The CALL statement
 Explicit parameter to be defined :
 IN: Passes a value to the stored procedure from the client application
 OUT: Stores a value that is passed to the client application when the stored procedure
terminates.
 INOUT : Passes a value to the stored procedure from the client application, and returns a
value to the Client application when the stored procedure terminates
81K.T.Mikel Raj

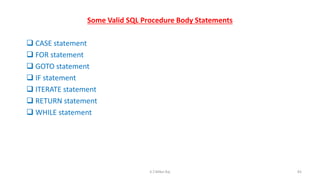

Some Valid SQL Procedure Body Statements
 CASE statement
 FOR statement
 GOTO statement
 IF statement
 ITERATE statement
 RETURN statement
 WHILE statement
82K.T.Mikel Raj

 Invoking Procedures
Can invoke Stored procedure stored at the location of the database by using the SQL CALL
statement
 Nested SQL Procedures:
To call a target SQL procedure from within a caller SQL procedure, simply include a CALL
statement with the appropriate number and types of parameters in your caller.
83K.T.Mikel Raj

CONDITIONAL STATEMENTS:
IF <condition> THEN
<statement(s)>
ELSE
<statement(s)>
END IF;
Loops
LOOP
……
EXIT WHEN <condition>
……
END LOOP;
84K.T.Mikel Raj

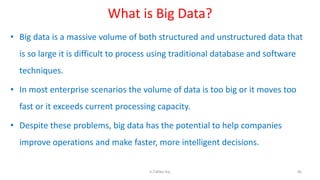

What is Big Data?
• Big data is a massive volume of both structured and unstructured data that
is so large it is difficult to process using traditional database and software
techniques.
• In most enterprise scenarios the volume of data is too big or it moves too
fast or it exceeds current processing capacity.
• Despite these problems, big data has the potential to help companies
improve operations and make faster, more intelligent decisions.
86K.T.Mikel Raj

Why Big Data
Key enablers of appearance and growth of Big Data are
 Increase of storage capacities
 Increase of processing power
 Availability of data
 Every day we create 2.5 quintillion bytes of data; 90% of the data in the world
today has been created in the last two years alone
87K.T.Mikel Raj

Big Data Everywhere!
• Lots of data is being collected
and warehoused
– Web data, e-commerce
– purchases at department/
grocery stores
– Bank/Credit Card
transactions
– Social Network
88K.T.Mikel Raj

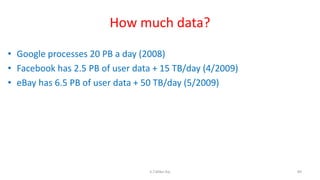

How much data?
• Google processes 20 PB a day (2008)
• Facebook has 2.5 PB of user data + 15 TB/day (4/2009)
• eBay has 6.5 PB of user data + 50 TB/day (5/2009)
89K.T.Mikel Raj

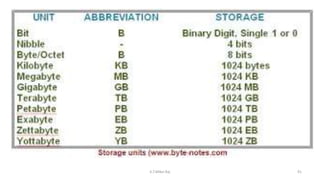

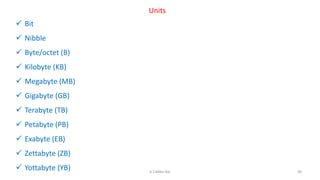

Units
 Bit
 Nibble
 Byte/octet (B)
 Kilobyte (KB)
 Megabyte (MB)
 Gigabyte (GB)
 Terabyte (TB)
 Petabyte (PB)
 Exabyte (EB)
 Zettabyte (ZB)
 Yottabyte (YB) 90K.T.Mikel Raj

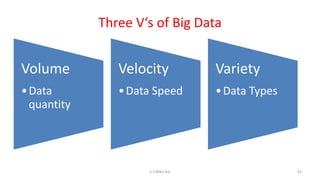

Three V‘s of Big Data
Volume
•Data
quantity
Velocity
•Data Speed
Variety
•Data Types
92K.T.Mikel Raj

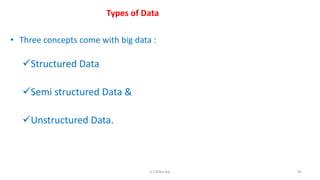

Types of Data
• Three concepts come with big data :
Structured Data
Semi structured Data &
Unstructured Data.
93K.T.Mikel Raj

Structured Data
 It concerns all data which can be stored in database SQL in table with
rows and columns.
 They have relational key and can be easily mapped into pre-designed fields.
 Today, those data’s are the most processed in development and the simplest
way to manage information.
 But structured data’s represent only 5 to 10% of all informatics data’s.
94K.T.Mikel Raj

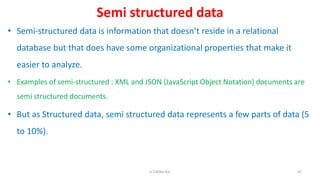

Semi structured data
• Semi-structured data is information that doesn’t reside in a relational
database but that does have some organizational properties that make it
easier to analyze.
• Examples of semi-structured : XML and JSON (JavaScript Object Notation) documents are
semi structured documents.
• But as Structured data, semi structured data represents a few parts of data (5
to 10%).
95K.T.Mikel Raj

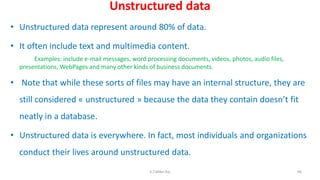

Unstructured data
• Unstructured data represent around 80% of data.
• It often include text and multimedia content.
Examples: include e-mail messages, word processing documents, videos, photos, audio files,
presentations, WebPages and many other kinds of business documents.
• Note that while these sorts of files may have an internal structure, they are
still considered « unstructured » because the data they contain doesn’t fit
neatly in a database.
• Unstructured data is everywhere. In fact, most individuals and organizations
conduct their lives around unstructured data.
96K.T.Mikel Raj

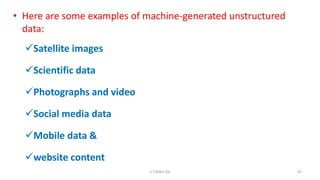

• Here are some examples of machine-generated unstructured
data:
Satellite images
Scientific data
Photographs and video
Social media data
Mobile data &
website content
97K.T.Mikel Raj

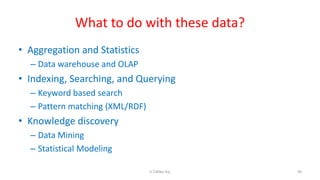

What to do with these data?
• Aggregation and Statistics
– Data warehouse and OLAP
• Indexing, Searching, and Querying
– Keyword based search
– Pattern matching (XML/RDF)
• Knowledge discovery
– Data Mining
– Statistical Modeling
98K.T.Mikel Raj

Examples of Big Data

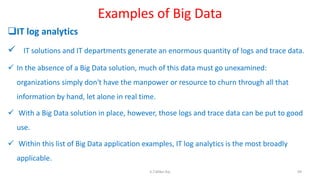

IT log analytics
 IT solutions and IT departments generate an enormous quantity of logs and trace data.
 In the absence of a Big Data solution, much of this data must go unexamined:
organizations simply don't have the manpower or resource to churn through all that
information by hand, let alone in real time.
 With a Big Data solution in place, however, those logs and trace data can be put to good
use.
 Within this list of Big Data application examples, IT log analytics is the most broadly
applicable.
99K.T.Mikel Raj

Applications for Big Data Analytics
Homeland Security
FinanceSmarter Healthcare
Multi-channel sales
Telecom
Manufacturing
Traffic Control
Trading Analytics Fraud and Risk
Log Analysis
Search Quality
Retail: Churn, NBO
100K.T.Mikel Raj

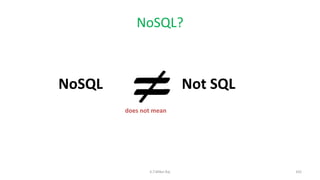

NoSQL?
NoSQL Not SQL
does not mean
102K.T.Mikel Raj

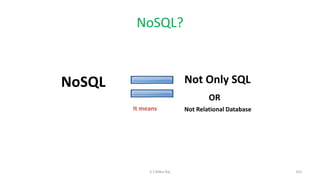

NoSQL?
NoSQL Not Only SQL
OR
Not Relational DatabaseIt means
103K.T.Mikel Raj

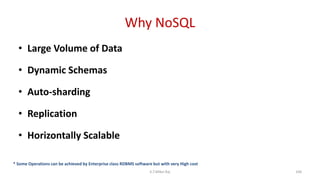

Why NoSQL
• Large Volume of Data
• Dynamic Schemas
• Auto-sharding
• Replication
• Horizontally Scalable
* Some Operations can be achieved by Enterprise class RDBMS software but with very High cost
104K.T.Mikel Raj

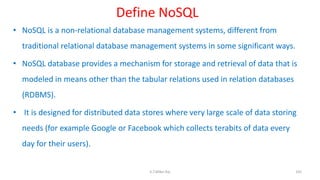

Define NoSQL
• NoSQL is a non-relational database management systems, different from
traditional relational database management systems in some significant ways.
• NoSQL database provides a mechanism for storage and retrieval of data that is
modeled in means other than the tabular relations used in relation databases
(RDBMS).
• It is designed for distributed data stores where very large scale of data storing
needs (for example Google or Facebook which collects terabits of data every
day for their users).
105K.T.Mikel Raj

Types of NoSQL Databases
NoSQL Databases
Document Stores Graph Databases Key-Value Stores
Columnar
Databases
106K.T.Mikel Raj

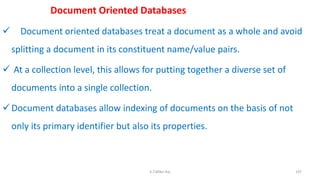

Document Oriented Databases
 Document oriented databases treat a document as a whole and avoid
splitting a document in its constituent name/value pairs.
 At a collection level, this allows for putting together a diverse set of
documents into a single collection.
Document databases allow indexing of documents on the basis of not
only its primary identifier but also its properties.
107K.T.Mikel Raj

Cont…

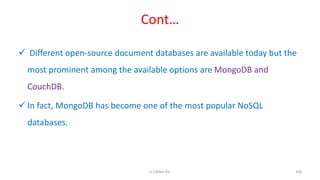

 Different open-source document databases are available today but the
most prominent among the available options are MongoDB and
CouchDB.
 In fact, MongoDB has become one of the most popular NoSQL
databases.
108K.T.Mikel Raj

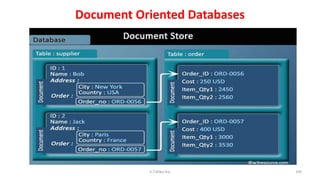

Document Oriented Databases
109K.T.Mikel Raj

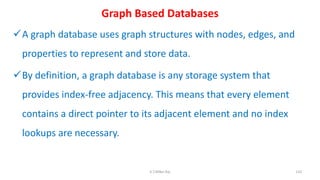

Graph Based Databases
A graph database uses graph structures with nodes, edges, and
properties to represent and store data.
By definition, a graph database is any storage system that
provides index-free adjacency. This means that every element
contains a direct pointer to its adjacent element and no index
lookups are necessary.
110K.T.Mikel Raj

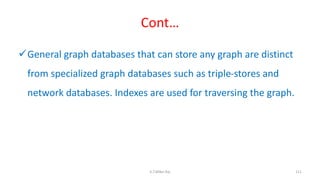

Cont…
General graph databases that can store any graph are distinct
from specialized graph databases such as triple-stores and
network databases. Indexes are used for traversing the graph.
111K.T.Mikel Raj

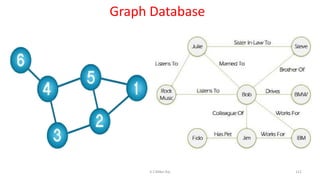

Graph Database
112K.T.Mikel Raj

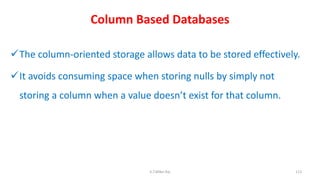

Column Based Databases
The column-oriented storage allows data to be stored effectively.
It avoids consuming space when storing nulls by simply not
storing a column when a value doesn’t exist for that column.
113K.T.Mikel Raj

Cont…
Each unit of data can be thought of as a set of key/value pairs,
where the unit itself is identified with the help of a primary
identifier, often referred to as the primary key.
114K.T.Mikel Raj

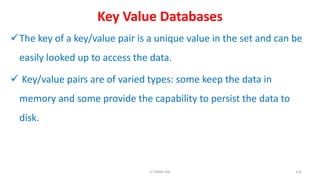

Key Value Databases
The key of a key/value pair is a unique value in the set and can be
easily looked up to access the data.
 Key/value pairs are of varied types: some keep the data in
memory and some provide the capability to persist the data to
disk.
116K.T.Mikel Raj

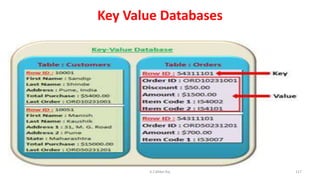

Key Value Databases
117K.T.Mikel Raj

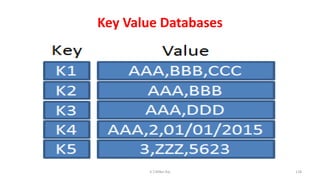

Key Value Databases
118K.T.Mikel Raj

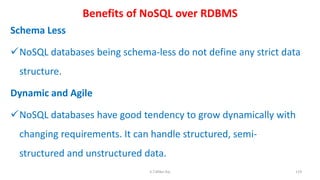

Benefits of NoSQL over RDBMS
Schema Less
NoSQL databases being schema-less do not define any strict data
structure.
Dynamic and Agile
NoSQL databases have good tendency to grow dynamically with
changing requirements. It can handle structured, semi-
structured and unstructured data.
119K.T.Mikel Raj

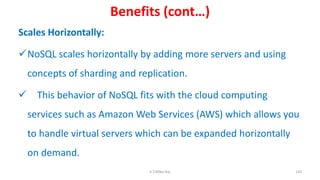

Benefits (cont…)
Scales Horizontally:
NoSQL scales horizontally by adding more servers and using
concepts of sharding and replication.
 This behavior of NoSQL fits with the cloud computing
services such as Amazon Web Services (AWS) which allows you
to handle virtual servers which can be expanded horizontally
on demand.
120K.T.Mikel Raj

Benefits (cont…)

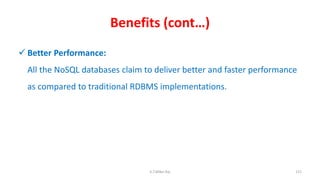

 Better Performance:
All the NoSQL databases claim to deliver better and faster performance
as compared to traditional RDBMS implementations.
121K.T.Mikel Raj

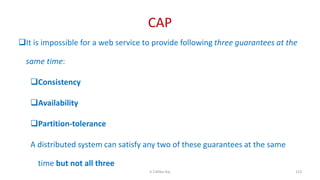

CAP
It is impossible for a web service to provide following three guarantees at the
same time:
Consistency
Availability
Partition-tolerance
A distributed system can satisfy any two of these guarantees at the same
time but not all three
123K.T.Mikel Raj

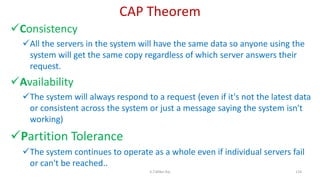

CAP Theorem
Consistency
All the servers in the system will have the same data so anyone using the
system will get the same copy regardless of which server answers their
request.
Availability
The system will always respond to a request (even if it's not the latest data
or consistent across the system or just a message saying the system isn't
working)
Partition Tolerance
The system continues to operate as a whole even if individual servers fail
or can't be reached..
124K.T.Mikel Raj

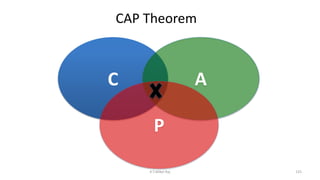

CAP Theorem
C A
P
125K.T.Mikel Raj

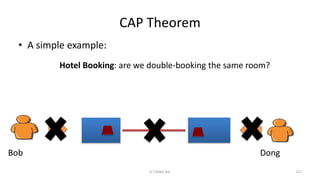

CAP Theorem

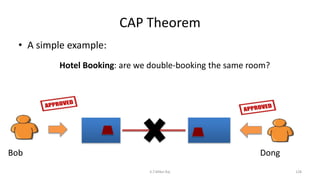

• A simple example:
Hotel Booking: are we double-booking the same room?
Bob Dong
126K.T.Mikel Raj

CAP Theorem
Bob Dong
127K.T.Mikel Raj

CAP Theorem
Bob Dong
128K.T.Mikel Raj

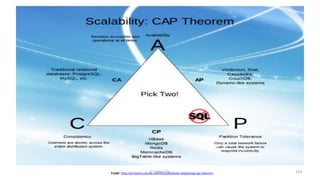

Credit: http://architects.dzone.com/articles/better-explaining-cap-theorem 129K.T.Mikel Raj

Choosing AP
Credit: https://foundationdb.com/key-value-store/white-papers/the-cap-theorem 130K.T.Mikel Raj

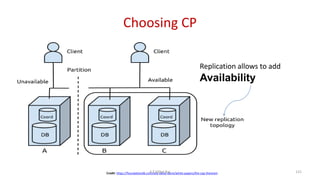

Choosing CP
Credit: https://foundationdb.com/key-value-store/white-papers/the-cap-theorem
Replication allows to add
Availability
131K.T.Mikel Raj

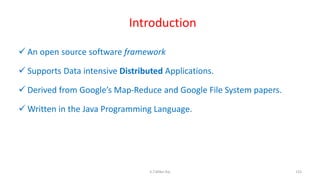

Introduction
 An open source software framework
 Supports Data intensive Distributed Applications.
 Derived from Google’s Map-Reduce and Google File System papers.
 Written in the Java Programming Language.
133K.T.Mikel Raj

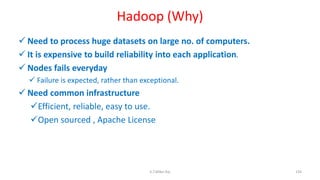

Hadoop (Why)
 Need to process huge datasets on large no. of computers.
 It is expensive to build reliability into each application.
 Nodes fails everyday
 Failure is expected, rather than exceptional.
 Need common infrastructure
Efficient, reliable, easy to use.
Open sourced , Apache License
134K.T.Mikel Raj

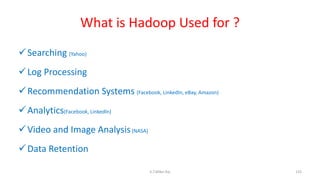

What is Hadoop Used for ?
Searching (Yahoo)
Log Processing
Recommendation Systems (Facebook, LinkedIn, eBay, Amazon)
Analytics(Facebook, LinkedIn)
Video and Image Analysis(NASA)
Data Retention
135K.T.Mikel Raj

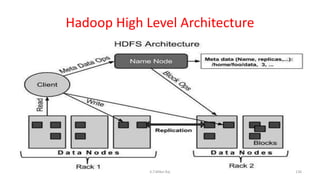

Hadoop High Level Architecture
136K.T.Mikel Raj

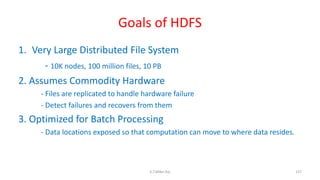

Goals of HDFS
1. Very Large Distributed File System
- 10K nodes, 100 million files, 10 PB
2. Assumes Commodity Hardware
- Files are replicated to handle hardware failure
- Detect failures and recovers from them
3. Optimized for Batch Processing
- Data locations exposed so that computation can move to where data resides.
137K.T.Mikel Raj

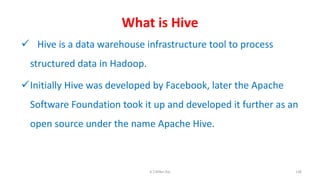

What is Hive
 Hive is a data warehouse infrastructure tool to process
structured data in Hadoop.
Initially Hive was developed by Facebook, later the Apache
Software Foundation took it up and developed it further as an
open source under the name Apache Hive.
138K.T.Mikel Raj

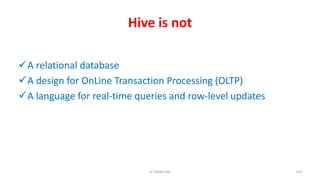

Hive is not
A relational database
A design for OnLine Transaction Processing (OLTP)
A language for real-time queries and row-level updates
139K.T.Mikel Raj

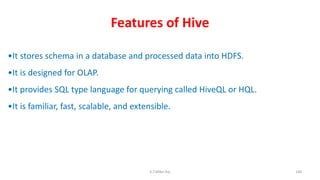

Features of Hive
140
•It stores schema in a database and processed data into HDFS.
•It is designed for OLAP.
•It provides SQL type language for querying called HiveQL or HQL.
•It is familiar, fast, scalable, and extensible.
K.T.Mikel Raj

Architecture of Hive

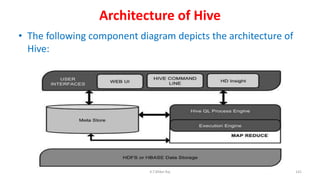

• The following component diagram depicts the architecture of
Hive:
141K.T.Mikel Raj

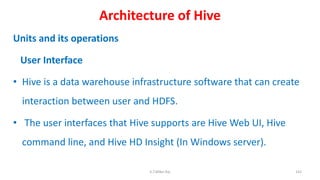

Architecture of Hive
Units and its operations
User Interface
• Hive is a data warehouse infrastructure software that can create
interaction between user and HDFS.
• The user interfaces that Hive supports are Hive Web UI, Hive
command line, and Hive HD Insight (In Windows server).
142K.T.Mikel Raj

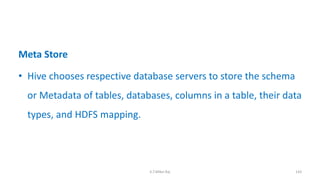

Meta Store
• Hive chooses respective database servers to store the schema
or Metadata of tables, databases, columns in a table, their data
types, and HDFS mapping.
143K.T.Mikel Raj

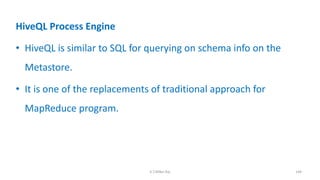

HiveQL Process Engine
• HiveQL is similar to SQL for querying on schema info on the
Metastore.
• It is one of the replacements of traditional approach for
MapReduce program.
144K.T.Mikel Raj

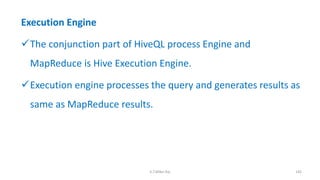

Execution Engine
The conjunction part of HiveQL process Engine and
MapReduce is Hive Execution Engine.
Execution engine processes the query and generates results as
same as MapReduce results.
145K.T.Mikel Raj

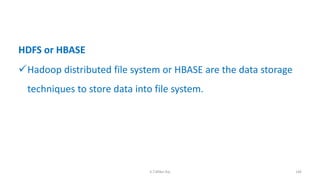

HDFS or HBASE
Hadoop distributed file system or HBASE are the data storage
techniques to store data into file system.
146K.T.Mikel Raj

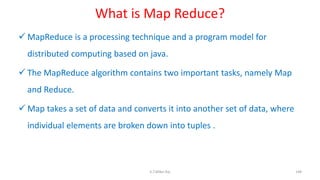

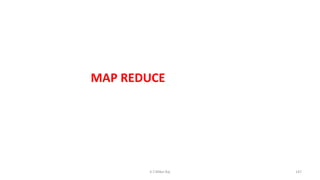

What is Map Reduce?
 MapReduce is a processing technique and a program model for
distributed computing based on java.
 The MapReduce algorithm contains two important tasks, namely Map
and Reduce.
 Map takes a set of data and converts it into another set of data, where
individual elements are broken down into tuples .
148K.T.Mikel Raj

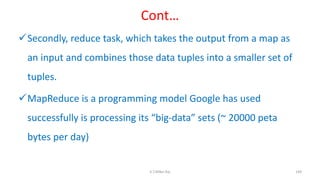

Cont…
Secondly, reduce task, which takes the output from a map as
an input and combines those data tuples into a smaller set of
tuples.
MapReduce is a programming model Google has used
successfully is processing its “big-data” sets (~ 20000 peta
bytes per day)
149K.T.Mikel Raj

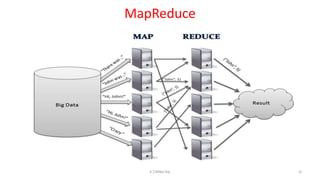

What is Map Reduce? Cont…
Users specify the computation in terms of a map and a reduce function,
Underlying runtime system automatically parallelizes the computation across
large-scale clusters of machines, and
Underlying system also handles machine failures, efficient communications, and
performance issues.
150K.T.Mikel Raj

Map stage

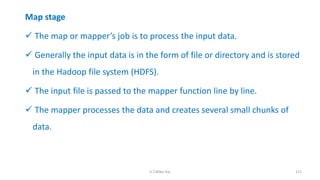

 The map or mapper’s job is to process the input data.
 Generally the input data is in the form of file or directory and is stored
in the Hadoop file system (HDFS).
 The input file is passed to the mapper function line by line.
 The mapper processes the data and creates several small chunks of
data.
151K.T.Mikel Raj

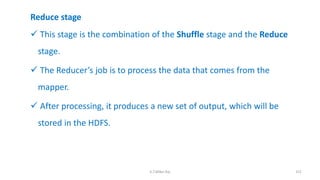

Reduce stage
 This stage is the combination of the Shuffle stage and the Reduce
stage.
 The Reducer’s job is to process the data that comes from the
mapper.
 After processing, it produces a new set of output, which will be
stored in the HDFS.
152K.T.Mikel Raj

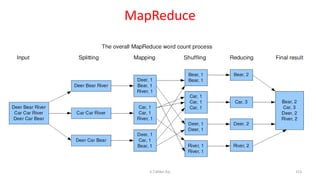

Thank ‘U’
155K.T.Mikel Raj

IT6701 Information Management Unit-I

More Related Content

What's hot

Viewers also liked

Similar to IT6701 Information Management Unit-I

Recently uploaded

IT6701 Information Management Unit-I
