Trans Data Management provides railway communication and station management solutions. They were originally established to distribute Ascom infrastructure operator systems and later acquired Ascom's division. Their solutions include operational telecom, emergency call systems, public address, CCTV integration, and help points installed on various railway networks globally such as London Underground, Swiss Federal Railways, and Eurotunnel.

1. Solutions Overview
Trans Data Management
www.trans-data.ch

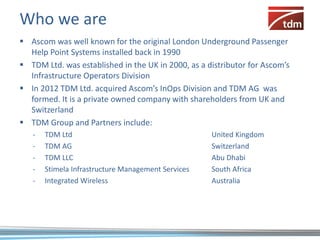

2. Who we are
 Ascom was well known for the original London Underground Passenger
Help Point Systems installed back in 1990
 TDM Ltd. was established in the UK in 2000, as a distributor for Ascom’s
Infrastructure Operators Division
 In 2012 TDM Ltd. acquired Ascom’s InOps Division and TDM AG was
formed. It is a private owned company with shareholders from UK and
Switzerland
 TDM Group and Partners include:
- TDM Ltd United Kingdom
- TDM AG Switzerland
- TDM LLC Abu Dhabi
- Stimela Infrastructure Management Services South Africa
- Integrated Wireless Australia

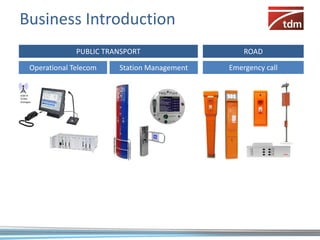

3. Business Introduction
PUBLIC TRANSPORT ROAD
Operational Telecom Station Management Emergency call
GSM-R
TETRA
Analogue

4. Customer Overview (1/2)
SYSTEM NIS RAIL SYSTEM NIS ROAD

5. Customer Overview (2/2)
PRODUCTS (CALL POINT ELECTRONICS) GENERAL CONTRACTOR

6. Product Platform NIS (communication voice / data)

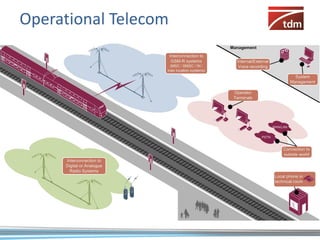

7. Operational Telecom

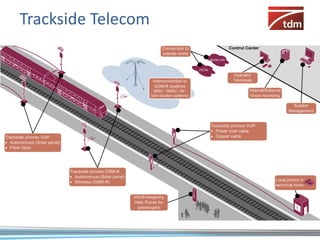

8. Trackside Telecom

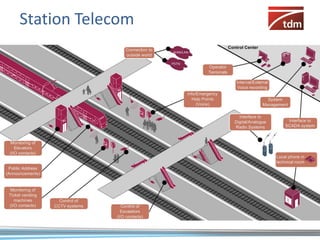

9. Station Telecom

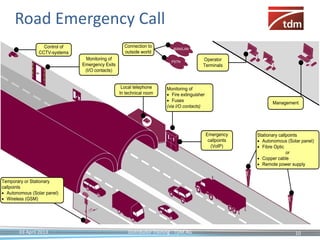

10. Road Emergency Call
Control of Connection to
WAN/LAN
CCTV-systems outside world
Monitoring of Operator
PSTN
Emergency Exits Terminals
(I/O contacts)
Local telephone Monitoring of
In technical room · Fire extinguisher
· Fuses Management
(via I/O contacts)
Emergency Stationary callpoints
callpoints · Autonomous (Solar panel)
(VoIP) · Fibre Optic
or
· Copper cable
· Remote power supply
Temporary or Stationary
callpoints
· Autonomous (Solar panel)
· Wireless (GSM)
M
GS
03 April 2013 Distributor Training - TDM AG 10

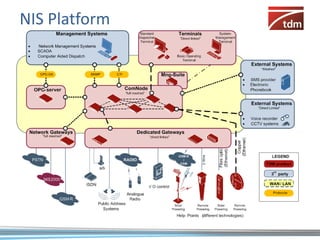

11. NIS Platform

12. NIS / FTS (Fixed Terminal Sub-System)

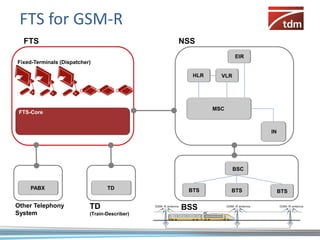

13. FTS for GSM-R
FTS NSS
EIR
Fixed-Terminals (Dispatcher)
HLR VLR
MSC
FTS-Core
IN
BSC
PABX TD BTS BTS BTS
Other Telephony TD BSS
System (Train-Describer)

14. NIS FTS
 NIS from TDM is a fully IP based FTS solution
- FRS 7.3 and SRS 15.3 EIRENE compliant
- MSC connection over ISDN E1 or *SIP (ETSI TS 103 389)
 Integration of different Sub-Systems
- Support of Short Message Service for Railways (SMPP)
- FTS-IN Service (interface to IN) to present the registered FN’s on the FTS / FN
- FTS-TD-Service (interface to Train Control System); gives detailed train position
to route incoming call more precisely (eLDA) -> integration of project specific
adapters

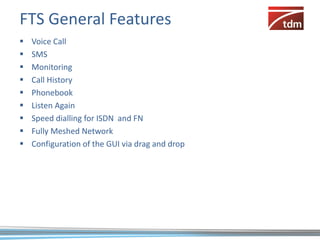

15. FTS General Features
 Voice Call
 SMS
 Monitoring
 Call History
 Phonebook
 Listen Again
 Speed dialling for ISDN and FN
 Fully Meshed Network
 Configuration of the GUI via drag and drop

16. Technical Overview
Eurotunnel (FR / UK)

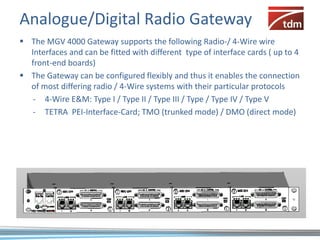

17. Analogue/Digital Radio Gateway
 The MGV 4000 Gateway supports the following Radio-/ 4-Wire wire
Interfaces and can be fitted with different type of interface cards ( up to 4
front-end boards)
 The Gateway can be configured flexibly and thus it enables the connection
of most differing radio / 4-Wire systems with their particular protocols
- 4-Wire E&M: Type I / Type II / Type III / Type / Type IV / Type V
- TETRA PEI-Interface-Card; TMO (trunked mode) / DMO (direct mode)

18. MGC-204 (4-Wire E&M)
 4-Wire E&M Interface
- Supported E&M Interfaces: Type I / Type II / Type III / Type IV / Type V
Special Types: FNI BS770 Type 12 / FNI BS770 Type 13
- Mixed operation: all interfaces are independent and can run in with different
configuration
- Isolated against ground: 1kV
- Frequency: 50Hz – 7000 Hz
- Level (emission / reception): 0 dB
- Linearity: +/- .5 dB
- Impedance (emission / reception): 600 Ω
- Internal self test
Status available on: LED (per Interface)/SNMP / WEB-GUI

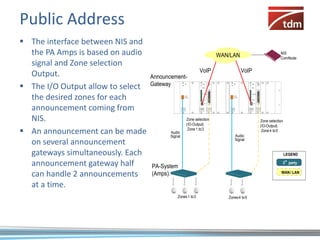

19. Public Address
 The interface between NIS and
the PA Amps is based on audio WAN/LAN NIS
ComNode
signal and Zone selection
VoIP VoIP
Output. Announcement-
 The I/O Output allow to select Gateway N2 N19 N25 N2 N19 N25
State State
the desired zones for each
U- Interface U- Interface
OUTPUT OUTPUT
0-100V/AC 0-100V/AC
RS-232 RS-232
LAN LAN
announcement coming from OAA MFP-IP OFA98-T1 OAA MFP-IP OFA98-T1
NIS. Zone selection Zone selection
(IO-Output) (IO-Output)
 An announcement can be made Audio
Signal
Zone 1 to 3
Audio
Zone 4 to 5
on several announcement Signal
gateways simultaneously. Each LEGEND
announcement gateway half PA-System
rd
3 party
can handle 2 announcements (Amps). WAN / LAN
at a time.
Zones 1 to 3 Zones 4 to 5

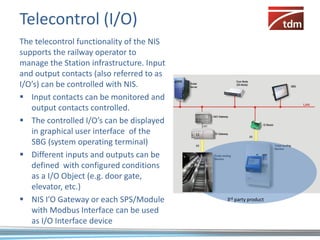

20. Telecontrol (I/O)
The telecontrol functionality of the NIS
supports the railway operator to
manage the Station infrastructure. Input
and output contacts (also referred to as
I/O’s) can be controlled with NIS.
 Input contacts can be monitored and
output contacts controlled.
 The controlled I/O’s can be displayed
in graphical user interface of the
SBG (system operating terminal)
 Different inputs and outputs can be
defined with configured conditions
as a I/O Object (e.g. door gate,
elevator, etc.)
 NIS I’O Gateway or each SPS/Module 3rd party product
with Modbus Interface can be used
as I/O Interface device

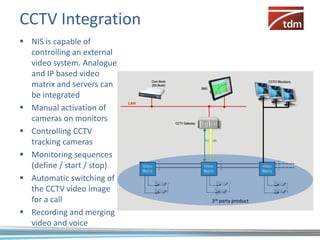

21. CCTV Integration
 NIS is capable of
controlling an external
video system. Analogue
and IP based video
matrix and servers can
be integrated
 Manual activation of
cameras on monitors
 Controlling CCTV
tracking cameras
 Monitoring sequences
(define / start / stop)
 Automatic switching of
the CCTV video image
for a call 3rd party product
 Recording and merging
video and voice

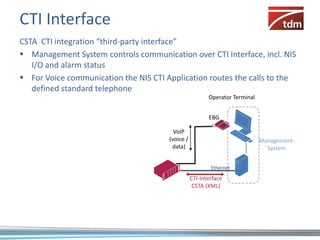

22. CTI Interface
CSTA CTI integration “third-party interface”
 Management System controls communication over CTI Interface, incl. NIS
I/O and alarm status
 For Voice communication the NIS CTI Application routes the calls to the
defined standard telephone
Operator Terminal
EBG
VoIP
(voice / Management-
data) System
Ethernet
CTI-Interface
CSTA (XML)

23. SCADA Integration
NIS systems can be coupled to higher level control systems using an OPC
interface. The data points to be transmitted are roughly summarised as
follows:
 System status
 Operator workstation states
 Call status Management-
 Customer-specific data points System
(with OPC-Client)
OPC-DA
Optional:
OPC-UA
ComNode (1)
NIS LAN/
WAN OPC-Server
ComNode (2) XML
NIS

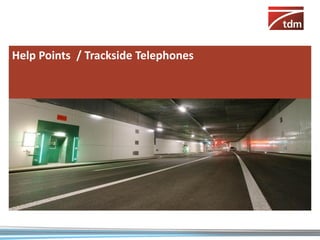

24. Help Points / Trackside Telephones

25. Technologies
Remote
Powering
(2-wire)
Remote
Powering
(PoE)
or local
Solar
Powering Solar
or Local Powering
or
local

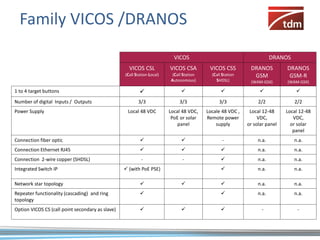

26. Family VICOS /DRANOS
VICOS DRANOS
VICOS CSL VICOS CSA VICOS CSS DRANOS DRANOS
(Call Station Local) (Call Station (Call Station GSM GSM-R
Autonomous) SHDSL) (WAM-GSX) (WAM-GSX)
1 to 4 target buttons     
Number of digital Inputs / Outputs 3/3 3/3 3/3 2/2 2/2
Power Supply Local 48 VDC Local 48 VDC, Locale 48 VDC , Local 12-48 Local 12-48
PoE or solar Remote power VDC, VDC,
panel supply or solar panel or solar
panel
Connection fiber optic   - n.a. n.a.
Connection Ethernet RJ45    n.a. n.a.
Connection 2-wire copper (SHDSL) - -  n.a. n.a.
Integrated Switch IP  (with PoE PSE)  n.a. n.a.
Network star topology    n.a. n.a.
Repeater functionality (cascading) and ring   n.a. n.a.
topology
Option VICOS CS (call point secondary as slave)    - -

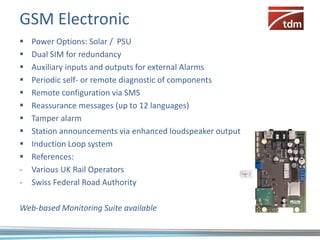

27. GSM Electronic
 Power Options: Solar / PSU
 Dual SIM for redundancy
 Auxiliary inputs and outputs for external Alarms
 Periodic self- or remote diagnostic of components
 Remote configuration via SMS
 Reassurance messages (up to 12 languages)
 Tamper alarm
 Station announcements via enhanced loudspeaker output
 Induction Loop system
 References:
- Various UK Rail Operators
- Swiss Federal Road Authority
Web-based Monitoring Suite available

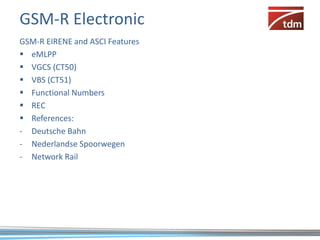

28. GSM-R Electronic
GSM-R EIRENE and ASCI Features
 eMLPP
 VGCS (CT50)
 VBS (CT51)
 Functional Numbers
 REC
 References:
- Deutsche Bahn
- Nederlandse Spoorwegen
- Network Rail

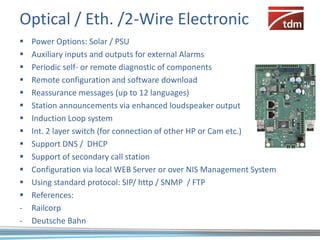

29. Optical / Eth. /2-Wire Electronic
 Power Options: Solar / PSU
 Auxiliary inputs and outputs for external Alarms
 Periodic self- or remote diagnostic of components
 Remote configuration and software download
 Reassurance messages (up to 12 languages)
 Station announcements via enhanced loudspeaker output
 Induction Loop system
 Int. 2 layer switch (for connection of other HP or Cam etc.)
 Support DNS / DHCP
 Support of secondary call station
 Configuration via local WEB Server or over NIS Management System
 Using standard protocol: SIP/ http / SNMP / FTP
 References:
- Railcorp
- Deutsche Bahn

30. MECHANICAL DESIGN
(PASSENGER CALL POINTS)
Standard help point
for UK market Standard call points
Emergency
Enhanced call point
call points for roads
Multimedia / Interactive
help point
for UK market

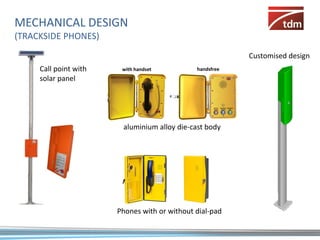

31. MECHANICAL DESIGN
(TRACKSIDE PHONES)
Customised design
Call point with with handset handsfree
solar panel
aluminium alloy die-cast body
Phones with or without dial-pad

32. Reference Projects

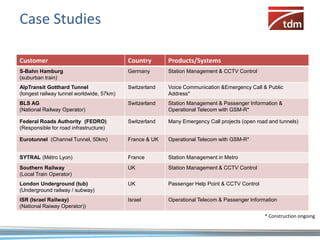

33. Case Studies
Customer Country Products/Systems
S-Bahn Hamburg Germany Station Management & CCTV Control
(suburban train)
AlpTransit Gotthard Tunnel Switzerland Voice Communication &Emergency Call & Public
(longest railway tunnel worldwide, 57km) Address*
BLS AG Switzerland Station Management & Passenger Information &
(National Railway Operator) Operational Telecom with GSM-R*
Federal Roads Authority (FEDRO) Switzerland Many Emergency Call projects (open road and tunnels)
(Responsible for road infrastructure)
Eurotunnel (Channel Tunnel, 50km) France & UK Operational Telecom with GSM-R*
SYTRAL (Métro Lyon) France Station Management in Metro
Southern Railway UK Station Management & CCTV Control
(Local Train Operator)
London Underground (tub) UK Passenger Help Point & CCTV Control
(Underground railway / subway)
ISR (Israel Railway) Israel Operational Telecom & Passenger Information
(National Raiway Operator))
* Construction ongoing

34. Thank you for your time
Dewald Pretorius
Sales Manager
+ 44 (0) 7760 161 690
dlp@trans-data.co.uk
Trans Data Management AG
Freiburgstrasse 251,
3018 Bern, Switzerland
www.trans-data.ch
