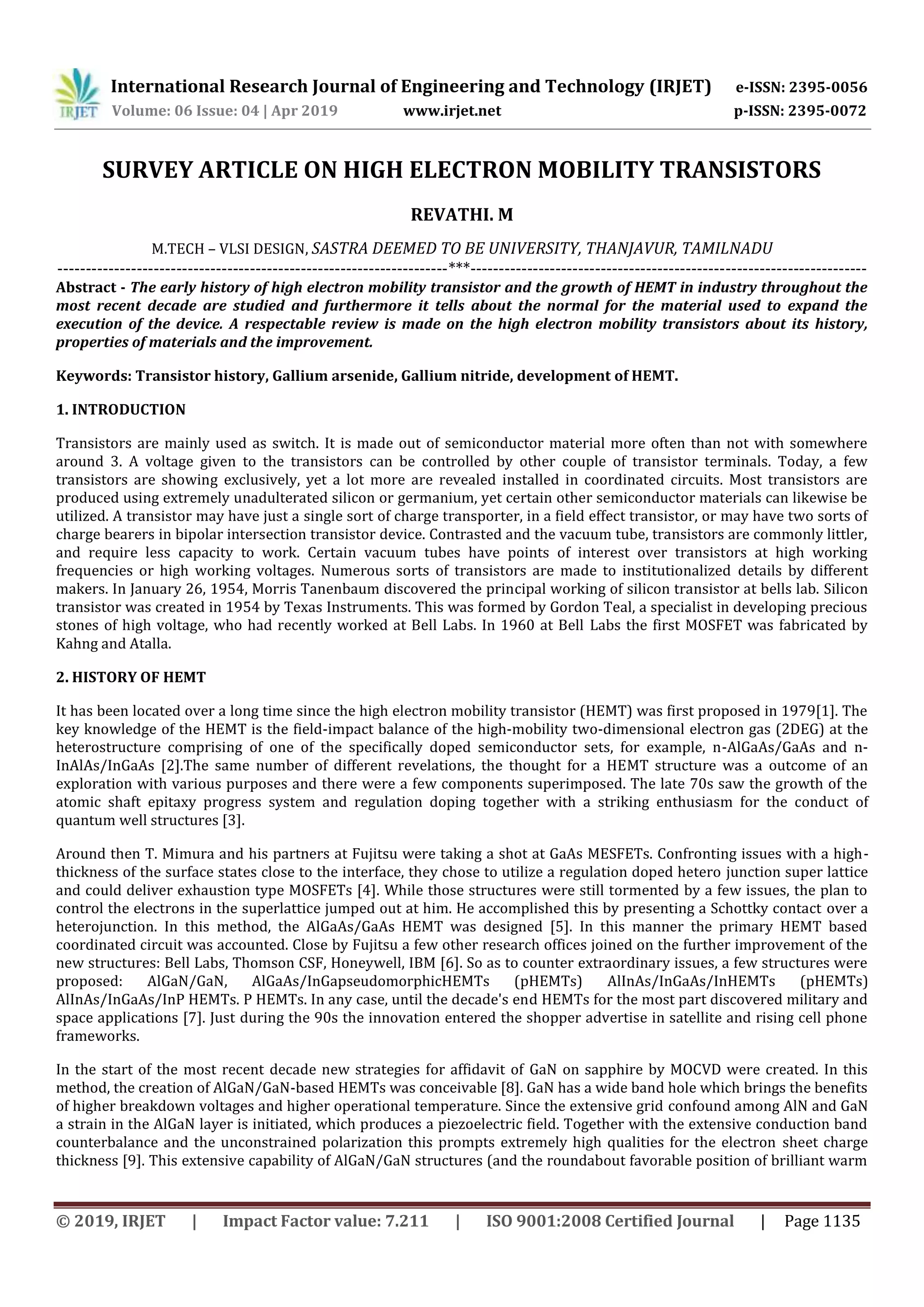

SURVEY ARTICLE ON HIGH ELECTRON MOBILITY TRANSISTORS
REVATHI. M
M.TECH – VLSI DESIGN, SASTRA DEEMED TO BE UNIVERSITY, THANJAVUR, TAMILNADU
---------------------------------------------------------------------***----------------------------------------------------------------------
Abstract - The early history of high electron mobility transistor and the growth of HEMT in industry throughout the
most recent decade are studied and furthermore it tells about the normal for the material used to expand the
execution of the device. A respectable review is made on the high electron mobility transistors about its history,
properties of materials and the improvement.
Keywords: Transistor history, Gallium arsenide, Gallium nitride, development of HEMT.
1. INTRODUCTION
Transistors are mainly used as switch. It is made out of semiconductor material more often than not with somewhere
around 3. A voltage given to the transistors can be controlled by other couple of transistor terminals. Today, a few
transistors are showing exclusively, yet a lot more are revealed installed in coordinated circuits. Most transistors are
produced using extremely unadulterated silicon or germanium, yet certain other semiconductor materials can likewise be
utilized. A transistor may have just a single sort of charge transporter, in a field effect transistor, or may have two sorts of
charge bearers in bipolar intersection transistor device. Contrasted and the vacuum tube, transistors are commonly littler,
and require less capacity to work. Certain vacuum tubes have points of interest over transistors at high working
frequencies or high working voltages. Numerous sorts of transistors are made to institutionalized details by different
makers. In January 26, 1954, Morris Tanenbaum discovered the principal working of silicon transistor at bells lab. Silicon
transistor was created in 1954 by Texas Instruments. This was formed by Gordon Teal, a specialist in developing precious
stones of high voltage, who had recently worked at Bell Labs. In 1960 at Bell Labs the first MOSFET was fabricated by
Kahng and Atalla.
2. HISTORY OF HEMT
It has been located over a long time since the high electron mobility transistor (HEMT) was first proposed in 1979[1]. The
key knowledge of the HEMT is the field-impact balance of the high-mobility two-dimensional electron gas (2DEG) at the
heterostructure comprising of one of the specifically doped semiconductor sets, for example, n-AlGaAs/GaAs and n-
InAlAs/InGaAs [2].The same number of different revelations, the thought for a HEMT structure was a outcome of an
exploration with various purposes and there were a few components superimposed. The late 70s saw the growth of the
atomic shaft epitaxy progress system and regulation doping together with a striking enthusiasm for the conduct of
quantum well structures [3].
Around then T. Mimura and his partners at Fujitsu were taking a shot at GaAs MESFETs. Confronting issues with a high-
thickness of the surface states close to the interface, they chose to utilize a regulation doped hetero junction super lattice
and could deliver exhaustion type MOSFETs [4]. While those structures were still tormented by a few issues, the plan to
control the electrons in the superlattice jumped out at him. He accomplished this by presenting a Schottky contact over a
heterojunction. In this method, the AlGaAs/GaAs HEMT was designed [5]. In this manner the primary HEMT based
coordinated circuit was accounted. Close by Fujitsu a few other research offices joined on the further improvement of the
new structures: Bell Labs, Thomson CSF, Honeywell, IBM [6]. So as to counter extraordinary issues, a few structures were
proposed: AlGaN/GaN, AlGaAs/InGapseudomorphicHEMTs (pHEMTs) AlInAs/InGaAs/InHEMTs (pHEMTs)
AlInAs/InGaAs/InP HEMTs. P HEMTs. In any case, until the decade's end HEMTs for the most part discovered military and
space applications [7]. Just during the 90s the innovation entered the shopper advertise in satellite and rising cell phone
frameworks.

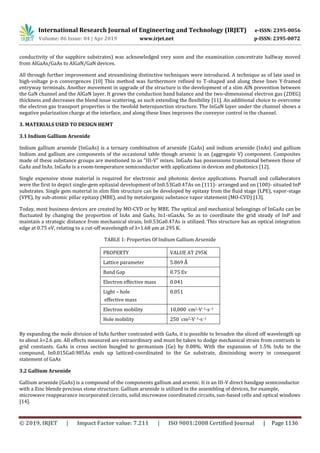

In the start of the most recent decade new strategies for affidavit of GaN on sapphire by MOCVD were created. In this
method, the creation of AlGaN/GaN-based HEMTs was conceivable [8]. GaN has a wide band hole which brings the benefits
of higher breakdown voltages and higher operational temperature. Since the extensive grid confound among AlN and GaN
a strain in the AlGaN layer is initiated, which produces a piezoelectric field. Together with the extensive conduction band
counterbalance and the unconstrained polarization this prompts extremely high qualities for the electron sheet charge
thickness [9]. This extensive capability of AlGaN/GaN structures (and the roundabout favorable position of brilliant warm

conductivity of the sapphire substrates) was acknowledged very soon and the examination concentrate halfway moved
from AlGaAs/GaAs to AlGaN/GaN devices.
All through further improvement and streamlining distinctive techniques were introduced. A technique as of late used in
high-voltage p-n convergences [10] This method was furthermore refined to T-shaped and along these lines Y-framed
entryway terminals. Another movement in upgrade of the structure is the development of a slim AlN prevention between
the GaN channel and the AlGaN layer. It grows the conduction band balance and the two-dimensional electron gas (2DEG)
thickness and decreases the blend issue scattering, as such extending the flexibility [11]. An additional choice to overcome
the electron gas transport properties is the twofold heterojunction structure. The InGaN layer under the channel shows a
negative polarization charge at the interface, and along these lines improves the conveyor control in the channel.
3. MATERIALS USED TO DESIGN HEMT
3.1 Indium Gallium Arsenide
Indium gallium arsenide (InGaAs) is a ternary combination of arsenide (GaAs) and indium arsenide (InAs) and gallium
Indium and gallium are components of the occasional table though arsenic is an (aggregate V) component. Composites
made of these substance groups are mentioned to as "III-V" mixes. InGaAs has possessions transitional between those of
GaAs and InAs. InGaAs is a room-temperature semiconductor with applications in devices and photonics [12].
Single expensive stone material is required for electronic and photonic device applications. Pearsall and collaborators
were the first to depict single-gem epitaxial development of In0.53Ga0.47As on (111)- arranged and on (100)- situated InP
substrates. Single gem material in slim film structure can be developed by epitaxy from the fluid stage (LPE), vapor-stage
(VPE), by sub-atomic pillar epitaxy (MBE), and by metalorganic substance vapor statement (MO-CVD) [13].
Today, most business devices are created by MO-CVD or by MBE. The optical and mechanical belongings of InGaAs can be
fluctuated by changing the proportion of InAs and GaAs, In1-xGaxAs. So as to coordinate the grid steady of InP and
maintain a strategic distance from mechanical strain, In0.53Ga0.47As is utilized. This structure has an optical integration
edge at 0.75 eV, relating to a cut-off wavelength of λ=1.68 μm at 295 K.
TABLE 1: Properties Of Indium Gallium Arsenide
By expanding the mole division of InAs further contrasted with GaAs, it is possible to broaden the sliced off wavelength up
to about λ=2.6 µm. All effects measured are extraordinary and must be taken to dodge mechanical strain from contrasts in
grid constants. GaAs is cross section bungled to germanium (Ge) by 0.08%. With the expansion of 1.5% InAs to the
compound, In0.015Ga0.985As ends up latticed-coordinated to the Ge substrate, diminishing worry in consequent
statement of GaAs
3.2 Gallium Arsenide
Gallium arsenide (GaAs) is a compound of the components gallium and arsenic. It is an III-V direct bandgap semiconductor
with a Zinc blende precious stone structure. Gallium arsenide is utilized in the assembling of devices, for example,
microwave reappearance incorporated circuits, solid microwave coordinated circuits, sun-based cells and optical windows
[14].
PROPERTY VALUE AT 295K
Lattice parameter 5.869 Å
Band Gap 0.75 Ev
Electron effective mass 0.041
Light – hole
effective mass
0.051
Electron mobility 10,000 cm2·V−1·s−1
Hole mobility 250 cm2·V−1·s−1

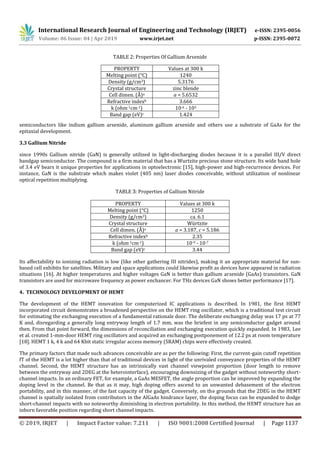

TABLE 2: Properties Of Gallium Arsenide
semiconductors like indium gallium arsenide, aluminum gallium arsenide and others use a substrate of GaAs for the
epitaxial development.
3.3 Gallium Nitride
since 1990s Gallium nitride (GaN) is generally utilized in light-discharging diodes because it is a parallel III/V direct
bandgap semiconductor. The compound is a firm material that has a Wurtzite precious stone structure. Its wide band hole
of 3.4 eV bears it unique properties for applications in optoelectronic [15], high-power and high-recurrence devices. For
instance, GaN is the substrate which makes violet (405 nm) laser diodes conceivable, without utilization of nonlinear
optical repetition multiplying.
based cell exhibits for satellites. Military and space applications could likewise profit as devices have appeared in radiation
situations [16]. At higher temperatures and higher voltages GaN is better than gallium arsenide (GaAs) transistors. GaN
transistors are used for microwave frequency as power enchancer. For THz devices GaN shows better performance [17].
4. TECHNOLOGY DEVELOPMENT OF HEMT
The development of the HEMT innovation for computerized IC applications is described. In 1981, the first HEMT
incorporated circuit demonstrates a broadened perspective on the HEMT ring oscillator, which is a traditional test circuit
for estimating the exchanging execution of a fundamental rationale door. The deliberate exchanging delay was 17 ps at 77
K and, disregarding a generally long entryway length of 1.7 mm, was the briefest in any semiconductor gadget around
then. From that point forward, the dimensions of reconciliation and exchanging execution quickly expanded. In 1983, Lee
et al. created 1-mm-door HEMT ring oscillators and acquired an exchanging postponement of 12.2 ps at room temperature
[18]. HEMT 1 k, 4 k and 64 Kbit static irregular access memory (SRAM) chips were effectively created.
The primary factors that made such advances conceivable are as per the following: First, the current-gain cutoff repetition
fT of the HEMT is a lot higher than that of traditional devices in light of the unrivaled conveyance properties of the HEMT
channel. Second, the HEMT structure has an intrinsically vast channel viewpoint proportion (door length to remove
between the entryway and 2DEG at the heterointerface), encouraging downsizing of the gadget without noteworthy short-
channel impacts. In an ordinary FET, for example, a GaAs MESFET, the angle proportion can be improved by expanding the
doping level in the channel. Be that as it may, high doping offers ascend to an unwanted debasement of the electron
portability, and in this manner, of the fast capacity of the gadget. Conversely, on the grounds that the 2DEG in the HEMT
channel is spatially isolated from contributors in the AlGaAs hindrance layer, the doping focus can be expanded to dodge
short-channel impacts with no noteworthy diminishing in electron portability. In this method, the HEMT structure has an
inborn favorable position regarding short channel impacts.
PROPERTY Values at 300 k
Melting point (°C) 1240
Density (g/cm3) 5.3176
Crystal structure zinc blende
Cell dimen. (Å)a a = 5.6532
Refractive indexb 3.666
k (ohm-1cm-1) 10-6 - 103
Band gap (eV)c 1.424
PROPERTY Values at 300 k
Melting point (°C) 1250
Density (g/cm3) ca. 6.1
Crystal structure Würtzite
Cell dimen. (Å)a a = 3.187, c = 5.186
Refractive indexb 2.35
k (ohm-1cm-1) 10-9 - 10-7
Band gap (eV)c 3.44
TABLE 3: Properties of Gallium Nitride
Its affectability to ionizing radiation is low (like other gathering III nitrides), making it an appropriate material for sun-

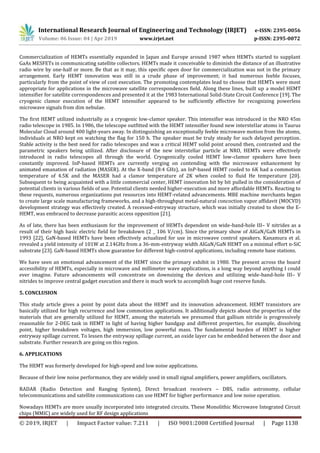

Commercialization of HEMTs essentially expanded in Japan and Europe around 1987 when HEMTs started to supplant
GaAs MESFETs in communicating satellite collectors. HEMTs made it conceivable to diminish the distance of an illustrative
radio wire by one-half or more. Be that as it may, this specific open door for commercialization was not in the primary
arrangement. Early HEMT innovation was still in a crude phase of improvement; it had numerous feeble focuses,
particularly from the point of view of cost execution. The promoting contemplates lead to choose that HEMTs were most
appropriate for applications in the microwave satellite correspondences field. Along these lines, built up a model HEMT
intensifier for satellite correspondences and presented it at the 1983 International Solid-State Circuit Conference [19]. The
cryogenic clamor execution of the HEMT intensifier appeared to be sufficiently effective for recognizing powerless
microwave signals from dim nebulae.
The first HEMT utilized industrially as a cryogenic low-clamor speaker. This intensifier was introduced in the NRO 45m
radio telescope in 1985. In 1986, the telescope outfitted with the HEMT intensifier found new interstellar atoms in Taurus
Molecular Cloud around 400 light-years away. In distinguishing an exceptionally feeble microwave motion from the atoms,
individuals at NRO kept on watching the flag for 150 h. The speaker must be truly steady for such delayed perception.
Stable activity is the best need for radio telescopes and was a critical HEMT solid point around then, contrasted and the
parametric speakers being utilized. After disclosure of the new interstellar particle at NRO, HEMTs were effectively
introduced in radio telescopes all through the world. Cryogenically cooled HEMT low-clamor speakers have been
constantly improved. InP-based HEMTs are currently verging on contending with the microwave enhancement by
animated emanation of radiation (MASER). At the X-band (8:4 GHz), an InP-based HEMT cooled to 6K had a commotion
temperature of 4.5K and the MASER had a clamor temperature of 2K when cooled to fluid He temperature [20].
Subsequent to being acquainted with a little commercial center, HEMT innovation bit by bit pulled in the consideration of
potential clients in various fields of use. Potential clients needed higher-execution and more affordable HEMTs. Reacting to
these requests, numerous organizations put resources into HEMT-related advancements. MBE machine merchants began
to create large scale manufacturing frameworks, and a high-throughput metal-natural concoction vapor affidavit (MOCVD)
development strategy was effectively created. A recessed-entryway structure, which was initially created to show the E-
HEMT, was embraced to decrease parasitic access opposition [21].
As of late, there has been enthusiasm for the improvement of HEMTs dependent on wide-band-hole III– V nitrides as a
result of their high basic electric field for breakdown (2 _ 106 V/cm). Since the primary show of AlGaN/GaN HEMTs in
1993 [22], GaN-based HEMTs have been effectively actualized for use in microwave control speakers. Kanamura et al.
revealed a yield intensity of 101W at 2.14GHz from a 36-mm-entryway width AlGaN/GaN HEMT on a minimal effort n-SiC
substrate [23]. GaN-based HEMTs show guarantee for different high-control applications, including remote base stations.
We have seen an emotional advancement of the HEMT since the primary exhibit in 1980. The present across the board
accessibility of HEMTs, especially in microwave and millimeter wave applications, is a long way beyond anything I could
ever imagine. Future advancements will concentrate on downsizing the devices and utilizing wide-band-hole III– V
nitrides to improve central gadget execution and there is much work to accomplish huge cost reserve funds.
5. CONCLUSION
This study article gives a point by point data about the HEMT and its innovation advancement. HEMT transistors are
basically utilized for high recurrence and low commotion applications. It additionally depicts about the properties of the
materials that are generally utilized for HEMT, among the materials we presumed that gallium nitride is progressively
reasonable for 2-DEG task in HEMT in light of having higher bandgap and different properties, for example, dissolving
point, higher breakdown voltages, high immersion, low powerful mass. The fundamental burden of HEMT is higher
entryway spillage current. To lessen the entryway spillage current, an oxide layer can be embedded between the door and
substrate. Further research are going on this region.
6. APPLICATIONS
The HEMT was formerly developed for high-speed and low noise applications.
Because of their low noise performance, they are widely used in small signal amplifiers, power amplifiers, oscillators.
RADAR (Radio Detection and Ranging System), Direct broadcast receivers – DBS, radio astronomy, cellular
telecommunications and satellite communications can use HEMT for higher performance and low noise operation.
Nowadays HEMTs are more usually incorporated into integrated circuits. These Monolithic Microwave Integrated Circuit
chips (MMIC) are widely used for RF design applications

REFERENCES
1) T. Mimura: Japan Patent 1409643 (1987).
2) T. Mimura, S. Hiyamizu, T. Fujii and K. Nanbu: Jpn. J. Appl. Phys. 19(1980) L225.
3) Dordrecht-Boston-London:Kluwer Academic Publisher, 1996.

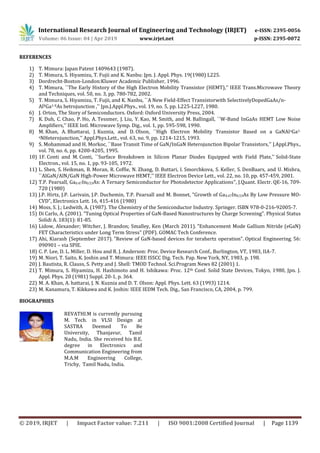

4) T. Mimura, ``The Early History of the High Electron Mobility Transistor (HEMT),'' IEEE Trans.Microwave Theory
and Techniques, vol. 50, no. 3, pp. 780-782, 2002.
5) T. Mimura, S. Hiyamizu, T. Fujii, and K. Nanbu, ``A New Field-Effect Transistorwith SelectivelyDopedGaAs/n-
AlXGa1-XAs hetrojunction ,'' Jpn.J.Appl.Phys., vol. 19, no. 5, pp. L225-L227, 1980.
6) J. Orton, The Story of Semiconductors. Oxford: Oxford University Press, 2004.
7) K. Duh, C. Chao, P. Ho, A. Tessmer, J. Liu, Y. Kao, M. Smith, and M. Ballingall, ``W-Band InGaAs HEMT Low Noise
Amplifiers,'' IEEE Intl. Microwave Symp. Dig., vol. 1, pp. 595-598, 1990.
8) M. Khan, A. Bhattarai, J. Kuznia, and D. Olson, ``High Electron Mobility Transistor Based on a GaNAlxGa1-
xNHeterojunction,'' Appl.Phys.Lett., vol. 63, no. 9, pp. 1214-1215, 1993.
9) S. Mohammad and H. Morkoc, ``Base Transit Time of GaN/InGaN Heterojunction Bipolar Transistors,'' J.Appl.Phys.,
vol. 78, no. 6, pp. 4200-4205, 1995.
10) 1F. Conti and M. Conti, ``Surface Breakdown in Silicon Planar Diodes Equipped with Field Plate,'' Solid-State
Electron., vol. 15, no. 1, pp. 93-105, 1972.
11) L. Shen, S. Heikman, B. Moran, R. Coffie, N. Zhang, D. Buttari, I. Smorchkova, S. Keller, S. DenBaars, and U. Mishra,
``AlGaN/AlN/GaN High-Power Microwave HEMT,'' IEEE Electron Device Lett., vol. 22, no. 10, pp. 457-459, 2001.
12) T.P. Pearsall, Ga0.47In0.53As: A Ternary Semiconductor for Photodetector Applications", J.Quant. Electr. QE-16, 709-
720 (1980)
13) J.P. Hirtz, J.P. Larivain, J.P. Duchemin, T.P. Pearsall and M. Bonnet, "Growth of Ga0.47In0.53As By Low Pressure MO-
CVD", Electronics Lett. 16, 415-416 (1980)
14) Moss, S. J.; Ledwith, A. (1987). The Chemistry of the Semiconductor Industry. Springer. ISBN 978-0-216-92005-7.
15) Di Carlo, A. (2001). "Tuning Optical Properties of GaN-Based Nanostructures by Charge Screening". Physical Status
Solidi A. 183(1): 81-85.
16) Lidow, Alexander; Witcher, J. Brandon; Smalley, Ken (March 2011). "Enhancement Mode Gallium Nitride (eGaN)
FET Characteristics under Long Term Stress" (PDF). GOMAC Tech Conference.
17) Ahi, Kiarash (September 2017). "Review of GaN-based devices for terahertz operation". Optical Engineering. 56:
090901 – via SPIE.
18) C. P. Lee, D. L. Miller, D. Hou and R. J. Anderson: Proc. Device Research Conf., Burlington, VT, 1983, IIA-7.
19) M. Niori, T. Saito, K. Joshin and T. Mimura: IEEE ISSCC Dig. Tech. Pap. New York, NY, 1983, p. 198.
20) J. Bautista, R. Clauss, S. Petty and J. Shell: TMOD Technol. Sci.Program News 82 (2001) 1.
21) T. Mimura, S. Hiyamizu, H. Hashimoto and H. Ishikawa: Proc. 12th Conf. Solid State Devices, Tokyo, 1980, Jpn. J.
Appl. Phys. 20 (1981) Suppl. 20-1, p. 364.
22) M. A. Khan, A. hattarai, J. N. Kuznia and D. T. Olson: Appl. Phys. Lett. 63 (1993) 1214.
23) M. Kanamura, T. Kikkawa and K. Joshin: IEEE IEDM Tech. Dig., San Francisco, CA, 2004, p. 799.
BIOGRAPHIES
REVATHI.M is currently pursuing
M. Tech. in VLSI Design at
SASTRA Deemed To Be
University, Thanjavur, Tamil
Nadu, India. She received his B.E.
degree in Electronics and
Communication Engineering from
M.A.M Engineering College,
Trichy, Tamil Nadu, India.

IRJET- Survey Article on High Electron Mobility Transistors

More Related Content

What's hot

Similar to IRJET- Survey Article on High Electron Mobility Transistors

More from IRJET Journal

Recently uploaded

IRJET- Survey Article on High Electron Mobility Transistors
