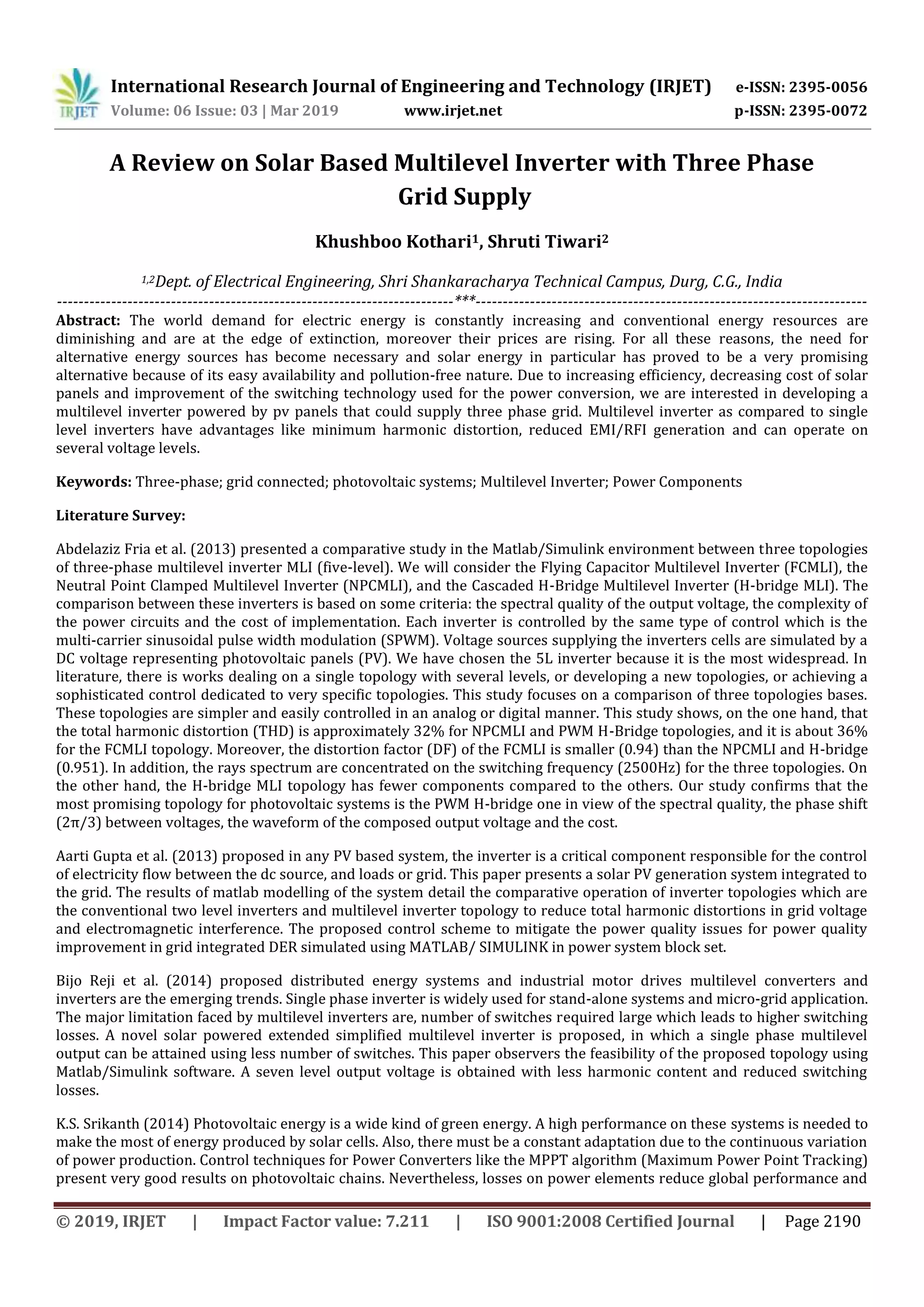

IRJET- A Review on Solar based Multilevel Inverter with Three Phase Grid Supply
•
0 likes
•
25 views
IRJET Journal
Follow
https://www.irjet.net/archives/V6/i3/IRJET-V6I3422.pdf
Read less
Read more
Engineering
Report
Share
Report
Share
1 of 3
Download now
Download to read offline
Recommended
IRJET- Energy Management and Control for Grid Connected Hybrid Energy Storage...
IRJET- Energy Management and Control for Grid Connected Hybrid Energy Storage...
IRJET Journal
Optimization The Performance of a Synchronization Controller For a 3-Phase Ph...
Optimization The Performance of a Synchronization Controller For a 3-Phase Ph...
International Journal of Power Electronics and Drive Systems
Banc d'essai expérimental de panneau photovoltaïque
Banc d'essai expérimental de panneau photovoltaïque
Premkumar K
Grid Connected Applications of Modular Cascaded H-Bridge Multilevel PV Invert...
Grid Connected Applications of Modular Cascaded H-Bridge Multilevel PV Invert...
IRJET Journal
IRJET- Power Quality Improvement in Solar by using Fuzzy Logic Controller
IRJET- Power Quality Improvement in Solar by using Fuzzy Logic Controller
IRJET Journal
Design and Simulation of MPPT Algorithm for Three Phase Induction Motor Solar...
Design and Simulation of MPPT Algorithm for Three Phase Induction Motor Solar...
ijtsrd
A Single-Phase Dual-Stage PV-Grid System with Active Filtering
A Single-Phase Dual-Stage PV-Grid System with Active Filtering
IAES-IJPEDS
An integrated framework_for_smart_microgrids_modeling_monitoring_control_comm...
An integrated framework_for_smart_microgrids_modeling_monitoring_control_comm...
Premkumar K
Recommended
IRJET- Energy Management and Control for Grid Connected Hybrid Energy Storage...
IRJET- Energy Management and Control for Grid Connected Hybrid Energy Storage...
IRJET Journal
Optimization The Performance of a Synchronization Controller For a 3-Phase Ph...
Optimization The Performance of a Synchronization Controller For a 3-Phase Ph...
International Journal of Power Electronics and Drive Systems
Banc d'essai expérimental de panneau photovoltaïque
Banc d'essai expérimental de panneau photovoltaïque
Premkumar K
Grid Connected Applications of Modular Cascaded H-Bridge Multilevel PV Invert...
Grid Connected Applications of Modular Cascaded H-Bridge Multilevel PV Invert...
IRJET Journal
IRJET- Power Quality Improvement in Solar by using Fuzzy Logic Controller
IRJET- Power Quality Improvement in Solar by using Fuzzy Logic Controller
IRJET Journal
Design and Simulation of MPPT Algorithm for Three Phase Induction Motor Solar...
Design and Simulation of MPPT Algorithm for Three Phase Induction Motor Solar...
ijtsrd
A Single-Phase Dual-Stage PV-Grid System with Active Filtering
A Single-Phase Dual-Stage PV-Grid System with Active Filtering
IAES-IJPEDS
An integrated framework_for_smart_microgrids_modeling_monitoring_control_comm...
An integrated framework_for_smart_microgrids_modeling_monitoring_control_comm...
Premkumar K
A Technique for Shunt Active Filter meld micro grid System
A Technique for Shunt Active Filter meld micro grid System
IJERA Editor
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
IJMTST Journal
Ijmer 46061528
Ijmer 46061528
IJMER
Optimal design and_model_predictive_control_of_st
Optimal design and_model_predictive_control_of_st
Premkumar K
hybrid
hybrid
Premkumar K
1 s2.0-s1364032117311978-main
1 s2.0-s1364032117311978-main
AhmedAljabari
1 s2.0-s0038092 x18311939-main
1 s2.0-s0038092 x18311939-main
AhmedAljabari
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
IJERD Editor
An intelligent based fault-tolerant system 2018
An intelligent based fault-tolerant system 2018
Premkumar K
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
IRJET Journal
An improved luo converter for high power applications
An improved luo converter for high power applications
eSAT Journals
M A MALLICK ppt. for FDP SEPT. 2019
M A MALLICK ppt. for FDP SEPT. 2019
Mohammad Mallick
Application and Comparison Between the Conventional Methods and PSO Method fo...
Application and Comparison Between the Conventional Methods and PSO Method fo...
International Journal of Power Electronics and Drive Systems
A novel optimization of the particle swarm based maximum power point tracking...
A novel optimization of the particle swarm based maximum power point tracking...
International Journal of Power Electronics and Drive Systems
IRJET - Study of Technical Parameters in Grid-Connected PV System
IRJET - Study of Technical Parameters in Grid-Connected PV System
IRJET Journal
Ieee xplore full text pdf 44
Ieee xplore full text pdf 44
sanjiivambati59
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
IAES-IJPEDS
2013 IEEE Eee m.tech 2013 titles with abstracts
2013 IEEE Eee m.tech 2013 titles with abstracts
Vision Solutions
Electrical and environmental parameters of the performance of polymer solar c...
Electrical and environmental parameters of the performance of polymer solar c...
International Journal of Power Electronics and Drive Systems
IRJET-Robot Control by using Human Hand Gestures
IRJET-Robot Control by using Human Hand Gestures
IRJET Journal
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
IJMTST Journal
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET Journal
More Related Content
What's hot
A Technique for Shunt Active Filter meld micro grid System
A Technique for Shunt Active Filter meld micro grid System
IJERA Editor
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
IJMTST Journal
Ijmer 46061528
Ijmer 46061528
IJMER
Optimal design and_model_predictive_control_of_st
Optimal design and_model_predictive_control_of_st
Premkumar K
hybrid
hybrid
Premkumar K
1 s2.0-s1364032117311978-main
1 s2.0-s1364032117311978-main
AhmedAljabari
1 s2.0-s0038092 x18311939-main
1 s2.0-s0038092 x18311939-main
AhmedAljabari
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
IJERD Editor
An intelligent based fault-tolerant system 2018
An intelligent based fault-tolerant system 2018
Premkumar K
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
IRJET Journal
An improved luo converter for high power applications
An improved luo converter for high power applications
eSAT Journals
M A MALLICK ppt. for FDP SEPT. 2019
M A MALLICK ppt. for FDP SEPT. 2019
Mohammad Mallick
Application and Comparison Between the Conventional Methods and PSO Method fo...
Application and Comparison Between the Conventional Methods and PSO Method fo...
International Journal of Power Electronics and Drive Systems
A novel optimization of the particle swarm based maximum power point tracking...
A novel optimization of the particle swarm based maximum power point tracking...
International Journal of Power Electronics and Drive Systems
IRJET - Study of Technical Parameters in Grid-Connected PV System
IRJET - Study of Technical Parameters in Grid-Connected PV System
IRJET Journal
Ieee xplore full text pdf 44
Ieee xplore full text pdf 44
sanjiivambati59
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
IAES-IJPEDS
2013 IEEE Eee m.tech 2013 titles with abstracts
2013 IEEE Eee m.tech 2013 titles with abstracts
Vision Solutions
Electrical and environmental parameters of the performance of polymer solar c...
Electrical and environmental parameters of the performance of polymer solar c...
International Journal of Power Electronics and Drive Systems
IRJET-Robot Control by using Human Hand Gestures
IRJET-Robot Control by using Human Hand Gestures
IRJET Journal
What's hot
(20)
A Technique for Shunt Active Filter meld micro grid System
A Technique for Shunt Active Filter meld micro grid System
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
Fuzzy based Modular Cascaded H-Bridge Multilevel PV Inverter with Distributed...
Ijmer 46061528
Ijmer 46061528
Optimal design and_model_predictive_control_of_st
Optimal design and_model_predictive_control_of_st
hybrid
hybrid
1 s2.0-s1364032117311978-main
1 s2.0-s1364032117311978-main
1 s2.0-s0038092 x18311939-main
1 s2.0-s0038092 x18311939-main
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
Enhanced MPPT Technique For DC-DC Luo Converter Using Model Predictive Contro...
An intelligent based fault-tolerant system 2018
An intelligent based fault-tolerant system 2018
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
Nonlinear Current Controller for a Single Phase Grid Connected Photovoltaic S...
An improved luo converter for high power applications
An improved luo converter for high power applications
M A MALLICK ppt. for FDP SEPT. 2019
M A MALLICK ppt. for FDP SEPT. 2019
Application and Comparison Between the Conventional Methods and PSO Method fo...
Application and Comparison Between the Conventional Methods and PSO Method fo...
A novel optimization of the particle swarm based maximum power point tracking...
A novel optimization of the particle swarm based maximum power point tracking...
IRJET - Study of Technical Parameters in Grid-Connected PV System
IRJET - Study of Technical Parameters in Grid-Connected PV System
Ieee xplore full text pdf 44
Ieee xplore full text pdf 44
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
Open-Switch Fault-Tolerant Control of Power Converters in a Grid-Connected Ph...
2013 IEEE Eee m.tech 2013 titles with abstracts
2013 IEEE Eee m.tech 2013 titles with abstracts
Electrical and environmental parameters of the performance of polymer solar c...
Electrical and environmental parameters of the performance of polymer solar c...
IRJET-Robot Control by using Human Hand Gestures
IRJET-Robot Control by using Human Hand Gestures
Similar to IRJET- A Review on Solar based Multilevel Inverter with Three Phase Grid Supply
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
IJMTST Journal
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET Journal
IRJET- Micro Inverter
IRJET- Micro Inverter
IRJET Journal
Real Time Implementation of Variable Step Size Based P&O MPPT for PV Systems ...
Real Time Implementation of Variable Step Size Based P&O MPPT for PV Systems ...
IJPEDS-IAES
A Grid-Tied Solar Power System with Harmonic Filter to Enhance Power Quality
A Grid-Tied Solar Power System with Harmonic Filter to Enhance Power Quality
IRJET Journal
PV array connected to the grid with the implementation of MPPT algorithms (IN...
PV array connected to the grid with the implementation of MPPT algorithms (IN...
International Journal of Power Electronics and Drive Systems
A multi converter based pure solar energy system with high efficiency mppt con
A multi converter based pure solar energy system with high efficiency mppt con
IAEME Publication
Power-Sharing of Parallel Inverters in Micro-Grids via Droop control and Virt...
Power-Sharing of Parallel Inverters in Micro-Grids via Droop control and Virt...
IRJET Journal
Analysis of Double Moving Average Power Smoothing Methods for Photovoltaic Sy...
Analysis of Double Moving Average Power Smoothing Methods for Photovoltaic Sy...
IRJET Journal
Modeling and Simulation of Grid Connected PV Generation System Using Matlab/S...
Modeling and Simulation of Grid Connected PV Generation System Using Matlab/S...
International Journal of Power Electronics and Drive Systems
A Distributed Approach to Maximum Power Point Tracking for Photovoltaic Sub-M...
A Distributed Approach to Maximum Power Point Tracking for Photovoltaic Sub-M...
Projectsatbangalore
A Novel Approach for Power Quality Improvement in Distributed Generation
A Novel Approach for Power Quality Improvement in Distributed Generation
seema appa
Electric Vehicle as an Energy Storage for Grid Connected Solar Power System
Electric Vehicle as an Energy Storage for Grid Connected Solar Power System
IAES-IJPEDS
Design and Analysis of Three Phase Inverter with Two Buck/Boost MPPTs for DC ...
Design and Analysis of Three Phase Inverter with Two Buck/Boost MPPTs for DC ...
IJERA Editor
IJET-V2I6P10
IJET-V2I6P10
IJET - International Journal of Engineering and Techniques
40220140504010
40220140504010
IAEME Publication
1.compensation of reactive power using d statcom in grid interfaced pv system
1.compensation of reactive power using d statcom in grid interfaced pv system
EditorJST
IRJET- Performance Evaluation of Micro Grid
IRJET- Performance Evaluation of Micro Grid
IRJET Journal
Performance Comparison of PID and Fuzzy Controllers in Distributed MPPT
Performance Comparison of PID and Fuzzy Controllers in Distributed MPPT
IJPEDS-IAES
Control of Two Stage PV Power System under the Unbalanced Three Phase Grid Vo...
Control of Two Stage PV Power System under the Unbalanced Three Phase Grid Vo...
ijtsrd
Similar to IRJET- A Review on Solar based Multilevel Inverter with Three Phase Grid Supply
(20)
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
Implementation of a Voltage Multiplier based on High Step-up Converter using FLC
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET- Multi-Level Inverter for Solar On-Grid System Design
IRJET- Micro Inverter
IRJET- Micro Inverter
Real Time Implementation of Variable Step Size Based P&O MPPT for PV Systems ...
Real Time Implementation of Variable Step Size Based P&O MPPT for PV Systems ...
A Grid-Tied Solar Power System with Harmonic Filter to Enhance Power Quality
A Grid-Tied Solar Power System with Harmonic Filter to Enhance Power Quality
PV array connected to the grid with the implementation of MPPT algorithms (IN...
PV array connected to the grid with the implementation of MPPT algorithms (IN...
A multi converter based pure solar energy system with high efficiency mppt con
A multi converter based pure solar energy system with high efficiency mppt con
Power-Sharing of Parallel Inverters in Micro-Grids via Droop control and Virt...
Power-Sharing of Parallel Inverters in Micro-Grids via Droop control and Virt...
Analysis of Double Moving Average Power Smoothing Methods for Photovoltaic Sy...
Analysis of Double Moving Average Power Smoothing Methods for Photovoltaic Sy...
Modeling and Simulation of Grid Connected PV Generation System Using Matlab/S...
Modeling and Simulation of Grid Connected PV Generation System Using Matlab/S...
A Distributed Approach to Maximum Power Point Tracking for Photovoltaic Sub-M...
A Distributed Approach to Maximum Power Point Tracking for Photovoltaic Sub-M...
A Novel Approach for Power Quality Improvement in Distributed Generation
A Novel Approach for Power Quality Improvement in Distributed Generation
Electric Vehicle as an Energy Storage for Grid Connected Solar Power System
Electric Vehicle as an Energy Storage for Grid Connected Solar Power System
Design and Analysis of Three Phase Inverter with Two Buck/Boost MPPTs for DC ...
Design and Analysis of Three Phase Inverter with Two Buck/Boost MPPTs for DC ...
IJET-V2I6P10
IJET-V2I6P10
40220140504010
40220140504010
1.compensation of reactive power using d statcom in grid interfaced pv system
1.compensation of reactive power using d statcom in grid interfaced pv system
IRJET- Performance Evaluation of Micro Grid
IRJET- Performance Evaluation of Micro Grid
Performance Comparison of PID and Fuzzy Controllers in Distributed MPPT
Performance Comparison of PID and Fuzzy Controllers in Distributed MPPT
Control of Two Stage PV Power System under the Unbalanced Three Phase Grid Vo...
Control of Two Stage PV Power System under the Unbalanced Three Phase Grid Vo...
More from IRJET Journal
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
IRJET Journal
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
IRJET Journal
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
IRJET Journal
Effect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil Characteristics
IRJET Journal
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
IRJET Journal
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
IRJET Journal
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
IRJET Journal
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
IRJET Journal
A REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADAS
IRJET Journal
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
IRJET Journal
P.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD Pro
IRJET Journal
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
IRJET Journal
Survey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare System
IRJET Journal
Review on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridges
IRJET Journal
React based fullstack edtech web application
React based fullstack edtech web application
IRJET Journal
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
IRJET Journal
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
IRJET Journal
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
IRJET Journal
Multistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic Design
IRJET Journal
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
IRJET Journal
More from IRJET Journal
(20)
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
TUNNELING IN HIMALAYAS WITH NATM METHOD: A SPECIAL REFERENCES TO SUNGAL TUNNE...
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
STUDY THE EFFECT OF RESPONSE REDUCTION FACTOR ON RC FRAMED STRUCTURE
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
A COMPARATIVE ANALYSIS OF RCC ELEMENT OF SLAB WITH STARK STEEL (HYSD STEEL) A...
Effect of Camber and Angles of Attack on Airfoil Characteristics
Effect of Camber and Angles of Attack on Airfoil Characteristics
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
A Review on the Progress and Challenges of Aluminum-Based Metal Matrix Compos...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Dynamic Urban Transit Optimization: A Graph Neural Network Approach for Real-...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
Structural Analysis and Design of Multi-Storey Symmetric and Asymmetric Shape...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A Review of “Seismic Response of RC Structures Having Plan and Vertical Irreg...
A REVIEW ON MACHINE LEARNING IN ADAS
A REVIEW ON MACHINE LEARNING IN ADAS
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
Long Term Trend Analysis of Precipitation and Temperature for Asosa district,...
P.E.B. Framed Structure Design and Analysis Using STAAD Pro
P.E.B. Framed Structure Design and Analysis Using STAAD Pro
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
A Review on Innovative Fiber Integration for Enhanced Reinforcement of Concre...
Survey Paper on Cloud-Based Secured Healthcare System
Survey Paper on Cloud-Based Secured Healthcare System
Review on studies and research on widening of existing concrete bridges
Review on studies and research on widening of existing concrete bridges
React based fullstack edtech web application
React based fullstack edtech web application
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A Comprehensive Review of Integrating IoT and Blockchain Technologies in the ...
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
A REVIEW ON THE PERFORMANCE OF COCONUT FIBRE REINFORCED CONCRETE.
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Optimizing Business Management Process Workflows: The Dynamic Influence of Mi...
Multistoried and Multi Bay Steel Building Frame by using Seismic Design
Multistoried and Multi Bay Steel Building Frame by using Seismic Design
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Cost Optimization of Construction Using Plastic Waste as a Sustainable Constr...
Recently uploaded
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
roselinkalist12
Introduction-To-Agricultural-Surveillance-Rover.pptx
Introduction-To-Agricultural-Surveillance-Rover.pptx
k795866
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
Dr SOUNDIRARAJ N
Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service
rehmti665
Oxy acetylene welding presentation note.
Oxy acetylene welding presentation note.
eptoze12
Effects of rheological properties on mixing
Effects of rheological properties on mixing
viprabot1
Call Us -/9953056974- Call Girls In Vikaspuri-/- Delhi NCR
Call Us -/9953056974- Call Girls In Vikaspuri-/- Delhi NCR
9953056974 Low Rate Call Girls In Saket, Delhi NCR
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
Asst.prof M.Gokilavani
POWER SYSTEMS-1 Complete notes examples
POWER SYSTEMS-1 Complete notes examples
Dr. Gudipudi Nageswara Rao
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
9953056974 Low Rate Call Girls In Saket, Delhi NCR
EduAI - E learning Platform integrated with AI
EduAI - E learning Platform integrated with AI
koyaldeepu123
Heart Disease Prediction using machine learning.pptx
Heart Disease Prediction using machine learning.pptx
PoojaBan
Electronically Controlled suspensions system .pdf
Electronically Controlled suspensions system .pdf
me23b1001
CCS355 Neural Network & Deep Learning Unit II Notes with Question bank .pdf
CCS355 Neural Network & Deep Learning Unit II Notes with Question bank .pdf
Asst.prof M.Gokilavani
Exploring_Network_Security_with_JA3_by_Rakesh Seal.pptx
Exploring_Network_Security_with_JA3_by_Rakesh Seal.pptx
null - The Open Security Community
main PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfid
NikhilNagaraju
Biology for Computer Engineers Course Handout.pptx
Biology for Computer Engineers Course Handout.pptx
DeepakSakkari2
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Dr.Costas Sachpazis
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
srsj9000
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
9953056974 Low Rate Call Girls In Saket, Delhi NCR
Recently uploaded
(20)
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
INFLUENCE OF NANOSILICA ON THE PROPERTIES OF CONCRETE
Introduction-To-Agricultural-Surveillance-Rover.pptx
Introduction-To-Agricultural-Surveillance-Rover.pptx
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
UNIT III ANALOG ELECTRONICS (BASIC ELECTRONICS)
Call Girls Delhi {Jodhpur} 9711199012 high profile service
Call Girls Delhi {Jodhpur} 9711199012 high profile service
Oxy acetylene welding presentation note.
Oxy acetylene welding presentation note.
Effects of rheological properties on mixing
Effects of rheological properties on mixing
Call Us -/9953056974- Call Girls In Vikaspuri-/- Delhi NCR
Call Us -/9953056974- Call Girls In Vikaspuri-/- Delhi NCR
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
CCS355 Neural Networks & Deep Learning Unit 1 PDF notes with Question bank .pdf
POWER SYSTEMS-1 Complete notes examples
POWER SYSTEMS-1 Complete notes examples
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
9953056974 Call Girls In South Ex, Escorts (Delhi) NCR.pdf
EduAI - E learning Platform integrated with AI
EduAI - E learning Platform integrated with AI
Heart Disease Prediction using machine learning.pptx
Heart Disease Prediction using machine learning.pptx
Electronically Controlled suspensions system .pdf
Electronically Controlled suspensions system .pdf
CCS355 Neural Network & Deep Learning Unit II Notes with Question bank .pdf
CCS355 Neural Network & Deep Learning Unit II Notes with Question bank .pdf
Exploring_Network_Security_with_JA3_by_Rakesh Seal.pptx
Exploring_Network_Security_with_JA3_by_Rakesh Seal.pptx
main PPT.pptx of girls hostel security using rfid
main PPT.pptx of girls hostel security using rfid
Biology for Computer Engineers Course Handout.pptx
Biology for Computer Engineers Course Handout.pptx
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Sachpazis Costas: Geotechnical Engineering: A student's Perspective Introduction
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
Gfe Mayur Vihar Call Girls Service WhatsApp -> 9999965857 Available 24x7 ^ De...
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
🔝9953056974🔝!!-YOUNG call girls in Rajendra Nagar Escort rvice Shot 2000 nigh...
IRJET- A Review on Solar based Multilevel Inverter with Three Phase Grid Supply
1.
International Research Journal
of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 03 | Mar 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 2190 A Review on Solar Based Multilevel Inverter with Three Phase Grid Supply Khushboo Kothari1, Shruti Tiwari2 1,2Dept. of Electrical Engineering, Shri Shankaracharya Technical Campus, Durg, C.G., India -------------------------------------------------------------------------***------------------------------------------------------------------------ Abstract: The world demand for electric energy is constantly increasing and conventional energy resources are diminishing and are at the edge of extinction, moreover their prices are rising. For all these reasons, the need for alternative energy sources has become necessary and solar energy in particular has proved to be a very promising alternative because of its easy availability and pollution-free nature. Due to increasing efficiency, decreasing cost of solar panels and improvement of the switching technology used for the power conversion, we are interested in developing a multilevel inverter powered by pv panels that could supply three phase grid. Multilevel inverter as compared to single level inverters have advantages like minimum harmonic distortion, reduced EMI/RFI generation and can operate on several voltage levels. Keywords: Three-phase; grid connected; photovoltaic systems; Multilevel Inverter; Power Components Literature Survey: Abdelaziz Fria et al. (2013) presented a comparative study in the Matlab/Simulink environment between three topologies of three-phase multilevel inverter MLI (five-level). We will consider the Flying Capacitor Multilevel Inverter (FCMLI), the Neutral Point Clamped Multilevel Inverter (NPCMLI), and the Cascaded H-Bridge Multilevel Inverter (H-bridge MLI). The comparison between these inverters is based on some criteria: the spectral quality of the output voltage, the complexity of the power circuits and the cost of implementation. Each inverter is controlled by the same type of control which is the multi-carrier sinusoidal pulse width modulation (SPWM). Voltage sources supplying the inverters cells are simulated by a DC voltage representing photovoltaic panels (PV). We have chosen the 5L inverter because it is the most widespread. In literature, there is works dealing on a single topology with several levels, or developing a new topologies, or achieving a sophisticated control dedicated to very specific topologies. This study focuses on a comparison of three topologies bases. These topologies are simpler and easily controlled in an analog or digital manner. This study shows, on the one hand, that the total harmonic distortion (THD) is approximately 32% for NPCMLI and PWM H-Bridge topologies, and it is about 36% for the FCMLI topology. Moreover, the distortion factor (DF) of the FCMLI is smaller (0.94) than the NPCMLI and H-bridge (0.951). In addition, the rays spectrum are concentrated on the switching frequency (2500Hz) for the three topologies. On the other hand, the H-bridge MLI topology has fewer components compared to the others. Our study confirms that the most promising topology for photovoltaic systems is the PWM H-bridge one in view of the spectral quality, the phase shift (2π/3) between voltages, the waveform of the composed output voltage and the cost. Aarti Gupta et al. (2013) proposed in any PV based system, the inverter is a critical component responsible for the control of electricity flow between the dc source, and loads or grid. This paper presents a solar PV generation system integrated to the grid. The results of matlab modelling of the system detail the comparative operation of inverter topologies which are the conventional two level inverters and multilevel inverter topology to reduce total harmonic distortions in grid voltage and electromagnetic interference. The proposed control scheme to mitigate the power quality issues for power quality improvement in grid integrated DER simulated using MATLAB/ SIMULINK in power system block set. Bijo Reji et al. (2014) proposed distributed energy systems and industrial motor drives multilevel converters and inverters are the emerging trends. Single phase inverter is widely used for stand-alone systems and micro-grid application. The major limitation faced by multilevel inverters are, number of switches required large which leads to higher switching losses. A novel solar powered extended simplified multilevel inverter is proposed, in which a single phase multilevel output can be attained using less number of switches. This paper observers the feasibility of the proposed topology using Matlab/Simulink software. A seven level output voltage is obtained with less harmonic content and reduced switching losses. K.S. Srikanth (2014) Photovoltaic energy is a wide kind of green energy. A high performance on these systems is needed to make the most of energy produced by solar cells. Also, there must be a constant adaptation due to the continuous variation of power production. Control techniques for Power Converters like the MPPT algorithm (Maximum Power Point Tracking) present very good results on photovoltaic chains. Nevertheless, losses on power elements reduce global performance and
2.

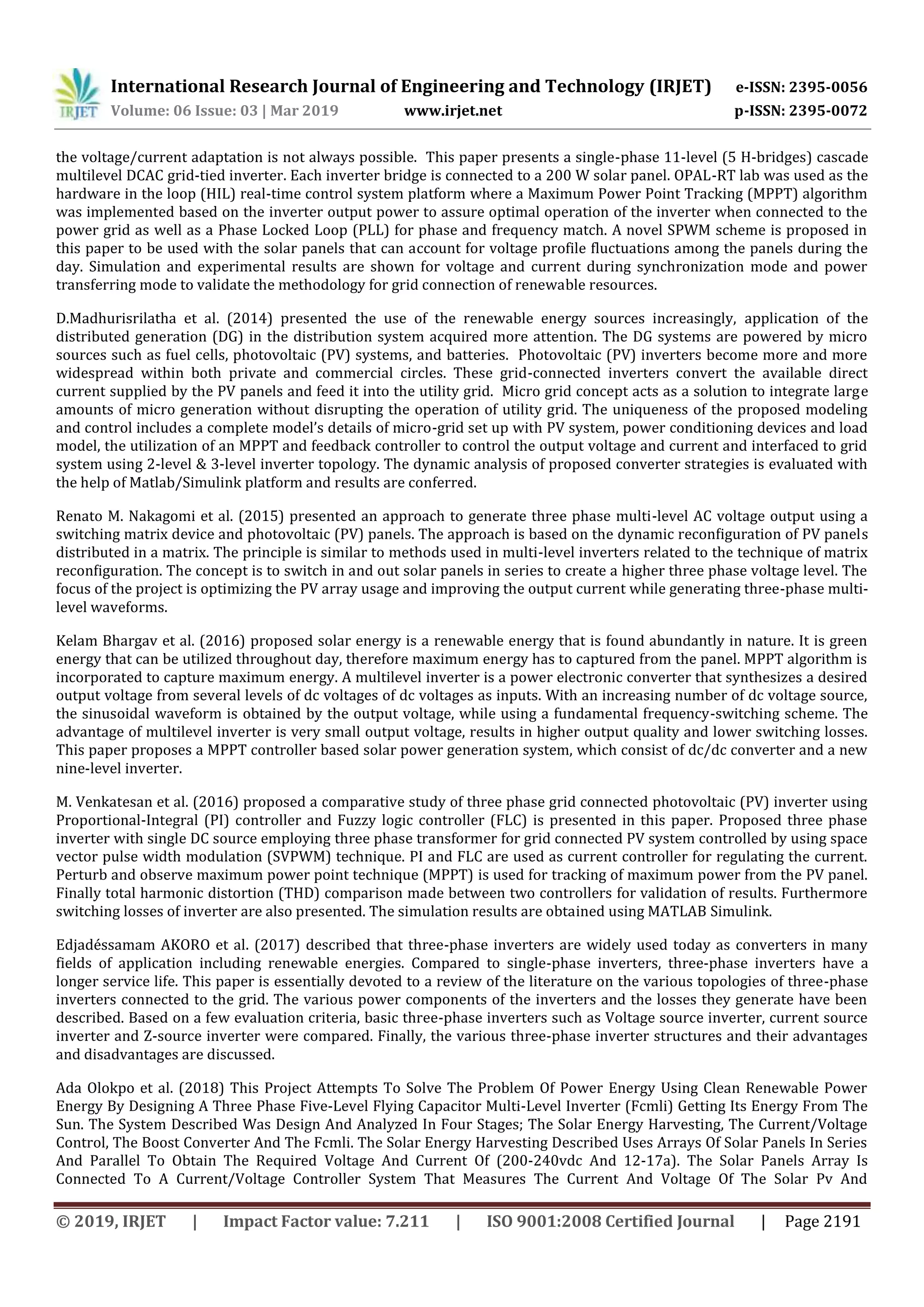

International Research Journal
of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 03 | Mar 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 2191 the voltage/current adaptation is not always possible. This paper presents a single-phase 11-level (5 H-bridges) cascade multilevel DCAC grid-tied inverter. Each inverter bridge is connected to a 200 W solar panel. OPAL-RT lab was used as the hardware in the loop (HIL) real-time control system platform where a Maximum Power Point Tracking (MPPT) algorithm was implemented based on the inverter output power to assure optimal operation of the inverter when connected to the power grid as well as a Phase Locked Loop (PLL) for phase and frequency match. A novel SPWM scheme is proposed in this paper to be used with the solar panels that can account for voltage profile fluctuations among the panels during the day. Simulation and experimental results are shown for voltage and current during synchronization mode and power transferring mode to validate the methodology for grid connection of renewable resources. D.Madhurisrilatha et al. (2014) presented the use of the renewable energy sources increasingly, application of the distributed generation (DG) in the distribution system acquired more attention. The DG systems are powered by micro sources such as fuel cells, photovoltaic (PV) systems, and batteries. Photovoltaic (PV) inverters become more and more widespread within both private and commercial circles. These grid-connected inverters convert the available direct current supplied by the PV panels and feed it into the utility grid. Micro grid concept acts as a solution to integrate large amounts of micro generation without disrupting the operation of utility grid. The uniqueness of the proposed modeling and control includes a complete model’s details of micro-grid set up with PV system, power conditioning devices and load model, the utilization of an MPPT and feedback controller to control the output voltage and current and interfaced to grid system using 2-level & 3-level inverter topology. The dynamic analysis of proposed converter strategies is evaluated with the help of Matlab/Simulink platform and results are conferred. Renato M. Nakagomi et al. (2015) presented an approach to generate three phase multi-level AC voltage output using a switching matrix device and photovoltaic (PV) panels. The approach is based on the dynamic reconfiguration of PV panels distributed in a matrix. The principle is similar to methods used in multi-level inverters related to the technique of matrix reconfiguration. The concept is to switch in and out solar panels in series to create a higher three phase voltage level. The focus of the project is optimizing the PV array usage and improving the output current while generating three-phase multi- level waveforms. Kelam Bhargav et al. (2016) proposed solar energy is a renewable energy that is found abundantly in nature. It is green energy that can be utilized throughout day, therefore maximum energy has to captured from the panel. MPPT algorithm is incorporated to capture maximum energy. A multilevel inverter is a power electronic converter that synthesizes a desired output voltage from several levels of dc voltages of dc voltages as inputs. With an increasing number of dc voltage source, the sinusoidal waveform is obtained by the output voltage, while using a fundamental frequency-switching scheme. The advantage of multilevel inverter is very small output voltage, results in higher output quality and lower switching losses. This paper proposes a MPPT controller based solar power generation system, which consist of dc/dc converter and a new nine-level inverter. M. Venkatesan et al. (2016) proposed a comparative study of three phase grid connected photovoltaic (PV) inverter using Proportional-Integral (PI) controller and Fuzzy logic controller (FLC) is presented in this paper. Proposed three phase inverter with single DC source employing three phase transformer for grid connected PV system controlled by using space vector pulse width modulation (SVPWM) technique. PI and FLC are used as current controller for regulating the current. Perturb and observe maximum power point technique (MPPT) is used for tracking of maximum power from the PV panel. Finally total harmonic distortion (THD) comparison made between two controllers for validation of results. Furthermore switching losses of inverter are also presented. The simulation results are obtained using MATLAB Simulink. Edjadéssamam AKORO et al. (2017) described that three-phase inverters are widely used today as converters in many fields of application including renewable energies. Compared to single-phase inverters, three-phase inverters have a longer service life. This paper is essentially devoted to a review of the literature on the various topologies of three-phase inverters connected to the grid. The various power components of the inverters and the losses they generate have been described. Based on a few evaluation criteria, basic three-phase inverters such as Voltage source inverter, current source inverter and Z-source inverter were compared. Finally, the various three-phase inverter structures and their advantages and disadvantages are discussed. Ada Olokpo et al. (2018) This Project Attempts To Solve The Problem Of Power Energy Using Clean Renewable Power Energy By Designing A Three Phase Five-Level Flying Capacitor Multi-Level Inverter (Fcmli) Getting Its Energy From The Sun. The System Described Was Design And Analyzed In Four Stages; The Solar Energy Harvesting, The Current/Voltage Control, The Boost Converter And The Fcmli. The Solar Energy Harvesting Described Uses Arrays Of Solar Panels In Series And Parallel To Obtain The Required Voltage And Current Of (200-240vdc And 12-17a). The Solar Panels Array Is Connected To A Current/Voltage Controller System That Measures The Current And Voltage Of The Solar Pv And

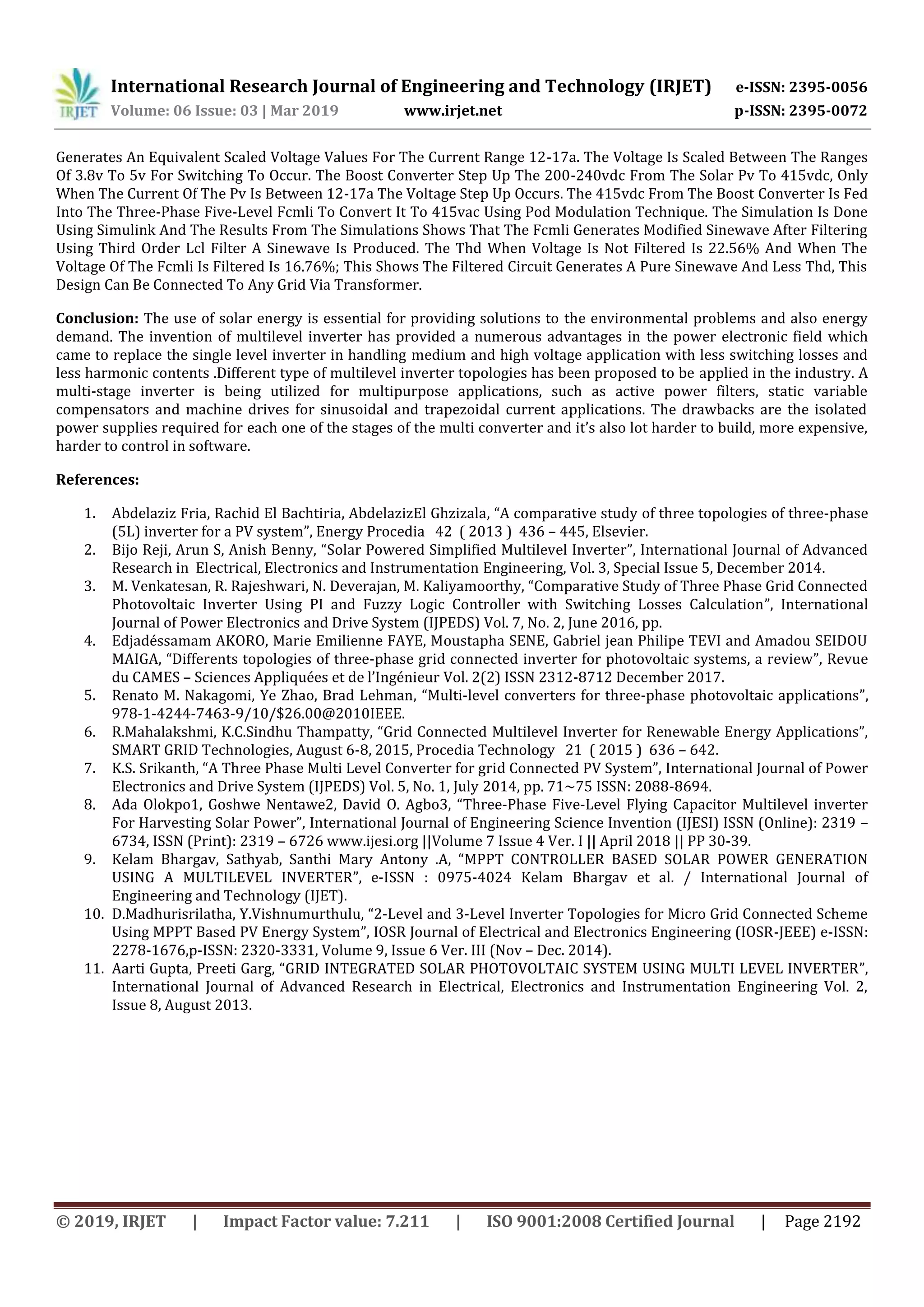

3.
International Research Journal
of Engineering and Technology (IRJET) e-ISSN: 2395-0056 Volume: 06 Issue: 03 | Mar 2019 www.irjet.net p-ISSN: 2395-0072 © 2019, IRJET | Impact Factor value: 7.211 | ISO 9001:2008 Certified Journal | Page 2192 Generates An Equivalent Scaled Voltage Values For The Current Range 12-17a. The Voltage Is Scaled Between The Ranges Of 3.8v To 5v For Switching To Occur. The Boost Converter Step Up The 200-240vdc From The Solar Pv To 415vdc, Only When The Current Of The Pv Is Between 12-17a The Voltage Step Up Occurs. The 415vdc From The Boost Converter Is Fed Into The Three-Phase Five-Level Fcmli To Convert It To 415vac Using Pod Modulation Technique. The Simulation Is Done Using Simulink And The Results From The Simulations Shows That The Fcmli Generates Modified Sinewave After Filtering Using Third Order Lcl Filter A Sinewave Is Produced. The Thd When Voltage Is Not Filtered Is 22.56% And When The Voltage Of The Fcmli Is Filtered Is 16.76%; This Shows The Filtered Circuit Generates A Pure Sinewave And Less Thd, This Design Can Be Connected To Any Grid Via Transformer. Conclusion: The use of solar energy is essential for providing solutions to the environmental problems and also energy demand. The invention of multilevel inverter has provided a numerous advantages in the power electronic field which came to replace the single level inverter in handling medium and high voltage application with less switching losses and less harmonic contents .Different type of multilevel inverter topologies has been proposed to be applied in the industry. A multi-stage inverter is being utilized for multipurpose applications, such as active power filters, static variable compensators and machine drives for sinusoidal and trapezoidal current applications. The drawbacks are the isolated power supplies required for each one of the stages of the multi converter and it’s also lot harder to build, more expensive, harder to control in software. References: 1. Abdelaziz Fria, Rachid El Bachtiria, AbdelazizEl Ghzizala, “A comparative study of three topologies of three-phase (5L) inverter for a PV system”, Energy Procedia 42 ( 2013 ) 436 – 445, Elsevier. 2. Bijo Reji, Arun S, Anish Benny, “Solar Powered Simplified Multilevel Inverter”, International Journal of Advanced Research in Electrical, Electronics and Instrumentation Engineering, Vol. 3, Special Issue 5, December 2014. 3. M. Venkatesan, R. Rajeshwari, N. Deverajan, M. Kaliyamoorthy, “Comparative Study of Three Phase Grid Connected Photovoltaic Inverter Using PI and Fuzzy Logic Controller with Switching Losses Calculation”, International Journal of Power Electronics and Drive System (IJPEDS) Vol. 7, No. 2, June 2016, pp. 4. Edjadéssamam AKORO, Marie Emilienne FAYE, Moustapha SENE, Gabriel jean Philipe TEVI and Amadou SEIDOU MAIGA, “Differents topologies of three-phase grid connected inverter for photovoltaic systems, a review”, Revue du CAMES – Sciences Appliquées et de l’Ingénieur Vol. 2(2) ISSN 2312-8712 December 2017. 5. Renato M. Nakagomi, Ye Zhao, Brad Lehman, “Multi-level converters for three-phase photovoltaic applications”, 978-1-4244-7463-9/10/$26.00@2010IEEE. 6. R.Mahalakshmi, K.C.Sindhu Thampatty, “Grid Connected Multilevel Inverter for Renewable Energy Applications”, SMART GRID Technologies, August 6-8, 2015, Procedia Technology 21 ( 2015 ) 636 – 642. 7. K.S. Srikanth, “A Three Phase Multi Level Converter for grid Connected PV System”, International Journal of Power Electronics and Drive System (IJPEDS) Vol. 5, No. 1, July 2014, pp. 71~75 ISSN: 2088-8694. 8. Ada Olokpo1, Goshwe Nentawe2, David O. Agbo3, “Three-Phase Five-Level Flying Capacitor Multilevel inverter For Harvesting Solar Power”, International Journal of Engineering Science Invention (IJESI) ISSN (Online): 2319 – 6734, ISSN (Print): 2319 – 6726 www.ijesi.org ||Volume 7 Issue 4 Ver. I || April 2018 || PP 30-39. 9. Kelam Bhargav, Sathyab, Santhi Mary Antony .A, “MPPT CONTROLLER BASED SOLAR POWER GENERATION USING A MULTILEVEL INVERTER”, e-ISSN : 0975-4024 Kelam Bhargav et al. / International Journal of Engineering and Technology (IJET). 10. D.Madhurisrilatha, Y.Vishnumurthulu, “2-Level and 3-Level Inverter Topologies for Micro Grid Connected Scheme Using MPPT Based PV Energy System”, IOSR Journal of Electrical and Electronics Engineering (IOSR-JEEE) e-ISSN: 2278-1676,p-ISSN: 2320-3331, Volume 9, Issue 6 Ver. III (Nov – Dec. 2014). 11. Aarti Gupta, Preeti Garg, “GRID INTEGRATED SOLAR PHOTOVOLTAIC SYSTEM USING MULTI LEVEL INVERTER”, International Journal of Advanced Research in Electrical, Electronics and Instrumentation Engineering Vol. 2, Issue 8, August 2013.
Download now
