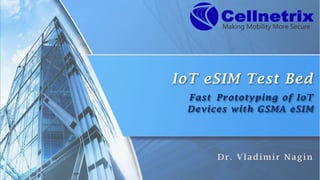

1. IoT eSIM Test Bed
Fast Prototyping of IoT
Devices with GSMA eSIM

2. Understanding IoT Market
Development
▸ Internet of things is where objects connect to
each other directly
▸ Number of connected devices and connections
will grow rapidly over next few years at a CAGR
of 29.98% during the period 2016-2020
▸ eSIM will dominate the M2M market, counting
50% of connections by 2020, says Juniper
▸ New LPWA access technologies including NB IoT
▸ Introduction of 5G Standards
▸ Most communicating objects will be simple low power IoT devices with low or no security at all

3. Market requirements
Number of connected devices will grow drama=cally over next few years. IoT is a main driver
96%
Of global popula+on
has a cellular
subscrip+on
Market
evolu+on and
innova+on
IoT makes machines
talk to each other
25
Billion
2020
The number of
connected cellular
devices will reach
Faster =me
to market is
required
Cellnetrix offers
fast prototyping
services for
devices with
GSMA eSIM

4. Building blocks of our technology
IoT Prototyping and
communica=on boards
Concept IoT Device
With touch screen and
different sensors
GSMA IoT.eSIM
Applica=ons
Roaming , EAP-TLS Authen+ca+on,
Mobile PKI, PKCS#15/SEAC
Middleware
Reference implemen-
ta+ons of LPAs
Various form
factors
Easy integra+on
of various IoT
boards
Celsium SM-DP+
PlaUorm
GSMA Remote SIM
Provisioning 2.0
SoVware 2G/
3G/LTE Radio
Connected to IoT
Clouds

5. IoT Test Bed Architecture
Sensor Node
Sensors
Software radio
YateBTS with USRP B210
GSMA RSP eSIM
Ø The complete system can be
prototyped on the table including:
subscription management platform,
software radio, IoT boards and
sensors.
Ø There are MQTT connectors to
enable data publishing to IoT clouds
IoT Clouds
IoT prototyping
board with cellular module
GSMA Subscription
and device management
platform

6. Supported LPA configura=ons
Ø LPA in a device (LPAd) provides a full flexibility to order,
download and manage eUICC profiles. Can be used for different
devices with or without UI
Ø LPA in IoT.SIM (LPAe) provides out of the box agent enabling
basic provisioning operations such as profile activation relying
on modem BIP support. Ideal for M2M only devices without UI.
IoT Test Bed supports 2 LPA configurations:
IoT.SIM-based
Device-based

7. Supported eSIM form factors
Ø GSMA-based eSIM compliant solution for
emerging IoT market including wearables
and data only devices
Ø eSIM in SIM-form factor
Ø Software eSIM Stack runnable at
application processor or baseband
In order to support different applications 3 configurations are provided:
WLCSP
SoRware TEE
2FF 3FF 4FF
Hardware
SoVware
ASIC
ASIC
DFN6/DFN8

8. Device manager
Device life cycle
Ini+alized
Pre
ini+alized
Provisioned Disabled

9. Device deployment with eSIM
▸ Vanilla, not activated, device without bootstrap
subscription
▸ Non-activated device with a bootstrap profile
▸ Non-activated device with a commercial
profile
There are several device deployments options with eSIM:
• Activation and subscription provisioning
should be implemented via Local
Provisioning Agent (LPA) / Companion
Device or Connection
• Device can go online and can pull proper
subscription or get provisioned
• Only activation required, no provisioning
needed

10. Celsium SM-DP+
Operator
End
User
EUM
CI
Celsium IoT.SIM
Device
LUIdLPDd
LPAd
ES2+
ES10c
ESeum
ESeu
ESop
ES10b
ES9+
ES8+
ES6
LDSd
ES10a
SM-DS
ES12
ES11
ES15
ESci
ESci
Part of IoT
Test Bed
SM Roles
Provisioning Architecture with LPAd

11. Provisioning Architecture with LPAe
Celsium SM-DP+
Operator
End
User
EUM
CI
eUICC
Device
ES2+
ESeum
ESeu
ESop
ES6
SM-DS
ES12
ES11
ES15
ESci
ESci
LUIeLPDe
LPAe
LDSe
ES8+
ES9+
Evolution of the original
Remote Provisioning for
M2M
Part of IoT
Test Bed

12. Thank you for your attention!
We’re pleased to answer your Questions!
Thank you for your aen=on!
