Grand Central Dispatch in Objective-C

Grand Central Dispatch
Павел Альбицкий
p.albitsky@gmail.com

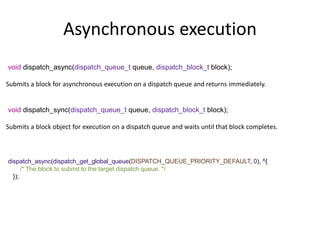

Asynchronous execution
void dispatch_async(dispatch_queue_t queue, dispatch_block_t block);
Submits a block for asynchronous execution on a dispatch queue and returns immediately.
void dispatch_sync(dispatch_queue_t queue, dispatch_block_t block);
Submits a block object for execution on a dispatch queue and waits until that block completes.
dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
/* The block to submit to the target dispatch queue. */
});

Running in separate thread
dispatch_async(dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_DEFAULT, 0), ^{
/* Run in background thread */
dispatch_sync(dispatch_get_main_queue(), ^{
/* Run in main thread
Waits until completes */
});
/* Continue in background thread */
});

Queues
• Serial (private dispatch queues)
Serial queues execute one task at a time in the order in which they are added
to the queue.
• Concurrent (global dispatch queue)
Concurrent queues execute one or more tasks concurrently
• Main dispatch queue
The main dispatch queue is a globally available serial queue that executes
tasks on the application’s main thread

Common queues
• Main queue (serial)
dispatch_get_main_queue() returns the main queue
• Concurrent queues with the specified quality of service class
1. DISPATCH_QUEUE_PRIORITY_HIGH
2. DISPATCH_QUEUE_PRIORITY_DEFAULT
3. DISPATCH_QUEUE_PRIORITY_LOW
4. DISPATCH_QUEUE_PRIORITY_BACKGROUND
dispatch_get_global_queue() returns a system-defined global concurrent
queue

Creating queues
• Concurrent
dispatch_queue_t concurrentQueue = dispatch_queue_create("com.myapp.queue",
DISPATCH_QUEUE_CONCURRENT);
• Serial
dispatch_queue_t serialQueue = dispatch_queue_create("com.myapp.queue",
DISPATCH_QUEUE_SERIAL);
#define DISPATCH_QUEUE_SERIAL NULL

Memory managment
• Before macOS 10.8 or iOS v6.0 – MRC

dispatch_retain(serialQueue);
dispatch_release(serialQueue);
• Later – ARC


Adding tasks to a queue
- (void)gcd {
dispatch_queue_t myCustomQueue;
myCustomQueue = dispatch_queue_create("com.example.MyCustomQueue", NULL);
dispatch_async(myCustomQueue, ^{
printf("Do some work here.n");
});
printf("The first block may or may not have run.n");
dispatch_sync(myCustomQueue, ^{
printf("Do some more work here.n");
});
printf("Both blocks have completed.n");
}
The first block may or may not have run.
Do some work here.
Do some more work here.
Both blocks have completed.

dispatch_once
typedef long dispatch_once_t;
static dispatch_once_t tokenOnce;
dispatch_once(&tokenOnce, ^{
printf("tokenOnce: %ld", tokenOnce);
tokenOnce = 0;
});
tokenOnce: 140734581496400

dispatch_after
double delayInSeconds = 2.0;
dispatch_time_t popTime = dispatch_time(DISPATCH_TIME_NOW, delayInSeconds *
NSEC_PER_SEC);
dispatch_after(popTime, dispatch_get_main_queue(), ^{
//
});

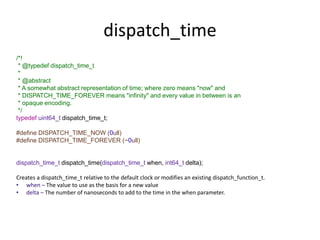

dispatch_time
/*!
* @typedef dispatch_time_t
*
* @abstract
* A somewhat abstract representation of time; where zero means "now" and
* DISPATCH_TIME_FOREVER means "infinity" and every value in between is an
* opaque encoding.
*/
typedef uint64_t dispatch_time_t;
#define DISPATCH_TIME_NOW (0ull)
#define DISPATCH_TIME_FOREVER (~0ull)
dispatch_time_t dispatch_time(dispatch_time_t when, int64_t delta);
Creates a dispatch_time_t relative to the default clock or modifies an existing dispatch_function_t.
• when – The value to use as the basis for a new value
• delta – The number of nanoseconds to add to the time in the when parameter.

Multiple invocations
dispatch_queue_t queue = dispatch_queue_create("com.myapp.queue",
dispatch_apply(10, queue, ^(size_t index) {
NSLog(@"%@ , %zu",[NSDate date], index);
});
2016-02-16 21:47:38 +0000 , 4
2016-02-16 21:47:38 +0000 , 7
2016-02-16 21:47:38 +0000 , 3
2016-02-16 21:47:38 +0000 , 1
2016-02-16 21:47:38 +0000 , 5
2016-02-16 21:47:38 +0000 , 0
2016-02-16 21:47:38 +0000 , 2
2016-02-16 21:47:38 +0000 , 6
2016-02-16 21:47:38 +0000 , 8
2016-02-16 21:47:38 +0000 , 9
DISPATCH_QUEUE_CONCURRENT -> NULL ?

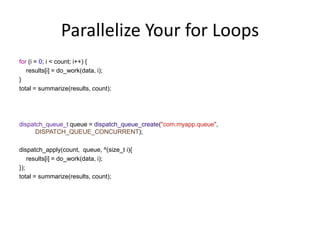

Parallelize Your for Loops
for (i = 0; i < count; i++) {
results[i] = do_work(data, i);
}
total = summarize(results, count);
dispatch_apply(count, queue, ^(size_t i){
results[i] = do_work(data, i);
});
total = summarize(results, count);

Suspend and resut queue
dispatch_suspend(queue);
dispatch_resume(queue);

Group notify
dispatch_group_t group = dispatch_group_create();
dispatch_group_async(group, queue, ^ {
NSLog(@"Block1 Start");
[NSThread sleepForTimeInterval:5.0];
NSLog(@"Block1 End");
});
});
dispatch_group_notify(group, queue, ^ {
NSLog(@"Block3 thread: %@", [NSThread currentThread]);
});
Block2 Start
Block1 Start
Block1 End
Block2 End
Block3 thread: <NSThread: 0x7fe08a10f0a0>{number = 2, name = (null)}

dispatch_group_wait
dispatch_group_t group = dispatch_group_create();
});
});
dispatch_group_wait(group, DISPATCH_TIME_FOREVER);
NSLog(@"thread: %@", [NSThread currentThread]);
Block2 Start
Block1 Start
Block1 End
Block2 End
Block3 thread: <NSThread: 0x7fa88b502490>{number = 1, name = main}

dispatch_queue_t queue = dispatch_queue_create("com.myapp.queue", DISPATCH_QUEUE_CONCURRENT);
dispatch_async(queue, ^{
dispatch_group_t downloadGroup = dispatch_group_create();
for (NSInteger i = 0; i < 3; i++) {
NSURL *url;
switch (i) {
case 0:
url = [NSURL URLWithString:kOverlyAttachedGirlfriendURLString];
break;
case 1:
url = [NSURL URLWithString:kSuccessKidURLString];
break;
}
dispatch_group_enter(downloadGroup);
Photo *photo = [[Photo alloc] initwithURL:url
withCompletionBlock:^(UIImage *image, NSError *_error) {
dispatch_group_leave(downloadGroup);
}];
[[PhotoManager sharedManager] addPhoto:photo];
}
dispatch_group_wait(downloadGroup, DISPATCH_TIME_FOREVER);
dispatch_async(dispatch_get_main_queue(), ^{
if (completionBlock) {
completionBlock(error);
}
});
});
dispatch_group_enter, dispatch_group_leave

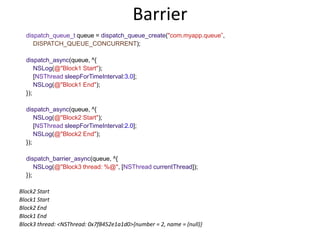

Barrier
dispatch_queue_t queue = dispatch_queue_create("com.myapp.queue”,
});
});
dispatch_barrier_async(queue, ^{
NSLog(@"Block3 thread: %@", [NSThread currentThread]);
});
Block2 Start
Block1 Start
Block2 End
Block1 End
Block3 thread: <NSThread: 0x7f8452e1a1d0>{number = 2, name = (null)}

Semaphore
dispatch_semaphore_t sema = dispatch_semaphore_create(0);
dispatch_queue_t queue = dispatch_queue_create("com.myapp.queue”,
dispatch_async(queue , ^{
NSLog(@"Looooooong opetation....");
NSLog(@"signal");
dispatch_semaphore_signal(sema);
});
NSLog(@"wait for signal");
dispatch_semaphore_wait(sema, DISPATCH_TIME_FOREVER);
NSLog(@"some shit");
wait for signal
Looooooong opetation....
signal
some shit

dispatch_semaphore_t sema = dispatch_semaphore_create(0);
dispatch_queue_t queue = dispatch_queue_create("com.myapp.queue", DISPATCH_QUEUE_CONCURRENT);
NSLog(@”Diana is sleeping");
NSLog(@“Diana is waking up ;)");
NSLog(@“Diana calls David!");
});
NSLog(@”David is sleeping");
NSLog(@“David is waking up =)");
NSLog(@“David calls Diana!");
});
NSLog(@“They are sleeping");
NSLog(@”Nightmare");
});
Diana is sleeping
David is sleeping
They are sleeping
Nightmare
Diana is waking up ;)
Diana calls David!
David is waking up =)
David calls Diana!
what happened if dispatch_semaphore_create(1)? Or (-1)?

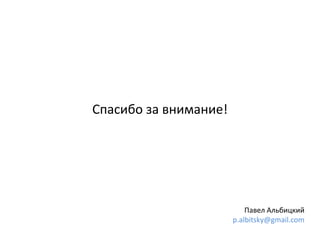

Спасибо за внимание!
Павел Альбицкий
p.albitsky@gmail.com
