Introduction to Maven
The document provides an overview of Maven, a build tool used for project management and dependency management in Java applications. It details the Maven folder structure, the significance of the pom.xml file for defining project information and dependencies, and the various commands and lifecycle phases involved in the build process. Additionally, it explains the types of dependencies, their scopes, and how Maven manages transitive dependencies and repositories.
More Related Content
Similar to Introduction to Maven
Introduction to Maven
- 1. Jyotirmaya Dehury Mindfire Solutions MAVENFundamentals

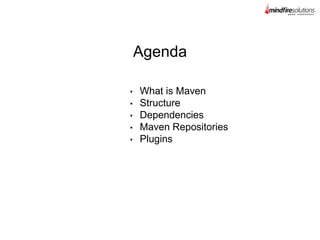

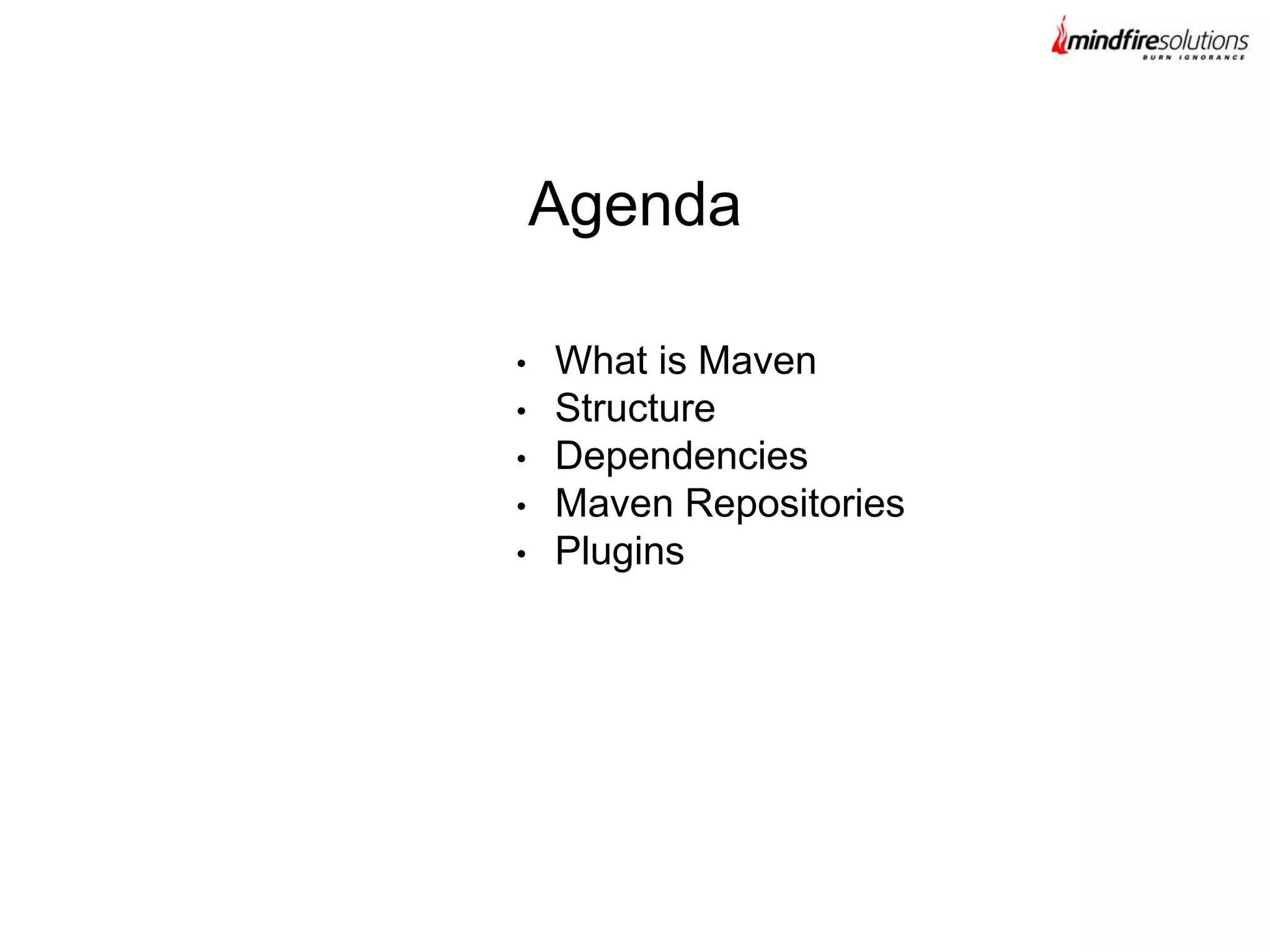

- 2. • What isMaven • Structure • Dependencies • Maven Repositories • Plugins Agenda

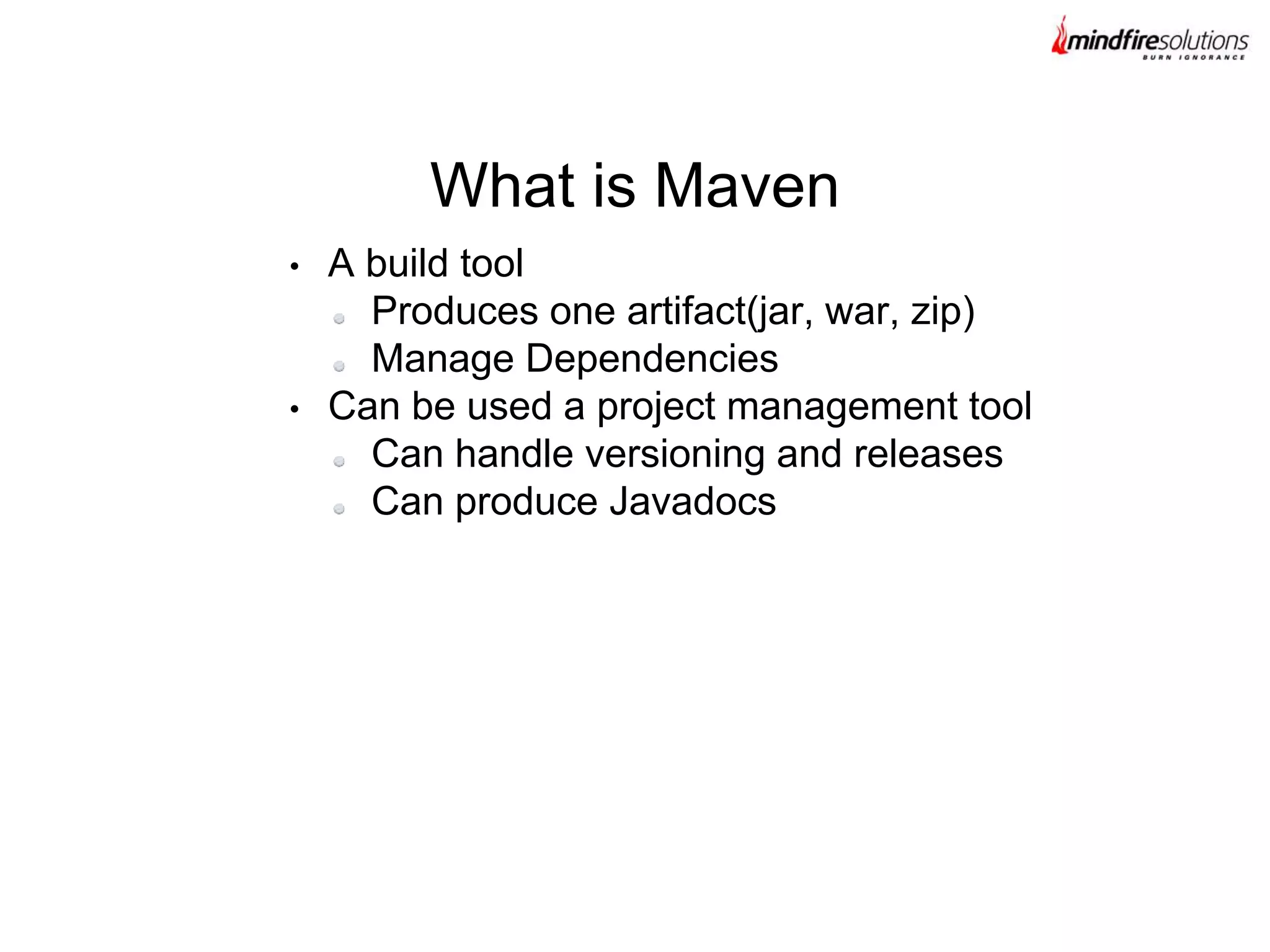

- 3. • A buildtool Produces one artifact(jar, war, zip) Manage Dependencies • Can be used a project management tool Can handle versioning and releases Can produce Javadocs What is Maven

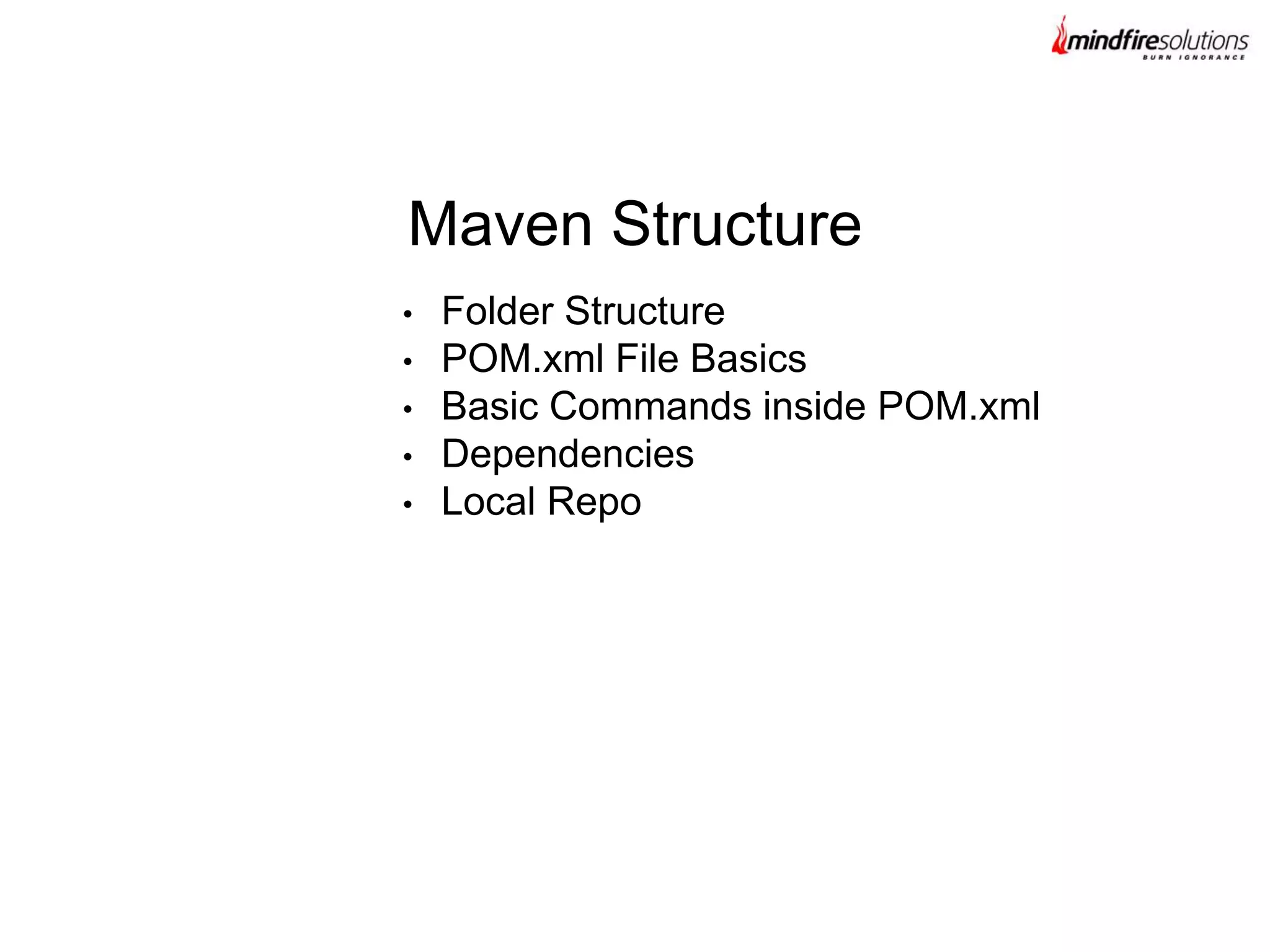

- 4. • Folder Structure •POM.xml File Basics • Basic Commands inside POM.xml • Dependencies • Local Repo Maven Structure

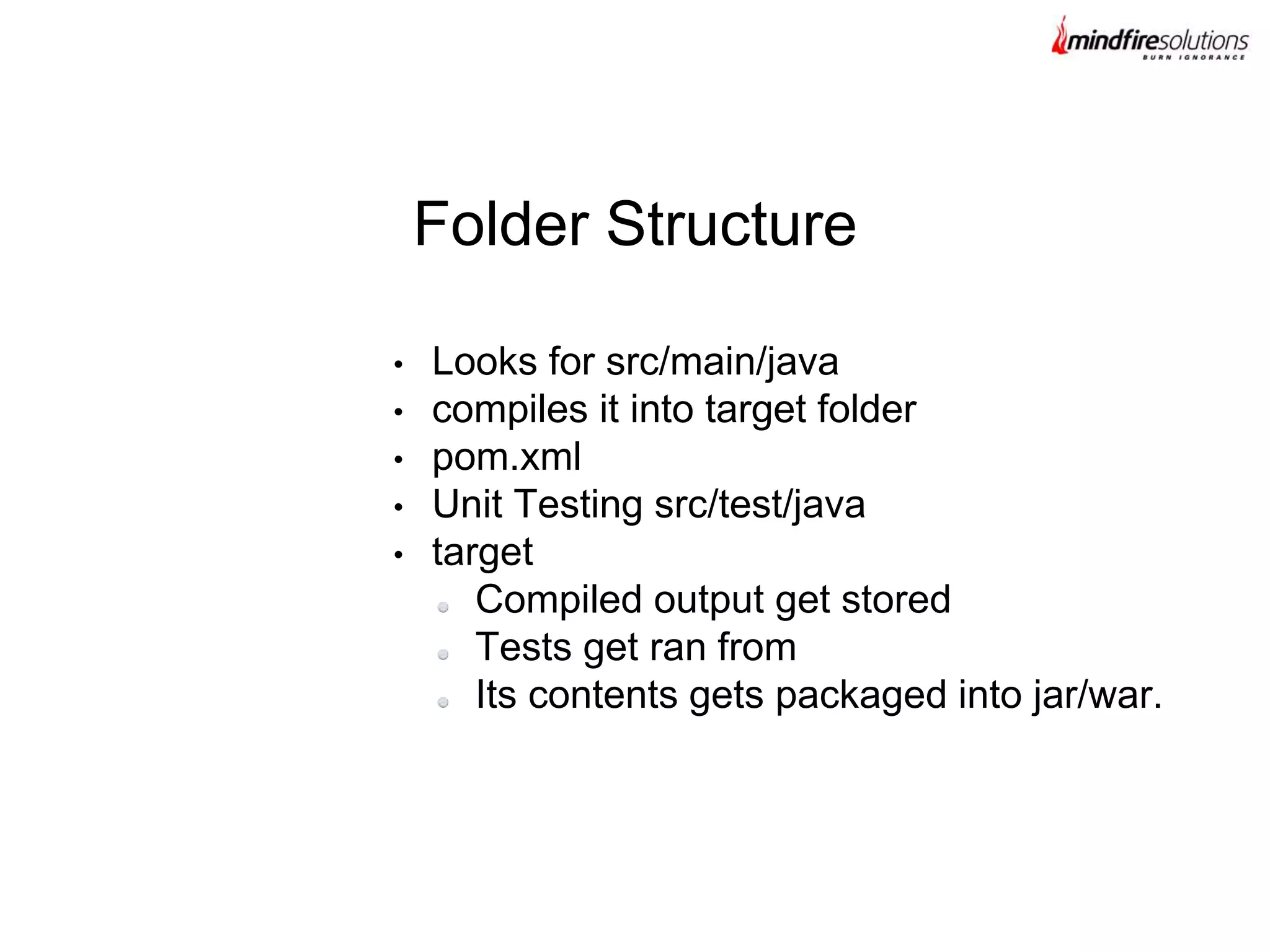

- 5. • Looks forsrc/main/java • compiles it into target folder • pom.xml • Unit Testing src/test/java • target Compiled output get stored Tests get ran from Its contents gets packaged into jar/war. Folder Structure

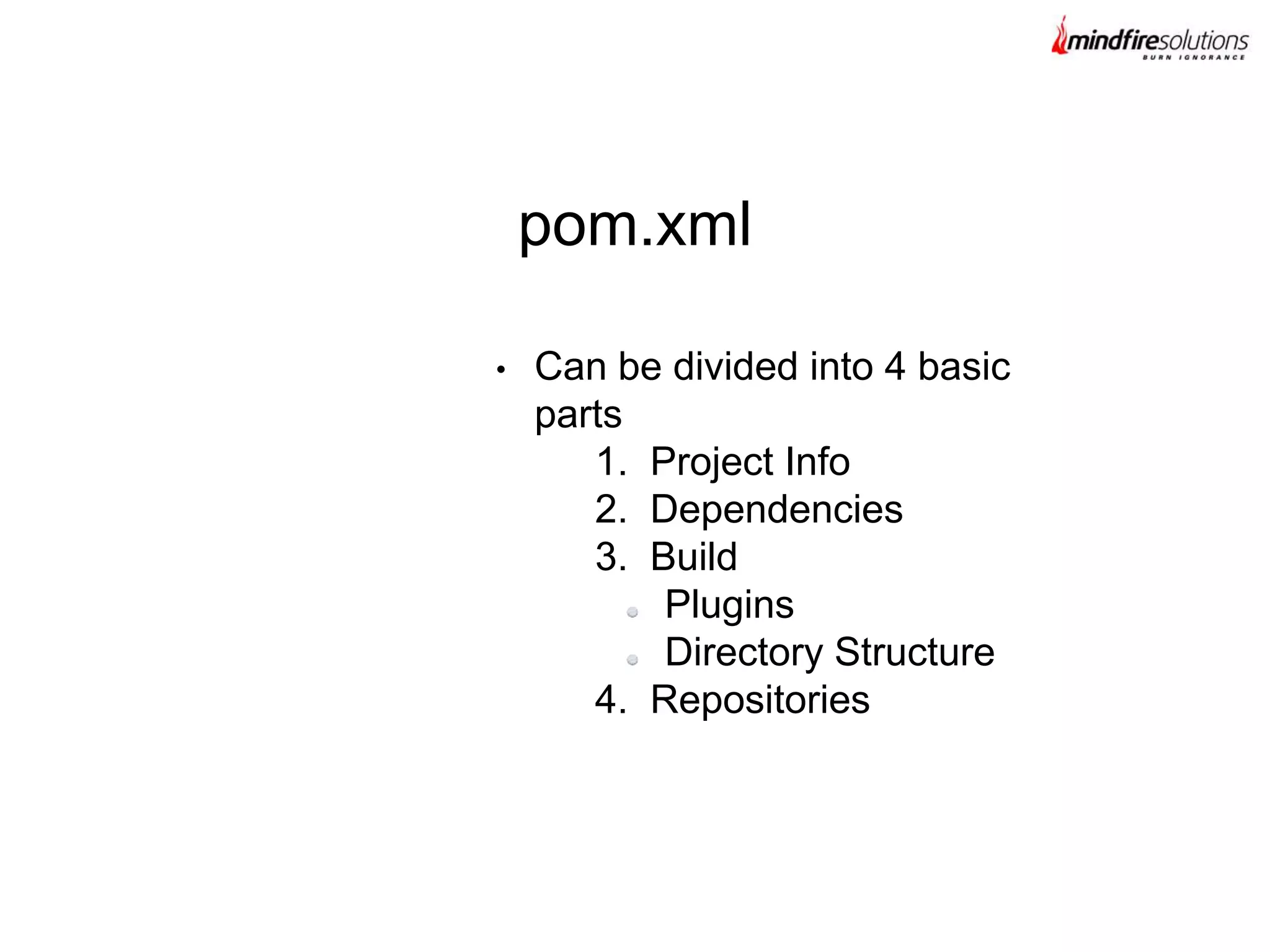

- 6. • Can bedivided into 4 basic parts 1. Project Info 2. Dependencies 3. Build Plugins Directory Structure 4. Repositories pom.xml

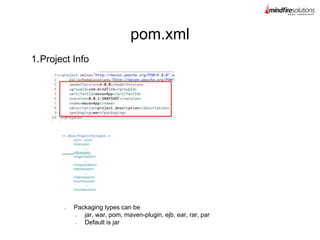

- 7. 1.Project Info pom.xml Packaging typescan be jar, war, pom, maven-plugin, ejb, ear, rar, par Default is jar <!-- More Project Information --> <url>...</url> <licenses> ... </licenses> <organization> ... </organization> <developers> ... </developers> <contributors> ... </contributors>

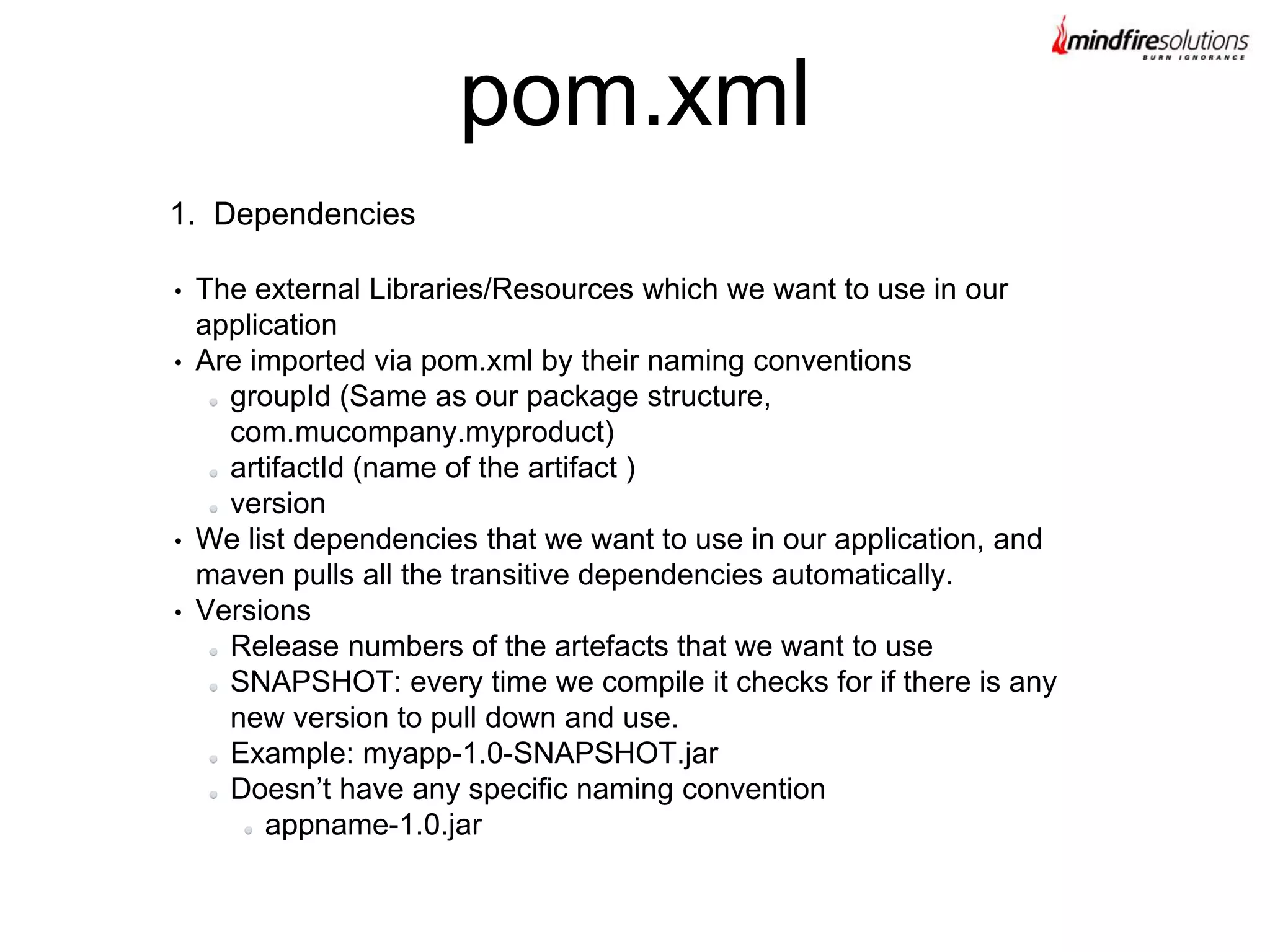

- 8. 1. Dependencies • Theexternal Libraries/Resources which we want to use in our application • Are imported via pom.xml by their naming conventions groupId (Same as our package structure, com.mucompany.myproduct) artifactId (name of the artifact ) version • We list dependencies that we want to use in our application, and maven pulls all the transitive dependencies automatically. • Versions Release numbers of the artefacts that we want to use SNAPSHOT: every time we compile it checks for if there is any new version to pull down and use. Example: myapp-1.0-SNAPSHOT.jar Doesn’t have any specific naming convention appname-1.0.jar pom.xml

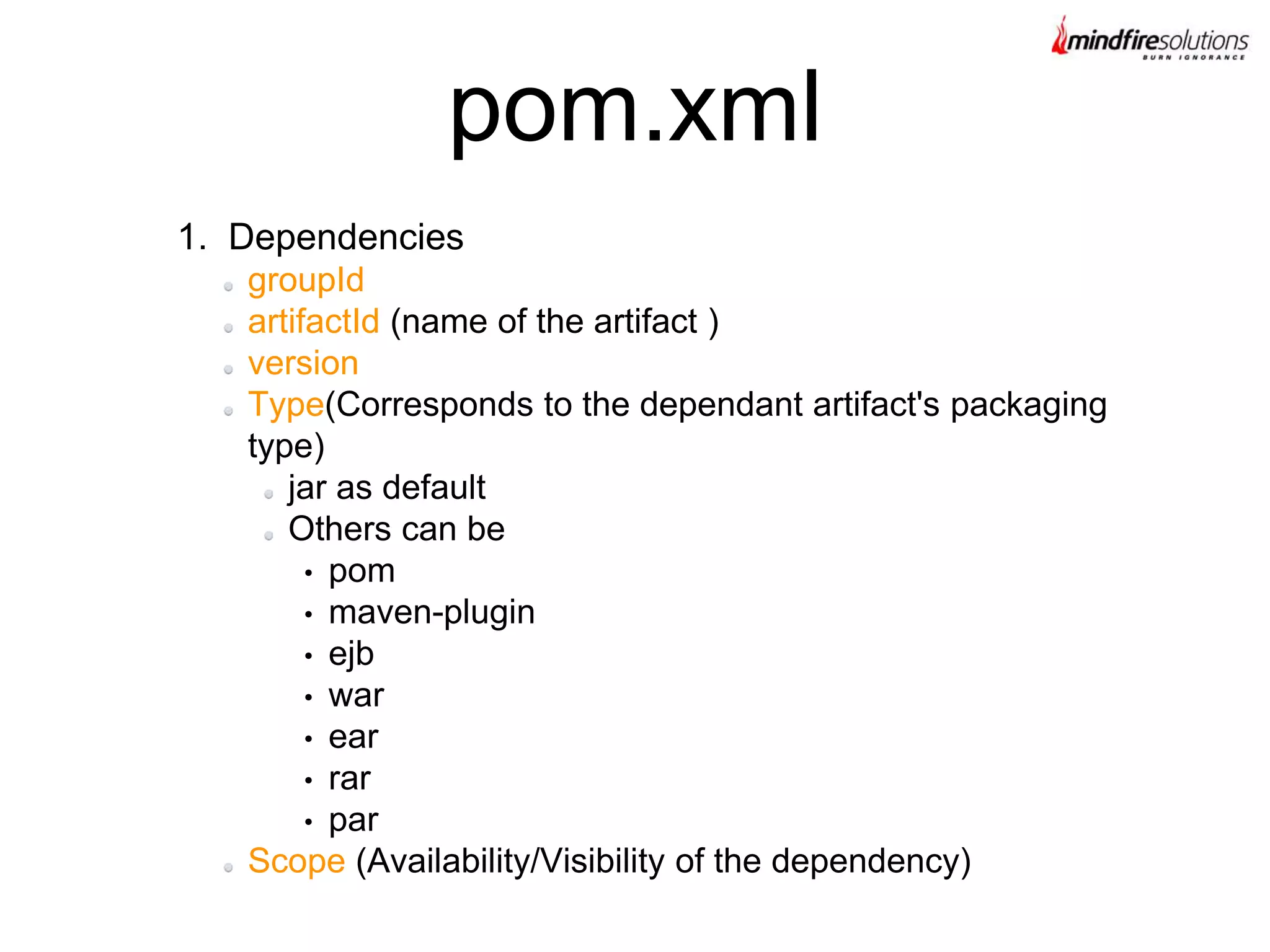

- 9. 1. Dependencies groupId artifactId (nameof the artifact ) version Type(Corresponds to the dependant artifact's packaging type) jar as default Others can be • pom • maven-plugin • ejb • war • ear • rar • par Scope (Availability/Visibility of the dependency) pom.xml

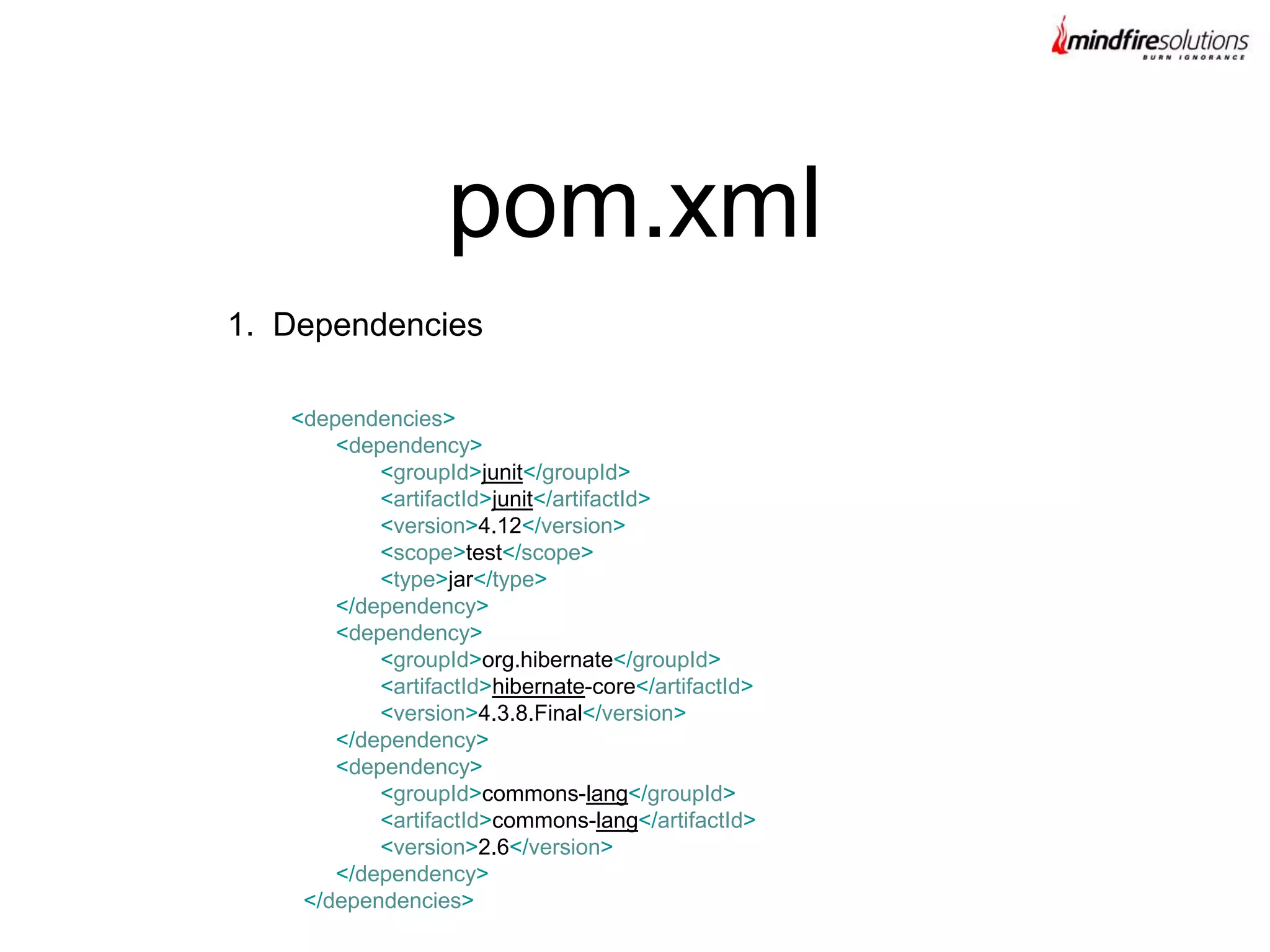

- 10.

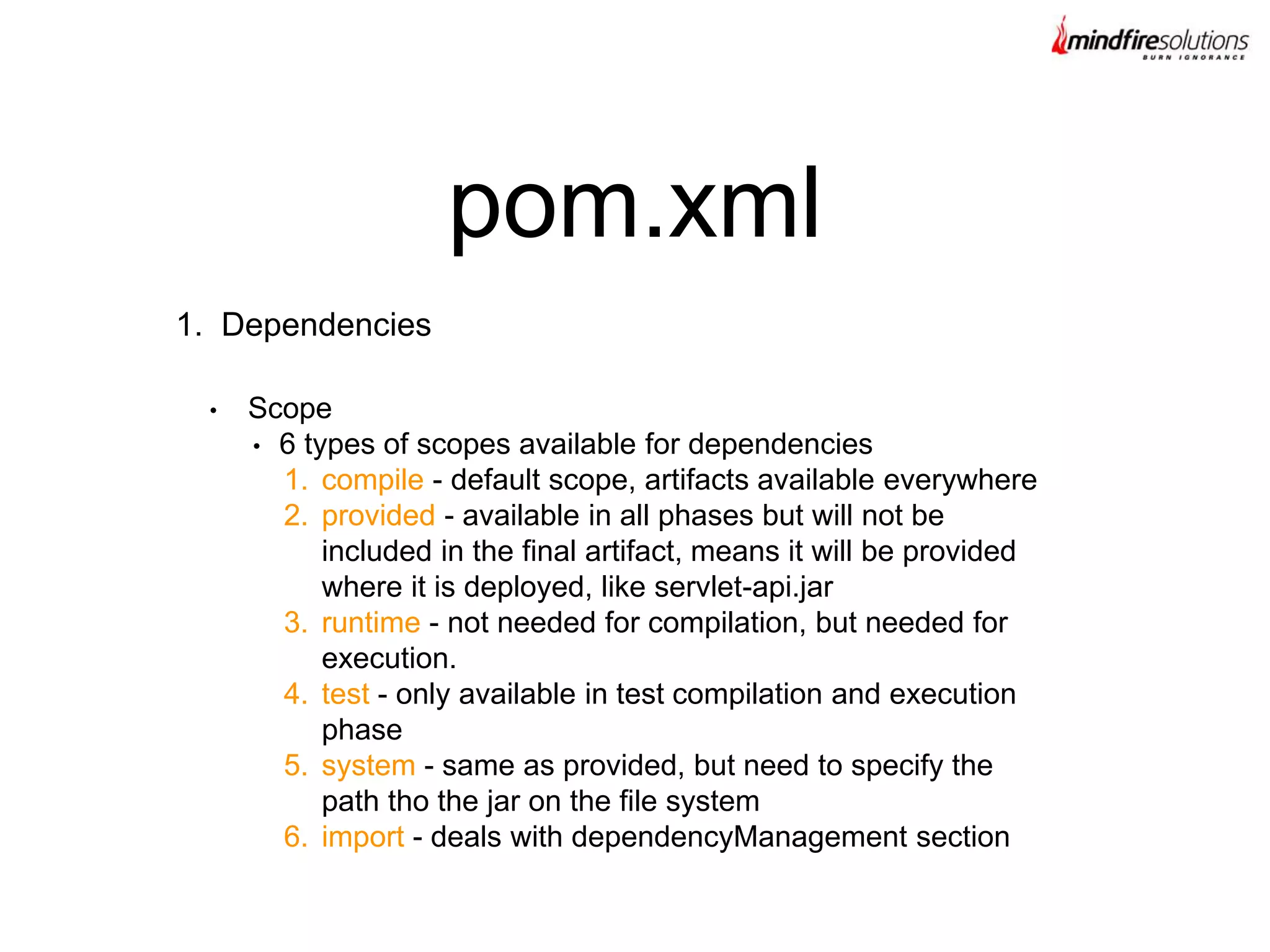

- 11. 1. Dependencies pom.xml • Scope •6 types of scopes available for dependencies 1. compile - default scope, artifacts available everywhere 2. provided - available in all phases but will not be included in the final artifact, means it will be provided where it is deployed, like servlet-api.jar 3. runtime - not needed for compilation, but needed for execution. 4. test - only available in test compilation and execution phase 5. system - same as provided, but need to specify the path tho the jar on the file system 6. import - deals with dependencyManagement section

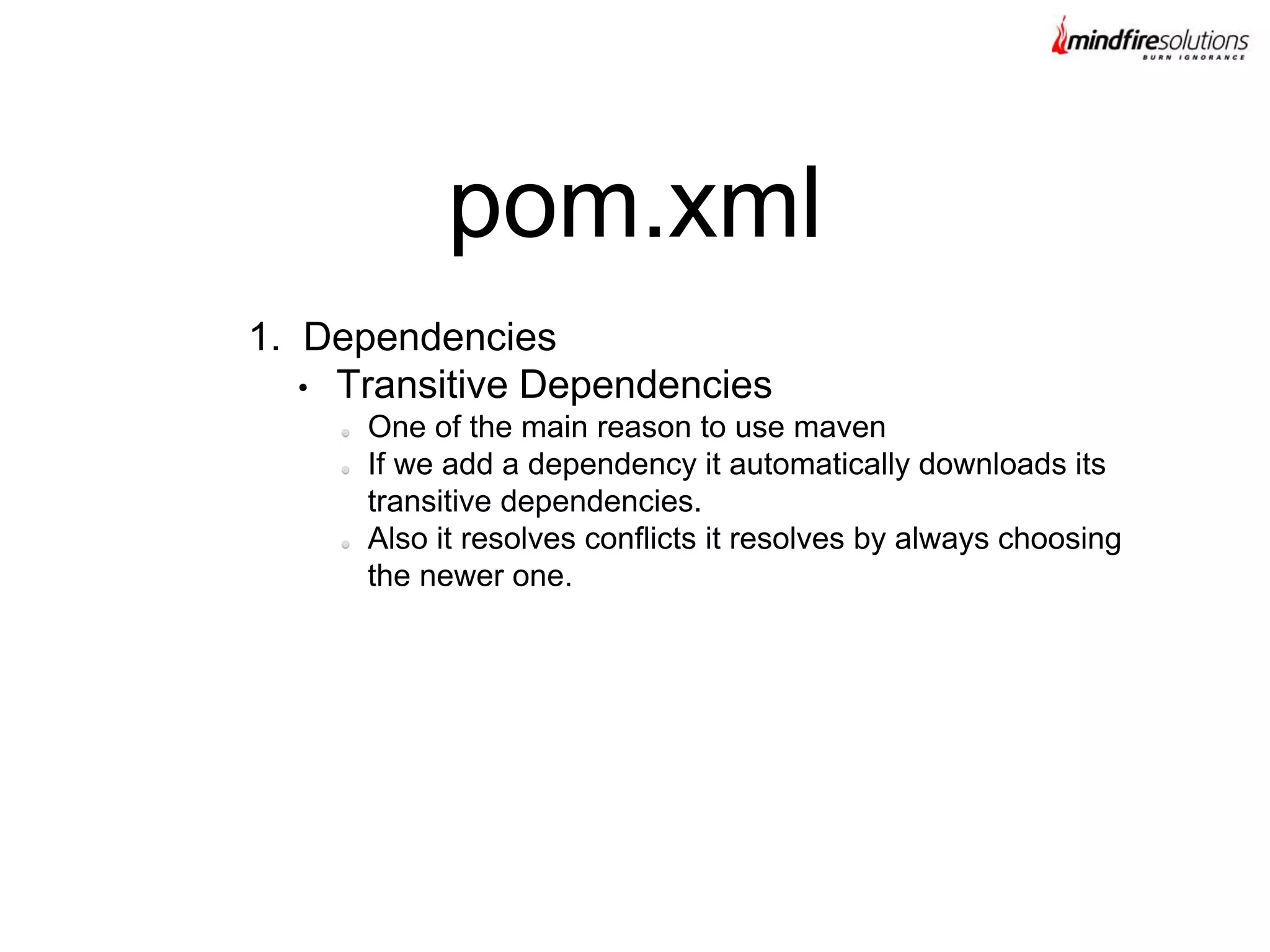

- 12. 1. Dependencies • TransitiveDependencies One of the main reason to use maven If we add a dependency it automatically downloads its transitive dependencies. Also it resolves conflicts it resolves by always choosing the newer one. pom.xml

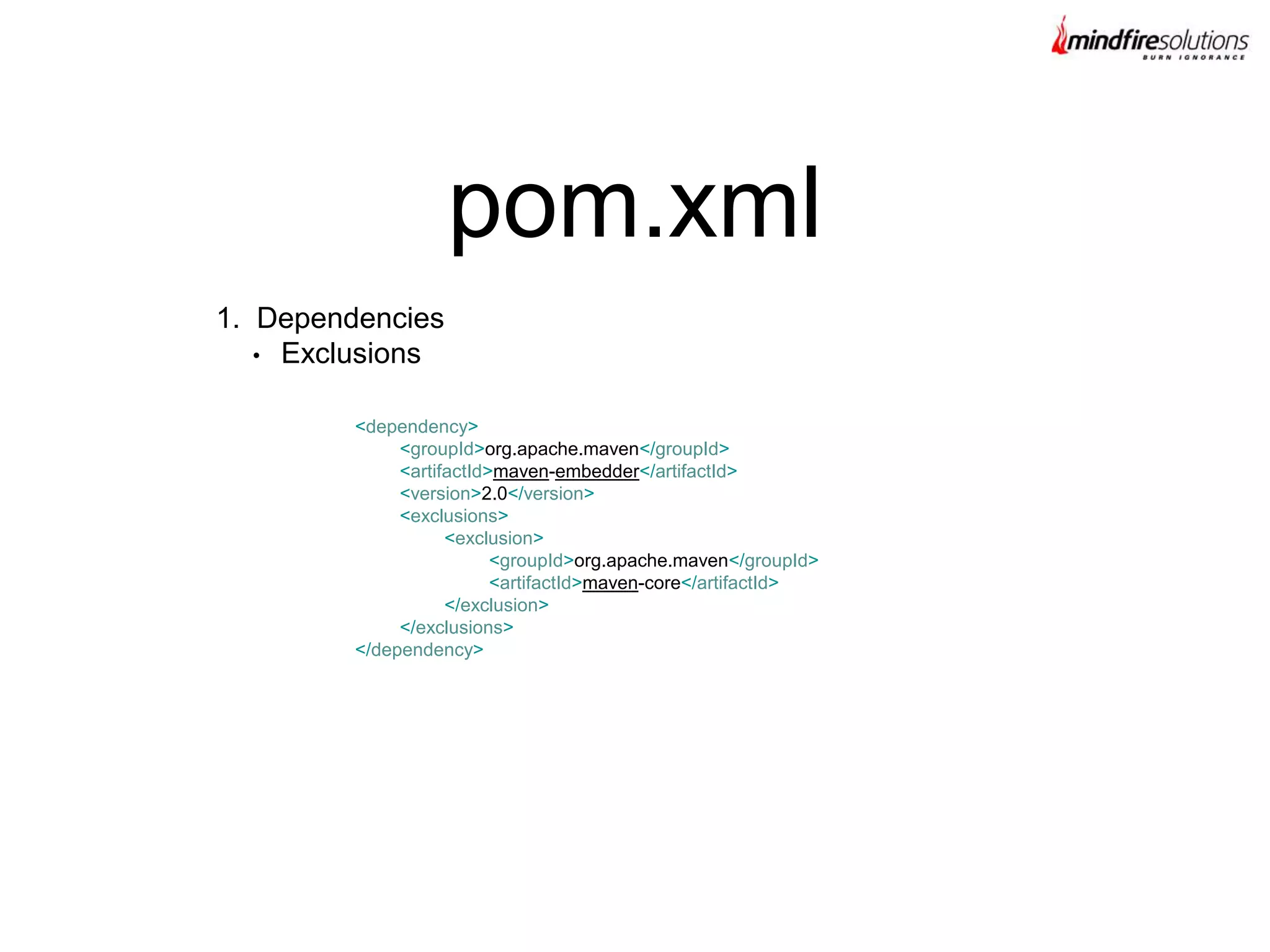

- 13.

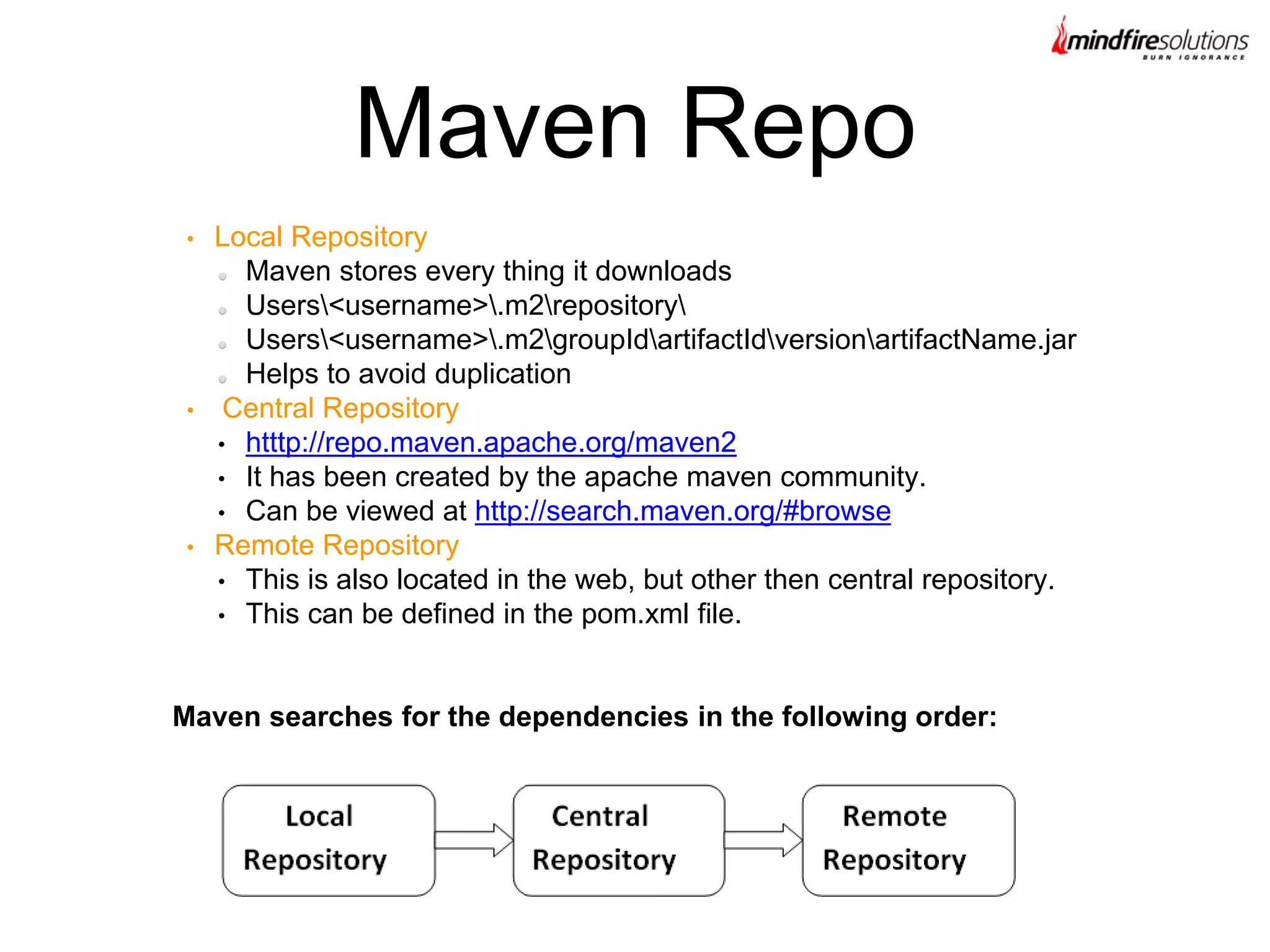

- 14. • Local Repository Mavenstores every thing it downloads Users<username>.m2repository Users<username>.m2groupIdartifactIdversionartifactName.jar Helps to avoid duplication • Central Repository • htttp://repo.maven.apache.org/maven2 • It has been created by the apache maven community. • Can be viewed at http://search.maven.org/#browse • Remote Repository • This is also located in the web, but other then central repository. • This can be defined in the pom.xml file. Maven searches for the dependencies in the following order: Maven Repo

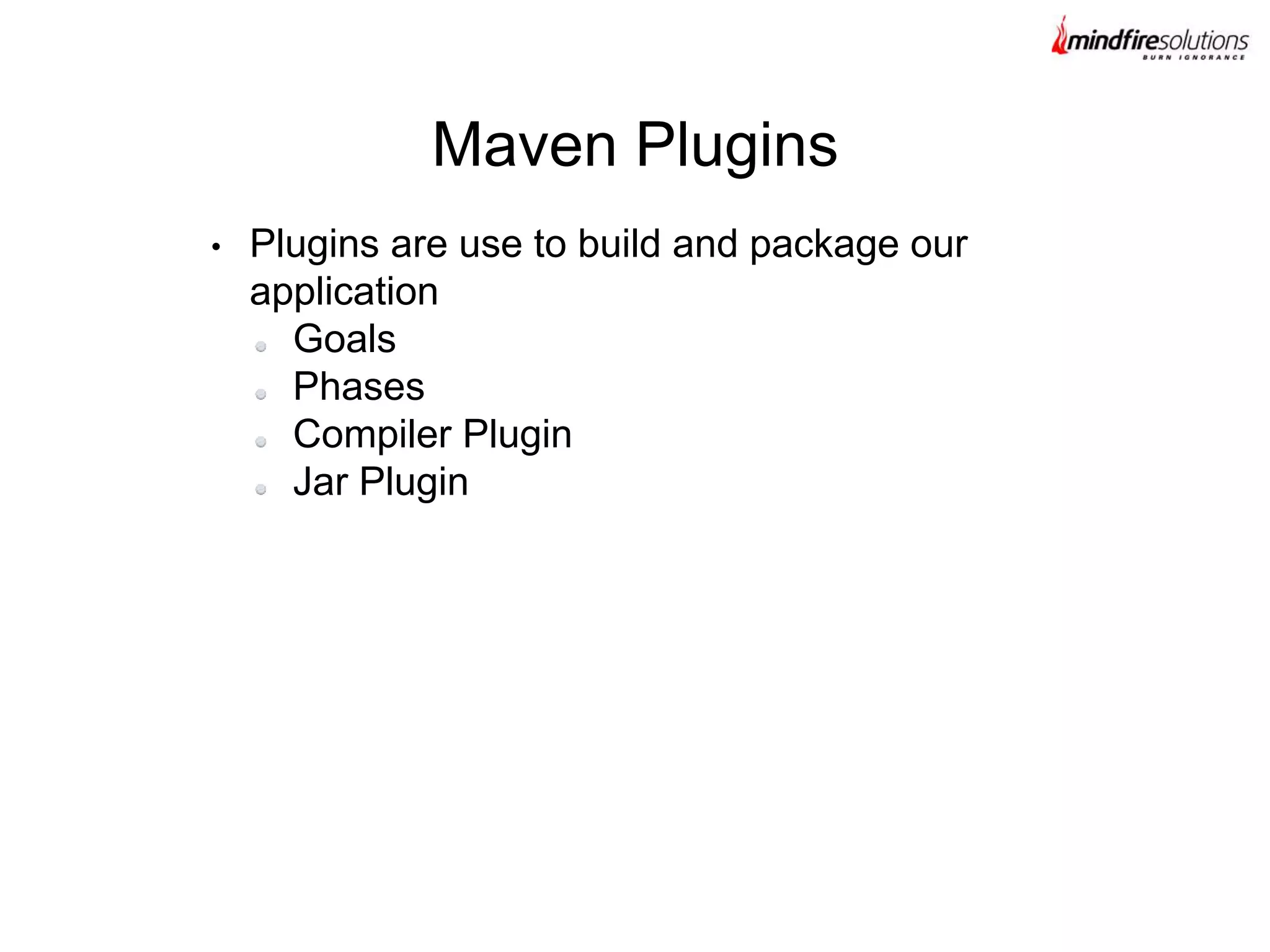

- 15. • Plugins areuse to build and package our application Goals Phases Compiler Plugin Jar Plugin Maven Plugins

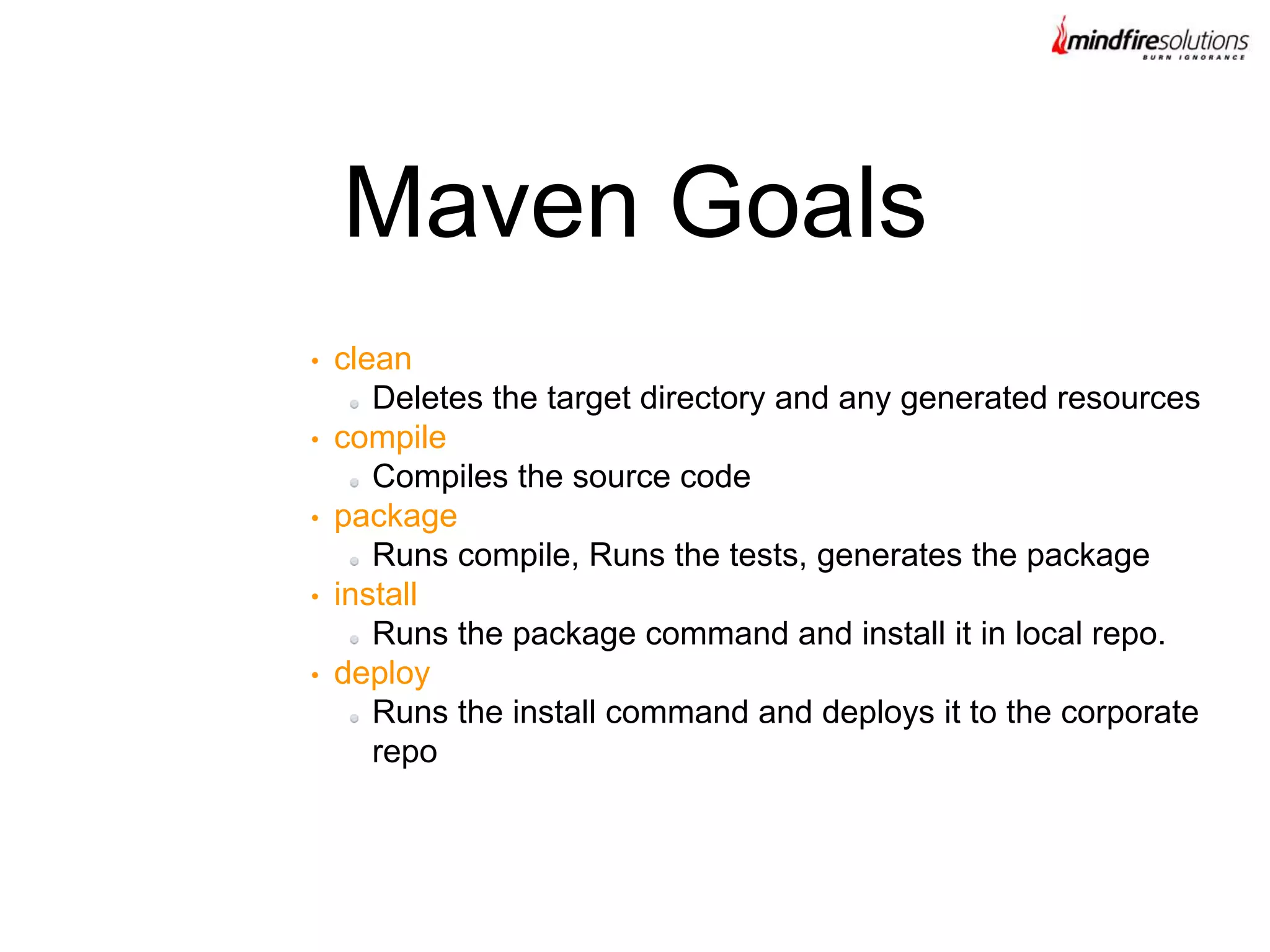

- 16. • clean Deletes thetarget directory and any generated resources • compile Compiles the source code • package Runs compile, Runs the tests, generates the package • install Runs the package command and install it in local repo. • deploy Runs the install command and deploys it to the corporate repo Maven Goals

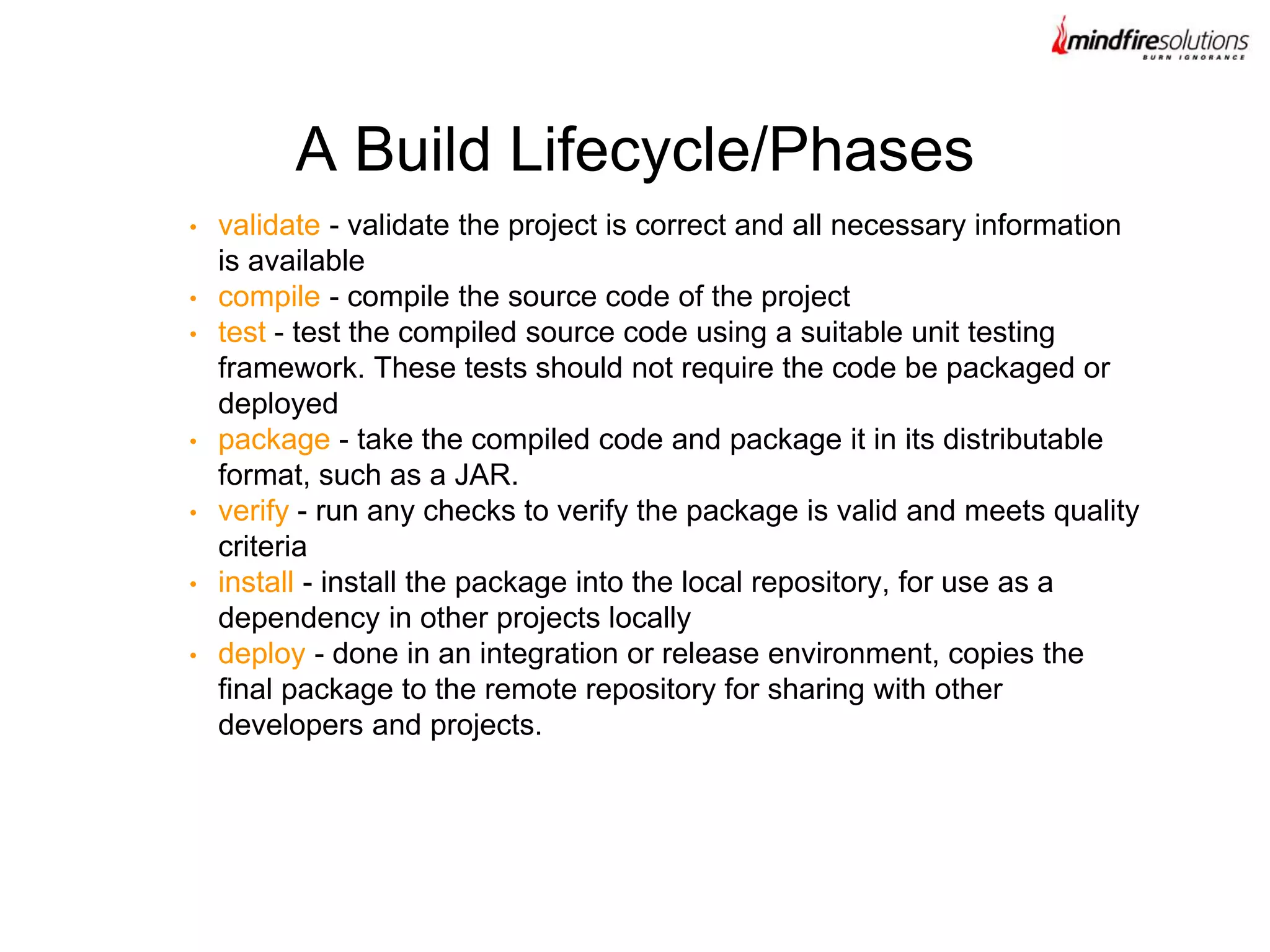

- 17. • validate -validate the project is correct and all necessary information is available • compile - compile the source code of the project • test - test the compiled source code using a suitable unit testing framework. These tests should not require the code be packaged or deployed • package - take the compiled code and package it in its distributable format, such as a JAR. • verify - run any checks to verify the package is valid and meets quality criteria • install - install the package into the local repository, for use as a dependency in other projects locally • deploy - done in an integration or release environment, copies the final package to the remote repository for sharing with other developers and projects. A Build Lifecycle/Phases

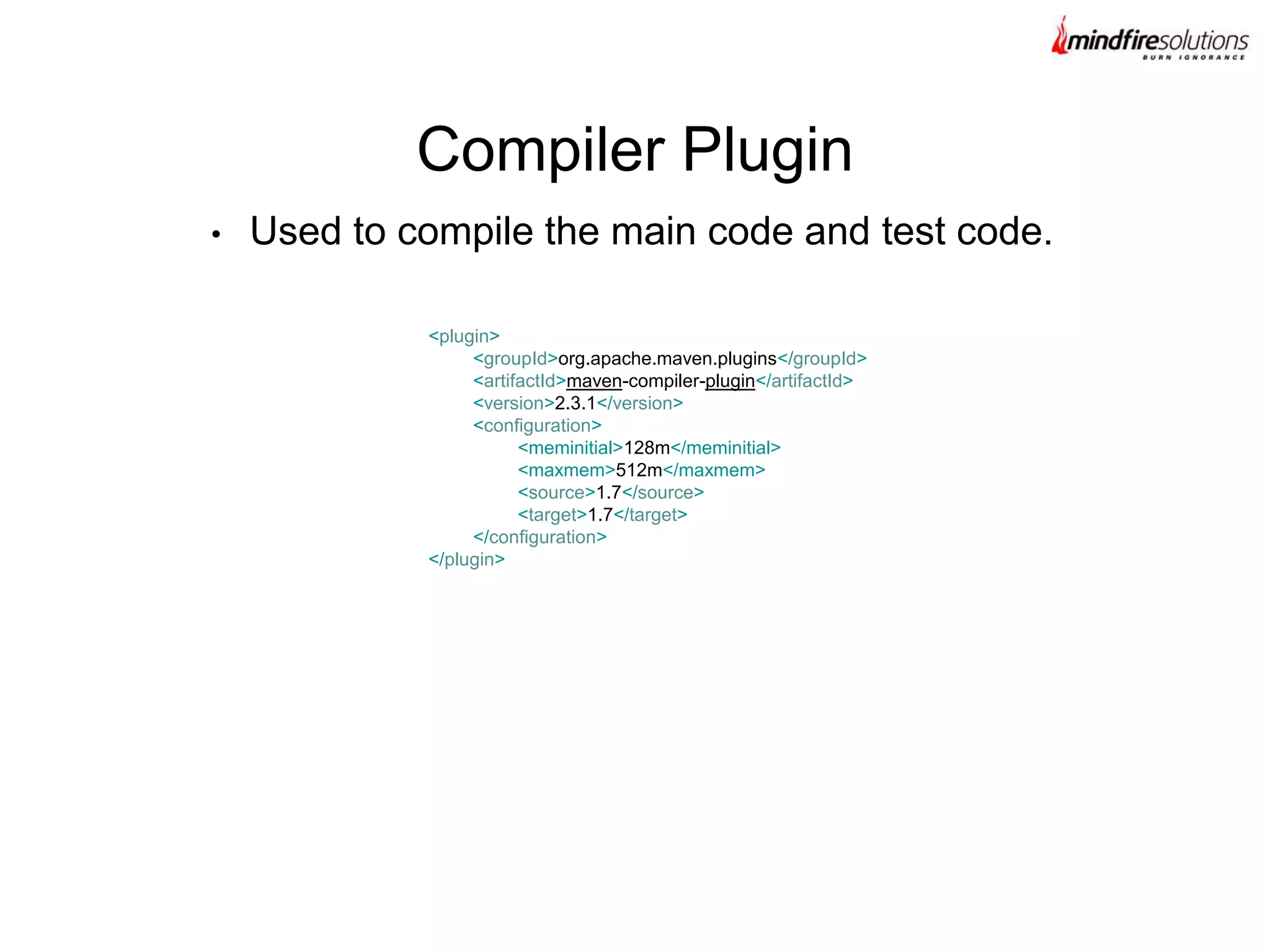

- 18. • Used tocompile the main code and test code. Compiler Plugin <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>2.3.1</version> <configuration> <meminitial>128m</meminitial> <maxmem>512m</maxmem> <source>1.7</source> <target>1.7</target> </configuration> </plugin>

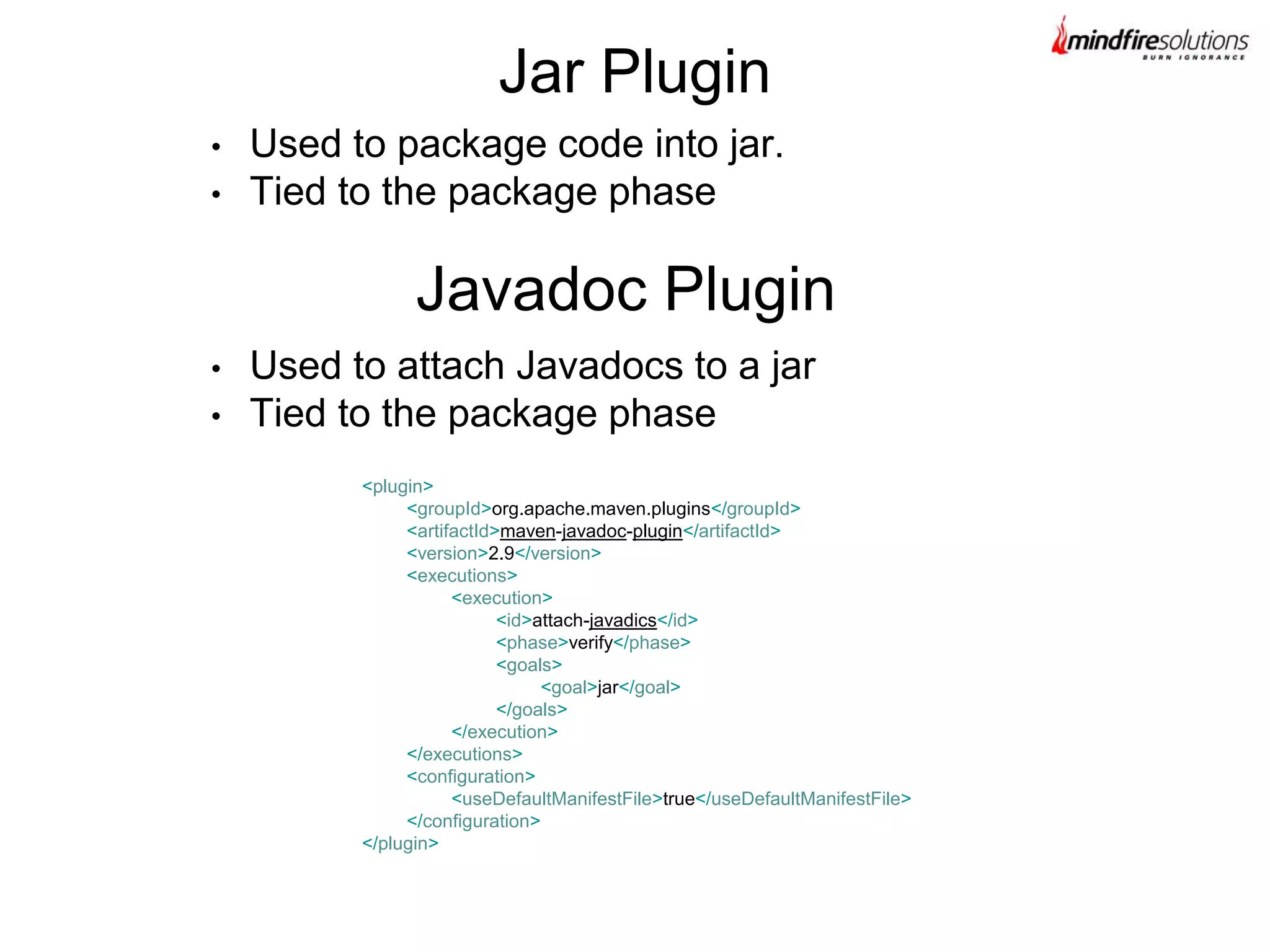

- 19. • Used topackage code into jar. • Tied to the package phase Jar Plugin Javadoc Plugin • Used to attach Javadocs to a jar • Tied to the package phase <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-javadoc-plugin</artifactId> <version>2.9</version> <executions> <execution> <id>attach-javadics</id> <phase>verify</phase> <goals> <goal>jar</goal> </goals> </execution> </executions> <configuration> <useDefaultManifestFile>true</useDefaultManifestFile> </configuration> </plugin>
- 20.
- 21.
- 22.
