MarsJUG - 12 Nov 2009 - Apache Maven

1. Apache MavenMarsJUG Arnaud Héritier eXo platform Software Factory Manager

2. Arnaud Héritier Committer since 2004 and member of the Project Management Committee Coauthor of « Apache Maven » published by Pearson (in French) Software Factory Manager at eXo platform In charge of tools and methods

3. Overview Apache Maven

4. Basics Apache Maven 4

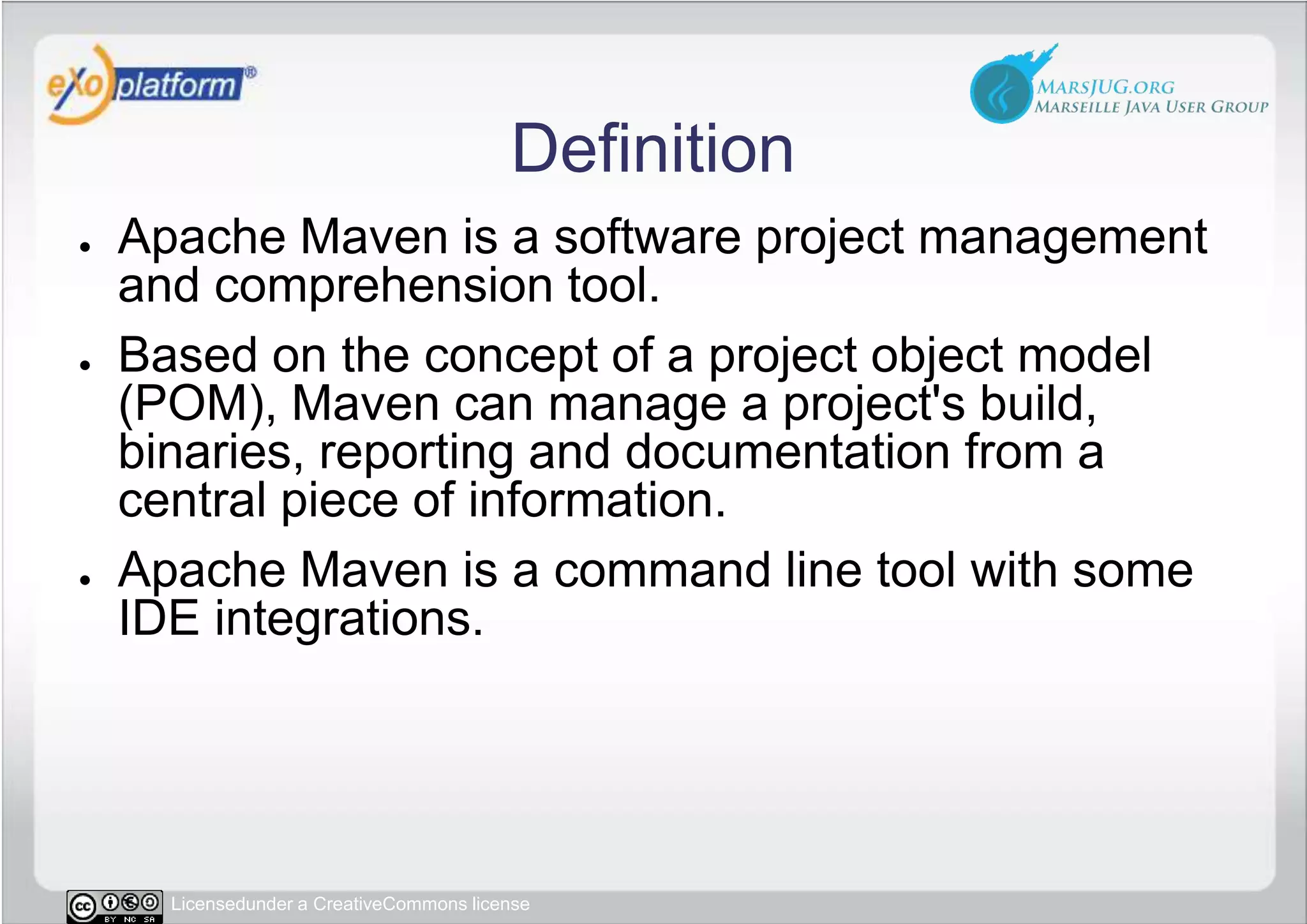

5. Definition Apache Maven is a software project management and comprehension tool. Based on the concept of a project object model (POM), Maven can manage a project's build, binaries, reporting and documentation from a central piece of information. Apache Maven is a command line tool with some IDE integrations.

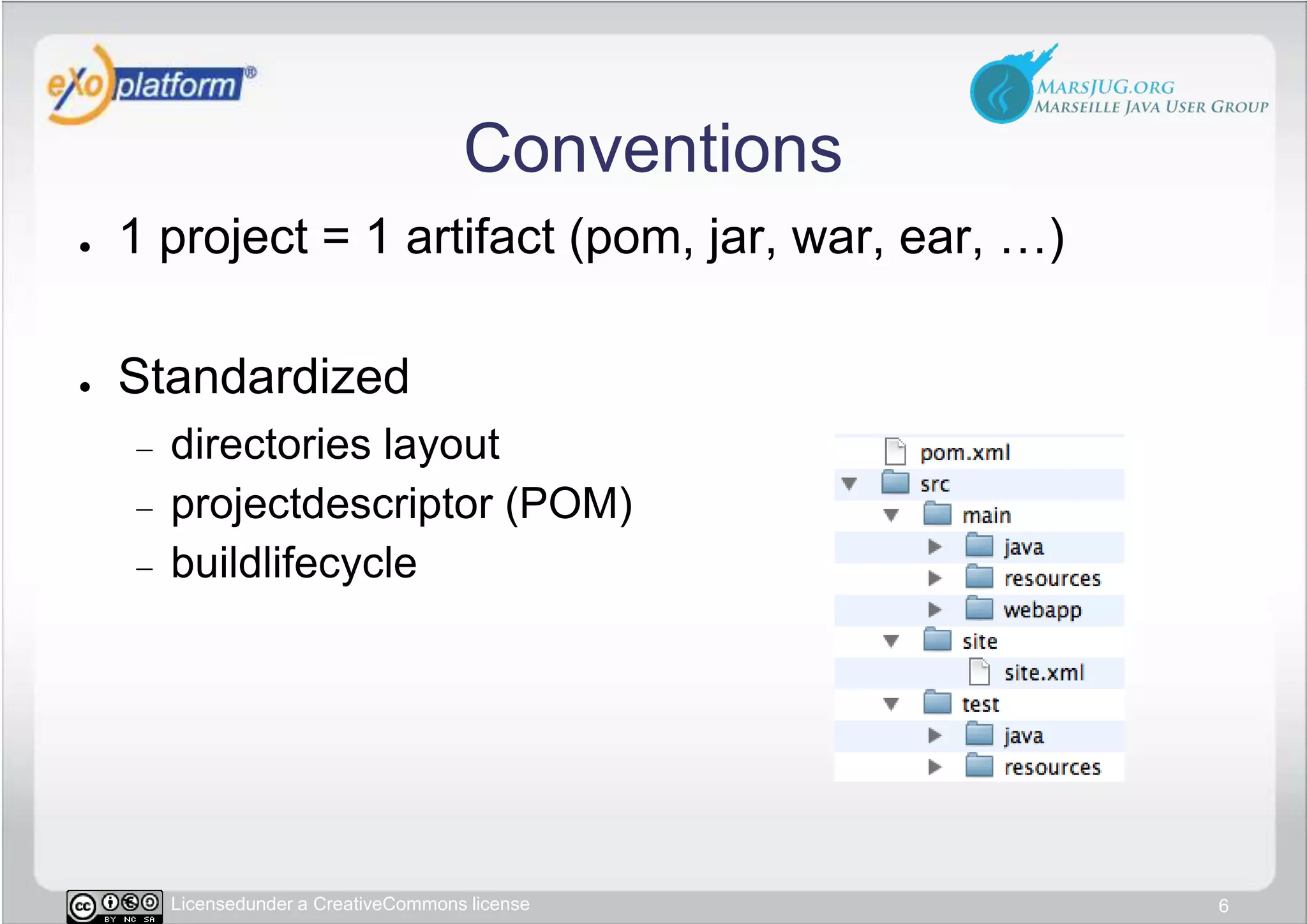

6. Conventions 1 project = 1 artifact (pom, jar, war, ear, …) Standardized directories layout projectdescriptor (POM) buildlifecycle 6

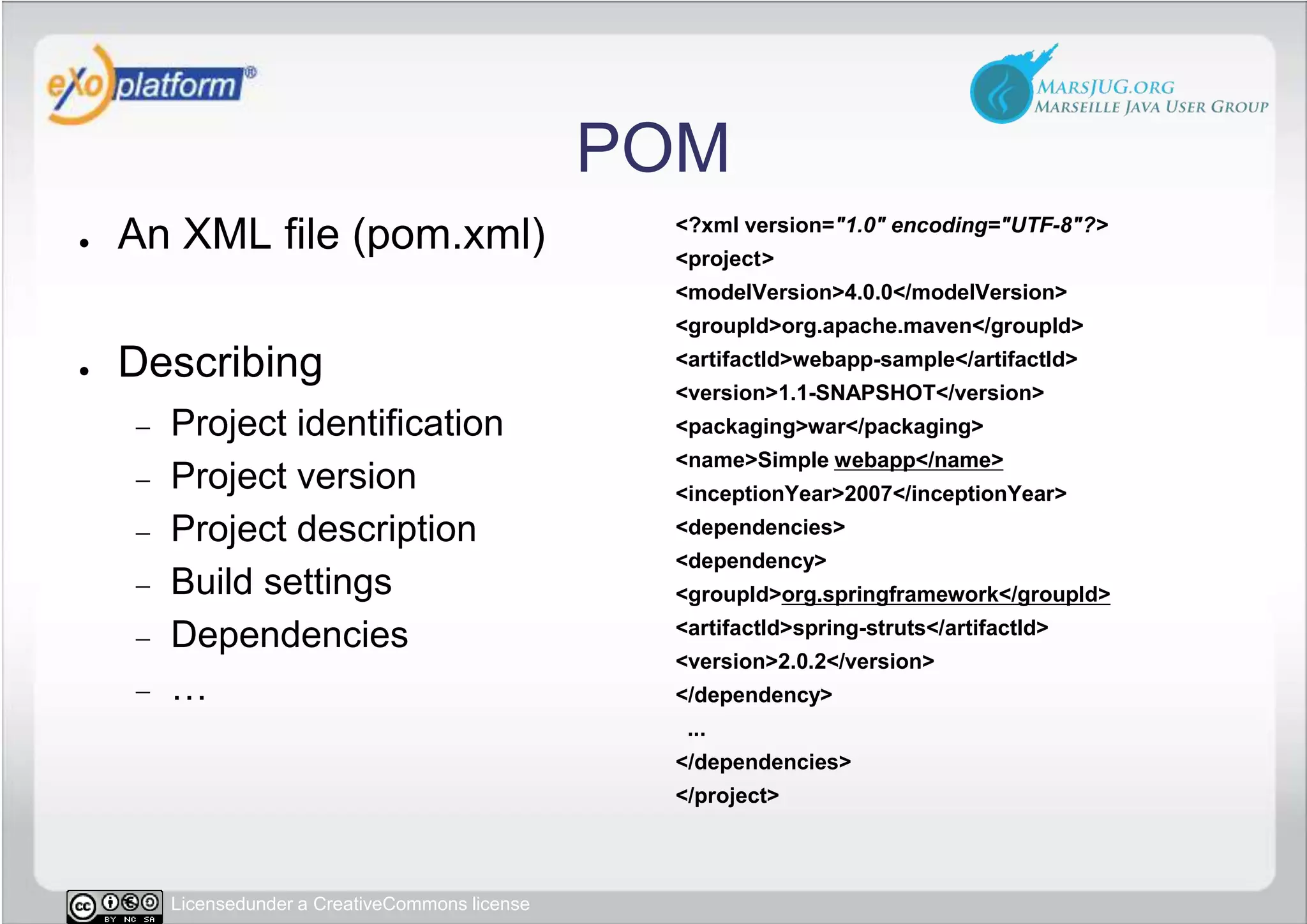

7. POM An XML file (pom.xml) Describing Project identification Project version Project description Build settings Dependencies … <?xml version="1.0" encoding="UTF-8"?> <project> <modelVersion>4.0.0</modelVersion> <groupId>org.apache.maven</groupId> <artifactId>webapp-sample</artifactId> <version>1.1-SNAPSHOT</version> <packaging>war</packaging> <name>Simple webapp</name> <inceptionYear>2007</inceptionYear> <dependencies> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-struts</artifactId> <version>2.0.2</version> </dependency> ... </dependencies> </project>

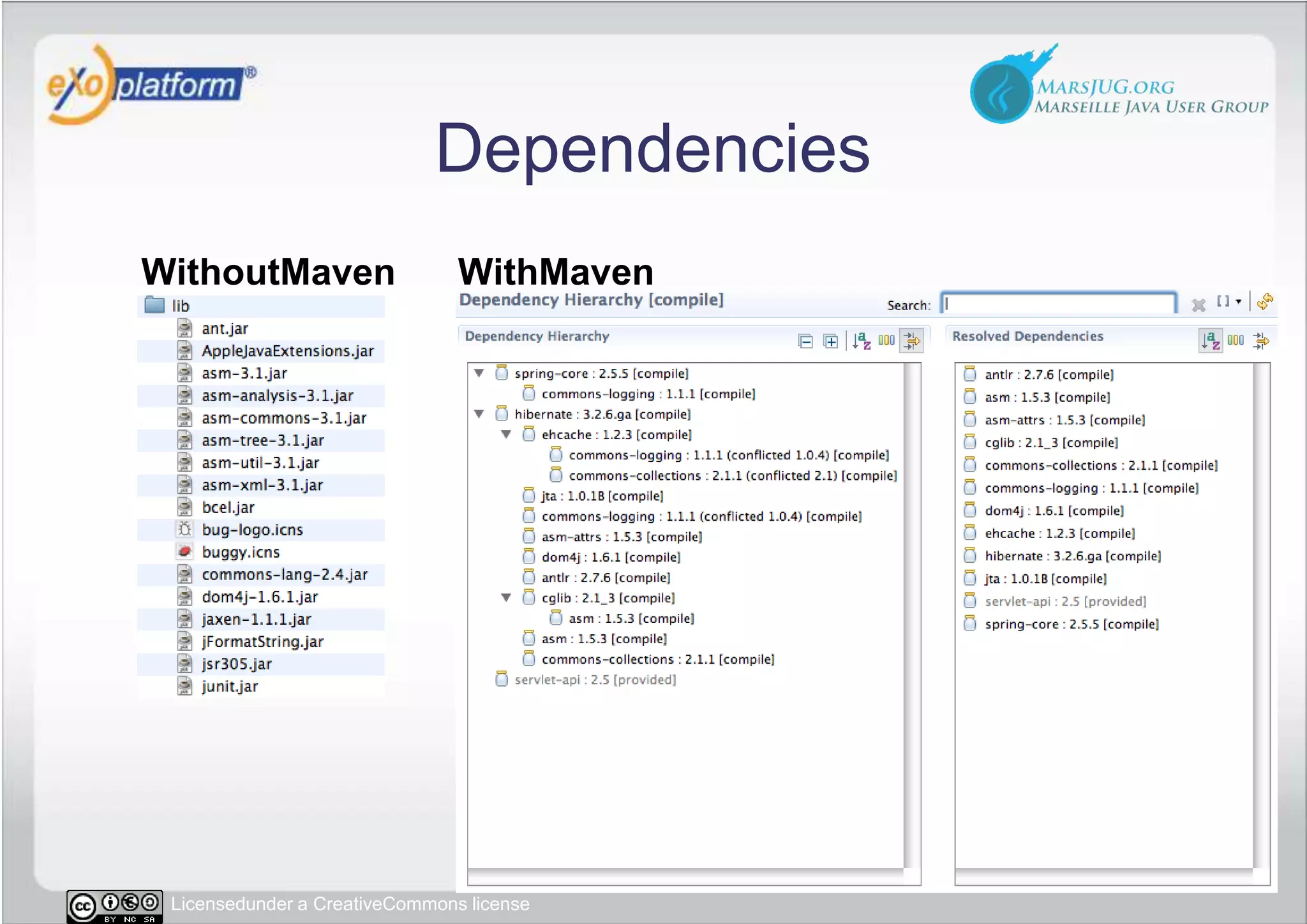

8. WithoutMaven WithMaven Dependencies

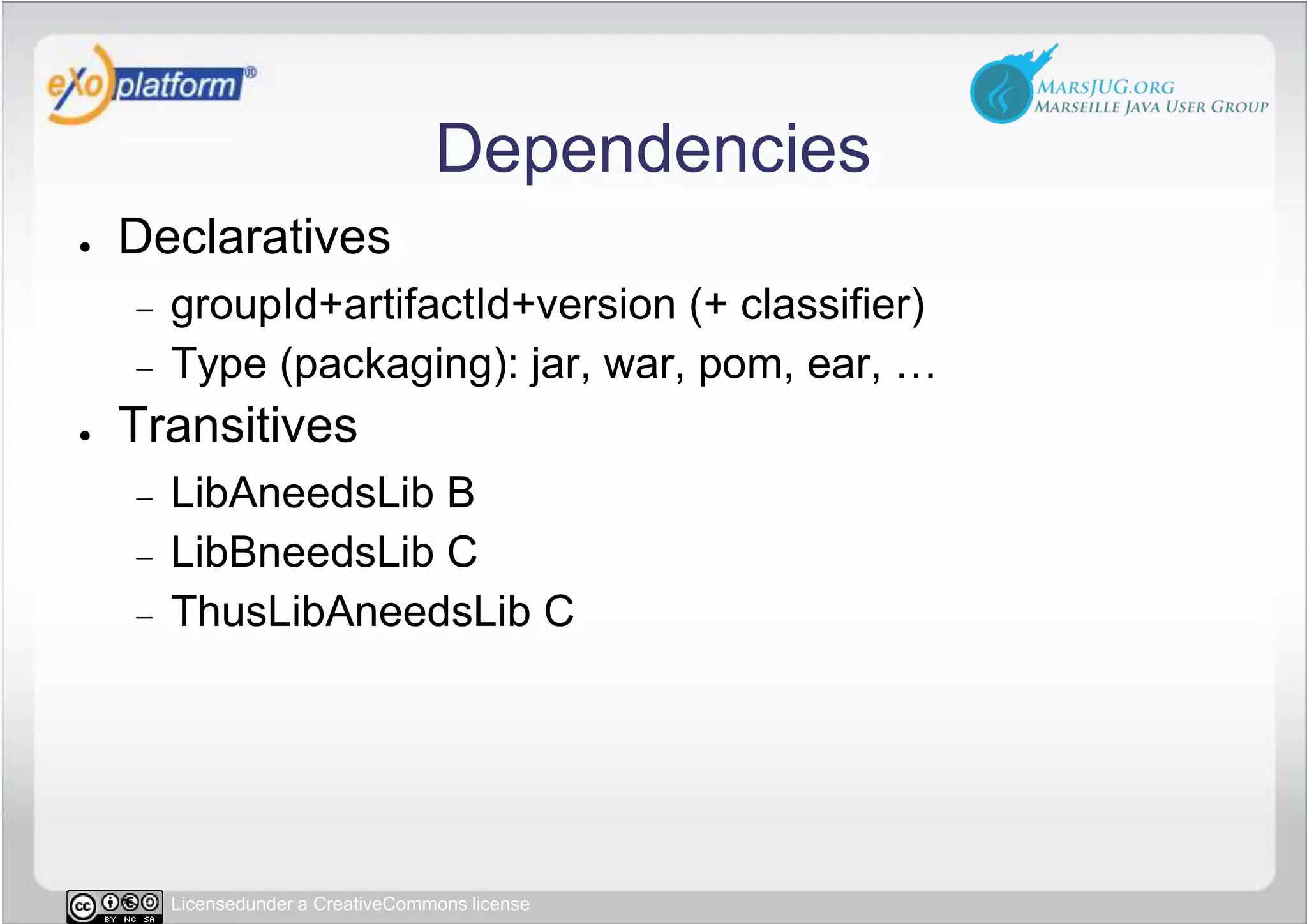

9. Dependencies Declaratives groupId+artifactId+version (+ classifier) Type (packaging): jar, war, pom, ear, … Transitives LibAneedsLib B LibBneedsLib C ThusLibAneedsLib C

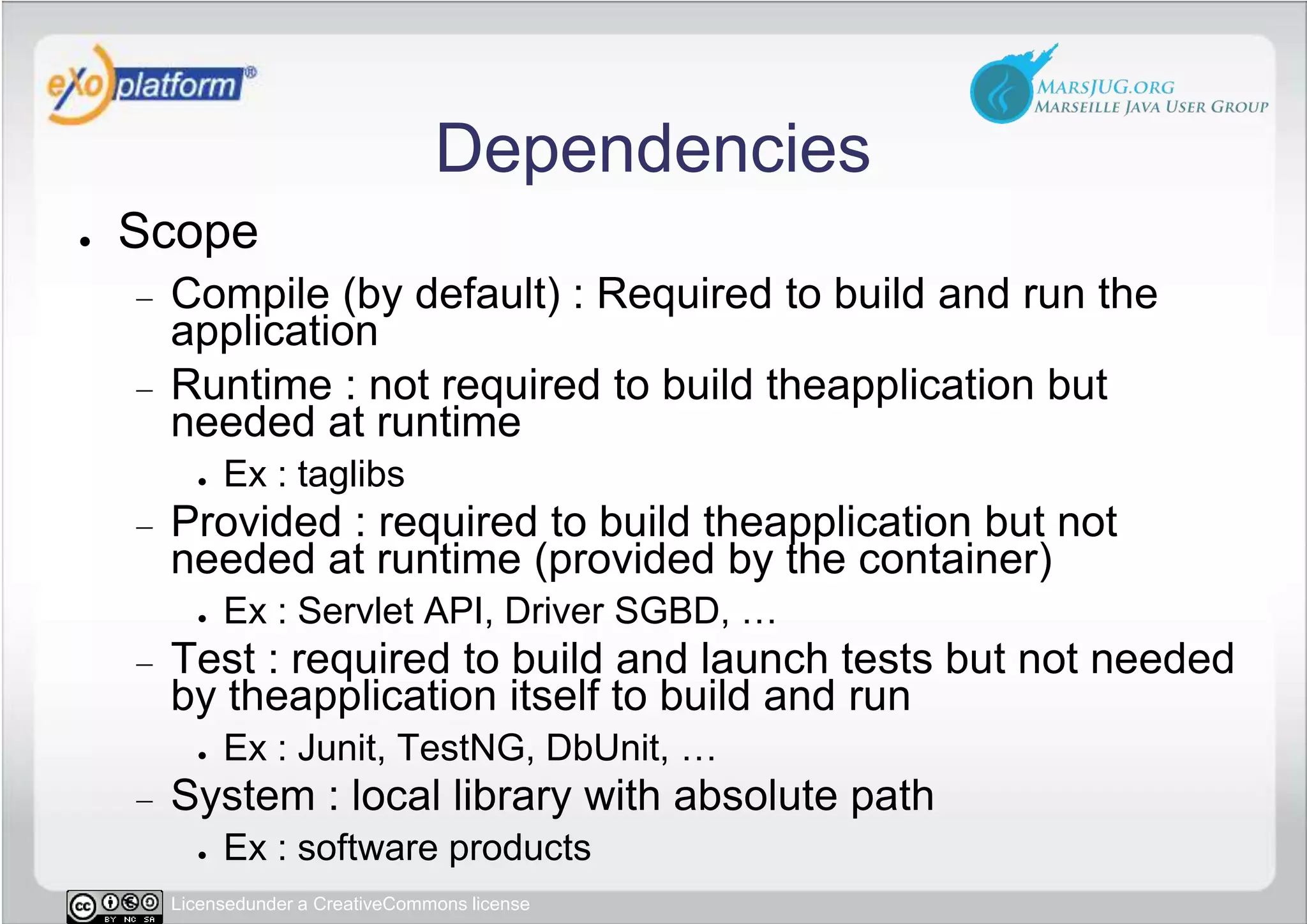

10. Dependencies Scope Compile (by default) : Required to build and run the application Runtime : not required to build theapplication but needed at runtime Ex : taglibs Provided : required to build theapplication but not needed at runtime (provided by the container) Ex : Servlet API, Driver SGBD, … Test : required to build and launch tests but not needed by theapplication itself to build and run Ex : Junit, TestNG, DbUnit, … System : local library with absolute path Ex : software products

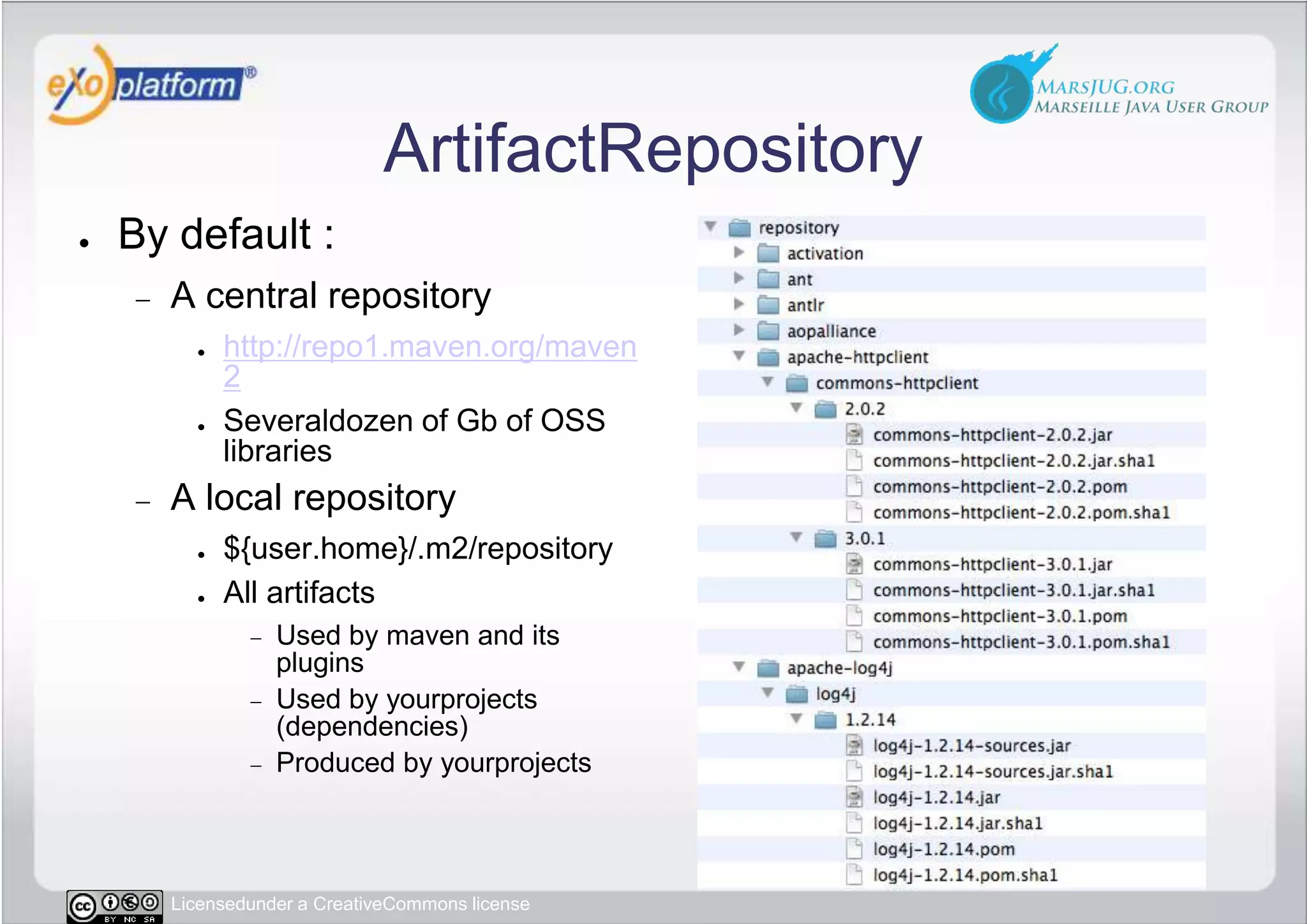

11. ArtifactRepository By default : A central repository http://repo1.maven.org/maven2 Severaldozen of Gb of OSS libraries A local repository ${user.home}/.m2/repository All artifacts Used by maven and its plugins Used by yourprojects (dependencies) Produced by yourprojects

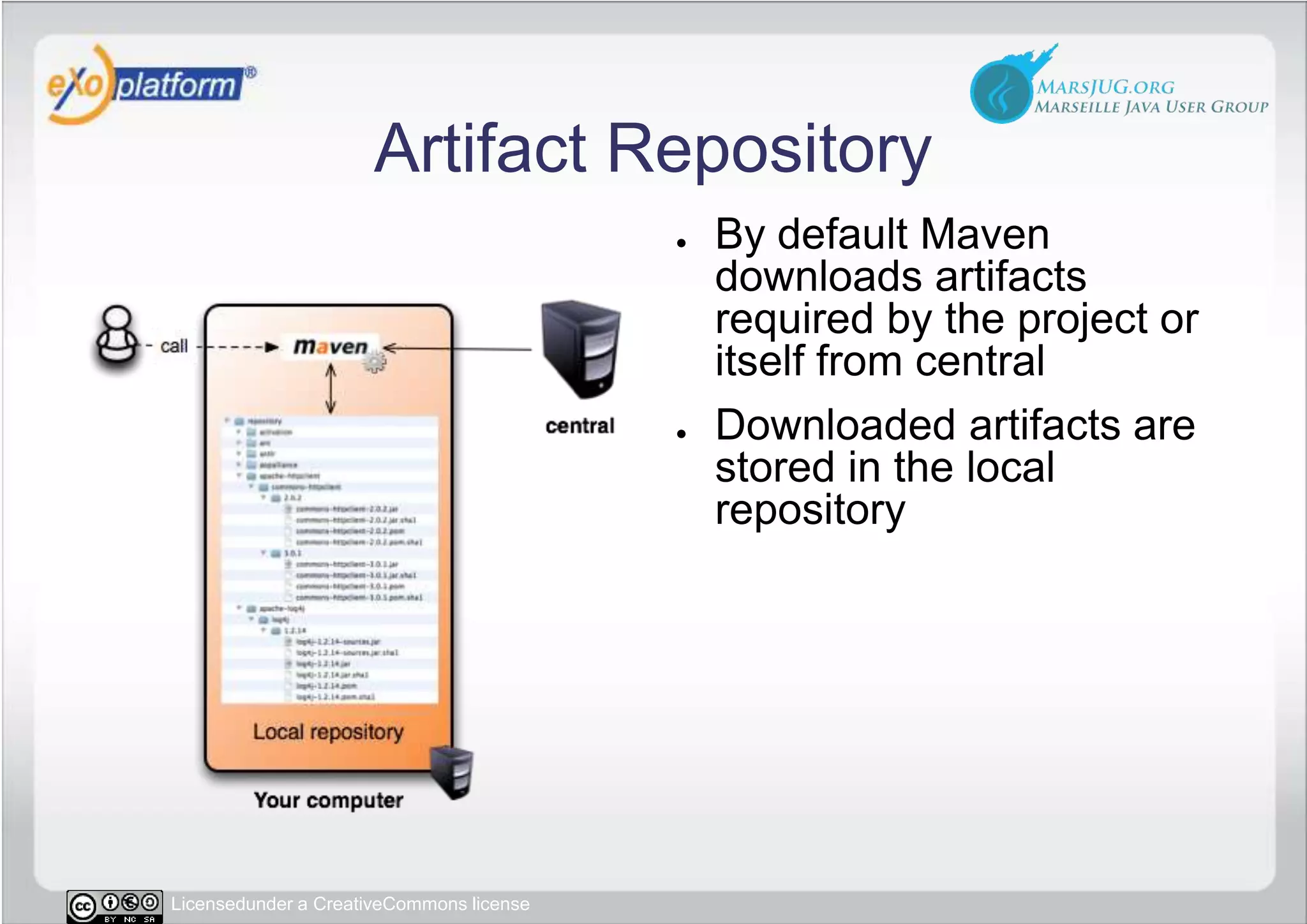

12. Artifact Repository By default Maven downloads artifacts required by the project or itself from central Downloaded artifacts are stored in the local repository

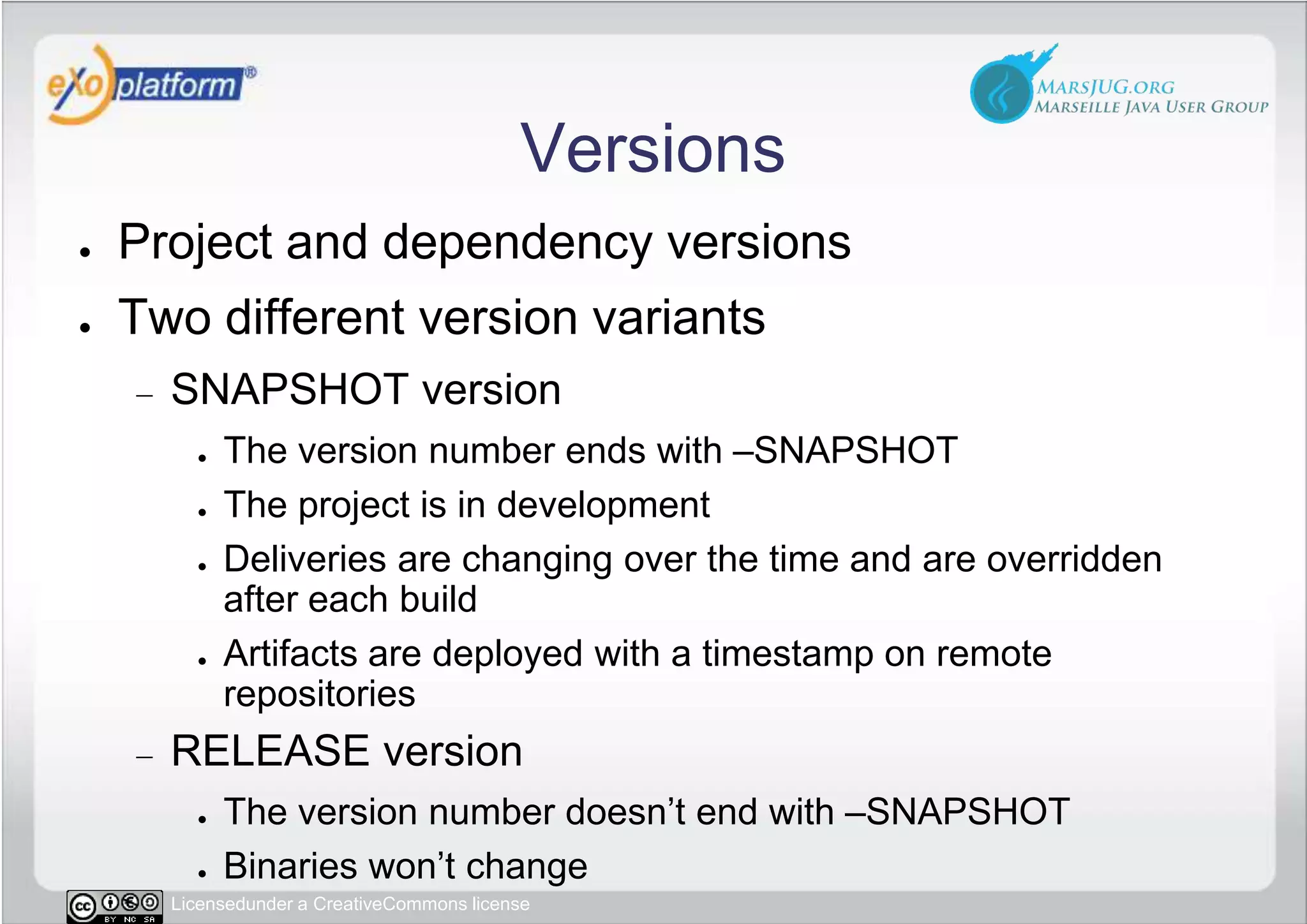

13. Versions Project and dependency versions Two different version variants SNAPSHOT version The version number ends with –SNAPSHOT The project is in development Deliveries are changing over the time and are overridden after each build Artifacts are deployed with a timestamp on remote repositories RELEASE version The version number doesn’t end with –SNAPSHOT Binaries won’t change

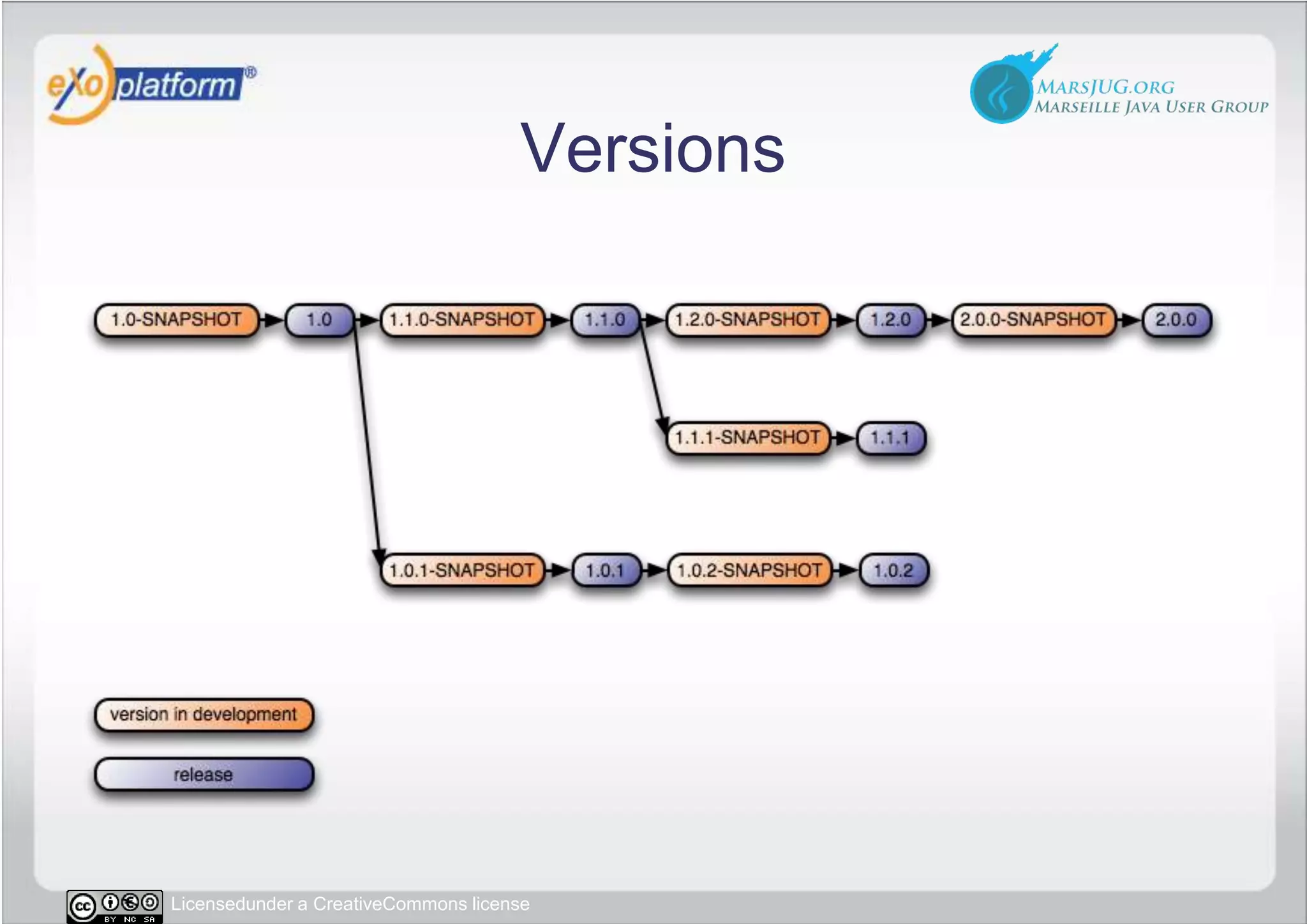

14. Versions

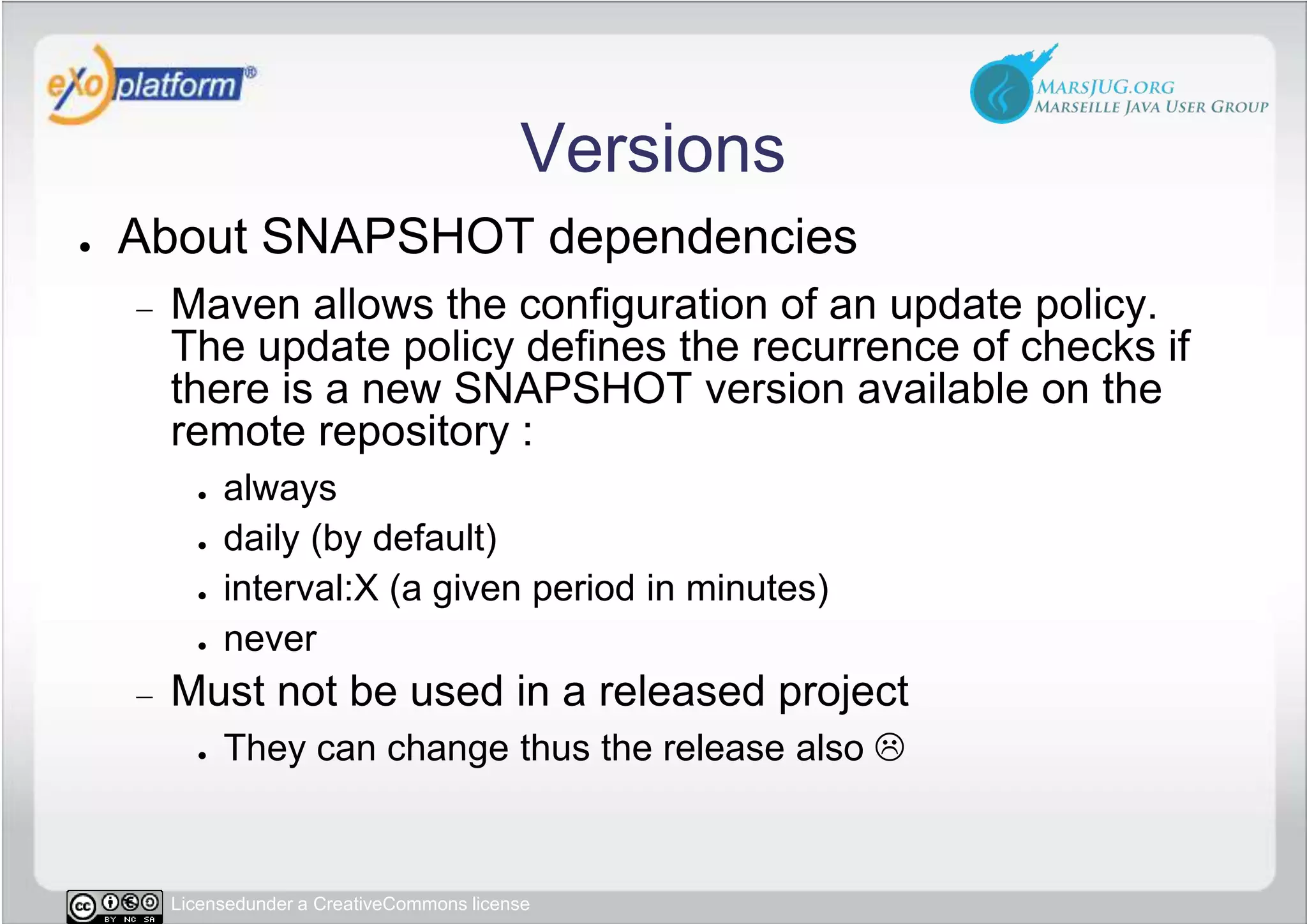

15. Versions About SNAPSHOT dependencies Maven allows the configuration of an update policy. The update policy defines the recurrence of checks if there is a new SNAPSHOT version available on the remote repository : always daily (by default) interval:X (a given period in minutes) never Must not be used in a released project They can change thus the release also 

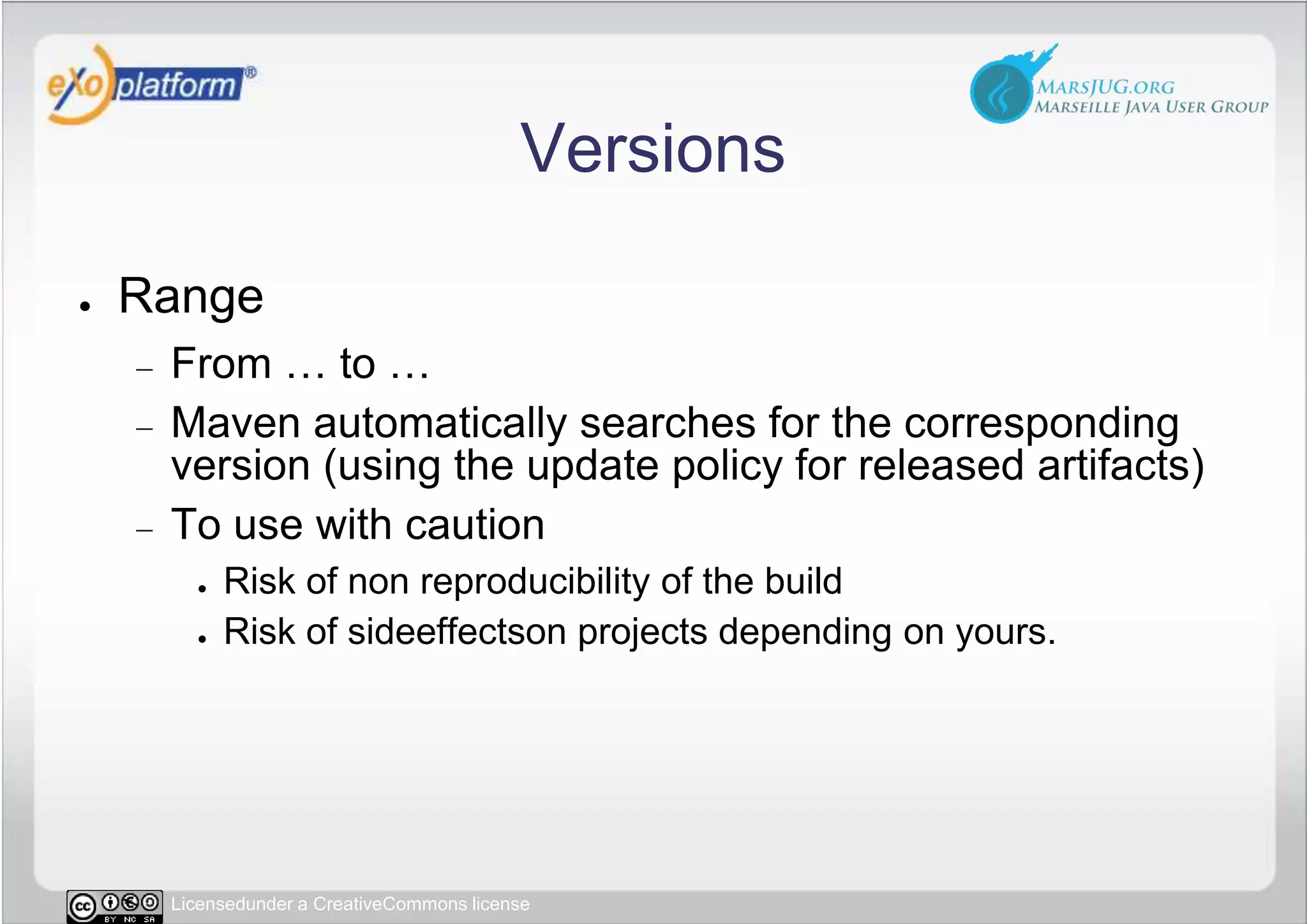

16. Versions Range From … to … Maven automatically searches for the corresponding version (using the update policy for released artifacts) To use with caution Risk of non reproducibility of the build Risk of sideeffectson projects depending on yours.

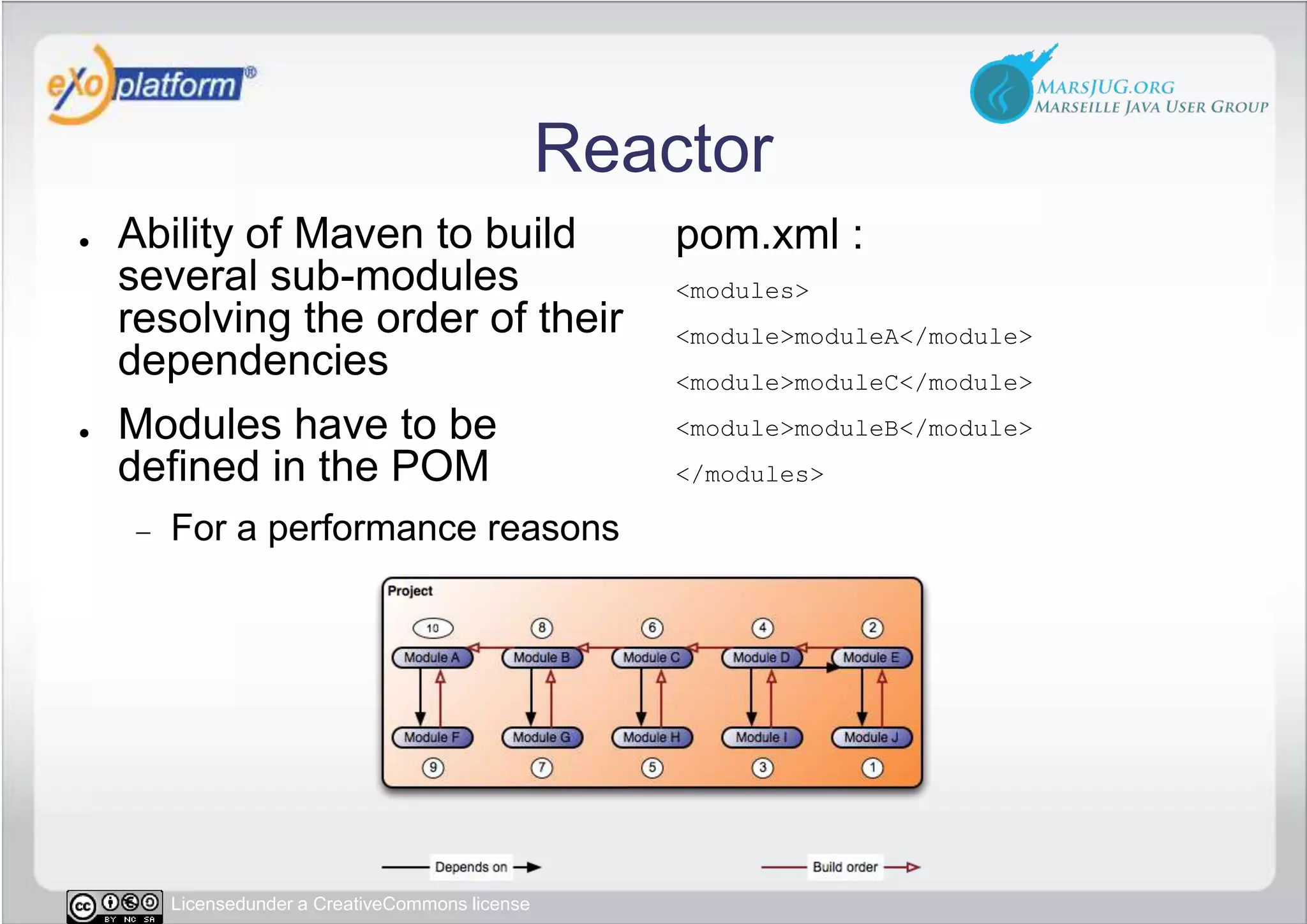

17. Reactor pom.xml : <modules> <module>moduleA</module> <module>moduleC</module> <module>moduleB</module> </modules> Ability of Maven to build several sub-modules resolving the order of their dependencies Modules have to be defined in the POM For a performance reasons

18. Inheritence Share settings between projects/modules Project Business1 Jar War Business2 Jar War By default the parent project is supposed to be in the parent directory (../) pom.xml for module Jar1 <parent> <groupId>X.Y.Z</groupId> <artifactId>jars</artifactId> <version>1.0-SNAPSHOT<version> </parent>

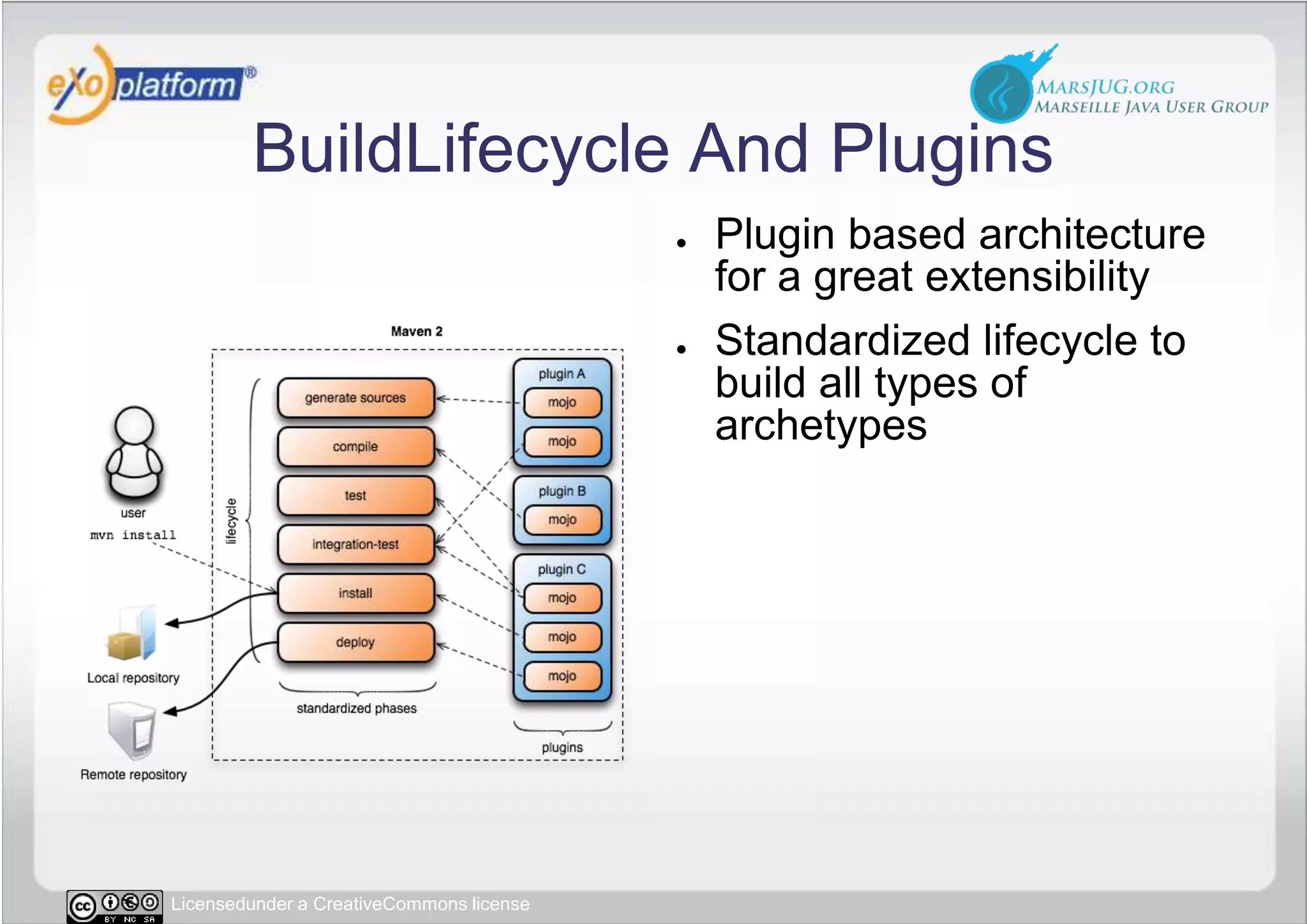

19. BuildLifecycle And Plugins Plugin based architecture for a great extensibility Standardized lifecycle to build all types of archetypes

20. Whydoes a projectchooseMaven? Apache Maven

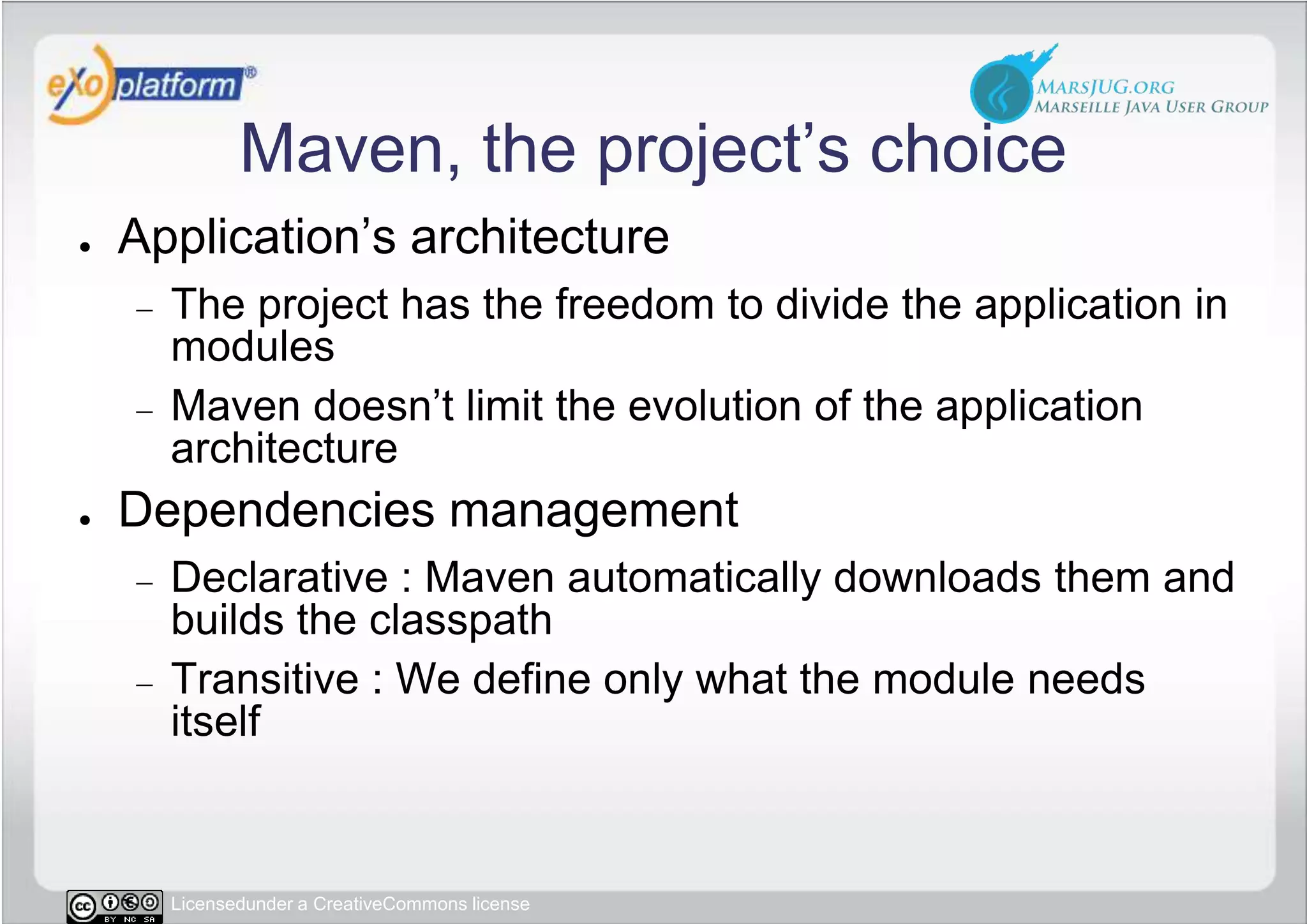

21. Maven, the project’s choice Application’s architecture The project has the freedom to divide the application in modules Maven doesn’t limit the evolution of the application architecture Dependencies management Declarative : Maven automatically downloads them and builds the classpath Transitive : We define only what the module needs itself

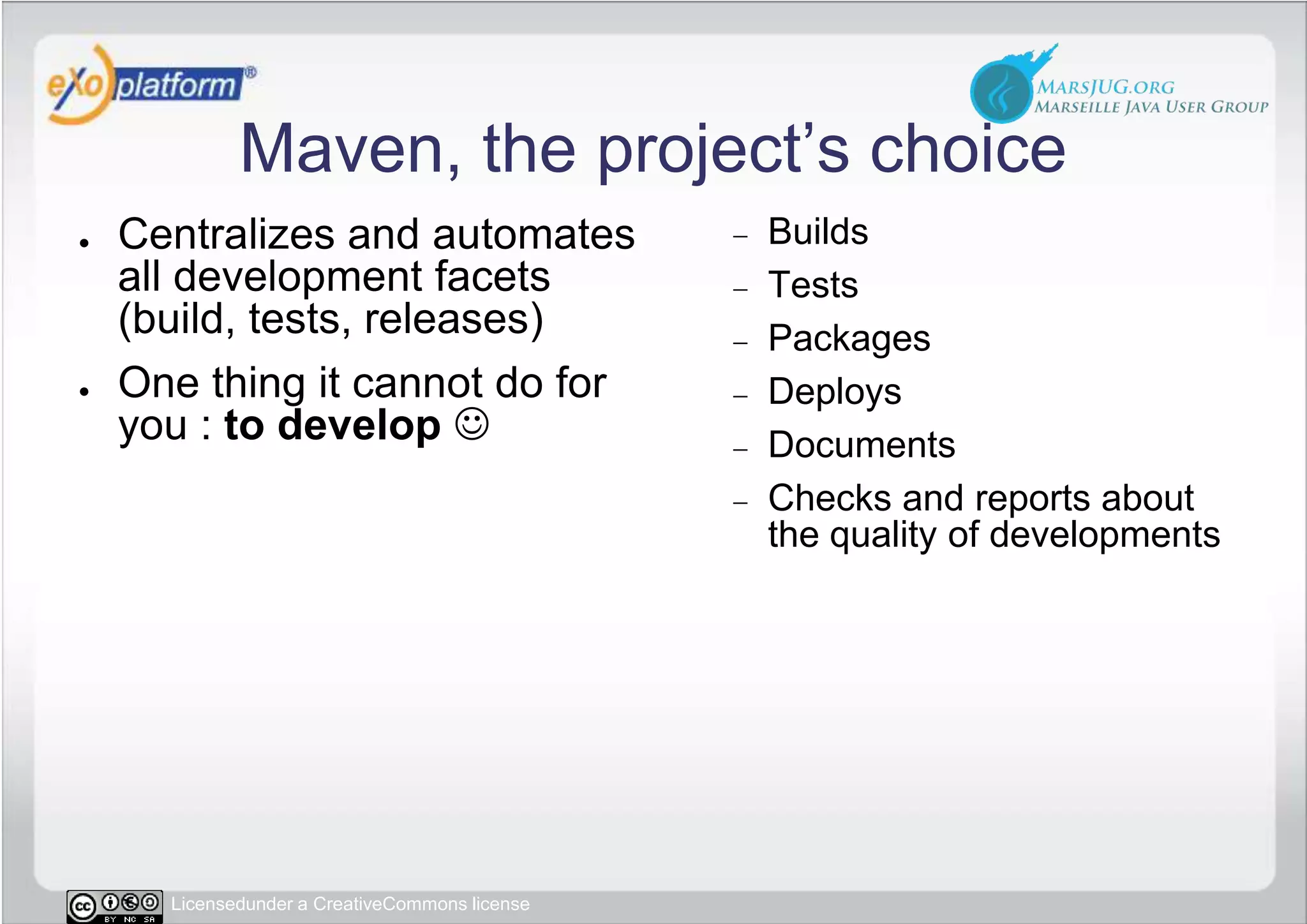

22. Maven, the project’s choice Centralizes and automates all development facets (build, tests, releases) One thing it cannot do for you : to develop  Builds Tests Packages Deploys Documents Checks and reports about the quality of developments

23. Whydoes a companychooseMaven? Apache Maven

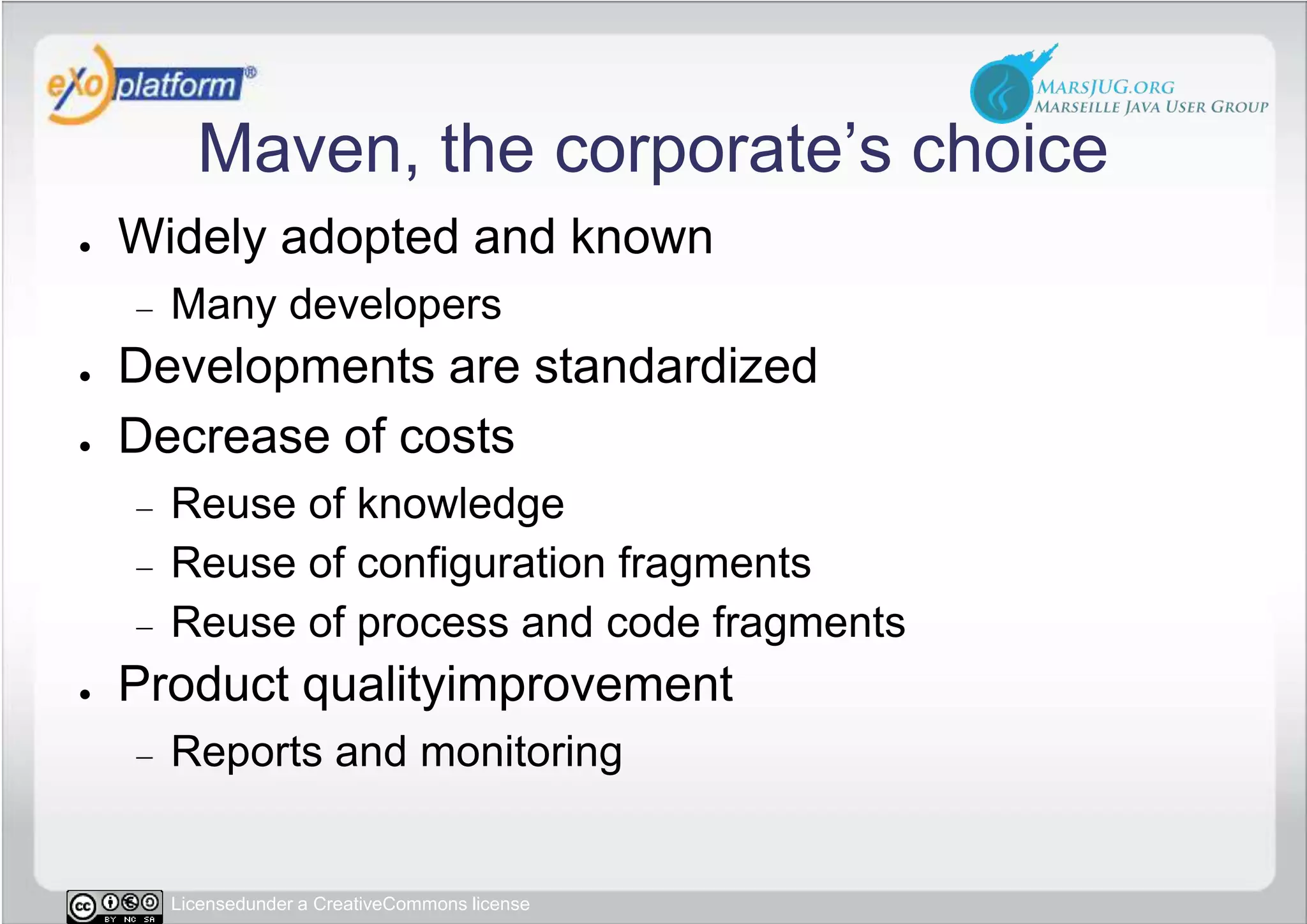

24. Maven, the corporate’s choice Widely adopted and known Many developers Developments are standardized Decrease of costs Reuse of knowledge Reuse of configuration fragments Reuse of process and code fragments Product qualityimprovement Reports and monitoring

25. ecosystem Apache Maven

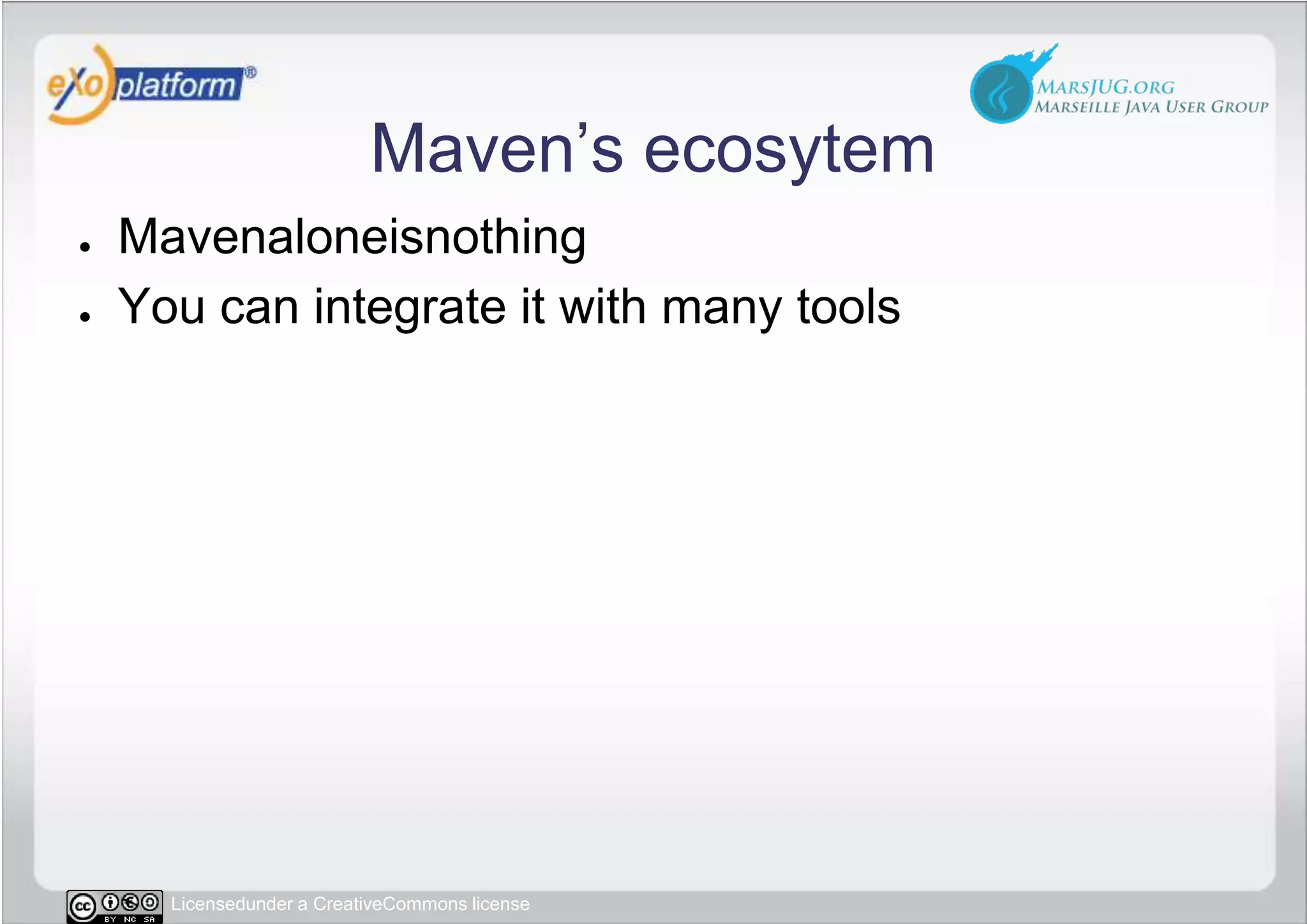

26. Maven’s ecosytem Mavenaloneisnothing You can integrate it with many tools

27. repository managerS Apache Maven

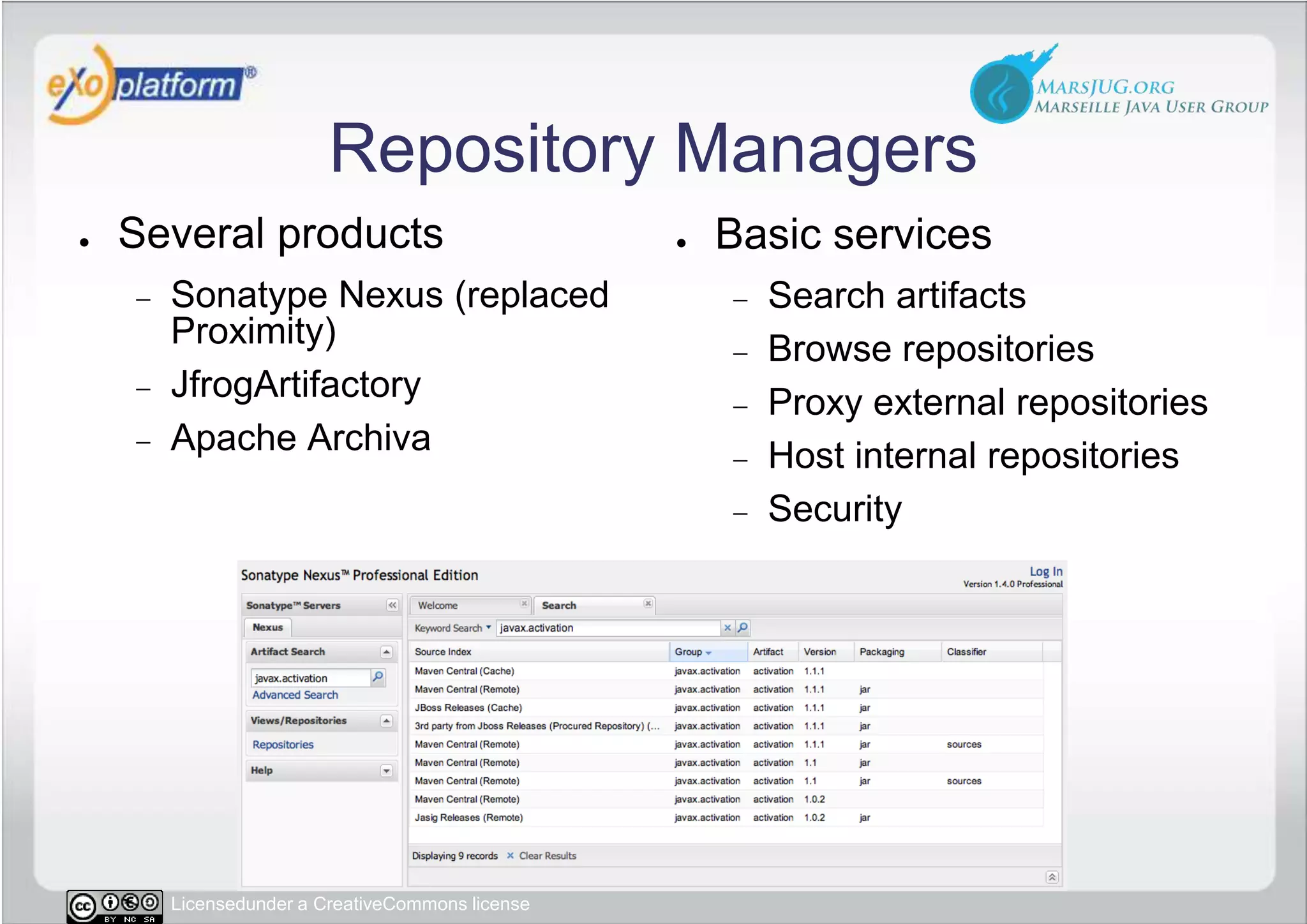

28. Repository Managers Basic services Search artifacts Browse repositories Proxy external repositories Host internal repositories Security Several products Sonatype Nexus (replaced Proximity) JfrogArtifactory Apache Archiva

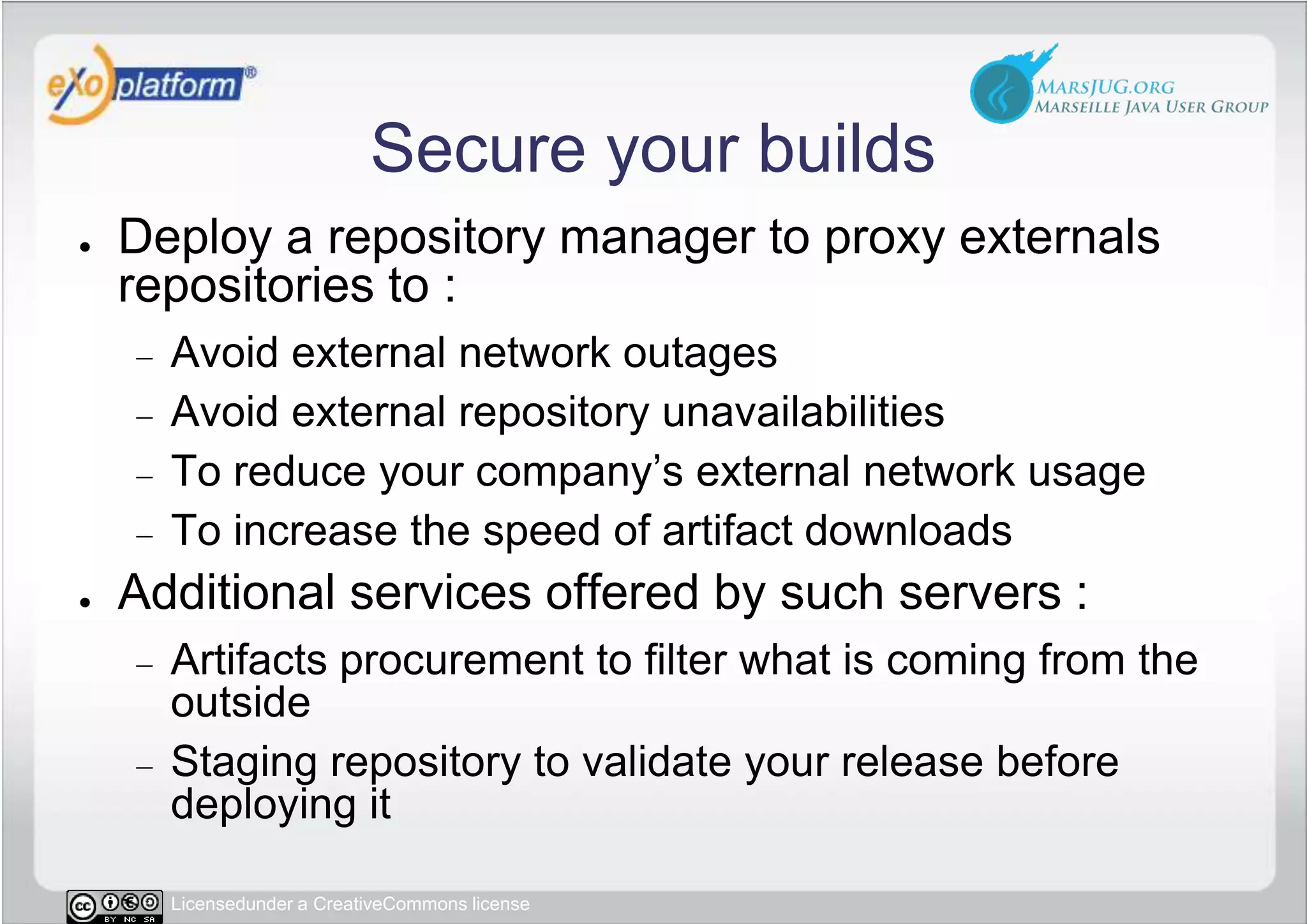

29. Secure your builds Deploy a repository manager to proxy externals repositories to : Avoid external network outages Avoid external repository unavailabilities To reduce your company’s external network usage To increase the speed of artifact downloads Additional services offered by such servers : Artifacts procurement to filter what is coming from the outside Staging repository to validate your release before deploying it

30. Setup a global mirror <settings> <mirrors> <mirror> <!--Thissendseverythingelse to /public --> <id>global-mirror</id> <mirrorOf>external:*</mirrorOf> <url>http://repository.exoplatform.org/content/groups/all</url> </mirror> </mirrors> <profiles> <profile> <id>mirror</id> <!--Enablesnapshots for the built in central repo to direct --> <!--allrequests to the repository manager via the mirror --> <repositories> <repository> <id>central</id> <url>http://central</url> <releases><enabled>true</enabled></releases> <snapshots><enabled>true</enabled></snapshots> </repository> </repositories> <pluginRepositories> <pluginRepository> <id>central</id> <url>http://central</url> <releases><enabled>true</enabled></releases> <snapshots><enabled>true</enabled></snapshots> </pluginRepository> </pluginRepositories> </profile> </profiles> <activeProfiles> <!--make the profile active all the time --> <activeProfile>mirror</activeProfile> </activeProfiles> </settings>

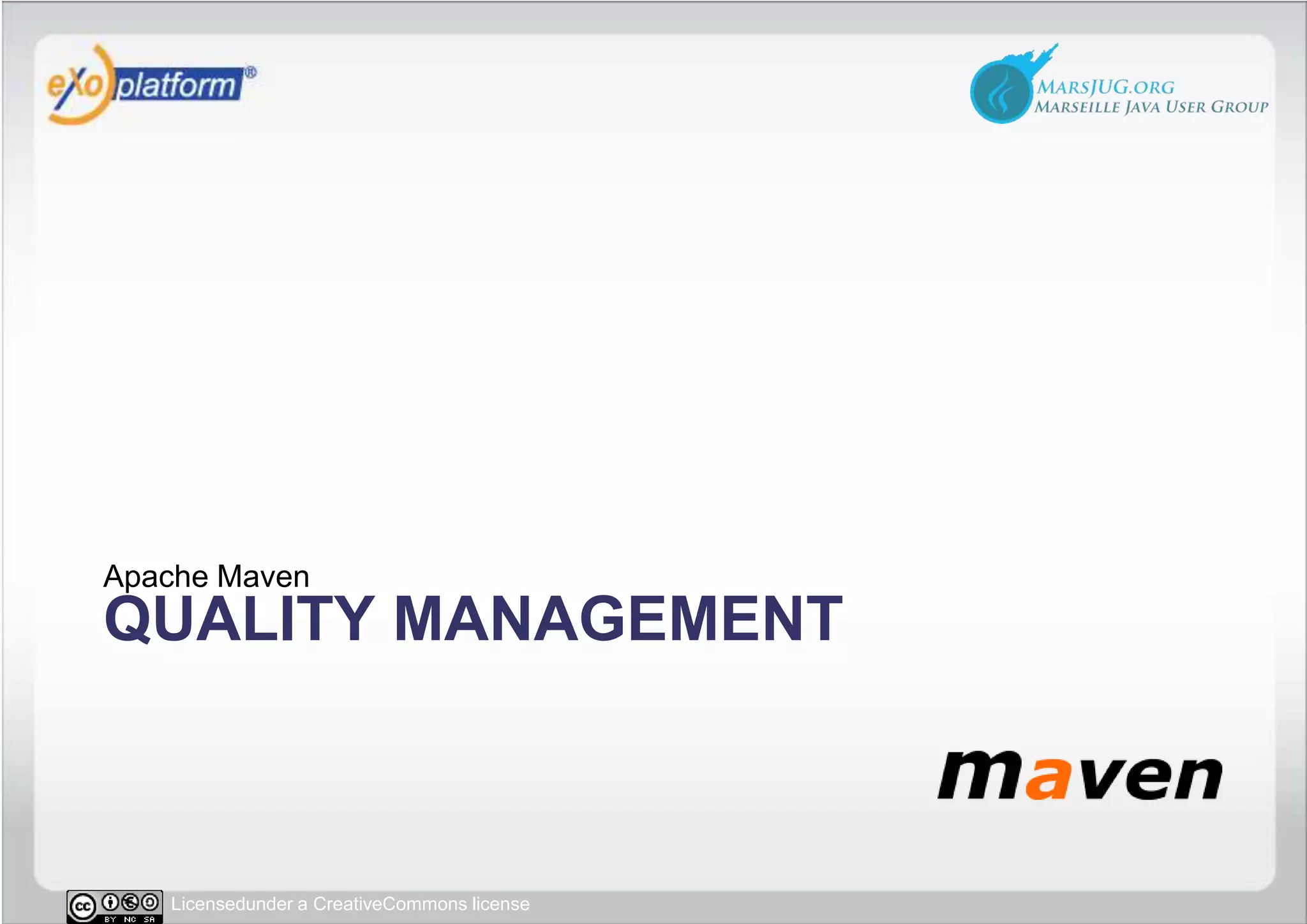

31. Quality management Apache Maven

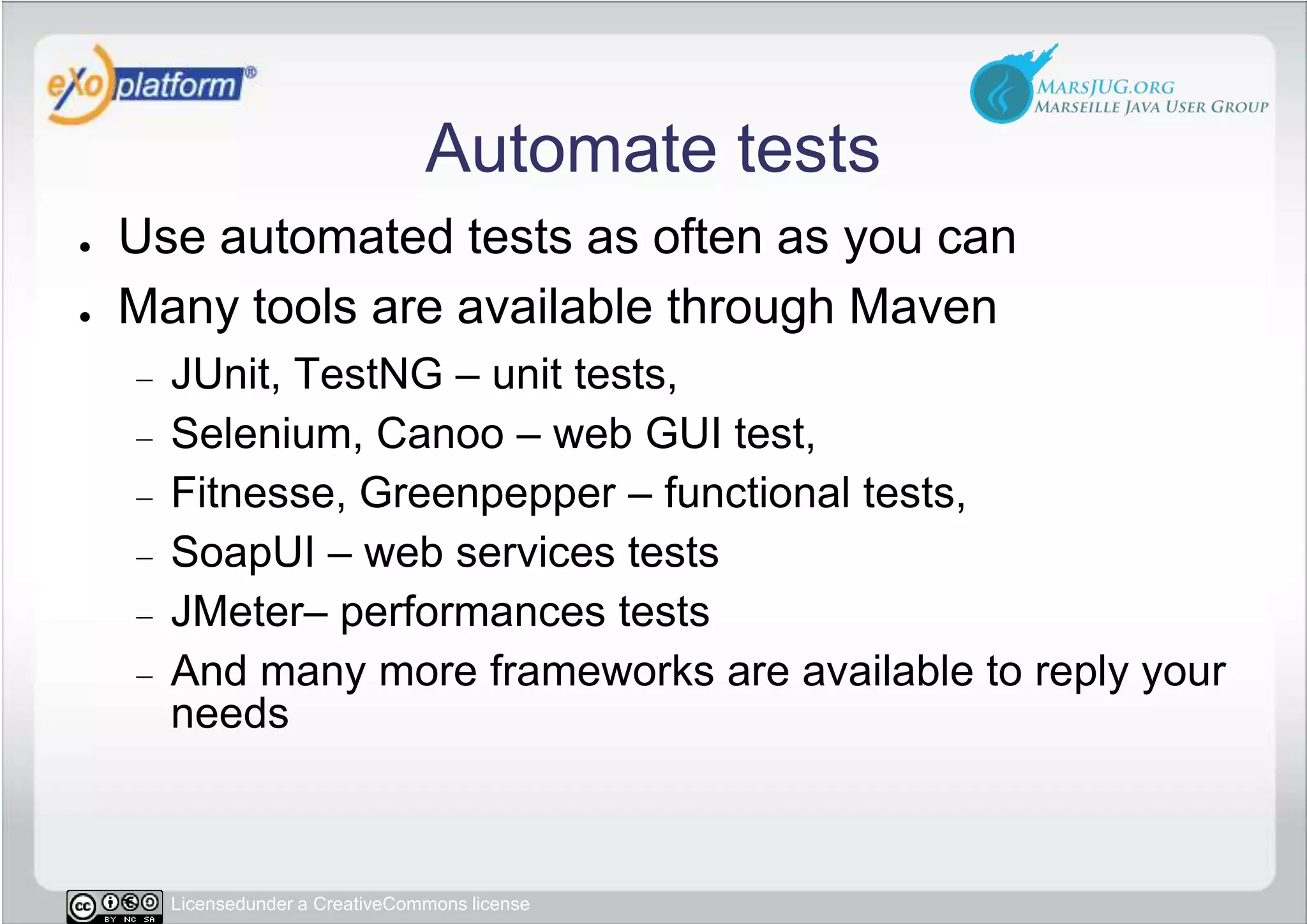

32. Automate tests Use automated tests as often as you can Many tools are available through Maven JUnit, TestNG – unit tests, Selenium, Canoo – web GUI test, Fitnesse, Greenpepper – functional tests, SoapUI – web services tests JMeter– performances tests And many more frameworks are available to reply your needs

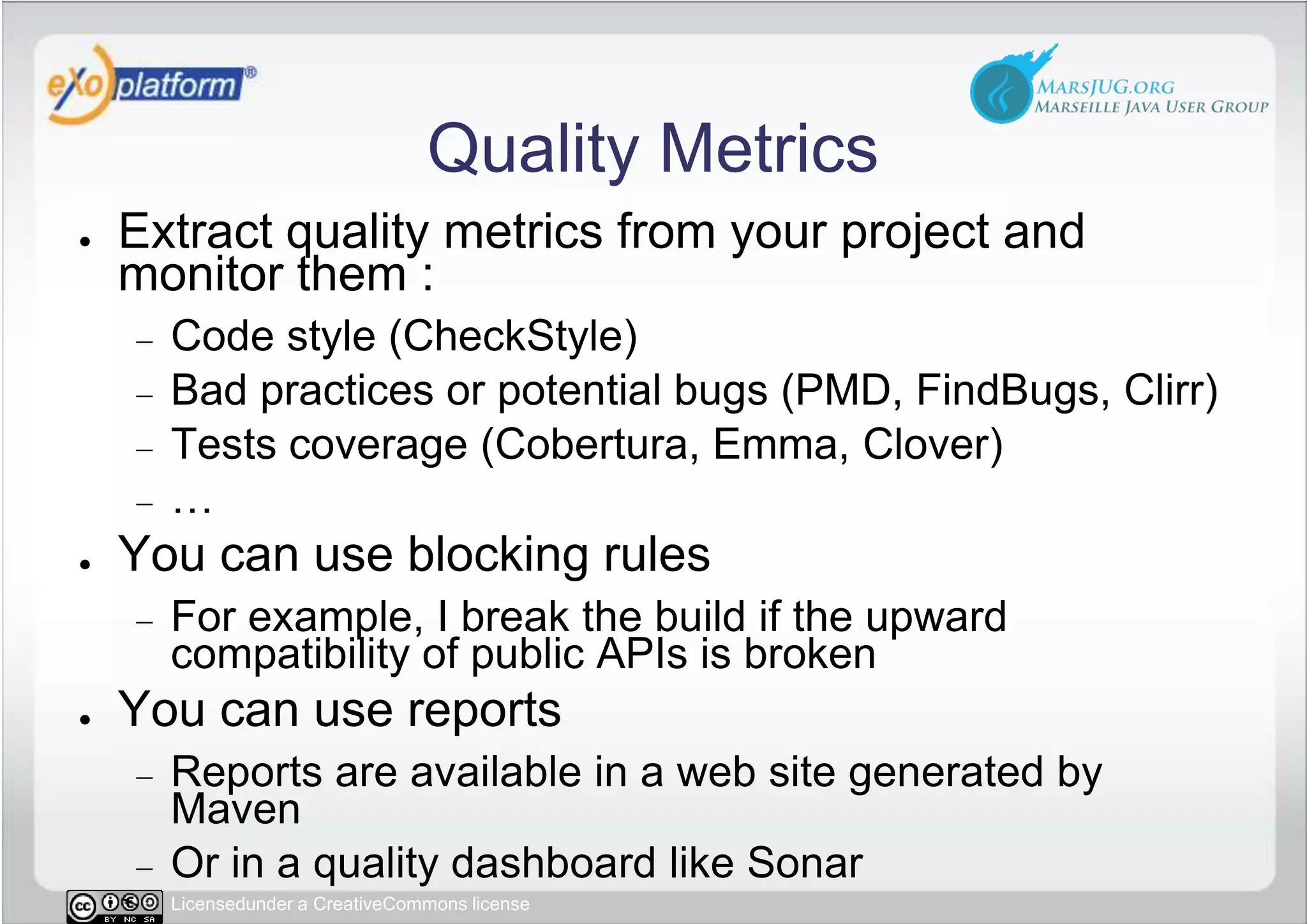

33. Quality Metrics Extract quality metrics from your project and monitor them : Code style (CheckStyle) Bad practices or potential bugs (PMD, FindBugs, Clirr) Tests coverage (Cobertura, Emma, Clover) … You can use blocking rules For example, I break the build if the upward compatibility of public APIs is broken You can use reports Reports are available in a web site generated by Maven Or in a quality dashboard like Sonar

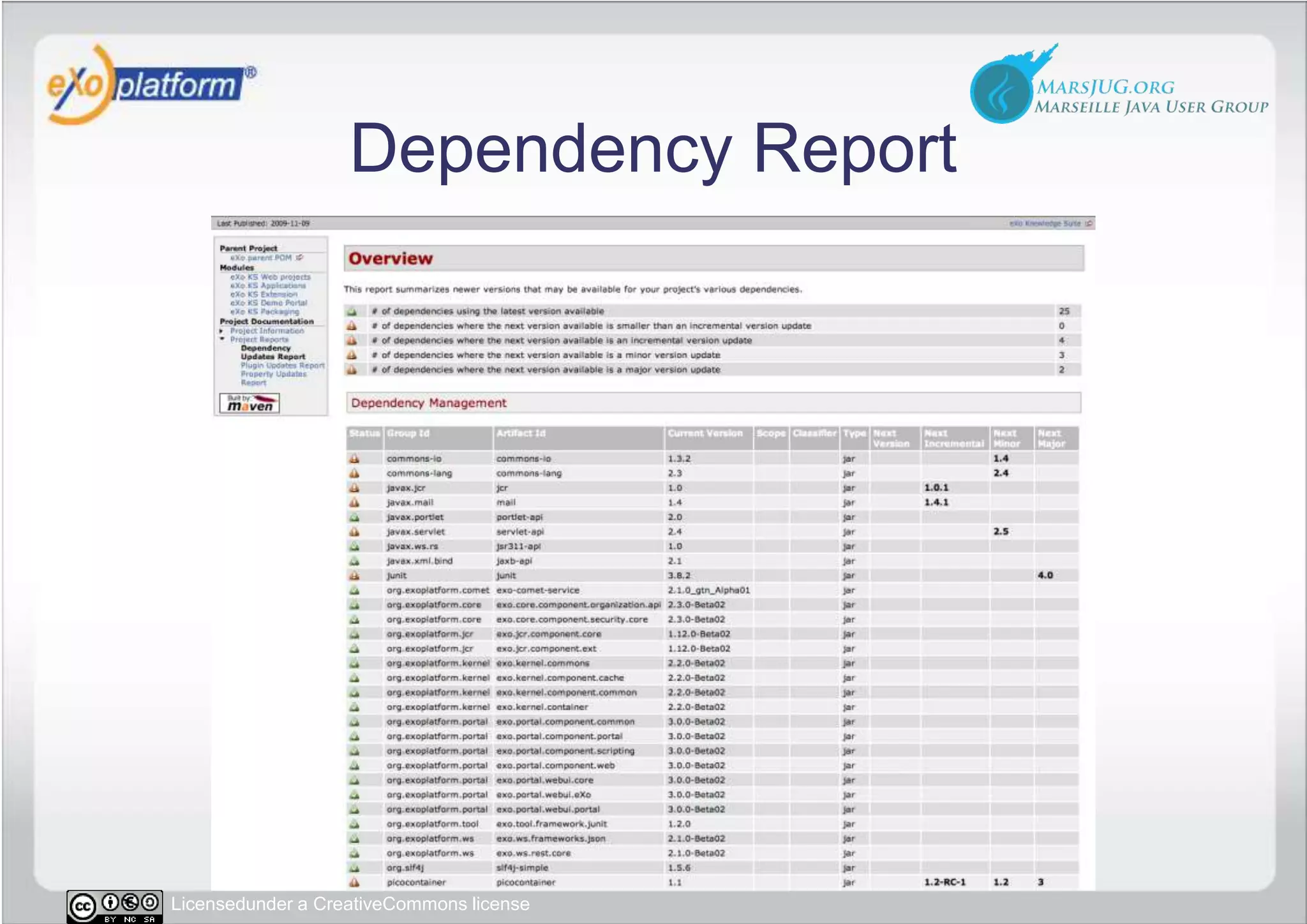

34. Dependency Report

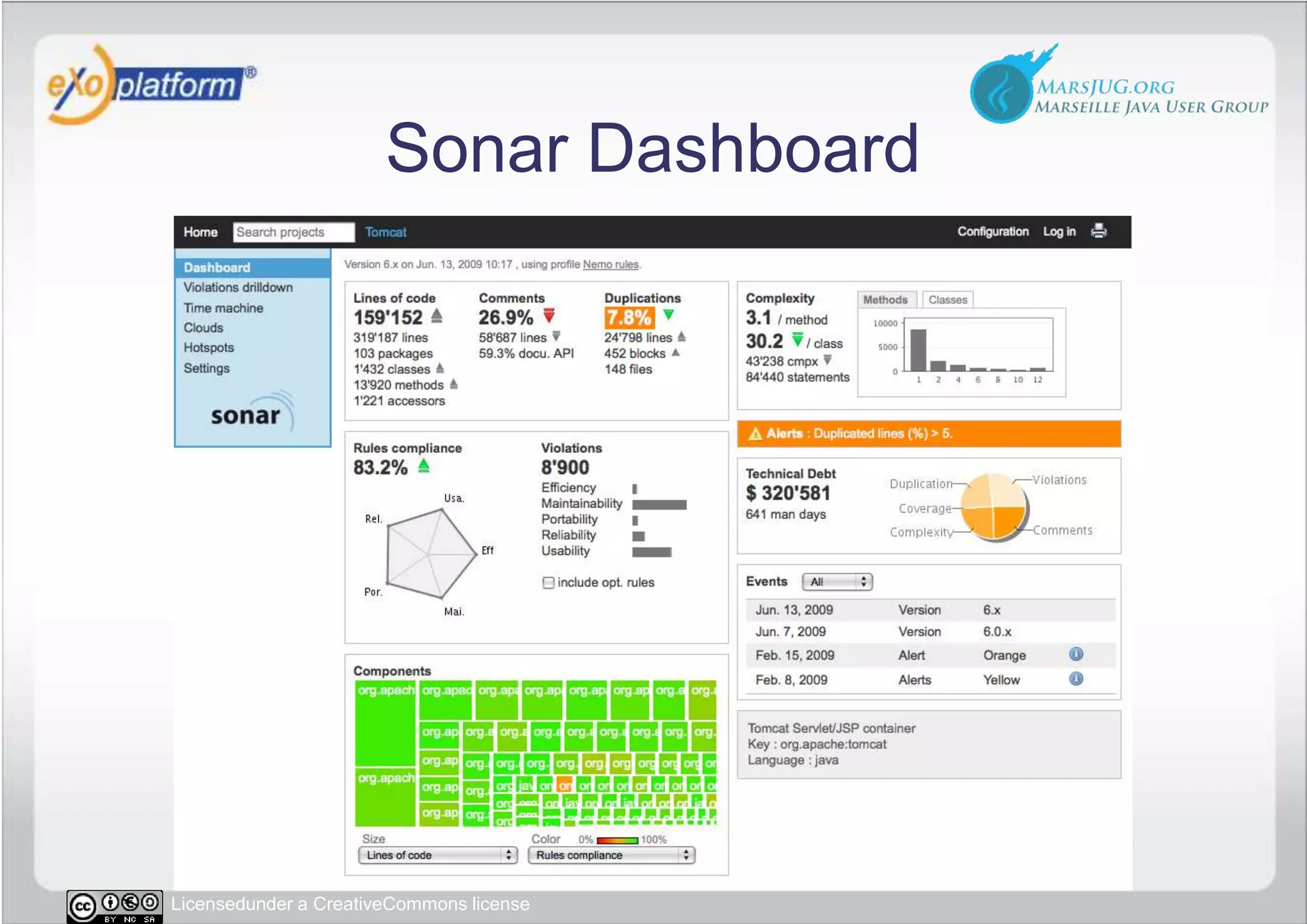

35. Sonar Dashboard

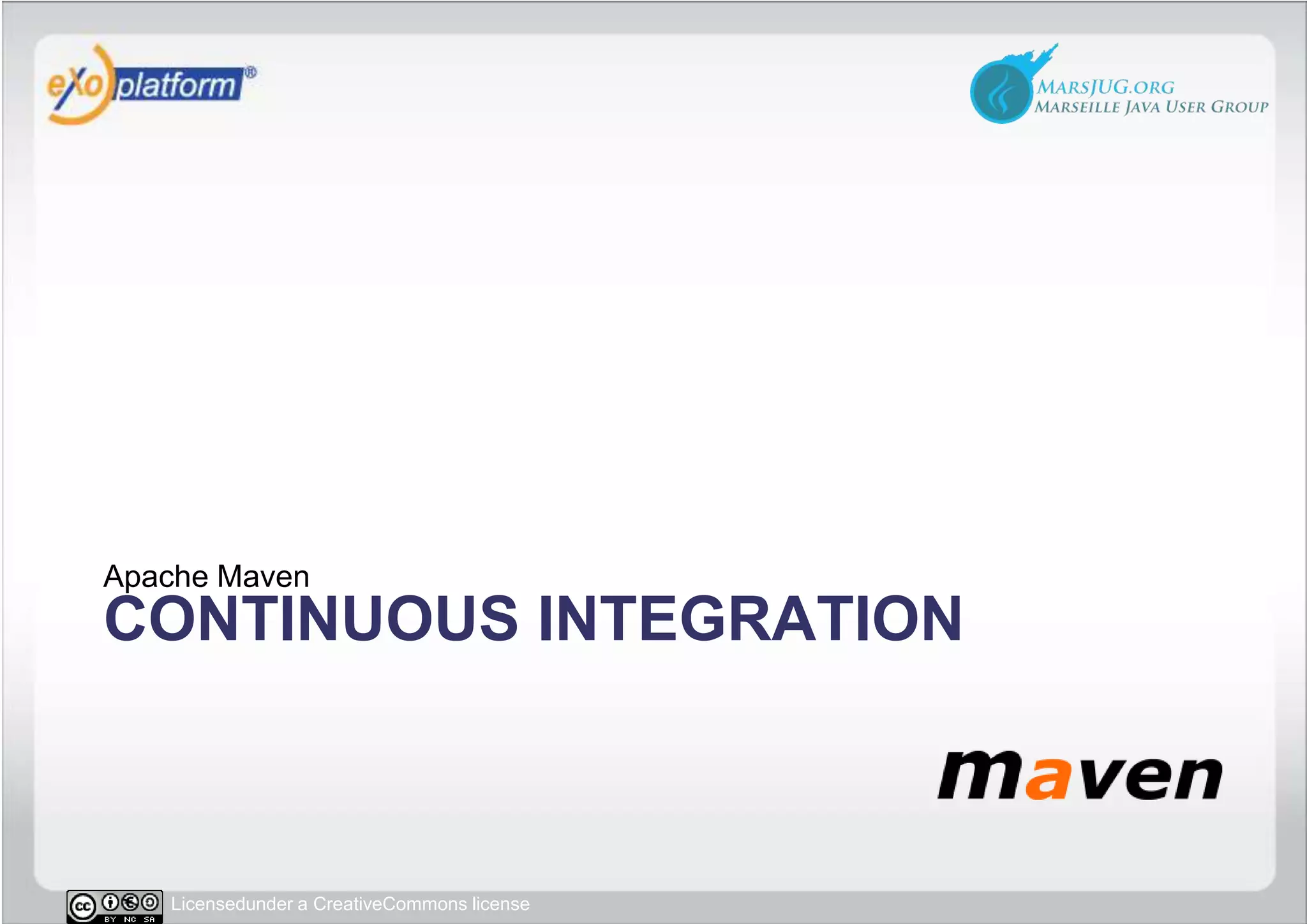

36. Continuous integration Apache Maven

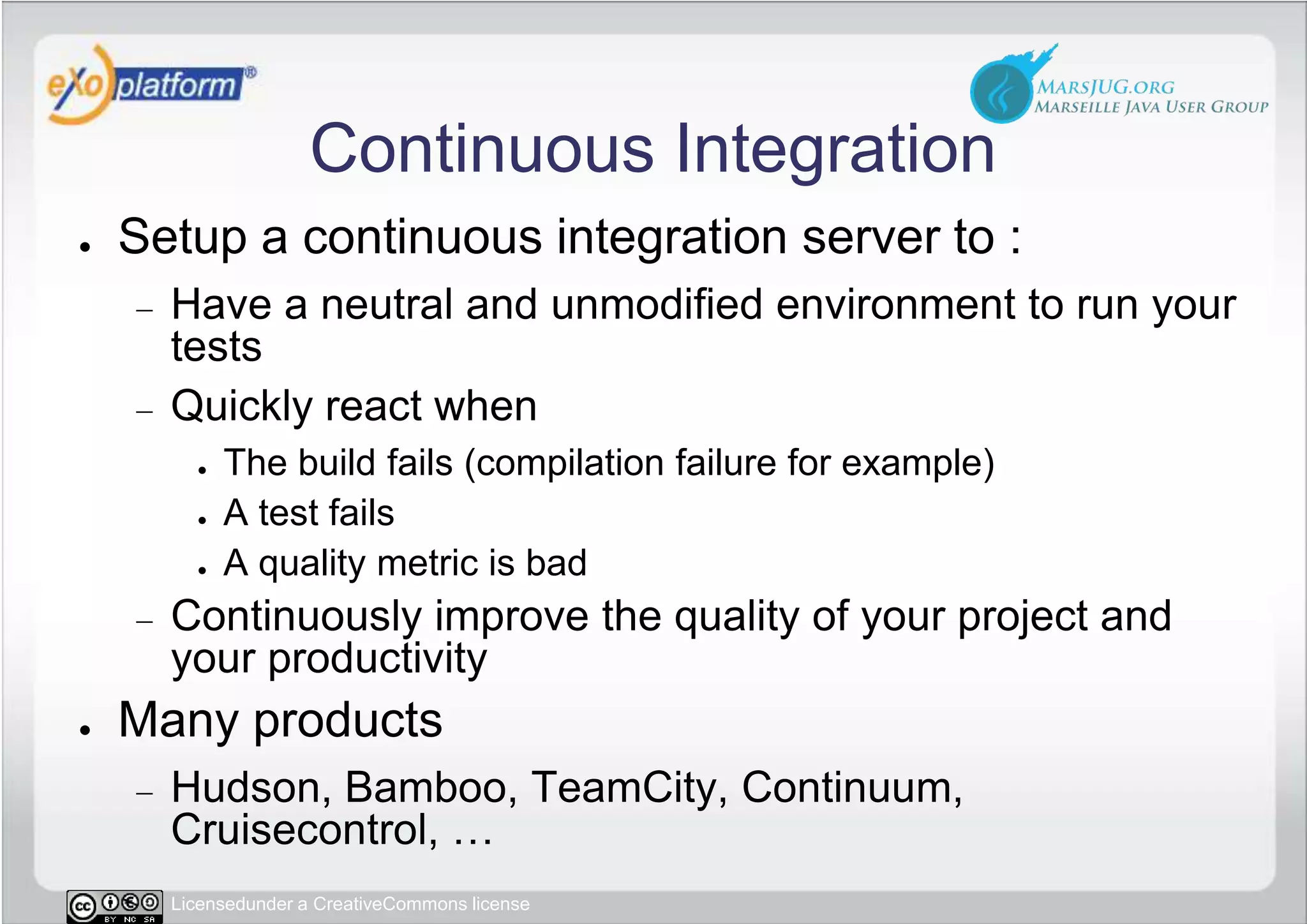

37. Continuous Integration Setup a continuous integration server to : Have a neutral and unmodified environment to run your tests Quickly react when The build fails (compilation failure for example) A test fails A quality metric is bad Continuously improve the quality of your project and your productivity Many products Hudson, Bamboo, TeamCity, Continuum, Cruisecontrol, …

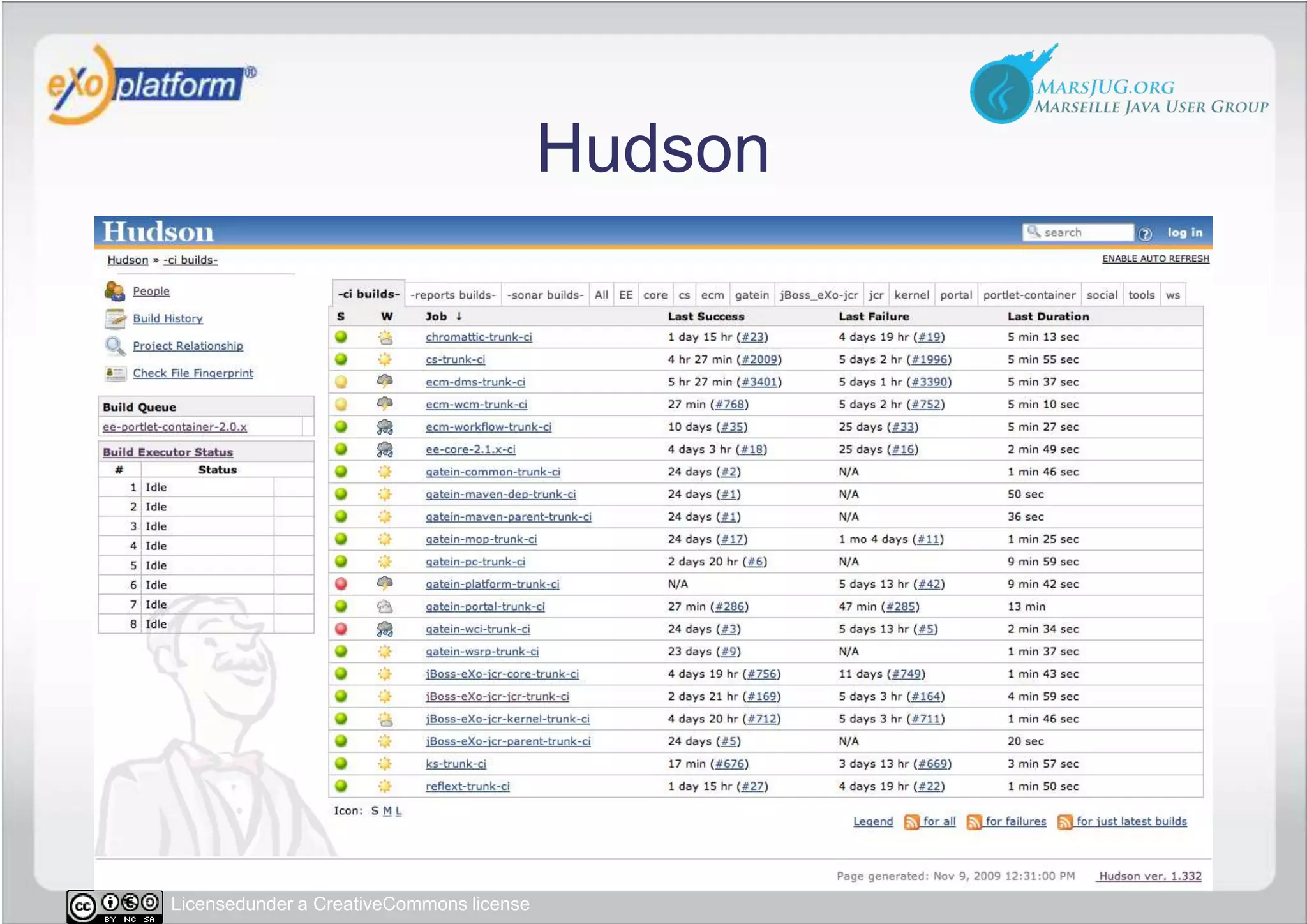

38. Hudson

39. Good & bad practices Apache Maven

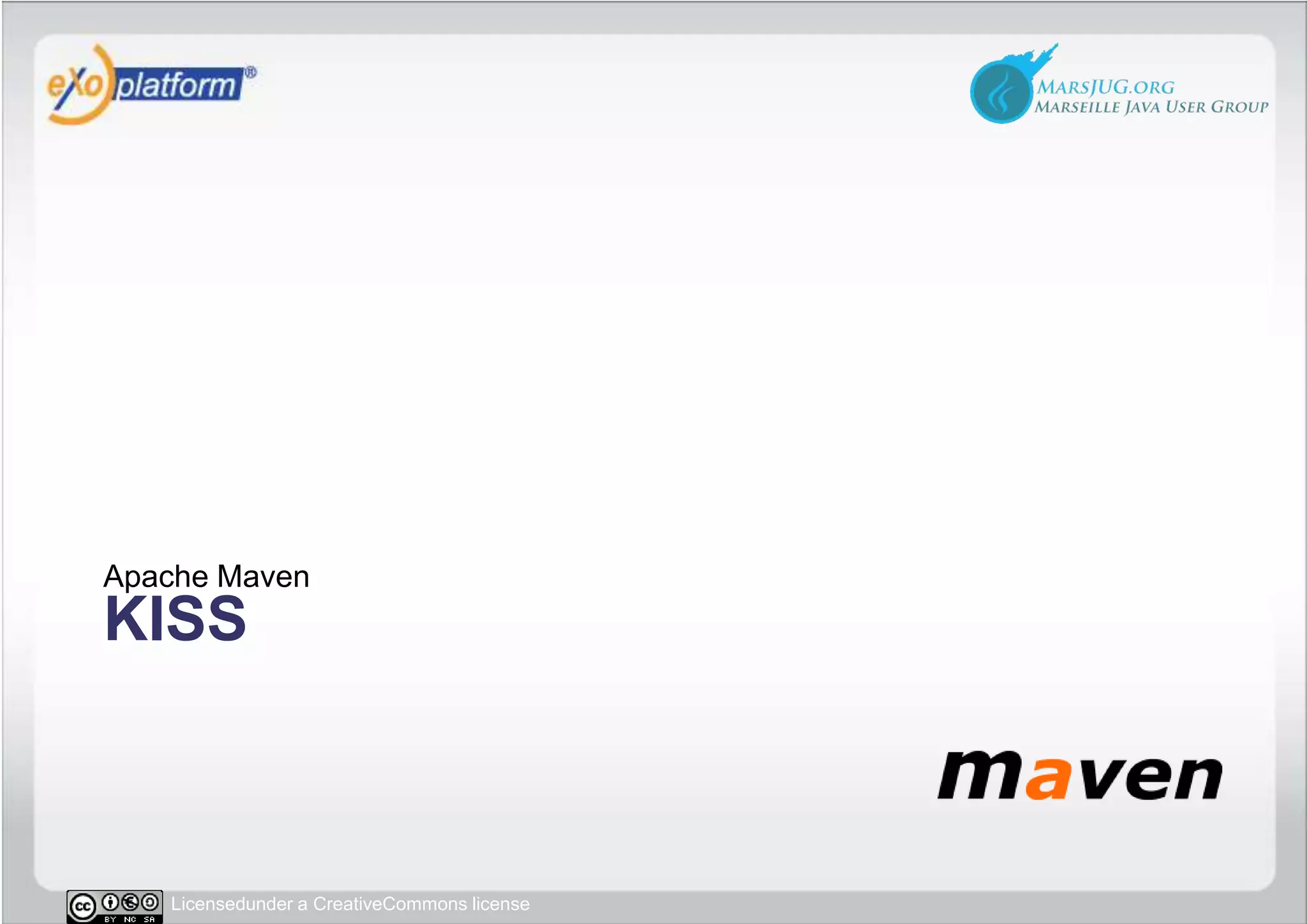

40. KISS Apache Maven

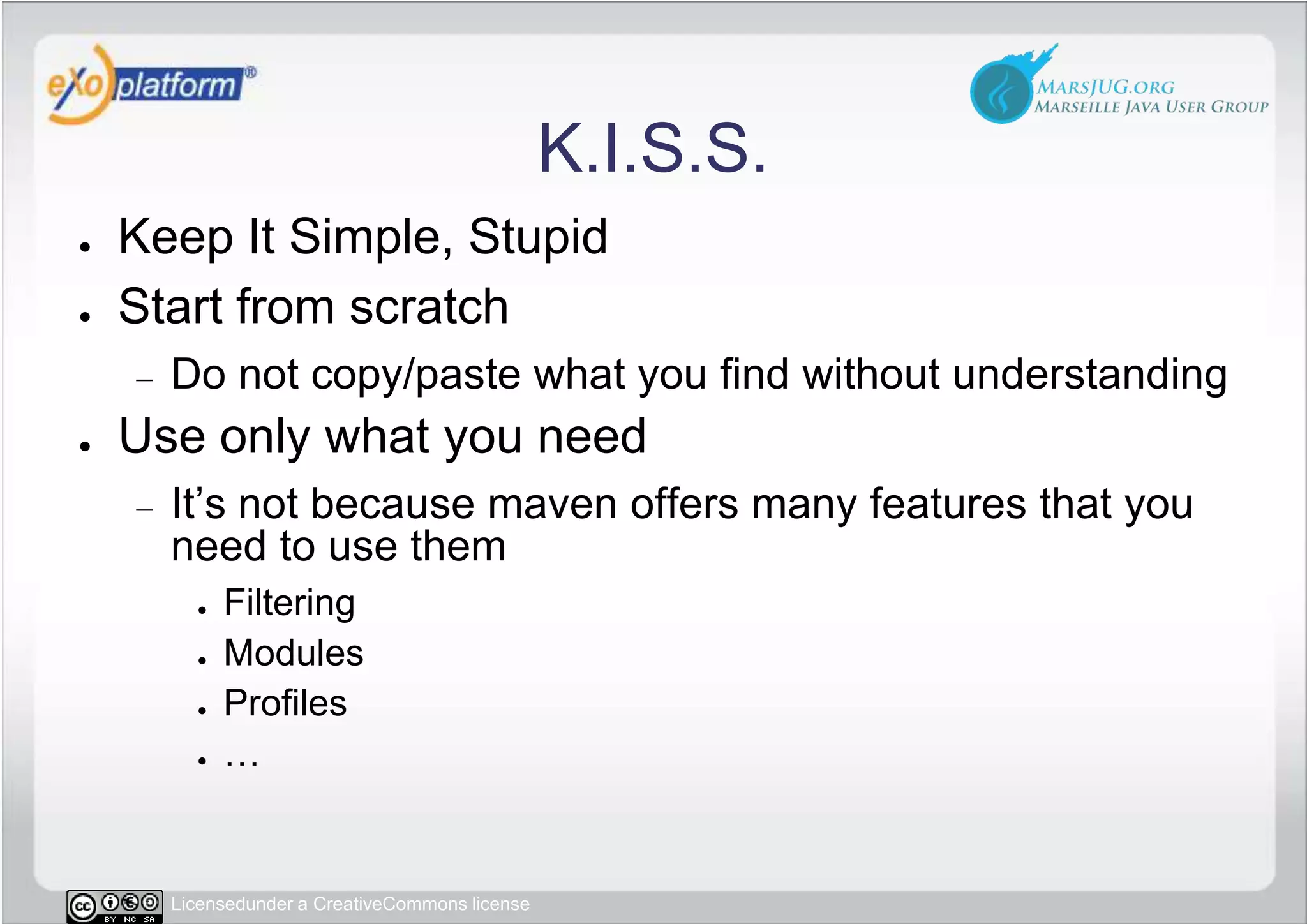

41. K.I.S.S. Keep It Simple, Stupid Start from scratch Do not copy/paste what you find without understanding Use only what you need It’s not because maven offers many features that you need to use them Filtering Modules Profiles …

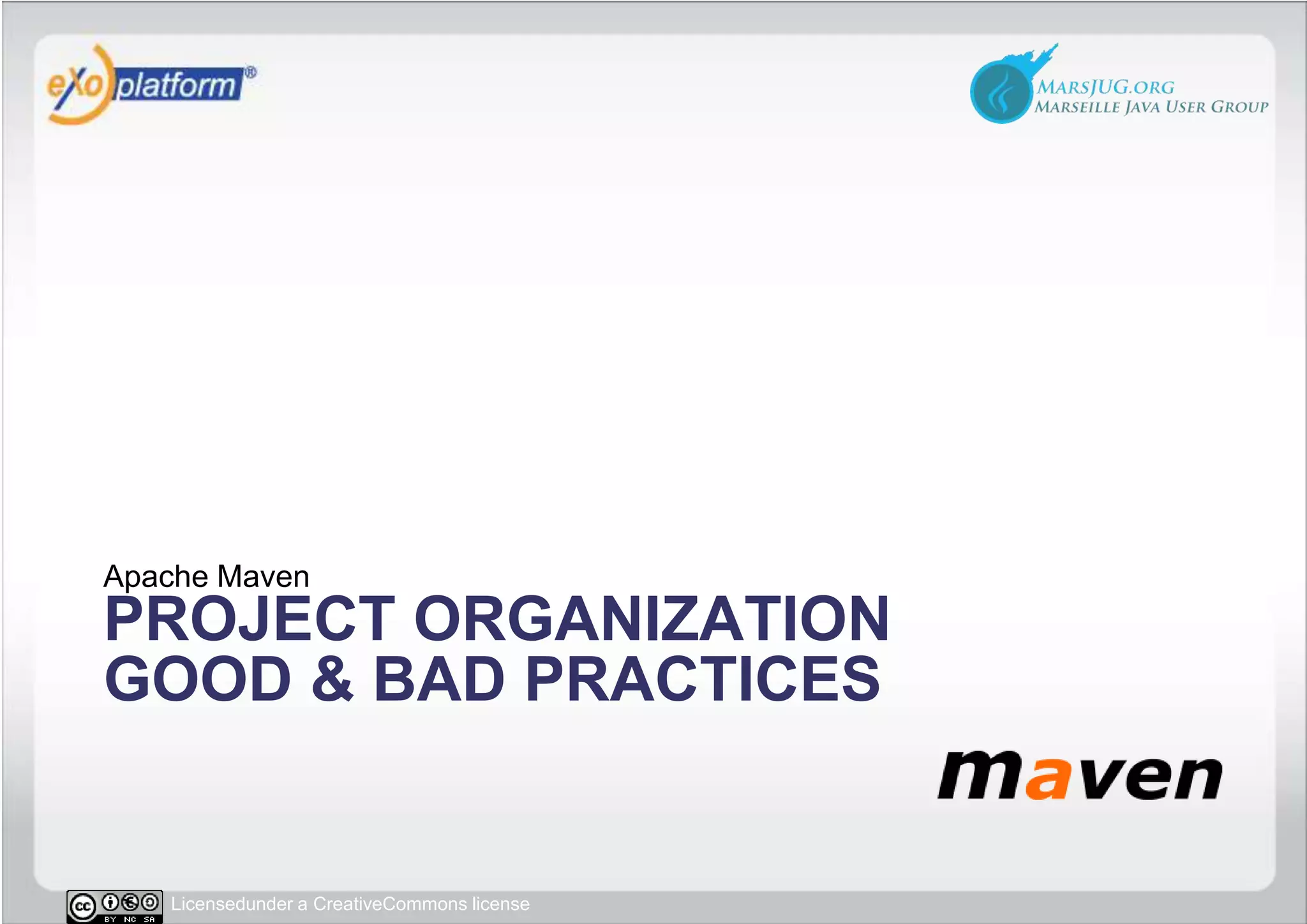

42. PROJECT ORGANIZATIONGOOD & BAD Practices Apache Maven

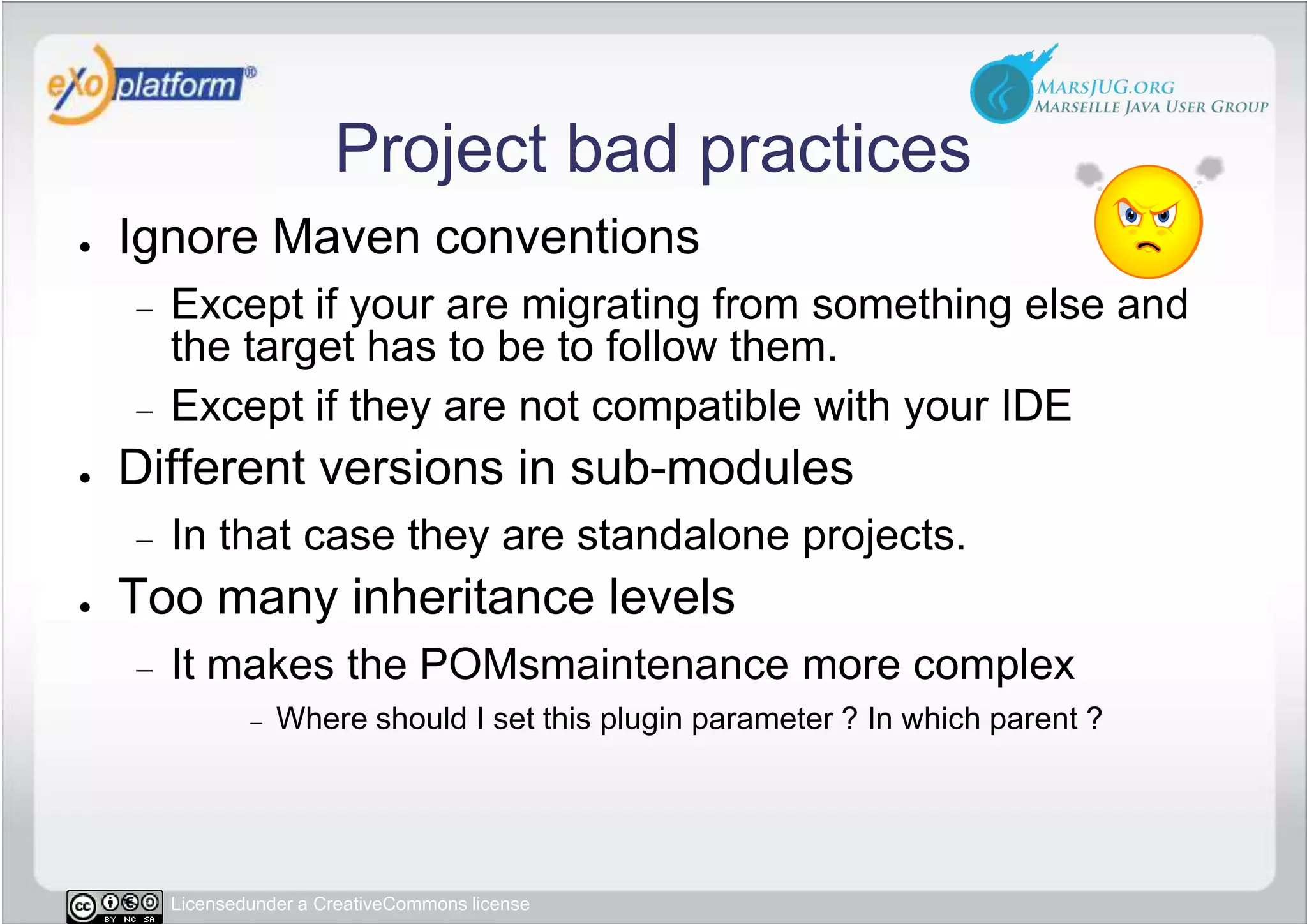

43. Project bad practices Ignore Maven conventions Except if your are migrating from something else and the target has to be to follow them. Except if they are not compatible with your IDE Different versions in sub-modules In that case they are standalone projects. Too many inheritance levels It makes the POMsmaintenance more complex Where should I set this plugin parameter ? In which parent ?

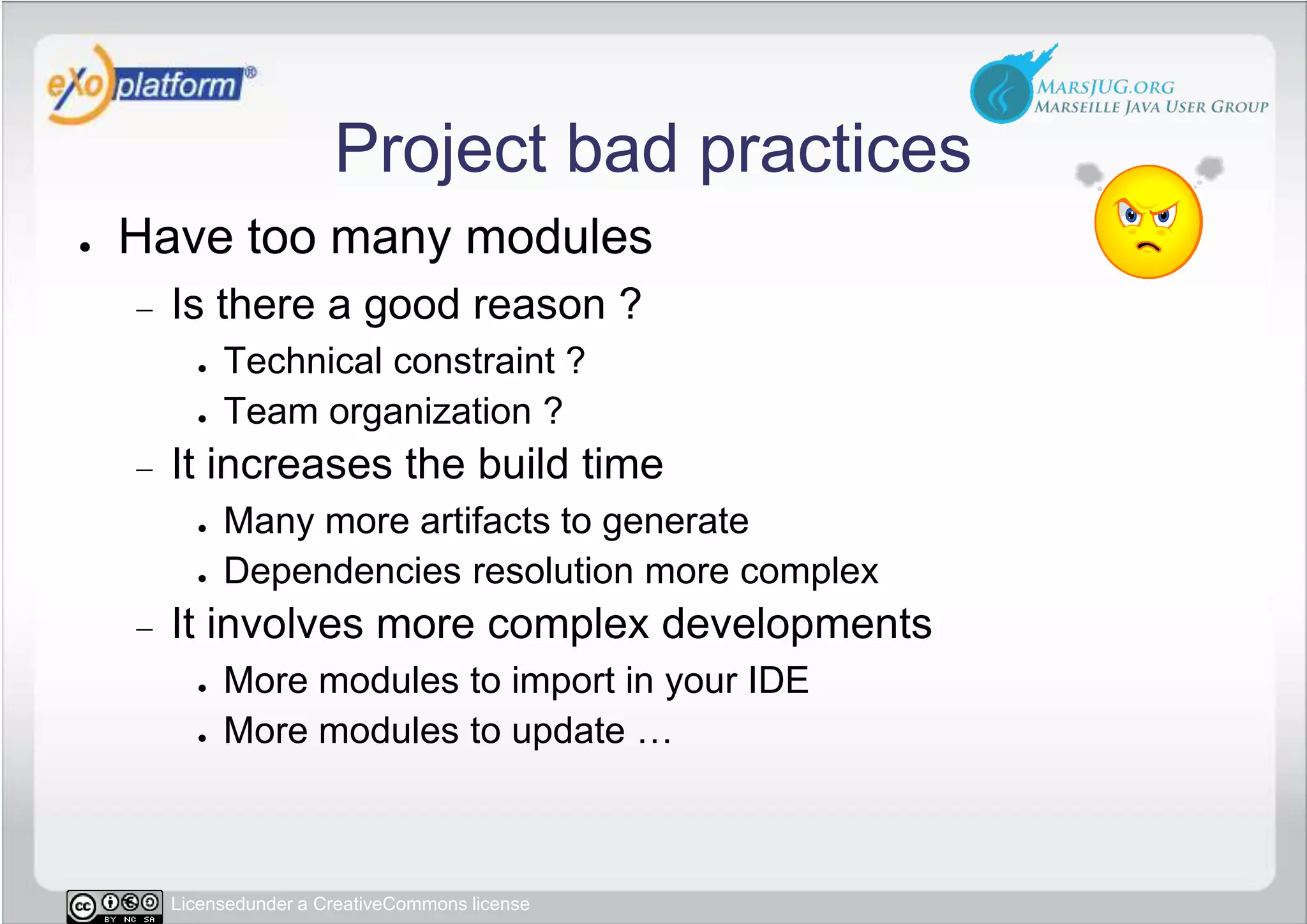

44. Project bad practices Have too many modules Is there a good reason ? Technical constraint ? Team organization ? It increases the build time Many more artifacts to generate Dependencies resolution more complex It involves more complex developments More modules to import in your IDE More modules to update …

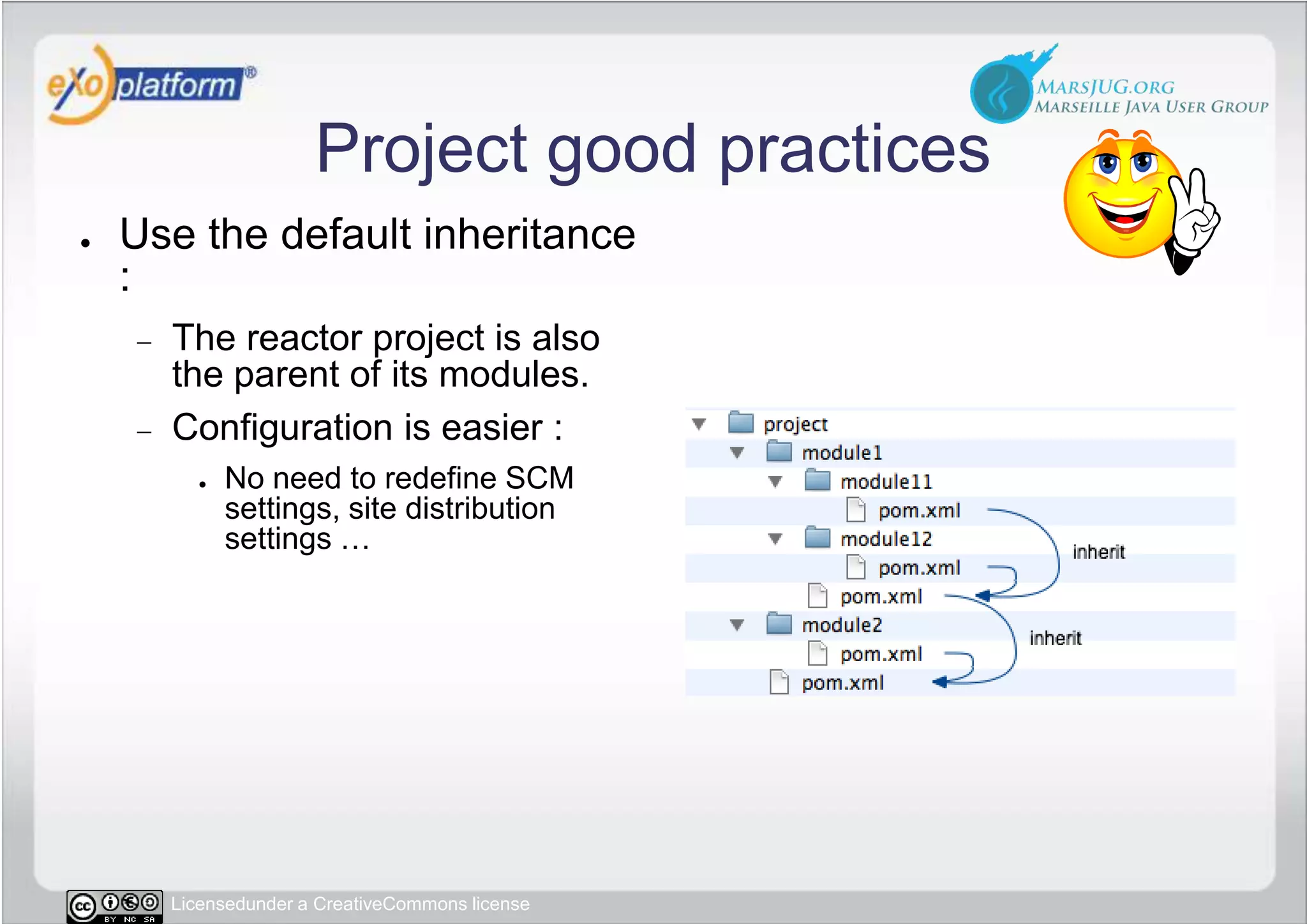

45. Project good practices Use the default inheritance : The reactor project is also the parent of its modules. Configuration is easier : No need to redefine SCM settings, site distribution settings …

46. POM GOOD & BAD Practices Apache Maven

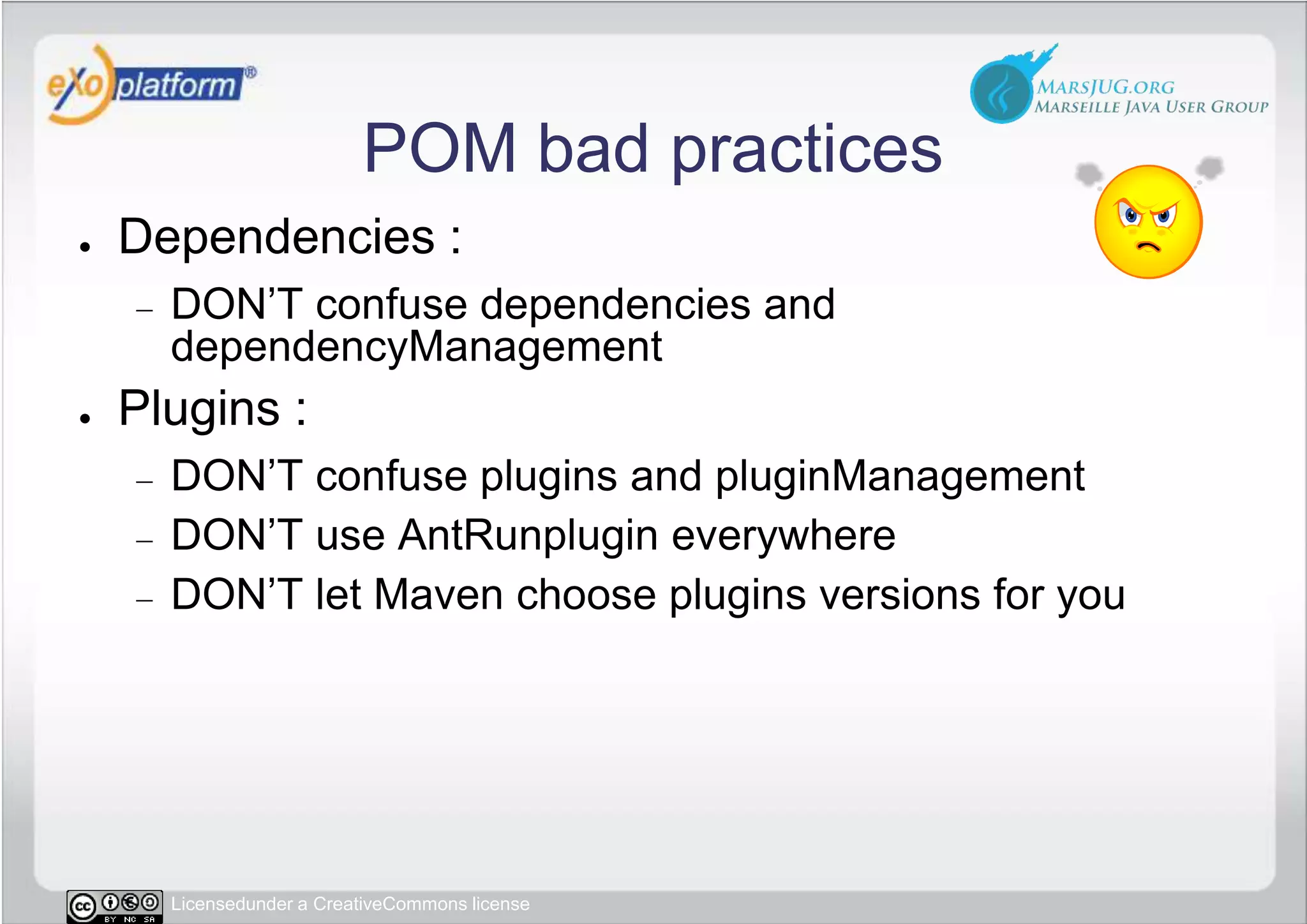

47. POM bad practices Dependencies : DON’T confuse dependencies and dependencyManagement Plugins : DON’T confuse plugins and pluginManagement DON’T use AntRunplugin everywhere DON’T let Maven choose plugins versions for you

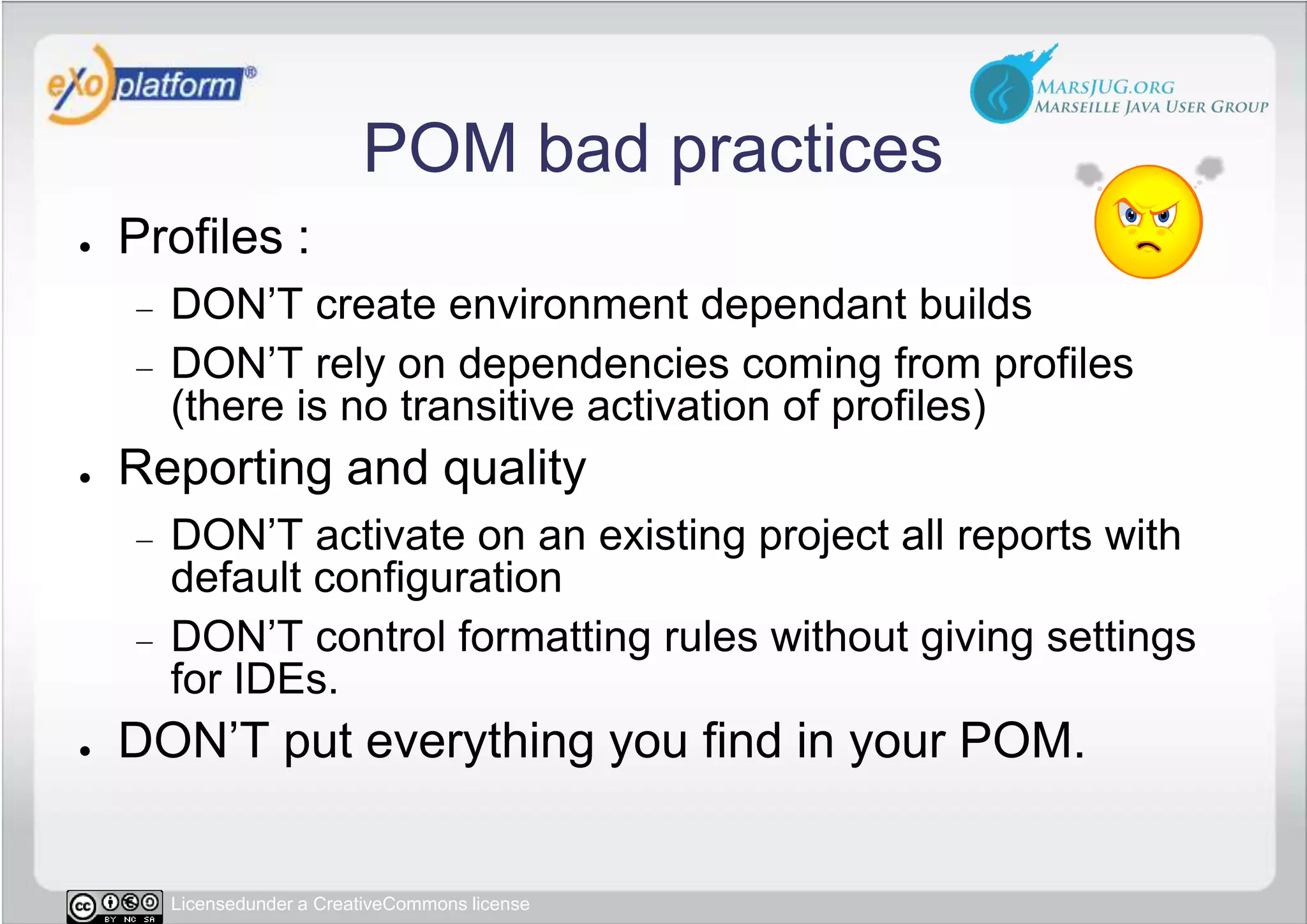

48. POM bad practices Profiles : DON’T create environment dependant builds DON’T rely on dependencies coming from profiles (there is no transitive activation of profiles) Reporting and quality DON’T activate on an existing project all reports with default configuration DON’T control formatting rules without giving settings for IDEs. DON’T put everything you find in your POM.

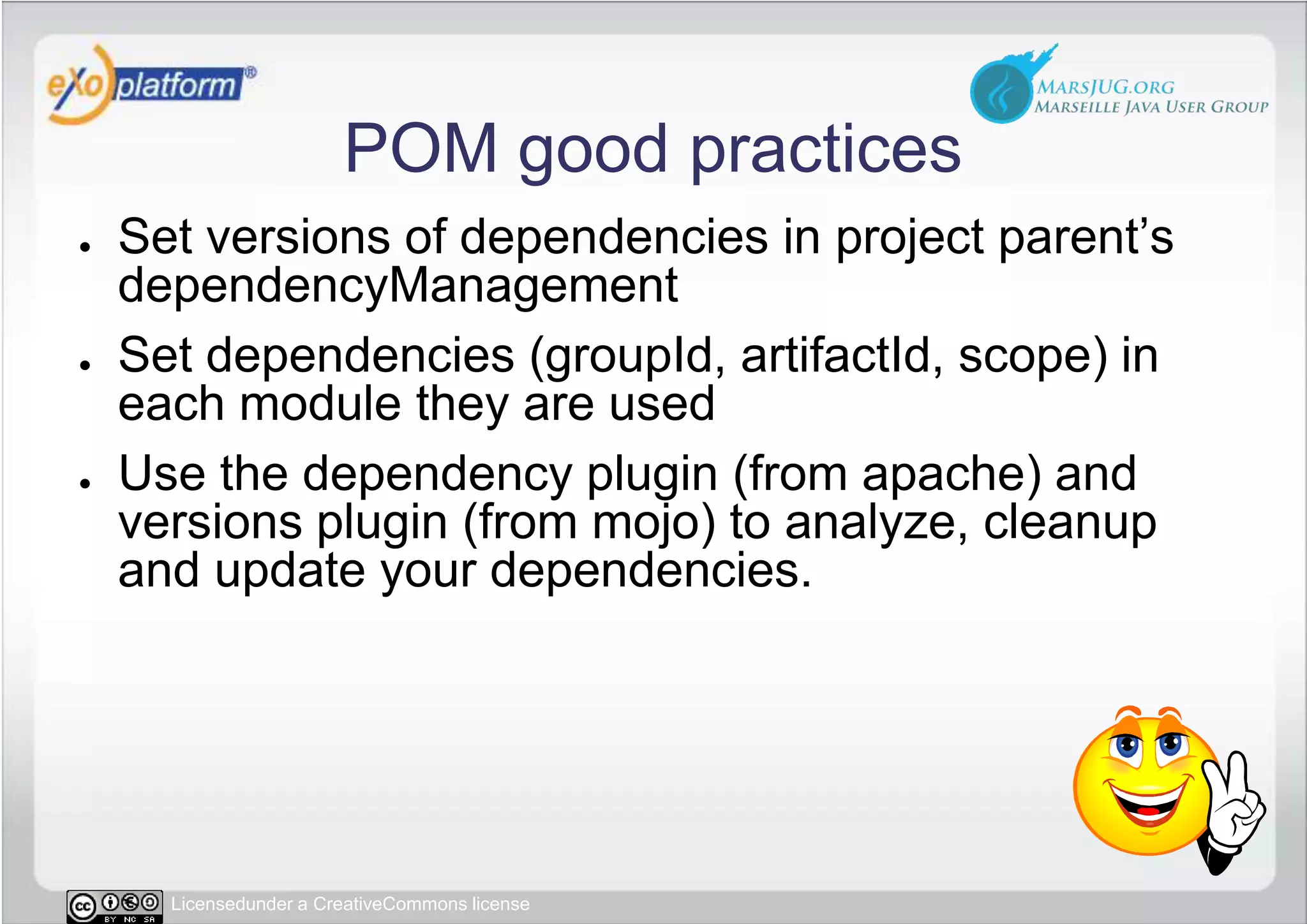

49. POM good practices Set versions of dependencies in project parent’s dependencyManagement Set dependencies (groupId, artifactId, scope) in each module they are used Use the dependency plugin (from apache) and versions plugin (from mojo) to analyze, cleanup and update your dependencies.

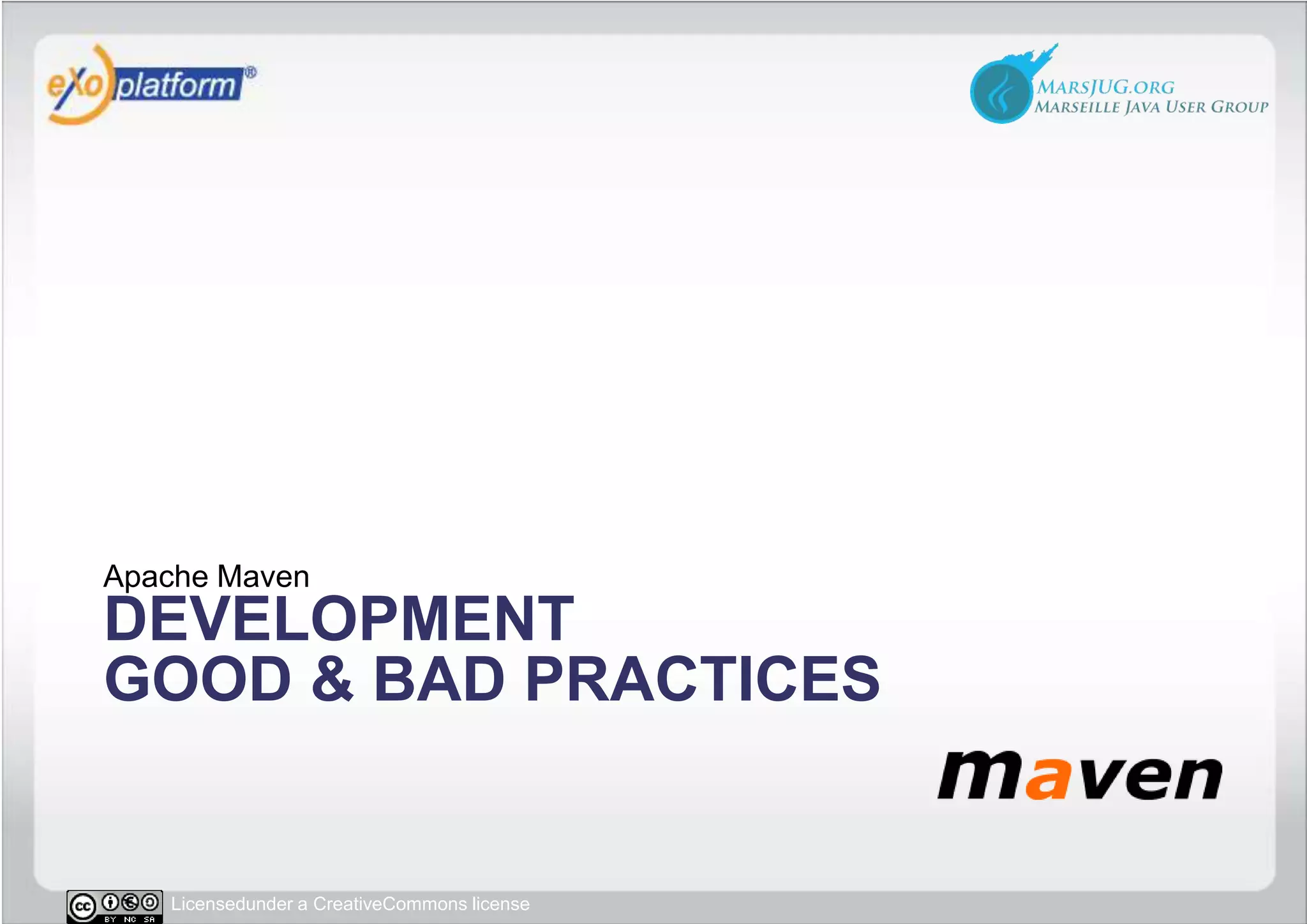

50. Development good & bad practices Apache Maven

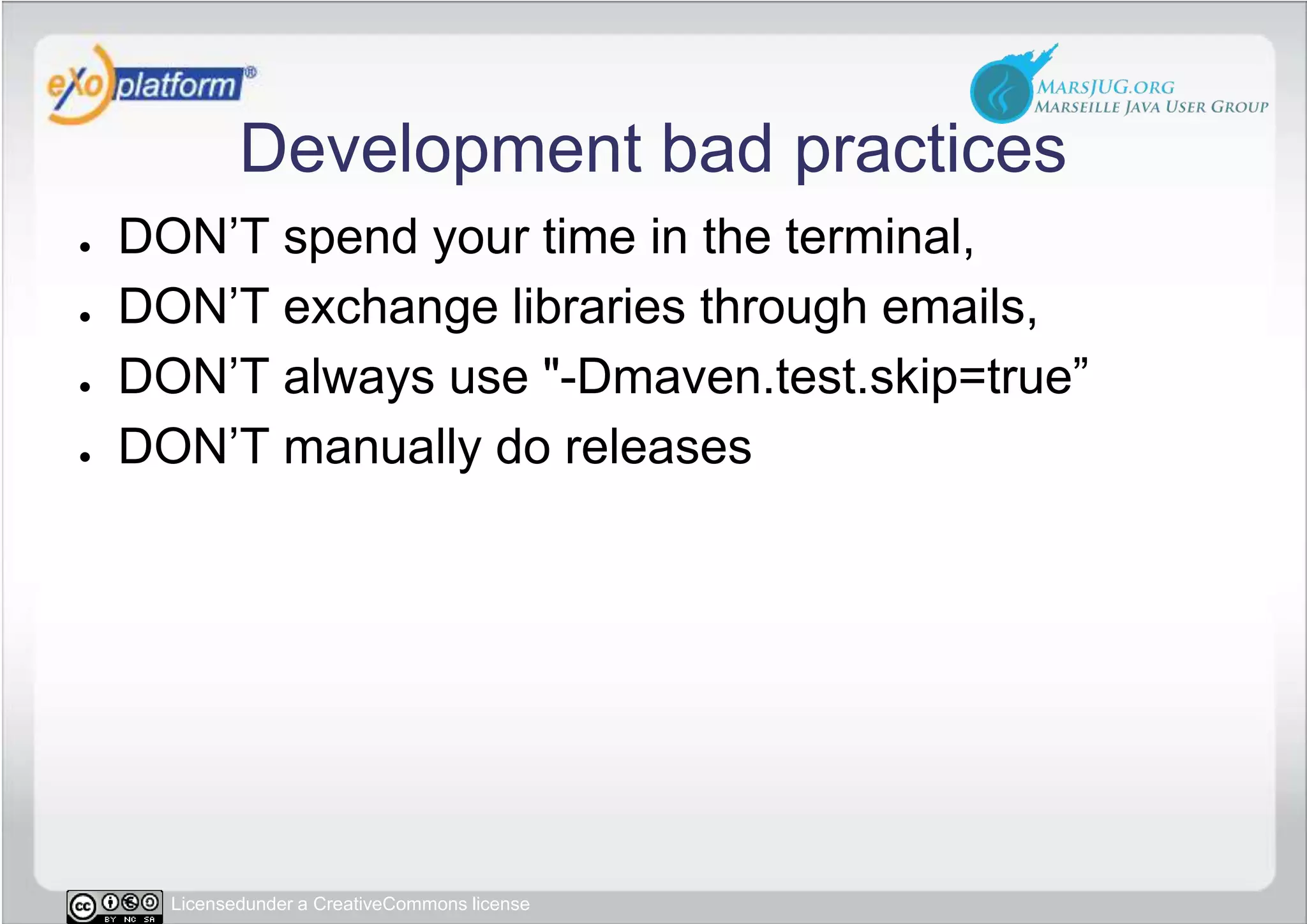

51. Development bad practices DON’T spend your time in the terminal, DON’T exchange libraries through emails, DON’T always use "-Dmaven.test.skip=true” DON’T manually do releases

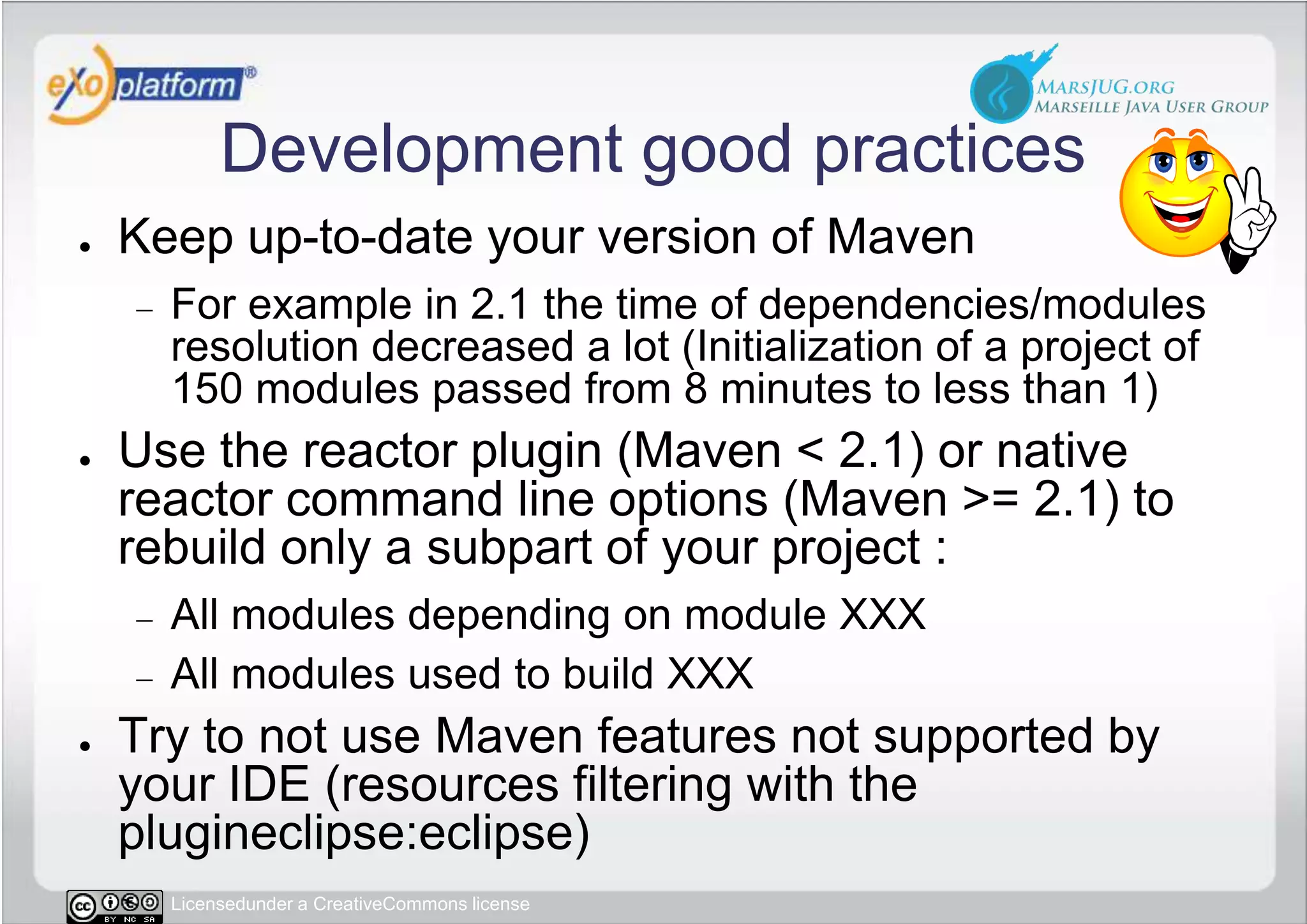

52. Development good practices Keep up-to-date your version of Maven For example in 2.1 the time of dependencies/modules resolution decreased a lot (Initialization of a project of 150 modules passed from 8 minutes to less than 1) Use the reactor plugin (Maven < 2.1) or native reactor command line options (Maven >= 2.1) to rebuild only a subpart of your project : All modules depending on module XXX All modules used to build XXX Try to not use Maven features not supported by your IDE (resources filtering with the plugineclipse:eclipse)

53. Usecases Apache Maven

54. Secure your credentials Apache Maven

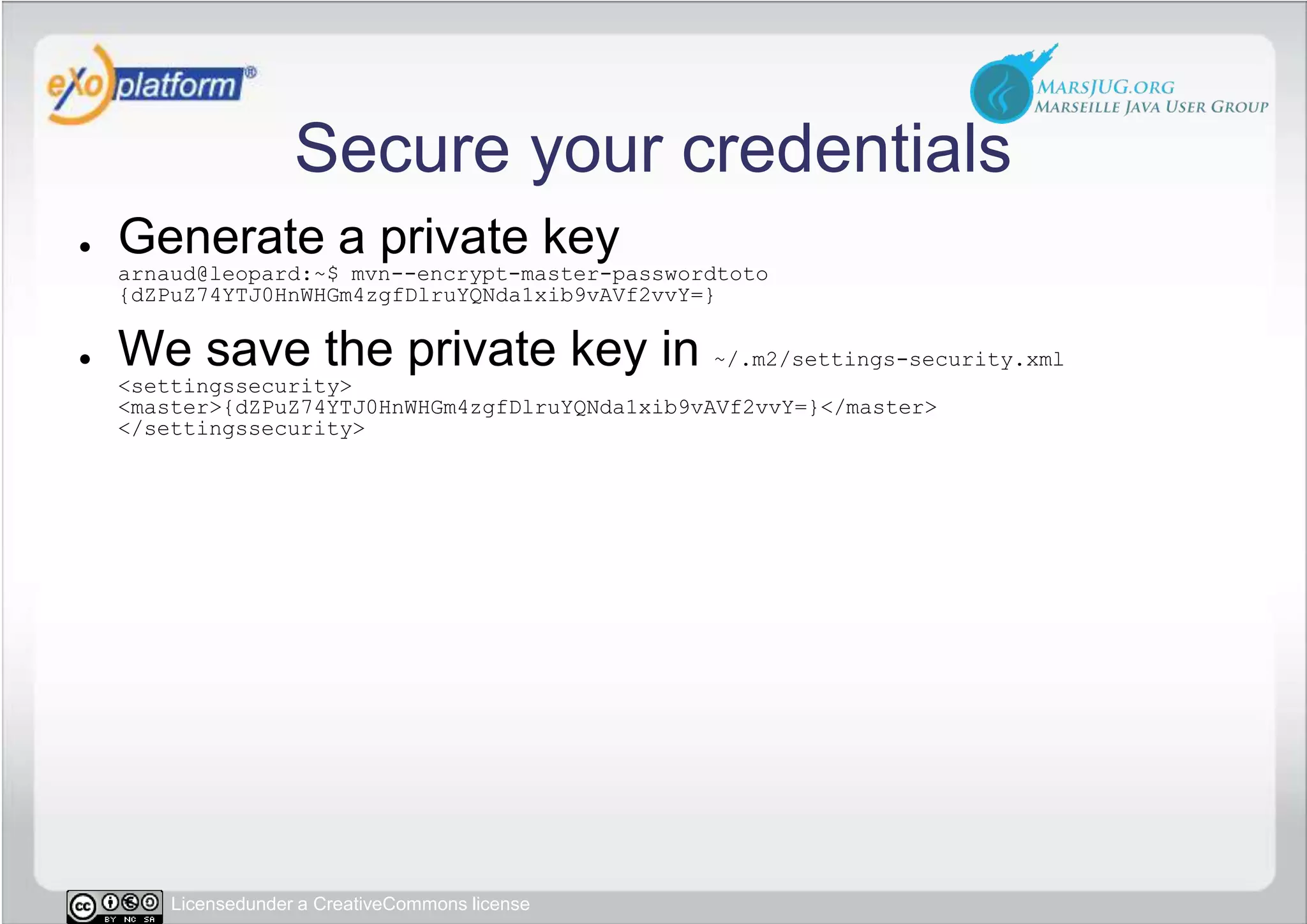

55. Secure your credentials Generate a private keyarnaud@leopard:~$ mvn--encrypt-master-passwordtoto{dZPuZ74YTJ0HnWHGm4zgfDlruYQNda1xib9vAVf2vvY=} We save the private key in ~/.m2/settings-security.xml<settingssecurity><master>{dZPuZ74YTJ0HnWHGm4zgfDlruYQNda1xib9vAVf2vvY=}</master></settingssecurity>

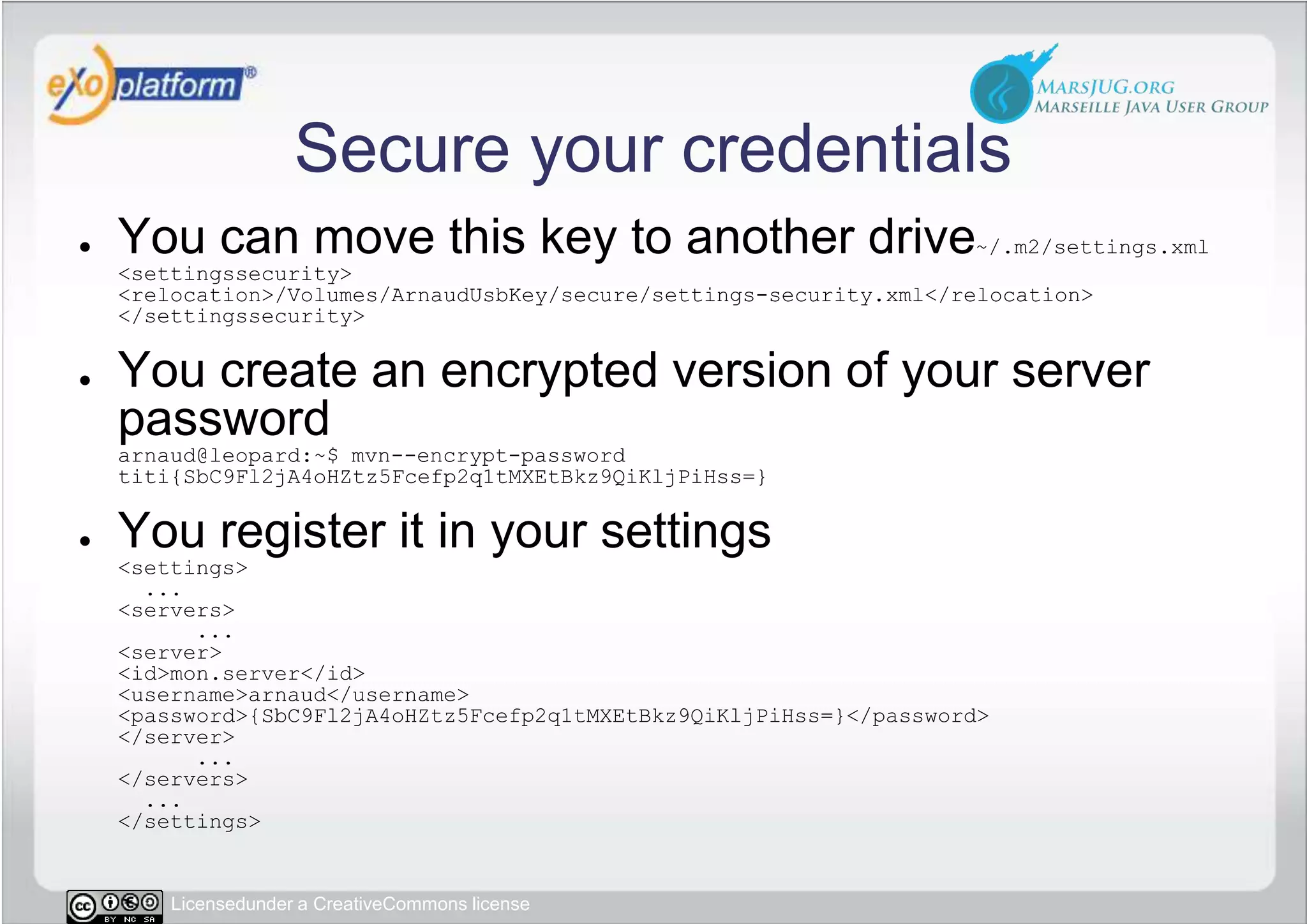

56. Secure your credentials You can move this key to another drive~/.m2/settings.xml<settingssecurity><relocation>/Volumes/ArnaudUsbKey/secure/settings-security.xml</relocation></settingssecurity> You create an encrypted version of your server passwordarnaud@leopard:~$ mvn--encrypt-password titi{SbC9Fl2jA4oHZtz5Fcefp2q1tMXEtBkz9QiKljPiHss=} You register it in your settings<settings> ... <servers> ... <server> <id>mon.server</id> <username>arnaud</username> <password>{SbC9Fl2jA4oHZtz5Fcefp2q1tMXEtBkz9QiKljPiHss=}</password> </server> ... </servers> ...</settings>

57. Build a part of Your Project Apache Maven

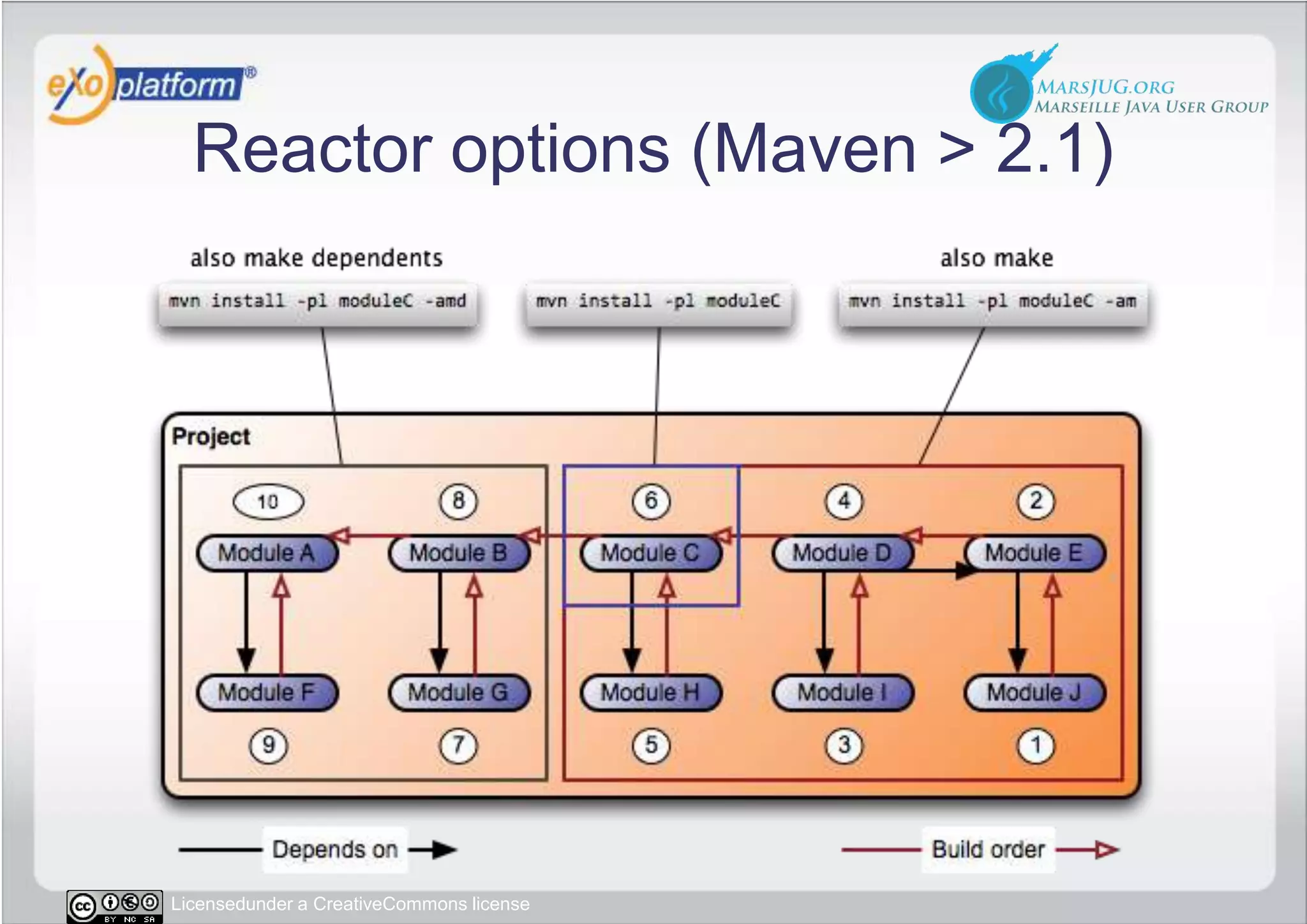

58. Reactor options (Maven > 2.1)

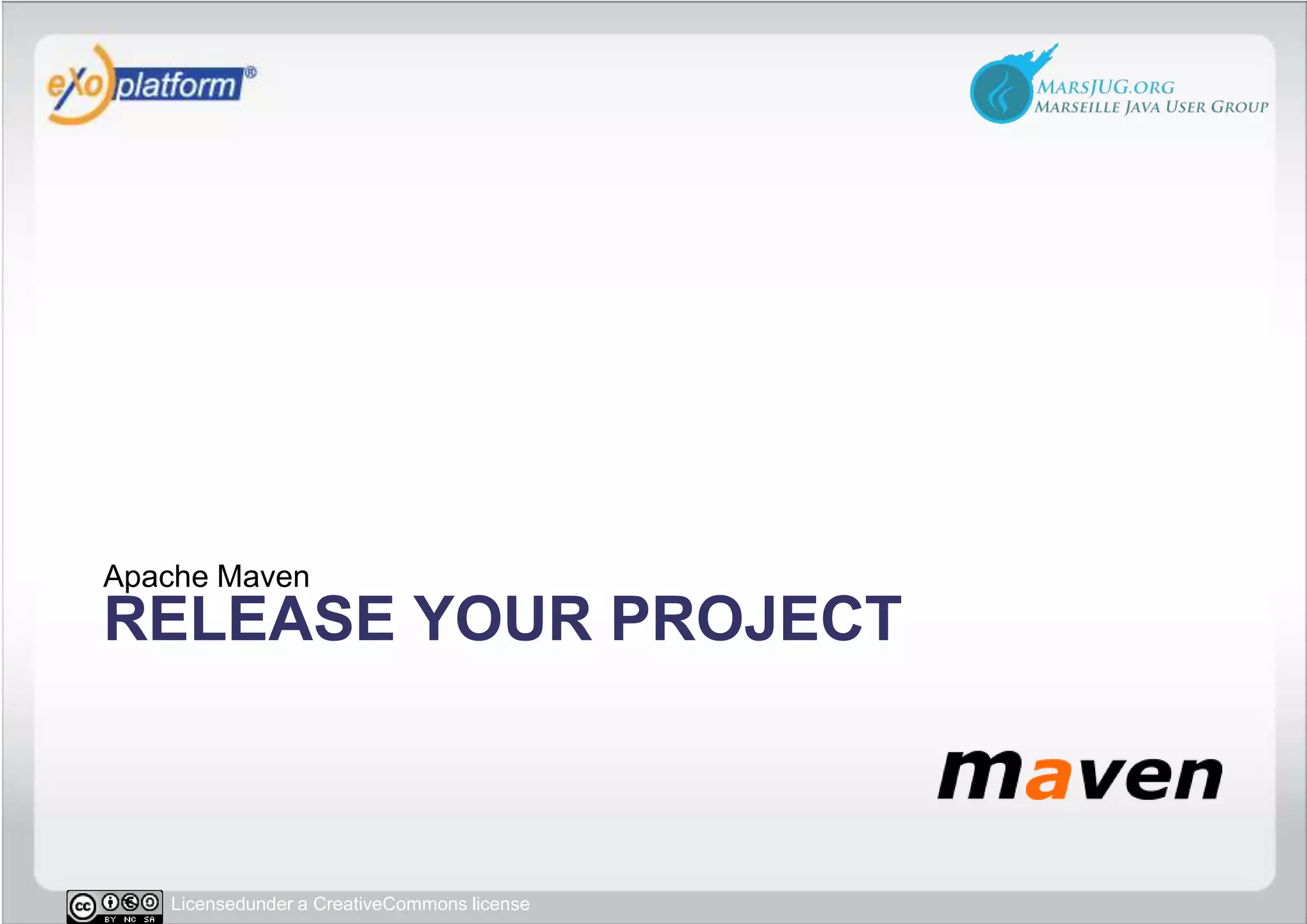

59. ReleasE Your project Apache Maven

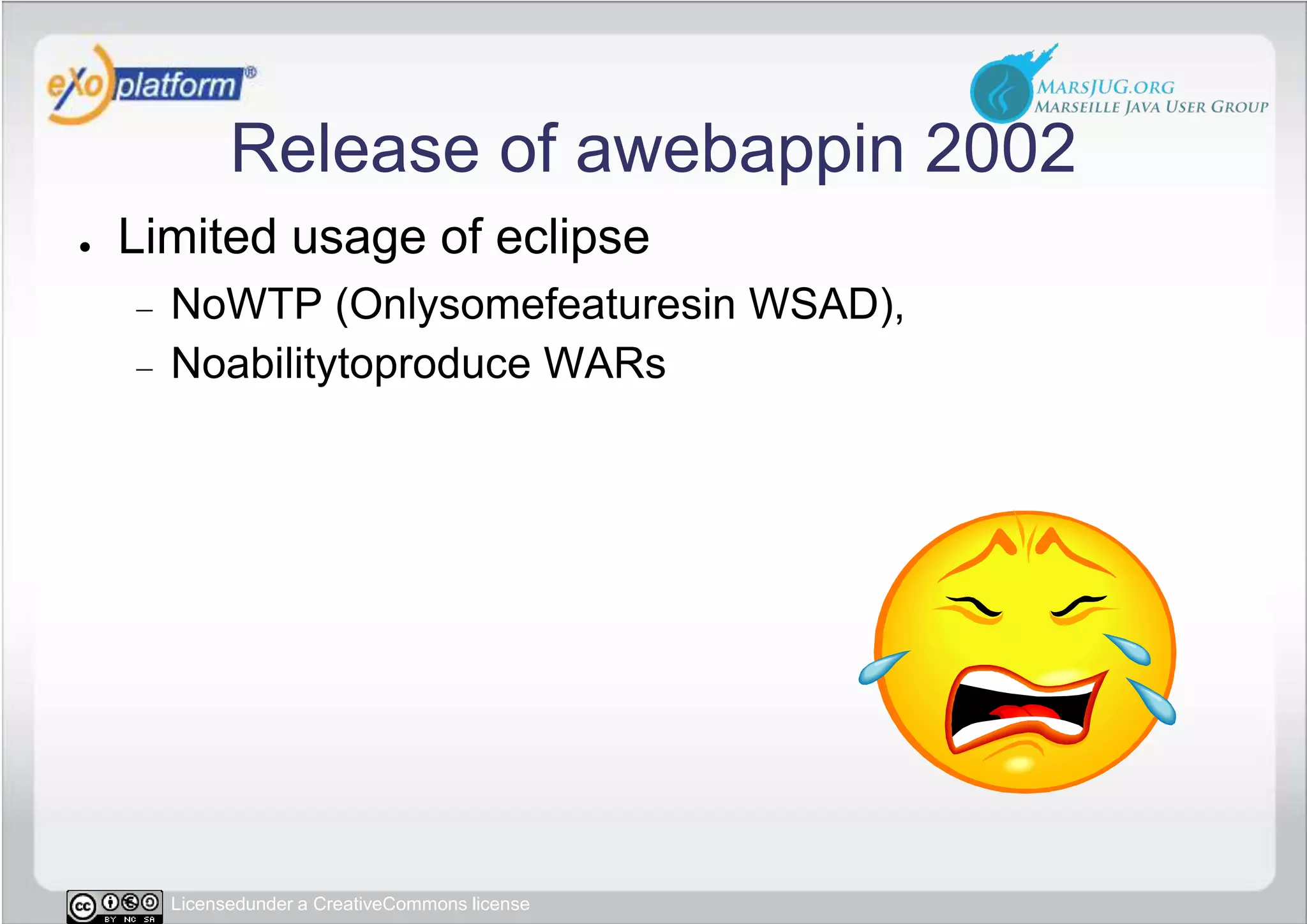

60. Release of awebappin 2002 Limited usage of eclipse NoWTP (Onlysomefeaturesin WSAD), Noabilitytoproduce WARs

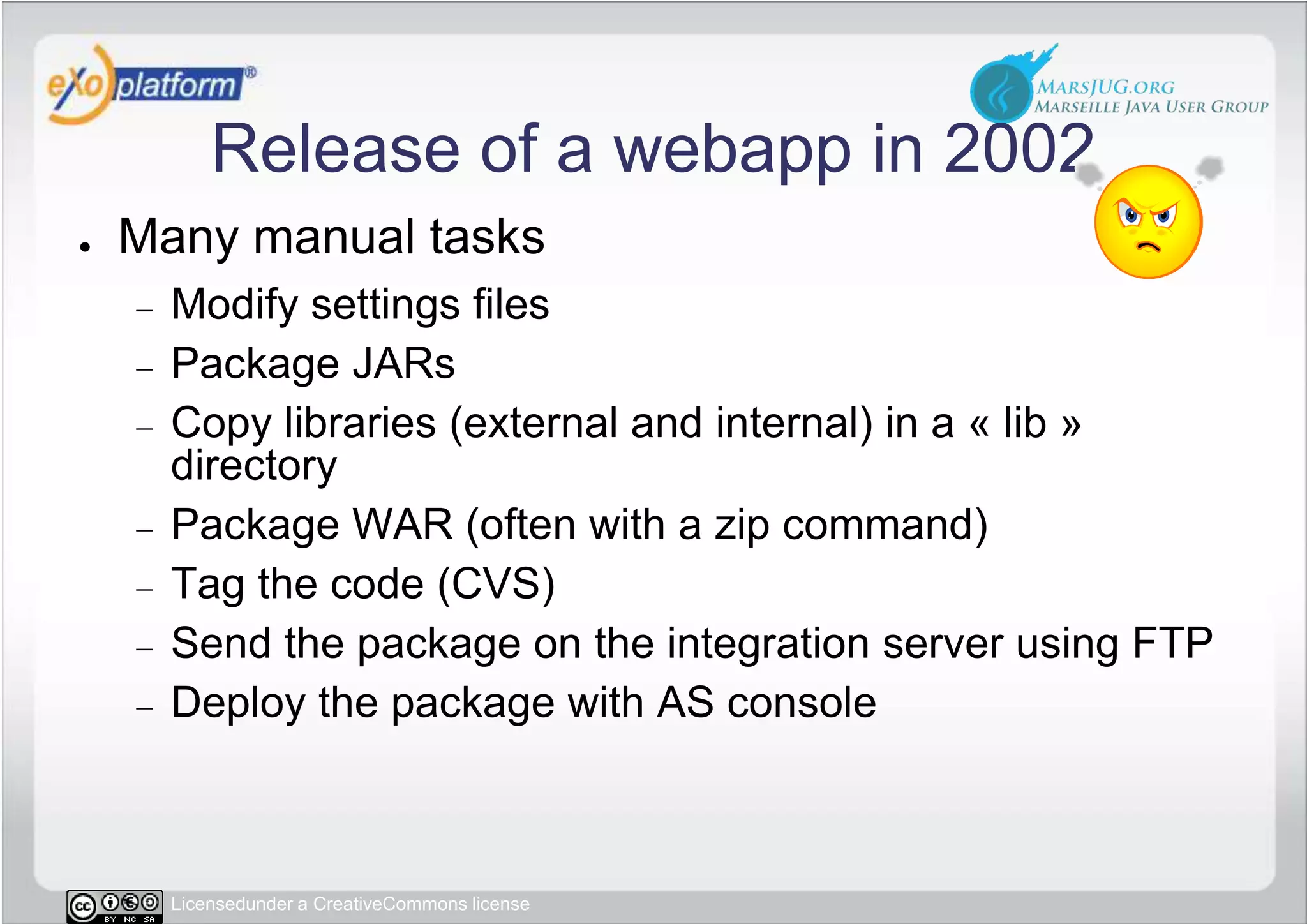

61. Release of a webapp in 2002 Many manual tasks Modify settings files Package JARs Copy libraries (external and internal) in a « lib » directory Package WAR (often with a zip command) Tag the code (CVS) Send the package on the integration server using FTP Deploy the package with AS console

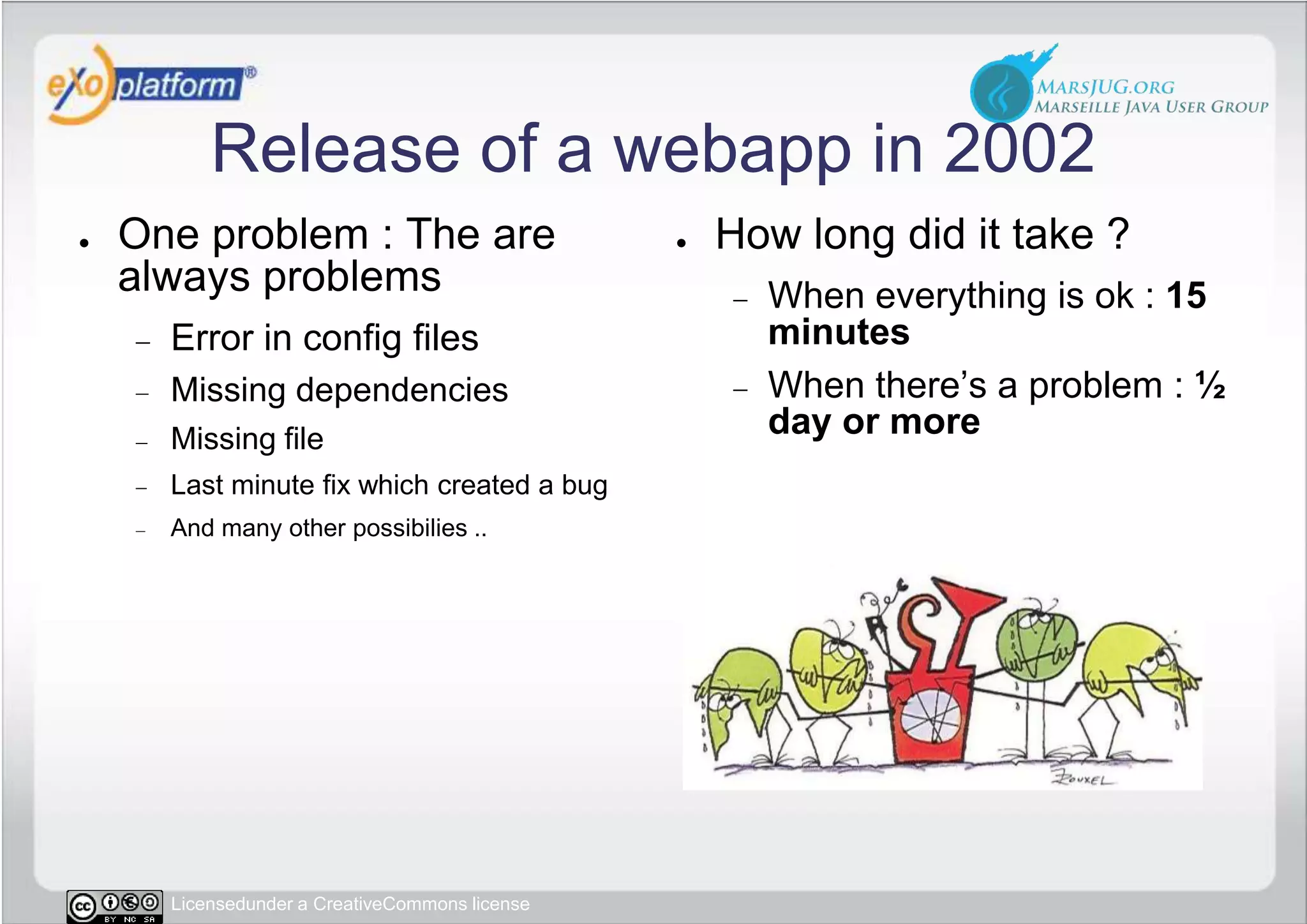

62. Release of a webapp in 2002 One problem : The are always problems Error in config files Missing dependencies Missing file Last minute fix which created a bug And many other possibilies .. How long did it take ? When everything is ok : 15 minutes When there’s a problem : ½ day or more

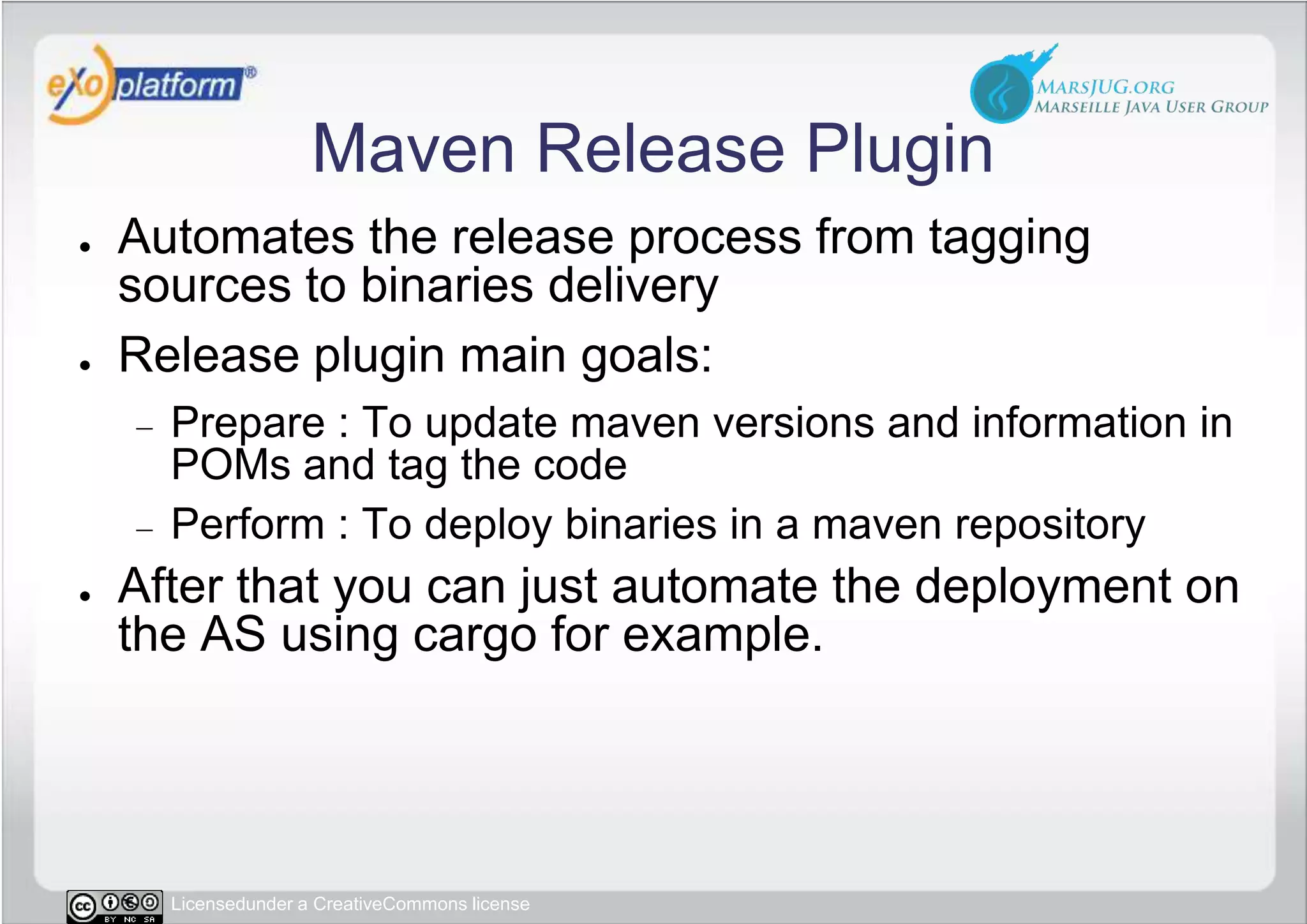

63. Maven Release Plugin Automates the release process from tagging sources to binaries delivery Release plugin main goals: Prepare : To update maven versions and information in POMs and tag the code Perform : To deploy binaries in a maven repository After that you can just automate the deployment on the AS using cargo for example.

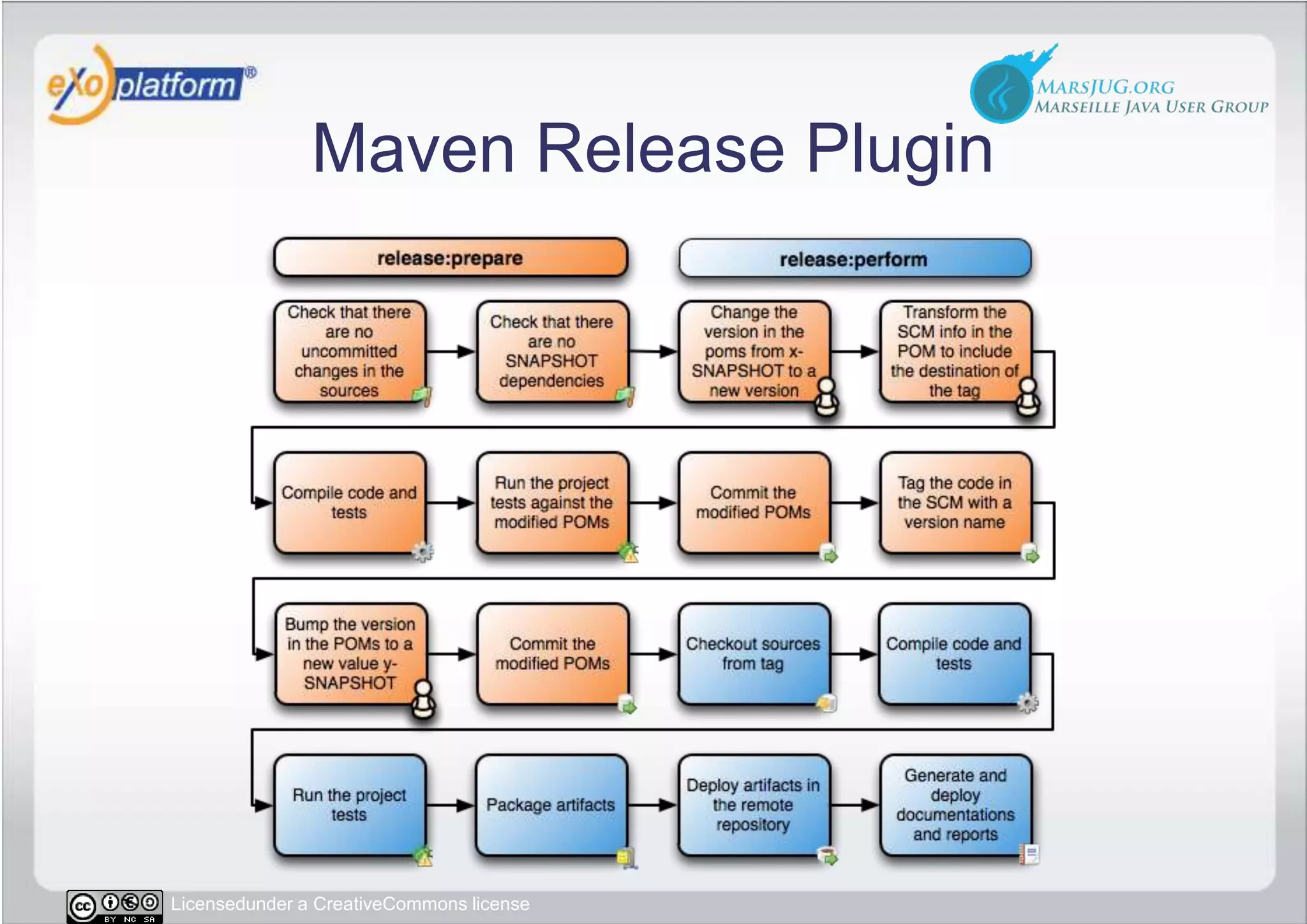

64. Maven Release Plugin

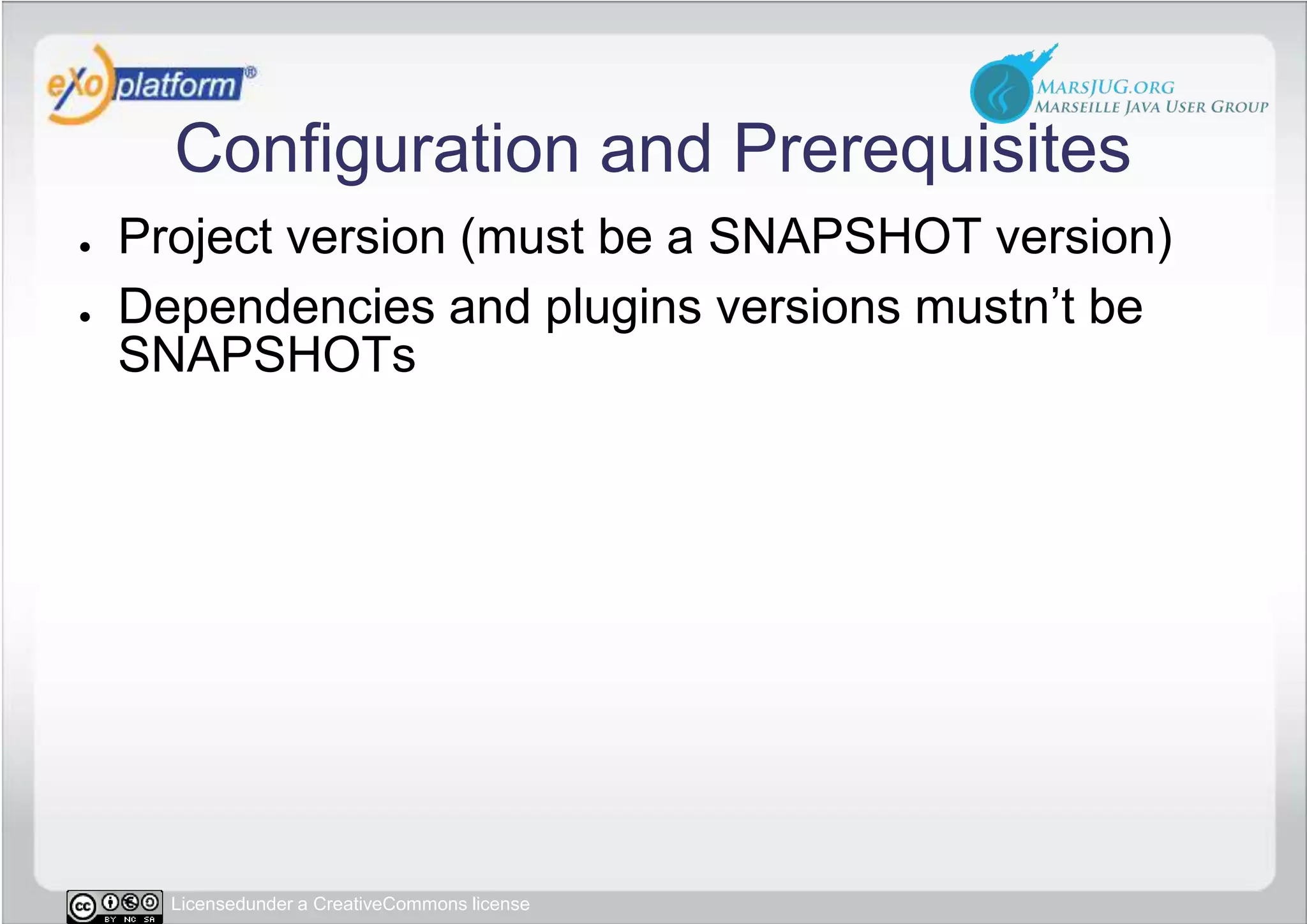

65. Configuration and Prerequisites Project version (must be a SNAPSHOT version) Dependencies and plugins versions mustn’t be SNAPSHOTs

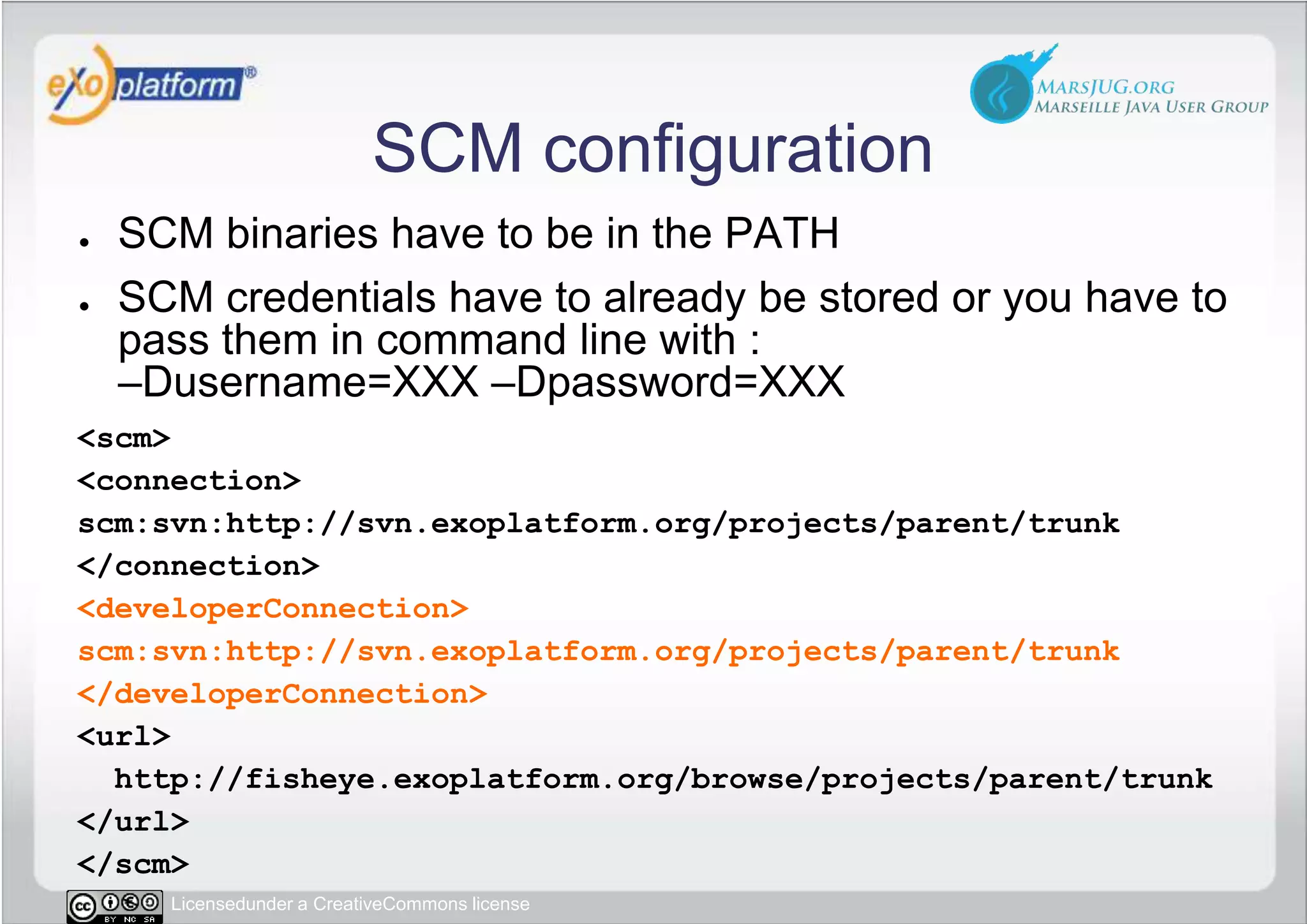

66. SCM configuration SCM binaries have to be in the PATH SCM credentials have to already be stored or you have to pass them in command line with :–Dusername=XXX –Dpassword=XXX <scm> <connection> scm:svn:http://svn.exoplatform.org/projects/parent/trunk </connection> <developerConnection> scm:svn:http://svn.exoplatform.org/projects/parent/trunk </developerConnection> <url> http://fisheye.exoplatform.org/browse/projects/parent/trunk </url> </scm>

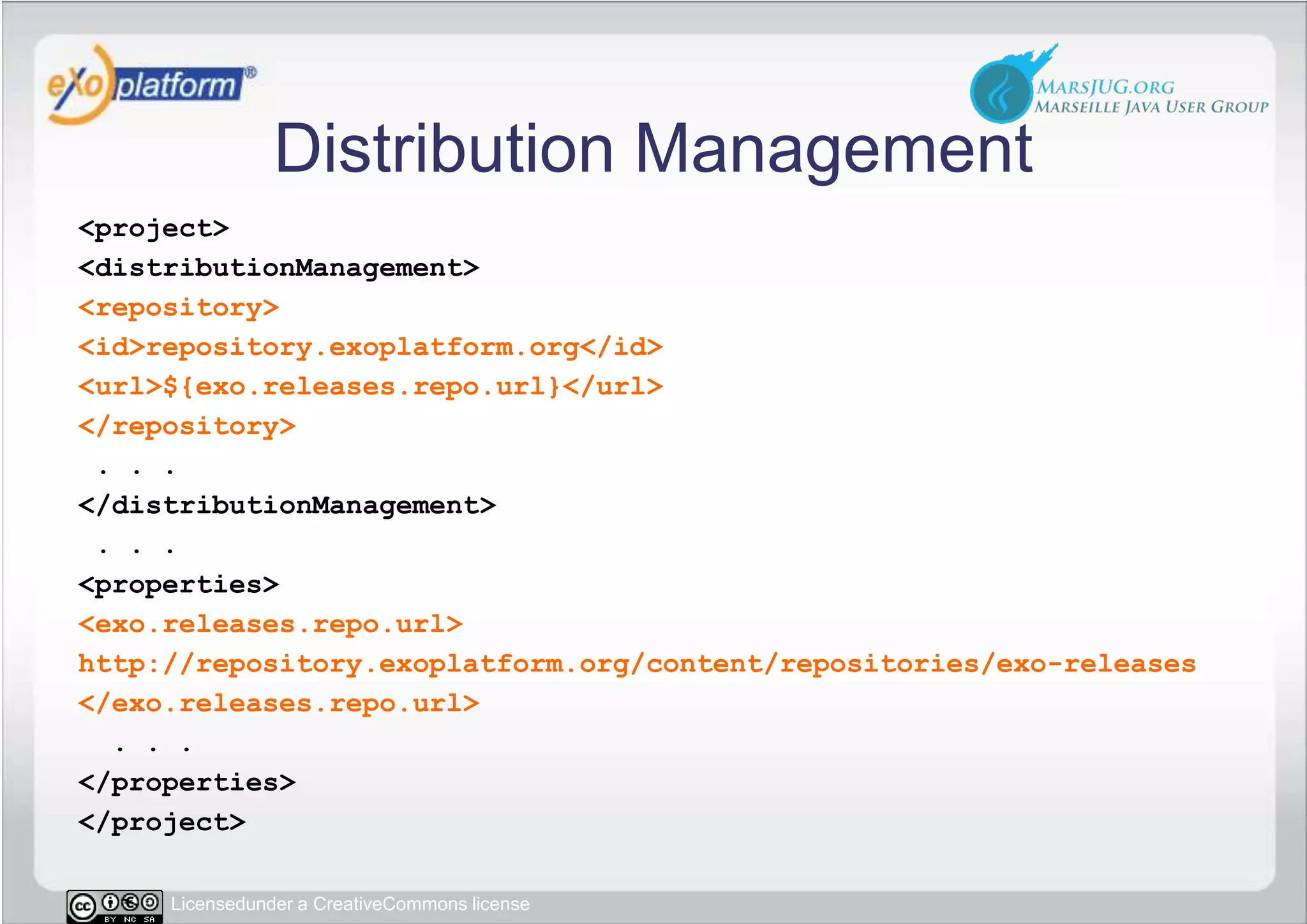

67. Distribution Management <project> <distributionManagement> <repository> <id>repository.exoplatform.org</id> <url>${exo.releases.repo.url}</url> </repository> . . . </distributionManagement> . . . <properties> <exo.releases.repo.url> http://repository.exoplatform.org/content/repositories/exo-releases </exo.releases.repo.url> . . . </properties> </project>

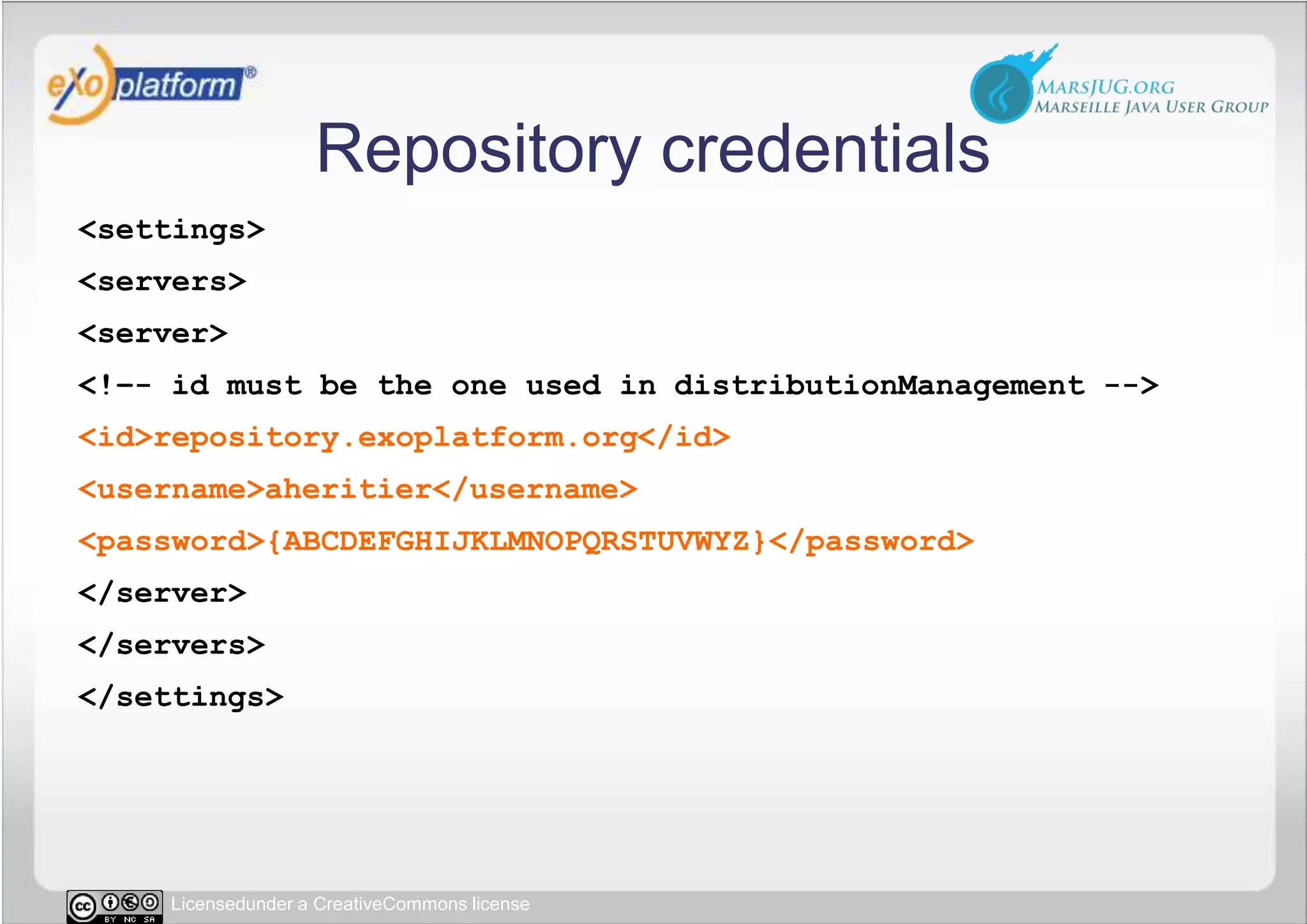

68. Repository credentials <settings> <servers> <server> <!–- id must be the one used in distributionManagement --> <id>repository.exoplatform.org</id> <username>aheritier</username> <password>{ABCDEFGHIJKLMNOPQRSTUVWYZ}</password> </server> </servers> </settings>

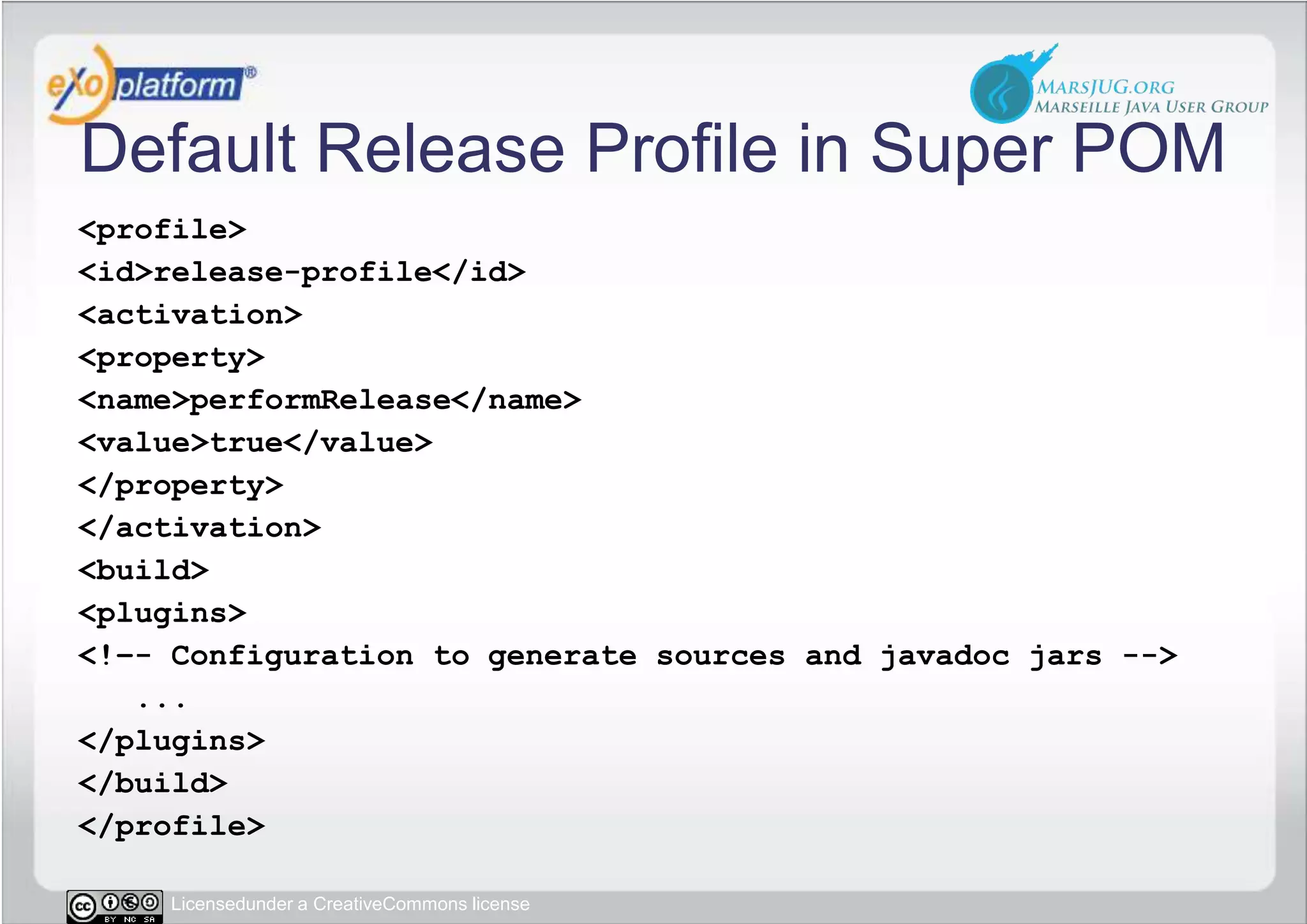

69. Default Release Profile in Super POM <profile> <id>release-profile</id> <activation> <property> <name>performRelease</name> <value>true</value> </property> </activation> <build> <plugins> <!–- Configuration to generate sources and javadoc jars --> ... </plugins> </build> </profile>

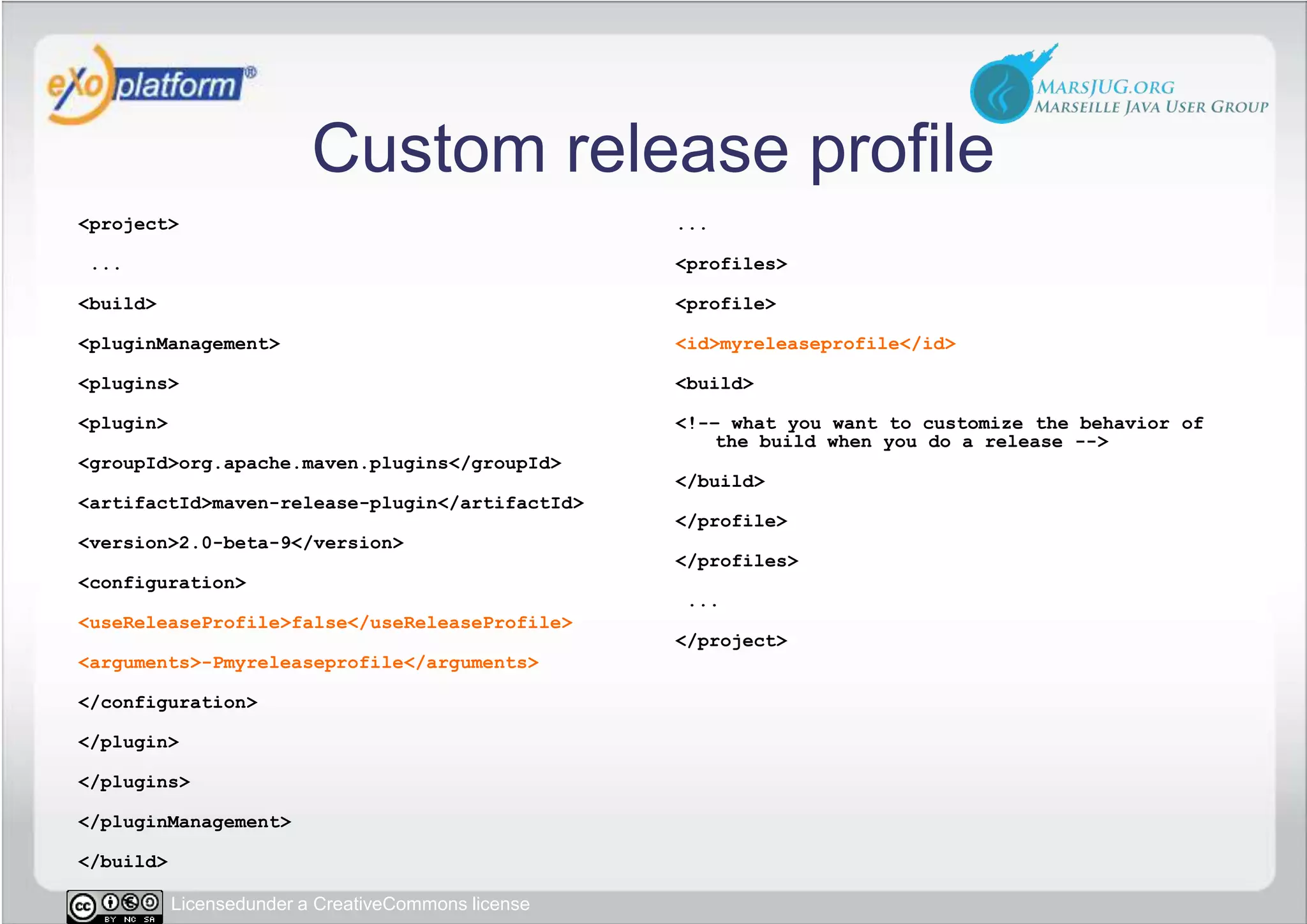

70. Custom release profile <project> ... <build> <pluginManagement> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-release-plugin</artifactId> <version>2.0-beta-9</version> <configuration> <useReleaseProfile>false</useReleaseProfile> <arguments>-Pmyreleaseprofile</arguments> </configuration> </plugin> </plugins> </pluginManagement> </build> ... <profiles> <profile> <id>myreleaseprofile</id> <build> <!-– what you want to customize the behavior of the build when you do a release --> </build> </profile> </profiles> ... </project>

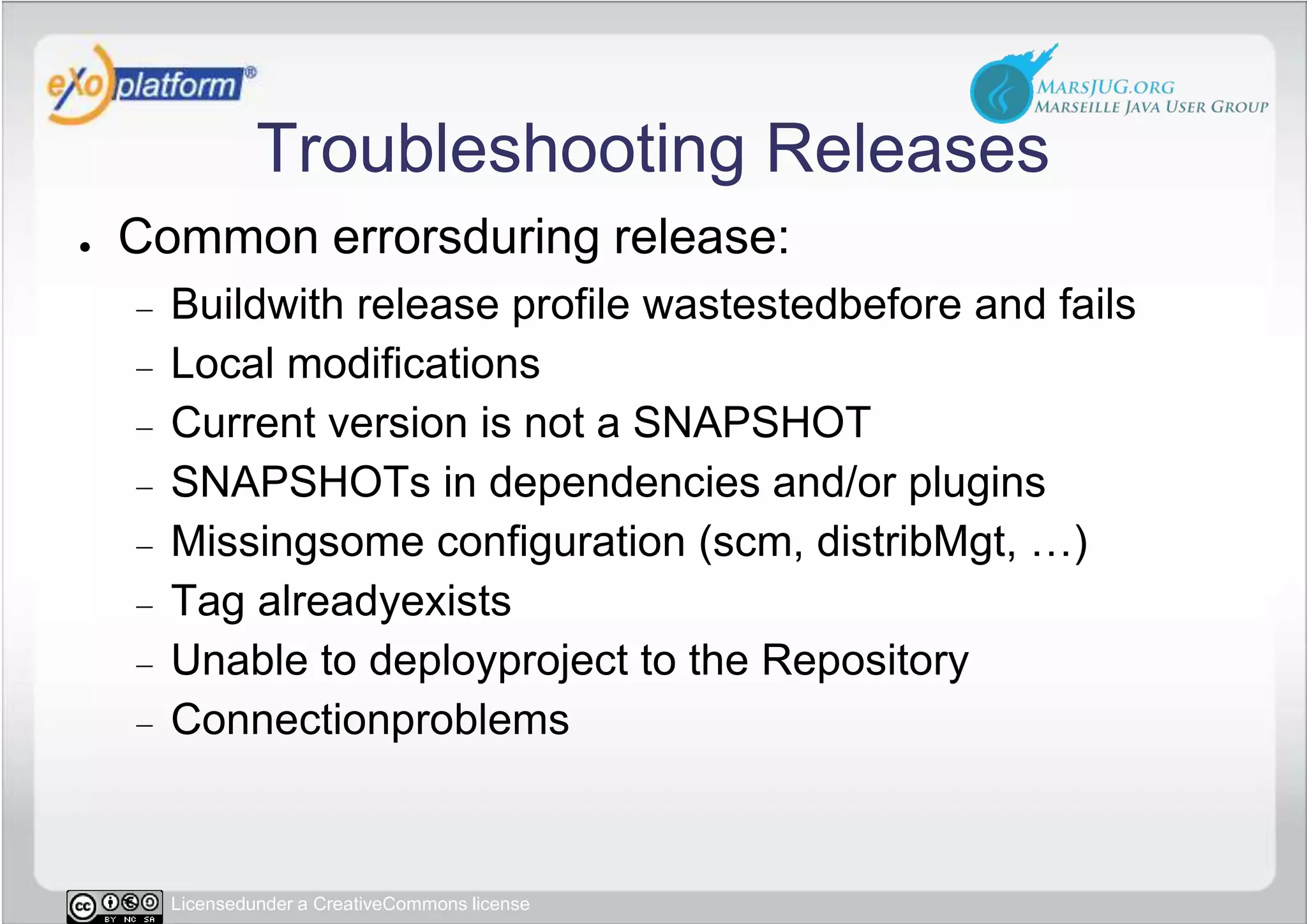

71. Troubleshooting Releases Common errorsduring release: Buildwith release profile wastestedbefore and fails Local modifications Current version is not a SNAPSHOT SNAPSHOTs in dependencies and/or plugins Missingsome configuration (scm, distribMgt, …) Tag alreadyexists Unable to deployproject to the Repository Connectionproblems

72. To go Further … Apache Maven

73. DOCUMENTATIONS Apache Maven

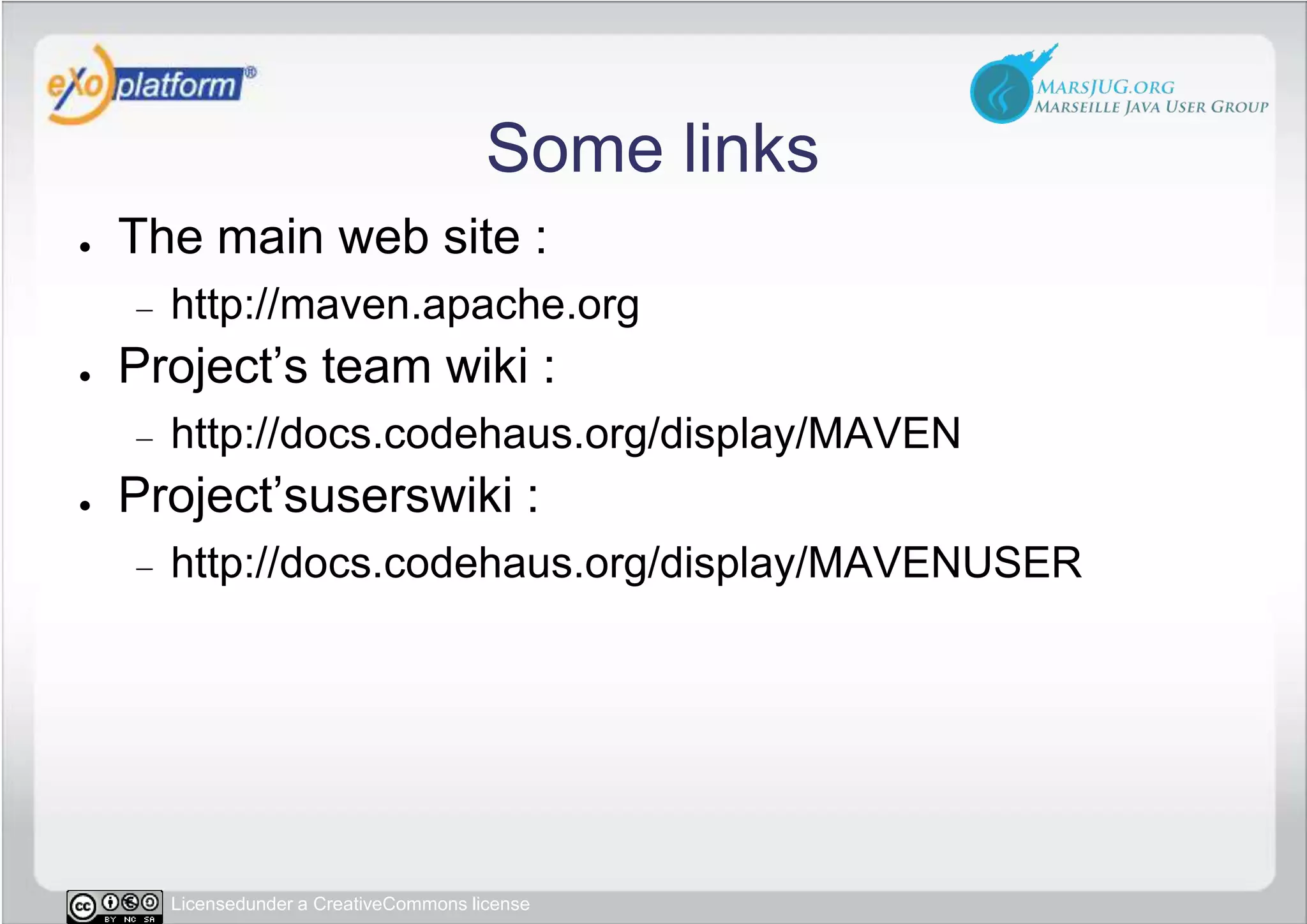

74. Some links The main web site : http://maven.apache.org Project’s team wiki : http://docs.codehaus.org/display/MAVEN Project’suserswiki : http://docs.codehaus.org/display/MAVENUSER

75. Books Sonatype / O’Reilly : The Definitive Guide http://www.sonatype.com/books Free download Available in several languages Soon in French

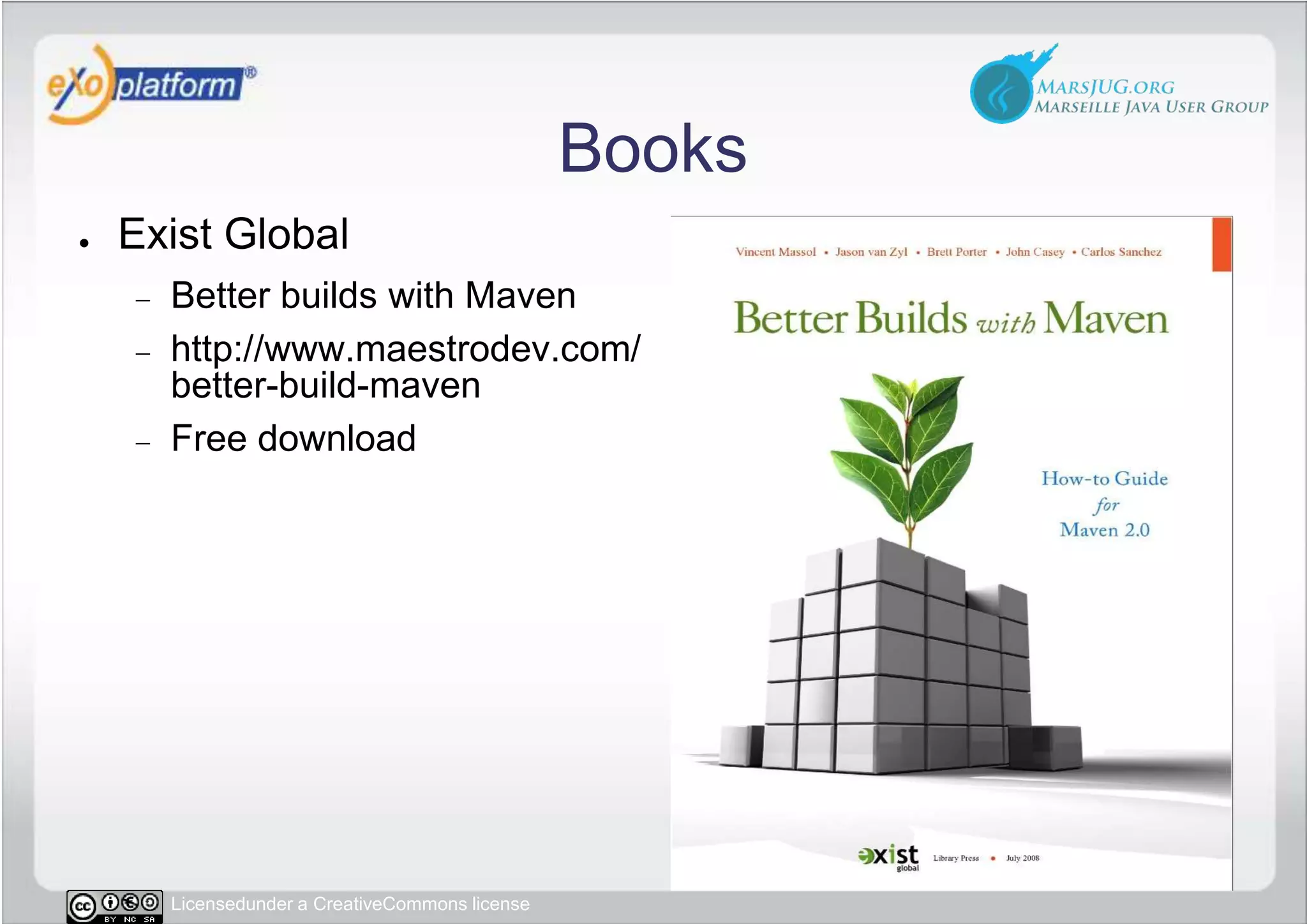

76. Books Exist Global Better builds with Maven http://www.maestrodev.com/better-build-maven Free download

77. Books Nicolas De loofArnaud Héritier Published by Pearson Collection Référence Based on our own experiences with Maven. From beginners to experts. In French only Available on 20th November

78. Support Apache Maven

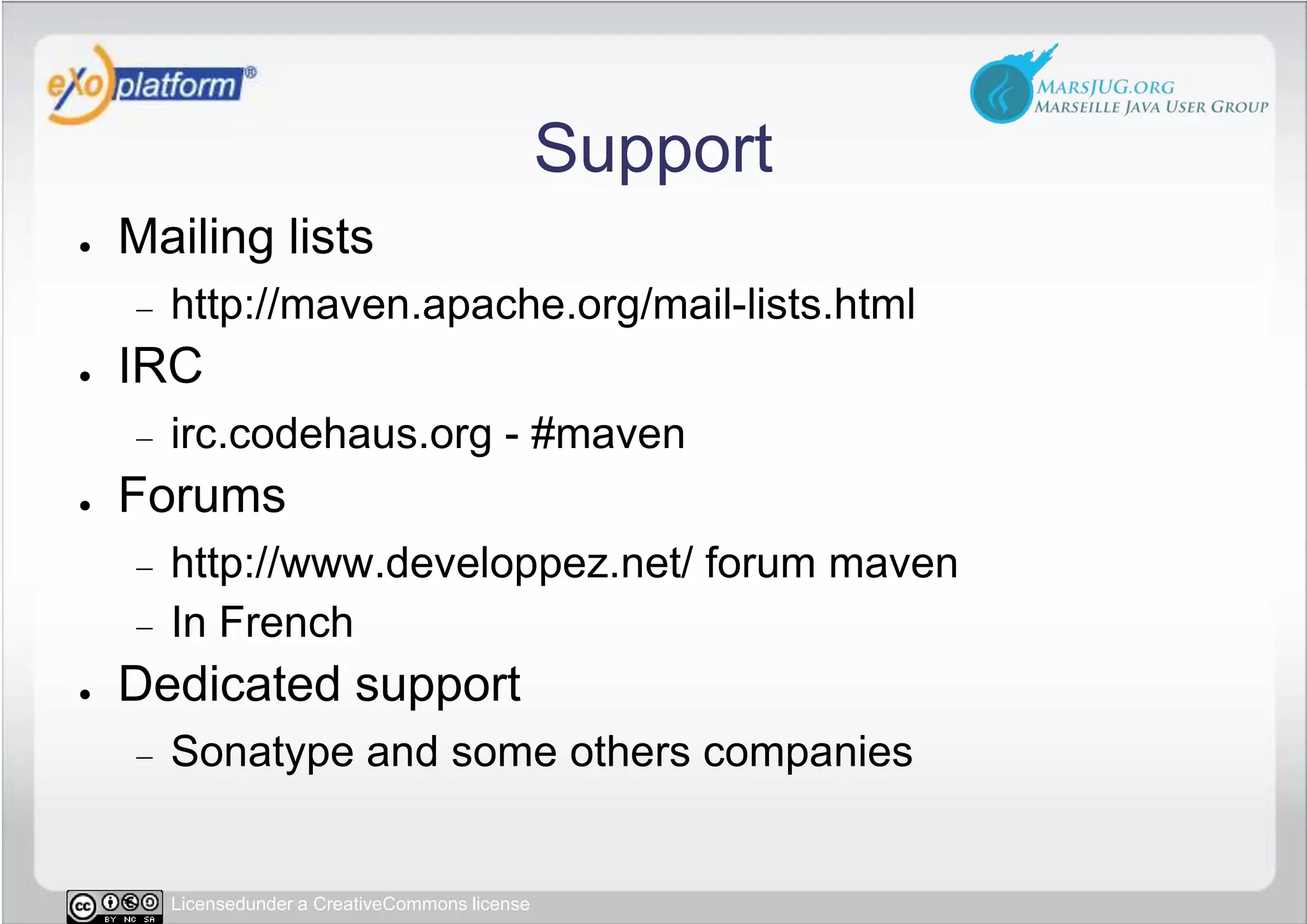

79. Support Mailing lists http://maven.apache.org/mail-lists.html IRC irc.codehaus.org - #maven Forums http://www.developpez.net/ forum maven In French Dedicated support Sonatype and some others companies

80. Back to the Future Apache Maven

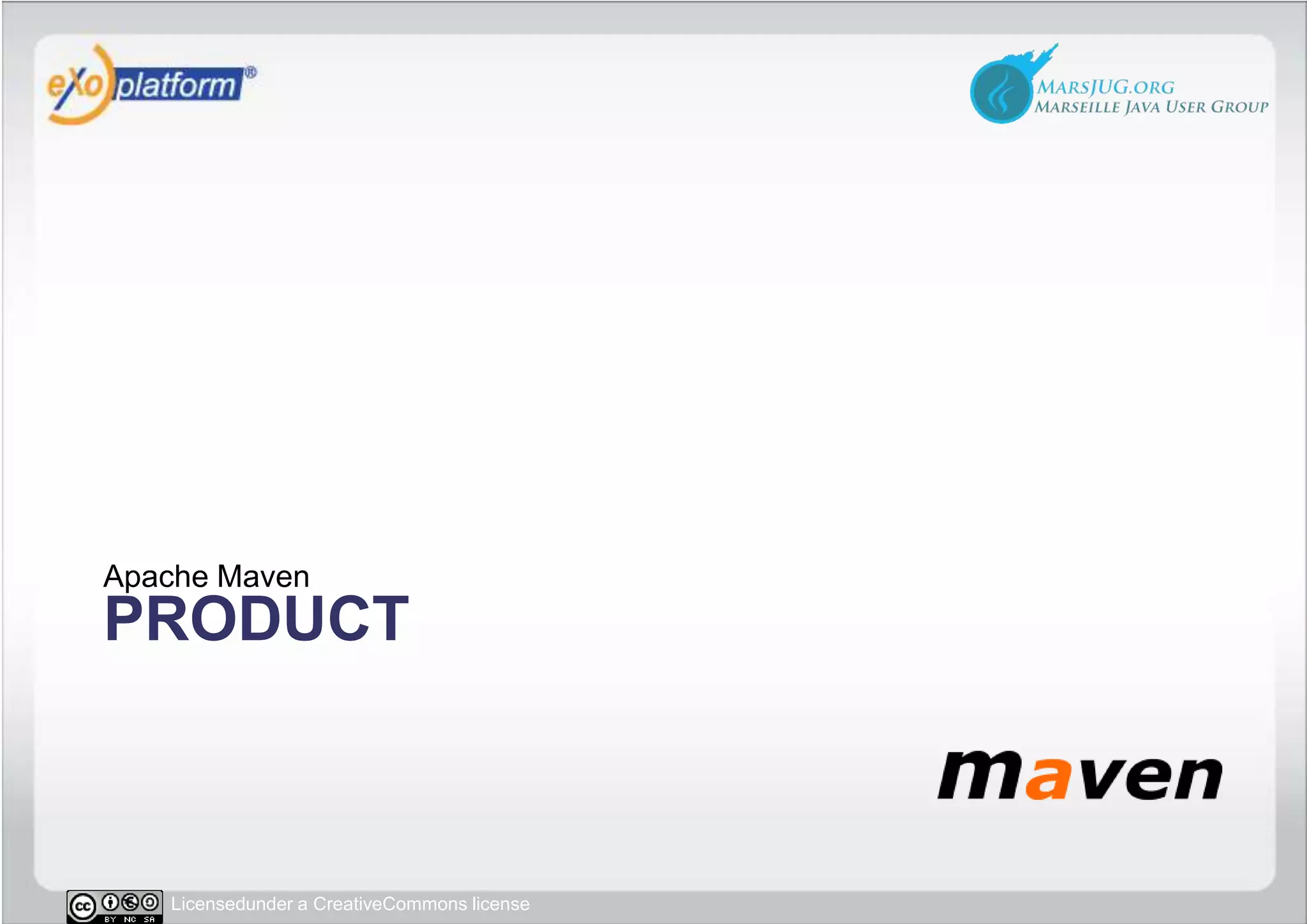

81. product Apache Maven

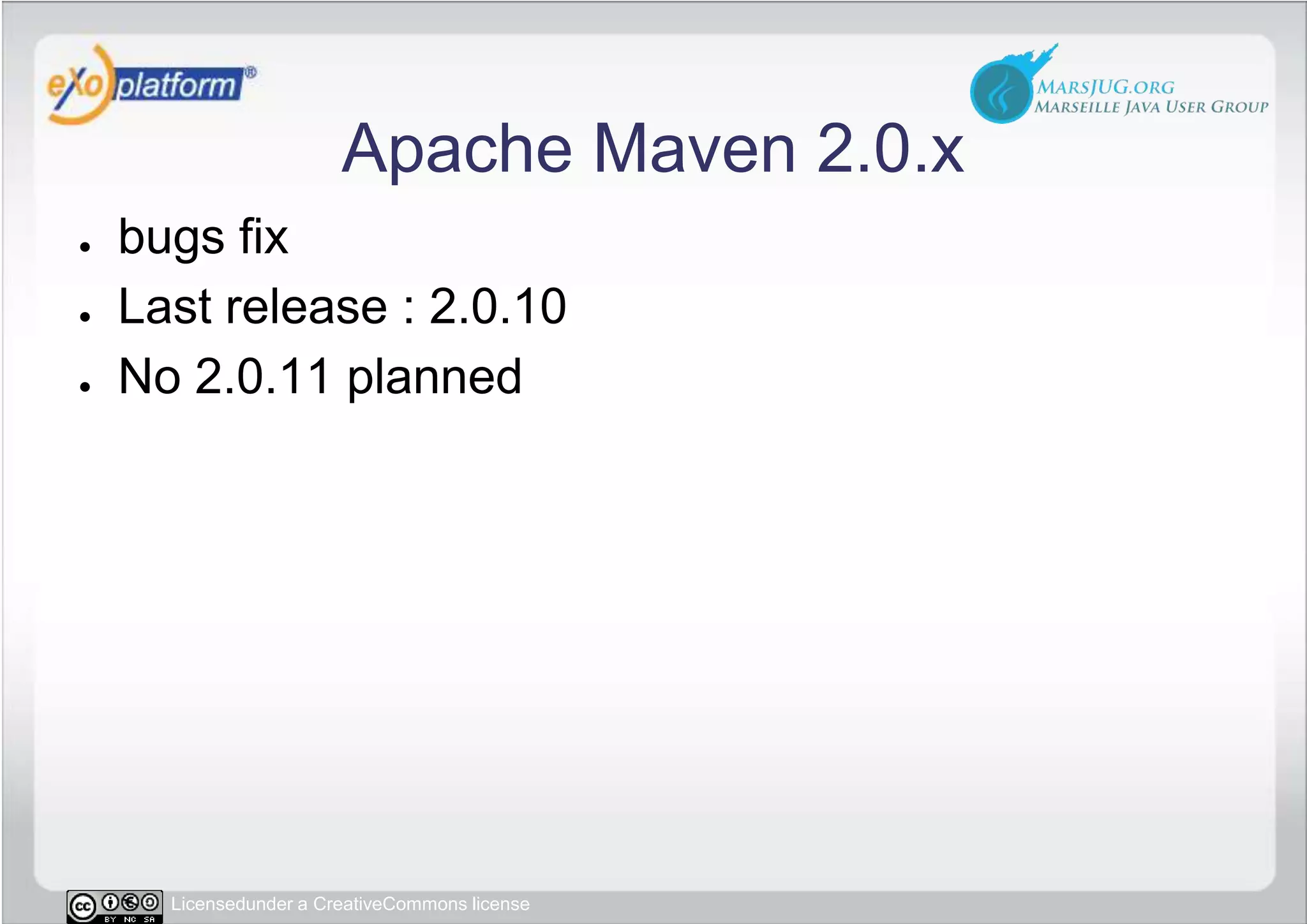

82. Apache Maven 2.0.x bugs fix Last release : 2.0.10 No 2.0.11 planned

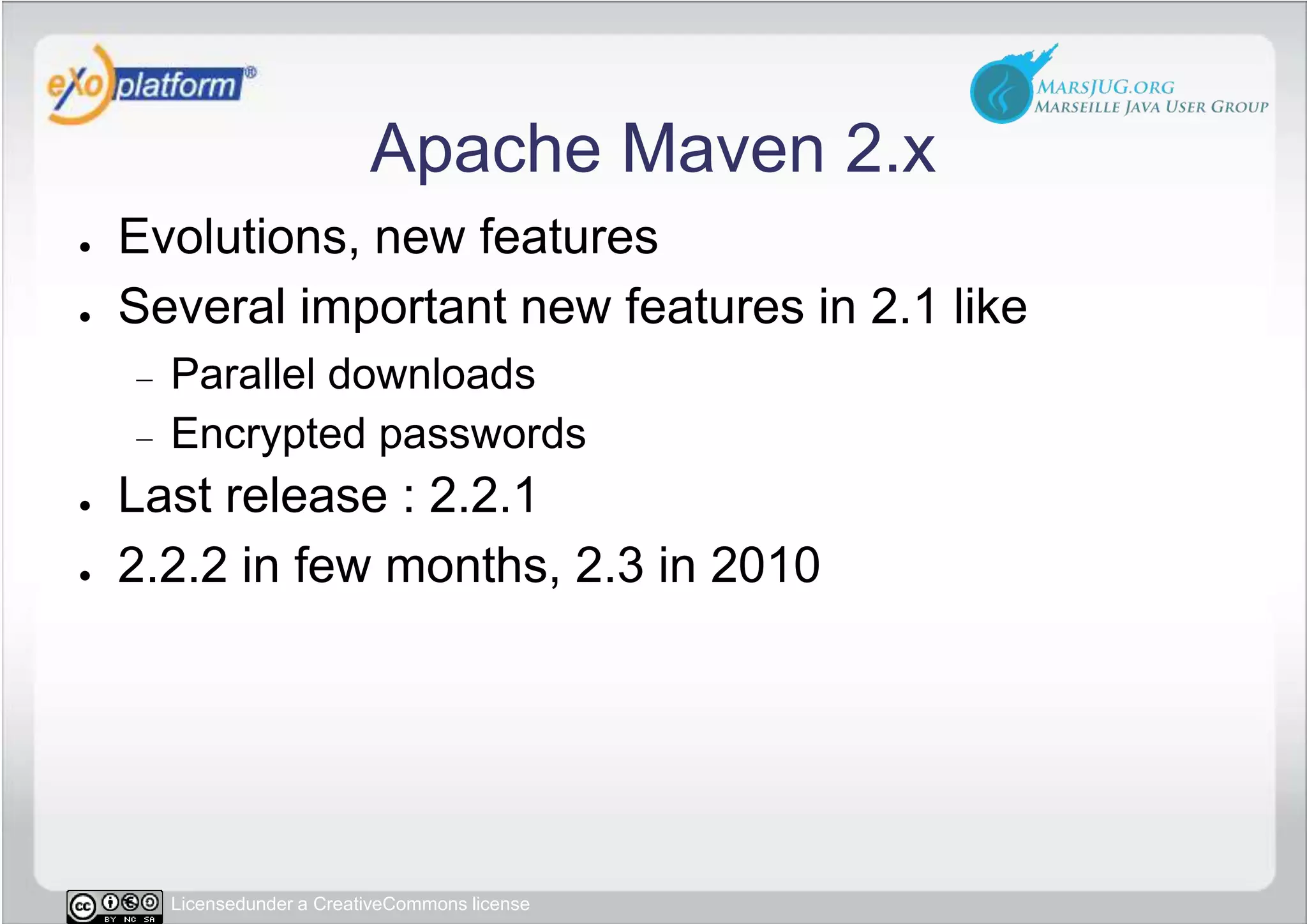

83. Apache Maven 2.x Evolutions, new features Several important new features in 2.1 like Parallel downloads Encrypted passwords Last release : 2.2.1 2.2.2 in few months, 2.3 in 2010

84. Apache Maven 3.x Do not be afraid !!!!! Not final before at least one year Full compatibility with maven 2.x projects

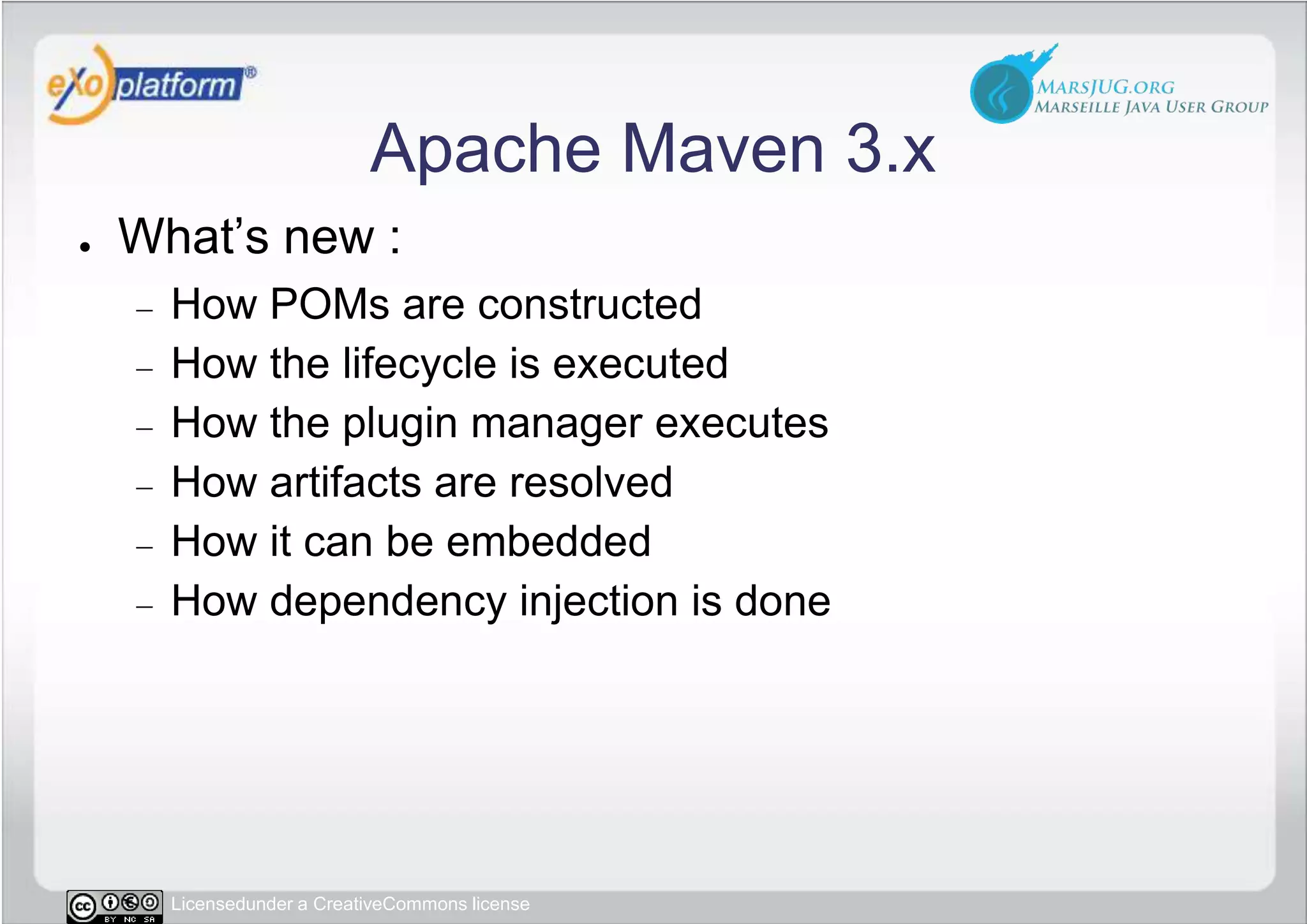

85. Apache Maven 3.x What’s new : How POMs are constructed How the lifecycle is executed How the plugin manager executes How artifacts are resolved How it can be embedded How dependency injection is done

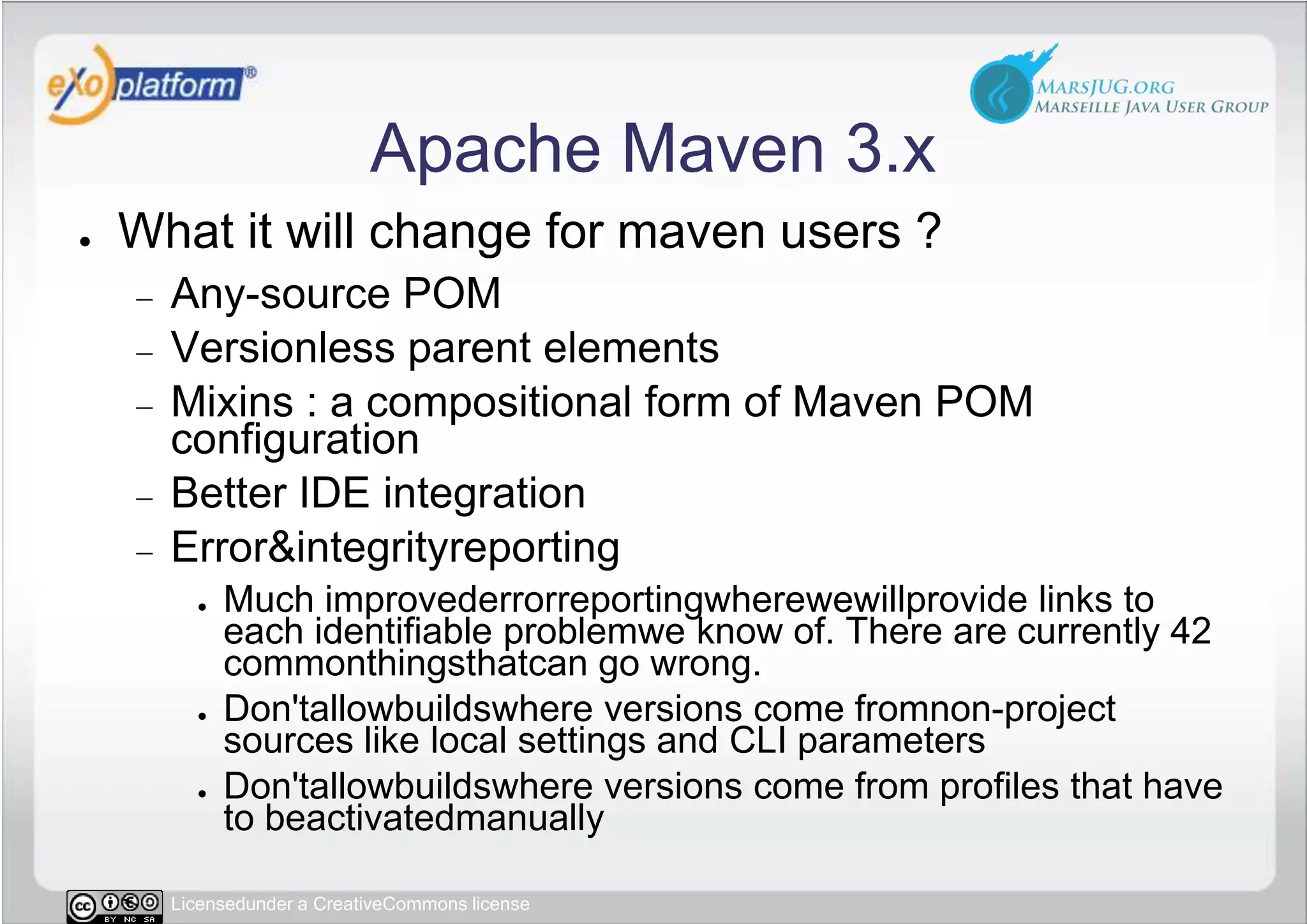

86. Apache Maven 3.x What it will change for maven users ? Any-source POM Versionless parent elements Mixins : a compositional form of Maven POM configuration Better IDE integration Error & integrityreporting Much improvederrorreportingwherewewillprovide links to each identifiable problemwe know of. There are currently 42 commonthingsthatcan go wrong. Don'tallowbuildswhere versions come fromnon-project sources like local settings and CLI parameters Don'tallowbuildswhere versions come from profiles that have to beactivatedmanually

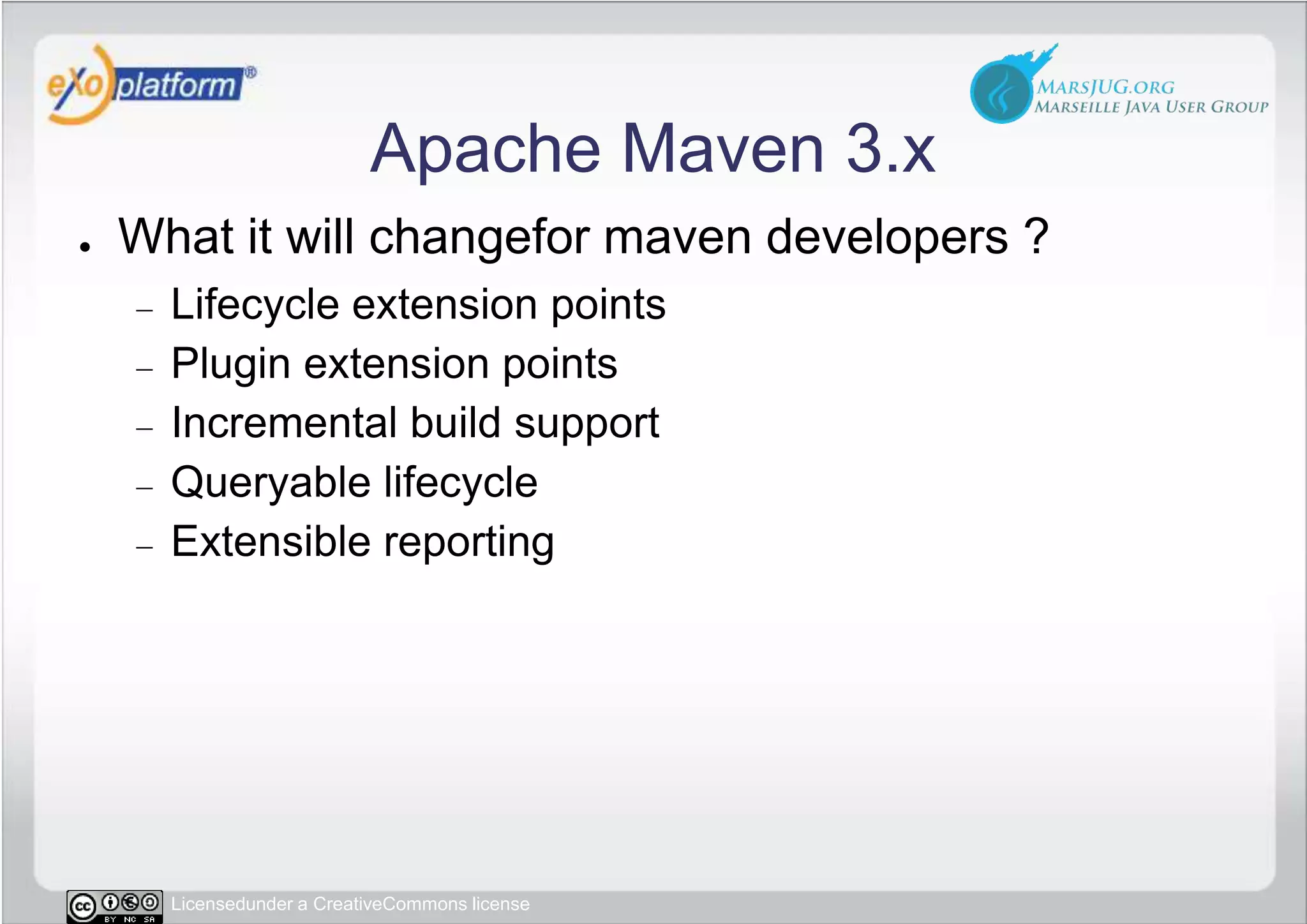

87. Apache Maven 3.x What it will changefor maven developers ? Lifecycle extension points Plugin extension points Incremental build support Queryable lifecycle Extensible reporting

88. Community Apache Maven

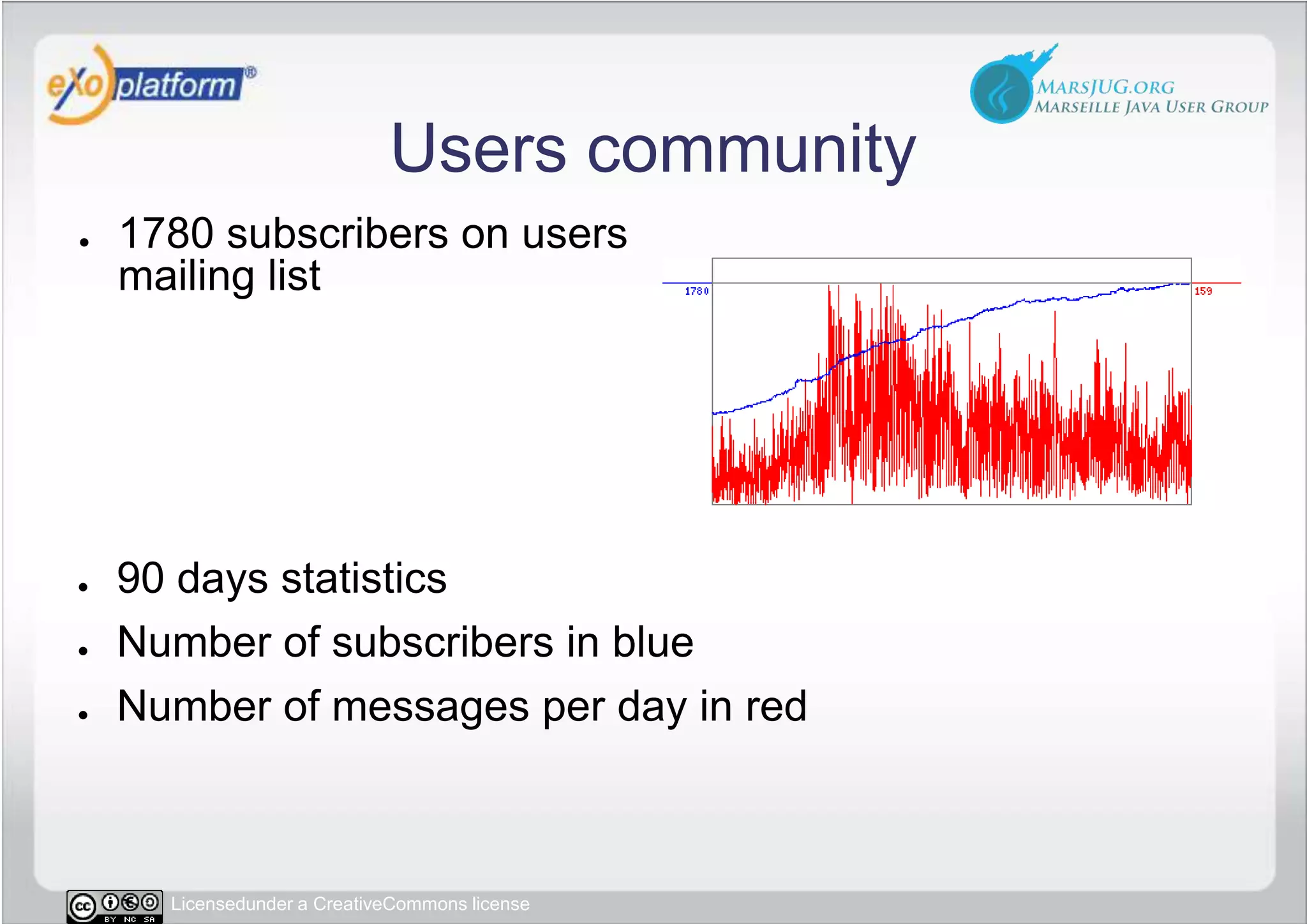

89. Users community 90 days statistics Number of subscribers in blue Number of messages per day in red 1780 subscribers on users mailing list

90. The web site

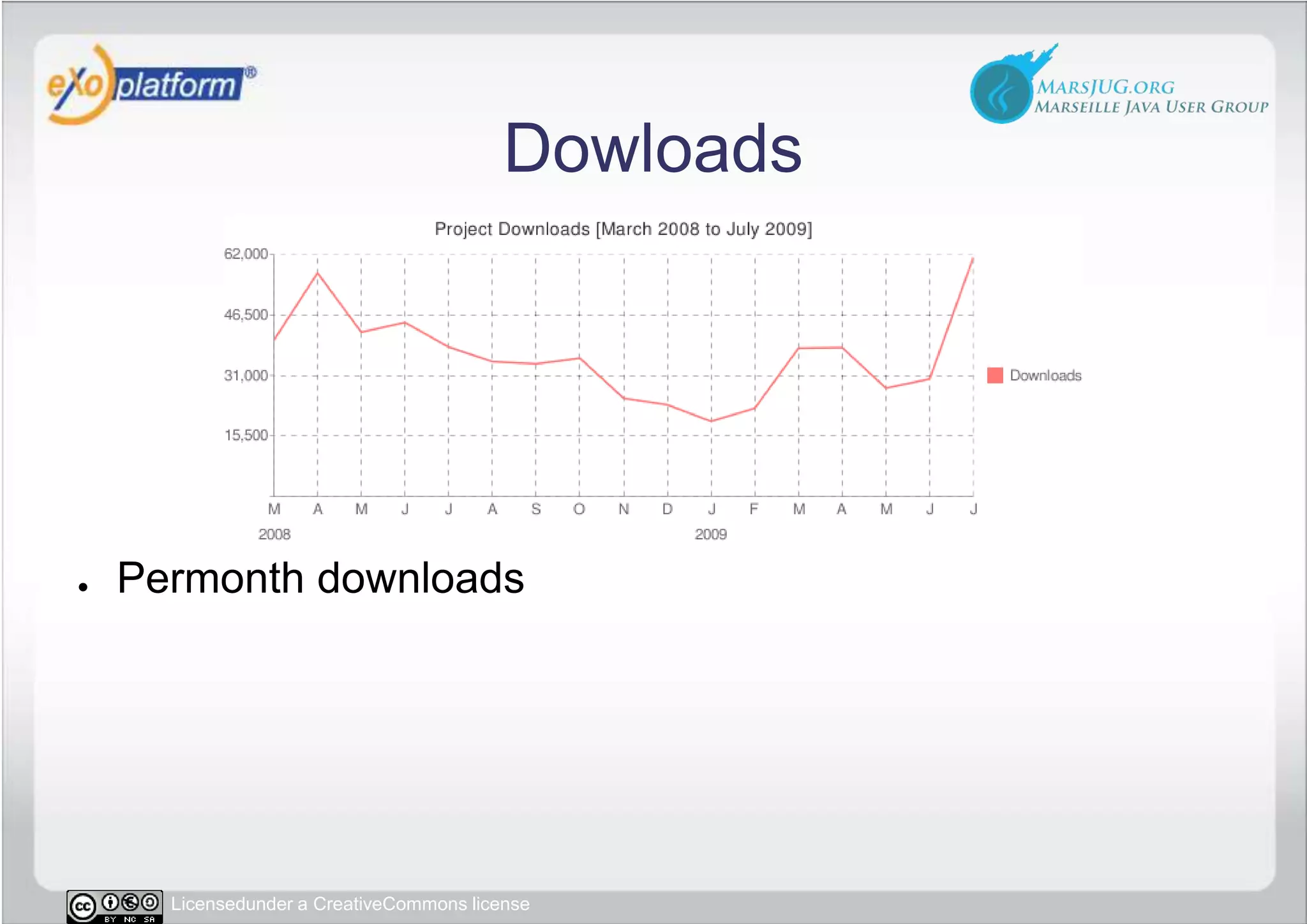

91. Dowloads Permonth downloads

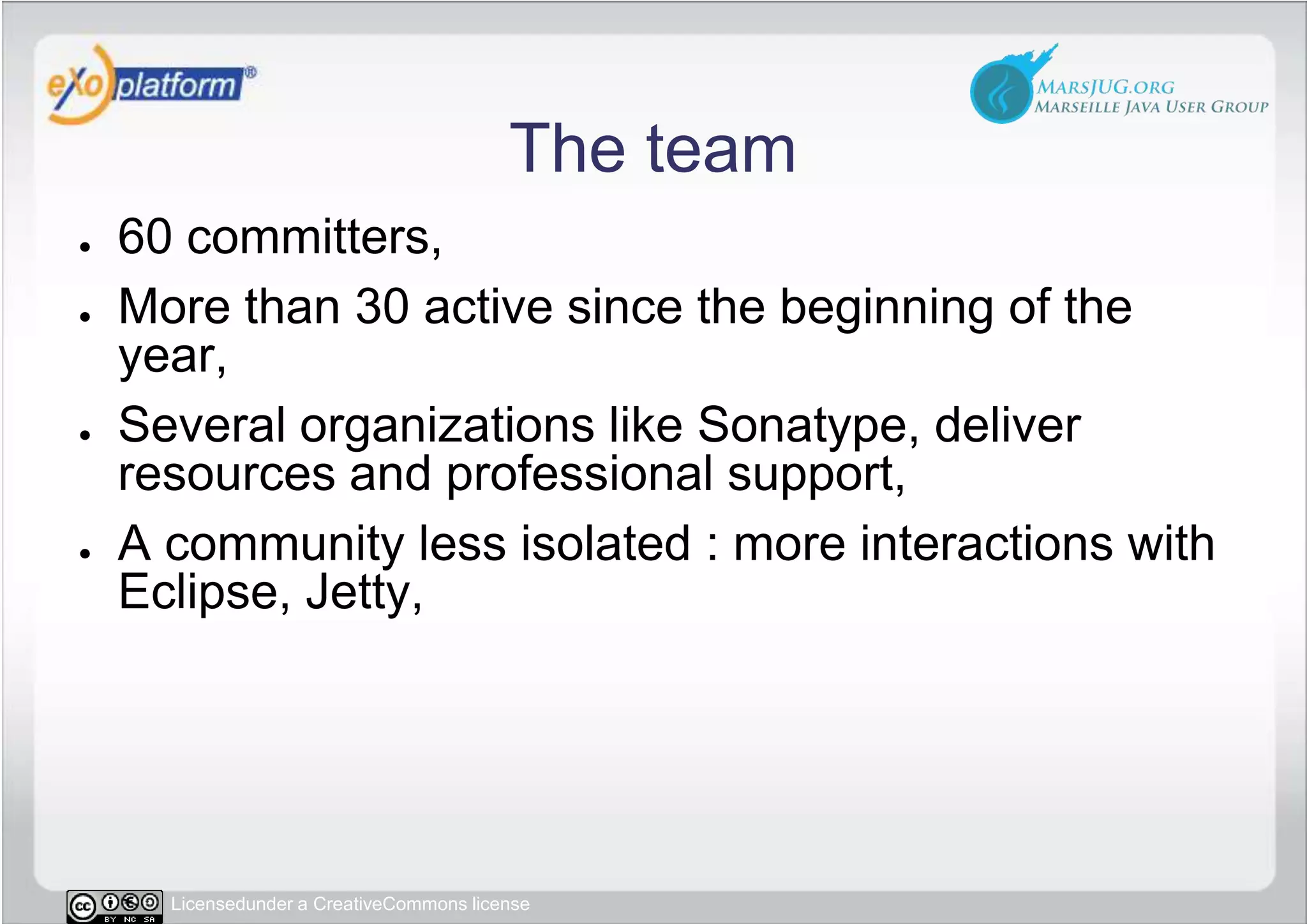

92. The team 60 committers, More than 30 active since the beginning of the year, Several organizations like Sonatype, deliver resources and professional support, A community less isolated : more interactions with Eclipse, Jetty,

93. Commit Statistics

94. Competitors Apache Maven

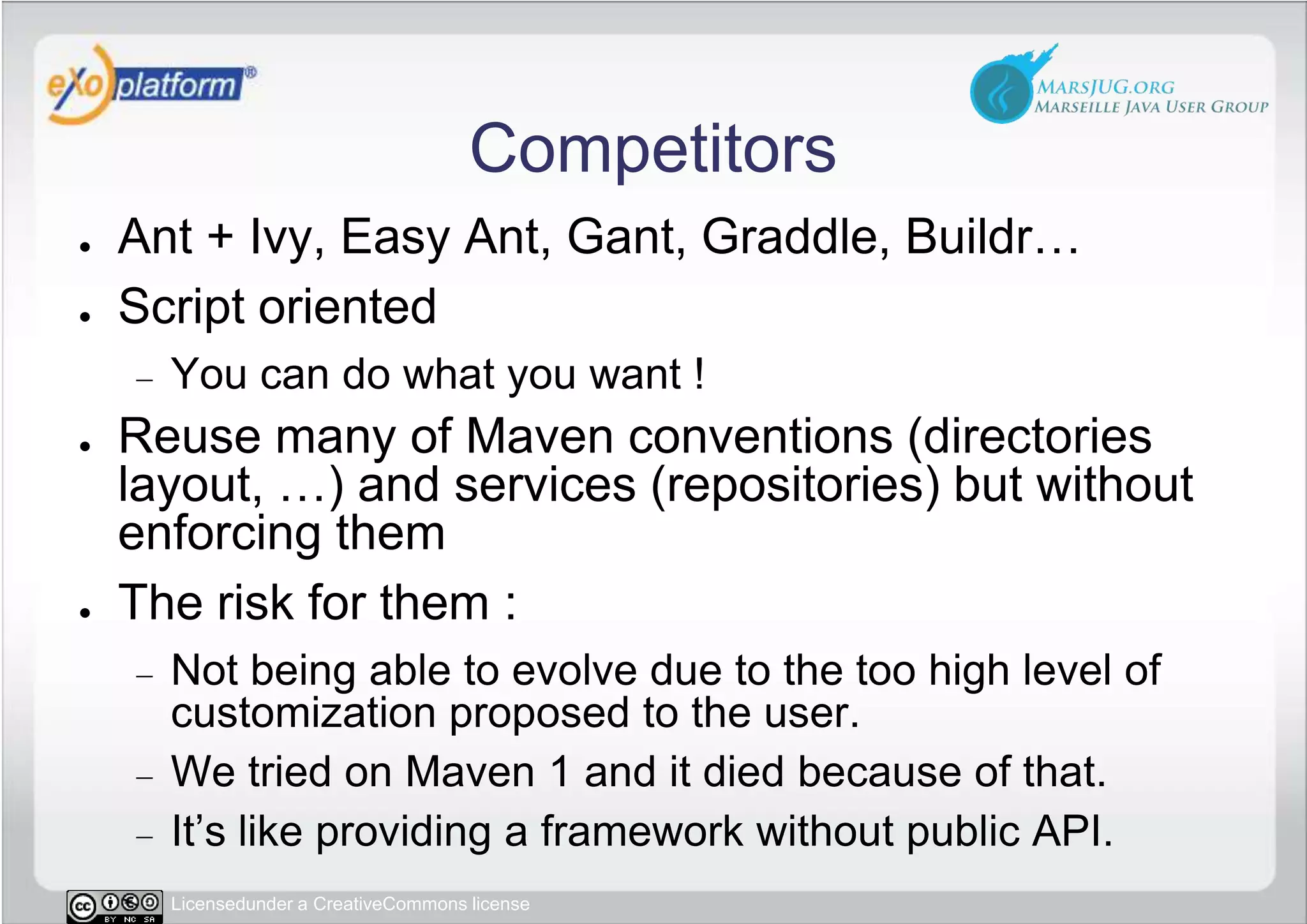

95. Competitors Ant + Ivy, Easy Ant, Gant, Graddle, Buildr… Script oriented You can do what you want ! Reuse many of Maven conventions (directories layout, …) and services (repositories) but without enforcing them The risk for them : Not being able to evolve due to the too high level of customization proposed to the user. We tried on Maven 1 and it died because of that. It’s like providing a framework without public API.

96. Conclusion Apache Maven

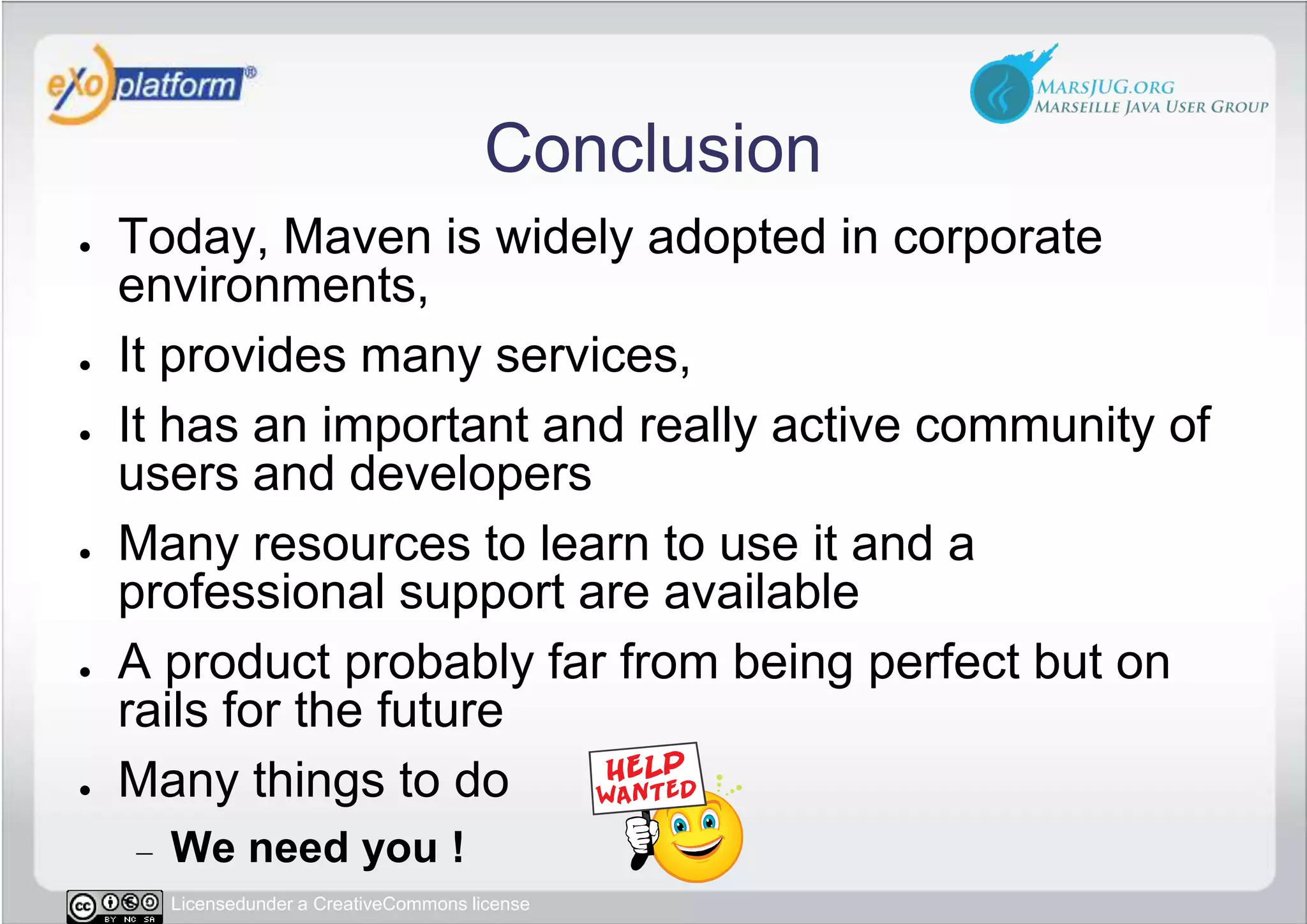

97. Conclusion Today, Maven is widely adopted in corporate environments, It provides many services, It has an important and really active community of users and developers Many resources to learn to use it and a professional support are available A product probably far from being perfect but on rails for the future Many things to do We need you !

98. Questions ? Apache Maven

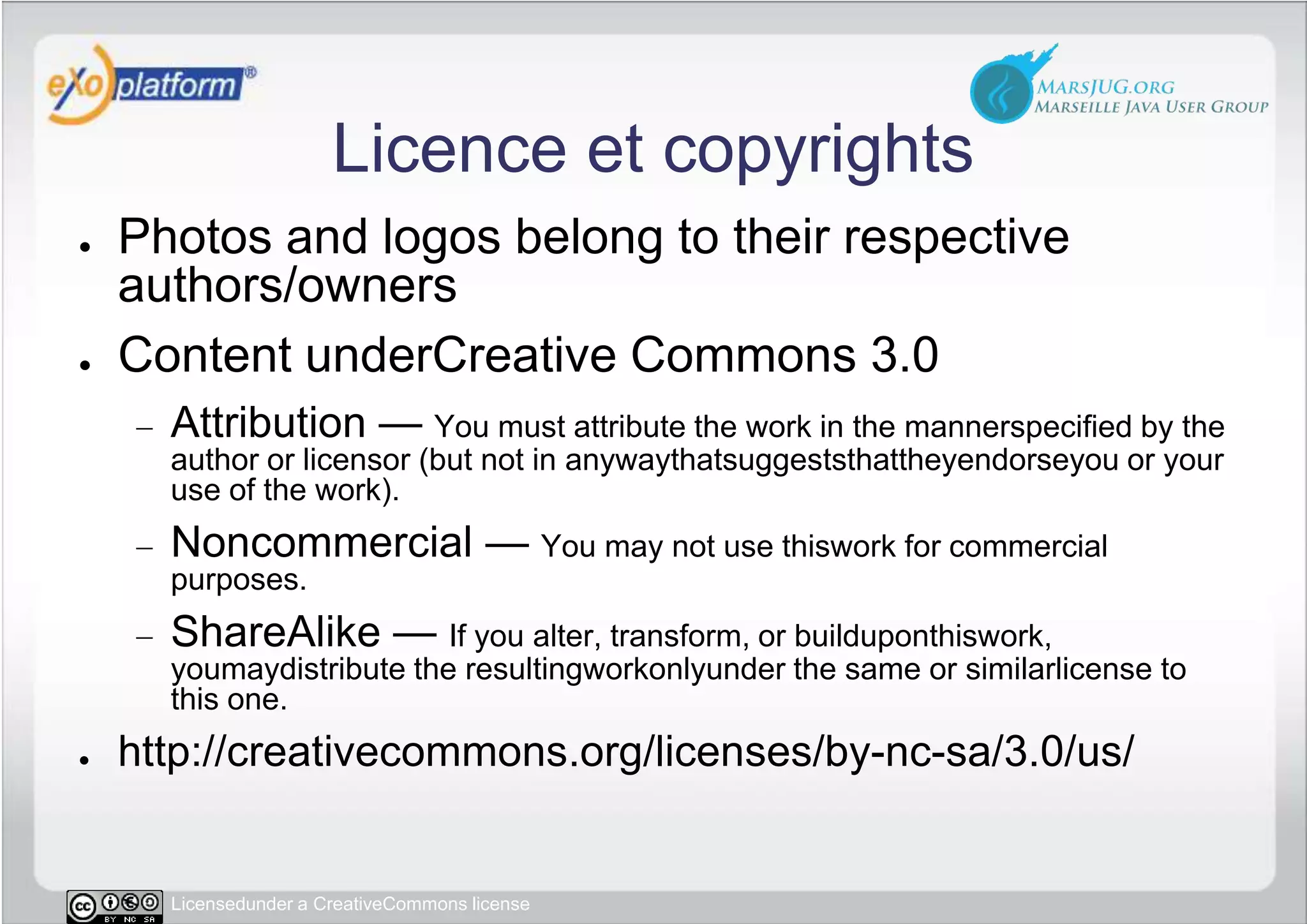

99. Licence et copyrights Photos and logos belong to their respective authors/owners Content underCreative Commons 3.0 Attribution — You must attribute the work in the mannerspecified by the author or licensor (but not in anywaythatsuggeststhattheyendorseyou or your use of the work). Noncommercial — You may not use thiswork for commercial purposes. ShareAlike — If you alter, transform, or builduponthiswork, youmaydistribute the resultingworkonlyunder the same or similarlicense to this one. http://creativecommons.org/licenses/by-nc-sa/3.0/us/
