2 hour hands-on workshop on how to create, deploy and use Shiny in research and teaching. The materials for the workshop are https://languagevariationsuite.wordpress.com/2018/11/27/introduction-to-interactive-shiny-web-applications

1. Introduction to Interactive Shiny Web
Applications
Olga Scrivner
University of Cincinnati
November 28, 2018

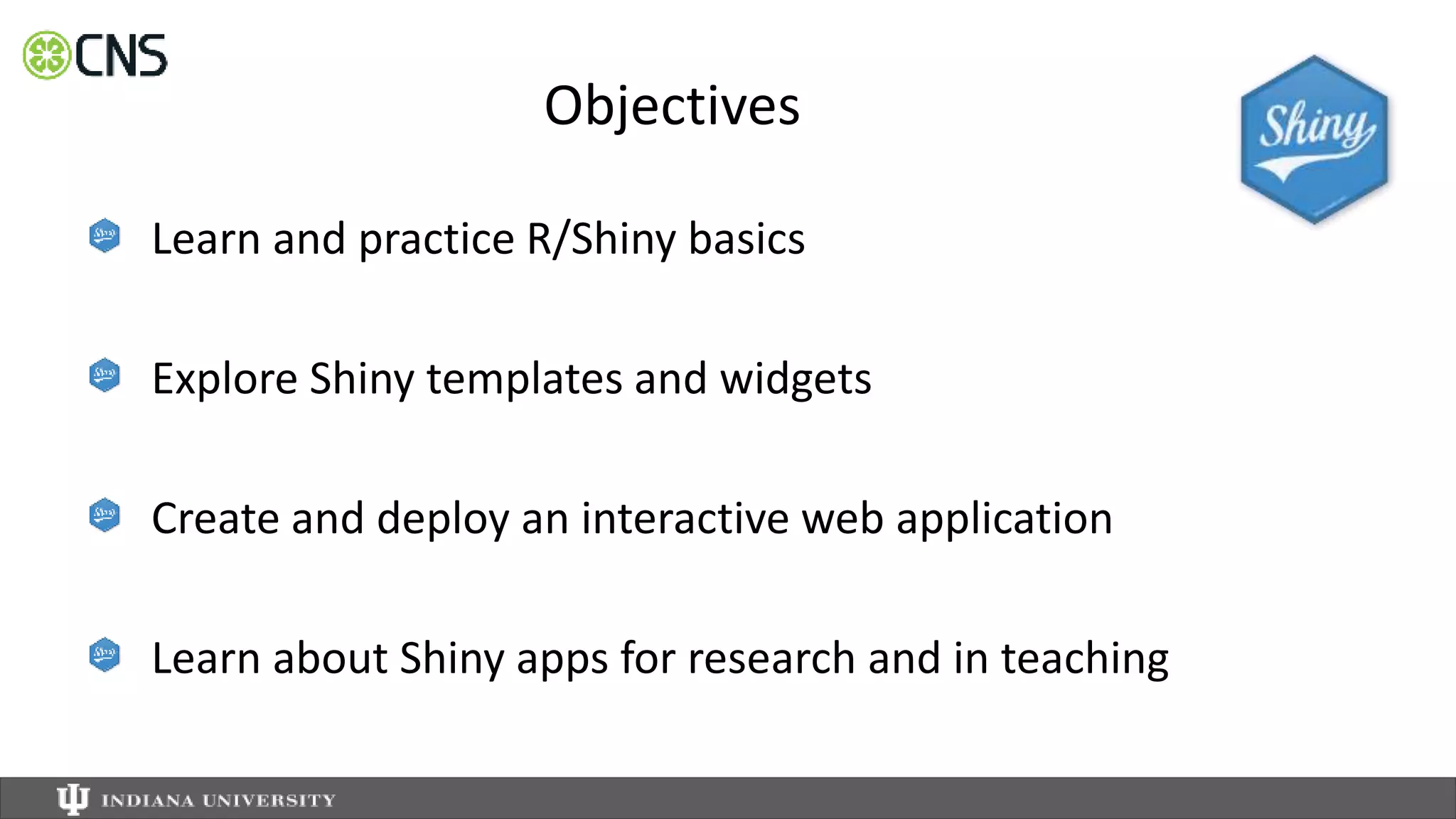

2. Objectives
Learn and practice R/Shiny basics
Explore Shiny templates and widgets
Create and deploy an interactive web application
Learn about Shiny apps for research and in teaching

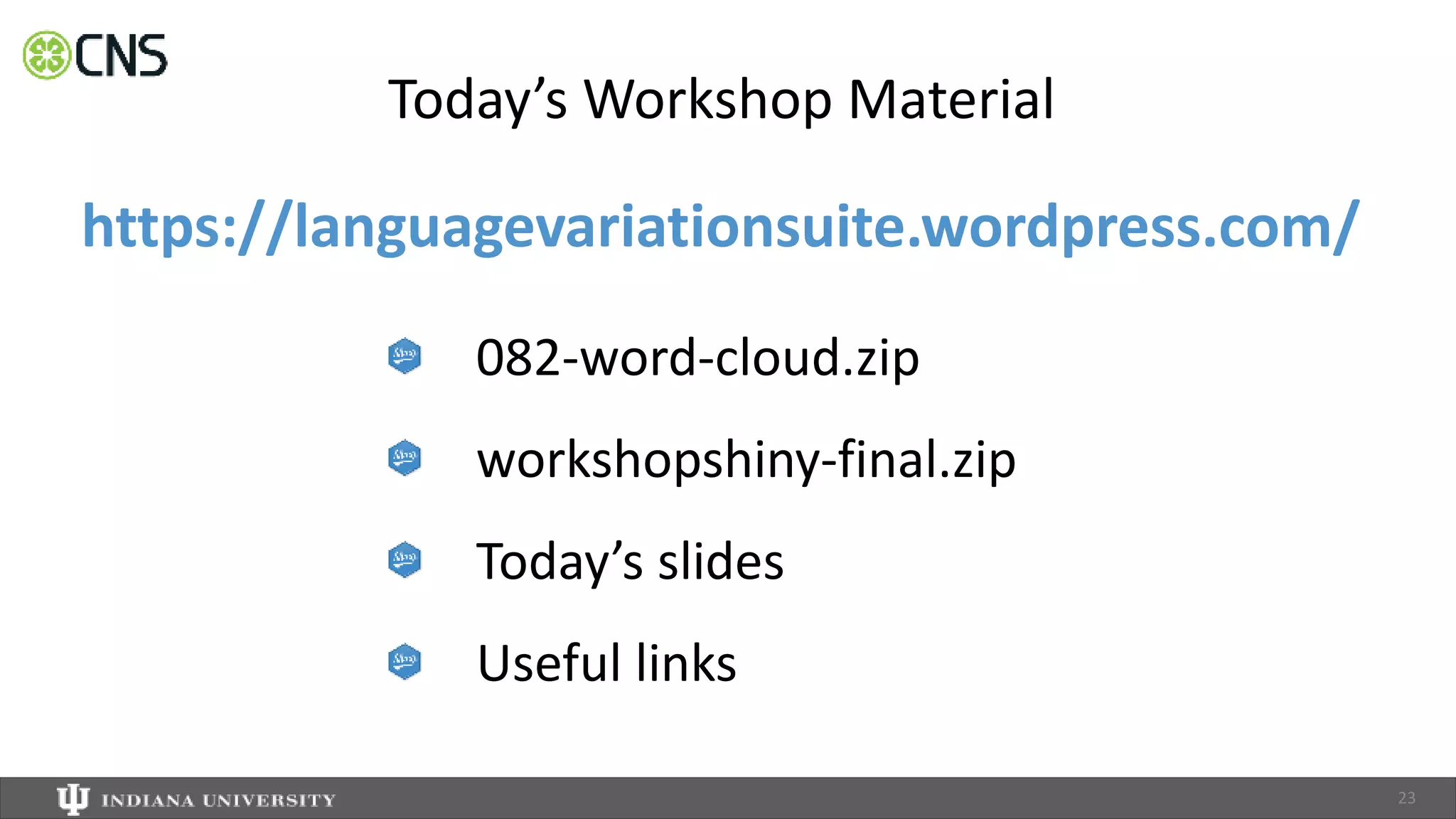

3. https://languagevariationsuite.wordpress.com/
23
Today’s Workshop Material
082-word-cloud.zip
workshopshiny-final.zip
Today’s slides
Useful links

4. RStudio Basics

5. What is RStudio?
RStudio is an open source “set of integrated tools to help you
be more productive with R”
Shiny is a package from RStudio to build interactive web
interfaces/pages/applications

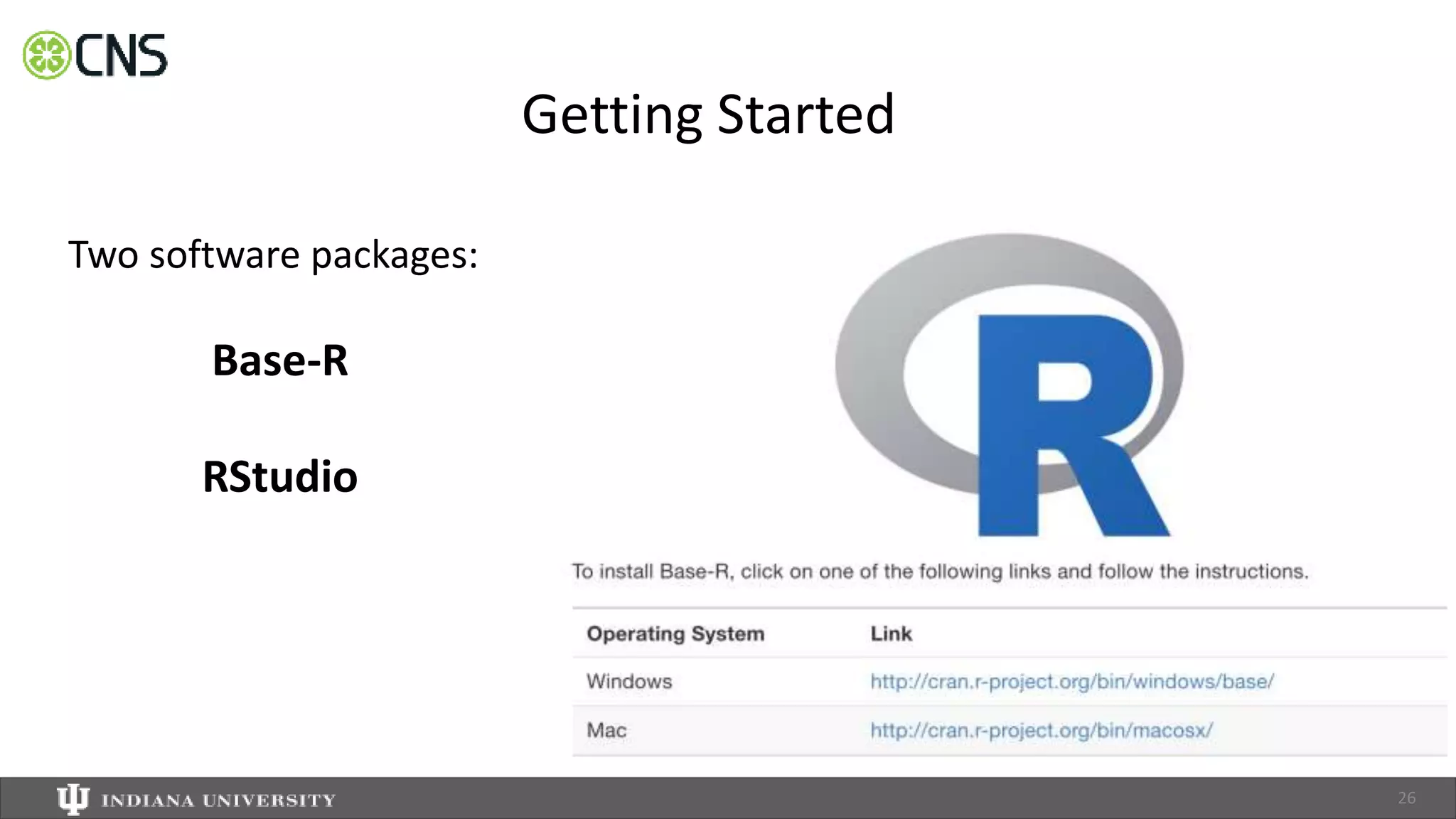

6. Two software packages:
Base-R
RStudio
26
Getting Started

7. RStudio is a graphical user interface interface for R.
http://www.rstudio.com/products/rstudio/download/
27
Getting Started

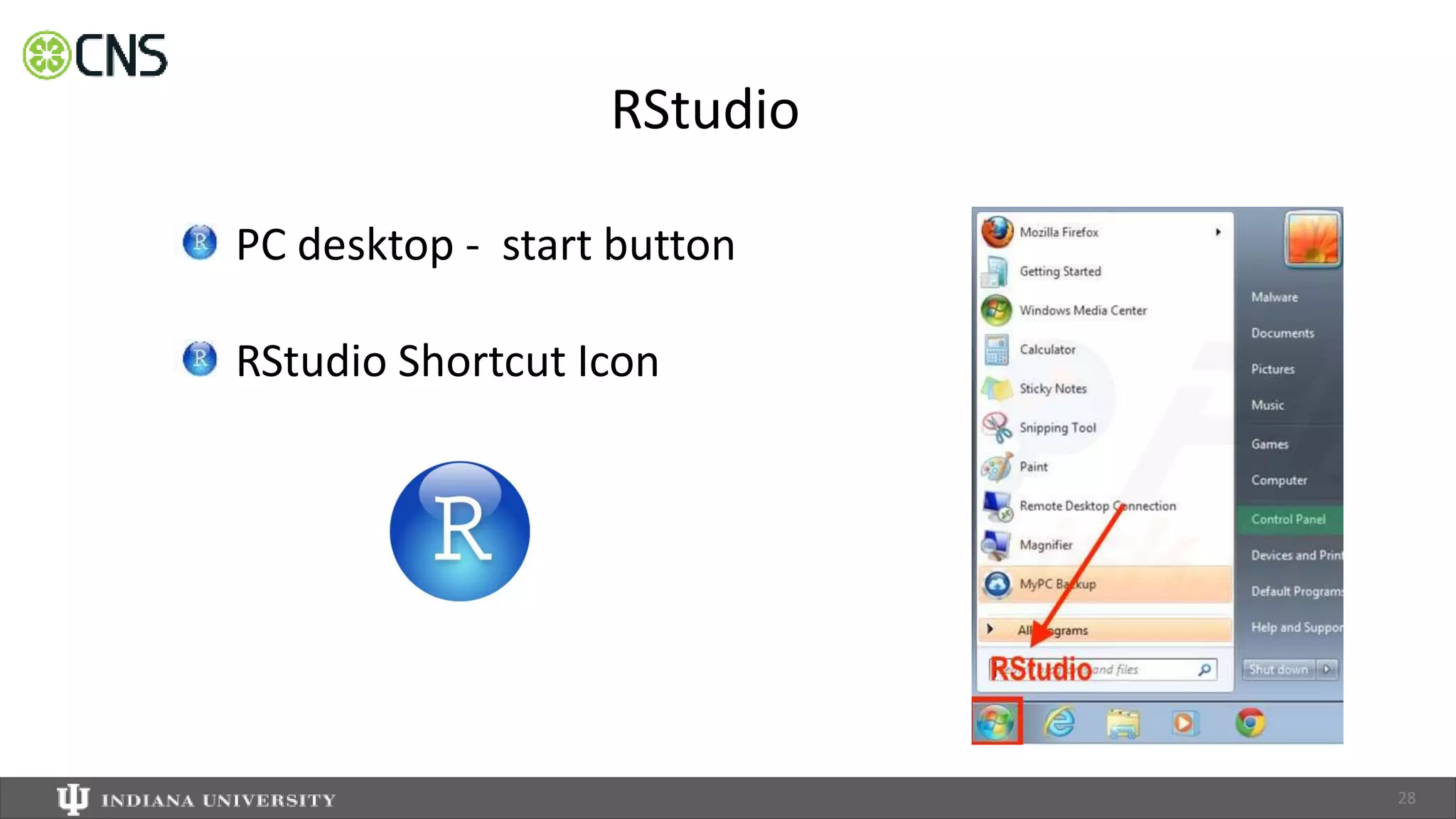

8. PC desktop - start button
RStudio Shortcut Icon
28
RStudio

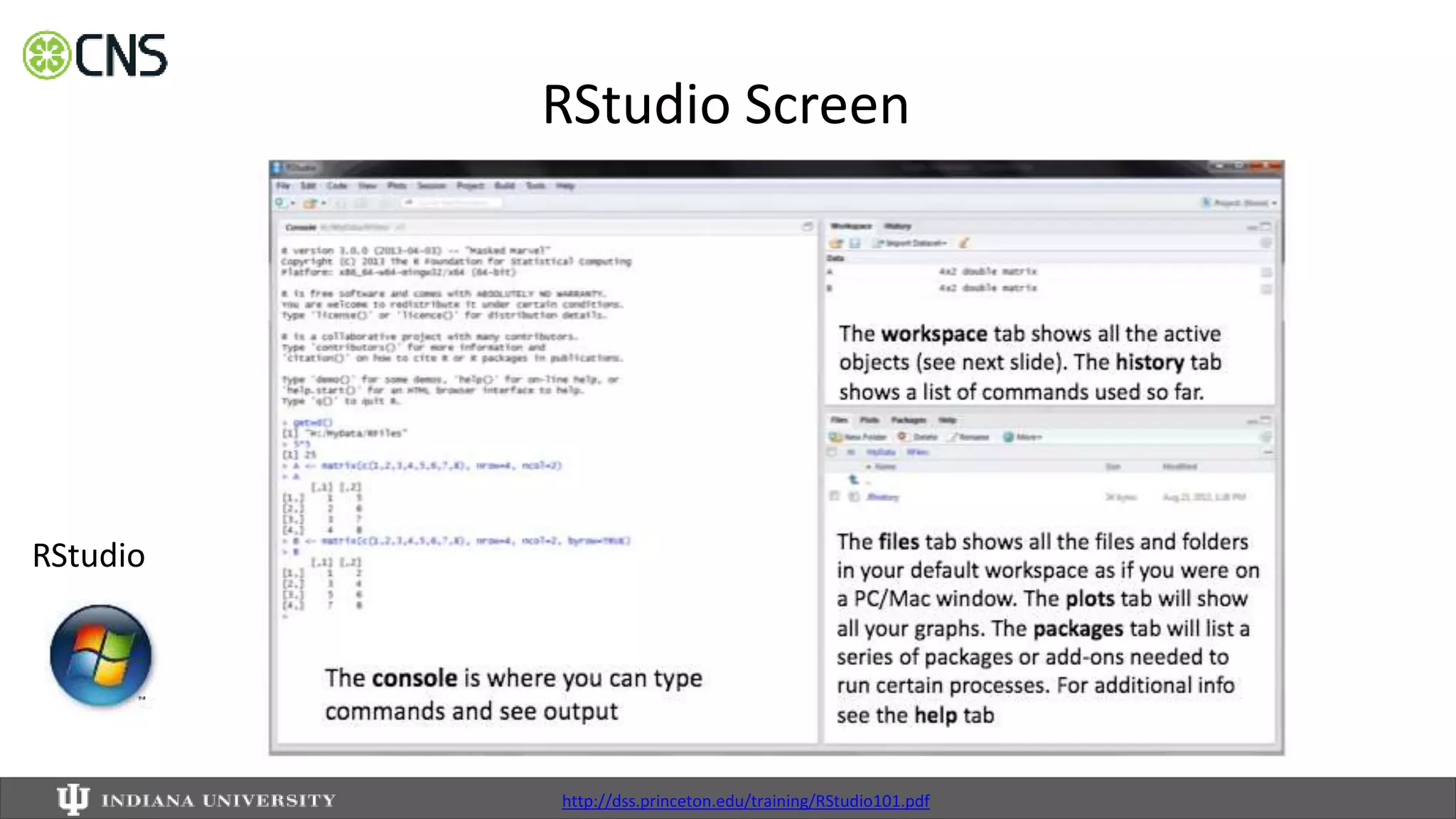

9. RStudio Screen
RStudio
http://dss.princeton.edu/training/RStudio101.pdf

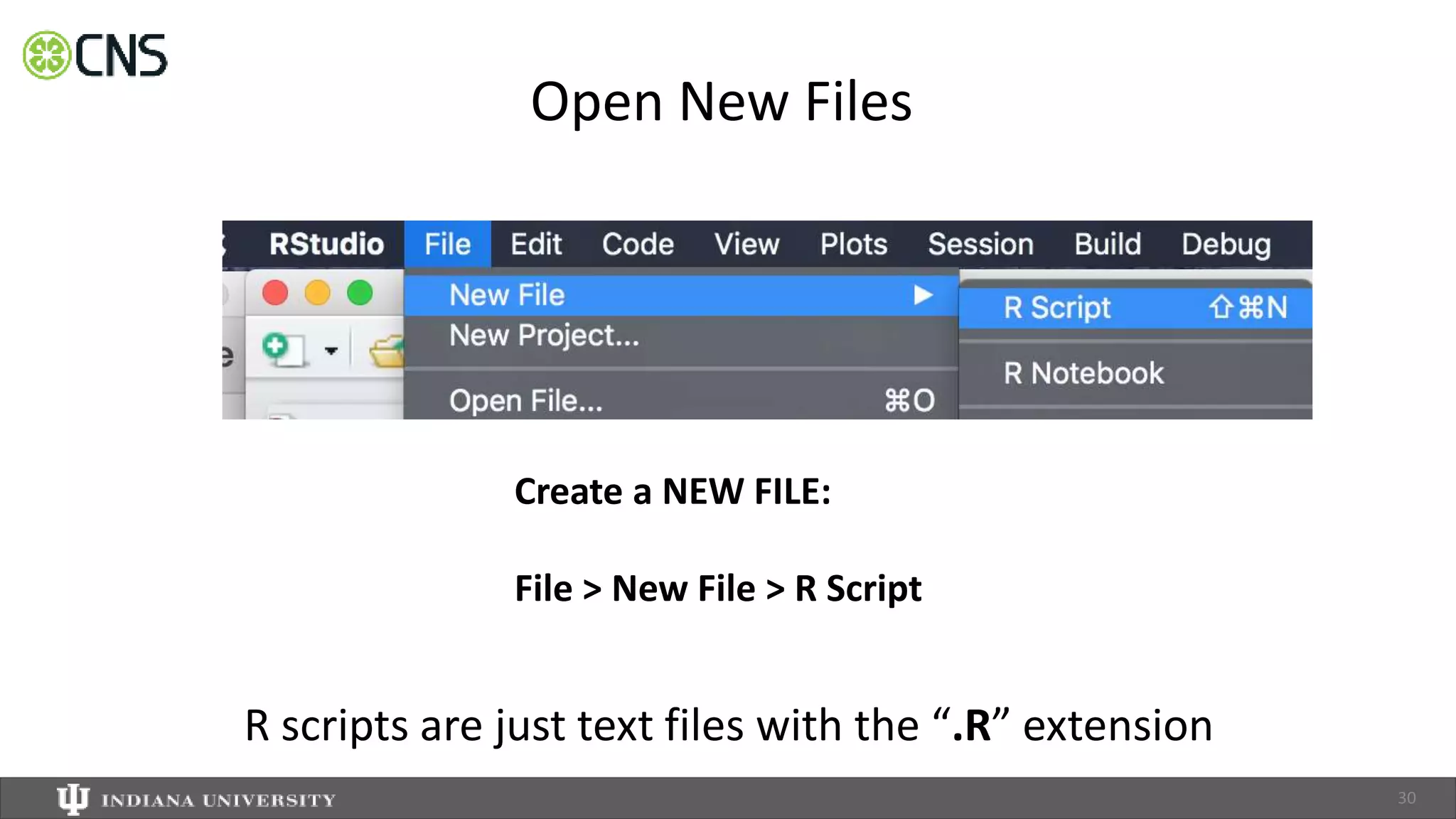

10. R scripts are just text files with the “.R” extension
30
Open New Files
Create a NEW FILE:
File > New File > R Script

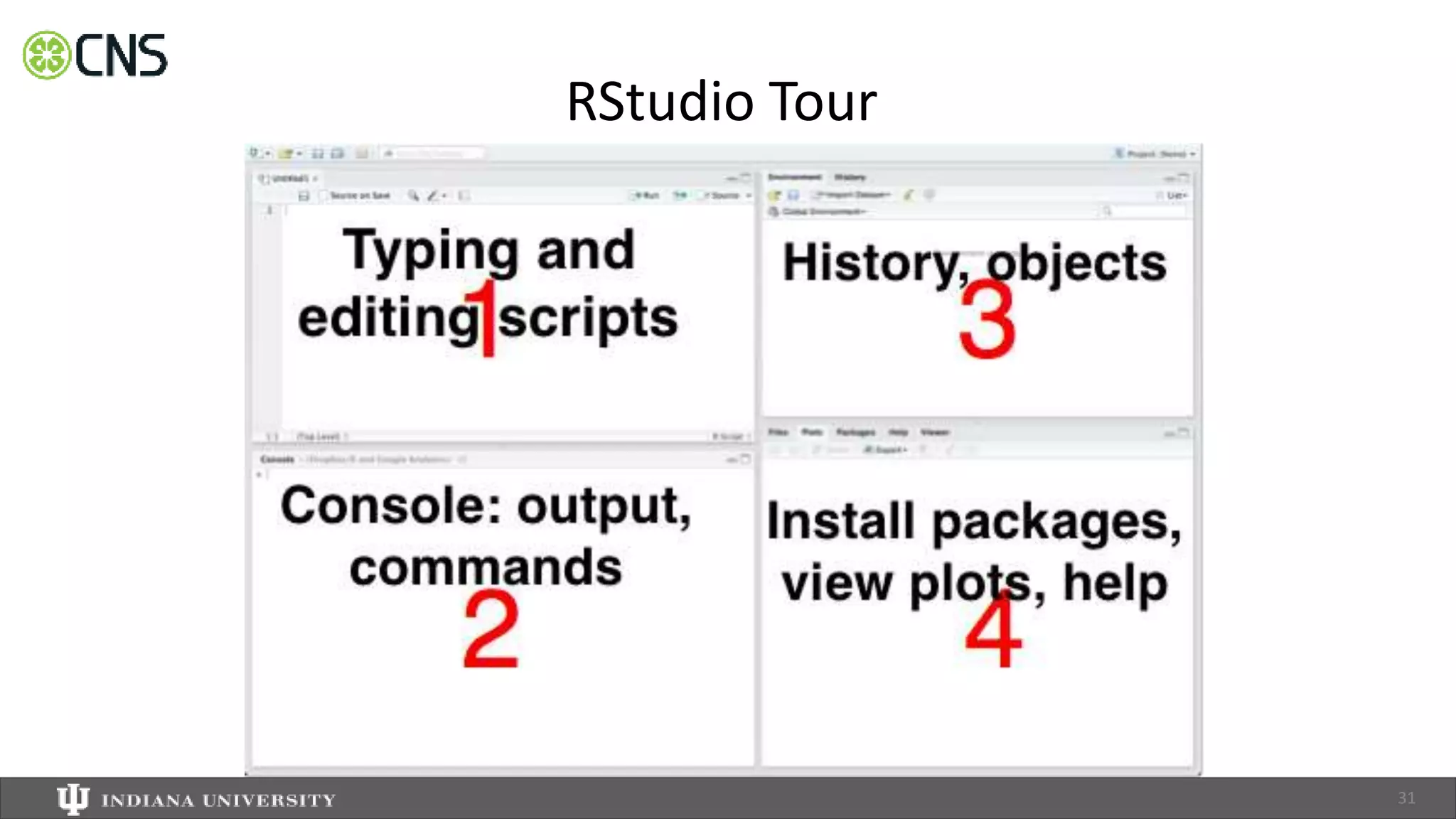

11. 31
RStudio Tour

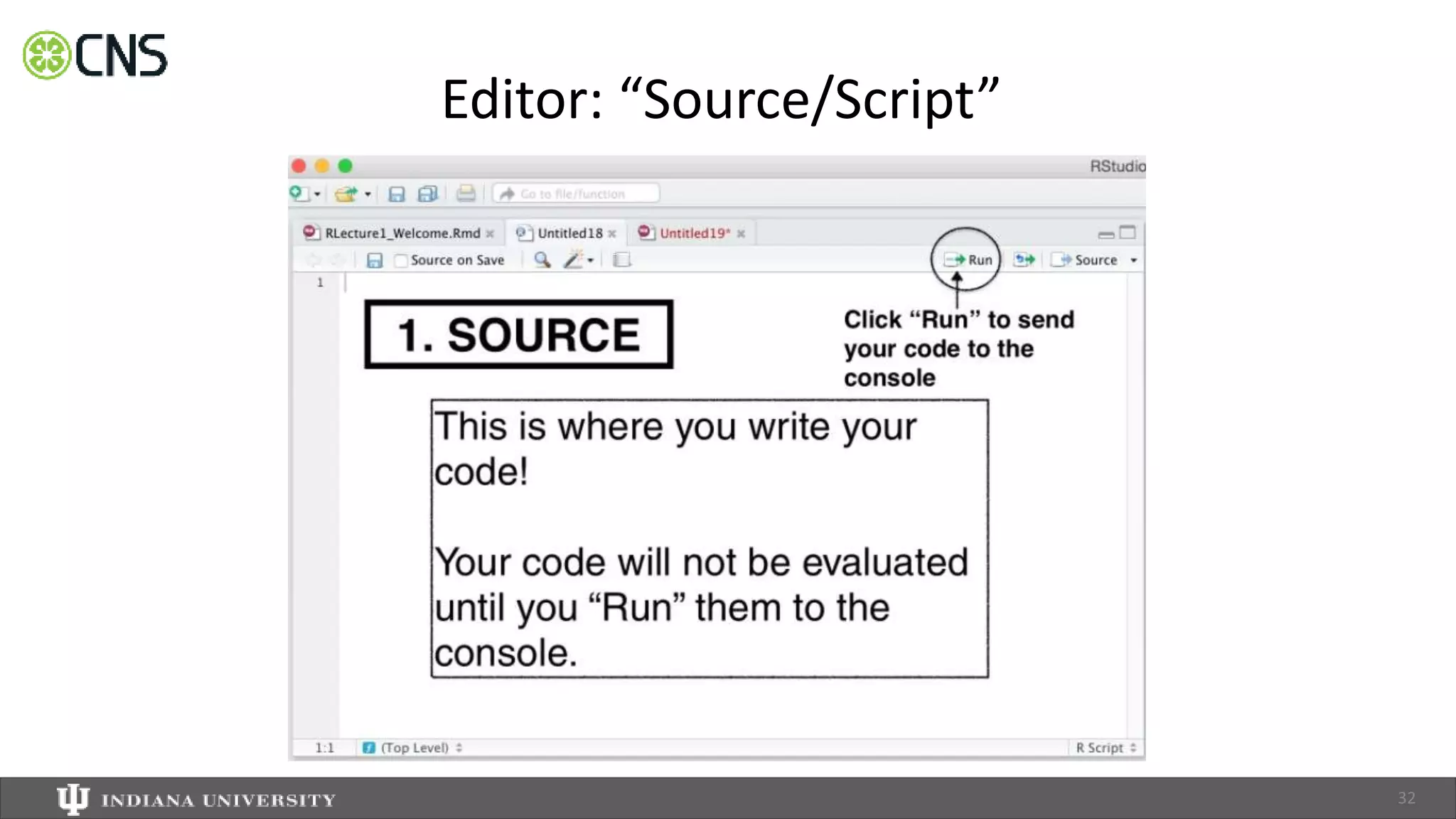

12. 32
Editor: “Source/Script”

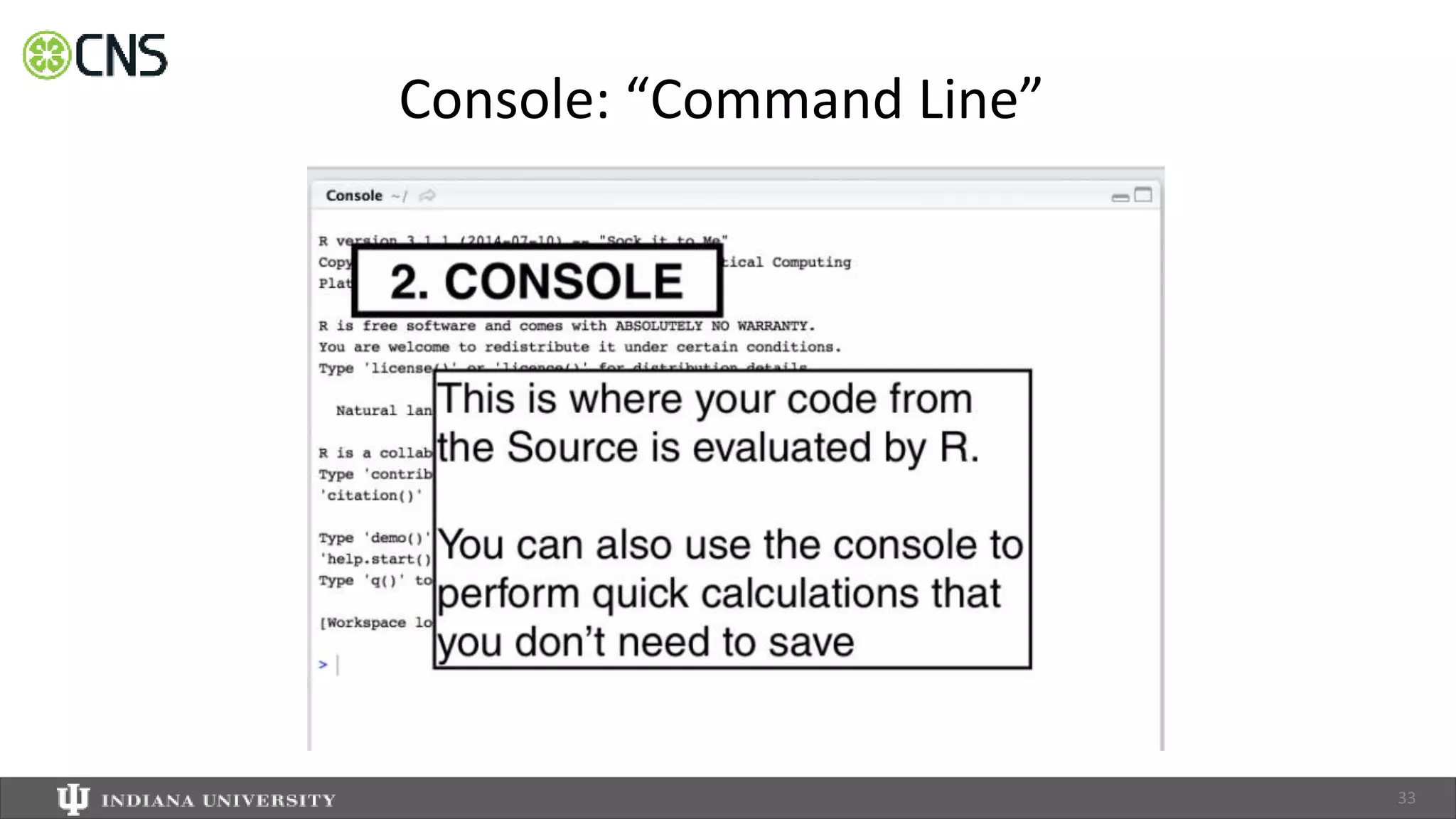

13. 33
Console: “Command Line”

14. 34

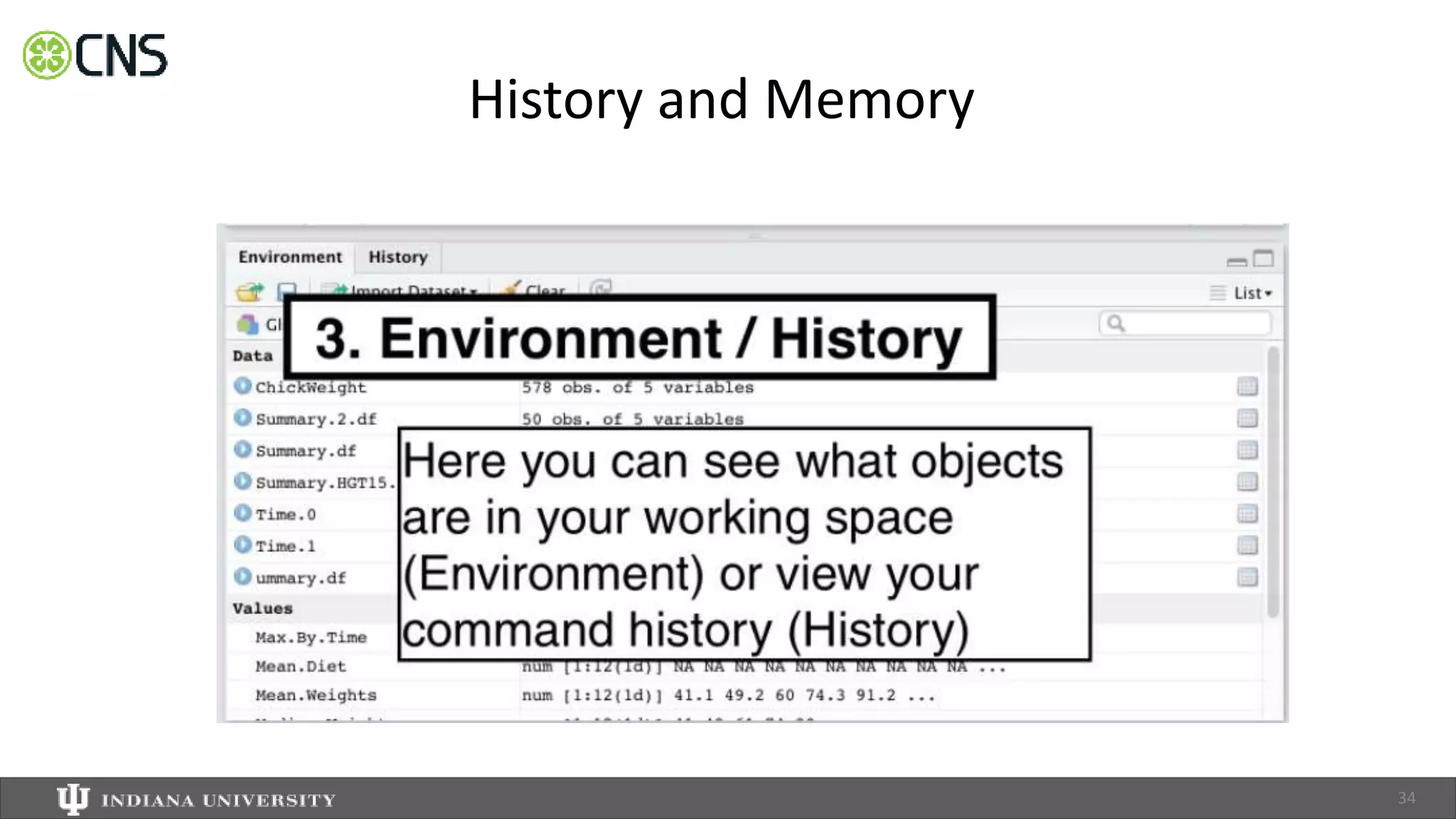

History and Memory

15. 35

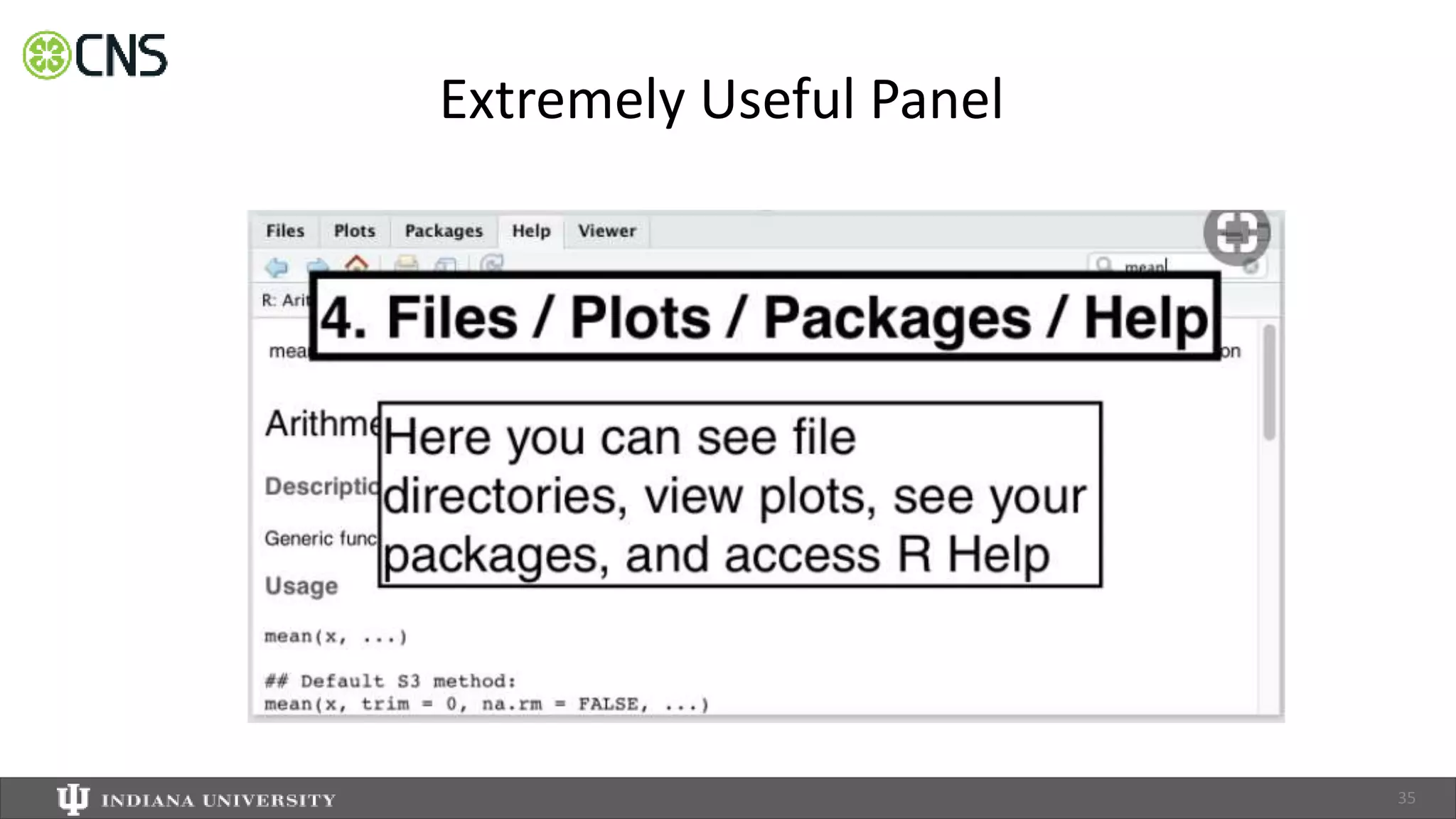

Extremely Useful Panel

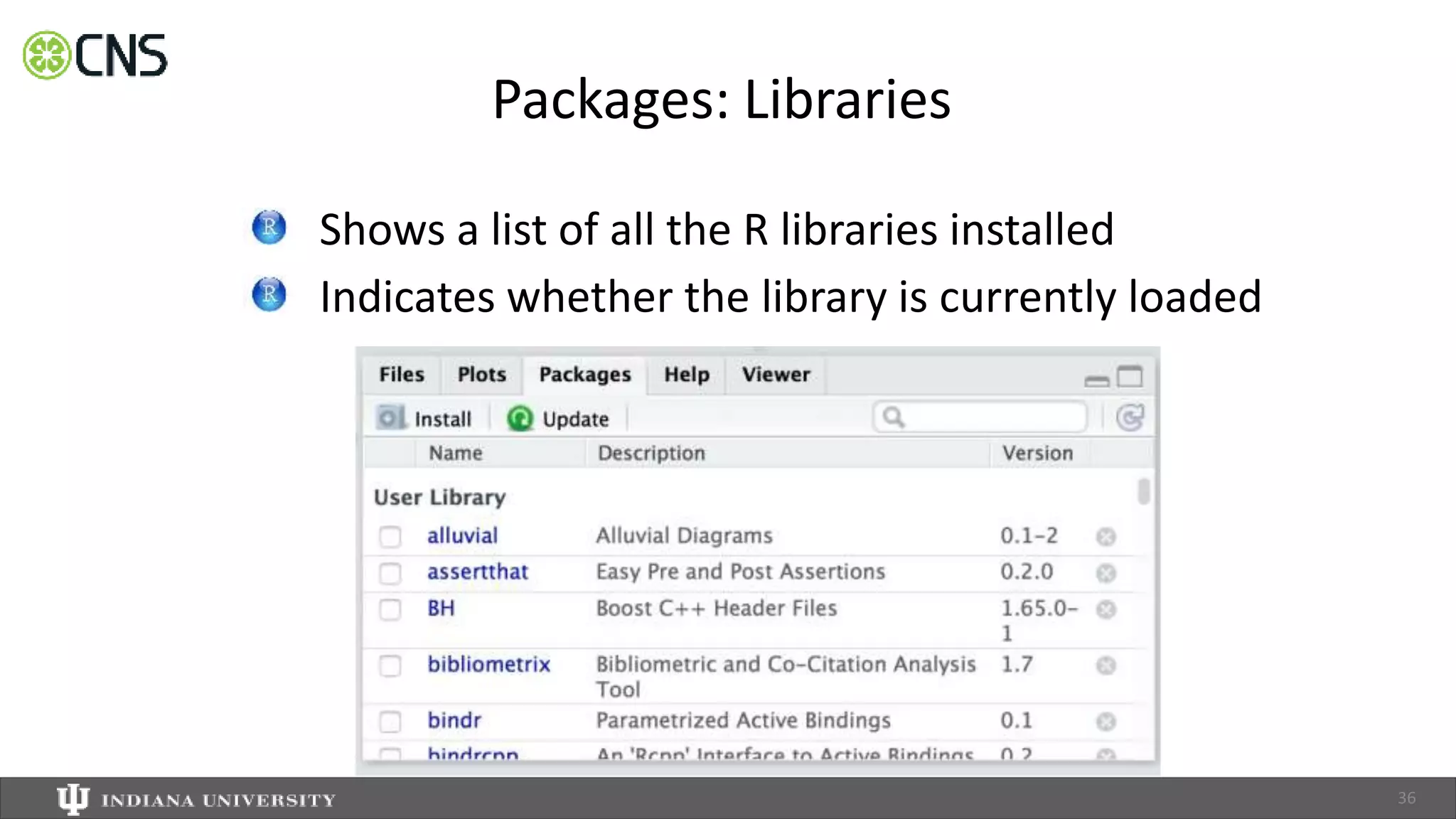

16. Shows a list of all the R libraries installed
Indicates whether the library is currently loaded
36
Packages: Libraries

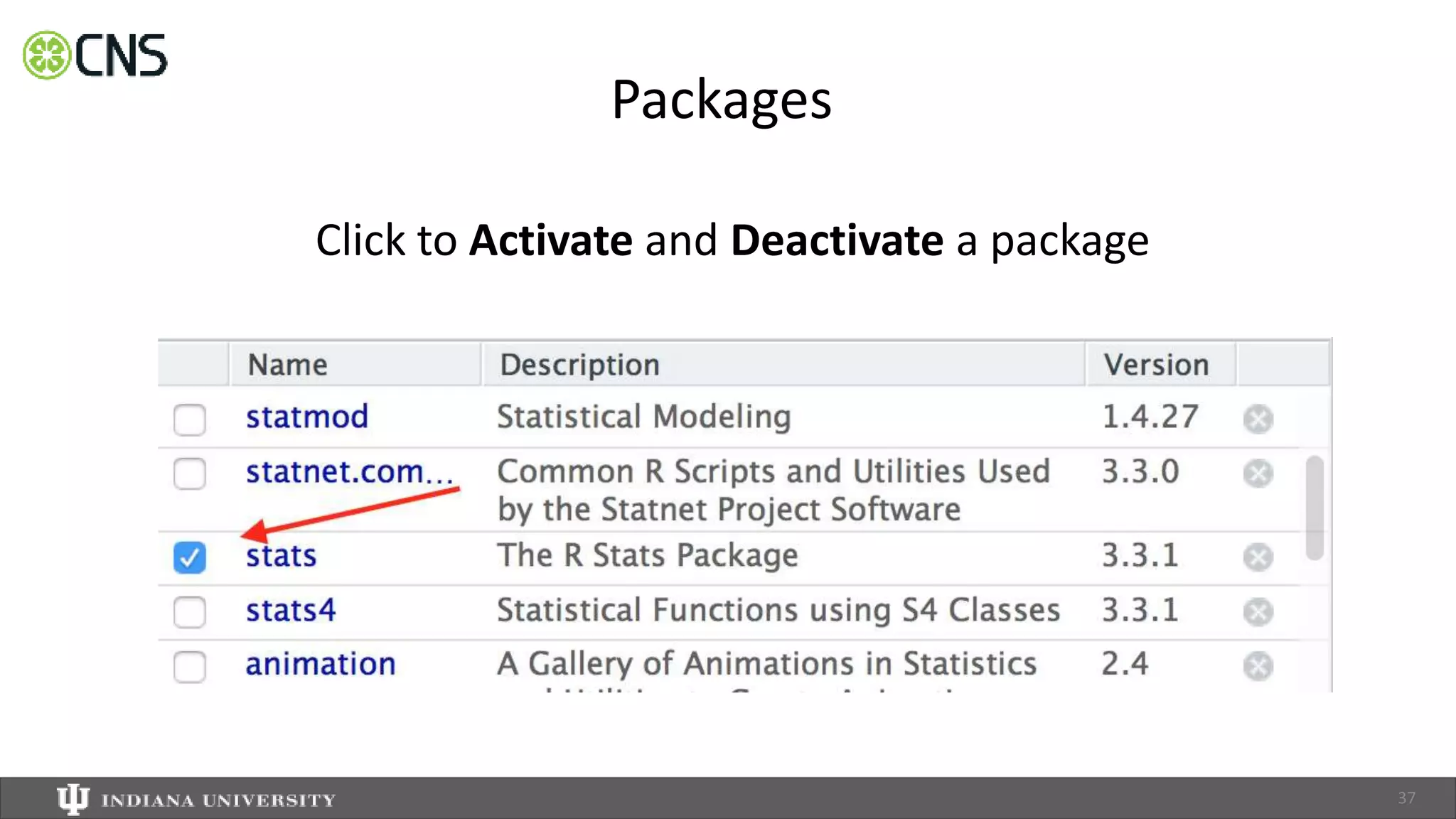

17. Click to Activate and Deactivate a package
37
Packages

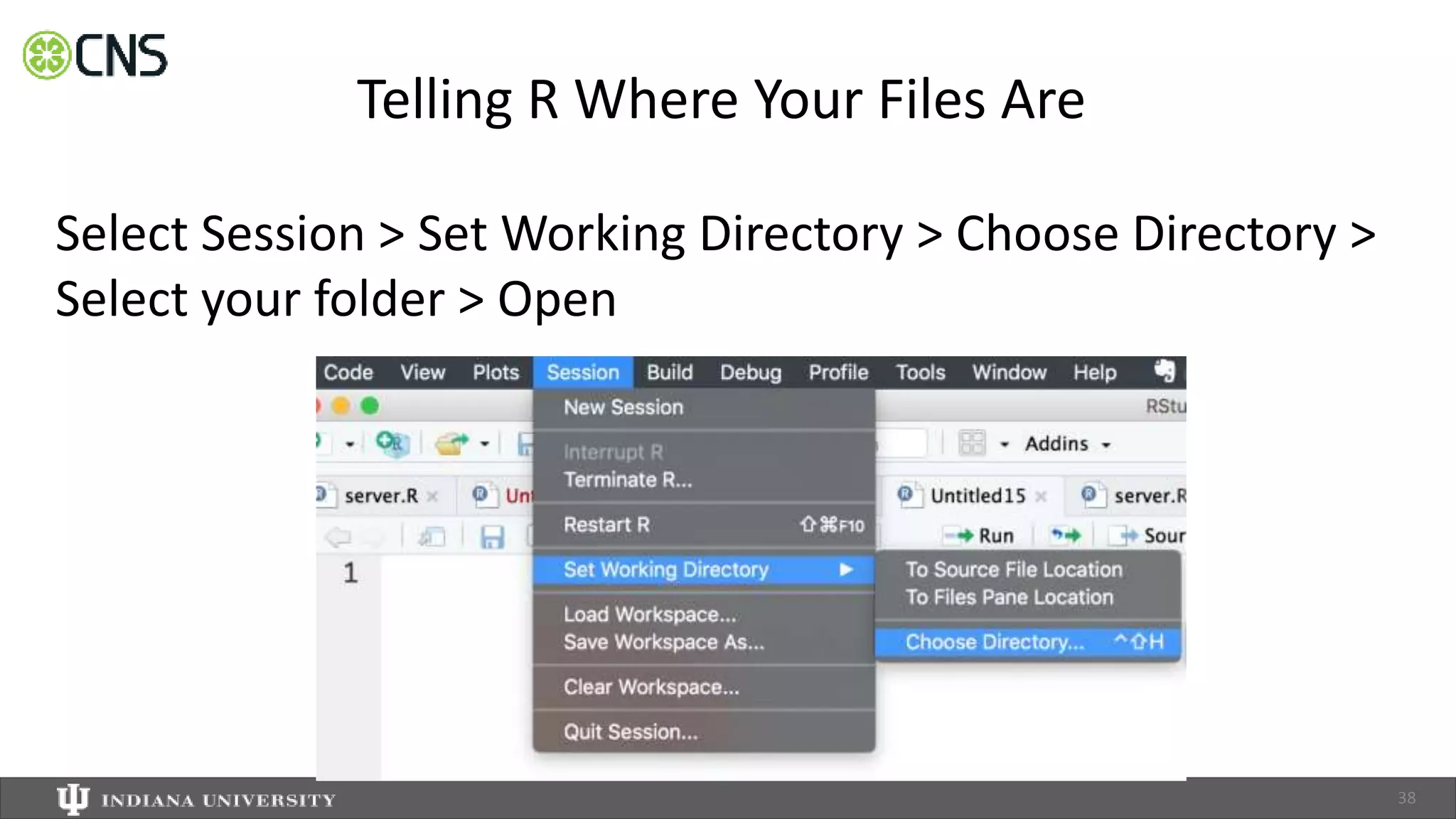

18. Select Session > Set Working Directory > Choose Directory >
Select your folder > Open
38
Telling R Where Your Files Are

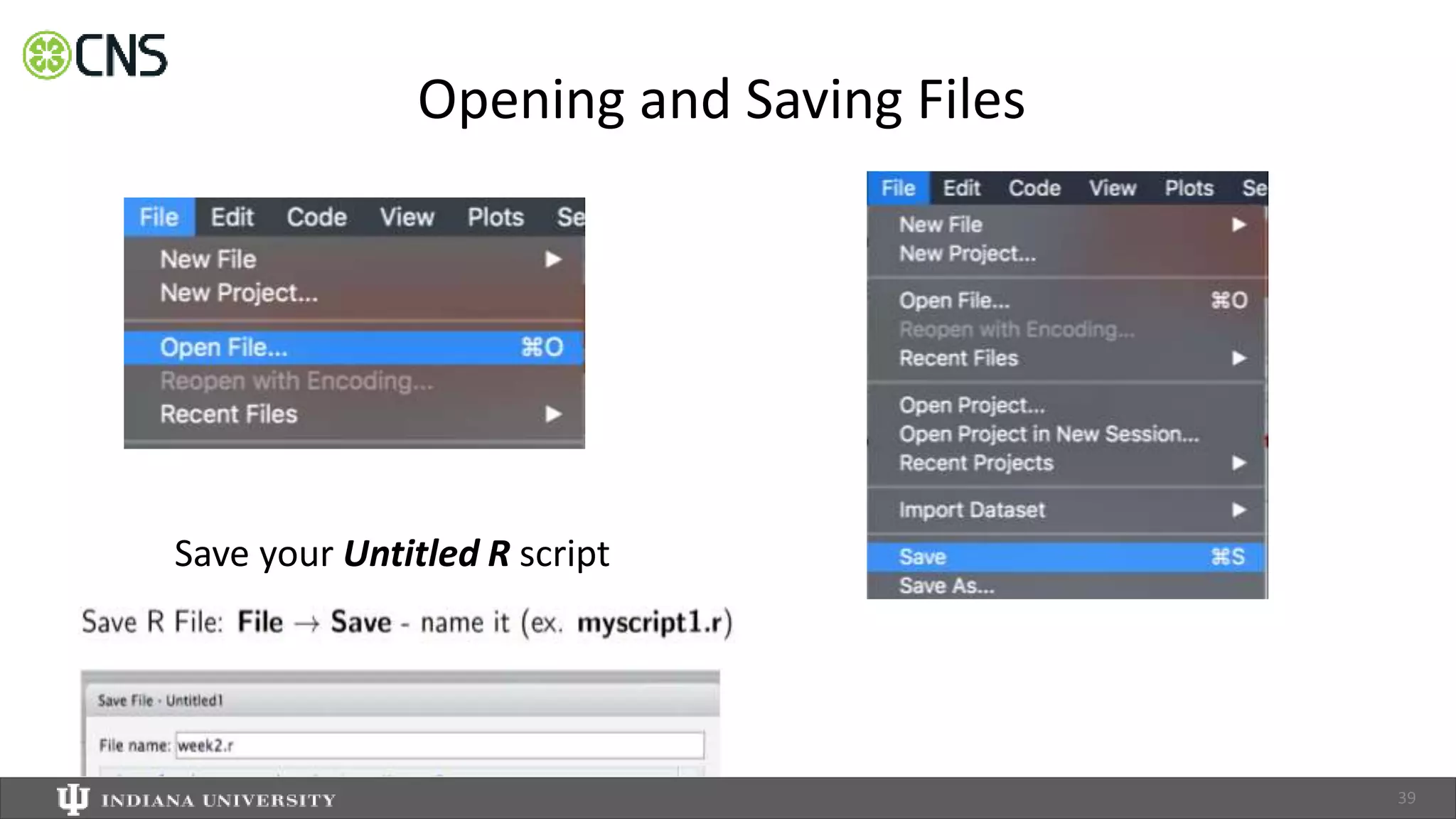

19. 39
Opening and Saving Files
Save your Untitled R script

20. Shiny Basics

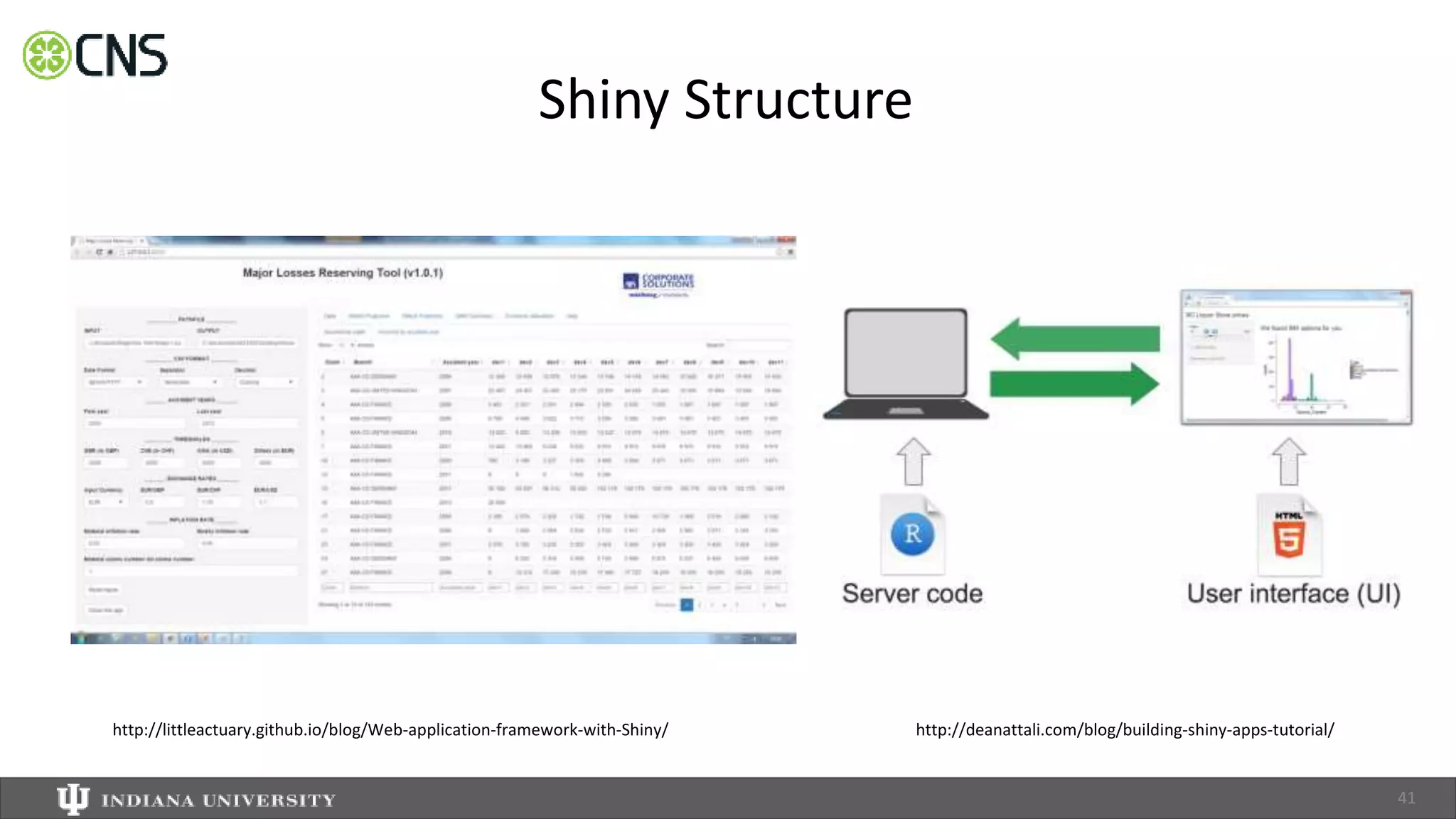

21. Shiny Structure
http://littleactuary.github.io/blog/Web-application-framework-with-Shiny/ http://deanattali.com/blog/building-shiny-apps-tutorial/
41

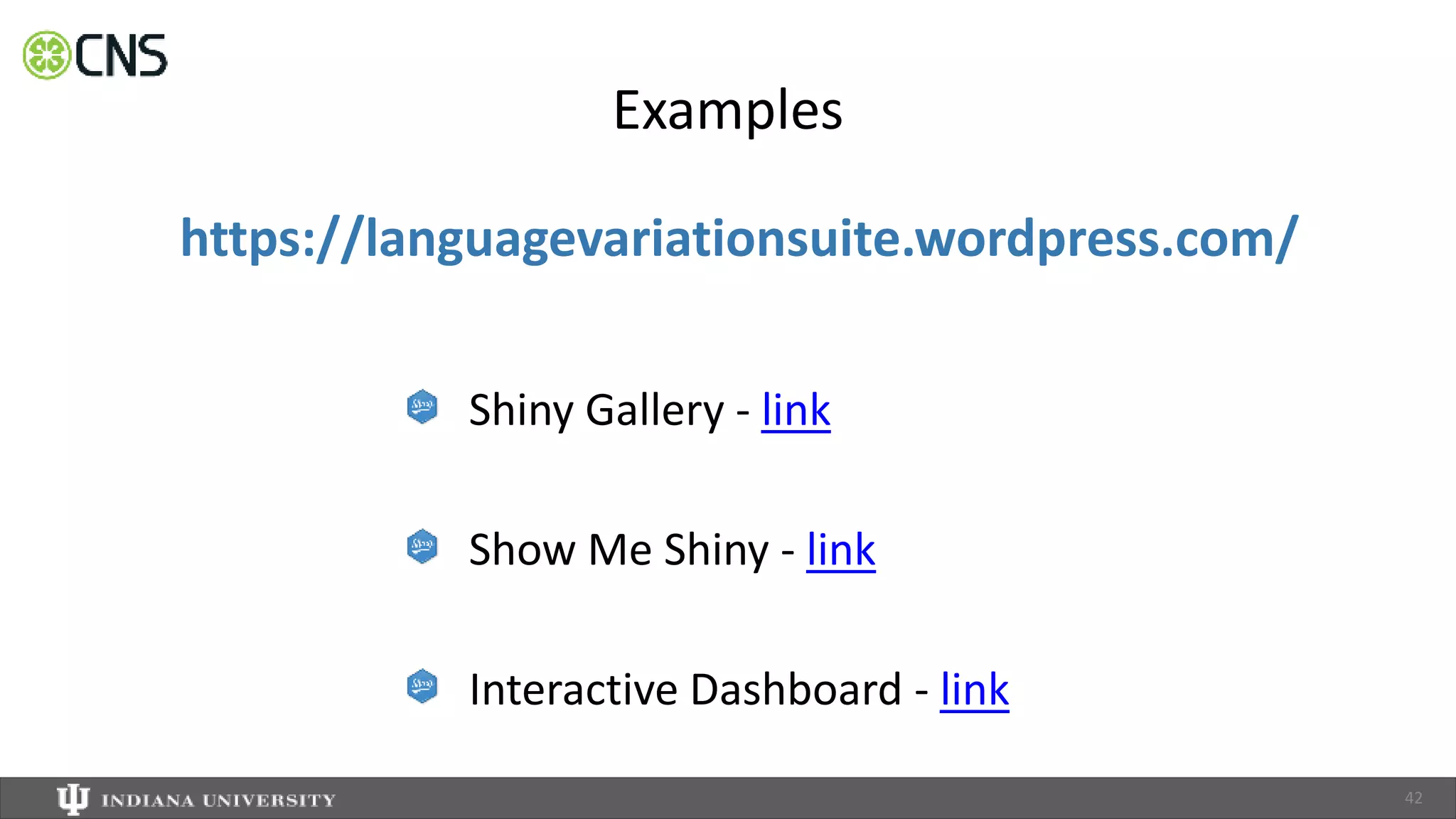

22. Examples
Shiny Gallery - link
Show Me Shiny - link
Interactive Dashboard - link
https://languagevariationsuite.wordpress.com/
42

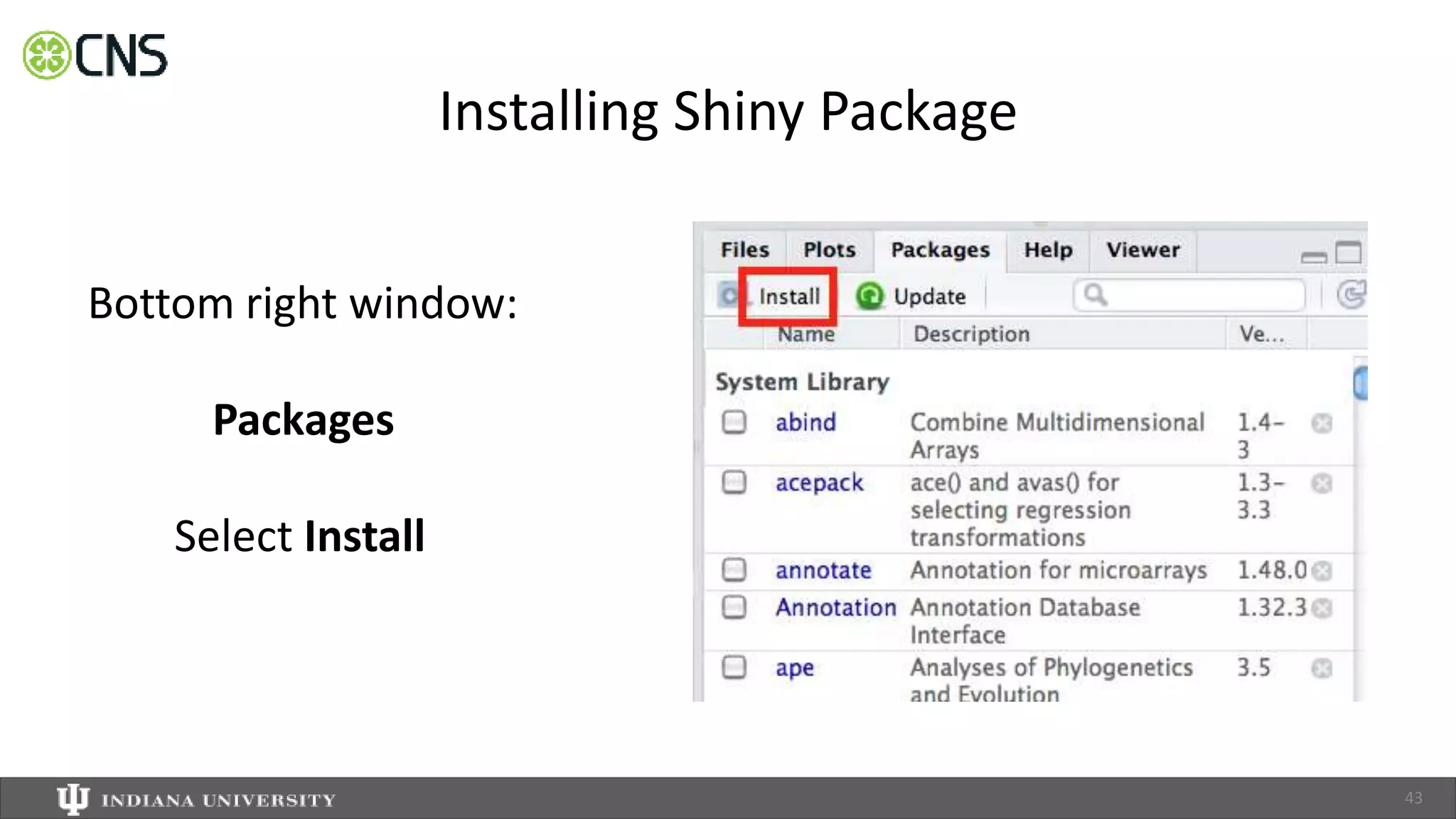

23. Installing Shiny Package
Bottom right window:
Packages
Select Install
43

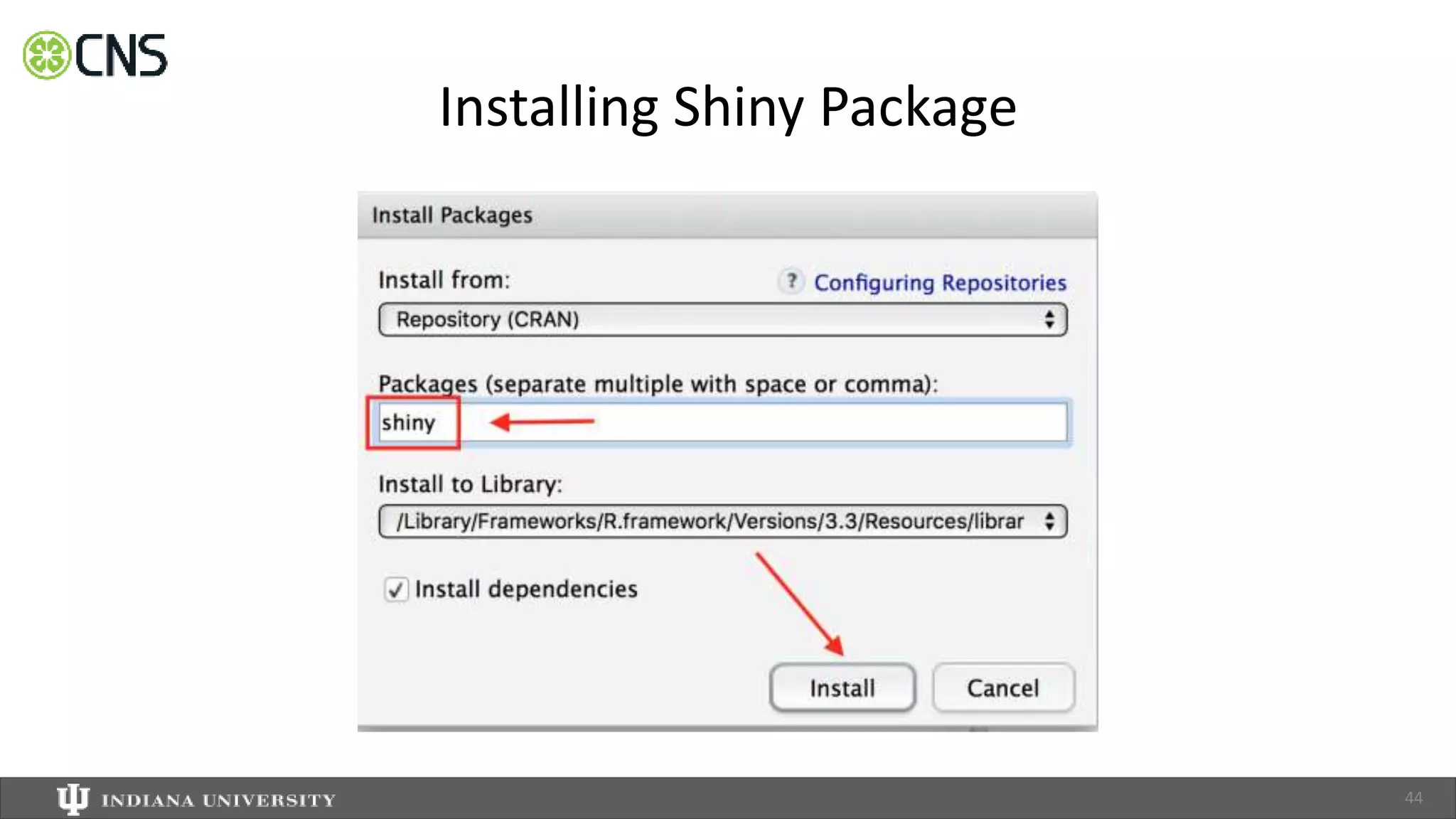

24. Installing Shiny Package
44

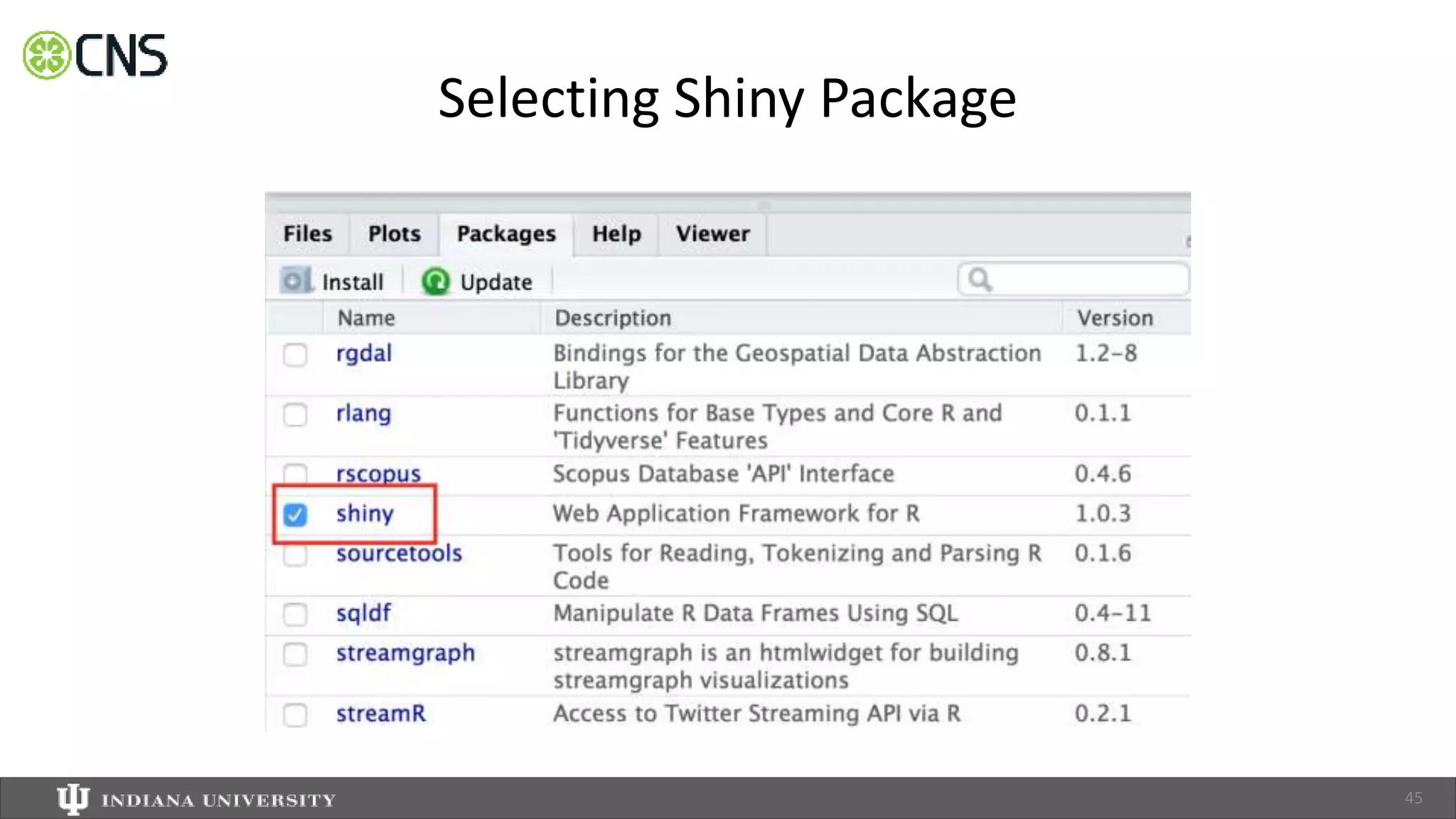

25. Selecting Shiny Package
45

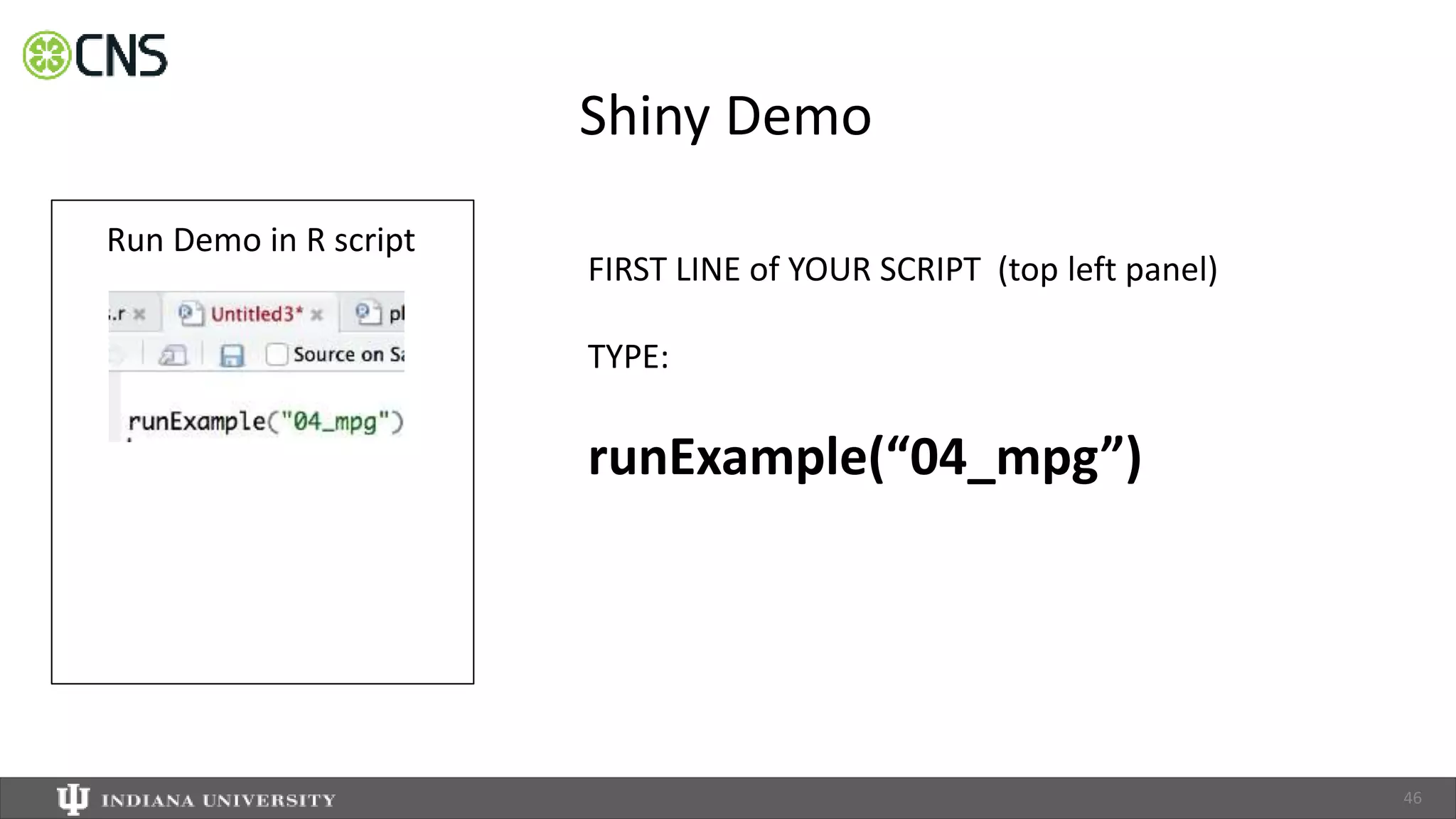

26. Run
Shiny Demo
Run Demo in R script
FIRST LINE of YOUR SCRIPT (top left panel)
TYPE:
runExample(“04_mpg”)
46

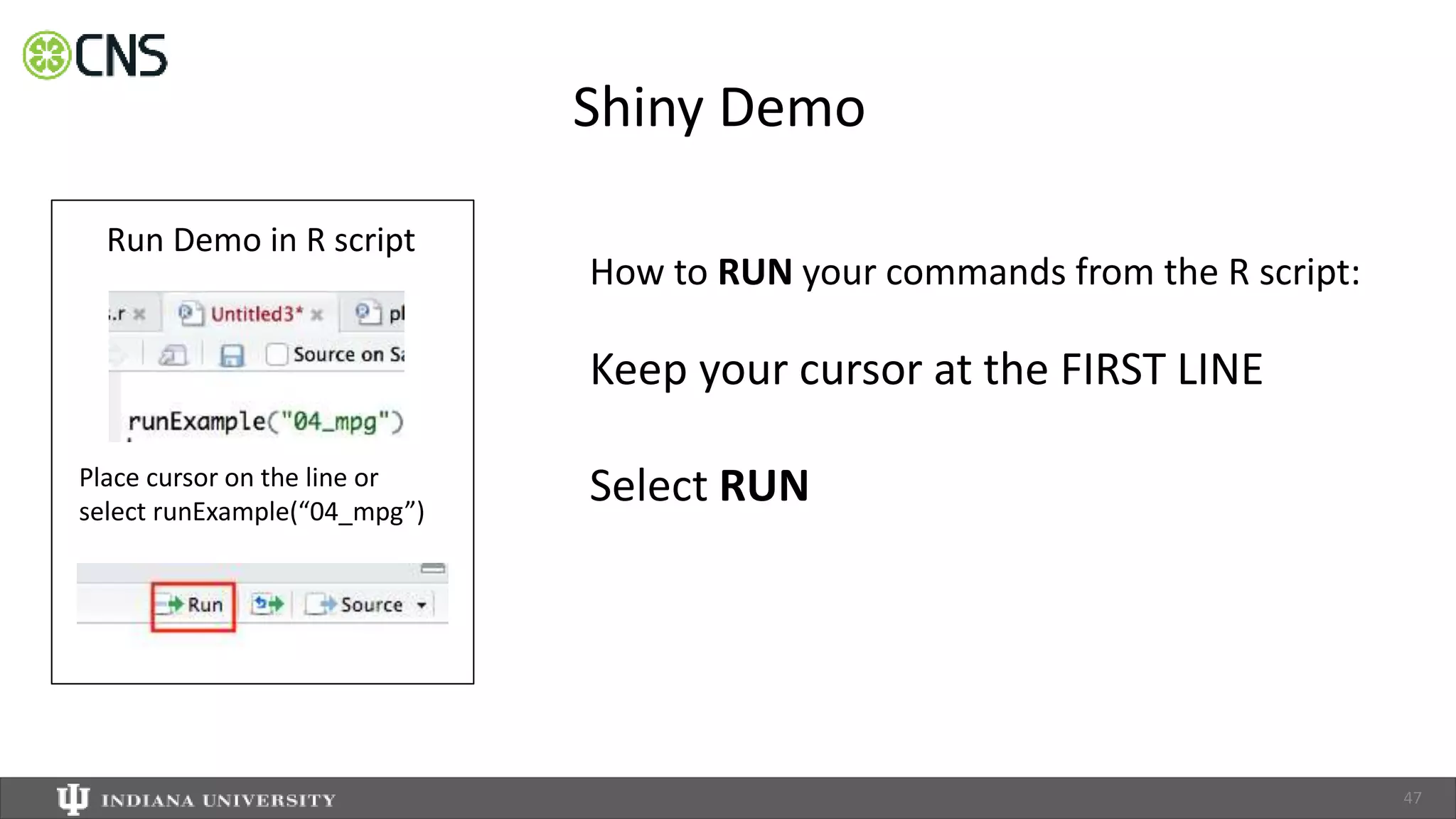

27. Run
Shiny Demo
Run Demo in R script
How to RUN your commands from the R script:
Keep your cursor at the FIRST LINE
Select RUNPlace cursor on the line or
select runExample(“04_mpg”)
47

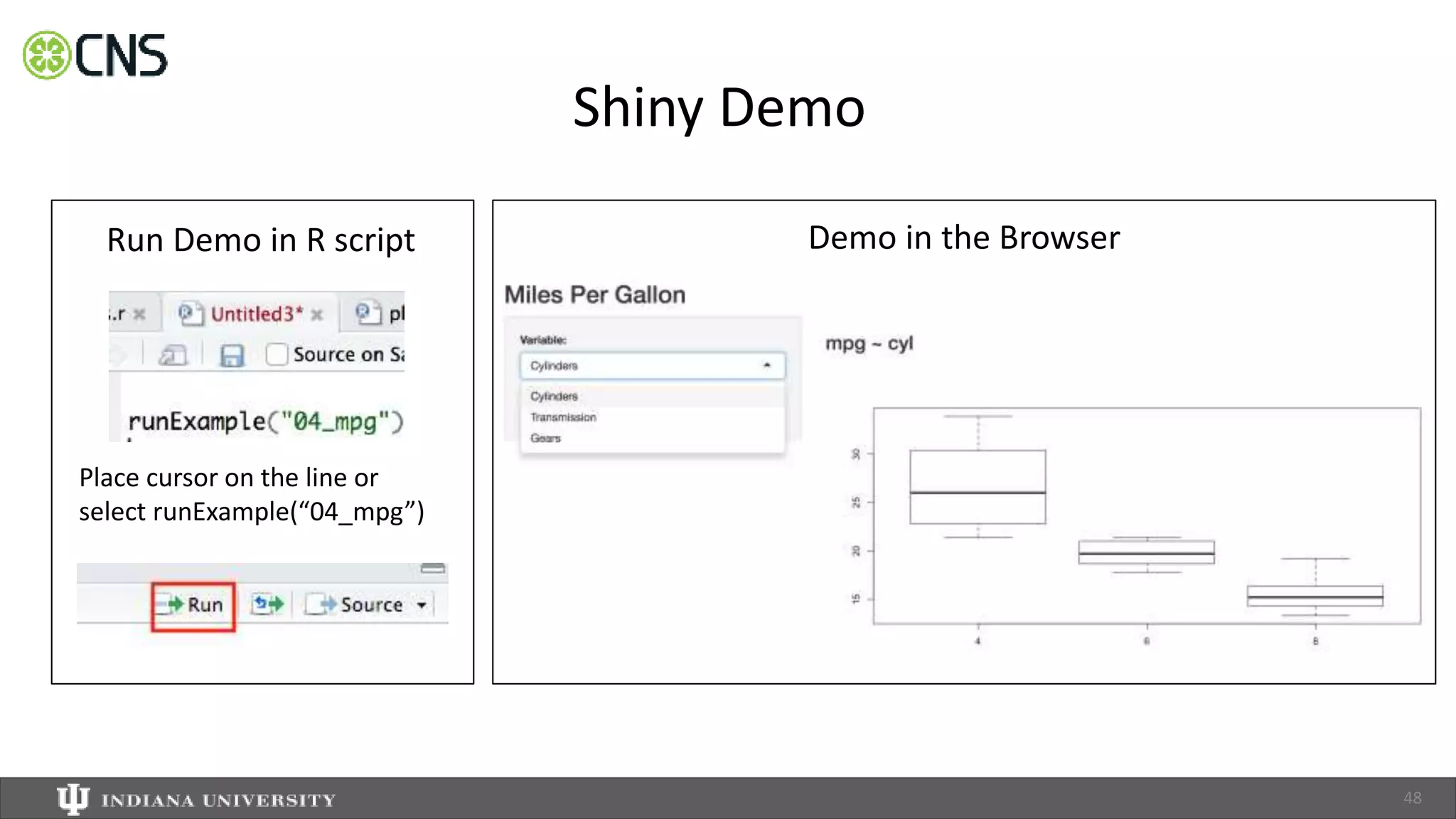

28. Run
Shiny Demo
Run Demo in R script Demo in the Browser
Place cursor on the line or
select runExample(“04_mpg”)
48

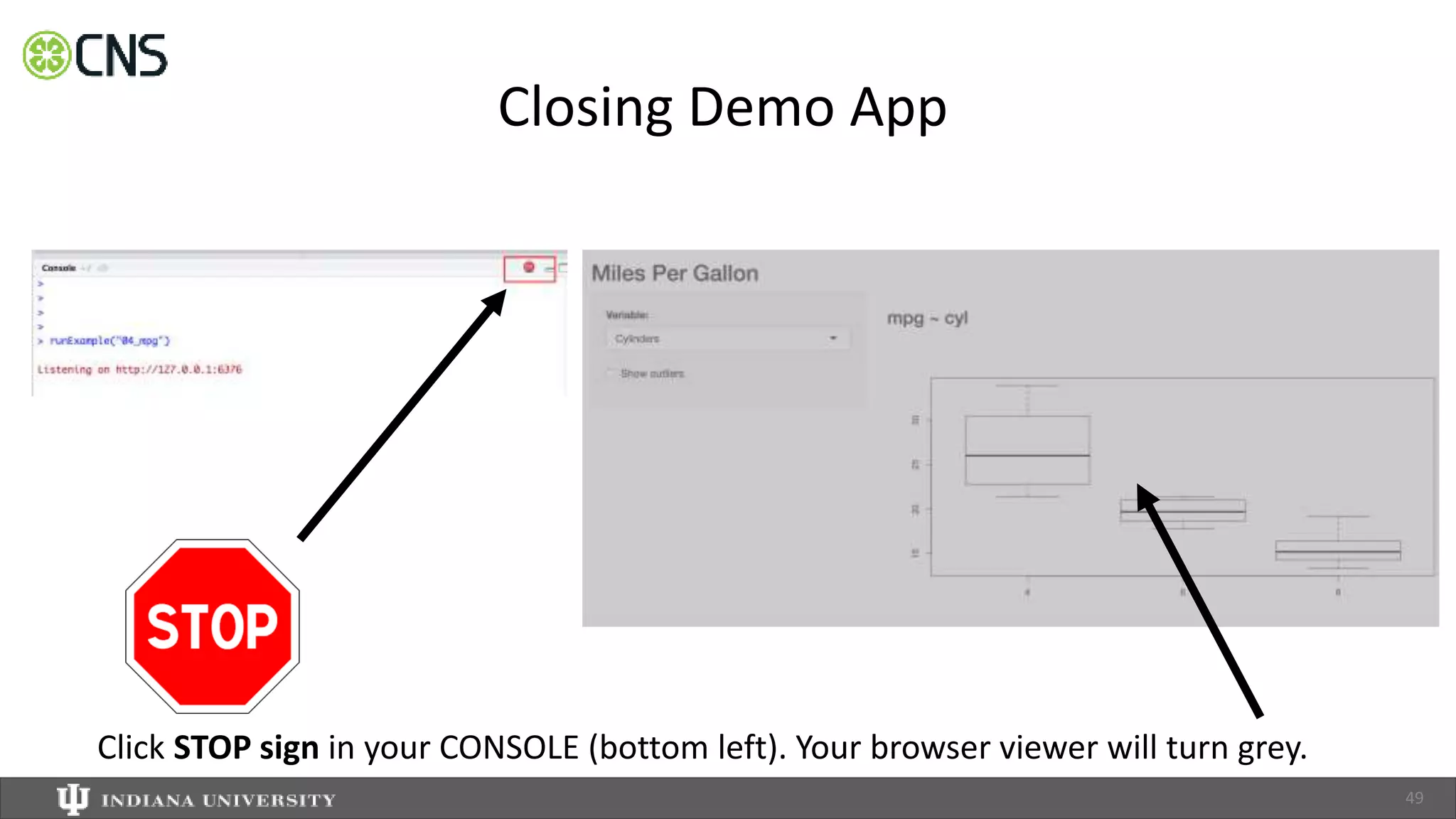

29. Closing Demo App
Click STOP sign in your CONSOLE (bottom left). Your browser viewer will turn grey.
49

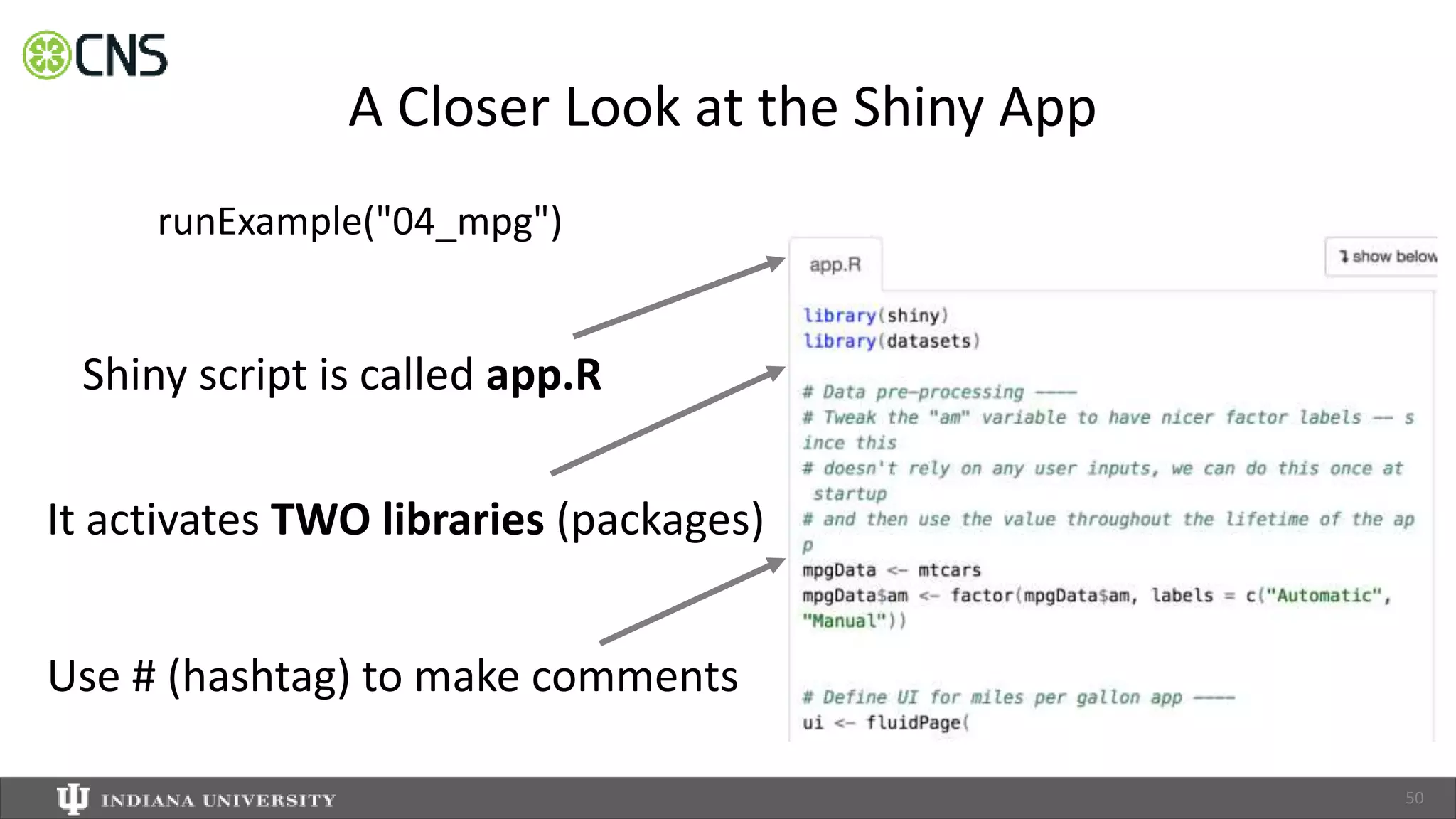

30. A Closer Look at the Shiny App
runExample("04_mpg")
Shiny script is called app.R
It activates TWO libraries (packages)
Use # (hashtag) to make comments
50

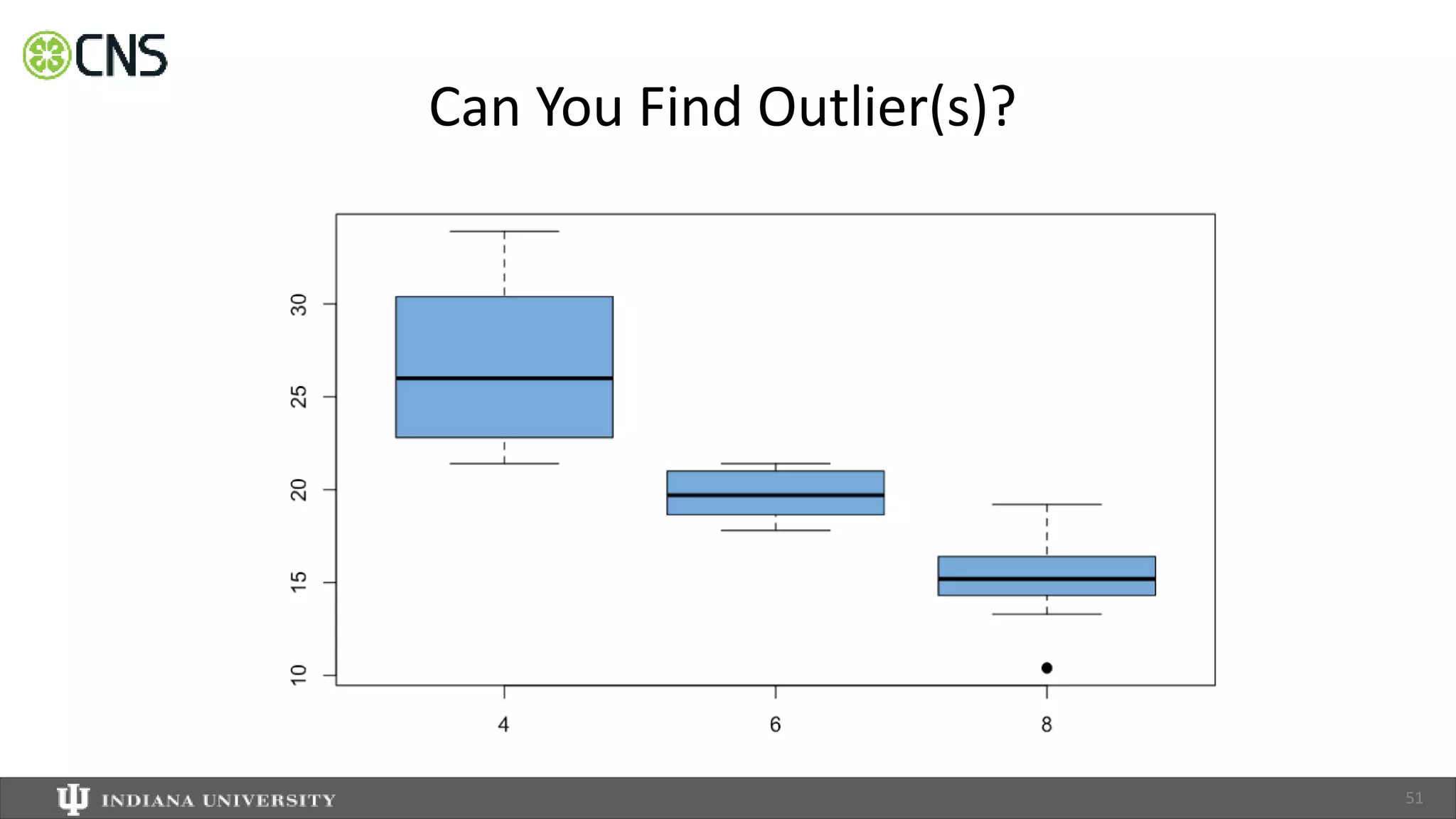

31. Can You Find Outlier(s)?
51

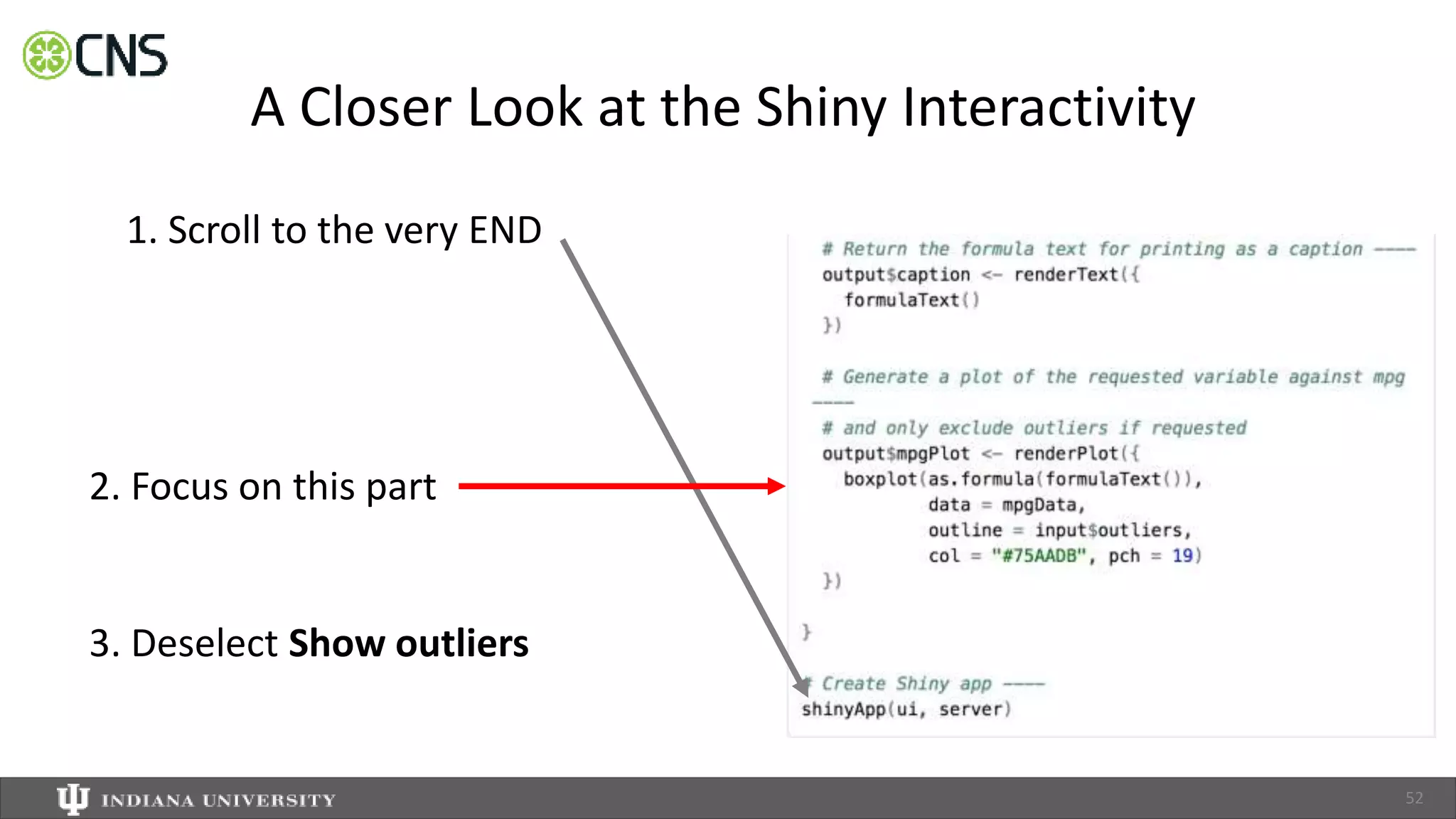

32. A Closer Look at the Shiny Interactivity
1. Scroll to the very END
52
2. Focus on this part
3. Deselect Show outliers

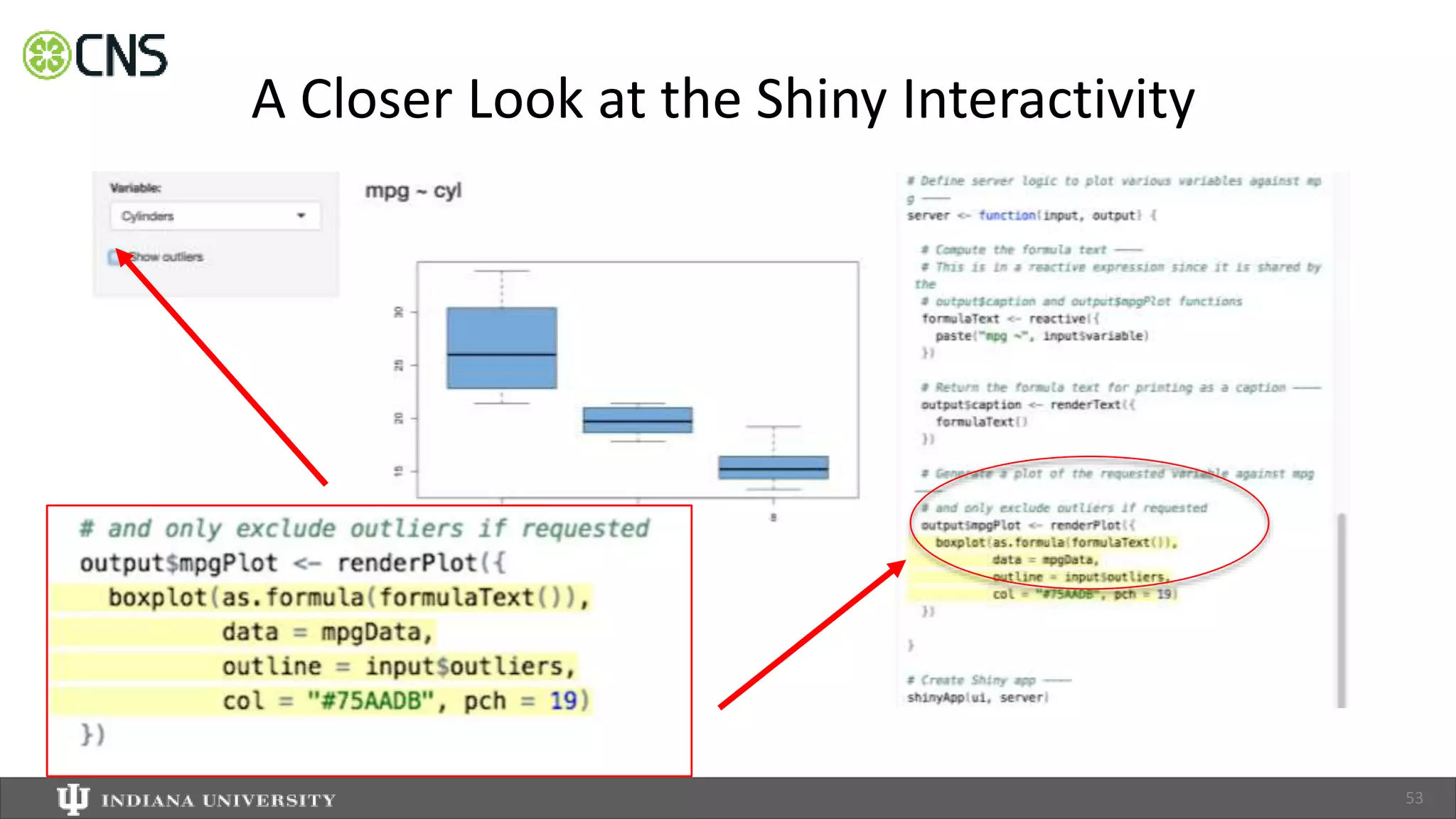

33. A Closer Look at the Shiny Interactivity
53

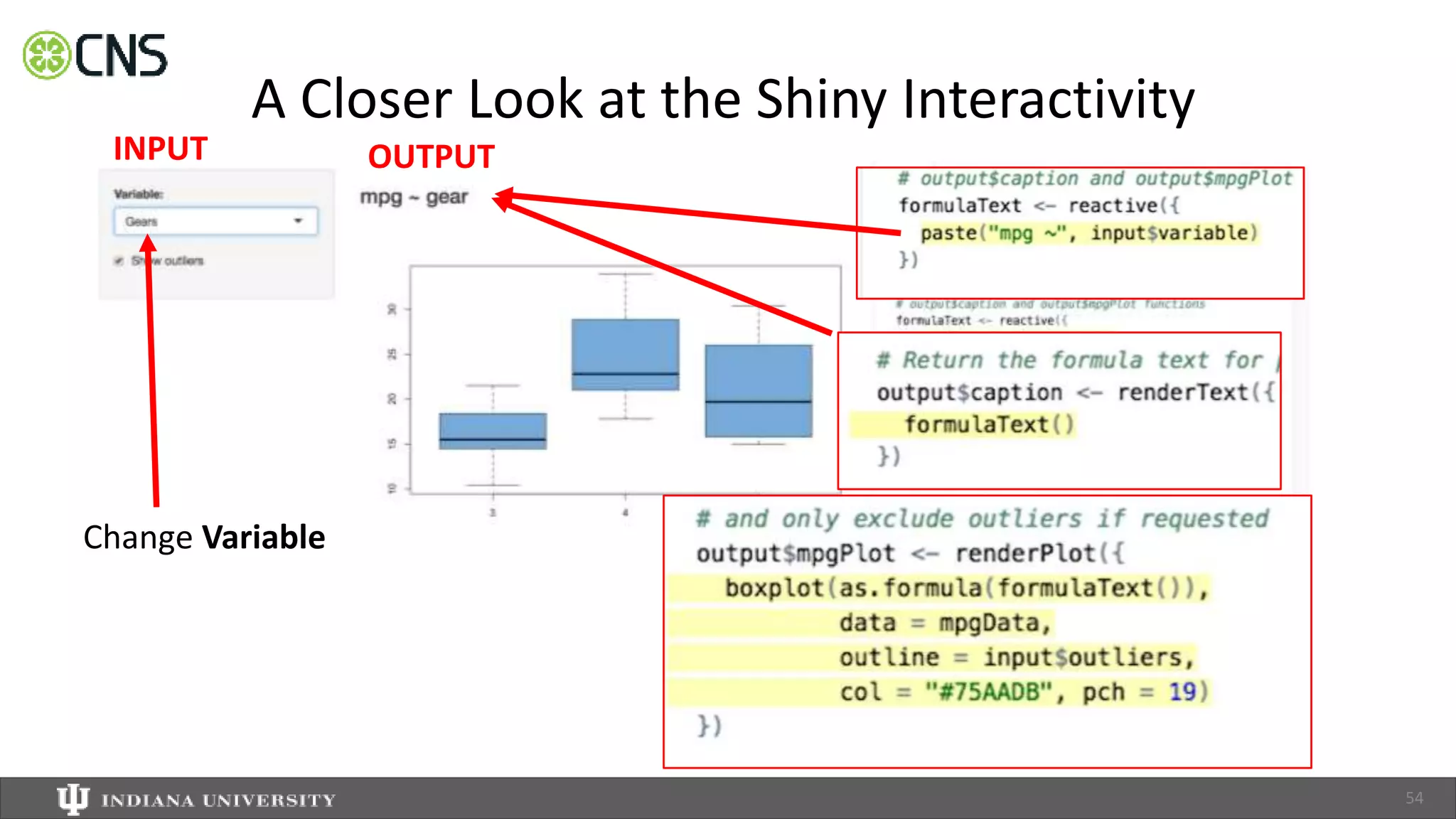

34. A Closer Look at the Shiny Interactivity
54
Change Variable
INPUT OUTPUT

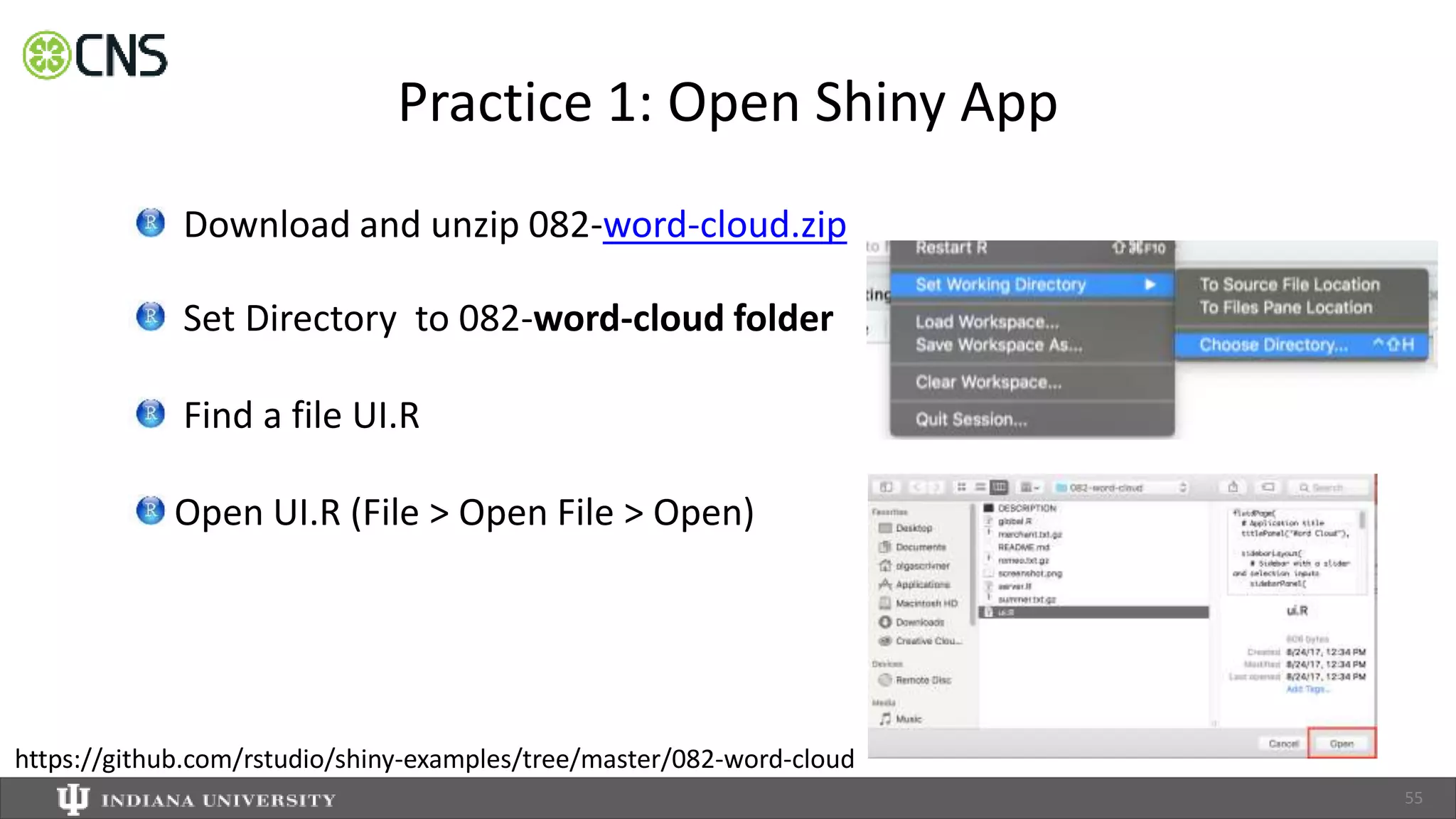

35. Practice 1: Open Shiny App
Download and unzip 082-word-cloud.zip
Set Directory to 082-word-cloud folder
Find a file UI.R
Open UI.R (File > Open File > Open)
55
https://github.com/rstudio/shiny-examples/tree/master/082-word-cloud

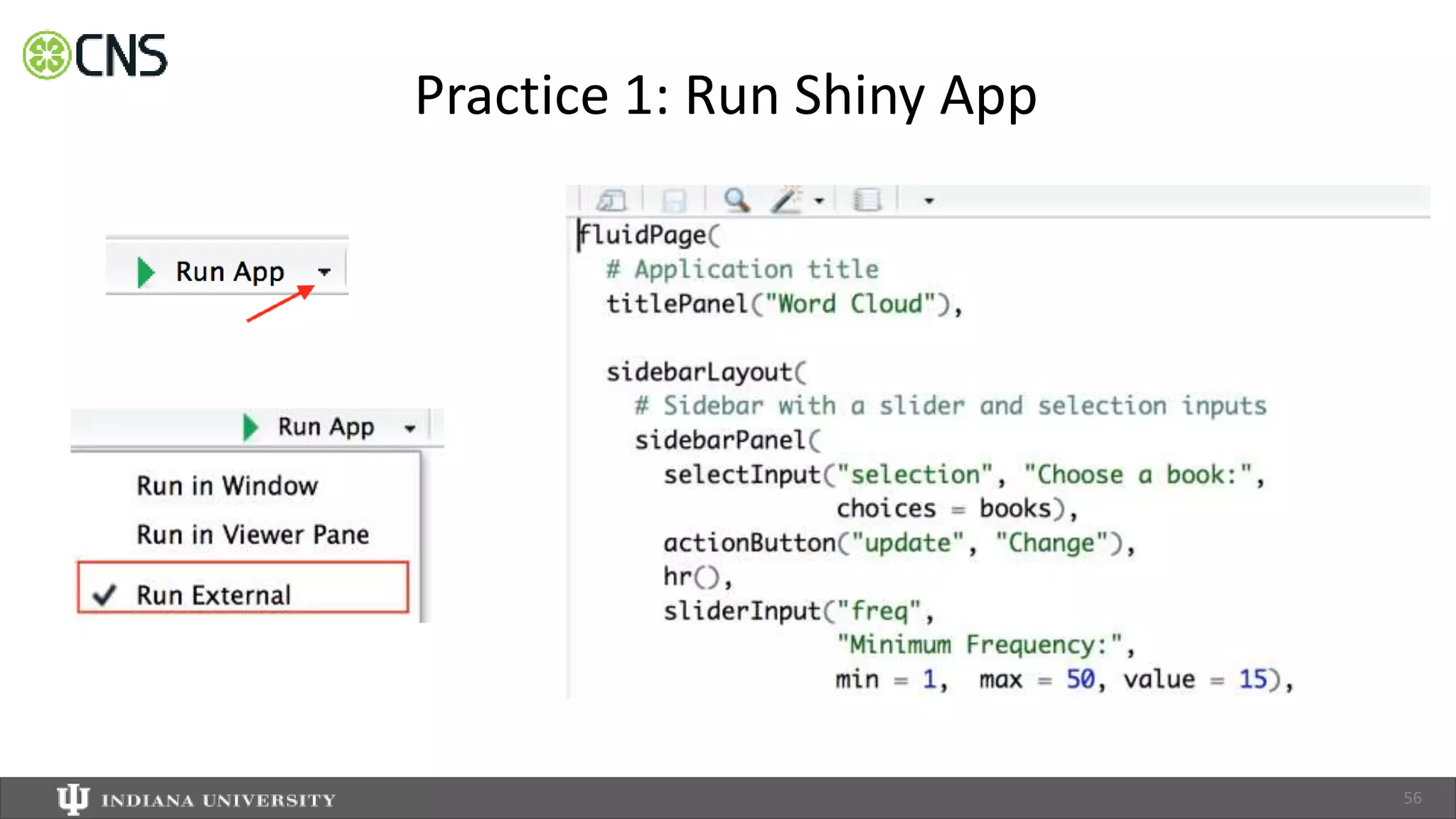

36. Practice 1: Run Shiny App
56

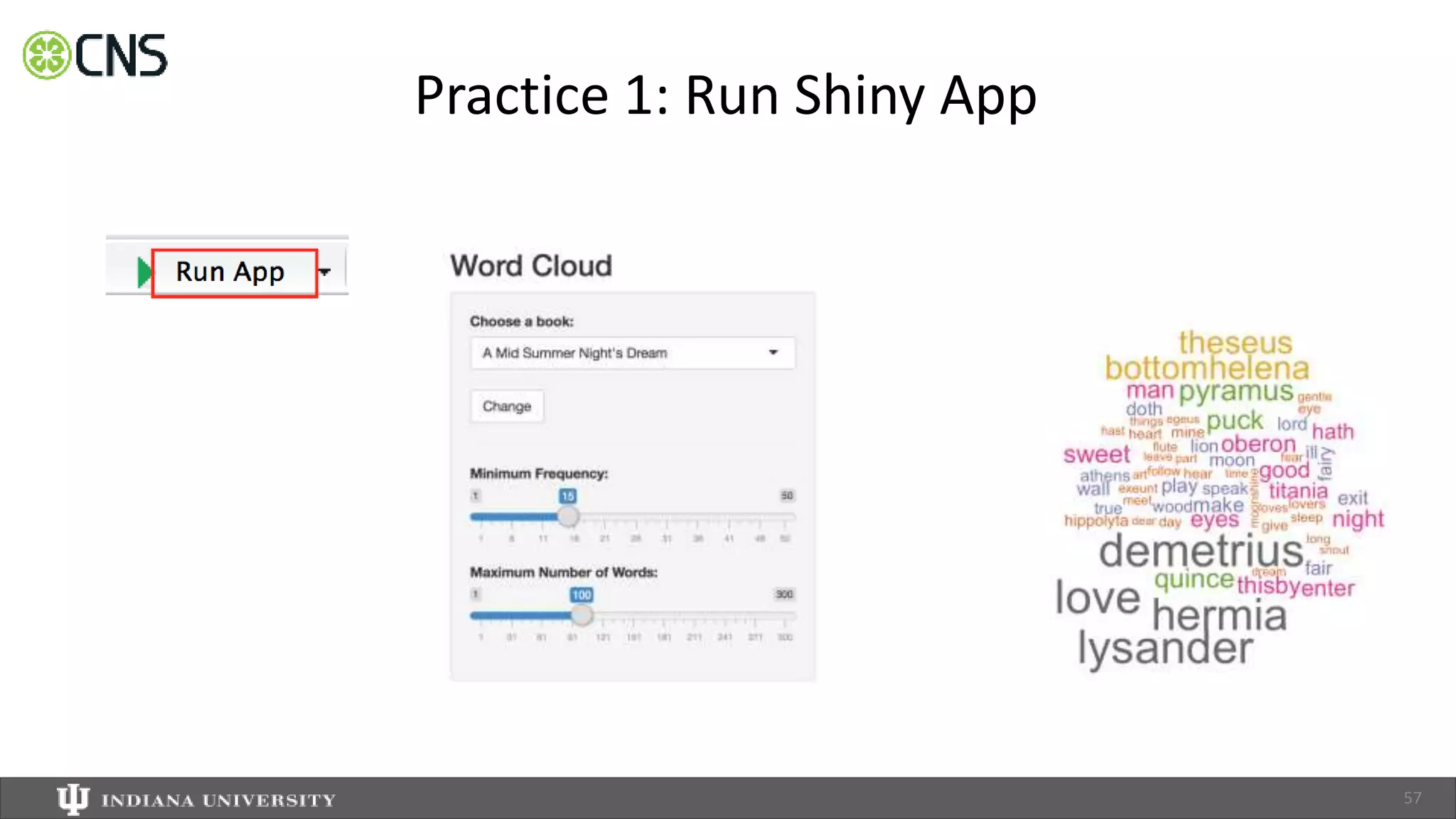

37. Practice 1: Run Shiny App
57

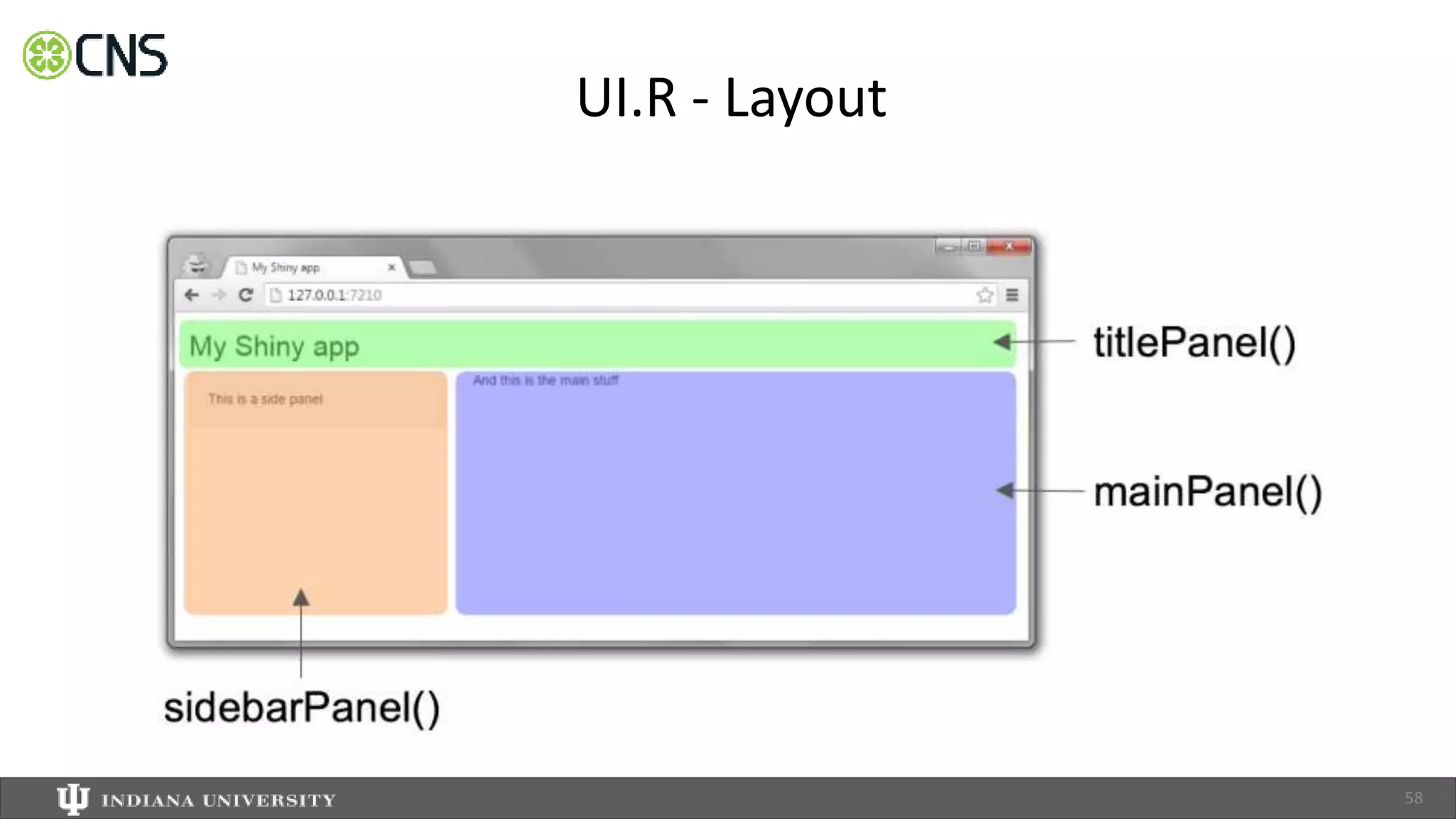

38. UI.R - Layout
58

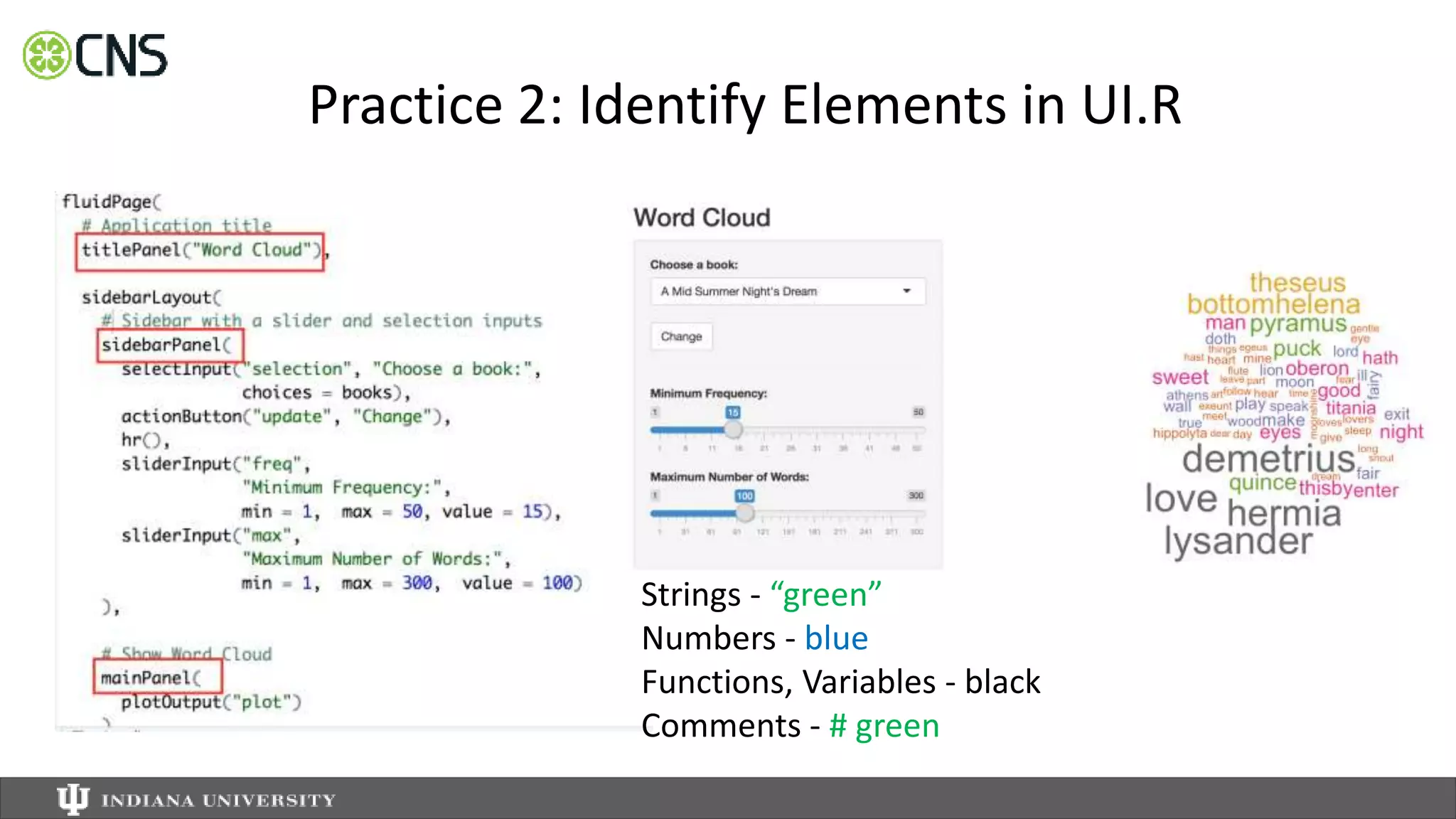

39. Practice 2: Identify Elements in UI.R
Strings - “green”
Numbers - blue
Functions, Variables - black
Comments - # green

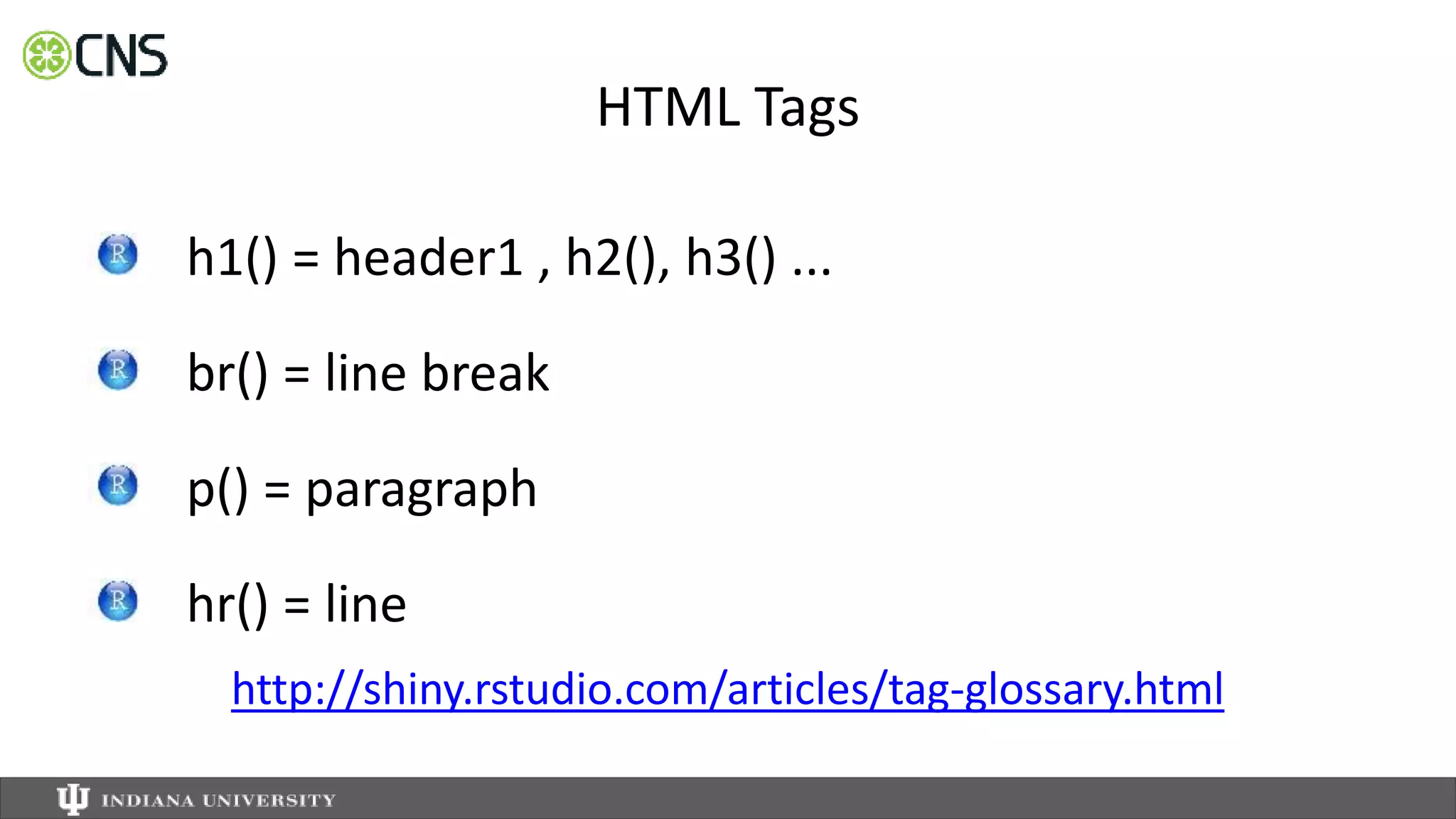

40. HTML Tags
h1() = header1 , h2(), h3() ...
br() = line break
p() = paragraph
hr() = line
http://shiny.rstudio.com/articles/tag-glossary.html

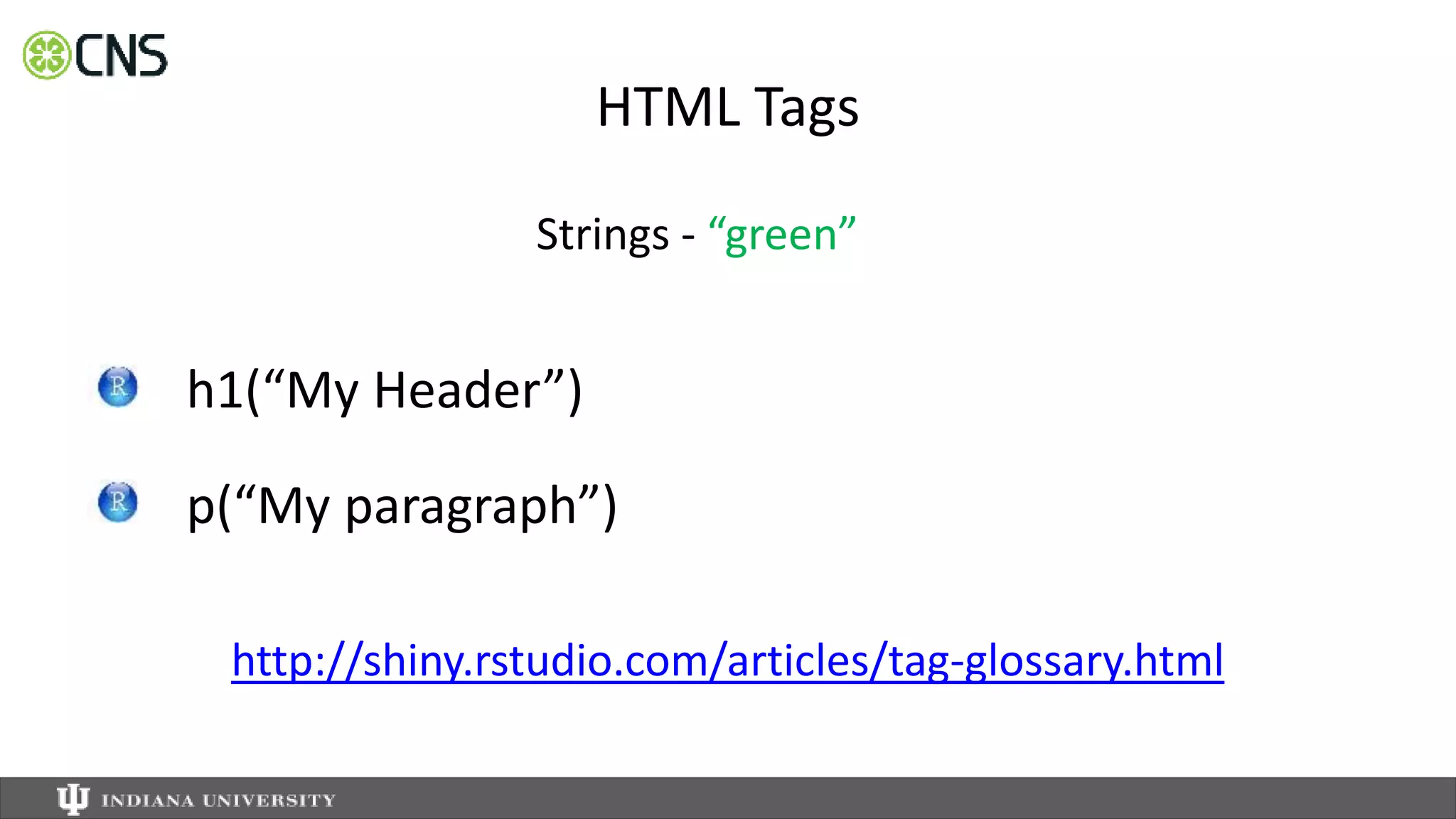

41. HTML Tags
h1(“My Header”)
p(“My paragraph”)
http://shiny.rstudio.com/articles/tag-glossary.html
Strings - “green”

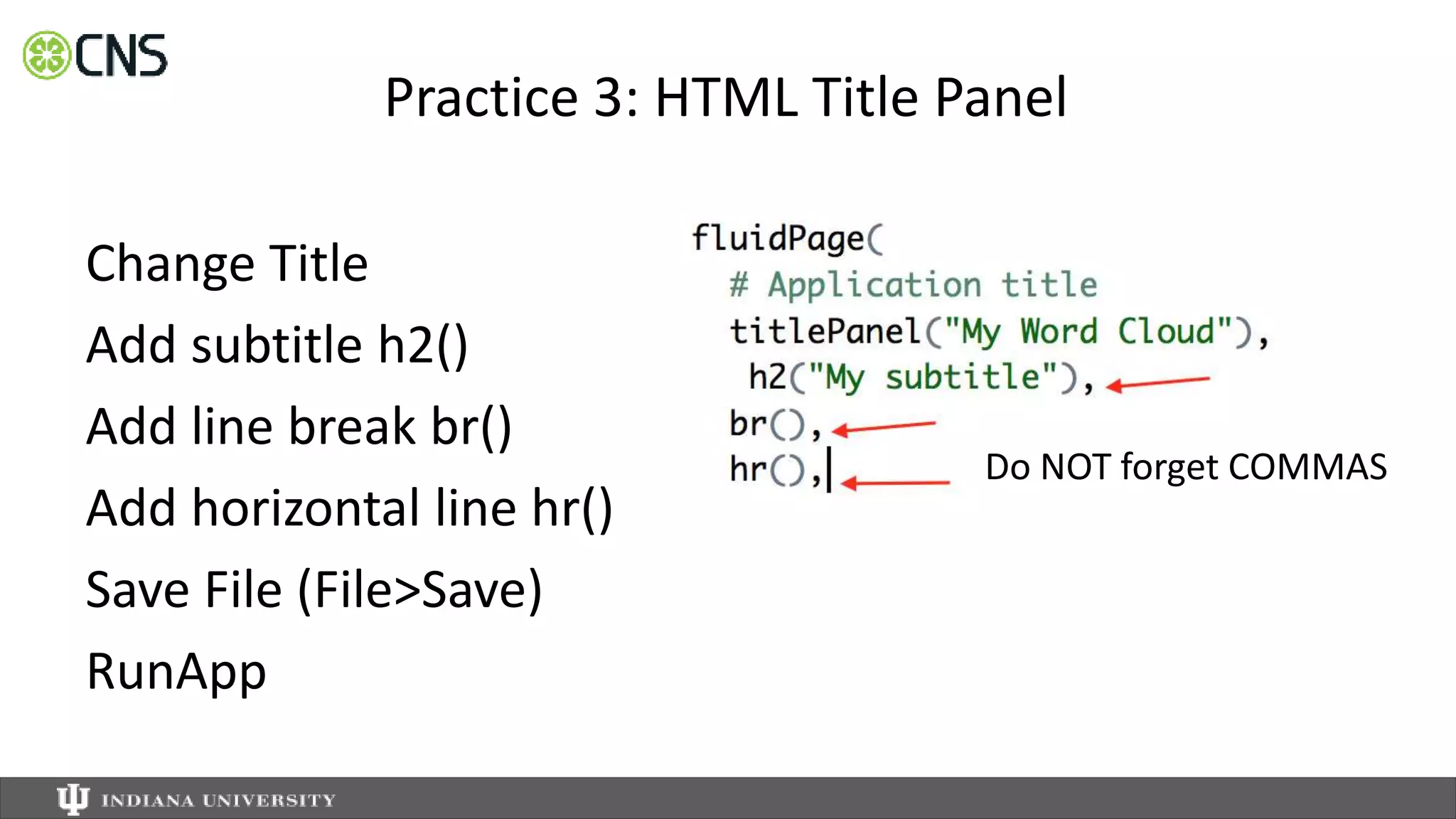

42. Change Title
Add subtitle h2()
Add line break br()
Add horizontal line hr()
Save File (File>Save)
RunApp
Practice 3: HTML Title Panel
Do NOT forget COMMAS

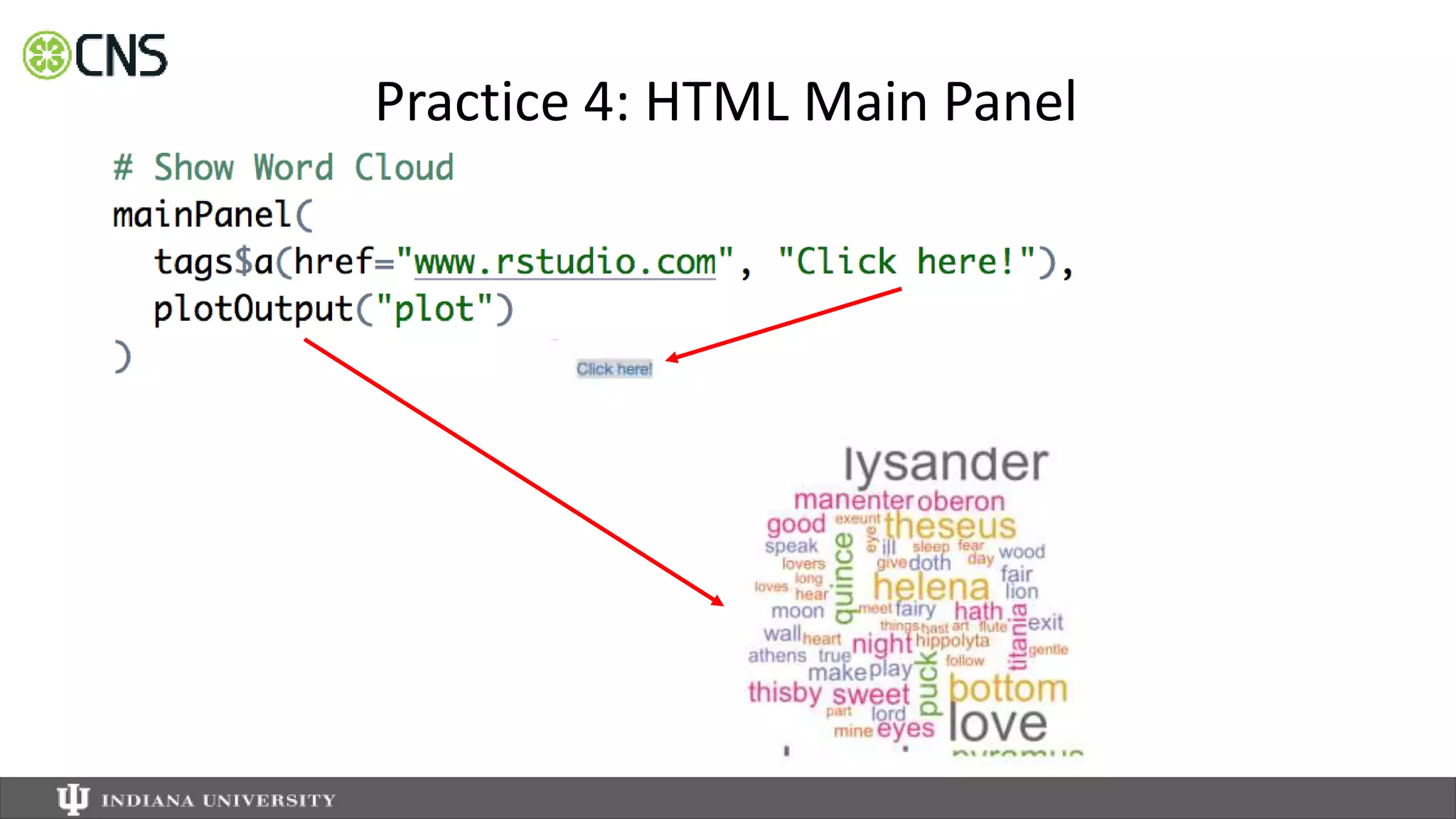

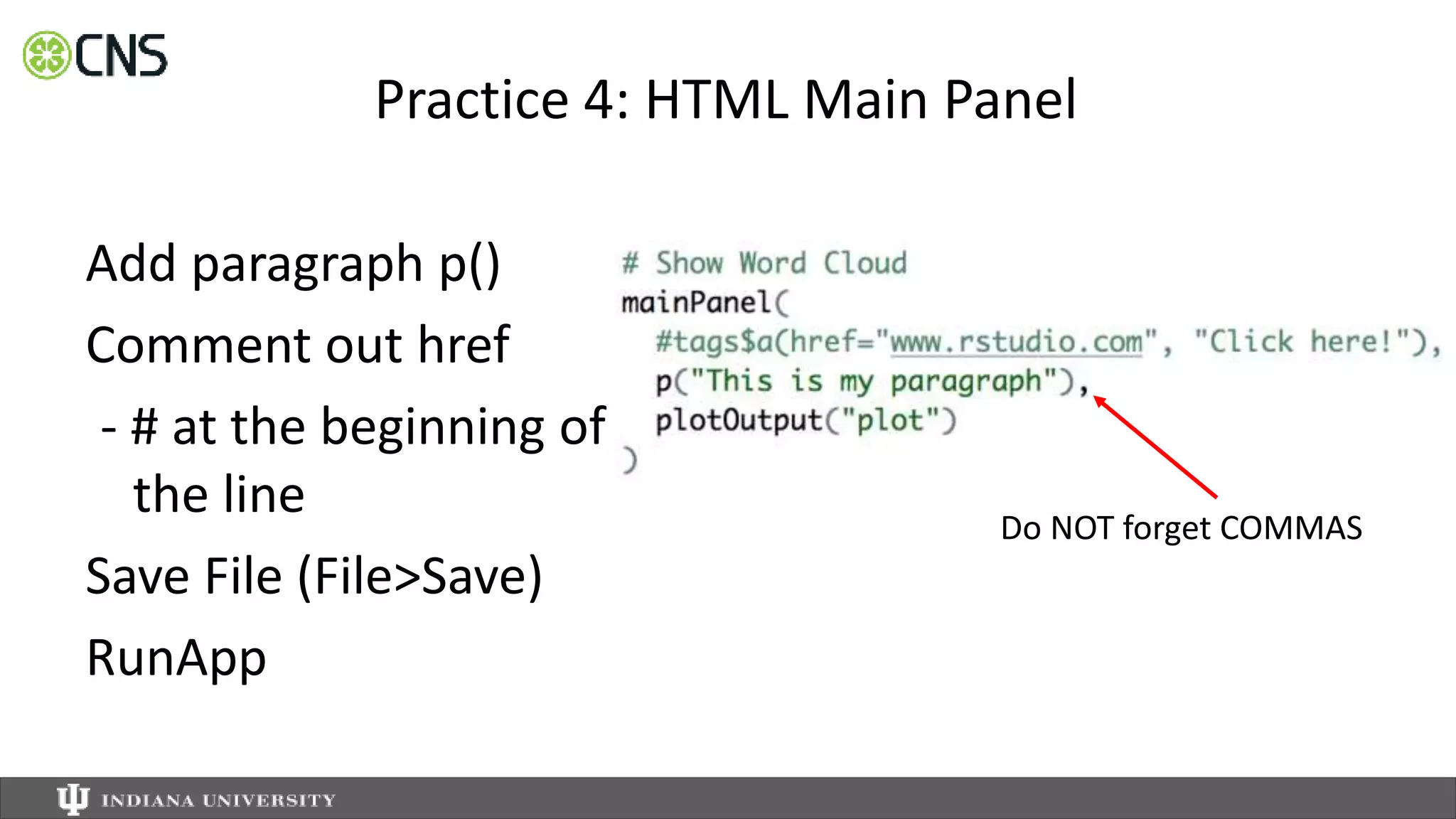

43. Practice 4: HTML Main Panel

44. Add paragraph p()
Comment out href
- # at the beginning of
the line
Save File (File>Save)
RunApp
Practice 4: HTML Main Panel
Do NOT forget COMMAS

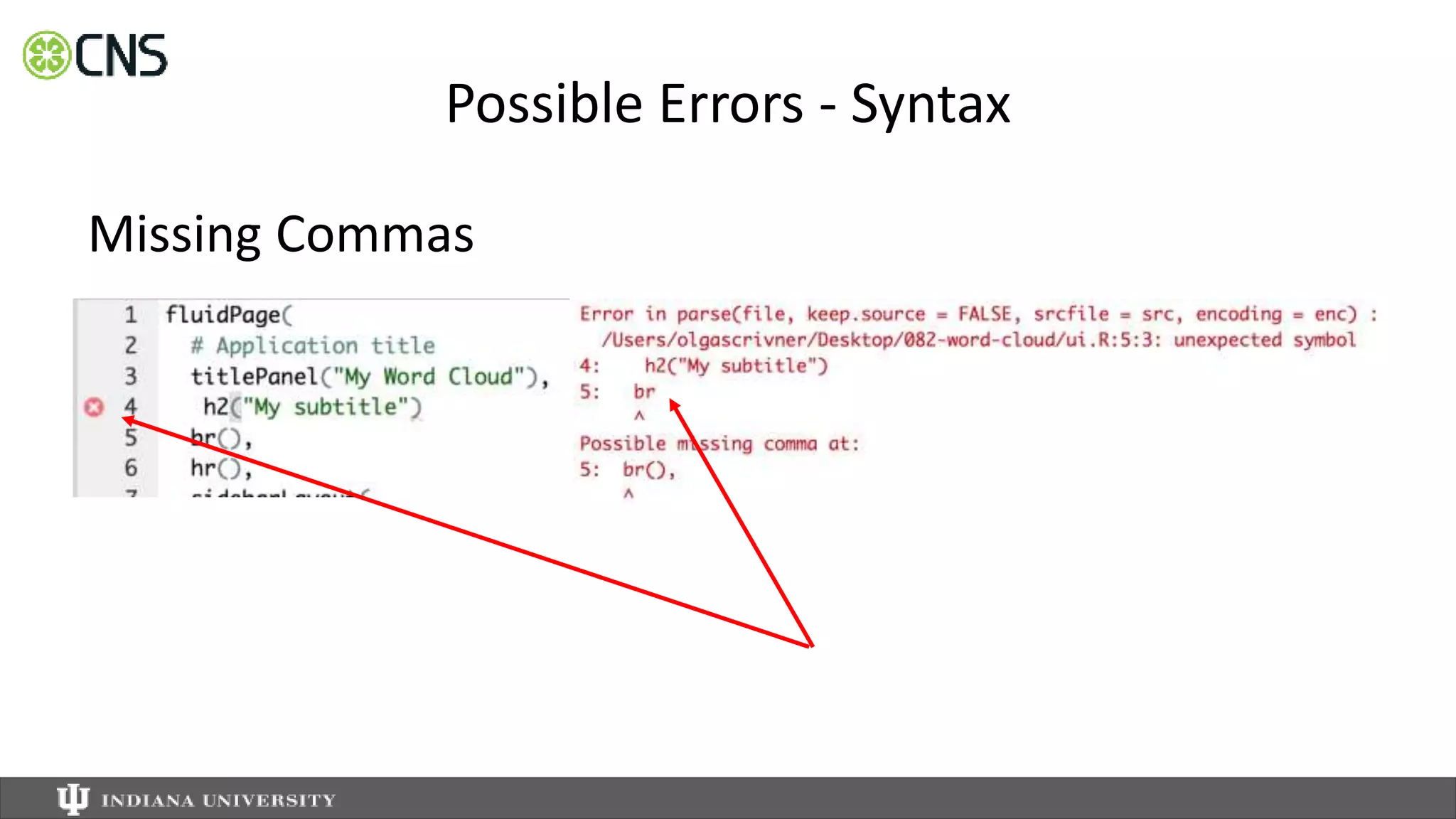

45. Possible Errors - Syntax
Missing Commas

46. Creating a Shiny App

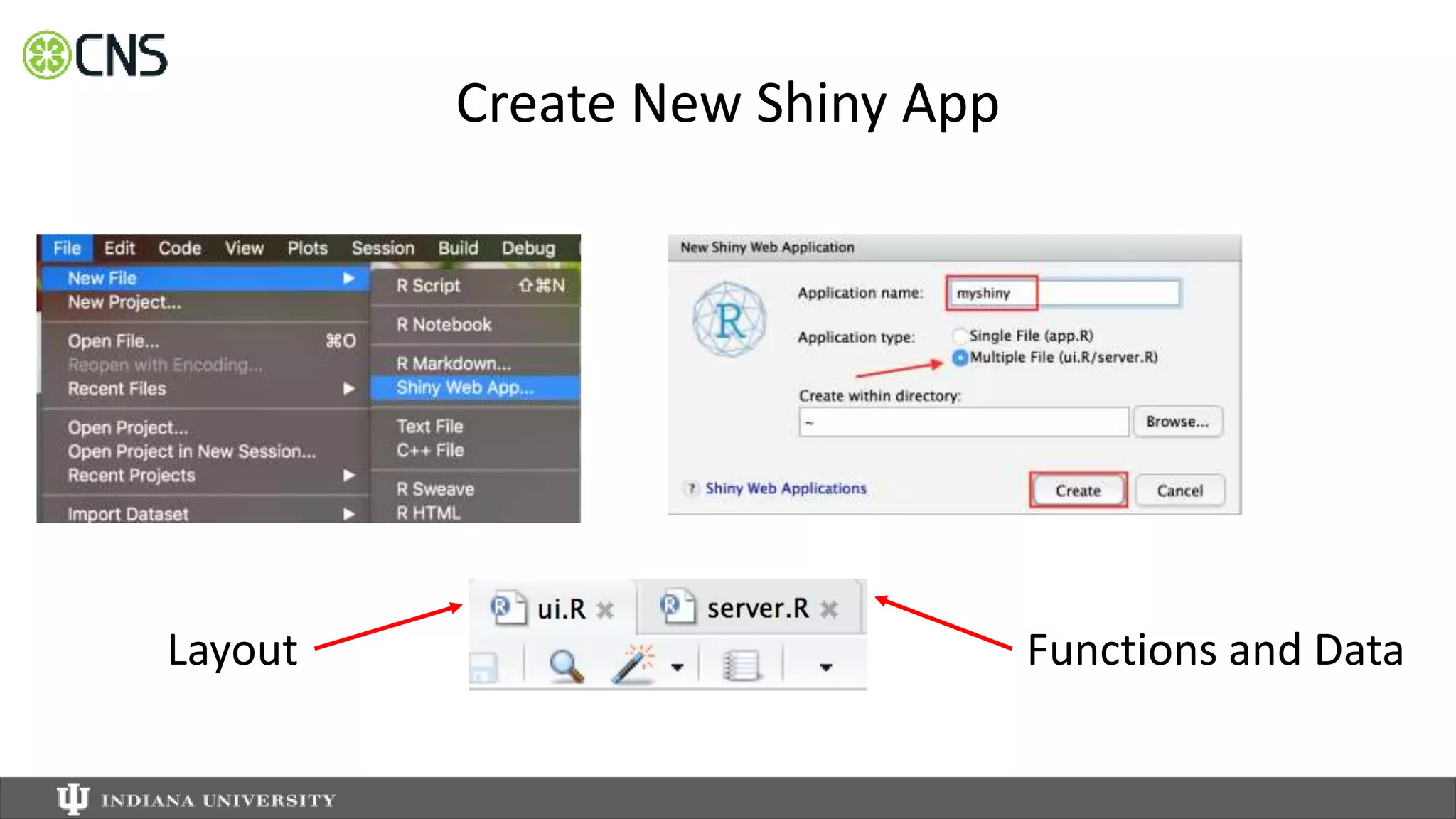

47. Create New Shiny App
Layout Functions and Data

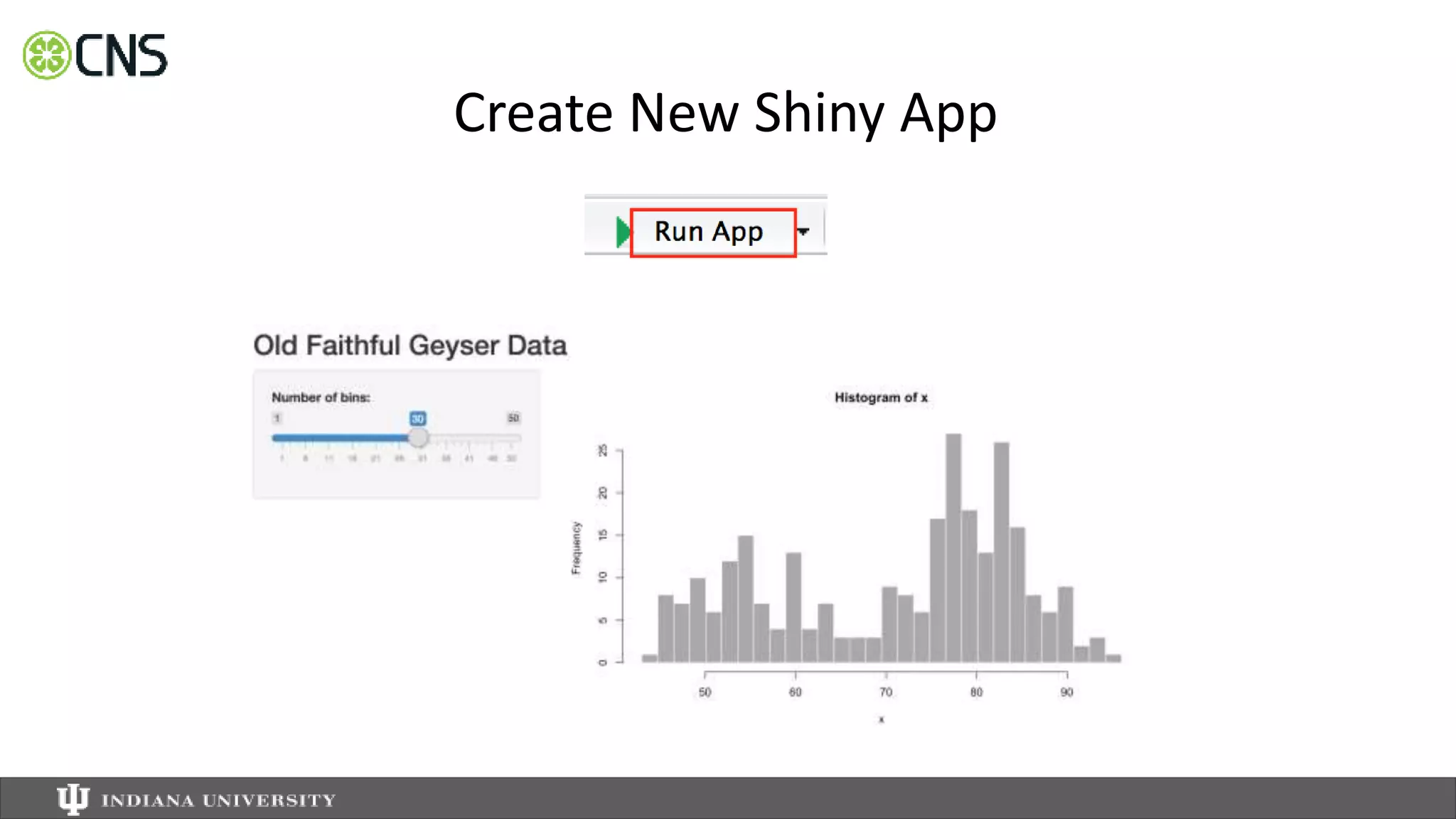

48. Create New Shiny App

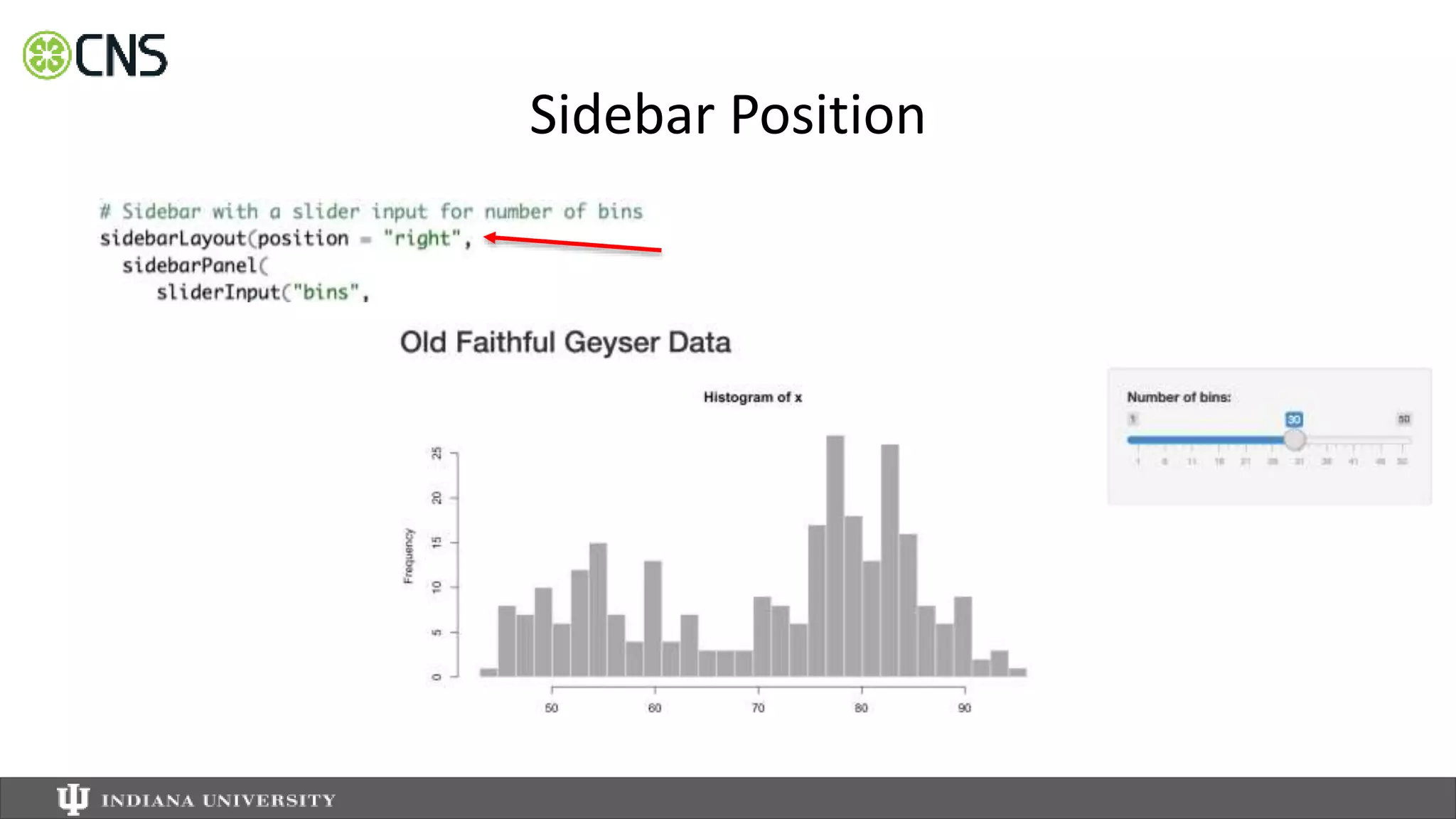

49. Sidebar Position

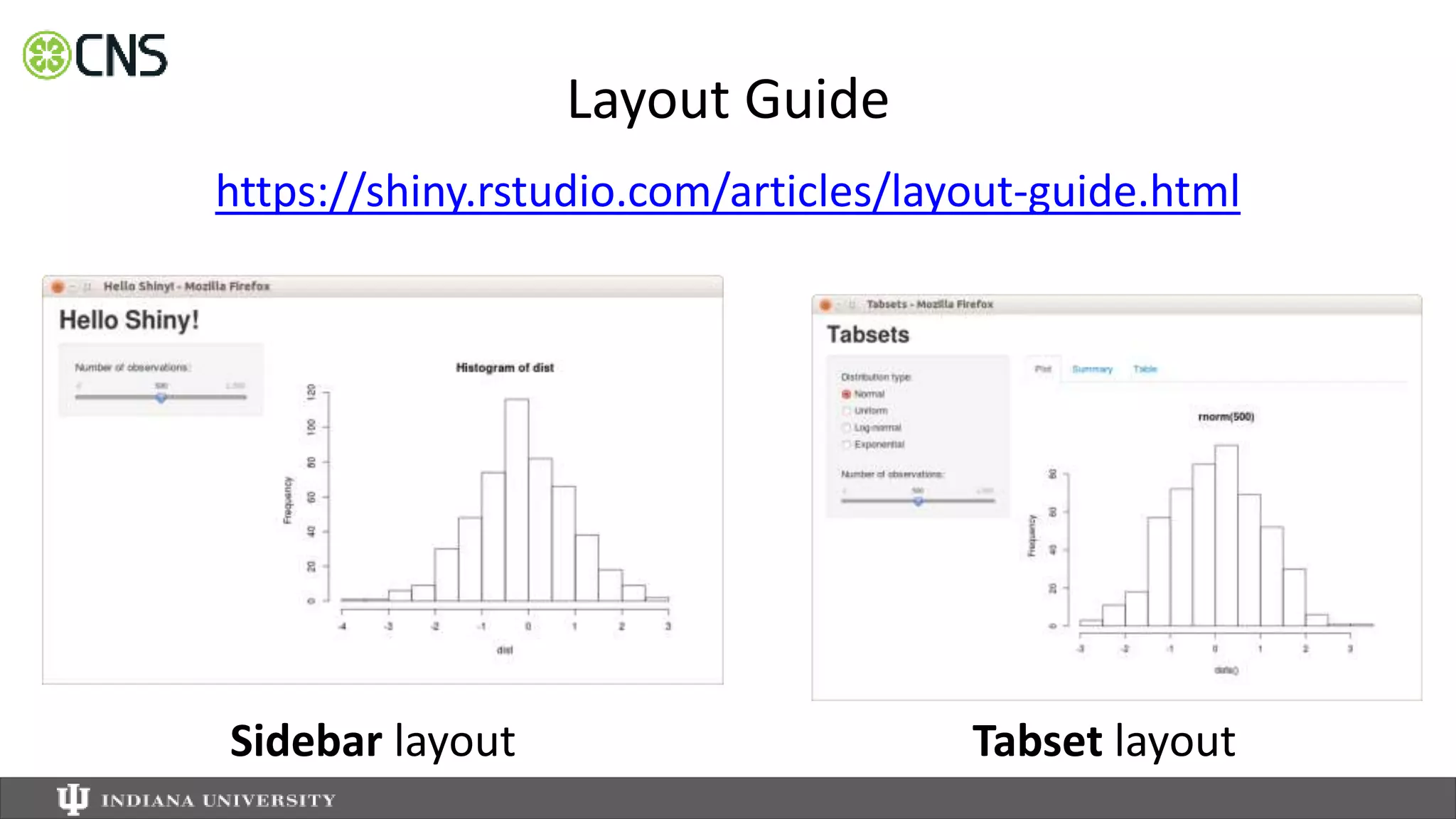

50. Layout Guide
https://shiny.rstudio.com/articles/layout-guide.html
Sidebar layout Tabset layout

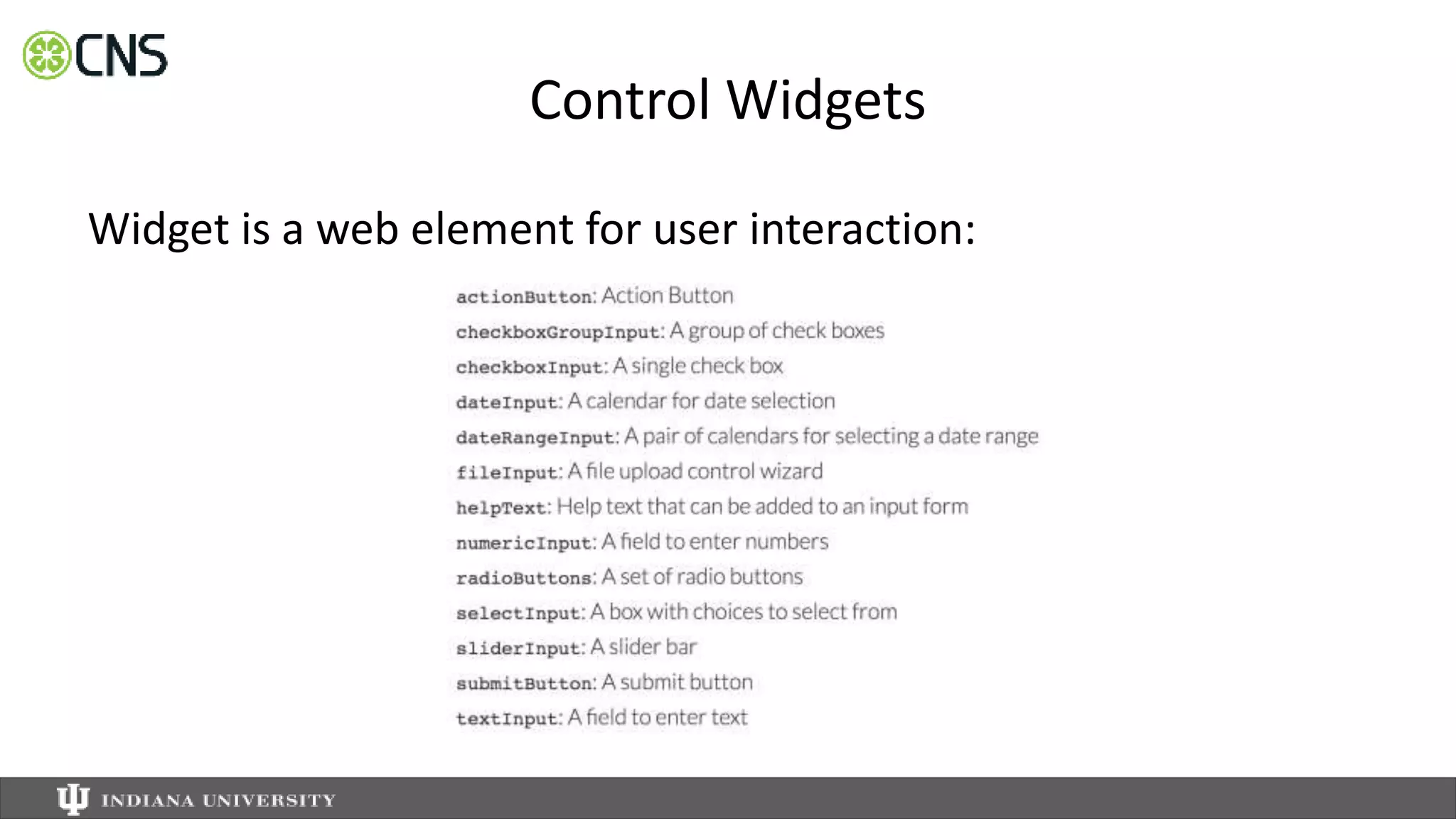

51. Control Widgets
Widget is a web element for user interaction:

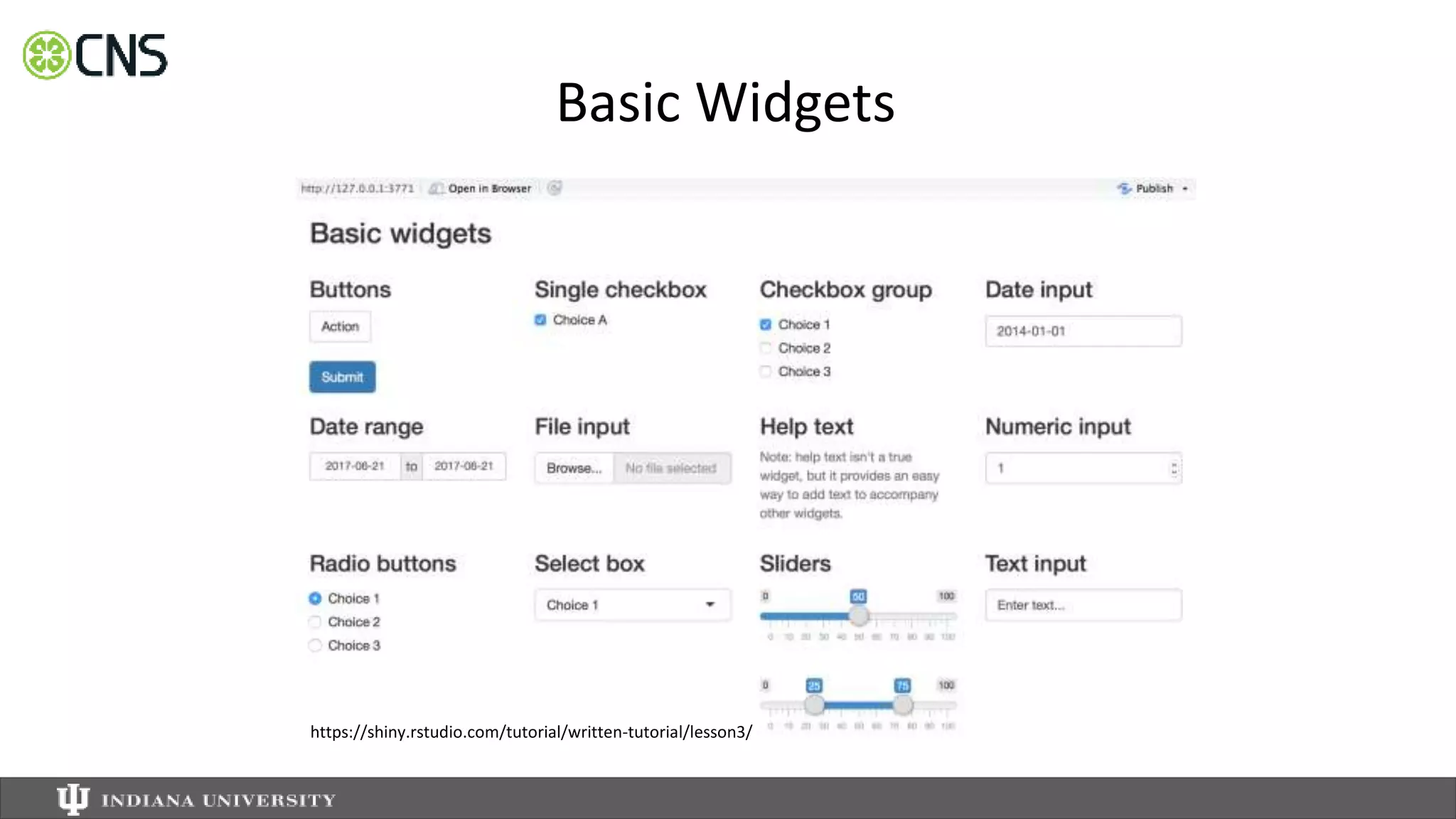

52. Basic Widgets
https://shiny.rstudio.com/tutorial/written-tutorial/lesson3/

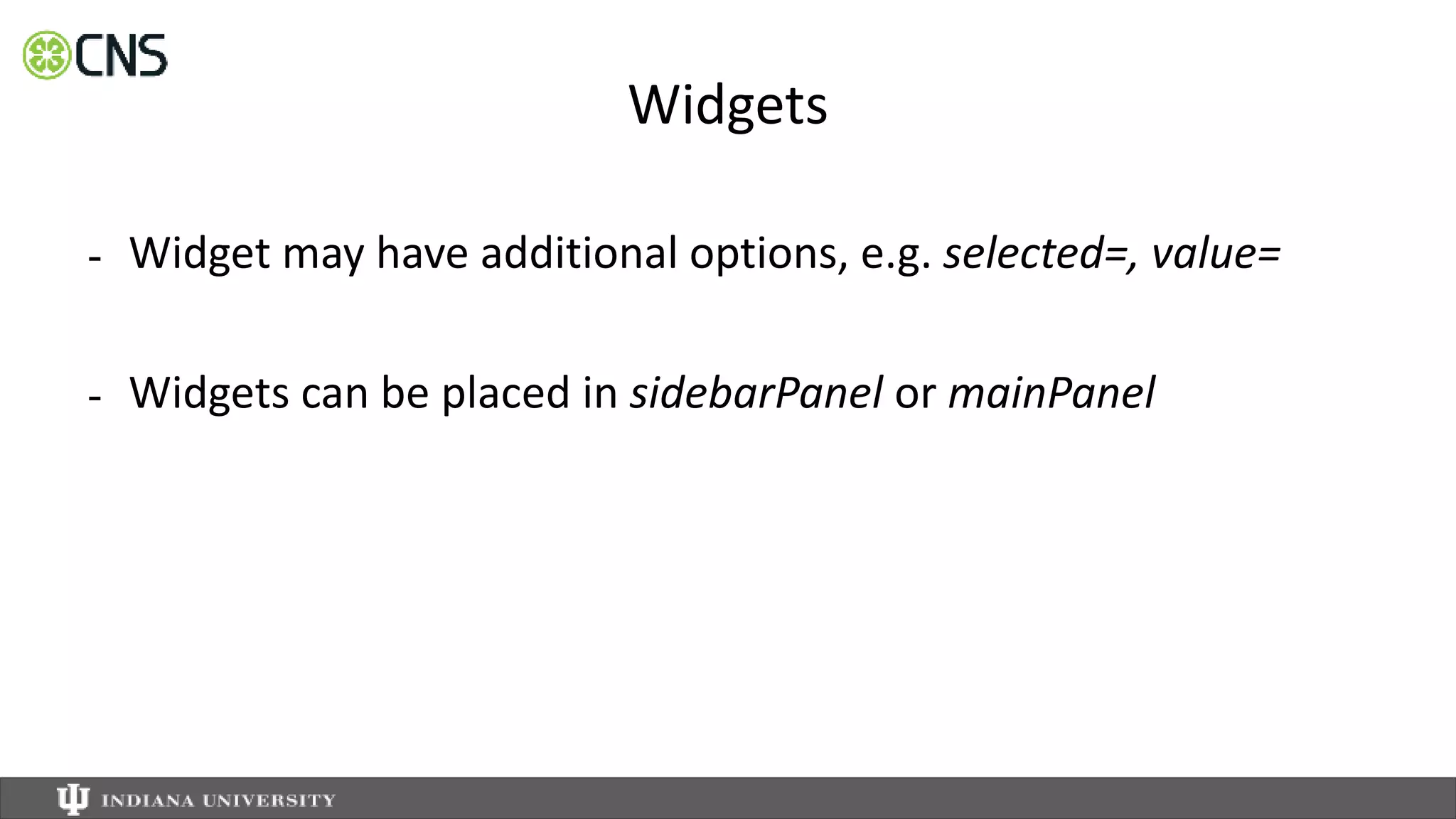

53. Widgets
- Widget may have additional options, e.g. selected=, value=
- Widgets can be placed in sidebarPanel or mainPanel

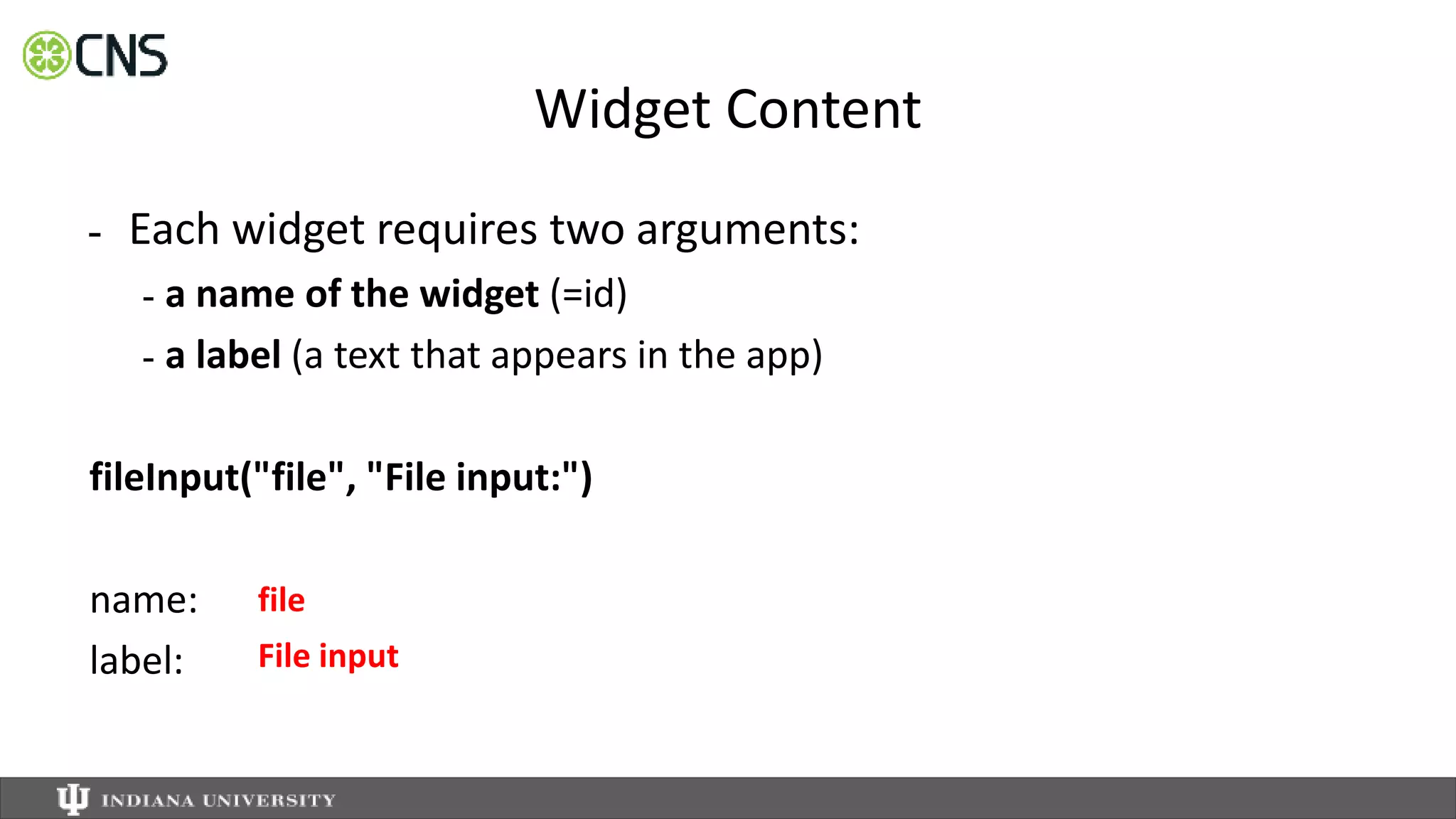

54. Widget Content
- Each widget requires two arguments:
- a name of the widget (=id)
- a label (a text that appears in the app)
fileInput("file", "File input:")
name:
label:
file
File input

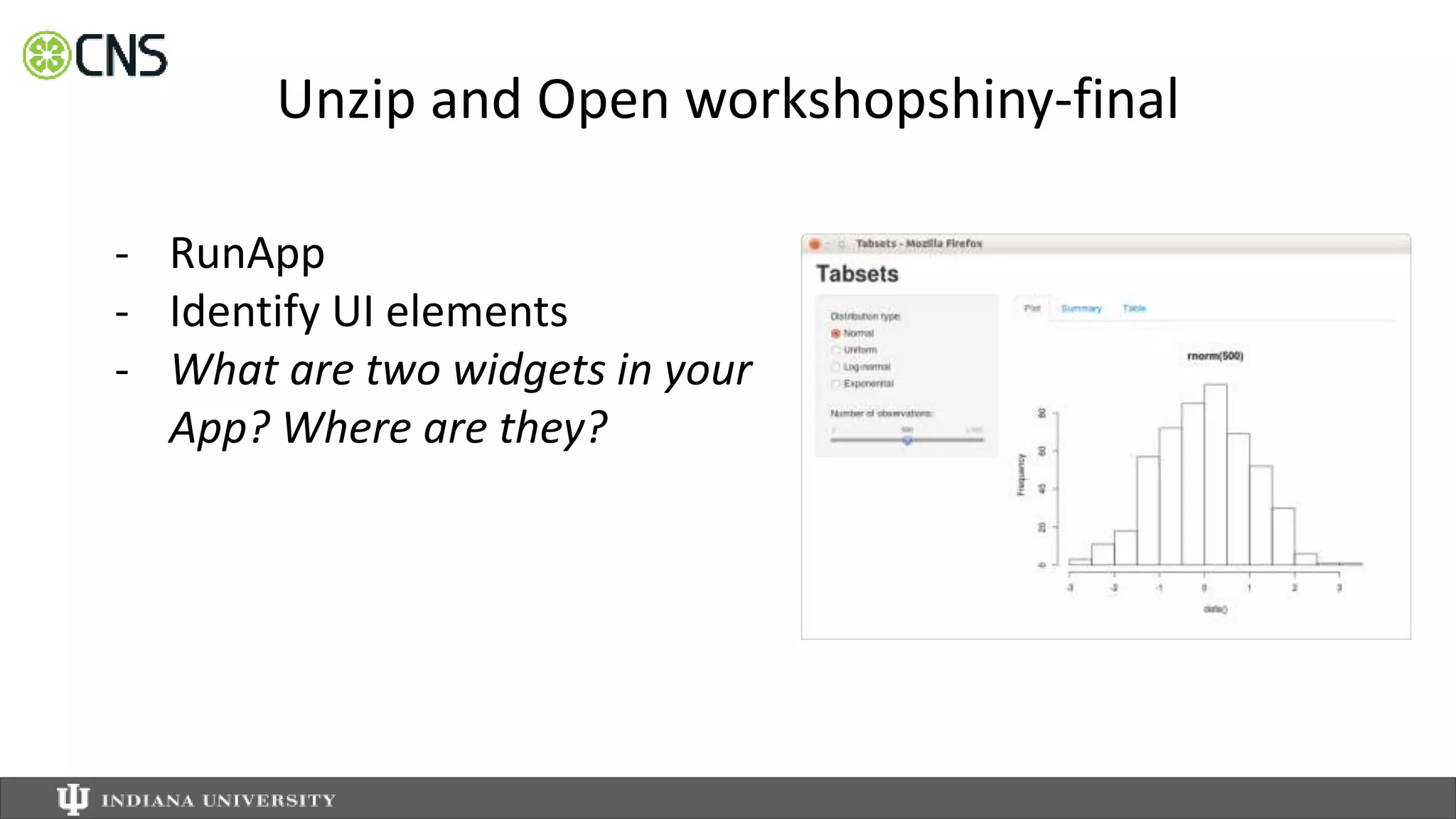

55. Unzip and Open workshopshiny-final
- RunApp
- Identify UI elements
- What are two widgets in your
App? Where are they?

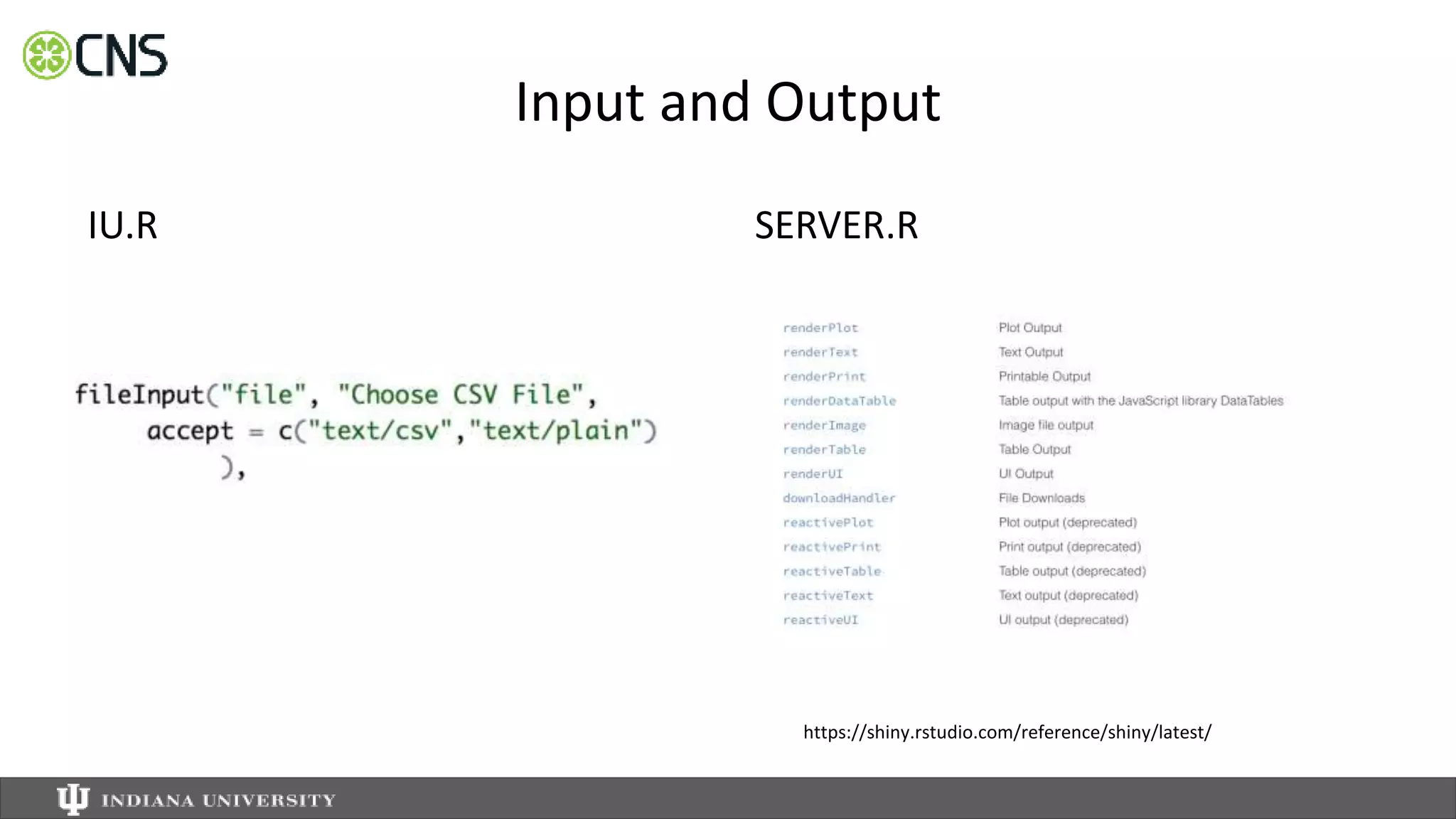

56. Input and Output
IU.R SERVER.R
https://shiny.rstudio.com/reference/shiny/latest/

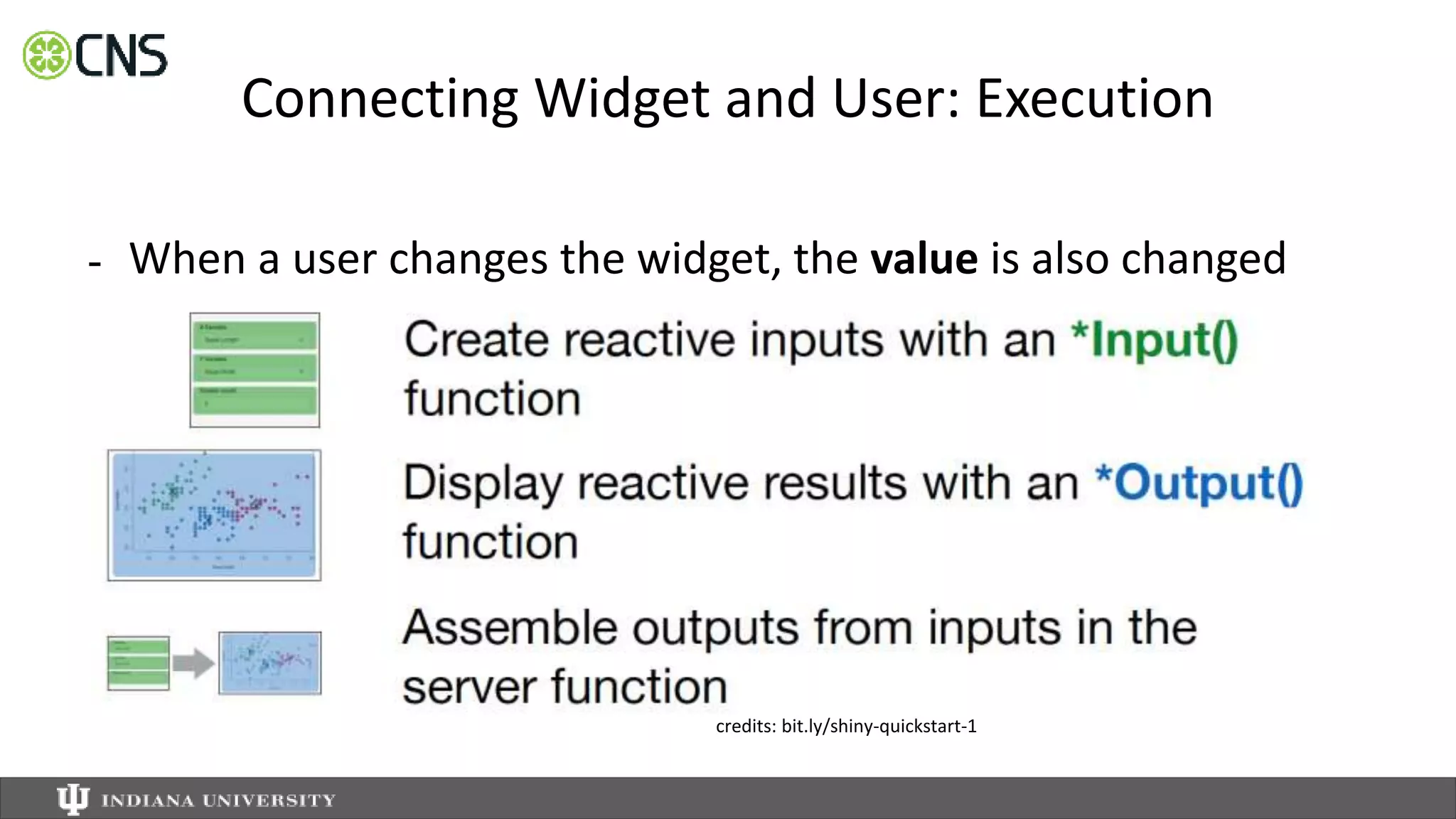

57. Connecting Widget and User: Execution
- When a user changes the widget, the value is also changed
credits: bit.ly/shiny-quickstart-1

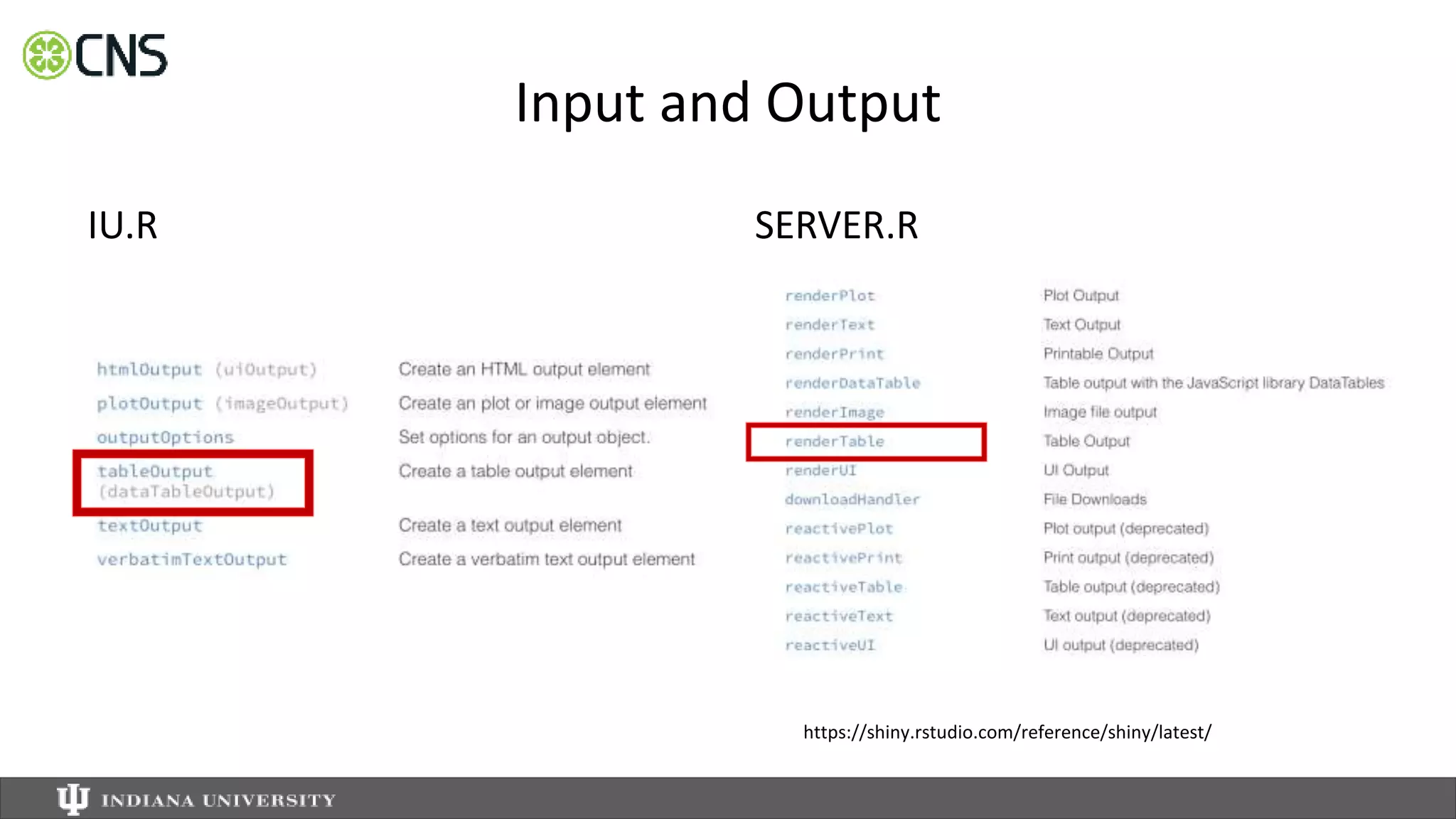

58. Input and Output
IU.R SERVER.R
https://shiny.rstudio.com/reference/shiny/latest/

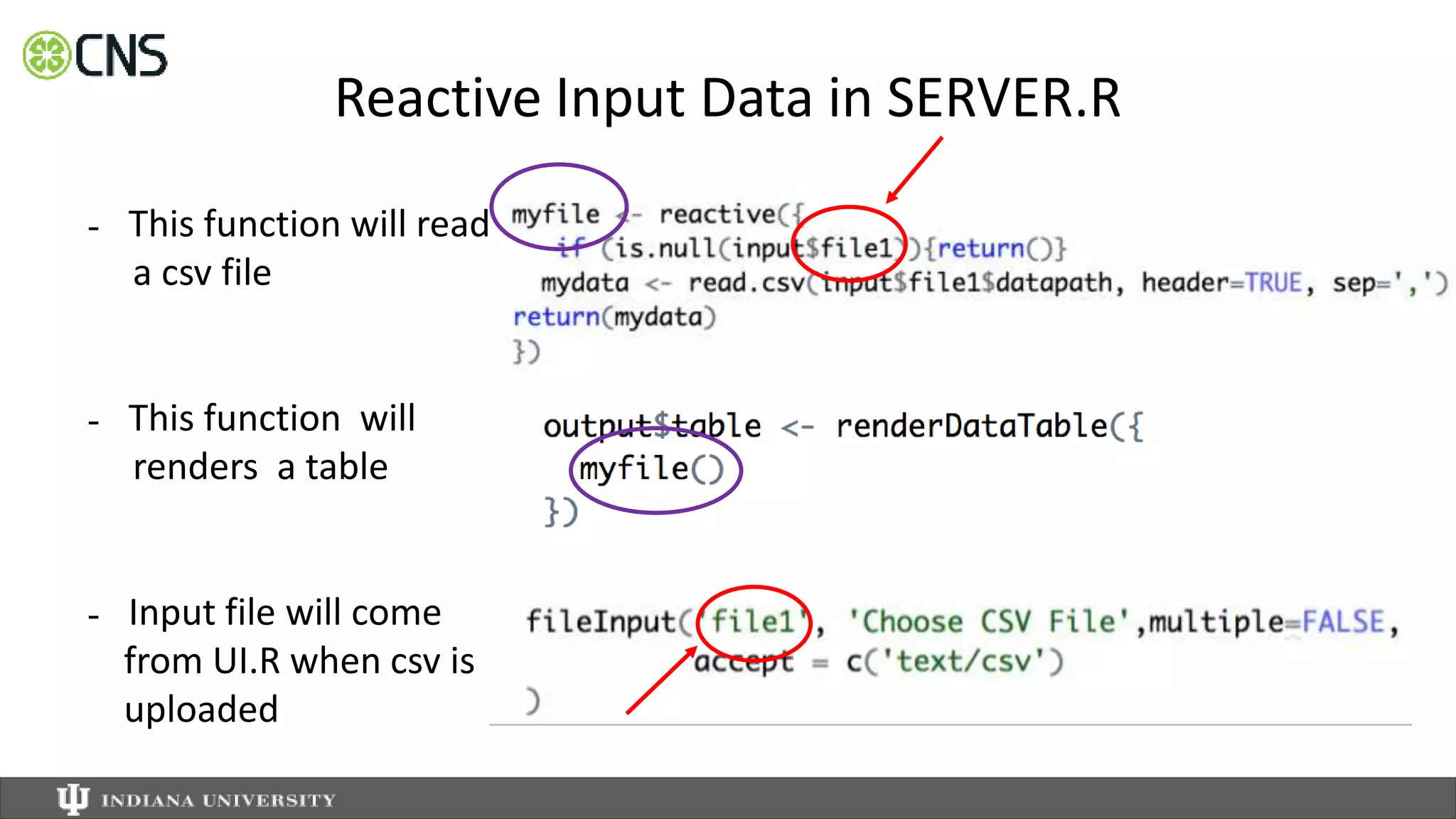

59. Reactive Input Data in SERVER.R
- This function will read
a csv file
- This function will
renders a table
- Input file will come
from UI.R when csv is
uploaded

60. Deployment

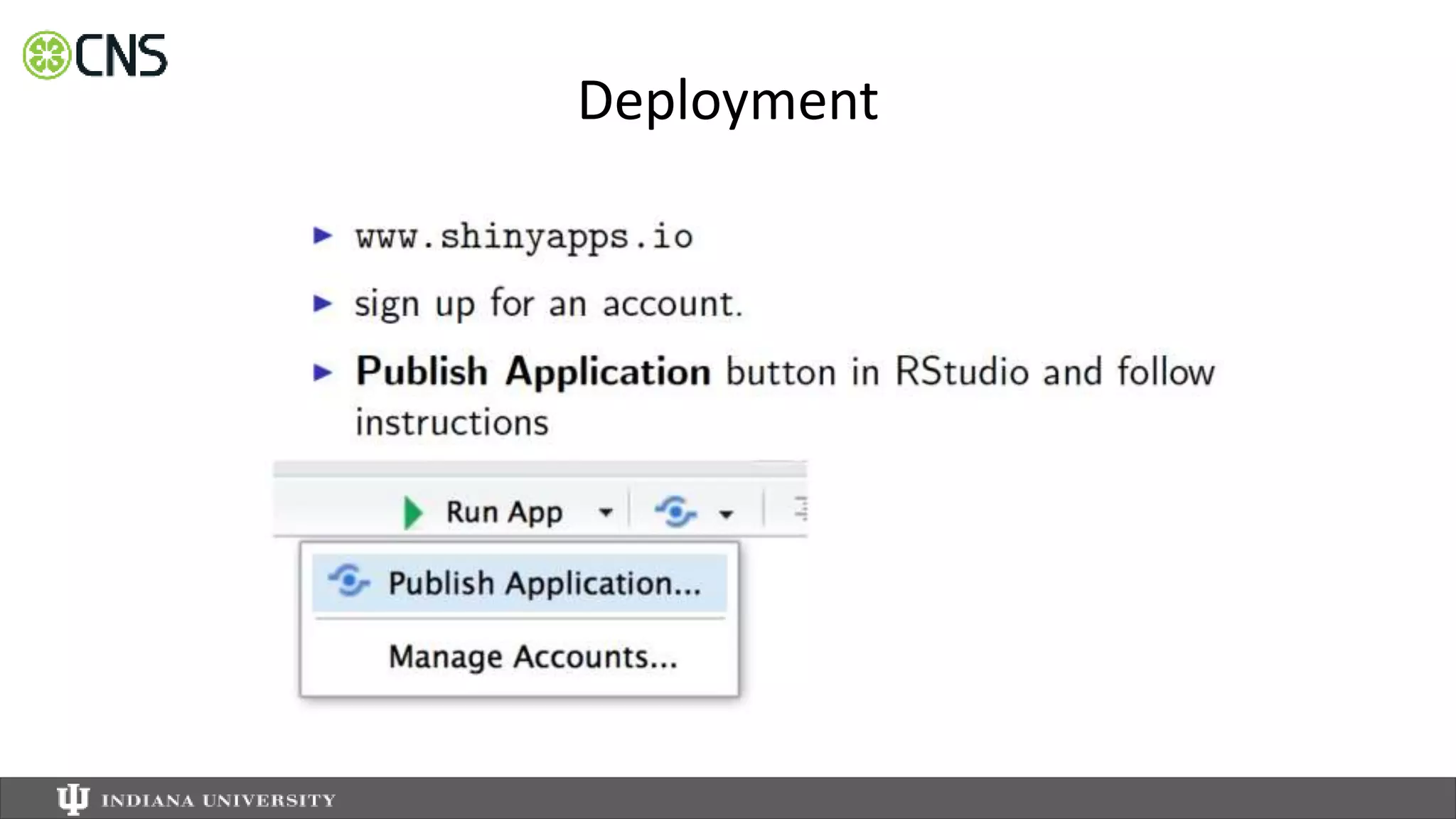

61. Deployment

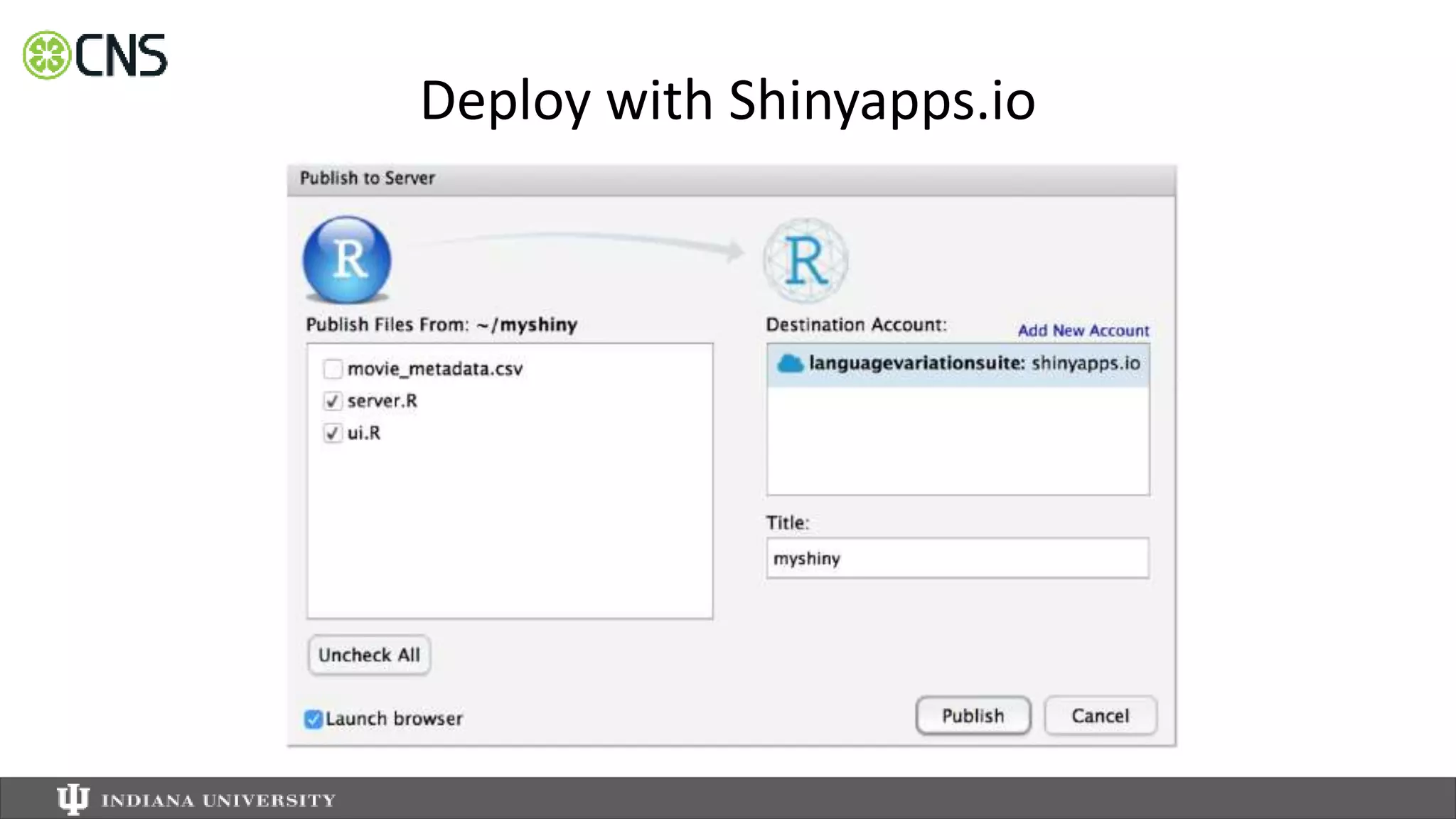

62. Deploy with Shinyapps.io

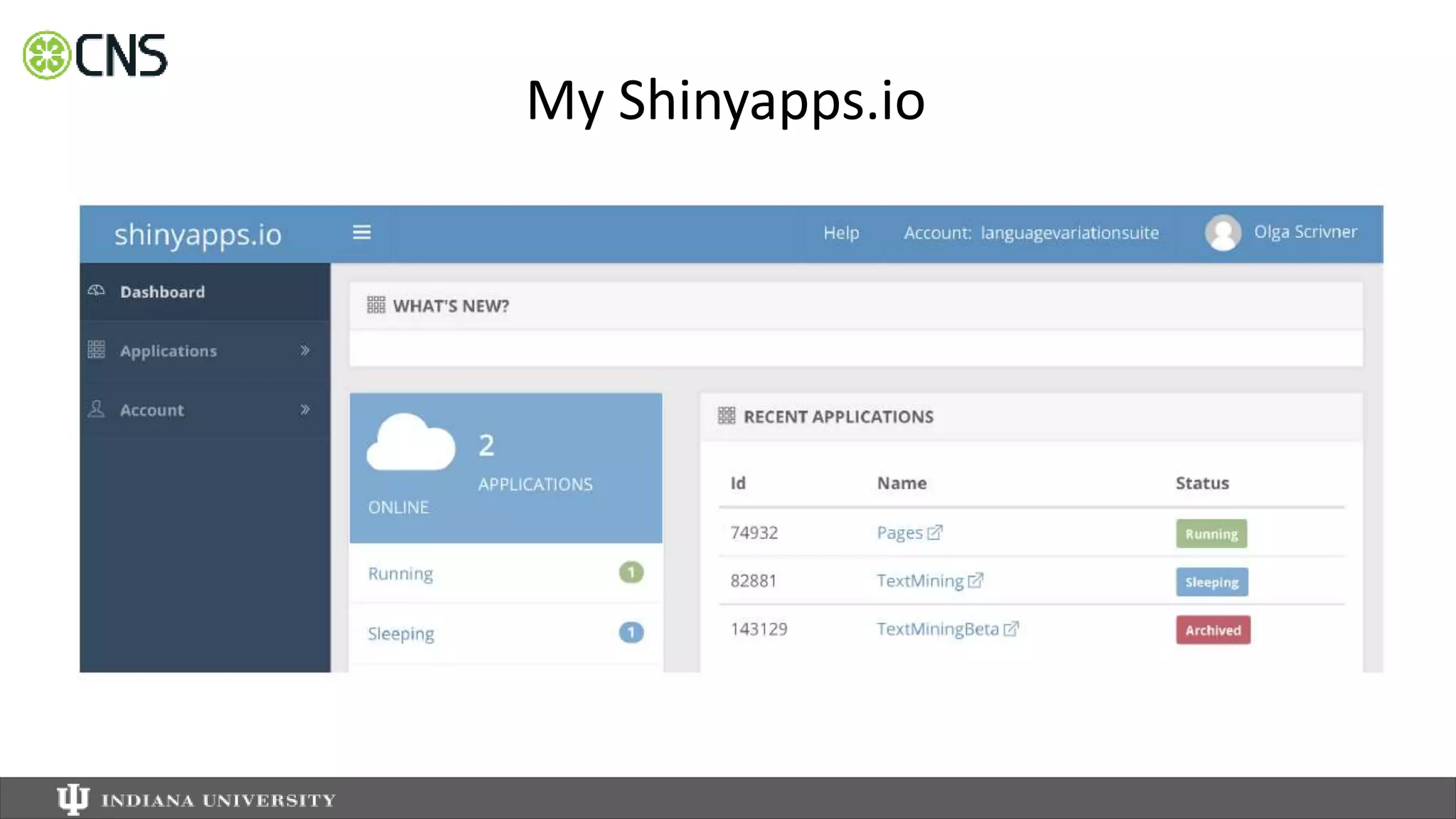

63. My Shinyapps.io

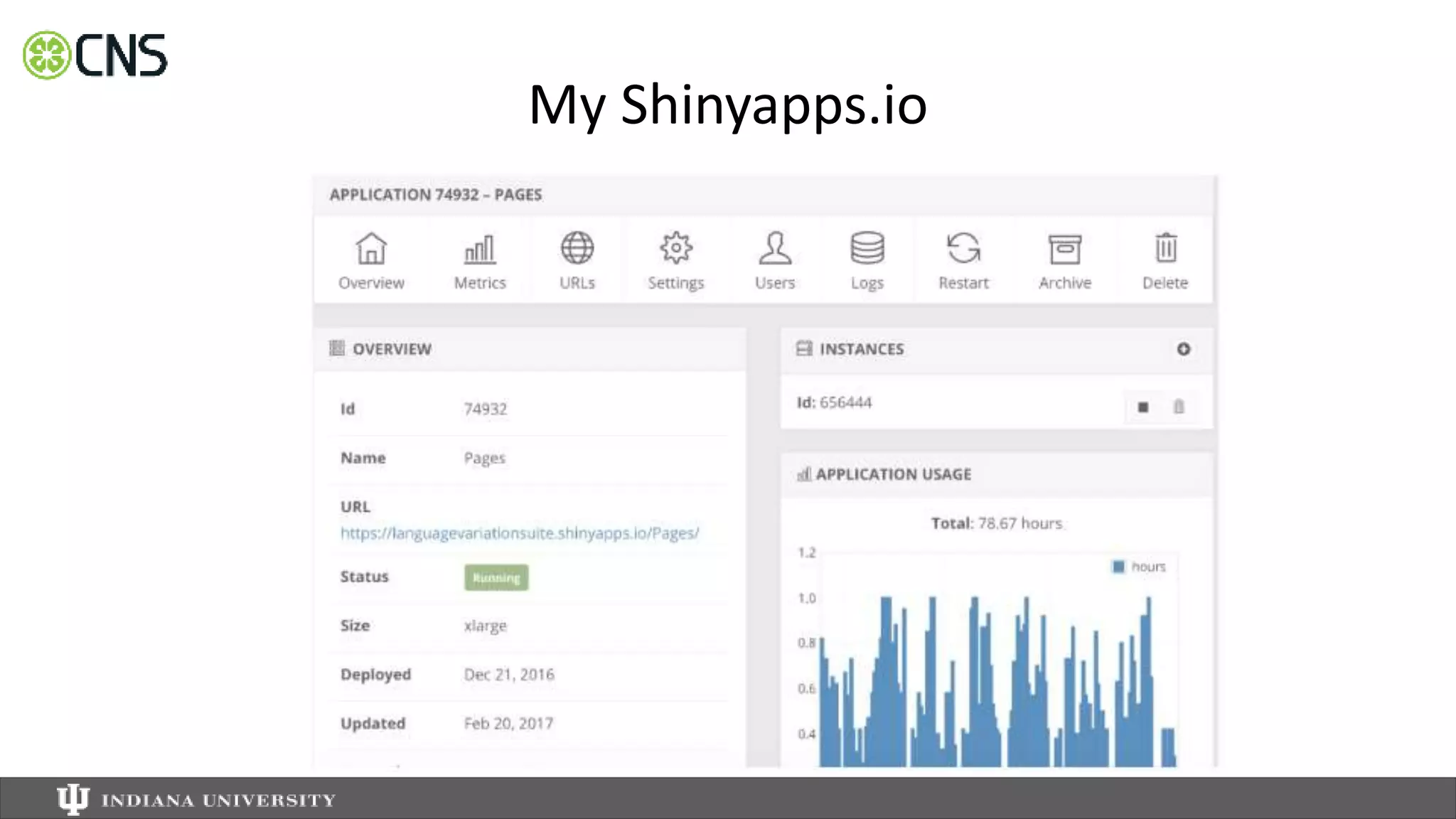

64. My Shinyapps.io

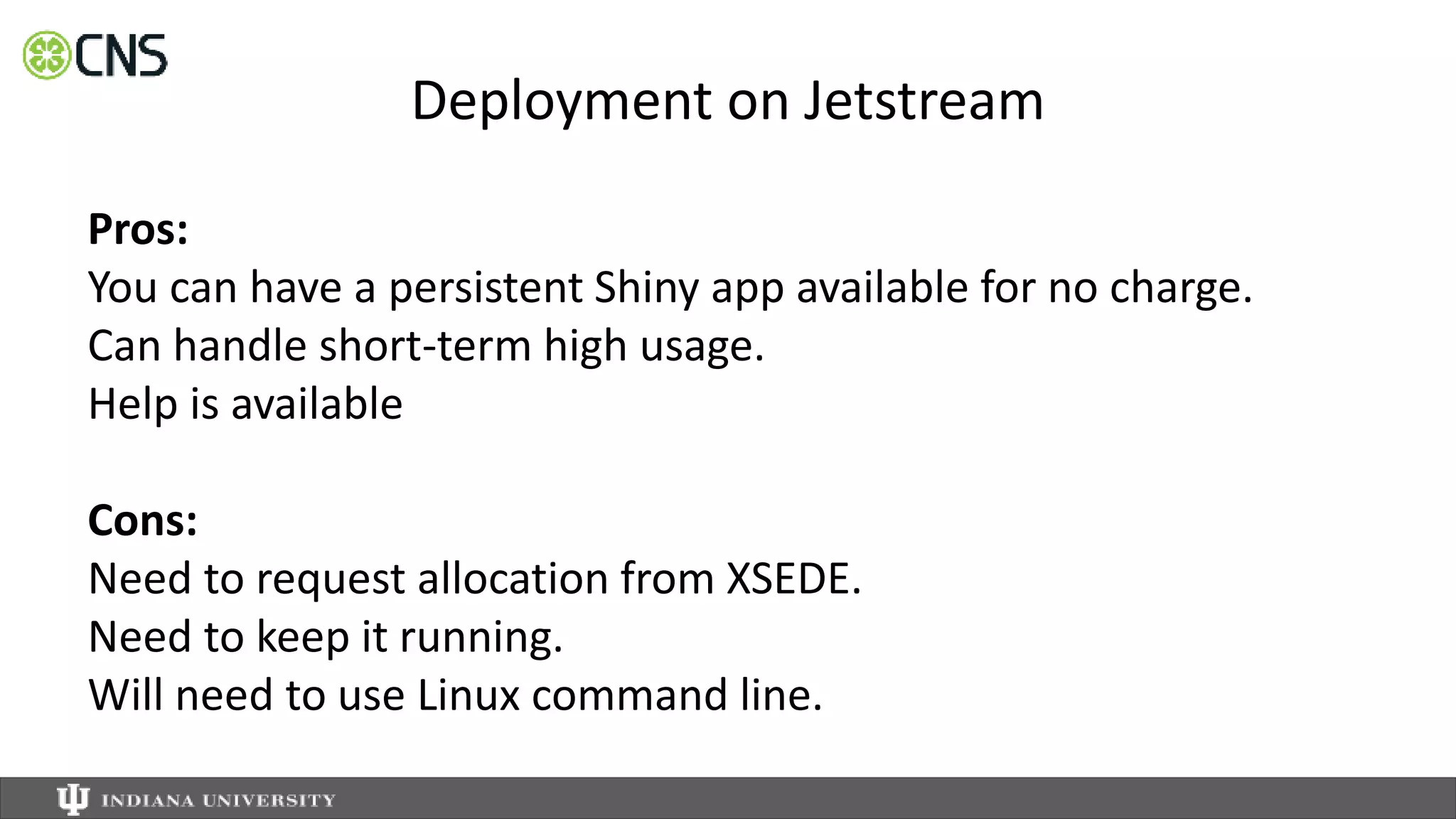

65. Deployment on Jetstream
Pros:
You can have a persistent Shiny app available for no charge.
Can handle short-term high usage.
Help is available
Cons:
Need to request allocation from XSEDE.
Need to keep it running.
Will need to use Linux command line.

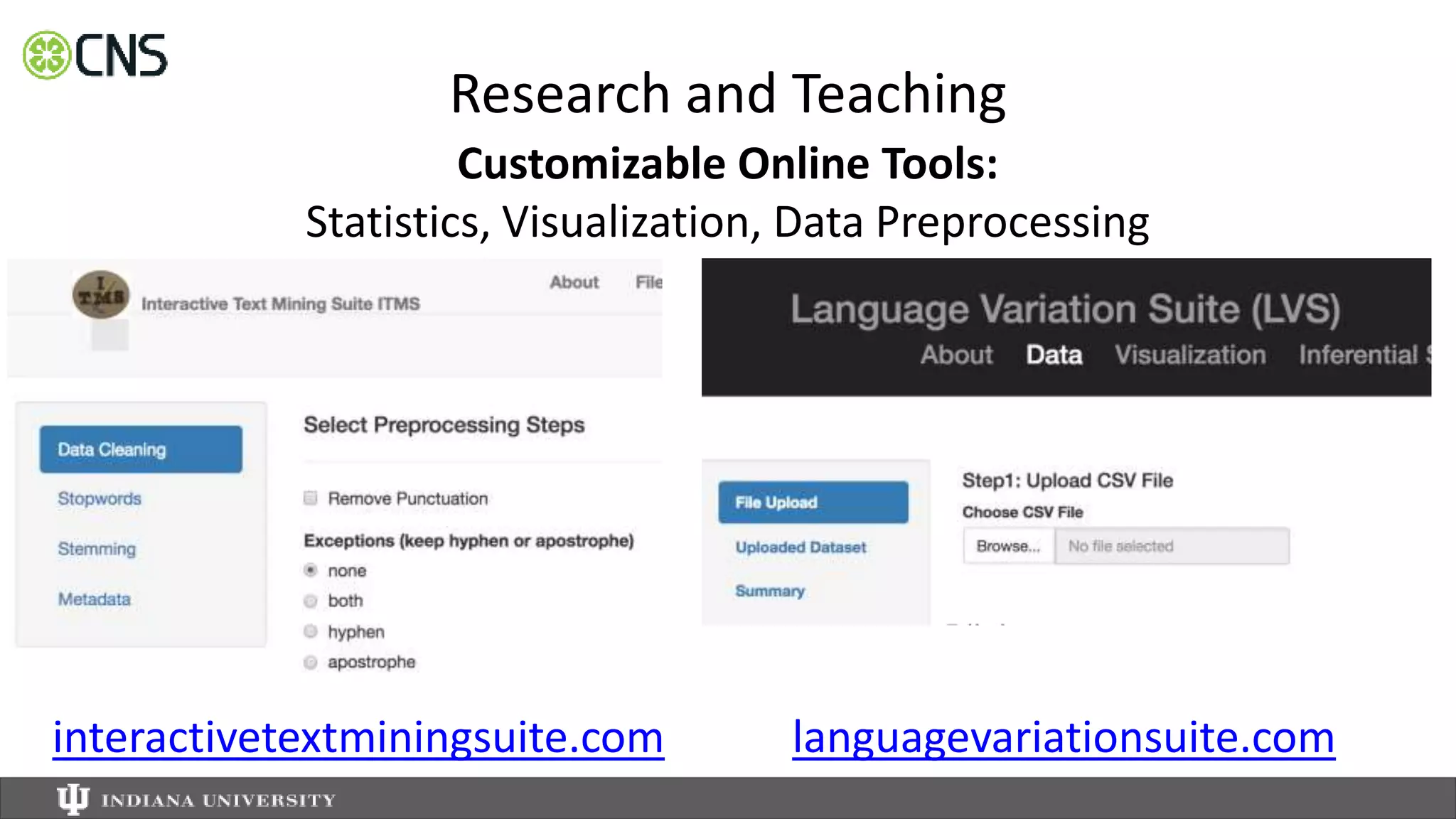

66. Research and Teaching
Customizable Online Tools:
Statistics, Visualization, Data Preprocessing
languagevariationsuite.cominteractivetextminingsuite.com

67. Thank you!
87
@obscrivn
obscrivn@indiana.edu
Presented by Olga Scrivner

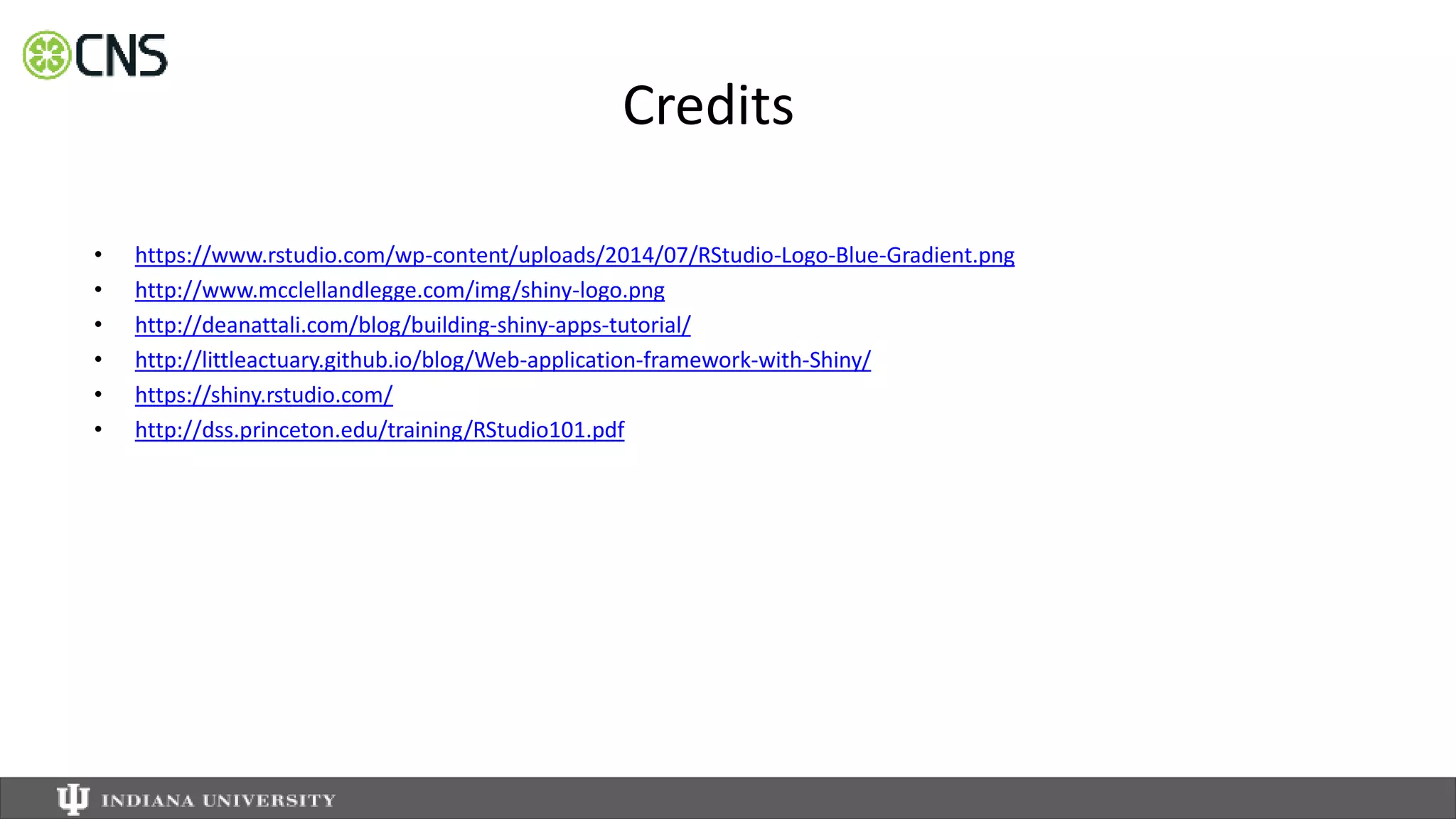

68. Credits
