Hacking the Explored App by Adding Custom Code (UI5con 2016)

© nabisoft. All rights reserved. Proprietary and confidential.
Hacking the Explored App by Adding Custom Code
A smart way to share (Open|SAP) UI5 code snippets with others
www.nabisoft.com
Nabi Zamani, CEO & Software Engineer3/11/16

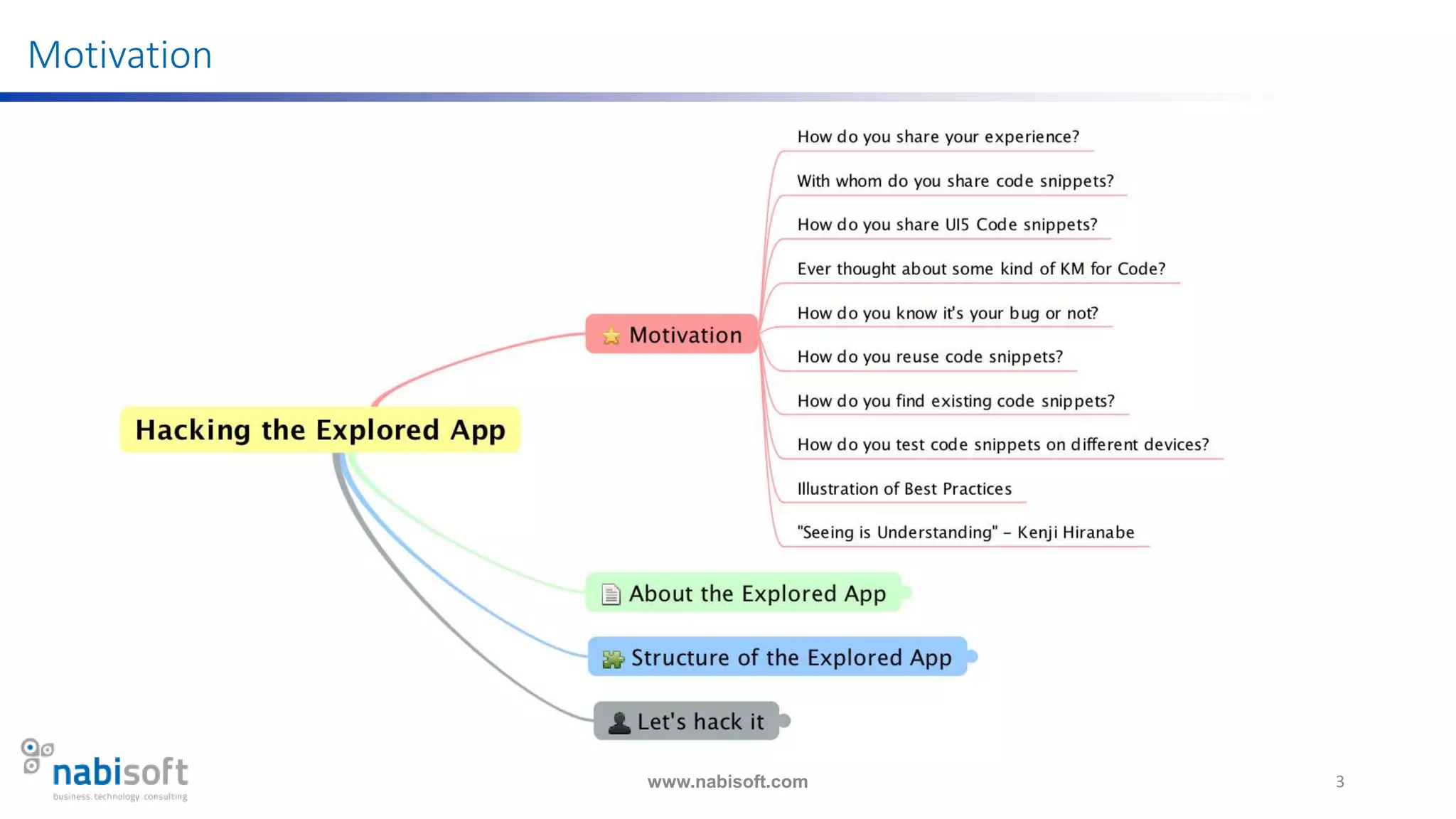

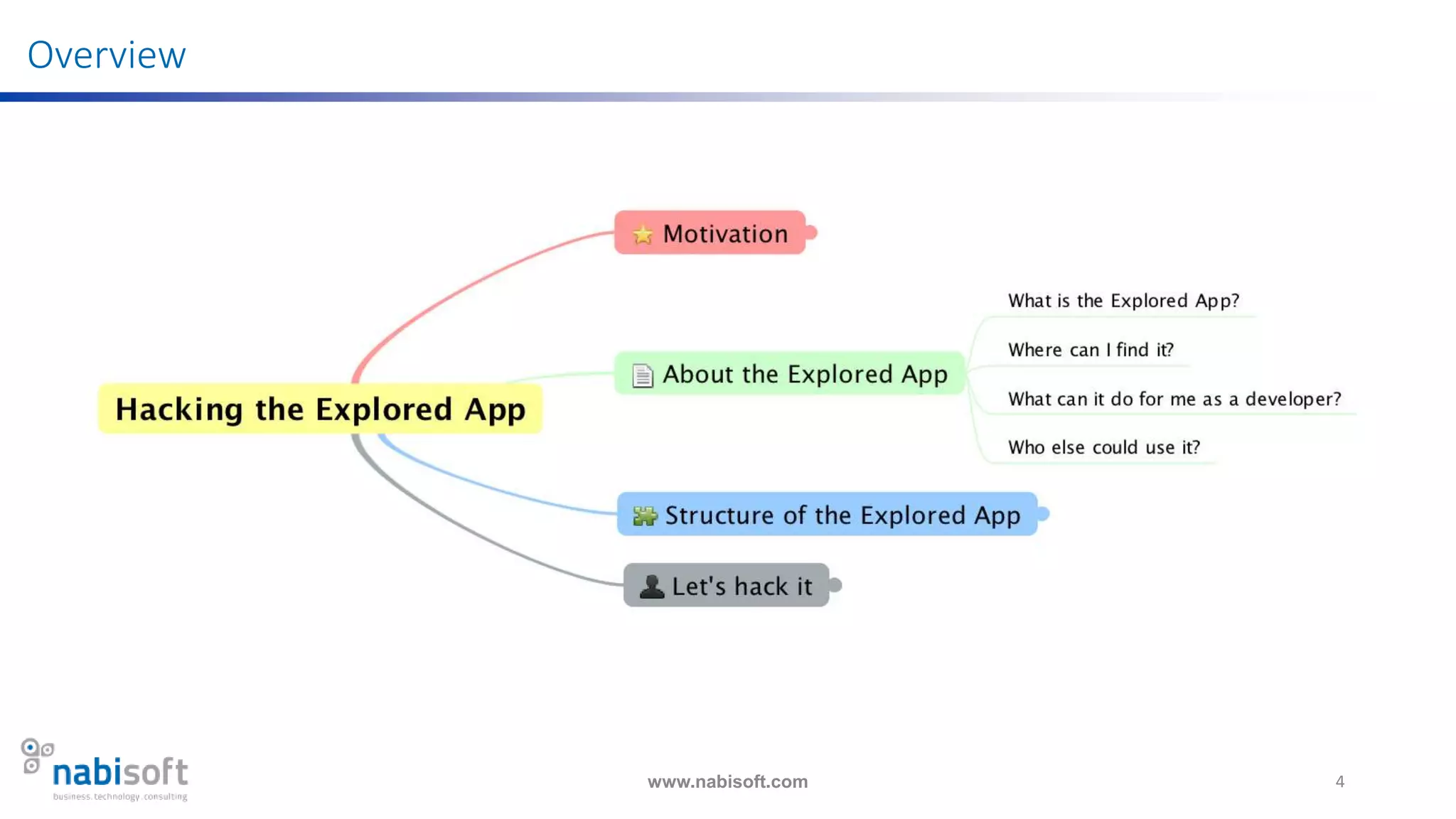

www.nabisoft.com 5

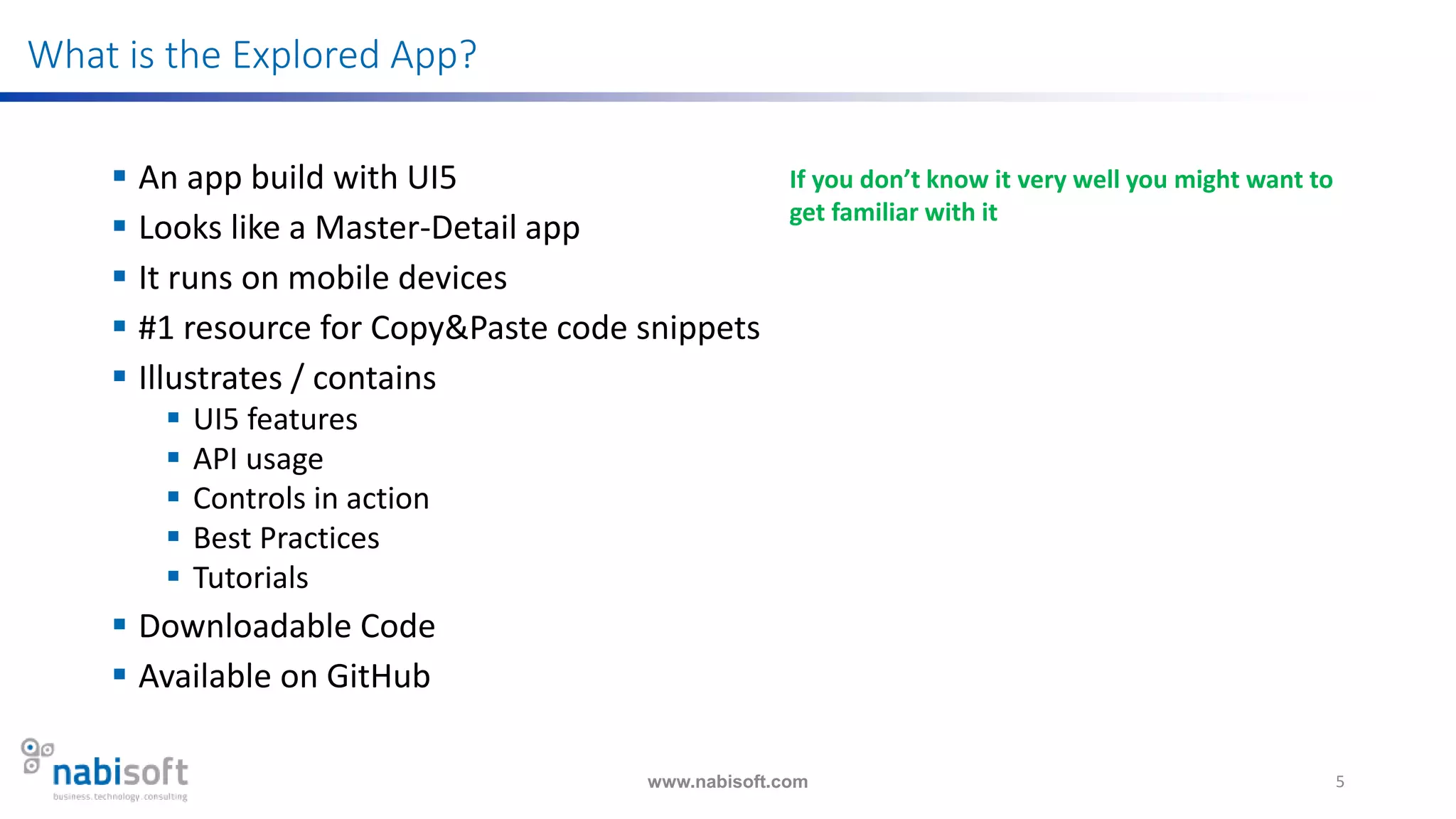

What is the Explored App?
 An app build with UI5
 Looks like a Master-Detail app
 It runs on mobile devices
 #1 resource for Copy&Paste code snippets
 Illustrates / contains
 UI5 features
 API usage
 Controls in action
 Best Practices
 Tutorials
 Downloadable Code
 Available on GitHub
If you don’t know it very well you might want to
get familiar with it

www.nabisoft.com 6

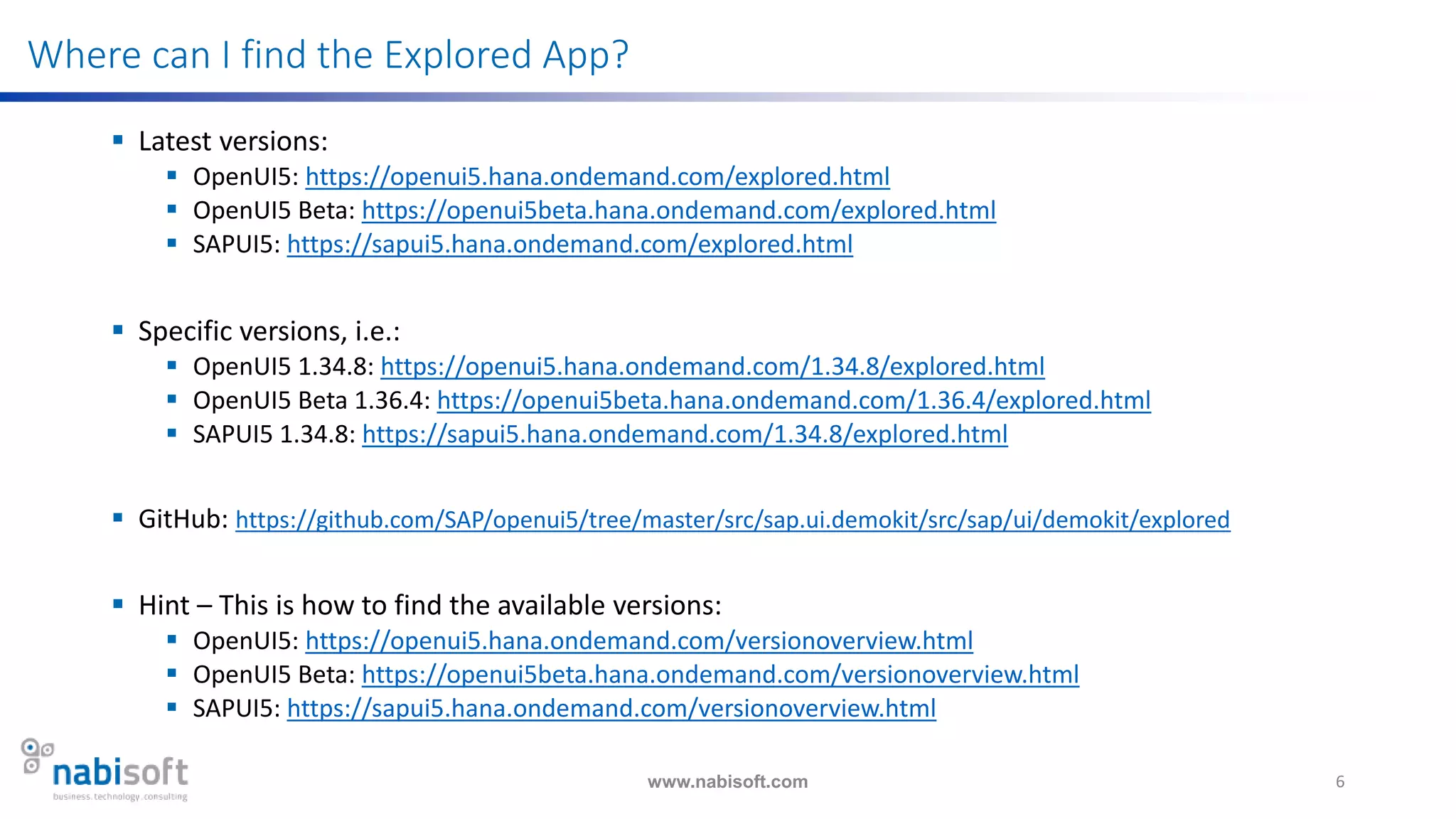

Where can I find the Explored App?
 Latest versions:
 OpenUI5: https://openui5.hana.ondemand.com/explored.html
 OpenUI5 Beta: https://openui5beta.hana.ondemand.com/explored.html
 SAPUI5: https://sapui5.hana.ondemand.com/explored.html
 Specific versions, i.e.:
 OpenUI5 1.34.8: https://openui5.hana.ondemand.com/1.34.8/explored.html
 OpenUI5 Beta 1.36.4: https://openui5beta.hana.ondemand.com/1.36.4/explored.html
 SAPUI5 1.34.8: https://sapui5.hana.ondemand.com/1.34.8/explored.html
 GitHub: https://github.com/SAP/openui5/tree/master/src/sap.ui.demokit/src/sap/ui/demokit/explored
 Hint – This is how to find the available versions:
 OpenUI5: https://openui5.hana.ondemand.com/versionoverview.html
 OpenUI5 Beta: https://openui5beta.hana.ondemand.com/versionoverview.html
 SAPUI5: https://sapui5.hana.ondemand.com/versionoverview.html

www.nabisoft.com 7

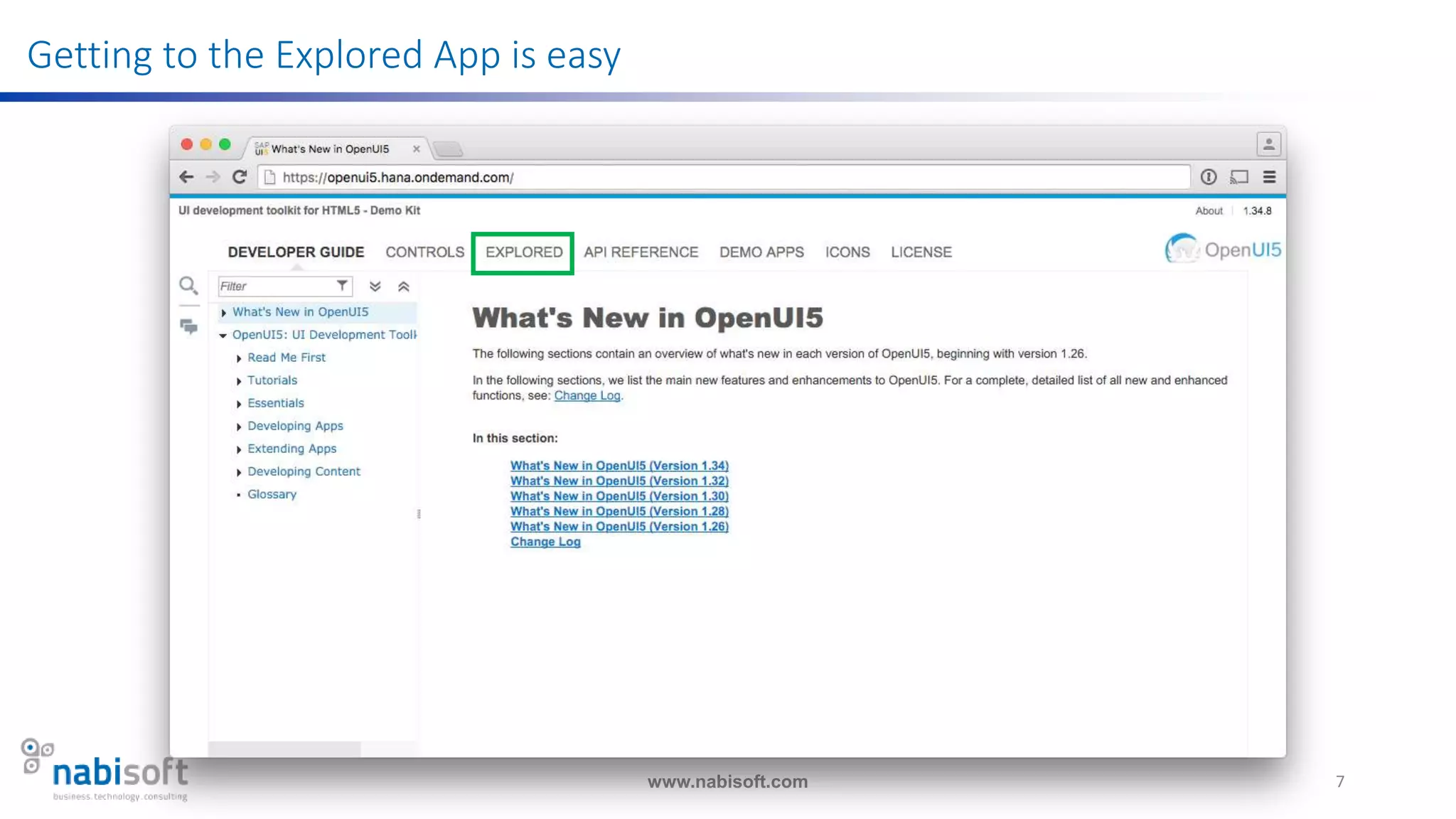

Getting to the Explored App is easy

www.nabisoft.com 8

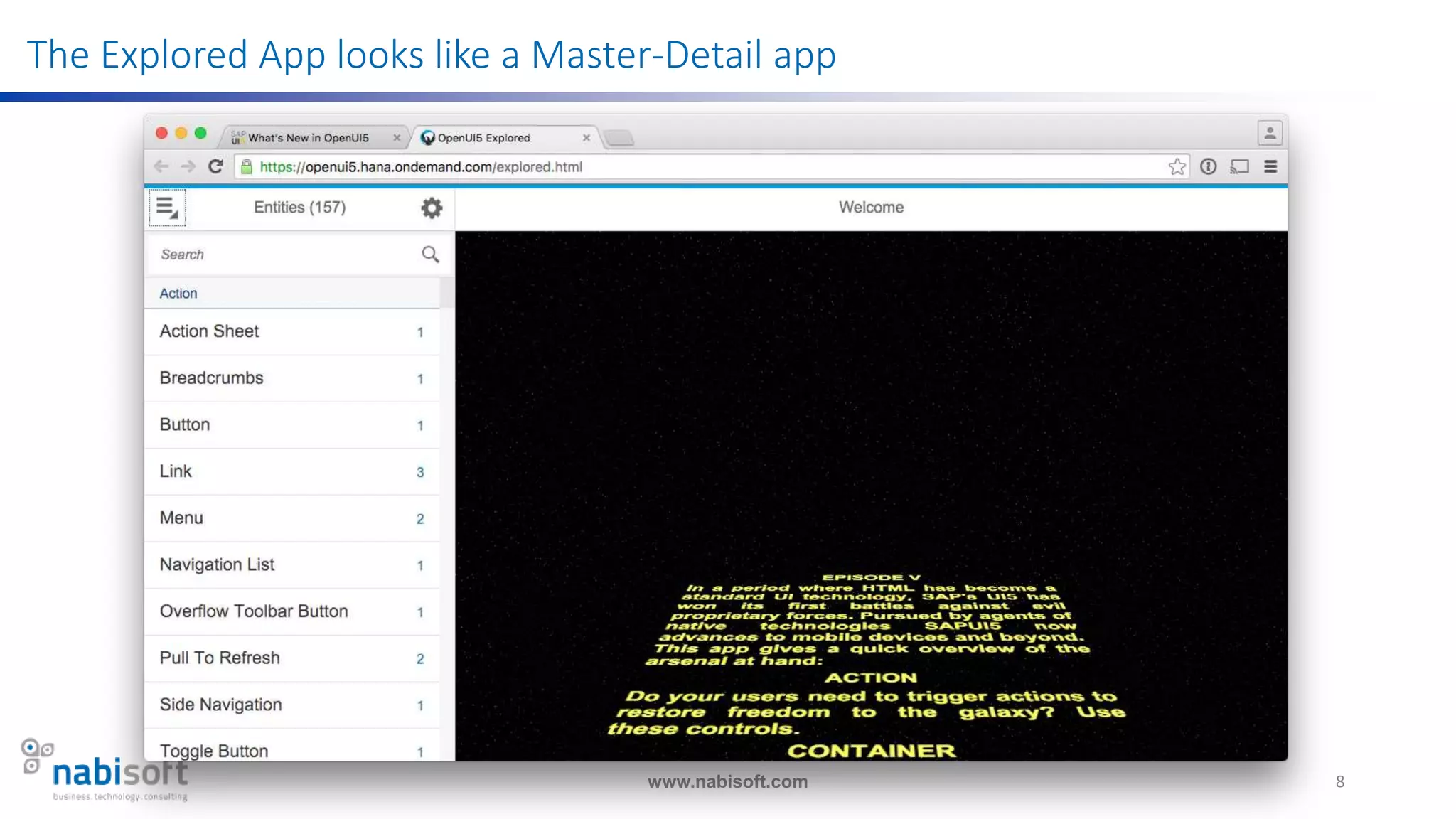

The Explored App looks like a Master-Detail app

www.nabisoft.com 9

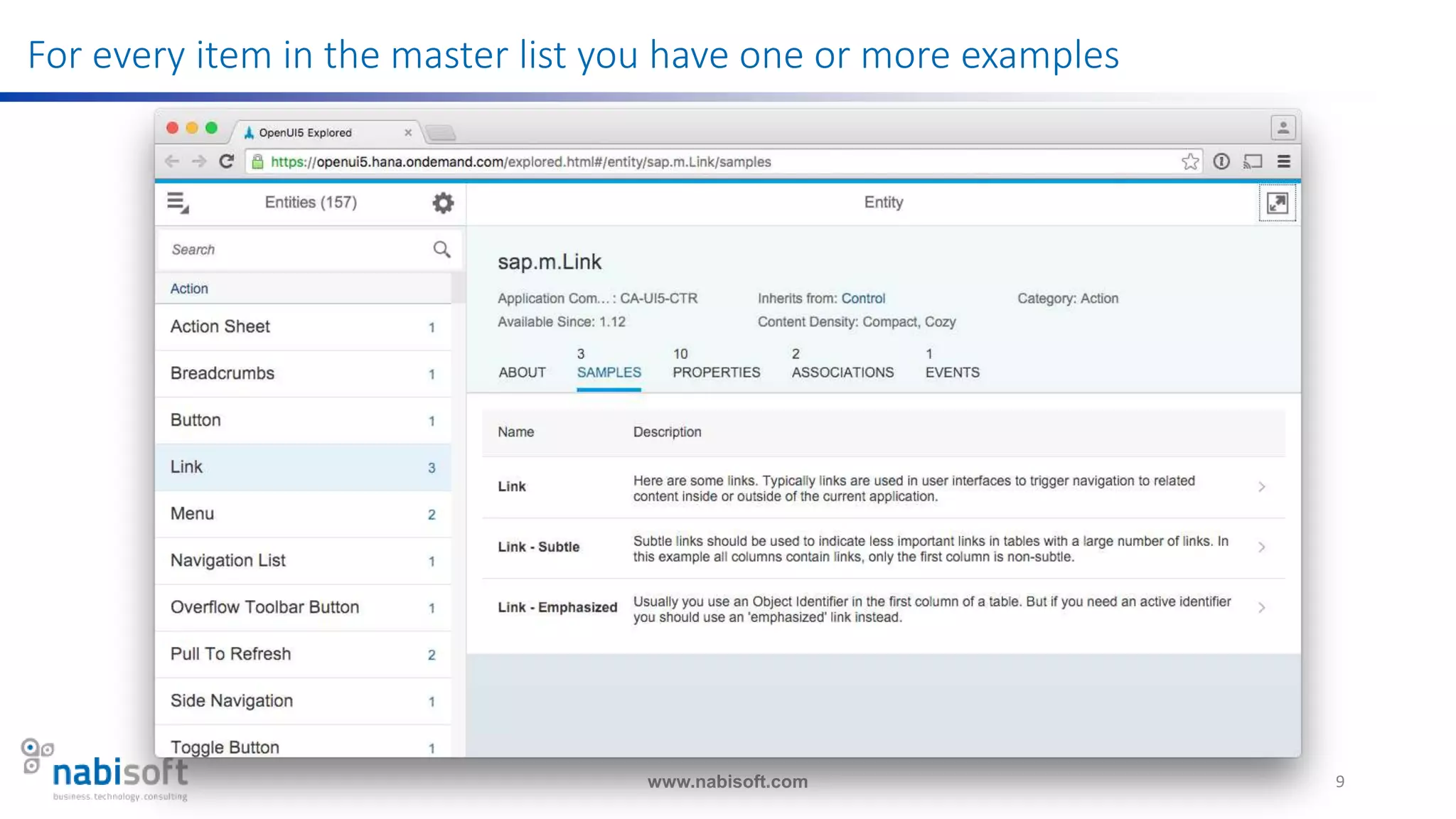

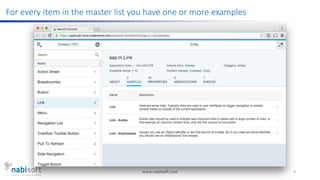

For every item in the master list you have one or more examples

www.nabisoft.com 10

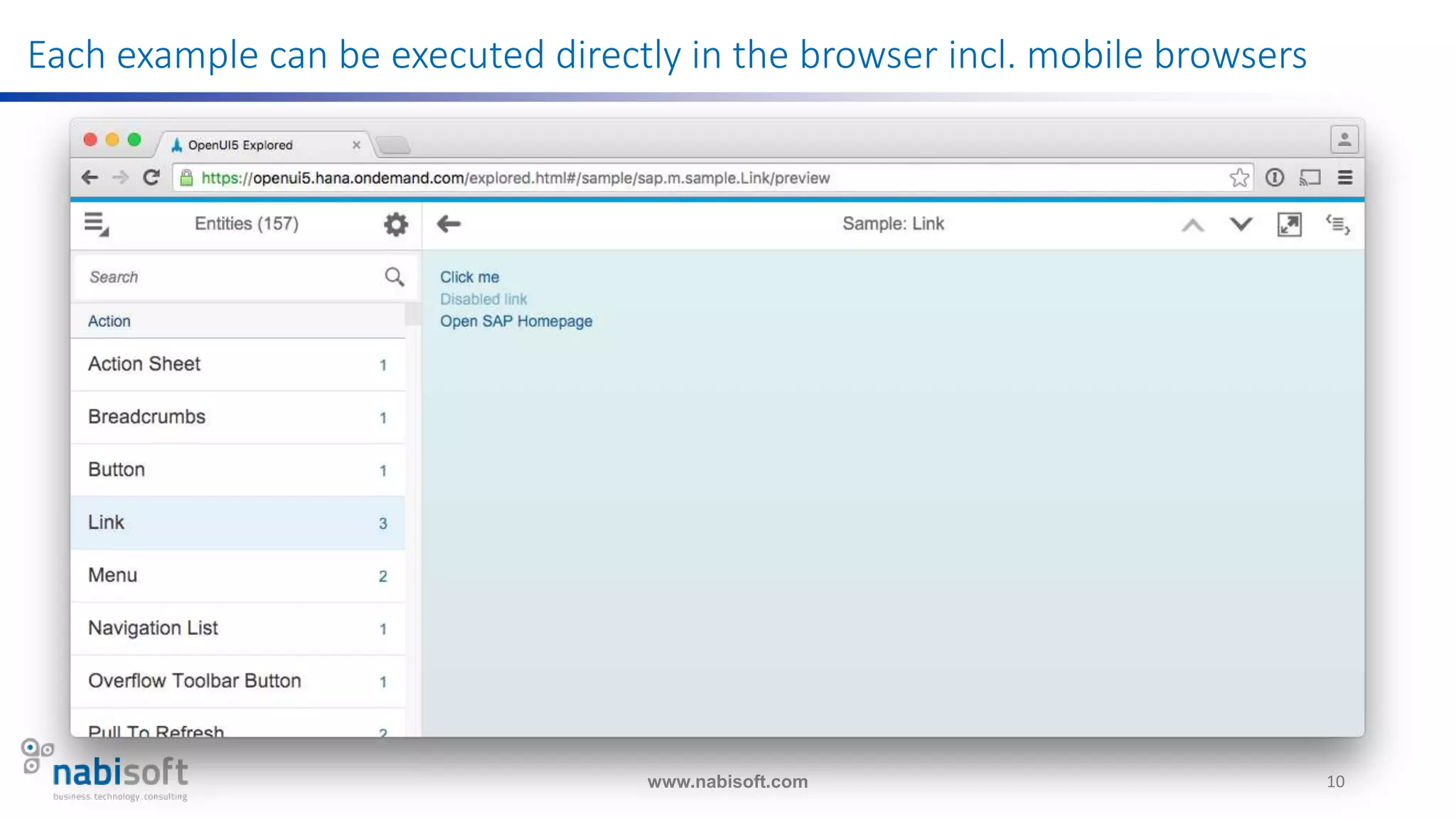

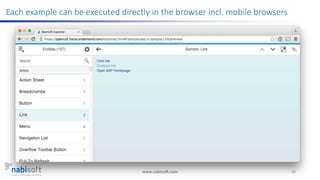

Each example can be executed directly in the browser incl. mobile browsers

www.nabisoft.com 11

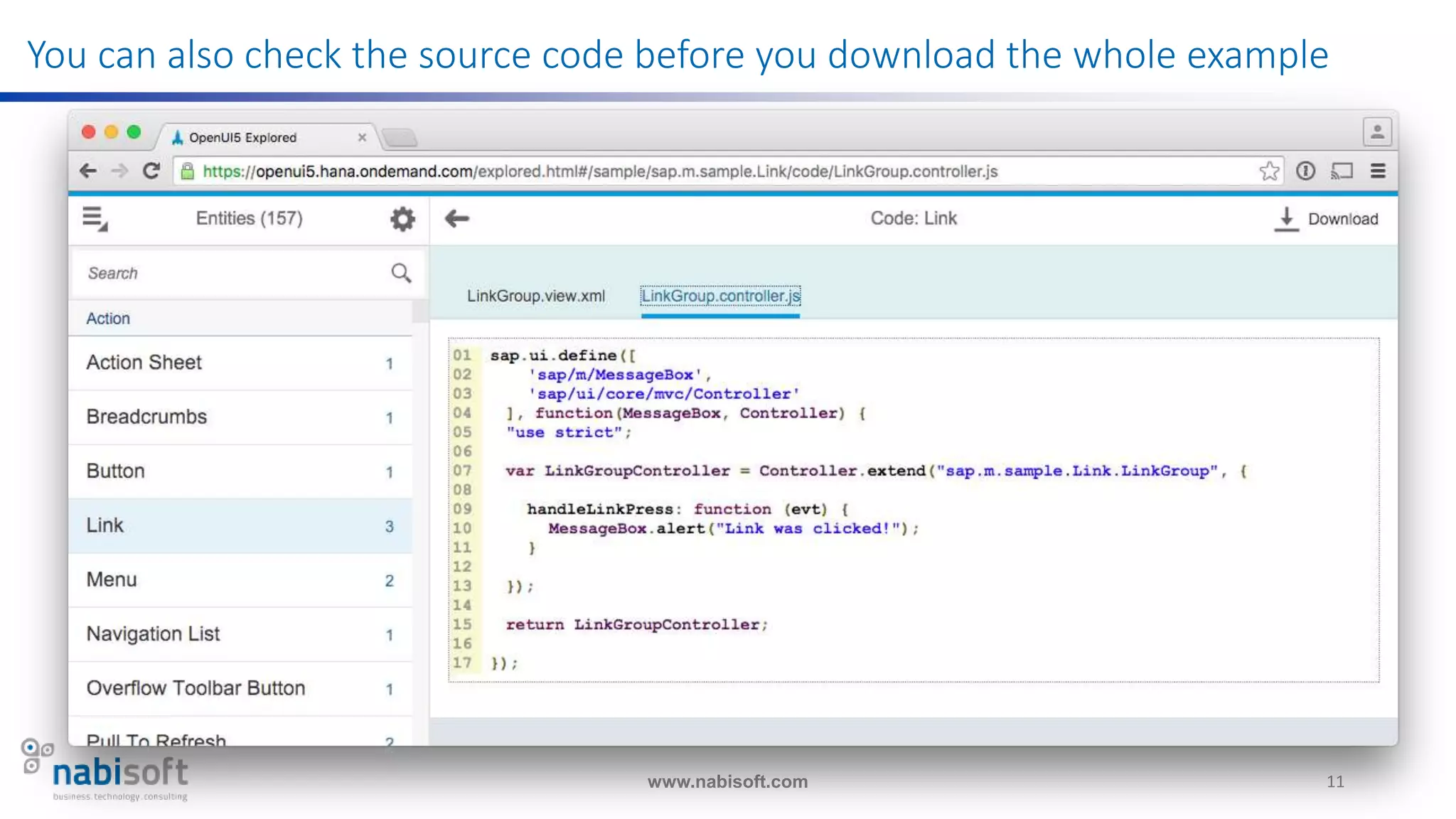

You can also check the source code before you download the whole example

www.nabisoft.com 12

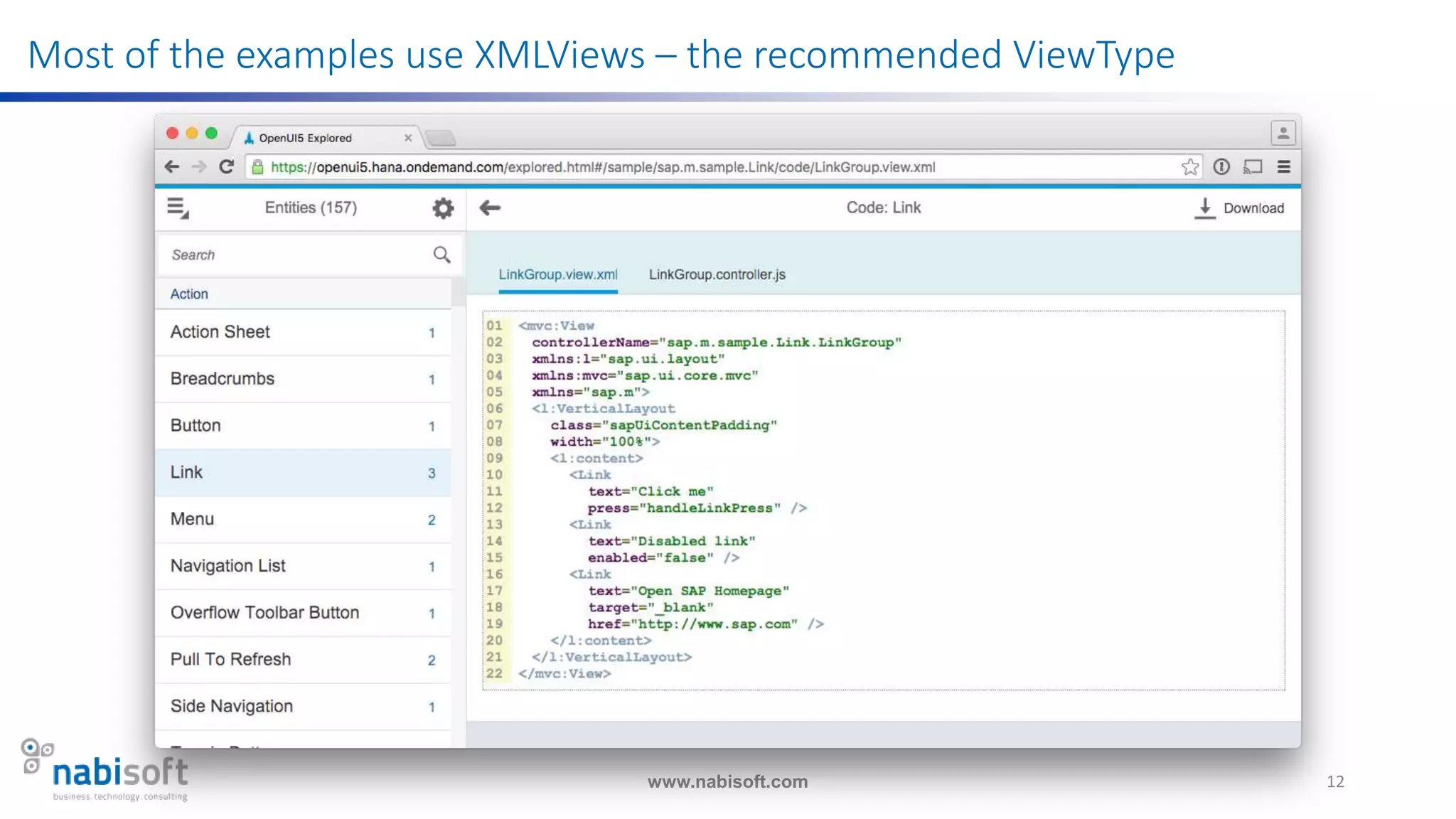

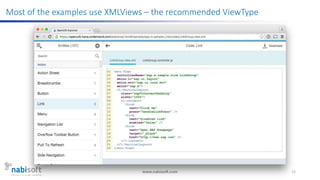

Most of the examples use XMLViews – the recommended ViewType

www.nabisoft.com 13

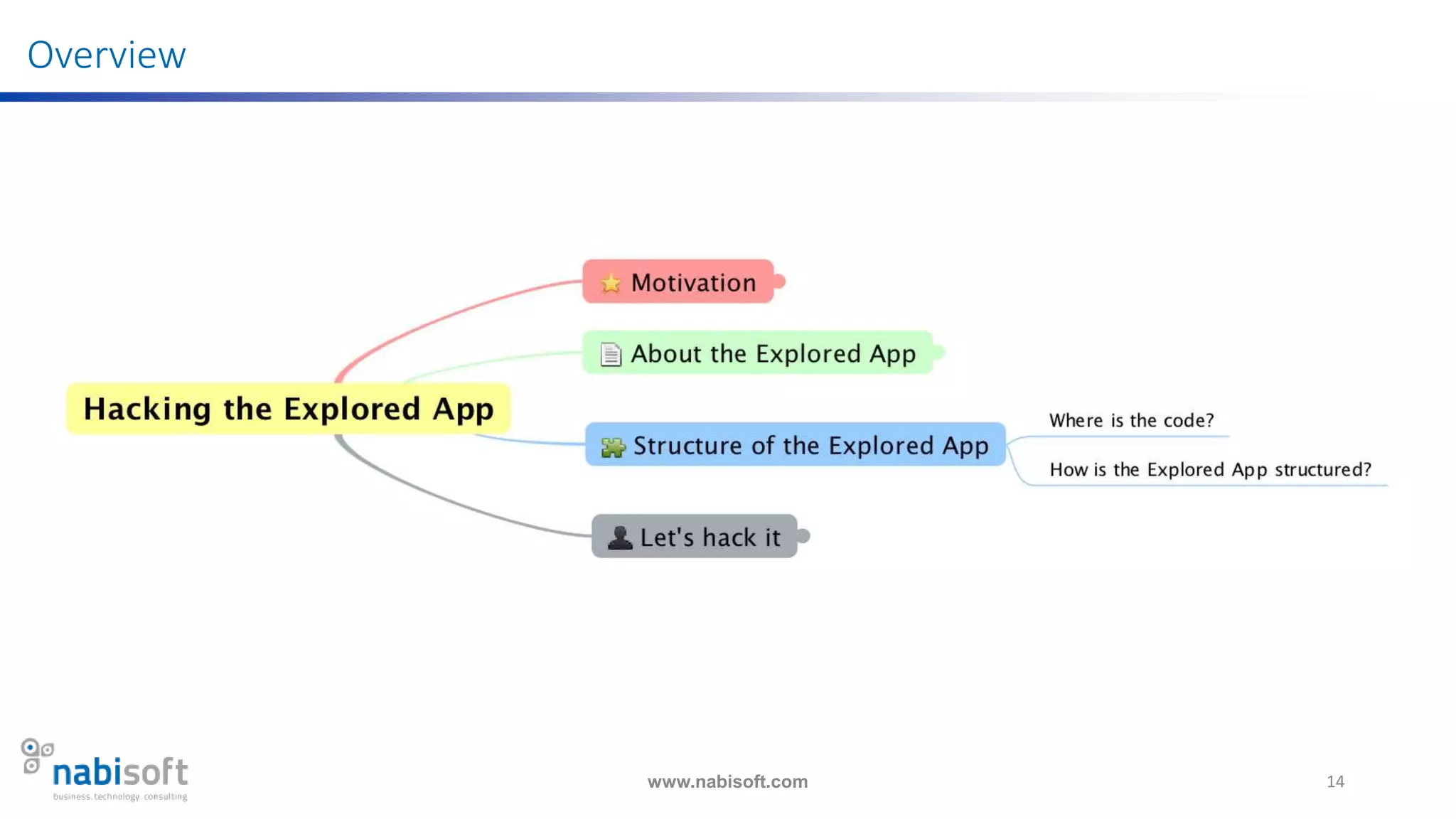

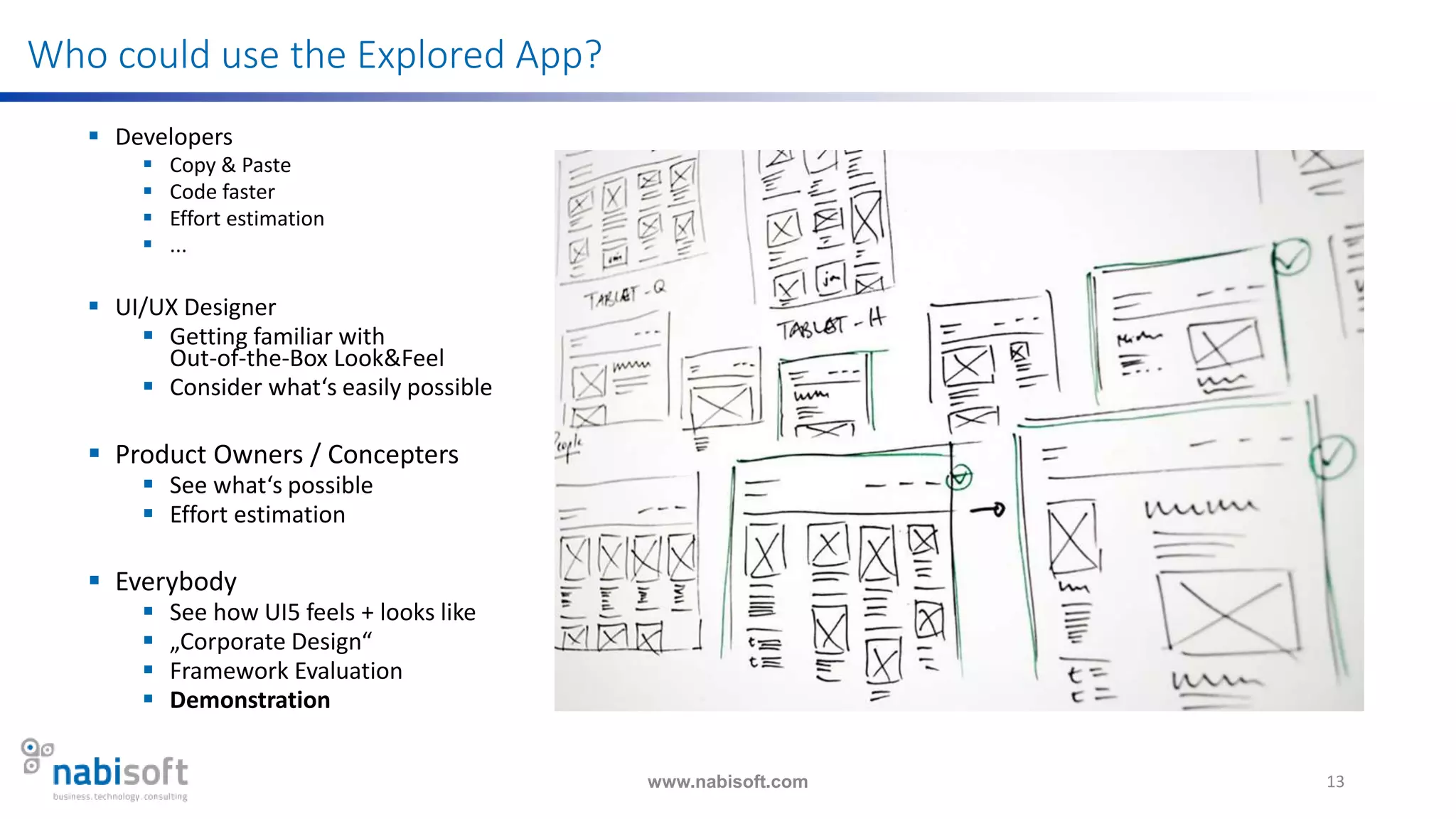

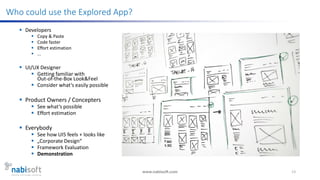

Who could use the Explored App?
 Developers
 Copy & Paste
 Code faster
 Effort estimation
 ...
 UI/UX Designer
 Getting familiar with
Out-of-the-Box Look&Feel
 Consider what‘s easily possible
 Product Owners / Concepters
 See what‘s possible
 Effort estimation
 Everybody
 See how UI5 feels + looks like
 „Corporate Design“
 Framework Evaluation
 Demonstration

www.nabisoft.com 15

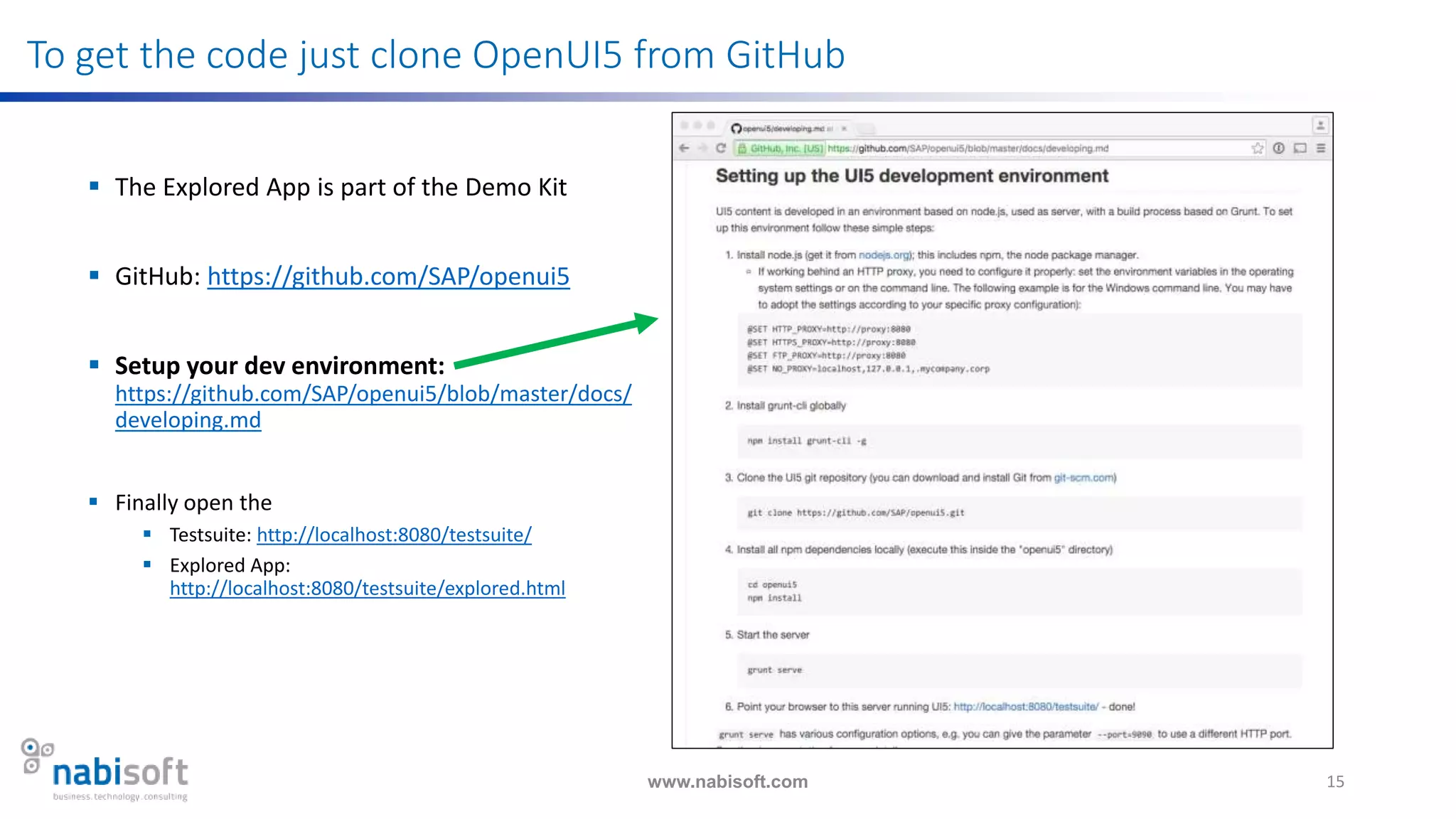

To get the code just clone OpenUI5 from GitHub
 The Explored App is part of the Demo Kit
 GitHub: https://github.com/SAP/openui5
 Setup your dev environment:
https://github.com/SAP/openui5/blob/master/docs/
developing.md
 Finally open the
 Testsuite: http://localhost:8080/testsuite/
 Explored App:
http://localhost:8080/testsuite/explored.html

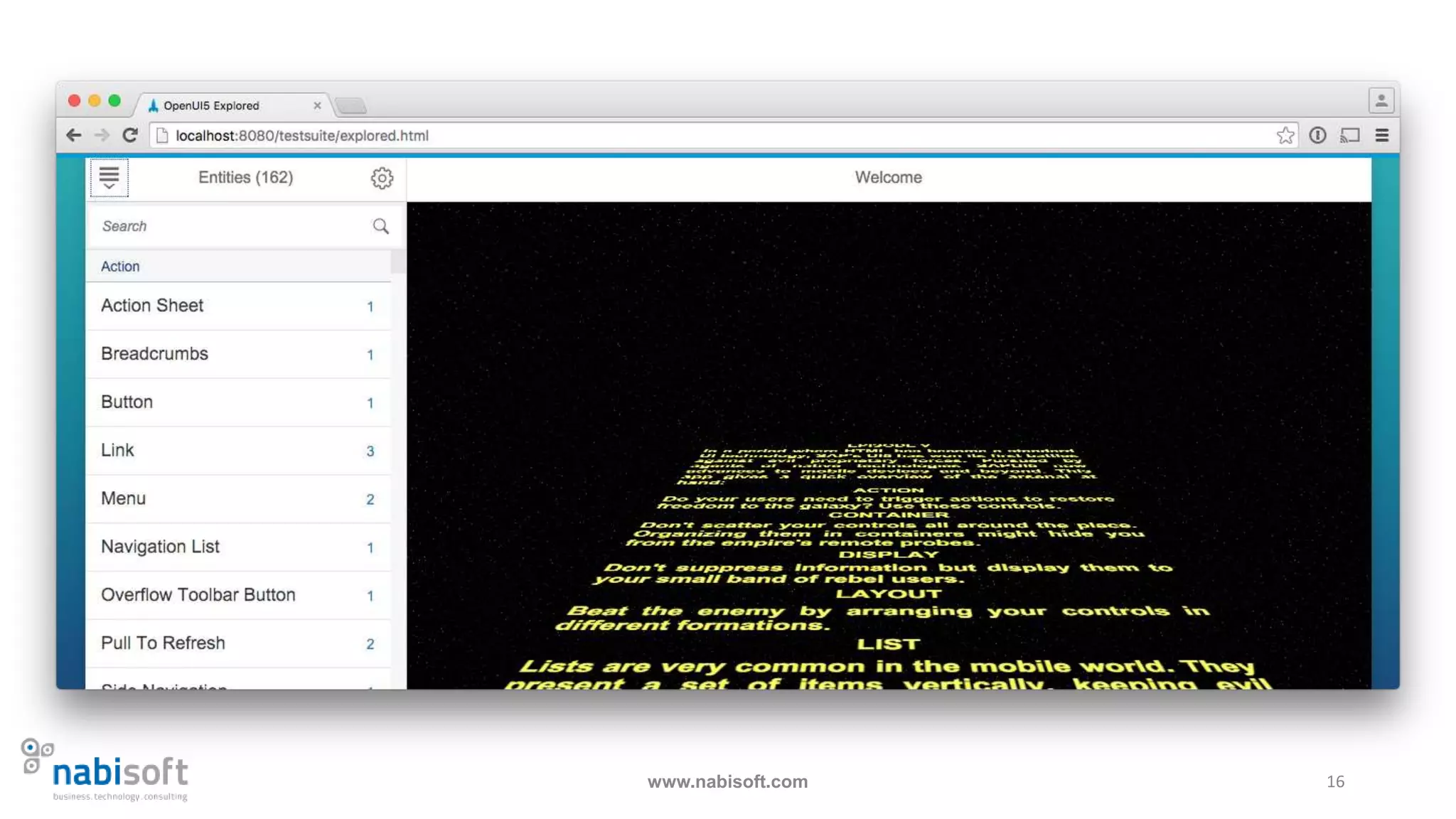

www.nabisoft.com 17
Disclaimer - What you will see from now on is subject to change
 No public API published for „intrusion“ of own
examples to the Explored App
 But sometimes you have to break the rules
 Let‘s break the rules and ask for forgiveness later 

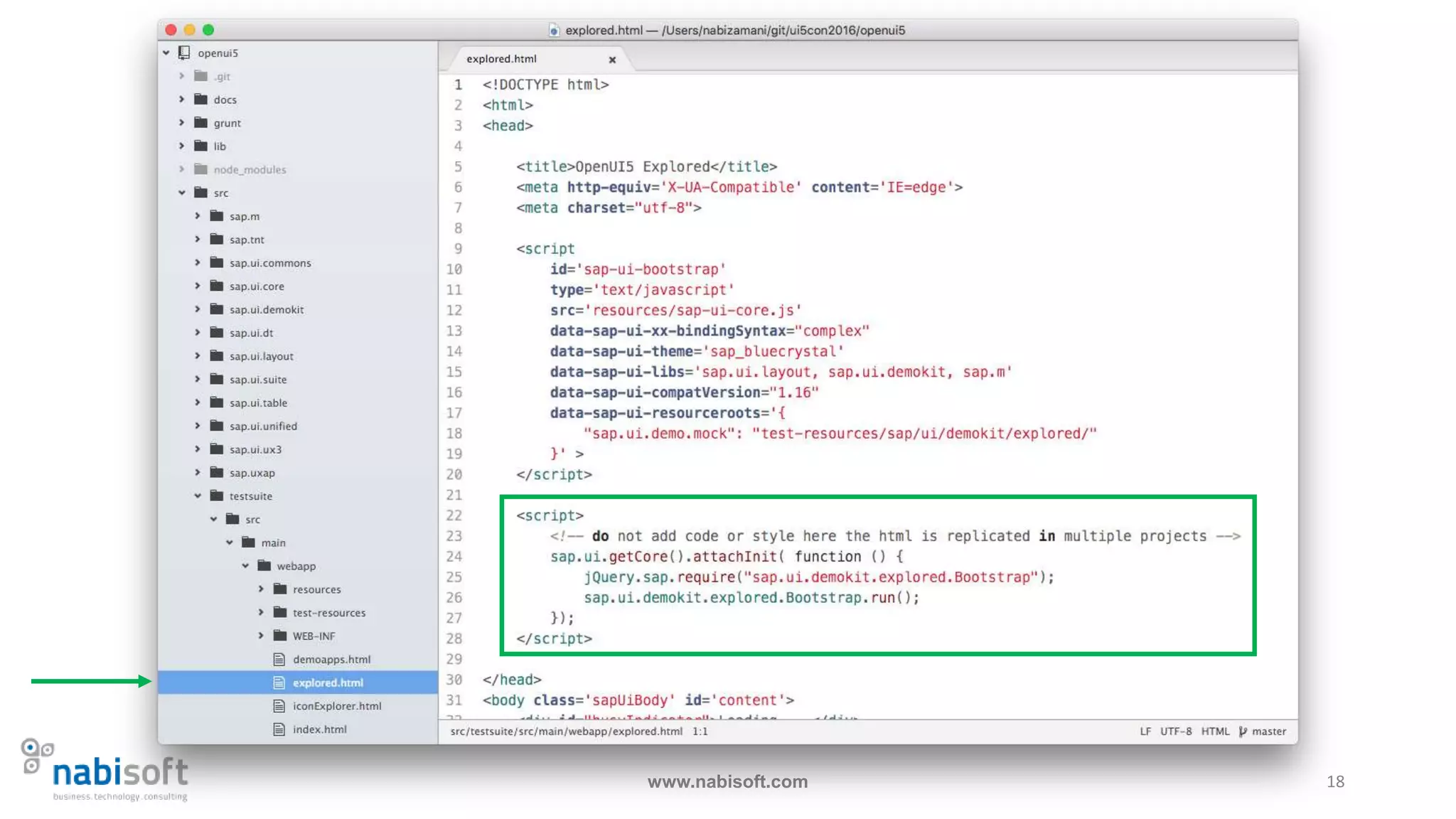

www.nabisoft.com 19

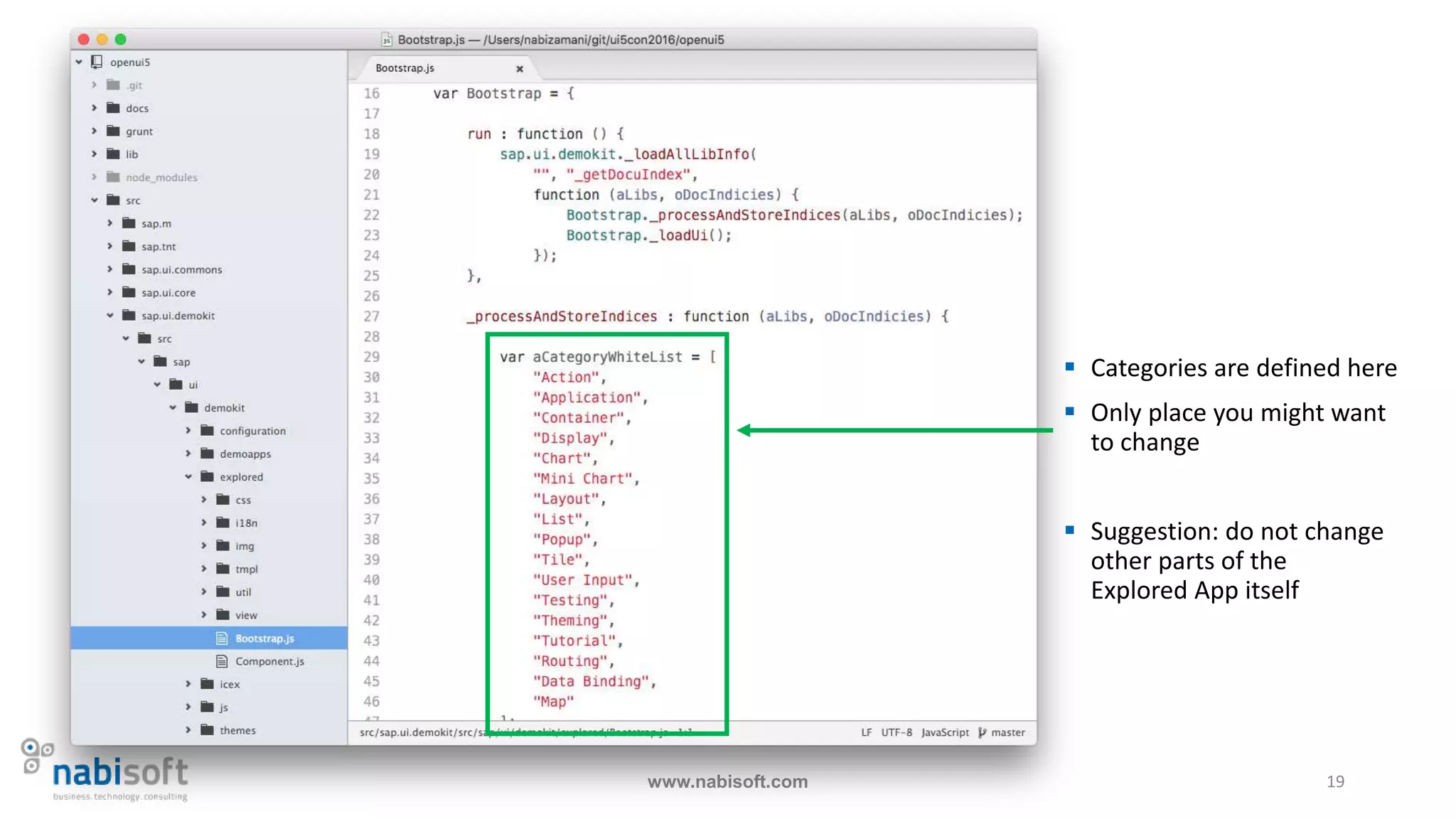

 Categories are defined here
 Only place you might want
to change
 Suggestion: do not change
other parts of the
Explored App itself

www.nabisoft.com 20

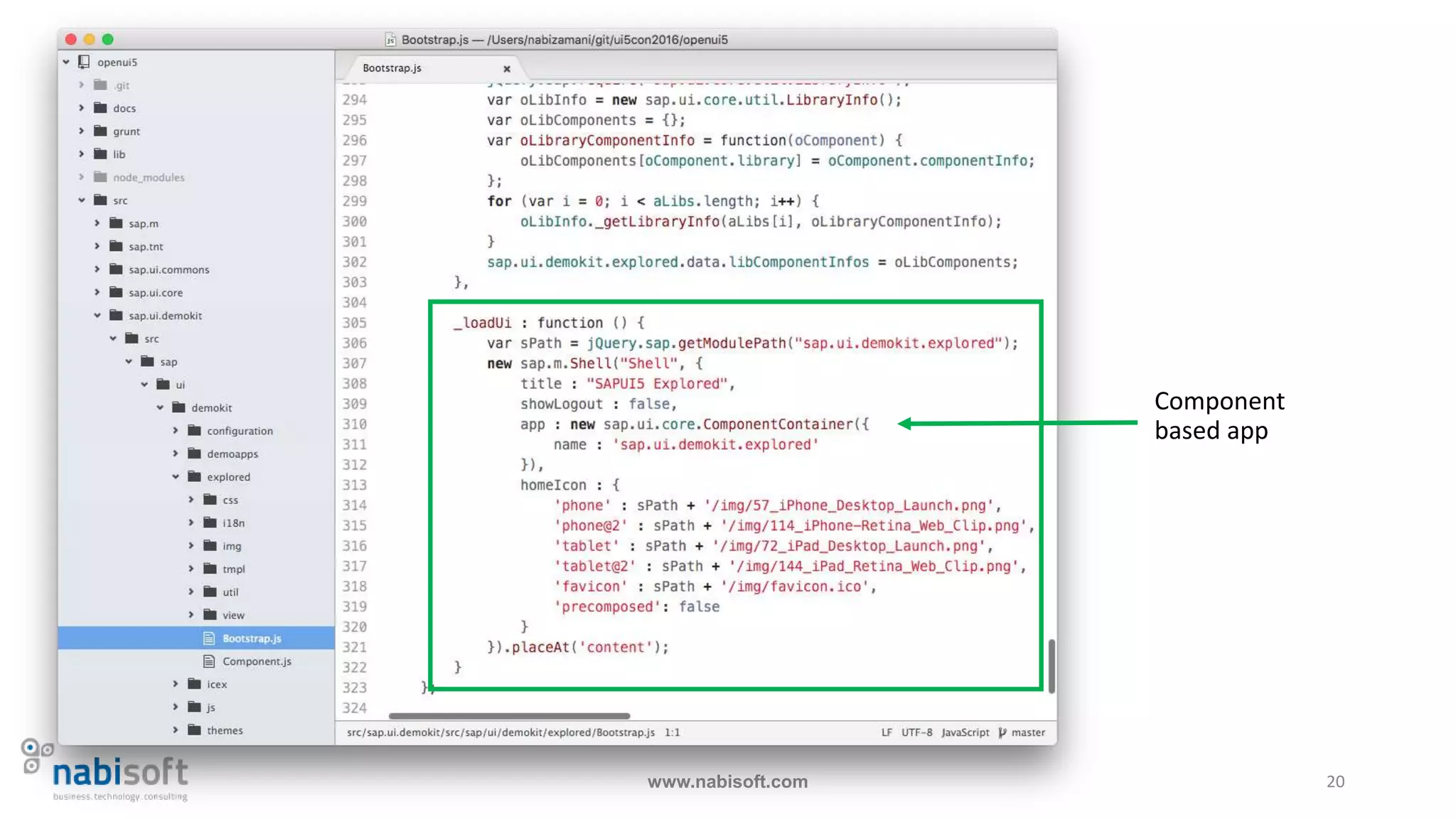

Component
based app

www.nabisoft.com 21

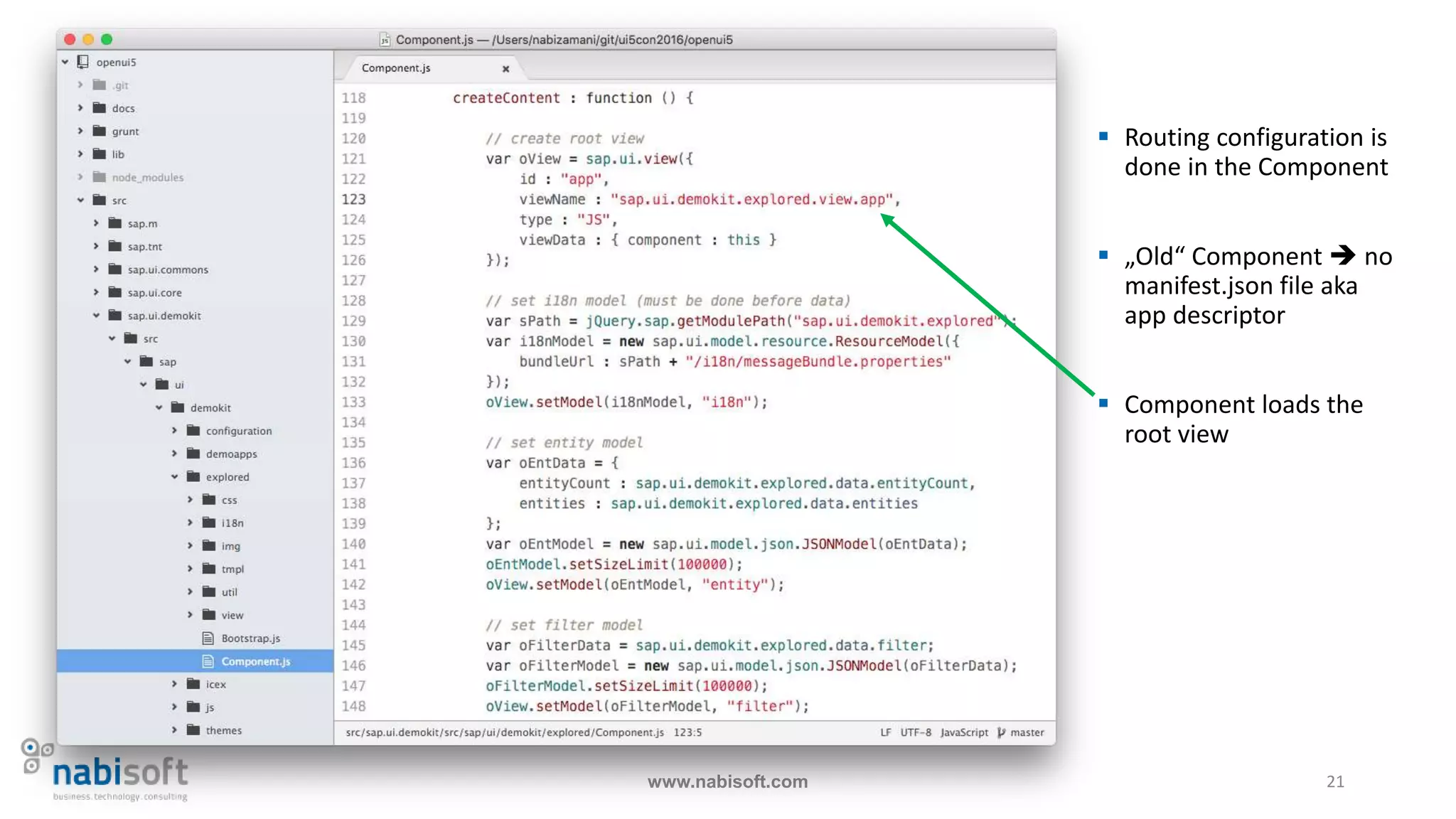

 Routing configuration is
done in the Component
 „Old“ Component  no
manifest.json file aka
app descriptor
 Component loads the
root view

www.nabisoft.com 22

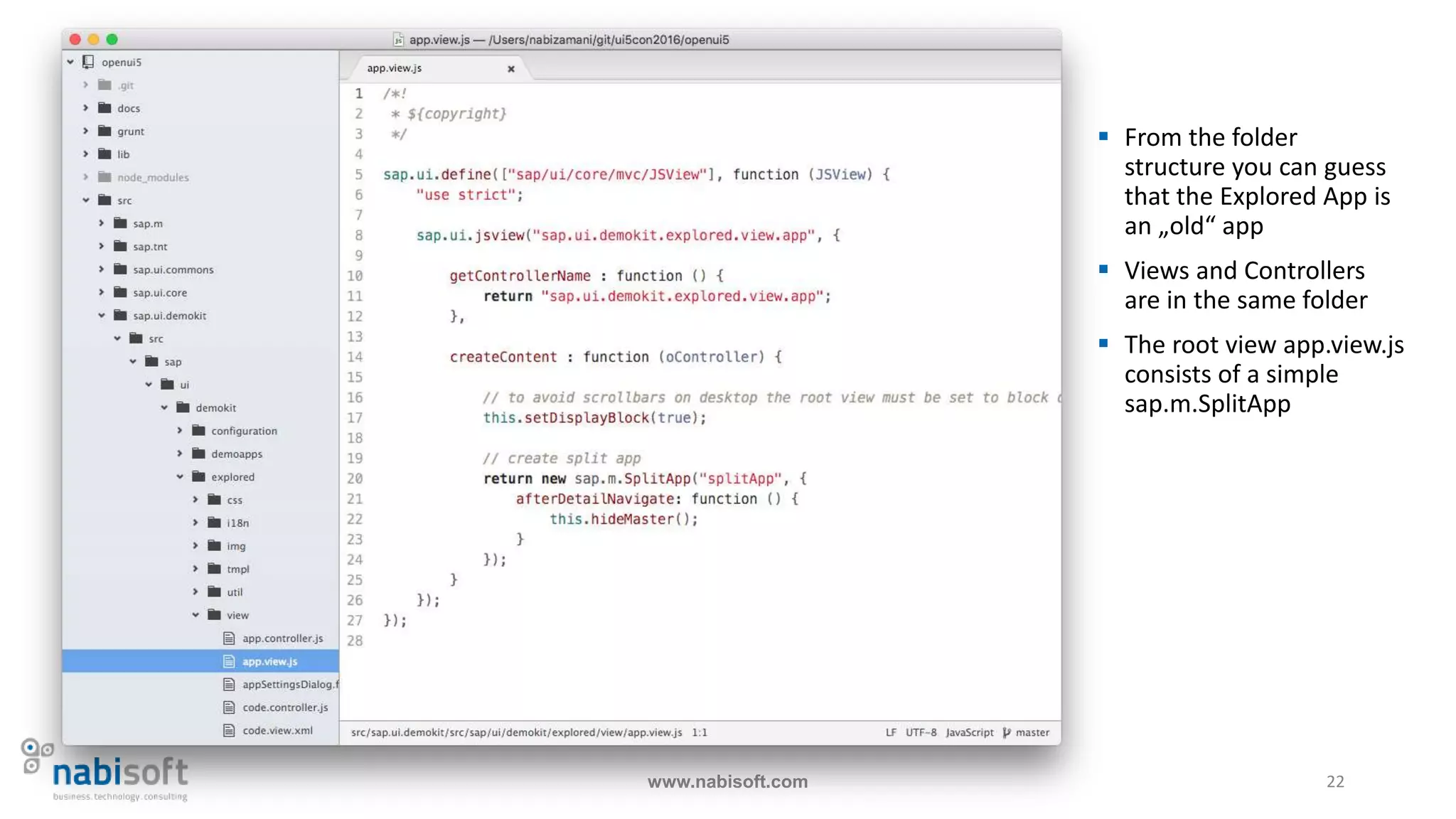

 From the folder
structure you can guess
that the Explored App is
an „old“ app
 Views and Controllers
are in the same folder
 The root view app.view.js
consists of a simple
sap.m.SplitApp

www.nabisoft.com 24

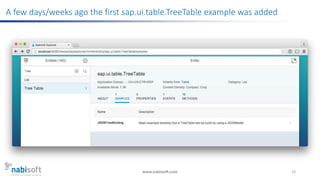

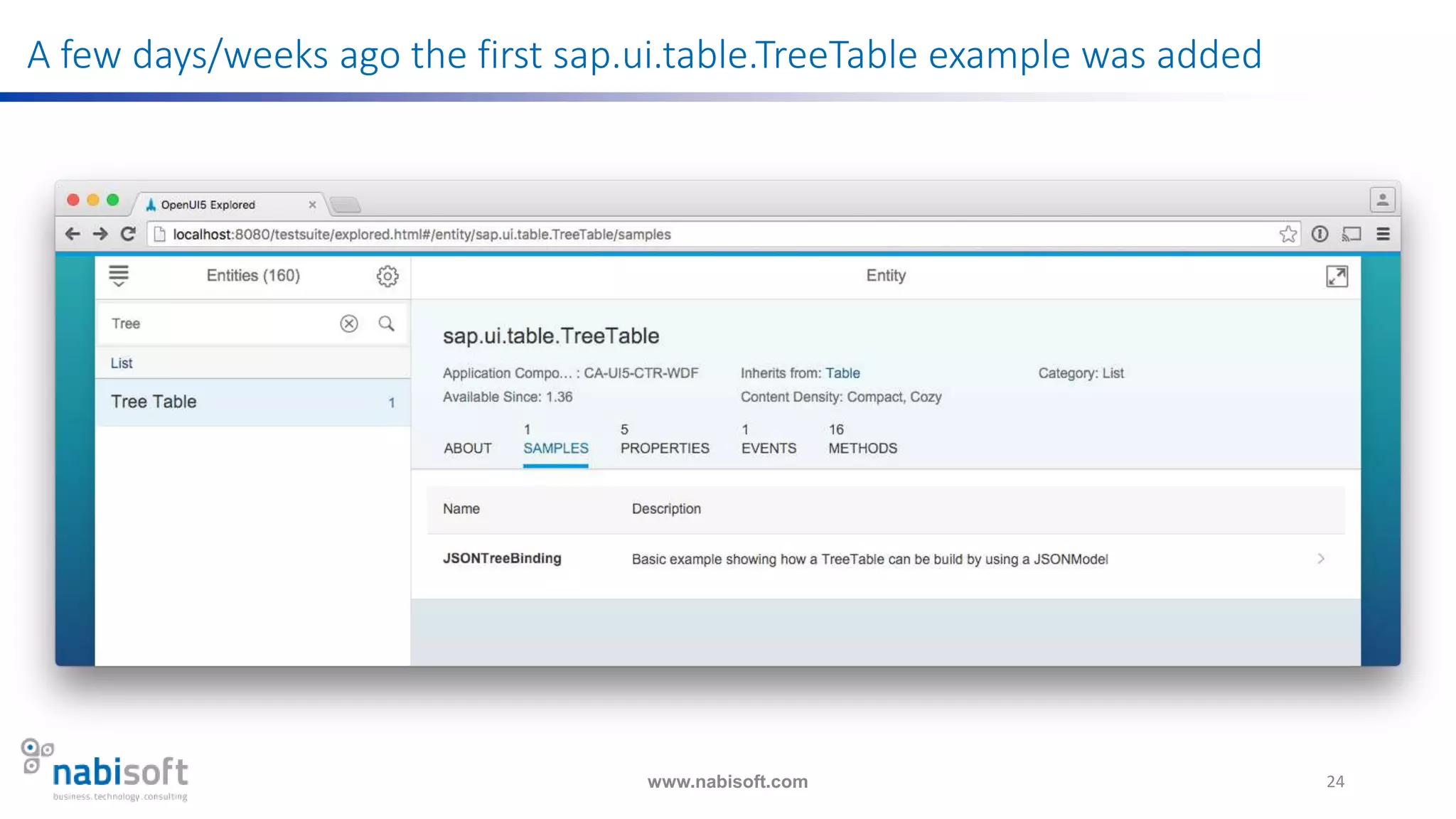

A few days/weeks ago the first sap.ui.table.TreeTable example was added

www.nabisoft.com 25

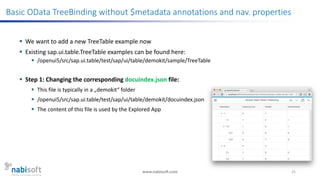

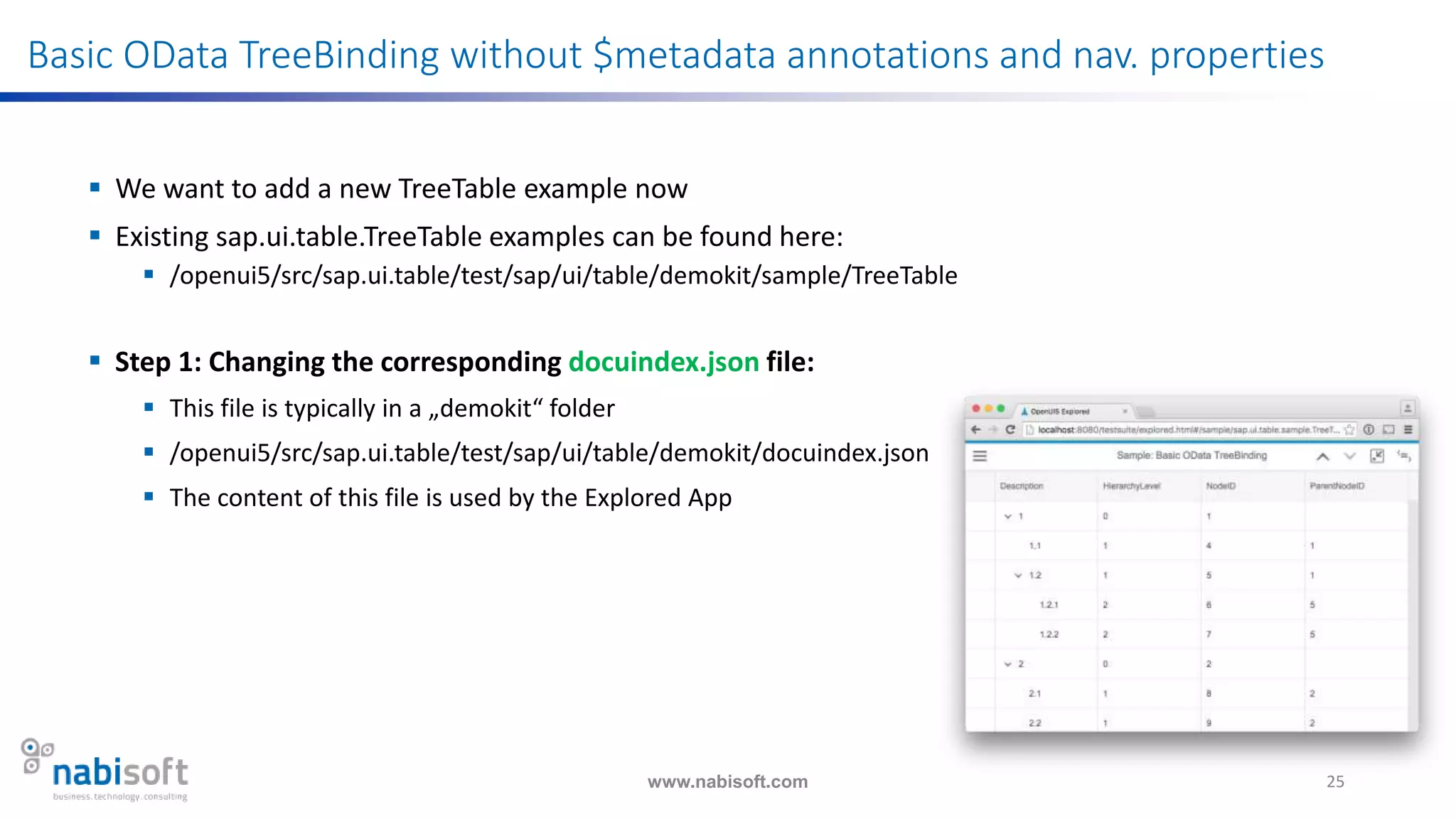

Basic OData TreeBinding without $metadata annotations and nav. properties
 We want to add a new TreeTable example now
 Existing sap.ui.table.TreeTable examples can be found here:
 /openui5/src/sap.ui.table/test/sap/ui/table/demokit/sample/TreeTable
 Step 1: Changing the corresponding docuindex.json file:
 This file is typically in a „demokit“ folder
 /openui5/src/sap.ui.table/test/sap/ui/table/demokit/docuindex.json
 The content of this file is used by the Explored App

www.nabisoft.com 26

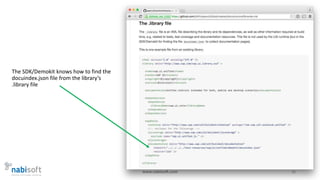

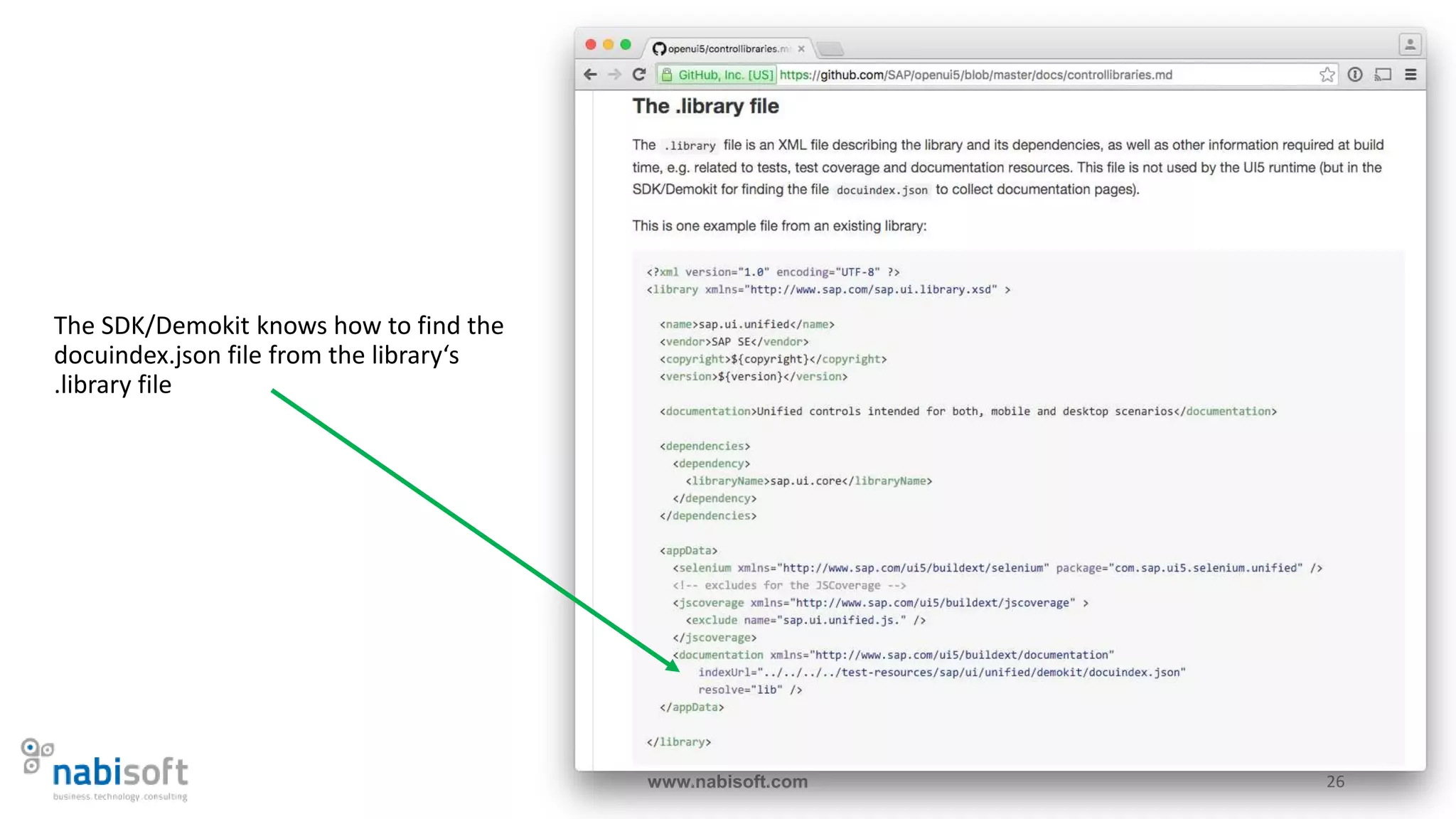

The SDK/Demokit knows how to find the
docuindex.json file from the library‘s
.library file

www.nabisoft.com 27

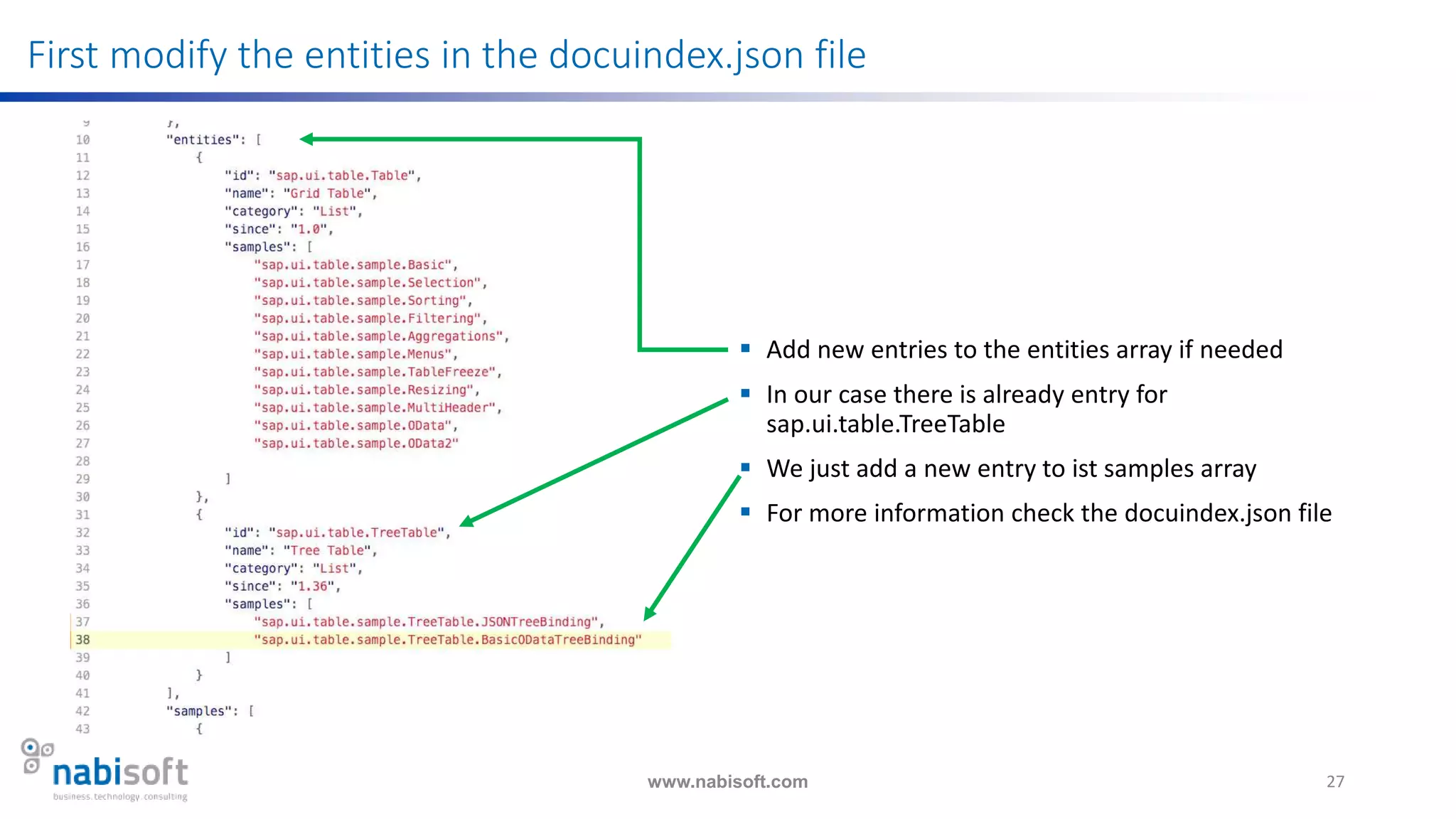

First modify the entities in the docuindex.json file
 Add new entries to the entities array if needed
 In our case there is already entry for
sap.ui.table.TreeTable
 We just add a new entry to ist samples array
 For more information check the docuindex.json file

www.nabisoft.com 28

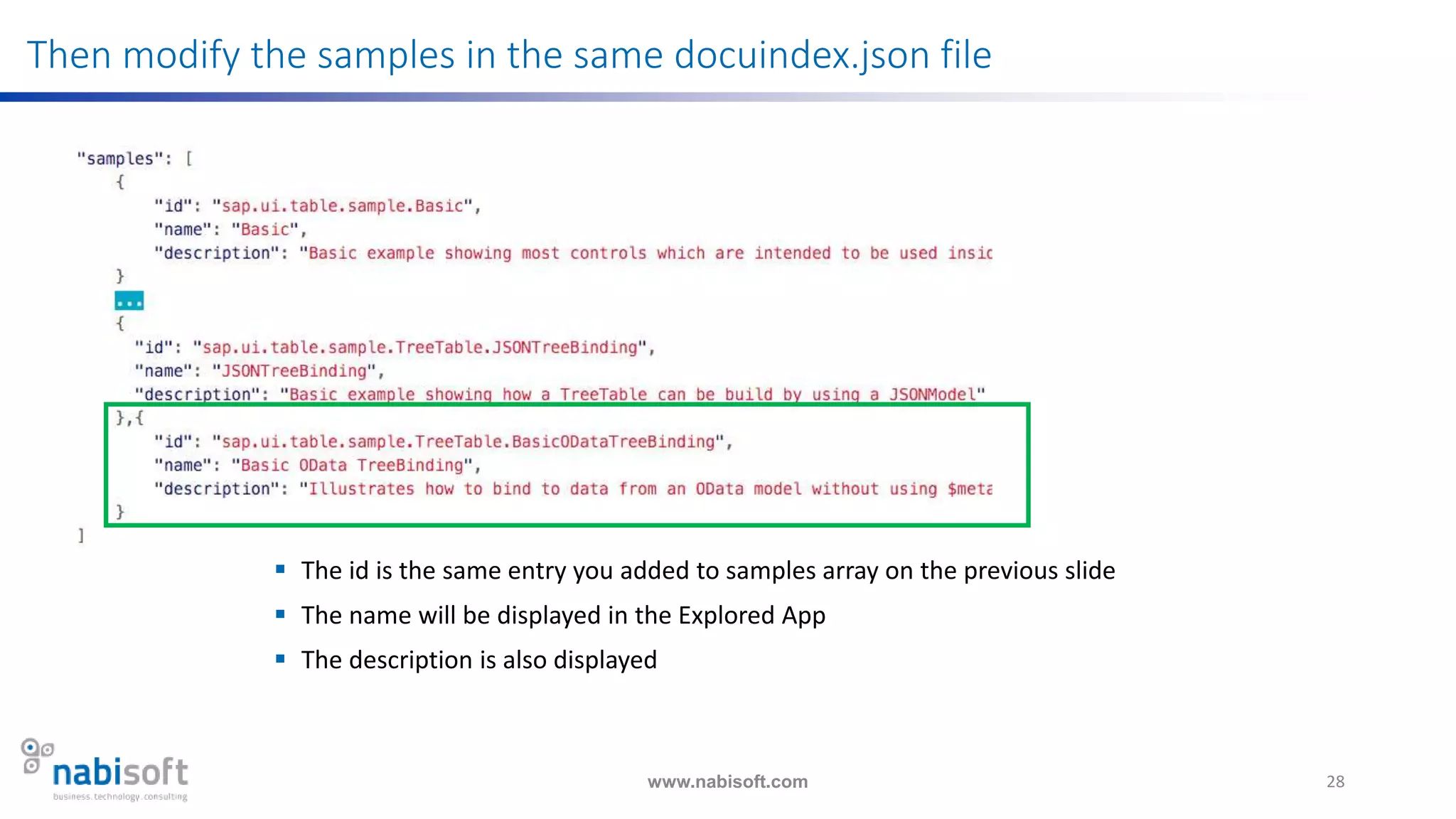

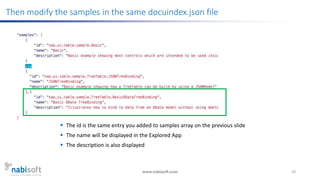

Then modify the samples in the same docuindex.json file
 The id is the same entry you added to samples array on the previous slide
 The name will be displayed in the Explored App
 The description is also displayed

www.nabisoft.com 29

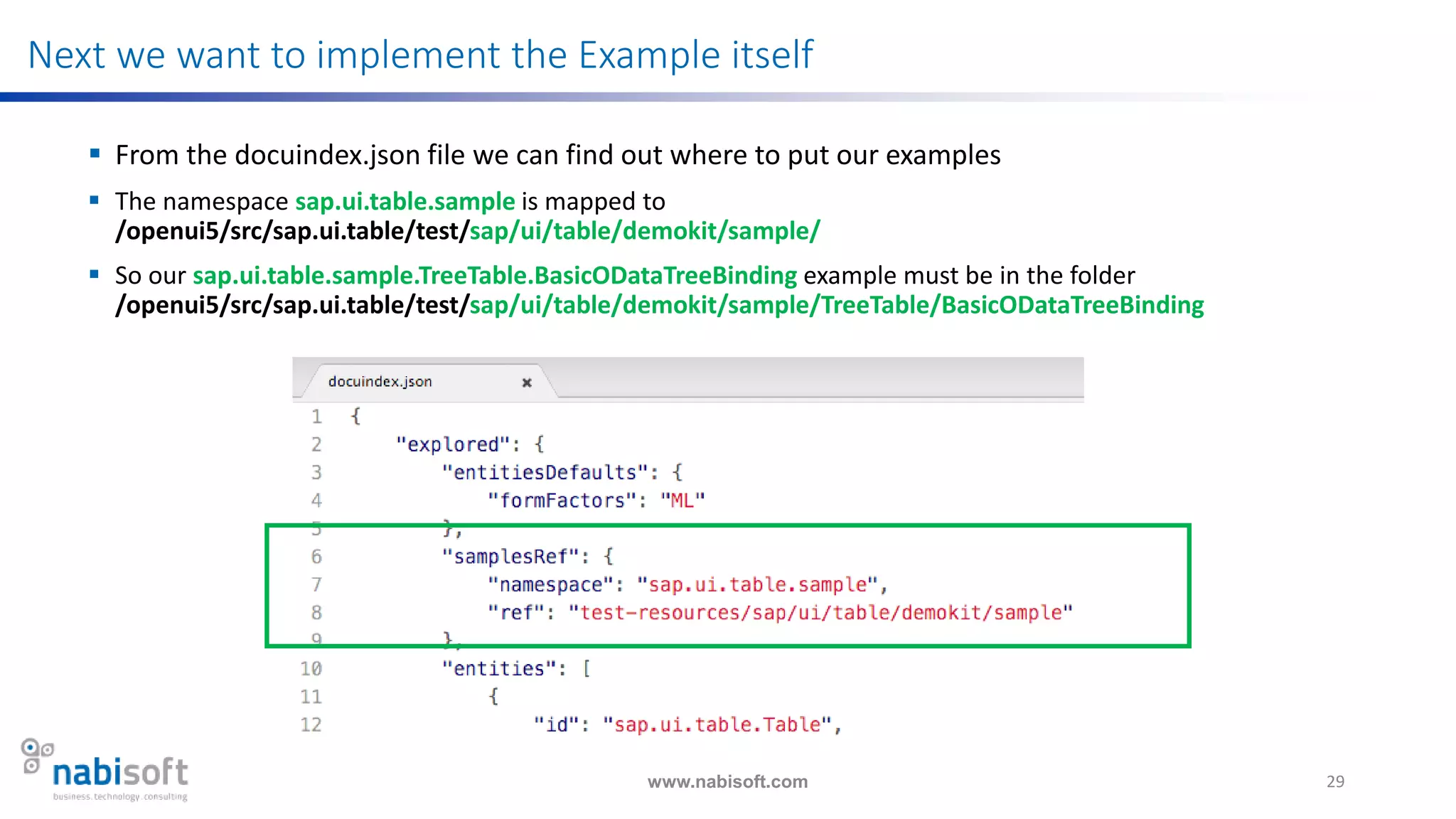

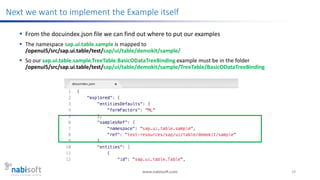

Next we want to implement the Example itself
 From the docuindex.json file we can find out where to put our examples
 The namespace sap.ui.table.sample is mapped to
/openui5/src/sap.ui.table/test/sap/ui/table/demokit/sample/
 So our sap.ui.table.sample.TreeTable.BasicODataTreeBinding example must be in the folder
/openui5/src/sap.ui.table/test/sap/ui/table/demokit/sample/TreeTable/BasicODataTreeBinding

www.nabisoft.com 30

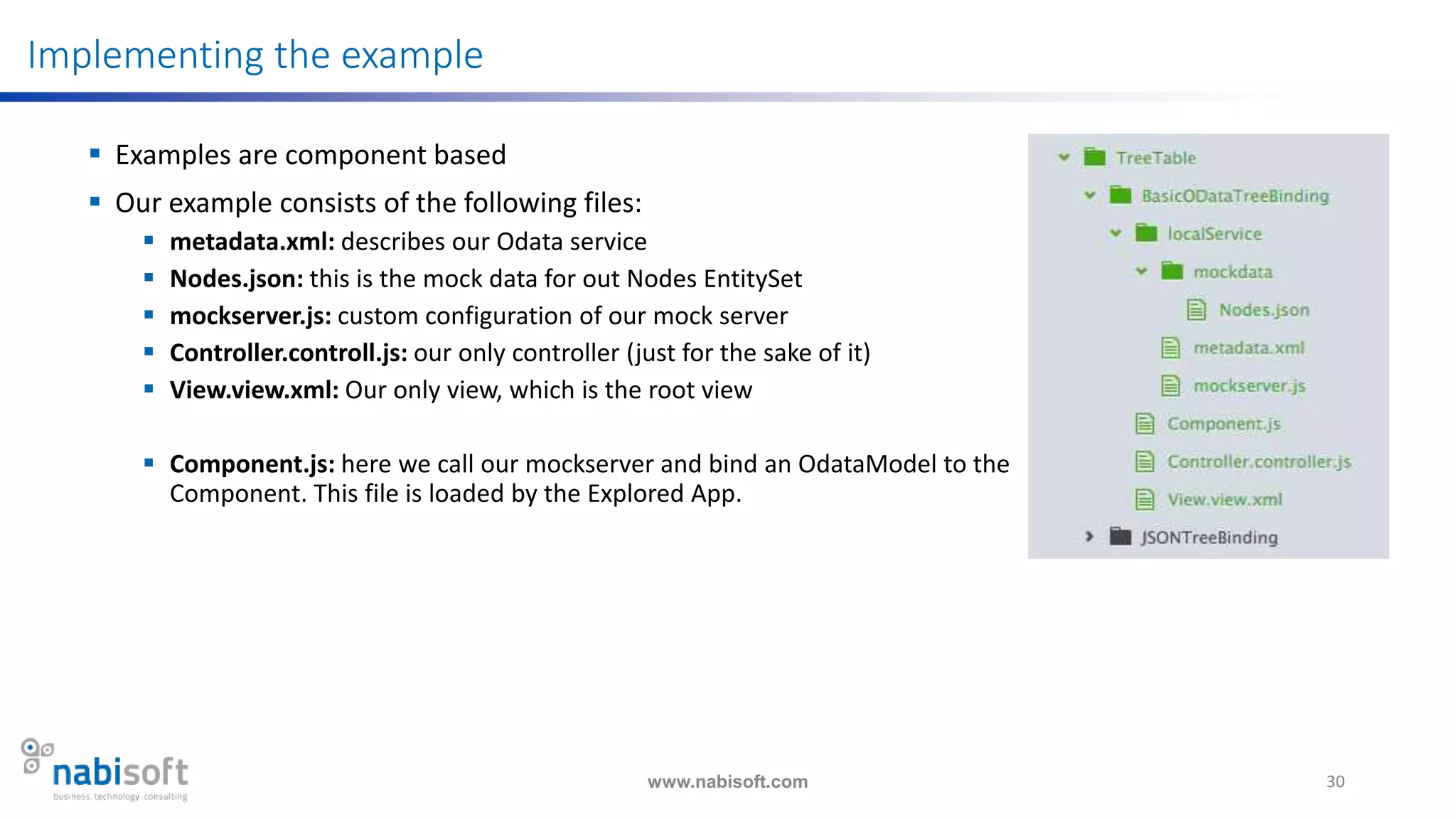

Implementing the example
 Examples are component based
 Our example consists of the following files:

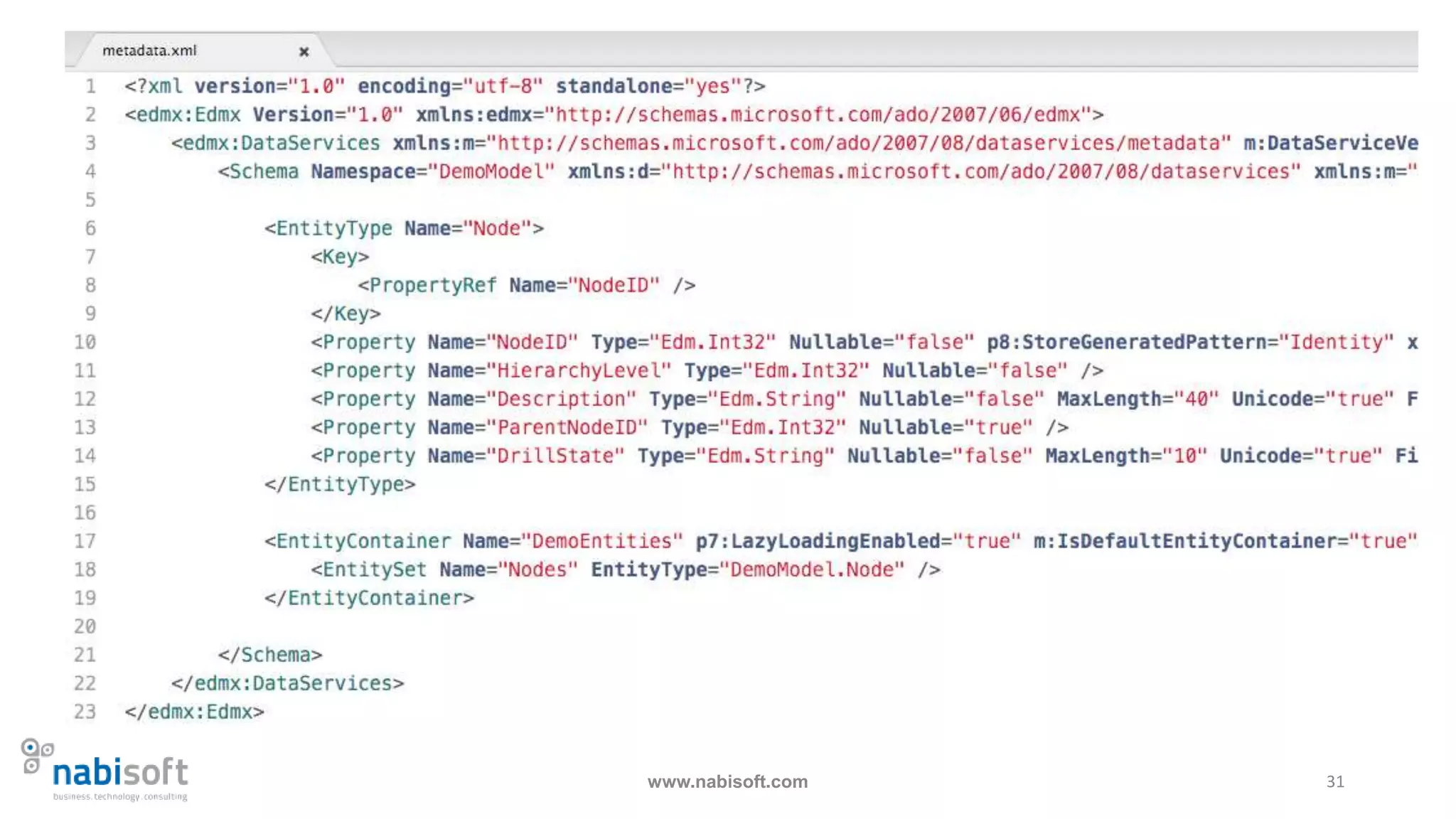

 metadata.xml: describes our Odata service
 Nodes.json: this is the mock data for out Nodes EntitySet

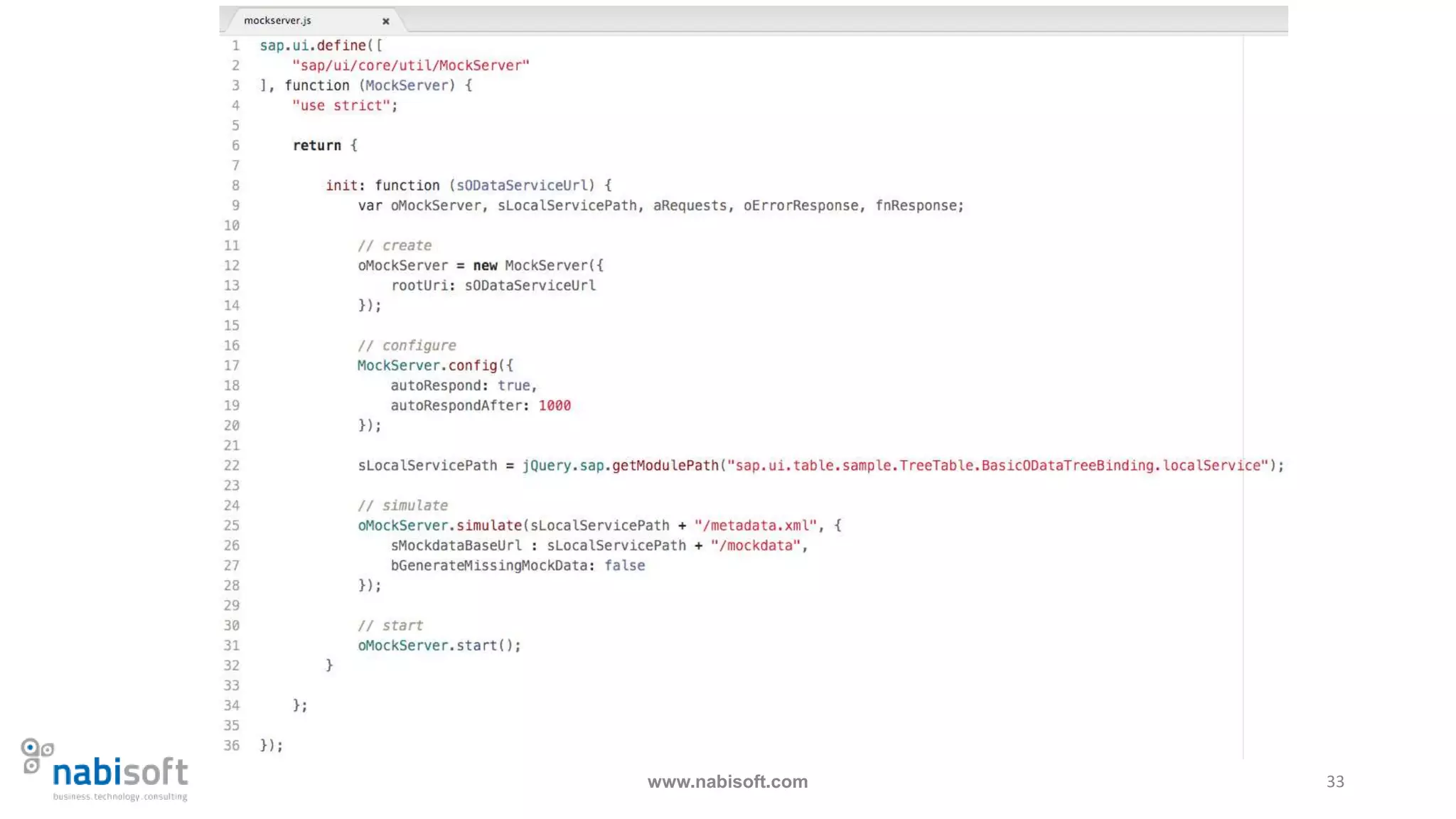

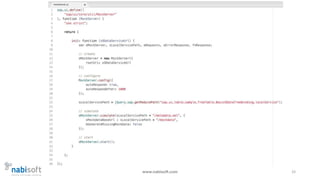

 mockserver.js: custom configuration of our mock server
 Controller.controll.js: our only controller (just for the sake of it)
 View.view.xml: Our only view, which is the root view
 Component.js: here we call our mockserver and bind an OdataModel to the
Component. This file is loaded by the Explored App.

www.nabisoft.com 32

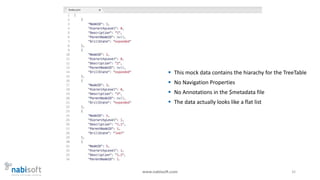

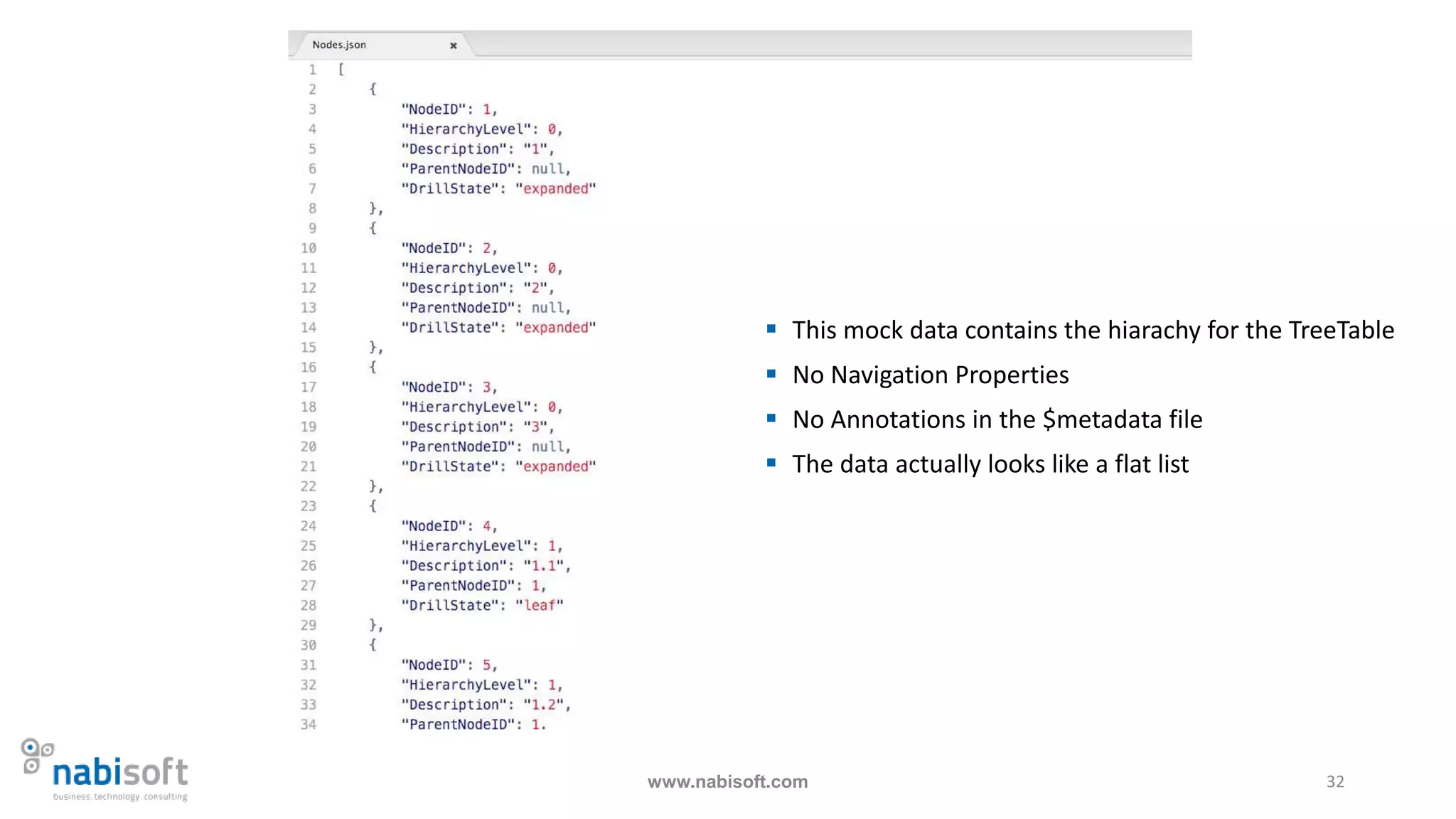

 This mock data contains the hiarachy for the TreeTable
 No Navigation Properties
 No Annotations in the $metadata file
 The data actually looks like a flat list

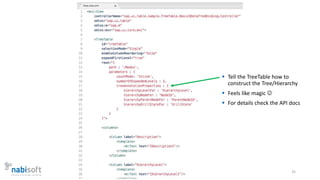

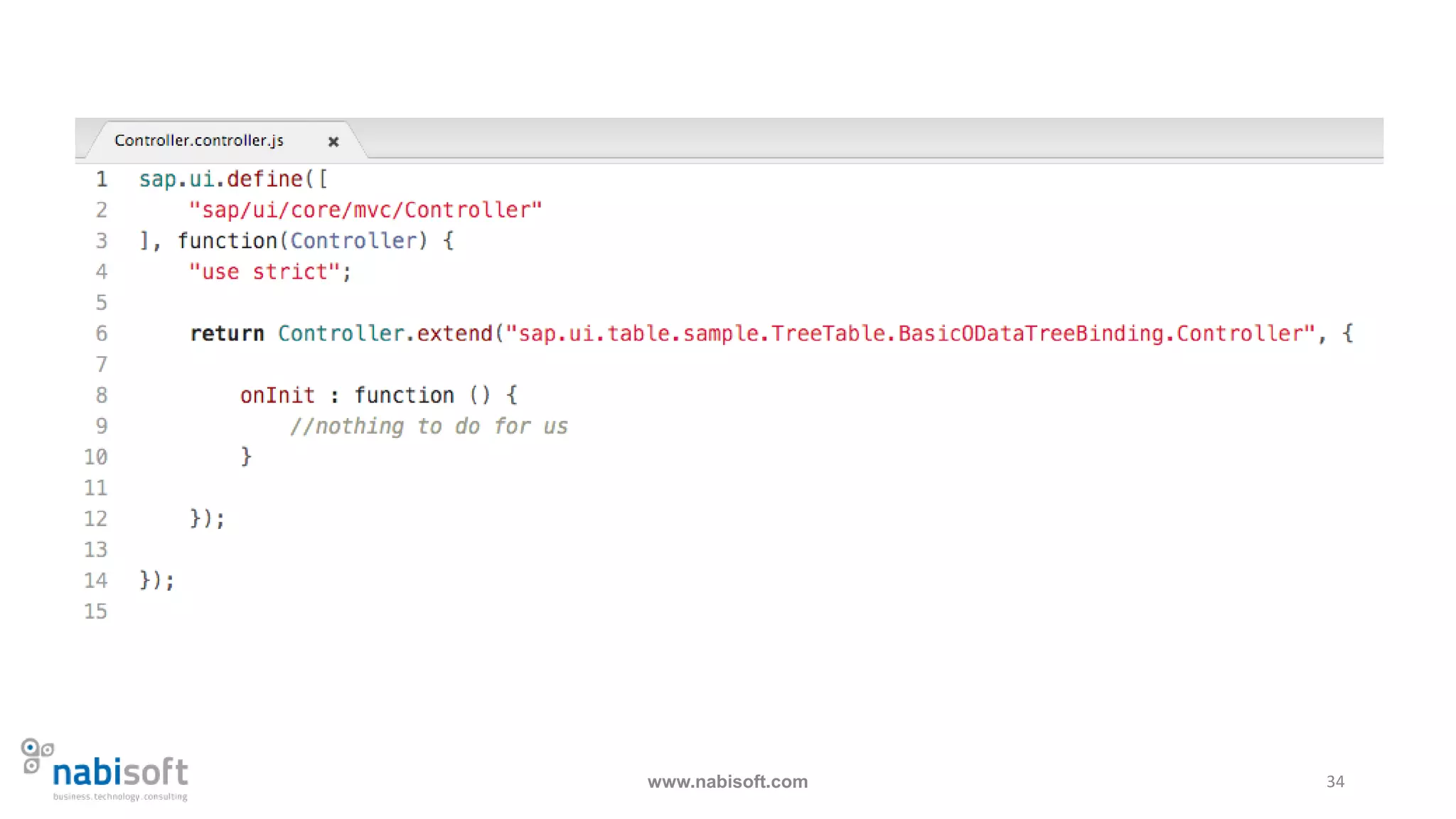

www.nabisoft.com 35

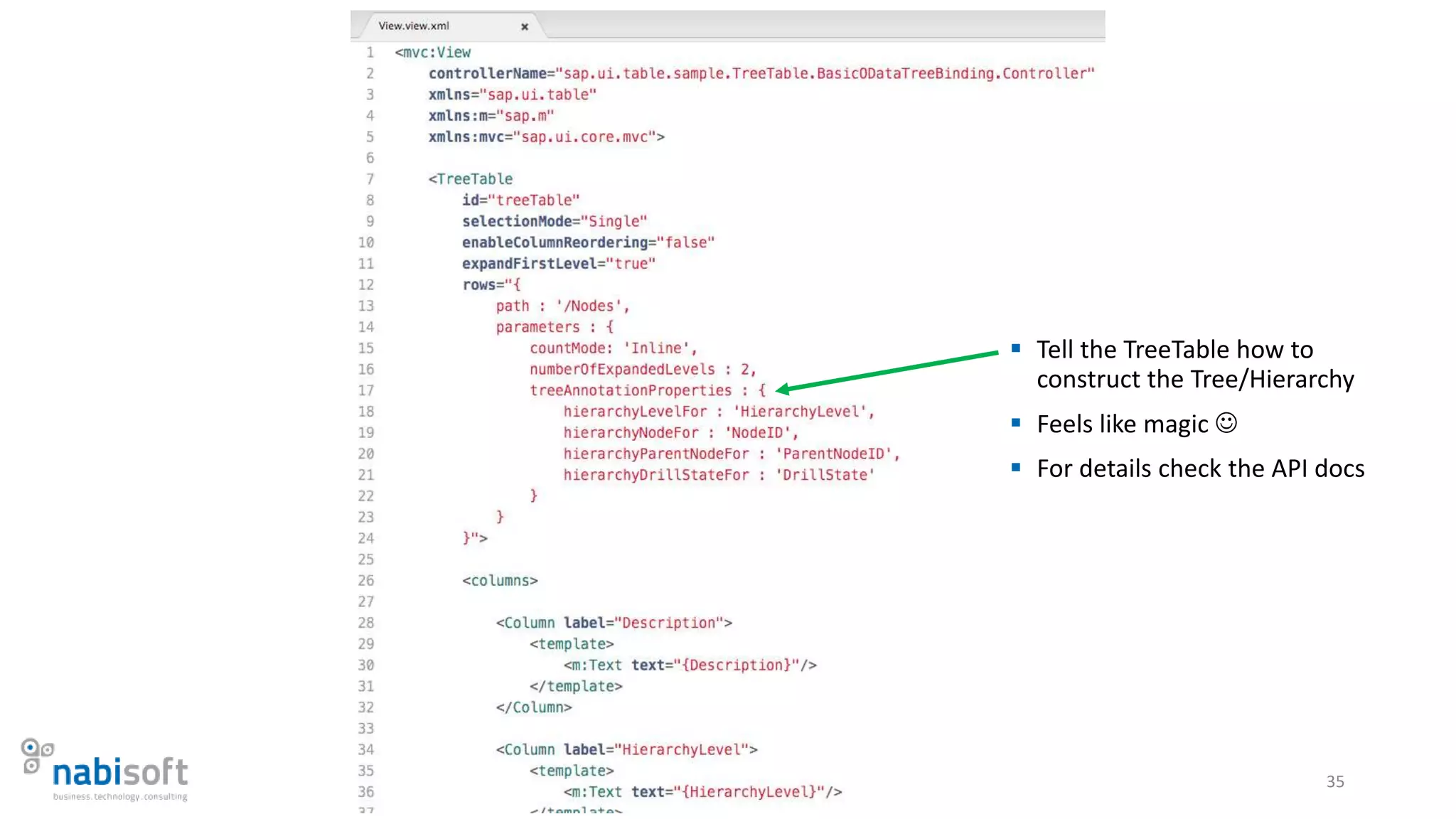

 Tell the TreeTable how to
construct the Tree/Hierarchy
 Feels like magic 
 For details check the API docs

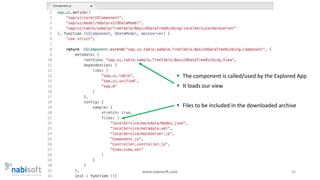

www.nabisoft.com 36

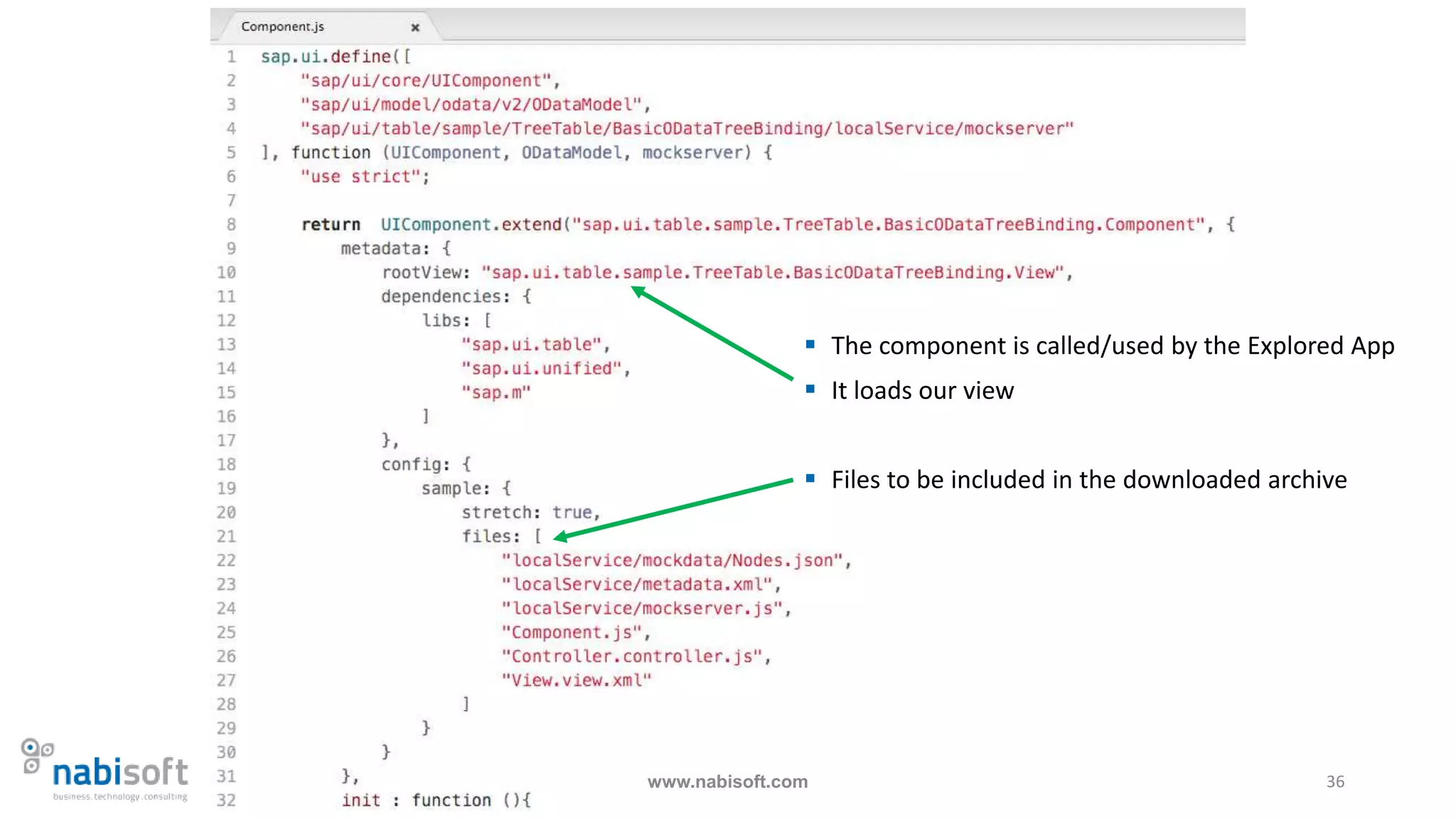

 The component is called/used by the Explored App
 It loads our view
 Files to be included in the downloaded archive

www.nabisoft.com 37

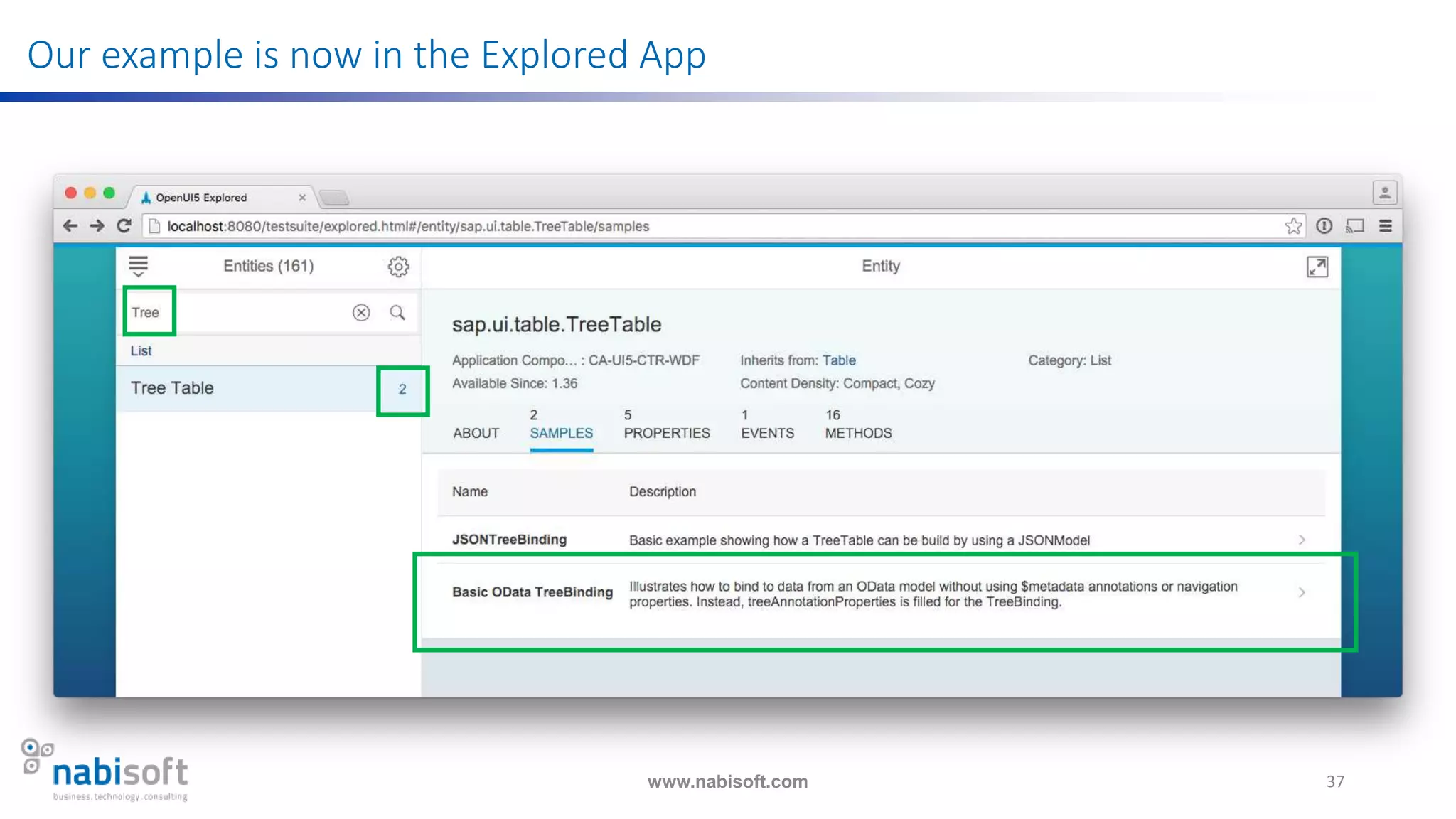

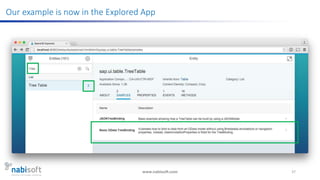

Our example is now in the Explored App

www.nabisoft.com 38

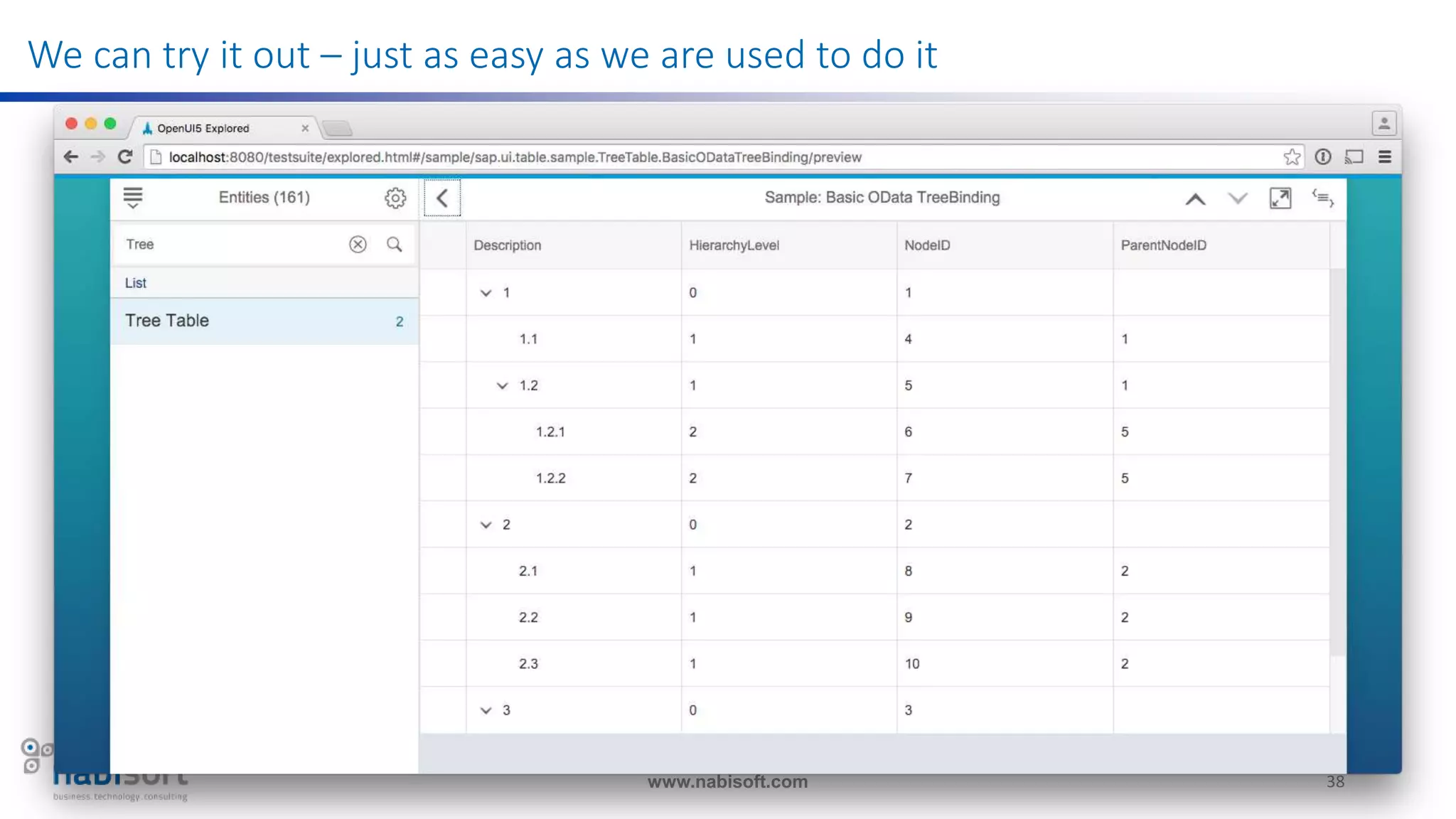

We can try it out – just as easy as we are used to do it

www.nabisoft.com 39

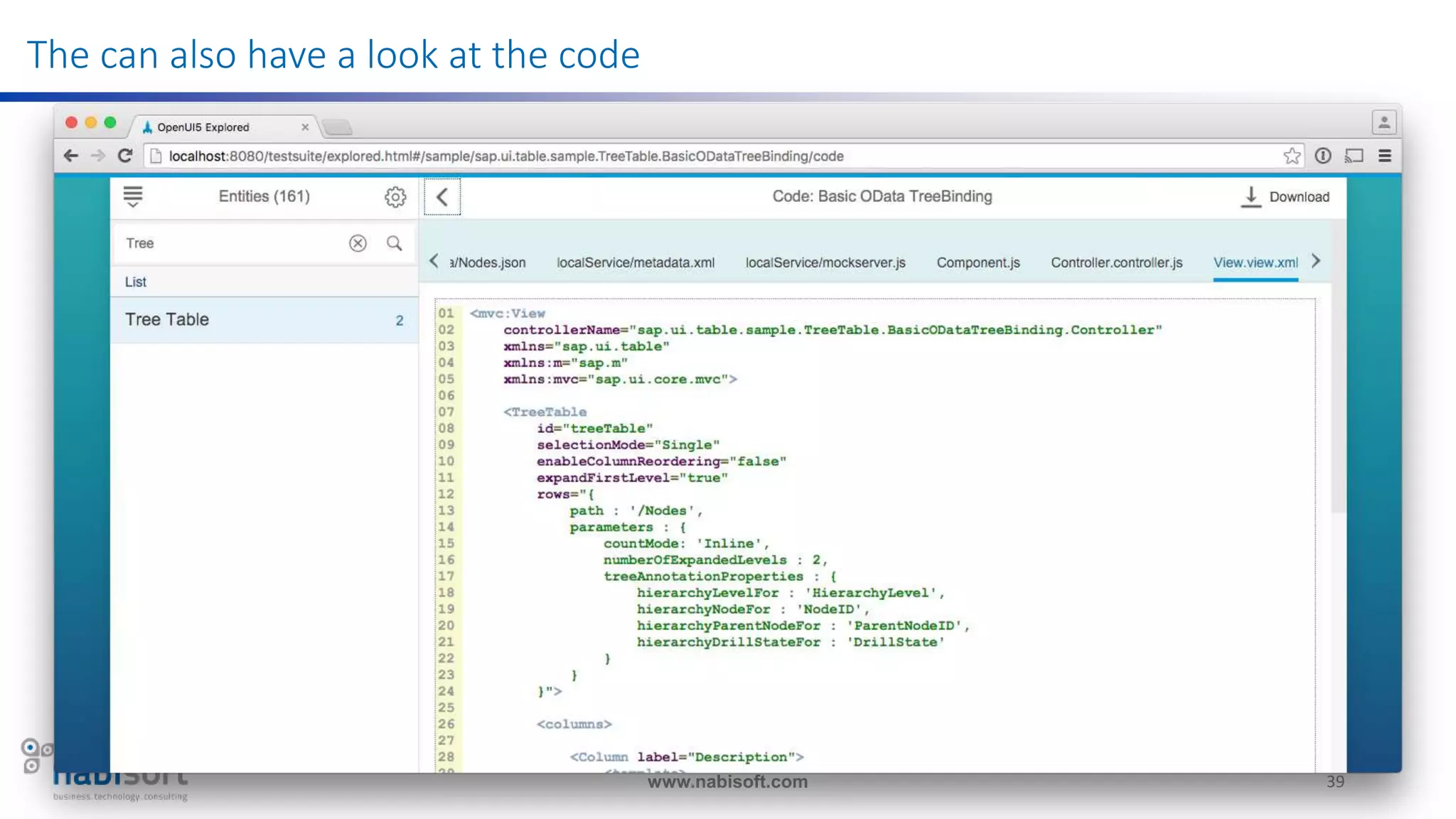

The can also have a look at the code

www.nabisoft.com 40

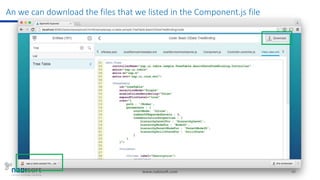

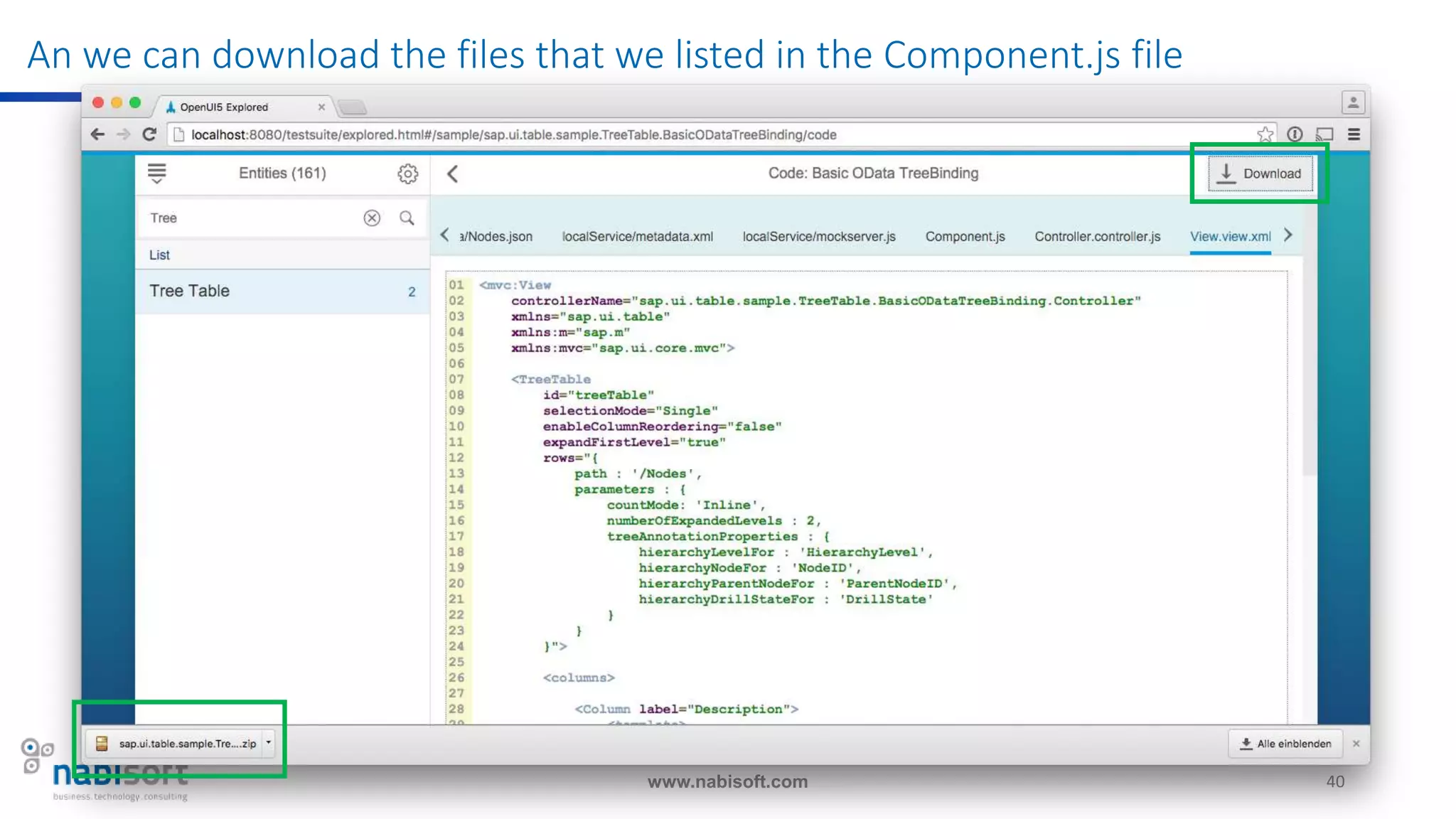

An we can download the files that we listed in the Component.js file

www.nabisoft.com 41

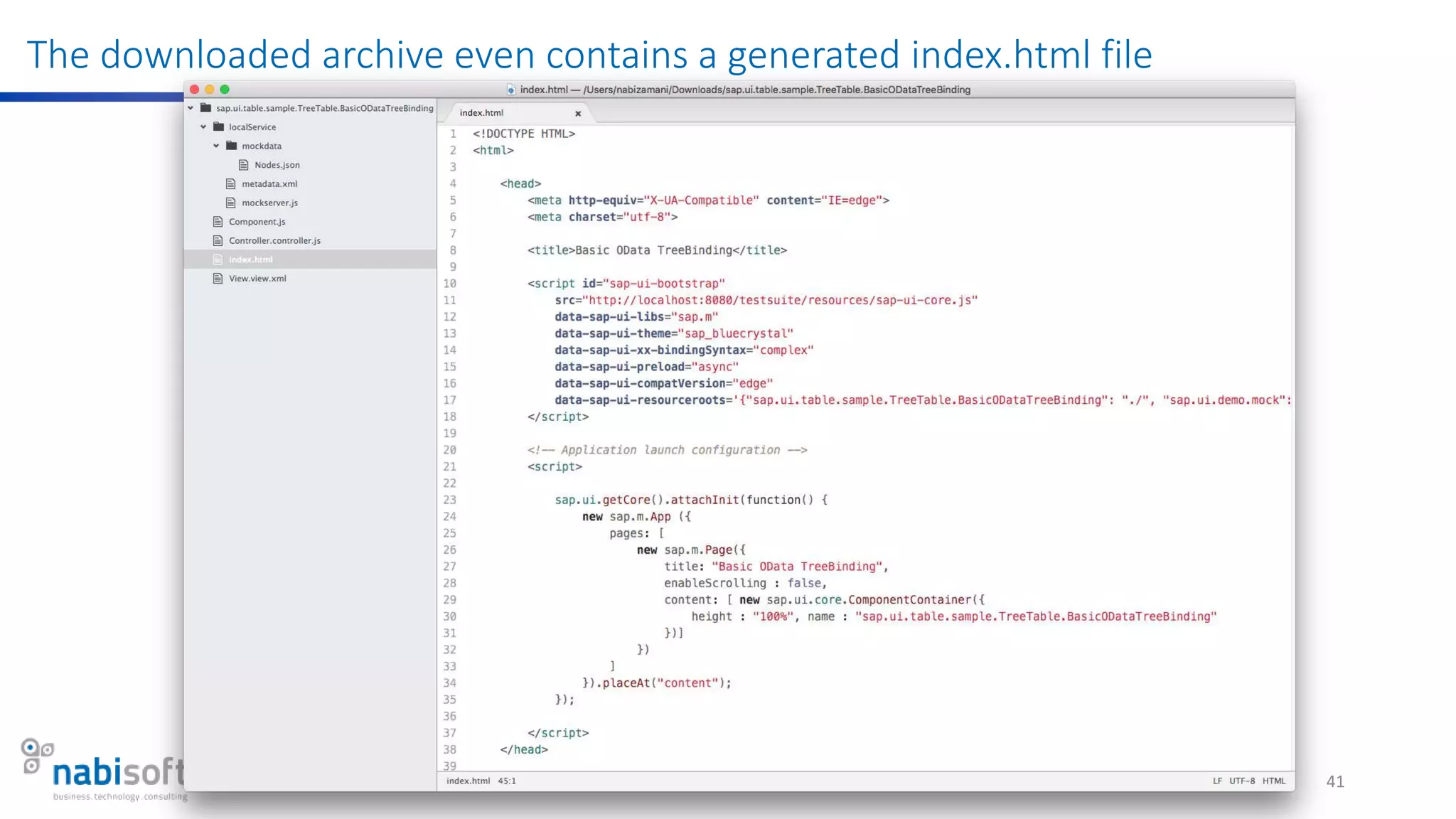

The downloaded archive even contains a generated index.html file

www.nabisoft.com 42

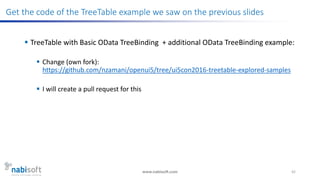

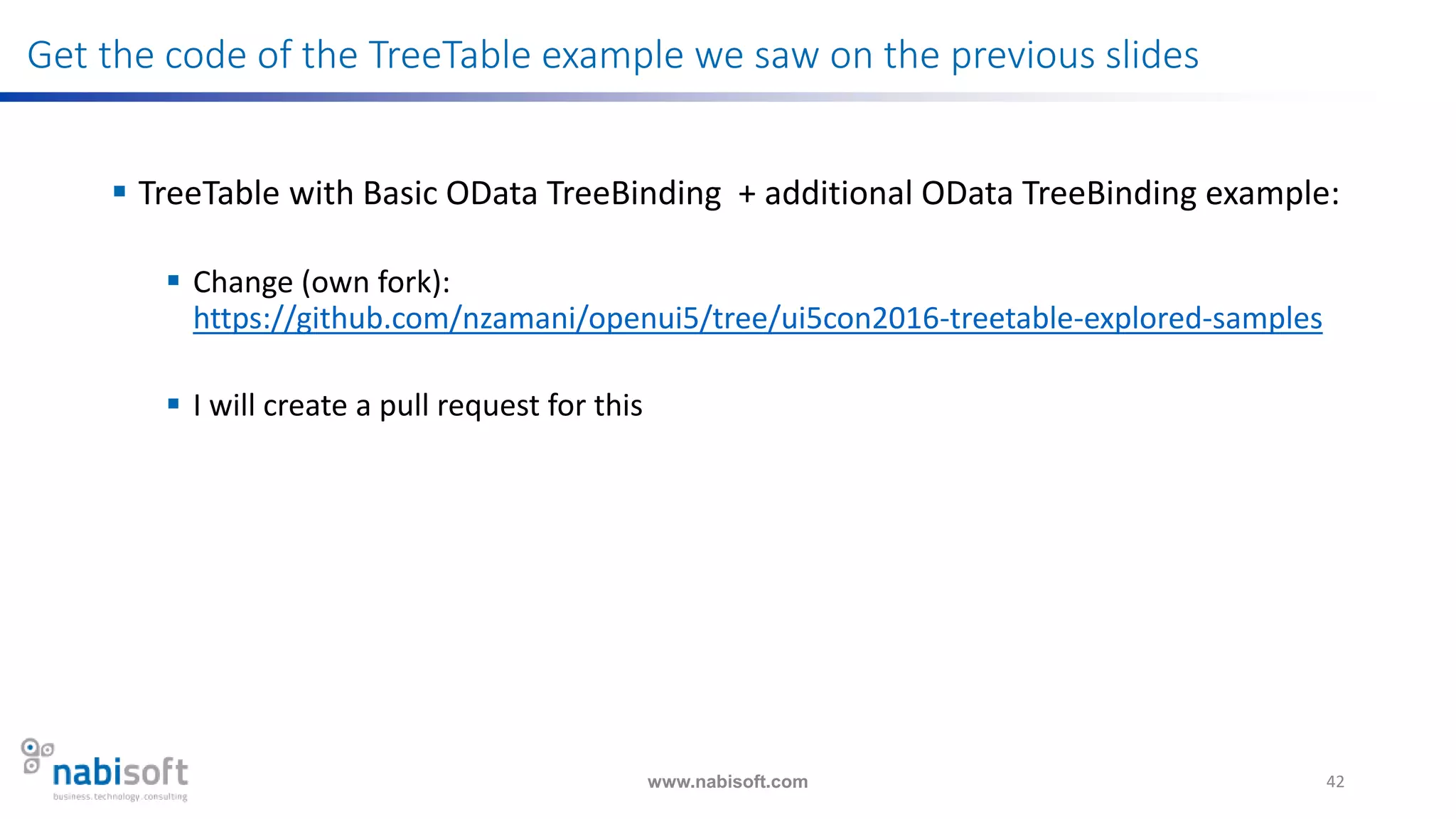

Get the code of the TreeTable example we saw on the previous slides
 TreeTable with Basic OData TreeBinding + additional OData TreeBinding example:
 Change (own fork):
https://github.com/nzamani/openui5/tree/ui5con2016-treetable-explored-samples
 I will create a pull request for this

www.nabisoft.com 43

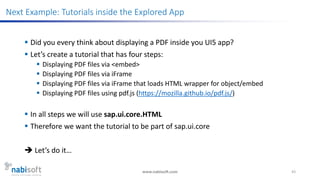

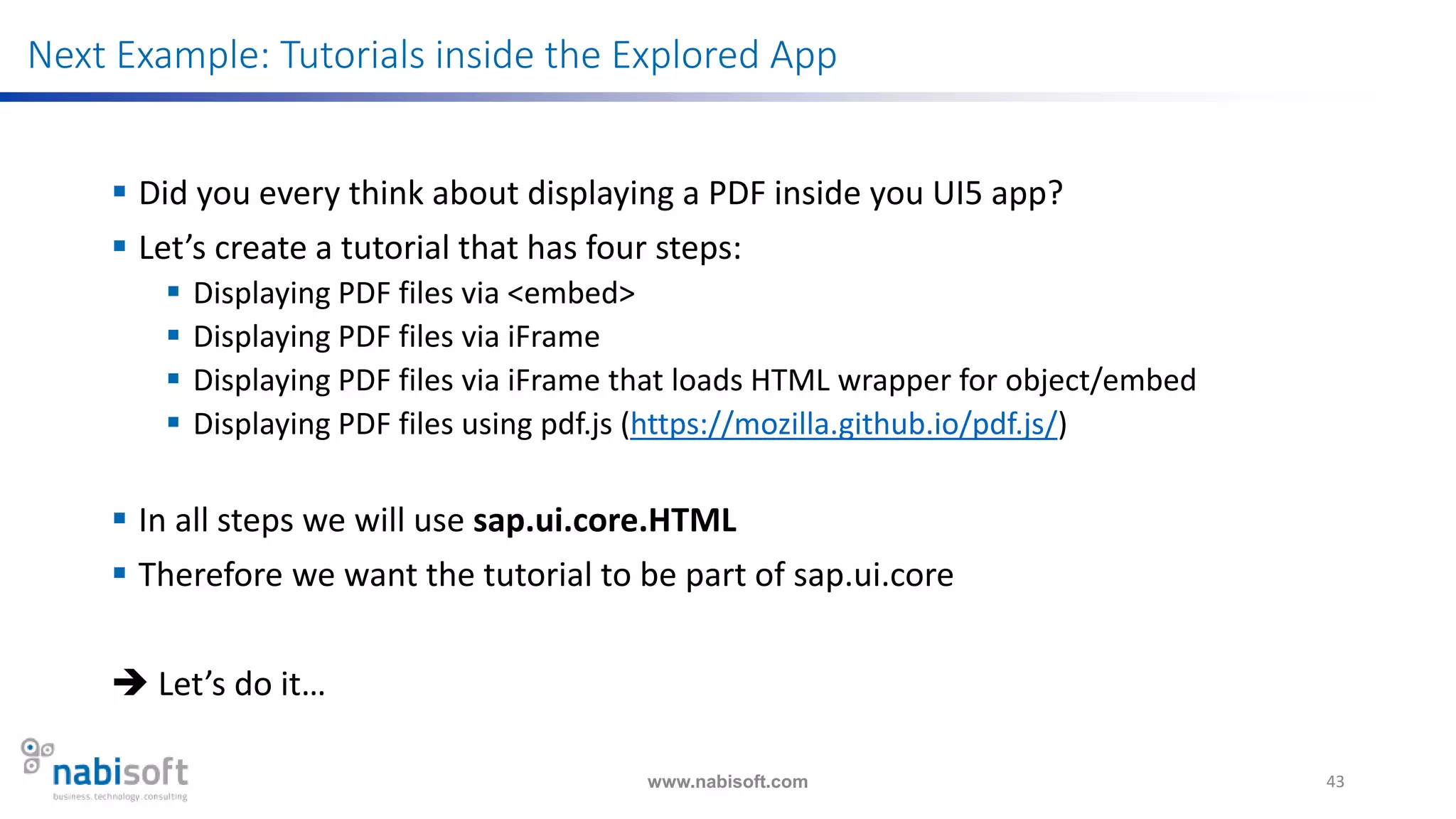

Next Example: Tutorials inside the Explored App
 Did you every think about displaying a PDF inside you UI5 app?
 Let’s create a tutorial that has four steps:
 Displaying PDF files via <embed>
 Displaying PDF files via iFrame
 Displaying PDF files via iFrame that loads HTML wrapper for object/embed
 Displaying PDF files using pdf.js (https://mozilla.github.io/pdf.js/)
 In all steps we will use sap.ui.core.HTML
 Therefore we want the tutorial to be part of sap.ui.core
 Let’s do it…

www.nabisoft.com 44

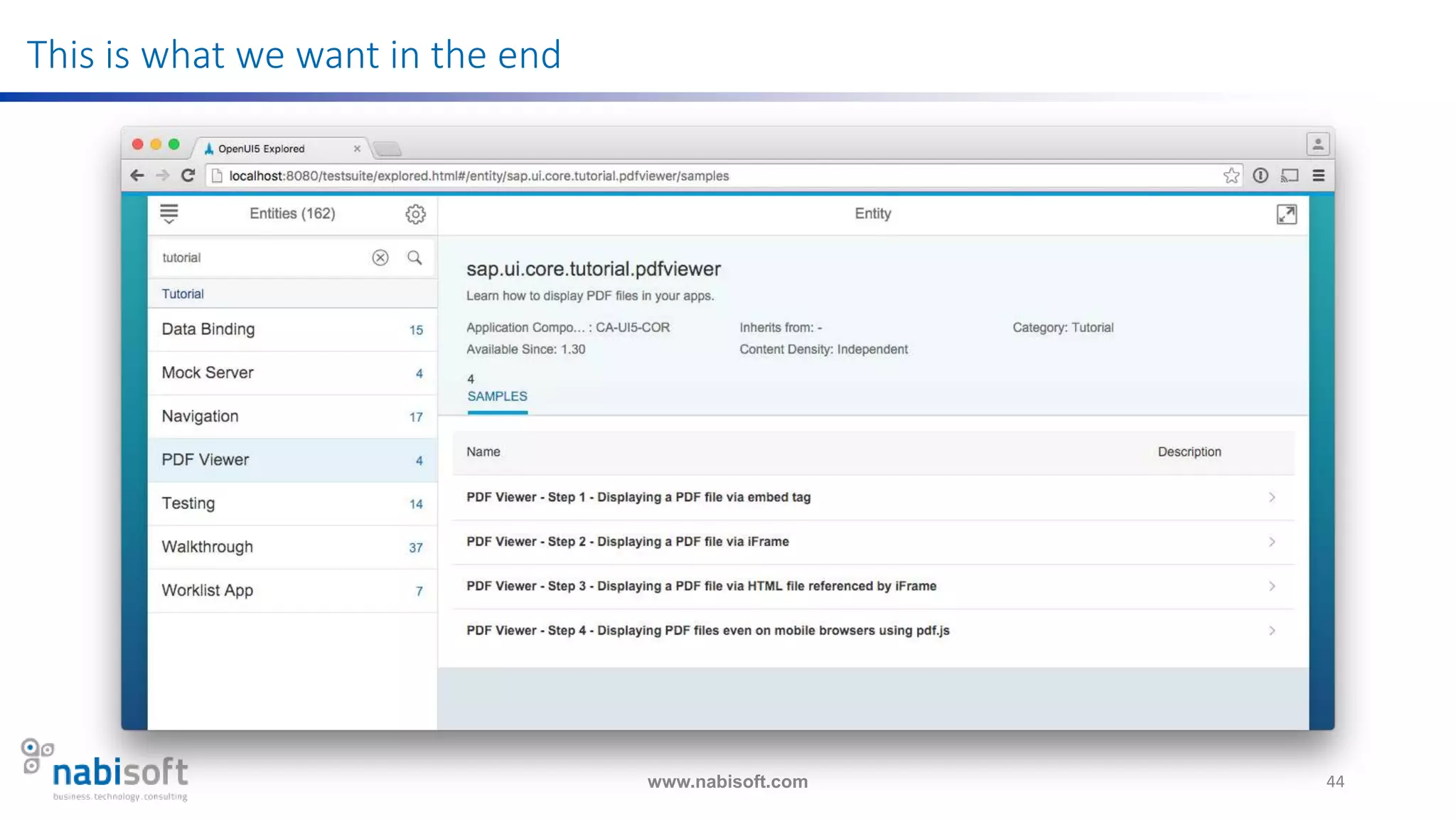

This is what we want in the end

www.nabisoft.com 45

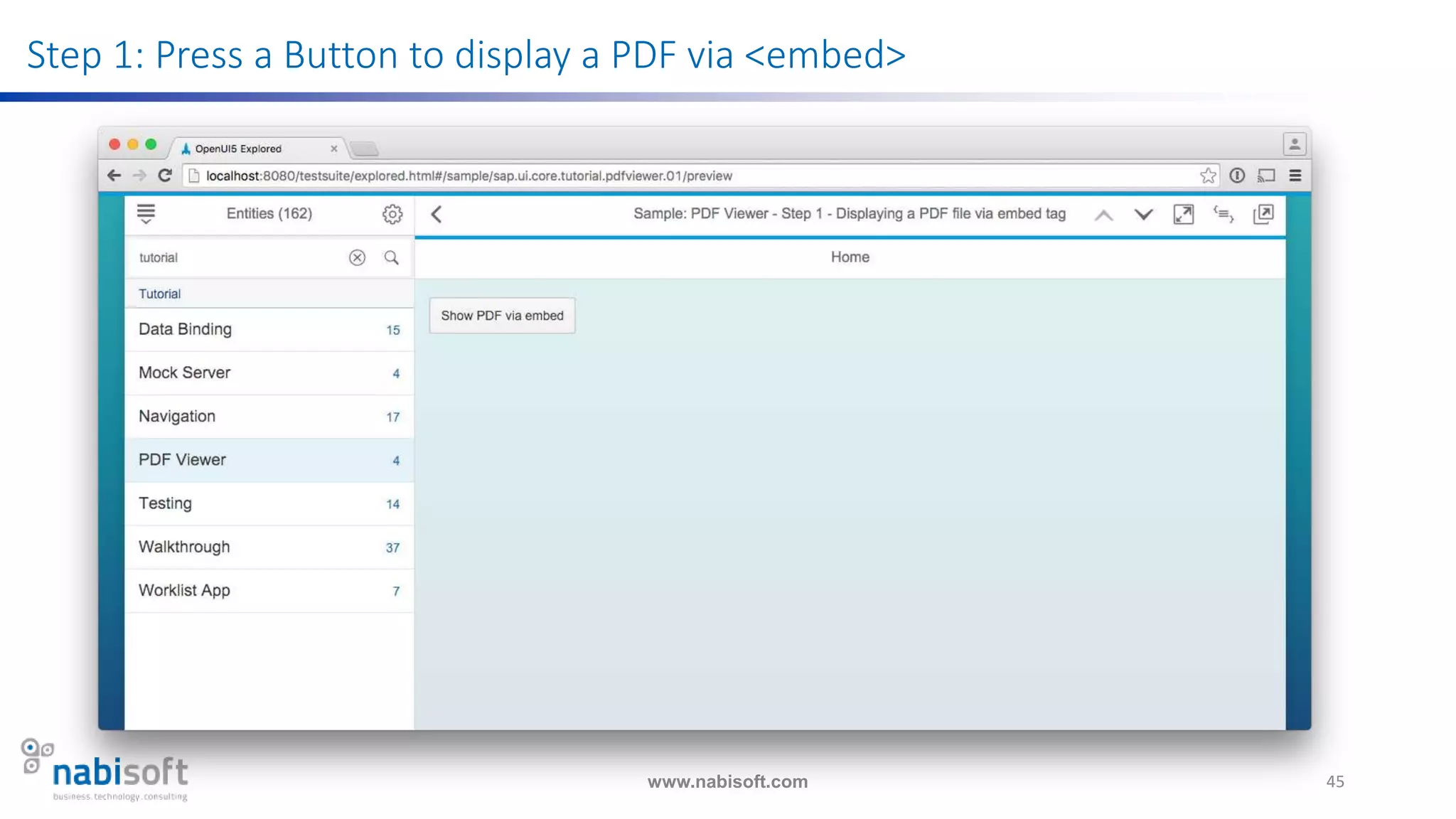

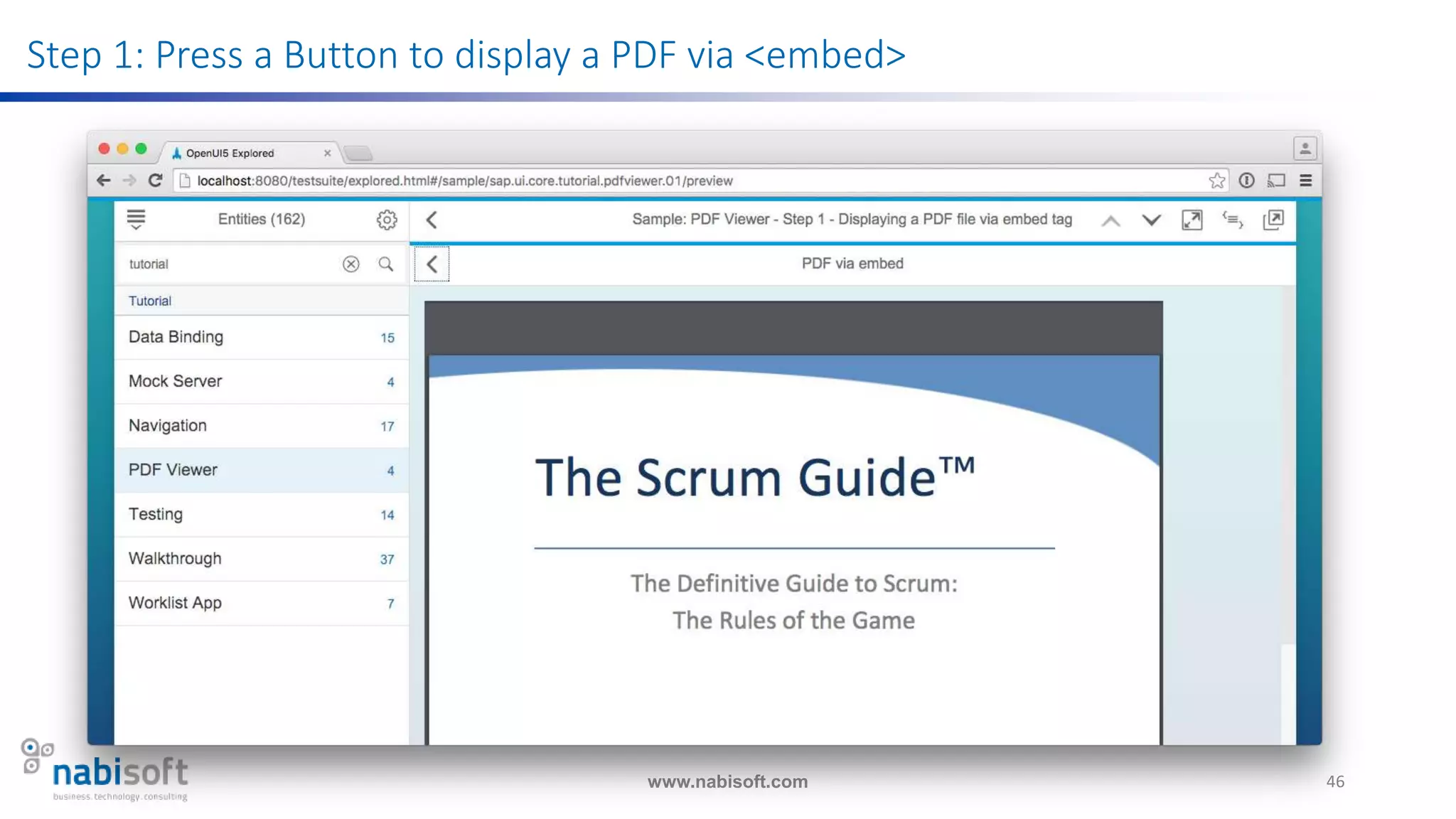

Step 1: Press a Button to display a PDF via <embed>

www.nabisoft.com 46
Step 1: Press a Button to display a PDF via <embed>

www.nabisoft.com 47

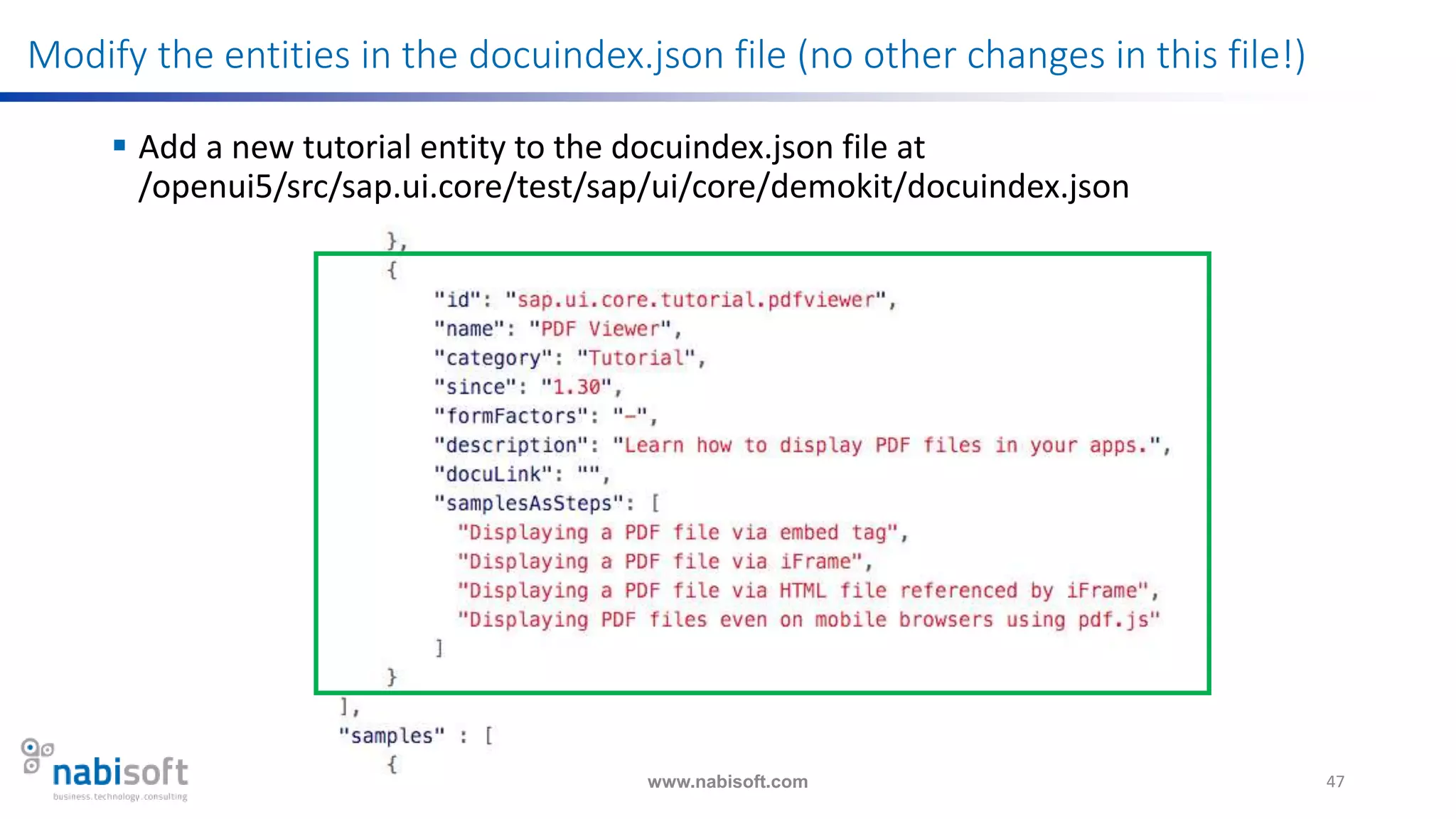

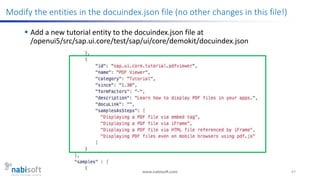

Modify the entities in the docuindex.json file (no other changes in this file!)
 Add a new tutorial entity to the docuindex.json file at
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/docuindex.json

www.nabisoft.com 48

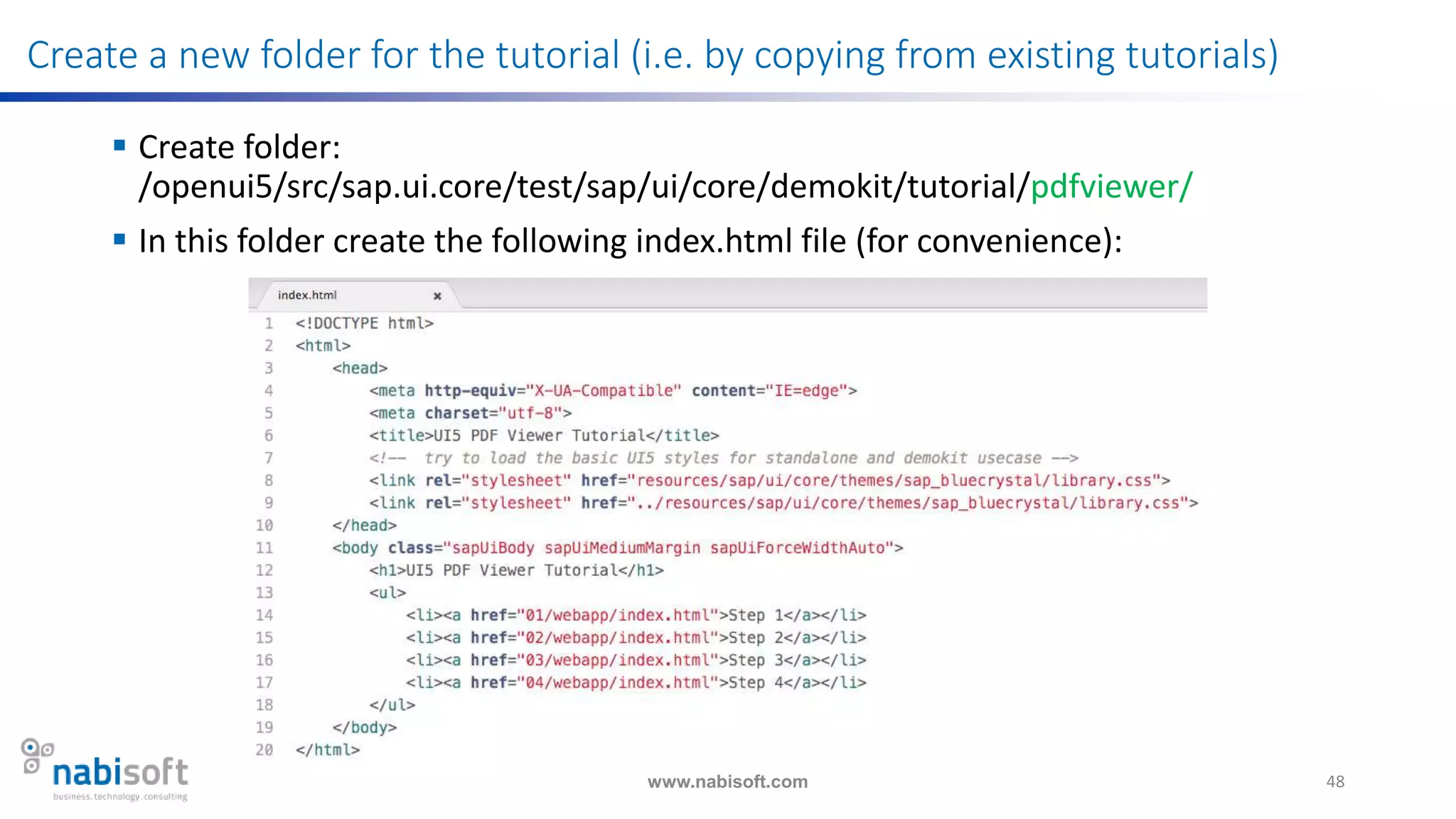

Create a new folder for the tutorial (i.e. by copying from existing tutorials)
 Create folder:
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/tutorial/pdfviewer/
 In this folder create the following index.html file (for convenience):

www.nabisoft.com 49

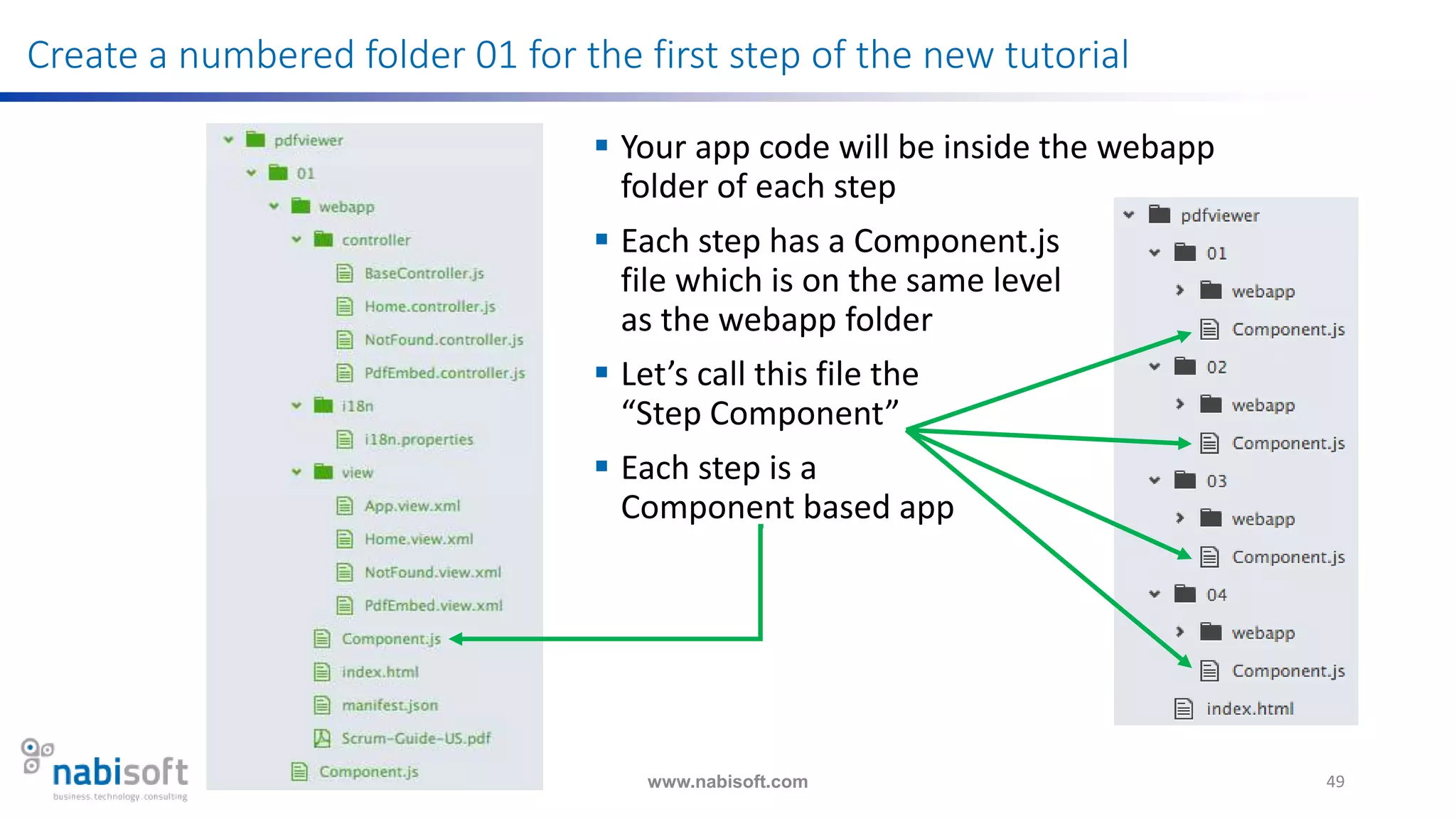

Create a numbered folder 01 for the first step of the new tutorial
 Your app code will be inside the webapp
folder of each step
 Each step has a Component.js
file which is on the same level
as the webapp folder
 Let’s call this file the
“Step Component”
 Each step is a
Component based app

www.nabisoft.com 50

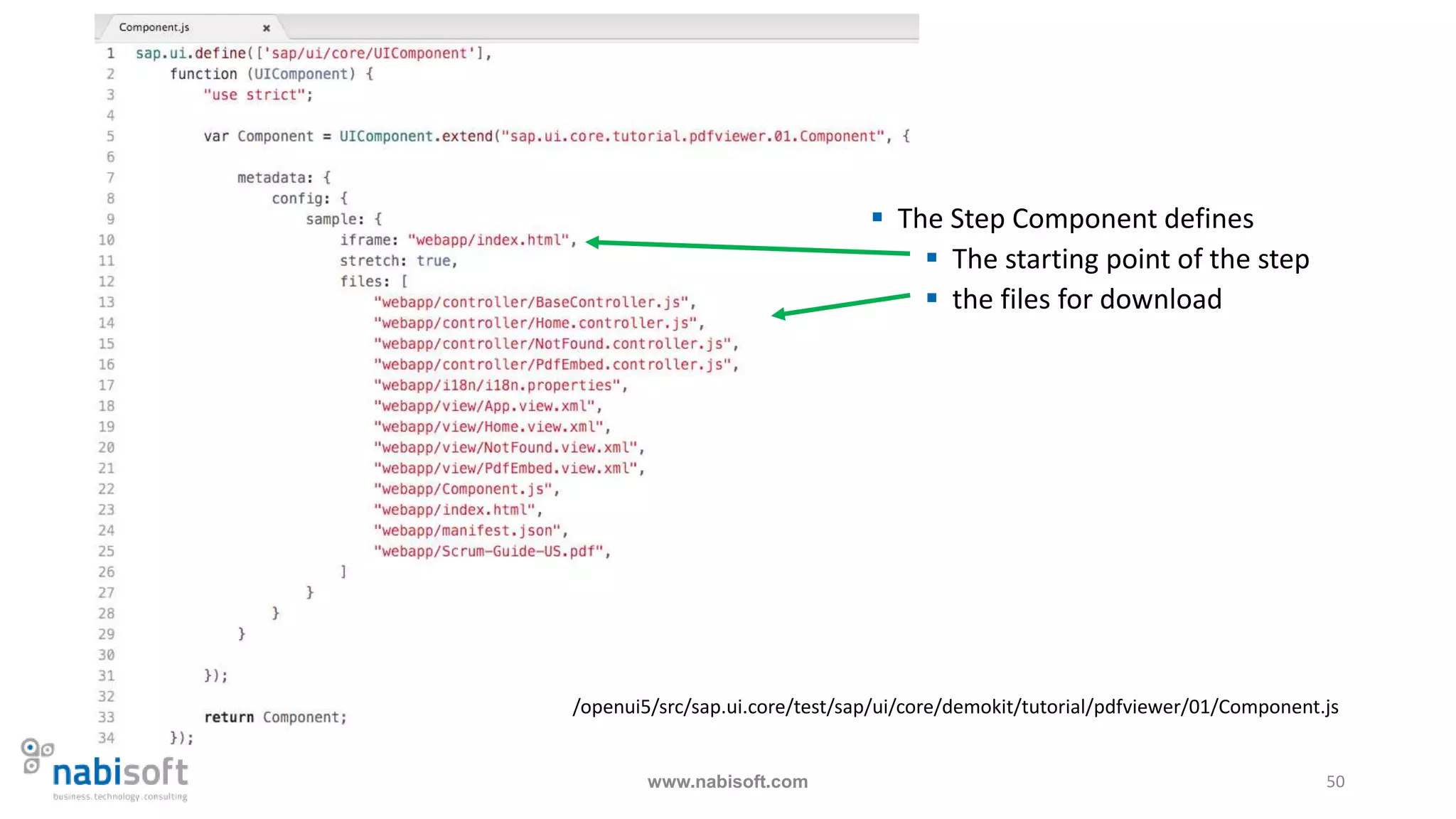

 The Step Component defines
 The starting point of the step
 the files for download
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/tutorial/pdfviewer/01/Component.js

www.nabisoft.com 51

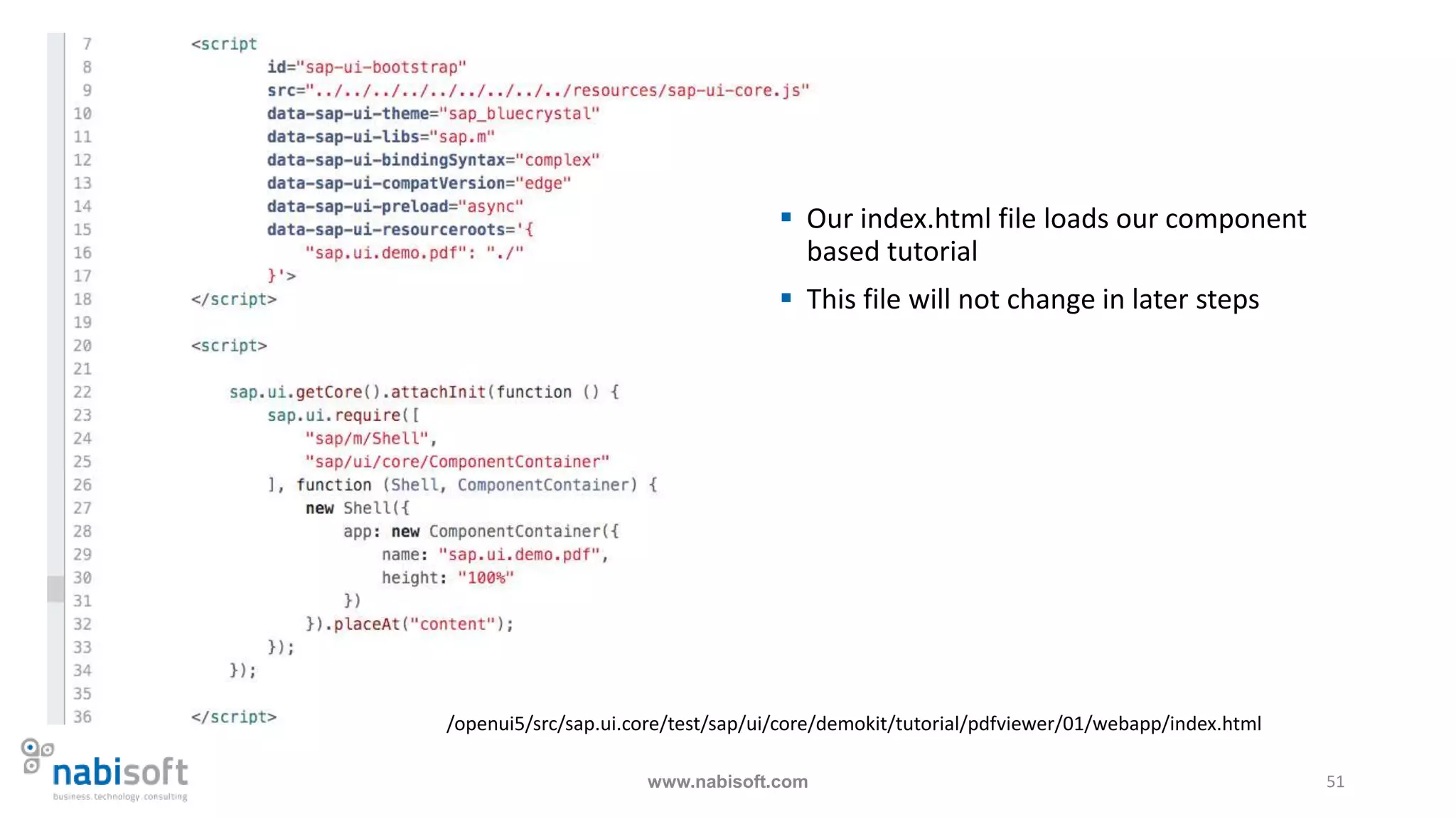

 Our index.html file loads our component
based tutorial
 This file will not change in later steps
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/tutorial/pdfviewer/01/webapp/index.html

www.nabisoft.com 52

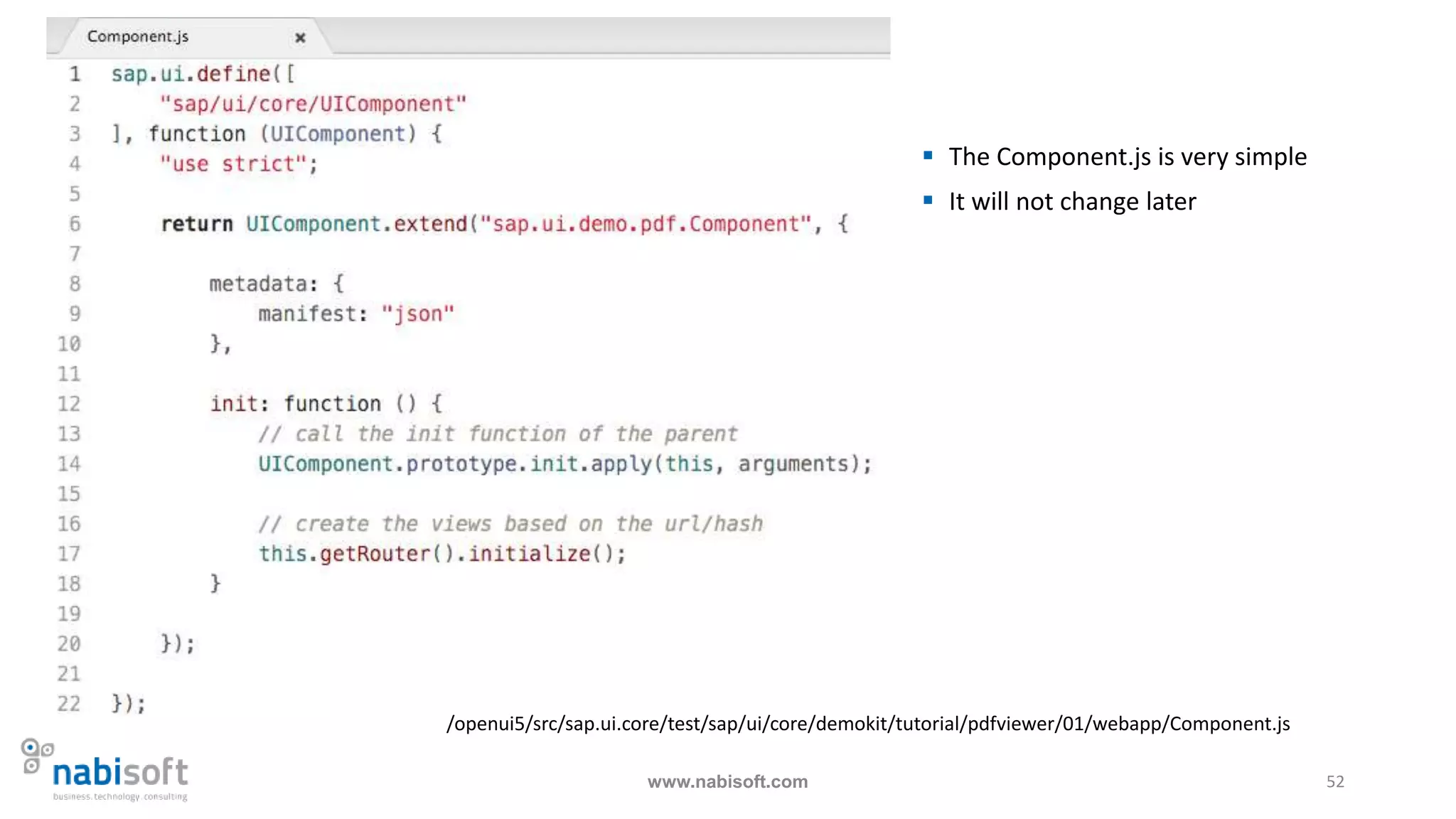

 The Component.js is very simple
 It will not change later
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/tutorial/pdfviewer/01/webapp/Component.js

www.nabisoft.com 53

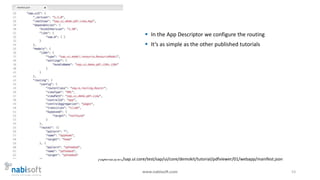

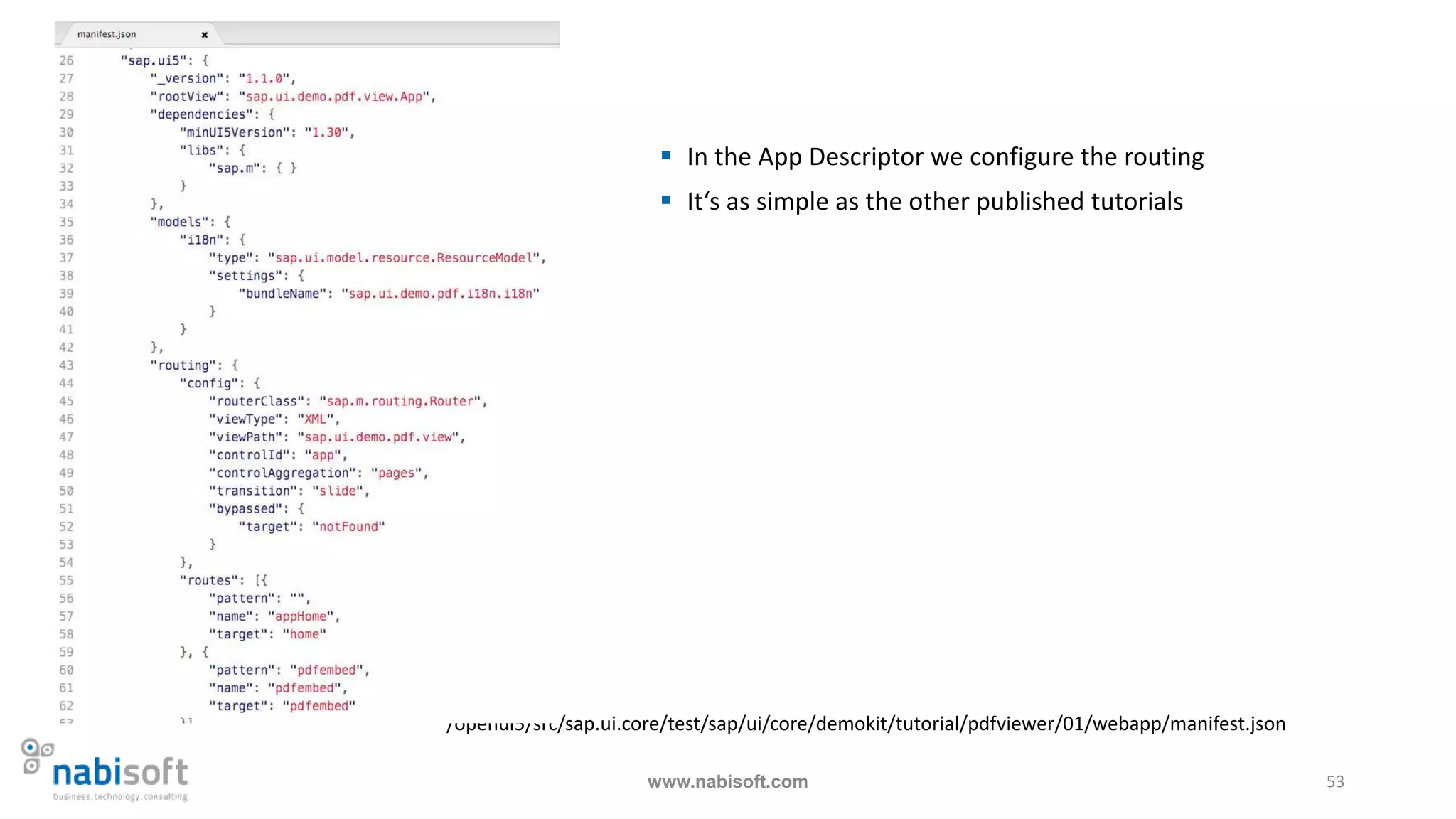

 In the App Descriptor we configure the routing
 It‘s as simple as the other published tutorials
/openui5/src/sap.ui.core/test/sap/ui/core/demokit/tutorial/pdfviewer/01/webapp/manifest.json

www.nabisoft.com 54

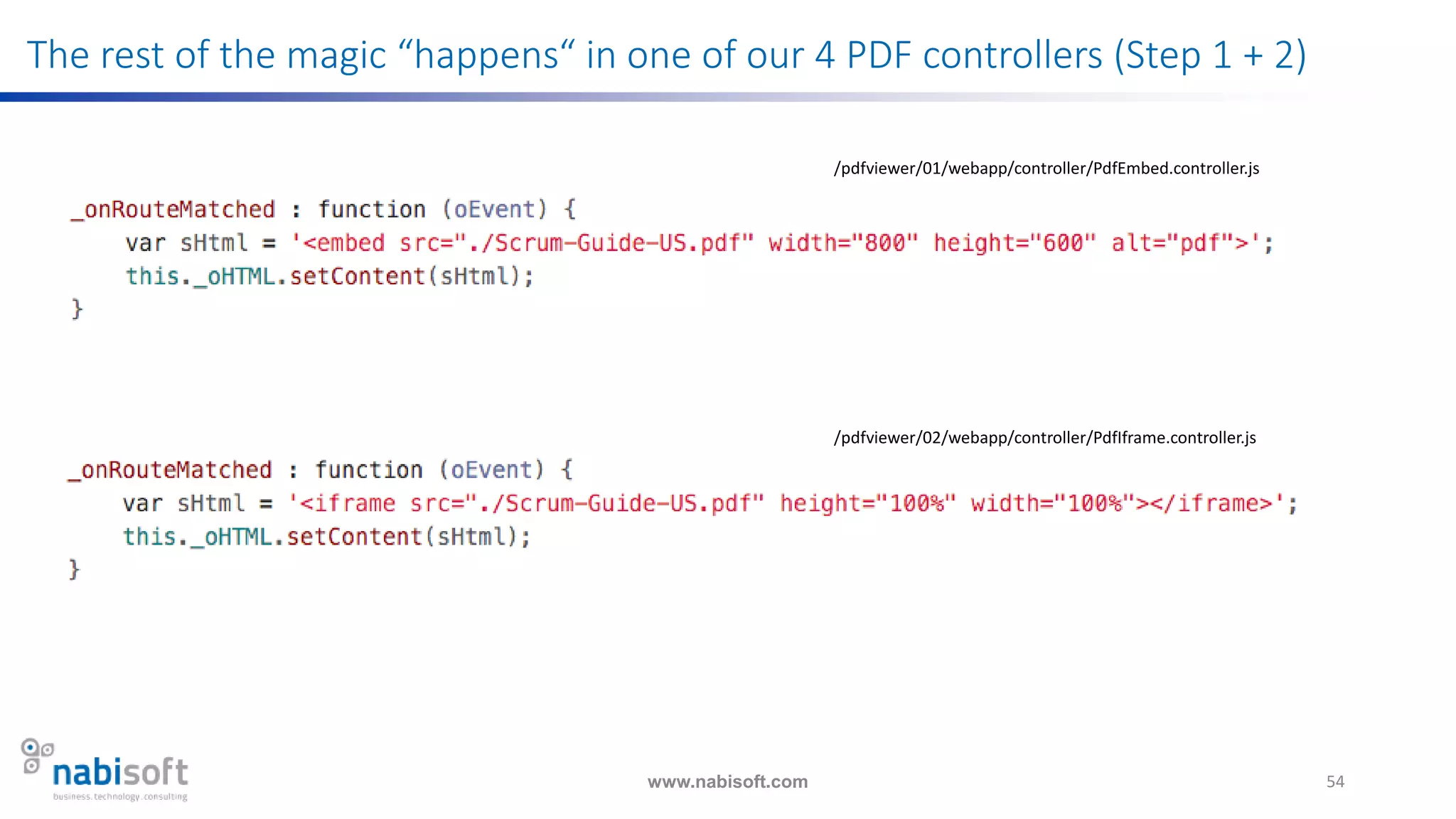

The rest of the magic “happens“ in one of our 4 PDF controllers (Step 1 + 2)
/pdfviewer/01/webapp/controller/PdfEmbed.controller.js
/pdfviewer/02/webapp/controller/PdfIframe.controller.js

www.nabisoft.com 55

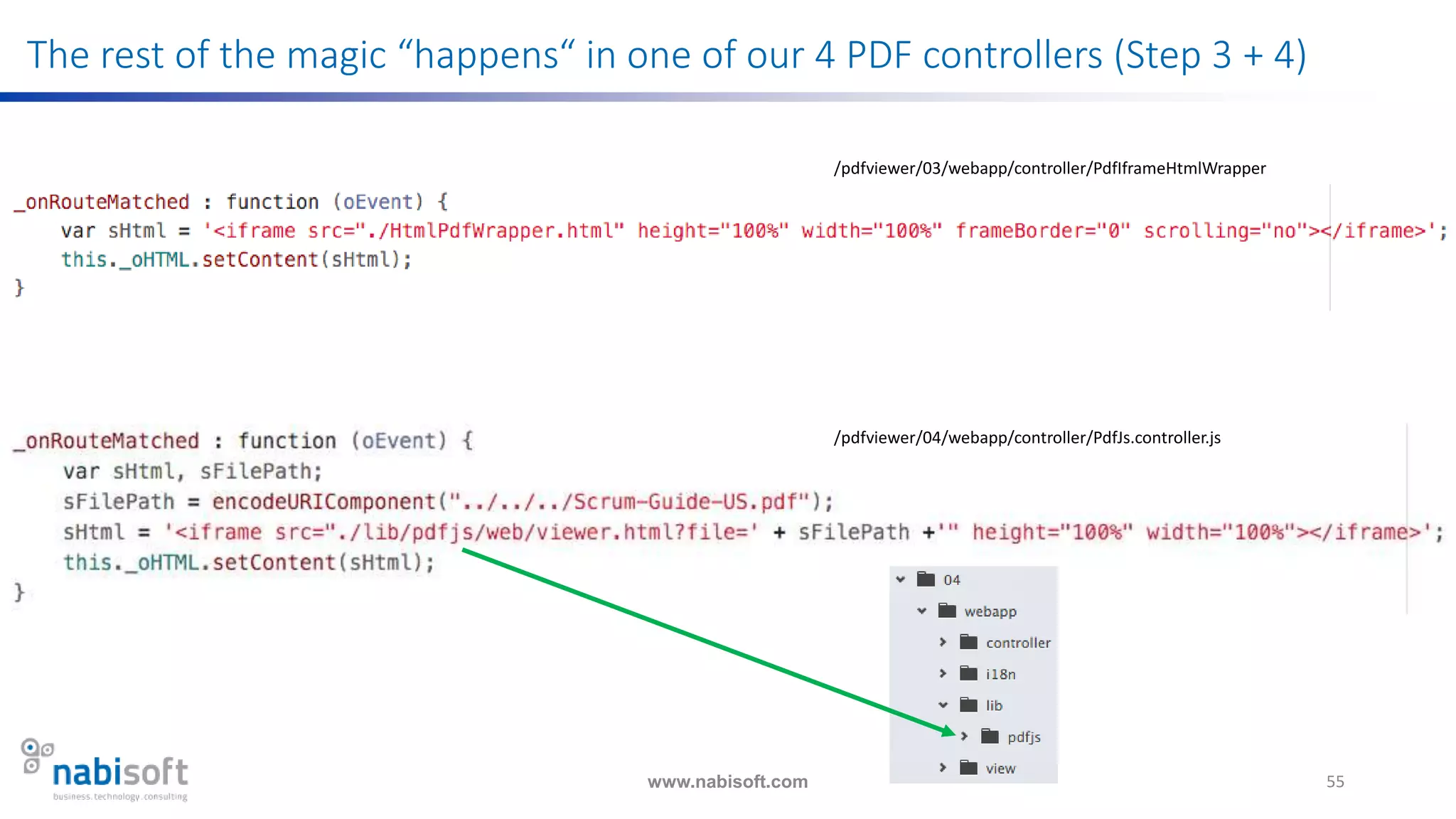

The rest of the magic “happens“ in one of our 4 PDF controllers (Step 3 + 4)
/pdfviewer/03/webapp/controller/PdfIframeHtmlWrapper
/pdfviewer/04/webapp/controller/PdfJs.controller.js

www.nabisoft.com 56

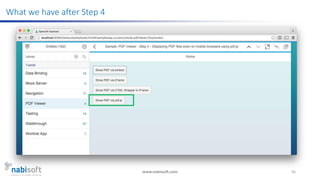

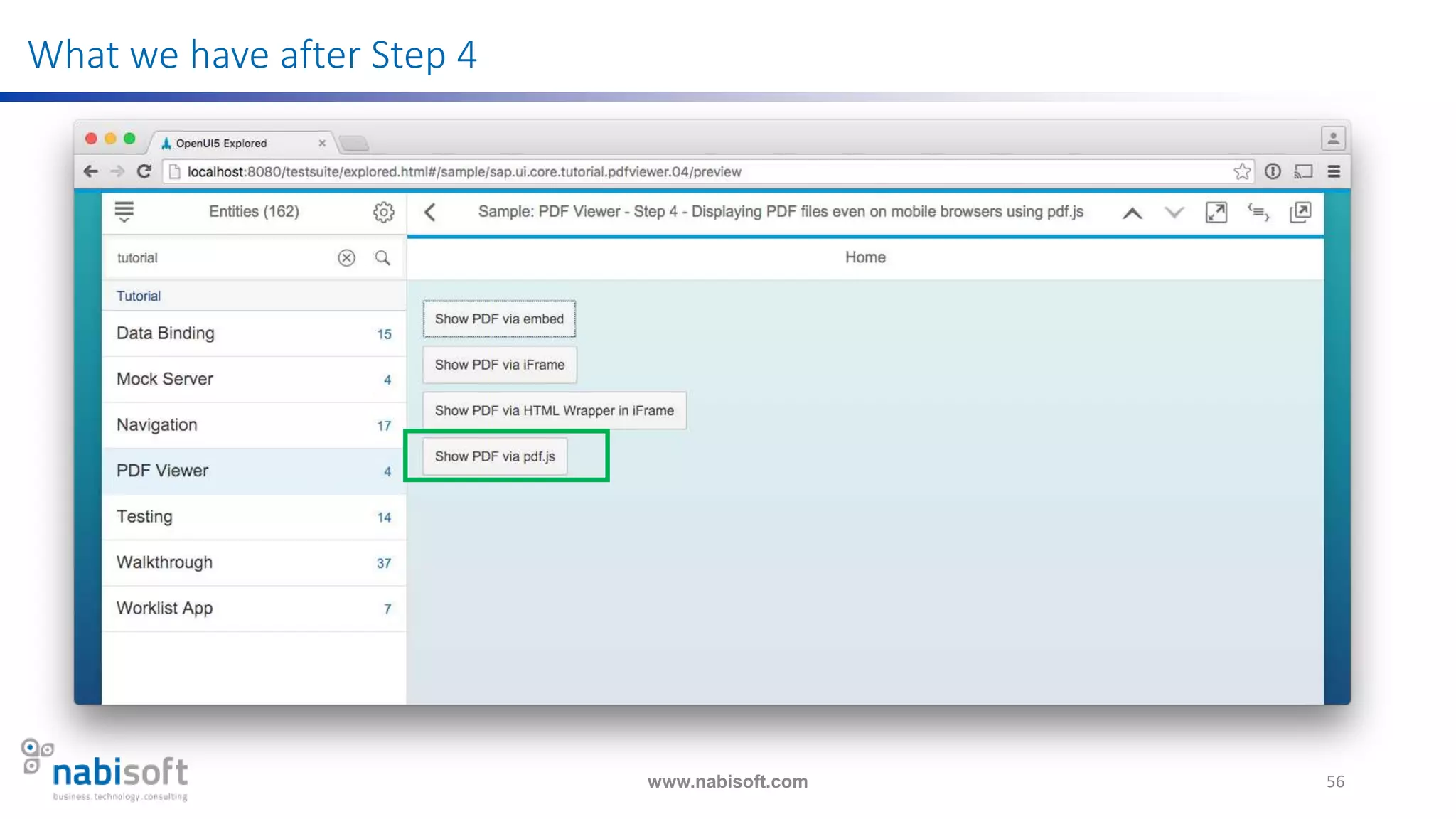

What we have after Step 4

www.nabisoft.com 57

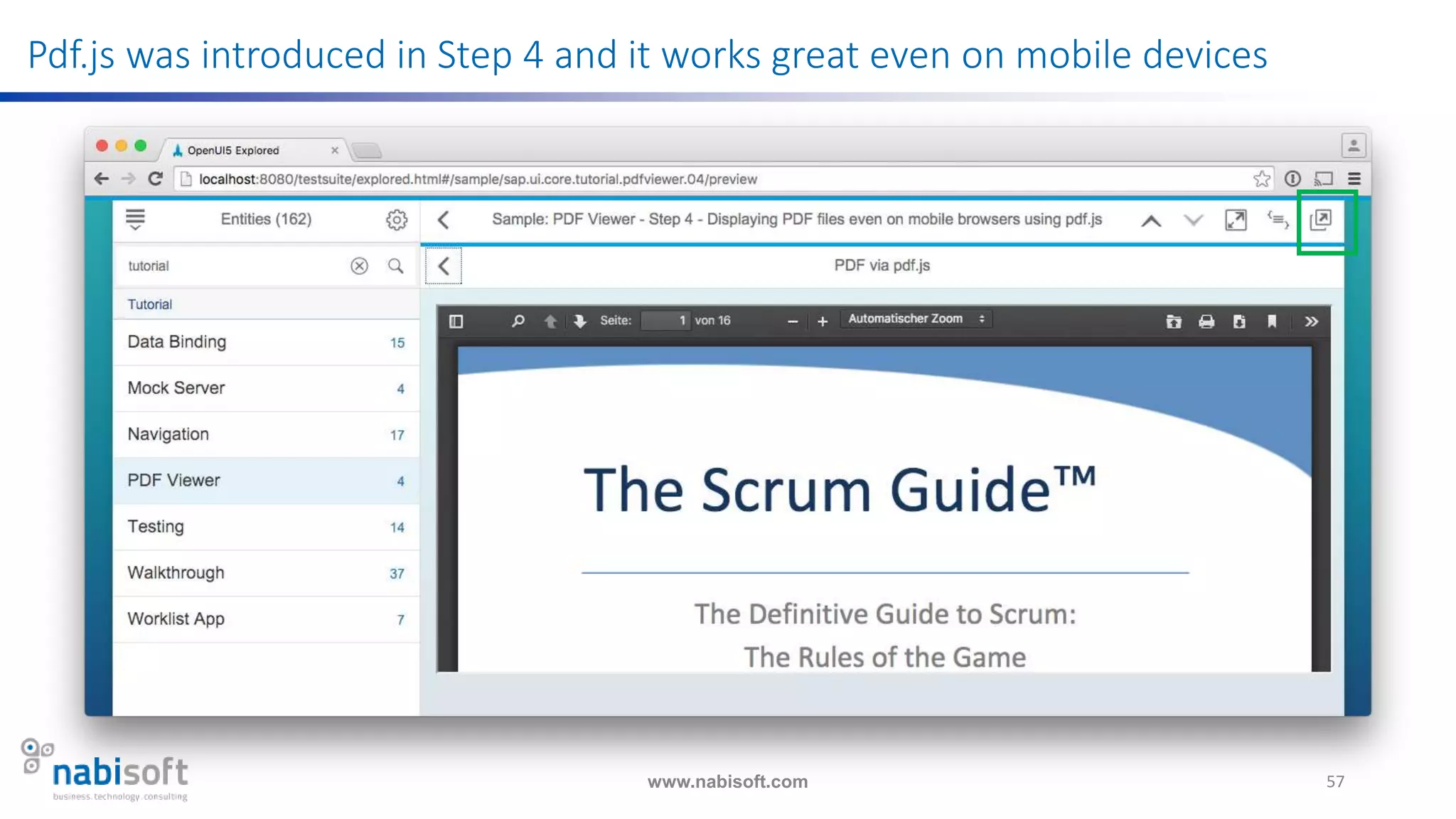

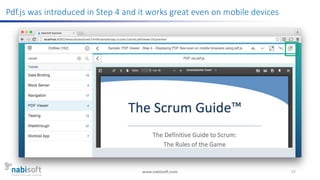

Pdf.js was introduced in Step 4 and it works great even on mobile devices

www.nabisoft.com 58

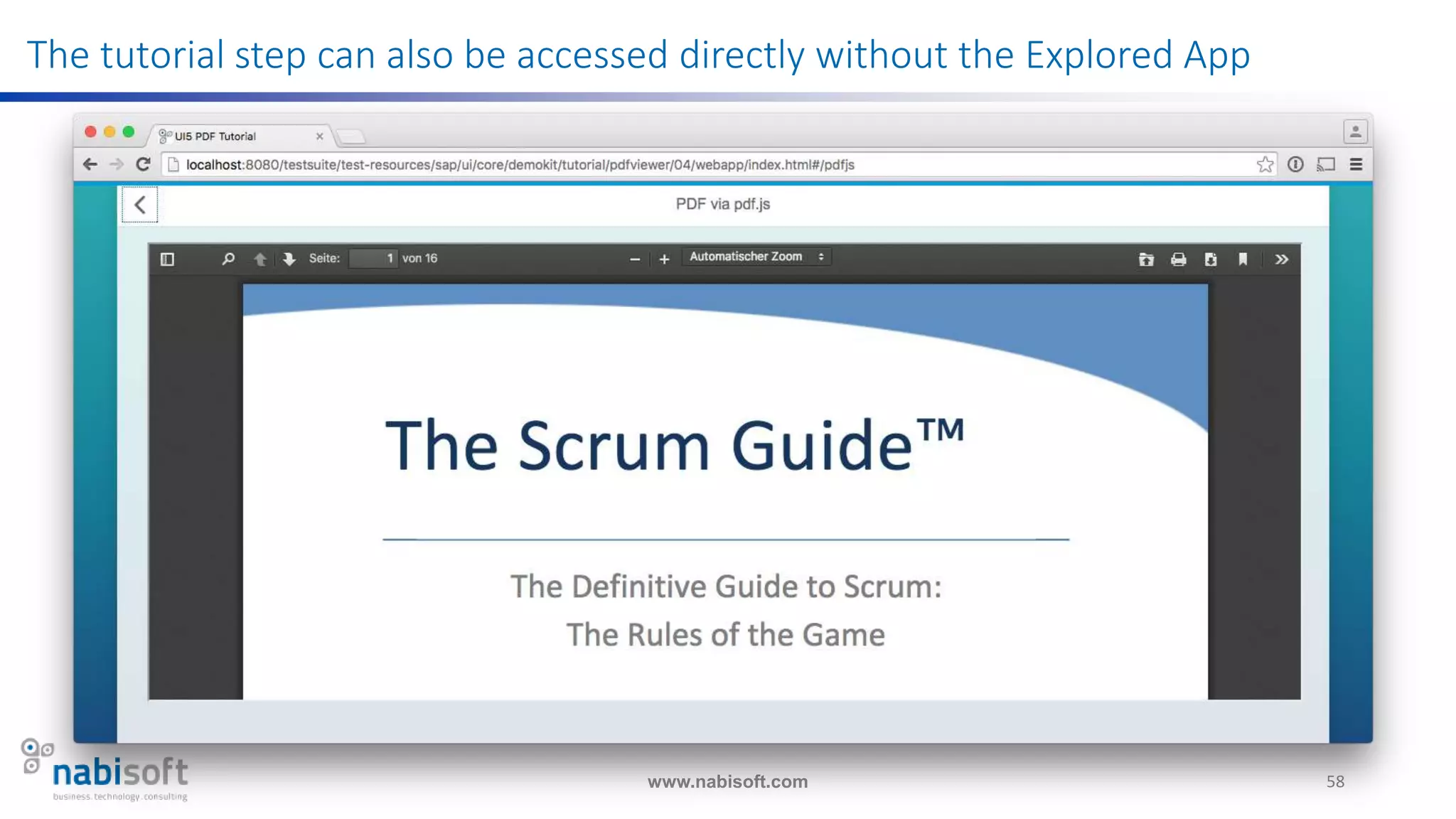

The tutorial step can also be accessed directly without the Explored App

www.nabisoft.com 59

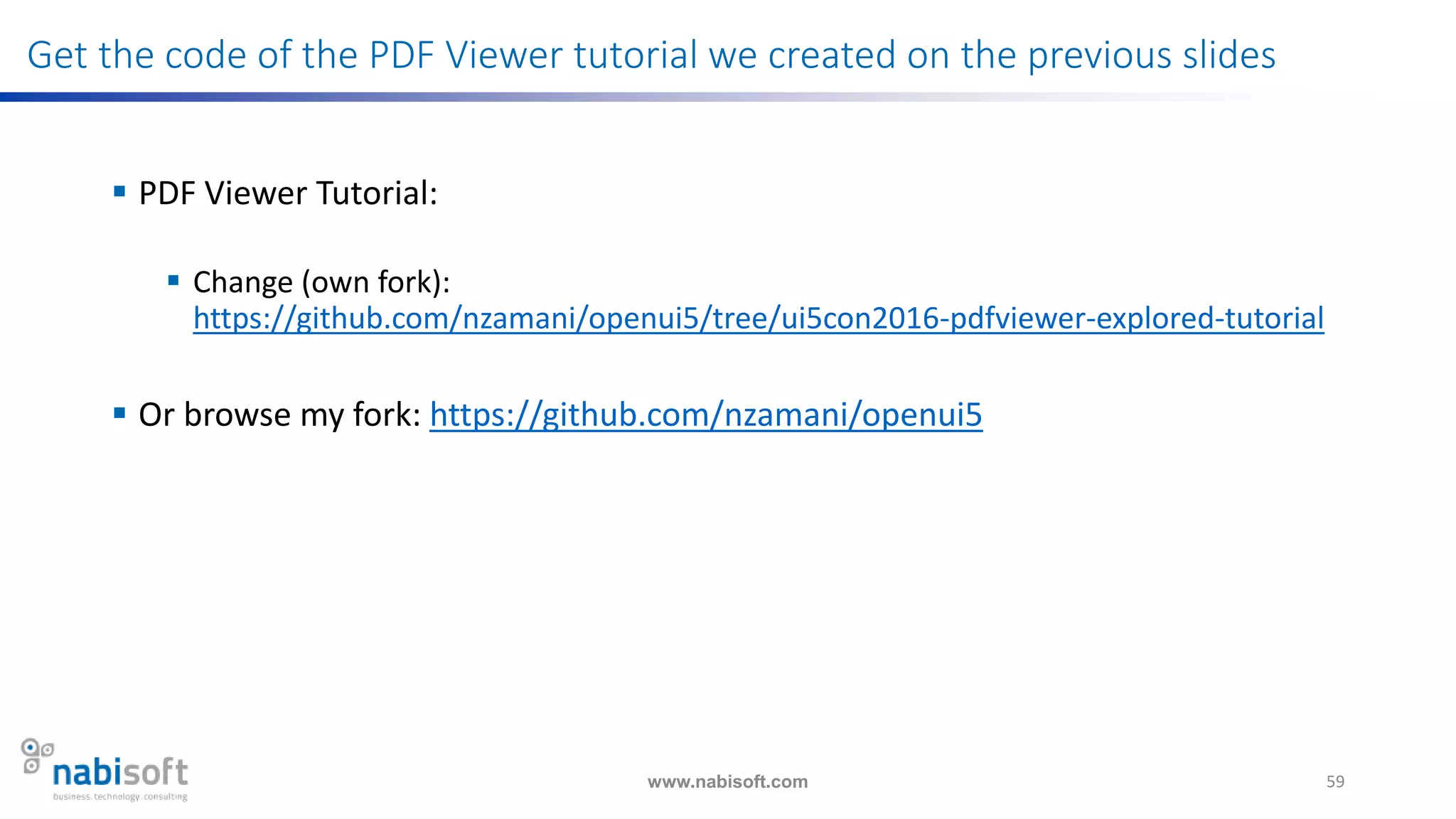

Get the code of the PDF Viewer tutorial we created on the previous slides
 PDF Viewer Tutorial:
 Change (own fork):
https://github.com/nzamani/openui5/tree/ui5con2016-pdfviewer-explored-tutorial
 Or browse my fork: https://github.com/nzamani/openui5

www.nabisoft.com 60
Thank You
 Check our UI5 tutorials:
https://www.nabisoft.com/tutorials/sapui5/
 Contact us:
https://www.nabisoft.com/contact
 Share your experience & create Pull Requests on GitHub 
