This document introduces FPGAs and run-time reconfiguration. It defines FPGAs as programmable logic devices that allow digital circuits to be implemented without chip fabrication. FPGAs can be reconfigured during application execution to adapt hardware resources. The document outlines the basic FPGA structure including configurable logic blocks, block RAMs, and I/O blocks. It also discusses advantages of run-time reconfiguration such as reduced power and flexibility to adapt hardware. However, partial run-time reconfiguration poses challenges including a complicated design flow requiring manual steps.

1. INTRODUCTION TO FPGAs
BY
Mrs K Bindu madhavi
associate professor
department of ece

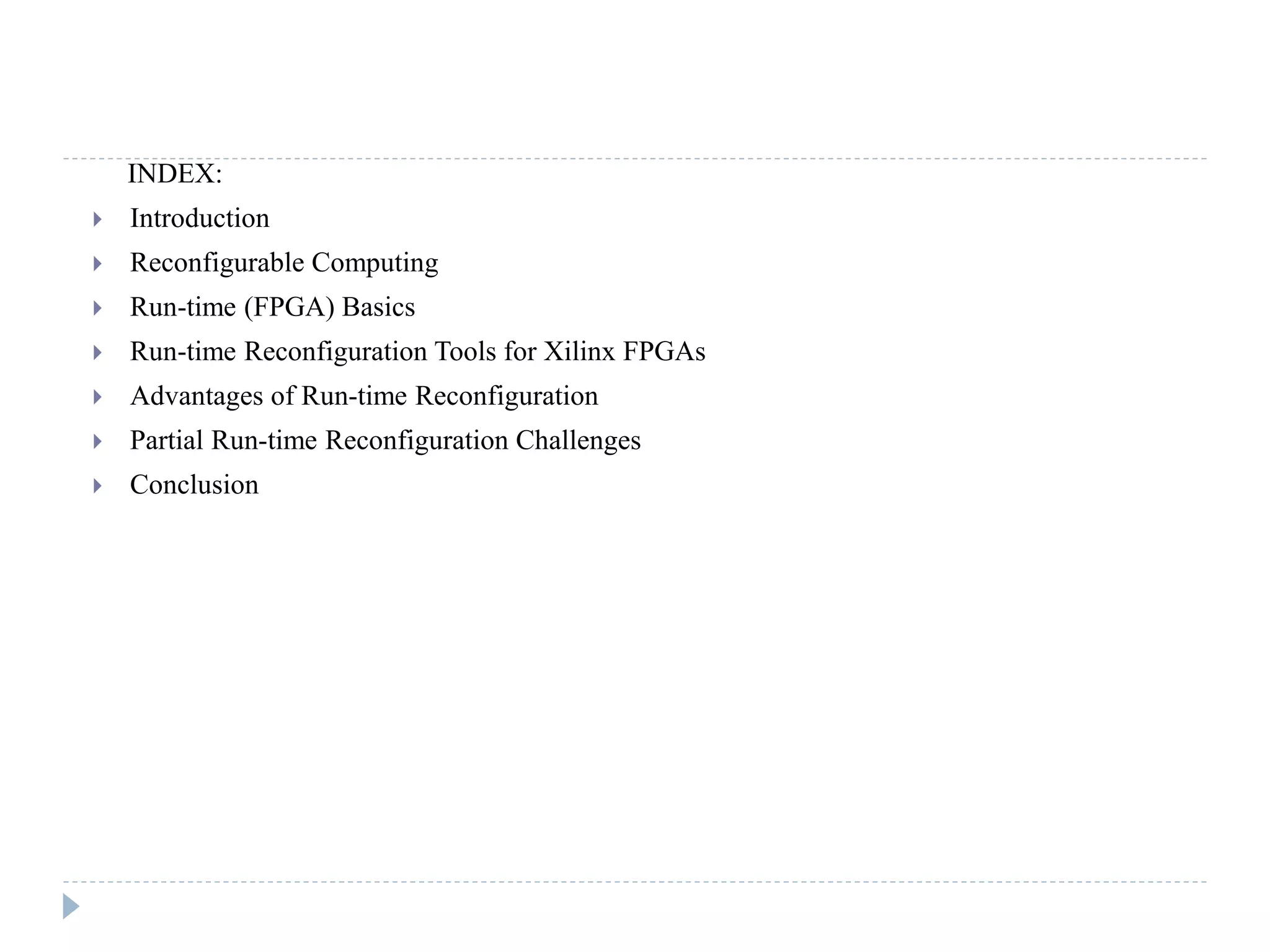

2. INDEX:
 Introduction
 Reconfigurable Computing
 Run-time (FPGA) Basics
 Run-time Reconfiguration Tools for Xilinx FPGAs
 Advantages of Run-time Reconfiguration
 Partial Run-time Reconfiguration Challenges
 Conclusion

3. FPGA Chip
INTRODUCTION
Hardware reconfiguration is allowed during execution of an
application
Design
A
Design
B
Design
C

4. Introduction
Keccak Hash
Function
Groestl Hash
Function
Blake Hash
Function Skein Hash
Function
SHA-256 Hash
Function
JH Hash
Function

5. FPGA Definition
• Field-Programmable Gate Arrays (FPGAs) are a recent kind of
programmable logic devices. They allow the implementation
of integrated digital electronic circuits without requiring the
complex optical, chemical and mechanical processes used in a
conventional chip fabrication
• FPGAs can be embedded in traditional system design flows to
perform prototyping and emulation tasks. In addition, they
also enable novel applications such as configurable computers
with hardware dynamically adaptable to a specific problem
• FPGA: Circuits that can be modified or configured by an end-
user

6. Block
RAMs
Block
RAMs
Configurable
Logic
Blocks
I/O
Blocks
Block
RAMs
FPGA Structure

7. Basic CLB structure
• Four slices are grouped by pairs, and each pair is organized in a
column with independent carry chain
• Configurable switch matrix: There are connections between the
horizontal and vertical routing resources to allow signals to
change their routing direction
The basic building block of a Configurable Logic Block

8. Basic LC structure
Look Up Tables (LUT) are the kind of logic that is used in
SRAM based FPGAs. Basically, each LUT is a collection of
single bit memory cells storing individual bit values in each of
the cells
LUT

9. I/O Blocks
IOBs provide a bidirectional programmable interface between
the output and the internal structure of the FPGA device
Routing possibilities for an I/O Blocks
• Input signal
• Output signal
• High impedance signal
Each signal has two storage elements that can be used as
registers or latches
Block RAM
The BRAM is a configurable memory module that attaches to
a variety of BRAM interface controllers [1]. The BRAM can
be used to store big amounts of data

10. Run-time Reconfiguration Tools for Xilinx FPGAs
Xilinx ISE
• Partially configurable circuits can be implemented using
Modular Designs
• Special macros and constraints must be applied to
partially reconfigurable circuits
• Xilinx recommends using modular designs with
simple circuits only

11. Advantages of Run-time Reconfiguration
Run-time Reconfiguration benefits :
• Reduced power consumption
• Hardware reuse (E.g reduced memory requirements)
• Obsolescence avoidance
• Flexibility
• Reduced time to reconfigure
• Application Portability

12. Advantages of Run-time Reconfiguration
Obsolescence avoidance
One of the most touted advantages of FPGAs in military
designs is the ability to “future proof” applications through
the careful application of hardware and software design, and
the careful use of third-party application program interfaces
(APIs) and design applications
Application Portability
One of the goals of a run-time configurable system is to
encapsulate the reconfigurable system into a portable
application or avionics pod

13. Xilinx PR Implementation Flow
HDL Design Description
HDL Synthesis
Set Design Constraints
Placement Analysis
Implement Static Design and
PR Modules
Merge
Final Bitsreams
Manual
steps
PRR Challenges
• Complicated design flow
• Requires manual intervention and
knowledge about target device
• Can decrease the performance of the
system as compared to full
configuration if system design is not
carefully considered.
Partial Run-time
Reconfiguration (PRR)
Challenges

14. • Run-time reconfigurable systems utilize reconfigurable
hardware better
• Hardware and software based techniques can be applied to
minimize reconfiguration overhead
• Still, a considerable research effort is onging to improve the
tools to provide an ever increasing efficieny and ease of use
• Open area for optimization exist for different aspects, such
as power consumption, hardware reuse, Flexibility, Reduced
time to reconfigure, Application Portability and small bit-
stream files
CONCLUSION
