- 1. www.West-CS.com 1 Introducing MAXVU Theinnovative new packaging and textiles temperature controller from West Control Solutions
- 2.
- 3. www.West-CS.com 3 1/16 and1/8 DIN temperature controller • Better efficiency with an improved controller display • Save installation time with simplified setup MAXVU Benefits
- 4. www.West-CS.com 4 MAXVU UniqueHMI Layout • New layout for keypad ‒ Logical up/down for temperature adjust • Maximise display size ‒ 80% larger upper digits ‒ 27% larger lower digits

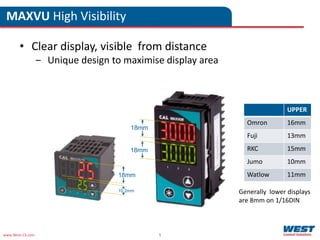

- 5. www.West-CS.com 5 • Cleardisplay, visible from distance ‒ Unique design to maximise display area MAXVU High Visibility 18mm 18mm 10.2mm 18mm UPPER Omron 16mm Fuji 13mm RKC 15mm Jumo 10mm Watlow 11mm Generally lower displays are 8mm on 1/16DIN
- 6. www.West-CS.com 6 MAXVU HighVisibility • Clear display, visible from distance - Unique design to maximise display area
- 7. www.West-CS.com 7 • Cleardisplay, visible from distance - Unique design to maximise display area • Wide viewing angle with good performance in sunlight MAXVU High Visibility Other Low end controller - Colour bleed - Poor contrast - Limited viewing angle MAXVU - Large digits - Good contrast - Clear from wide angle
- 8. www.West-CS.com 8 MAXVU FastSetup – Benchmarking MAXVU Target WCS 0 20 40 60 80 100 120 140 160 180 Omron E5CB Yudian AI- 508 Fuji PXR4 Jumo cTRON Watlow PM CAL 3300 West 6100 Seconds Competitor Controllers > 80%* of basic controller users set up via the front panel. Benchmarking test carried out on various configurations. * WCS VOCNb. Does not include autotune Familiarity with WCS products may have influenced
- 9. www.West-CS.com 9 MAXVU FastSetup – Short Menu Most applications need very few settings • Short menu for the most common • Defaults that users most likely to need • Other common settings with minimal steps • 60 sec setup time achievable for many Short setup menu Setup mode lock code Input Type – default k Input Units – default C Process Display Resolution - default 8888 Scale Upper Limit (linear input only) Scale Lower Limit (linear input only) Output 1 Usage - default heat Output 2 Usage - default AL1 high Output 3 Usage - default AL2 low Alarm 1 Adjust Alarm 2 Adjust Setpoint Adjust Automatic Tuning Select TC_J TC_K P100 other sensor types
- 10. www.West-CS.com 10 MAXVU 60Second Setup Time http://goo.gl/fQ4ZPG 60s
- 11.

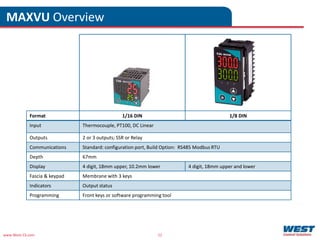

- 12. www.West-CS.com 12 Format 1/16DIN 1/8 DIN Input Thermocouple, PT100, DC Linear Outputs 2 or 3 outputs; SSR or Relay Communications Standard: configuration port, Build Option: RS485 Modbus RTU Depth 67mm Display 4 digit, 18mm upper, 10.2mm lower 4 digit, 18mm upper and lower Fascia & keypad Membrane with 3 keys Indicators Output status Programming Front keys or software programming tool MAXVU Overview
- 13. www.West-CS.com 13 MAXVU Features Userfeatures • User parameter sub-menu – promote to user menu • Direct setpoint mode – change setpoint with up-down only Alarms • 2 alarms: low, high, deviation, band • Latching and non-latching Calibration • Single or 2-point calibration Reset • Reset all parameters to default

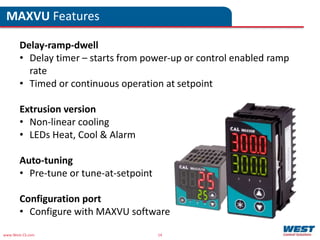

- 14. www.West-CS.com 14 MAXVU Features Delay-ramp-dwell •Delay timer – starts from power-up or control enabled ramp rate • Timed or continuous operation at setpoint Extrusion version • Non-linear cooling • LEDs Heat, Cool & Alarm Auto-tuning • Pre-tune or tune-at-setpoint Configuration port • Configure with MAXVU software
- 15. www.West-CS.com 15 • PCsetup via config port or RS485 comms • Logical tab driven configuration tool • Setup wizard for fast and simple configuration • Tables with drop down menus • Help panel with active description of each parameter setting • Multiple language support - inc Chinese MAXVU Configuration Software
- 16.
- 17. www.West-CS.com 17 MAXVU OEMApplications
- 18. www.West-CS.com 18 MAXVU Packaging Application– Bag / Tray sealers Details • 1 or 2 controllers for heated sealing bars • Often a timer used for timed sealing action (CAL ETM) Similar processes • Seam bonding in textiles • T-shirt transfers http://youtu.be/6q6Dgb6Kl1k
- 19. www.West-CS.com 19 MAXVU Foodand Beverage Application – Chocolate Tempering Details • Un-treated chocolate is hard an brittle, temper chocolate to make it softer and crumbly, easier to eat. • Single loop controller, thermocouple sensor to heat chocolate to around 45C then drop to 32C https://www.youtube.com/watch?feature=player_embedded&x-yt- ts=1421914688&x-yt-cl=84503534&v=Bi9_mg3ozvI
- 20.
- 21. www.West-CS.com 21 MAXVU Summary andNext Steps

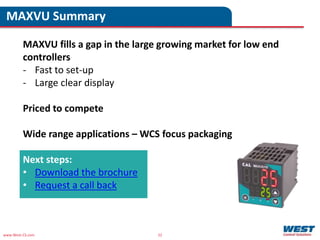

- 22. www.West-CS.com 22 MAXVU Summary MAXVUfills a gap in the large growing market for low end controllers - Fast to set-up - Large clear display Priced to compete Wide range applications – WCS focus packaging Next steps: • Download the brochure • Request a call back
