Core ML is an Apple framework supporting iOS 11.0+ and macOS 10.13+ that unifies machine learning model representation and enables on-device training across various model types. It includes the Vision framework, providing functionalities for image recognition, face tracking, and real-time video processing. Additional resources like Turi Create and Core ML tools facilitate building and converting machine learning models into the Core ML format.

1. Introducing iOS Core
ML
chunpinglai0211@gmail.com
2019/08/22

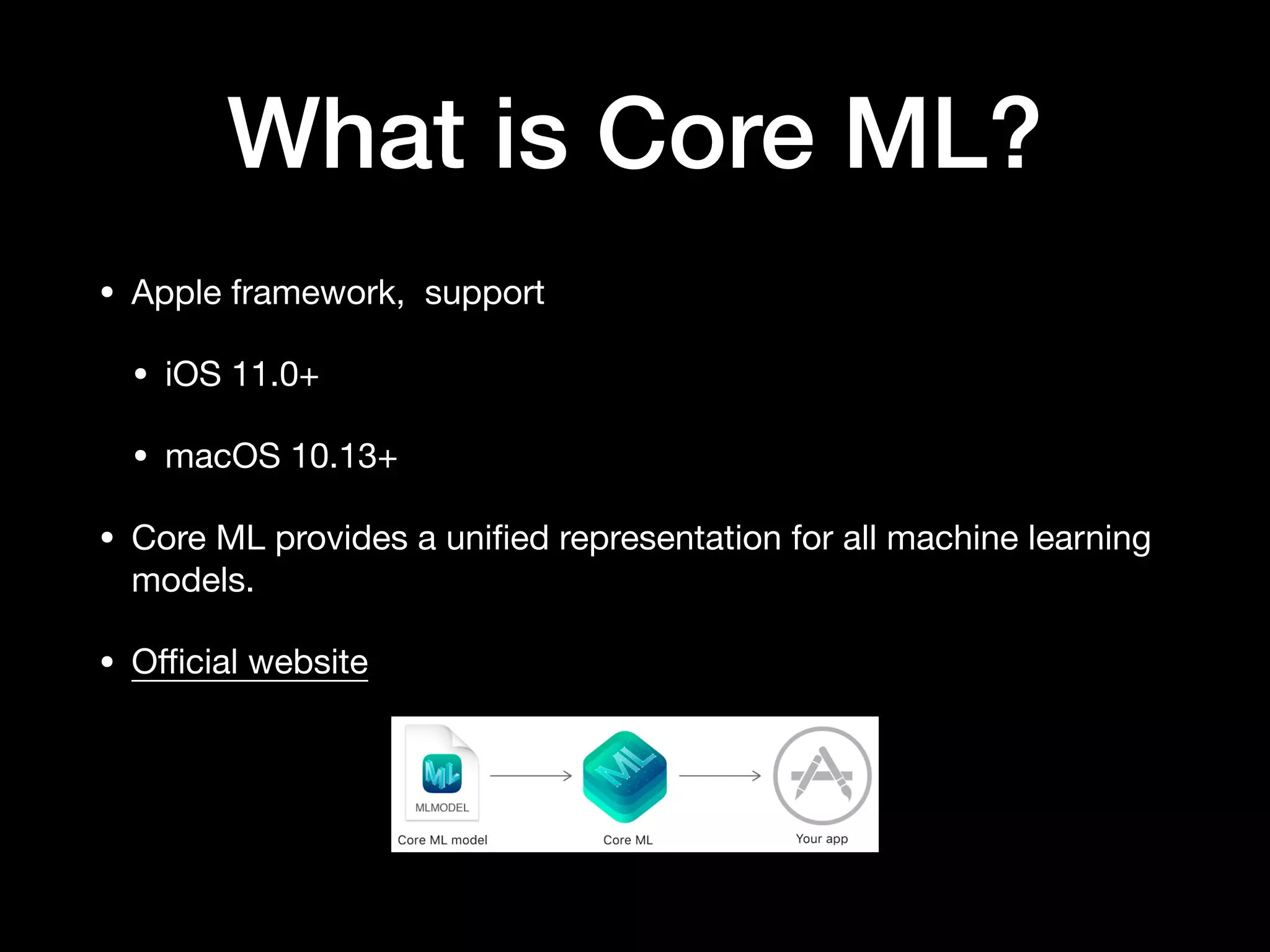

2. What is Core ML?
• Apple framework, support
• iOS 11.0+
• macOS 10.13+
• Core ML provides a unified representation for all machine learning
models.
• Official website

3. How Core ML works?

4. Core ML Version
• Core ML1 support iOS11+
• Core ML2 support iOS12+
• 88% users
• Core ML3 support iOS13+ (Beta)
• On-device Training
• Support for 100+ model layer types

5. Vision.framework

6. Vision
• Apple framework, iOS 11.0+
• Functions
• Rectangle
• Face
• Barcode
• Text
• Horizon
• Official website

7. Vision - Functions
Text
Rectangle
Horizon

8. Vision - Face
• Rectangles
- Finds faces within an image.
• Landmarks
- Finds facial features (such as the
leftEye, rightEye and nose) in an image.
• Implement sample

9. Models

10. Core ML Resources
• Turi Create (Apple)
• Build your own custom machine learning models with Turi Create. This open-
sourced Python library supports model training on macOS and Linux.
• TensorFlow
• tf-coreml: TensorFlow (TF) to CoreML converter.
• Core ML Tools
• Convert existing models to .mlmodel format from popular machine learning tools
including Keras, Caffe, scikit-learn, libsvm, and XGBoost.
• ONNX, Apache MXNet, IBM Watson Services…etc.
• Official website

11. Apple provides Models
• Apple provides models
• DepthPrediction, MobileNetV2, YOLOv3, DeeplabV3 …etc.

12. Create ML
• Functions
• Build models
• Train models
• Preview test data results
• Official website

13. Create ML - Usage
• Usage
• Playground
• Mac App (New)
- macOS Catalina or later.

14. Create ML - Training type
• Image
• Text (Natural language)
• Sound (Beta)
• Activity (Beta)
- to classify activities based on motion sensor data
• Official website

15. Core ML Usage

16. Image Classifier
• Use Playground
• Prediction Results
• Label name
• Confidence

17. Recognizing Objects in Live
Capture
• Identify objects in real-time video.
• iOS12+
• Vision.framework
• Sample code
• Use VNCoreMLRequest to recognize custom
model
• Results
• VNRecognizedObjectObservation
- boundingBox
- identifier (Classification label)
- confidence (The level of confidence in the
observation's accuracy, normalized
to [0, 1.0].)

18. Tracking the User’s Face in
Real Time
• Detect and track faces from the selfie cam feed
in real time.
• iOS12+
• Vision.framework
• Sample code
• Use
• VNDetectFaceRectanglesRequest
• VNDetectFaceLandmarksRequest
• Results
• VNFaceObservation
- landmarks
- boundingBox

19. Tracking Multiple Objects or
Rectangles in Video
• Apply Vision algorithms to
track objects or rectangles
throughout a video.
• iOS12+
• Vision.framework
• Sample code
• Use
• VNTrackObjectRequest
• VNTrackRectangleRequest

20. Image Segmentation
DeepLab

21. Deeplab MobileNetv2
• Sample Code from github
• Test Results

22. DeeplabV3.mlmodel
• Use Apple provide models , iOS12+
• DeepLab is a state-of-art deep learning model for semantic image segmentation, where the goal
is to assign semantic labels (e.g., person, dog, cat and so on) to every pixel in the input image.
★Inputs
• Image (Color 513x513)
★Outputs
• Array (Int32 513x513)
- Array of integers of the same size as the input image, where each value represents the
class of the corresponding pixel.
- [0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,
8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,
8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,0,0,0,0,0,0,0,0,0,0,0,0

23. Update model

24. How to update models?
1. Download .mlmodel file from url, Official website
(1) The model definition file (.mlmodel) must be on the
device before it's compiled.
(2) Compile. (The model has the same capabilities as a
model bundled with the app.)
2. MLUpdateTask

25. MLUpdateTask
• MLUpdateTask - A task that updates a model with additional training data.
• iOS13+
• Run in background
• On-device training
• Personalize
• Privacy
• No server
• Official website , Implement sample

26. MLUpdateTask Sample
• WWDC2019 Demo - (On-device training) Personalize

27. MLParameterKey
• Update training model with MLParameterKey
• .epochs
• .learningRate
• .eps
• .miniBatchSize
• .momentum
• .beta1
• .beta2

28. Reference
• Turi Create(Python 套件)
• Turi Create Intro
https://www.appcoda.com.tw/coreml-turi-create/
• Turi Create Deploying to Core ML
https://apple.github.io/turicreate/docs/userguide/object_detection/export-
coreml.html
• CoreMLTools(python套件) Converter tools for Core ML
https://www.appcoda.com.tw/core-ml-tools-conversion/
• Custom layer - Convert Your Network to Core ML
https://developer.apple.com/documentation/coreml/core_ml_api/
creating_a_custom_layer
• What’s new in Core ML 3
https://heartbeat.fritz.ai/whats-new-in-core-ml-3-d108d352e50a

29. End
