1. Digital Image
Processing

2. Connected component

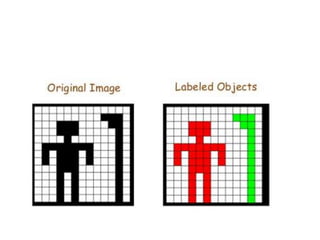

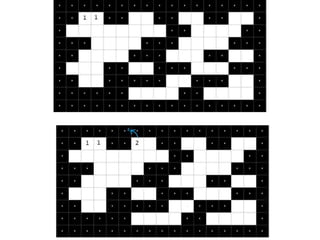

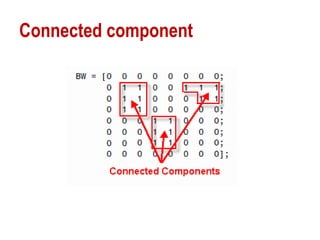

3. Connected component labeling
the process of identifying the connected
components in an image and assigning each
one a unique label, like this:

8. Intensity Transformation

9. Contents
Spatial domain vs. Transform domain
Enhancement
Intensity transformation functions
Linear
Logarithmic
Power law
Piecewise-Linear Transformation function
Contrast stretching
Intensity-level slicing
Bit-plane slicing

10. 2/16/2018 10

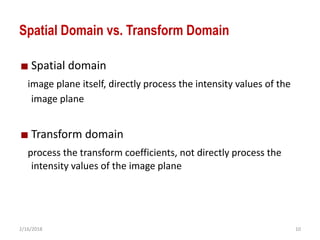

Spatial Domain vs. Transform Domain
Spatial domain
image plane itself, directly process the intensity values of the
image plane
Transform domain
process the transform coefficients, not directly process the
intensity values of the image plane

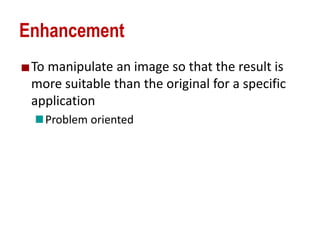

11. Enhancement
To manipulate an image so that the result is
more suitable than the original for a specific
application
Problem oriented

12. 2/16/2018 12

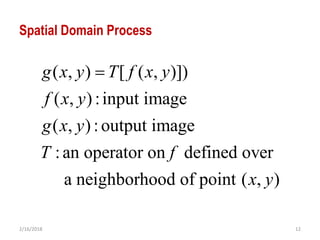

Spatial Domain Process
( , ) [ ( , )])
( , ):input image
( , ):output image
:an operator on defined over
a neighborhood of point ( , )
g x y T f x y
f x y
g x y
T f
x y


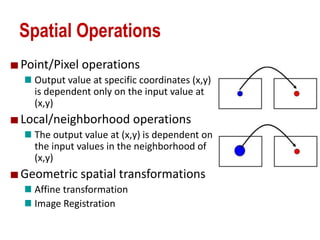

13. Spatial Operations
Point/Pixel operations
Output value at specific coordinates (x,y)
is dependent only on the input value at
(x,y)
Local/neighborhood operations
The output value at (x,y) is dependent on
the input values in the neighborhood of
(x,y)
Geometric spatial transformations
Affine transformation
Image Registration

14. 2/16/2018 14
Point/Pixel operations

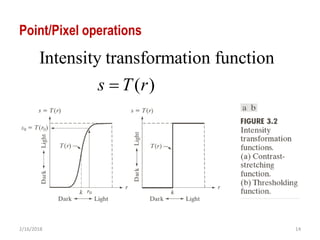

Intensity transformation function
( )s T r

15. 2/16/2018 15

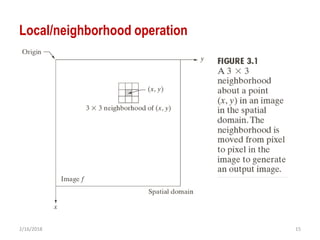

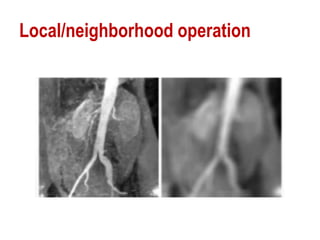

Local/neighborhood operation

16. Local/neighborhood operation

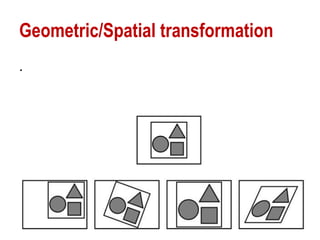

17. Geometric/Spatial transformation
.

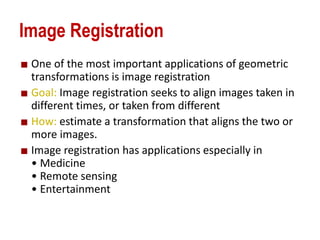

19. Image Registration
One of the most important applications of geometric
transformations is image registration
Goal: Image registration seeks to align images taken in
different times, or taken from different
How: estimate a transformation that aligns the two or
more images.
Image registration has applications especially in
• Medicine
• Remote sensing
• Entertainment

20. Image Registration
Background—Example, Panorama Stitching

21. Image Registration

22. Image Registration

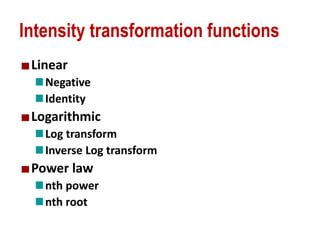

23. Intensity transformation functions
Linear
Negative
Identity
Logarithmic
Log transform
Inverse Log transform
Power law
nth power
nth root

24. 2/16/2018 24

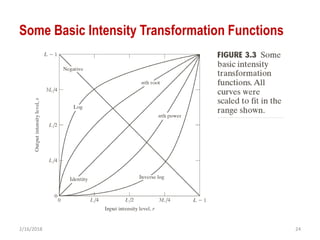

Some Basic Intensity Transformation Functions

25. 2/16/2018 25

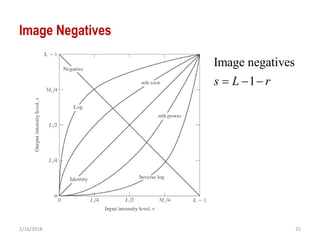

Image Negatives
Image negatives
1s L r  

26. 2/16/2018 26

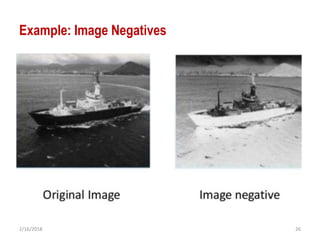

Example: Image Negatives

27. 2/16/2018 27

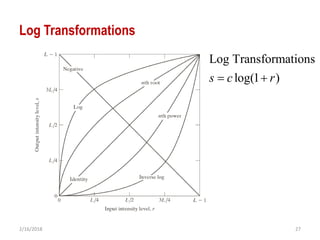

Log Transformations
Log Transformations
log(1 )s c r 

28. 2/16/2018 28

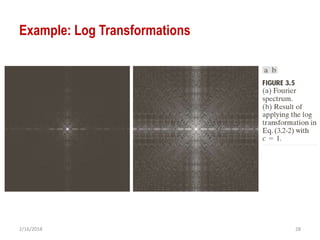

Example: Log Transformations

29. 2/16/2018 29

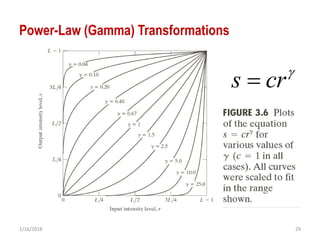

Power-Law (Gamma) Transformations
s cr


30. 2/16/2018 30

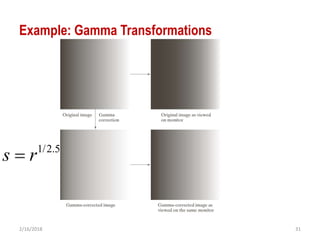

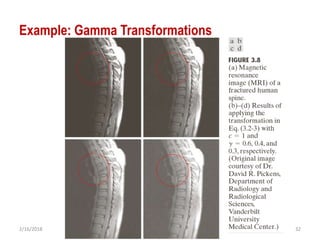

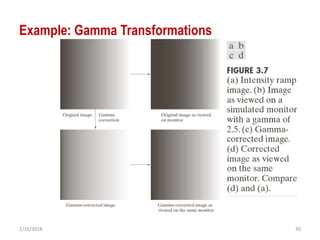

Example: Gamma Transformations

31. 2/16/2018 31
Example: Gamma Transformations
1/2.5
s r

32. 2/16/2018 32
Example: Gamma Transformations

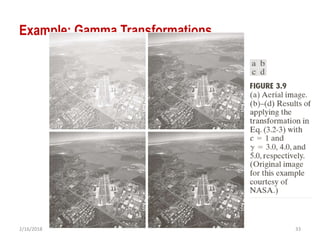

33. 2/16/2018 33
Example: Gamma Transformations

34. 2/16/2018 34
Piecewise-Linear Transformations
Contrast Stretching
Expands the range of intensity levels in an image
so that it spans the full intensity range of the
recording medium or display device.
Intensity-level Slicing
Highlighting a specific range of intensities in an image
often is of interest.

35. 2/16/2018 35

36. 2/16/2018 36

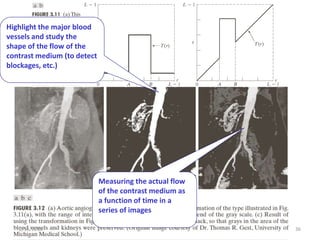

Highlight the major blood
vessels and study the
shape of the flow of the
contrast medium (to detect
blockages, etc.)
Measuring the actual flow
of the contrast medium as
a function of time in a
series of images

37. 2/16/2018 37

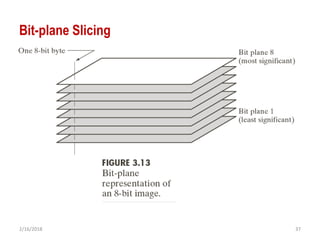

Bit-plane Slicing

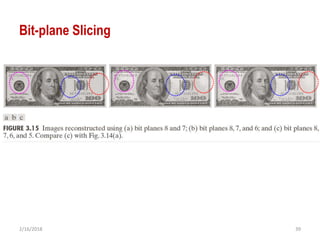

38. 2/16/2018 38
Bit-plane Slicing

39. 2/16/2018 39
Bit-plane Slicing
