The document provides step-by-step instructions for installing and deploying Ubuntu Server 14.04 in a VirtualBox virtual machine. It describes downloading the Ubuntu Server ISO, defining the virtual hardware settings, configuring networking and storage, installing Ubuntu Server via the graphical interface, setting the hostname and creating a user, and completing the installation process. Basic post-installation configuration of SSH, software updates, and removing the installation media are also covered at a high level.

1. Installing and
Deploying Ubuntu
Server Box
UBUNTU SERVER 14.04
1

2. Thanks for sharing!
 My personal and contact details:
 Juan Carlos Perez Pardo
 perezpardojc@gmail.com
 I am living in Dublin
 Linkedin: www.linkedin.com/in/perezpardojc
 Twitter: https://twitter.com/perezpardojc
 And like always if you want to copy, paste, and collaborate feel free to do it!
2

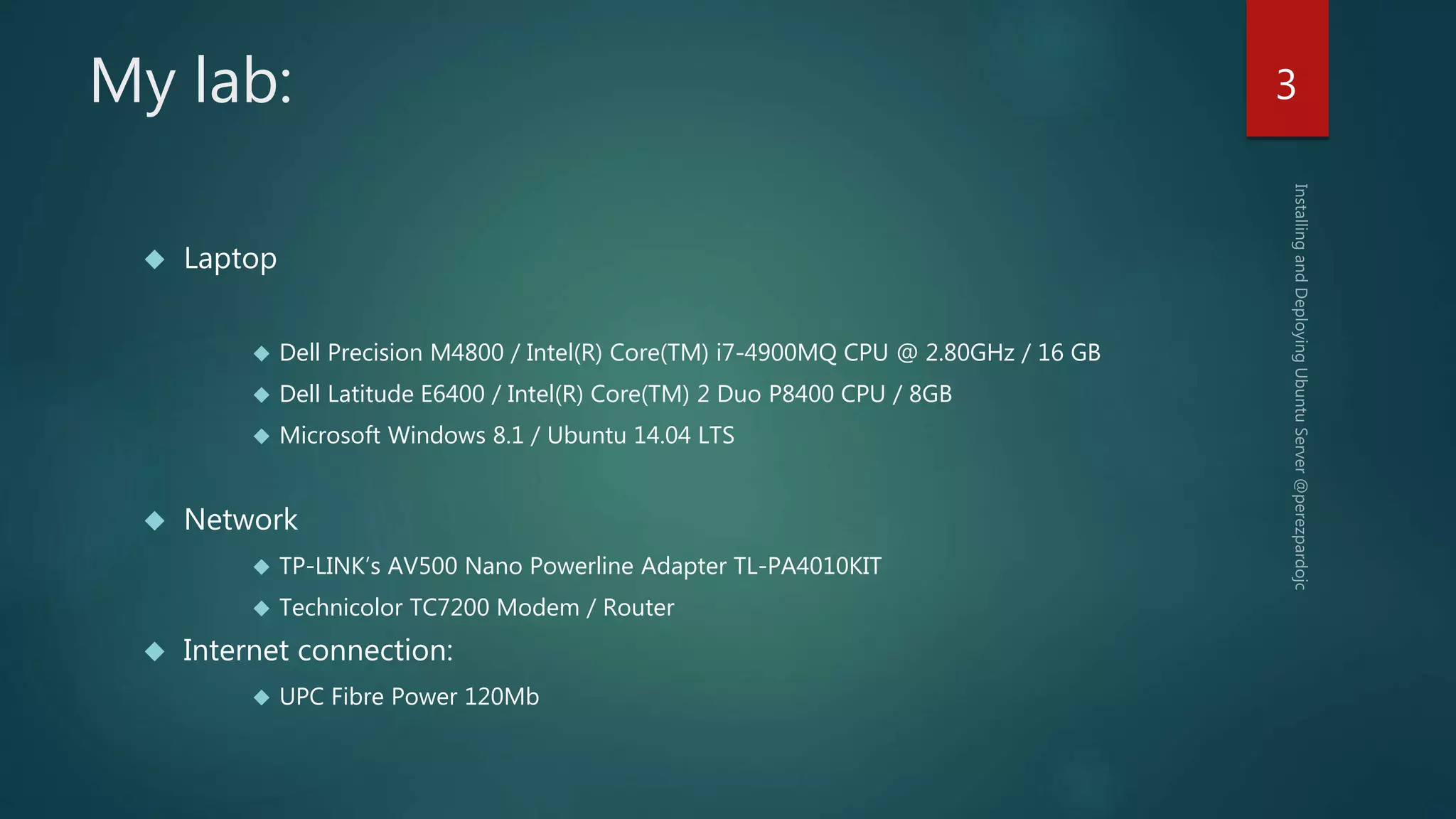

3. My lab:
 Laptop
 Dell Precision M4800 / Intel(R) Core(TM) i7-4900MQ CPU @ 2.80GHz / 16 GB
 Dell Latitude E6400 / Intel(R) Core(TM) 2 Duo P8400 CPU / 8GB
 Microsoft Windows 8.1 / Ubuntu 14.04 LTS
 Network
 TP-LINK’s AV500 Nano Powerline Adapter TL-PA4010KIT
 Technicolor TC7200 Modem / Router
 Internet connection:
 UPC Fibre Power 120Mb
3

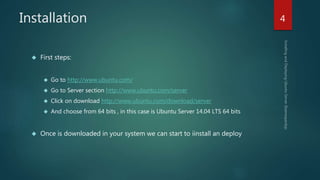

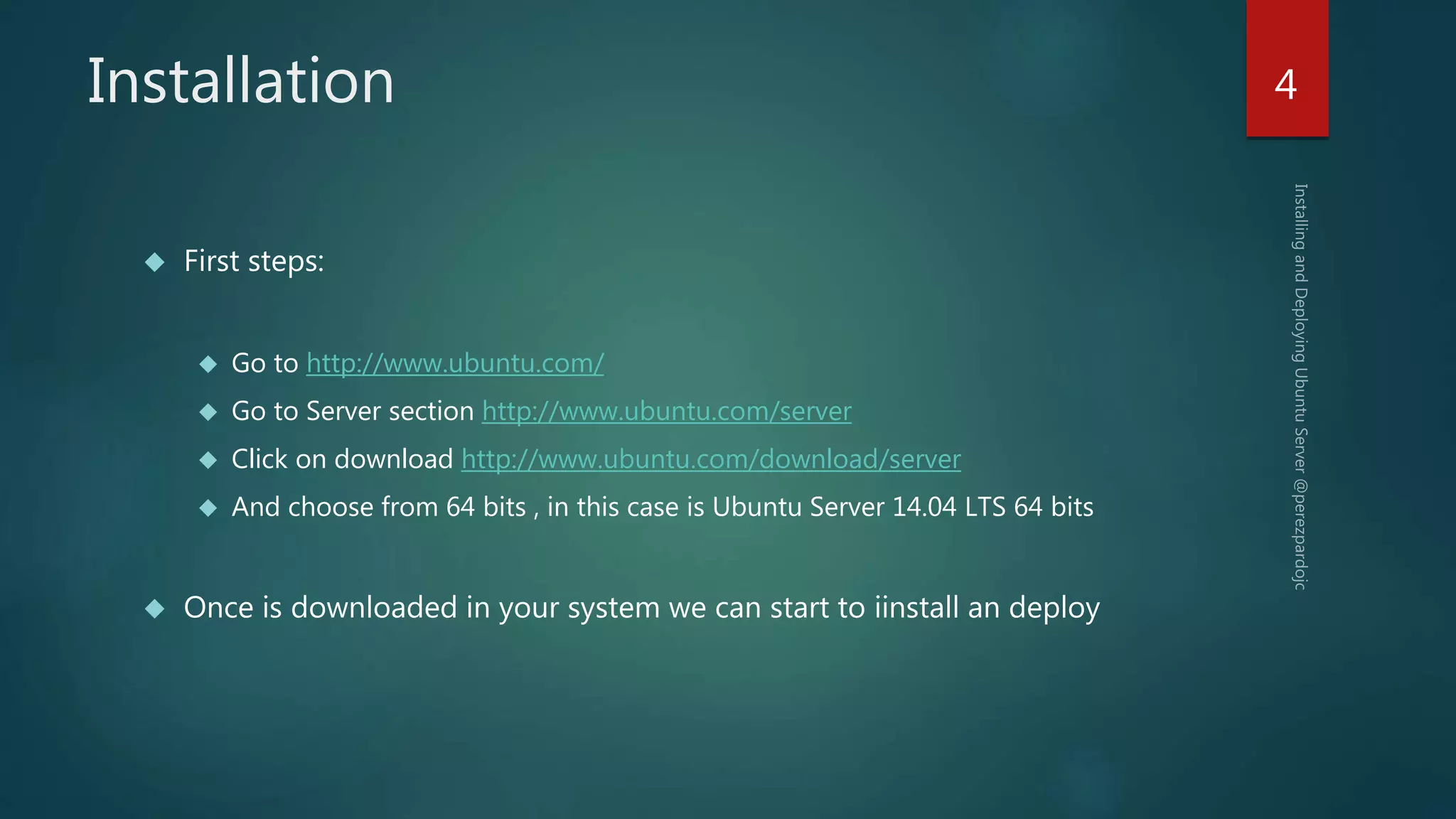

4. Installation
 First steps:
 Go to http://www.ubuntu.com/
 Go to Server section http://www.ubuntu.com/server
 Click on download http://www.ubuntu.com/download/server
 And choose from 64 bits , in this case is Ubuntu Server 14.04 LTS 64 bits
 Once is downloaded in your system we can start to iinstall an deploy
4

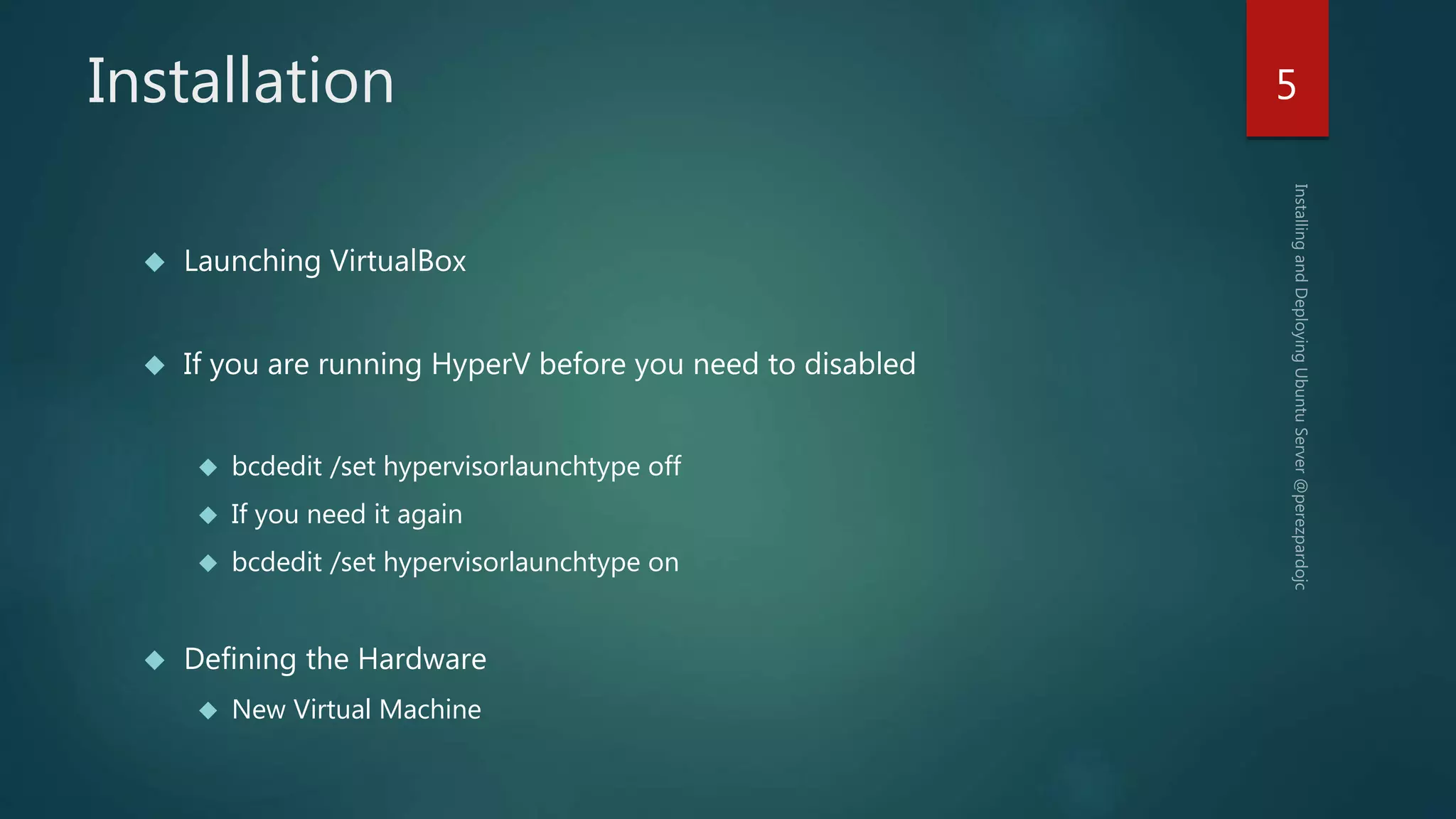

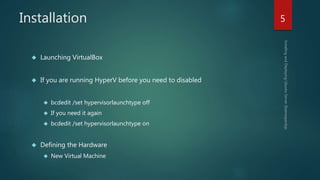

5. Installation
 Launching VirtualBox
 If you are running HyperV before you need to disabled
 bcdedit /set hypervisorlaunchtype off
 If you need it again
 bcdedit /set hypervisorlaunchtype on
 Defining the Hardware
 New Virtual Machine
5

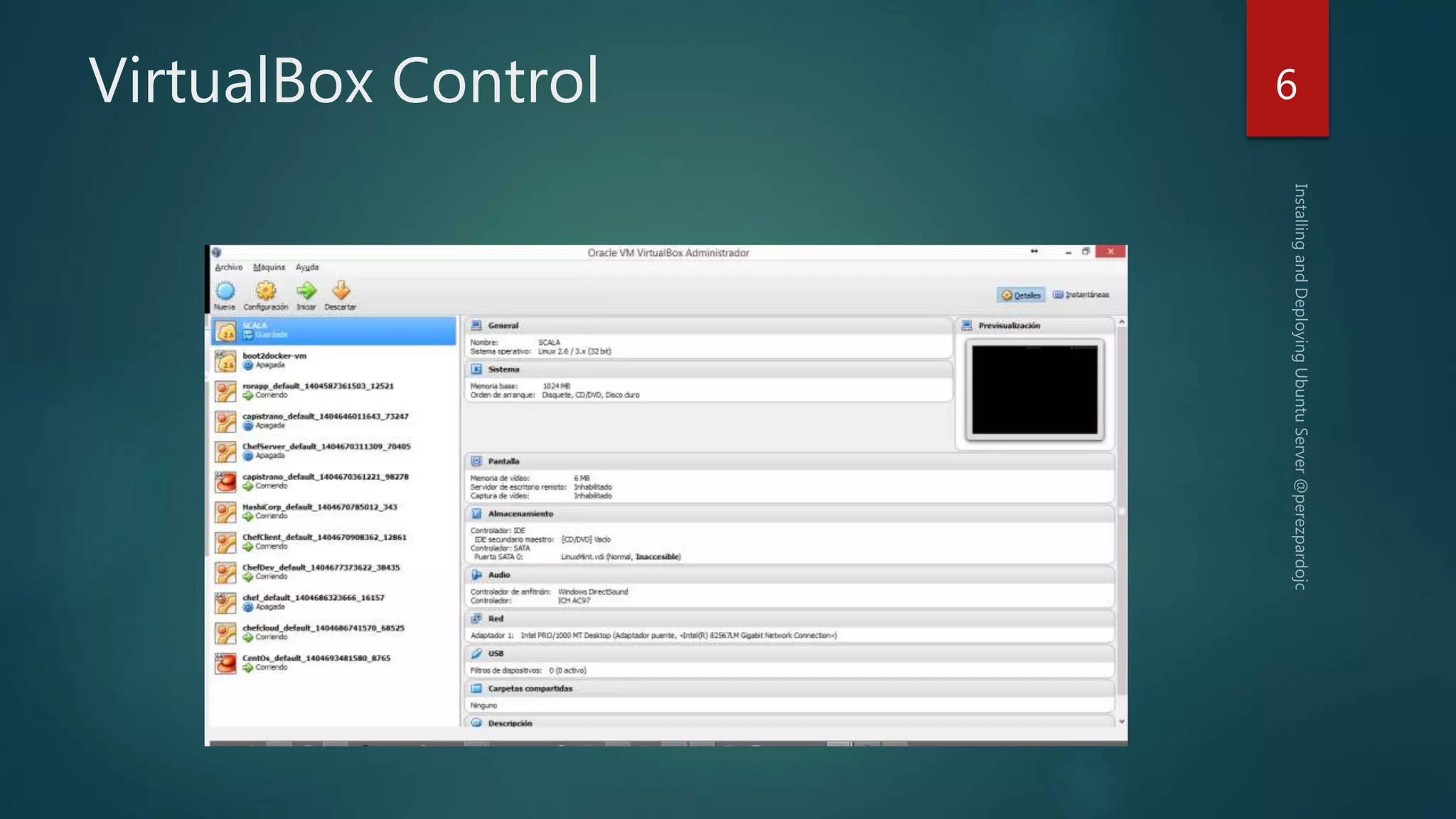

6. VirtualBox Control 6

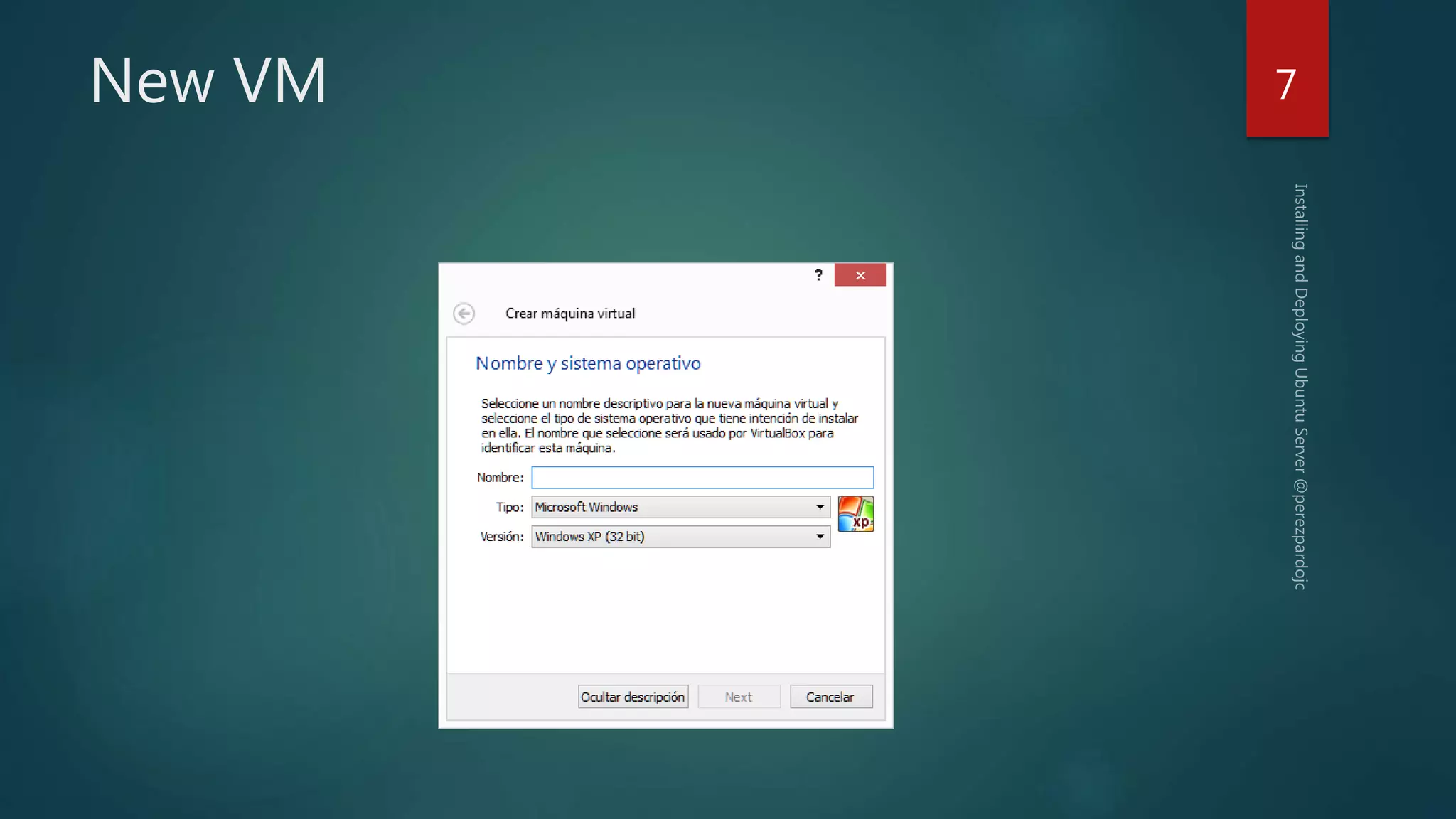

7. New VM 7

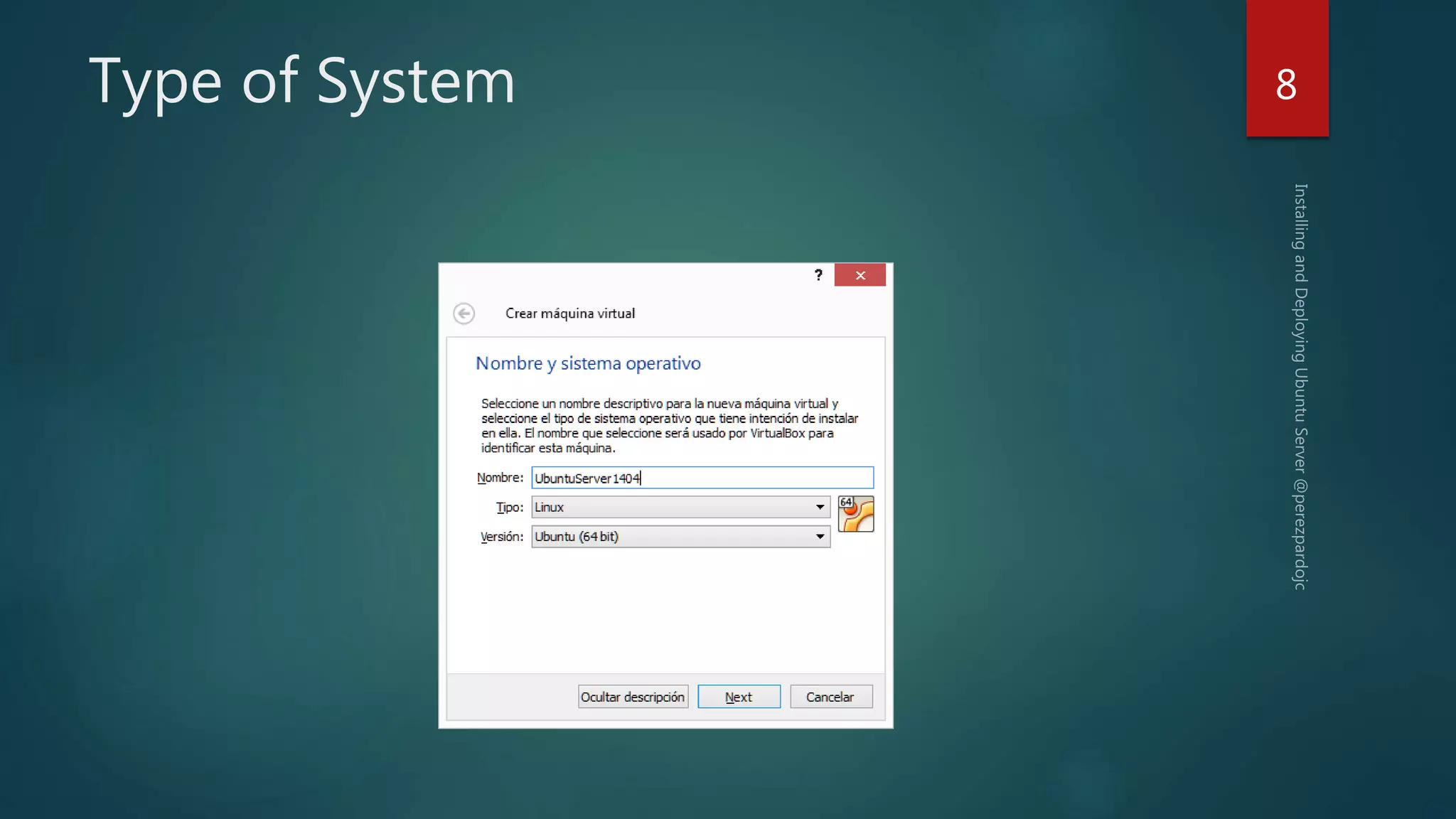

8. Type of System 8

9. Memory 9

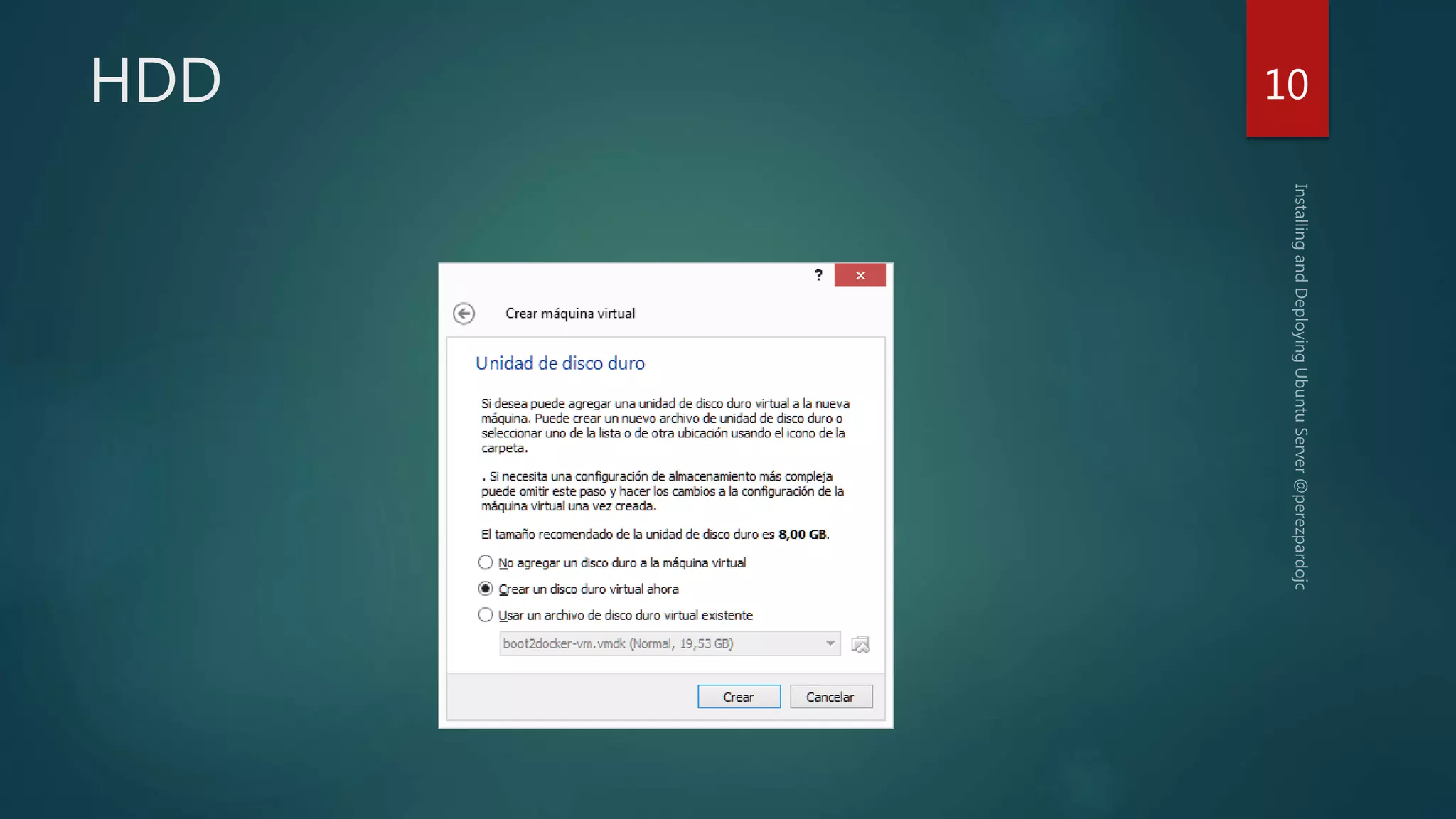

10. HDD 10

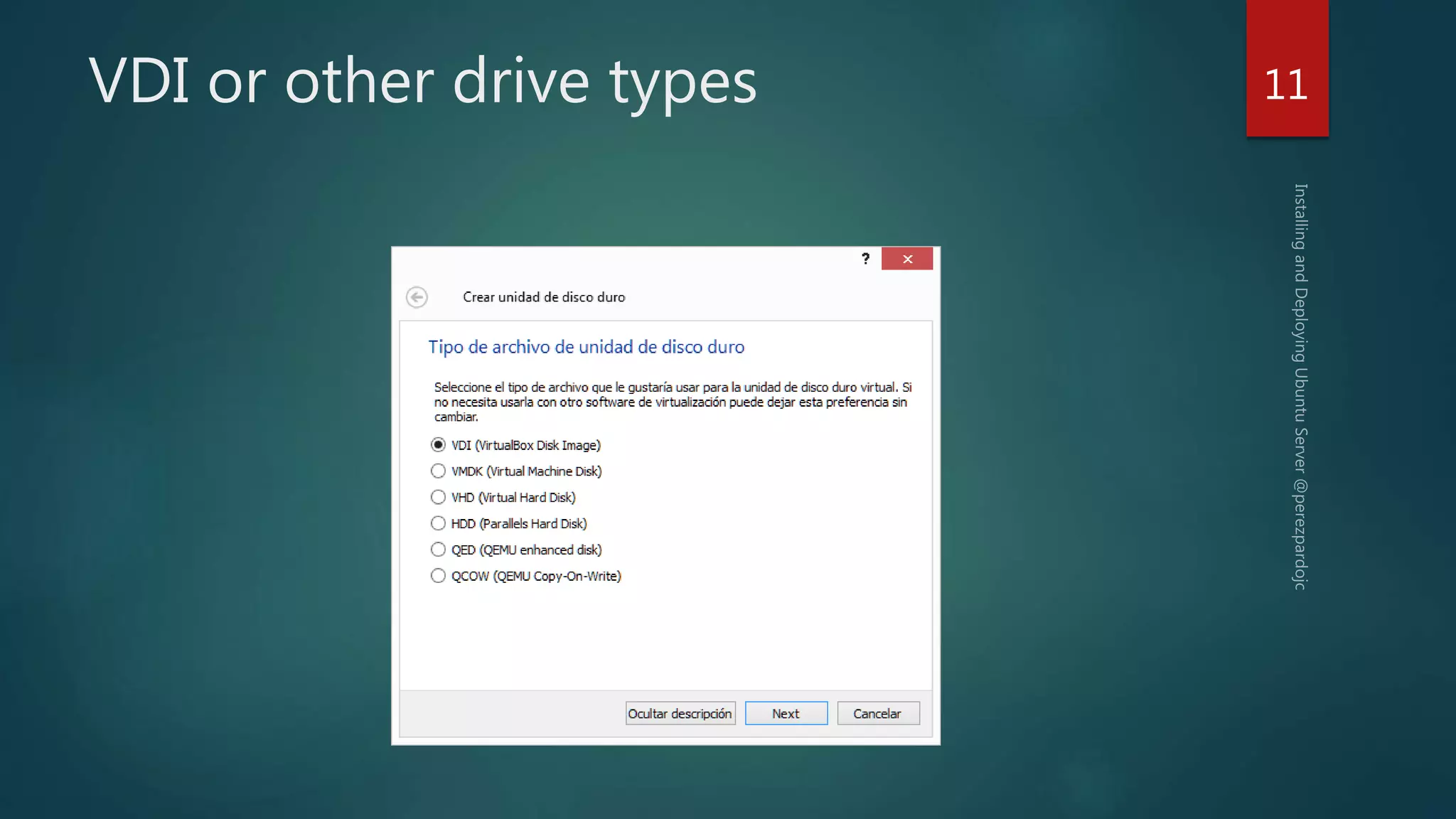

11. VDI or other drive types 11

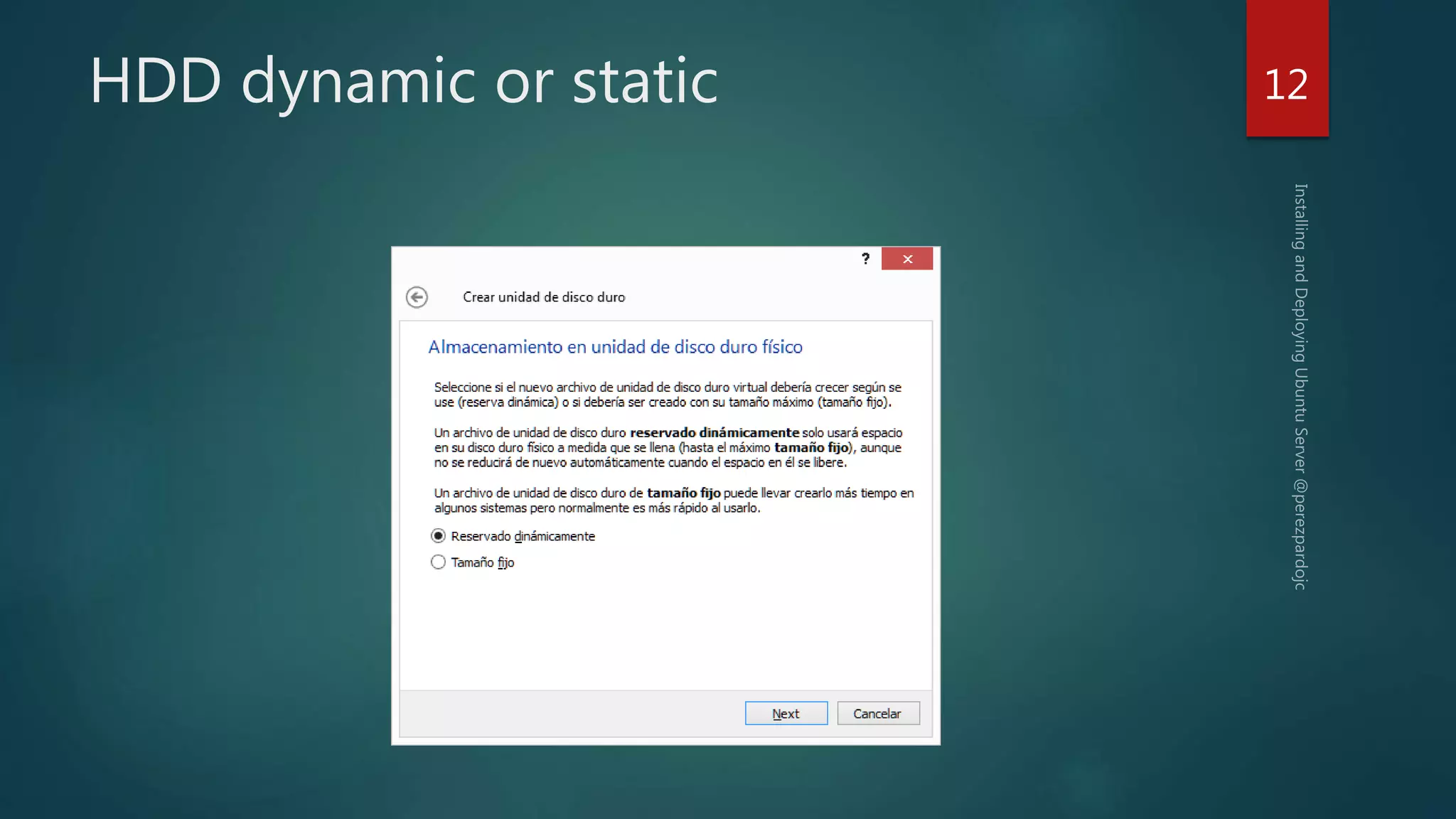

12. HDD dynamic or static 12

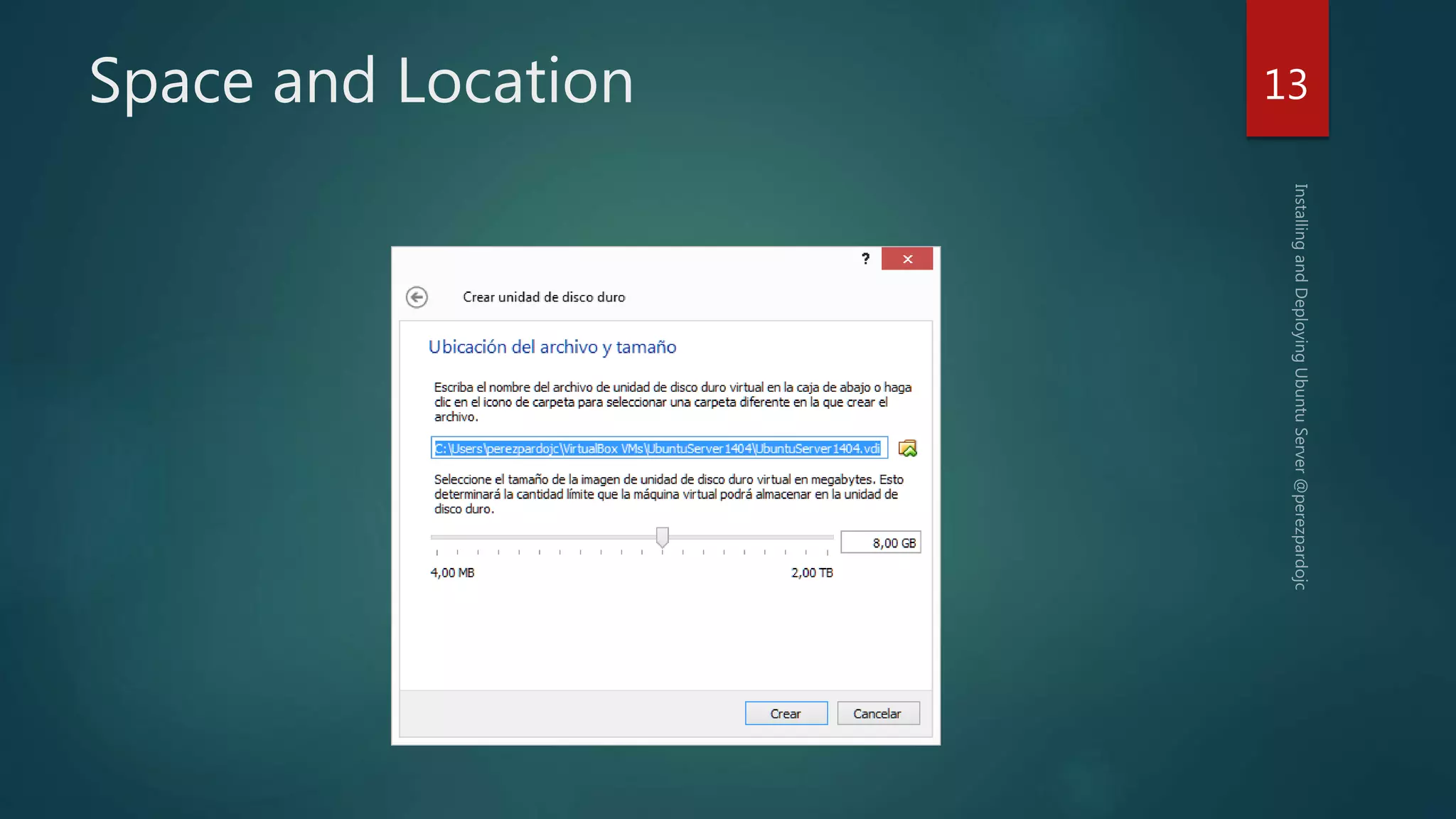

13. Space and Location 13

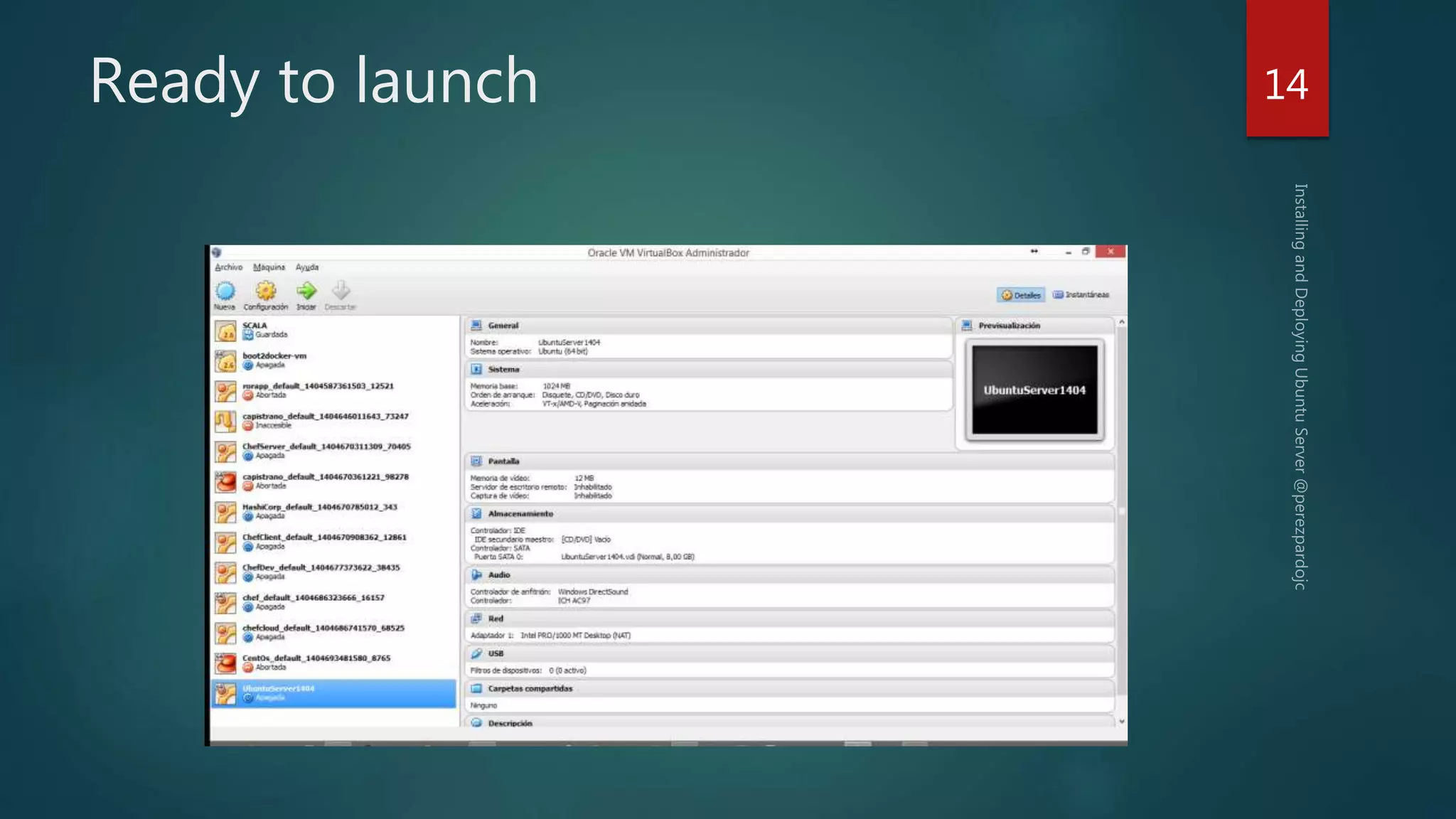

14. Ready to launch 14

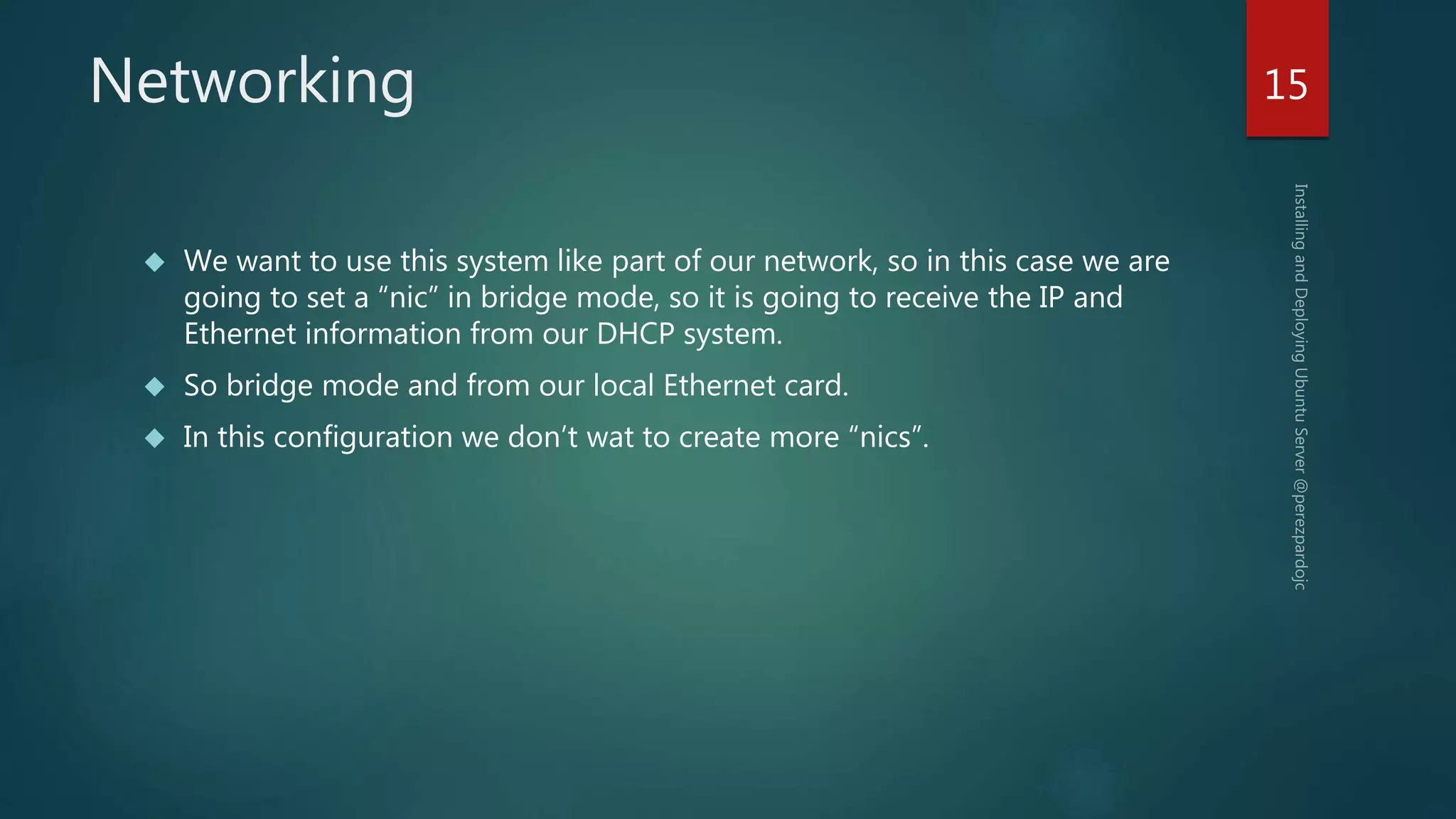

15. Networking
 We want to use this system like part of our network, so in this case we are
going to set a “nic” in bridge mode, so it is going to receive the IP and
Ethernet information from our DHCP system.
 So bridge mode and from our local Ethernet card.
 In this configuration we don’t wat to create more “nics”.
15

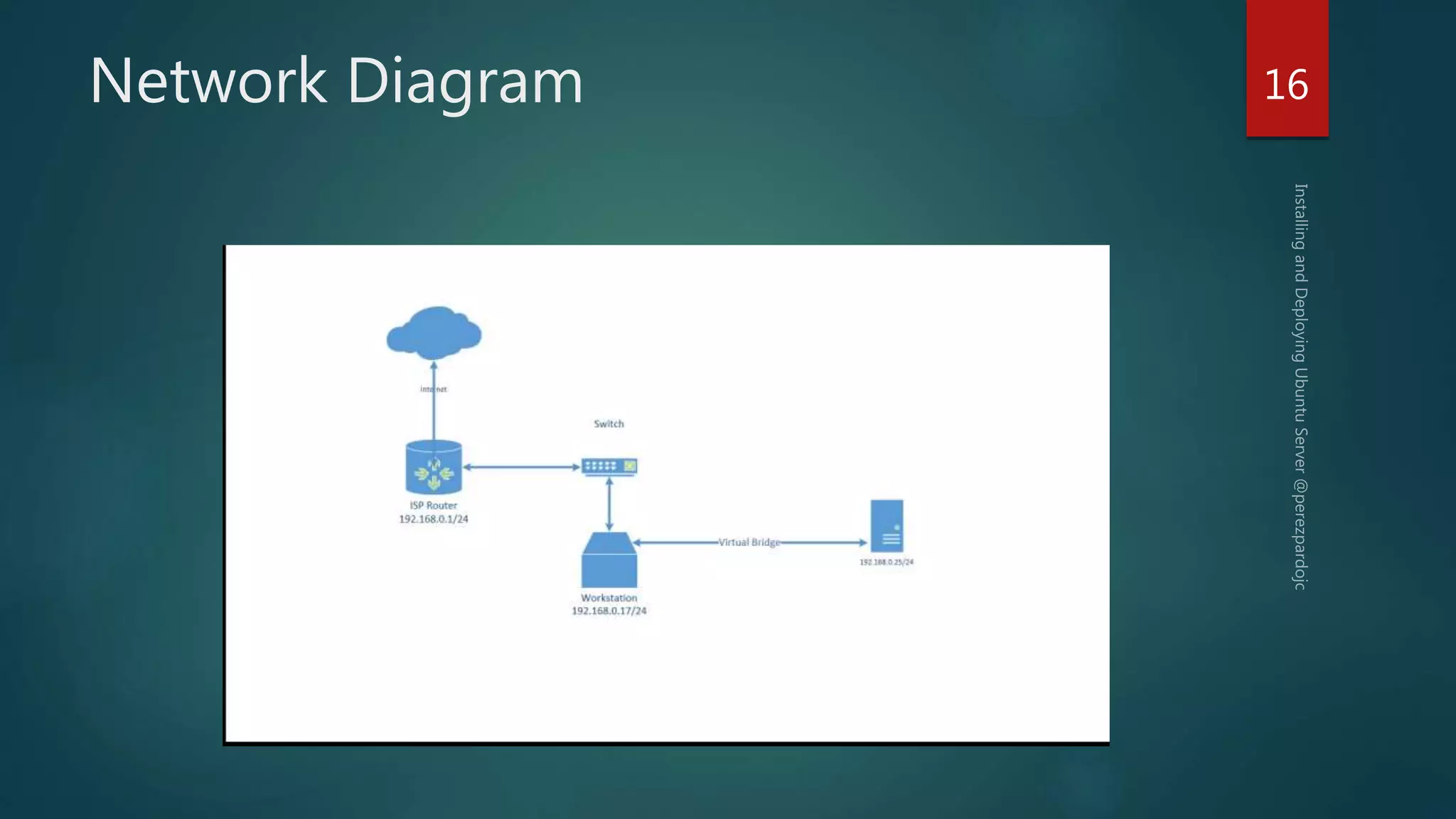

16. Network Diagram 16

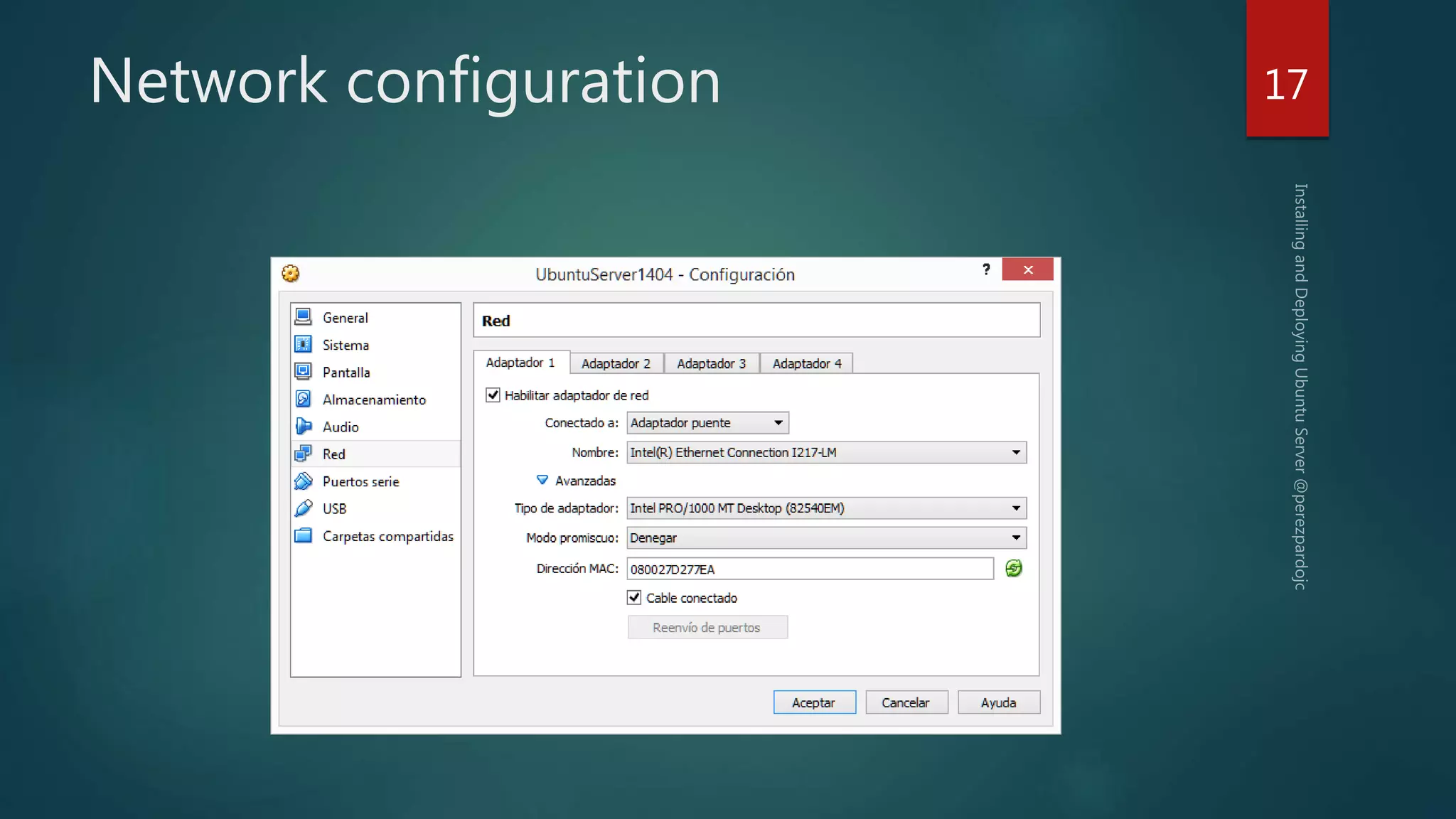

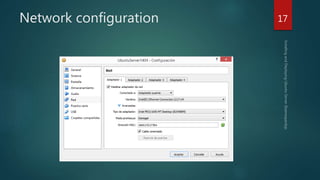

17. Network configuration 17

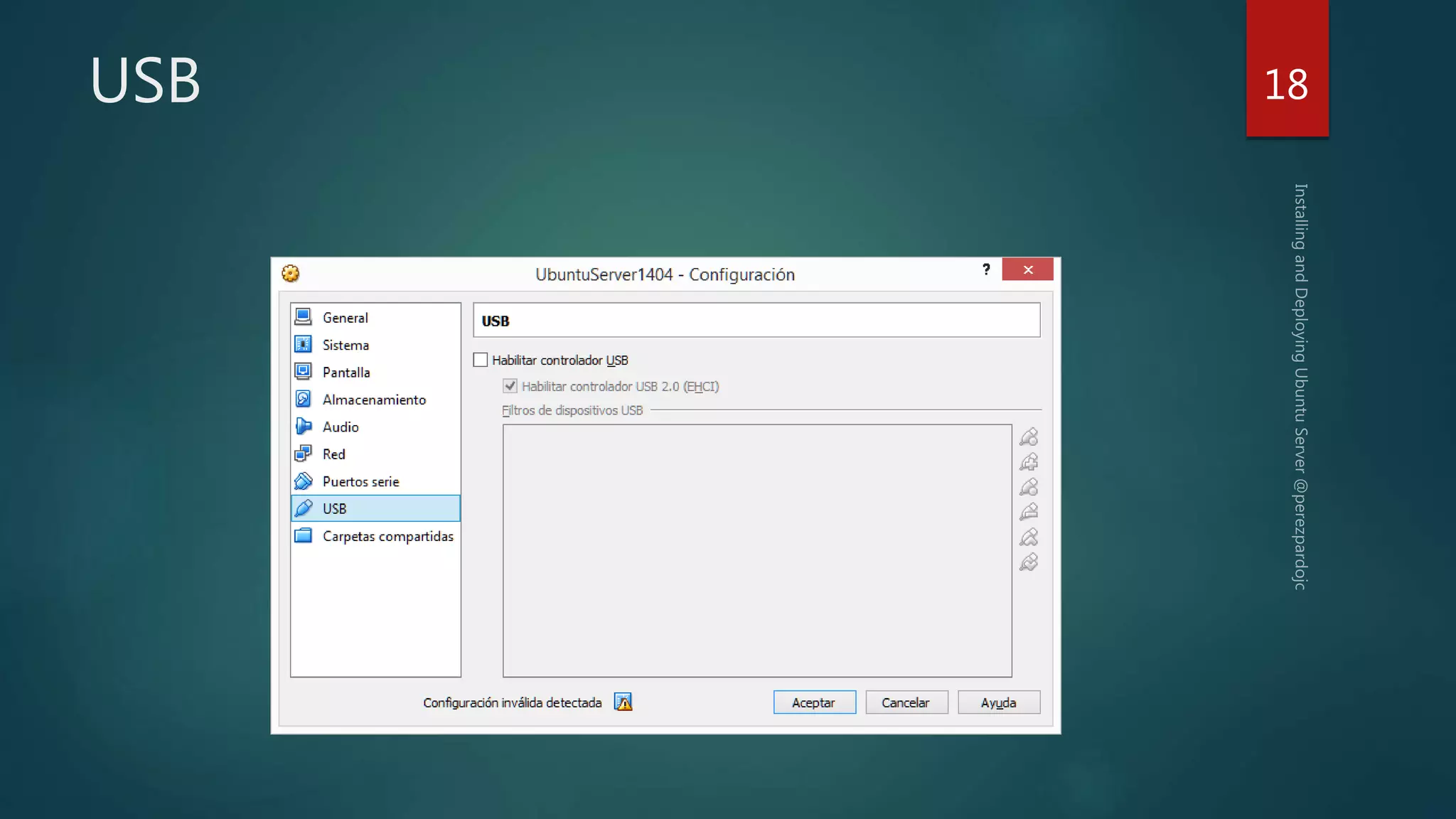

18. USB 18

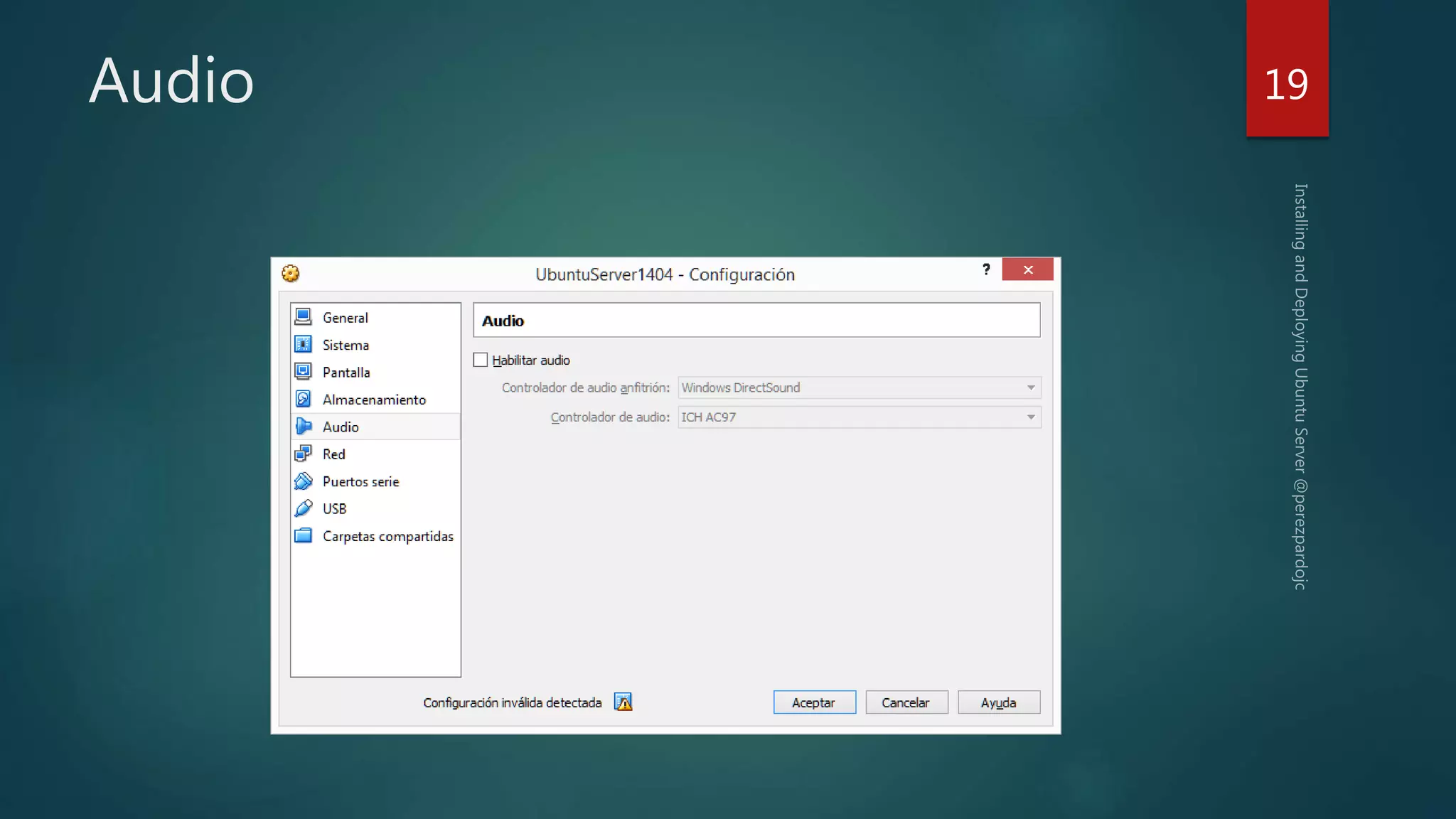

19. Audio 19

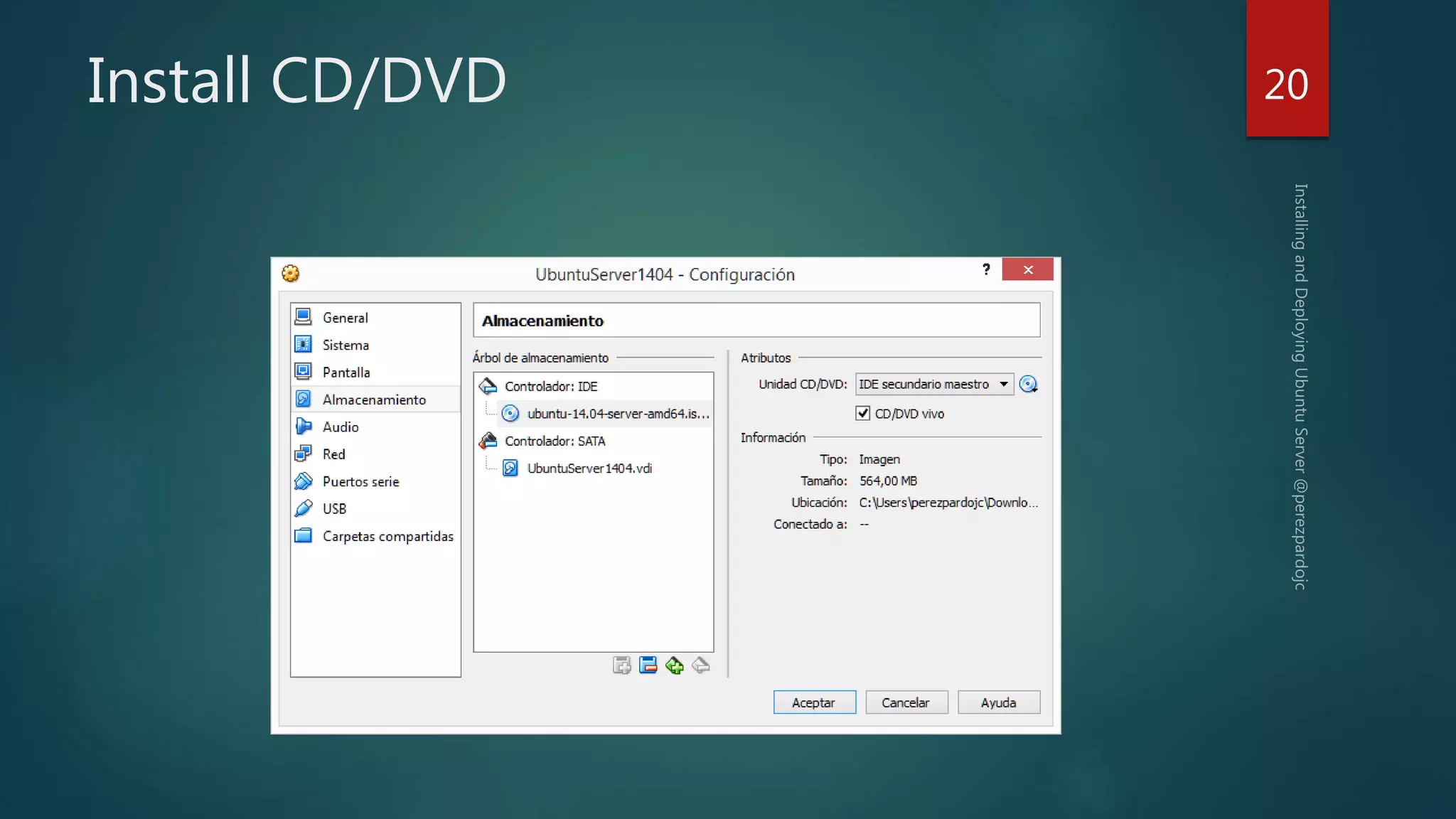

20. Install CD/DVD 20

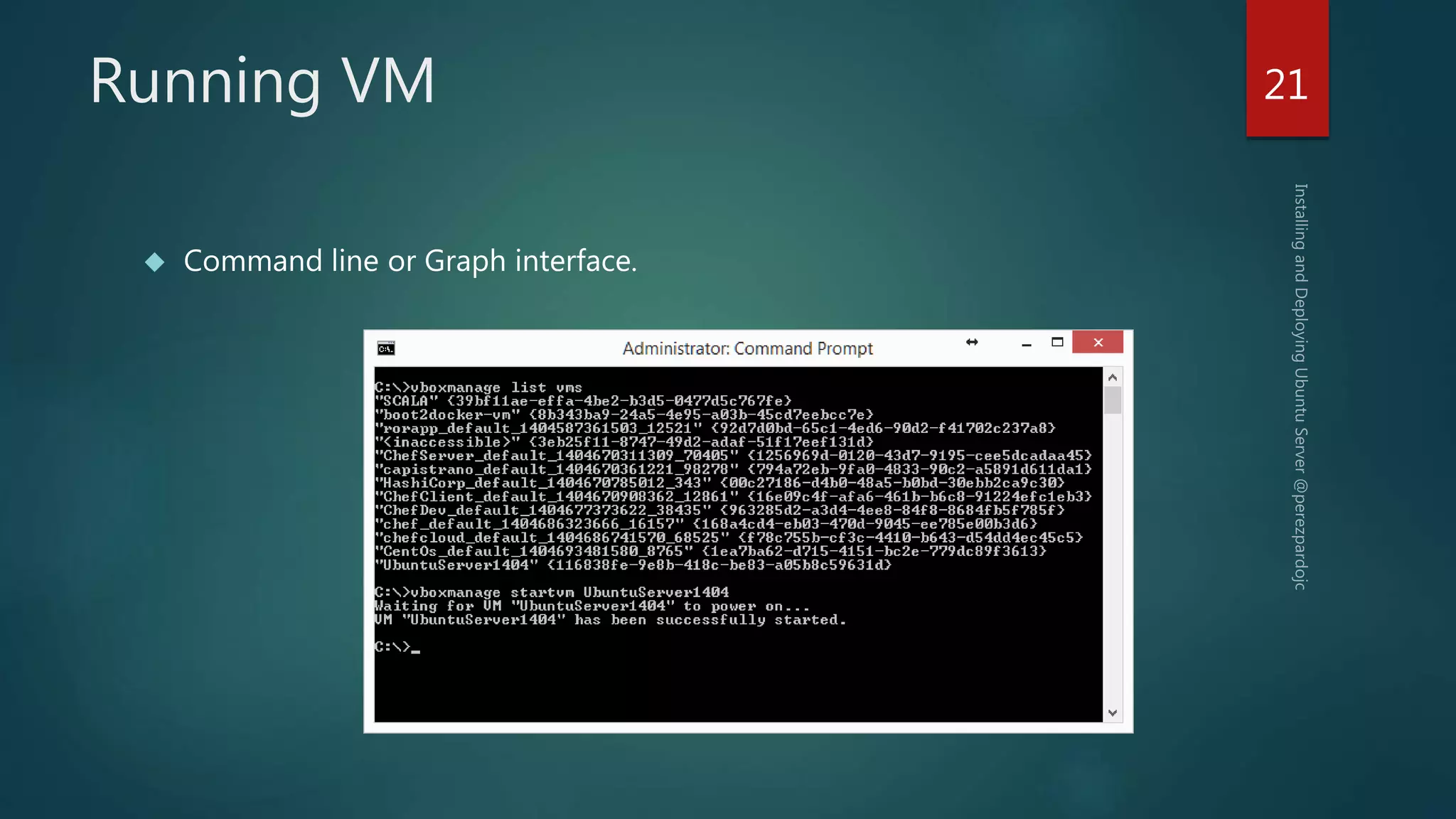

21. Running VM
 Command line or Graph interface.
21

22. Running VM 22

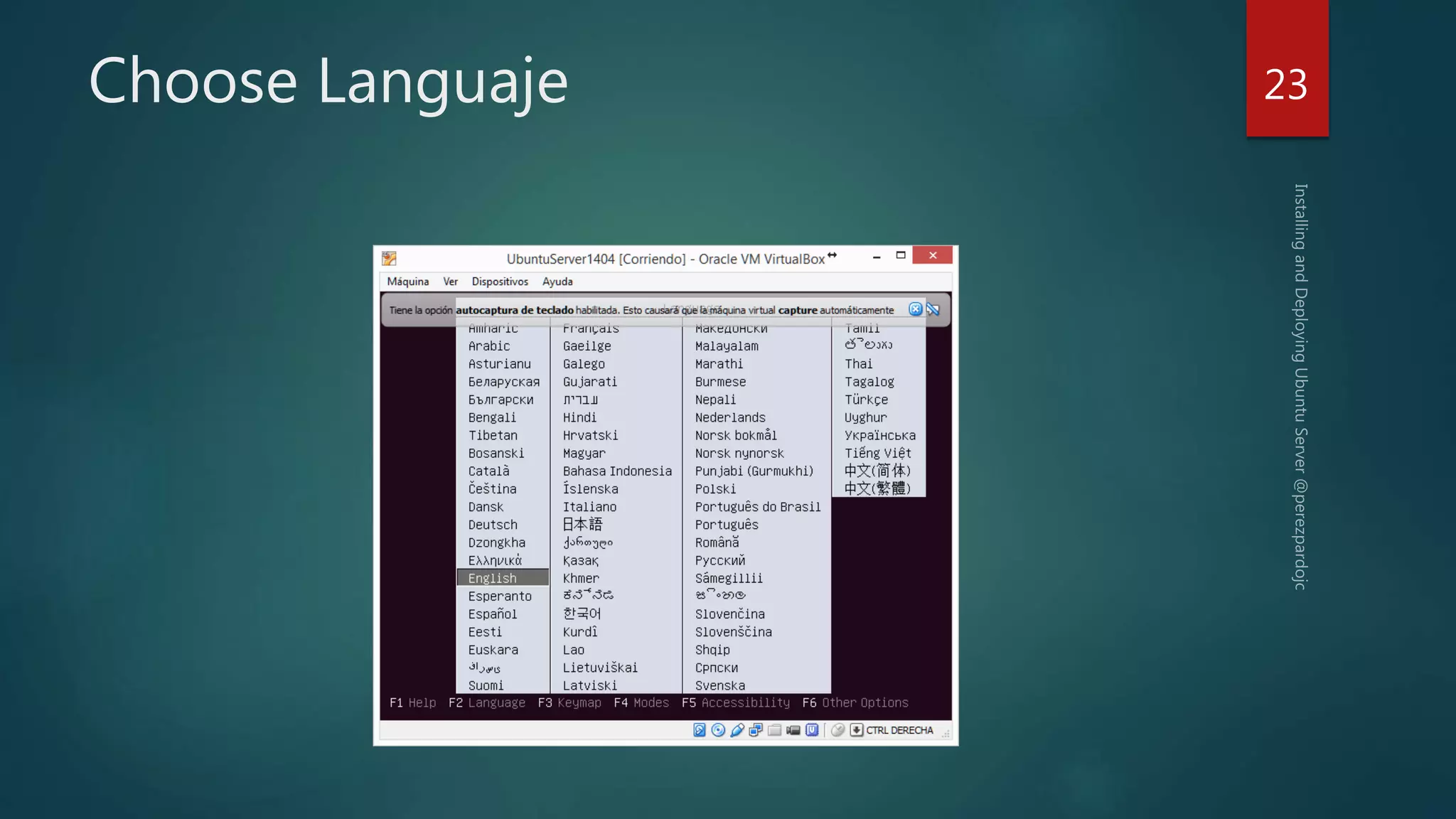

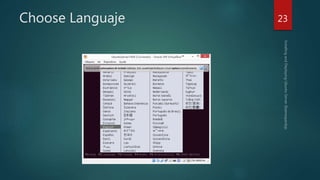

23. Choose Languaje 23

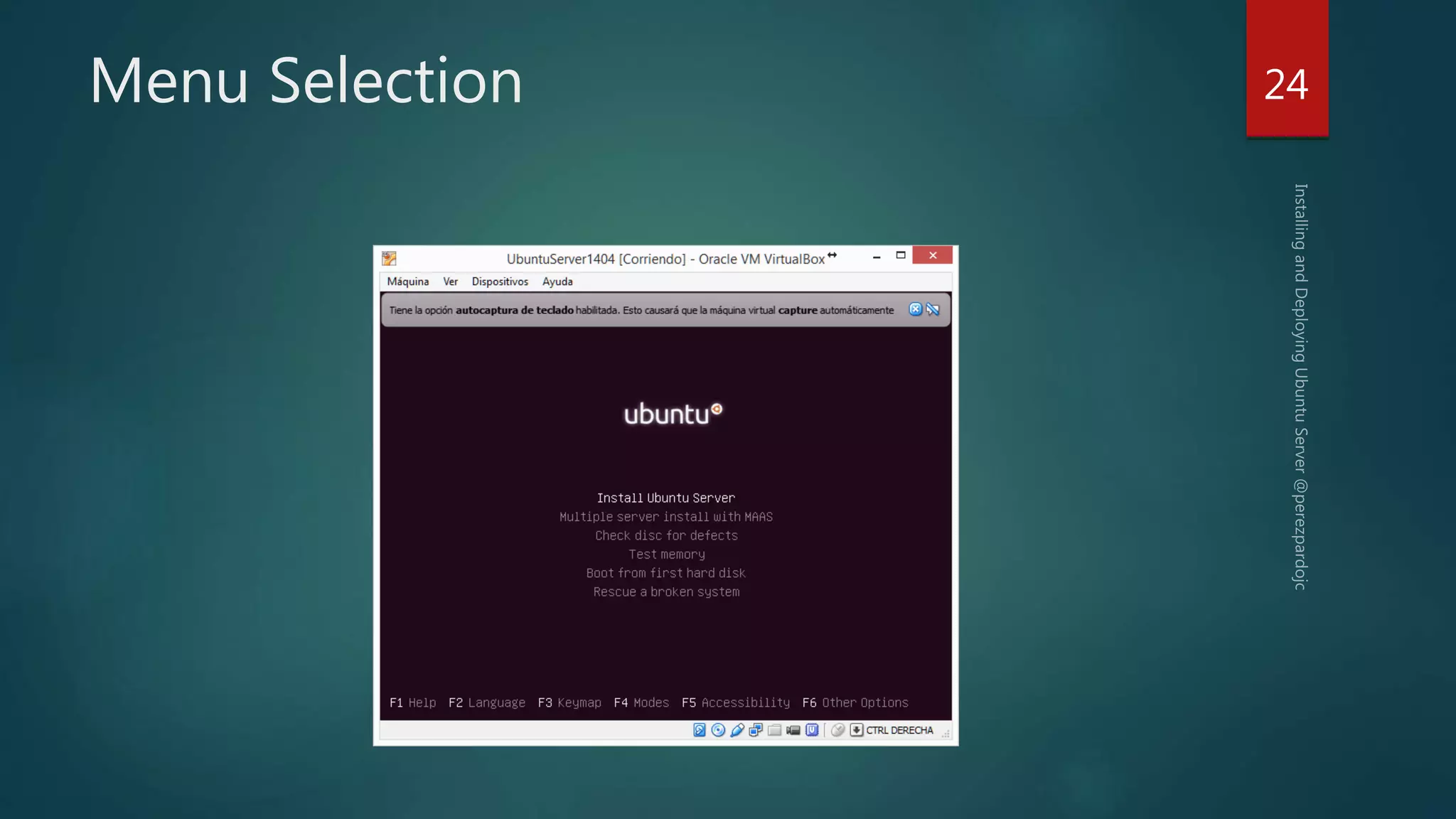

24. Menu Selection 24

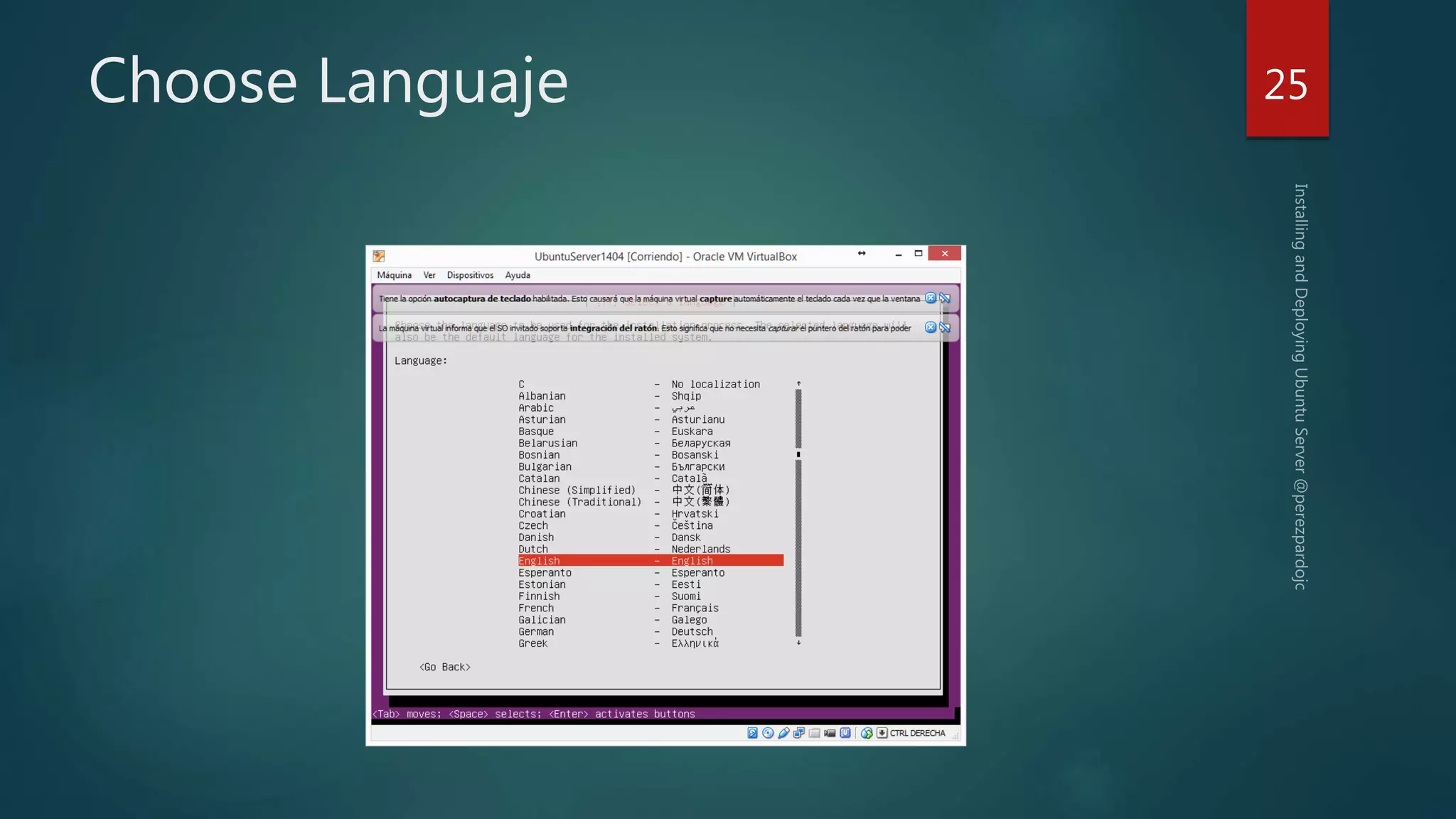

25. Choose Languaje 25

26. Choose Languaje 26

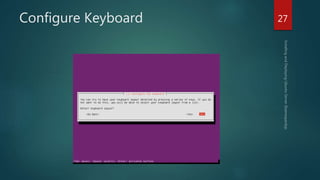

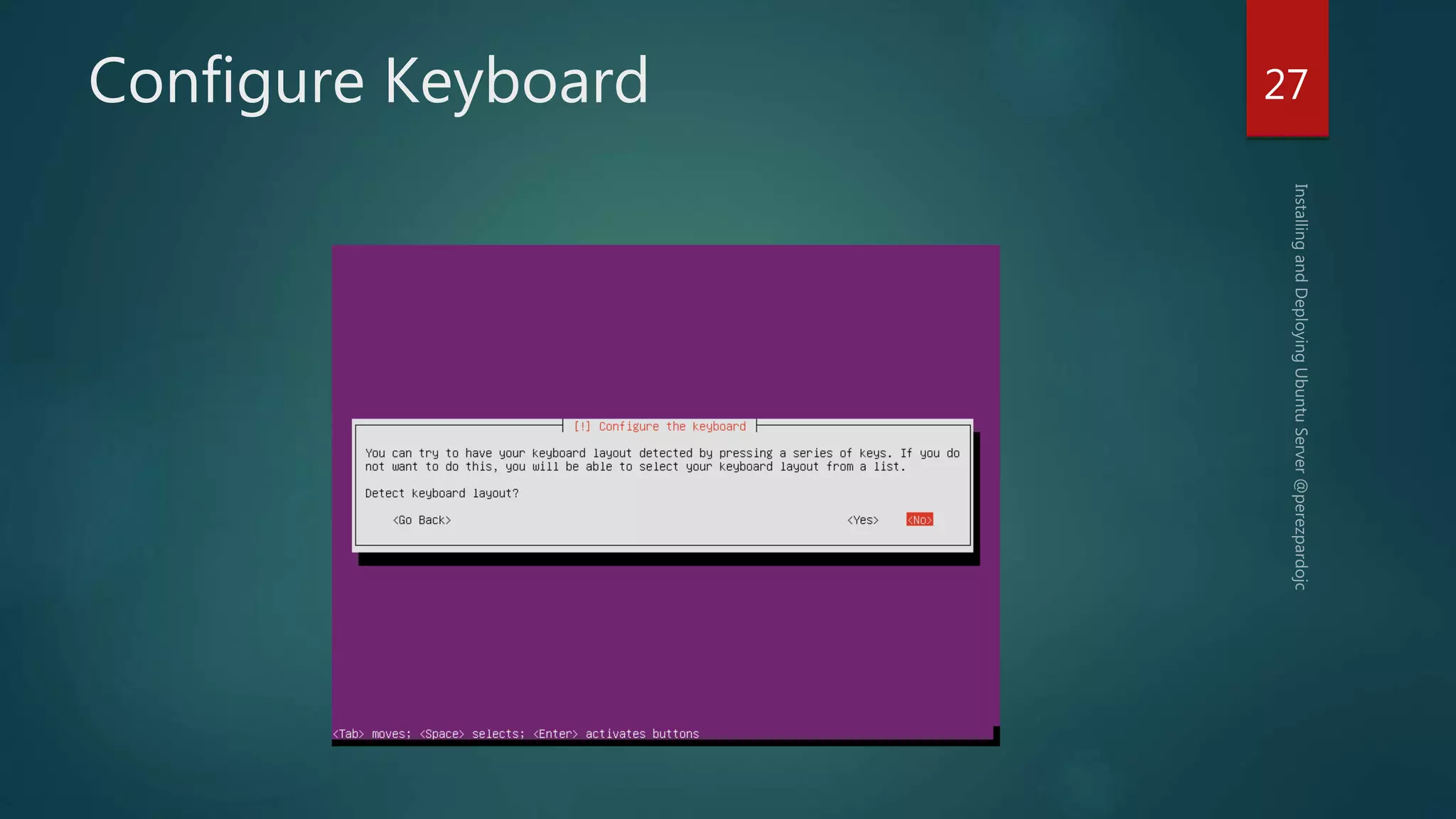

27. Configure Keyboard 27

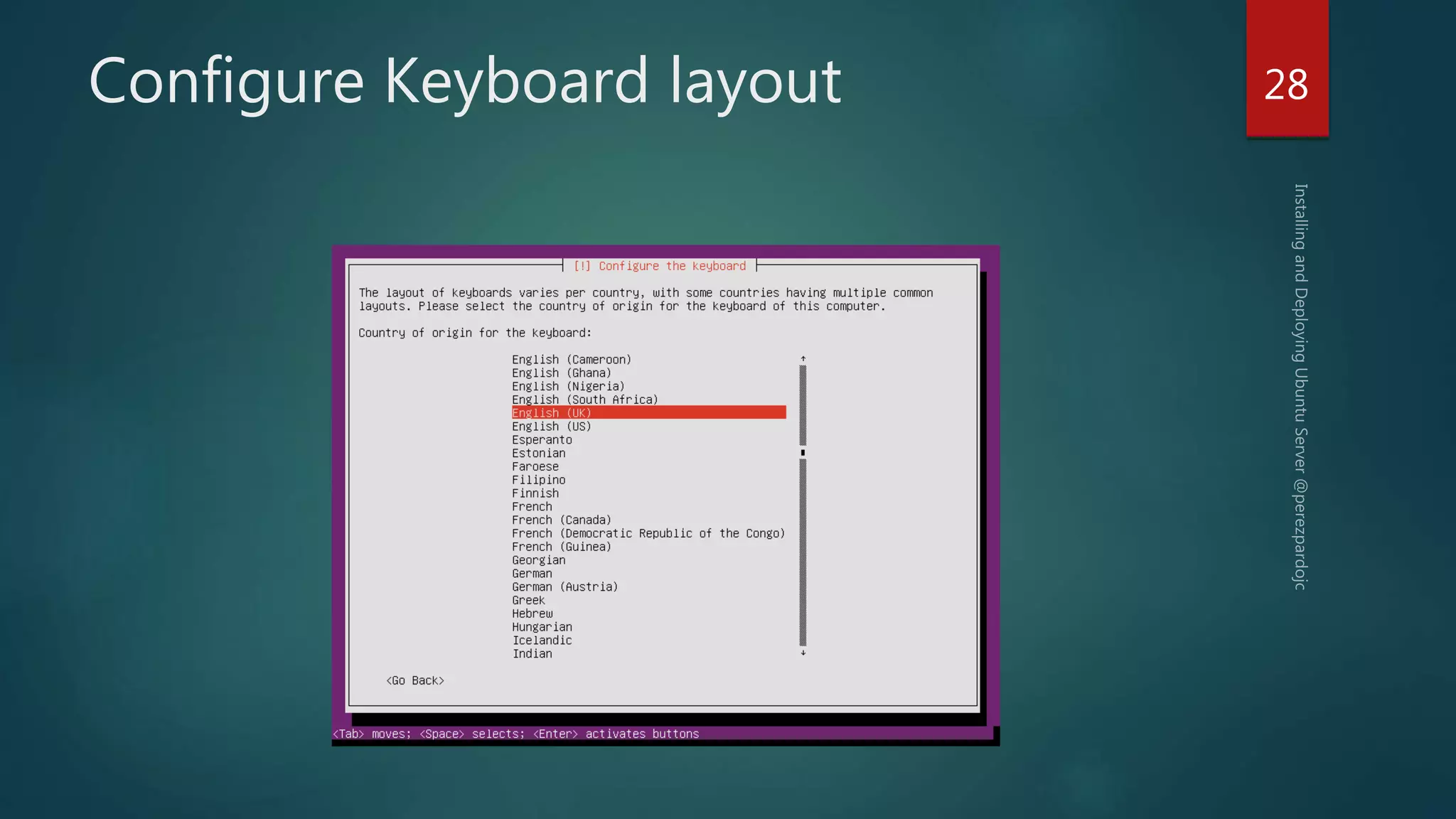

28. Configure Keyboard layout 28

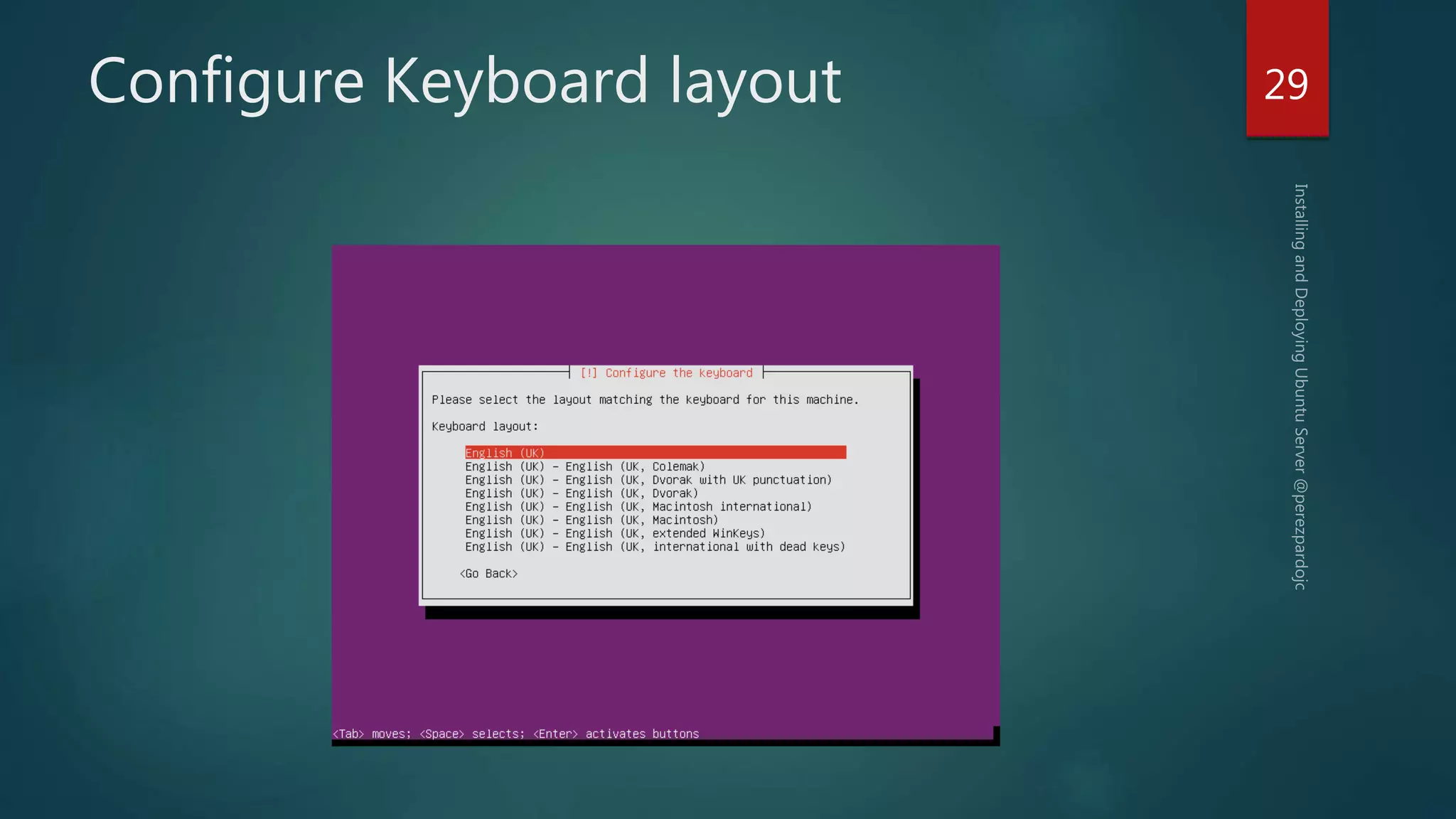

29. Configure Keyboard layout 29

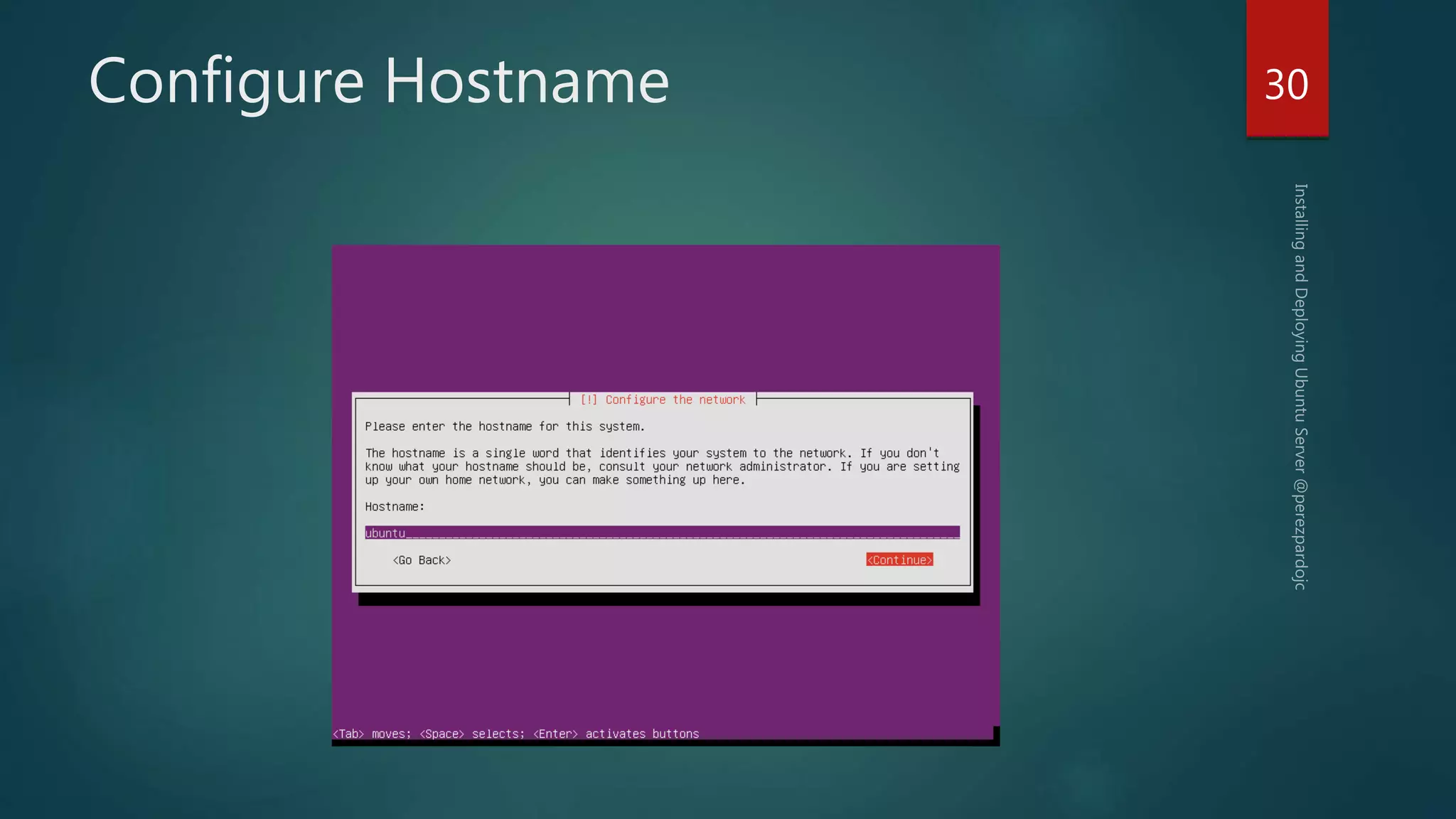

30. Configure Hostname 30

31. Configure Users and Passwords 31

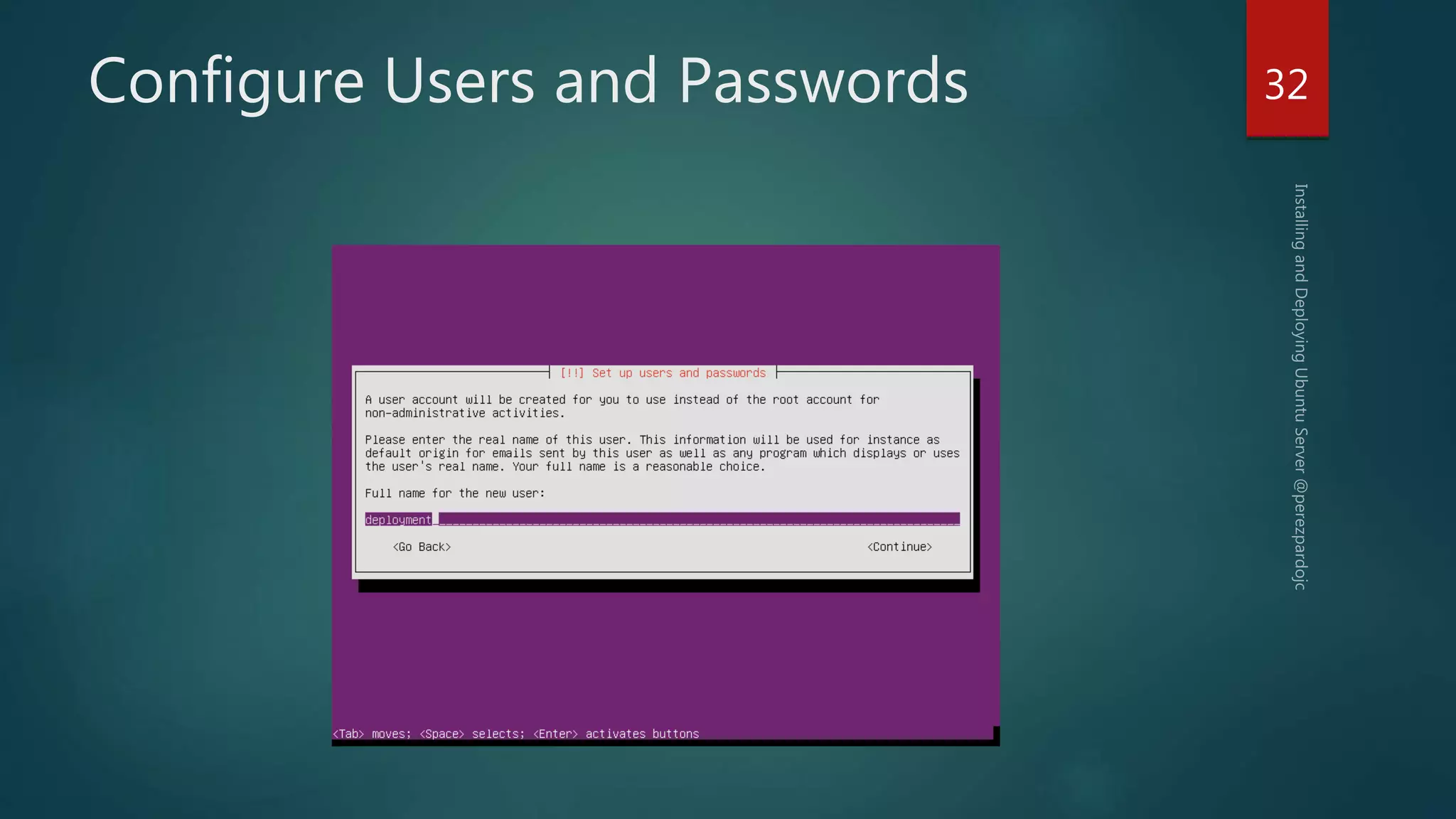

32. Configure Users and Passwords 32

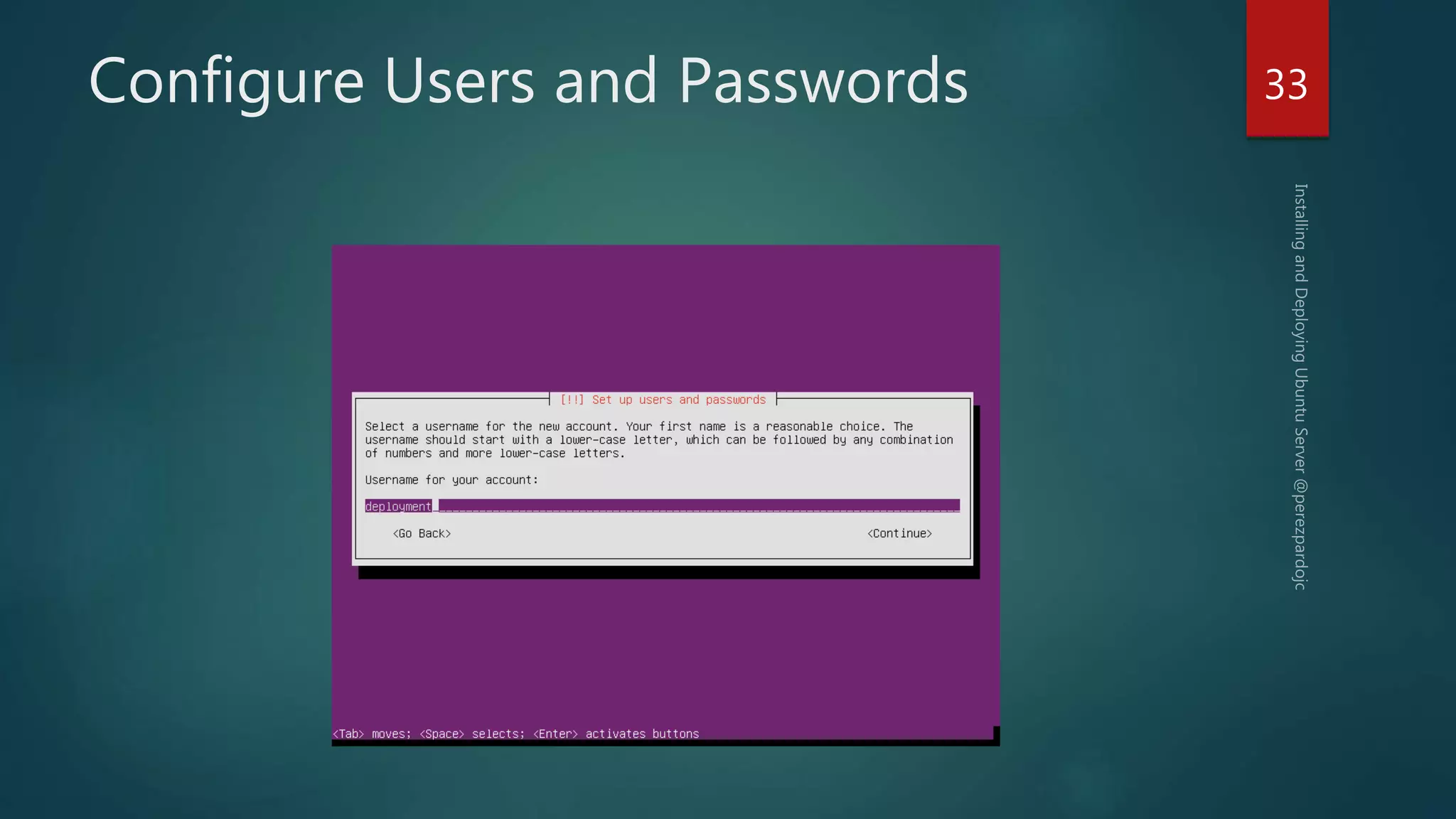

33. Configure Users and Passwords 33

34. Configure Users and Passwords 34

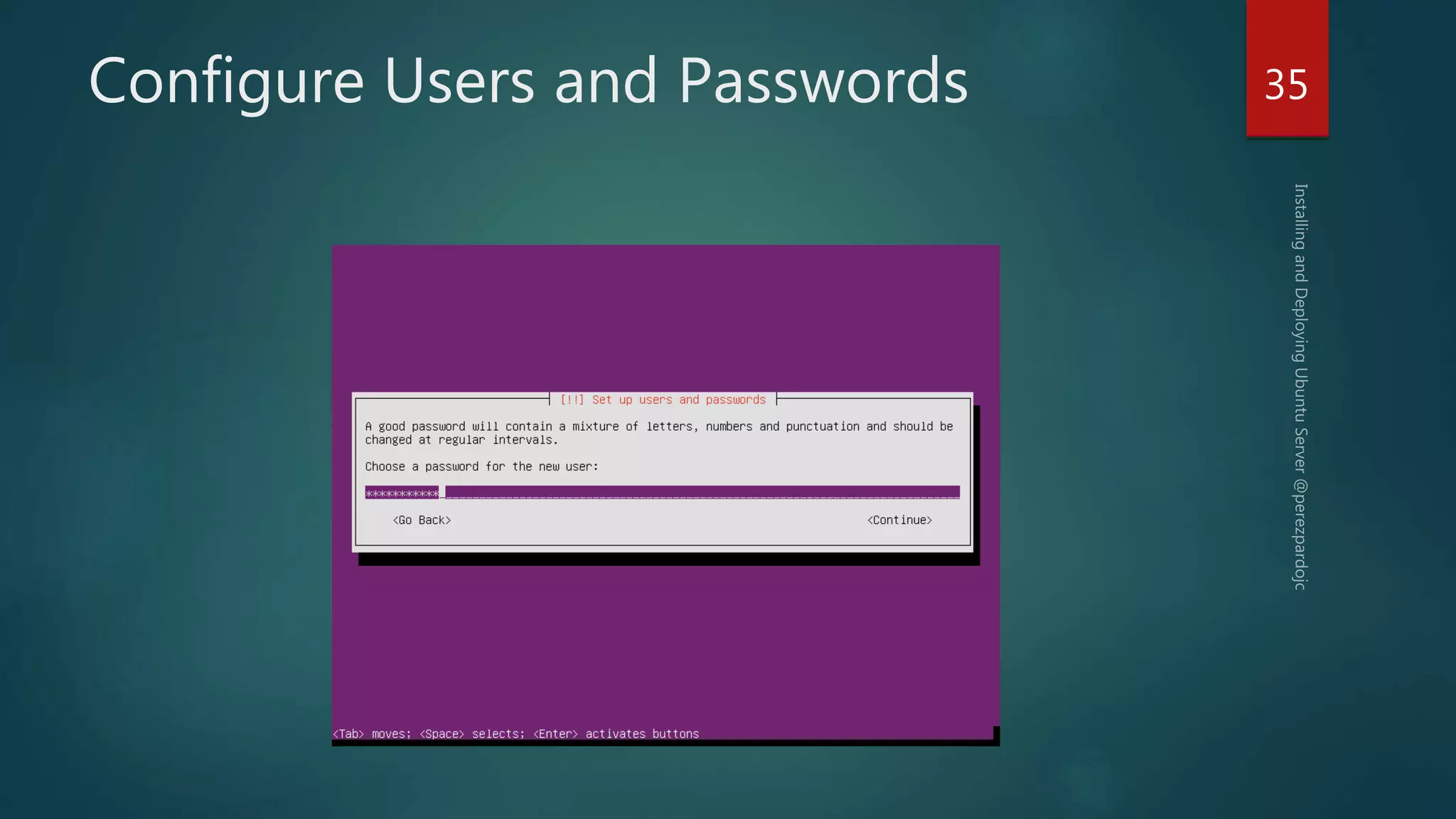

35. Configure Users and Passwords 35

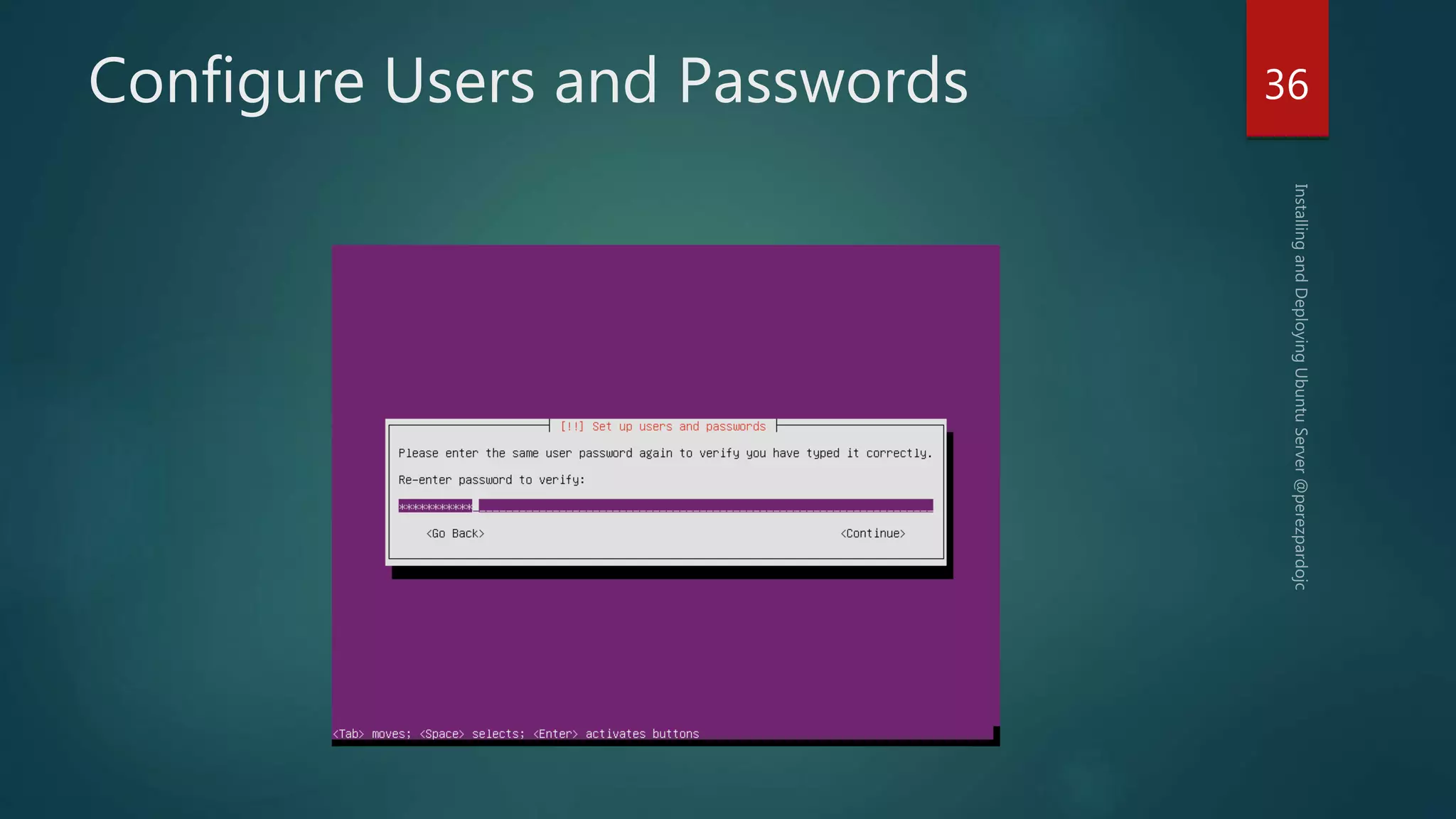

36. Configure Users and Passwords 36

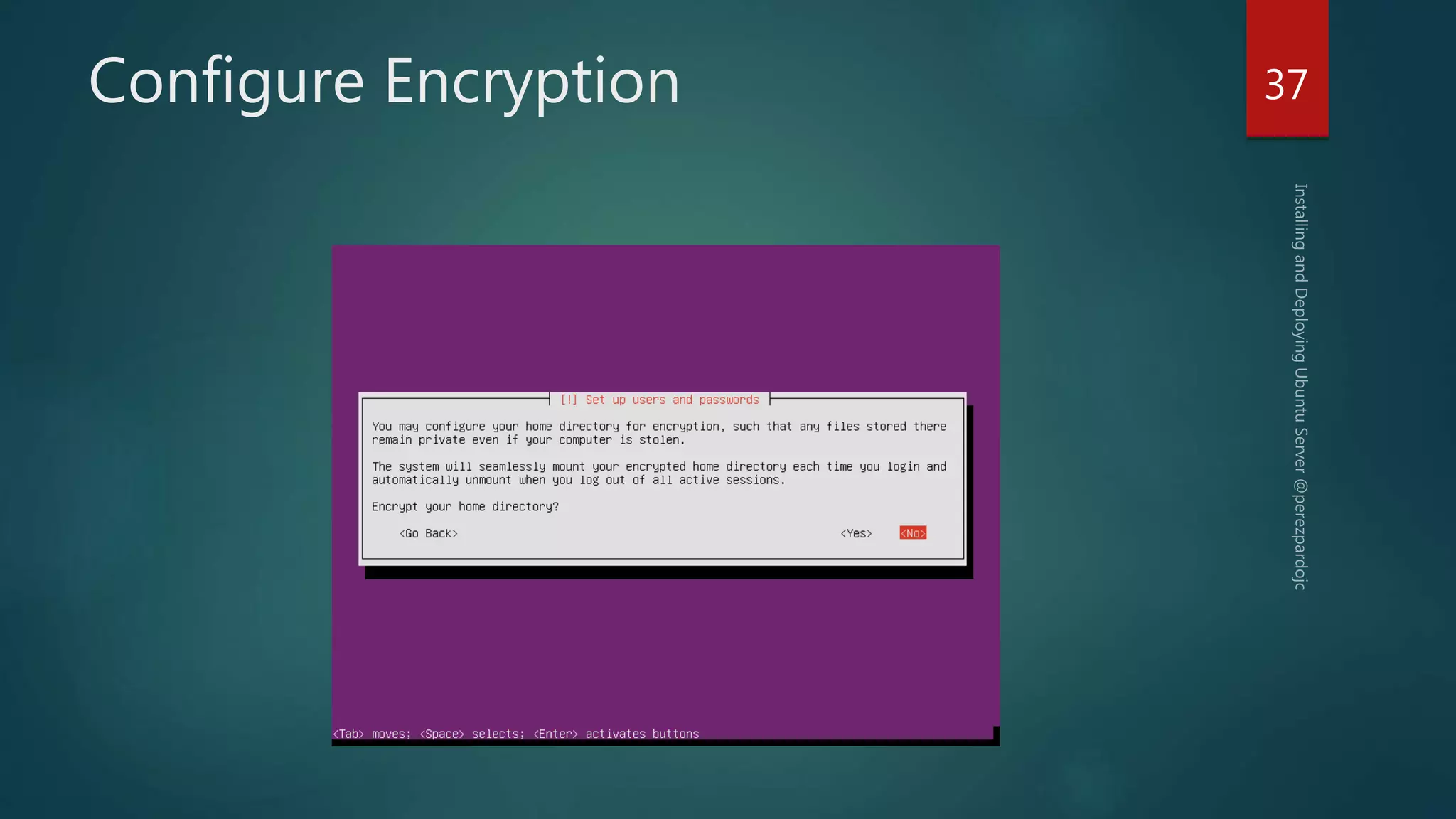

37. Configure Encryption 37

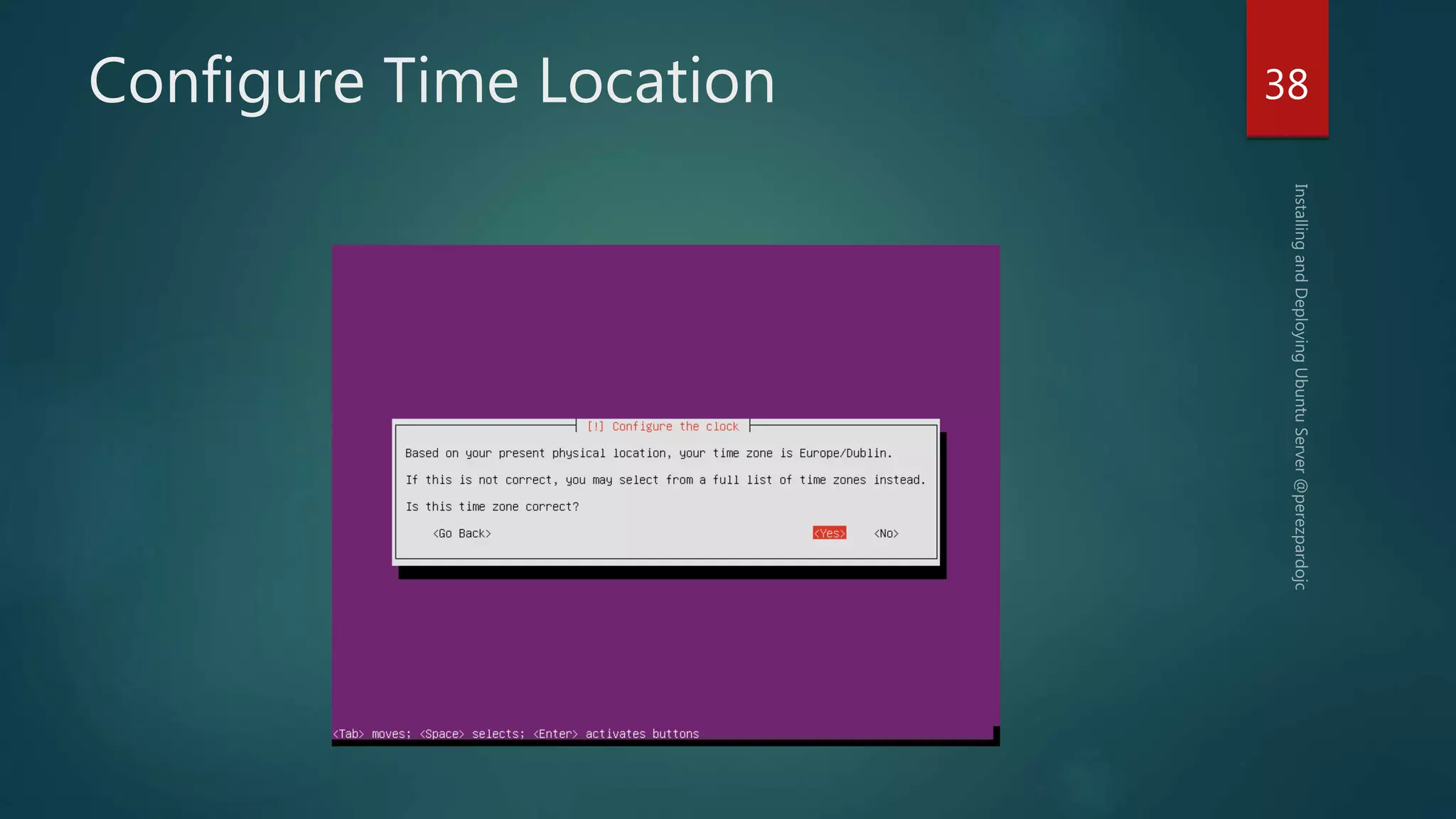

38. Configure Time Location 38

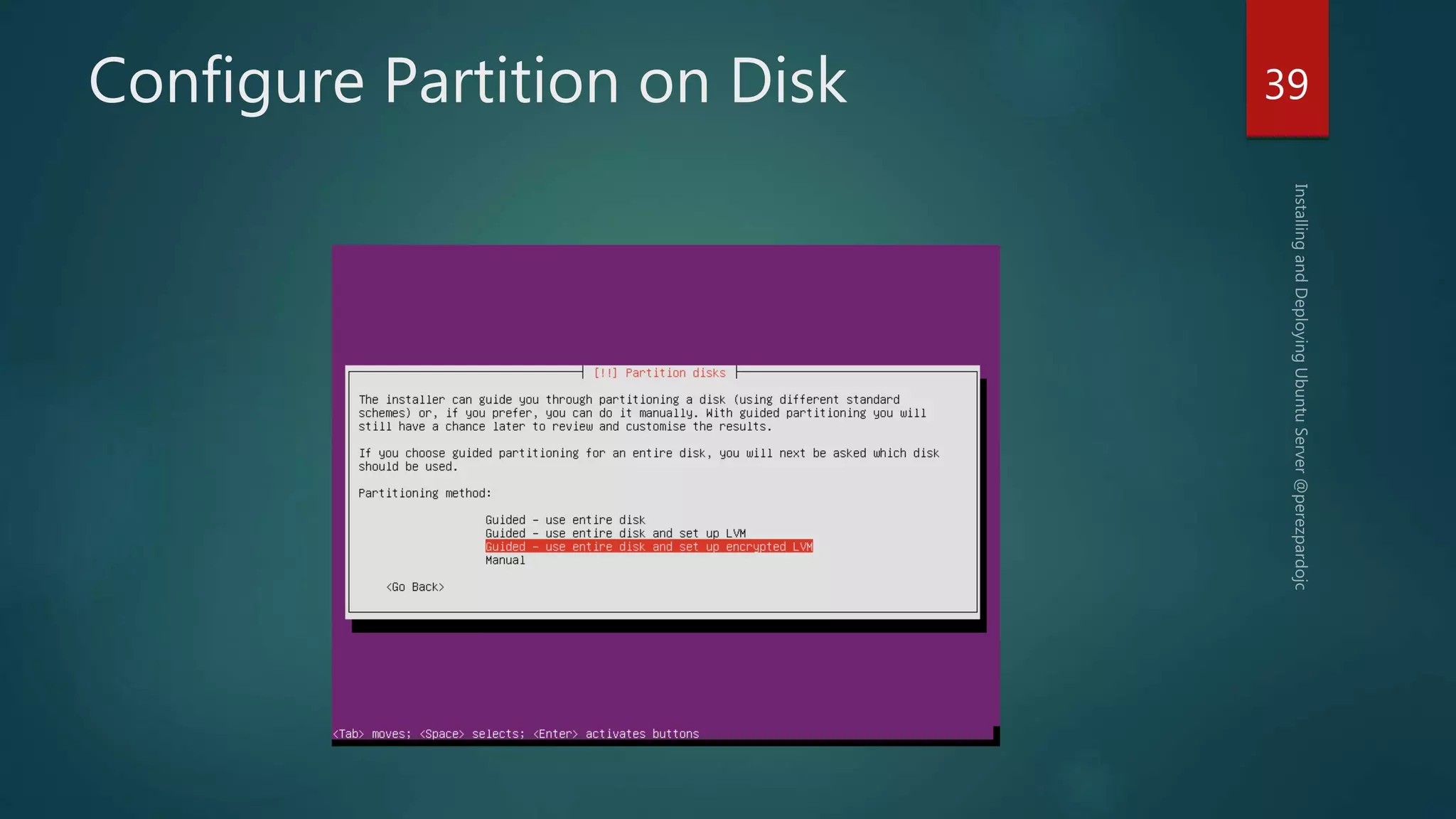

39. Configure Partition on Disk 39

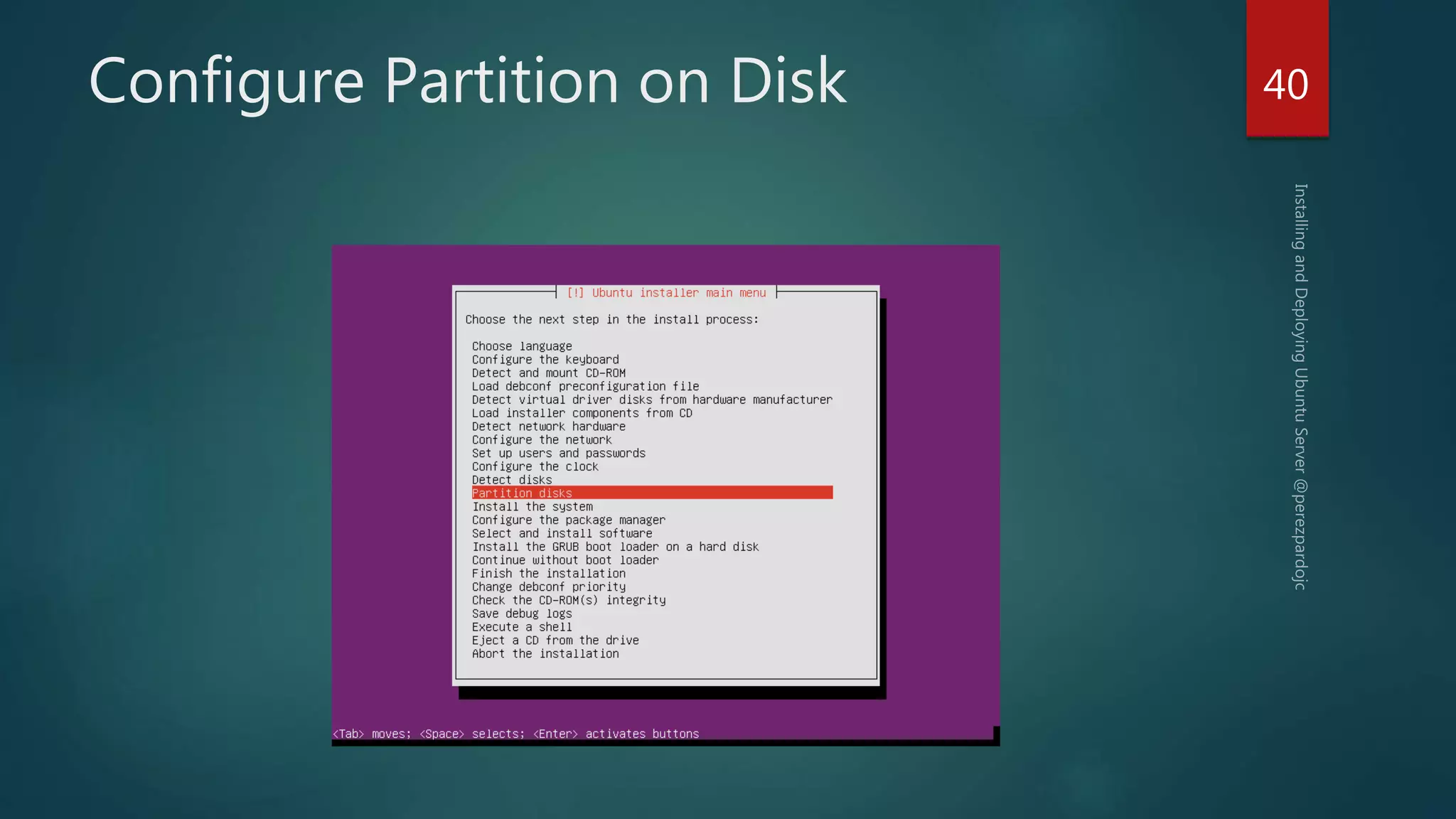

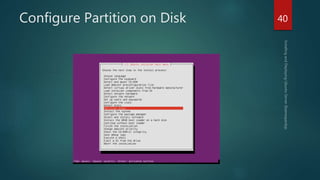

40. Configure Partition on Disk 40

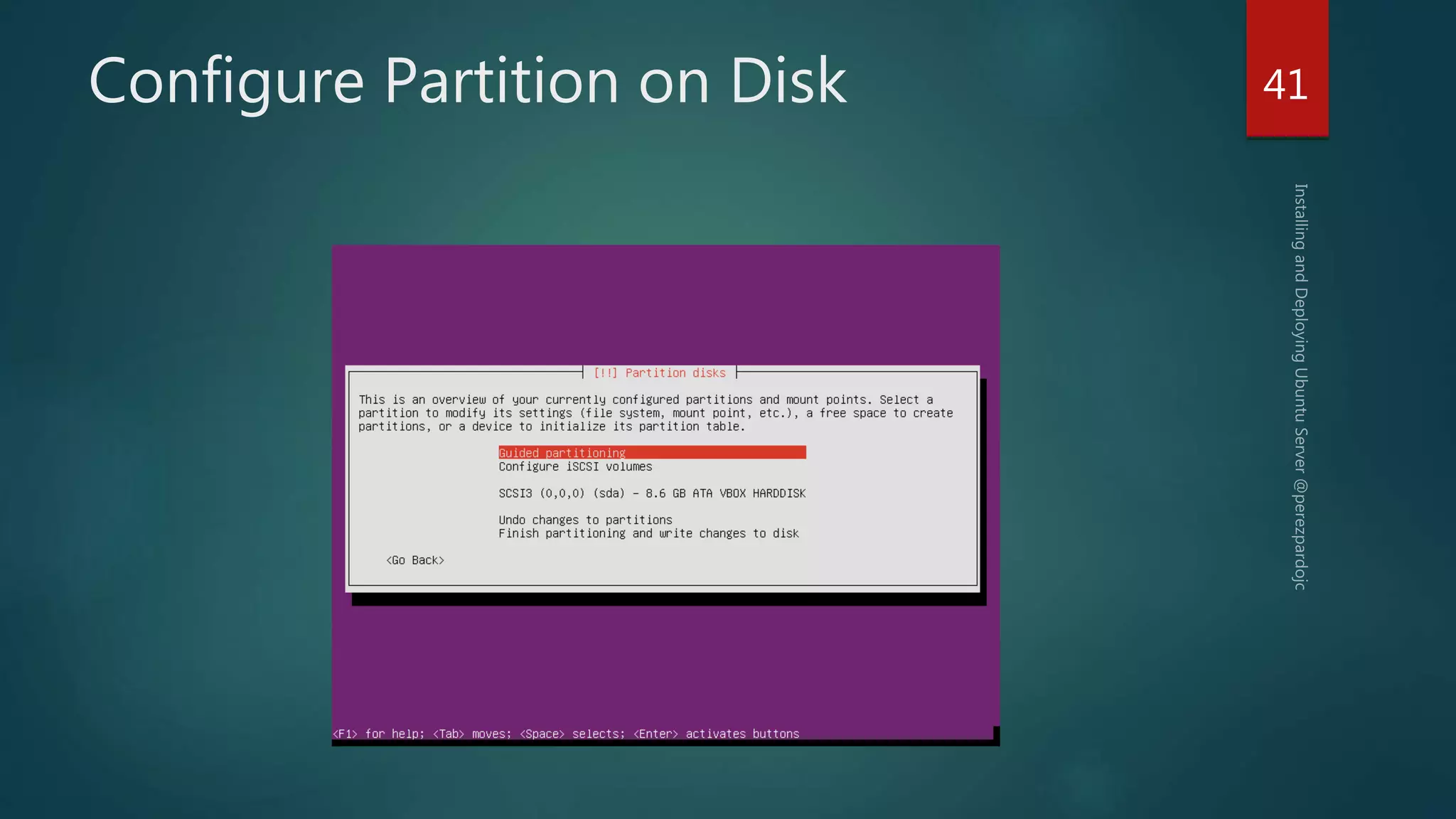

41. Configure Partition on Disk 41

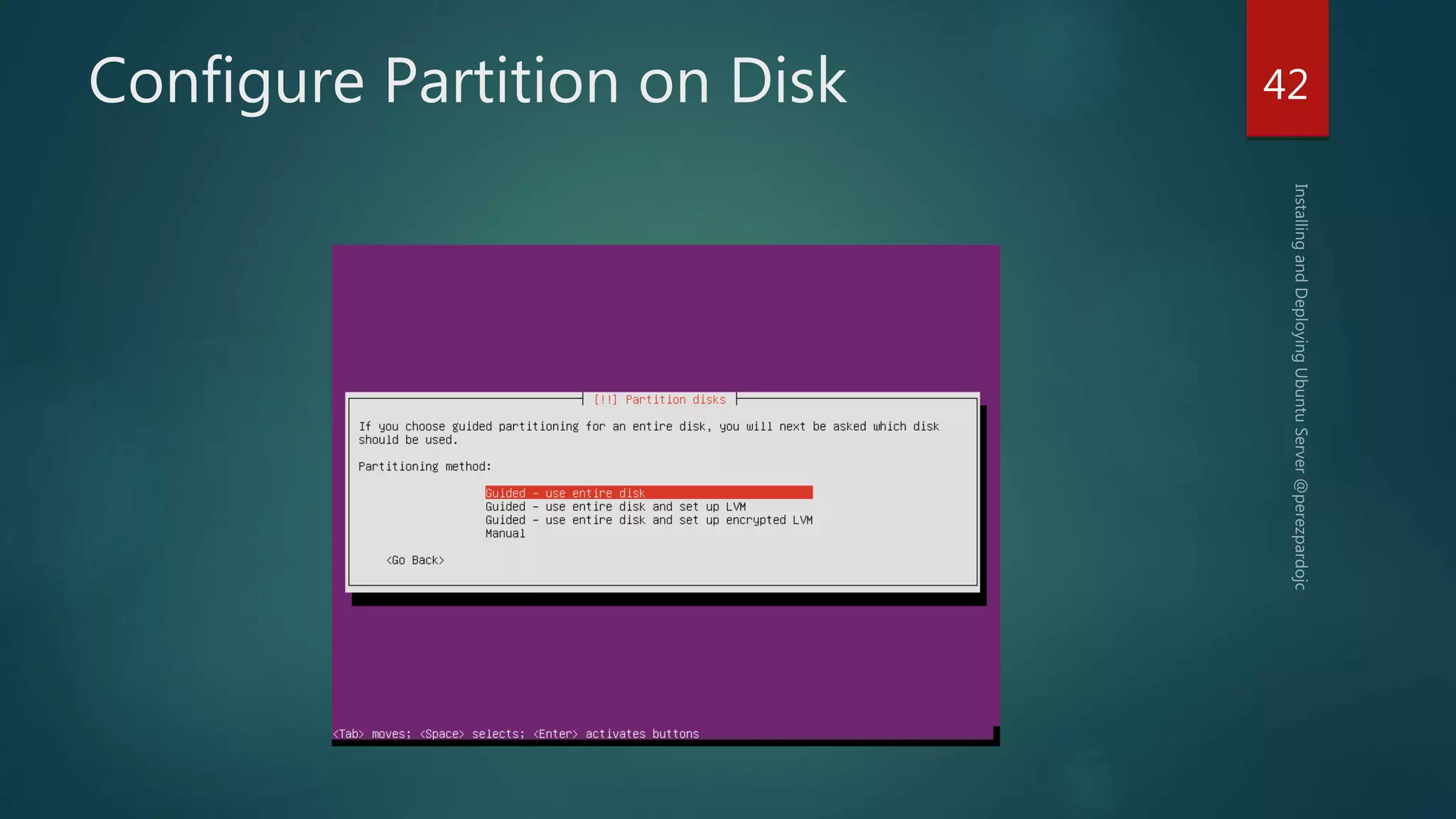

42. Configure Partition on Disk 42

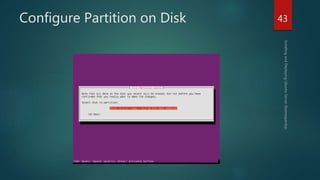

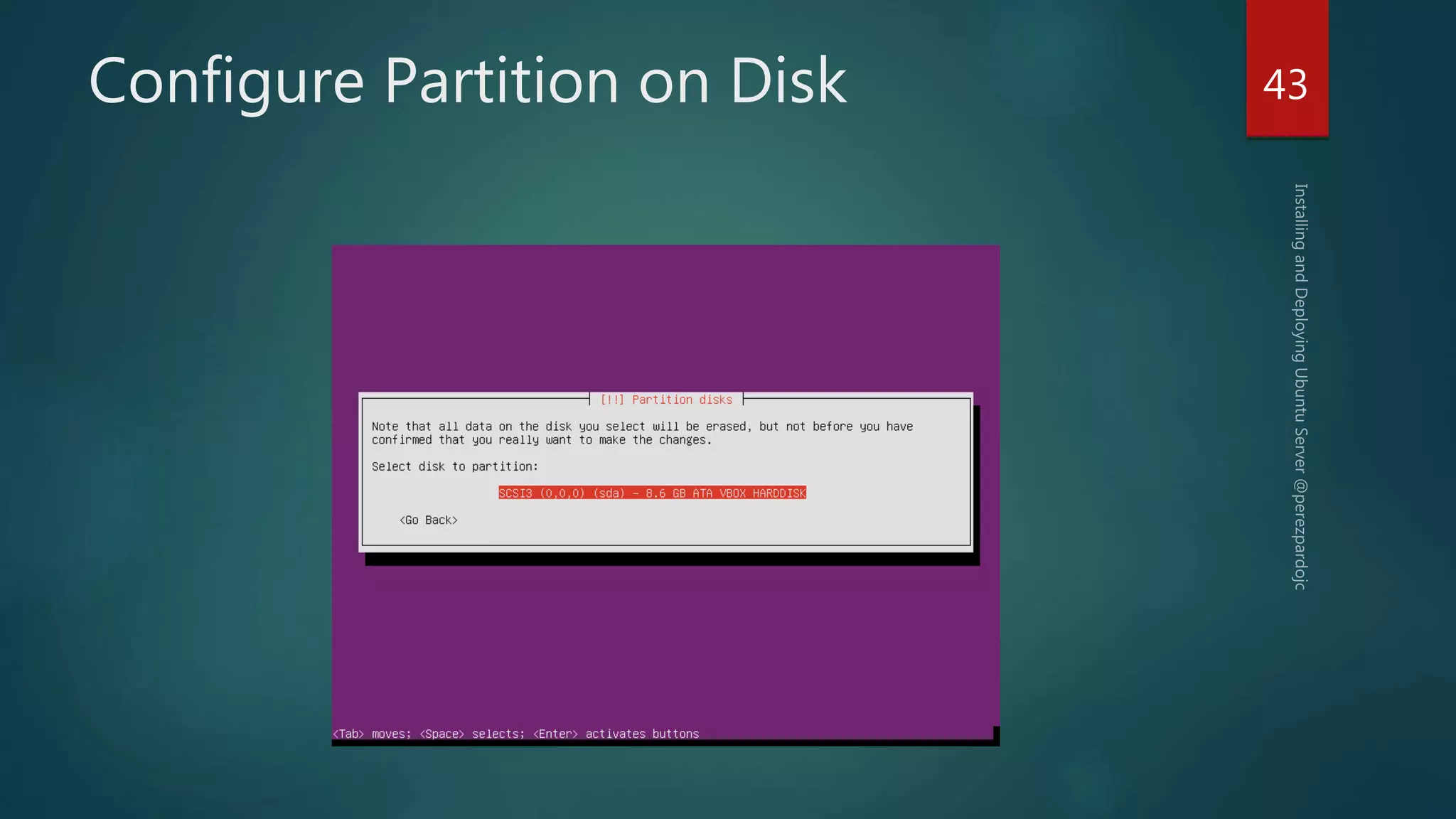

43. Configure Partition on Disk 43

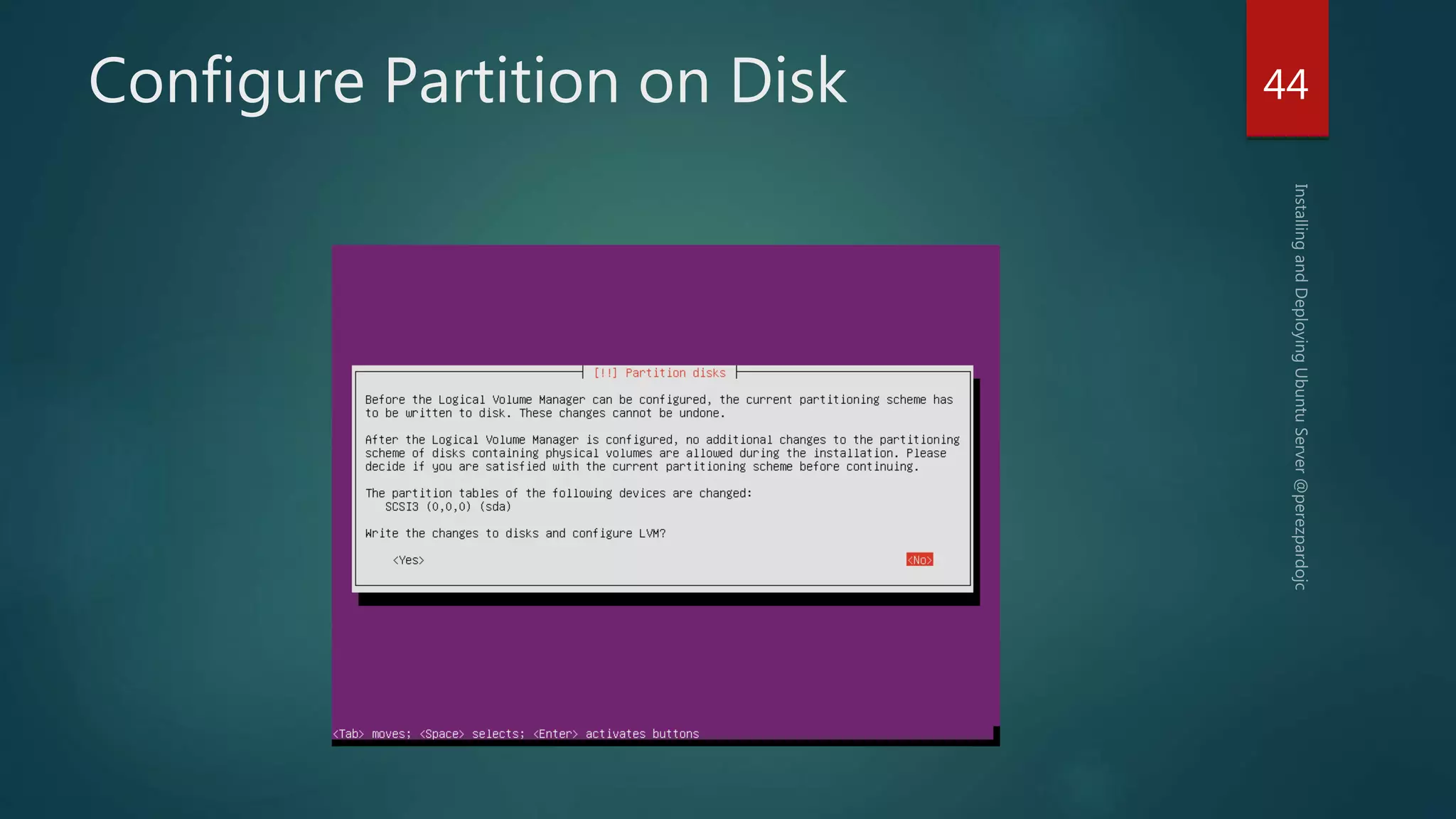

44. Configure Partition on Disk 44

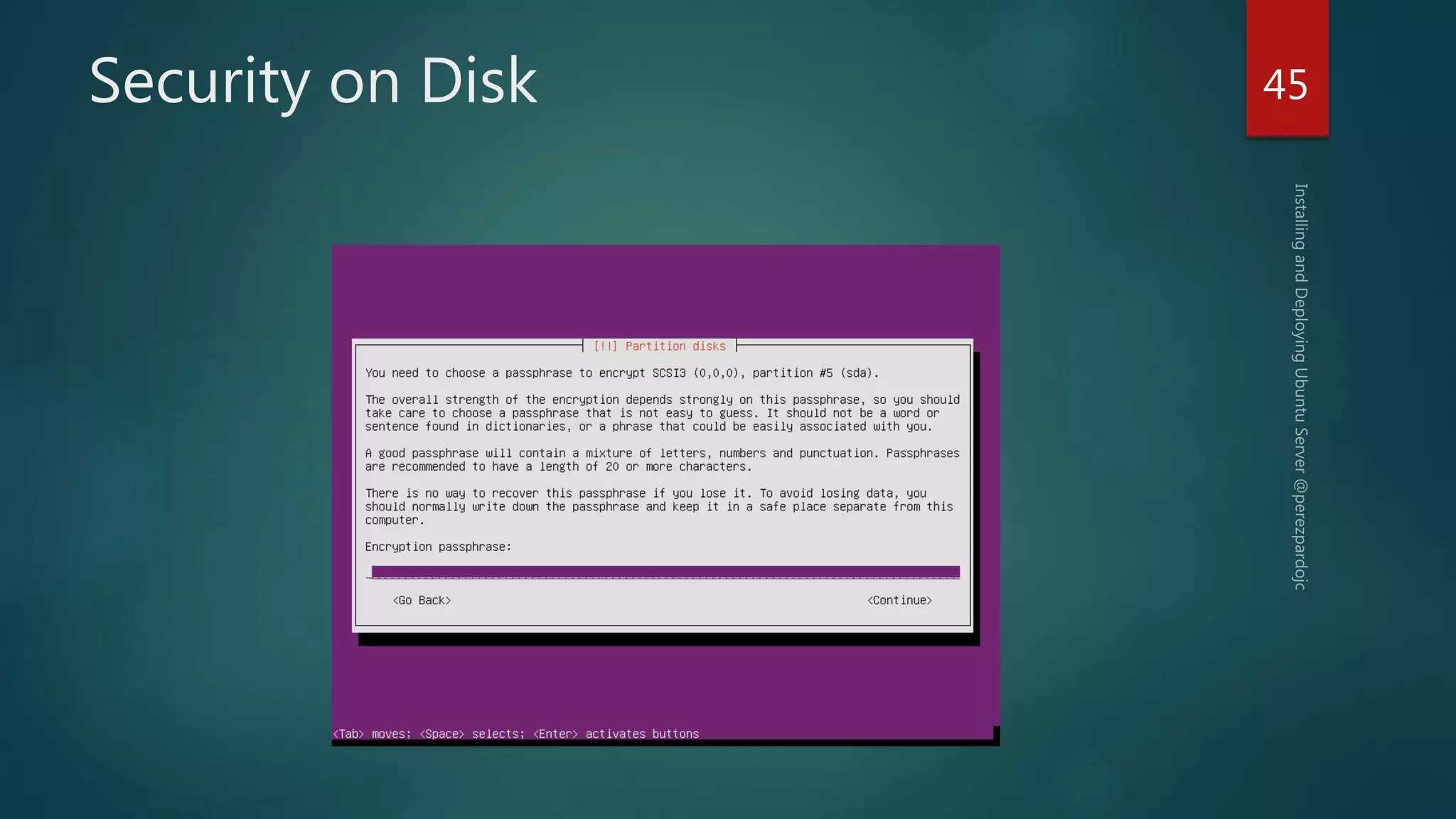

45. Security on Disk 45

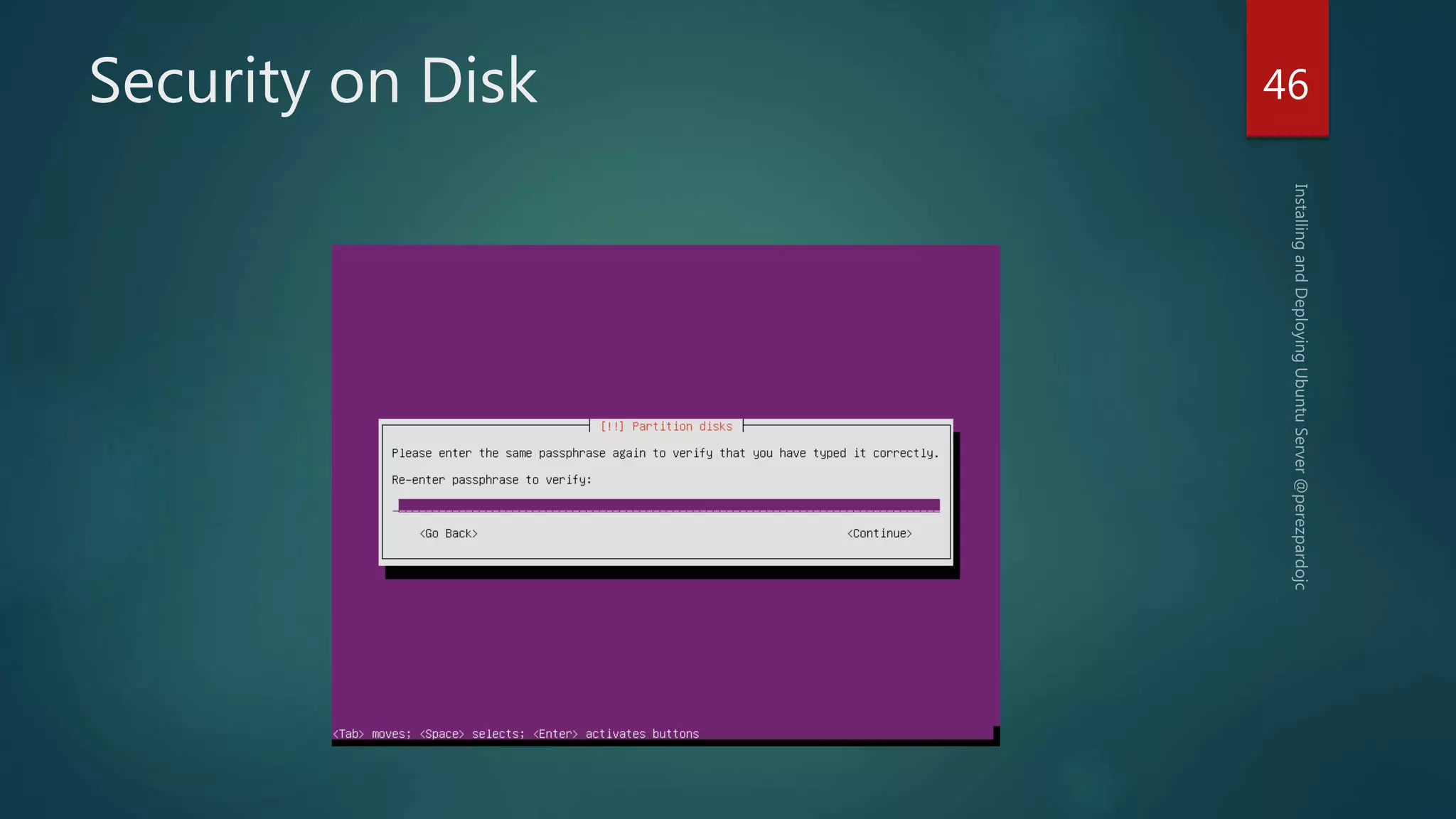

46. Security on Disk 46

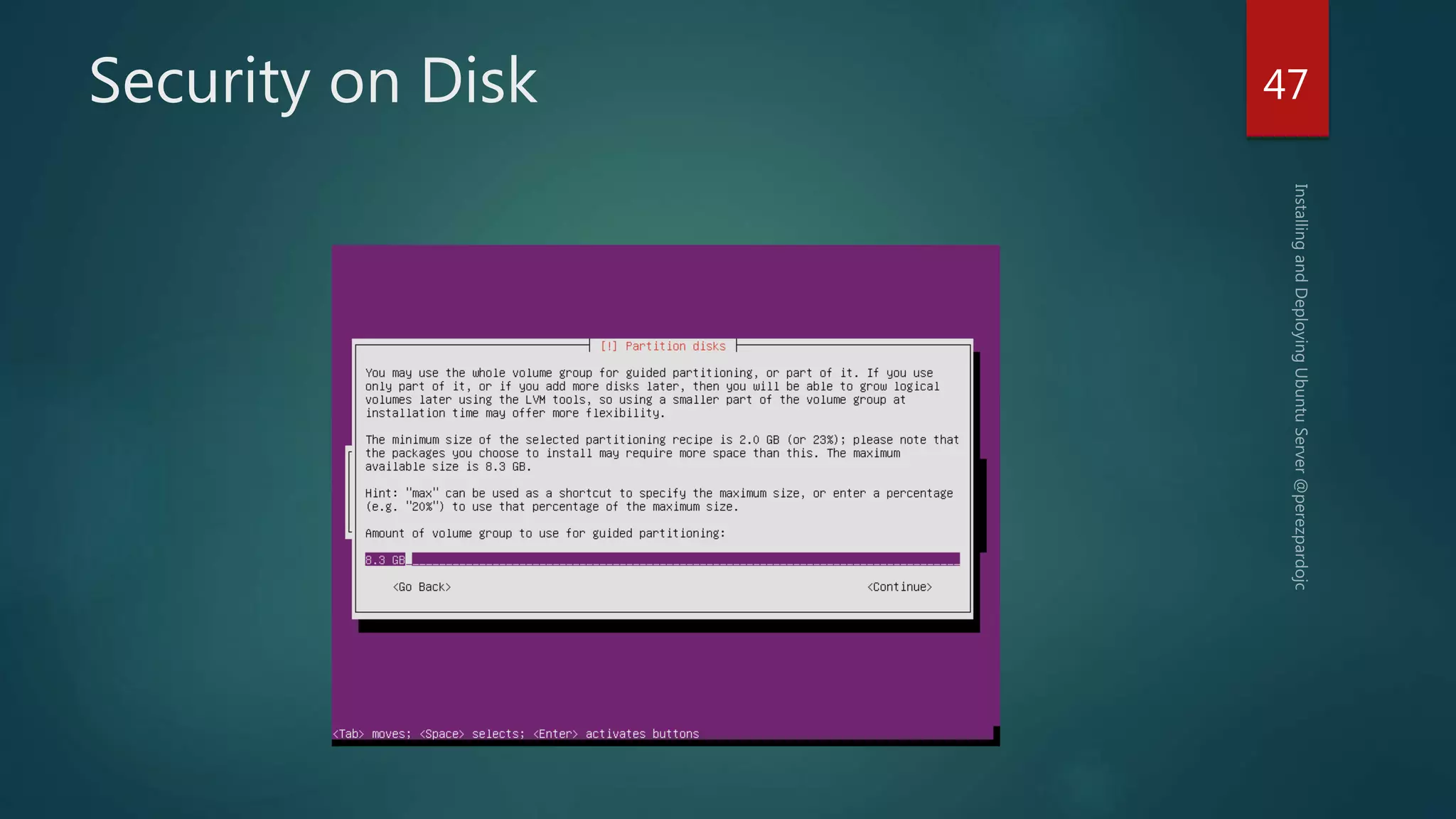

47. Security on Disk 47

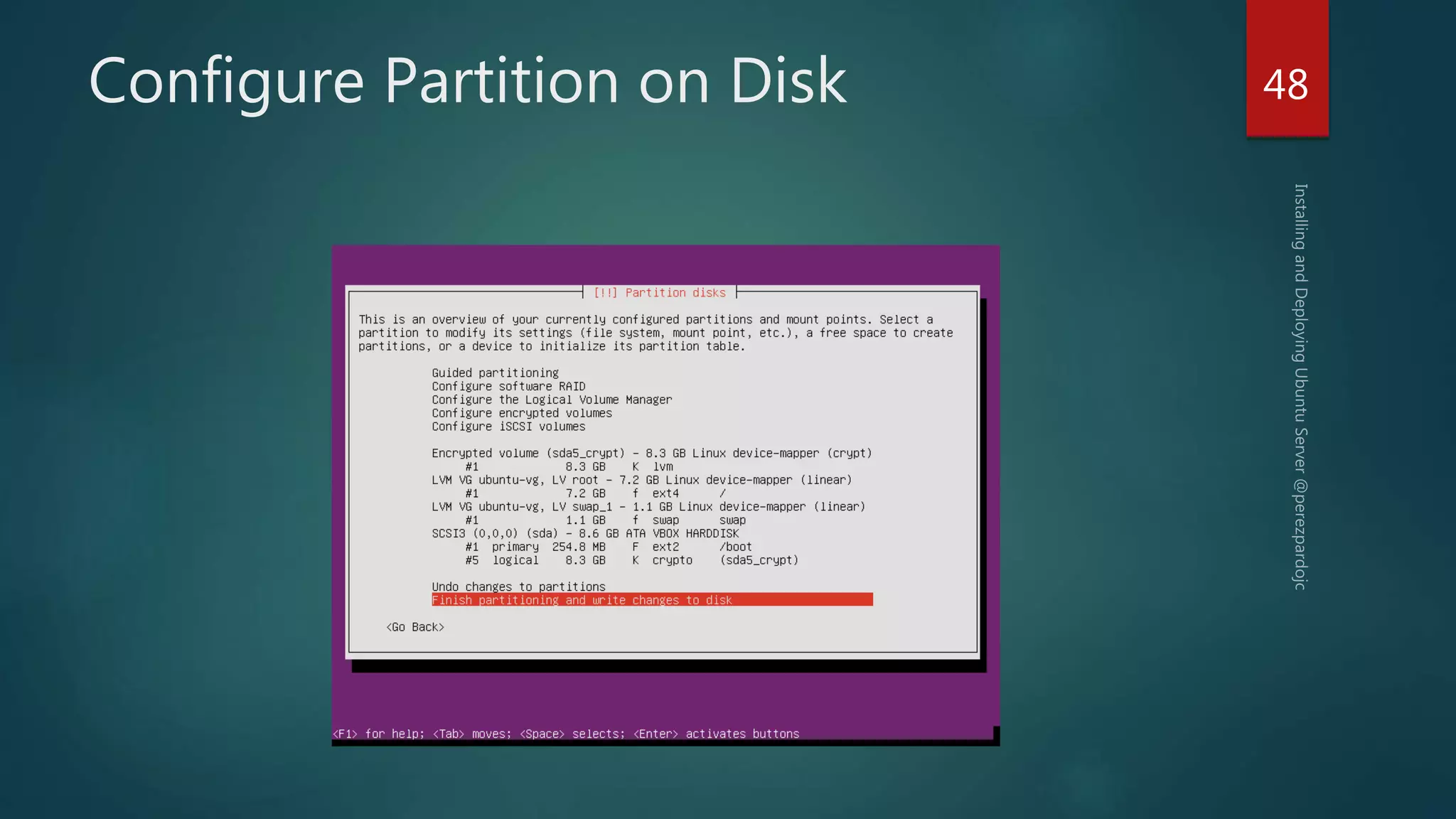

48. Configure Partition on Disk 48

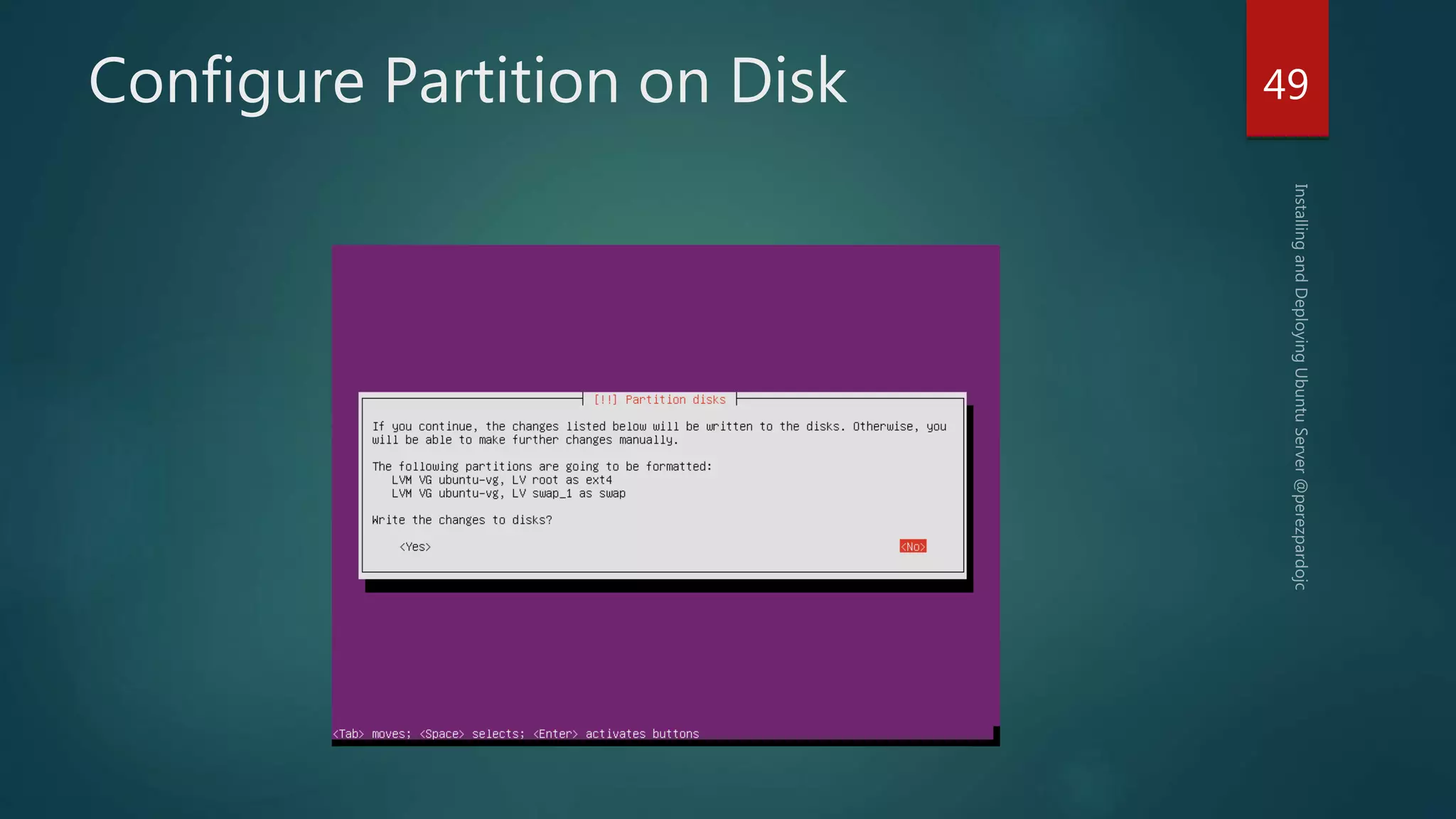

49. Configure Partition on Disk 49

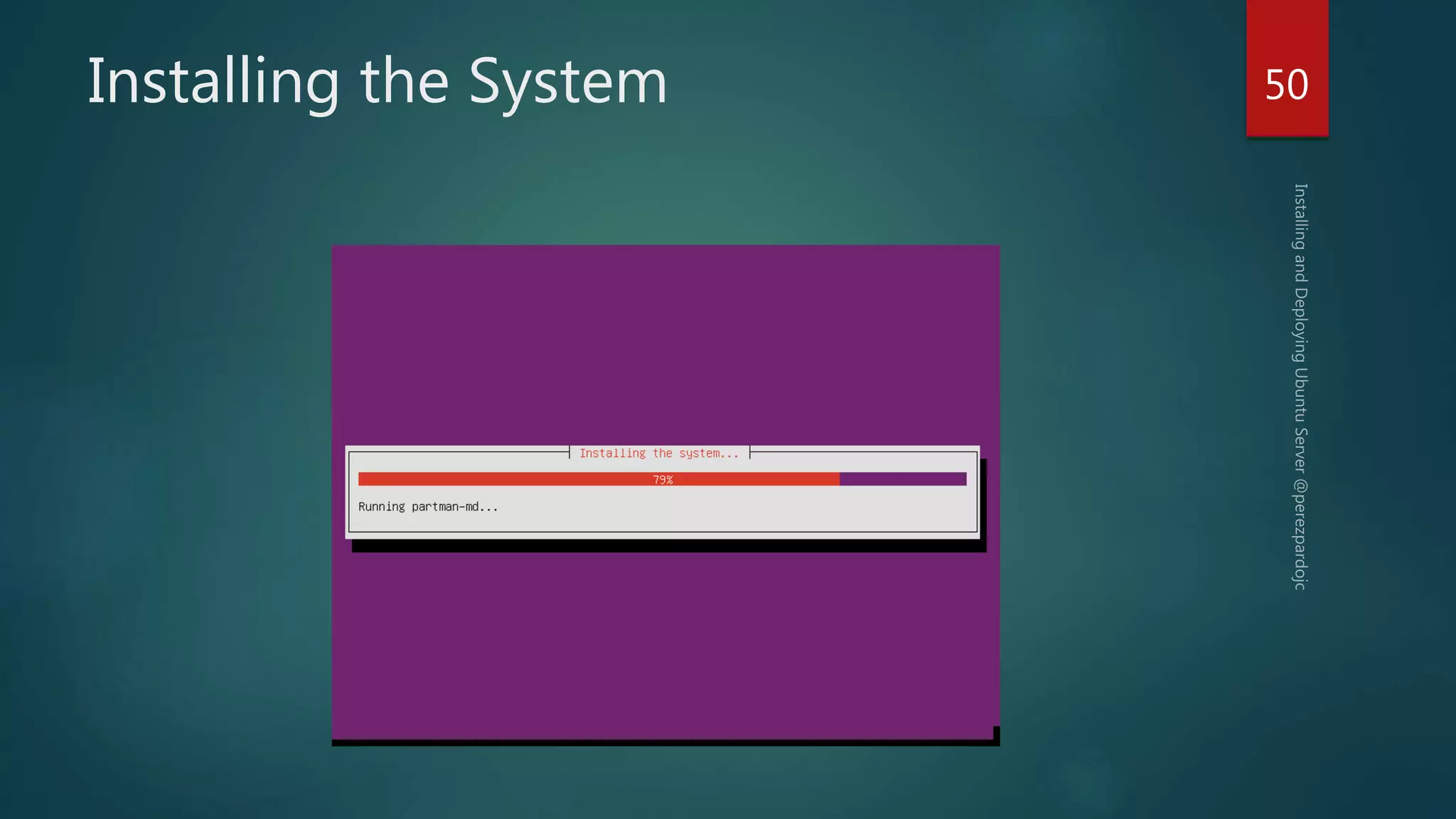

50. Installing the System 50

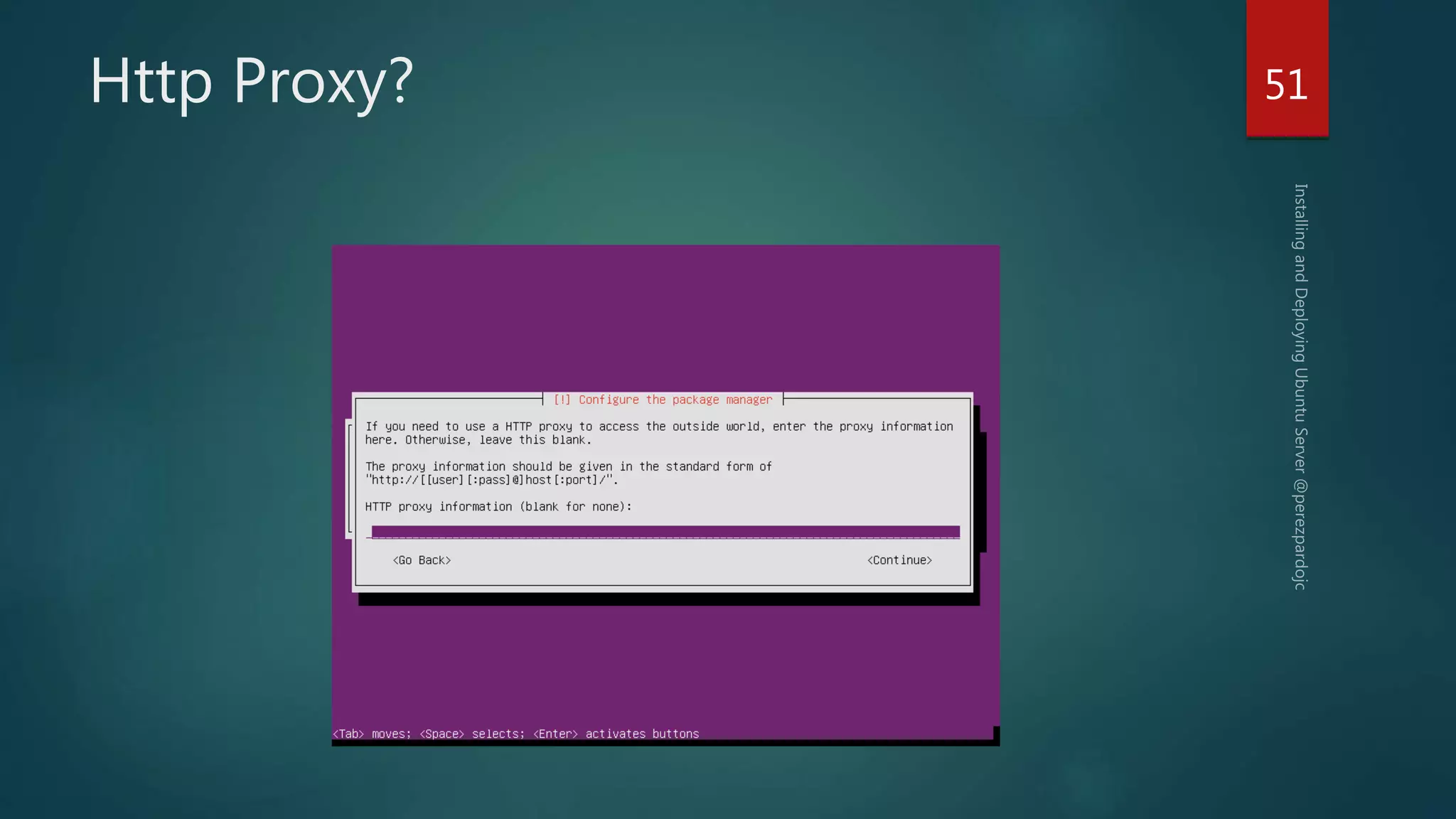

51. Http Proxy? 51

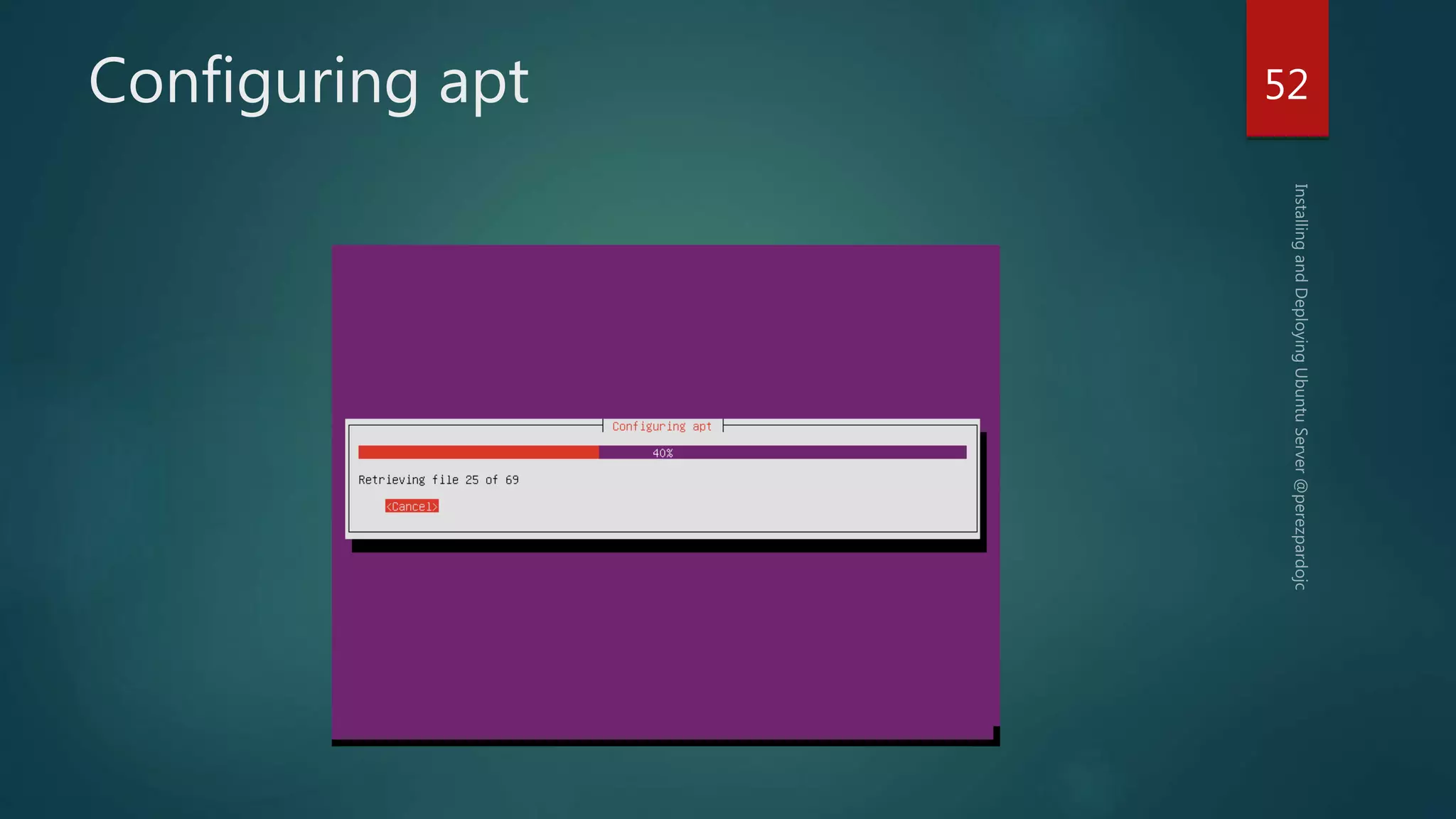

52. Configuring apt 52

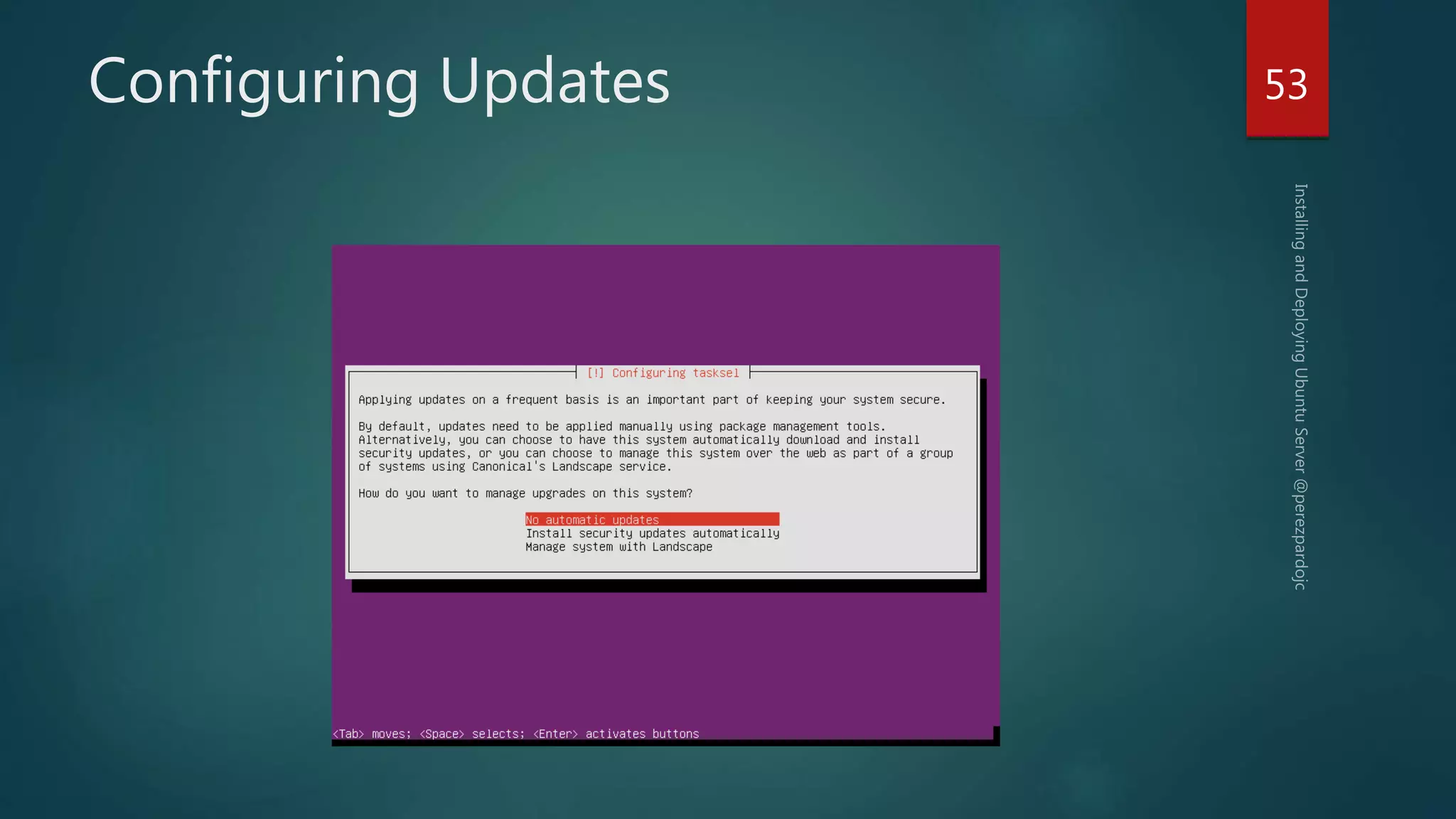

53. Configuring Updates 53

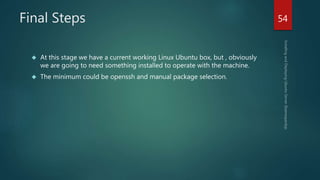

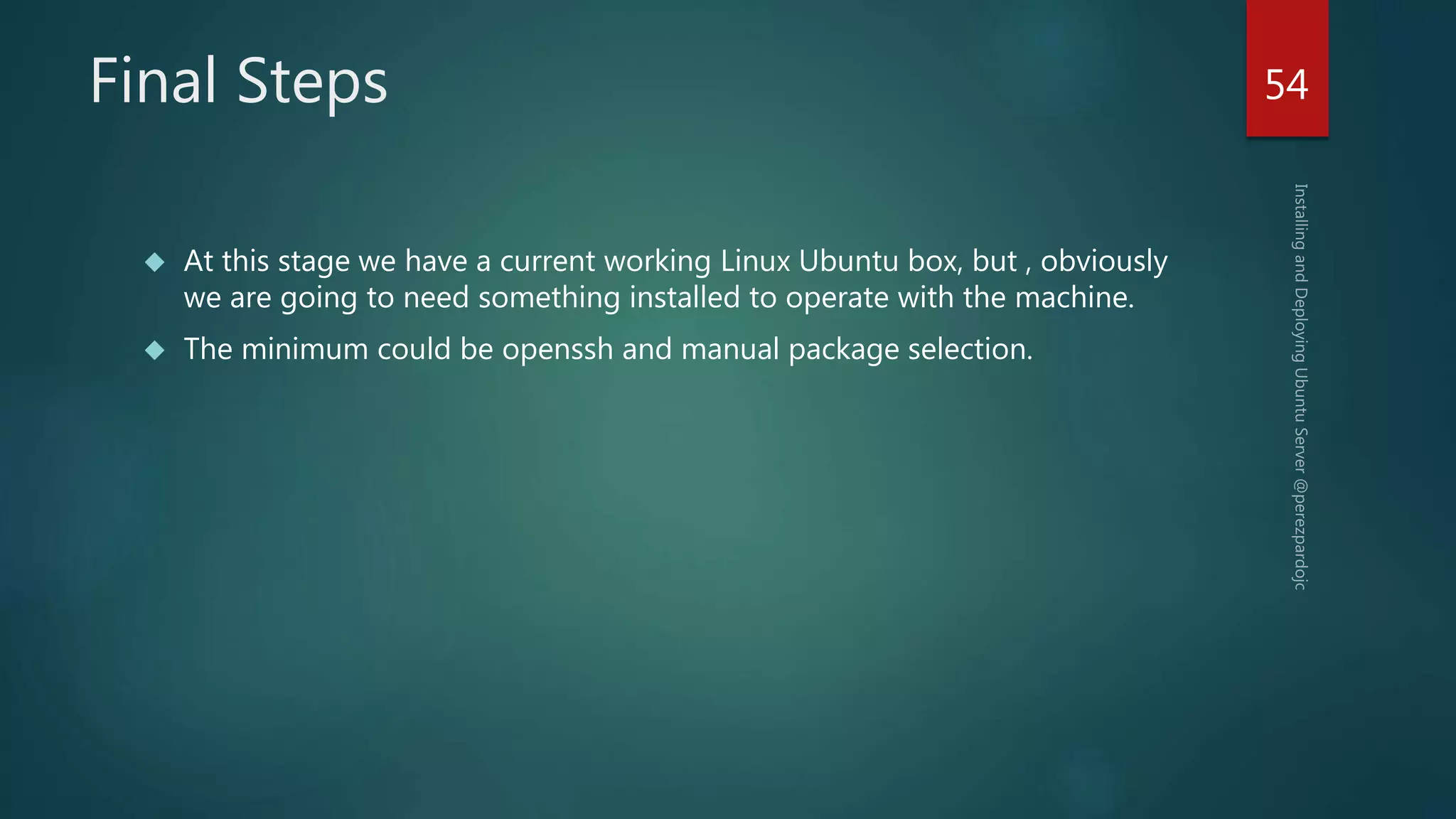

54. Final Steps
 At this stage we have a current working Linux Ubuntu box, but , obviously
we are going to need something installed to operate with the machine.
 The minimum could be openssh and manual package selection.
54

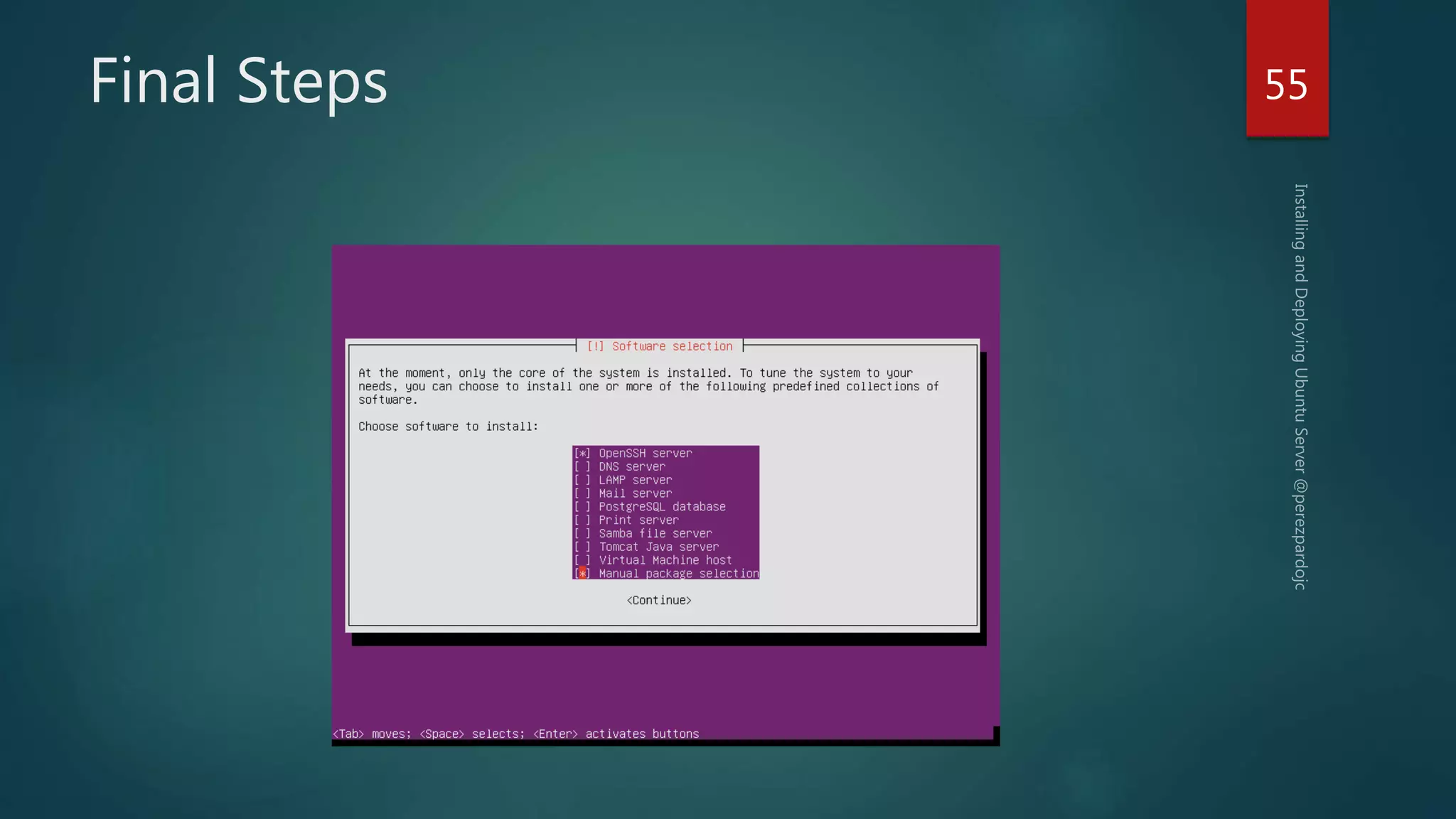

55. Final Steps 55

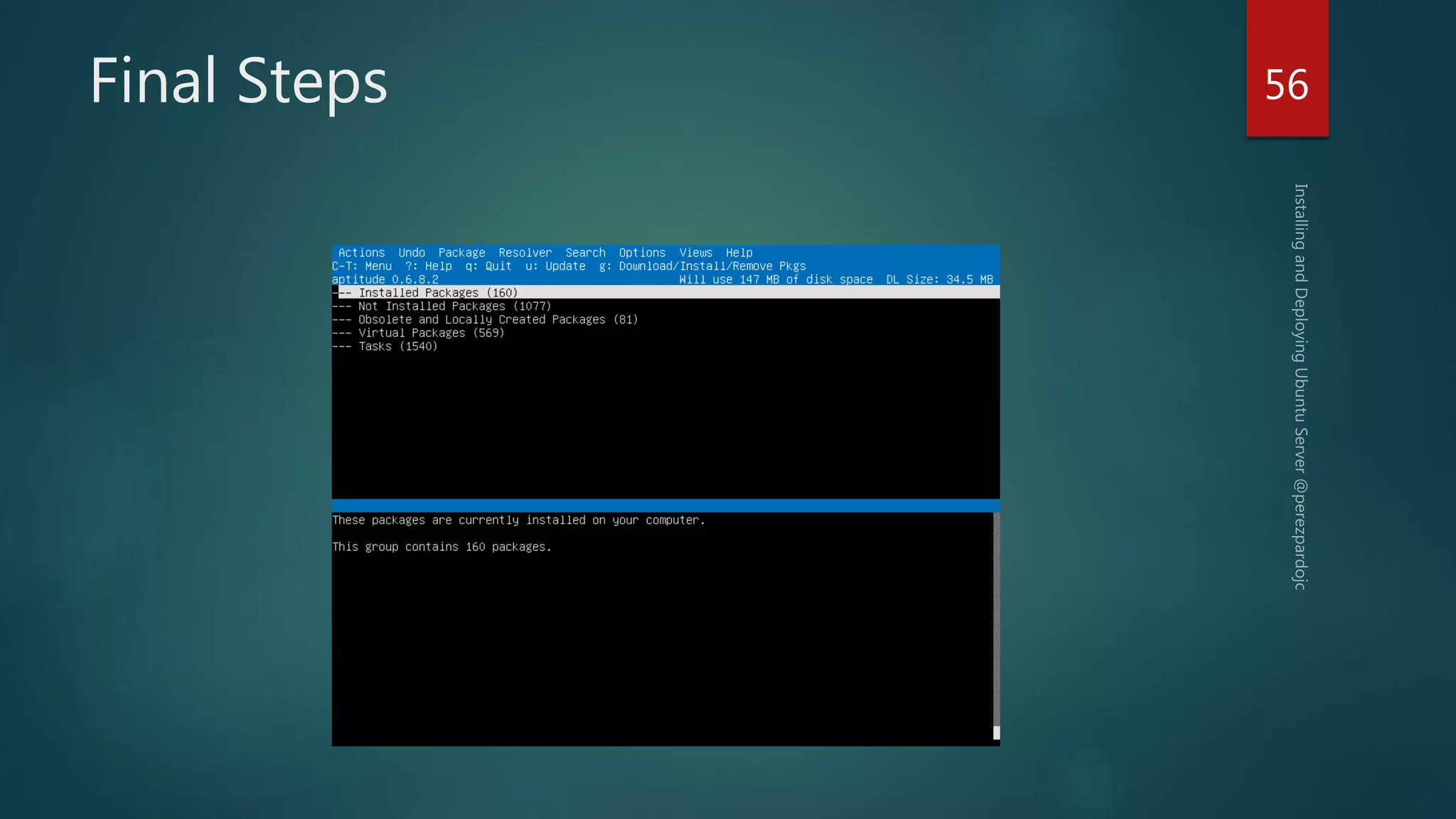

56. Final Steps 56

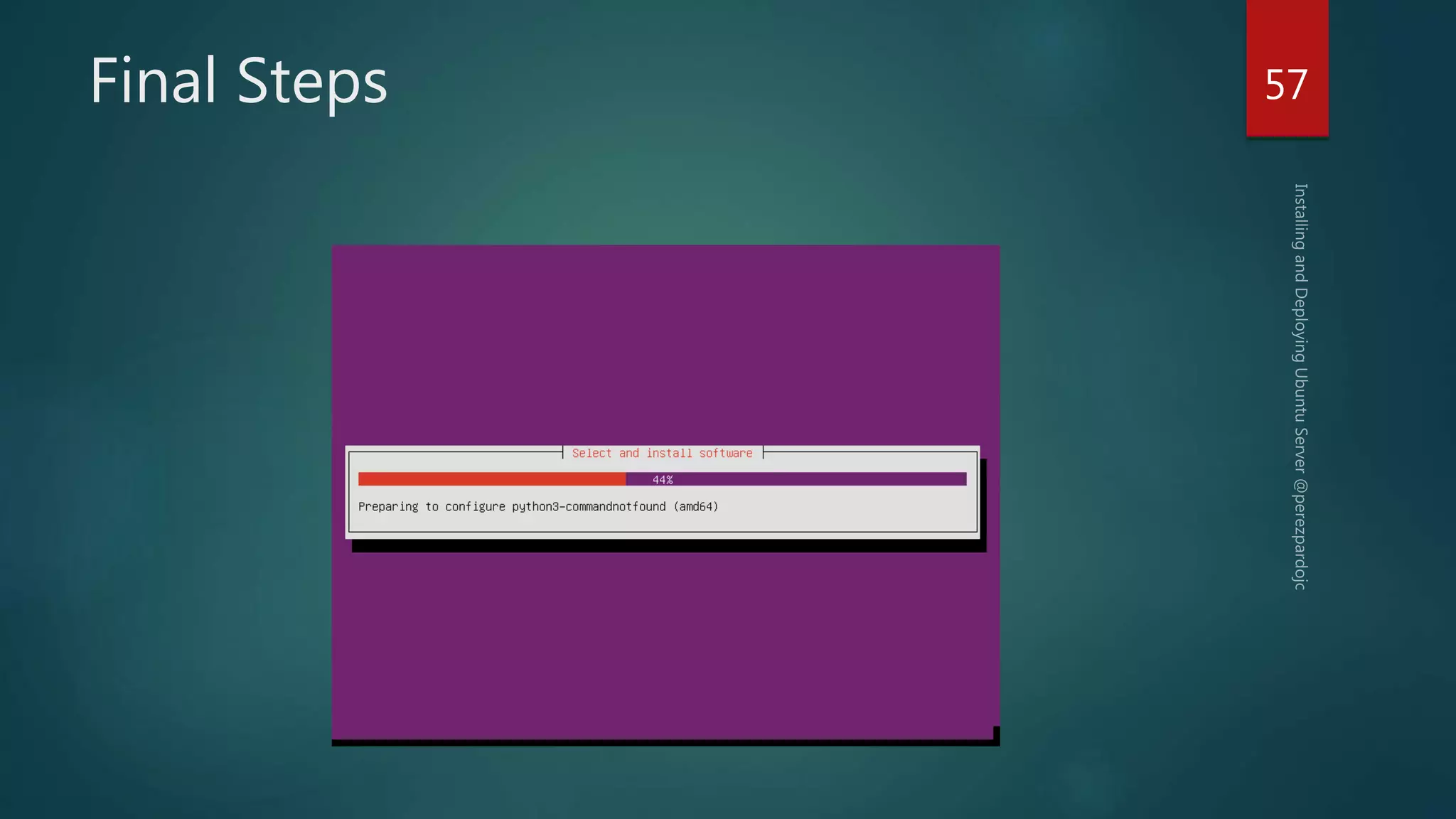

57. Final Steps 57

58. Grub boot Loader 58

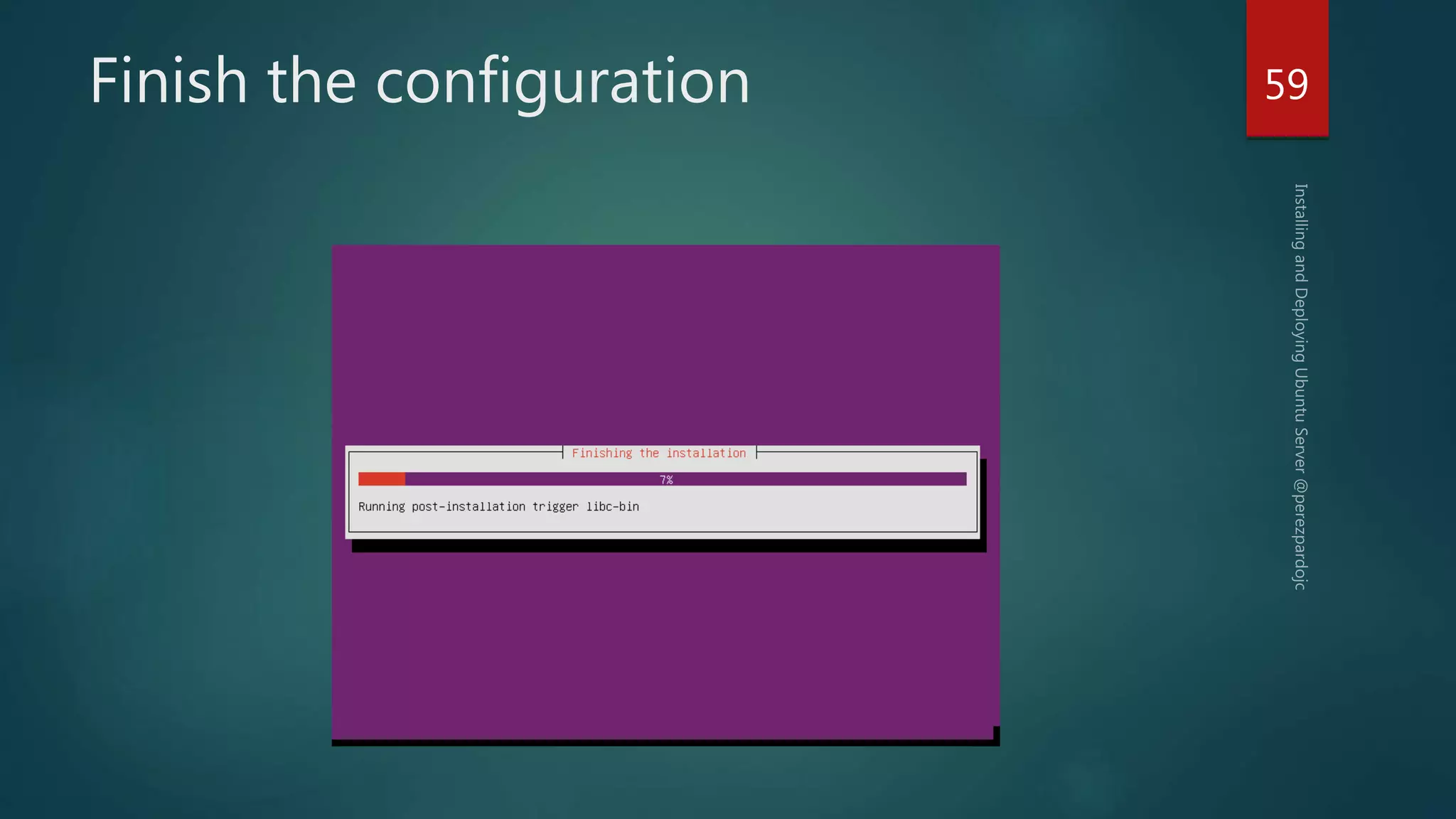

59. Finish the configuration 59

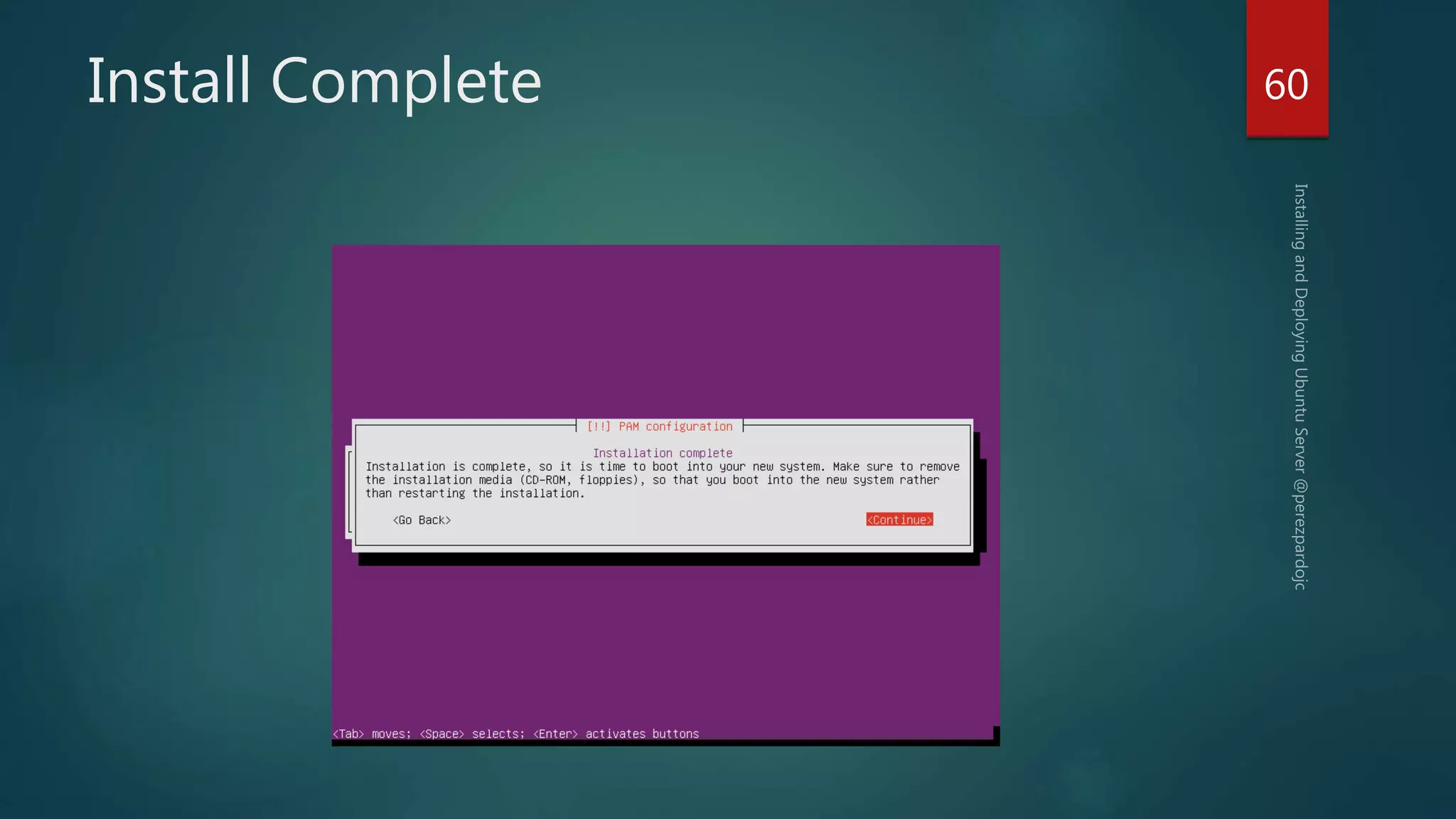

60. Install Complete 60

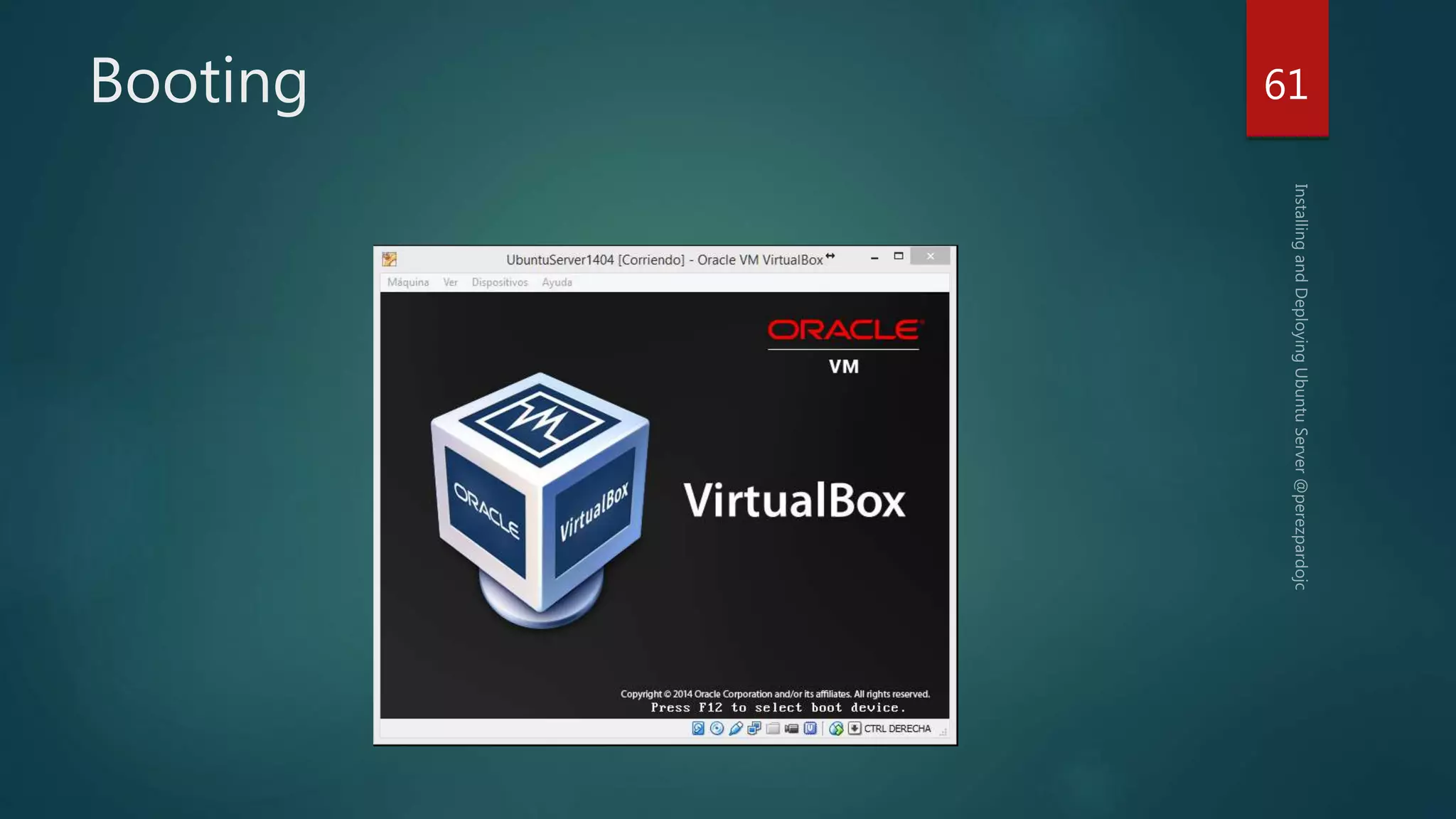

61. Booting 61

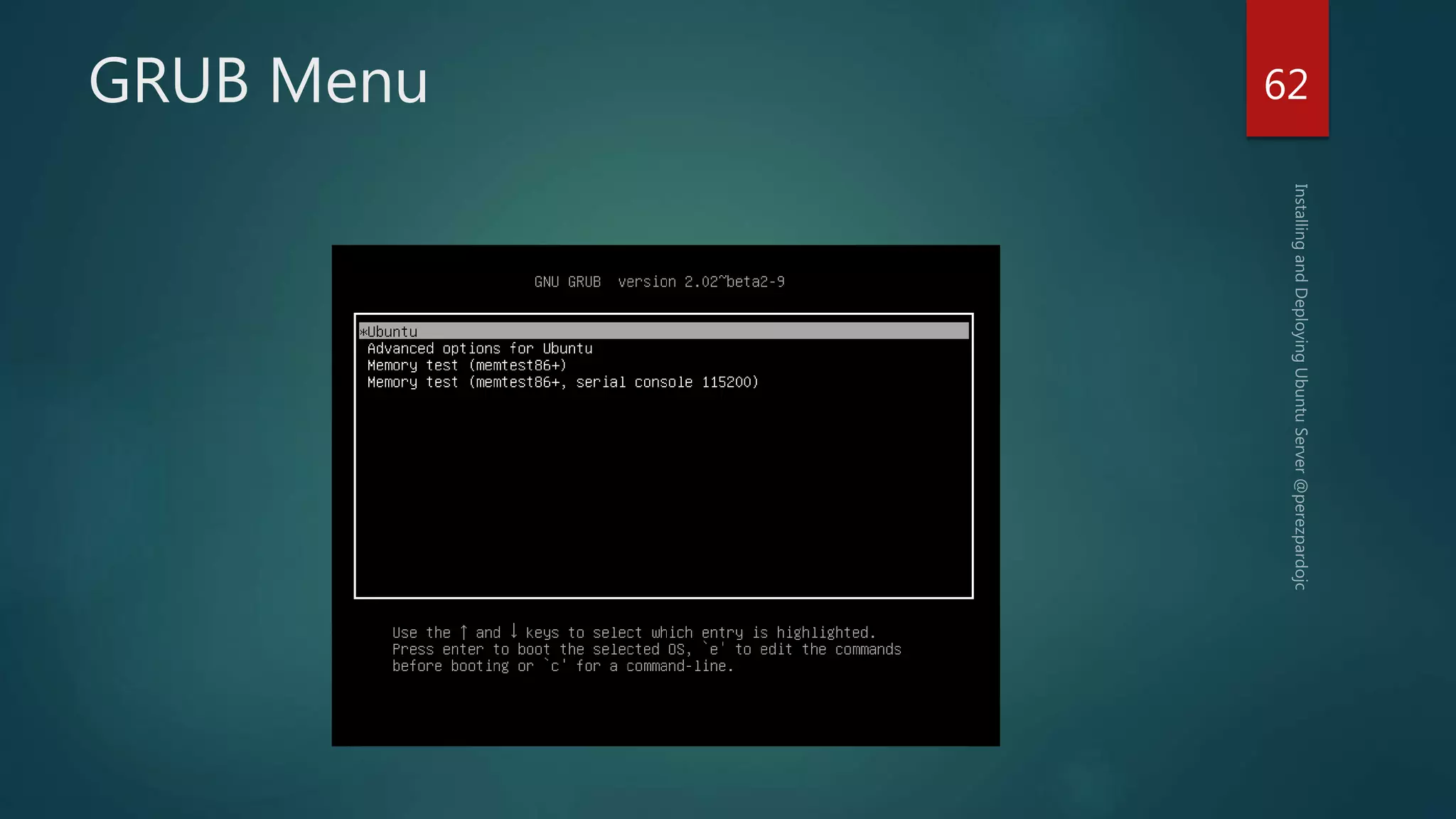

62. GRUB Menu 62

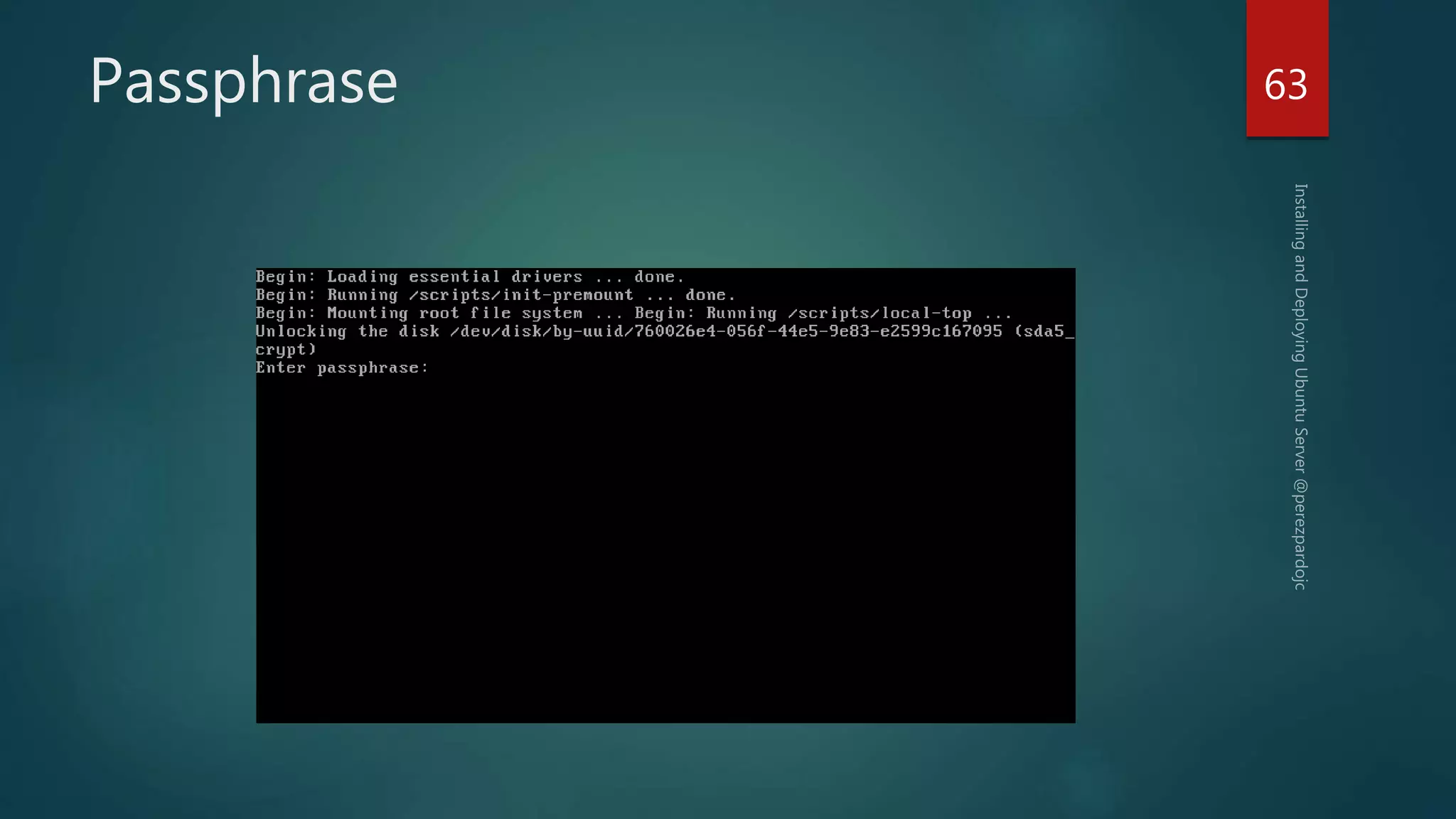

63. Passphrase 63

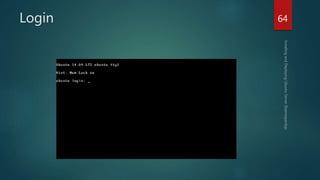

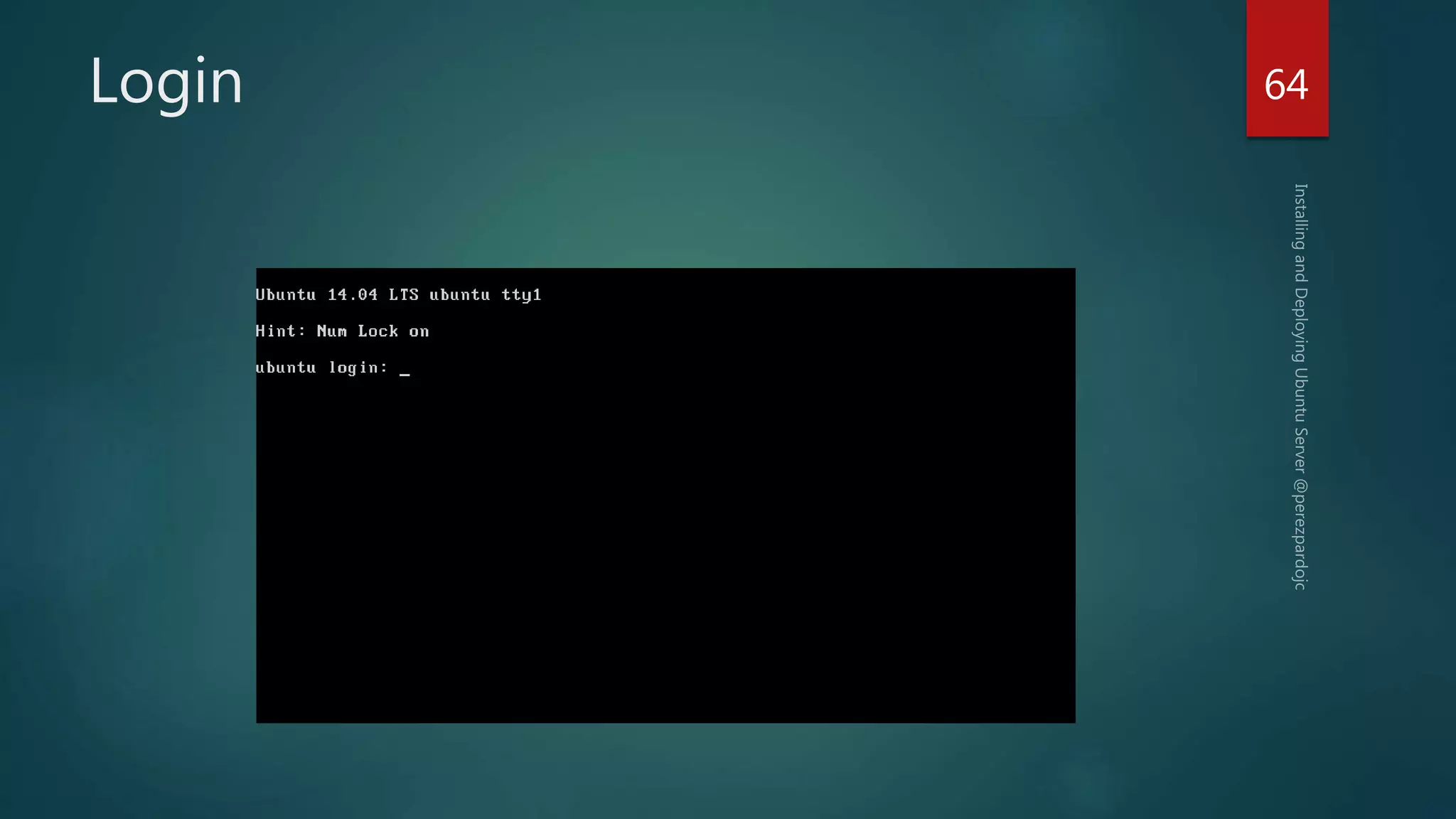

64. Login 64

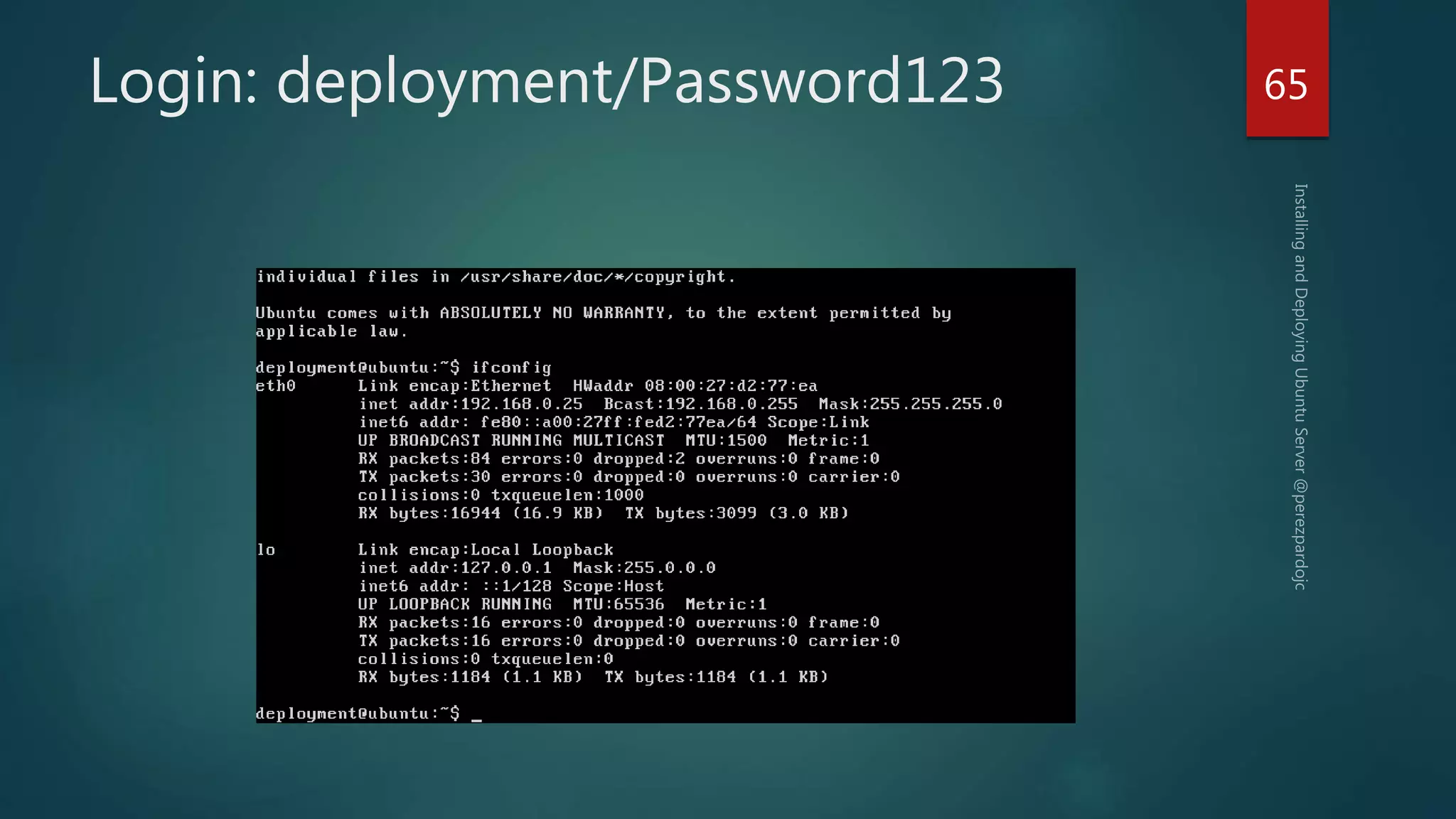

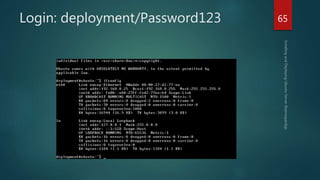

65. Login: deployment/Password123 65

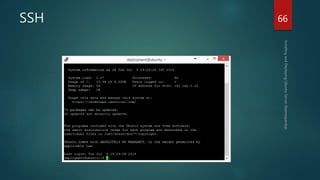

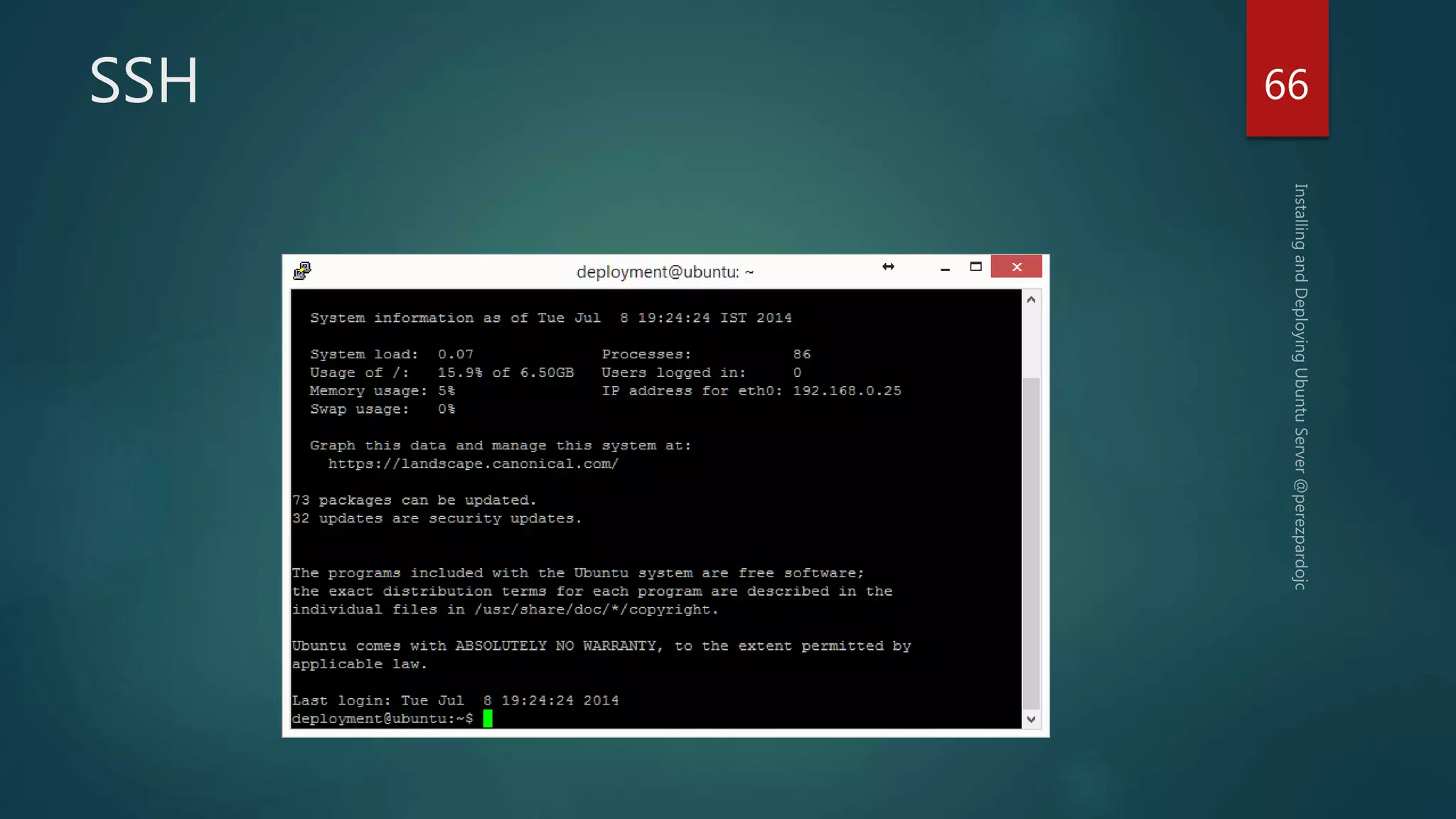

66. SSH 66

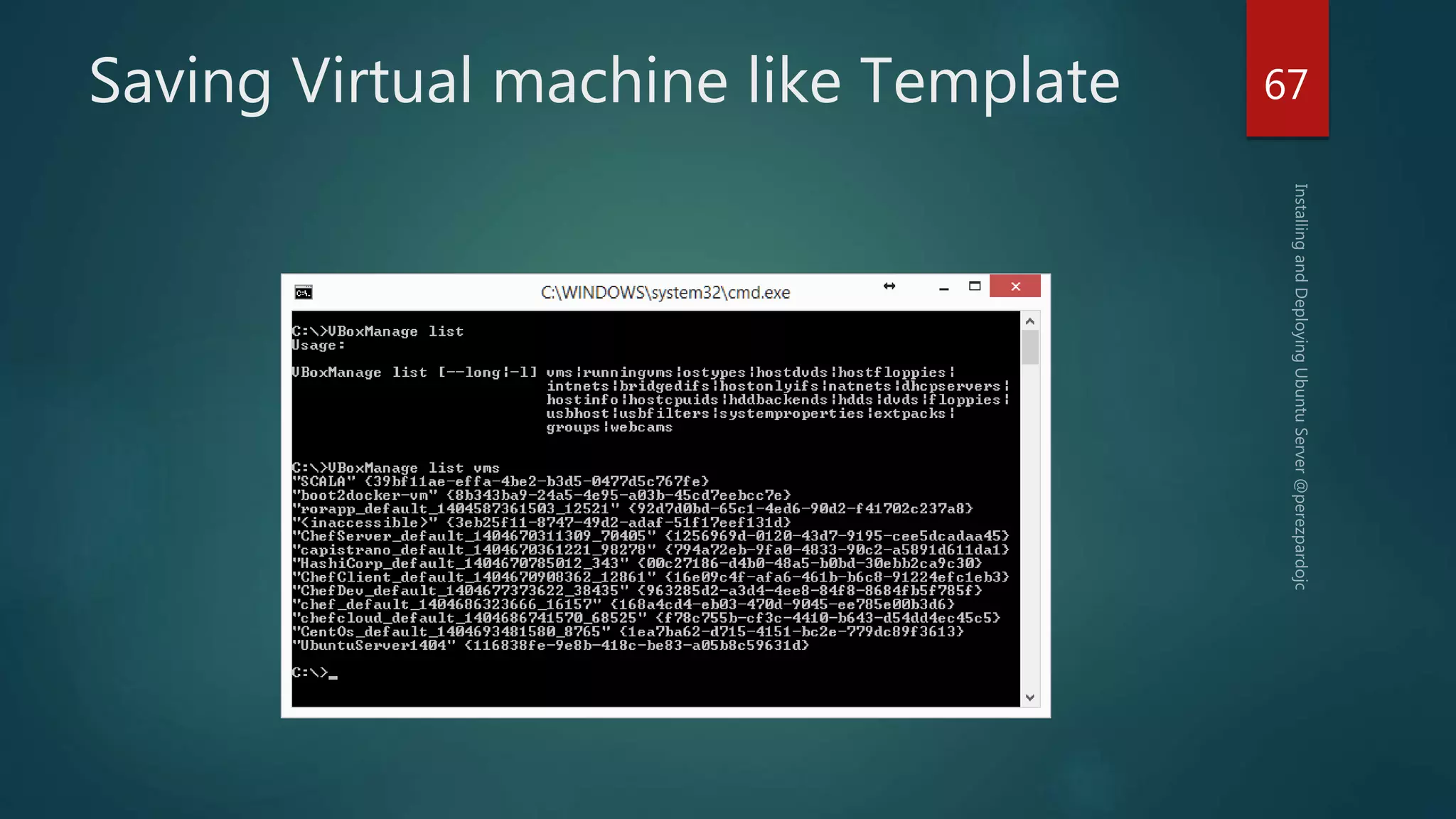

67. Saving Virtual machine like Template 67

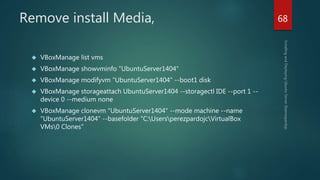

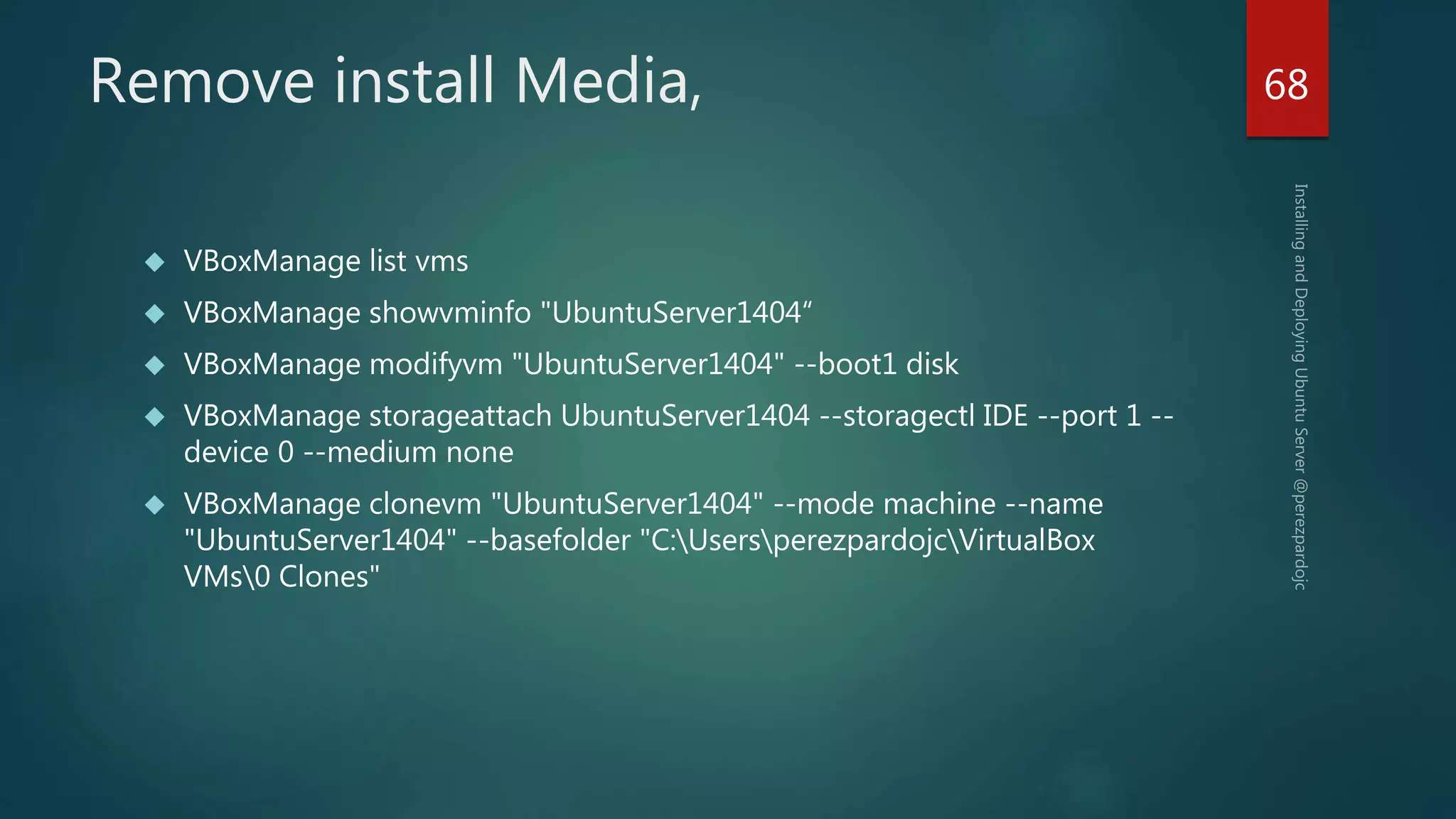

68. Remove install Media, 68
 VBoxManage list vms
 VBoxManage showvminfo "UbuntuServer1404“
 VBoxManage modifyvm "UbuntuServer1404" --boot1 disk
 VBoxManage storageattach UbuntuServer1404 --storagectl IDE --port 1 --
device 0 --medium none
 VBoxManage clonevm "UbuntuServer1404" --mode machine --name
"UbuntuServer1404" --basefolder "C:UsersperezpardojcVirtualBox
VMs0 Clones"

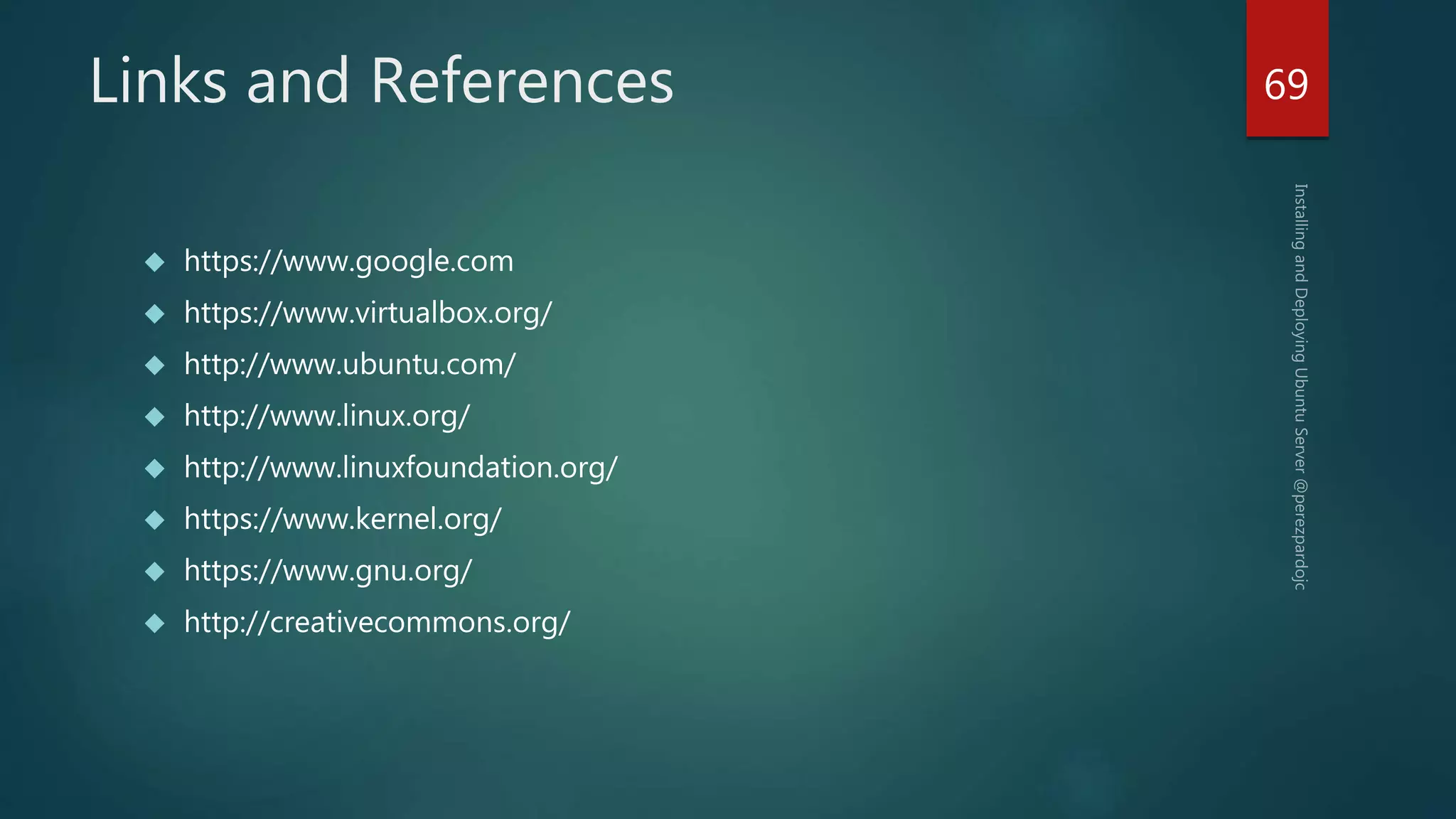

69. Links and References
 https://www.google.com
 https://www.virtualbox.org/
 http://www.ubuntu.com/
 http://www.linux.org/
 http://www.linuxfoundation.org/
 https://www.kernel.org/
 https://www.gnu.org/
 http://creativecommons.org/
69
