Logstash is a tool for managing logs that allows users to collect logs from various sources, parse them, and output the data to multiple destinations. It provides inputs to collect logs from different systems, filters to parse and transform the log data, and outputs to send the data to places like Elasticsearch, Graphite, or other applications. The document provides examples of using Logstash to collect Apache logs, parse them using Grok filters, and output the results to Elasticsearch for searching and Graphite via StatsD for metrics.

1. logstash
Infrastructure Coders
Melbourne
April 2013
David Lutz
@dlutzy

2. What does logstash do?
It does "stuff" with log files.

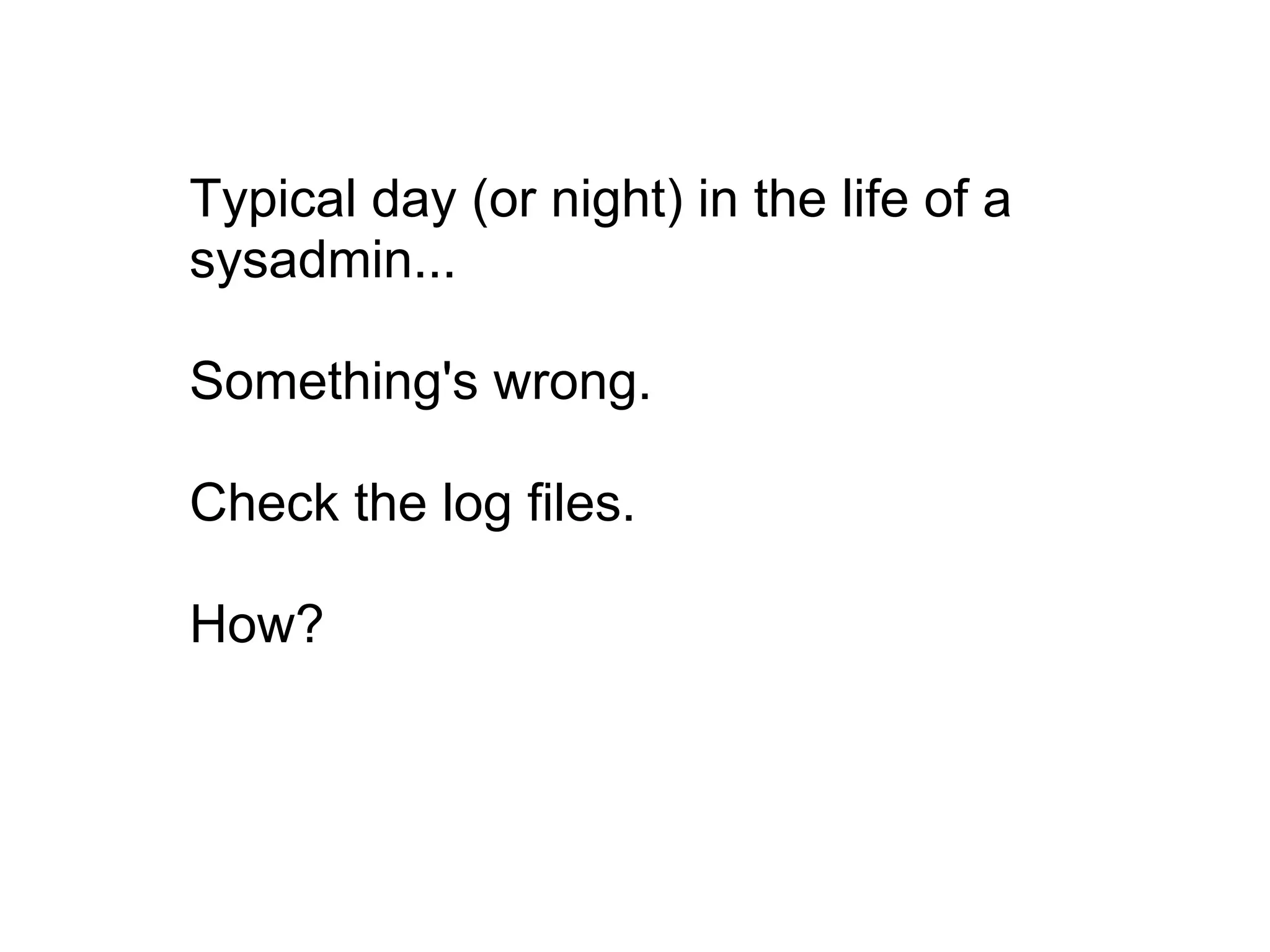

3. Typical day (or night) in the life of a
sysadmin...
Something's wrong.
Check the log files.
How?

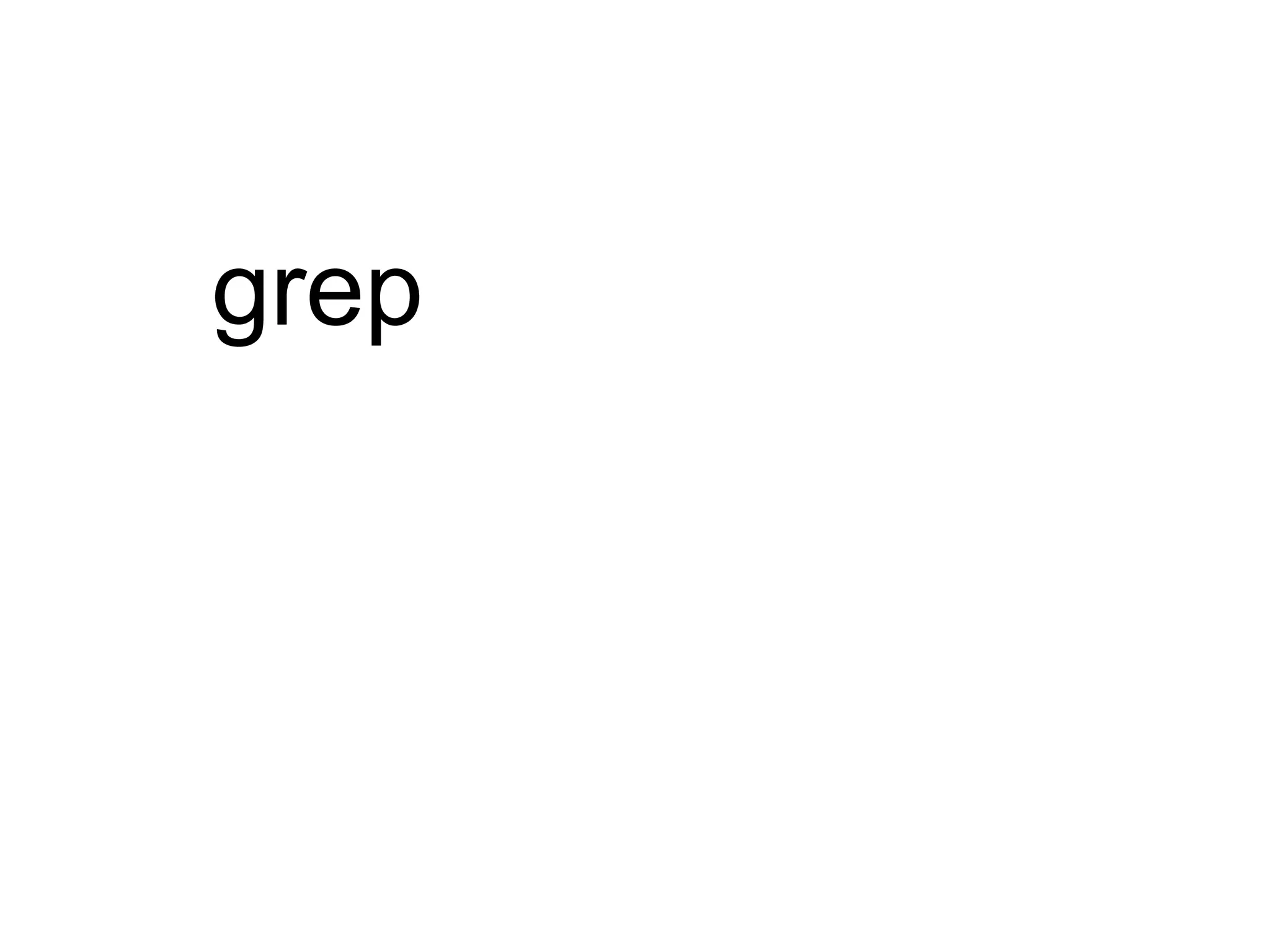

4. grep

5. cat
grep
sed
awk
tail
sort

6. and pipes
lots of pipes

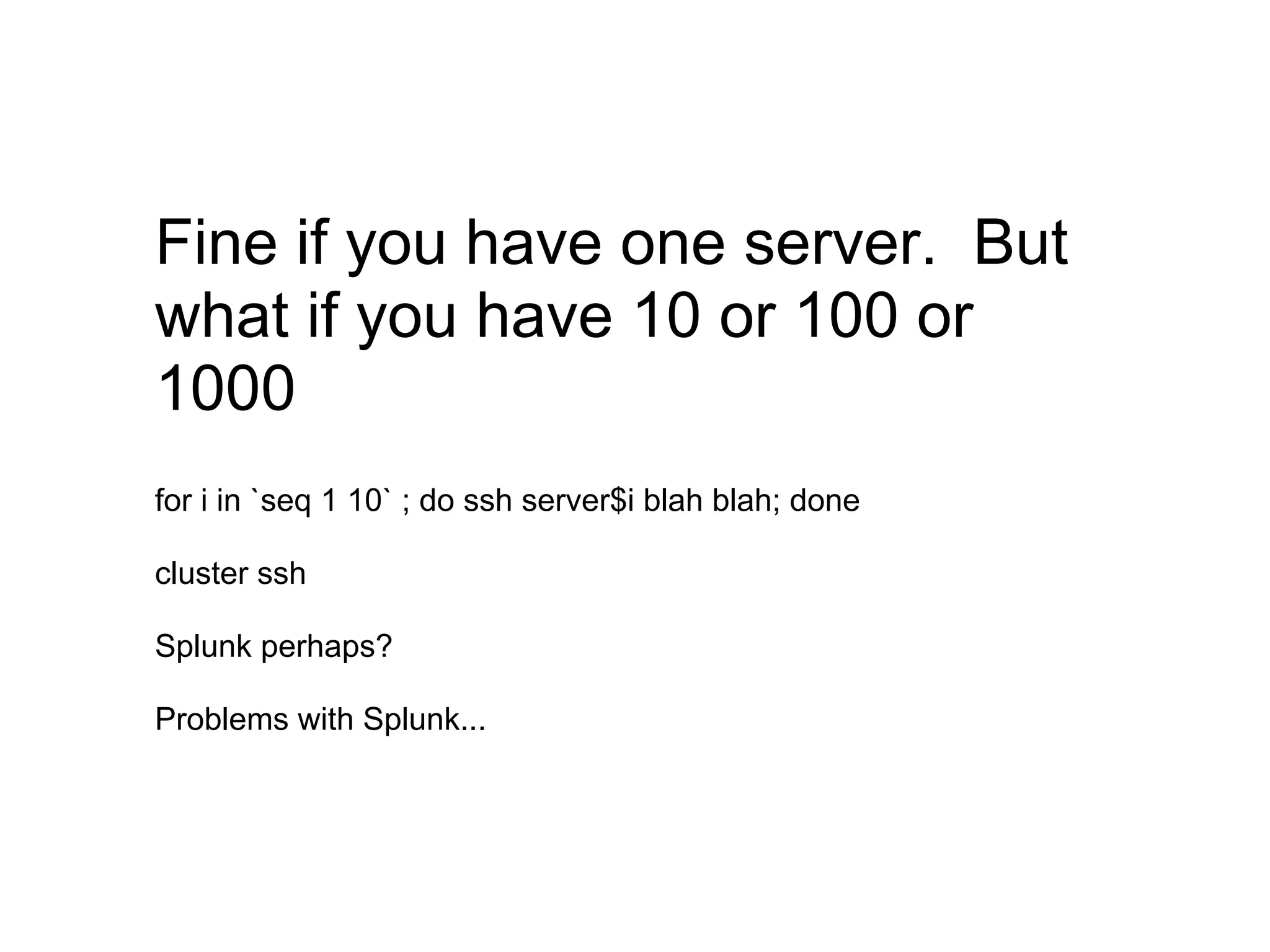

8. Fine if you have one server. But
what if you have 10 or 100 or
1000
for i in `seq 1 10` ; do ssh server$i blah blah; done
cluster ssh
Splunk perhaps?
Problems with Splunk...

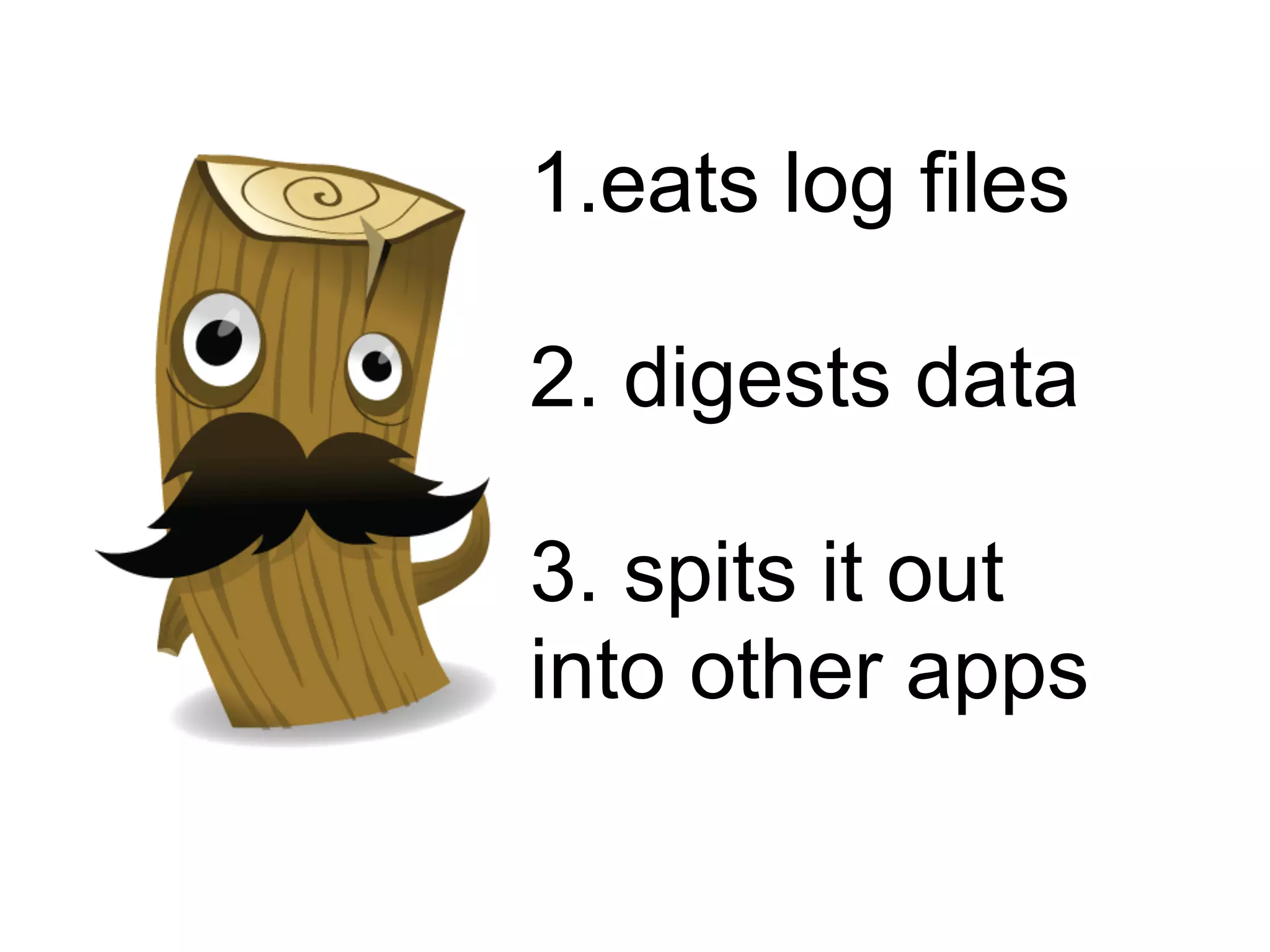

9. 1.eats log files
2. digests data
3. spits it out
into other apps

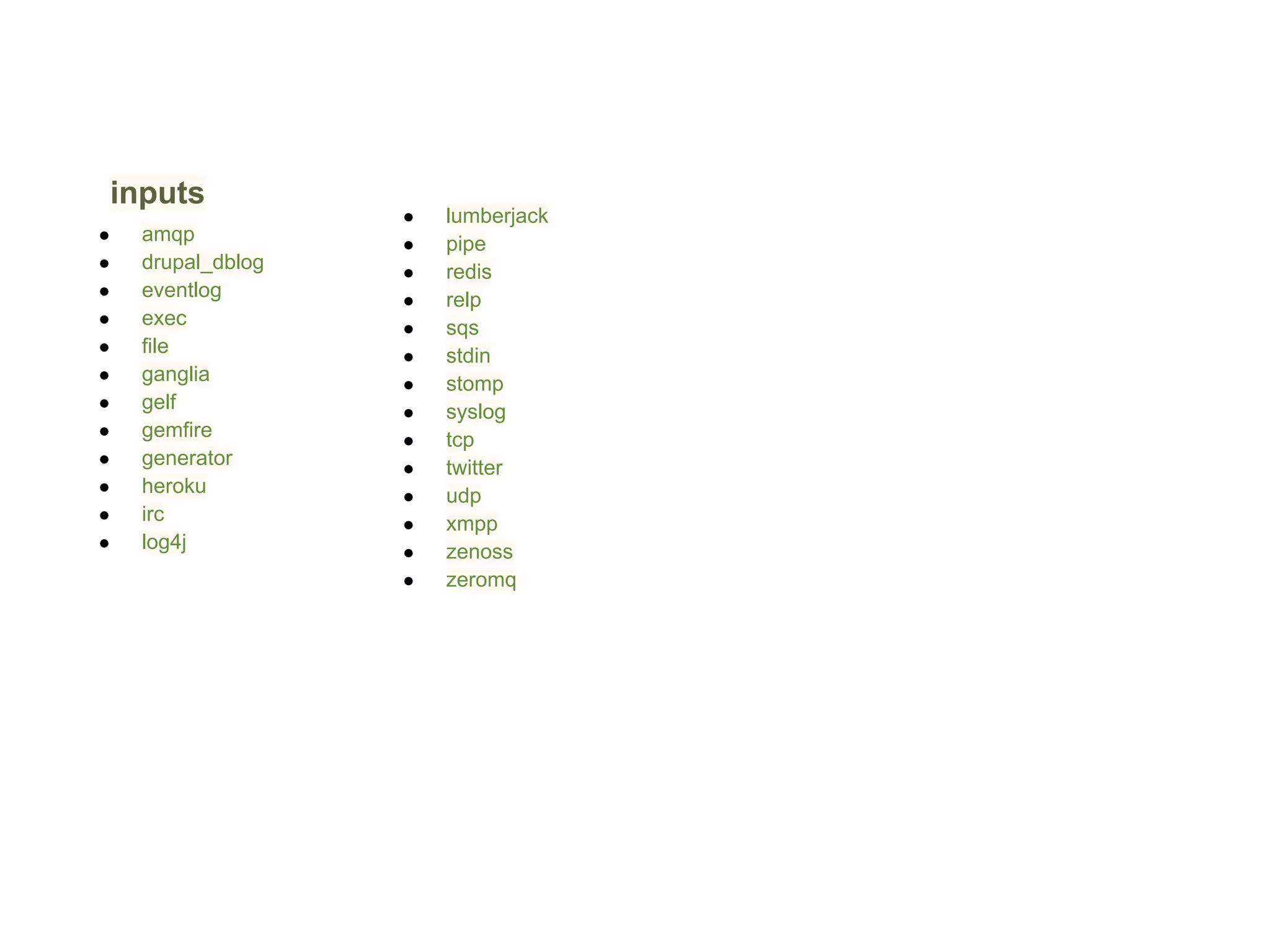

10. inputs
● amqp
● drupal_dblog
● eventlog
● exec
● file
● ganglia
● gelf
● gemfire
● generator
● heroku
● irc
● log4j
● lumberjack
● pipe
● redis
● relp
● sqs
● stdin
● stomp
● syslog
● tcp
● twitter
● udp
● xmpp
● zenoss
● zeromq

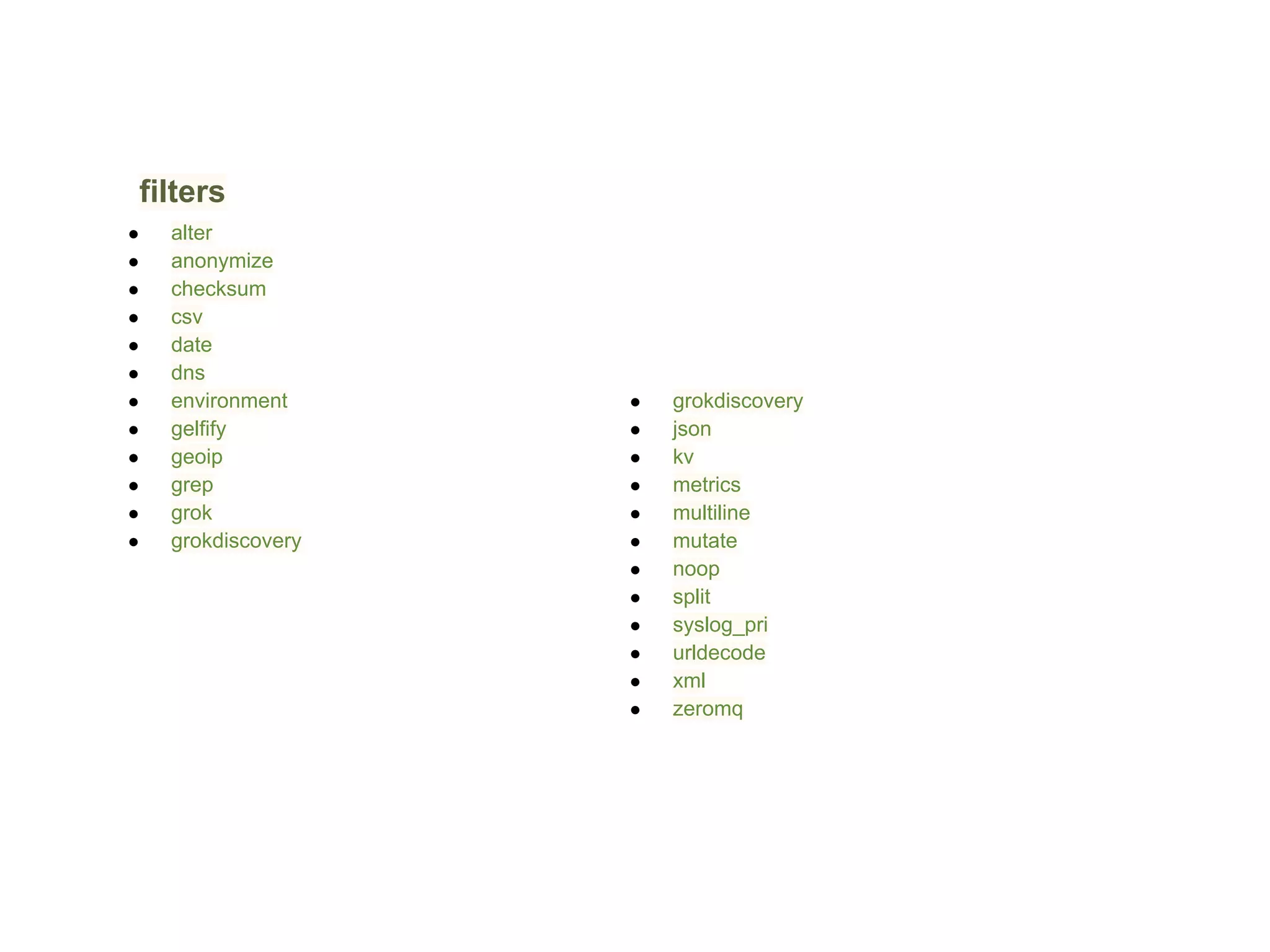

11. filters
● alter
● anonymize
● checksum
● csv
● date
● dns
● environment
● gelfify
● geoip
● grep
● grok
● grokdiscovery
● grokdiscovery
● json
● kv
● metrics
● multiline
● mutate
● noop
● split
● syslog_pri
● urldecode
● xml
● zeromq

12. outputs
● amqp
● boundary
● circonus
● cloudwatch
● datadog
● elasticsearch
● elasticsearch_http
● elasticsearch_river
● email
● exec
● file
● ganglia
● gelf
● gemfire
● graphite
● graphtastic
● http
● internal
● irc
● juggernaut
● librato
● loggly
● lumberjack
● metriccatcher
● mongodb
● nagios
● nagios_nsca
● null
● opentsdb
● pagerduty
● pipe
● redis
● riak
● riemann
● sns
● sqs
● statsd
● stdout
● stomp
● syslog
● tcp
● websocket
● xmpp
● zabbix
● zeromq

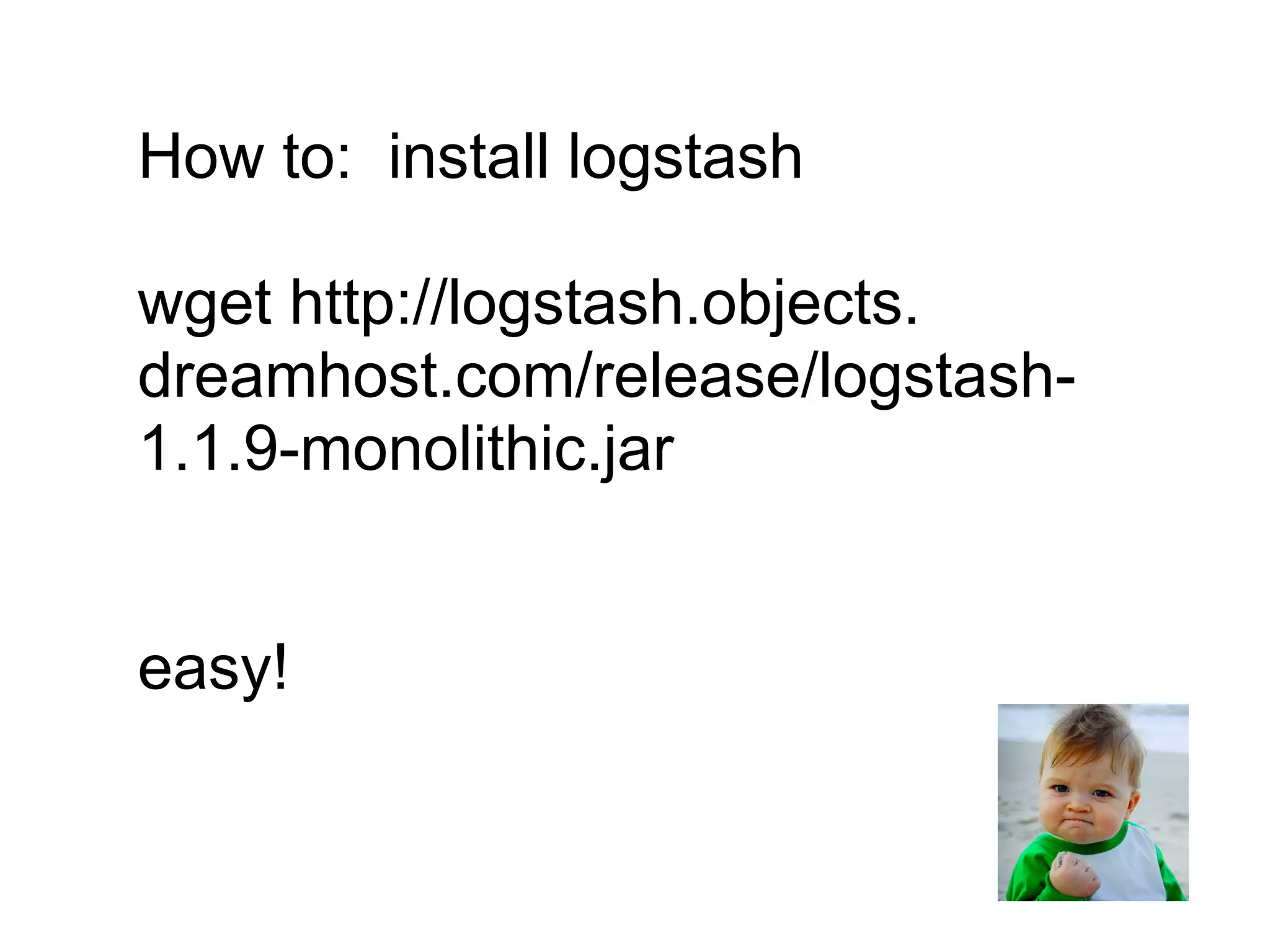

13. How to: install logstash
wget http://logstash.objects.
dreamhost.com/release/logstash-
1.1.9-monolithic.jar
easy!

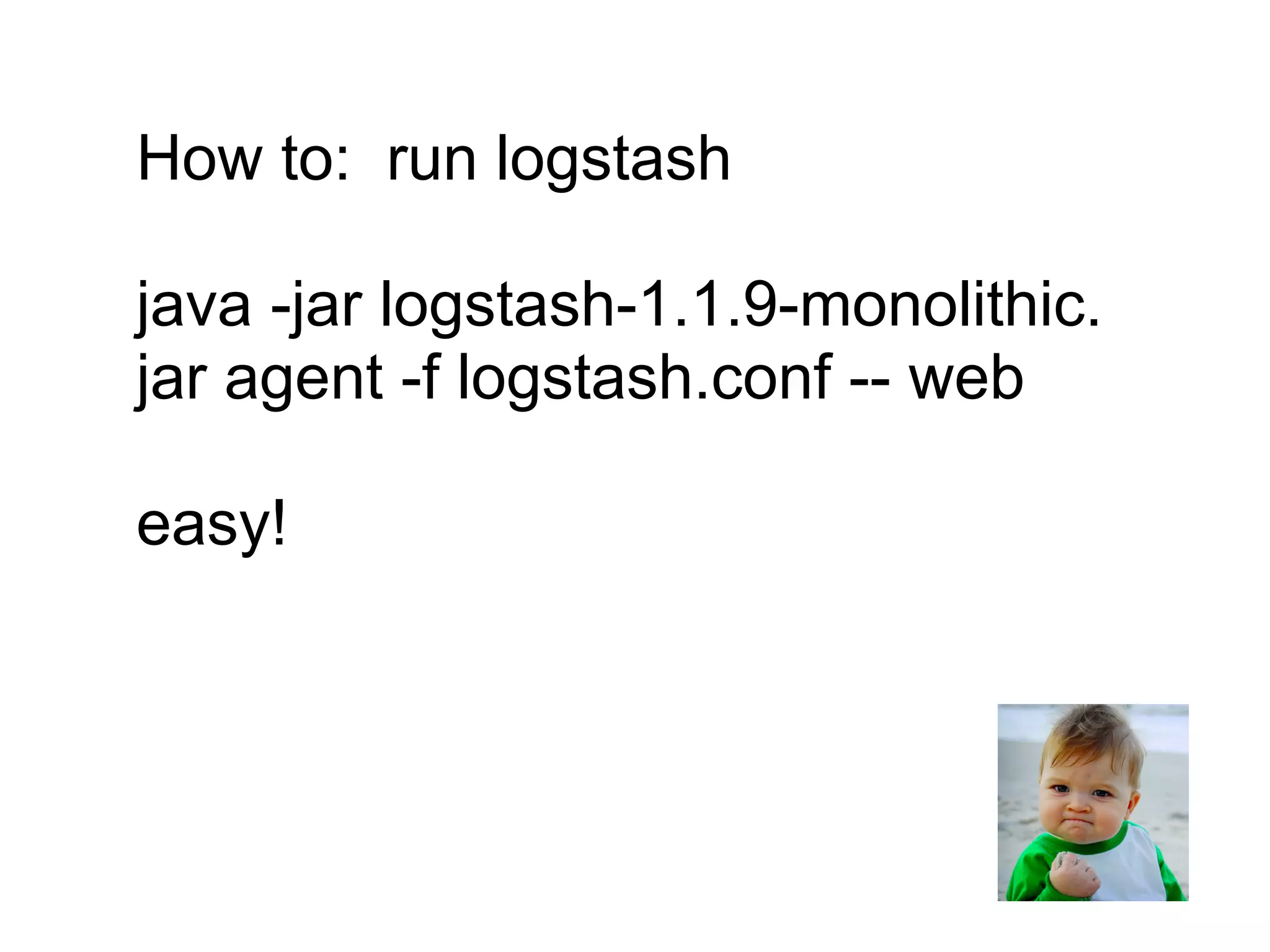

14. How to: run logstash
java -jar logstash-1.1.9-monolithic.
jar agent -f logstash.conf -- web
easy!

15. How to: get some apache logs in
input {
tcp {
type => "apache"
port => 3333
}
}

16. How to: get some apache logs in
tail -f /var/log/apache2/access.log |
nc localhost 3333

17. How to: digest the logs
filter {
grok {
type => "apache"
pattern => "%{COMBINEDAPACHELOG}"
}
date {
type => "apache"
timestamp => "dd/MMM/yyyy:HH:mm:ss Z"
}
}

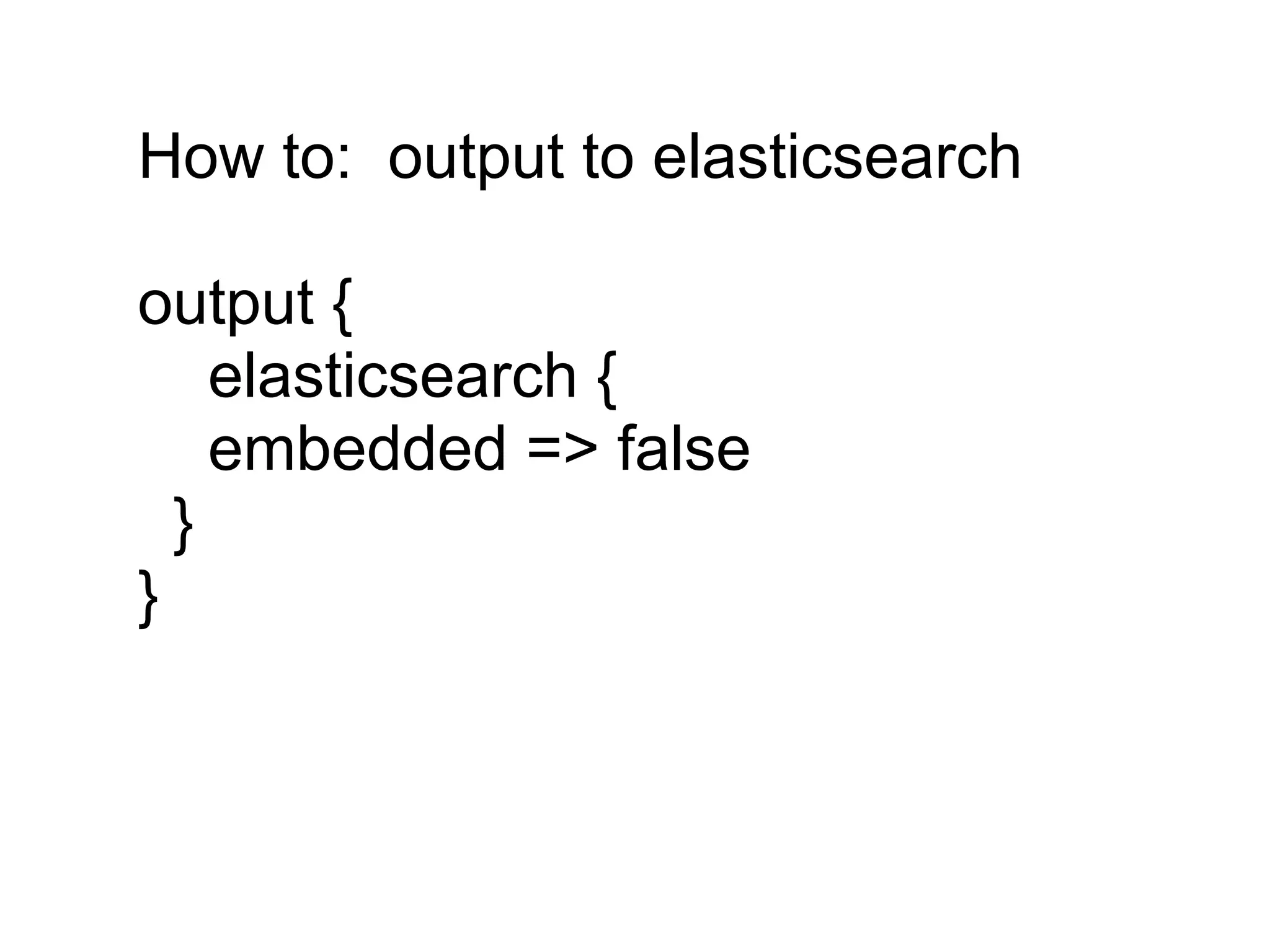

18. How to: output to elasticsearch
output {
elasticsearch {
embedded => false
}
}

19. How to: output to elasticsearch
and graphite via statsd
output {
elasticsearch {
embedded => false
}
statsd {
increment => "apache.response.%{response}"
}
}
