The document contains details about three Heat project update meetings taking place from Monday August 8 to Wednesday August 10 at the Hynes Convention Center in Boston. The Monday meeting from 5:30-6:10pm in room 203 will provide an onboarding session for the Heat project. The Tuesday meeting from 2-3:30pm in room 105 will cover large orchestration stacks. The Wednesday meeting from 5:20-6pm in room 104 will also provide a Heat onboarding session.

1. Project Update - Heat
Mon 8 , 5:30pm-6:10pm
Hynes Convention Center - Level 2 - MR 203
Heat- Project Onboarding
Tue 9 , 2:00pm-3:30pm
Hynes Convention Center - Plaza Level - MR 105
Large Orchestration stacks
Wed 10 , 5:20pm-6:00pm
Hynes Convention Center - Plaza Level - MR 104

2. Heat - Project Onboarding
Rico Lin @ EasyStack
Zane Bitter @ Red Hat
Rabi Mishra (Ocata PTL), Thomas Herve (Newton PTL), Huang Tianhua, Peter Razumovsky, Sahdev Zala, Crag Wolfe,
Steve Baker, shizhihui, Kanagaraj Manickam, Dan Prince, Ethan Lynn, Cao Xuan Hoang, Steven Hardy, Flavio Percoco
Premoli, Jason Dunsmore, Dmitriy, Ian Main, Sergey Kraynev, gengchc, Andreas Jaeger, Juan Antonio Osorio Robles,
Tuan, Mohankumar, zhufl, Yong Sheng Gong, Alex Schultz, Oleksii Chuprykov, Ha Van Tu, pawnesh kumar, Sam Yaple,
shangxdy, Sofer Athlan-Guyot, Chris, Tanvir Talukder, Rakesh, Bharath Thiruveedula, James Slagle, Csaba Fülöp, Miguel
Caballer, Anant Patil, Mathieu Velten, Yosef Hoffman, Michael Still, Georgy Dyuldin, Dan Radez, Zhenyu Zheng, Abhishek
Chanda, Tony Breeds, gecong, zhangyanxian, anusreea, Alexander Ignatyev, ChangBo Guo(gcb), Nam, Chuck Short, Béla
Vancsics, Davanum Srinivas, lvdongbing, Pierre Riteau, Daniel Gonzalez Nothnagel, Bhagyashri Shewale, Chason, Lars
Kellogg-Stedman, Ying Zuo, Bin Zhou, Julian Sy, Spencer Yu, WeiJi, prince_katiyar, Martin André, Tovin Seven, yunfeng
zhou, Jeremy Pugh, zengchen, Stephen Gordon, Jan Provaznik, surbhi sarda, Ana Krivokapić, Lu lei, Vijendra Soni,
liangshang, Liusheng, Tetiana Lashchova, LiuNanke, Rob Cresswell, Lucky samadhiya, Bertrand Lallau, avnish,
PanFengyun, Amit Ugol, Sylvain Baubeau, Russell Bryant, Drago Rosson, Anh Tran, Boden Russell, Leon Shaw, Sharat
Sharma, Qiming Teng, Di XiaoLi, Ashutosh Mishra

3. Ideas + blueprints/bugs + specs/patches + reviews
= Super !!!
And
Your Help Is Desired!

4. ● Heat
● Python-heatclient
● Heat-agents
● Heat-templates
● Heat-specs
● Heat-cfnclient
● Heat-cfntools
● Heat-translator
● Tosca-parser
● Also alot of projects that relative
Heat repos

5. Heat Architecture
worker worker
YAML Template

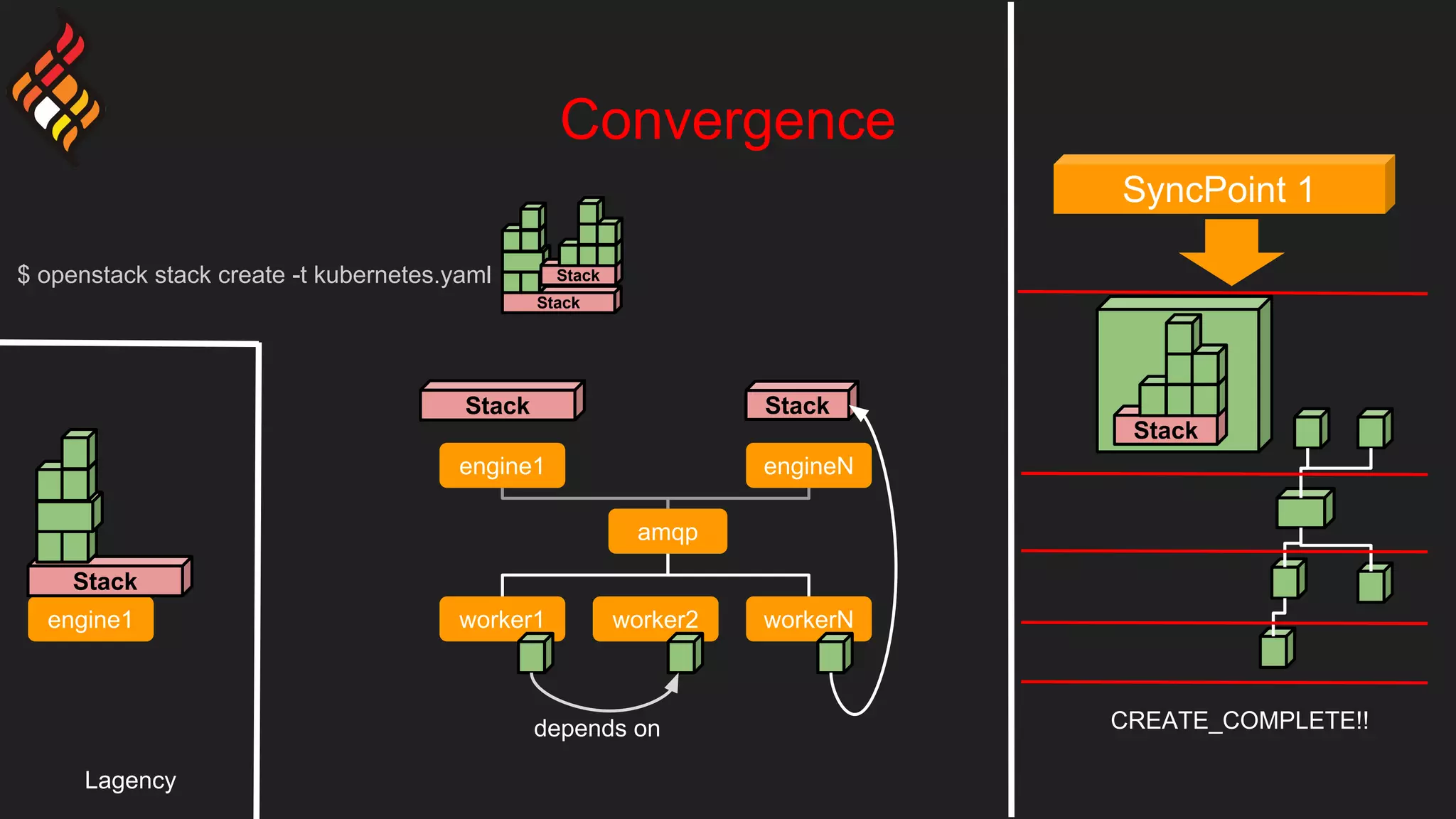

6. Convergence
worker1 workerN
amqp
engine1 engineN
$ openstack stack create -t kubernetes.yaml
Stack
Stack
Stack
worker2
depends on
Stack
CREATE_COMPLETE!!
SyncPoint 1
Stack
engine1
Stack
Lagency

7. From Template to Resources
heat_template_version: pike
...
resources:
dog1:
type: OS::Sled::Dog
properties:
name: snow_white
…..
dog2:
type: OS::Sled::Dog
properties:
leader: { get_resource: dog1 }
…..
dog3:
…..

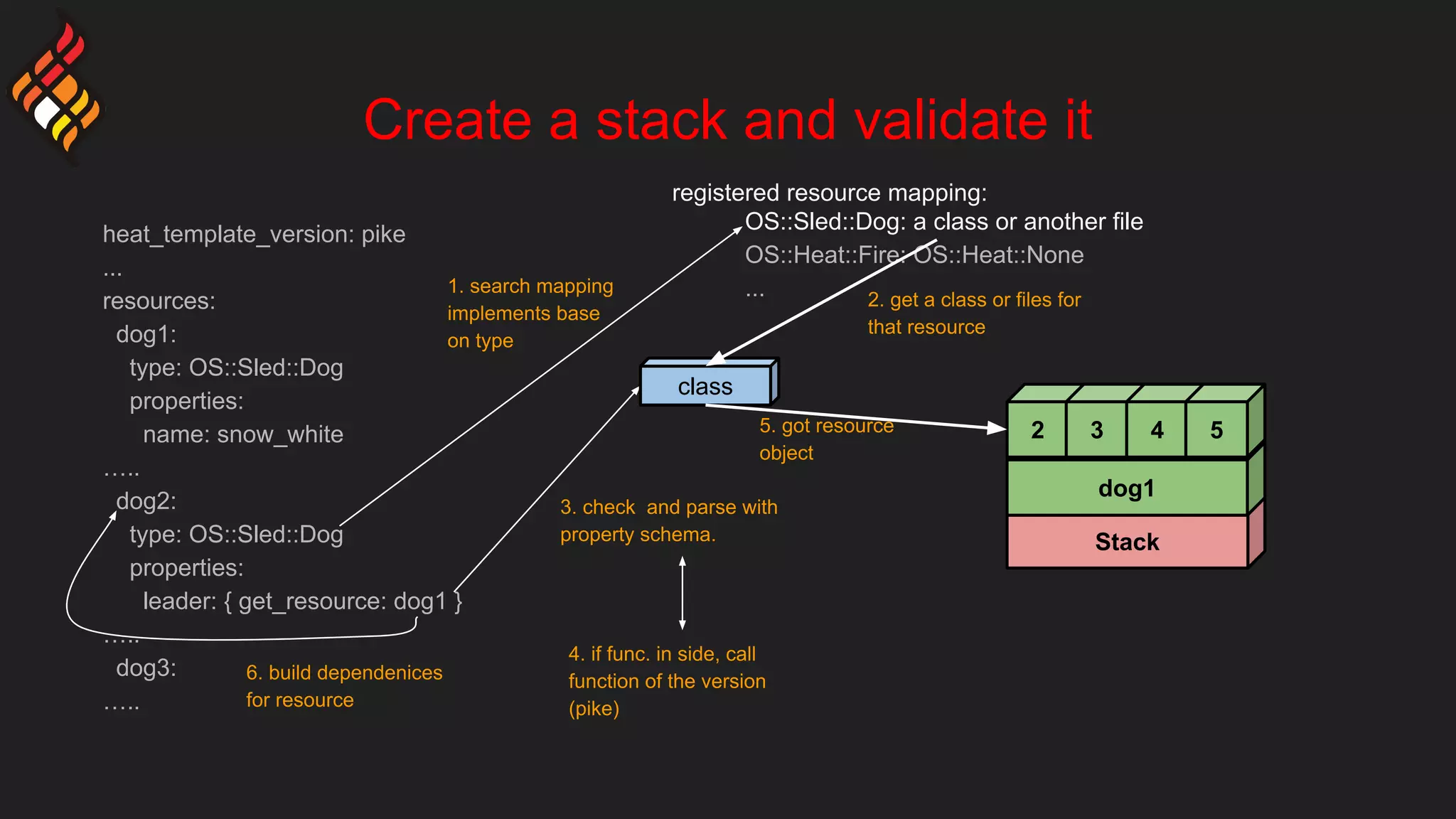

8. Create a stack and validate it
heat_template_version: pike
...
resources:
dog1:
type: OS::Sled::Dog
properties:
name: snow_white
…..
dog2:
type: OS::Sled::Dog
properties:
leader: { get_resource: dog1 }
…..
dog3:
…..
Stack
dog1
2 3 4 5
registered resource mapping:
OS::Sled::Dog: a class or another file
OS::Heat::Fire: OS::Heat::None
...
3. check and parse with
property schema.
class
4. if func. in side, call
function of the version
(pike)
5. got resource
object
2. get a class or files for
that resource
1. search mapping
implements base
on type
6. build dependenices
for resource

9. From a resource object to actually create
Stack
dog1
2 3 4 5
1. ask worker to
`check_resource`
2. call with
`create_convergence`
3. create with
`handle_create`
4. use service client with context from
heat to triger create
like: self.sled_dogs().create(*kwargs)
5. mark as CREATE
COMPLETE.
All resource go to `CREATE
COMPLETE`

10. Update the resource
Stack
dog1
2 3 4 5
1. Only will update
resources that
been changed
heat_template_version: pike
...
resources:
…..
dog2:
type: OS::Sled::Dog
properties:
leader: { get_resource: dog3 }
…..
2. worker check
resource
3. get original data
from database or
reality
4. update or replace
5. Mark as
Update/Create COMPLETE
Stack'
dog1
2.1 3 4 5

11. ● support_status =
support.SupportStatus(version='9.0.0')
● entity = 'sled_dogs'
● default_client_name = 'sled'
● properties_schema
● attributes_schema
● _resolve_attribute
● parse_live_resource_data
● translation_rules
● handle_XXX
○ create
○ update
○ delete
○ suspend
○ resume
○ adopt
○ restore
○ snapshot
○ create_cancel
○ update_cancel
○ signal
○ metadata_reset
● check_XXX_complete
I need a new resource type
def resource_mapping():
return {
'OS::Sled::Dog': SledDog
}
Or in environment file:
source_registry:
"OS::Sled::Dog": "OS::Sled::Cat"
"OS::Sled::Puppy": "An URL or file"

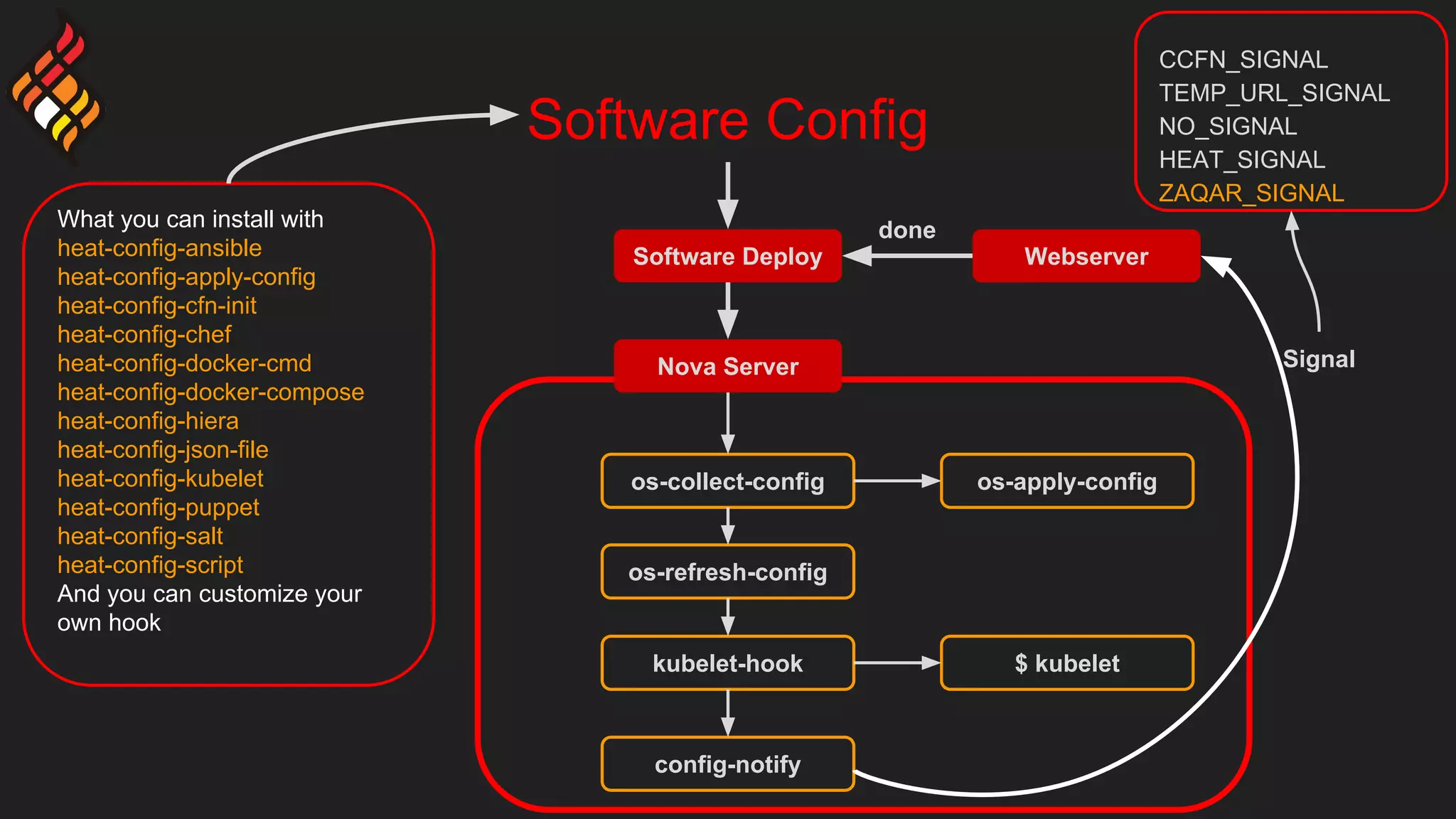

12. Software Config
Software Deploy
Nova Server
What you can install with
heat-config-ansible
heat-config-apply-config
heat-config-cfn-init
heat-config-chef
heat-config-docker-cmd
heat-config-docker-compose
heat-config-hiera
heat-config-json-file
heat-config-kubelet
heat-config-puppet
heat-config-salt
heat-config-script
And you can customize your
own hook
os-collect-config
os-refresh-config
os-apply-config
kubelet-hook $ kubelet
Webserver
done
config-notify
Signal
CCFN_SIGNAL
TEMP_URL_SIGNAL
NO_SIGNAL
HEAT_SIGNAL
ZAQAR_SIGNAL

13. auto_scaling(auto_healing(server))
OS::Nova::Server
OS::Zaqar::Queu
e
OS::Aodh::EventAlarm
OS::Mistral::Workflow
OS::Zaqar::MistralTrigger
Signal
Fix
Meter
Trigger
OS::Heat::AutoScalingGroup

14. Auto_{what matters}
XXX::Server
XXX::Signal XXX::Alarm
XXX::Workflow
Signal
Meter
Trigger
XXX::AutoScaling
How you
metering?
How you
handle
signal?
How you
trigger a
fix job
What's
meter to
you?
Fix

15. ● openstack stack event show <stack> <resource> <event>
● openstack stack resource show <stack> <resource>
● report a bug! https://bugs.launchpad.net/heat
● chat on irc #heat or join our meeting
● A reset botton?
And if anything went wrong

16. ● openstack stack abandon <stack>
● openstack stack export <stack>
● openstack stack adopt --adopt-file <adopt-file> <stack-name>
● openstack stack snapshot create <stack>
● openstack stack snapshot restore <stack> <snapshot>
A Reset Button

17. ● Consider backwards
● With Unittest
● synchronize
● review! review! review!
Hacking rules

18. ● Python 3.5 support
● Neutron Segment resource for routed networks
● Neutron VLAN trunk ports (802.1Q)
● External custom resources managed by Mistral workflows
● New intrinsic functions: make_url, list_concat_unique
● Internal architecture improvements
● Stable attribute values (no live lookup) in convergence
● Memory & performance improvement for convergence
● Reliability improvements for large stacks
● [Preview] Optionally compare to actual state of resources during updates
Pike Roadmap

19. Questions?
https://github.com/openstack/heat
https://launchpad.net/heat
https://wiki.openstack.org/wiki/Heat
IRC: #heat
Our Meeting time:
Every Wednesdays at 1500 UTC
in #openstack-meeting-5
Large Orchestration stacks
Wed 10 , 5:20pm-6:00pm
Hynes Convention Center - Plaza Level -
MR 104

20. Thank You!https://github.com/openstack/heat
https://launchpad.net/heat
https://wiki.openstack.org/wiki/Heat
IRC: #heat
Our Meeting time:
Every Wednesdays at 1500 UTC
in #openstack-meeting-5
Large Orchestration stacks
Wed 10 , 5:20pm-6:00pm
Hynes Convention Center - Plaza Level -
MR 104
