Information visualisation:  Data ink design principles

•

2 likes•1,061 views

The document discusses Erik Duval's presentation on Edward Tufte's principles of data ink design. It outlines Tufte's key principles: showing the data above all else, maximizing the data-ink ratio by removing non-data ink, erasing redundant data ink, and revising and editing visualizations. The data-ink ratio refers to the proportion of ink devoted to displaying non-redundant data information. The principles aim to clearly display the maximum amount of data with the minimum amount of graphical elements.

Information visualisation 
Data ink design principles
20 April 2015
Erik Duval
Dept. Computerwetenschappen, KULeuven
http://erikduval.wordpress.com & @ErikDuval
1

Tufte’s principles
• Above all else show the data
2

• Data ink:“non-erasable core of a graphic...”
(Tufte, 1983)
• Data-ink ratio
= data-ink / total ink
= Proportion of a graphic’s ink devoted to
the non-redundant display of data-
information.
= 1.0 – proportion of graphic that can be
erased without the loss of information
3

Tufte’s principles
• Maximise the data-ink ratio, within reason
• Erase non-data ink, within reason
• Erase redundant data-ink
• Revise and edit
4

“Perfection is achieved not
when there is nothing more
to add, but when there is
nothing left to take away” 
Antoine de Saint-Exupery
30

?
@ErikDuval

h.p://erikduval.wordpress.com
31

An immersive workshop at General Assembly, SF. I typically teach this workshop at General Assembly, San Francisco. To see a list of my upcoming classes, visit https://generalassemb.ly/instructors/seth-familian/4813 I also teach this workshop as a private lunch-and-learn or half-day immersive session for corporate clients. To learn more about pricing and availability, please contact me at http://familian1.com

Hci gattech33 info-visAlvin Setiawan

Viewers also liked

InfoVis1415: slides sessie 1, 10 Feb 2015

Erik Duval

From scarcity to abundance and a helping hand from the snowflake effect

Erik Duval

Open Leren in de Praktijk

Erik Duval

201502010 pen ocw_les1_erik

Erik Duval

InfoVis1415: slides sessie 5, 9 March 2015

Erik Duval

Research2.0

Erik Duval

Learning from our students

Erik Duval

InfoVis1415: slides sessie 8, 20 april 2015

Erik Duval

InfoVis1415: slides sessie 6, 23 March 2015

Erik Duval

InfoVis1415: slides sessie 10, 4 mei 2015

Erik Duval

Entiteit Relatie Model

Erik Duval

PresentatietechniekenErik Duval

InfoVis1415: slides sessie 4, 2 March 2015

Erik Duval

Nova apresentação da seja mais livre

Elias Amaral

Data Visualisation by Olivier Lorrain

Olivier Lorrain

Technology that makes HUMANS smarter

Erik Duval

Theory of Data Visualization_Vinu

Tanvi Gupta

Information Design for Technical Communicators: Scratching the Surface

Linda Oestreich

Viewers also liked (18)

InfoVis1415: slides sessie 1, 10 Feb 2015

From scarcity to abundance and a helping hand from the snowflake effect

Open Leren in de Praktijk

201502010 pen ocw_les1_erik

InfoVis1415: slides sessie 5, 9 March 2015

Research2.0

Learning from our students

InfoVis1415: slides sessie 8, 20 april 2015

InfoVis1415: slides sessie 6, 23 March 2015

InfoVis1415: slides sessie 10, 4 mei 2015

Entiteit Relatie Model

Presentatietechnieken

InfoVis1415: slides sessie 4, 2 March 2015

Nova apresentação da seja mais livre

Data Visualisation by Olivier Lorrain

Technology that makes HUMANS smarter

Theory of Data Visualization_Vinu

Information Design for Technical Communicators: Scratching the Surface

Recently uploaded

Unit 8 - Information and Communication Technology (Paper I).pdf

Thiyagu K

The French Revolution Class 9 Study Material pdf free download

Vivekanand Anglo Vedic Academy

The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe. For more information, visit-www.vavaclasses.com

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46

MysoreMuleSoftMeetup

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46 Event Link:- https://meetups.mulesoft.com/events/details/mulesoft-mysore-presents-exploring-gemini-ai-and-integration-with-mulesoft/ Agenda ● Java 17 Upgrade Overview ● Why and by when do customers need to upgrade to Java 17? ● Is there any immediate impact to upgrading to Mule Runtime 4.6 and beyond? ● Which MuleSoft products are in scope? For Upcoming Meetups Join Mysore Meetup Group - https://meetups.mulesoft.com/mysore/ YouTube:- youtube.com/@mulesoftmysore Mysore WhatsApp group:- https://chat.whatsapp.com/EhqtHtCC75vCAX7gaO842N Speaker:- Shubham Chaurasia - https://www.linkedin.com/in/shubhamchaurasia1/ Priya Shaw - https://www.linkedin.com/in/priya-shaw Organizers:- Shubham Chaurasia - https://www.linkedin.com/in/shubhamchaurasia1/ Giridhar Meka - https://www.linkedin.com/in/giridharmeka Priya Shaw - https://www.linkedin.com/in/priya-shaw Shyam Raj Prasad- https://www.linkedin.com/in/shyam-raj-prasad/

678020731-Sumas-y-Restas-Para-Colorear.pdf

CarlosHernanMontoyab2

KKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKKK

Introduction to AI for Nonprofits with Tapp Network

TechSoup

Additional Benefits for Employee Website.pdf

joachimlavalley1

Embracing GenAI - A Strategic Imperative

Peter Windle

Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction. This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...

Levi Shapiro

Letter from the Congress of the United States regarding Anti-Semitism sent June 3rd to MIT President Sally Kornbluth, MIT Corp Chair, Mark Gorenberg Dear Dr. Kornbluth and Mr. Gorenberg, The US House of Representatives is deeply concerned by ongoing and pervasive acts of antisemitic harassment and intimidation at the Massachusetts Institute of Technology (MIT). Failing to act decisively to ensure a safe learning environment for all students would be a grave dereliction of your responsibilities as President of MIT and Chair of the MIT Corporation. This Congress will not stand idly by and allow an environment hostile to Jewish students to persist. The House believes that your institution is in violation of Title VI of the Civil Rights Act, and the inability or unwillingness to rectify this violation through action requires accountability. Postsecondary education is a unique opportunity for students to learn and have their ideas and beliefs challenged. However, universities receiving hundreds of millions of federal funds annually have denied students that opportunity and have been hijacked to become venues for the promotion of terrorism, antisemitic harassment and intimidation, unlawful encampments, and in some cases, assaults and riots. The House of Representatives will not countenance the use of federal funds to indoctrinate students into hateful, antisemitic, anti-American supporters of terrorism. Investigations into campus antisemitism by the Committee on Education and the Workforce and the Committee on Ways and Means have been expanded into a Congress-wide probe across all relevant jurisdictions to address this national crisis. The undersigned Committees will conduct oversight into the use of federal funds at MIT and its learning environment under authorities granted to each Committee. • The Committee on Education and the Workforce has been investigating your institution since December 7, 2023. The Committee has broad jurisdiction over postsecondary education, including its compliance with Title VI of the Civil Rights Act, campus safety concerns over disruptions to the learning environment, and the awarding of federal student aid under the Higher Education Act. • The Committee on Oversight and Accountability is investigating the sources of funding and other support flowing to groups espousing pro-Hamas propaganda and engaged in antisemitic harassment and intimidation of students. The Committee on Oversight and Accountability is the principal oversight committee of the US House of Representatives and has broad authority to investigate “any matter” at “any time” under House Rule X. • The Committee on Ways and Means has been investigating several universities since November 15, 2023, when the Committee held a hearing entitled From Ivory Towers to Dark Corners: Investigating the Nexus Between Antisemitism, Tax-Exempt Universities, and Terror Financing. The Committee followed the hearing with letters to those institutions on January 10, 202

Guidance_and_Counselling.pdf B.Ed. 4th Semester

Atul Kumar Singh

BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...

Nguyen Thanh Tu Collection

The Challenger.pdf DNHS Official Publication

Delapenabediema

Polish students' mobility in the Czech Republic

Anna Sz.

special B.ed 2nd year old paper_20240531.pdf

Special education needs

Chapter 3 - Islamic Banking Products and Services.pptx

Mohd Adib Abd Muin, Senior Lecturer at Universiti Utara Malaysia

A Strategic Approach: GenAI in Education

Peter Windle

Francesca Gottschalk - How can education support child empowerment.pptx

EduSkills OECD

Language Across the Curriculm LAC B.Ed.

Atul Kumar Singh

Sha'Carri Richardson Presentation 202345

beazzy04

The basics of sentences session 5pptx.pptx

heathfieldcps1

Adversarial Attention Modeling for Multi-dimensional Emotion Regression.pdf

Po-Chuan Chen

Recently uploaded (20)

Unit 8 - Information and Communication Technology (Paper I).pdf

The French Revolution Class 9 Study Material pdf free download

Mule 4.6 & Java 17 Upgrade | MuleSoft Mysore Meetup #46

678020731-Sumas-y-Restas-Para-Colorear.pdf

Introduction to AI for Nonprofits with Tapp Network

Additional Benefits for Employee Website.pdf

Embracing GenAI - A Strategic Imperative

June 3, 2024 Anti-Semitism Letter Sent to MIT President Kornbluth and MIT Cor...

Guidance_and_Counselling.pdf B.Ed. 4th Semester

BÀI TẬP BỔ TRỢ TIẾNG ANH GLOBAL SUCCESS LỚP 3 - CẢ NĂM (CÓ FILE NGHE VÀ ĐÁP Á...

The Challenger.pdf DNHS Official Publication

Polish students' mobility in the Czech Republic

special B.ed 2nd year old paper_20240531.pdf

Chapter 3 - Islamic Banking Products and Services.pptx

A Strategic Approach: GenAI in Education

Francesca Gottschalk - How can education support child empowerment.pptx

Language Across the Curriculm LAC B.Ed.

Sha'Carri Richardson Presentation 202345

The basics of sentences session 5pptx.pptx

Adversarial Attention Modeling for Multi-dimensional Emotion Regression.pdf

Information visualisation:  Data ink design principles

1. Information visualisation  Data ink design principles 20 April 2015 Erik Duval Dept. Computerwetenschappen, KULeuven http://erikduval.wordpress.com & @ErikDuval 1

2. Tufte’s principles • Above all else show the data 2

3. • Data ink:“non-erasable core of a graphic...” (Tufte, 1983) • Data-ink ratio = data-ink / total ink = Proportion of a graphic’s ink devoted to the non-redundant display of data- information. = 1.0 – proportion of graphic that can be erased without the loss of information 3

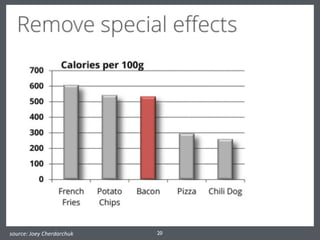

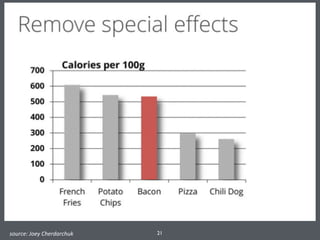

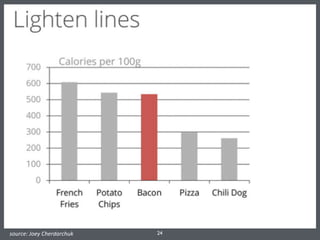

4. Tufte’s principles • Maximise the data-ink ratio, within reason • Erase non-data ink, within reason • Erase redundant data-ink • Revise and edit 4

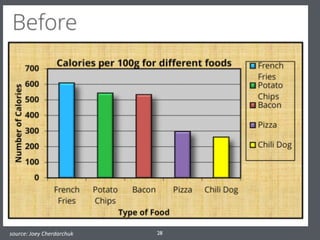

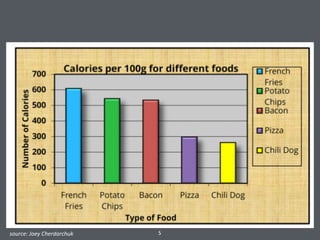

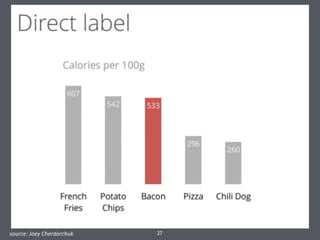

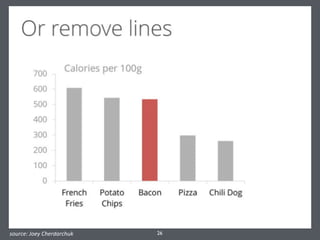

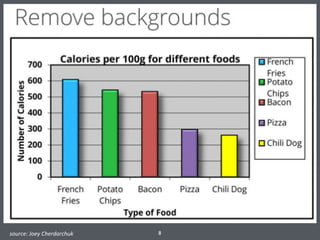

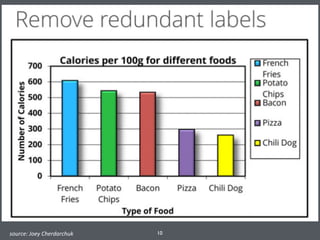

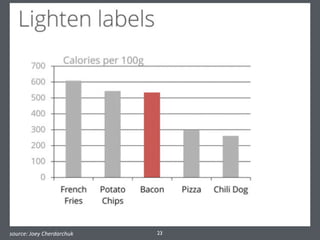

5. 5 source: Joey Cherdarchuk

6. 6 <0.05 source: Joey Cherdarchuk

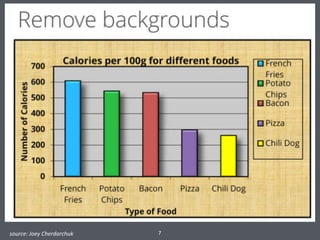

7. 7 source: Joey Cherdarchuk

8. 8 source: Joey Cherdarchuk

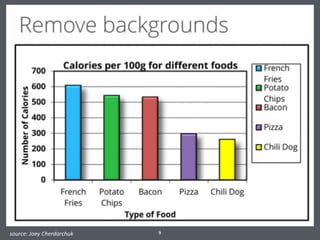

9. 9 source: Joey Cherdarchuk

10. 10 source: Joey Cherdarchuk

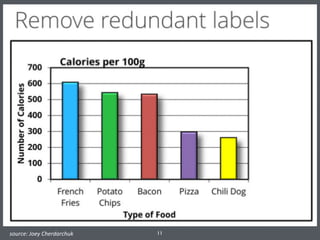

11. 11 source: Joey Cherdarchuk

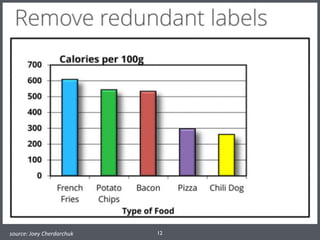

12. 12 source: Joey Cherdarchuk

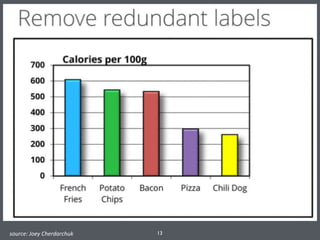

13. 13 source: Joey Cherdarchuk

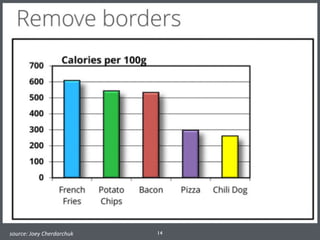

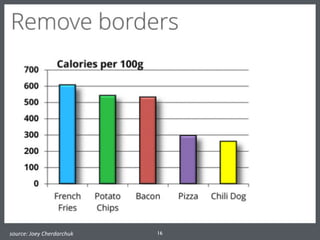

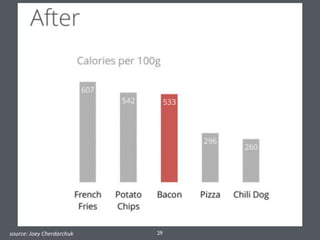

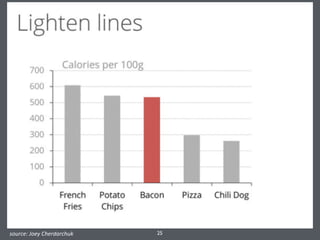

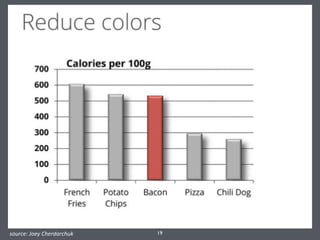

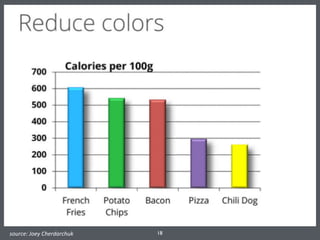

14. 14 source: Joey Cherdarchuk
