Communications Channel Entropies - Mutual Information - Channel Mutual Information - Channel Capacity - Uniform Channel.

1. Mustaqbal University
College of Engineering &Computer Sciences
Electronics and Communication Engineering Department
Course: EE301: Probability Theory and Applications
Part C
Prerequisite: Stat 219
Text Book: B.P. Lathi, “Modern Digital and Analog Communication Systems”, 3th edition, Oxford University Press, Inc., 1998
Reference: A. Papoulis, Probability, Random Variables, and Stochastic Processes, Mc-Graw Hill, 2005
Dr. Aref Hassan Kurdali

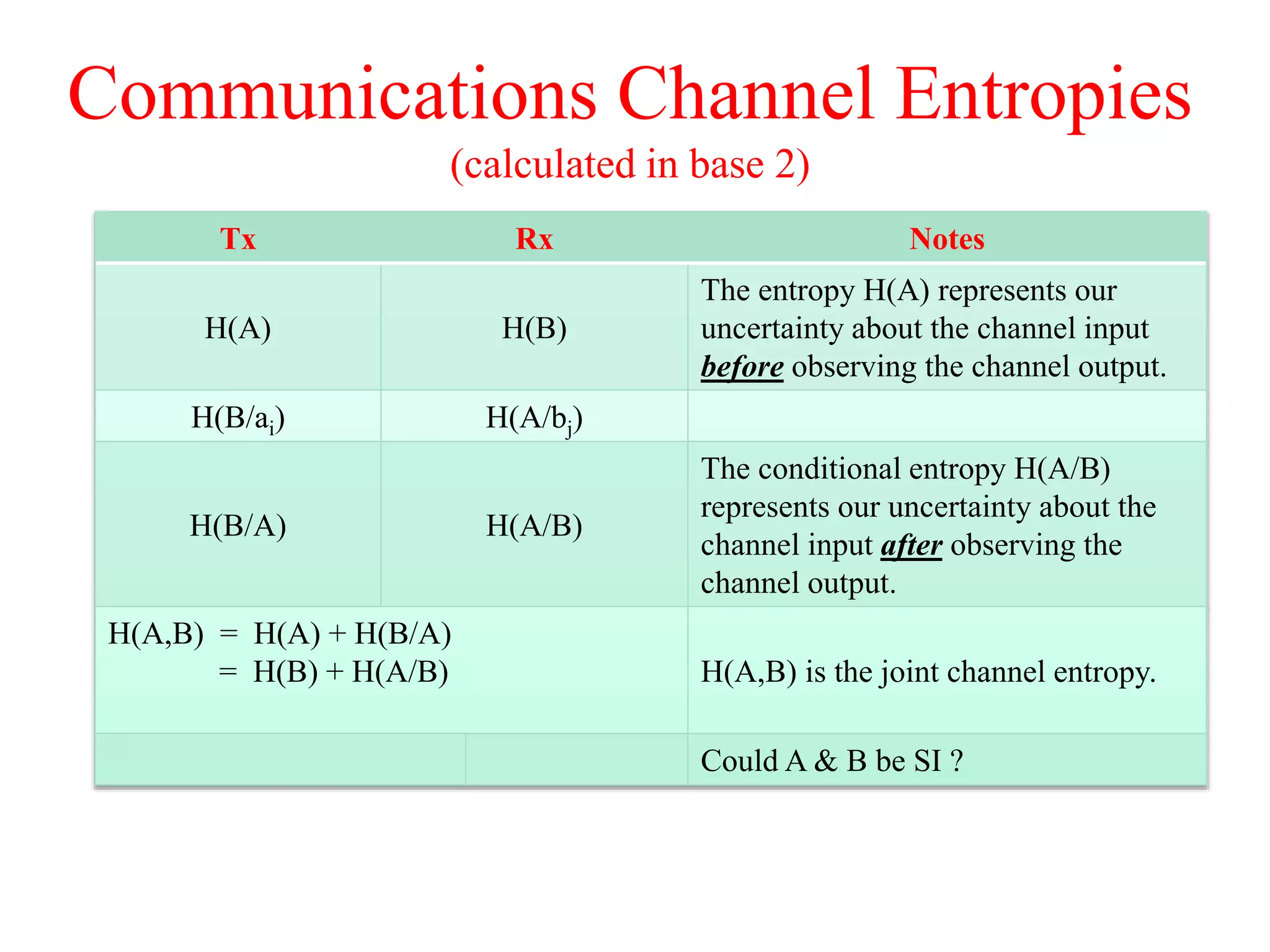

2. Communications Channel Entropies
(calculated in base 2)
Could A & B be SI? !!!!!!!!!!!!!!!!
Tx Rx Notes
H(A( H(B)
The entropy H(A( represents our
uncertainty about the channel input
before observing the channel output.
H(B/ai) H(A/bj(
H(B/A) H(A/B(
The conditional entropy H(A/B(
represents our uncertainty about the
channel input after observing the
channel output.
H(A,B) = H(A) + H(B/A)
= H(B) + H(A/B( H(A,B) is the joint channel entropy.
Could A & B be SI ?

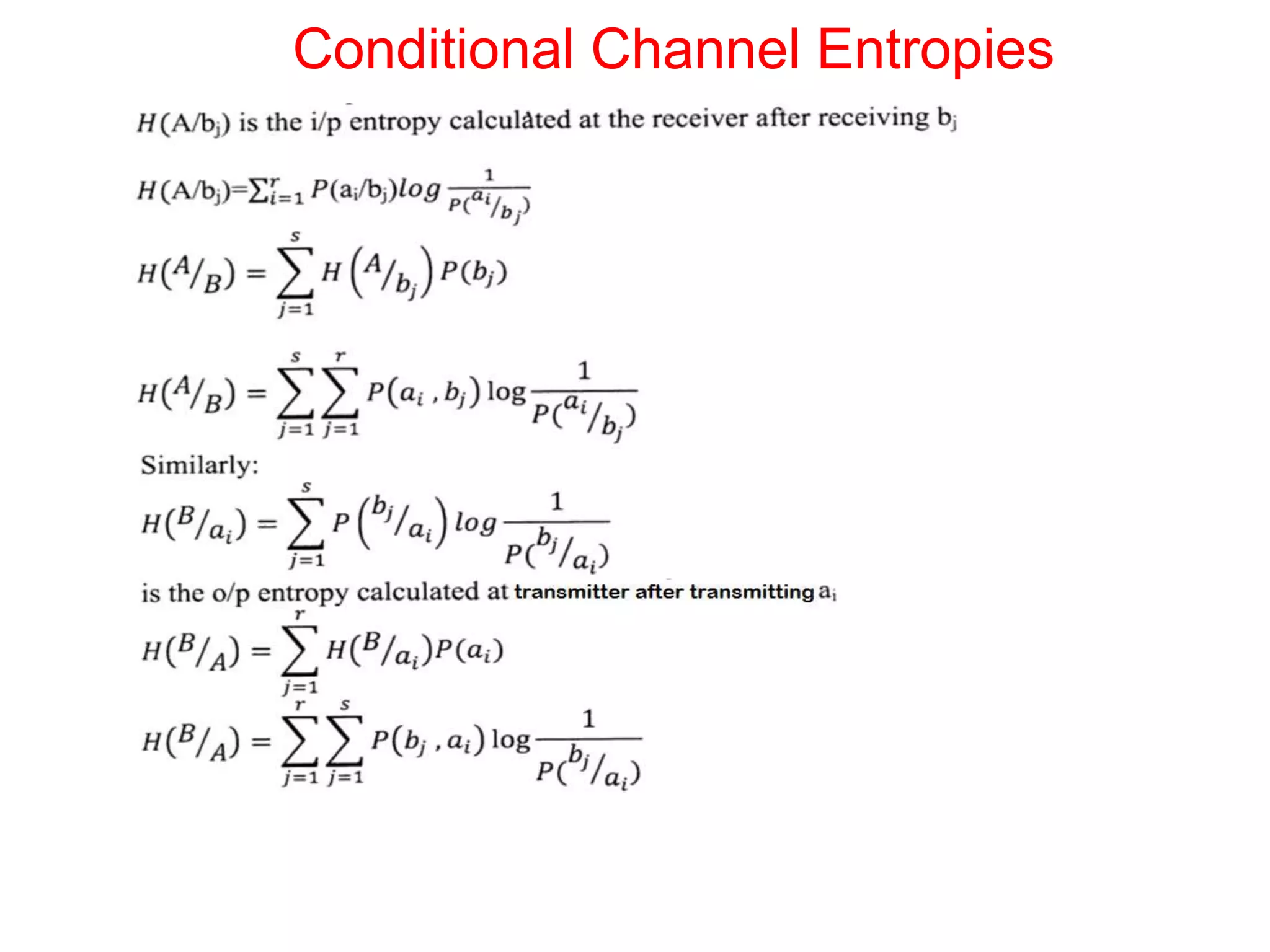

3. Conditional Channel Entropies

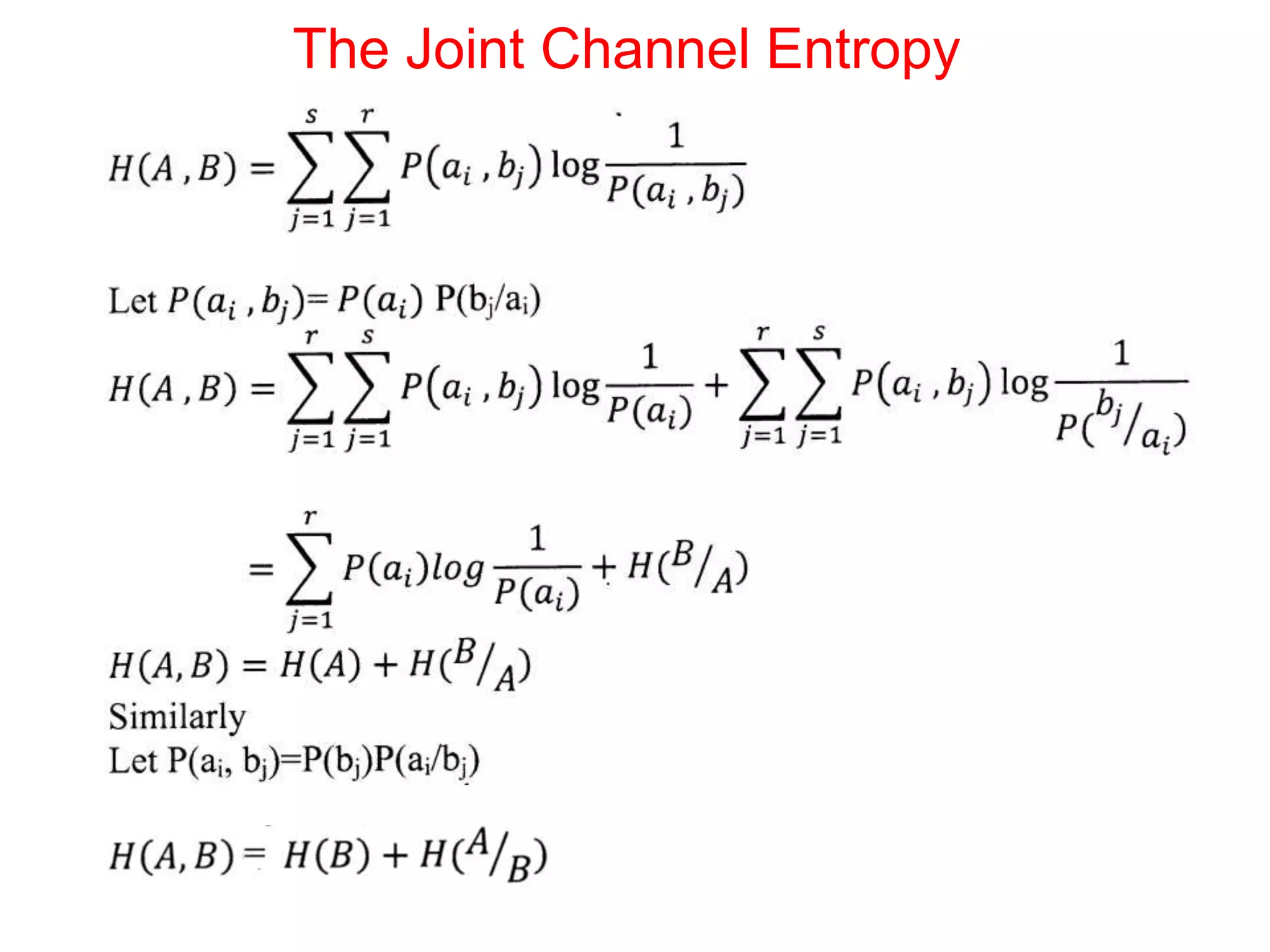

4. The Joint Channel Entropy

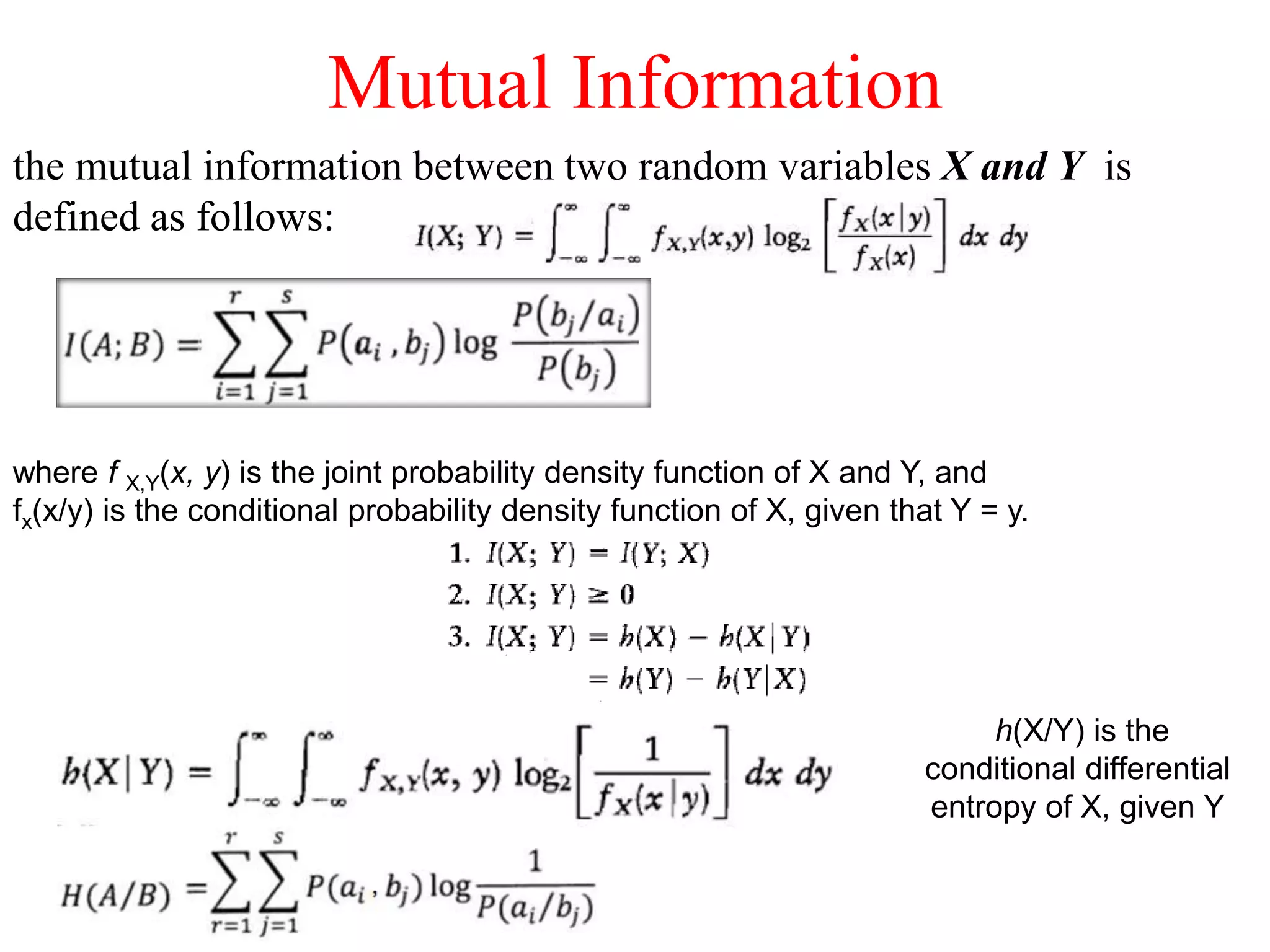

5. Mutual Information

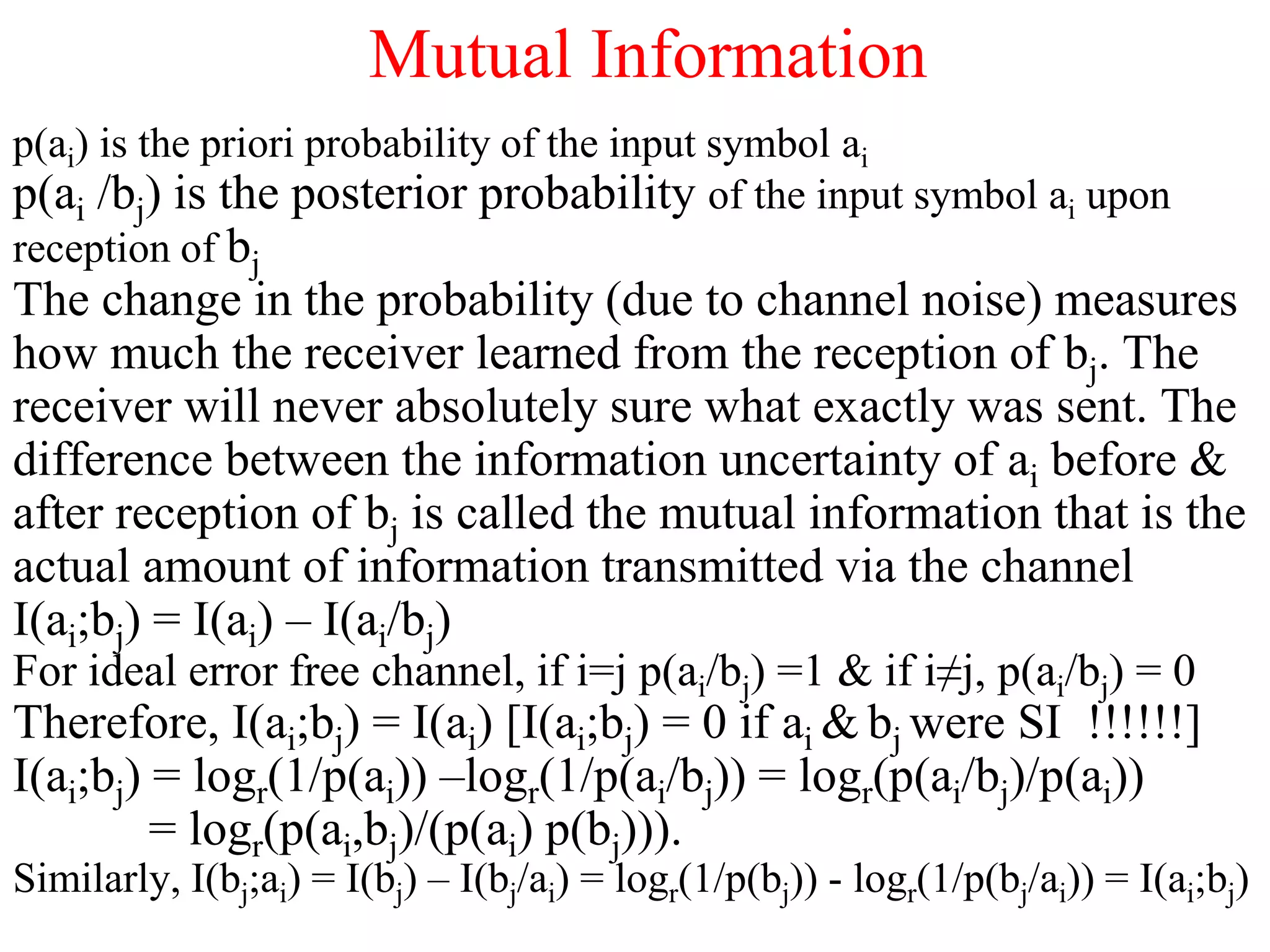

p(ai) is the priori probability of the input symbol ai
p(ai /bj) is the posterior probability of the input symbol ai upon
reception of bj
The change in the probability (due to channel noise) measures
how much the receiver learned from the reception of bj. The
receiver will never absolutely sure what exactly was sent. The
difference between the information uncertainty of ai before &
after reception of bj is called the mutual information that is the
actual amount of information transmitted via the channel
I(ai;bj) = I(ai) – I(ai/bj)
For ideal error free channel, if i=j p(ai/bj) =1 & if i≠j, p(ai/bj) = 0
Therefore, I(ai;bj) = I(ai) [I(ai;bj) = 0 if ai & bj were SI !!!!!!]
I(ai;bj) = logr(1/p(ai)) –logr(1/p(ai/bj)) = logr(p(ai/bj)/p(ai))
= logr(p(ai,bj)/(p(ai) p(bj))).
Similarly, I(bj;ai) = I(bj) – I(bj/ai) = logr(1/p(bj)) - logr(1/p(bj/ai)) = I(ai;bj)

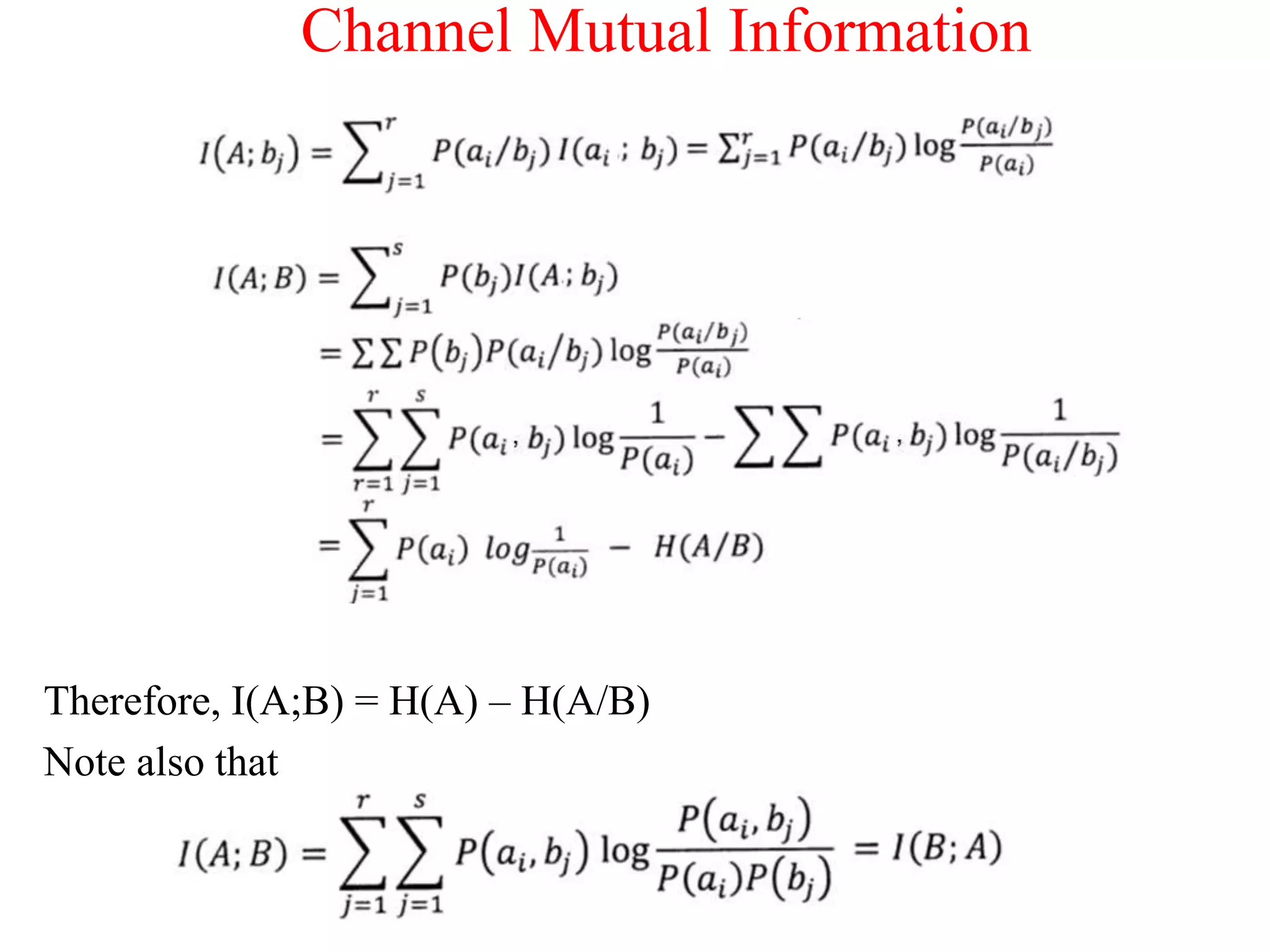

6. Channel Mutual Information
Therefore, I(A;B) = H(A) – H(A/B)
Note also that

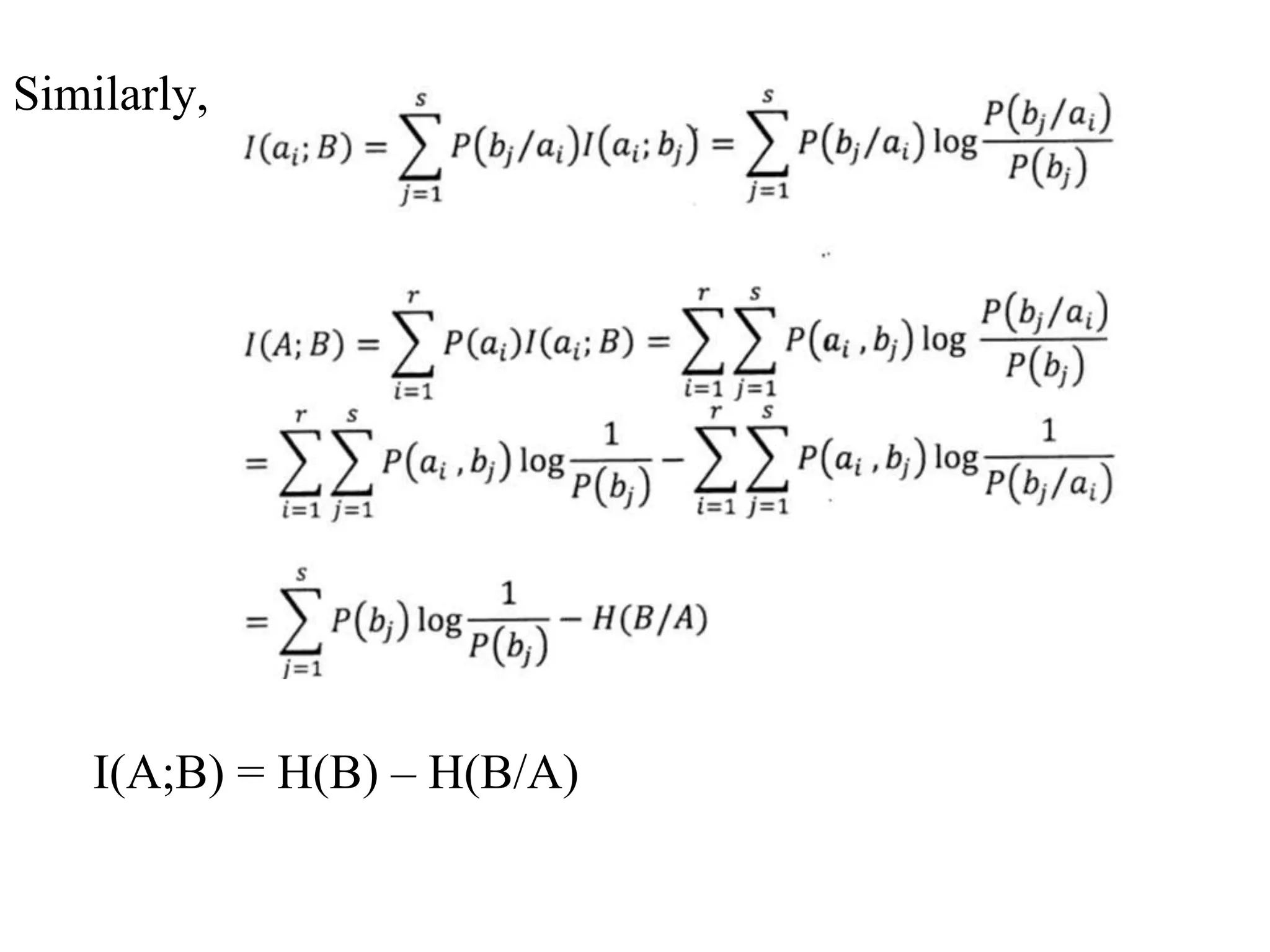

7. Similarly,
I(A;B) = H(B) – H(B/A)

9. Since the entropy H(A) represents our uncertainty about the channel
input before observing the channel output, and the conditional entropy
H(A/B) represents the average amount of uncertainty remaining about
the channel input after the channel output has been observed, it follows
that the difference H(A) - H(A/B) must represent our uncertainty about
the channel input that is resolved by observing the channel output. This
important quantity is called the channel mutual information
I(A;B) = H(A) - H(A/B)
The channel mutual information represents the actual average amount of
information transmitted through the channel.
Similarly, I(A;B) = H(B) - H(B/A)

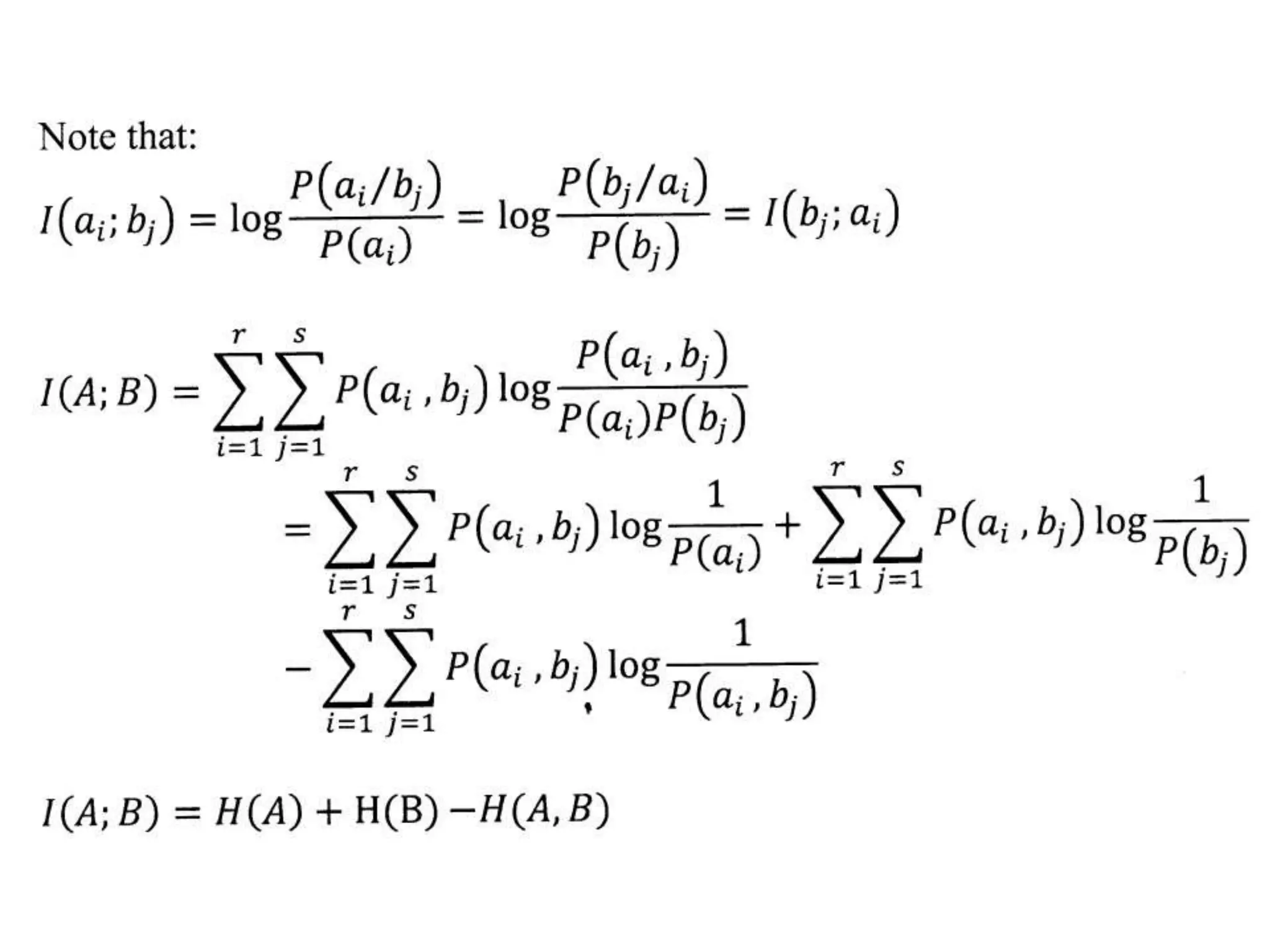

Or I(A;B) = H(A) + H(B) - H(A,B)
Note that I(A;B) = I(B;A) ≥ 0
Channel Mutual Information

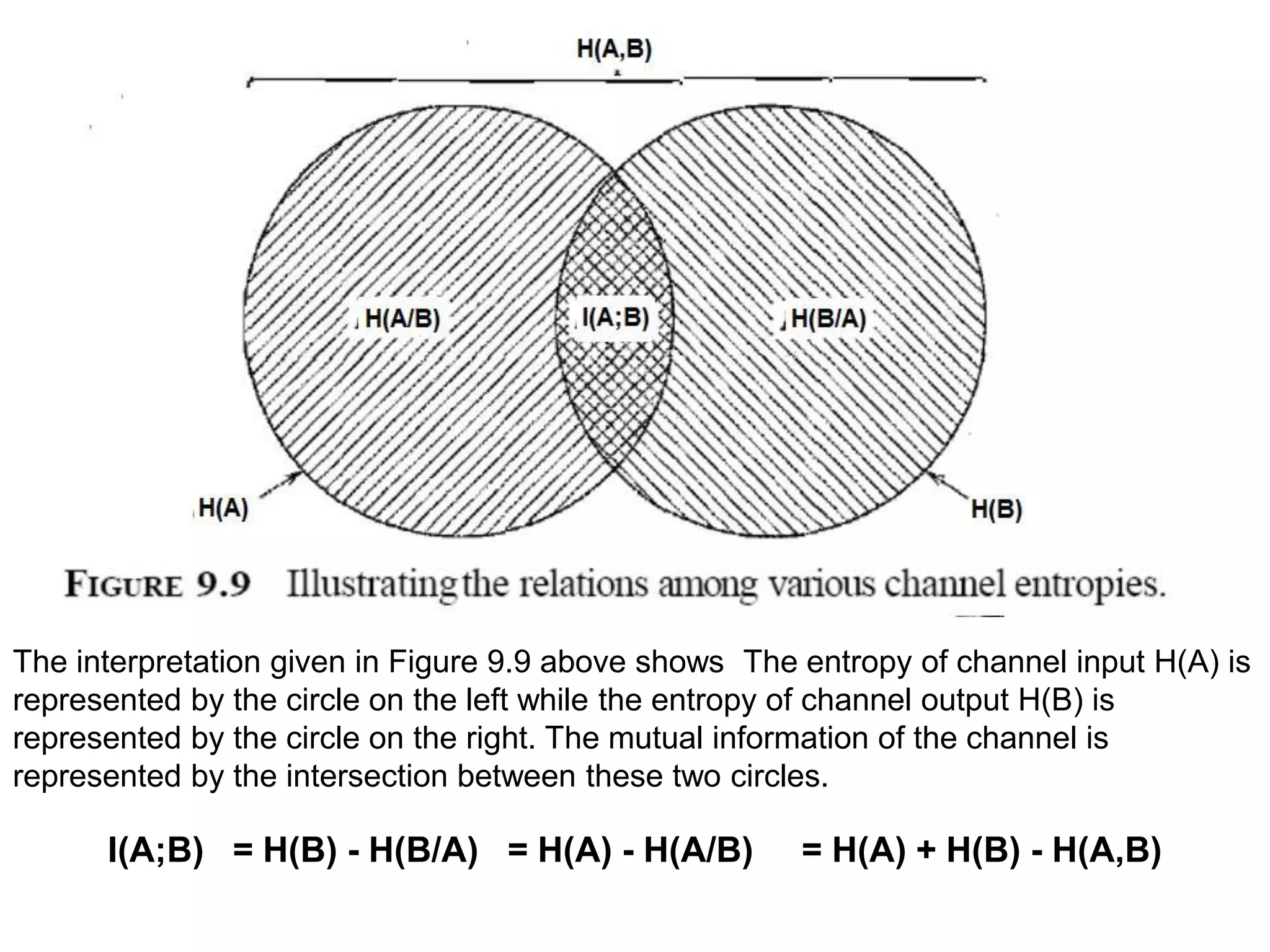

10. The interpretation given in Figure 9.9 above shows The entropy of channel input H(A) is
represented by the circle on the left while the entropy of channel output H(B) is
represented by the circle on the right. The mutual information of the channel is
represented by the intersection between these two circles.
I(A;B) = H(B) - H(B/A) = H(A) - H(A/B) = H(A) + H(B) - H(A,B)

11. Problem 1
Let 𝑝 𝑎1, 𝑏1 =
1
3
, 𝑝 𝑎1, 𝑏2 =
1
3
, 𝑝 𝑎2, 𝑏1 = 0, 𝑝 𝑎2, 𝑏2 =
1
3
Find 𝐻 𝐴 , 𝐻 𝐵 , 𝐻 𝐴, 𝐵 , 𝐻 𝐴 𝐵 𝐻(𝐵|𝐴), I 𝐴, 𝐵 .

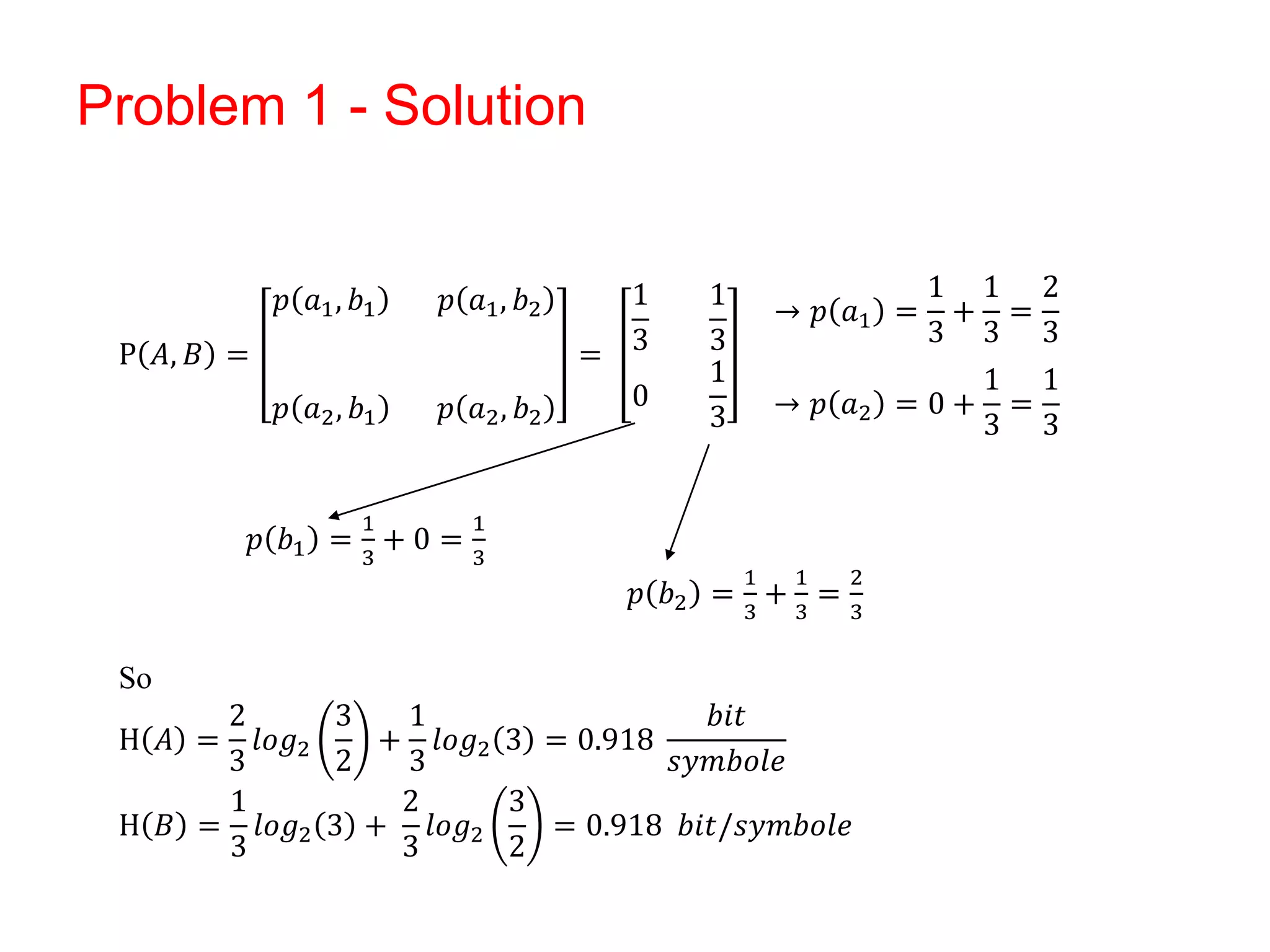

12. Problem 1 - Solution
P 𝐴, 𝐵 =
𝑝 𝑎1, 𝑏1 𝑝 𝑎1, 𝑏2
𝑝 𝑎2, 𝑏1 𝑝 𝑎2, 𝑏2
=
1
3
1
3
0
1
3
→ 𝑝 𝑎1 =
1
3
+
1
3
=
2
3
→ 𝑝 𝑎2 = 0 +
1
3
=
1
3
𝑝 𝑏1 =
1
3
+ 0 =
1
3
𝑝 𝑏2 =
1
3
+
1
3
=
2
3
So
H 𝐴 =
2
3
𝑙𝑜𝑔2
3
2
+
1
3
𝑙𝑜𝑔2 3 = 0.918
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙𝑒
H 𝐵 =
1
3
𝑙𝑜𝑔2 3 +
2
3
𝑙𝑜𝑔2
3
2
= 0.918 𝑏𝑖𝑡/𝑠𝑦𝑚𝑏𝑜𝑙𝑒

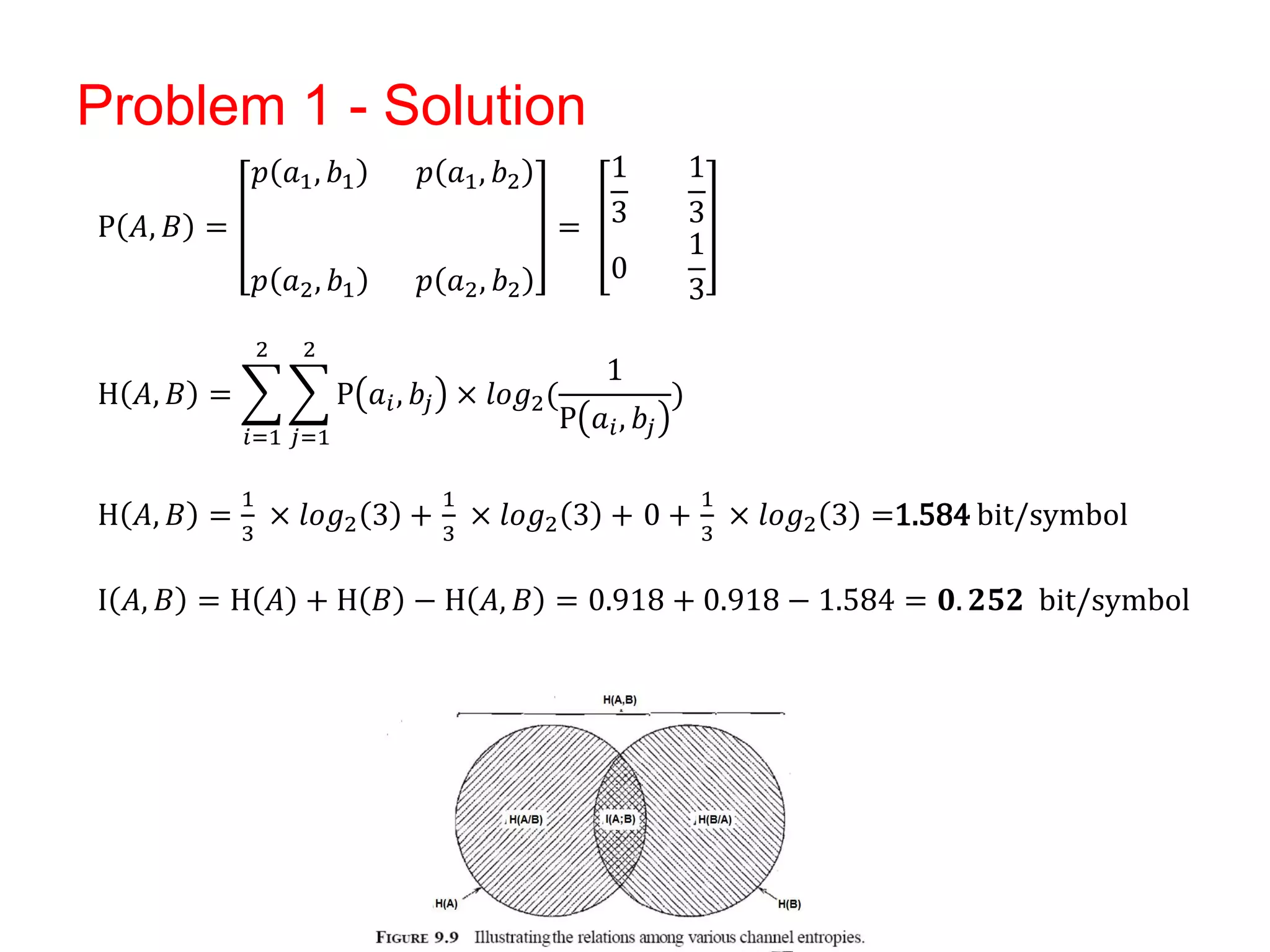

13. Problem 1 - Solution
P 𝐴, 𝐵 =
𝑝 𝑎1, 𝑏1 𝑝 𝑎1, 𝑏2
𝑝 𝑎2, 𝑏1 𝑝 𝑎2, 𝑏2
=
1
3
1
3
0
1
3
H 𝐴, 𝐵 =
𝑖=1
2
𝑗=1
2
P 𝑎𝑖, 𝑏𝑗 × 𝑙𝑜𝑔2(
1
P 𝑎𝑖, 𝑏𝑗
)
H 𝐴, 𝐵 =
1
3
× 𝑙𝑜𝑔2 3 +
1
3
× 𝑙𝑜𝑔2 3 + 0 +
1
3
× 𝑙𝑜𝑔2 3 =1.584 bit/symbol
I 𝐴, 𝐵 = H 𝐴 + H 𝐵 − H 𝐴, 𝐵 = 0.918 + 0.918 − 1.584 = 𝟎. 𝟐𝟓𝟐 bit/symbol

14. Problem 1 - Solution
H 𝐴|𝐵 = H 𝐴, 𝐵 − H 𝐵 = 1.584 − 0.918 =0.666 bit/symbol
H 𝐵|𝐴 = H 𝐴, 𝐵 − H 𝐴 = 1.584 − 0.918 = 0.666 bit/symbol

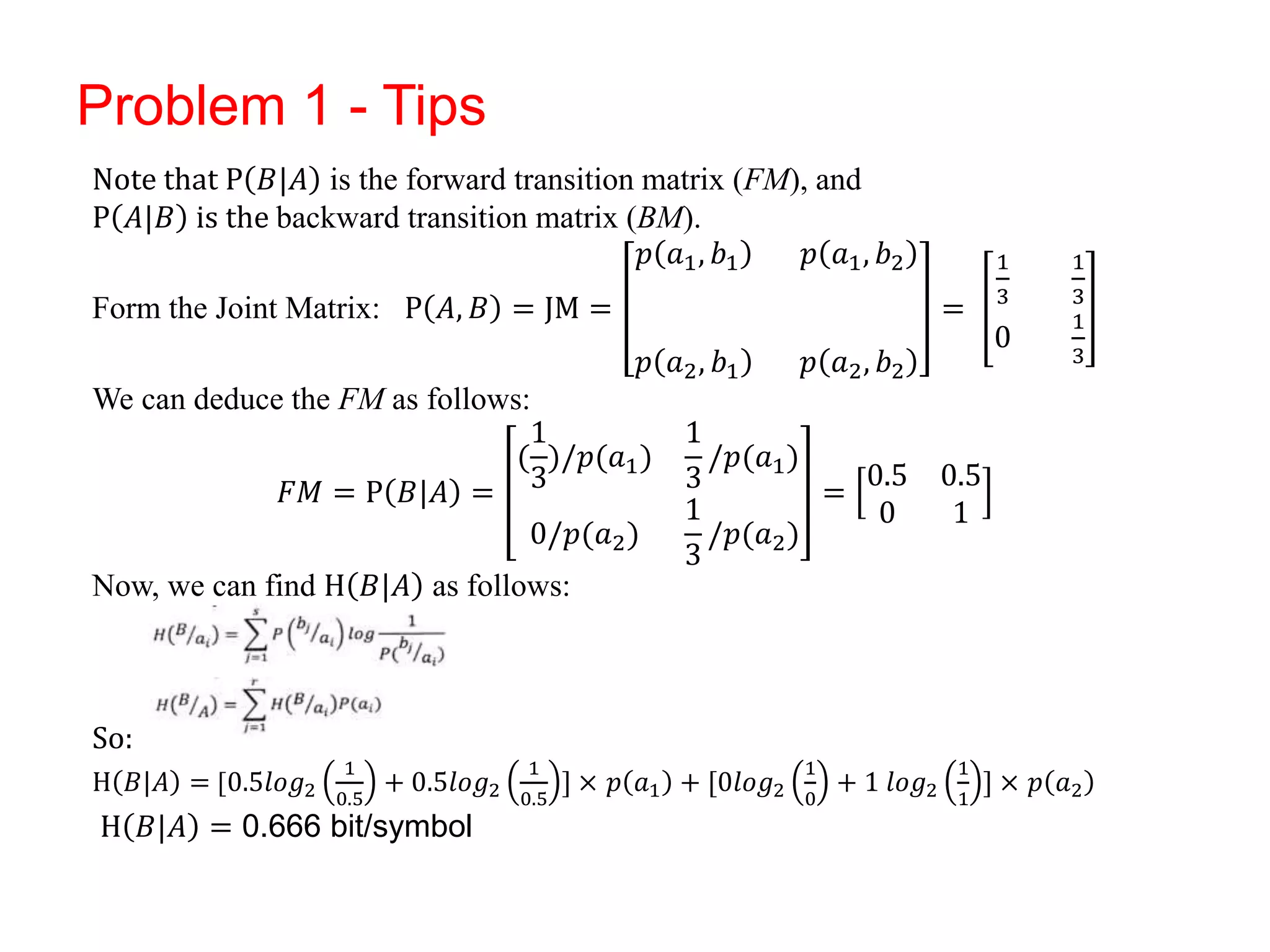

15. Problem 1 - Tips
Note that P 𝐵|𝐴 is the forward transition matrix (FM), and
P 𝐴|𝐵 is the backward transition matrix (BM).
Form the Joint Matrix: P 𝐴, 𝐵 = JM =
𝑝 𝑎1, 𝑏1 𝑝 𝑎1, 𝑏2
𝑝 𝑎2, 𝑏1 𝑝 𝑎2, 𝑏2
=
1
3
1
3
0
1
3
We can deduce the FM as follows:
𝐹𝑀 = P 𝐵|𝐴 =
(
1
3
)/𝑝(𝑎1)
1
3
/𝑝(𝑎1)
0/𝑝(𝑎2)
1
3
/𝑝(𝑎2)
=
0.5 0.5
0 1
Now, we can find H 𝐵|𝐴 as follows:
So:
H 𝐵|𝐴 = [0.5𝑙𝑜𝑔2
1
0.5
+ 0.5𝑙𝑜𝑔2
1
0.5
] × 𝑝 𝑎1 + [0𝑙𝑜𝑔2
1
0
+ 1 𝑙𝑜𝑔2
1
1
] × 𝑝 𝑎2
H 𝐵|𝐴 = 0.666 bit/symbol

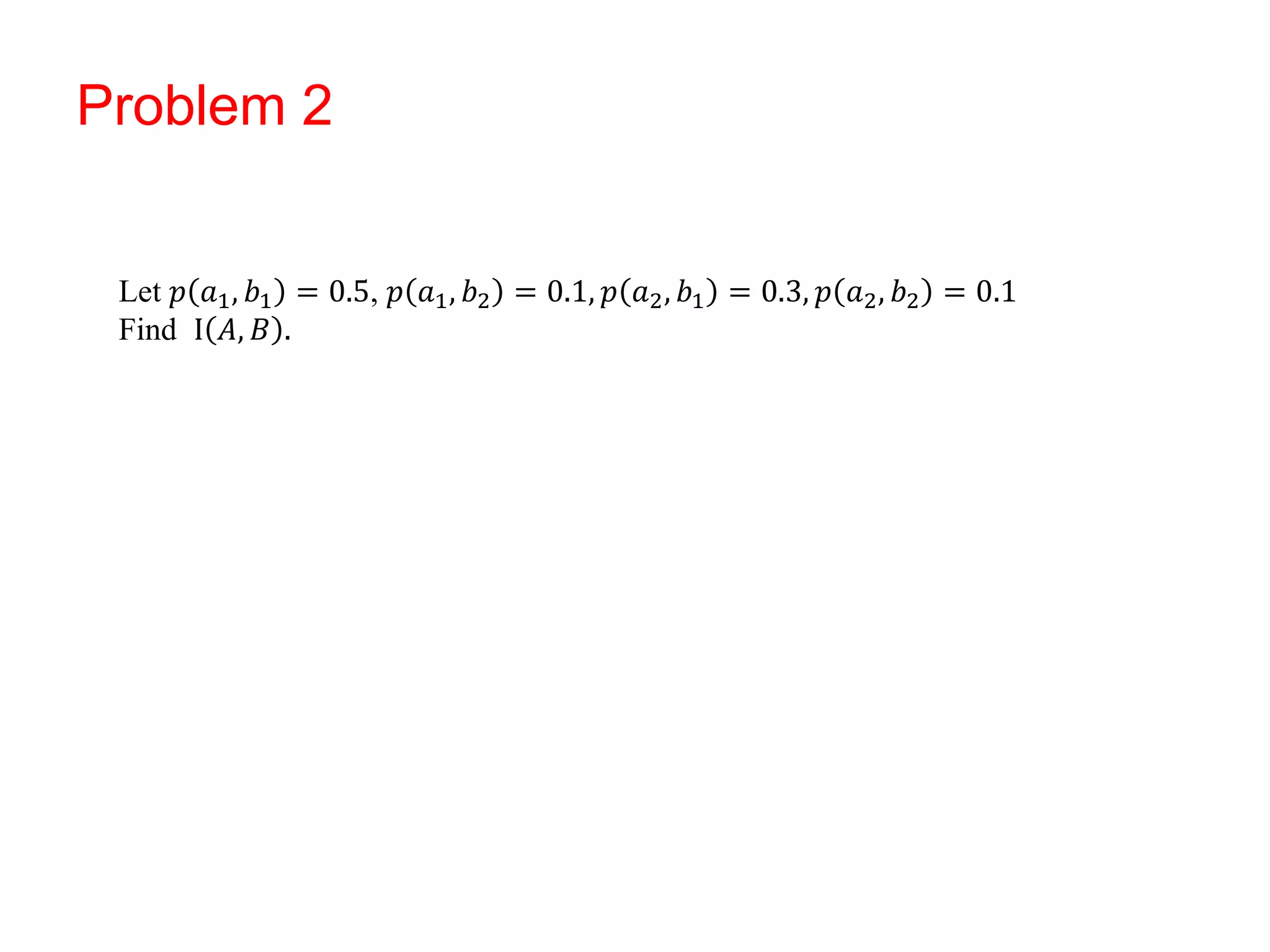

16. Problem 2
Let 𝑝 𝑎1, 𝑏1 = 0.5, 𝑝 𝑎1, 𝑏2 = 0.1, 𝑝 𝑎2, 𝑏1 = 0.3, 𝑝 𝑎2, 𝑏2 = 0.1
Find I 𝐴, 𝐵 .

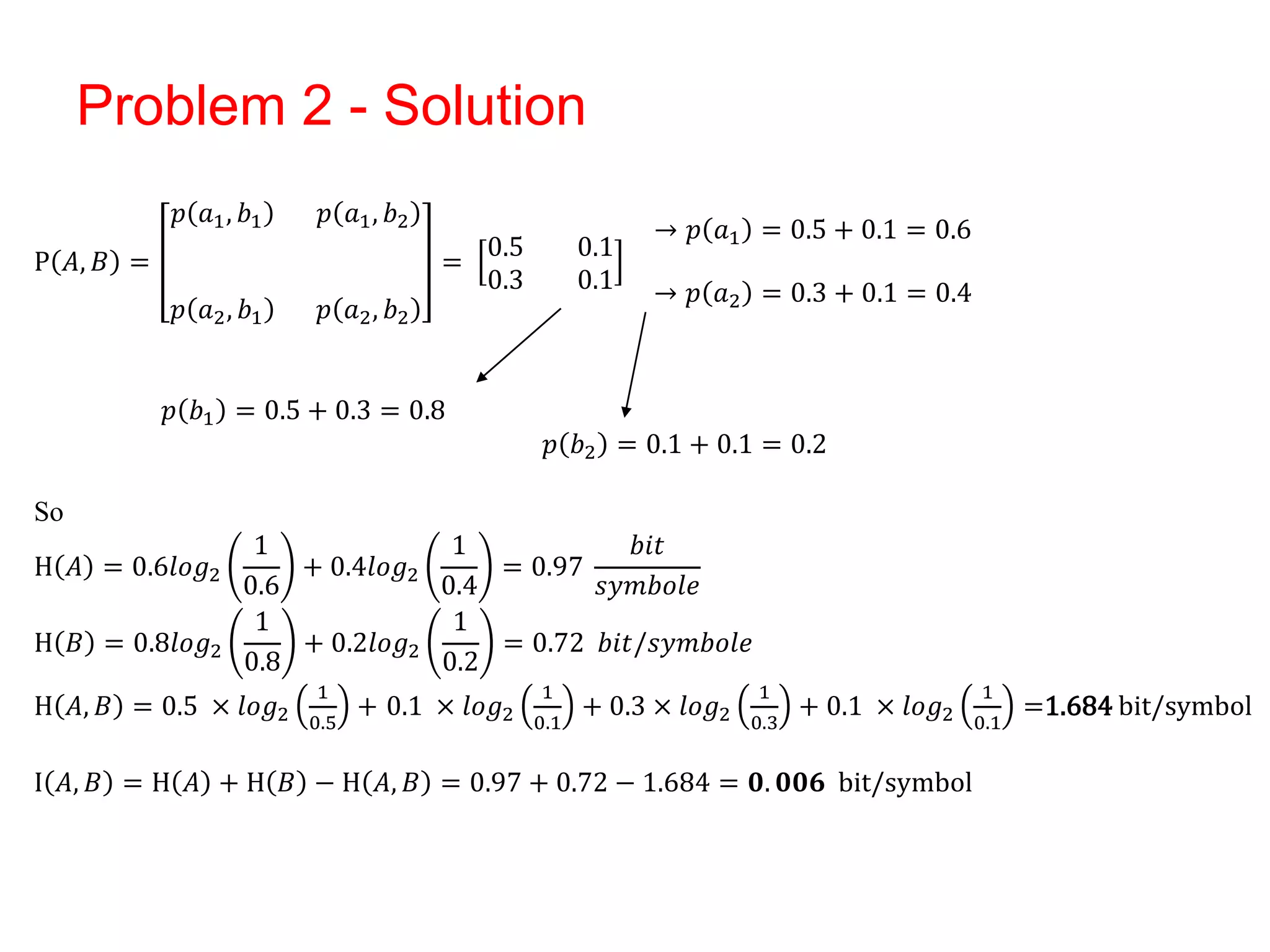

17. Problem 2 - Solution
P 𝐴, 𝐵 =
𝑝 𝑎1, 𝑏1 𝑝 𝑎1, 𝑏2
𝑝 𝑎2, 𝑏1 𝑝 𝑎2, 𝑏2
=
0.5 0.1
0.3 0.1
→ 𝑝 𝑎1 = 0.5 + 0.1 = 0.6
→ 𝑝 𝑎2 = 0.3 + 0.1 = 0.4
𝑝 𝑏1 = 0.5 + 0.3 = 0.8
𝑝 𝑏2 = 0.1 + 0.1 = 0.2
So
H 𝐴 = 0.6𝑙𝑜𝑔2
1
0.6
+ 0.4𝑙𝑜𝑔2
1
0.4
= 0.97
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙𝑒
H 𝐵 = 0.8𝑙𝑜𝑔2
1
0.8
+ 0.2𝑙𝑜𝑔2
1
0.2
= 0.72 𝑏𝑖𝑡/𝑠𝑦𝑚𝑏𝑜𝑙𝑒
H 𝐴, 𝐵 = 0.5 × 𝑙𝑜𝑔2
1
0.5
+ 0.1 × 𝑙𝑜𝑔2
1
0.1
+ 0.3 × 𝑙𝑜𝑔2
1
0.3
+ 0.1 × 𝑙𝑜𝑔2
1
0.1
=1.684 bit/symbol
I 𝐴, 𝐵 = H 𝐴 + H 𝐵 − H 𝐴, 𝐵 = 0.97 + 0.72 − 1.684 = 𝟎. 𝟎𝟎𝟔 bit/symbol

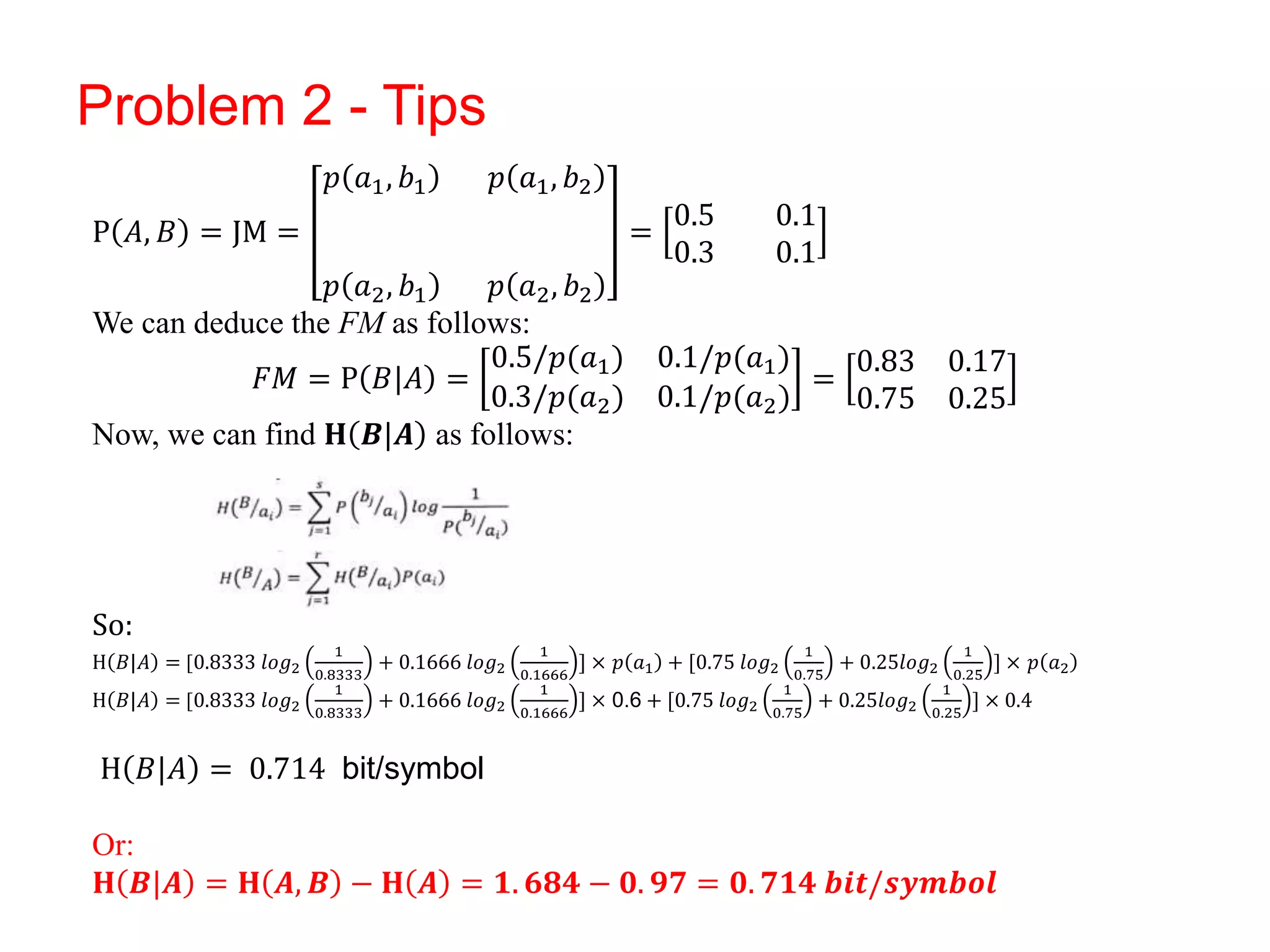

18. Problem 2 - Tips
P 𝐴, 𝐵 = JM =
𝑝 𝑎1, 𝑏1 𝑝 𝑎1, 𝑏2
𝑝 𝑎2, 𝑏1 𝑝 𝑎2, 𝑏2
=
0.5 0.1
0.3 0.1
We can deduce the FM as follows:
𝐹𝑀 = P 𝐵|𝐴 =
0.5/𝑝(𝑎1) 0.1/𝑝(𝑎1)
0.3/𝑝(𝑎2) 0.1/𝑝(𝑎2)
=
0.83 0.17
0.75 0.25
Now, we can find 𝐇 𝑩|𝑨 as follows:
So:
H 𝐵|𝐴 = [0.8333 𝑙𝑜𝑔2
1
0.8333
+ 0.1666 𝑙𝑜𝑔2
1
0.1666
] × 𝑝 𝑎1 + [0.75 𝑙𝑜𝑔2
1
0.75
+ 0.25𝑙𝑜𝑔2
1
0.25
] × 𝑝 𝑎2
H 𝐵|𝐴 = [0.8333 𝑙𝑜𝑔2
1
0.8333
+ 0.1666 𝑙𝑜𝑔2
1
0.1666
] × 0.6 + [0.75 𝑙𝑜𝑔2
1
0.75
+ 0.25𝑙𝑜𝑔2
1
0.25
] × 0.4
H 𝐵|𝐴 = 0.714 bit/symbol
Or:
𝐇 𝑩|𝑨 = 𝐇 𝑨, 𝑩 − 𝐇 𝑨 = 𝟏. 𝟔𝟖𝟒 − 𝟎. 𝟗𝟕 = 𝟎. 𝟕𝟏𝟒 𝒃𝒊𝒕/𝒔𝒚𝒎𝒃𝒐𝒍

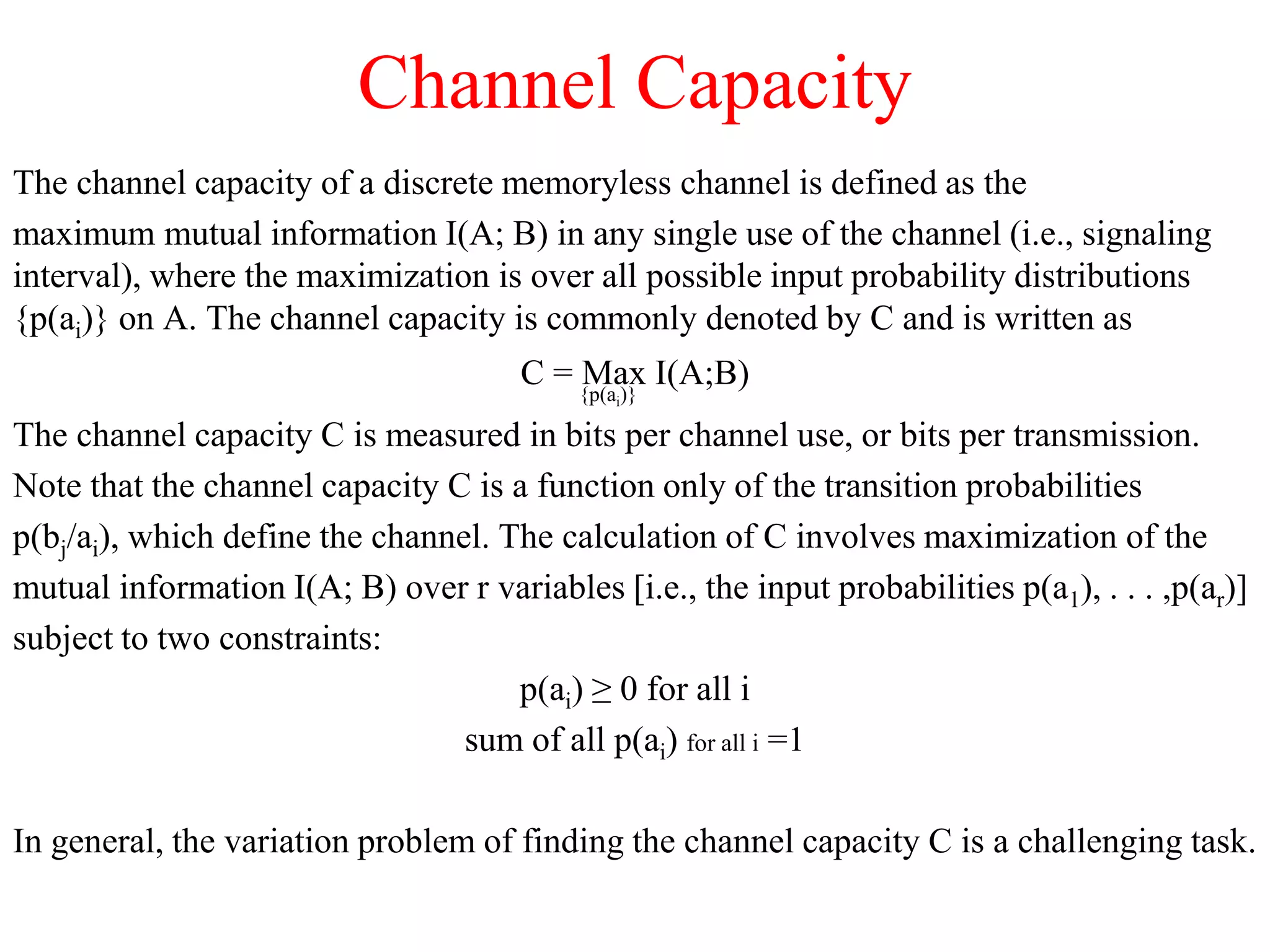

19. Channel Capacity
The channel capacity of a discrete memoryless channel is defined as the
maximum mutual information I(A; B) in any single use of the channel (i.e., signaling
interval), where the maximization is over all possible input probability distributions
{p(ai)} on A. The channel capacity is commonly denoted by C and is written as
C = Max I(A;B)
{p(ai)}
The channel capacity C is measured in bits per channel use, or bits per transmission.
Note that the channel capacity C is a function only of the transition probabilities
p(bj/ai), which define the channel. The calculation of C involves maximization of the
mutual information I(A; B) over r variables [i.e., the input probabilities p(a1), . . . ,p(ar)]
subject to two constraints:
p(ai) ≥ 0 for all i
sum of all p(ai) for all i =1
In general, the variation problem of finding the channel capacity C is a challenging task.

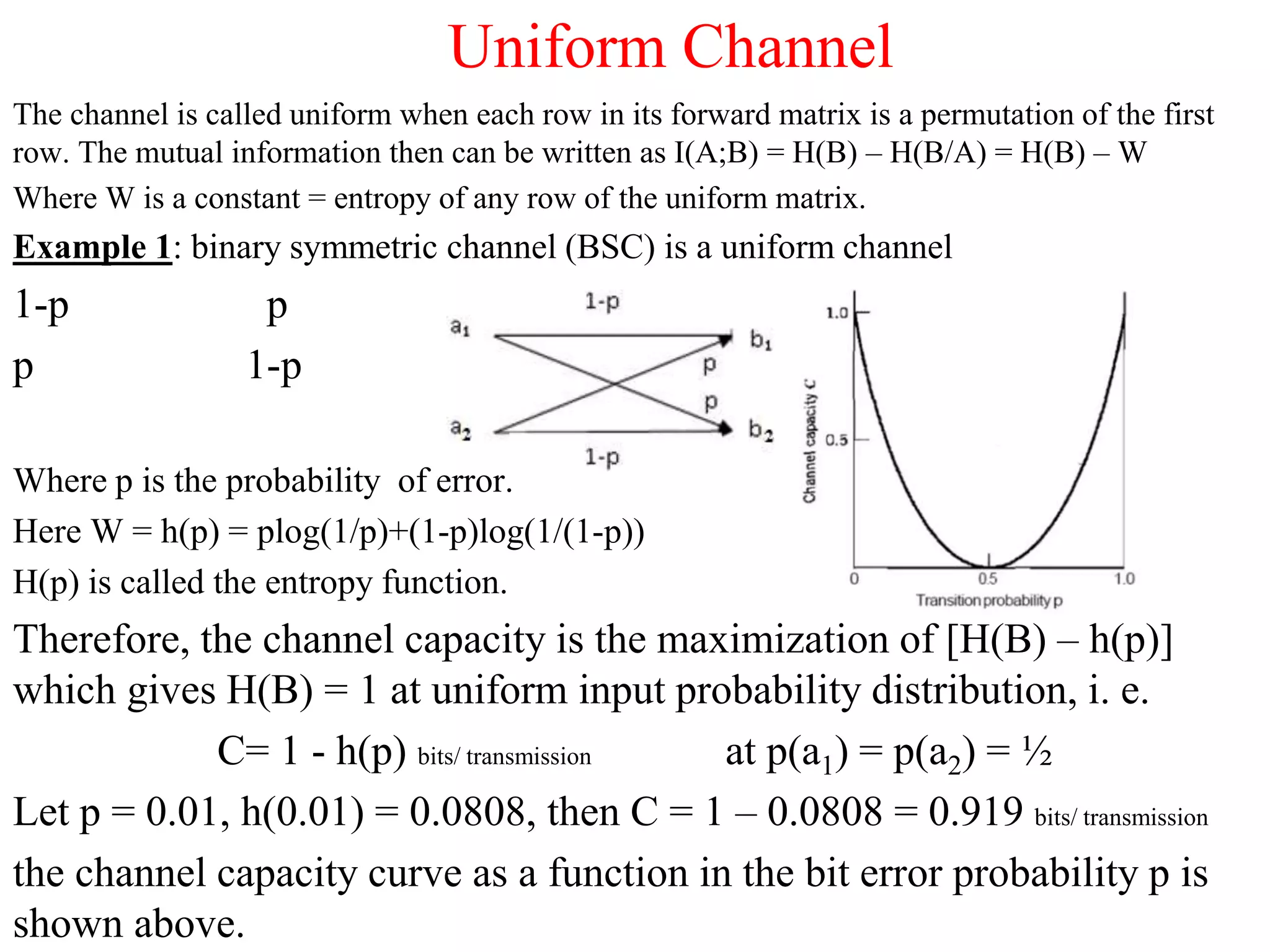

20. Uniform Channel
The channel is called uniform when each row in its forward matrix is a permutation of the first
row. The mutual information then can be written as I(A;B) = H(B) – H(B/A) = H(B) – W
Where W is a constant = entropy of any row of the uniform matrix.
Example 1: binary symmetric channel (BSC) is a uniform channel
1-p p
p 1-p
Where p is the probability of error.
Here W = h(p) = plog(1/p)+(1-p)log(1/(1-p))
H(p) is called the entropy function.
Therefore, the channel capacity is the maximization of [H(B) – h(p)]
which gives H(B) = 1 at uniform input probability distribution, i. e.
C= 1 - h(p) bits/ transmission at p(a1) = p(a2) = ½
Let p = 0.01, h(0.01) = 0.0808, then C = 1 – 0.0808 = 0.919 bits/ transmission
the channel capacity curve as a function in the bit error probability p is
shown above.

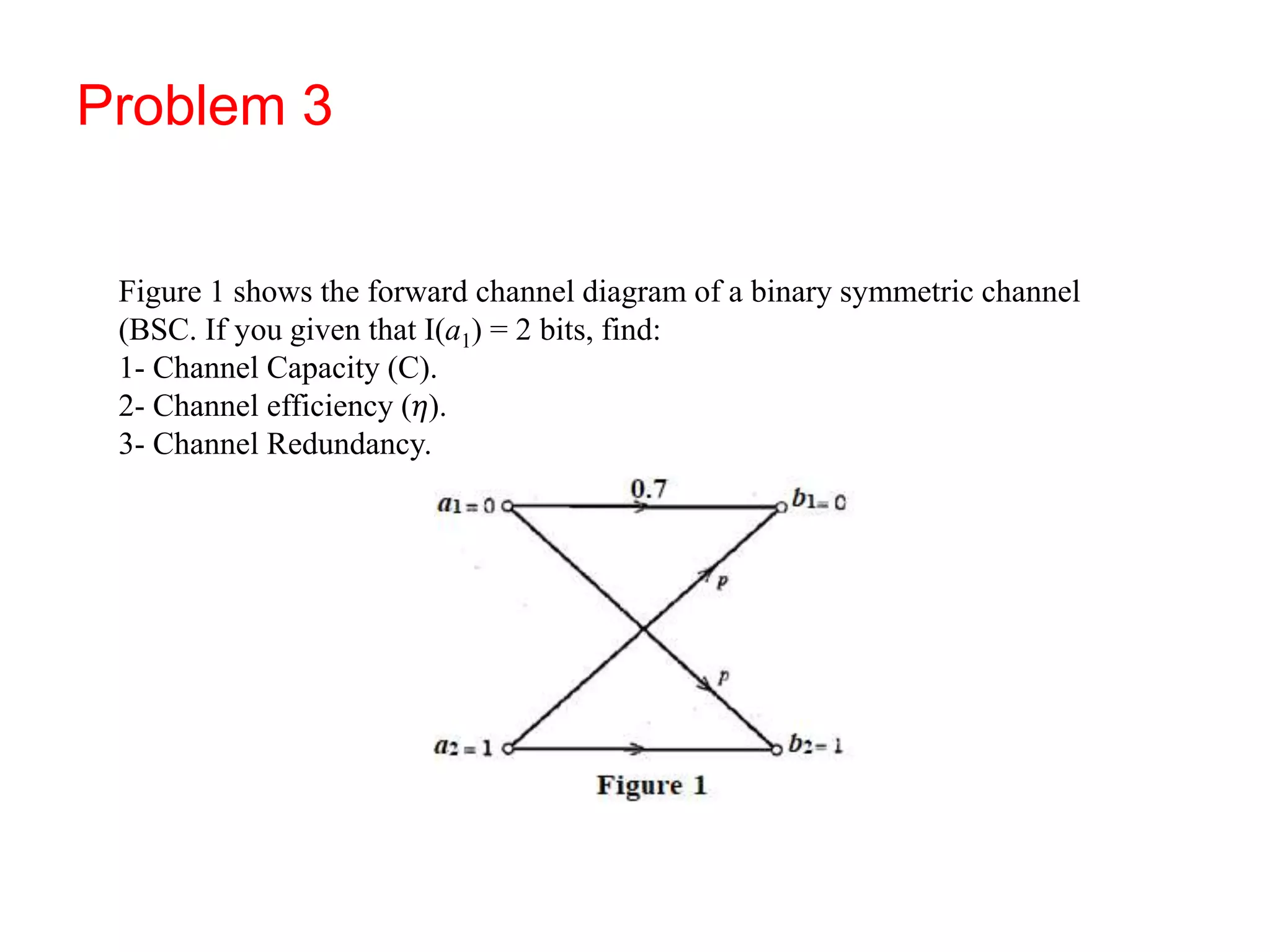

21. Problem 3
Figure 1 shows the forward channel diagram of a binary symmetric channel
(BSC. If you given that I(a1) = 2 bits, find:
1- Channel Capacity (C).
2- Channel efficiency (𝜂).
3- Channel Redundancy.

22. Problem 3 - Solution

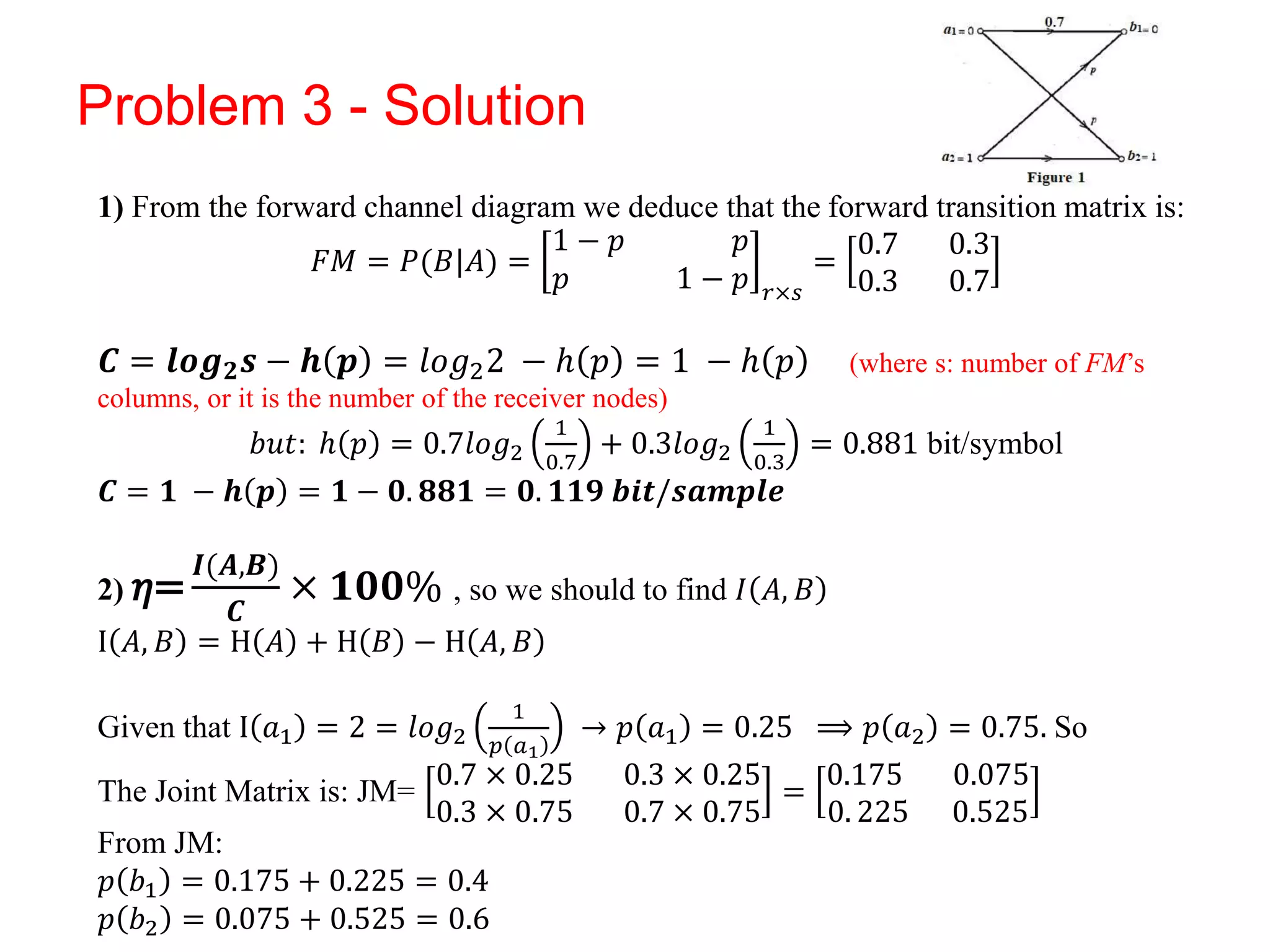

1) From the forward channel diagram we deduce that the forward transition matrix is:
𝐹𝑀 = 𝑃(𝐵|𝐴) =
1 − 𝑝 𝑝
𝑝 1 − 𝑝 𝑟×𝑠
=
0.7 0.3
0.3 0.7
𝑪 = 𝒍𝒐𝒈𝟐𝒔 − 𝒉 𝒑 = 𝑙𝑜𝑔22 − ℎ 𝑝 = 1 − ℎ 𝑝 (where s: number of FM’s
columns, or it is the number of the receiver nodes)
𝑏𝑢𝑡: ℎ 𝑝 = 0.7𝑙𝑜𝑔2
1
0.7
+ 0.3𝑙𝑜𝑔2
1
0.3
= 0.881 bit/symbol
𝑪 = 𝟏 − 𝒉 𝒑 = 𝟏 − 𝟎. 𝟖𝟖𝟏 = 𝟎. 𝟏𝟏𝟗 𝒃𝒊𝒕/𝒔𝒂𝒎𝒑𝒍𝒆
2) 𝜂=
𝑰(𝑨,𝑩)
𝑪
× 𝟏𝟎𝟎% , so we should to find 𝐼 𝐴, 𝐵
I 𝐴, 𝐵 = H 𝐴 + H 𝐵 − H 𝐴, 𝐵
Given that I 𝑎1 = 2 = 𝑙𝑜𝑔2
1
𝑝 𝑎1
→ 𝑝 𝑎1 = 0.25 ⟹ 𝑝 𝑎2 = 0.75. So
The Joint Matrix is: JM=
0.7 × 0.25 0.3 × 0.25
0.3 × 0.75 0.7 × 0.75
=
0.175 0.075
0. 225 0.525
From JM:
𝑝 𝑏1 = 0.175 + 0.225 = 0.4
𝑝 𝑏2 = 0.075 + 0.525 = 0.6

23. Problem 3 - Solution
𝑝 𝑎1 = 0.25
𝑝 𝑎2 = 0.75
𝐻 𝐴 = 0.25𝑙𝑜𝑔2
1
0.25
+ 0.75𝑙𝑜𝑔2
1
0.75
= 0.811
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙
𝑝 𝑏1 = 0.4
𝑝 𝑏2 = 0.6
𝐻 𝐵 = 0.4𝑙𝑜𝑔2
1
0.4
+ 0.6𝑙𝑜𝑔2
1
0.6
= 0.97
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙
JM=
0.175 0.075
0. 225 0.525
𝐻 𝐴, 𝐵
= 0.175 𝑙𝑜𝑔2
1
0.175
+ 0.075 𝑙𝑜𝑔2
1
0.075
+ 0. 225 𝑙𝑜𝑔2
1
0. 225
+ 0.525 𝑙𝑜𝑔2
1
0.525
= 1.692
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙
I 𝐴, 𝐵 = H 𝐴 + H 𝐵 − H 𝐴, 𝐵 =0.811+0.97-1.692=0.089 bit/symbol
[or 𝐈 𝑨, 𝑩 = 𝐇 𝑩 − 𝒉 𝒑 = 0.97-0.881=0.089]
𝜂=
𝑰(𝑨, 𝑩)
𝑪
× 𝟏𝟎𝟎% =
𝟎. 𝟎𝟖𝟗
𝟎. 𝟏𝟏𝟗
× 𝟏𝟎𝟎% = 𝟕𝟓%
3) Redundancy: 𝜸=1- 𝜂 = 25%

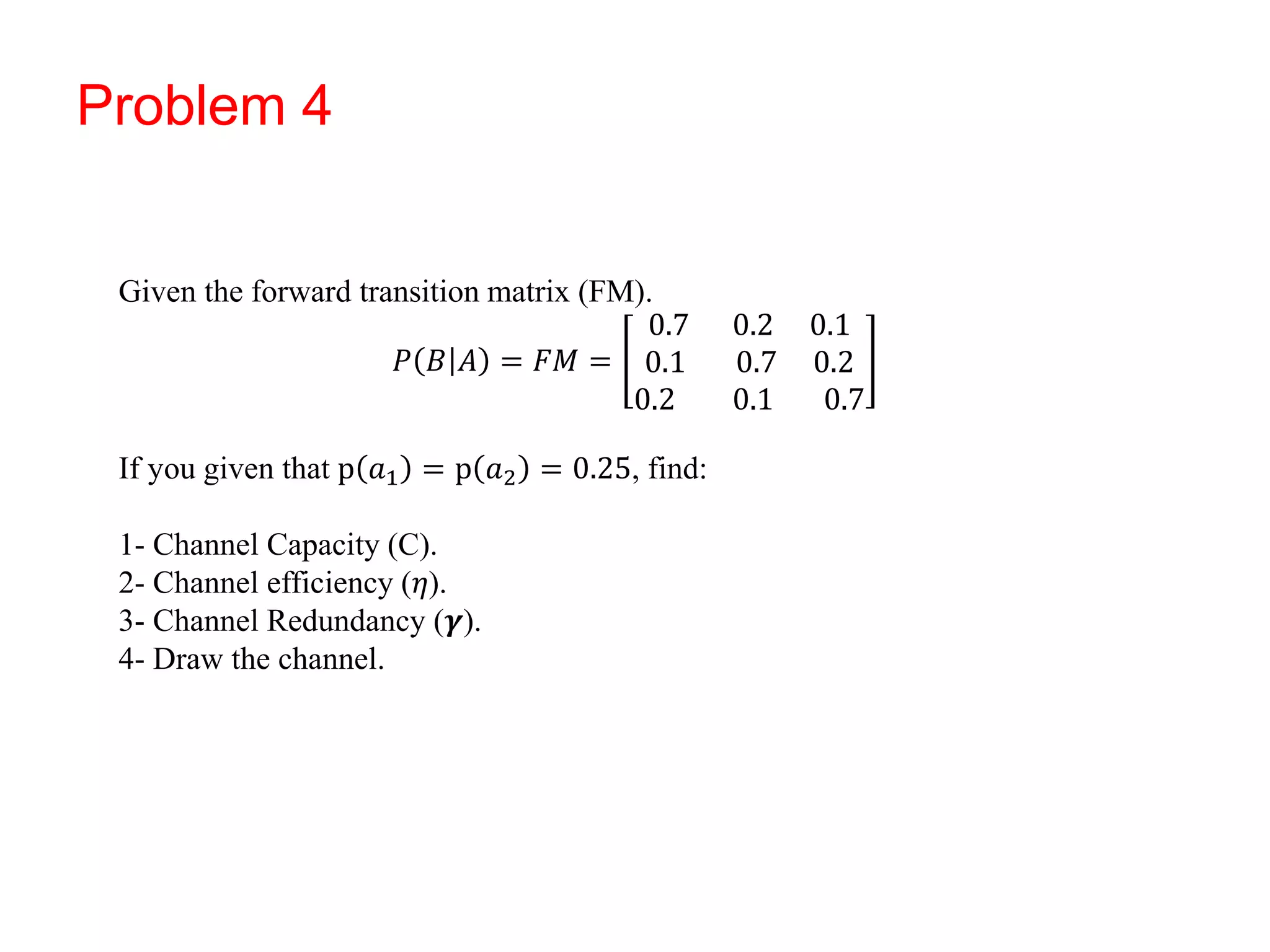

24. Problem 4
Given the forward transition matrix (FM).
𝑃 𝐵 𝐴 = 𝐹𝑀 =
0.7 0.2 0.1
0.1 0.7 0.2
0.2 0.1 0.7
If you given that p 𝑎1 = p 𝑎2 = 0.25, find:
1- Channel Capacity (C).
2- Channel efficiency (𝜂).
3- Channel Redundancy (𝜸).
4- Draw the channel.

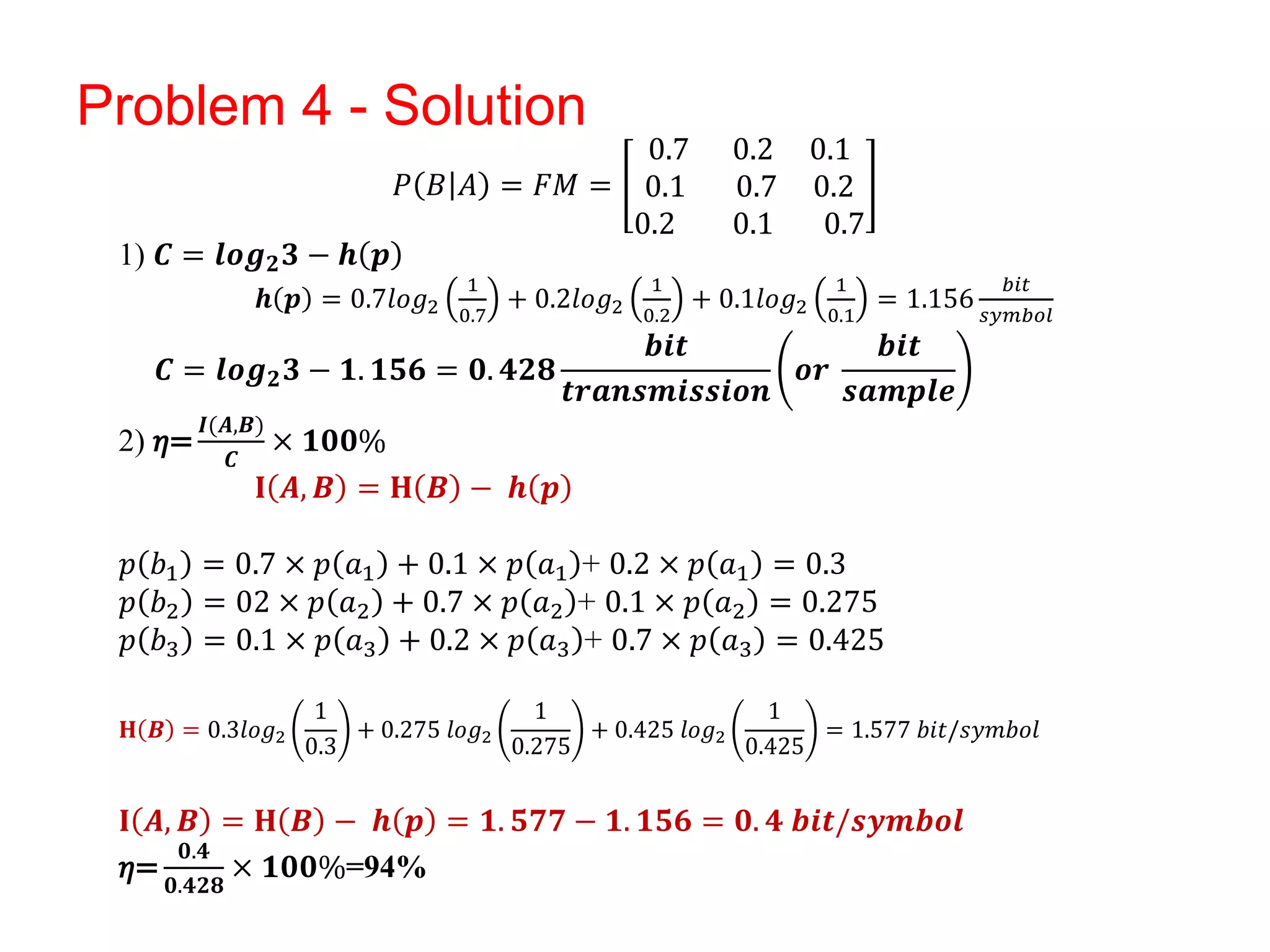

25. Problem 4 - Solution
𝑃 𝐵 𝐴 = 𝐹𝑀 =
0.7 0.2 0.1
0.1 0.7 0.2
0.2 0.1 0.7
1) 𝑪 = 𝒍𝒐𝒈𝟐𝟑 − 𝒉 𝒑
𝒉 𝒑 = 0.7𝑙𝑜𝑔2
1
0.7
+ 0.2𝑙𝑜𝑔2
1
0.2
+ 0.1𝑙𝑜𝑔2
1
0.1
= 1.156
𝑏𝑖𝑡
𝑠𝑦𝑚𝑏𝑜𝑙
𝑪 = 𝒍𝒐𝒈𝟐𝟑 − 𝟏. 𝟏𝟓𝟔 = 𝟎. 𝟒𝟐𝟖
𝒃𝒊𝒕
𝒕𝒓𝒂𝒏𝒔𝒎𝒊𝒔𝒔𝒊𝒐𝒏
𝒐𝒓
𝒃𝒊𝒕
𝒔𝒂𝒎𝒑𝒍𝒆
2) 𝜂=
𝑰(𝑨,𝑩)
𝑪
× 𝟏𝟎𝟎%
𝐈 𝑨, 𝑩 = 𝐇 𝑩 − 𝒉 𝒑
𝑝 𝑏1 = 0.7 × 𝑝 𝑎1 + 0.1 × 𝑝 𝑎1 + 0.2 × 𝑝 𝑎1 = 0.3
𝑝 𝑏2 = 02 × 𝑝 𝑎2 + 0.7 × 𝑝 𝑎2 + 0.1 × 𝑝 𝑎2 = 0.275
𝑝 𝑏3 = 0.1 × 𝑝 𝑎3 + 0.2 × 𝑝 𝑎3 + 0.7 × 𝑝 𝑎3 = 0.425
𝐇 𝑩 = 0.3𝑙𝑜𝑔2
1
0.3
+ 0.275 𝑙𝑜𝑔2
1
0.275
+ 0.425 𝑙𝑜𝑔2
1
0.425
= 1.577 𝑏𝑖𝑡/𝑠𝑦𝑚𝑏𝑜𝑙
𝐈 𝑨, 𝑩 = 𝐇 𝑩 − 𝒉 𝒑 = 𝟏. 𝟓𝟕𝟕 − 𝟏. 𝟏𝟓𝟔 = 𝟎. 𝟒 𝒃𝒊𝒕/𝒔𝒚𝒎𝒃𝒐𝒍
𝜂=
𝟎.𝟒
𝟎.𝟒𝟐𝟖
× 𝟏𝟎𝟎%=94%

26. Problem 4 - Solution
𝑃 𝐵 𝐴 = 𝐹𝑀 =
0.7 0.2 0.1
0.1 0.7 0.2
0.2 0.1 0.7

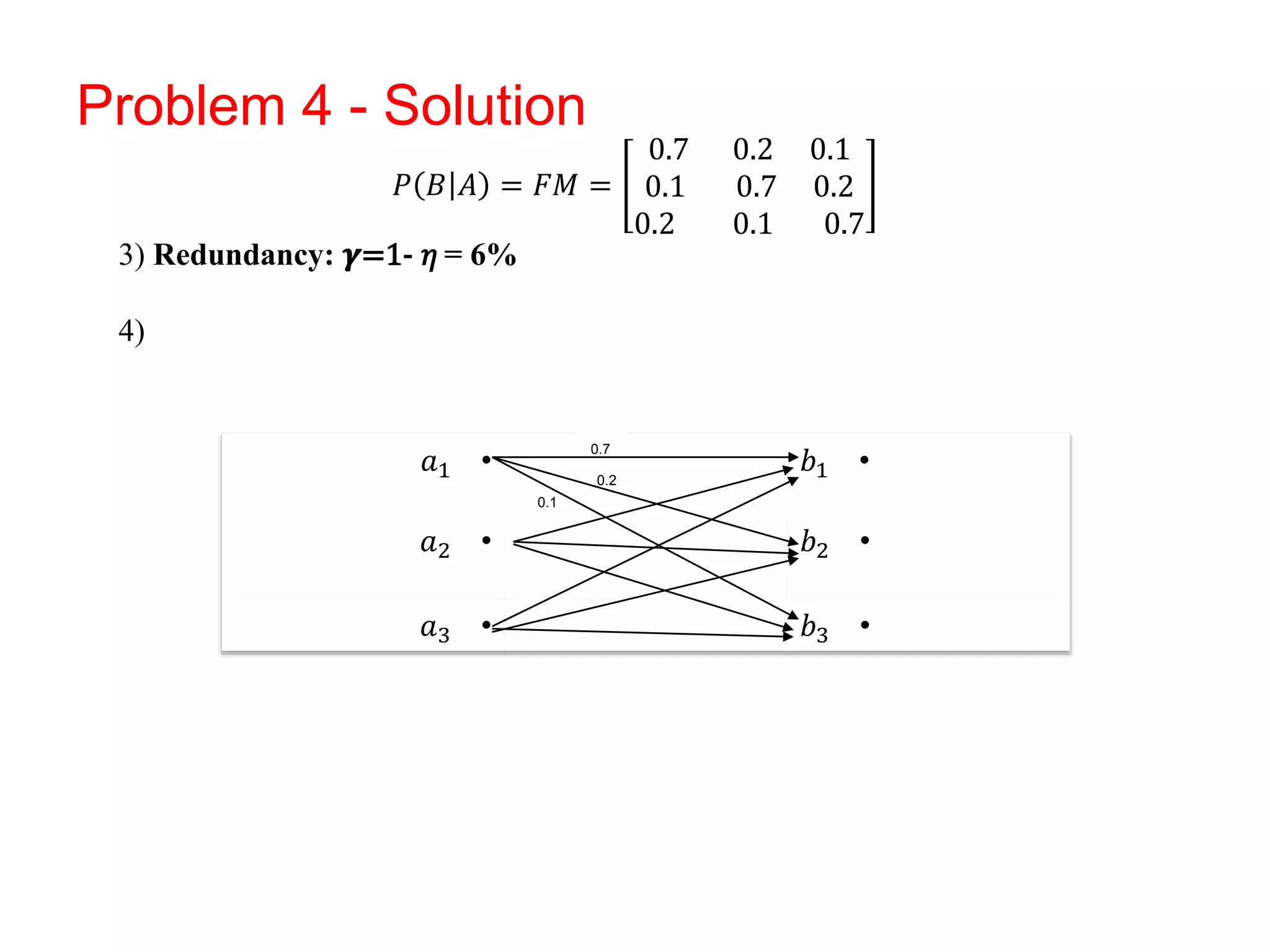

3) Redundancy: 𝜸=1- 𝜂 = 6%
4)
•
𝑎1 •
𝑏1
•
𝑎2 •
𝑏2
•
𝑎3 •
𝑏3
0.2
0.7
0.1

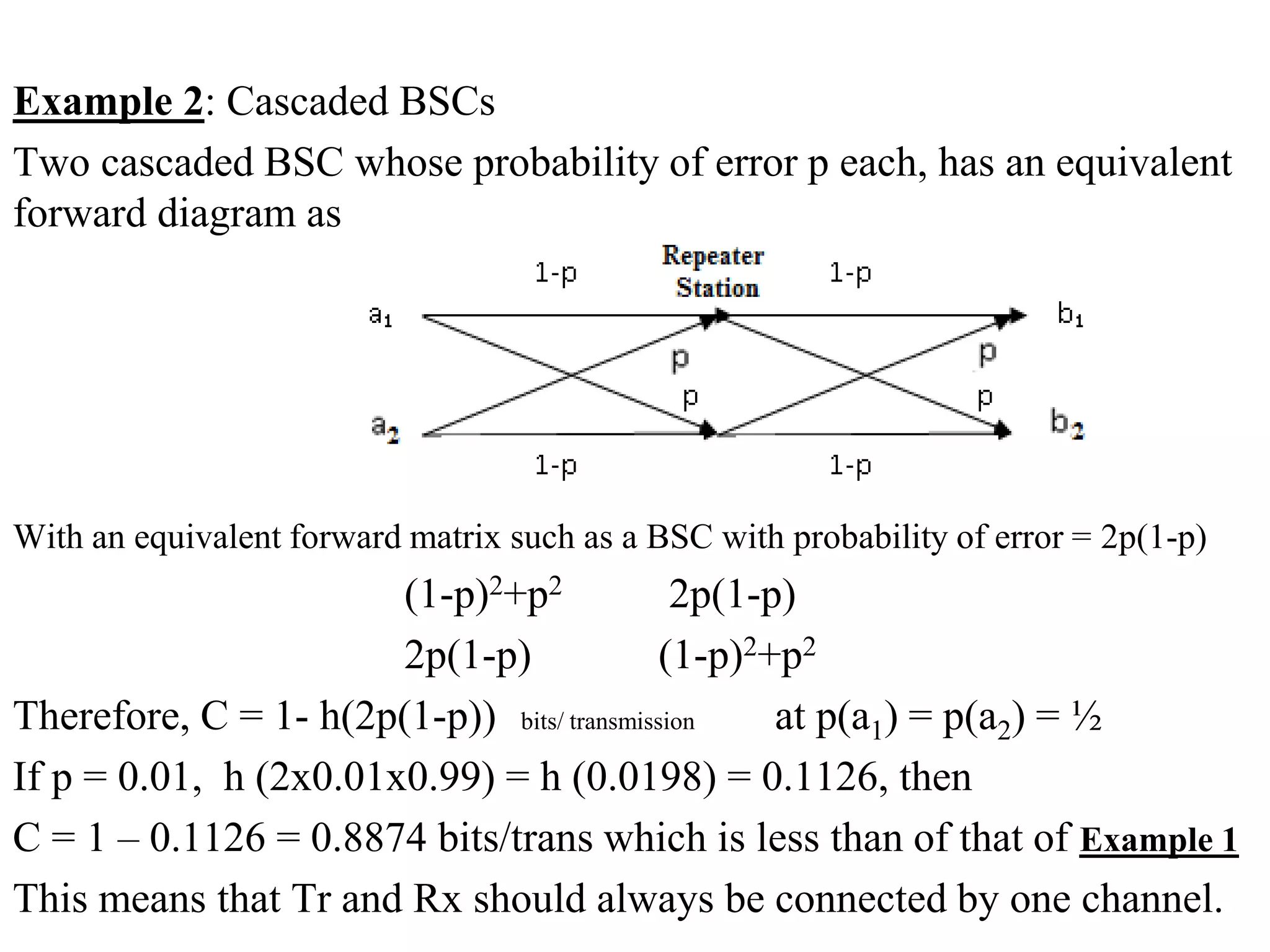

27. Example 2: Cascaded BSCs
Two cascaded BSC whose probability of error p each, has an equivalent
forward diagram as
With an equivalent forward matrix such as a BSC with probability of error = 2p(1-p)
(1-p)2+p2 2p(1-p)
2p(1-p) (1-p)2+p2
Therefore, C = 1- h(2p(1-p)) bits/ transmission at p(a1) = p(a2) = ½
If p = 0.01, h (2x0.01x0.99) = h (0.0198) = 0.1126, then
C = 1 – 0.1126 = 0.8874 bits/trans which is less than of that of Example 1
This means that Tr and Rx should always be connected by one channel.

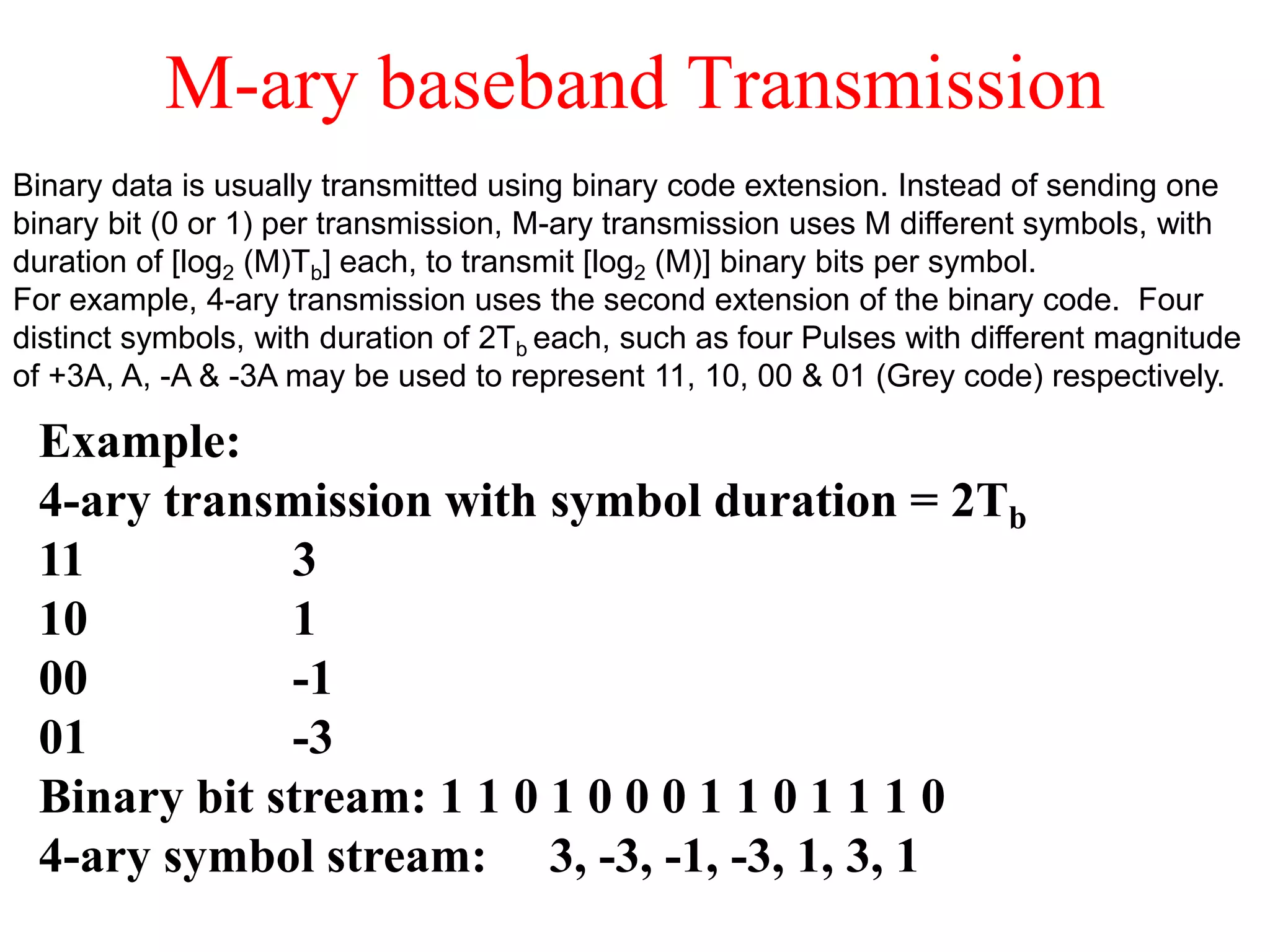

28. M-ary baseband Transmission
Binary data is usually transmitted using binary code extension. Instead of sending one
binary bit (0 or 1) per transmission, M-ary transmission uses M different symbols, with
duration of [log2 (M)Tb] each, to transmit [log2 (M)] binary bits per symbol.
For example, 4-ary transmission uses the second extension of the binary code. Four
distinct symbols, with duration of 2Tb each, such as four Pulses with different magnitude
of +3A, A, -A & -3A may be used to represent 11, 10, 00 & 01 (Grey code) respectively.
Example:
4-ary transmission with symbol duration = 2Tb
11 3
10 1
00 -1
01 -3
Binary bit stream: 1 1 0 1 0 0 0 1 1 0 1 1 1 0
4-ary symbol stream: 3, -3, -1, -3, 1, 3, 1

29. Similarly, 8-ary transmission uses the third extension of the binary code.
eight distinct symbols, with duration of 3Tb each.
Example: 8-ary transmission with symbol duration = 3Tb
Code Pulse Amplitude Threshold
111 7
6
110 5
4
100 3
2
101 1
0
001 -1
-2
000 -3
-4
010 -5
-6
011 -7
Binary bit stream: 1 1 0 1 0 0 0 1 1 0 1 1 1 0 1
8-ary symbol stream: 5, 3, -7,-7, 1

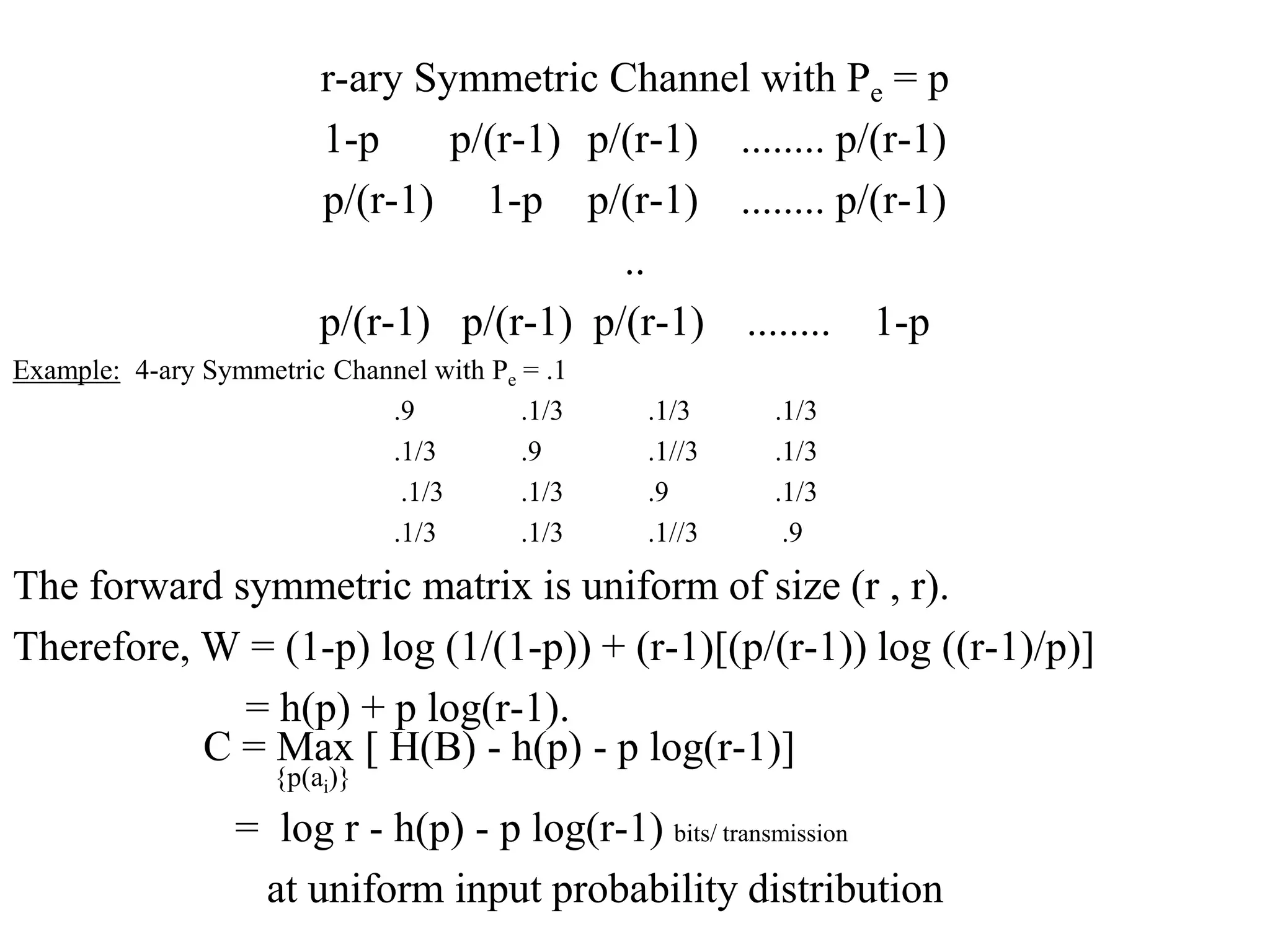

30. r-ary Symmetric Channel with Pe = p
1-p p/(r-1) p/(r-1) ........ p/(r-1)
p/(r-1) 1-p p/(r-1) ........ p/(r-1)
..
p/(r-1) p/(r-1) p/(r-1) ........ 1-p
Example: 4-ary Symmetric Channel with Pe = .1
.9 .1/3 .1/3 .1/3
.1/3 .9 .1//3 .1/3
.1/3 .1/3 .9 .1/3
.1/3 .1/3 .1//3 .9
The forward symmetric matrix is uniform of size (r , r).
Therefore, W = (1-p) log (1/(1-p)) + (r-1)[(p/(r-1)) log ((r-1)/p)]
= h(p) + p log(r-1).
C = Max [ H(B) - h(p) - p log(r-1)]
{p(ai)}
= log r - h(p) - p log(r-1) bits/ transmission
at uniform input probability distribution

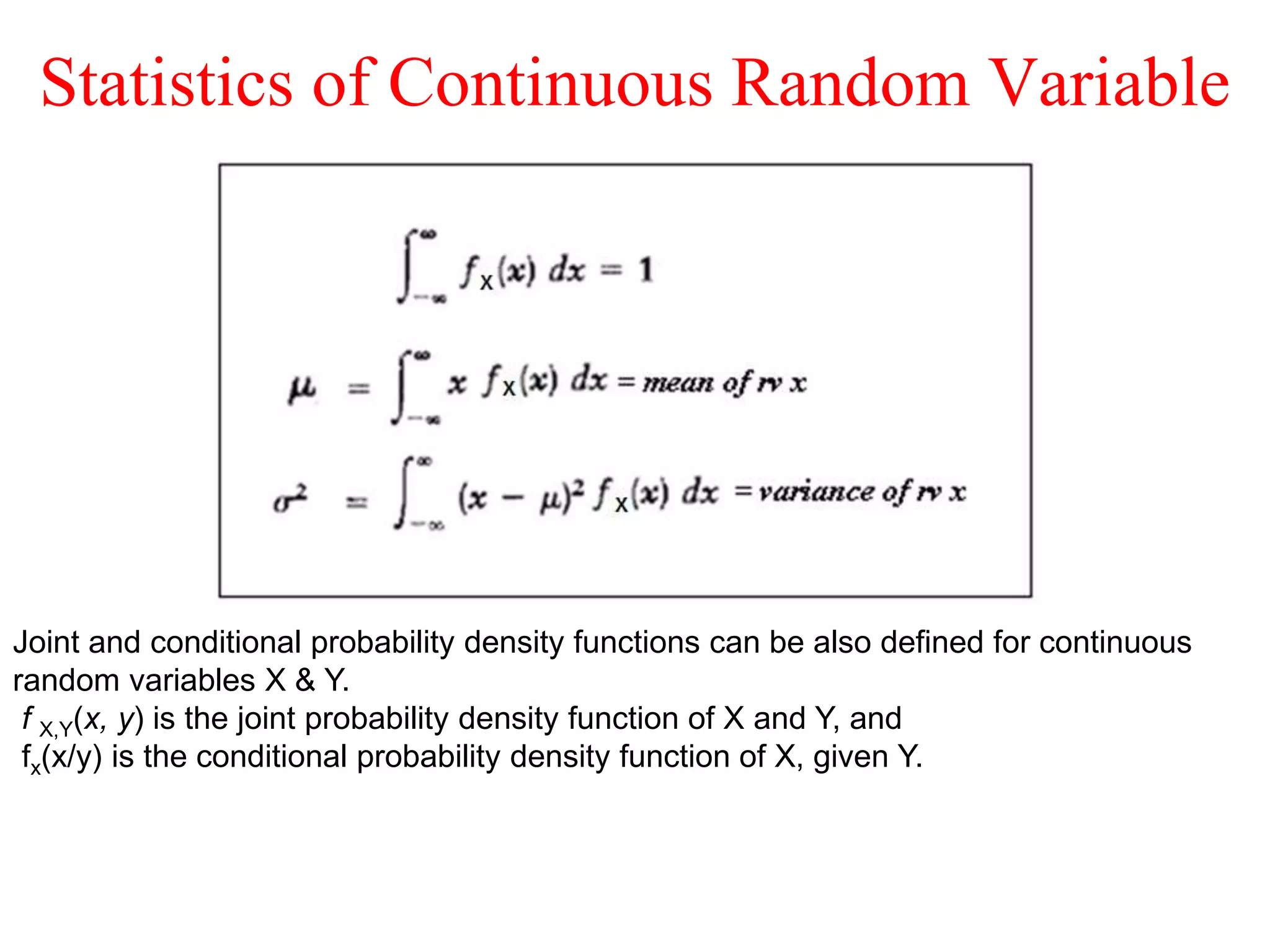

31. Statistics of Continuous Random Variable
Joint and conditional probability density functions can be also defined for continuous
random variables X & Y.
f X,Y(x, y) is the joint probability density function of X and Y, and
fx(x/y) is the conditional probability density function of X, given Y.

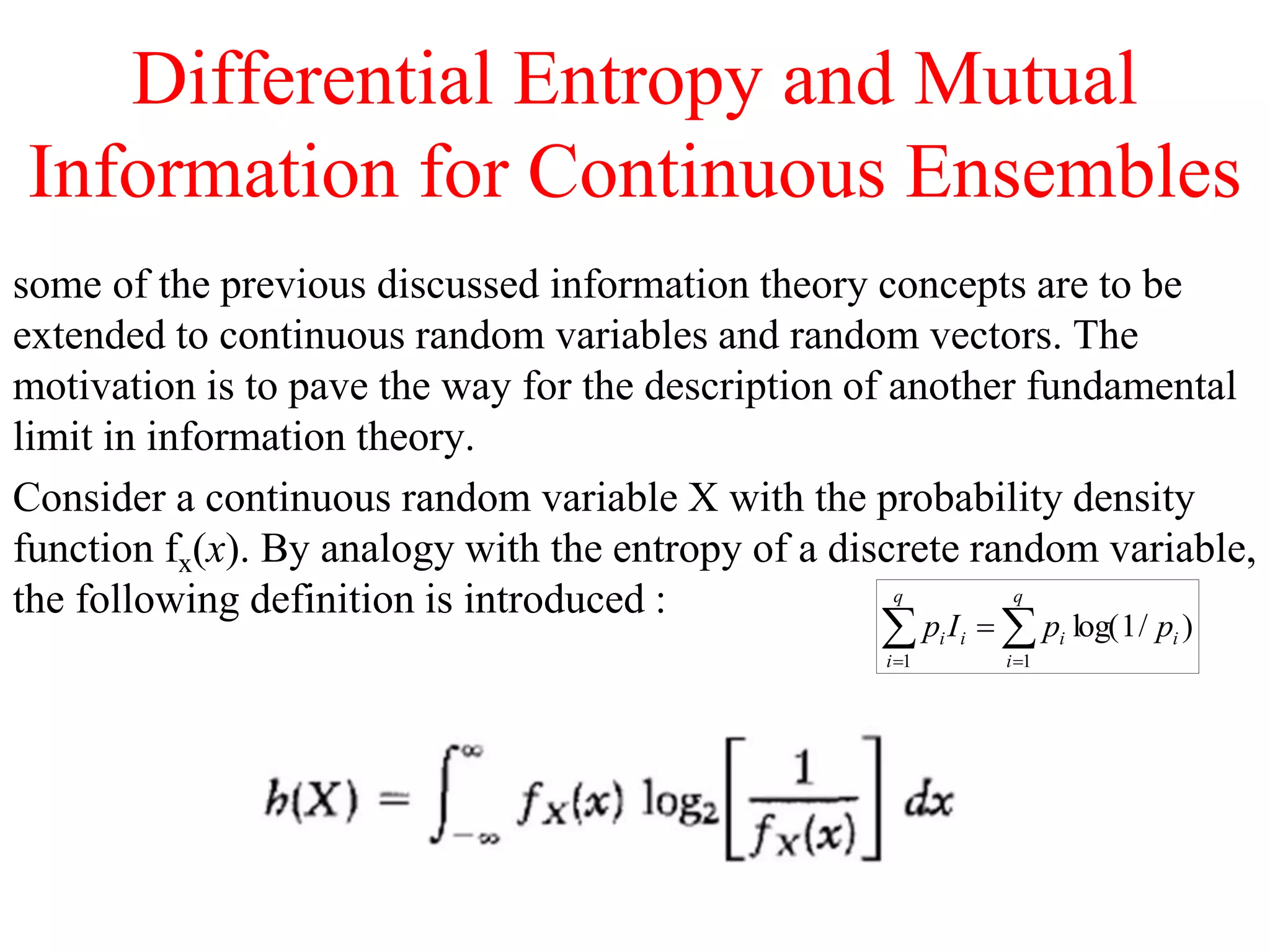

32. some of the previous discussed information theory concepts are to be
extended to continuous random variables and random vectors. The
motivation is to pave the way for the description of another fundamental
limit in information theory.
Consider a continuous random variable X with the probability density
function fx(x). By analogy with the entropy of a discrete random variable,
the following definition is introduced :
Differential Entropy and Mutual
Information for Continuous Ensembles

 


q
i
i
i
q
i
i
i p
p
I
p
1
1
)
/
1
log(

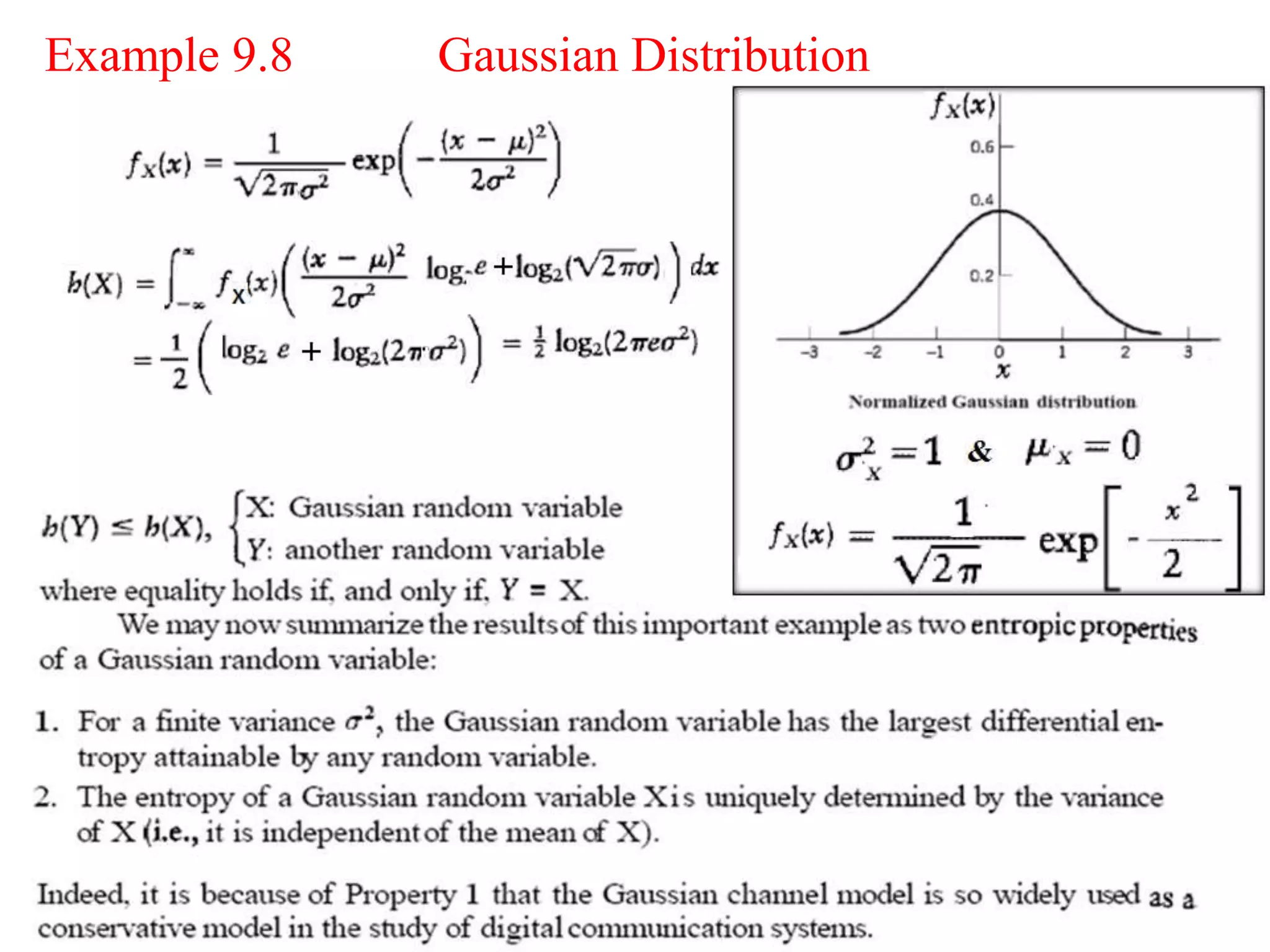

34. Example 9.8 Gaussian Distribution

35. Mutual Information
the mutual information between two random variables X and Y is
defined as follows:
where f X,Y(x, y) is the joint probability density function of X and Y, and
fx(x/y) is the conditional probability density function of X, given that Y = y.
h(X/Y) is the
conditional differential
entropy of X, given Y

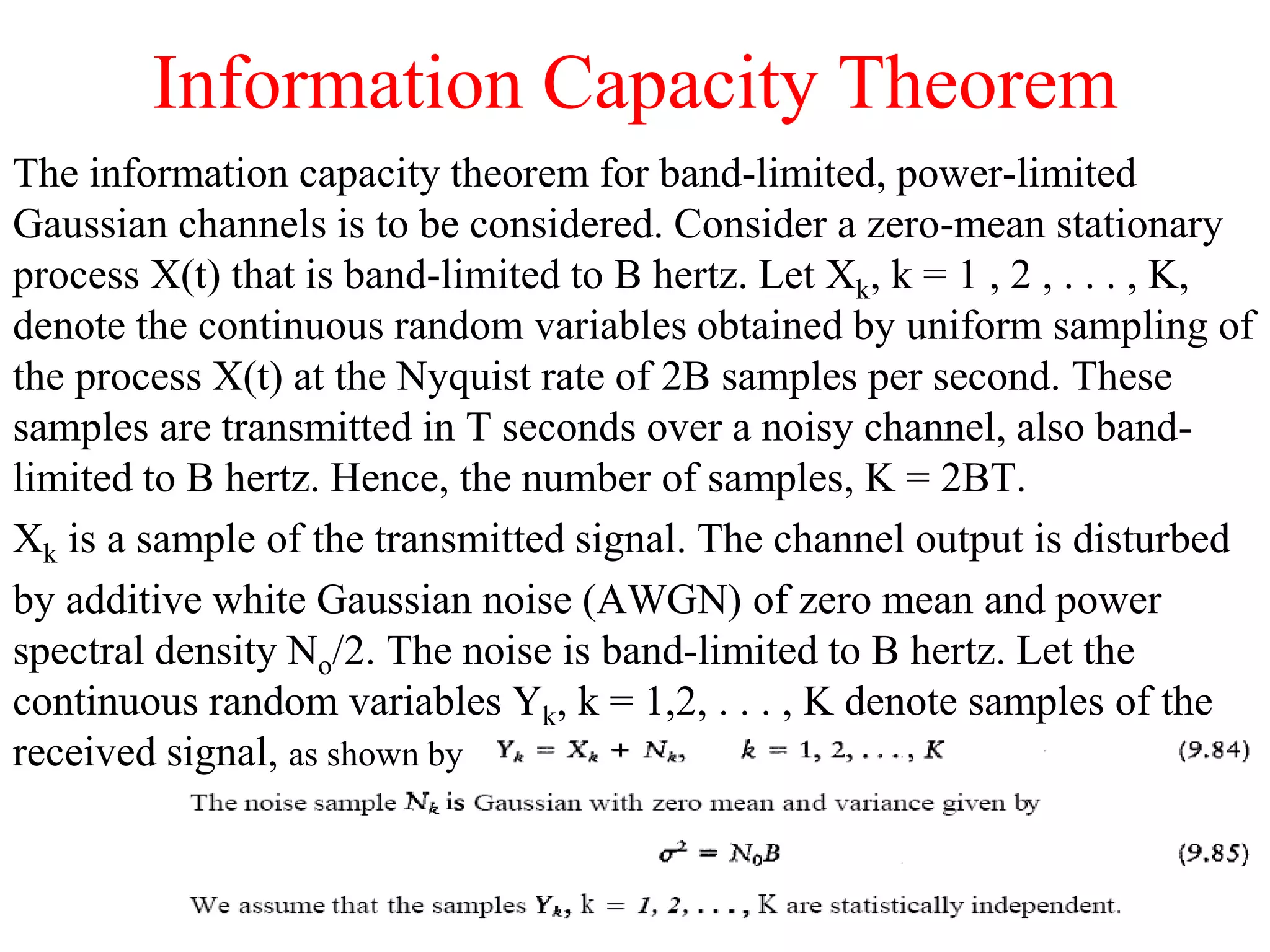

36. Information Capacity Theorem
The information capacity theorem for band-limited, power-limited
Gaussian channels is to be considered. Consider a zero-mean stationary
process X(t) that is band-limited to B hertz. Let Xk, k = 1 , 2 , . . . , K,
denote the continuous random variables obtained by uniform sampling of
the process X(t) at the Nyquist rate of 2B samples per second. These
samples are transmitted in T seconds over a noisy channel, also band-
limited to B hertz. Hence, the number of samples, K = 2BT.
Xk is a sample of the transmitted signal. The channel output is disturbed
by additive white Gaussian noise (AWGN) of zero mean and power
spectral density No/2. The noise is band-limited to B hertz. Let the
continuous random variables Yk, k = 1,2, . . . , K denote samples of the
received signal, as shown by

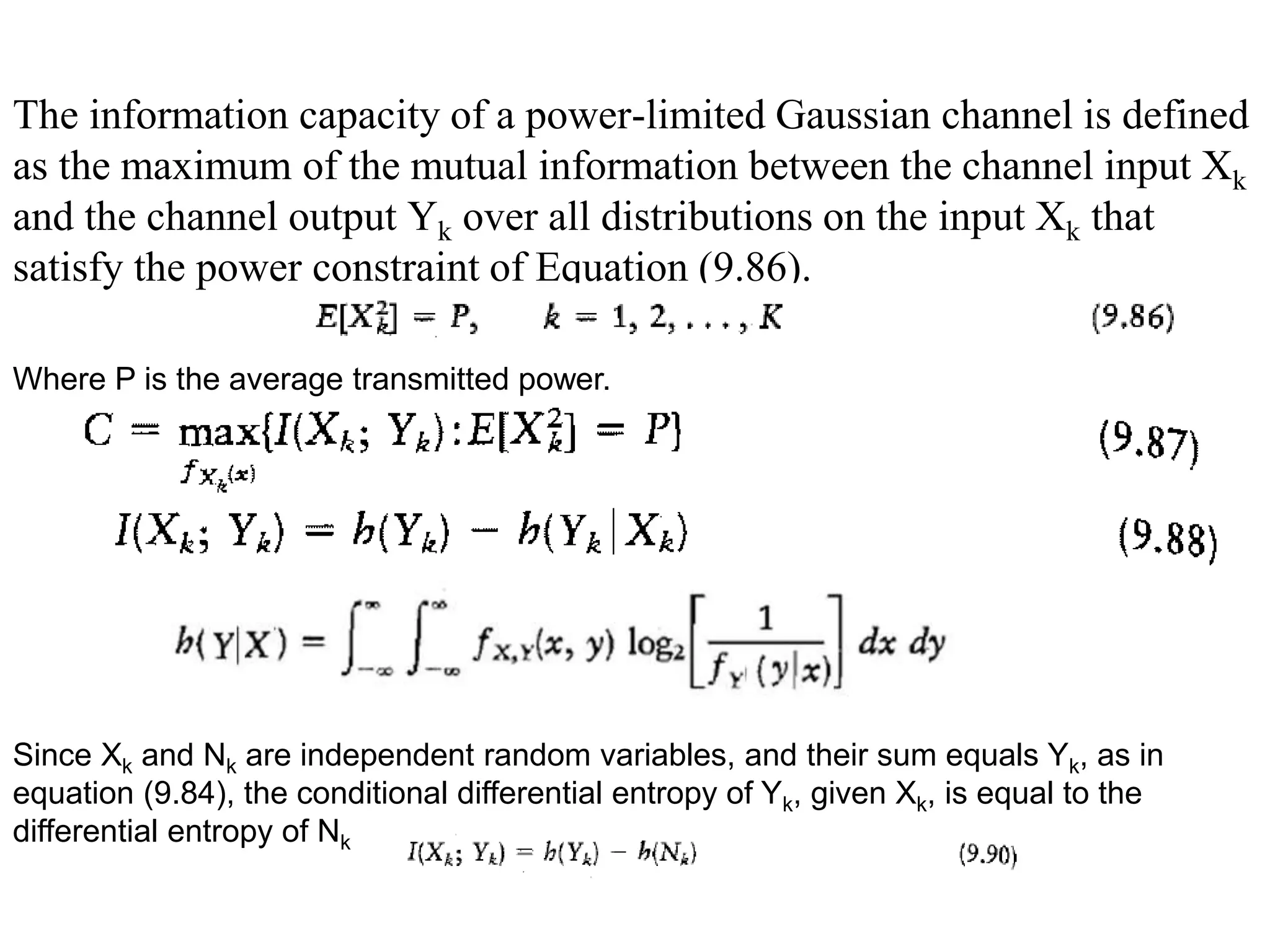

37. The information capacity of a power-limited Gaussian channel is defined
as the maximum of the mutual information between the channel input Xk
and the channel output Yk over all distributions on the input Xk that
satisfy the power constraint of Equation (9.86).
Where P is the average transmitted power.
Since Xk and Nk are independent random variables, and their sum equals Yk, as in
equation (9.84), the conditional differential entropy of Yk, given Xk, is equal to the
differential entropy of Nk

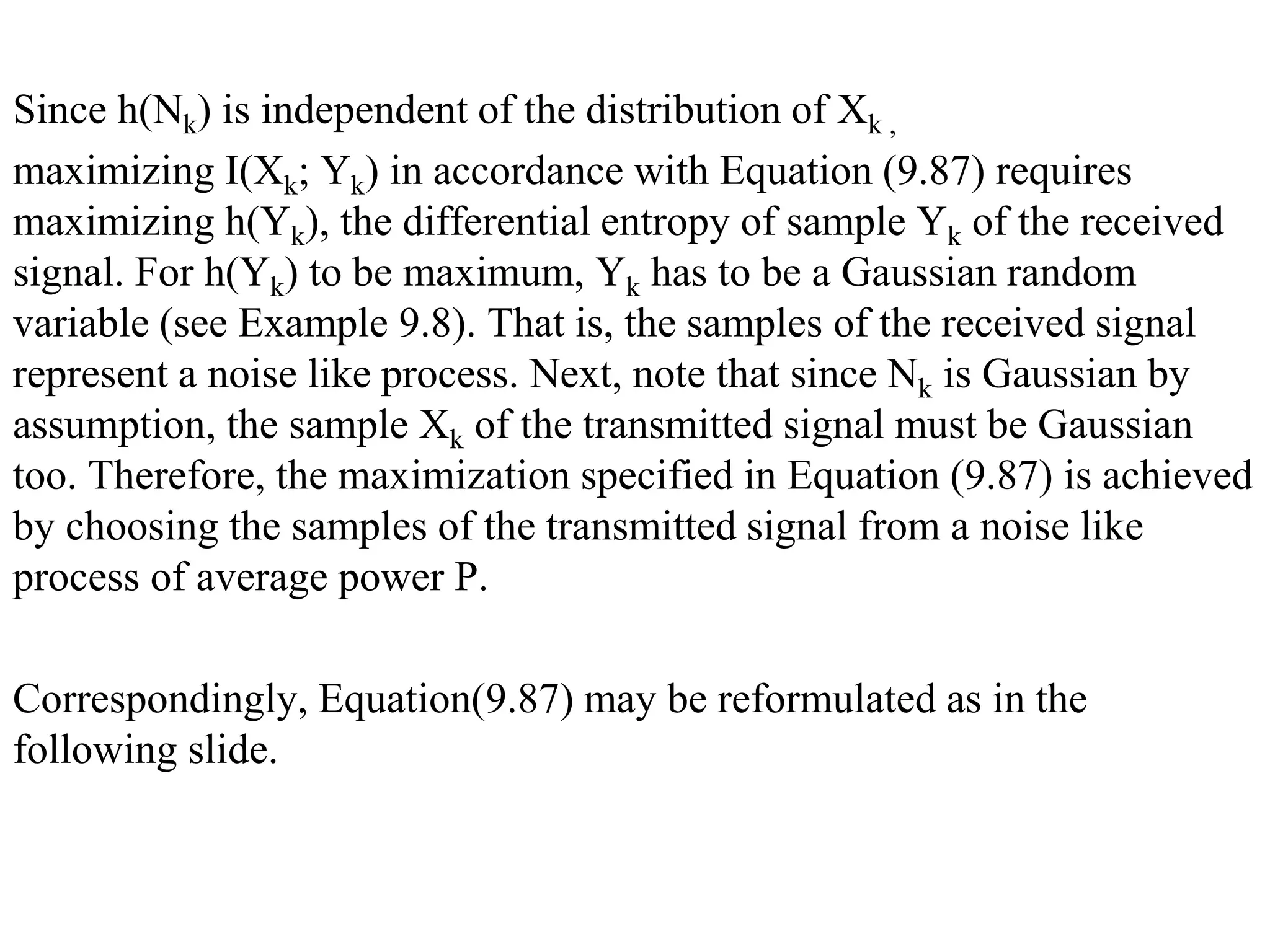

38. Since h(Nk) is independent of the distribution of Xk ,
maximizing I(Xk; Yk) in accordance with Equation (9.87) requires
maximizing h(Yk), the differential entropy of sample Yk of the received
signal. For h(Yk) to be maximum, Yk has to be a Gaussian random
variable (see Example 9.8). That is, the samples of the received signal
represent a noise like process. Next, note that since Nk is Gaussian by
assumption, the sample Xk of the transmitted signal must be Gaussian
too. Therefore, the maximization specified in Equation (9.87) is achieved
by choosing the samples of the transmitted signal from a noise like
process of average power P.
Correspondingly, Equation(9.87) may be reformulated as in the
following slide.

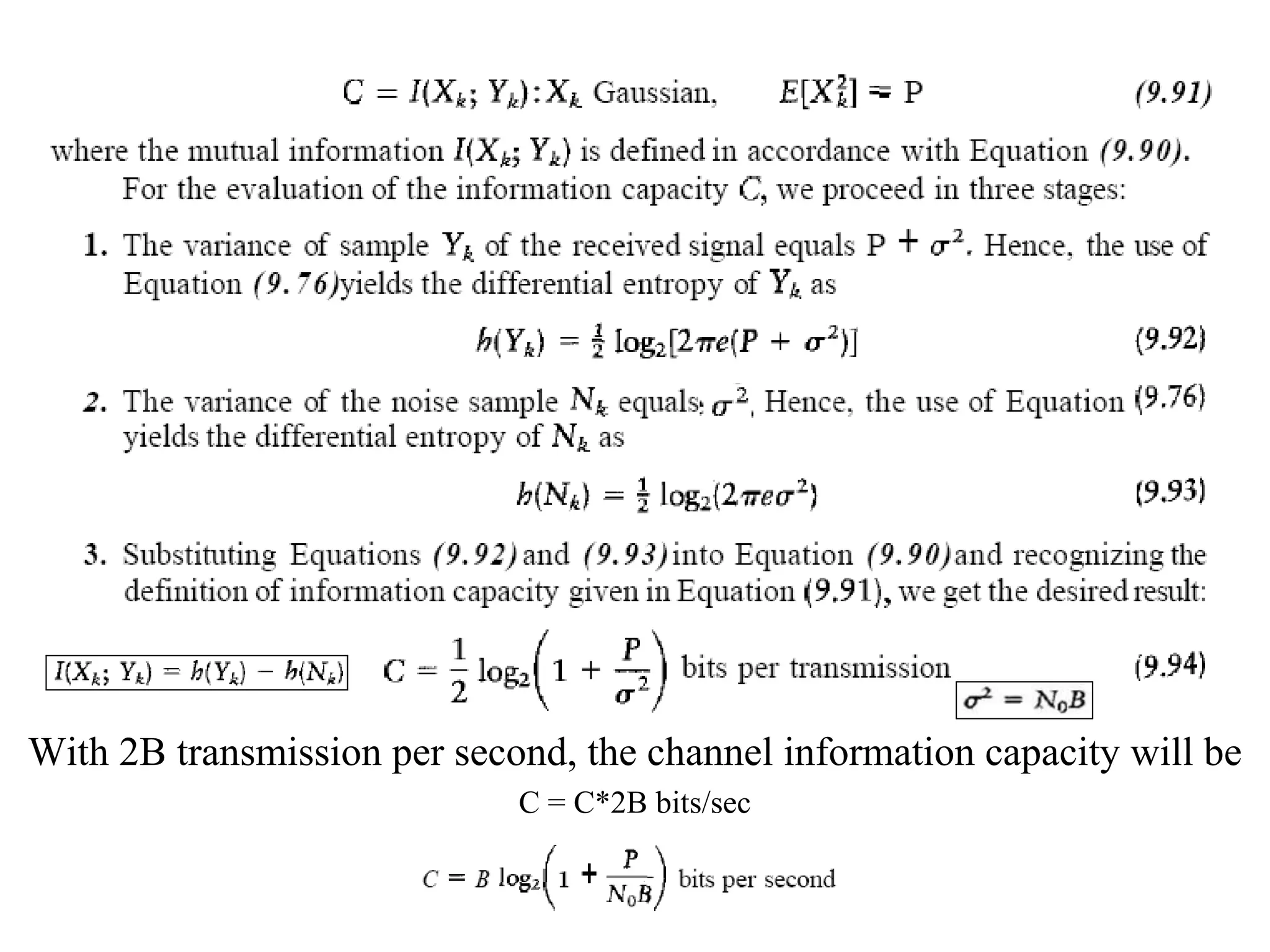

39. With 2B transmission per second, the channel information capacity will be
C = C*2B bits/sec

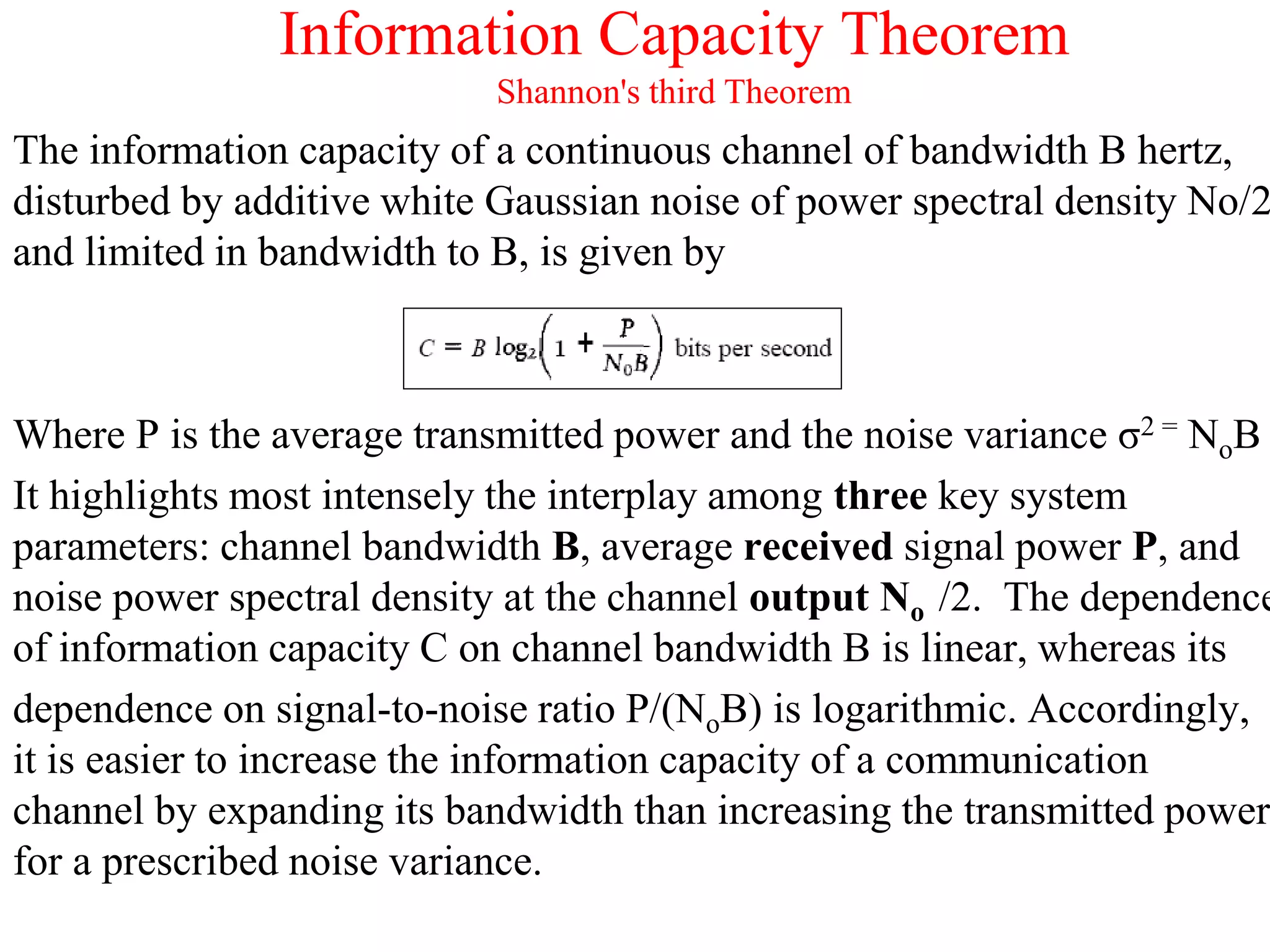

40. Information Capacity Theorem
Shannon's third Theorem
The information capacity of a continuous channel of bandwidth B hertz,
disturbed by additive white Gaussian noise of power spectral density No/2
and limited in bandwidth to B, is given by
Where P is the average transmitted power and the noise variance σ2 = NoB
It highlights most intensely the interplay among three key system
parameters: channel bandwidth B, average received signal power P, and
noise power spectral density at the channel output No /2. The dependence
of information capacity C on channel bandwidth B is linear, whereas its
dependence on signal-to-noise ratio P/(NoB) is logarithmic. Accordingly,
it is easier to increase the information capacity of a communication
channel by expanding its bandwidth than increasing the transmitted power
for a prescribed noise variance.

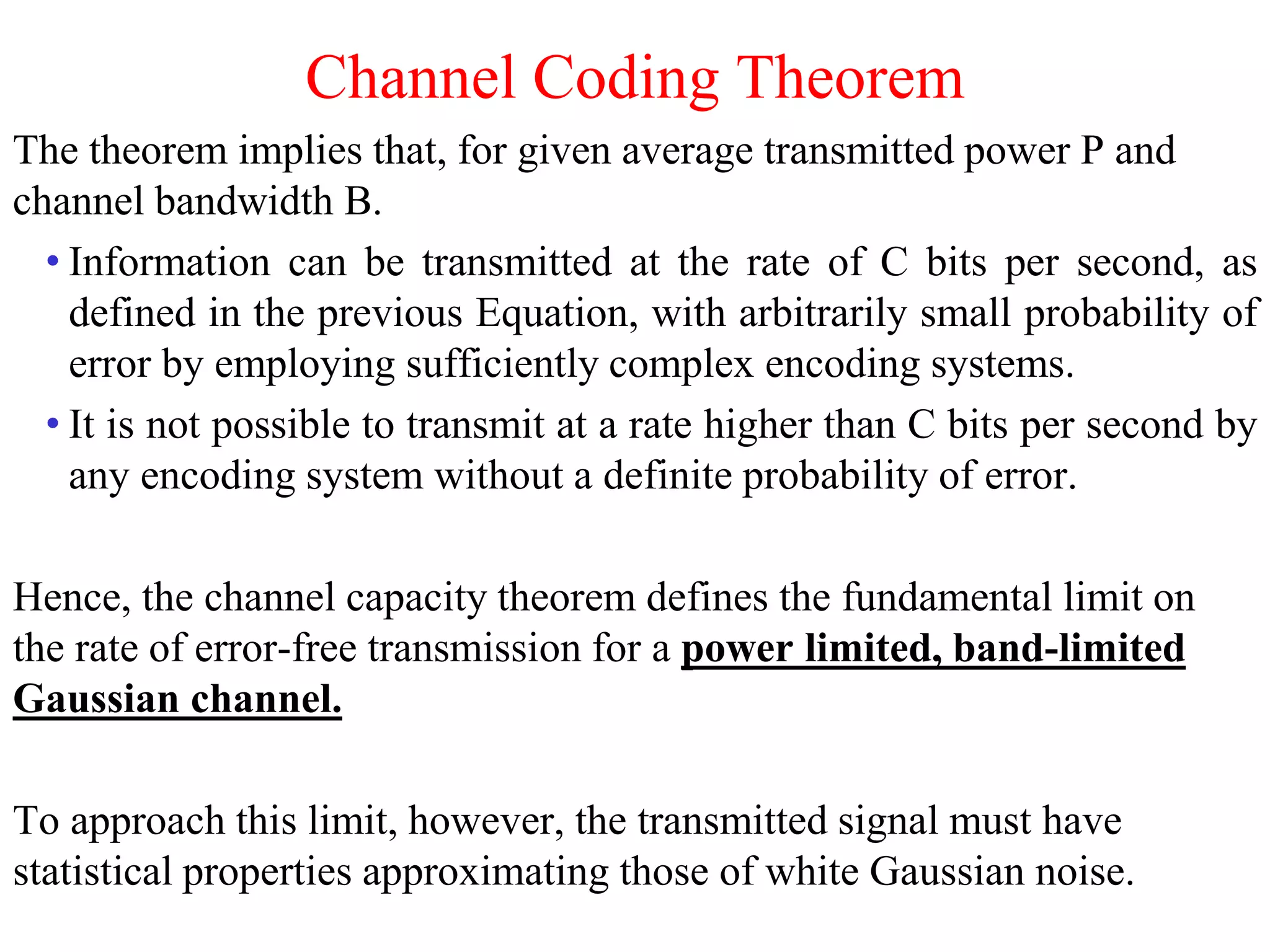

41. Channel Coding Theorem
The theorem implies that, for given average transmitted power P and
channel bandwidth B.
• Information can be transmitted at the rate of C bits per second, as
defined in the previous Equation, with arbitrarily small probability of
error by employing sufficiently complex encoding systems.
• It is not possible to transmit at a rate higher than C bits per second by
any encoding system without a definite probability of error.
Hence, the channel capacity theorem defines the fundamental limit on
the rate of error-free transmission for a power limited, band-limited
Gaussian channel.
To approach this limit, however, the transmitted signal must have
statistical properties approximating those of white Gaussian noise.
