InfluxData builds a time series platform primarily deployed for DevOps and IoT monitoring. This talk presents several lessons learned while scaling the platform across a large number of deployments—from single server open source instances to highly available high-throughput clusters. This talk presents a number of failure conditions that informed subsequent design choices. Ryan Betts (Director of Engineering at InfluxData) will discuss designing backpressure in an AP system with tens of thousands of resource-limited writers; trade-offs between monolithic and service-oriented database implementations; and lessons learned implementing multiple query processing systems.
Recommended
More Related Content
What's hot
What's hot (20)
Similar to InfluxData Internals by Ryan Betts
Similar to InfluxData Internals by Ryan Betts (20)
More from InfluxData
More from InfluxData (20)
Recently uploaded
Recently uploaded (20)
InfluxData Internals by Ryan Betts
- 1. Ryan Betts / Dir. Eng Influxdata InfluxDB Internals

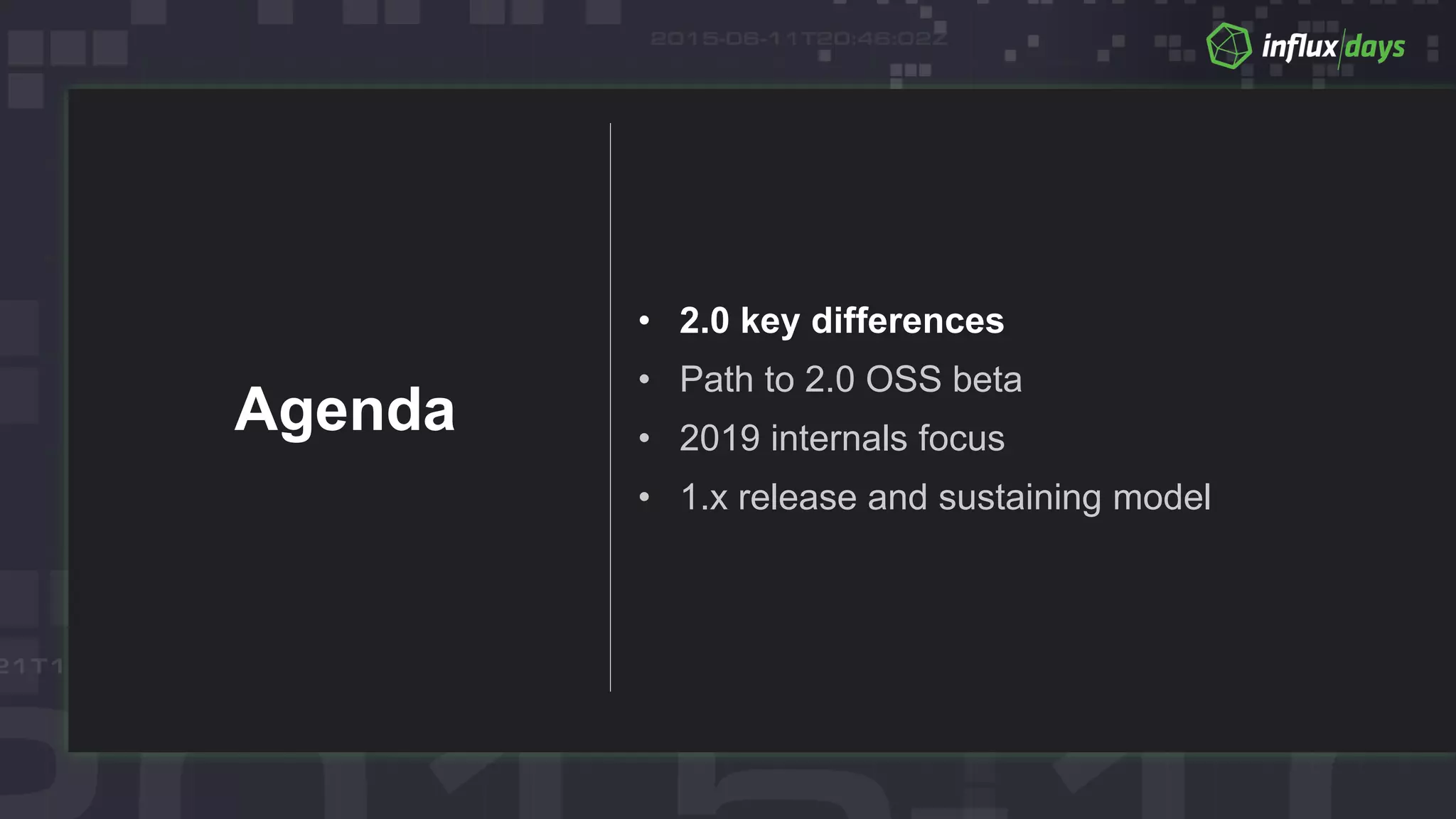

- 2. Agenda • 2.0 key differences • Path to 2.0 OSS beta • 2019 internals focus • 1.x release and sustaining model
- 3. TICK Stack Doh • UI • Scrapers • Tasks • Database
- 4. Discontinuous Query • Flux + Cron • Multi-query Flux scripts
- 6. User model kicks the bucket • Org + Bucket + User Replaces: • DB + RP • Fine Grained Auth • Enterprise Authz • OSS Authz
- 7. Underscore Infernal • Prometheus style metrics
- 8. Out of time partitioning • Retention Policy • Database • ShardGroup • Shard
- 9. Only in our memory index • TSI only in 2.0
- 10. Transpiling On • Flux • InfluxQL • PromQL • Apache Arrow
- 11. CLI • ./influx for API access • ./influxd for local tools
- 12. Nits picked • UTF-8 tags • Float -Inf/+Inf/Nan
- 13. Agenda • 2.0 key differences • Path to 2.0 OSS beta • 2019 internals focus • 1.x release and sustaining model
- 14. Path to 2.0 OSS Beta • Weekly Alpha releases adding new functionality + testing • Features • InfluxQL Transpiler • DELETE with predicate • Bulk Import (1.x, 2.x) • Bulk Export • Community process (issue templates, GitHub labels, milestone communication…)
- 15. Flux Release Train • Weekly releases • Deployed to Cloud2 • Weekly with 2.0 OSS Alpha • Monthly with 1.7.x InfluxDB • https://github.com/influxdata/flux/releases
- 16. Agenda • 2.0 key differences • Path to 2.0 OSS beta • 2019 internals focus • 1.x release and sustaining model
- 17. 2019 Internals Points of Emphasis • Community responsiveness • DELETE correctness • Load-shedding and back-pressure • Query resource limits
- 18. TSM Observations • Write amplification rarely a concern • Compaction memory & cpu utilization often a concern • Backfilling is common - as a special case of bulk load • Range deletes with a predicate are common • Offline tooling is surprisingly popular • TSM space efficiency can be very variable
- 20. “Hinted handoff is sadness” - Me for the last 20 months
- 21. Agenda • 2.0 key differences • Path to 2.0 OSS beta • 2019 internals focus • 1.x release and sustaining model
- 22. 2019 Release Train for 1.x • Monthly InfluxDB releases for 1.7, 1.6, 1.5 (on demand) • Chronograf releases paired with InfluxDB 1.7 (for Flux) • Kapacitor released as necessary • 1.8 InfluxDB release as vehicle for Flux GA
Editor's Notes
- Want to highlight not just the product and the time to awesome aspects of this - but also the operational and community and impacts. UI / DB in the same process space. If you monitor influxdb internals, you’ll see UX, Tasks, Scrapers, outbound-io, etc. Consolidates not just the products into a single binary but also consolidates our Chronograf, Kapacitor, InfluxDB GitHub activity into the `influxdb` repo. We have some new practices to learn / develop in support now that these previously separate components run in a single process space.
- Few people like the continuous query experience: * too hard to write / try / observe * too hard to debug * too hard to re-run on failure * too hard to report run results
- OSS, Enterprise storage nodes, Enterprise meta nodes, … all different interfaces. Now consolidated.
- OSS, Enterprise 1.x have different permission systems. Some changes require the ./influx CLI; some are available via REST. None of those REST endpoints are well documented (a criticism of development - not our docs team!) Shipped FGA to “fake” some separation of tenants — but it adds complexity that’s not worth its weight.
- Retention v. Series creation. Database physical arrangement vs. bucket logical arrangement.
- - designed to support powerful language services to drive graphical user experiences that can't be created at a reasonable engineering expense otherwise. We want to remove the programming from time series and present a better UX - designed to integrate across disparate datasources (a key argument here is that SQL systems are compatible and integration code is necessary -- so why not make integration a first class language design feature) - ability to cross-compile; time-series is all about eco-system and we want to embrace prom, sql, flux, arrow, ... all on a single optimizer and access path engine. So we wrote the underlying language tools to do that. - in addition to integrating other syntaxes, we want to integrate with other programming and analytics environments -- like Jupyter notebooks. We want to integrate with those using arrow - for efficiency, scale, and interoperability - and using the query syntax the user wants. - we need a 4GL data scripting language for alerting and other time series use cases. We don't PLSQL. Barf. Other SQL systems also reach for non-SQL languages when they needs this in stored procedure engines (javascript, Lua, java..)
- Personal Background: 20 years building infrastructure software as an engineer, technical lead, CTO, and director of engineering. Have worked with at two DB companies maturing 1.0 products Talk is about a few things: scaling some of the softer side and also some specific InfluxDB internals
- Community: ACES, DevRel + client code, Community Manager, InfluxDB triage with PM Delete: DML not Query code path
- TLA Model
- Always the victim Complicates load shedding — more critical ADDS I/O in a reduced functional state Exacerbates “thundering herd” on recovery Is only a partial solution anyway In our case, is much less dense than compacted blocks; not efficient Example of doing more work with telegraf replaying timed-out data leading to more merging Also a design flaw in current influx that deletes are processed by the query engine, not the write path and don’t flow through HH - so HH can be cause of inconsistency.
- Personal Background: 20 years building infrastructure software as an engineer, technical lead, CTO, and director of engineering. Have worked with at two DB companies maturing 1.0 products Talk is about a few things: scaling some of the softer side and also some specific InfluxDB internals
