Device Connection Systems for Industrial Ethernet
METZ CONNECT provides device connection systems for industrial Ethernet networks that ensure safe and reliable data transmission. Their product range includes connectors, cables, and panels that integrate components across their copper, fiber optic, and Ethernet M12 lines. This creates system solutions that connect circuit boards to cabling in a secure, flexible way. METZ CONNECT's solutions are designed for harsh industrial environments and provide high transmission performance with protection up to IP67 and bandwidth up to 10 Gbit/s.
More Related Content
Similar to Device Connection Systems for Industrial Ethernet
Device Connection Systems for Industrial Ethernet
- 1. Device Connection Systems forIndustrial Ethernet

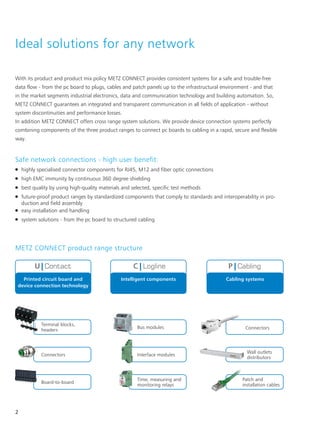

- 2. Ideal solutions forany network With its product and product mix policy METZ CONNECT provides consistent systems for a safe and trouble-free data flow - from the pc board to plugs, cables and patch panels up to the infrastructural environment - and that in the market segments industrial electronics, data and communication technology and building automation. So, METZ CONNECT guarantees an integrated and transparent communication in all fields of application - without system discontinuities and performance losses. In addition METZ CONNECT offers cross range system solutions. We provide device connection systems perfectly combining components of the three product ranges to connect pc boards to cabling in a rapid, secure and flexible way. Safe network connections - high user benefit: l highly specialised connector components for RJ45, M12 and fiber optic connections l high EMC immunity by continuous 360 degree shielding l best quality by using high-quality materials and selected, specific test methods l future-proof product ranges by standardized components that comply to standards and interoperability in pro- duction and field assembly l easy installation and handling l system solutions - from the pc board to structured cabling 2 METZ CONNECT product range structure Printed circuit board and device connection technology Board-to-board Connectors Terminal blocks, headers Intelligent components Bus modules Time, measuring and monitoring relays Interface modules Cabling systems Connectors Wall outlets distributors Patch and installation cables
- 3. Sensors that connectto the “big, wide world” The global success story of intelligent networks in automation has its origin in the desire for integrated communication. Prerequisite for transparent, efficient and customized use and control are integrated, internationally standardized network components. Whereas in the past cabling and connection systems were specific to the respec- tive application, today a connector’s ability to communicate is just as important as its functionality. A sensor that sends a fault message by e-mail or transmits a photo to another company site for evaluation is today as normal as remote maintenance of entire industrial plants. The growing need to automate complex processes to guarantee safe operation at low cost means network connections and their devices have to rely also on the physical level on consi- stent, high-performant standards even with different environmental requirements. transparent communication across all business areas without interfaces and communication losses use of common IT processes; operation and observation by web technology web server on machines remote maintenance and teleservice directly from the network Easy installation and operation with gemeinsamer Nutzungdevices sensors / actors machines controls MES supervisory systems IndustrialEthernet Im provem entofoperating expenses Building Networks Data center ERP Shared networks Example industrial automation 3

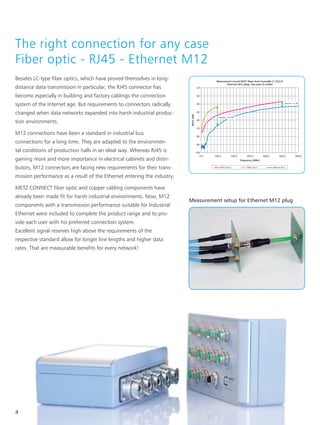

- 4. 4 Besides LC-type fiberoptics, which have proved themselves in long- distance data transmission in particular, the RJ45 connector has become especially in building and factory cablings the connection system of the Internet age. But requirements to connectors radically changed when data networks expanded into harsh industrial produc- tion environments. M12 connections have been a standard in industrial bus connections for a long time. They are adapted to the environmen- tal conditions of production halls in an ideal way. Whereas RJ45 is gaining more and more importance in electrical cabinets and distri- butors, M12 connectors are facing new requirements for their trans- mission performance as a result of the Ethernet entering the industry. METZ CONNECT fiber optic and copper cabling components have already been made fit for harsh industrial environments. Now, M12 components with a transmission performance suitable for Industrial Ethernet were included to complete the product range and to pro- vide each user with his preferred connection system. Excellent signal reserves high above the requirements of the respective standard allow for longer line lengths and higher data rates. That are measurable benefits for every network! The right connection for any case Fiber optic - RJ45 - Ethernet M12 Measurement setup for Ethernet M12 plug
- 5. Reliable and convenient Inthe beginning, the idea was to “merge the best of all connection worlds” into one system. METZ CONNECT have succeeded in combining very different and sometimes even opposing requirements from the device connection and cabling sectors in an exceedingly intelligent way. Solidity and stability l mechanical and electrical strength l resistance against dirt and humidity l EMC-proved connection and operation Transmission technology and bit rate l Gigabit capability (1/10 Gbit/s) l 500 MHz band width (Cat.6A) Handling l easy mounting / installation l safe shield handling l mounting without special tools l installation and mounting security Components and systems have to meet the increasing transmission requirements and remain easy in their use. Fiber optic l 2xSC / SC-Duplex / LC l glass and POF fibers l mounts in V1 / V4 / V14 housings RJ45 l cabling components up to Cat.6A l compatible to V1 / V 4 / V 5 / V 14 housing designs l field assembly l industrially hardened pc board jacks Ethernet M12 l two and four pair twisted pair connection l D-coded according to IEC 61076-2-101 l X-coded according to IEC 61076-2-109 up to 500 MHz band width / Cat.6A l assemblies and device interface 5

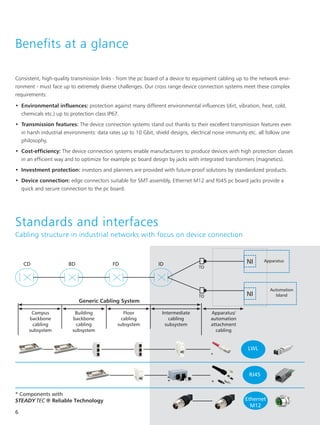

- 6. Benefits at aglance Consistent, high-quality transmission links - from the pc board of a device to equipment cabling up to the network envi- ronment - must face up to extremely diverse challenges. Our cross range device connection systems meet these complex requirements: • Environmental influences: protection against many different environmental influences (dirt, vibration, heat, cold, chemicals etc.) up to protection class IP67. • Transmission features: The device connection systems stand out thanks to their excellent transmission features even in harsh industrial environments: data rates up to 10 Gbit, shield designs, electrical noise immunity etc. all follow one philosophy. • Cost-efficiency: The device connection systems enable manufacturers to produce devices with high protection classes in an efficient way and to optimize for example pc board design by jacks with integrated transformers (magnetics). • Investment protection: investors and planners are provided with future-proof solutions by standardized products. • Device connection: edge connectors suitable for SMT assembly, Ethernet M12 and RJ45 pc board jacks provide a quick and secure connection to the pc board. Standards and interfaces Cabling structure in industrial networks with focus on device connection NI Automation Island NI Apparatus Campus backbone cabling subsystem Building backbone cabling subsystem Floor cabling subsystem Intermediate cabling subsystem TO TO Generic Cabling System Apparatus/ automation attachment cabling LWL RJ45 Ethernet M12 CD BD FD ID 6 * Components with STEADYTEC ® Reliable Technology * * *

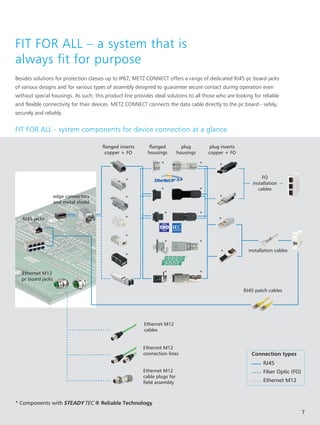

- 7. FIT FOR ALL– a system that is always fit for purpose 7 ** * * * * plug inserts copper + FO plug housings flanged housings flanged inserts copper + FO RJ45 jacks RJ45 patch cables edge connectors and metal shield * ** ** ** * * * * * Ethernet M12 pc board jacks Ethernet M12 cables Ethernet M12 connection lines Ethernet M12 cable plugs for field assembly installation cables FO installation cables * Components with STEADYTEC ® Reliable Technology Besides solutions for protection classes up to IP67, METZ CONNECT offers a range of dedicated RJ45 pc board jacks of various designs and for various types of assembly designed to guarantee secure contact during operation even without special housings. As such, this product line provides ideal solutions to all those who are looking for reliable and flexible connectivity for their devices. METZ CONNECT connects the data cable directly to the pc board - safely, securely and reliably. Connection types RJ45 Fiber Optic (FO) Ethernet M12 FIT FOR ALL - system components for device connection at a glance *
- 8. Protect - shield- connect As we see it, protection isn’t merely a technical term to be found in product specifications. First and foremost, to protect means to guarantee operational safety even under difficult conditions as for example for device and cabling connections in industrial networks with protection class IP67. To this end, we inspect and test products using special procedures that we improve and extend continually based on the experience we gain from many millions of ports installed worldwide. To protect also means to supply products that meet the requirements of tomorrow and thus offer our customers maximum security for their investment. Product versions with features that exceed the requirements of standards, choice of the right materials and the unrivalled flexibility of our “Fit for all” principle guarantee this capacity. Shielding is our philosophy! Whereas unshielded data networks in classic copper-based office cabling are still common practice in many markets, shielded technology is becoming more and more requested, especially for high data rates. A shielded data network in harsh and in some cases security-relevant applications is essential if only for EMC reasons. Our system solutions provide integrated 360 degree shielding from the cable to the pc board for RJ45 as well as for Ethernet M12 components and ensure excellent EMC features. Moreover, zinc die-cast connec- tion systems also stand for stability. As one of the global market leaders for shielded jacks, we are both pioneer and innovator. To connect is the purpose of all we do! We connect the data cable to the pc board - with industrially hardened RJ45 and Ethernet M12 jacks that excel by secure connection and high mating cycles. The way we design spring contacts in jacks, optimize gold plating, run optical fibers, design and position ID contacts in plugs, precisely de- fine the optical layer in housings and adapt magnetics in jacks to suit specific circuits ... all of this is connecting - all of this is METZ CONNECT. 8 E-DAT Industry RJ45 field plug insert - cable connection and IP67 protection
- 9. Safe, reliable, quickand flexible connection systems are only perfect if they are also quick and easy to install. It’s not without good reason that we have designed one series of our jacks with the same length as SFP modules. Our system, for which we have taken out a patent, allows the device designer to connect our edge connector to the same pc board and in doing so to achieve combined operation of RJ45 and fiber optic systems. RJ45 jacks and SFP Transceiver are both protected by an integra- ted shielding. The idea to no longer install device jacks as part of the soldering process but to relocate this procedure to the assem- bly process has been readily welcomed by a great many device manufacturers - including when the delicate connections on the pc board need to be protected against the mechanical strain exerted by bayonet fittings. At the same time, we still want and have to cater for the traditional way of connecting jacks to pc boards. We offer versions for THT, THR and SMT as well as different types of packa- ging (Tape & Reel, plastic tray or loose in boxes). All products are RoHS-compliant and meet all current standards - worldwide. Quick and safe pc board connection 9 3D-sectional model with all around protected SFP Transceiver

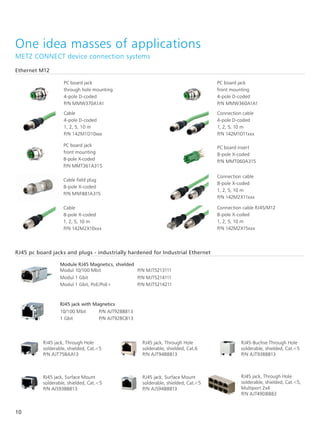

- 10. One idea massesof applications METZ CONNECT device connection systems 10 PC board jack through hole mounting 4-pole D-coded P/N MMW370A1A1 PC board jack front mounting 4-pole D-coded P/N MMW360A1A1 PC board insert 8-pole X-coded P/N MMT060A315 Connection cable RJ45/M12 8-pole X-coded 1, 2, 5, 10 m P/N 142M2X15xxx Cable 4-pole D-coded 1, 2, 5, 10 m P/N 142M1D10xxx Connection cable 4-pole D-coded 1, 2, 5, 10 m P/N 142M1D11xxx PC board jack front mounting 8-pole X-coded P/N MMT361A315 Cable field plug 8-pole X-coded P/N MNF881A315 Cable 8-pole X-coded 1, 2, 5, 10 m P/N 142M2X10xxx Connection cable 8-pole X-coded 1, 2, 5, 10 m P/N 142M2X11xxx Ethernet M12 RJ45 pc board jacks and plugs - industrially hardened for Industrial Ethernet Module RJ45 Magnetics, shielded Modul 10/100 Mbit P/N MJT5213111 Modul 1 Gbit P/N MJT5214111 Modul 1 Gbit, PoE/PoE+ P/N MJT5214211 RJ45 jack with Magnetics 10/100 Mbit P/N AJT92B8813 1 Gbit P/N AJT92BC813 RJ45 jack, Through Hole solderable, shielded, Cat.<5 P/N AJT75BAA13 RJ45-Buchse Through Hole solderable, shielded, Cat.<5 P/N AJT93B8813 RJ45 jack, Through Hole solderable, shielded, Cat.6 P/N AJT94B8813 RJ45 jack, Surface Mount solderable, shielded, Cat.<5 P/N AJS93B8813 RJ45 jack, Surface Mount solderable, shielded, Cat.<5 P/N AJS94B8813 RJ45 jack, Through Hole solderable, shielded, Cat.<5, Multiport 2x4 P/N AJT49D8883

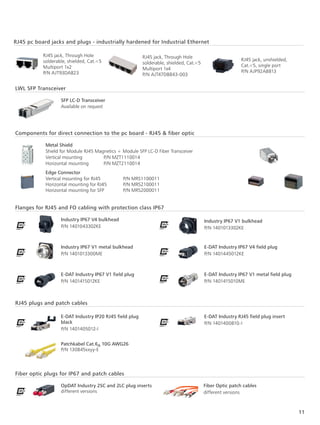

- 11. 11 LWL SFP Transceiver SFPLC-D Transceiver Available on request Components for direct connection to the pc board - RJ45 & fiber optic Metal Shield Shield for Module RJ45 Magnetics + Module SFP LC-D Fiber Transceiver Vertical mounting P/N MZT1110014 Horizontal mounting P/N MZT2110014 Flanges for RJ45 and FO cabling with protection class IP67 Edge Connector Vertical mounting for RJ45 P/N MRS1100011 Horizontal mounting for RJ45 P/N MRS2100011 Horizontal mounting for SFP P/N MRS2000011 Industry IP67 V4 bulkhead P/N 1401043302KE Industry IP67 V1 bulkhead P/N 1401013302KE Industry IP67 V1 metal bulkhead P/N 1401013300ME E-DAT Industry IP67 V4 field plug P/N 1401445012KE E-DAT Industry IP67 V1 field plug P/N 1401415012KE E-DAT Industry IP67 V1 metal field plug P/N 1401415010ME RJ45 plugs and patch cables E-DAT Industry IP20 RJ45 field plug black P/N 1401405012-I E-DAT Industry RJ45 field plug insert P/N 1401400810-I Patchkabel Cat.6A 10G AWG26 P/N 130845xxyy-E Fiber optic plugs for IP67 and patch cables OpDAT Industry 2SC and 2LC plug inserts different versions Fiber Optic patch cables different versions RJ45 pc board jacks and plugs - industrially hardened for Industrial Ethernet RJ45 jack, unshielded, Cat.<5, single port P/N AJP92A8813 RJ45 jack, Through Hole solderable, shielded, Cat.<5 Multiport 1x2 P/N AJT93DA823 RJ45 jack, Through Hole solderable, shielded, Cat.<5 Multiport 1x4 P/N AJT47D8843-003

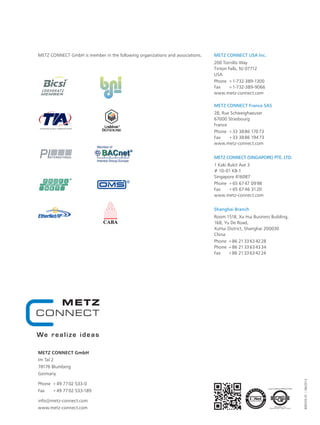

- 12. METZ CONNECT GmbH ImTal 2 78176 Blumberg Germany Phone + 49 77 02 533- 0 Fax + 49 77 02 533-189 info@metz-connect.com www.metz-connect.com METZ CONNECT USA Inc. 200 Tornillo Way Tinton Falls, NJ 07712 USA Phone + 1-732-389-1300 Fax + 1-732-389-9066 www.metz-connect.com METZ CONNECT France SAS 28, Rue Schweighaeuser 67000 Strasbourg France Phone + 33 38 86 170 73 Fax + 33 38 86 194 73 www.metz-connect.com METZ CONNECT (SINGAPORE) PTE. LTD. 1 Kaki Bukit Ave 3 # 10-01 KB-1 Singapore 416087 Phone + 65 67 47 09 98 Fax + 65 67 46 31 20 www.metz-connect.com Shanghai Branch Room 1518, Xu Hui Business Building, 168, Yu De Road, XuHui District, Shanghai 200030 China Phone + 86 21 33 63 42 28 Phone + 86 21 33 63 43 34 Fax + 86 21 33 63 42 24 METZ CONNECT GmbH is member in the following organizations and associations. 899335-01|06/2013
