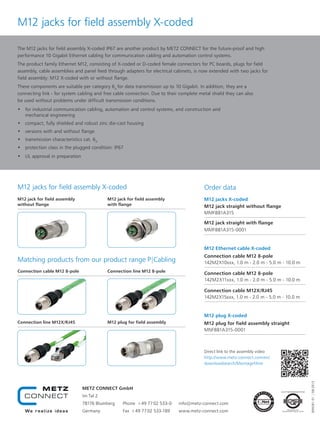

1. M12 jacks for field assembly X-coded
Connecting worlds - high performance cabling and
future-proof device connections

2. M12 jacks for field assembly X-coded
899381-01|08/2013
Matching products from our product range P|Cabling
Order data
METZ CONNECT GmbH
Im Tal 2
78176 Blumberg
Germany
Phone +49 77 02 533- 0
Fax + 49 77 02 533-189
info@metz-connect.com
www.metz-connect.com
The M12 jacks for field assembly X-coded IP67 are another product by METZ CONNECT for the future-proof and high
performance 10 Gigabit Ethernet cabling for communication cabling and automation control systems.
The product family Ethernet M12, consisting of X-coded or D-coded female connectors for PC boards, plugs for field
assembly, cable assemblies and panel feed through adapters for electrical cabinets, is now extended with two jacks for
field assembly: M12 X-coded with or without flange.
These components are suitable per category 6A
for data transmission up to 10 Gigabit. In addition, they are a
connecting link - for system cabling and free cable connection. Due to their complete metal shield they can also
be used without problems under difficult transmission conditions.
• for industrial communication cabling, automation and control systems, and construction and
mechanical engineering
• compact, fully shielded and robust zinc die-cast housing
• versions with and without flange
• transmission characteristics cat. 6A
• protection class in the plugged condition: IP67
• UL approval in preparation
Connection cable M12 8-pole Connection line M12 8-pole
Connection line M12X/RJ45 M12 plug for field assembly
M12 jacks X-coded
M12 jack straight without flange
MMF881A315
M12 jack straight with flange
MMF881A315-0001
M12 Ethernet cable X-coded
Connection cable M12 8-pole
142M2X10xxx, 1.0 m - 2.0 m - 5.0 m - 10.0 m
Connection cable M12 8-pole
142M2X11xxx, 1.0 m - 2.0 m - 5.0 m - 10.0 m
Connection cable M12X/RJ45
142M2X15xxx, 1.0 m - 2.0 m - 5.0 m - 10.0 m
M12 plug X-coded
M12 plug for field assembly straight
MNF881A315-0001
M12 jacks for field assembly X-coded
M12 jack for field assembly M12 jack for field assembly
without flange with flange
Direct link to the assembly video
http://www.metz-connect.com/en/
downloadsearch/Montagefilme
