1. Incorporate the SOR method in the multigridTest.m and apply the multigridTest.m, to
determine the effects of changes in
Pre-smoothing iterations
Post-smoothing iterations
Multigrid cycle type
Iterative method
Number of grids (or grid hierarchy)
% SOR (Successive Over-Relaxation)
n = input('Enter number of equations, n: ');
A = zeros(n,n+1);
x1 = zeros(1,n);
A=[5 -2 3 -1;-3 9 1 2;2 -1 -7 3];
x1 = [0 0 0];
tol = input('Enter tolerance, tol: ');
m = input('Enter maximum number of iterations, m: ');
w = input('Enter the parameter w (omega): ');
k = 1;
while k <= m
err = 0;
for i = 1 : n
s = 0;
for j = 1 : n
s = s-A(i,j)*x1(j);
end

2. s = w*(s+A(i,n+1))/A(i,i);
if abs(s) > err
err = abs(s);
end
x1(i) = x1(i)+s;
end
if err <= tol
break;
else
k = k+1;
end
end
fprintf('The solution vector after %d iterations is :n', k);
for i = 1 : n
fprintf(' %11.8f n', x1(i));
end
%% Multigrid test case with visulization
% Author: Ben Beaudry
clc; clear; close all
load A_b.mat;
A = full(A); % Unsparce matrix to show full power of Multigrid
pre = 2; % Number of presmoothing iterations
post = 2; % Number of postsmoothing iterations

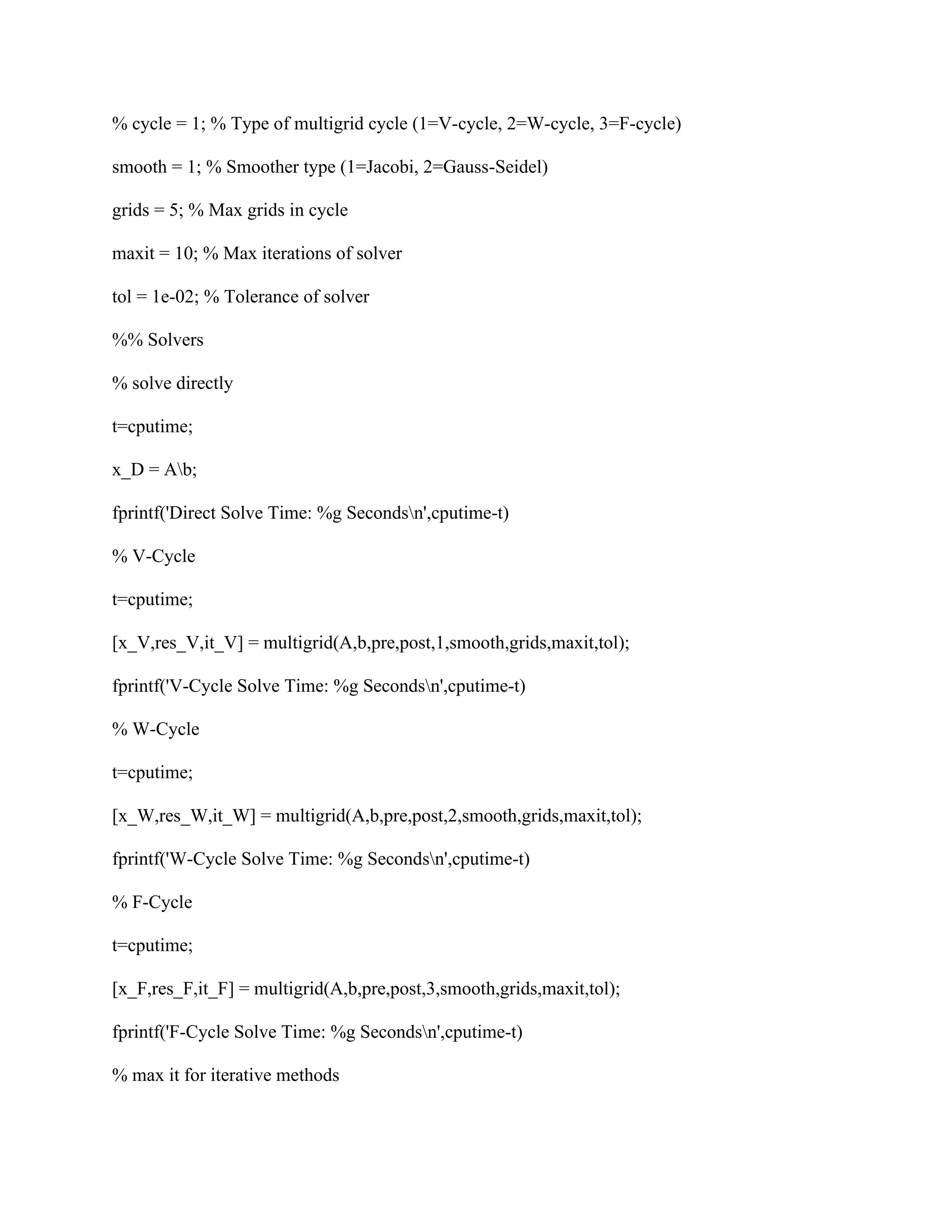

3. % cycle = 1; % Type of multigrid cycle (1=V-cycle, 2=W-cycle, 3=F-cycle)
smooth = 1; % Smoother type (1=Jacobi, 2=Gauss-Seidel)
grids = 5; % Max grids in cycle
maxit = 10; % Max iterations of solver
tol = 1e-02; % Tolerance of solver
%% Solvers
% solve directly
t=cputime;
x_D = Ab;
fprintf('Direct Solve Time: %g Secondsn',cputime-t)
% V-Cycle
t=cputime;
[x_V,res_V,it_V] = multigrid(A,b,pre,post,1,smooth,grids,maxit,tol);
fprintf('V-Cycle Solve Time: %g Secondsn',cputime-t)
% W-Cycle
t=cputime;
[x_W,res_W,it_W] = multigrid(A,b,pre,post,2,smooth,grids,maxit,tol);
fprintf('W-Cycle Solve Time: %g Secondsn',cputime-t)
% F-Cycle
t=cputime;
[x_F,res_F,it_F] = multigrid(A,b,pre,post,3,smooth,grids,maxit,tol);
fprintf('F-Cycle Solve Time: %g Secondsn',cputime-t)
% max it for iterative methods

4. it = 100;
% Gauss-Siedel
t=cputime;
L = tril(A);
U = triu(A,1);
x_G = zeros(length(b),1);
res_G= zeros(it,1);
for g = 1:it
x_G = L(b-U*x_G);
r = b - A * x_G;
res_G(g) = norm(r);
if res_G(g) < tol
break;
end
end
fprintf('Gauss-Seidel Solve Time: %g Secondsn',cputime-t)
% Jacobi
t=cputime;
d = diag(A);
dinv = 1./d;
LU = tril(A,-1)+triu(A,1);
U = triu(A,1);
x_J = zeros(length(b),1);

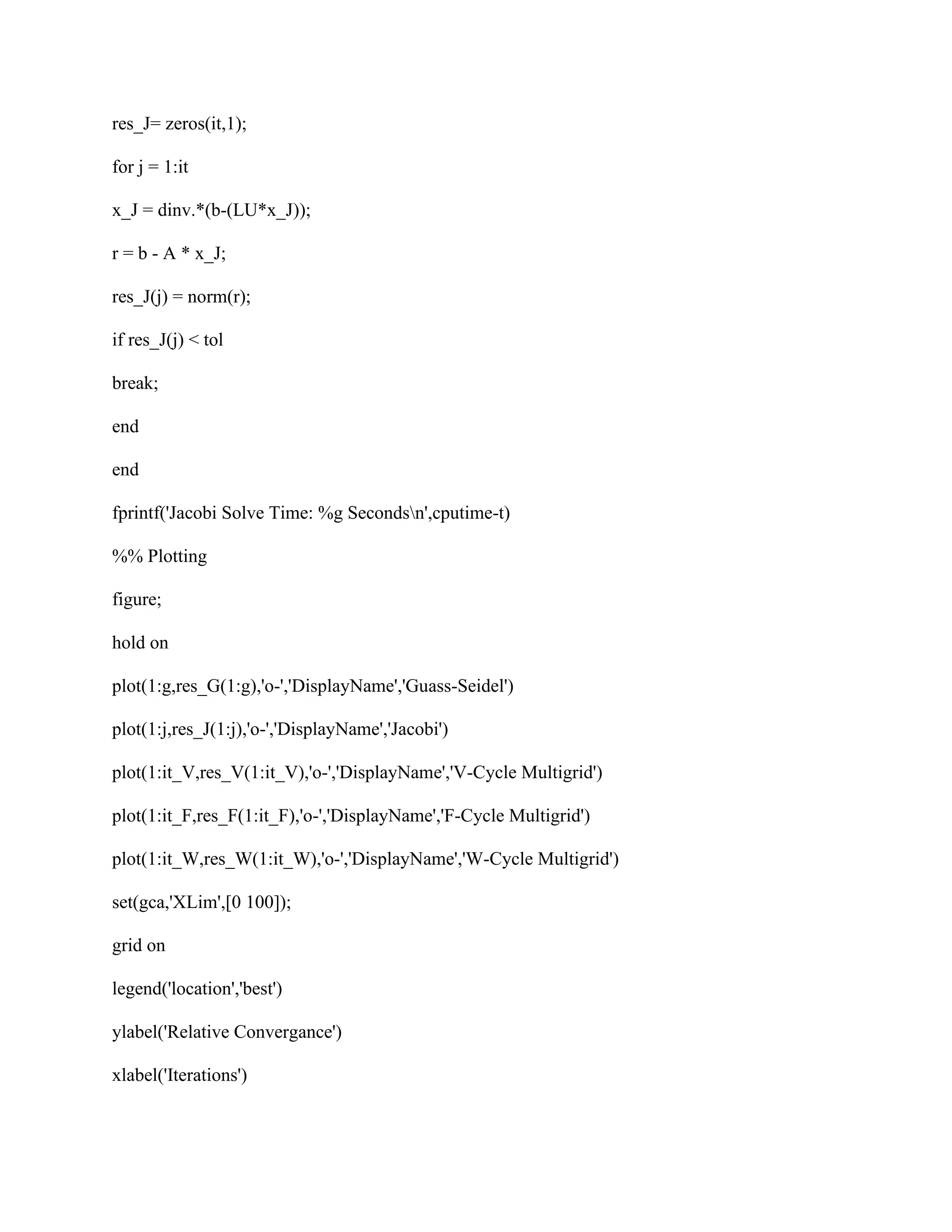

5. res_J= zeros(it,1);
for j = 1:it
x_J = dinv.*(b-(LU*x_J));
r = b - A * x_J;
res_J(j) = norm(r);
if res_J(j) < tol
break;
end
end
fprintf('Jacobi Solve Time: %g Secondsn',cputime-t)
%% Plotting
figure;
hold on
plot(1:g,res_G(1:g),'o-','DisplayName','Guass-Seidel')
plot(1:j,res_J(1:j),'o-','DisplayName','Jacobi')
plot(1:it_V,res_V(1:it_V),'o-','DisplayName','V-Cycle Multigrid')
plot(1:it_F,res_F(1:it_F),'o-','DisplayName','F-Cycle Multigrid')
plot(1:it_W,res_W(1:it_W),'o-','DisplayName','W-Cycle Multigrid')
set(gca,'XLim',[0 100]);
grid on
legend('location','best')
ylabel('Relative Convergance')
xlabel('Iterations')

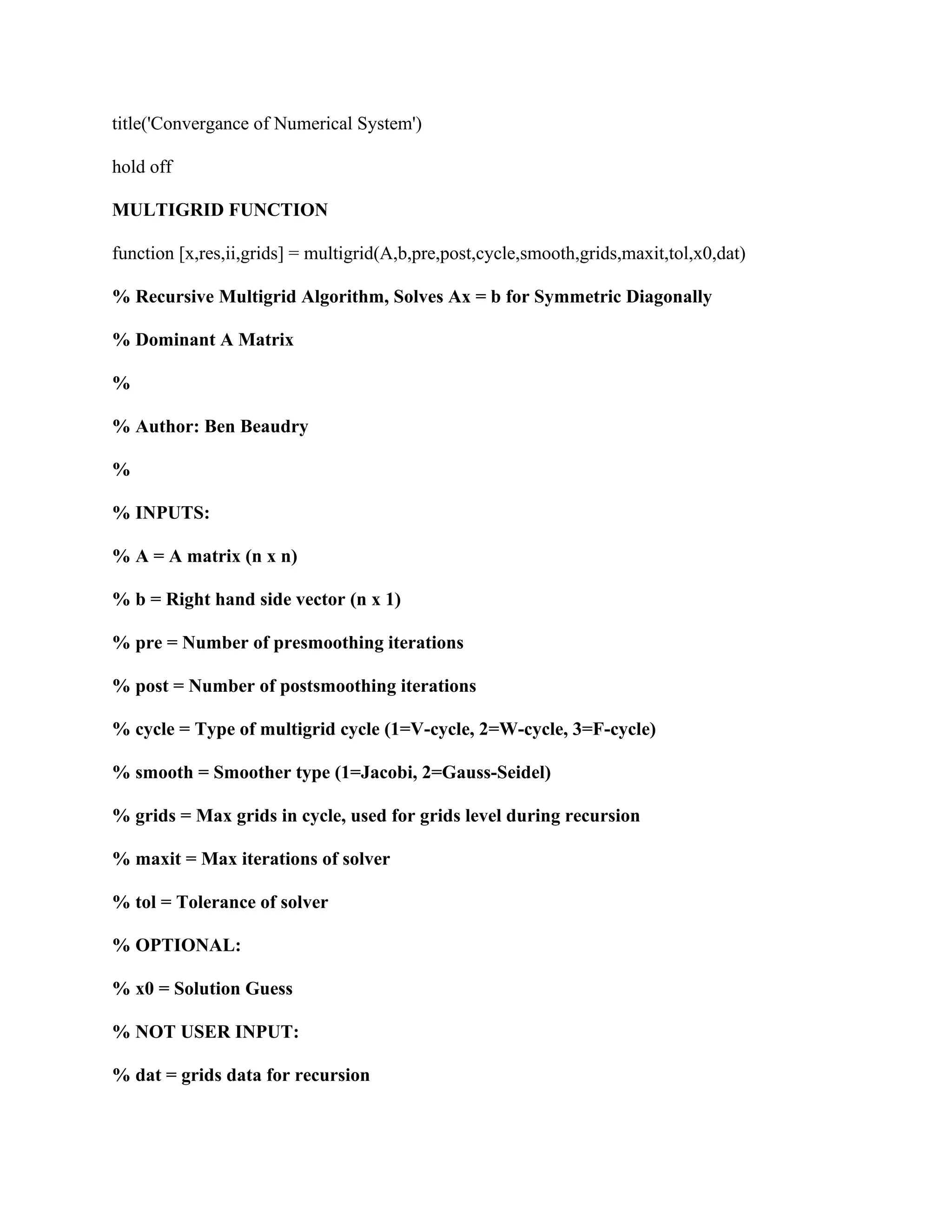

6. title('Convergance of Numerical System')
hold off
MULTIGRID FUNCTION
function [x,res,ii,grids] = multigrid(A,b,pre,post,cycle,smooth,grids,maxit,tol,x0,dat)
% Recursive Multigrid Algorithm, Solves Ax = b for Symmetric Diagonally
% Dominant A Matrix
%
% Author: Ben Beaudry
%
% INPUTS:
% A = A matrix (n x n)
% b = Right hand side vector (n x 1)
% pre = Number of presmoothing iterations
% post = Number of postsmoothing iterations
% cycle = Type of multigrid cycle (1=V-cycle, 2=W-cycle, 3=F-cycle)
% smooth = Smoother type (1=Jacobi, 2=Gauss-Seidel)
% grids = Max grids in cycle, used for grids level during recursion
% maxit = Max iterations of solver
% tol = Tolerance of solver
% OPTIONAL:
% x0 = Solution Guess
% NOT USER INPUT:
% dat = grids data for recursion

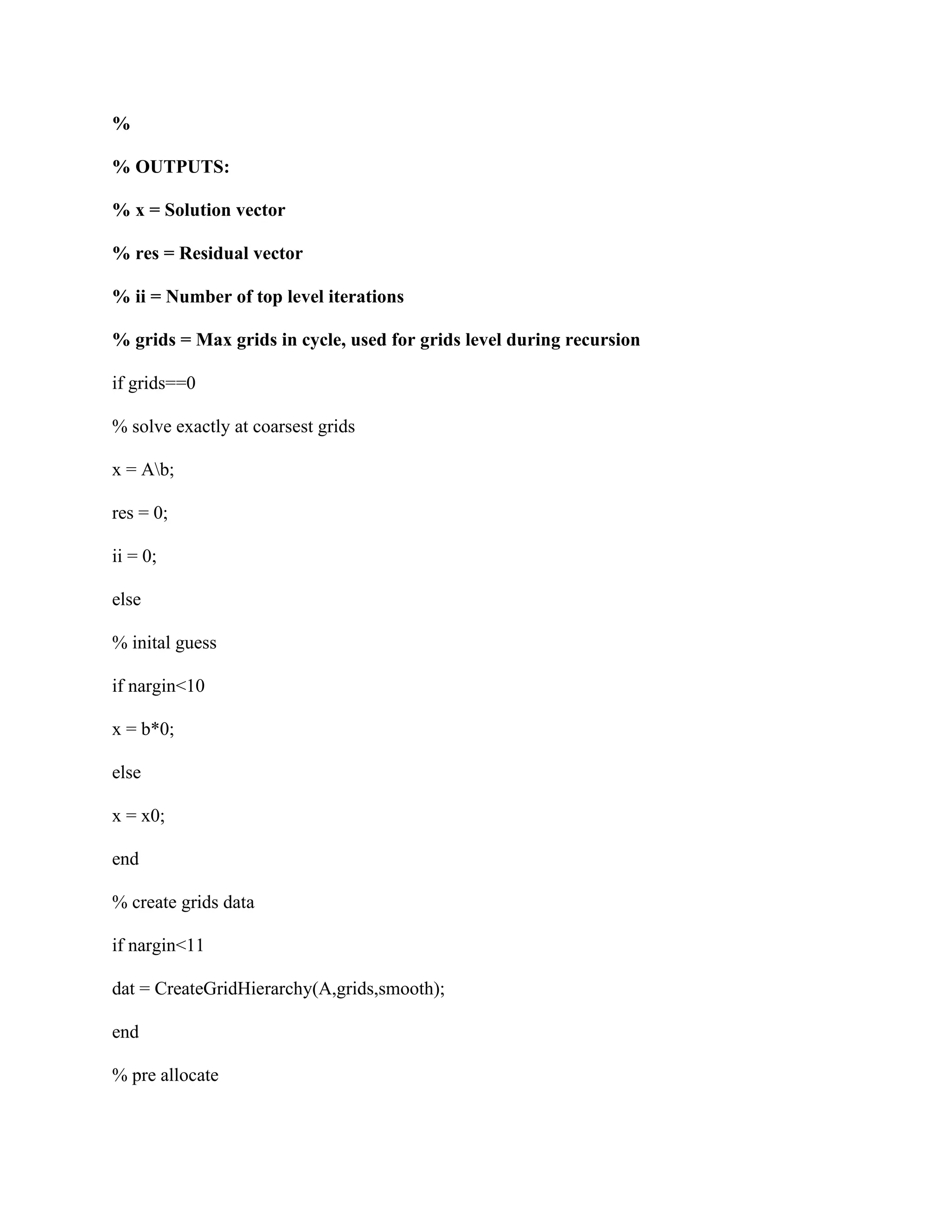

7. %
% OUTPUTS:
% x = Solution vector
% res = Residual vector
% ii = Number of top level iterations
% grids = Max grids in cycle, used for grids level during recursion
if grids==0
% solve exactly at coarsest grids
x = Ab;
res = 0;
ii = 0;
else
% inital guess
if nargin<10
x = b*0;
else
x = x0;
end
% create grids data
if nargin<11
dat = CreateGridHierarchy(A,grids,smooth);
end
% pre allocate

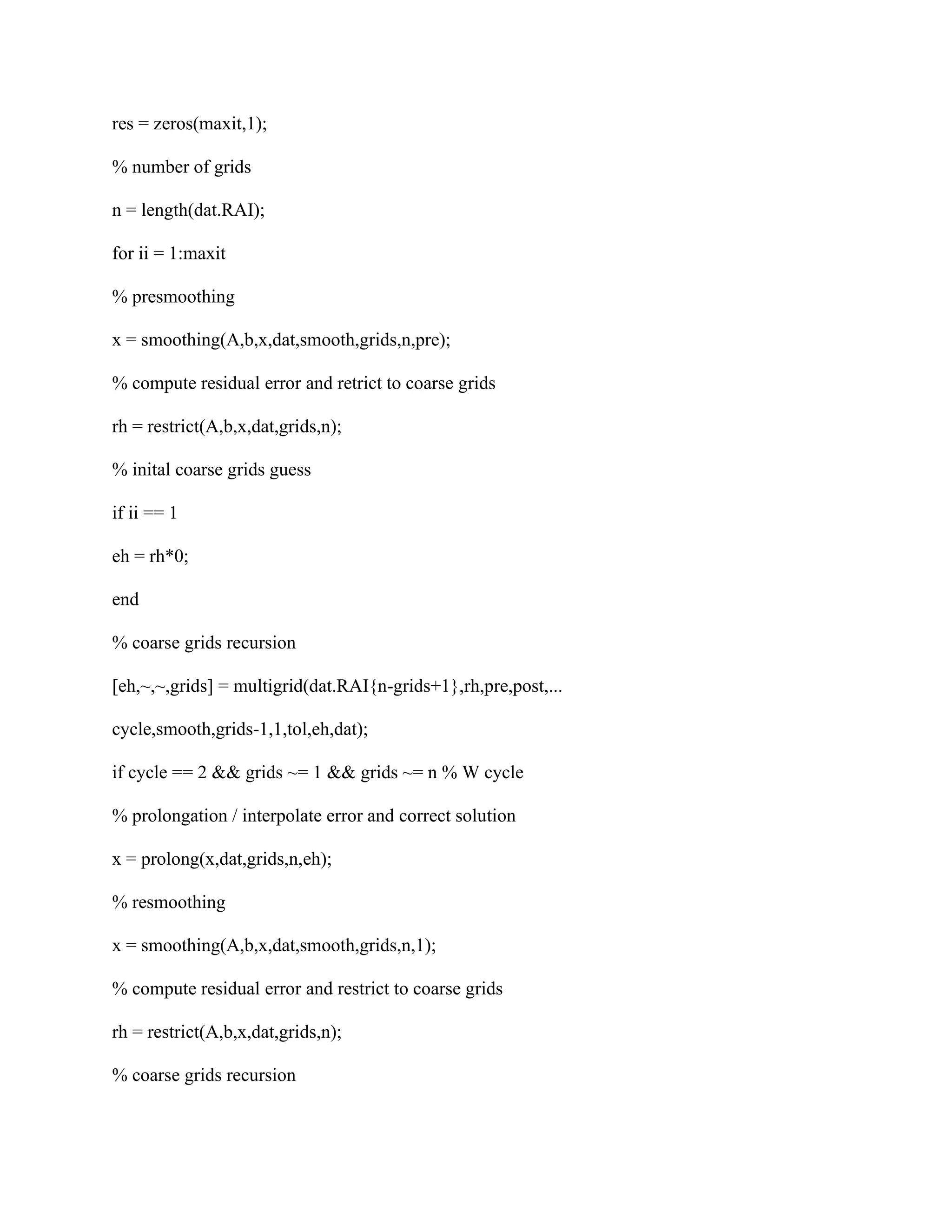

8. res = zeros(maxit,1);
% number of grids
n = length(dat.RAI);
for ii = 1:maxit
% presmoothing
x = smoothing(A,b,x,dat,smooth,grids,n,pre);
% compute residual error and retrict to coarse grids
rh = restrict(A,b,x,dat,grids,n);
% inital coarse grids guess
if ii == 1
eh = rh*0;
end
% coarse grids recursion
[eh,~,~,grids] = multigrid(dat.RAI{n-grids+1},rh,pre,post,...
cycle,smooth,grids-1,1,tol,eh,dat);
if cycle == 2 && grids ~= 1 && grids ~= n % W cycle
% prolongation / interpolate error and correct solution
x = prolong(x,dat,grids,n,eh);
% resmoothing
x = smoothing(A,b,x,dat,smooth,grids,n,1);
% compute residual error and restrict to coarse grids
rh = restrict(A,b,x,dat,grids,n);
% coarse grids recursion

9. [eh,~,~,grids] = multigrid(dat.RAI{n-grids+1},rh,pre,post,...
cycle,smooth,grids-1,1,tol,eh,dat);
end

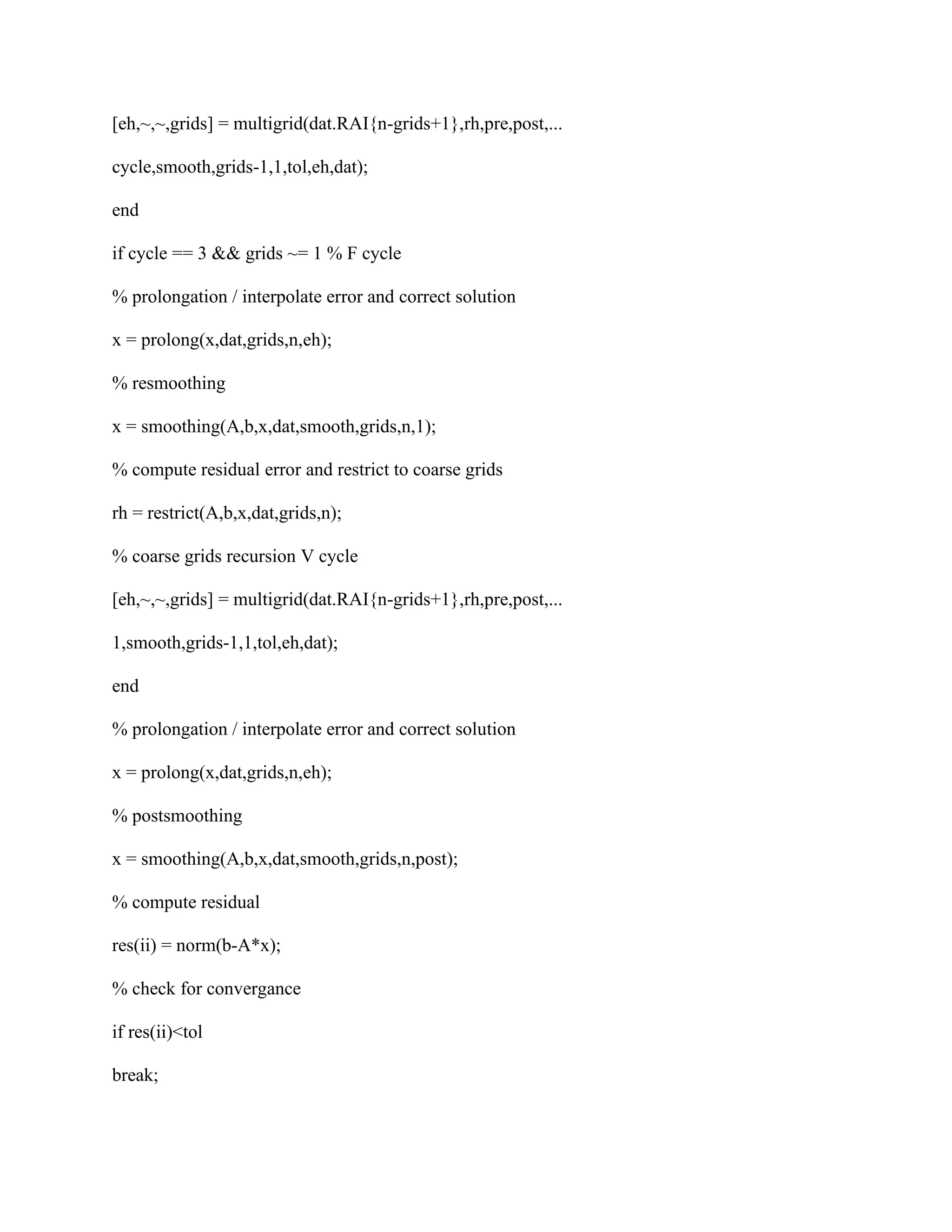

if cycle == 3 && grids ~= 1 % F cycle
% prolongation / interpolate error and correct solution
x = prolong(x,dat,grids,n,eh);
% resmoothing
x = smoothing(A,b,x,dat,smooth,grids,n,1);
% compute residual error and restrict to coarse grids
rh = restrict(A,b,x,dat,grids,n);
% coarse grids recursion V cycle
[eh,~,~,grids] = multigrid(dat.RAI{n-grids+1},rh,pre,post,...
1,smooth,grids-1,1,tol,eh,dat);
end
% prolongation / interpolate error and correct solution
x = prolong(x,dat,grids,n,eh);
% postsmoothing
x = smoothing(A,b,x,dat,smooth,grids,n,post);
% compute residual
res(ii) = norm(b-A*x);
% check for convergance
if res(ii)<tol
break;

10. end
end
end

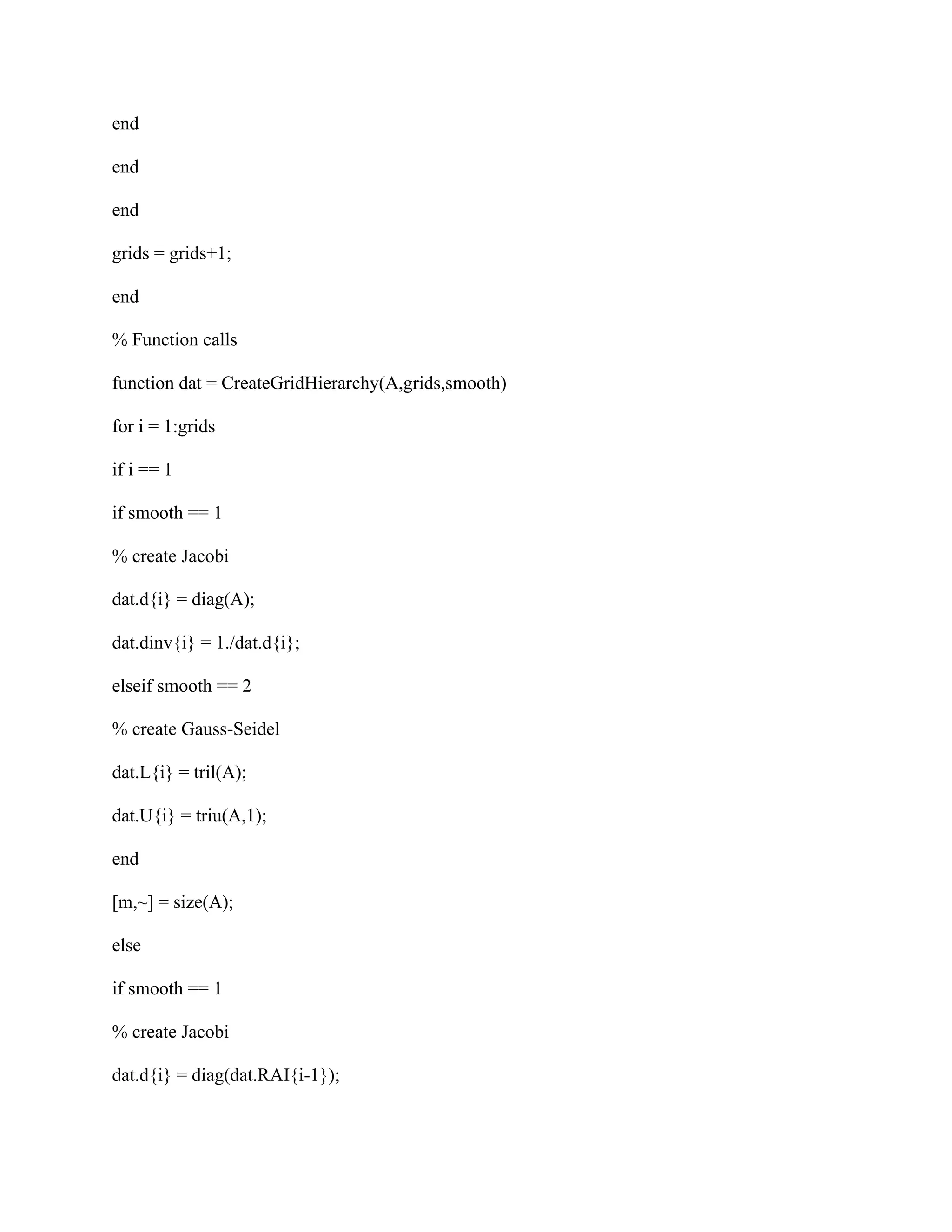

grids = grids+1;
end
% Function calls
function dat = CreateGridHierarchy(A,grids,smooth)
for i = 1:grids
if i == 1
if smooth == 1
% create Jacobi
dat.d{i} = diag(A);
dat.dinv{i} = 1./dat.d{i};
elseif smooth == 2
% create Gauss-Seidel
dat.L{i} = tril(A);
dat.U{i} = triu(A,1);
end
[m,~] = size(A);
else
if smooth == 1
% create Jacobi

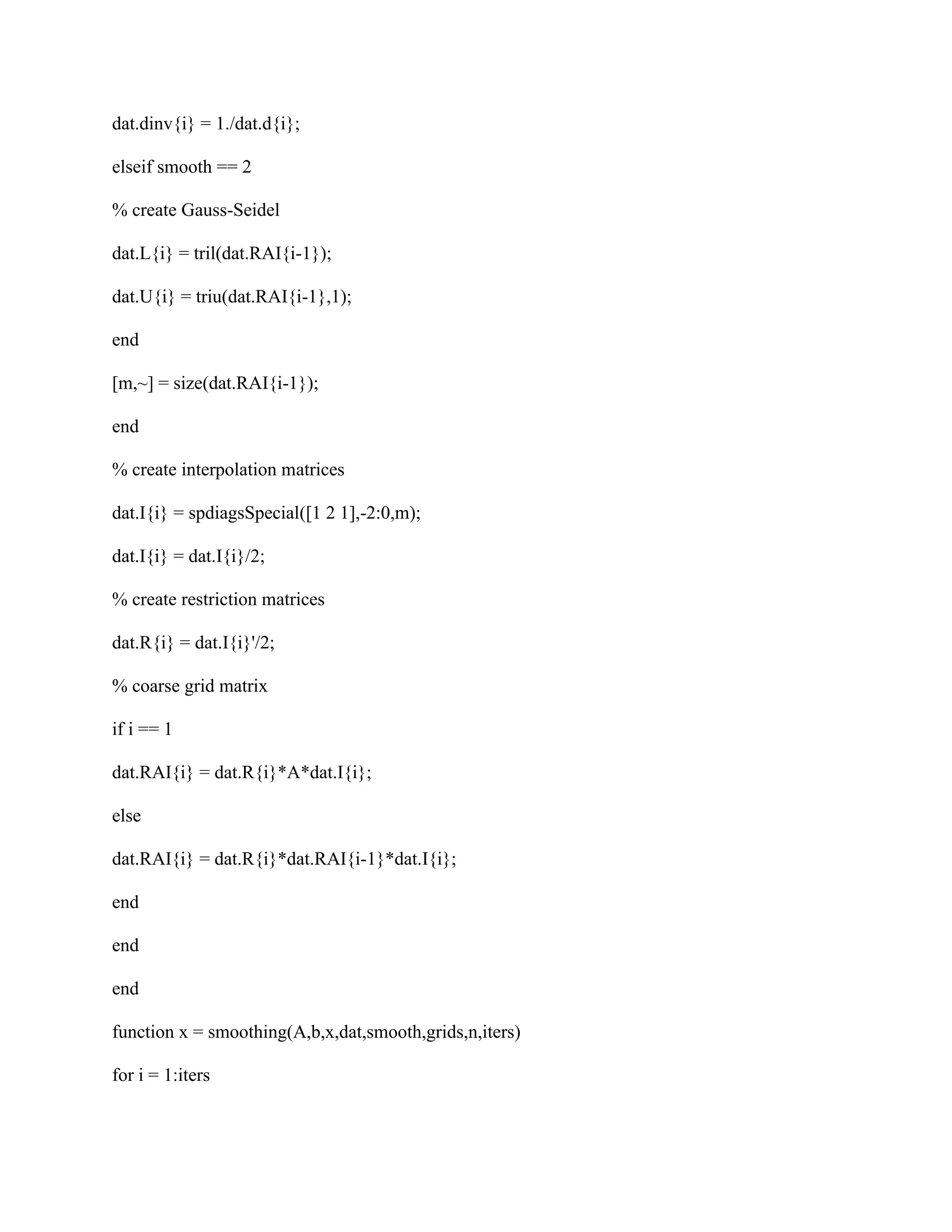

dat.d{i} = diag(dat.RAI{i-1});

11. dat.dinv{i} = 1./dat.d{i};
elseif smooth == 2
% create Gauss-Seidel
dat.L{i} = tril(dat.RAI{i-1});
dat.U{i} = triu(dat.RAI{i-1},1);
end
[m,~] = size(dat.RAI{i-1});
end
% create interpolation matrices
dat.I{i} = spdiagsSpecial([1 2 1],-2:0,m);
dat.I{i} = dat.I{i}/2;
% create restriction matrices
dat.R{i} = dat.I{i}'/2;
% coarse grid matrix
if i == 1
dat.RAI{i} = dat.R{i}*A*dat.I{i};
else
dat.RAI{i} = dat.R{i}*dat.RAI{i-1}*dat.I{i};
end
end
end
function x = smoothing(A,b,x,dat,smooth,grids,n,iters)
for i = 1:iters

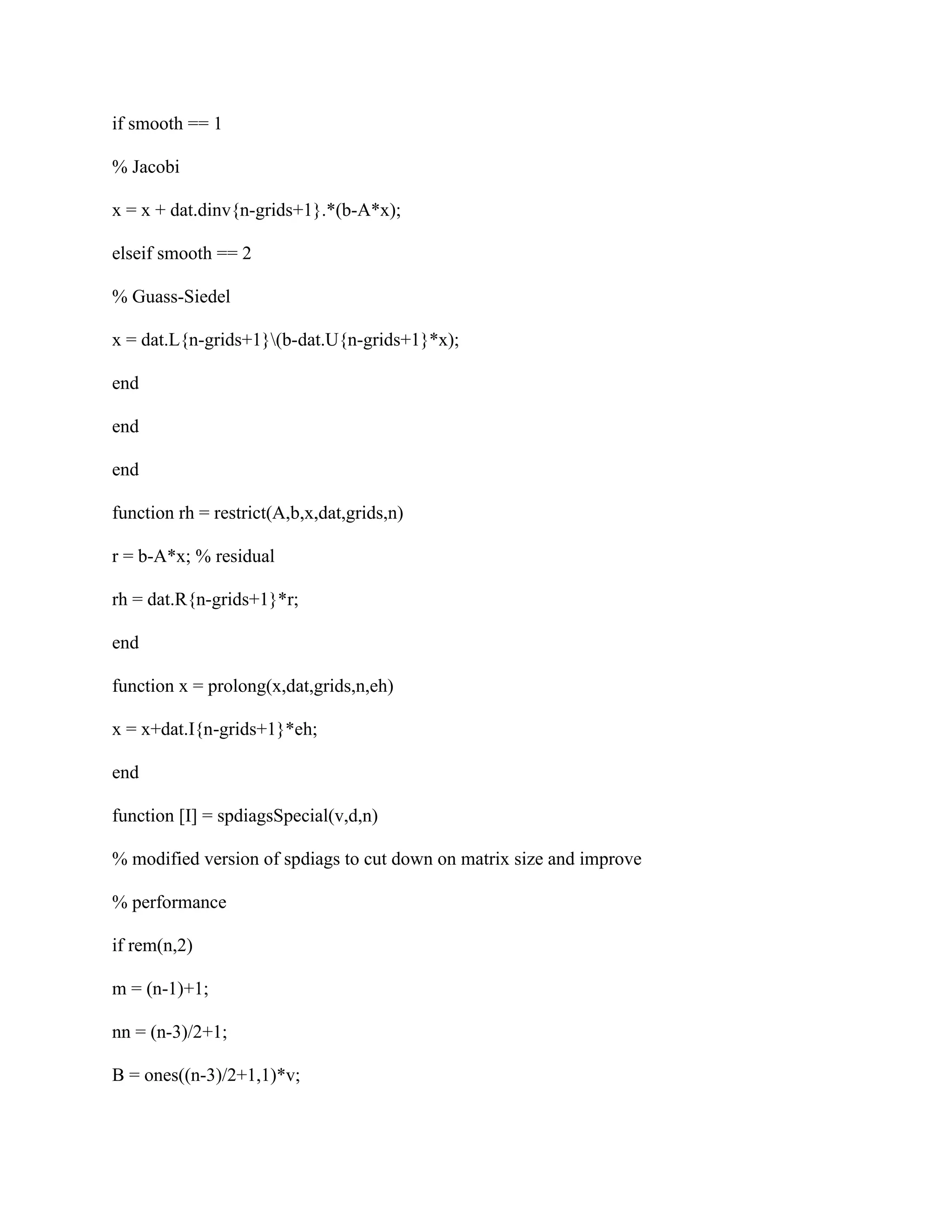

12. if smooth == 1
% Jacobi
x = x + dat.dinv{n-grids+1}.*(b-A*x);
elseif smooth == 2
% Guass-Siedel
x = dat.L{n-grids+1}(b-dat.U{n-grids+1}*x);
end
end
end
function rh = restrict(A,b,x,dat,grids,n)
r = b-A*x; % residual
rh = dat.R{n-grids+1}*r;
end
function x = prolong(x,dat,grids,n,eh)
x = x+dat.I{n-grids+1}*eh;
end

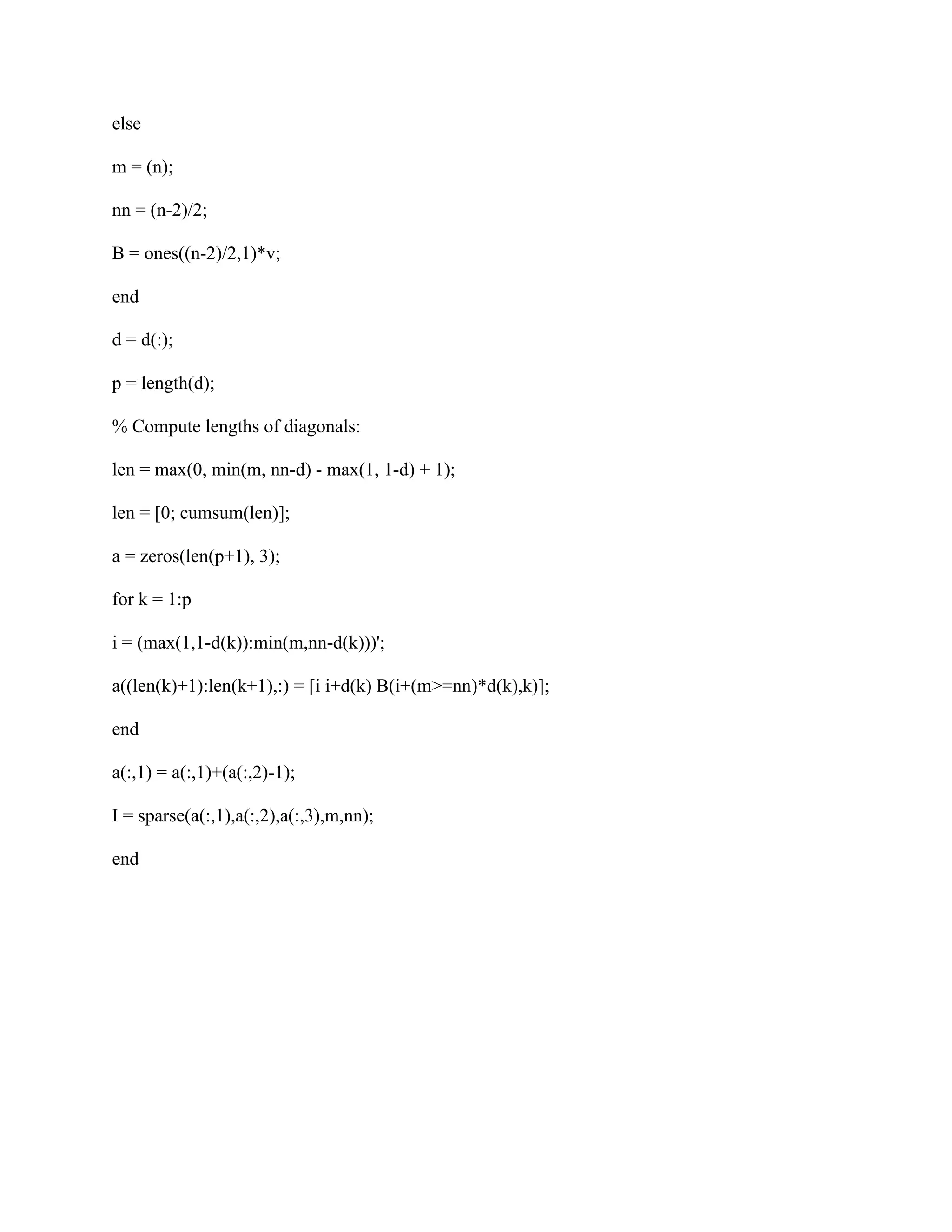

function [I] = spdiagsSpecial(v,d,n)
% modified version of spdiags to cut down on matrix size and improve
% performance
if rem(n,2)
m = (n-1)+1;
nn = (n-3)/2+1;
B = ones((n-3)/2+1,1)*v;

13. else
m = (n);
nn = (n-2)/2;
B = ones((n-2)/2,1)*v;
end
d = d(:);
p = length(d);
% Compute lengths of diagonals:
len = max(0, min(m, nn-d) - max(1, 1-d) + 1);
len = [0; cumsum(len)];
a = zeros(len(p+1), 3);
for k = 1:p
i = (max(1,1-d(k)):min(m,nn-d(k)))';
a((len(k)+1):len(k+1),:) = [i i+d(k) B(i+(m>=nn)*d(k),k)];
end
a(:,1) = a(:,1)+(a(:,2)-1);
I = sparse(a(:,1),a(:,2),a(:,3),m,nn);
end
