ode45 task.docx
•Download as DOCX, PDF•
0 likes•12 views
This document defines an ordinary differential equation (ODE) model of a cart-pendulum system. It sets the initial conditions and time span, calls the ODE solver ode45 to solve the system, and plots the results. The ODE function defines the equations of motion for the cart position and pendulum angle derivatives based on the system parameters.
Report
Share
Report
Share
![clear all; close all; clc;
tspan=linspace(0,2.100) % time span ranges from 0 to 15 sec
% Defined the Inintial conditions
x0=[6;-1;1;1] % x1(0), x2(0), x1prime(0), x2prime(0);
%ode code
[t,x]= ode45(@odefun,tspan,x0) %odefun-name of function
%make plots

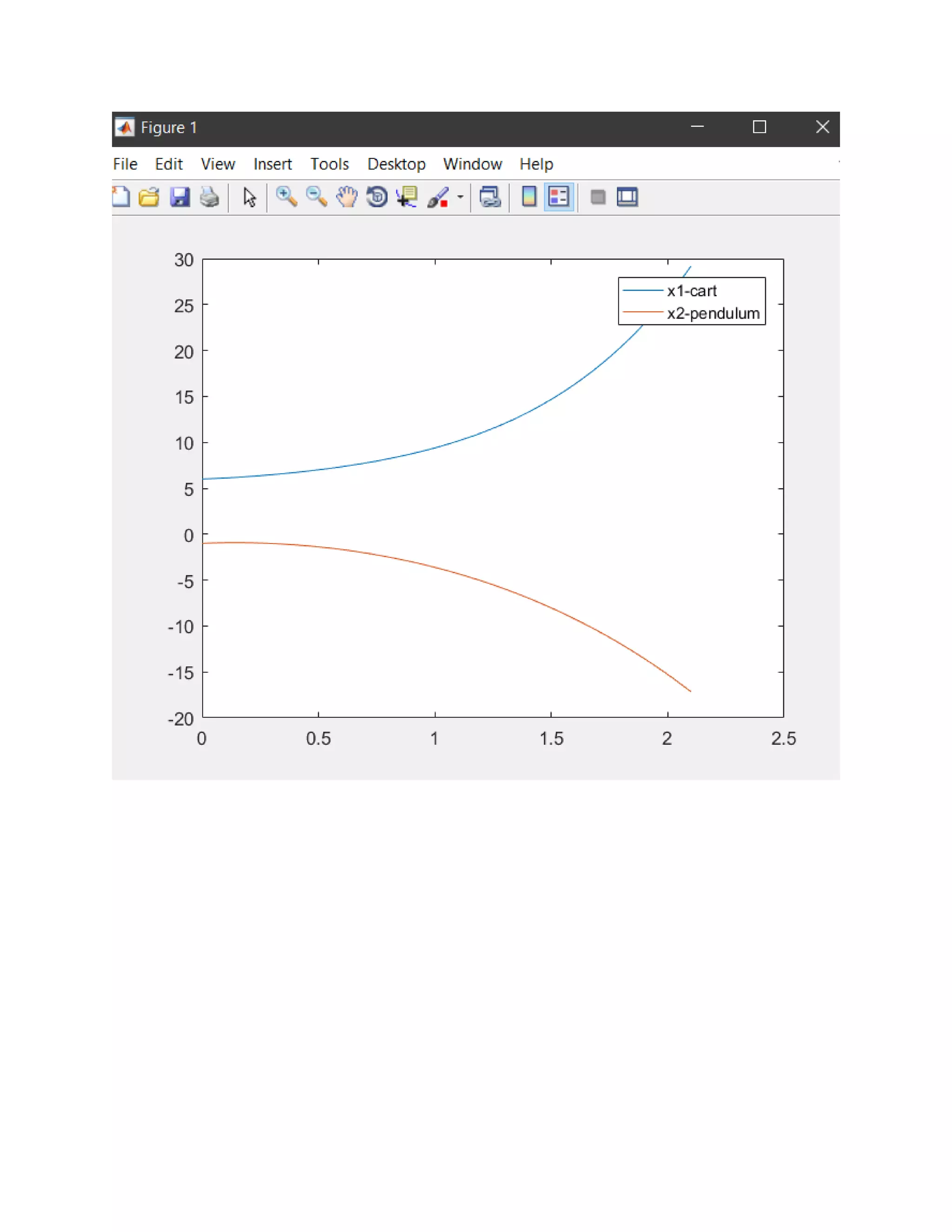

plot(t,x(:,1)) % first degree
hold on % add second plot
plot(t,x(:,2))% plot second degree
legend ('x1-cart','x2-pendulum') % created the legends on
the graph
% step 4: creating the derivaticce function
function dx2dt= odefun(t,x) % argument are t, x
% we defiend the parameters values
m1 = 0.5; % mass of cart
m2 = 0.2; % mass of pendulum
L=0.3;
Izz =0.006;
g = 9.81;
f=1
p1 = ((m1+m2)*(Izz+(m2*(L^2))))-((m2^2)*(L^2));
% initializing the column vector for the output derivative
dx2dt= zeros(4,1);
dx2dt(1)=x(3);
dx2dt(2)=x(4);
dx2dt(3)= (f/(m1+m2))-((((m2*L)^2)*g)/p1)*x(2); % x double
derivative equation
dx2dt(4)=m2*g*L*x(2) -((m2*L*f)/(m1+m2))/p1 ; % Phi double
derivative equation
% dx2dt is the output to our ode function
end](https://image.slidesharecdn.com/ode45task-220529191040-72c21f3e/85/ode45-task-docx-1-320.jpg)
