The document describes a project to implement a Bitcoin hashing algorithm on hardware to increase hashing rate. It discusses prototypes using a laptop and Zedboard to test SHA-256 hashing in Java and C. The final design is a lightweight Bitcoin miner running SHA-256 hashing in C on the Zedboard and connecting to the Bitcoin network through an API. It provides pseudocode for the SHA-256 algorithm and describes the hardware implementation and structural design. Results found the Zedboard achieved lower hashing rates than the laptop.

1. Bitcoin
Natalie , Joe, Nattapon

2. Aim and Objectives
● Aim
o Increase hash rate through hardware
● Objectives
o Implement Bitcoin hashing algorithm
 hardware (Zedboard )
 software
 offline and online miner
● Result
o compare past block hash performance

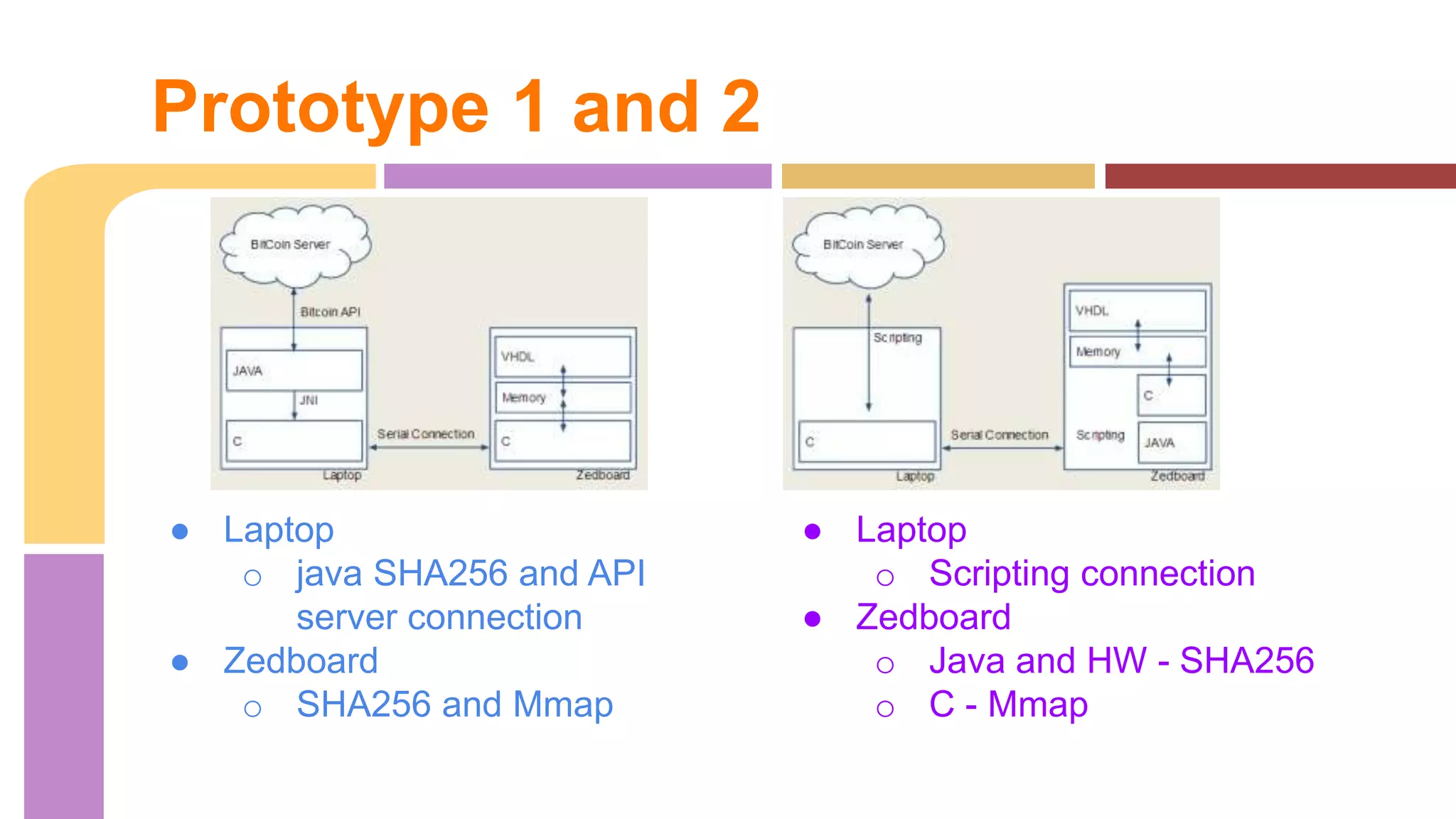

3. Prototype 1 and 2
● Laptop
o java SHA256 and API
server connection
● Zedboard
o SHA256 and Mmap
● Laptop
o Scripting connection
● Zedboard
o Java and HW - SHA256
o C - Mmap

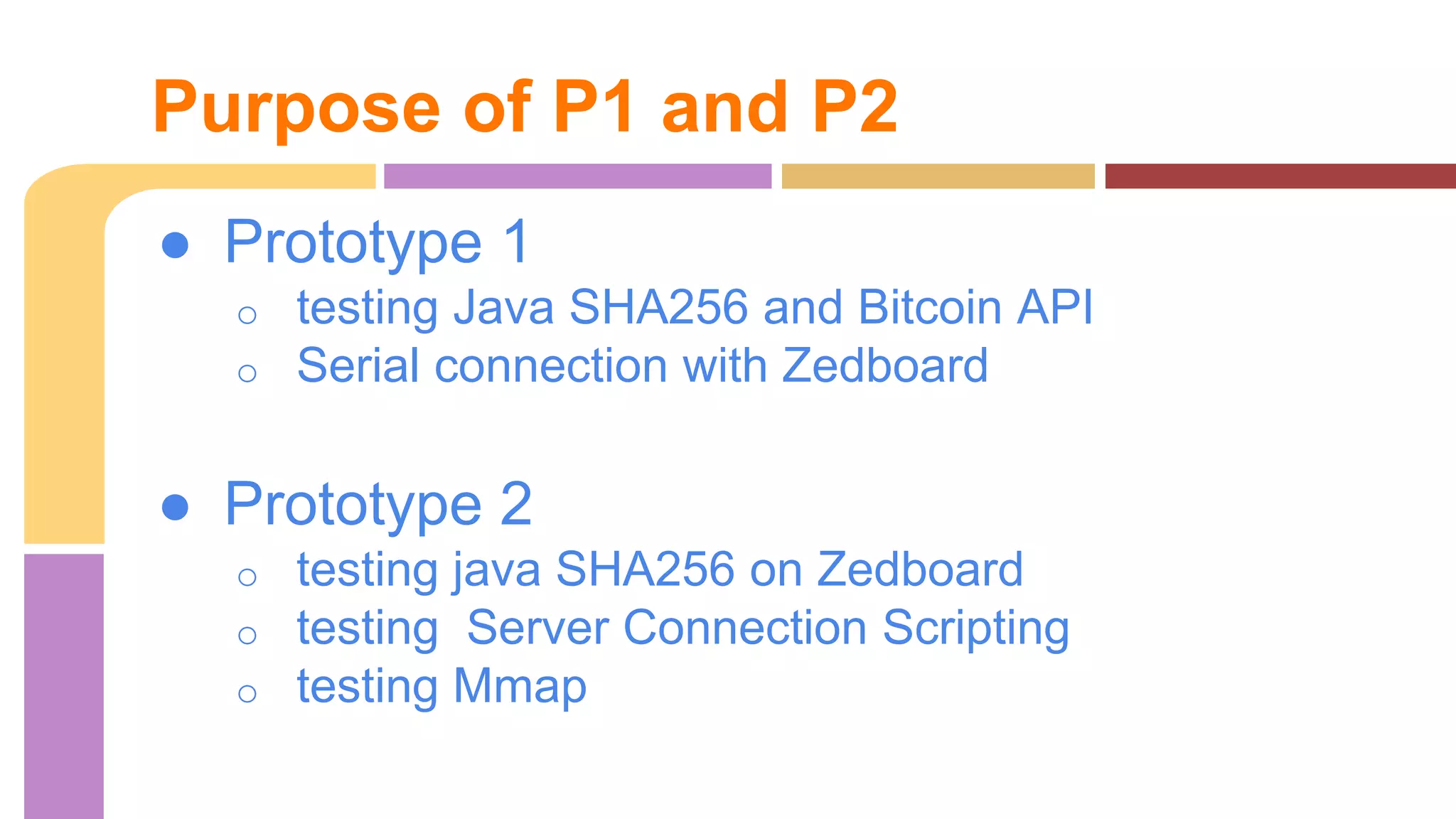

4. Purpose of P1 and P2
● Prototype 1
o testing Java SHA256 and Bitcoin API
o Serial connection with Zedboard
● Prototype 2
o testing java SHA256 on Zedboard
o testing Server Connection Scripting
o testing Mmap

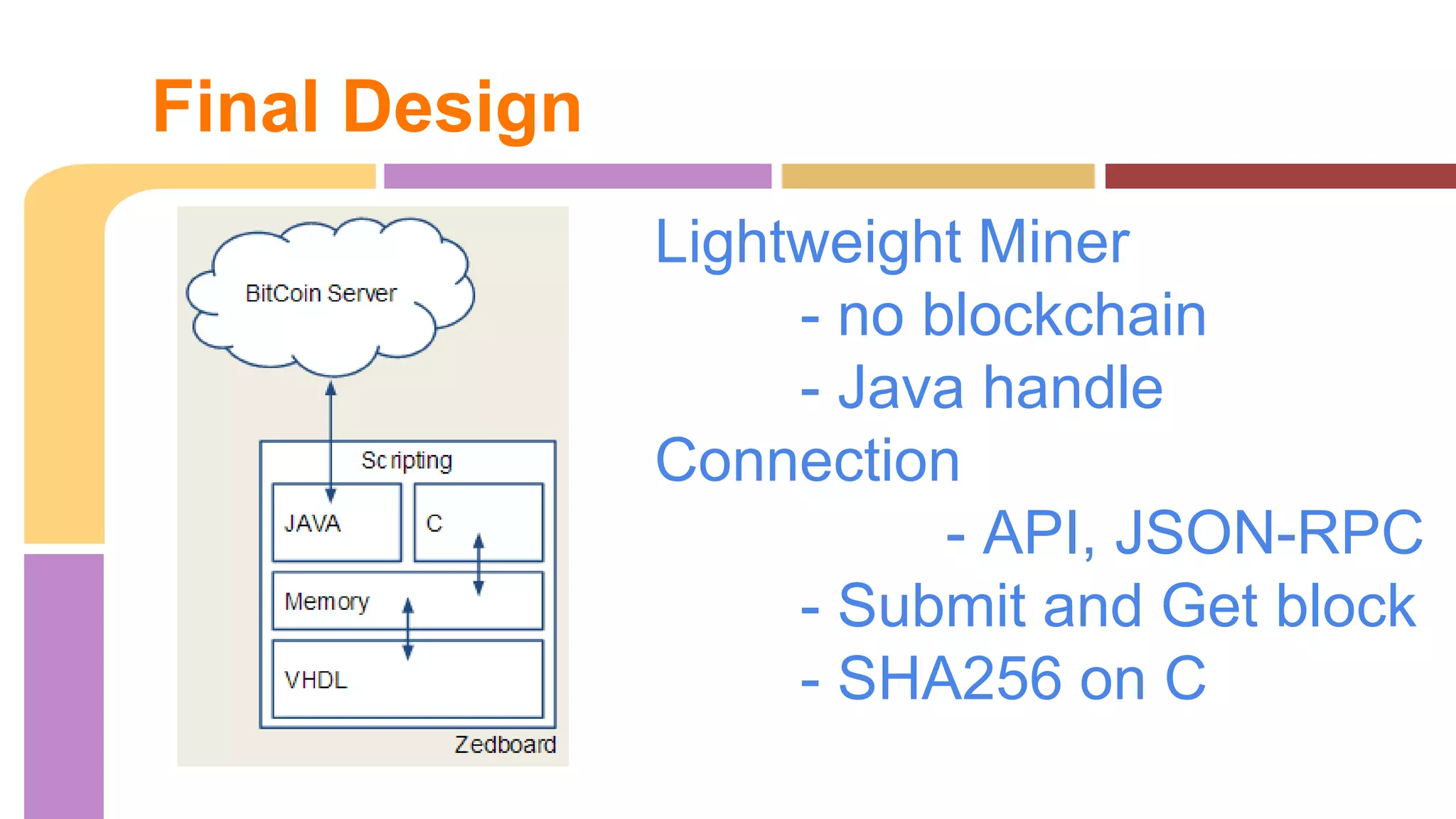

5. Final Design
Lightweight Miner
- no blockchain
- Java handle
Connection
- API, JSON-RPC
- Submit and Get block
- SHA256 on C

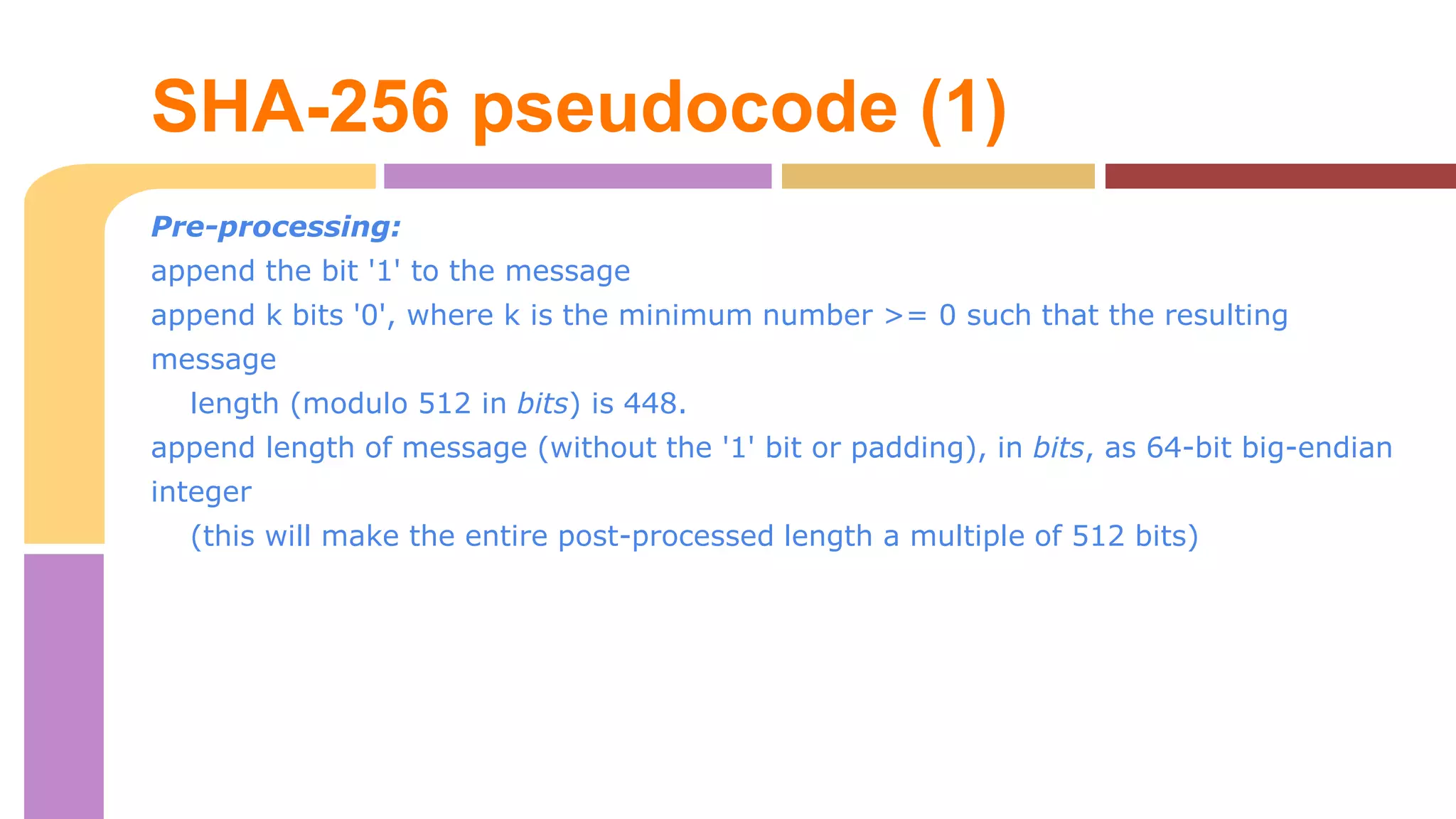

6. SHA-256 pseudocode (1)
Pre-processing:
append the bit '1' to the message
append k bits '0', where k is the minimum number >= 0 such that the resulting
message
length (modulo 512 in bits) is 448.
append length of message (without the '1' bit or padding), in bits, as 64-bit big-endian
integer
(this will make the entire post-processed length a multiple of 512 bits)

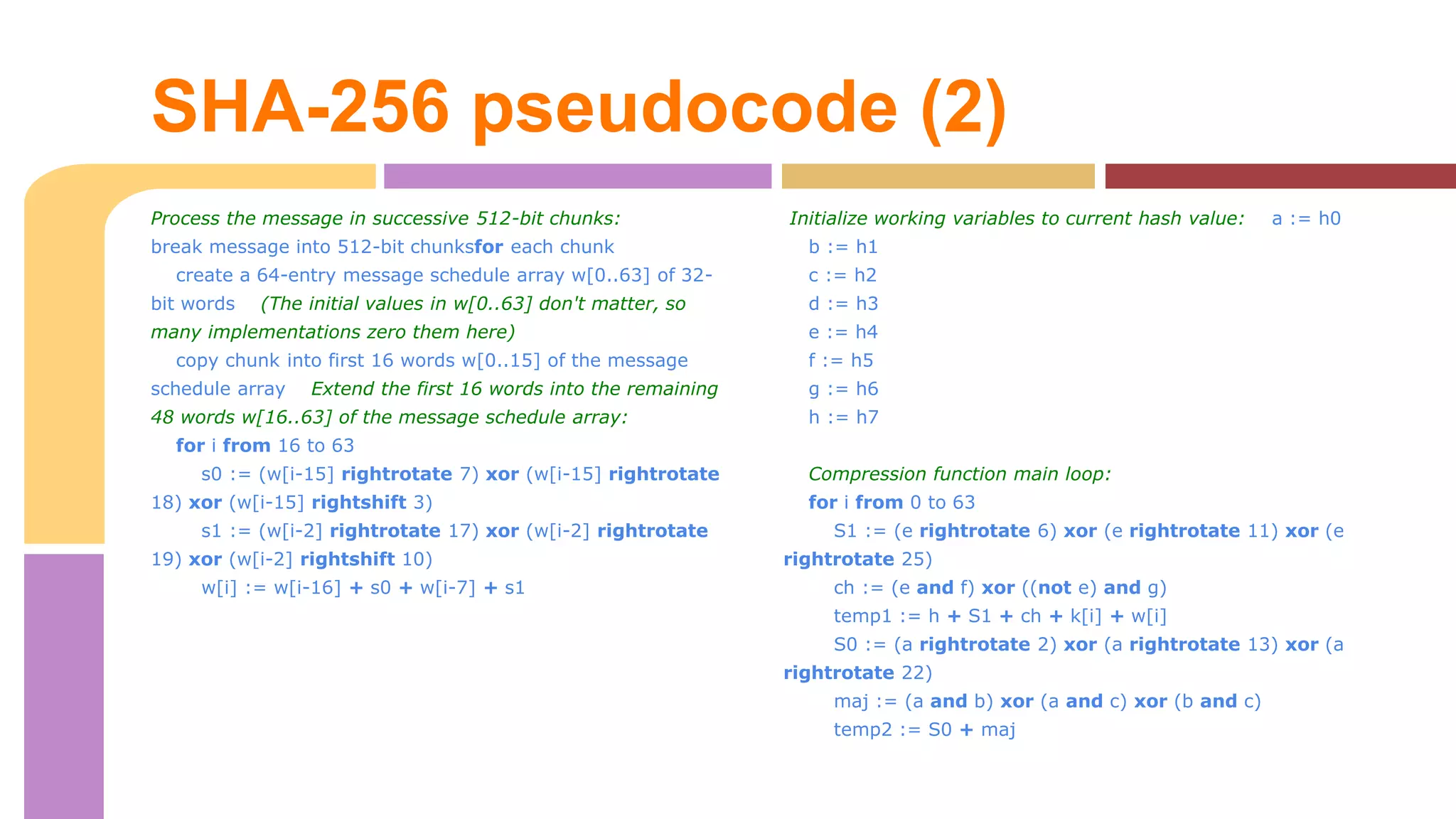

7. SHA-256 pseudocode (2)
Process the message in successive 512-bit chunks:
break message into 512-bit chunksfor each chunk
create a 64-entry message schedule array w[0..63] of 32-
bit words (The initial values in w[0..63] don't matter, so
many implementations zero them here)
copy chunk into first 16 words w[0..15] of the message
schedule array Extend the first 16 words into the remaining
48 words w[16..63] of the message schedule array:
for i from 16 to 63
s0 := (w[i-15] rightrotate 7) xor (w[i-15] rightrotate
18) xor (w[i-15] rightshift 3)
s1 := (w[i-2] rightrotate 17) xor (w[i-2] rightrotate
19) xor (w[i-2] rightshift 10)
w[i] := w[i-16] + s0 + w[i-7] + s1
Initialize working variables to current hash value: a := h0
b := h1
c := h2
d := h3
e := h4
f := h5
g := h6
h := h7
Compression function main loop:
for i from 0 to 63
S1 := (e rightrotate 6) xor (e rightrotate 11) xor (e
rightrotate 25)
ch := (e and f) xor ((not e) and g)
temp1 := h + S1 + ch + k[i] + w[i]
S0 := (a rightrotate 2) xor (a rightrotate 13) xor (a
rightrotate 22)
maj := (a and b) xor (a and c) xor (b and c)
temp2 := S0 + maj

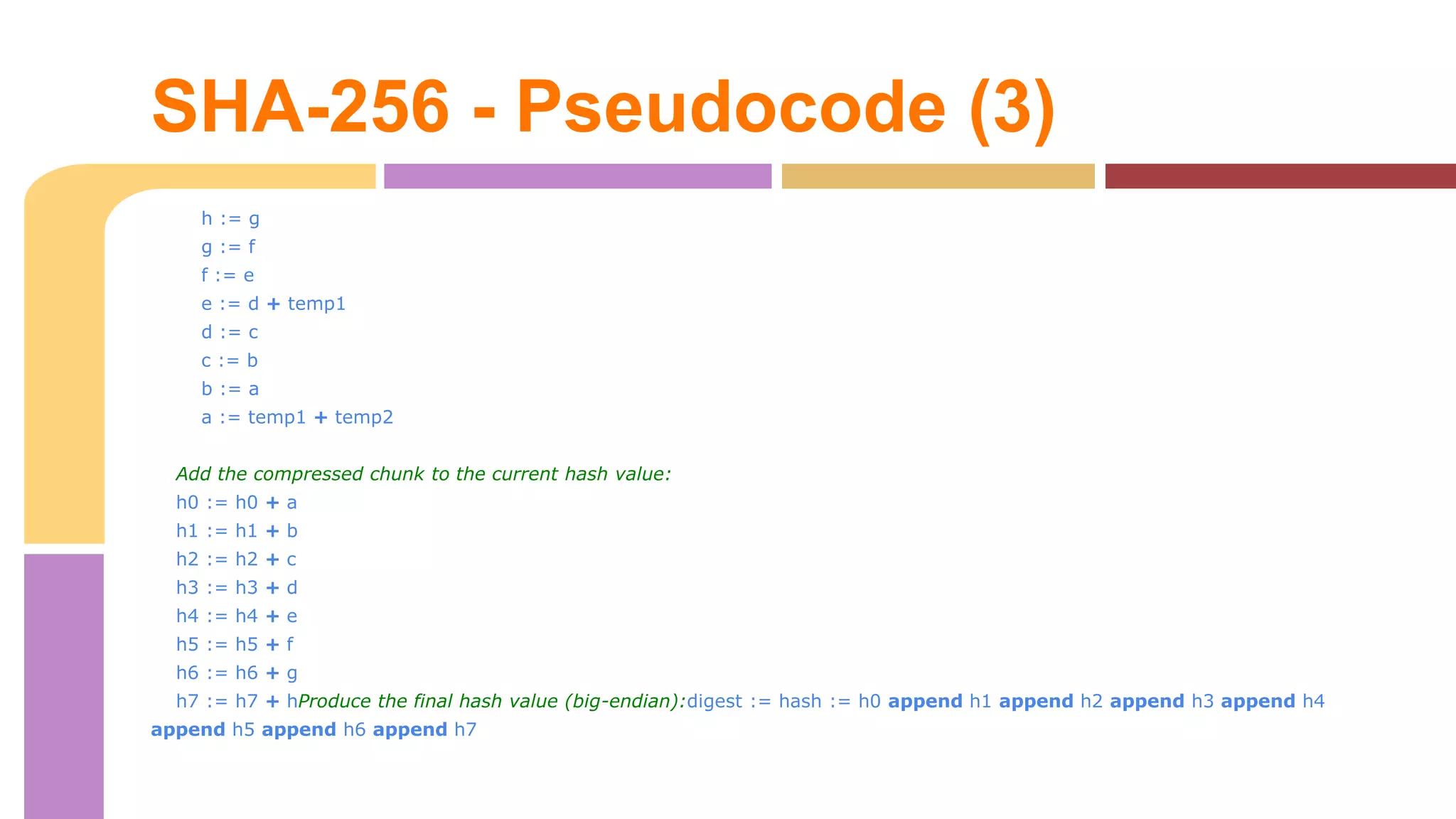

8. SHA-256 - Pseudocode (3)
h := g
g := f
f := e
e := d + temp1
d := c
c := b
b := a
a := temp1 + temp2
Add the compressed chunk to the current hash value:
h0 := h0 + a
h1 := h1 + b
h2 := h2 + c
h3 := h3 + d
h4 := h4 + e
h5 := h5 + f
h6 := h6 + g
h7 := h7 + hProduce the final hash value (big-endian):digest := hash := h0 append h1 append h2 append h3 append h4
append h5 append h6 append h7

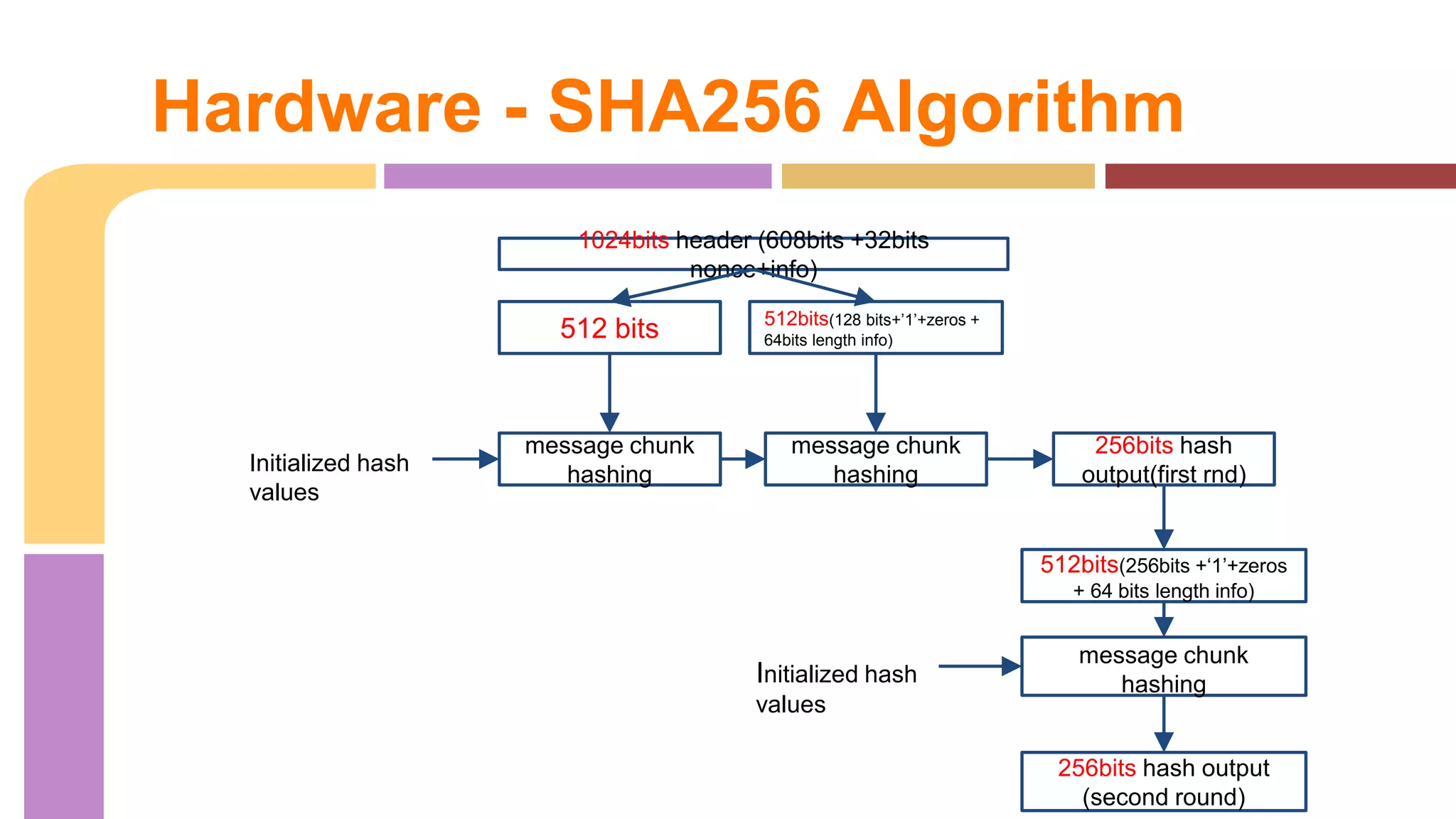

9. Hardware - SHA256 Algorithm
1024bits header (608bits +32bits
nonce+info)
512 bits 512bits(128 bits+’1’+zeros +
64bits length info)
message chunk
hashing
Initialized hash
values
message chunk
hashing
256bits hash
output(first rnd)
512bits(256bits +‘1’+zeros
+ 64 bits length info)
message chunk
Initialized hash hashing
values
256bits hash output
(second round)

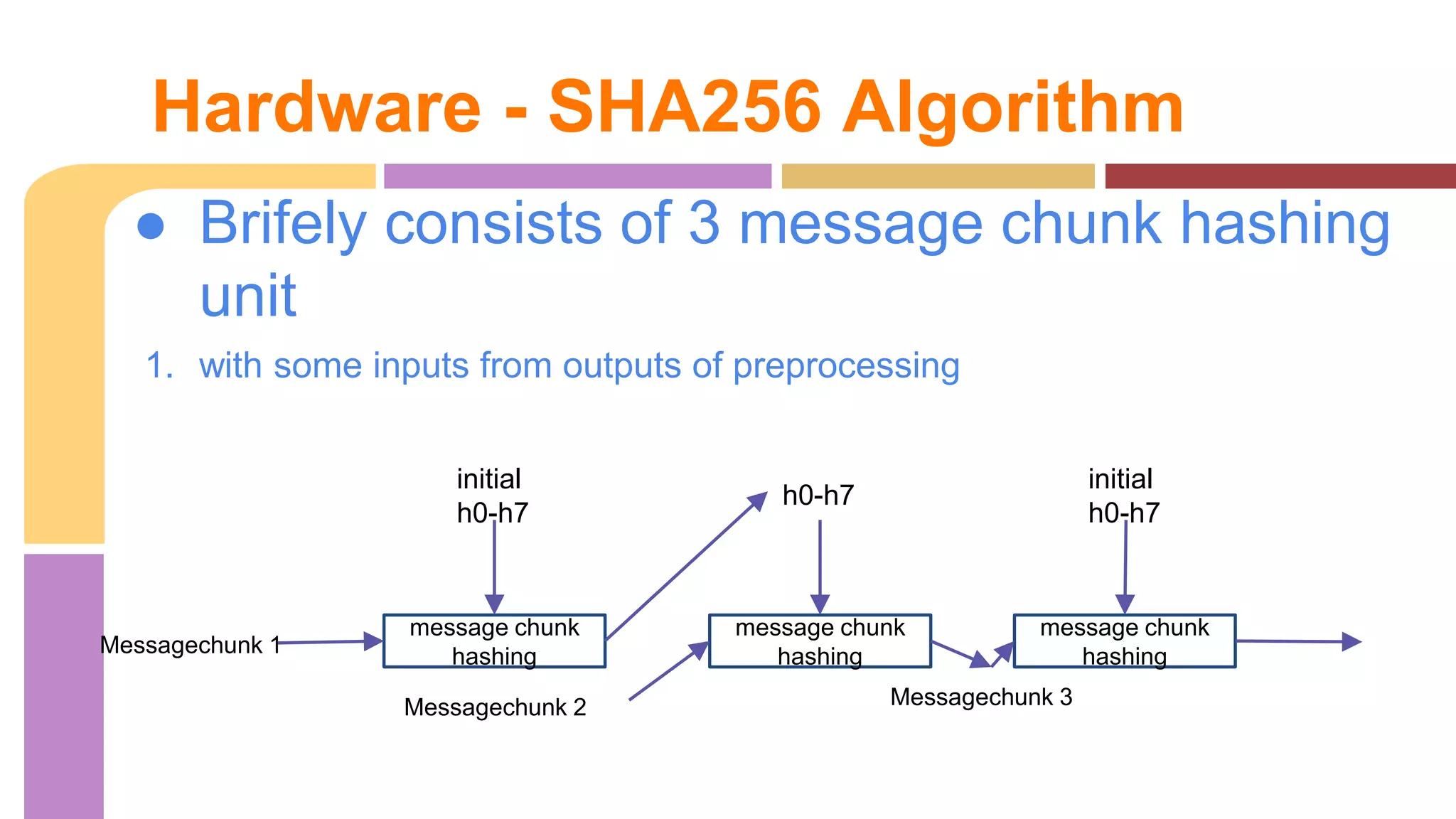

10. Hardware - SHA256 Algorithm
● Brifely consists of 3 message chunk hashing
message chunk
hashing
message chunk
hashing
message chunk
hashing
h0-h7
initial
h0-h7
initial
h0-h7
Messagechunk 1
Messagechunk 2 Messagechunk 3
unit
1. with some inputs from outputs of preprocessing

11. Hardware - Structural sha256
● Saving resources e.g
(LUT/slices)
1. multiple array64vectors of 32 bits: word,k
2. Parallel calculations not entirely feasible
● trade-off : time
1. One round of MessageChunk will be
completed in 64 clk cycles. So SHA 256
will be completed in 64x3 = 192 ckls.
2. Search for the right nonce can be very
exhaustive effort

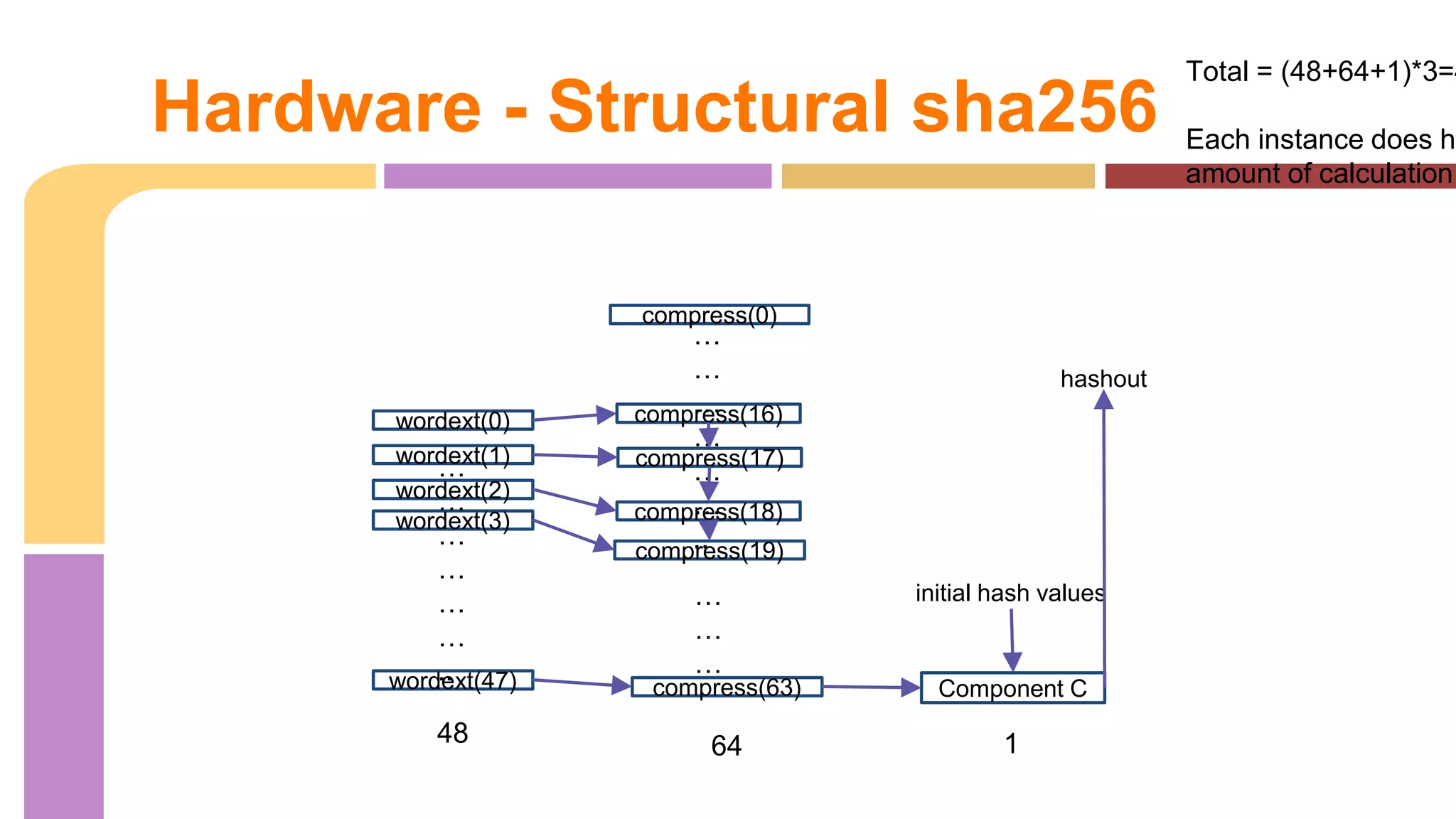

12. Hardware - Structural sha256
wordext(0)
wordext(1)
wordext(2)
wordext(3)
…
…
…
…
…
…
..
wordext(47)
compress(0)
…
…
…
…
…
…
..
compress(16)
compress(17)
compress(18)
compress(19)
…
…
…
compress(63)
hashout
initial hash values
Component C
48 64 1
Total = (48+64+1)*3=452
Each instance does hugh
amount of calculation

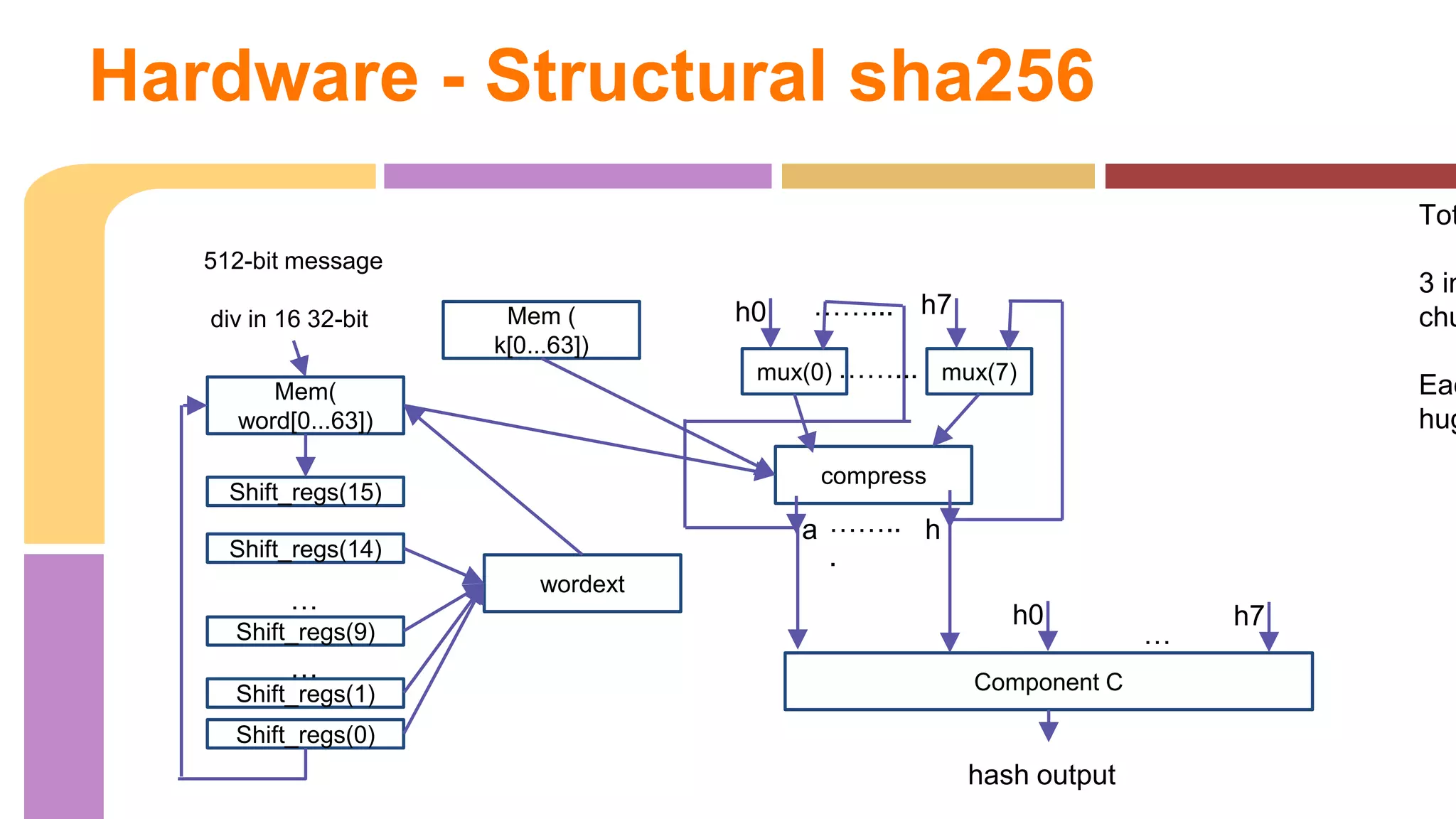

13. Hardware - Structural sha256
512-bit message
div in 16 32-bit
Mem(
word[0...63])
wordext
Shift_regs(15)
Shift_regs(14)
…
Shift_regs(9)
…
Shift_regs(1)
Shift_regs(0)
h0 h7
……...
mux(0) mux(7)
compress
h0 h7
Component C
…
hash output
Total 3 instances chunk
Each hugh Mem (
k[0...63])
……...
a …….. h
.

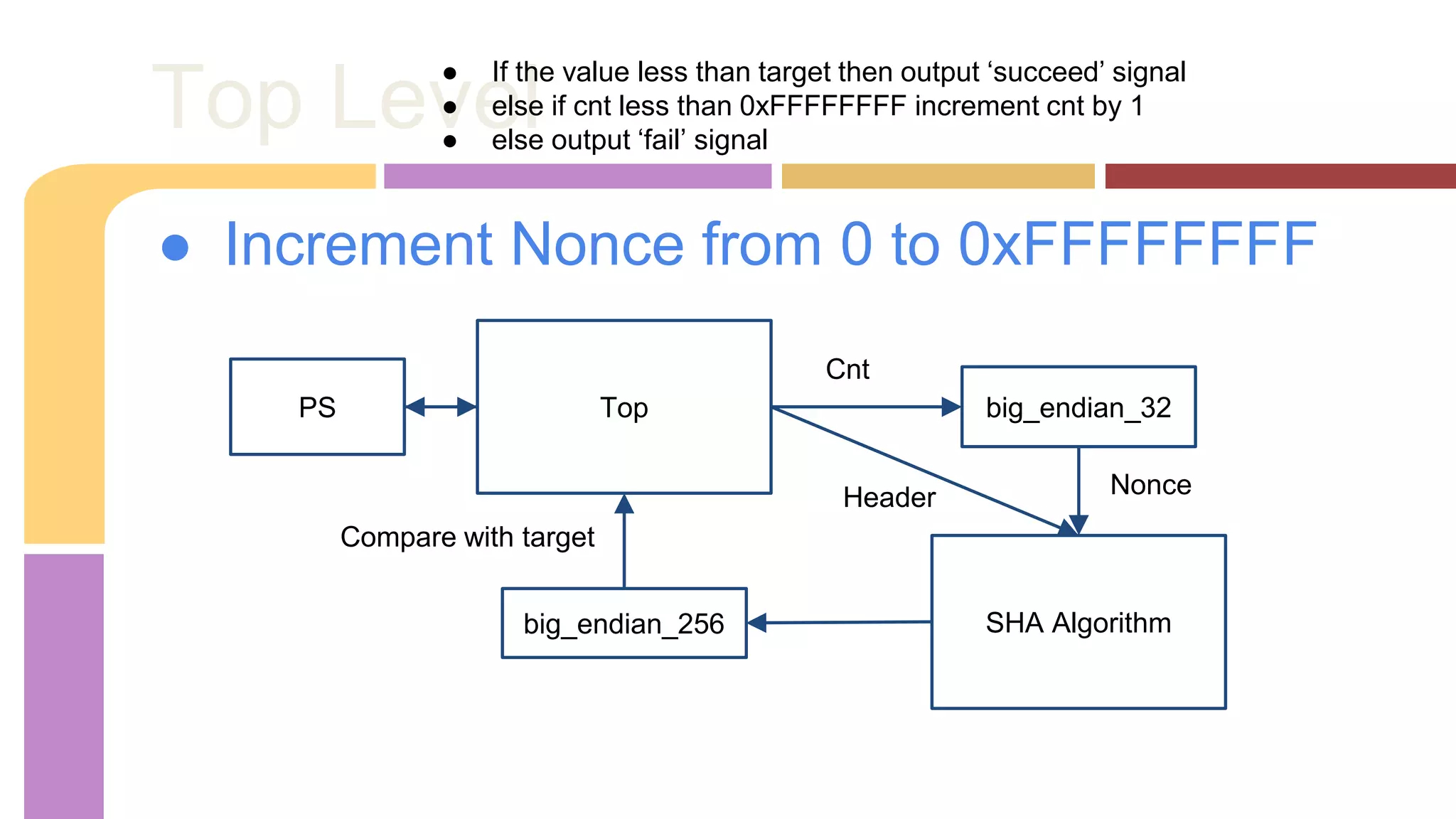

14. Top Level
● Increment Nonce from 0 to 0xFFFFFFFF
big_endian_32
SHA Algorithm
Top
big_endian_256
Cnt
Compare with target
Header Nonce
PS
● If the value less than target then output ‘succeed’ signal
● else if cnt less than 0xFFFFFFFF increment cnt by 1
● else output ‘fail’ signal

15. Problems & Future Improvement
● Hardware is working in simulation but not working
correctly with MemoryMap from C
● Data cannot be correctly read from the desired
address
● Create a structural vhdl model that can take
advantage of parallel calculations further
Time management
Task allocation

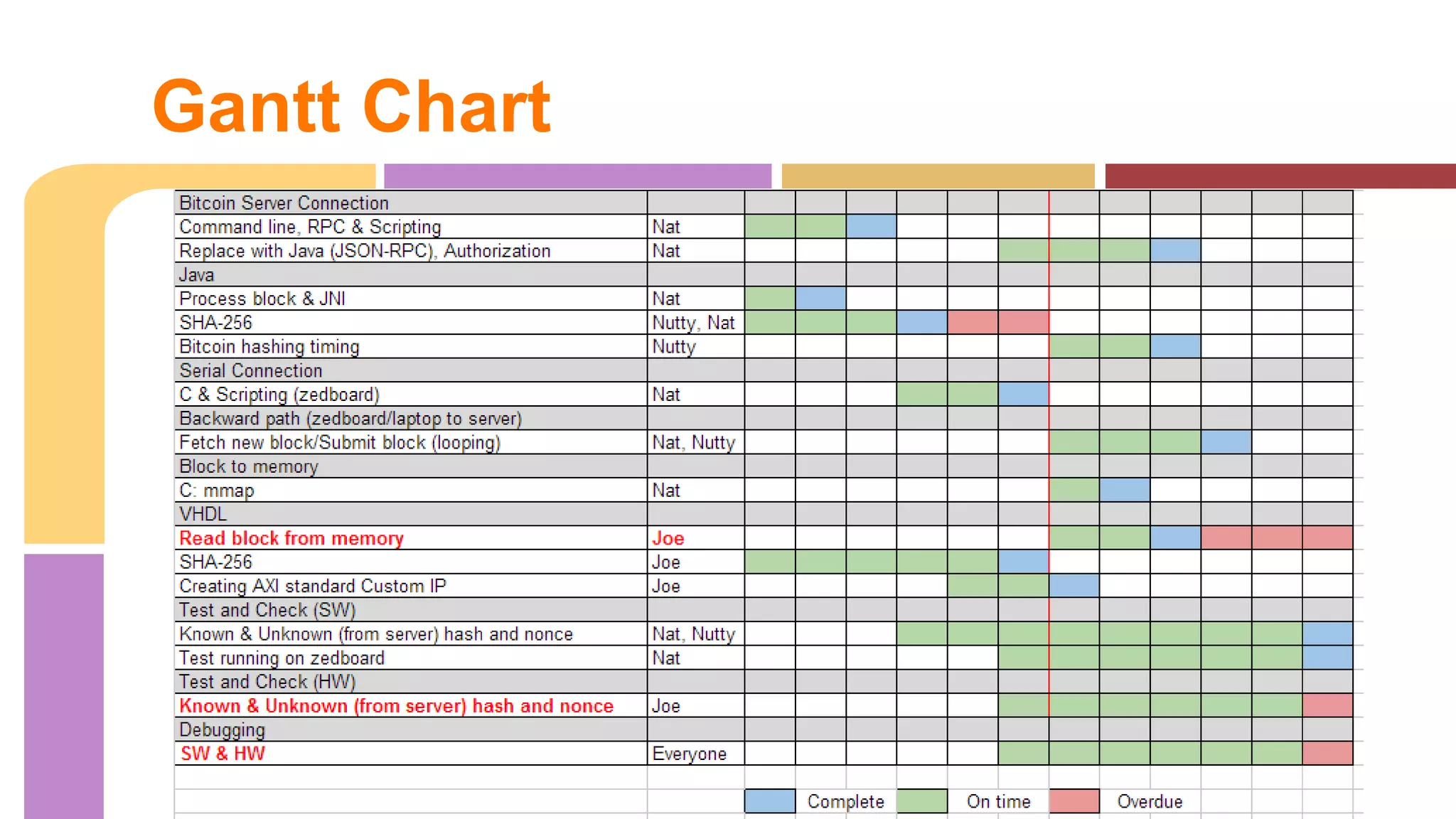

16. Gantt Chart

17. Results & Evaluation
SW miner hashrate: for 2329 hashes
Zedboard (667 MHz): ~ 0.35
khash/s
Laptop (i5, 2.50GHz): ~ 7.40
kHhWas Mh/isner
If applied 667Mhz frequency.
~ 347 khash/s(192ccl for 1 hash)
