NetworkSecurity
- 1.

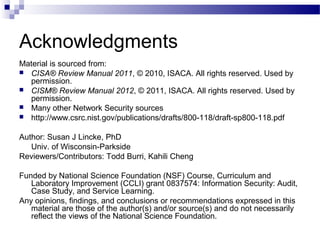

- 2. Acknowledgments Material is sourcedfrom: CISA® Review Manual 2011, © 2010, ISACA. All rights reserved. Used by permission. CISM® Review Manual 2012, © 2011, ISACA. All rights reserved. Used by permission. Many other Network Security sources http://www.csrc.nist.gov/publications/drafts/800-118/draft-sp800-118.pdf Author: Susan J Lincke, PhD Univ. of Wisconsin-Parkside Reviewers/Contributors: Todd Burri, Kahili Cheng Funded by National Science Foundation (NSF) Course, Curriculum and Laboratory Improvement (CCLI) grant 0837574: Information Security: Audit, Case Study, and Service Learning. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and/or source(s) and do not necessarily reflect the views of the National Science Foundation.

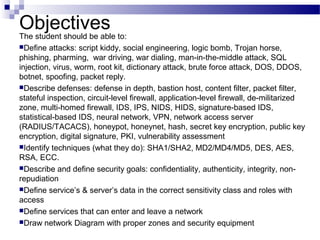

- 3. Objectives The student shouldbe able to: Define attacks: script kiddy, social engineering, logic bomb, Trojan horse, phishing, pharming, war driving, war dialing, man-in-the-middle attack, SQL injection, virus, worm, root kit, dictionary attack, brute force attack, DOS, DDOS, botnet, spoofing, packet reply. Describe defenses: defense in depth, bastion host, content filter, packet filter, stateful inspection, circuit-level firewall, application-level firewall, de-militarized zone, multi-homed firewall, IDS, IPS, NIDS, HIDS, signature-based IDS, statistical-based IDS, neural network, VPN, network access server (RADIUS/TACACS), honeypot, honeynet, hash, secret key encryption, public key encryption, digital signature, PKI, vulnerability assessment Identify techniques (what they do): SHA1/SHA2, MD2/MD4/MD5, DES, AES, RSA, ECC. Describe and define security goals: confidentiality, authenticity, integrity, non- repudiation Define service’s & server’s data in the correct sensitivity class and roles with access Define services that can enter and leave a network Draw network Diagram with proper zones and security equipment

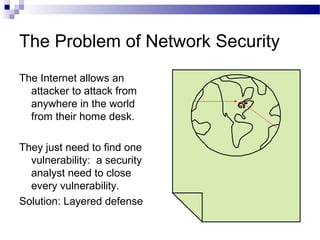

- 4. The Problem ofNetwork Security The Internet allows an attacker to attack from anywhere in the world from their home desk. They just need to find one vulnerability: a security analyst need to close every vulnerability. Solution: Layered defense

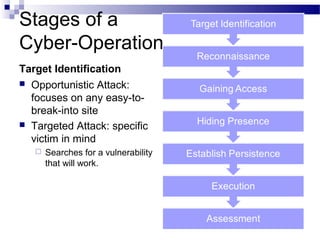

- 5. Stages of a Cyber-Operation TargetIdentification Opportunistic Attack: focuses on any easy-to- break-into site Targeted Attack: specific victim in mind Searches for a vulnerability that will work.

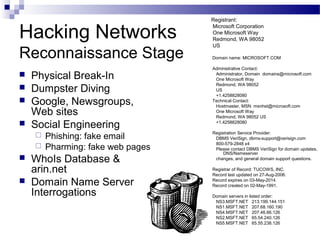

- 6. Hacking Networks Reconnaissance Stage Physical Break-In Dumpster Diving Google, Newsgroups, Web sites Social Engineering Phishing: fake email Pharming: fake web pages WhoIs Database & arin.net Domain Name Server Interrogations Registrant: Microsoft Corporation One Microsoft Way Redmond, WA 98052 US Domain name: MICROSOFT.COM Administrative Contact: Administrator, Domain domains@microsoft.com One Microsoft Way Redmond, WA 98052 US +1.4258828080 Technical Contact: Hostmaster, MSN msnhst@microsoft.com One Microsoft Way Redmond, WA 98052 US +1.4258828080 Registration Service Provider: DBMS VeriSign, dbms-support@verisign.com 800-579-2848 x4 Please contact DBMS VeriSign for domain updates, DNS/Nameserver changes, and general domain support questions. Registrar of Record: TUCOWS, INC. Record last updated on 27-Aug-2006. Record expires on 03-May-2014. Record created on 02-May-1991. Domain servers in listed order: NS3.MSFT.NET 213.199.144.151 NS1.MSFT.NET 207.68.160.190 NS4.MSFT.NET 207.46.66.126 NS2.MSFT.NET 65.54.240.126 NS5.MSFT.NET 65.55.238.126
- 7. Hacking Networks Reconnaissance Stage WarDriving: Can I find a wireless network? War Dialing: Can I find a modem to connect to? Network Scanning: What IP addresses, open ports, applications exist? Protocol Sniffing: What is being sent over communications lines?

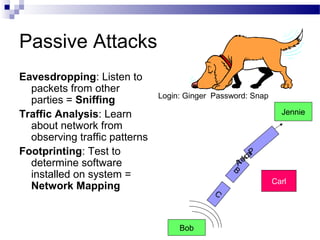

- 8. Passive Attacks Eavesdropping: Listento packets from other parties = Sniffing Traffic Analysis: Learn about network from observing traffic patterns Footprinting: Test to determine software installed on system = Network Mapping B PacketA C Bob Jennie Carl Login: Ginger Password: Snap
- 9. Hacking Networks: Gaining AccessStage Network Attacks: IP Address Spoofing Man-in-the-Middle System Attacks: Buffer Overflow Password Cracking SQL Injection Web Protocol Abuse Watering Hole Attack Trap Door Virus, Worm, Trojan horse a aa ab ac … ba bb … aaa aab aac …

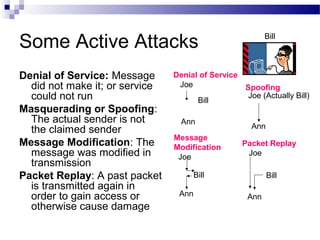

- 10. Some Active Attacks Denialof Service: Message did not make it; or service could not run Masquerading or Spoofing: The actual sender is not the claimed sender Message Modification: The message was modified in transmission Packet Replay: A past packet is transmitted again in order to gain access or otherwise cause damage Denial of Service Joe Ann Bill Spoofing Joe (Actually Bill) Ann Bill Message Modification Joe Ann Packet Replay Joe Ann Bill Bill

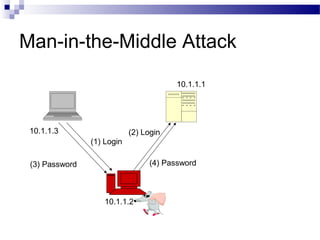

- 11. Man-in-the-Middle Attack 10.1.1.1 10.1.1.2 10.1.1.3 (1) Login (3)Password (2) Login (4) Password

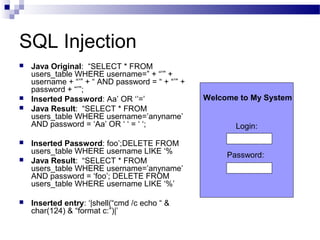

- 12. SQL Injection JavaOriginal: “SELECT * FROM users_table WHERE username=” + “’” + username + “’” + “ AND password = “ + “’” + password + “’”; Inserted Password: Aa’ OR ‘’=’ Java Result: “SELECT * FROM users_table WHERE username=’anyname’ AND password = ‘Aa’ OR ‘ ‘ = ‘ ‘; Inserted Password: foo’;DELETE FROM users_table WHERE username LIKE ‘% Java Result: “SELECT * FROM users_table WHERE username=’anyname’ AND password = ‘foo’; DELETE FROM users_table WHERE username LIKE ‘%’ Inserted entry: ‘|shell(“cmd /c echo “ & char(124) & “format c:”)|’ Login: Password: Welcome to My System

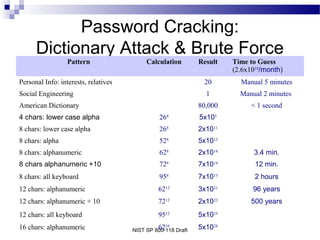

- 13. NIST SP 800-118Draft Password Cracking: Dictionary Attack & Brute Force Pattern Calculation Result Time to Guess (2.6x1018 /month) Personal Info: interests, relatives 20 Manual 5 minutes Social Engineering 1 Manual 2 minutes American Dictionary 80,000 < 1 second 4 chars: lower case alpha 264 5x105 8 chars: lower case alpha 268 2x1011 8 chars: alpha 528 5x1013 8 chars: alphanumeric 628 2x1014 3.4 min. 8 chars alphanumeric +10 728 7x1014 12 min. 8 chars: all keyboard 958 7x1015 2 hours 12 chars: alphanumeric 6212 3x1021 96 years 12 chars: alphanumeric + 10 7212 2x1022 500 years 12 chars: all keyboard 9512 5x1023 16 chars: alphanumeric 6216 5x1028

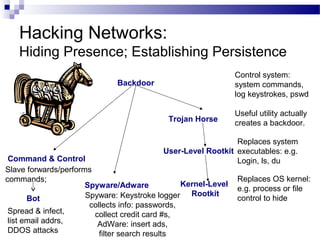

- 14. Hacking Networks: Hiding Presence;Establishing Persistence Backdoor Trojan Horse Spyware/Adware Command & Control User-Level Rootkit Kernel-Level Rootkit Replaces system executables: e.g. Login, ls, du Replaces OS kernel: e.g. process or file control to hide Control system: system commands, log keystrokes, pswd Useful utility actually creates a backdoor. Slave forwards/performs commands; Spyware: Keystroke logger collects info: passwords, collect credit card #s, AdWare: insert ads, filter search results Spread & infect, list email addrs, DDOS attacks Bot

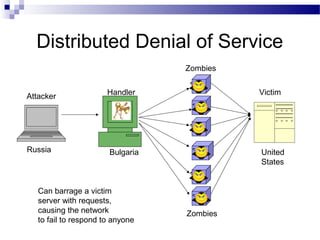

- 15. Distributed Denial ofService Zombies VictimAttacker Handler Can barrage a victim server with requests, causing the network to fail to respond to anyone Russia Bulgaria United States Zombies
- 16. Question An attack wheremultiple computers send connection packets to a server simultaneously to slow the firewall is known as: 1. Spoofing 2. DDOS 3. Worm 4. Rootkit

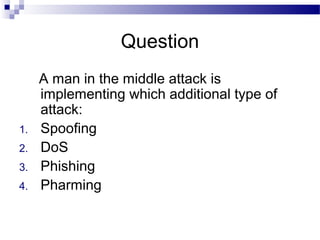

- 17. Question A man inthe middle attack is implementing which additional type of attack: 1. Spoofing 2. DoS 3. Phishing 4. Pharming
- 18.
- 19. Security: Defense inDepth Border Router Perimeter firewall Internal firewall Intrusion Detection System Policies & Procedures & Audits Authentication Access Controls
- 20. Bastion Host Computer fortified againstattackers Applications turned off Operating system patched Security configuration tightened

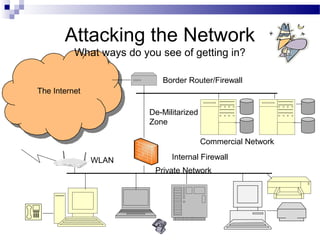

- 21. Attacking the Network Whatways do you see of getting in? The Internet De-Militarized Zone Private Network Border Router/Firewall Commercial Network Internal FirewallWLAN

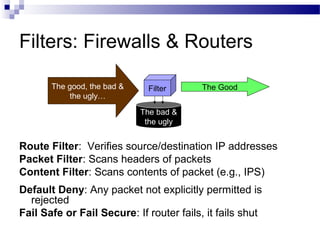

- 22. Filters: Firewalls &Routers Route Filter: Verifies source/destination IP addresses Packet Filter: Scans headers of packets Content Filter: Scans contents of packet (e.g., IPS) Default Deny: Any packet not explicitly permitted is rejected Fail Safe or Fail Secure: If router fails, it fails shut The good, the bad & the ugly… Filter The bad & the ugly The Good
- 23. Packet Filter Firewall WebRequest Ping Request FTP request Email Connect Request Web Response Telnet Request Email Response SSH Connect Request DNS Request Email Response Web Response Illegal Source IP Address Illegal Dest IP Address Microsoft NetBIOS Name Service
- 24. Campus Desire2Lear n Lab Health Services Register Library Students & Instructors Students & Instructors Nurses Public Web Public: PotentialStudents Graduates Login Confidential Private Public Legend Advisors & Registrars Informal Path of Logical Access PoS Staff

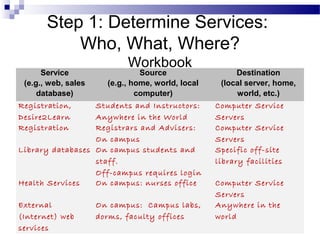

- 25. Step 1: DetermineServices: Who, What, Where? Workbook Service (e.g., web, sales database) Source (e.g., home, world, local computer) Destination (local server, home, world, etc.) Registration, Desire2Learn Students and Instructors: Anywhere in the World Computer Service Servers Registration Registrars and Advisers: On campus Computer Service Servers Library databases On campus students and staff. Off-campus requires login Specific off-site library facilities Health Services On campus: nurses office Computer Service Servers External (Internet) web services On campus: Campus labs, dorms, faculty offices Anywhere in the world

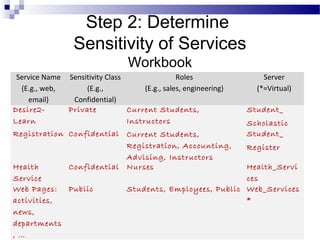

- 26. Step 2: Determine Sensitivityof Services Workbook Service Name (E.g., web, email) Sensitivity Class (E.g., Confidential) Roles (E.g., sales, engineering) Server (*=Virtual) Desire2- Learn Private Current Students, Instructors Student_ Scholastic Registration Confidential Current Students, Registration, Accounting, Advising, Instructors Student_ Register Health Service Confidential Nurses Health_Servi ces Web Pages: activities, news, departments , … Public Students, Employees, Public Web_Services *

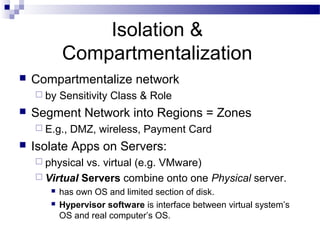

- 27. Isolation & Compartmentalization Compartmentalizenetwork by Sensitivity Class & Role Segment Network into Regions = Zones E.g., DMZ, wireless, Payment Card Isolate Apps on Servers: physical vs. virtual (e.g. VMware) Virtual Servers combine onto one Physical server. has own OS and limited section of disk. Hypervisor software is interface between virtual system’s OS and real computer’s OS.

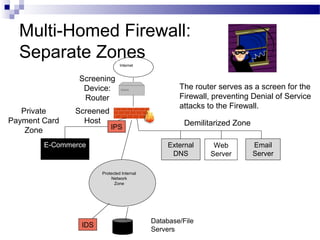

- 28. External DNS Web Server E-Commerce Email Server Protected Internal Network Zone Database/File Servers Internet Multi-HomedFirewall: Separate Zones Demilitarized Zone Screened Host The router serves as a screen for the Firewall, preventing Denial of Service attacks to the Firewall. Screening Device: Router Private Payment Card Zone IPS IDS
- 29. Step 3: AllocateNetwork Zones Workbook Zone Services Zone Description (You may delete or add rows as necessary) Internet This zone is external to the organization. De-Militar- ized Zone Web, Email, DNS This zone houses services the public are allowed to access in our network. Wireless Network Wireless local employees This zone connects wireless/laptop employees/students (and crackers) to our internal network. They have wide access. Private Server Zone Databases This zone hosts our student learning databases, faculty servers, and student servers. Confidential Zone Payment card, health, grades info This highly-secure zone hosts databases with payment and other confidential (protected by law) information. Private user Zone Wired staff/ students This zone hosts our wired/fixed employee/classroom computer terminals. They have wide univ. & external access. Student Lab Zone Student labs This zone hosts our student lab computers, which are highly vulnerable to malware. They have wide access

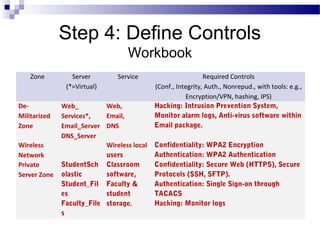

- 30. Step 4: DefineControls Workbook Zone Server (*=Virtual) Service Required Controls (Conf., Integrity, Auth., Nonrepud., with tools: e.g., Encryption/VPN, hashing, IPS) De- Militarized Zone Web_ Services*, Email_Server DNS_Server Web, Email, DNS Hacking: Intrusion Prevention System, Monitor alarm logs, Anti-virus software within Email package. Wireless Network Wireless local users Confidentiality: WPA2 Encryption Authentication: WPA2 Authentication Private Server Zone StudentSch olastic Student_Fil es Faculty_File s Classroom software, Faculty & student storage. Confidentiality: Secure Web (HTTPS), Secure Protocols (SSH, SFTP). Authentication: Single Sign-on through TACACS Hacking: Monitor logs

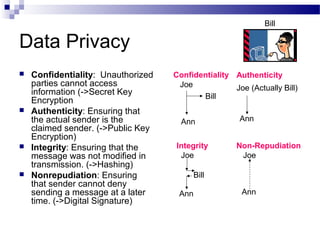

- 31. Data Privacy Confidentiality:Unauthorized parties cannot access information (->Secret Key Encryption Authenticity: Ensuring that the actual sender is the claimed sender. (->Public Key Encryption) Integrity: Ensuring that the message was not modified in transmission. (->Hashing) Nonrepudiation: Ensuring that sender cannot deny sending a message at a later time. (->Digital Signature) Confidentiality Joe Ann Bill Authenticity Joe (Actually Bill) Ann Bill Integrity Joe Ann Non-Repudiation Joe Ann Bill

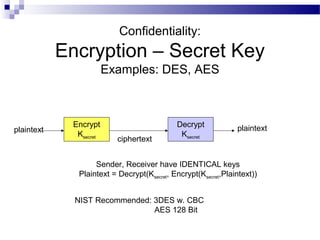

- 32. Confidentiality: Encryption – SecretKey Examples: DES, AES Encrypt Ksecret Decrypt Ksecret plaintext ciphertext plaintext Sender, Receiver have IDENTICAL keys Plaintext = Decrypt(Ksecret, Encrypt(Ksecret,Plaintext)) NIST Recommended: 3DES w. CBC AES 128 Bit

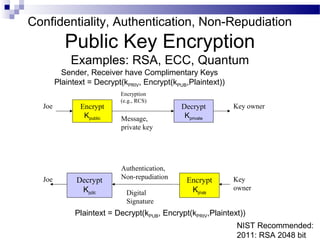

- 33. Confidentiality, Authentication, Non-Repudiation PublicKey Encryption Examples: RSA, ECC, Quantum Encrypt Kpublic Decrypt Kprivate Key ownerJoe Encryption (e.g., RCS) Decrypt Kpublic Encrypt Kprivate Message, private key Digital Signature Key owner Authentication, Non-repudiationJoe Sender, Receiver have Complimentary Keys Plaintext = Decrypt(kPRIV, Encrypt(kPUB,Plaintext)) Plaintext = Decrypt(kPUB, Encrypt(kPRIV,Plaintext)) NIST Recommended: 2011: RSA 2048 bit

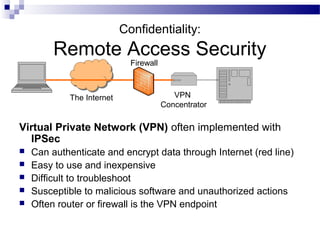

- 34. Confidentiality: Remote Access Security VirtualPrivate Network (VPN) often implemented with IPSec Can authenticate and encrypt data through Internet (red line) Easy to use and inexpensive Difficult to troubleshoot Susceptible to malicious software and unauthorized actions Often router or firewall is the VPN endpoint The Internet Firewall VPN Concentrator

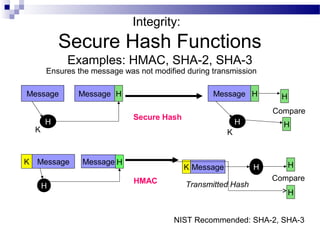

- 35. Integrity: Secure Hash Functions Examples:HMAC, SHA-2, SHA-3 Message H K Message H MessageK H H Compare Secure Hash Message H Message Message H H H H H Compare HMAC K K Ensures the message was not modified during transmission NIST Recommended: SHA-2, SHA-3 H Transmitted Hash

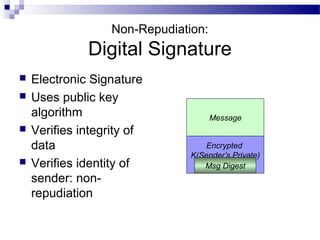

- 36. Encrypted K(Sender’s Private) Non-Repudiation: Digital Signature Electronic Signature Uses public key algorithm Verifies integrity of data Verifies identity of sender: non- repudiation Message Msg Digest
- 37. Authentication: Public Key Infrastructure(PKI) Digital Certificate User: Sue Public Key: 2456 1. Sue registers with CA through RA Certificate Authority (CA) Register(Owner, Public Key) 2. Registration Authority (RA) verifies owners 3. Send approved Digital Certificates 5. Tom requests Sue’s DC 6. CA sends Sue’s DC Sue Tom 4. Sue sends Tom message signed with Digital Signature 7. Tom confirms Sue’s DS

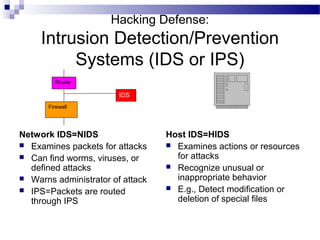

- 38. Hacking Defense: Intrusion Detection/Prevention Systems(IDS or IPS) Network IDS=NIDS Examines packets for attacks Can find worms, viruses, or defined attacks Warns administrator of attack IPS=Packets are routed through IPS Host IDS=HIDS Examines actions or resources for attacks Recognize unusual or inappropriate behavior E.g., Detect modification or deletion of special files Router Firewall IDS

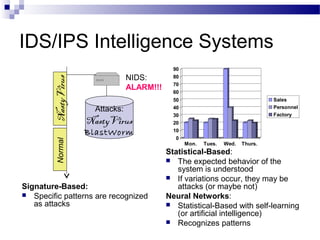

- 39. IDS/IPS Intelligence Systems Signature-Based: Specific patterns are recognized as attacks Statistical-Based: The expected behavior of the system is understood If variations occur, they may be attacks (or maybe not) Neural Networks: Statistical-Based with self-learning (or artificial intelligence) Recognizes patterns Attacks: NastyVirus BlastWorm NastyVirus NIDS: ALARM!!! 0 10 20 30 40 50 60 70 80 90 Mon. Tues. Wed. Thurs. Sales Personnel Factory Normal
- 40. Hacking Defense: Evaluating Applications Unified Threat Management = SuperFirewall = firewall + IPS + anti-virus + VPN capabilities Concerns are redundancy and bandwidth. Blacklist= restrict access to particular web sites, e.g., social and email sites Whitelist= permit access to only a limited set of web sites.

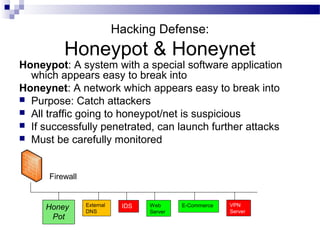

- 41. Hacking Defense: Honeypot &Honeynet Honeypot: A system with a special software application which appears easy to break into Honeynet: A network which appears easy to break into Purpose: Catch attackers All traffic going to honeypot/net is suspicious If successfully penetrated, can launch further attacks Must be carefully monitored External DNS IDS Web Server E-Commerce VPN Server Firewall Honey Pot

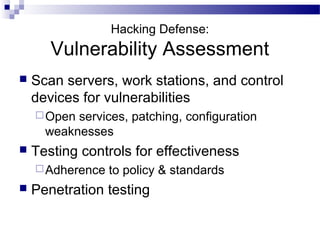

- 42. Hacking Defense: Vulnerability Assessment Scan servers, work stations, and control devices for vulnerabilities Open services, patching, configuration weaknesses Testing controls for effectiveness Adherence to policy & standards Penetration testing
- 43. Router External DNS Email Public Web Server E-Commerce Firewall Zone 1: Student Labs& Files Internet Step 5: Draw Network Diagram Workbook Demilitarized Zone Zone 2: Faculty Labs & Files Student Records Student Billing Transcripts Student Scholastic Student History Zone 3:Confidential Data Student Billing

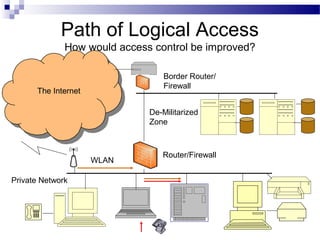

- 44. Path of LogicalAccess How would access control be improved? The Internet De-Militarized Zone Private Network Border Router/ Firewall Router/Firewall WLAN

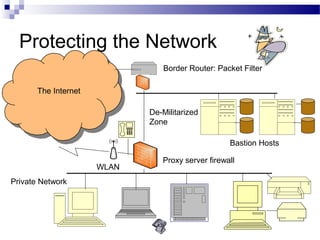

- 45. Protecting the Network TheInternet De-Militarized Zone Private Network Border Router: Packet Filter Bastion Hosts Proxy server firewall WLAN

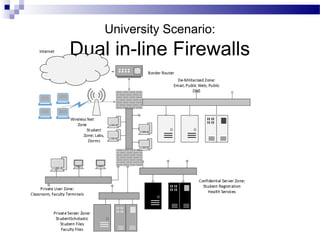

- 46. University Scenario: Dual in-lineFirewalls

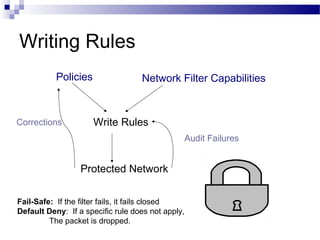

- 47. Writing Rules Policies NetworkFilter Capabilities Write Rules Protected Network Audit Failures Corrections Fail-Safe: If the filter fails, it fails closed Default Deny: If a specific rule does not apply, The packet is dropped.

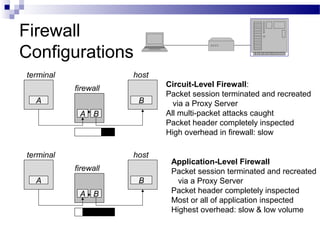

- 48. Firewall Configurations A A terminal firewall host Router PacketFiltering: Packet header is inspected Single packet attacks caught Very little overhead in firewall: very quick High volume filter A A terminal firewall host A Stateful Inspection State retained in firewall memory Most multi-packet attacks caught More fields in packet header inspected Little overhead in firewall: quick
- 49. Firewall Configurations A B terminal firewall host Circuit-Level Firewall: Packetsession terminated and recreated via a Proxy Server All multi-packet attacks caught Packet header completely inspected High overhead in firewall: slow A B terminal firewall host A Application-Level Firewall Packet session terminated and recreated via a Proxy Server Packet header completely inspected Most or all of application inspected Highest overhead: slow & low volume A B B
- 50. Web Page Security SQLFiltering: Filtering of web input for SQL Injection Encryption/Authentication: Ensuring Confidentiality, Integrity, Authenticity, Non- repudiation Web Protocol Protection: Protection of State

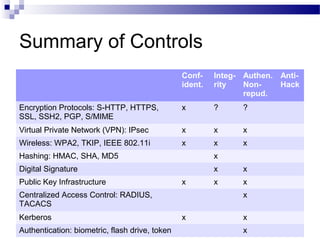

- 51. Summary of Controls Conf- ident. Integ- rity Authen. Non- repud. Anti- Hack EncryptionProtocols: S-HTTP, HTTPS, SSL, SSH2, PGP, S/MIME x ? ? Virtual Private Network (VPN): IPsec x x x Wireless: WPA2, TKIP, IEEE 802.11i x x x Hashing: HMAC, SHA, MD5 x Digital Signature x x Public Key Infrastructure x x x Centralized Access Control: RADIUS, TACACS x Kerberos x x Authentication: biometric, flash drive, token x

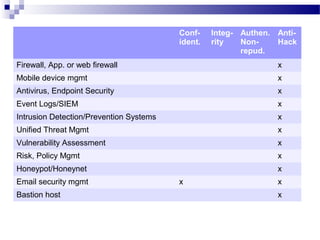

- 52. Conf- ident. Integ- rity Authen. Non- repud. Anti- Hack Firewall, App. orweb firewall x Mobile device mgmt x Antivirus, Endpoint Security x Event Logs/SIEM x Intrusion Detection/Prevention Systems x Unified Threat Mgmt x Vulnerability Assessment x Risk, Policy Mgmt x Honeypot/Honeynet x Email security mgmt x x Bastion host x

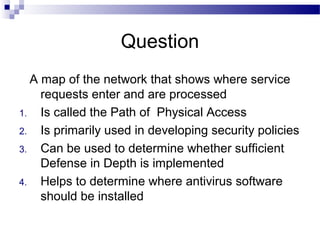

- 53. Question A map ofthe network that shows where service requests enter and are processed 1. Is called the Path of Physical Access 2. Is primarily used in developing security policies 3. Can be used to determine whether sufficient Defense in Depth is implemented 4. Helps to determine where antivirus software should be installed

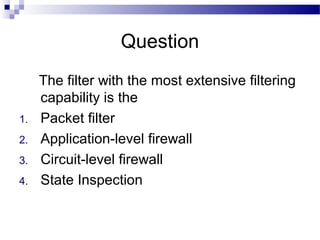

- 54. Question The filter withthe most extensive filtering capability is the 1. Packet filter 2. Application-level firewall 3. Circuit-level firewall 4. State Inspection

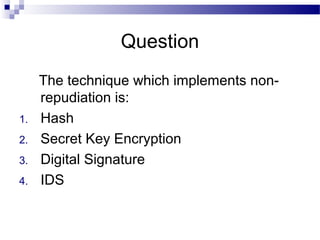

- 55. Question The technique whichimplements non- repudiation is: 1. Hash 2. Secret Key Encryption 3. Digital Signature 4. IDS

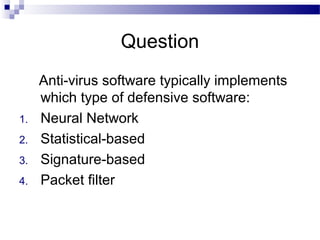

- 56. Question Anti-virus software typicallyimplements which type of defensive software: 1. Neural Network 2. Statistical-based 3. Signature-based 4. Packet filter

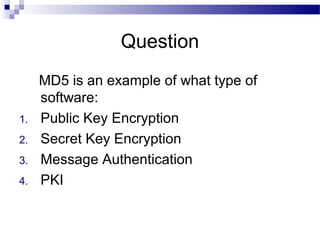

- 57. Question MD5 is anexample of what type of software: 1. Public Key Encryption 2. Secret Key Encryption 3. Message Authentication 4. PKI
- 58. Question A personal firewallimplemented as part of the OS or antivirus software qualifies as a: 1. Dual-homed firewall 2. Packet filter 3. Screened host 4. Bastion host
- 59. HEALTH FIRST CASESTUDY Designing Network Security Jamie Ramon MD Doctor Chris Ramon RD Dietician Terry Licensed Practicing Nurse Pat Software Consultant

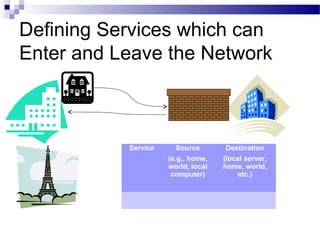

- 60. Defining Services whichcan Enter and Leave the Network Service Source (e.g., home, world, local computer) Destination (local server, home, world, etc.)

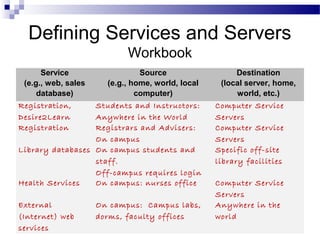

- 61. Defining Services andServers Workbook Service (e.g., web, sales database) Source (e.g., home, world, local computer) Destination (local server, home, world, etc.) Registration, Desire2Learn Students and Instructors: Anywhere in the World Computer Service Servers Registration Registrars and Advisers: On campus Computer Service Servers Library databases On campus students and staff. Off-campus requires login Specific off-site library facilities Health Services On campus: nurses office Computer Service Servers External (Internet) web services On campus: Campus labs, dorms, faculty offices Anywhere in the world
- 62. Define Services &Servers Which data can be grouped together by role and sensitivity/criticality? Service Name Sensitivity Class. Roles with Access Server Name Confidential – Management Public – Web Pages Privileged – Contracts

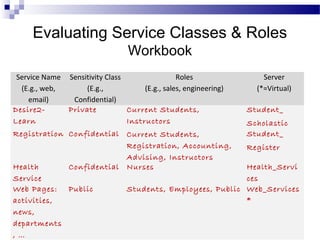

- 63. Evaluating Service Classes& Roles Workbook Service Name (E.g., web, email) Sensitivity Class (E.g., Confidential) Roles (E.g., sales, engineering) Server (*=Virtual) Desire2- Learn Private Current Students, Instructors Student_ Scholastic Registration Confidential Current Students, Registration, Accounting, Advising, Instructors Student_ Register Health Service Confidential Nurses Health_Servi ces Web Pages: activities, news, departments , … Public Students, Employees, Public Web_Services *
- 64. Defining Zones andControls Compartmentalization: Zone = Region (E.g., DMZ, wireless, internet) Servers can be physical or virtual Zone Service Server Required Controls (Conf., Integrity, Auth., Nonrepud., with tools: e.g., Encryption/VPN)

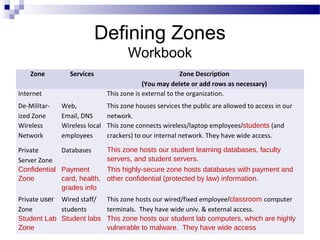

- 65. Defining Zones Workbook Zone Services Zone Description (You may delete or add rows as necessary) InternetThis zone is external to the organization. De-Militar- ized Zone Web, Email, DNS This zone houses services the public are allowed to access in our network. Wireless Network Wireless local employees This zone connects wireless/laptop employees/students (and crackers) to our internal network. They have wide access. Private Server Zone Databases This zone hosts our student learning databases, faculty servers, and student servers. Confidential Zone Payment card, health, grades info This highly-secure zone hosts databases with payment and other confidential (protected by law) information. Private user Zone Wired staff/ students This zone hosts our wired/fixed employee/classroom computer terminals. They have wide univ. & external access. Student Lab Zone Student labs This zone hosts our student lab computers, which are highly vulnerable to malware. They have wide access

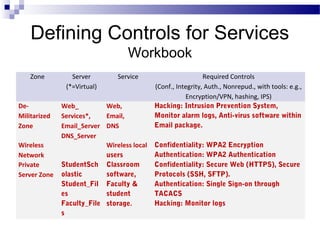

- 66. Defining Controls forServices Workbook Zone Server (*=Virtual) Service Required Controls (Conf., Integrity, Auth., Nonrepud., with tools: e.g., Encryption/VPN, hashing, IPS) De- Militarized Zone Web_ Services*, Email_Server DNS_Server Web, Email, DNS Hacking: Intrusion Prevention System, Monitor alarm logs, Anti-virus software within Email package. Wireless Network Wireless local users Confidentiality: WPA2 Encryption Authentication: WPA2 Authentication Private Server Zone StudentSch olastic Student_Fil es Faculty_File s Classroom software, Faculty & student storage. Confidentiality: Secure Web (HTTPS), Secure Protocols (SSH, SFTP). Authentication: Single Sign-on through TACACS Hacking: Monitor logs

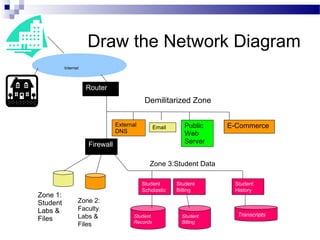

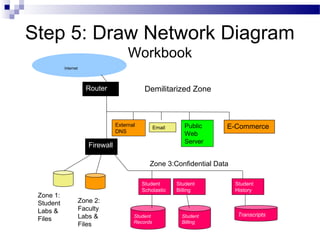

- 67. Router External DNS Email Public Web Server E-Commerce Firewall Zone 1: Student Labs& Files Internet Draw the Network Diagram Demilitarized Zone Zone 2: Faculty Labs & Files Student Records Student Billing Transcripts Student Scholastic Student History Zone 3:Student Data Student Billing

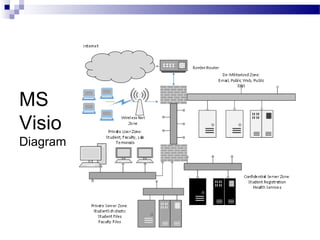

- 68.

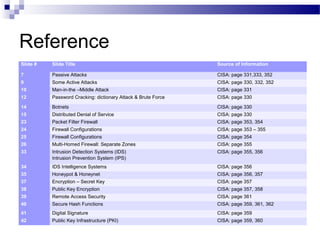

- 69. Reference Slide # SlideTitle Source of Information 7 Passive Attacks CISA: page 331,333, 352 9 Some Active Attacks CISA: page 330, 332, 352 10 Man-in-the –Middle Attack CISA: page 331 12 Password Cracking: dictionary Attack & Brute Force CISA: page 330 14 Botnets CISA: page 330 15 Distributed Denial of Service CISA: page 330 23 Packet Filter Firewall CISA: page 353, 354 24 Firewall Configurations CISA: page 353 – 355 25 Firewall Configurations CISA: page 354 26 Multi-Homed Firewall: Separate Zones CISA: page 355 33 Intrusion Detection Systems (IDS) Intrusion Prevention System (IPS) CISA: page 355, 356 34 IDS Intelligence Systems CISA: page 356 35 Honeypot & Honeynet CISA: page 356, 357 37 Encryption – Secret Key CISA: page 357 38 Public Key Encryption CISA: page 357, 358 39 Remote Access Security CISA: page 361 40 Secure Hash Functions CISA: page 359, 361, 362 41 Digital Signature CISA: page 359 42 Public Key Infrastructure (PKI) CISA: page 359, 360
