The document discusses various aspects of image processing, emphasizing its significance in areas like security, engineering, and autonomous technology. It outlines different methodologies, applications, and examples, such as face recognition systems and autonomous vehicles. Notable applications include image editing, medical imaging, and handwriting recognition, highlighting the versatility of image processing in modern technology.

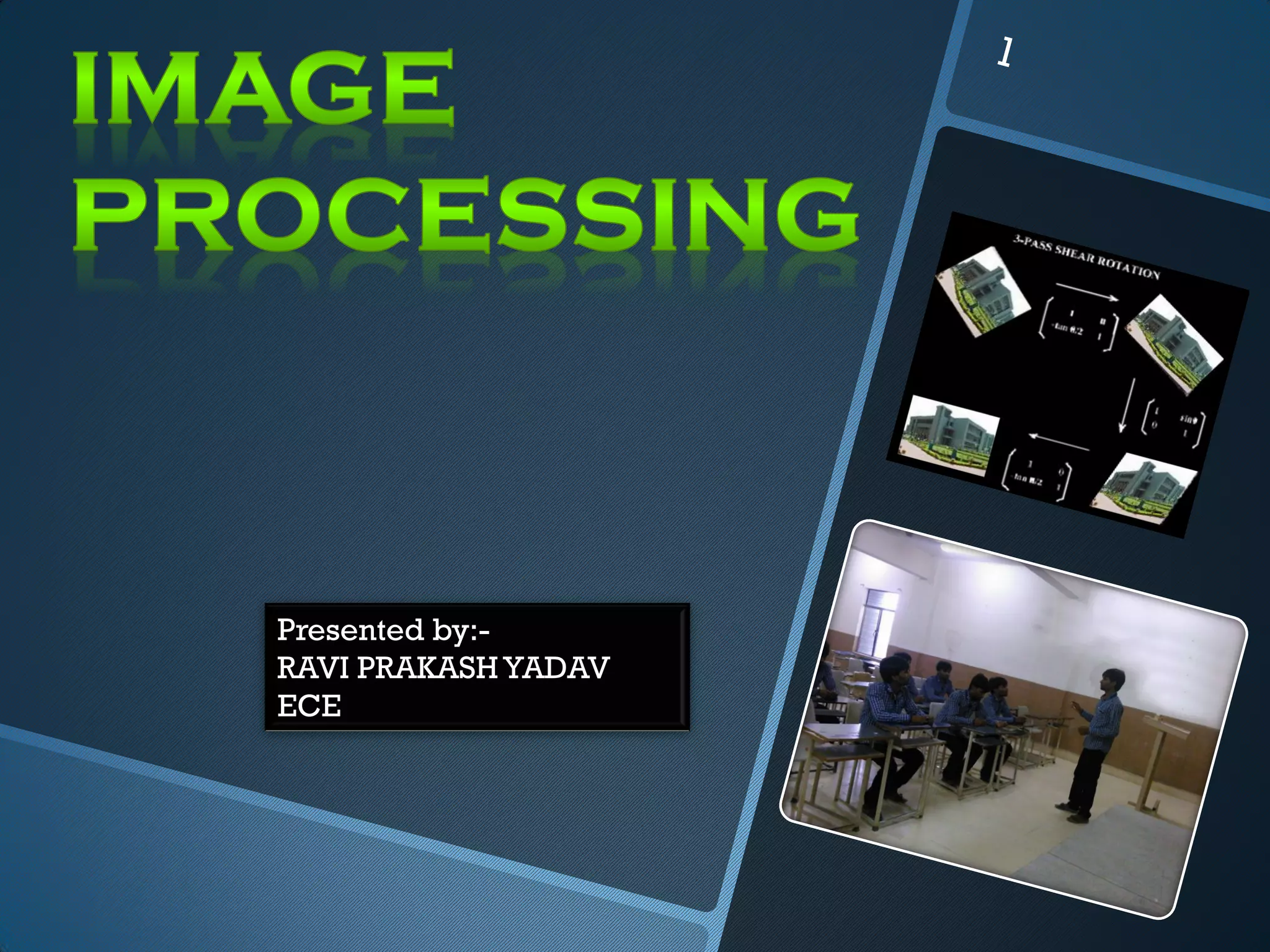

1. Presented by:-
RAVI PRAKASH YADAV
ECE

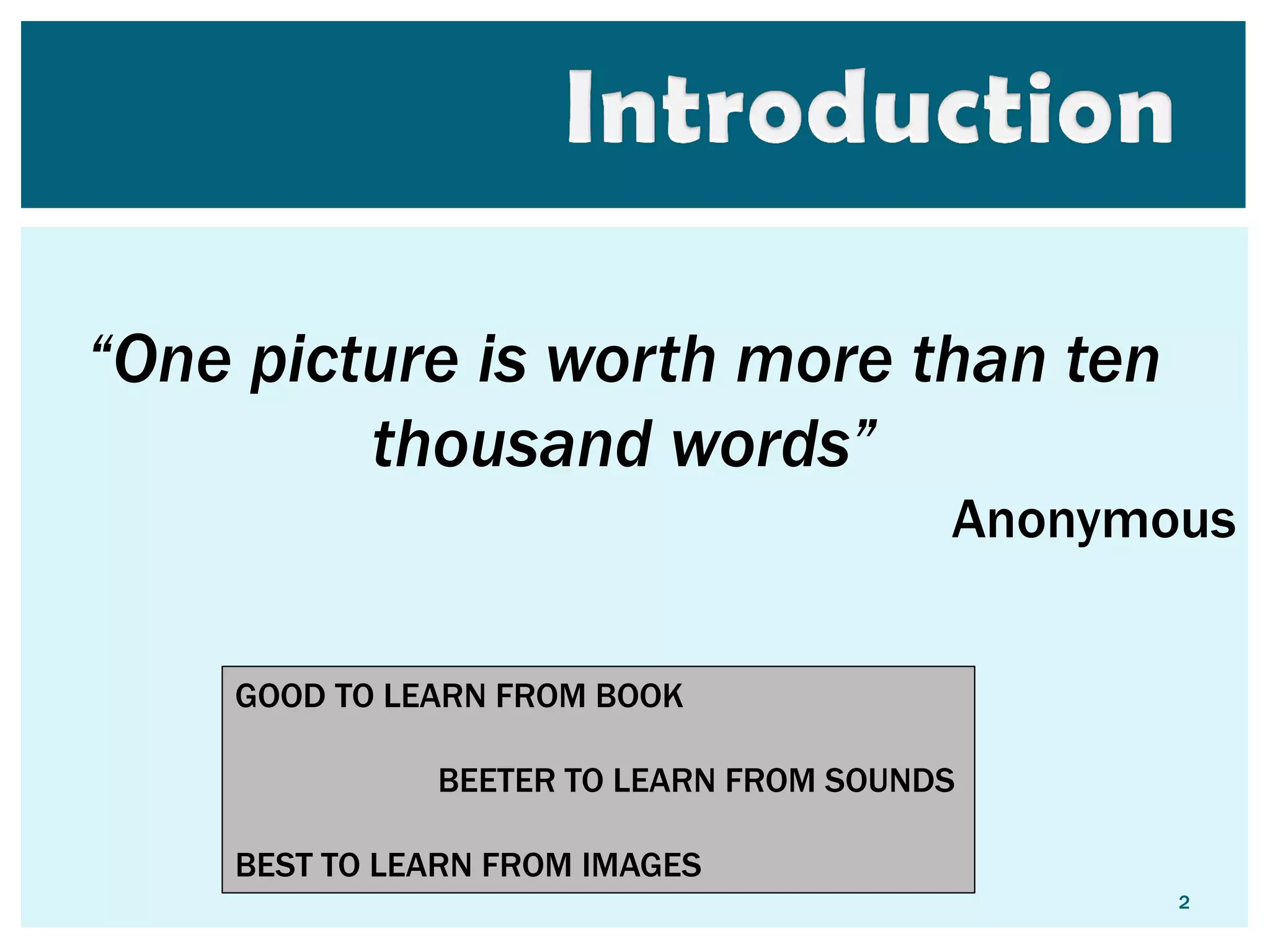

2. “One picture is worth more than ten thousand words” Anonymous
2
GOOD TO LEARN FROM BOOK
BEETER TO LEARN FROM SOUNDS
BEST TO LEARN FROM IMAGES

3. .

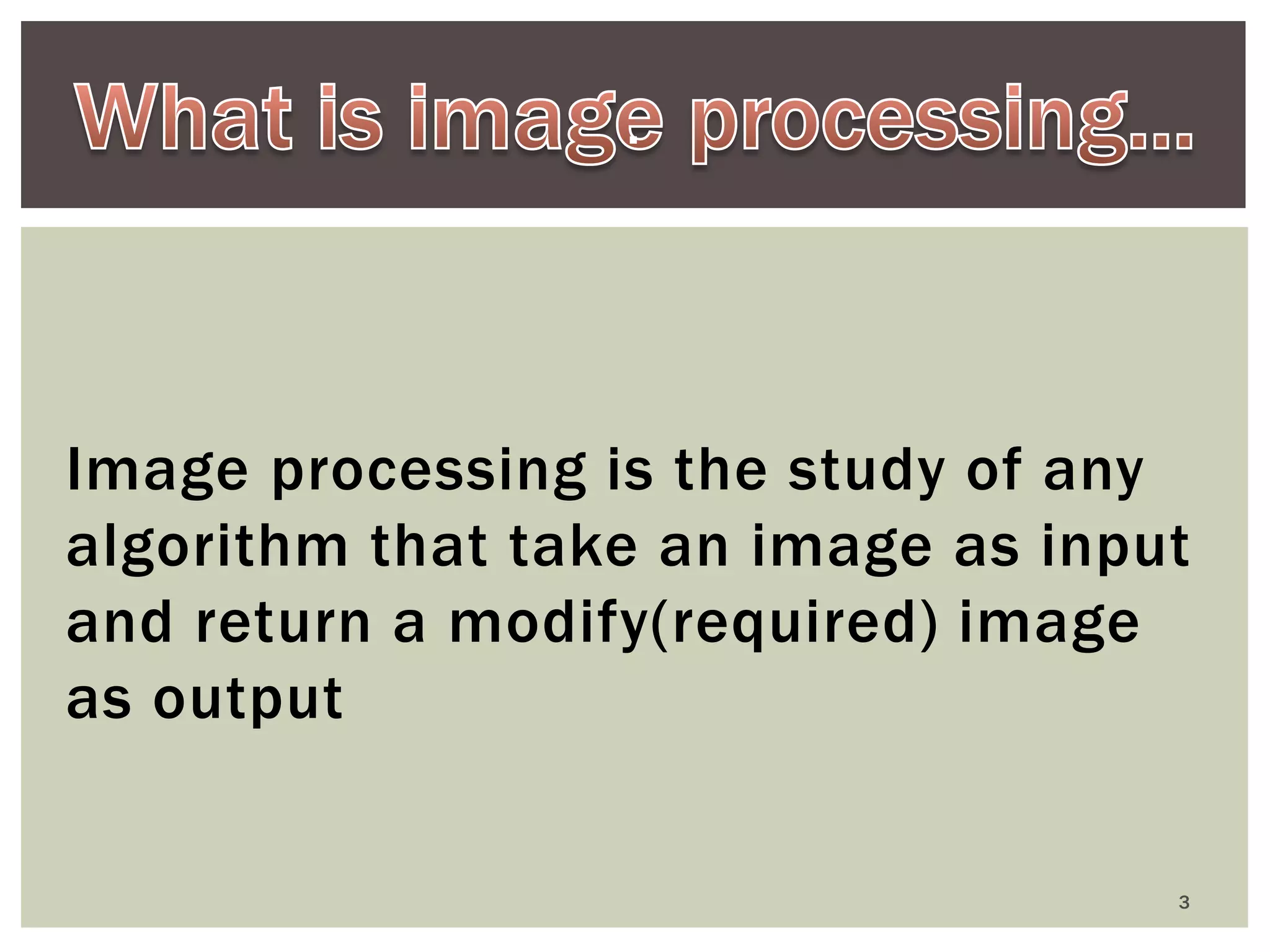

Image processing is the study of any algorithm that take an image as input and return a modify(required) image as output
3

4. TYPES OF IMAGE PROCESSING
ANALOG IMAGE PROCESSING
DIGITAL IMAGE PROCESSING
1-
2-

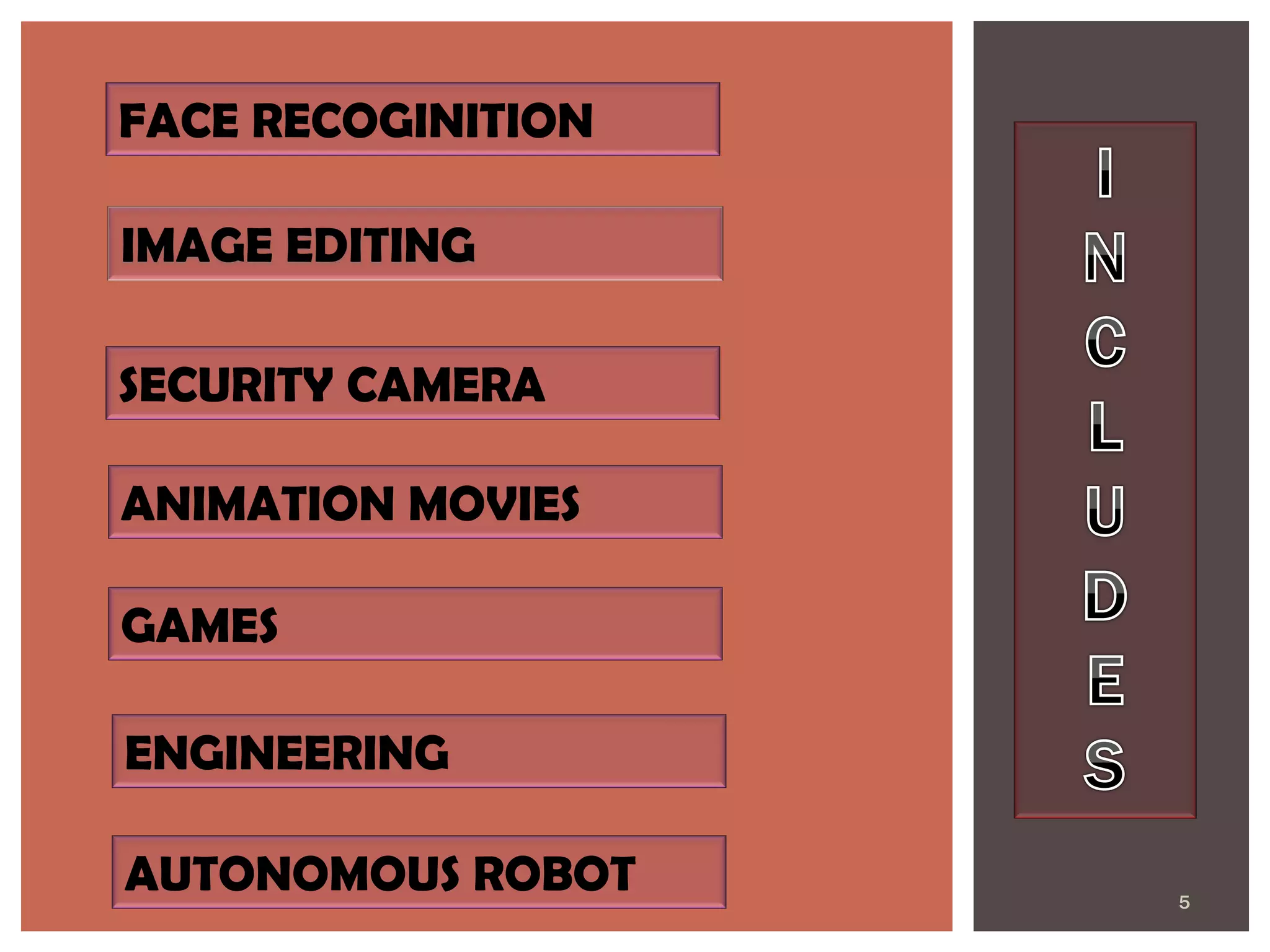

5. SECURITY CAMERA
5
ANIMATION MOVIES
GAMES
ENGINEERING
FACE RECOGINITION
AUTONOMOUS ROBOT IMAGE EDITING

6. 6

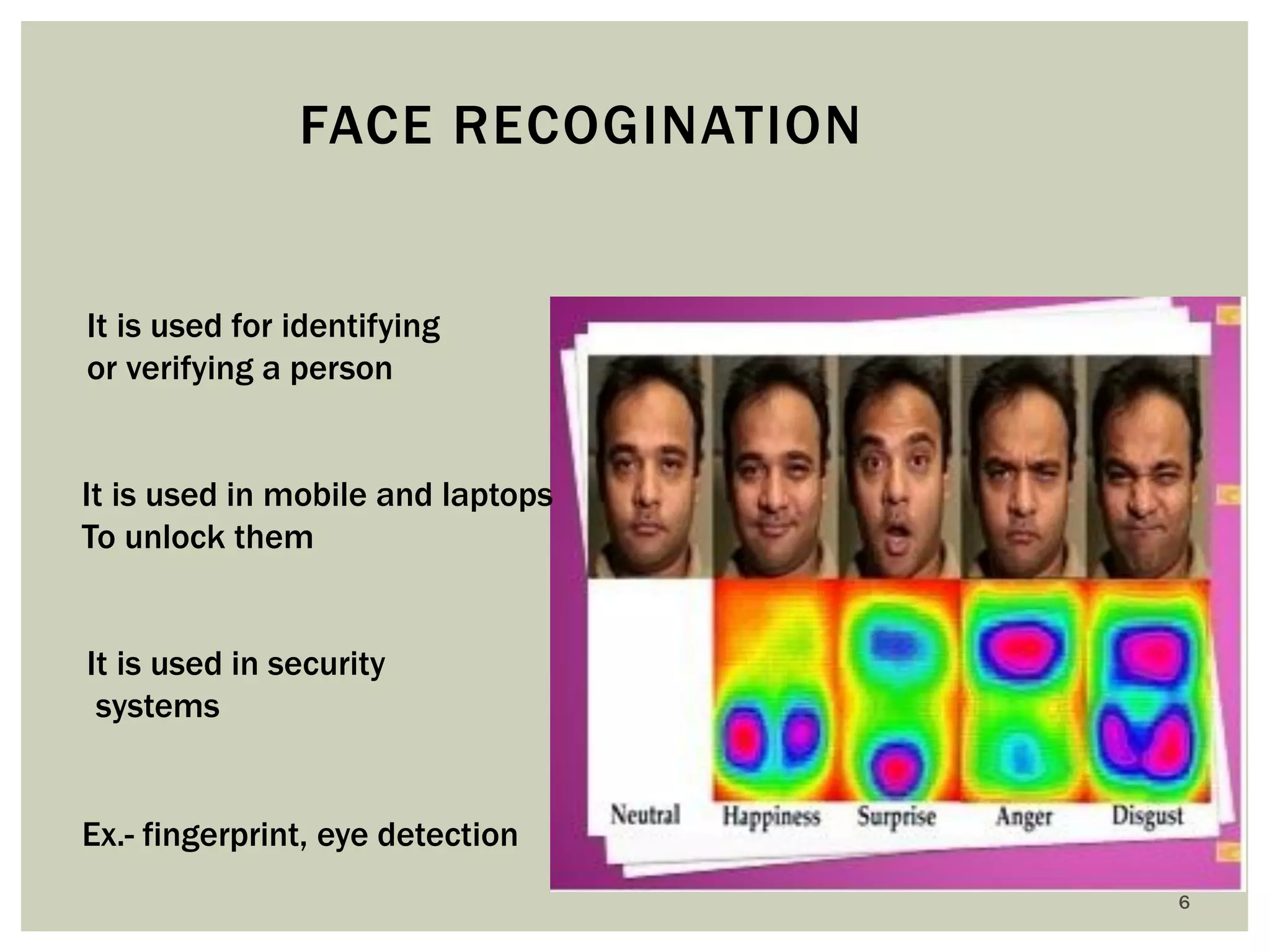

FACE RECOGINATION
It is used for identifying or verifying a person
It is used in security
systems
Ex.- fingerprint, eye detection
It is used in mobile and laptops
To unlock them

7. 7

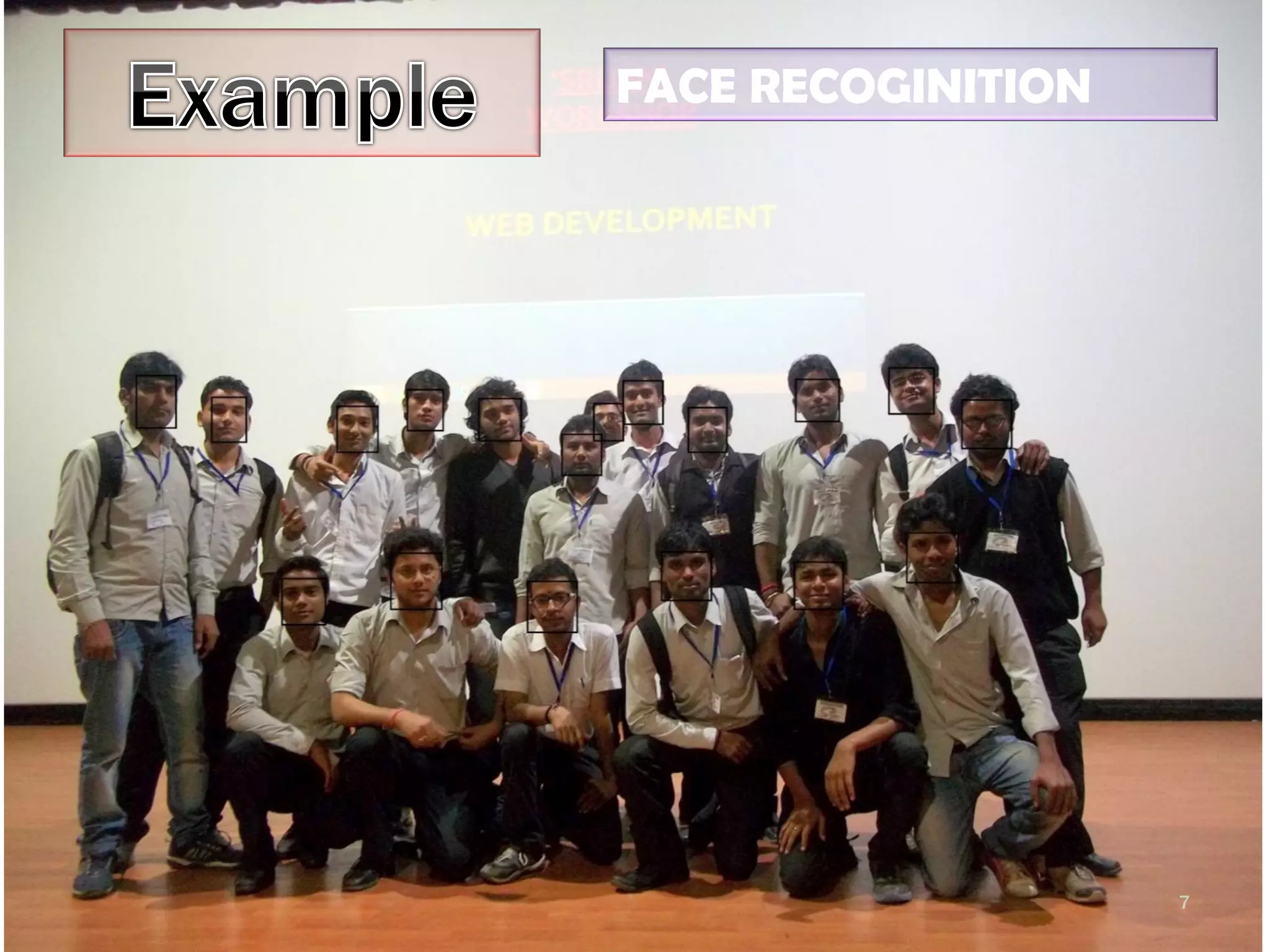

FACE RECOGINITION

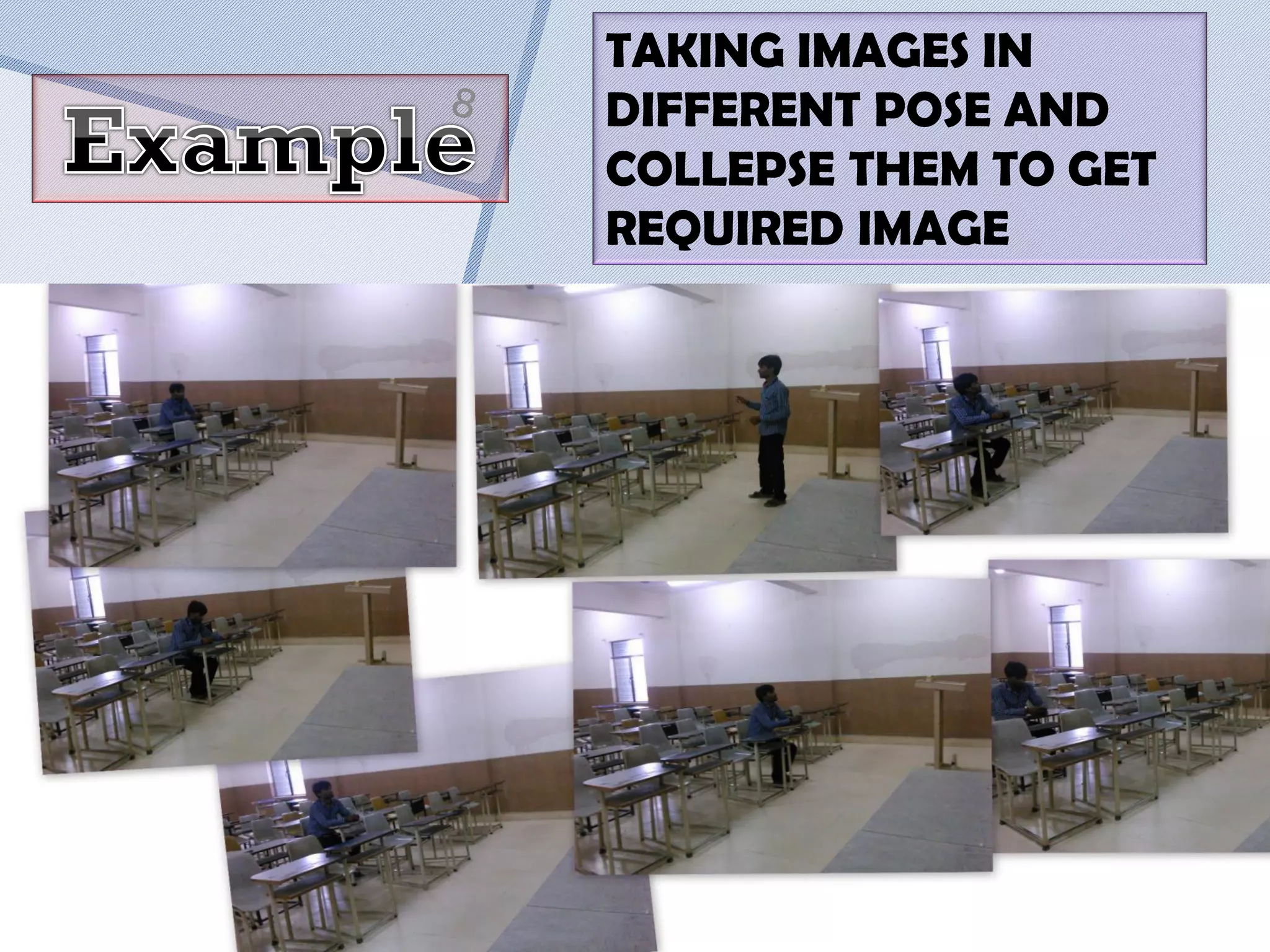

8. TAKING IMAGES IN DIFFERENT POSE AND COLLEPSE THEM TO GET REQUIRED IMAGE

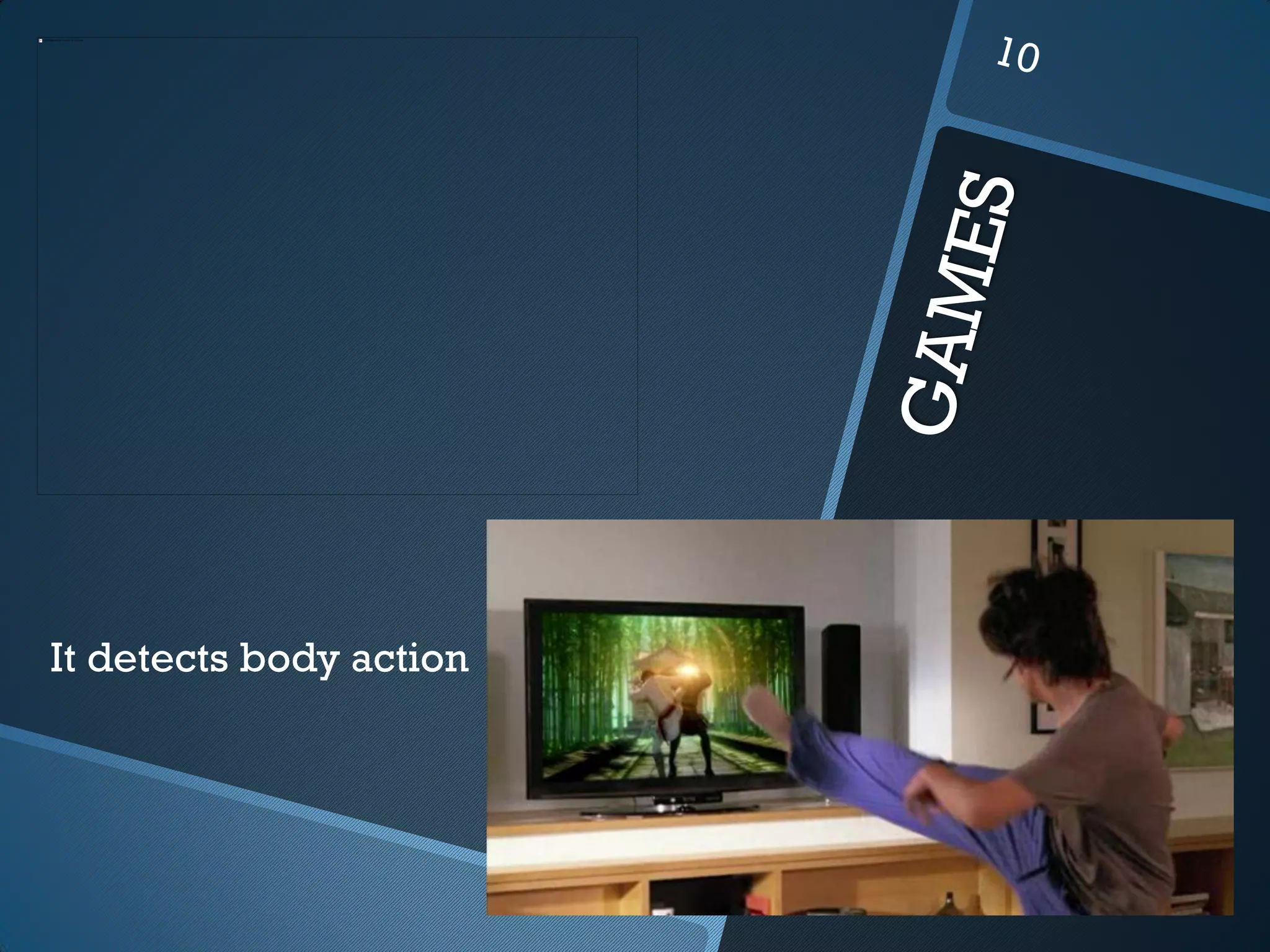

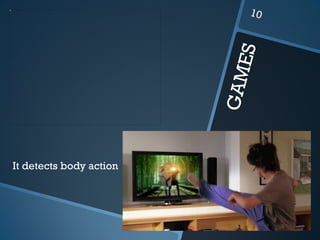

10. It detects body action

12. 12

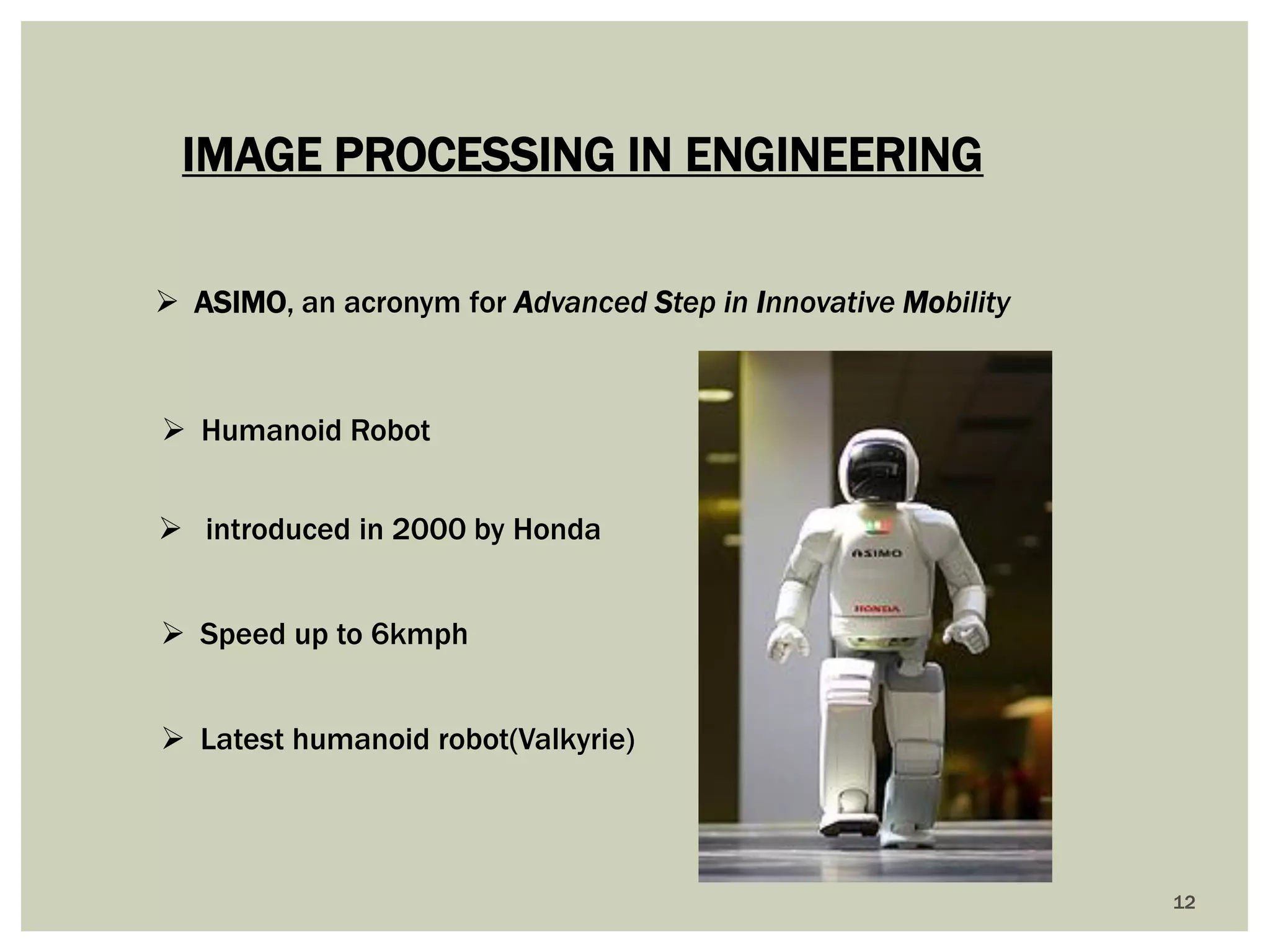

IMAGE PROCESSING IN ENGINEERING
ASIMO, an acronym for Advanced Step in Innovative Mobility
Humanoid Robot
Speed up to 6kmph
 introduced in 2000 by Honda
Latest humanoid robot(Valkyrie)

13. 13

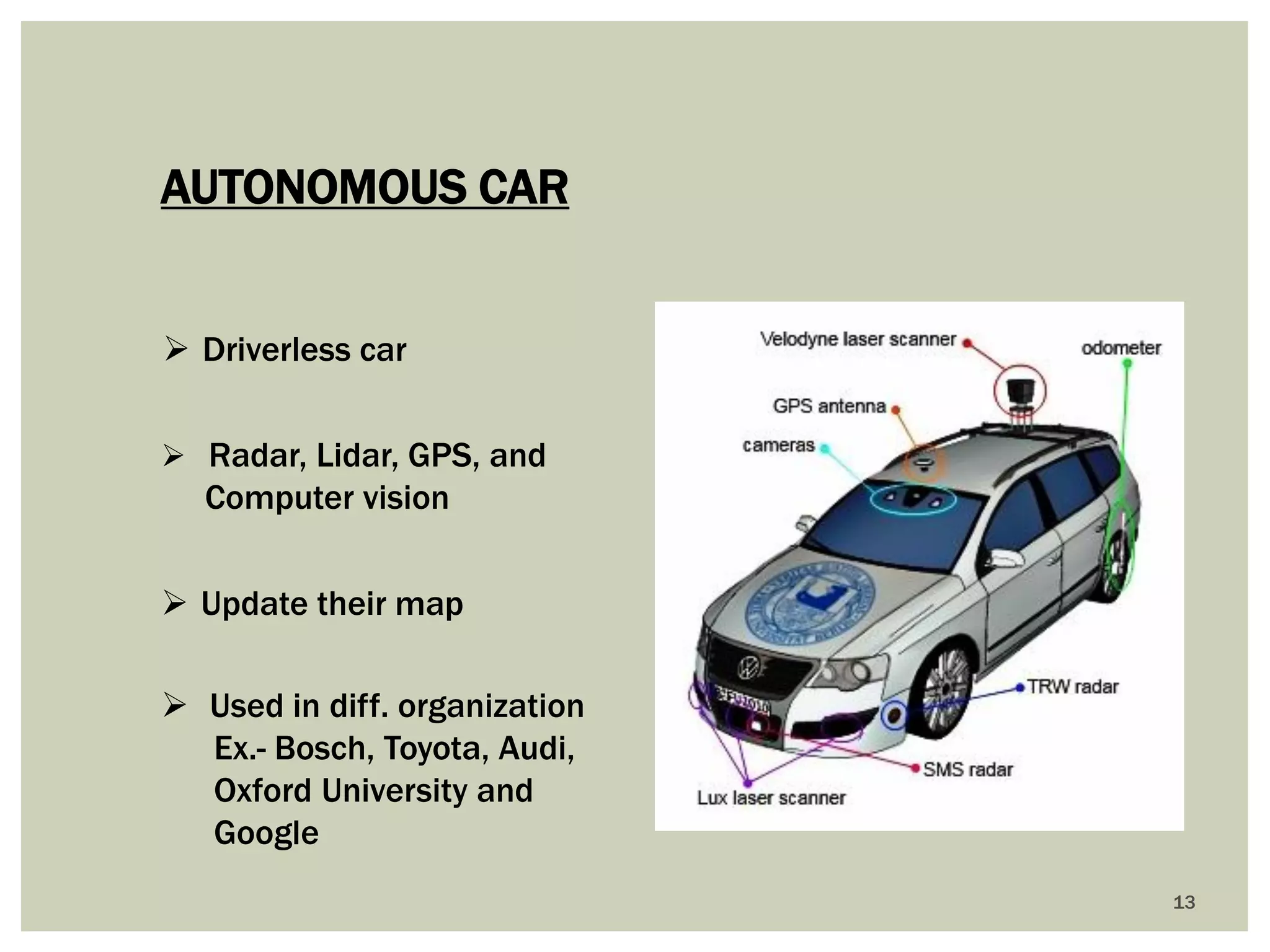

AUTONOMOUS CAR
Driverless car
 Radar, Lidar, GPS, and Computer vision
Update their map
 Used in diff. organization Ex.- Bosch, Toyota, Audi, Oxford University and Google

14. 14

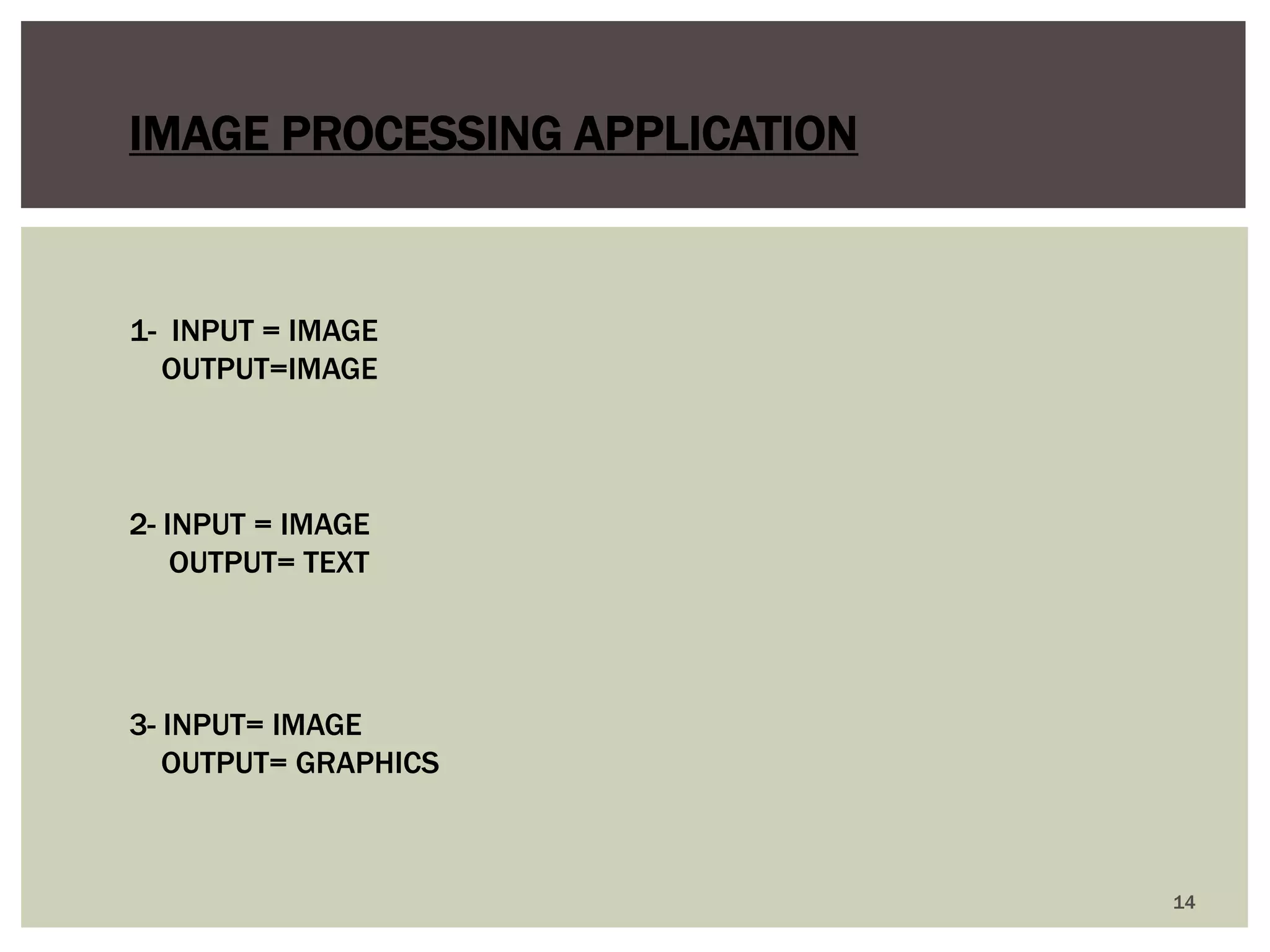

IMAGE PROCESSING APPLICATION
1- INPUT = IMAGE OUTPUT=IMAGE
2- INPUT = IMAGE OUTPUT= TEXT
3- INPUT= IMAGE OUTPUT= GRAPHICS

15. 15

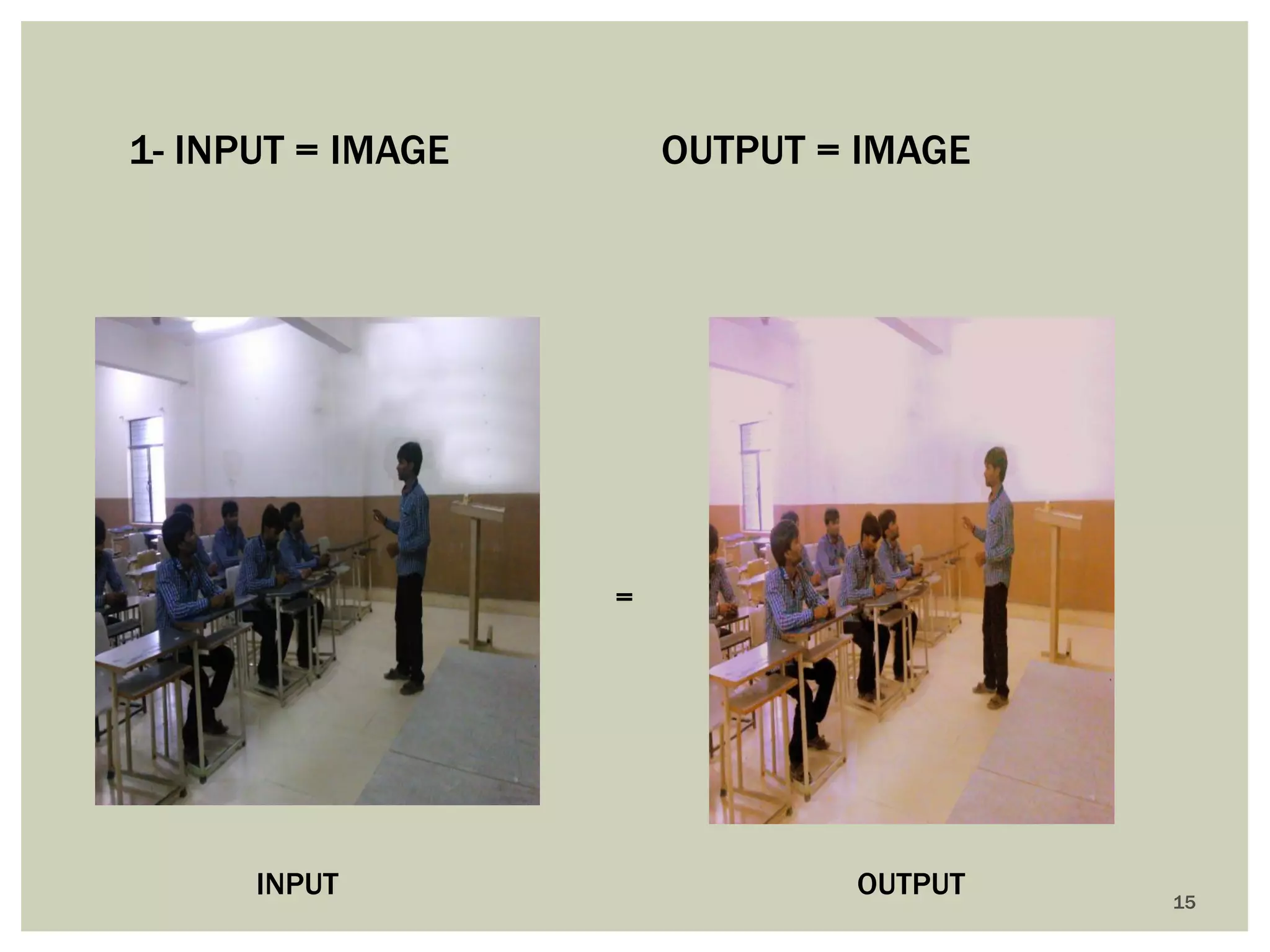

1- INPUT = IMAGE OUTPUT = IMAGE
=
INPUT
OUTPUT

16. 16

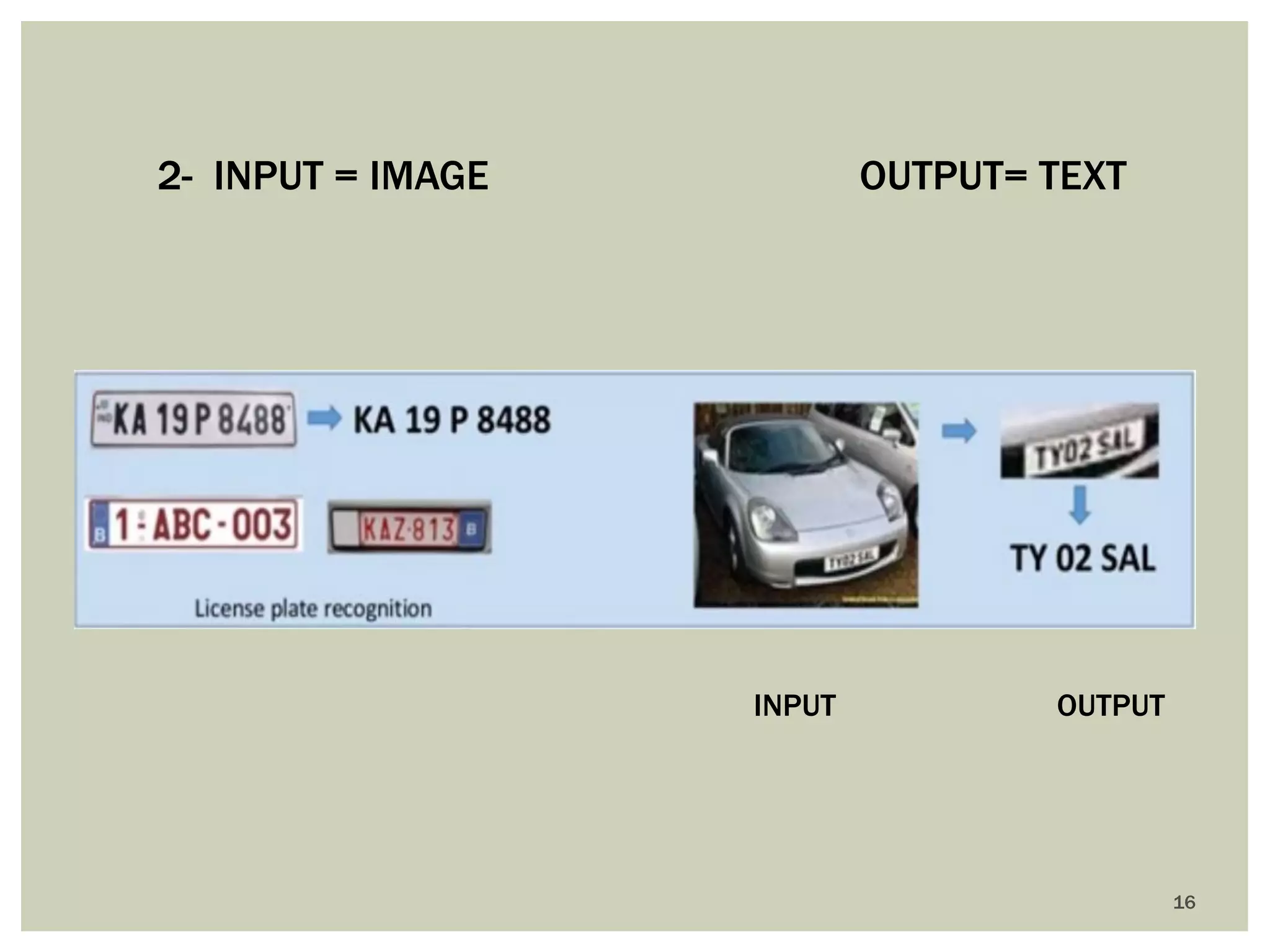

2- INPUT = IMAGE OUTPUT= TEXT
INPUT
OUTPUT

17. 17

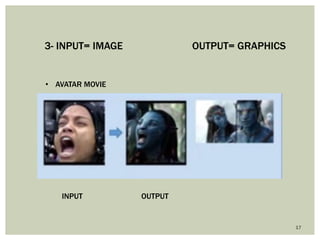

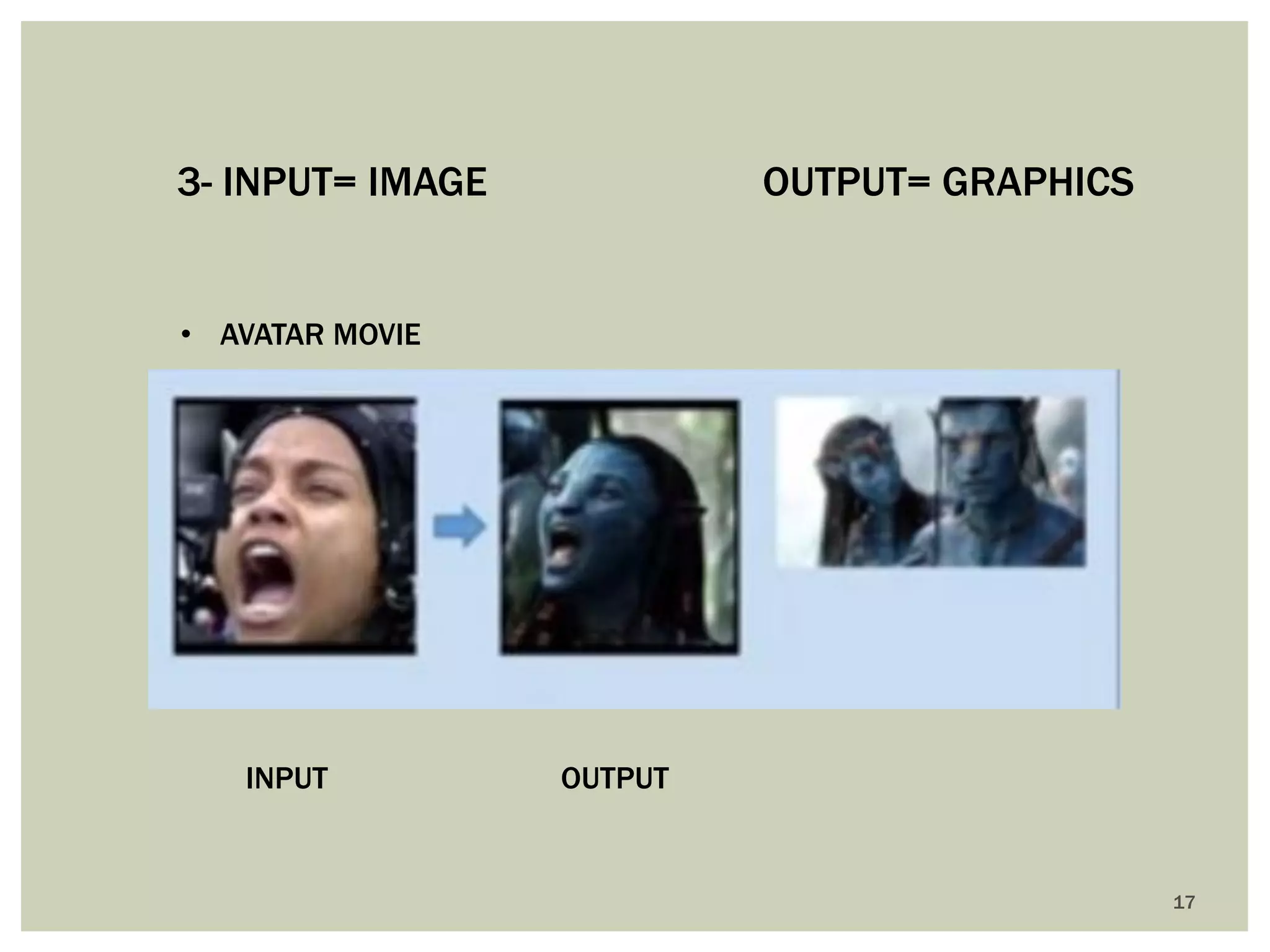

3- INPUT= IMAGE OUTPUT= GRAPHICS
INPUT
OUTPUT
•AVATAR MOVIE

18. 18

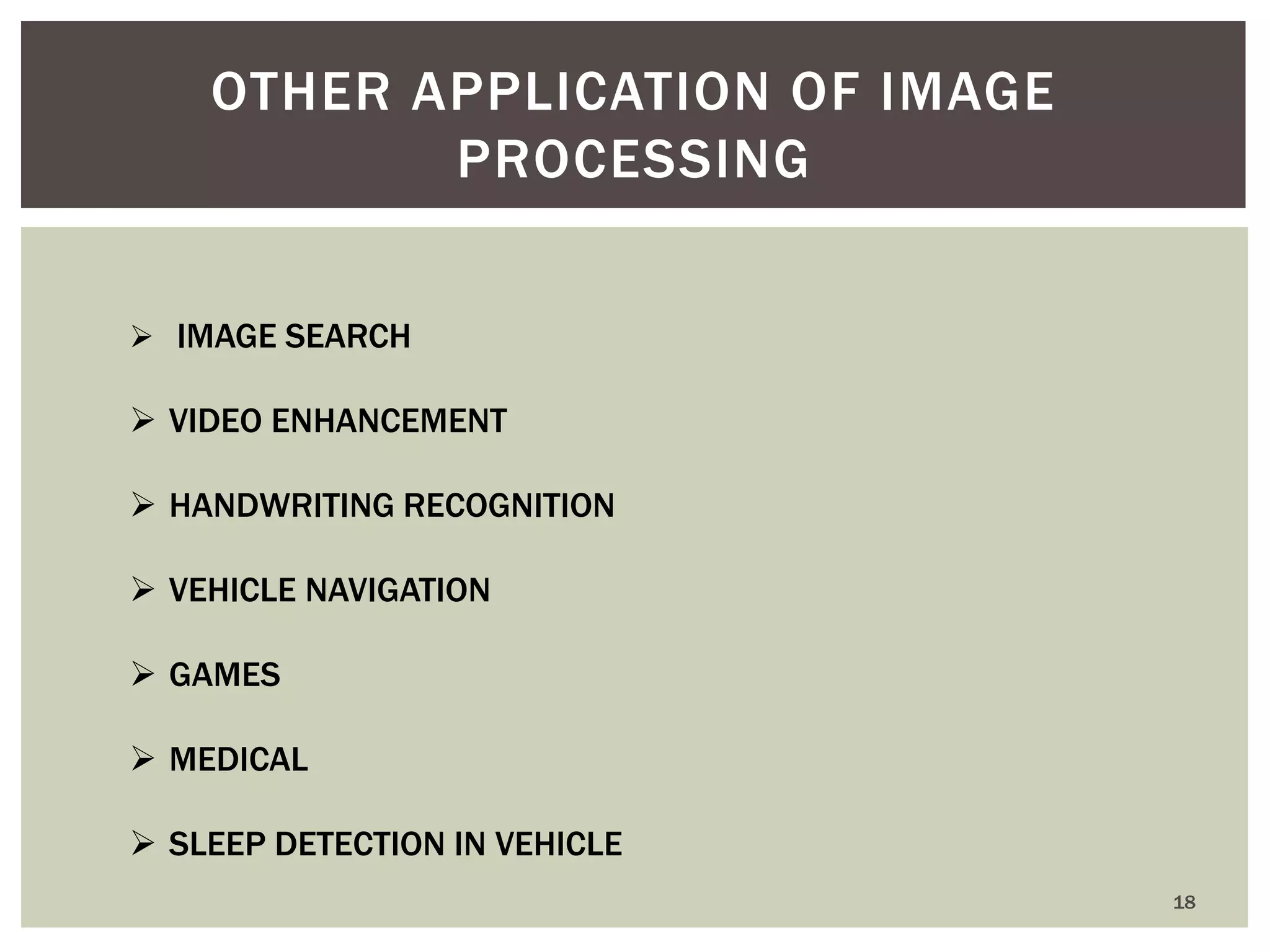

OTHER APPLICATION OF IMAGE PROCESSING
 IMAGE SEARCH
VIDEO ENHANCEMENT
HANDWRITING RECOGNITION
VEHICLE NAVIGATION
GAMES
MEDICAL
SLEEP DETECTION IN VEHICLE

19. 19

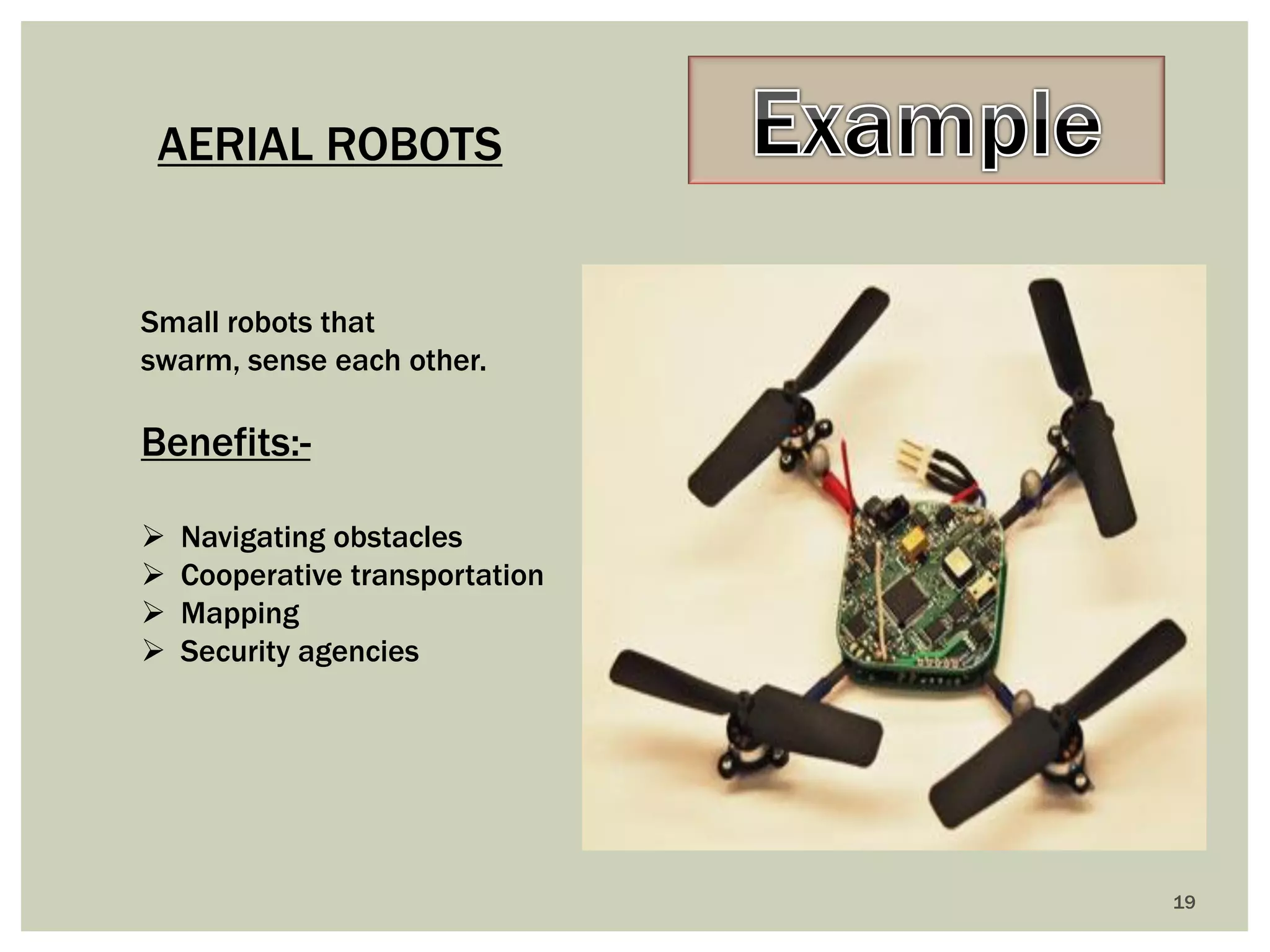

AERIAL ROBOTS
Small robots that swarm, sense each other.
Benefits:-
Navigating obstacles
Cooperative transportation
Mapping
Security agencies

20. 20
