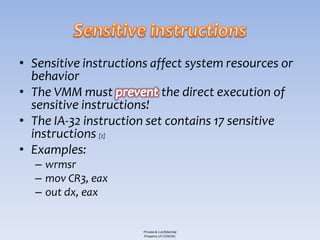

![• Sensitive instructions affect system resources or
behavior
• The VMM must the direct execution of
sensitive instructions!
• The IA-32 instruction set contains 17 sensitive
instructions [2]
• Examples:
– wrmsr
– mov CR3, eax
– out dx, eax
Private & Confidential
Property of COSEINC](https://image.slidesharecdn.com/framework-120313194746-phpapp02/85/Hypervisor-Framework-17-320.jpg)

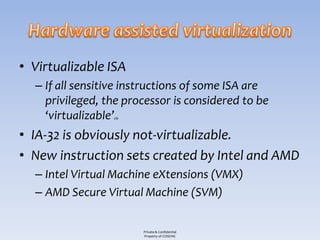

![• Virtualizable ISA
– If all sensitive instructions of some ISA are
privileged, the processor is considered to be
‘virtualizable’
[3]
• IA-32 is obviously not-virtualizable.
• New instruction sets created by Intel and AMD
– Intel Virtual Machine eXtensions (VMX)
– AMD Secure Virtual Machine (SVM)
Private & Confidential
Property of COSEINC](https://image.slidesharecdn.com/framework-120313194746-phpapp02/85/Hypervisor-Framework-29-320.jpg)
Hypervisor Framework
- 1. Private & Confidential Propertyof COSEINC

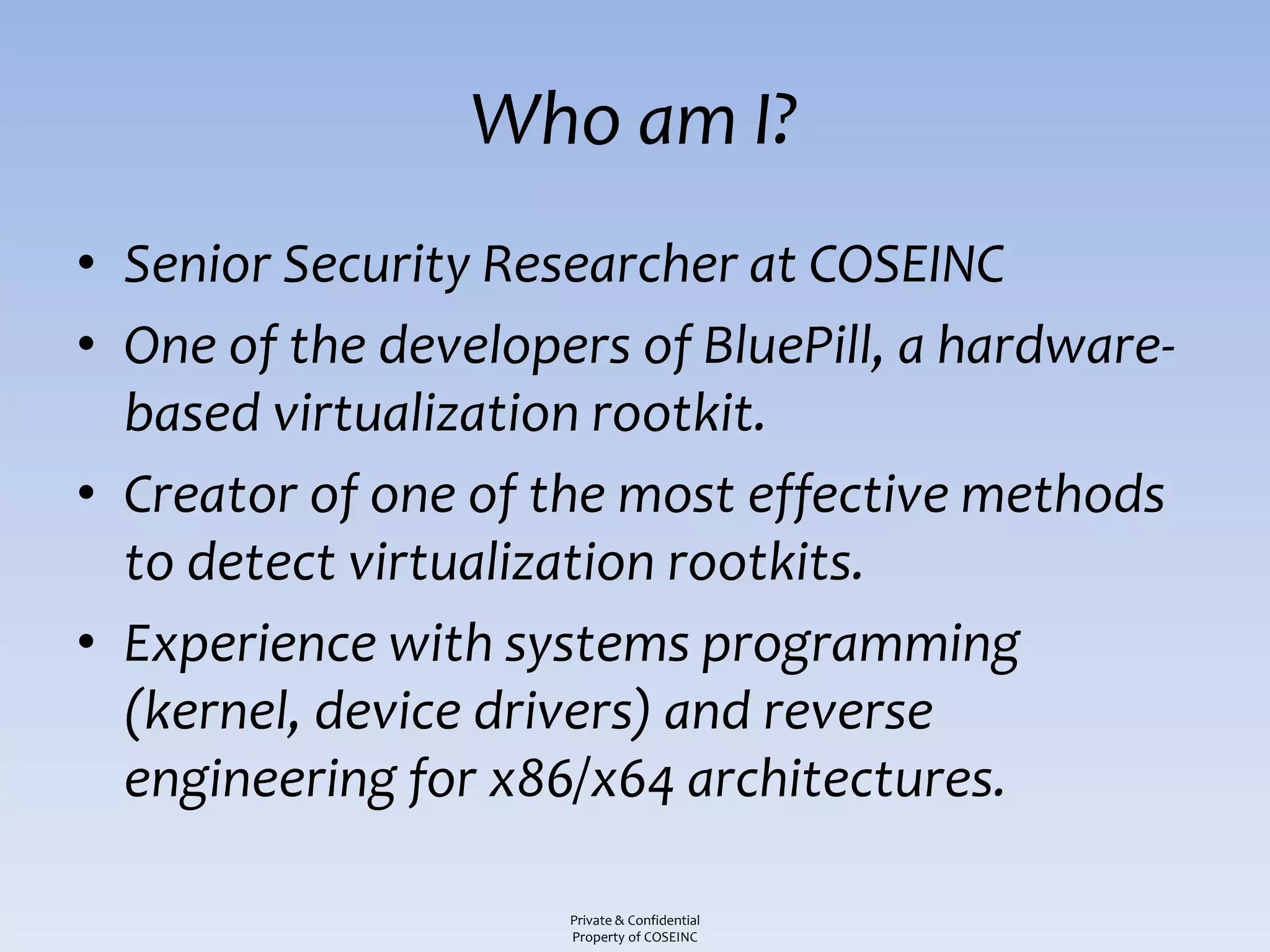

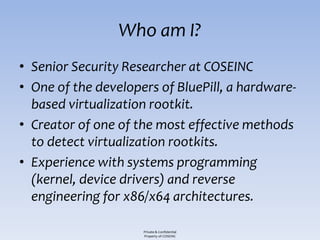

- 2. Who am I? •Senior Security Researcher at COSEINC • One of the developers of BluePill, a hardware- based virtualization rootkit. • Creator of one of the most effective methods to detect virtualization rootkits. • Experience with systems programming (kernel, device drivers) and reverse engineering for x86/x64 architectures. Private & Confidential Property of COSEINC
- 3. 1. Review ofthe implementation methods for virtualization of the x86 architecture. 2. Show the complexity of using hardware supported virtualization instructions to implement virtual machines. 3. Present a framework that makes easy the task of creation of hypervisors. 4. Applications of the framework 5. Security aspects Private & Confidential Property of COSEINC
- 4. The COSEINC HypervisorFramework X86 VIRTUALIZATION Private & Confidential Property of COSEINC
- 5. • System VirtualMachines: VM able to run multiple operating systems concurrently • The code responsible for the virtualization is called (VMM). • Provides isolation between the guest OS • Physical hardware resources are shared between the multiple virtual machines Private & Confidential Property of COSEINC
- 6. Windows Linux guest guest VMM IA-32 processor 1. Type I (native) The VMM runs directly on the host’s hardware. Hardware resources controlled by the VMM. Examples: VMware ESX, Microsoft Hyper-V Private & Confidential Property of COSEINC

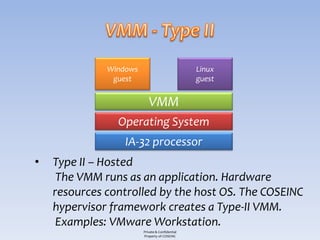

- 7. Windows Linux guest guest VMM Operating System IA-32 processor • Type II – Hosted The VMM runs as an application. Hardware resources controlled by the host OS. The COSEINC hypervisor framework creates a Type-II VMM. Examples: VMware Workstation. Private & Confidential Property of COSEINC

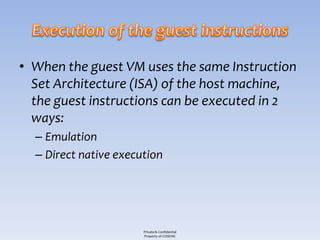

- 8. • When theguest VM uses the same Instruction Set Architecture (ISA) of the host machine, the guest instructions can be executed in 2 ways: – Emulation – Direct native execution Private & Confidential Property of COSEINC

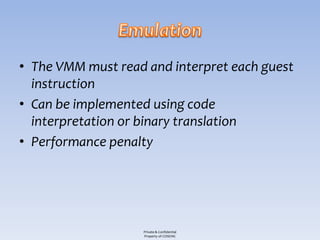

- 9. • The VMMmust read and interpret each guest instruction • Can be implemented using code interpretation or binary translation • Performance penalty Private & Confidential Property of COSEINC

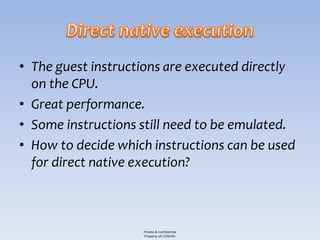

- 10. • The guestinstructions are executed directly on the CPU. • Great performance. • Some instructions still need to be emulated. • How to decide which instructions can be used for direct native execution? Private & Confidential Property of COSEINC

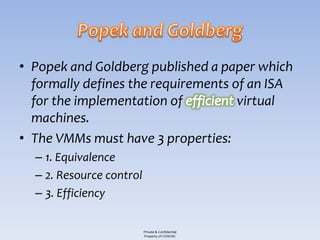

- 11. • Popek andGoldberg published a paper which formally defines the requirements of an ISA for the implementation of virtual machines. • The VMMs must have 3 properties: – 1. Equivalence – 2. Resource control – 3. Efficiency Private & Confidential Property of COSEINC

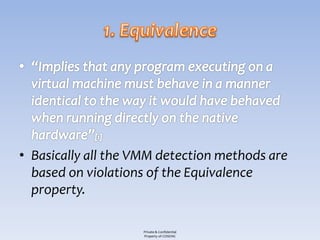

- 12. • Basically allthe VMM detection methods are based on violations of the Equivalence property. Private & Confidential Property of COSEINC

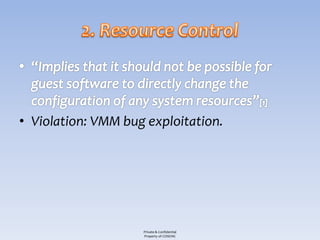

- 13. • Violation: VMMbug exploitation. Private & Confidential Property of COSEINC
- 14. • Depends onthe features of the host ISA. • How to implement efficient virtual machines on the x86 architecture? Private & Confidential Property of COSEINC

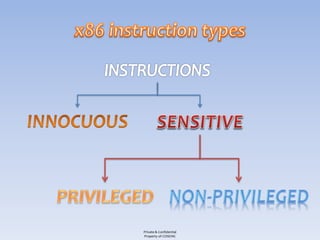

- 15. Private & Confidential Propertyof COSEINC

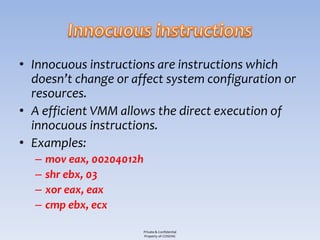

- 16. • Innocuous instructionsare instructions which doesn’t change or affect system configuration or resources. • A efficient VMM allows the direct execution of innocuous instructions. • Examples: – mov eax, 00204012h – shr ebx, 03 – xor eax, eax – cmp ebx, ecx Private & Confidential Property of COSEINC
- 17. • Sensitive instructionsaffect system resources or behavior • The VMM must the direct execution of sensitive instructions! • The IA-32 instruction set contains 17 sensitive instructions [2] • Examples: – wrmsr – mov CR3, eax – out dx, eax Private & Confidential Property of COSEINC

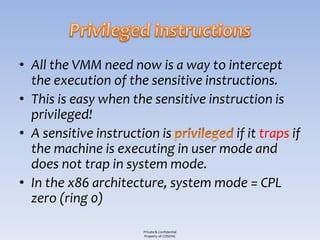

- 18. • All theVMM need now is a way to intercept the execution of the sensitive instructions. • This is easy when the sensitive instruction is privileged! • A sensitive instruction is if it traps if the machine is executing in user mode and does not trap in system mode. • In the x86 architecture, system mode = CPL zero (ring 0) Private & Confidential Property of COSEINC

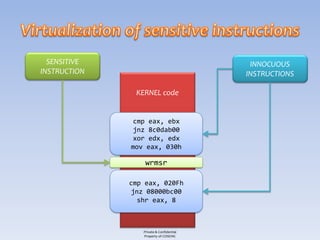

- 19. SENSITIVE INNOCUOUS INSTRUCTION INSTRUCTIONS KERNEL code cmp eax, ebx jnz 8c0dab00 xor edx, edx mov eax, 030h wrmsr cmp eax, 020Fh jnz 08000bc00 shr eax, 8 Private & Confidential Property of COSEINC

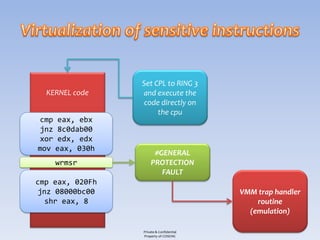

- 20. Set CPL toRING 3 KERNEL code and execute the code directly on the cpu cmp eax, ebx jnz 8c0dab00 xor edx, edx mov eax, 030h #GENERAL wrmsr PROTECTION FAULT cmp eax, 020Fh jnz 08000bc00 VMM trap handler shr eax, 8 routine (emulation) Private & Confidential Property of COSEINC

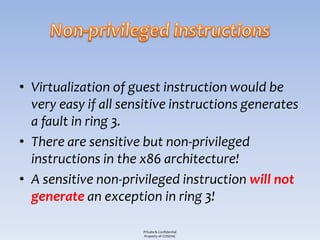

- 21. • Virtualization ofguest instruction would be very easy if all sensitive instructions generates a fault in ring 3. • There are sensitive but non-privileged instructions in the x86 architecture! • A sensitive non-privileged instruction will not generate an exception in ring 3! Private & Confidential Property of COSEINC

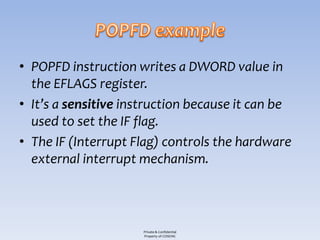

- 22. • POPFD instructionwrites a DWORD value in the EFLAGS register. • It’s a sensitive instruction because it can be used to set the IF flag. • The IF (Interrupt Flag) controls the hardware external interrupt mechanism. Private & Confidential Property of COSEINC
- 23. • Problem: ExecutingPOPFD in ring3 will not generate a fault! The CPU just ignores the IF flag modification attempt. • How to virtualize sensitive non-privileged instructions? Private & Confidential Property of COSEINC

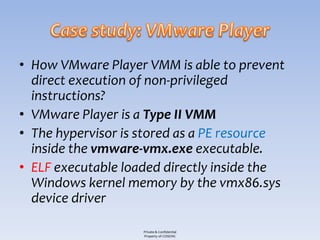

- 24. • How VMwarePlayer VMM is able to prevent direct execution of non-privileged instructions? • VMware Player is a Type II VMM • The hypervisor is stored as a PE resource inside the vmware-vmx.exe executable. • ELF executable loaded directly inside the Windows kernel memory by the vmx86.sys device driver Private & Confidential Property of COSEINC

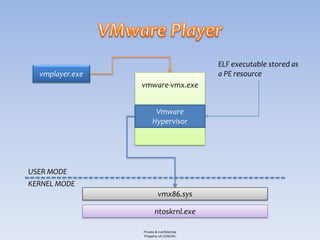

- 25. ELF executable storedas vmplayer.exe a PE resource vmware-vmx.exe Vmware Hypervisor USER MODE KERNEL MODE vmx86.sys ntoskrnl.exe Private & Confidential Property of COSEINC

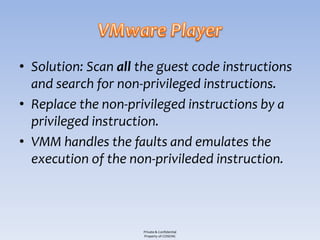

- 26. • Solution: Scanall the guest code instructions and search for non-privileged instructions. • Replace the non-privileged instructions by a privileged instruction. • VMM handles the faults and emulates the execution of the non-privileded instruction. Private & Confidential Property of COSEINC

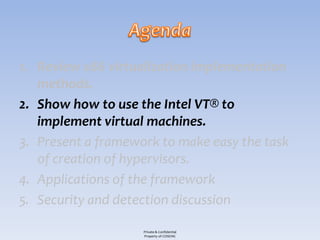

- 27. 1. Review x86virtualization implementation methods. 2. Show how to use the Intel VT® to implement virtual machines. 3. Present a framework to make easy the task of creation of hypervisors. 4. Applications of the framework 5. Security and detection discussion Private & Confidential Property of COSEINC
- 28. The COSEINC HypervisorFramework Private & Confidential Property of COSEINC
- 29. • Virtualizable ISA – If all sensitive instructions of some ISA are privileged, the processor is considered to be ‘virtualizable’ [3] • IA-32 is obviously not-virtualizable. • New instruction sets created by Intel and AMD – Intel Virtual Machine eXtensions (VMX) – AMD Secure Virtual Machine (SVM) Private & Confidential Property of COSEINC

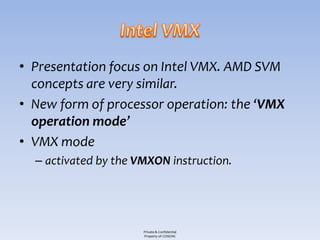

- 30. • Presentation focuson Intel VMX. AMD SVM concepts are very similar. • New form of processor operation: the ‘VMX operation mode’ • VMX mode – activated by the VMXON instruction. Private & Confidential Property of COSEINC

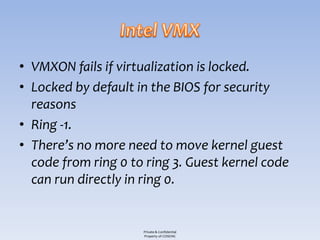

- 31. • VMXON failsif virtualization is locked. • Locked by default in the BIOS for security reasons • Ring -1. • There’s no more need to move kernel guest code from ring 0 to ring 3. Guest kernel code can run directly in ring 0. Private & Confidential Property of COSEINC

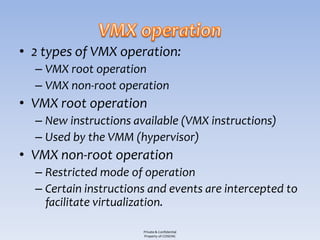

- 32. • 2 typesof VMX operation: – VMX root operation – VMX non-root operation • VMX root operation – New instructions available (VMX instructions) – Used by the VMM (hypervisor) • VMX non-root operation – Restricted mode of operation – Certain instructions and events are intercepted to facilitate virtualization. Private & Confidential Property of COSEINC

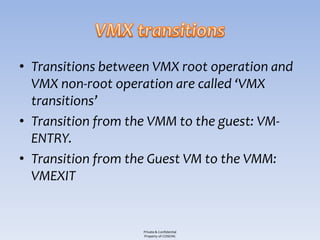

- 33. • Transitions betweenVMX root operation and VMX non-root operation are called ‘VMX transitions’ • Transition from the VMM to the guest: VM- ENTRY. • Transition from the Guest VM to the VMM: VMEXIT Private & Confidential Property of COSEINC

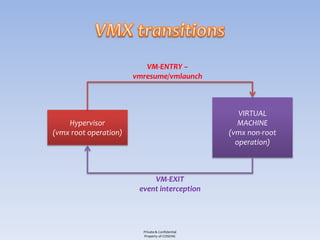

- 34. VM-ENTRY – vmresume/vmlaunch VIRTUAL Hypervisor MACHINE (vmx root operation) (vmx non-root operation) VM-EXIT event interception Private & Confidential Property of COSEINC

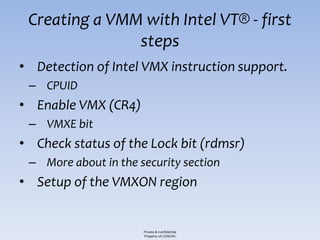

- 35. Creating a VMMwith Intel VT® - first steps • Detection of Intel VMX instruction support. – CPUID • Enable VMX (CR4) – VMXE bit • Check status of the Lock bit (rdmsr) – More about in the security section • Setup of the VMXON region Private & Confidential Property of COSEINC
- 36. Creating a VMMwith Intel VT® - first steps • Enable VMX instructions (VMXON) • Create and configure the VMCS region of each guest VM. • Launch the guest VM with VMLAUNCH instruction • Wait for VM-exit events Private & Confidential Property of COSEINC
- 37. VMCS • Virtual MachineControl Structure • Most important vmx data structure • One VMCS for each Virtual Machine and for each CPU core. • It controls the behavior of VMX transitions Private & Confidential Property of COSEINC

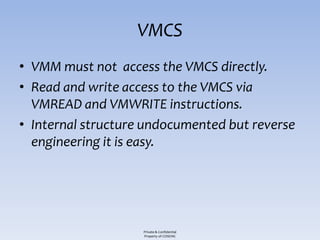

- 38. VMCS • VMM mustnot access the VMCS directly. • Read and write access to the VMCS via VMREAD and VMWRITE instructions. • Internal structure undocumented but reverse engineering it is easy. Private & Confidential Property of COSEINC
- 39. VMXON and VMCSareas VMXON region VMXON region CPU A CPU B VM Windows VMCS #1A VMCS #1B VMCS #2A VMCS #2B VM Linux CPU A CPU B Private & Confidential Property of COSEINC

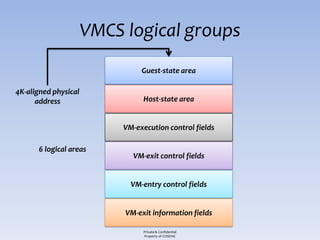

- 40. VMCS logical groups Guest-state area 4K-aligned physical address Host-state area VM-execution control fields 6 logical areas VM-exit control fields VM-entry control fields VM-exit information fields Private & Confidential Property of COSEINC

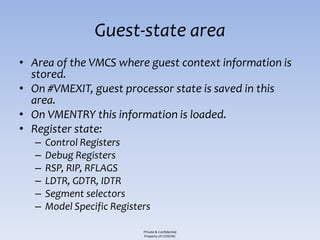

- 41. Guest-state area • Areaof the VMCS where guest context information is stored. • On #VMEXIT, guest processor state is saved in this area. • On VMENTRY this information is loaded. • Register state: – Control Registers – Debug Registers – RSP, RIP, RFLAGS – LDTR, GDTR, IDTR – Segment selectors – Model Specific Registers Private & Confidential Property of COSEINC

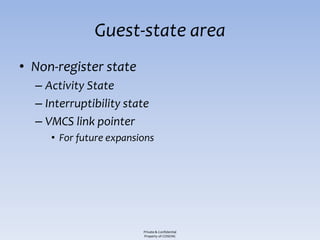

- 42. Guest-state area • Non-registerstate – Activity State – Interruptibility state – VMCS link pointer • For future expansions Private & Confidential Property of COSEINC

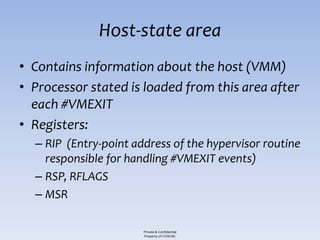

- 43. Host-state area • Containsinformation about the host (VMM) • Processor stated is loaded from this area after each #VMEXIT • Registers: – RIP (Entry-point address of the hypervisor routine responsible for handling #VMEXIT events) – RSP, RFLAGS – MSR Private & Confidential Property of COSEINC

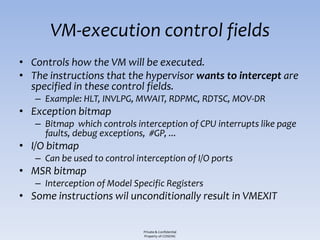

- 44. VM-execution control fields •Controls how the VM will be executed. • The instructions that the hypervisor wants to intercept are specified in these control fields. – Example: HLT, INVLPG, MWAIT, RDPMC, RDTSC, MOV-DR • Exception bitmap – Bitmap which controls interception of CPU interrupts like page faults, debug exceptions, #GP, ... • I/O bitmap – Can be used to control interception of I/O ports • MSR bitmap – Interception of Model Specific Registers • Some instructions wil unconditionally result in VMEXIT Private & Confidential Property of COSEINC

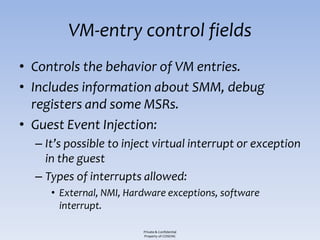

- 45. VM-entry control fields •Controls the behavior of VM entries. • Includes information about SMM, debug registers and some MSRs. • Guest Event Injection: – It’s possible to inject virtual interrupt or exception in the guest – Types of interrupts allowed: • External, NMI, Hardware exceptions, software interrupt. Private & Confidential Property of COSEINC

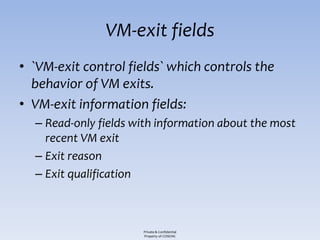

- 46. VM-exit fields • `VM-exitcontrol fields` which controls the behavior of VM exits. • VM-exit information fields: – Read-only fields with information about the most recent VM exit – Exit reason – Exit qualification Private & Confidential Property of COSEINC

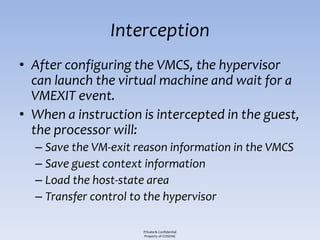

- 47. Interception • After configuringthe VMCS, the hypervisor can launch the virtual machine and wait for a VMEXIT event. • When a instruction is intercepted in the guest, the processor will: – Save the VM-exit reason information in the VMCS – Save guest context information – Load the host-state area – Transfer control to the hypervisor Private & Confidential Property of COSEINC

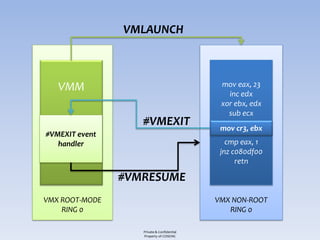

- 48. VMLAUNCH VMM mov eax, 23 inc edx xor ebx, edx sub ecx #VMEXIT mov cr3, ebx #VMEXIT event handler cmp eax, 1 jnz c080df00 retn #VMRESUME VMX ROOT-MODE VMX NON-ROOT RING 0 RING 0 Private & Confidential Property of COSEINC

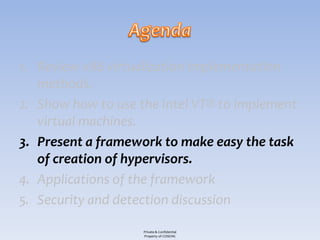

- 49. 1. Review x86virtualization implementation methods. 2. Show how to use the Intel VT® to implement virtual machines. 3. Present a framework to make easy the task of creation of hypervisors. 4. Applications of the framework 5. Security and detection discussion Private & Confidential Property of COSEINC

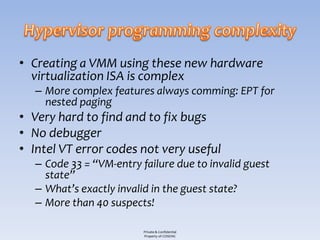

- 50. • Creating aVMM using these new hardware virtualization ISA is complex – More complex features always comming: EPT for nested paging • Very hard to find and to fix bugs • No debugger • Intel VT error codes not very useful – Code 33 = “VM-entry failure due to invalid guest state” – What’s exactly invalid in the guest state? – More than 40 suspects! Private & Confidential Property of COSEINC

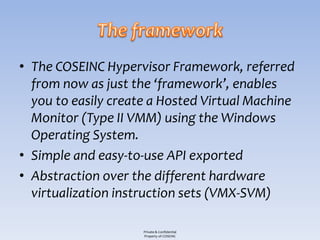

- 51. • The COSEINCHypervisor Framework, referred from now as just the ‘framework’, enables you to easily create a Hosted Virtual Machine Monitor (Type II VMM) using the Windows Operating System. • Simple and easy-to-use API exported • Abstraction over the different hardware virtualization instruction sets (VMX-SVM) Private & Confidential Property of COSEINC

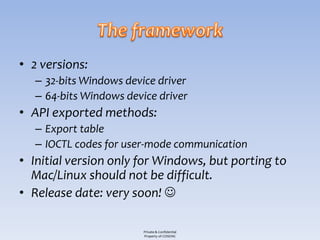

- 52. • 2 versions: – 32-bits Windows device driver – 64-bits Windows device driver • API exported methods: – Export table – IOCTL codes for user-mode communication • Initial version only for Windows, but porting to Mac/Linux should not be difficult. • Release date: very soon! Private & Confidential Property of COSEINC

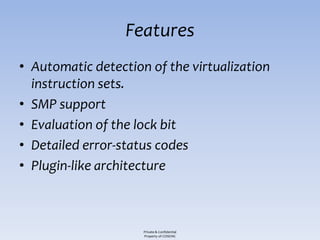

- 53. Features • Automatic detectionof the virtualization instruction sets. • SMP support • Evaluation of the lock bit • Detailed error-status codes • Plugin-like architecture Private & Confidential Property of COSEINC

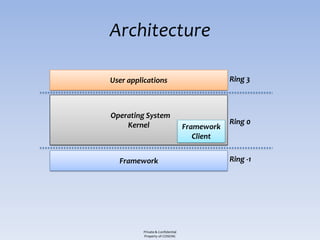

- 54. Architecture User applications Ring 3 Operating System Kernel Ring 0 Framework Client Framework Ring -1 Private & Confidential Property of COSEINC

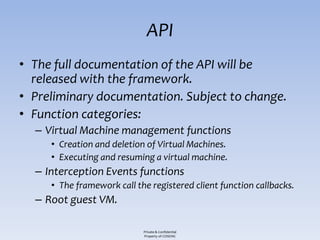

- 55. API • The fulldocumentation of the API will be released with the framework. • Preliminary documentation. Subject to change. • Function categories: – Virtual Machine management functions • Creation and deletion of Virtual Machines. • Executing and resuming a virtual machine. – Interception Events functions • The framework call the registered client function callbacks. – Root guest VM. Private & Confidential Property of COSEINC

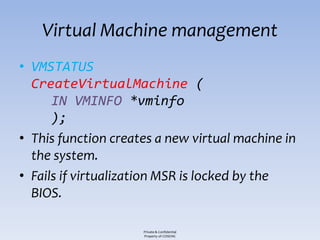

- 56. Virtual Machine management •VMSTATUS CreateVirtualMachine ( IN VMINFO *vminfo ); • This function creates a new virtual machine in the system. • Fails if virtualization MSR is locked by the BIOS. Private & Confidential Property of COSEINC
- 57. VMINFO data structure •Most important framework data structure • Contains all the information needed to create and control a VM: – all the GUEST context information – GDT, LDT, Page Tables, Control Registers, ... – Interception handler function callback address. – Contains Event Injection information – VMEXIT information Private & Confidential Property of COSEINC

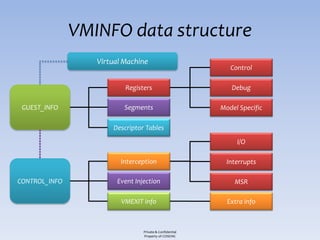

- 58. VMINFO data structure Virtual Machine Control Registers Debug GUEST_INFO Segments Model Specific Descriptor Tables I/O Interception Interrupts CONTROL_INFO Event Injection MSR VMEXIT info Extra info Private & Confidential Property of COSEINC

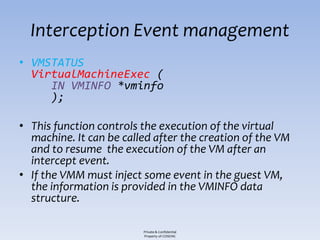

- 59. Interception Event management •VMSTATUS VirtualMachineExec ( IN VMINFO *vminfo ); • This function controls the execution of the virtual machine. It can be called after the creation of the VM and to resume the execution of the VM after an intercept event. • If the VMM must inject some event in the guest VM, the information is provided in the VMINFO data structure. Private & Confidential Property of COSEINC

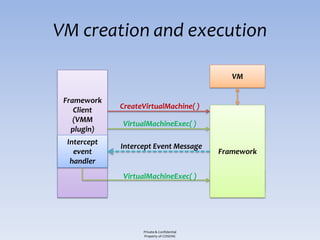

- 60. VM creation andexecution VM Framework Client CreateVirtualMachine( ) (VMM VirtualMachineExec( ) plugin) Intercept Intercept Event Message event Framework handler VirtualMachineExec( ) x Private & Confidential Property of COSEINC

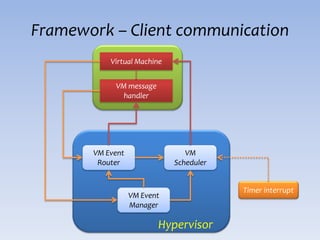

- 61. Framework – Clientcommunication Virtual Machine VM message handler VM Event VM Router Scheduler Timer interrupt VM Event Manager Hypervisor

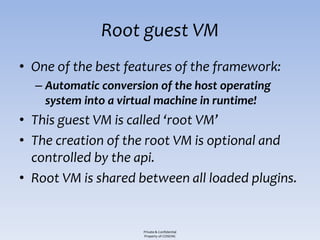

- 62. Root guest VM •One of the best features of the framework: – Automatic conversion of the host operating system into a virtual machine in runtime! • This guest VM is called ‘root VM’ • The creation of the root VM is optional and controlled by the api. • Root VM is shared between all loaded plugins. Private & Confidential Property of COSEINC

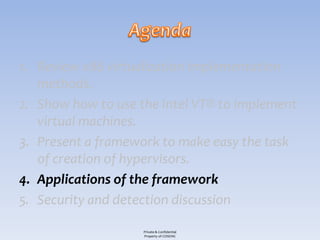

- 63. 1. Review x86virtualization implementation methods. 2. Show how to use the Intel VT® to implement virtual machines. 3. Present a framework to make easy the task of creation of hypervisors. 4. Applications of the framework 5. Security and detection discussion Private & Confidential Property of COSEINC
- 64. The COSEINC HypervisorFramework Private & Confidential Property of COSEINC

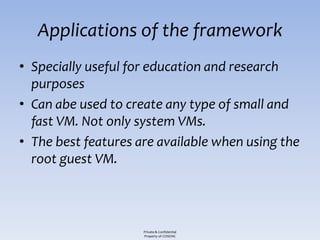

- 65. Applications of theframework • Specially useful for education and research purposes • Can abe used to create any type of small and fast VM. Not only system VMs. • The best features are available when using the root guest VM. Private & Confidential Property of COSEINC

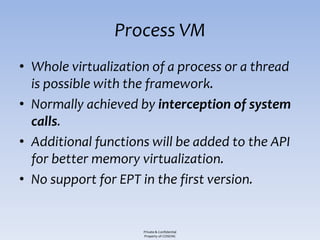

- 66. Process VM • Wholevirtualization of a process or a thread is possible with the framework. • Normally achieved by interception of system calls. • Additional functions will be added to the API for better memory virtualization. • No support for EPT in the first version. Private & Confidential Property of COSEINC

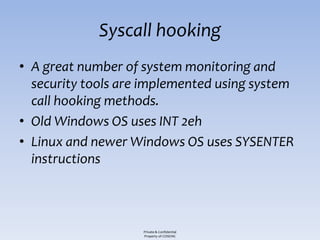

- 67. Syscall hooking • Agreat number of system monitoring and security tools are implemented using system call hooking methods. • Old Windows OS uses INT 2eh • Linux and newer Windows OS uses SYSENTER instructions Private & Confidential Property of COSEINC

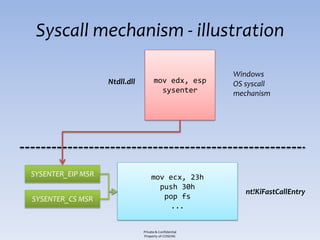

- 68. Syscall mechanism -illustration Windows Ntdll.dll mov edx, esp OS syscall sysenter mechanism SYSENTER_EIP MSR mov ecx, 23h push 30h nt!KiFastCallEntry SYSENTER_CS MSR pop fs ... Private & Confidential Property of COSEINC

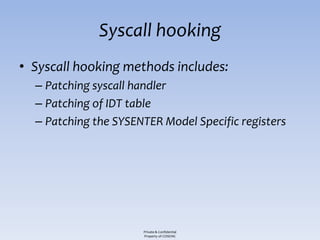

- 69. Syscall hooking • Syscallhooking methods includes: – Patching syscall handler – Patching of IDT table – Patching the SYSENTER Model Specific registers Private & Confidential Property of COSEINC

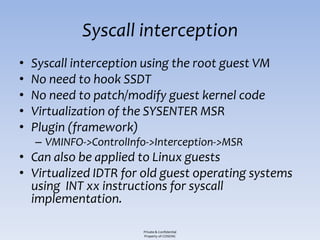

- 70. Syscall interception • Syscall interception using the root guest VM • No need to hook SSDT • No need to patch/modify guest kernel code • Virtualization of the SYSENTER MSR • Plugin (framework) – VMINFO->ControlInfo->Interception->MSR • Can also be applied to Linux guests • Virtualized IDTR for old guest operating systems using INT xx instructions for syscall implementation. Private & Confidential Property of COSEINC

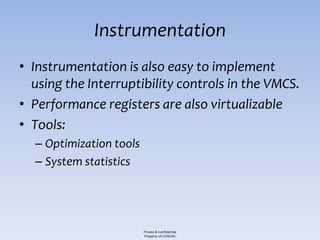

- 71. Instrumentation • Instrumentation isalso easy to implement using the Interruptibility controls in the VMCS. • Performance registers are also virtualizable • Tools: – Optimization tools – System statistics Private & Confidential Property of COSEINC

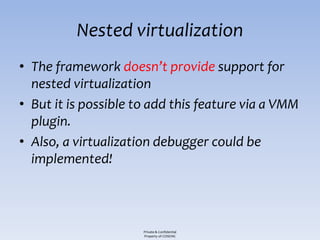

- 72. Nested virtualization • Theframework doesn’t provide support for nested virtualization • But it is possible to add this feature via a VMM plugin. • Also, a virtualization debugger could be implemented! Private & Confidential Property of COSEINC

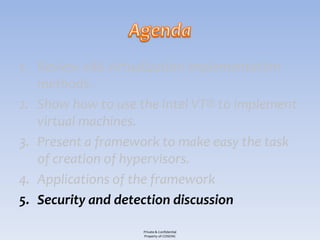

- 73. 1. Review x86virtualization implementation methods. 2. Show how to use the Intel VT® to implement virtual machines. 3. Present a framework to make easy the task of creation of hypervisors. 4. Applications of the framework 5. Security and detection discussion Private & Confidential Property of COSEINC

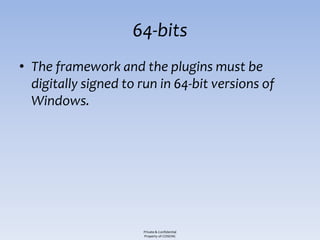

- 74. 64-bits • The frameworkand the plugins must be digitally signed to run in 64-bit versions of Windows. Private & Confidential Property of COSEINC

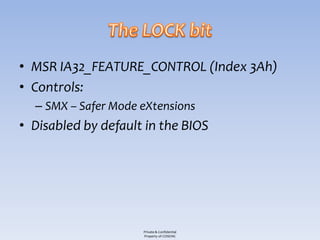

- 75. • MSR IA32_FEATURE_CONTROL(Index 3Ah) • Controls: – SMX – Safer Mode eXtensions • Disabled by default in the BIOS Private & Confidential Property of COSEINC

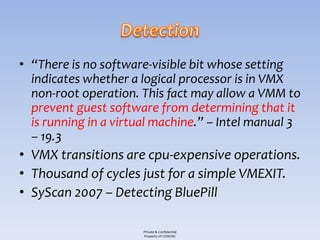

- 76. • “There isno software-visible bit whose setting indicates whether a logical processor is in VMX non-root operation. This fact may allow a VMM to prevent guest software from determining that it is running in a virtual machine.” – Intel manual 3 – 19.3 • VMX transitions are cpu-expensive operations. • Thousand of cycles just for a simple VMEXIT. • SyScan 2007 – Detecting BluePill Private & Confidential Property of COSEINC
- 77.
- 78. THANK YOU FOR YOUR TIME!
- 79. 1. John ScottRobin and Cynthia E. Irvine (2000). "Analysis of the Intel Pentium's Ability to Support a Secure Virtual Machine Monitor". Proc. 9th USENIX Security Symposium. 2. Virtual Machines: Versatile Platforms for System and Processes – Jim Smith, Ravi Nair – Morgan Kaufmann - 2005 3. Intel manuals (www.intel.com)
