Hyperloop is a proposed transportation system that uses pods traveling at high speeds through a low-pressure tube, utilizing magnetic levitation to reduce friction and allow for faster travel than conventional modes. It can potentially connect cities like Delhi and Mumbai in just over an hour, while also being environmentally friendly and cost-effective. A partnership between Hyperloop Transportation Technologies and the Andhra Pradesh government aims to build a route between Amaravati and Vijayawada, with construction expected to start within the next two years.

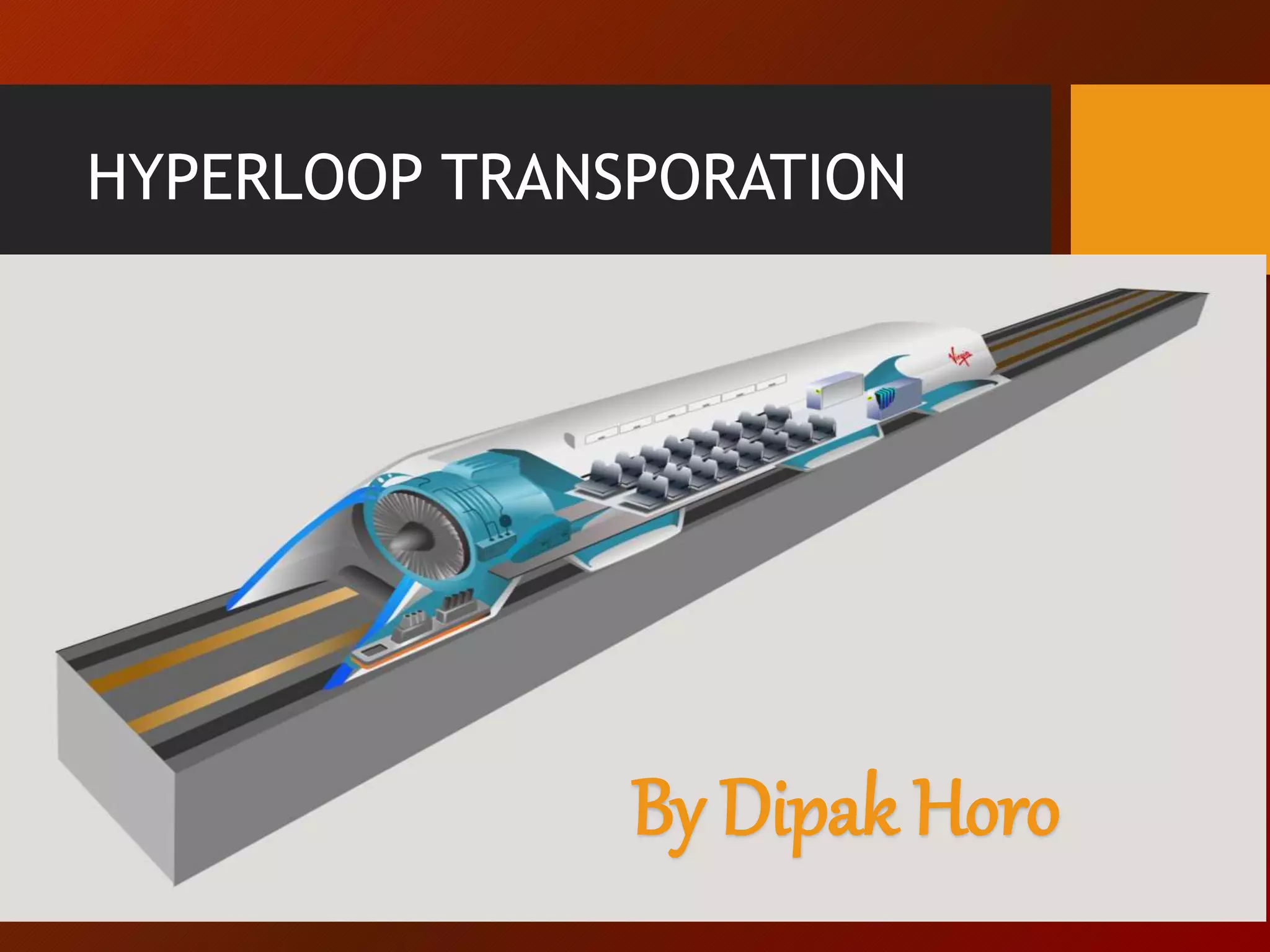

1. HYPERLOOP TRANSPORATION
By Dipak Horo

2. Hyper loop is a medium of
transportation.
Hyper loop is much more faster than the above.

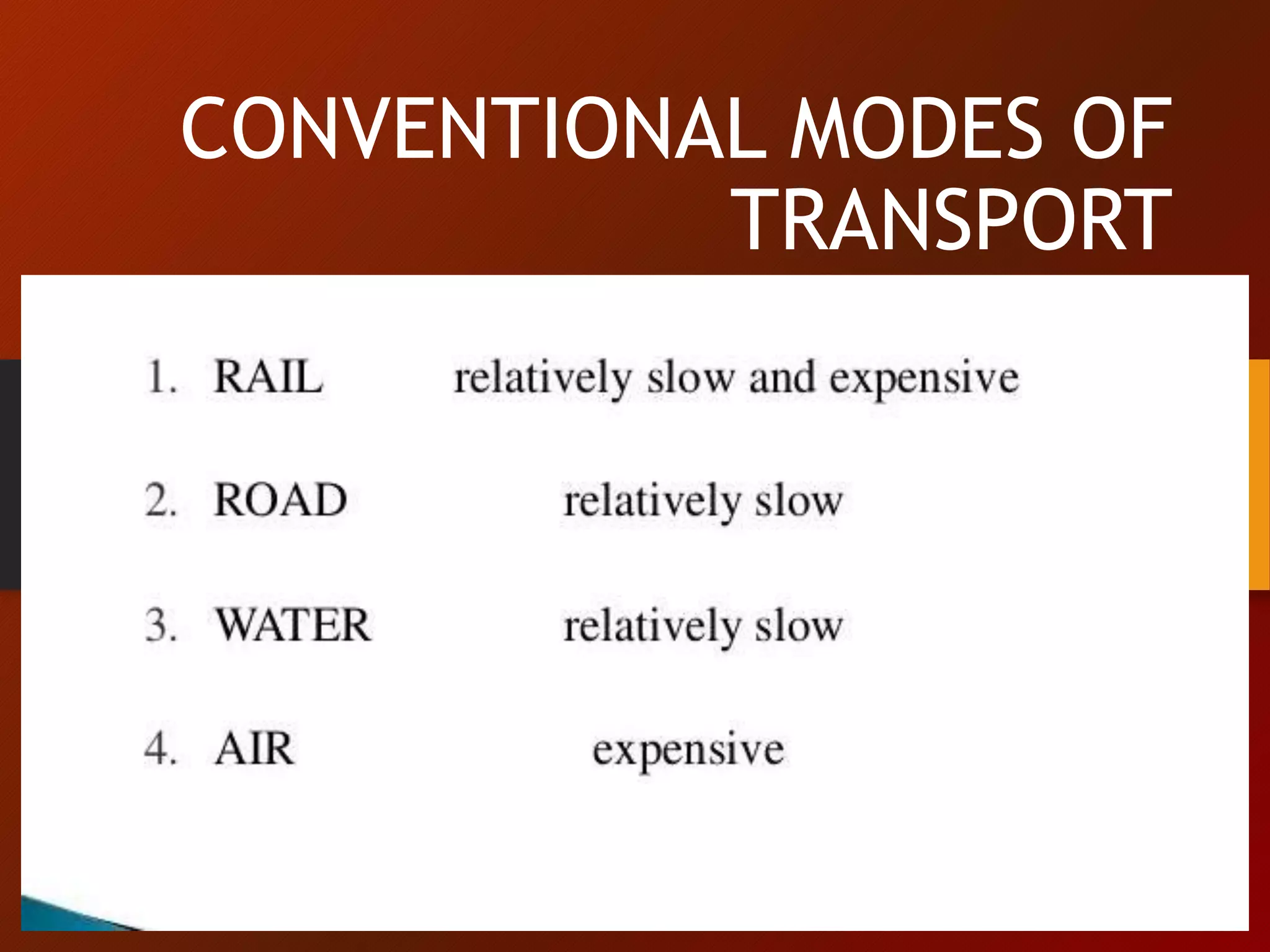

3. CONVENTIONAL MODES OF
TRANSPORT

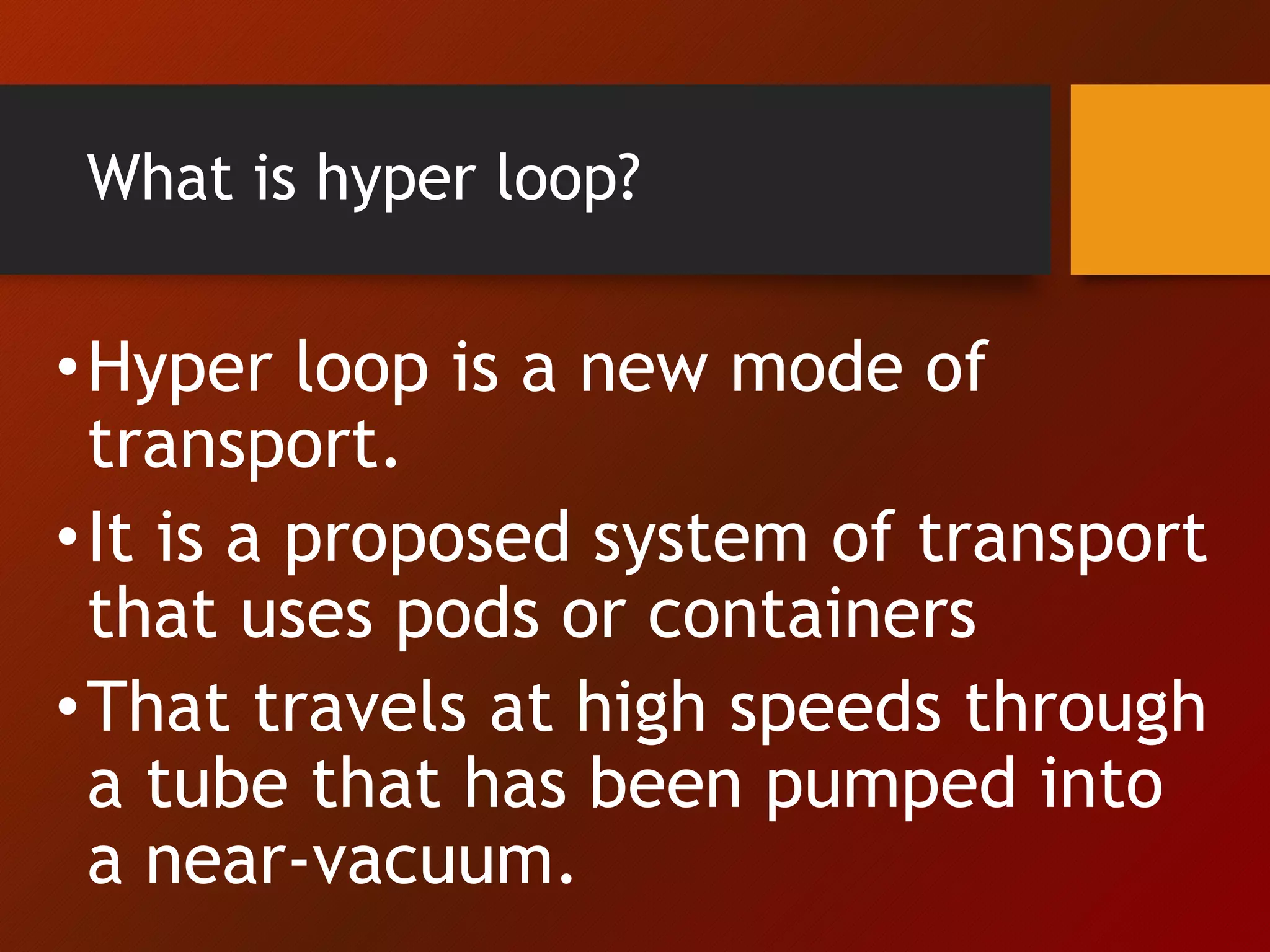

4. What is hyper loop?
•Hyper loop is a new mode of
transport.
•It is a proposed system of transport
that uses pods or containers
•That travels at high speeds through
a tube that has been pumped into
a near-vacuum.

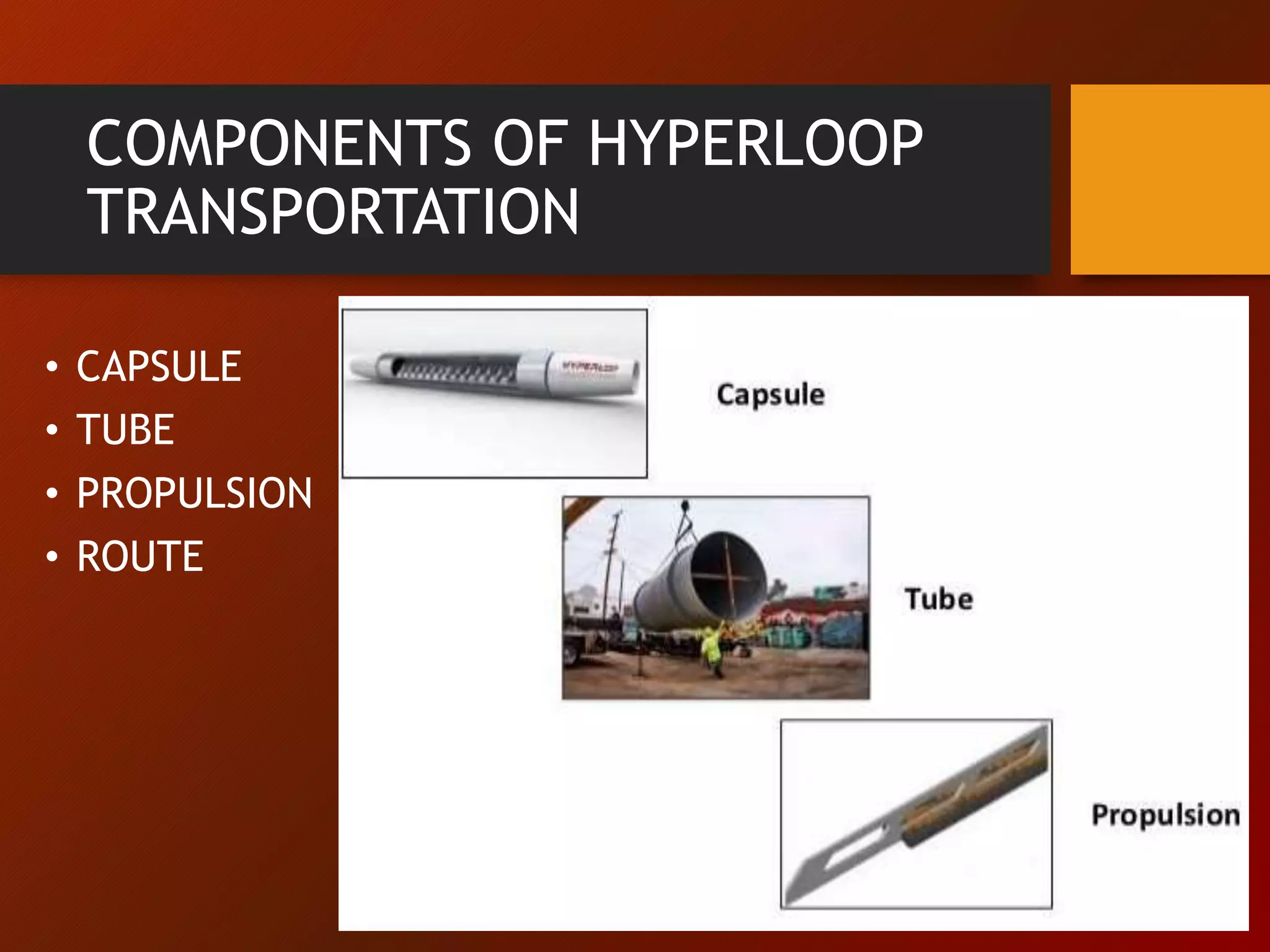

5. COMPONENTS OF HYPERLOOP
TRANSPORTATION
• CAPSULE
• TUBE
• PROPULSION
• ROUTE

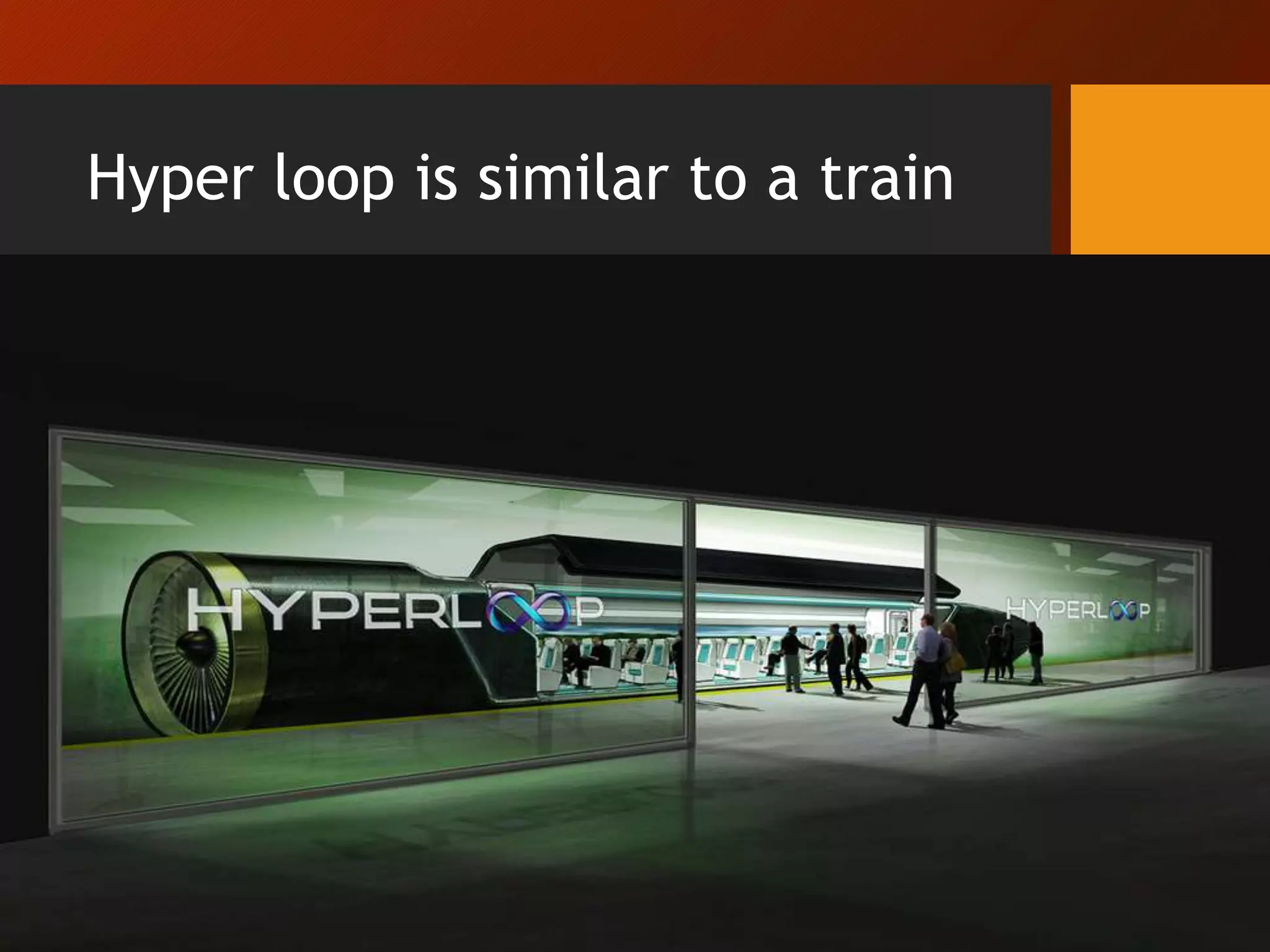

6. Hyper loop is similar to a train

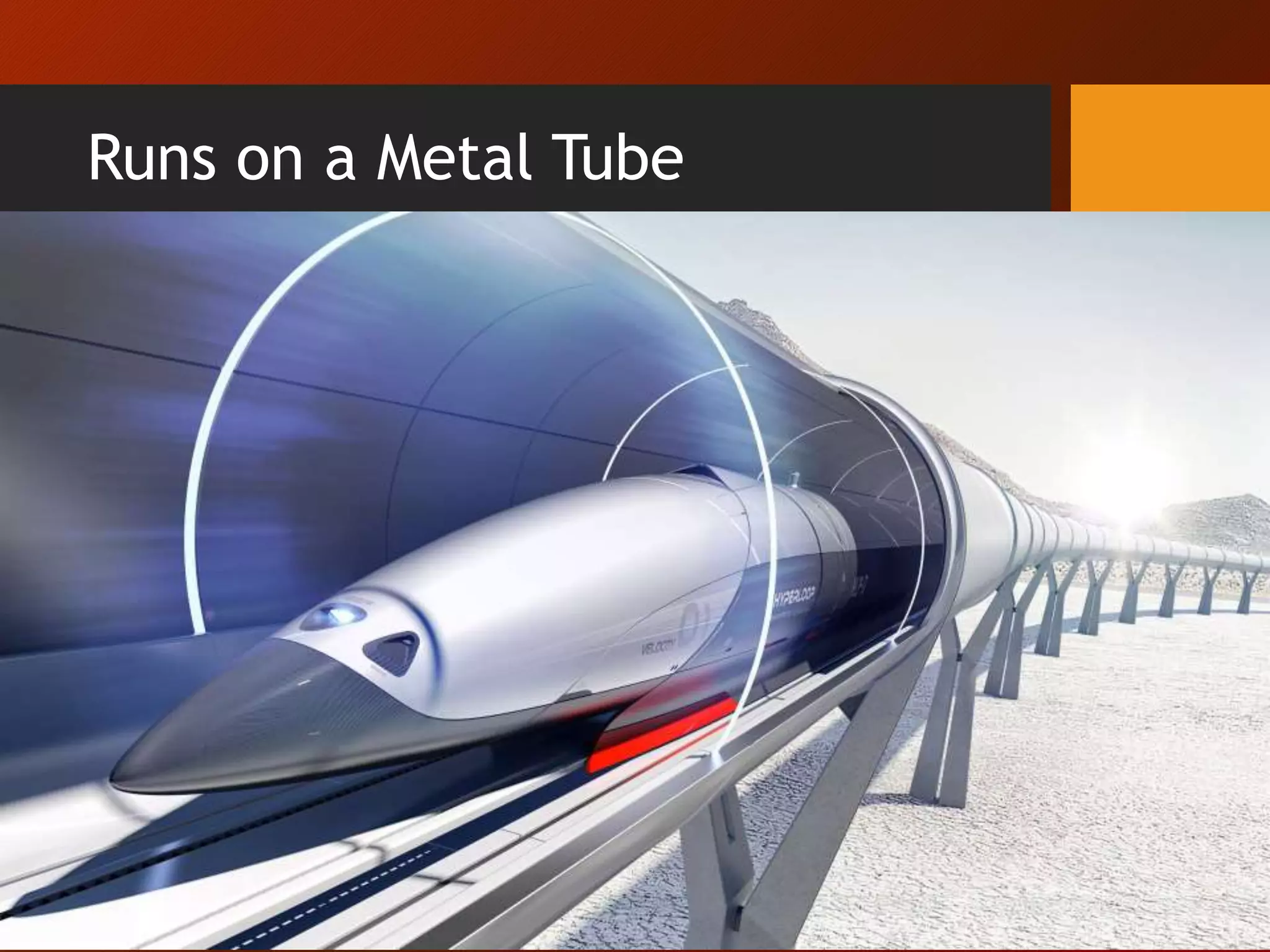

7. Runs on a Metal Tube

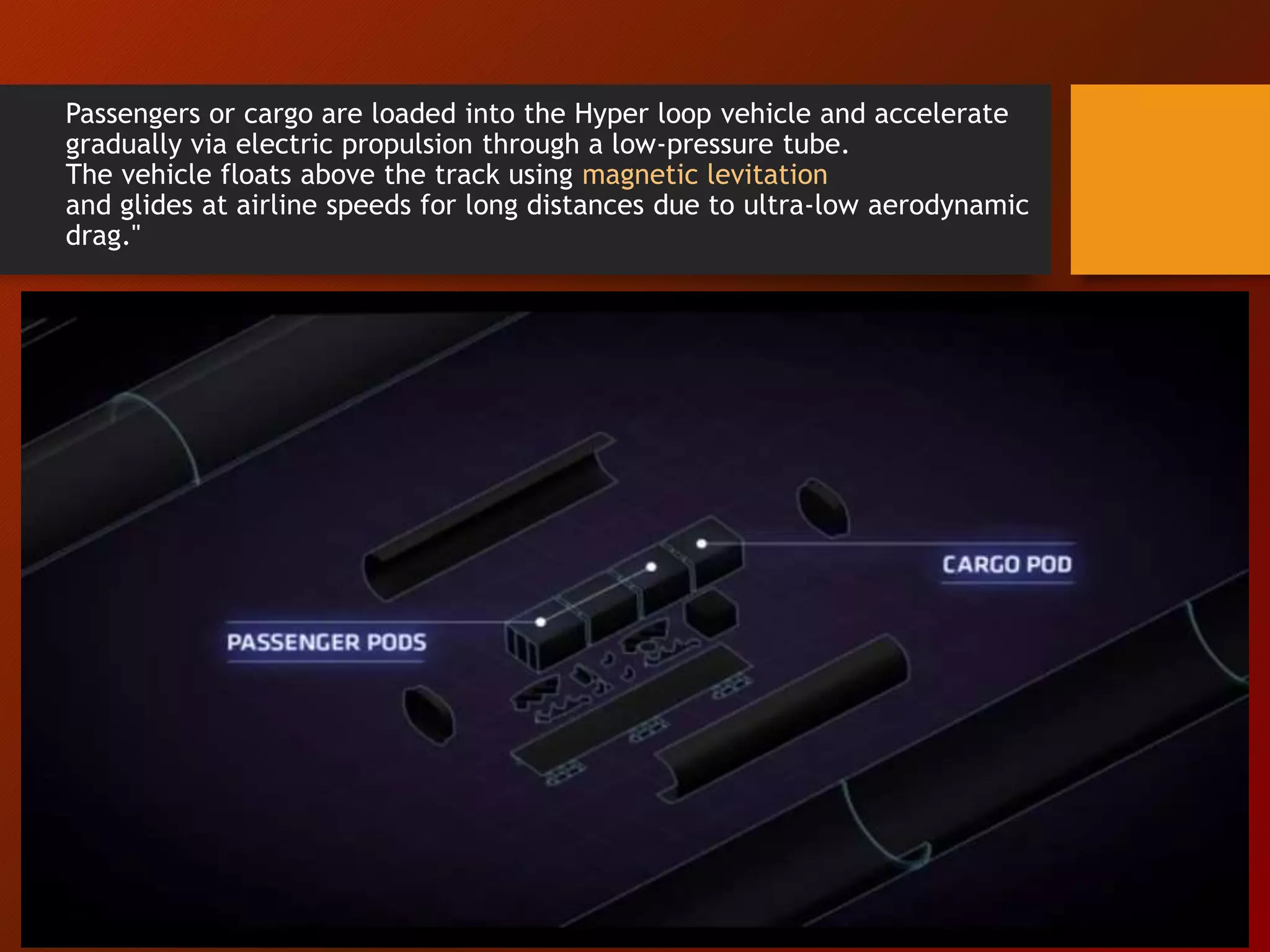

8. Passengers or cargo are loaded into the Hyper loop vehicle and accelerate
gradually via electric propulsion through a low-pressure tube.
The vehicle floats above the track using magnetic levitation
and glides at airline speeds for long distances due to ultra-low aerodynamic
drag."

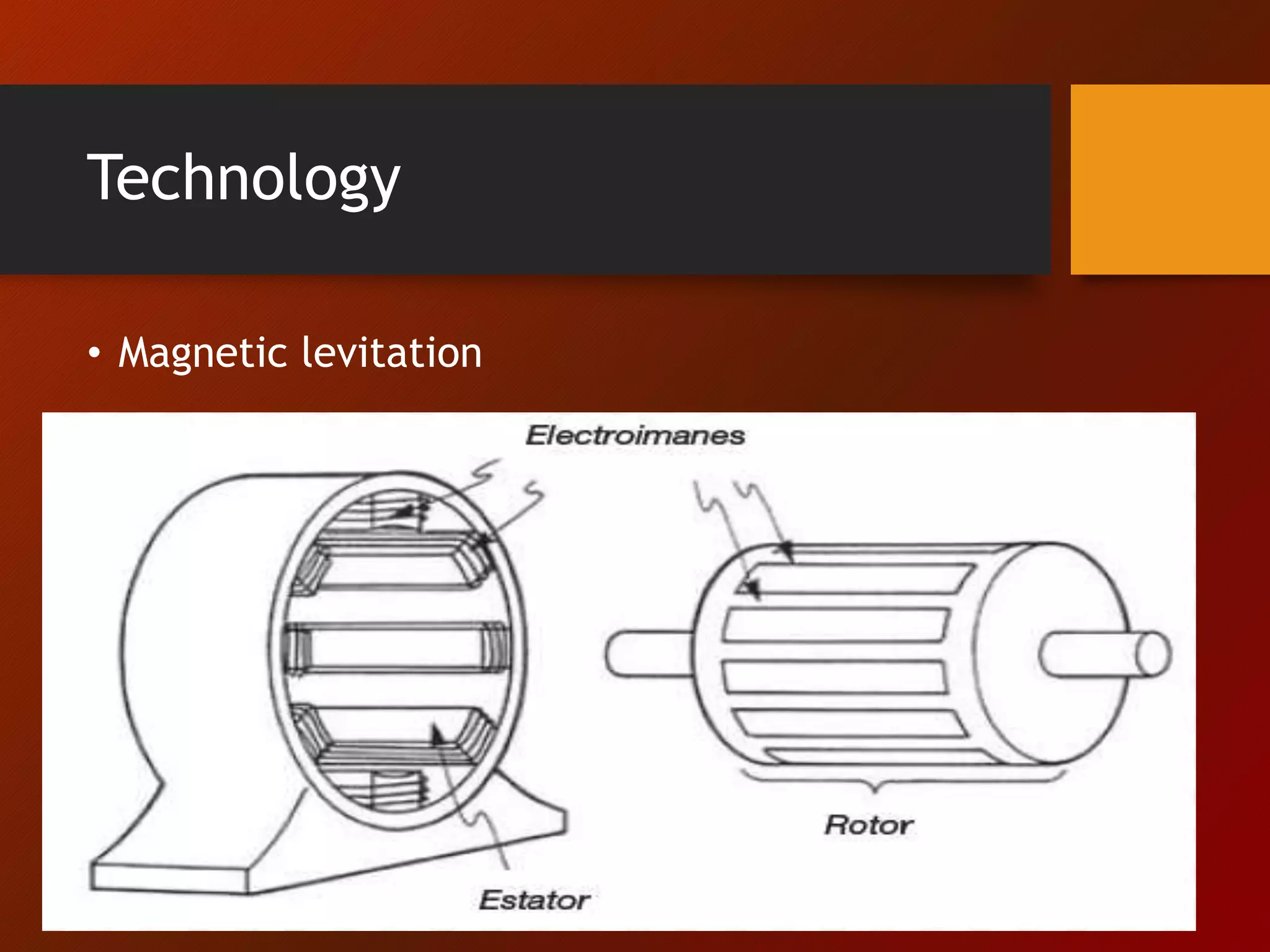

9. Technology
• Magnetic levitation

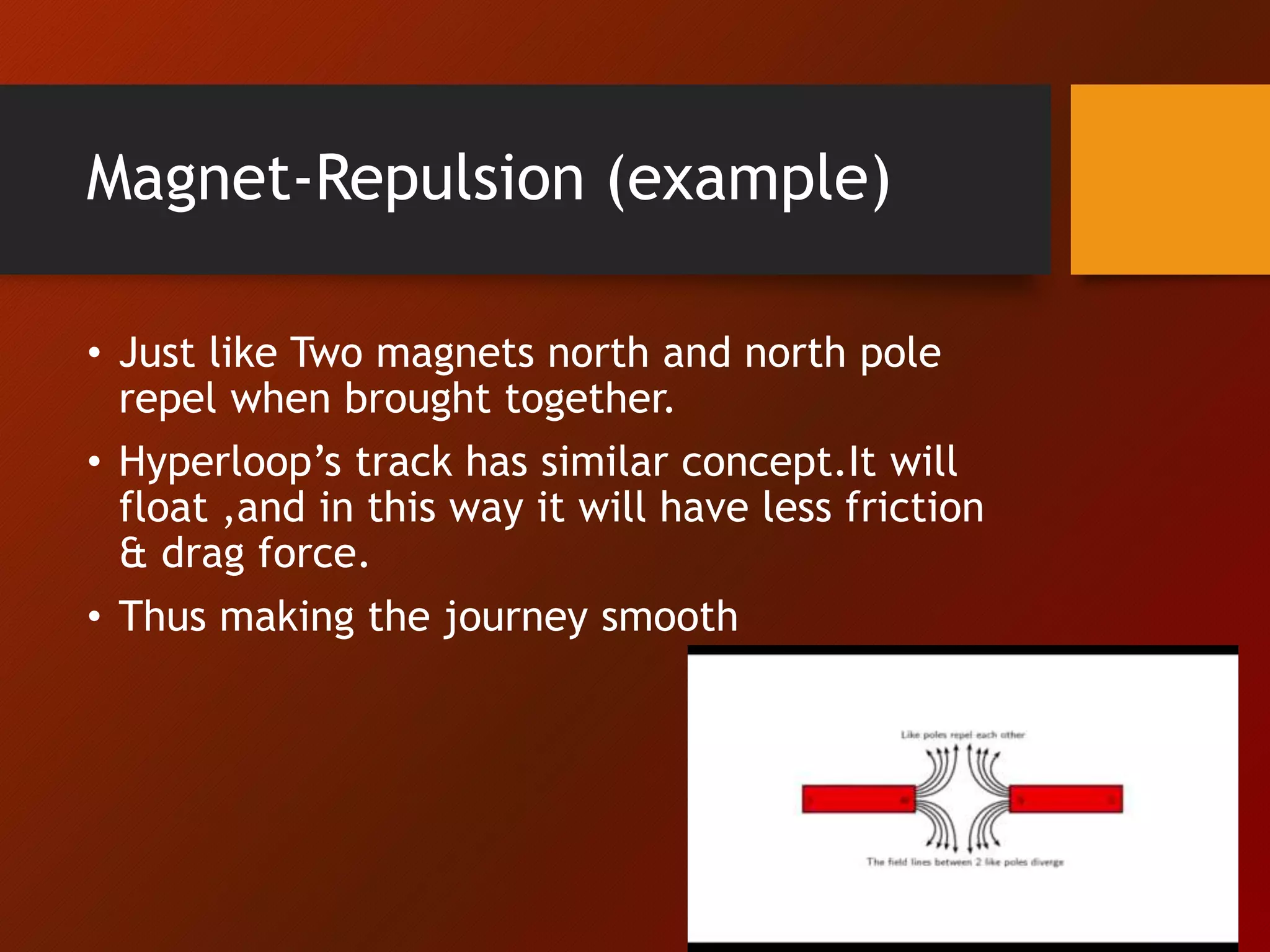

11. Magnet-Repulsion (example)
• Just like Two magnets north and north pole
repel when brought together.
• Hyperloop’s track has similar concept.It will
float ,and in this way it will have less friction
& drag force.
• Thus making the journey smooth

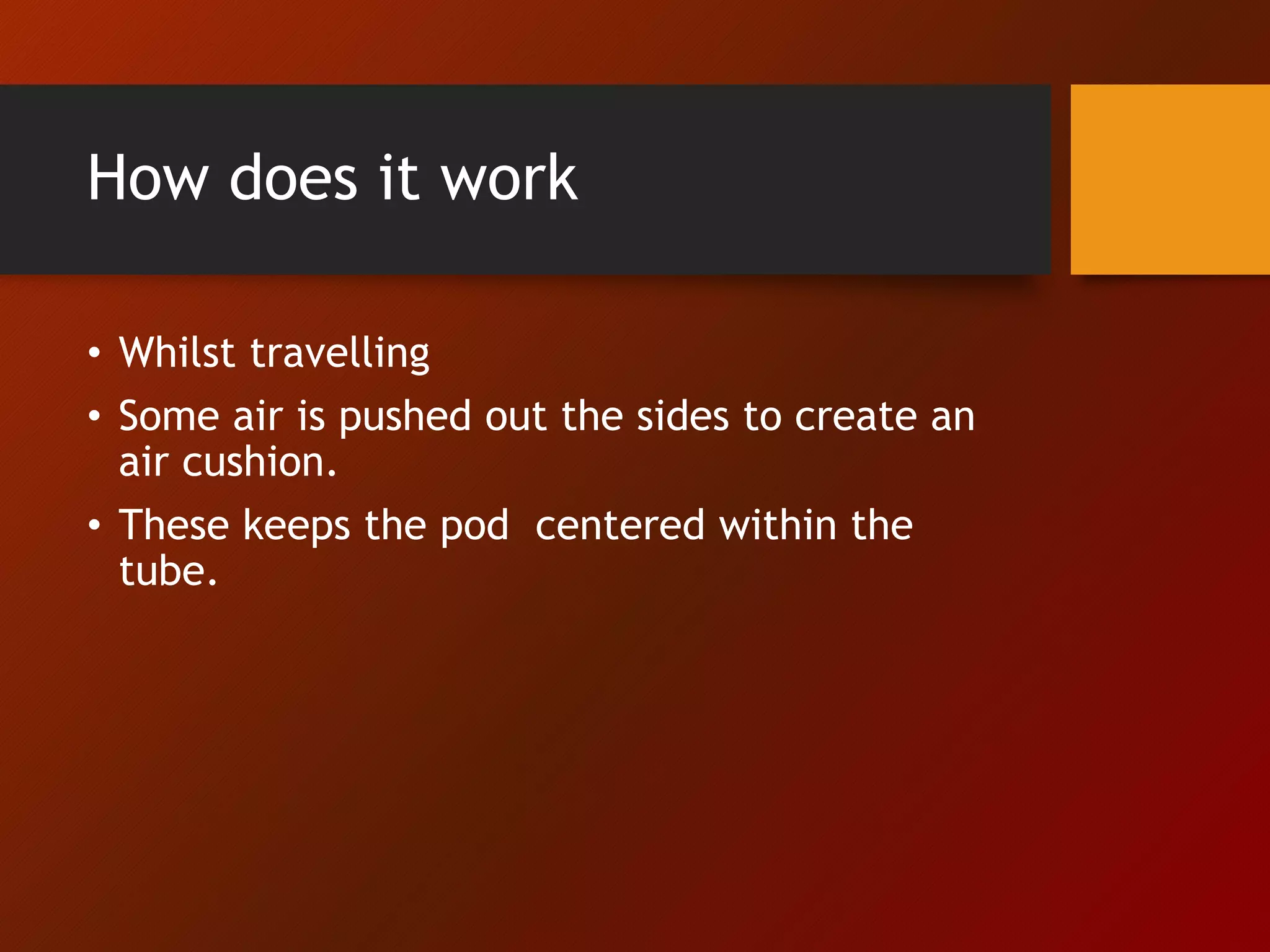

12. How does it work
• Whilst travelling
• Some air is pushed out the sides to create an
air cushion.
• These keeps the pod centered within the
tube.

13. Speed
• 800kmph
• Maximum speed recorded 1300kmph
• It is faster than plane.

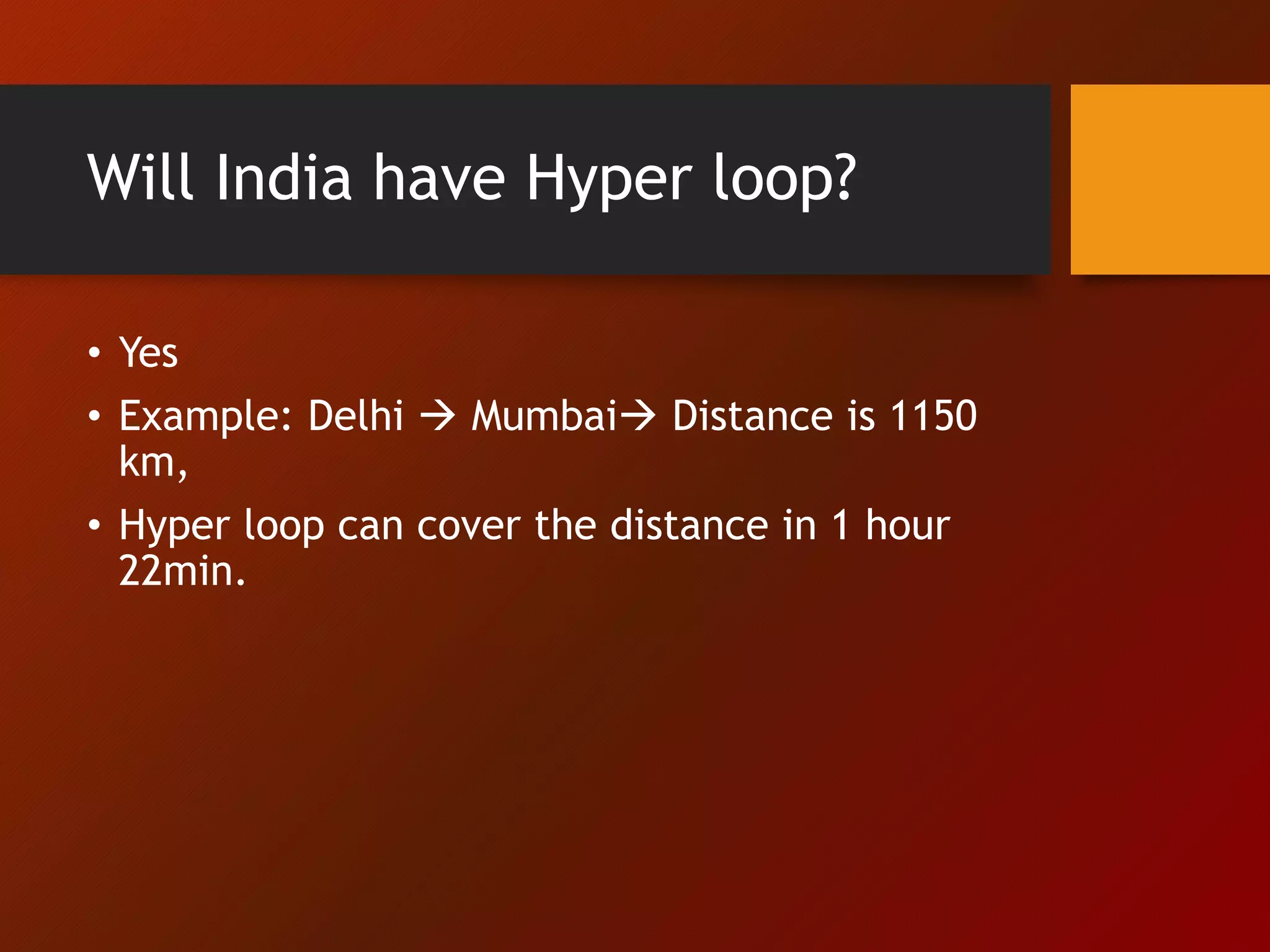

14. Will India have Hyper loop?
• Yes
• Example: Delhi  Mumbai Distance is 1150
km,
• Hyper loop can cover the distance in 1 hour
22min.

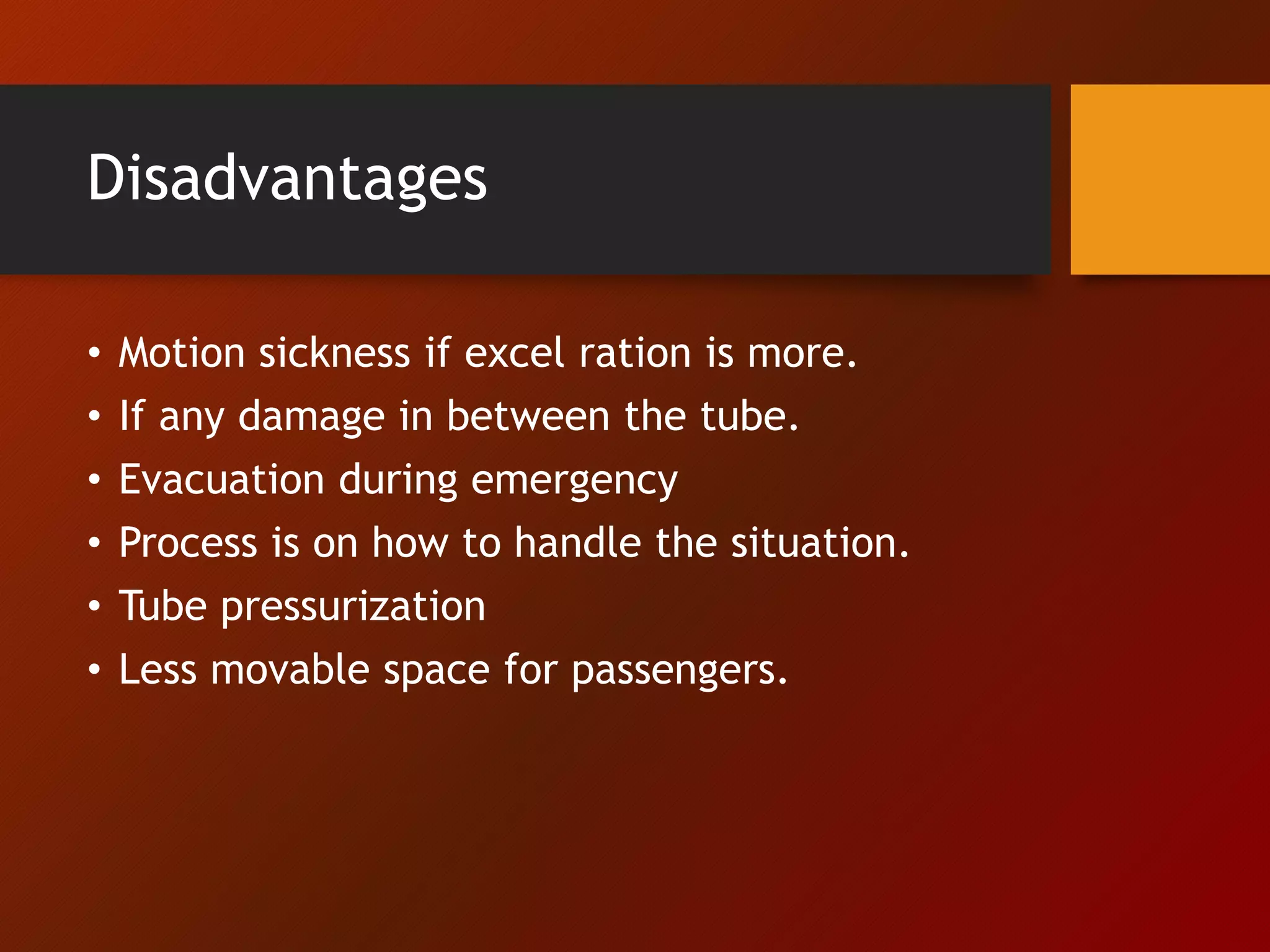

15. Disadvantages
• Motion sickness if excel ration is more.
• If any damage in between the tube.
• Evacuation during emergency
• Process is on how to handle the situation.
• Tube pressurization
• Less movable space for passengers.

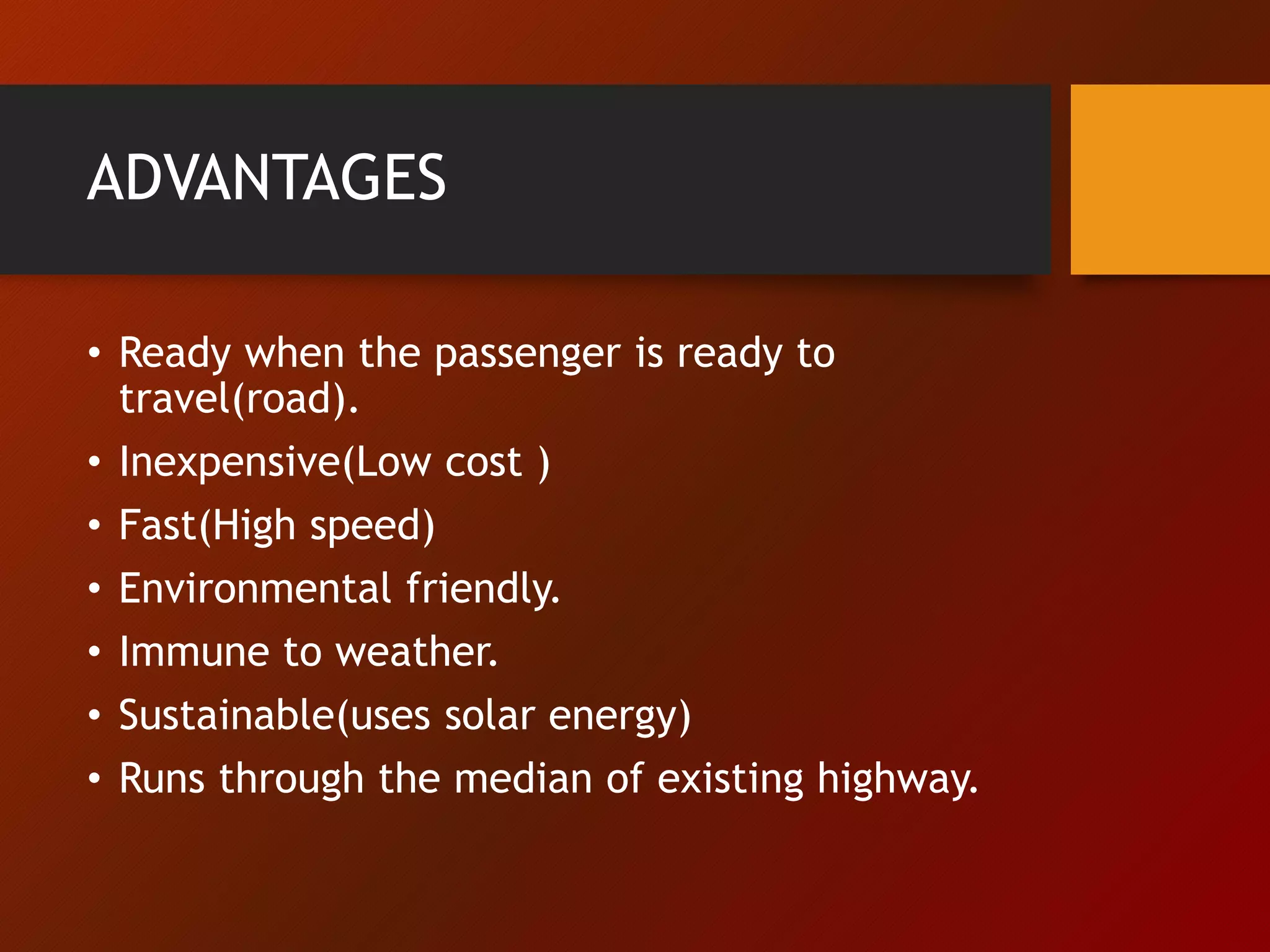

16. ADVANTAGES
• Ready when the passenger is ready to
travel(road).
• Inexpensive(Low cost )
• Fast(High speed)
• Environmental friendly.
• Immune to weather.
• Sustainable(uses solar energy)
• Runs through the median of existing highway.

17. History /Discovery
• The concept of hyper loop was
first popularized by Elon musk.
• The project was to develop a
high speed ,intercity transporter
using a low pressure tube train.
• Owner of space
x,TESLA,PAYPAL,SolarCity.

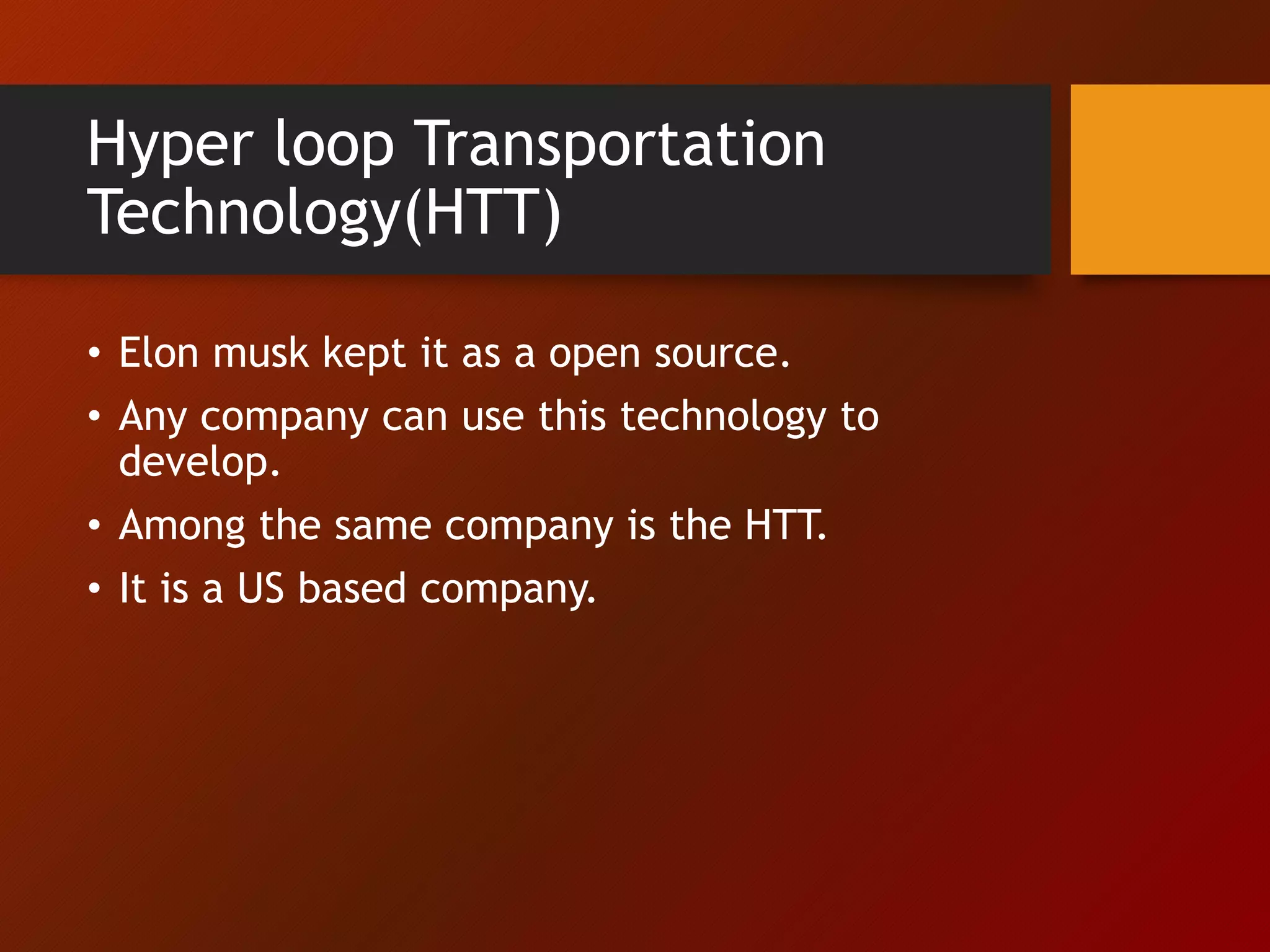

18. Hyper loop Transportation
Technology(HTT)
• Elon musk kept it as a open source.
• Any company can use this technology to
develop.
• Among the same company is the HTT.
• It is a US based company.

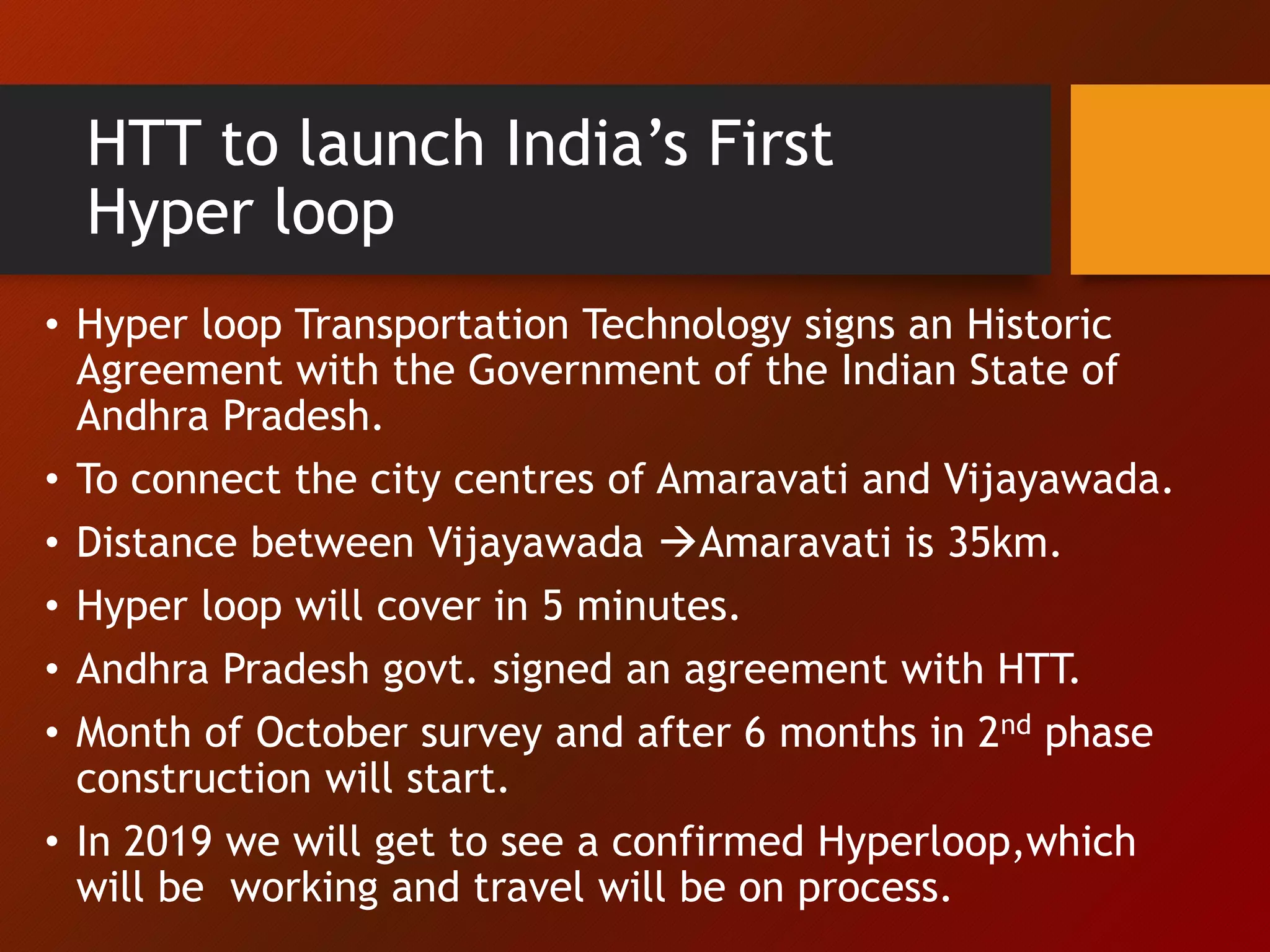

19. HTT to launch India’s First
Hyper loop
• Hyper loop Transportation Technology signs an Historic
Agreement with the Government of the Indian State of
Andhra Pradesh.
• To connect the city centres of Amaravati and Vijayawada.
• Distance between Vijayawada Amaravati is 35km.
• Hyper loop will cover in 5 minutes.
• Andhra Pradesh govt. signed an agreement with HTT.
• Month of October survey and after 6 months in 2nd phase
construction will start.
• In 2019 we will get to see a confirmed Hyperloop,which
will be working and travel will be on process.

20. Thank You
Dipak Horo
