Hyperledger fabric 20180528
Hyperledger Fabric is a blockchain framework for enterprise use. It was designed from the ground up to address enterprise needs like confidentiality, scalability, and flexibility. Some key features include built-in privacy using channels, pluggable consensus algorithms, and multiple programming languages for writing smart contracts. It uses an endorsement and validation process to ensure transactions are valid before being added to the ledger. Membership services provide identity features and Hyperledger Composer helps speed application development.
More Related Content
Similar to Hyperledger fabric 20180528
Hyperledger fabric 20180528
- 1. Hyperledger Fabric Arnaud JLe Hors Senior Technical Staff Member Web & Blockchain Open Technologies, IBM Member of the Hyperledger Project Technical Steering Committee May 28, 2018
- 2. © 2018 IBMCorporation Hyperledger Fabric – Blockchain for Business Open Governance Anyone can join or contribute Built from the ground up for enterprise With a maturity model to help companies move to production Performance Designed for speed and scalability Confidentiality and privacy Built-in channels for isolation and membership services for signing and encryption. Supports IBM High Security Business Network. Modularity and flexibility Choice of consensus algorithms and programming languages
- 3. © 2018 IBMCorporation 3 Legitimize Diamonds and Reduce Fraud What? • Track diamonds across supply chain from mine to retail How? • Shared ledger for storing digital certification with supporting material Benefits 1. Protect against the occurrence of fraud, theft, trafficking and black markets 2. Assist in the identification and reduction of synthetic stones being labelled as authentic 3. Increase speed of transparency for cross border transactions for insurance companies, banks and claimants

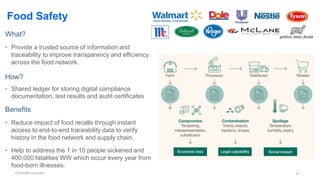

- 4. © 2018 IBMCorporation 4 Food Safety What? • Provide a trusted source of information and traceability to improve transparency and efficiency across the food network. How? • Shared ledger for storing digital compliance documentation, test results and audit certificates Benefits • Reduce impact of food recalls through instant access to end-to-end traceability data to verify history in the food network and supply chain. • Help to address the 1 in 10 people sickened and 400,000 fatalities WW which occur every year from food-born illnesses.
- 5. © 2018 IBMCorporation Global Financing: Dispute Resolution What? • IBM Global Finance provides a $41bn channel financing per year. There are a number of disputes that take time to resolve and can lock up transactions costing time and money How? • Blockchain provides visibility and provenance end-to-end across supply chain Benefits 1. Reduced dispute resolution time by 75% 2. Released working capital from $100m 3. Combine IGF and Supplier info to further expand benefits further 4. In production since Sept 2016
- 6. © 2018 IBMCorporation 6 What? • Ninety percent of goods in global trade are carried by the ocean shipping industry each year. Costs associated with trade documentation processing and administration are estimated to be up to one-fifth the actual physical transportation costs. How? • A new blockchain solution from IBM and Maersk will help manage and track the paper trail of tens of millions of shipping containers across the world by digitizing the supply chain process. Benefits 1. Enhance transparency and the highly secure sharing of information among trading partners and customs officials. 2. Reduce fraud and errors, reduce the time products spend in the transit and shipping process, improve inventory management and ultimately reduce waste. 3. Potential to save the industry billions of dollars. Cross Border Supply Chain
- 7. © 2018 IBMCorporation Endorser Committer Chaincode Event Ledger Peer Based on Source : https://jira.hyperledger.org/browse/FAB-37 Membership Srvc SDK Keys Application No SPoF No SPoT 1: Submit Proposal 2: Execute CC 3: Return Endorsed Response 4: Submit Tx 6: Deliver batch 7: Validate & Commit Tx 5: Order TXs in a batch according to consensus o-service Hyperledger Fabric v1 Architecture
- 8. © 2018 IBMCorporation Key characteristics of Hyperledger Fabric v1.0 • Better reflect business processes by specifying who endorses transactions • Support broader regulatory requirements for privacy and confidentiality • Scale the number of participants and transaction throughput • Eliminate non deterministic transactions • Support rich data queries of the ledger • Dynamically upgrade fabric and chaincode • Support for multiple credential and cryptographic services for identity • Support for ”bring your own identity” 8
- 9. © 2018 IBMCorporation Nodes and roles Committing Peer: Maintains ledger and state. Commits transactions. May hold smart contract (chaincode). Endorsing Peer: Specialized committing peer that receives a transaction proposal for endorsement, responds granting or denying endorsement. Must hold smart contract Ordering Nodes (service): Approves the inclusion of transaction blocks into the ledger and communicates with committing and endorsing peer nodes. Does not hold smart contract. Does not hold ledger.
- 10. © 2018 IBMCorporation Ordering Service The ordering service packages transactions into blocks to be delivered to peers. Communication with the service is via channels. Different configuration options for the ordering service include: – SOLO • Single node for development – Kafka : Crash fault tolerant consensus • 3:n nodes minimum • Odd number of nodes recommended – SBFT : Byzantine fault tolerant consensus • 4:n nodes minimum Ordering-Service OO O O
- 11. © 2018 IBMCorporation Channels Separate channels isolate transactions on different ledgers – Chaincode is installed on peers that need to access the worldstate – Chaincode is instantiated on specific channels for specific peers – Ledgers exist in the scope of a channel • Ledgers can be shared across an entire network of peers • Ledgers can be included only on a specific set of participants – Peers can participate in multiple channels – Concurrent execution for performance and scalability OO O O E1 E0 Ordering-Service
- 12. © 2018 IBMCorporation Single Channel Network • All peers connect to the same system channel (blue). • All peers have the same chaincode and maintain the same ledger • Endorsement by peers E0, E1, E2 and E3 Fabric E0 A B E3 E2 E1 A B A B A B OO O O Endorser Ledger Committing Peer Application Ordering Node Smart Contract (Chaincode) Endorsement Policy Key: Client Application S D K Ap Ordering-Service
- 13. © 2018 IBMCorporation Multi Channel Network • Peers E0 and E3 connect to the red channel for chaincodes Y and Z • Peers E1 and E2 connect to the blue channel for chaincodes A and B Fabric E0 Z Y E3 E2 E1 A B A B Y Z OO O O Client Application S D K Ap Ordering-Service Client Application S D K Ap Endorser Ledger Committing Peer Application Ordering Node Smart Contract (Chaincode) Endorsement Policy Key:
- 14. © 2018 IBMCorporation Ap Installing and instantiating chaincode E0 A B E1 A B E2 B P3 A D Fabric Ordering-Service O O O O Operator installs then instantiates Operator installs smart contracts with endorsement policies to appropriate peers: E0, E1, E2, P3, and not P4 Operator instantiates smart contract on given channel. One-time initialization Policy subsequently available to all peers on channel, e.g. including P4 P4 O A A Endorser Ledger Committing Peer Application Ordering Node Smart Contract (Chaincode) Endorsement Policy Key:

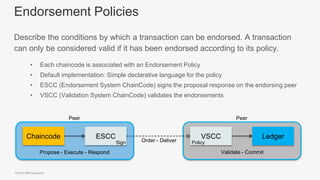

- 15. © 2018 IBMCorporation Endorsement Policies Describe the conditions by which a transaction can be endorsed. A transaction can only be considered valid if it has been endorsed according to its policy. • Each chaincode is associated with an Endorsement Policy • Default implementation: Simple declarative language for the policy • ESCC (Endorsement System ChainCode) signs the proposal response on the endorsing peer • VSCC (Validation System ChainCode) validates the endorsements Chaincode ESCC VSCC Ledger Propose - Execute - Respond Order - Deliver Validate - Commit Sign Policy Peer Peer

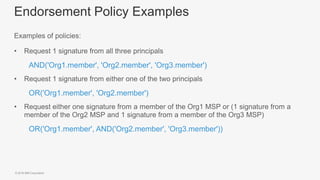

- 16. © 2018 IBMCorporation Endorsement Policy Examples Examples of policies: • Request 1 signature from all three principals – AND('Org1.member', 'Org2.member', 'Org3.member') • Request 1 signature from either one of the two principals – OR('Org1.member', 'Org2.member') • Request either one signature from a member of the Org1 MSP or (1 signature from a member of the Org2 MSP and 1 signature from a member of the Org3 MSP) – OR('Org1.member', AND('Org2.member', 'Org3.member'))
- 17. © 2018 IBMCorporation Membership Services Provider API Membership Services Provider API • Pluggable interface supporting a range of credential architectures • Default implementation calls Fabric-CA. • Governs identity for Peers and Users. • Provides: • User authentication • User credential validation • Signature generation and verification • Optional credential issuance • Additional offline enrollment options possible (eg File System). External Certificate Authority Fabric-CA Certificate Authority Implements Fabric-CA API External CAAPI Membership Services Provider API Peer / Client / Orderer

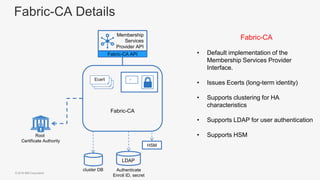

- 18. © 2018 IBMCorporation Fabric-CA Details Fabric-CA • Default implementation of the Membership Services Provider Interface. • Issues Ecerts (long-term identity) • Supports clustering for HA characteristics • Supports LDAP for user authentication • Supports HSM Ecert Fabric-CA cluster DB LDAP Authenticate Enroll ID, secret HSM Root Certificate Authority Membership Services Provider API Fabric-CA API
- 19. © 2018 IBMCorporation Blockchain User New User Registration and Enrollment U 3. Enroll(Enroll ID, secret) wallet Registration and Enrollment • Admin registers new user with Enroll ID • User enrolls and receives credentials • Additional offline registration and enrollment options available Client Application SDK Operator O Client Application SDK 1. Register(Enroll ID) returns( secret) returns Ecert Ecert Fabric-CA
- 20. © 2018 IBMCorporation World state Blockchain block … Application Level Encryption Ledger Encrypt tx input Client Application SDK Chaincode Decrypt tx input Encrypt world-state data tx encryptedencrypted data Blockchain User wallet Peer Data Encryption Handled in the application domain. Multiple options for encrypting: • Transaction Data • Chaincode* • World-State data Chaincode optionally deployed with cryptographic material, or receive it in the transaction from the client application using the transient data field (not stored on the ledger). *Encryption of application chaincode requires additional development of system chaincode. tx SDK signs with Ecert
- 21. © 2018 IBMCorporation WorldState Database • Pluggable worldstate database • Default embedded key/value implementation using LevelDB Support for keyed queries, but cannot query on value • Support for Apache CouchDB Full query support on key and value (JSON documents) Meets a large range of chaincode, auditing, and reporting requirements Will support reporting and analytics via data replication to an analytics engine such as Spark (future) Id/document data model compatible with existing chaincode key/value programming model CouchDBSHIM LevelDB Chaincode
- 22. © 2018 IBMCorporation Blockchain block txn 1. Client Application in using Hyperledger Fabric Client (HFC) SDK 2. Smart Contract implemented using chaincode – managing the World state 2Smart Contract submits recorded Application Developer’s Focus: client + chaincode accesses event emits emits Ledger ‘get’, ‘put’, ‘delete’ ! ! World state txn txn SDK 1Client Application
- 23. © 2018 IBMCorporation Getting started with Hyperledger Fabric Build Your First Network (BYFN) – Network administrator A simple network with 2 organizations running 2 peers, with one channel, a simple chaincode Dockerhub images Uses predefined enrollment certificates and « Solo » Ordering Service Extend Your First Network – Network administrator Adds a 3rd organization to BYFN Develop Your First Application – Application developer A simple Node.js application Start in devmode (minimal set up), then move to network (several peers), and security (membersrvc) Chaincode: init(), invoke() – start developing in devmode Several examples to start from (marbles, car lease demo)
- 24. © 2018 IBMCorporation More on using Hyperledger Fabric Application integration via: APIs: gRPC, REST (0.6 + coming back) 4 SDKs: Node.js, Python, Java, Go Chaincode: Go, Node.js, Java coming (back) CLI: launch + interact with peers and interact with membersrvc/fabric-ca Enroll / login Peer start + stop Channel create, join Chaincode install, instantiate, invoke, query, upgrade Getting help: docs, wiki, RocketChat, mailing list
- 25. © 2018 IBMCorporation What's next for the Hyperledger Fabric community? • Hyperledger is the fastest growing project at the LF • Hyperledger Fabric • Rapid growth (code & community) – 27 companies and 159+ devs • Finds itself needing to "slow down" at times to ensure stability • Publishing periodic stable releases (quarterly is the plan) • Working through various development workflow approaches • Toolchain consistency between various adjacent projects is an issue • Working towards Hyperledger Composer 1.0 release in 2Q 2018 • Working towards Hyperledger Fabric 1.2 release in 2Q 2018 • Integration across projects (Burrow, Indy, Sawtooth) • Architecture WG and Performance and Scale WG deliverables Managing Growth
- 26. © 2018 IBMCorporation Fabric Release Strategy • Generally, we intend roughly monthly patch releases for the current major.minor release, and quarterly minor releases. • We are looking to ensure live upgrade from one minor release to the next (including patch releases) • All planning and current status maintained in JIRA and summarized in the wiki and can be followed on #fabric-release and #fabric-scrum on RocketChat 26

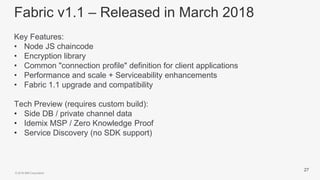

- 27. © 2018 IBMCorporation Fabric v1.1 – Released in March 2018 Key Features: • Node JS chaincode • Encryption library • Common "connection profile" definition for client applications • Performance and scale + Serviceability enhancements • Fabric 1.1 upgrade and compatibility Tech Preview (requires custom build): • Side DB / private channel data • Idemix MSP / Zero Knowledge Proof • Service Discovery (no SDK support) 27
- 28. © 2018 IBMCorporation Fabric roadmap Fabric 1.2 • Private Channel Data • Java chaincode • Service Discovery • Pluggable endorsement and validation • Tech Preview: Idemix MSP / Zero Knowledge Proof Fabric 1.3 (no consensus yet) • Ledger Archive and Pruning • RAFT Consensus 28
- 29. © 2018 IBMCorporation Fabric v1.2 Features (no consensus yet) • Ledger Archive and Pruning • RAFT Consensus • Tech Preview of Zero Knowledge Proof • Foundation for LTS release? 29
- 30. © 2018 IBMCorporation Hyperledger Composer: Accelerating time to value The goal of Hyperledger Composer is to improve productivity by providing a rich suite of tools addressing: • Business Network Definition • Rapid Application Development • Tools and generators • Defined operations for assets, participants and transactions with intuitive visual modeler UI • Existing System Integration Business Application Hyperledger Composer Blockchain (Hyperledger Fabric) Saves time Reduces risk Increases flexibility Increases understanding
- 31.
