1. Hyperledger Fabric
Karthikeyan Sukumaran, CEO
RAKS OM2

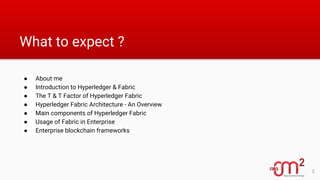

2. What to expect ?
● About me
● Introduction to Hyperledger & Fabric
● The T & T Factor of Hyperledger Fabric
● Hyperledger Fabric Architecture - An Overview
● Main components of Hyperledger Fabric
● Usage of Fabric in Enterprise
● Enterprise blockchain frameworks
2

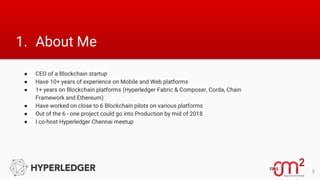

3. 1. About Me
● CEO of a Blockchain startup
● Have 10+ years of experience on Mobile and Web platforms
● 1+ years on Blockchain platforms (Hyperledger Fabric & Composer, Corda, Chain
Framework and Ethereum)
● Have worked on close to 6 Blockchain pilots on various platforms
● Out of the 6 - one project could go into Production by mid of 2018
● I co-host Hyperledger Chennai meetup
3

4. 2. Introduction to
Hyperledger & Fabric

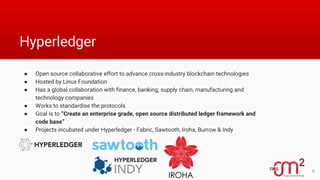

5. Hyperledger
● Open source collaborative effort to advance cross-industry blockchain technologies
● Hosted by Linux Foundation
● Has a global collaboration with finance, banking, supply chain, manufacturing and
technology companies
● Works to standardise the protocols
● Goal is to “Create an enterprise grade, open source distributed ledger framework and
code base”
● Projects incubated under Hyperledger - Fabric, Sawtooth, Iroha, Burrow & Indy
5

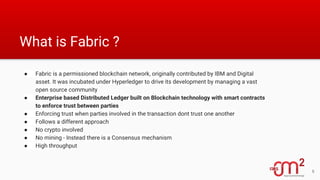

6. What is Fabric ?
● Fabric is a permissioned blockchain network, originally contributed by IBM and Digital
asset. It was incubated under Hyperledger to drive its development by managing a vast
open source community
● Enterprise based Distributed Ledger built on Blockchain technology with smart contracts
to enforce trust between parties
● Enforcing trust when parties involved in the transaction dont trust one another
● Follows a different approach
● No crypto involved
● No mining - Instead there is a Consensus mechanism
● High throughput
6

7. 3. The T&T factor of
Fabric

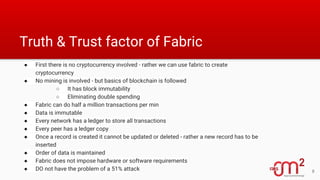

8. Truth & Trust factor of Fabric
● First there is no cryptocurrency involved - rather we can use fabric to create
cryptocurrency
● No mining is involved - but basics of blockchain is followed
○ It has block immutability
○ Eliminating double spending
● Fabric can do half a million transactions per min
● Data is immutable
● Every network has a ledger to store all transactions
● Every peer has a ledger copy
● Once a record is created it cannot be updated or deleted - rather a new record has to be
inserted
● Order of data is maintained
● Fabric does not impose hardware or software requirements
● DO not have the problem of a 51% attack 8

9. 4. Fabric Architecture -
An Overview

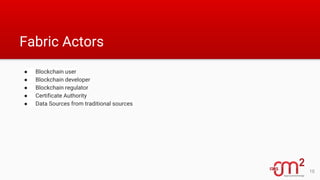

10. Fabric Actors
● Blockchain user
● Blockchain developer
● Blockchain regulator
● Certificate Authority
● Data Sources from traditional sources
10

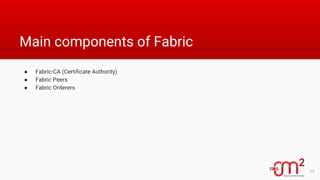

11. Main components of Fabric
● Fabric-CA (Certificate Authority)
● Fabric Peers
● Fabric Orderers
11

12. Fabric-CA
● Every transaction should be signed with a certificate
● Pluggable - Can use default (generate using openssl) or use your own
● Certificates are PKCS (.p12) format
● Certificates are per user
● Certificate can contain additional attributes - Roles definition can be done
● This can be simply categorised as registering a user - which the official term is called
Enrollment
● Fabric-CA can be attached to LDAP
● Fabric-CA servers default DB is SQLite - but pluggable with mysql & postgresql
● Please note: Fabric-CA can be completely replaced with your own certificate
implementation
12

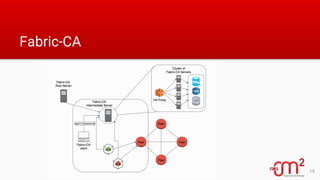

13. Fabric-CA
13

14. Fabric-Peer
● Peer is where the Ledger is present
● It also maintains the world state
● Peer can add or query the data from the ledger
● We can have more than one peer - On production we need more than one
● One peer can be part of multiple channels
● All peers synchronise - Once connected to the network
● There are three types of peers Peer, Endorsing Peer & Ordering peer
● Endorsement policies are followed on the peers
14

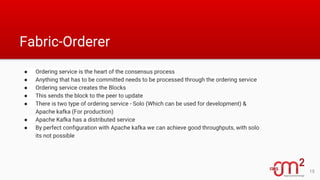

15. Fabric-Orderer
● Ordering service is the heart of the consensus process
● Anything that has to be committed needs to be processed through the ordering service
● Ordering service creates the Blocks
● This sends the block to the peer to update
● There is two type of ordering service - Solo (Which can be used for development) &
Apache kafka (For production)
● Apache Kafka has a distributed service
● By perfect configuration with Apache kafka we can achieve good throughputs, with solo
its not possible
15

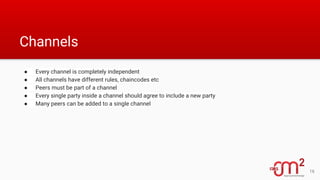

16. Channels
● Every channel is completely independent
● All channels have different rules, chaincodes etc
● Peers must be part of a channel
● Every single party inside a channel should agree to include a new party
● Many peers can be added to a single channel
16

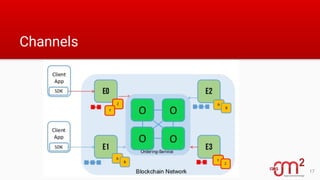

17. Channels
17

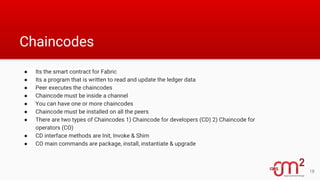

18. Chaincodes
● Its the smart contract for Fabric
● Its a program that is written to read and update the ledger data
● Peer executes the chaincodes
● Chaincode must be inside a channel
● You can have one or more chaincodes
● Chaincode must be installed on all the peers
● There are two types of Chaincodes 1) Chaincode for developers (CD) 2) Chaincode for
operators (CO)
● CD interface methods are Init, Invoke & Shim
● CO main commands are package, install, instantiate & upgrade
18

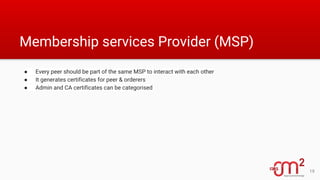

19. Membership services Provider (MSP)
● Every peer should be part of the same MSP to interact with each other
● It generates certificates for peer & orderers
● Admin and CA certificates can be categorised
19

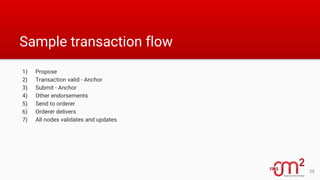

20. Sample transaction flow
1) Propose
2) Transaction valid - Anchor
3) Submit - Anchor
4) Other endorsements
5) Send to orderer
6) Orderer delivers
7) All nodes validates and updates
20

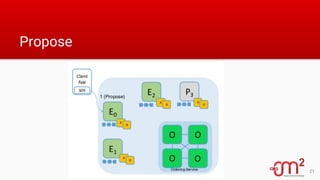

21. Propose
21

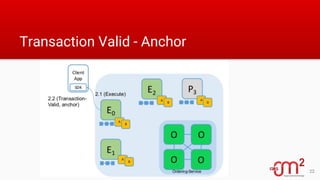

22. Transaction Valid - Anchor
22

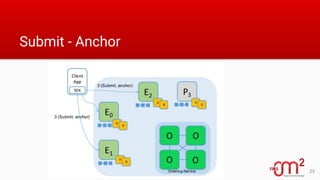

23. Submit - Anchor
23

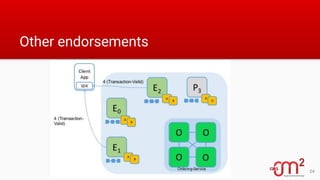

24. Other endorsements
24

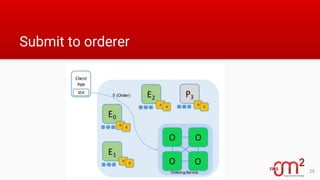

25. Submit to orderer
25

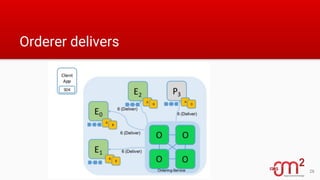

26. Orderer delivers
26

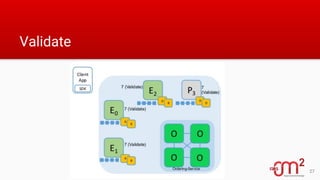

27. Validate
27

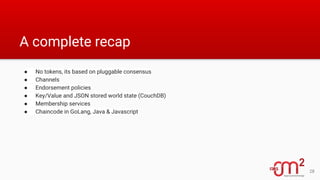

28. A complete recap
● No tokens, its based on pluggable consensus
● Channels
● Endorsement policies
● Key/Value and JSON stored world state (CouchDB)
● Membership services
● Chaincode in GoLang, Java & Javascript
28

29. 5.Usage of Fabric in
Enterprise

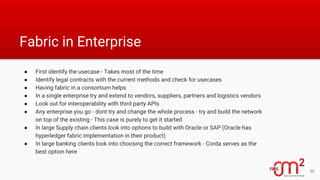

30. Fabric in Enterprise
● First identify the usecase - Takes most of the time
● Identify legal contracts with the current methods and check for usecases
● Having fabric in a consortium helps
● In a single enterprise try and extend to vendors, suppliers, partners and logistics vendors
● Look out for interoperability with third party APIs
● Any enterprise you go - dont try and change the whole process - try and build the network
on top of the existing - This case is purely to get it started
● In large Supply chain clients look into options to build with Oracle or SAP (Oracle has
hyperledger fabric implementation in their product)
● In large banking clients look into choosing the correct framework - Corda serves as the
best option here
30

31. 6.Enterprise Blockchain
Frameworks

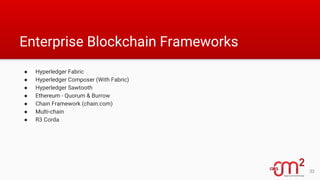

32. Enterprise Blockchain Frameworks
● Hyperledger Fabric
● Hyperledger Composer (With Fabric)
● Hyperledger Sawtooth
● Ethereum - Quorum & Burrow
● Chain Framework (chain.com)
● Multi-chain
● R3 Corda
32

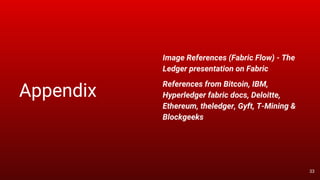

33. Appendix
Image References (Fabric Flow) - The
Ledger presentation on Fabric
References from Bitcoin, IBM,
Hyperledger fabric docs, Deloitte,
Ethereum, theledger, Gyft, T-Mining &
Blockgeeks
33
