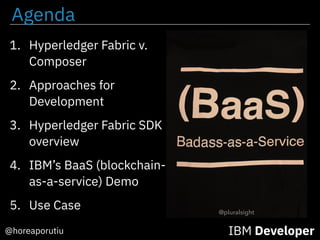

2. Agenda
1. Hyperledger Fabric v.
Composer
2. Approaches for
Development
3. Hyperledger Fabric SDK
overview
4. IBM’s BaaS (blockchain-
as-a-service) Demo
5. Use Case
IBM Developer@horeaporutiu
@pluralsight

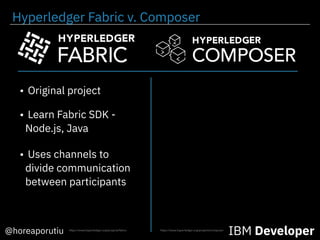

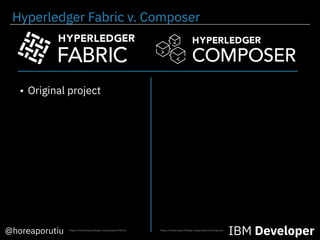

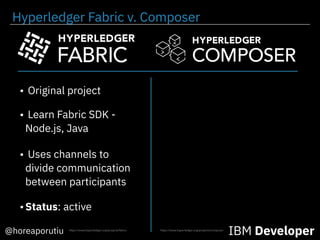

4. Hyperledger Fabric v. Composer
• Original project
@horeaporutiu IBM Developerhttps://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
5. • Learn Fabric SDK -
Node.js, Java
• Original project
@horeaporutiu IBM Developerhttps://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
Hyperledger Fabric v. Composer
6. • Learn Fabric SDK -
Node.js, Java
• Original project
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
Hyperledger Fabric v. Composer
7. • Learn Fabric SDK -
Node.js, Java
• Original project
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
Hyperledger Fabric v. Composer

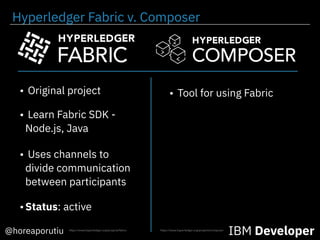

8. • Learn Fabric SDK -
Node.js, Java
• Original project • Tool for using Fabric
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
Hyperledger Fabric v. Composer

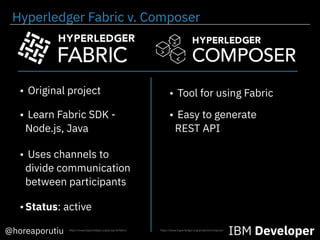

9. • Learn Fabric SDK -
Node.js, Java
• Original project
• Easy to generate
REST API
• Tool for using Fabric
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
Hyperledger Fabric v. Composer
10. • Learn Fabric SDK -
Node.js, Java
• Original project
• Easy to generate
REST API
• Tool for using Fabric
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
• Learn Composer
modeling language
Hyperledger Fabric v. Composer

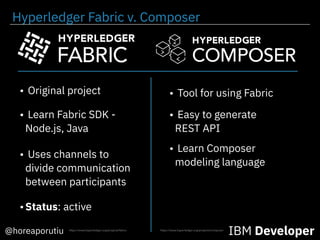

11. • Learn Fabric SDK -
Node.js, Java
• Original project
• Easy to generate
REST API
• Tool for using Fabric
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
• Learn Composer
modeling language
• Test your contracts in
a sandbox, online
Hyperledger Fabric v. Composer

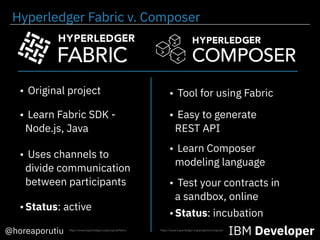

12. • Learn Fabric SDK -
Node.js, Java
• Original project
• Easy to generate
REST API
• Tool for using Fabric
@horeaporutiu IBM Developer
• Uses channels to
divide communication
between participants
https://www.hyperledger.org/projects/composerhttps://www.hyperledger.org/projects/fabric
•Status: active
• Learn Composer
modeling language
• Test your contracts in
a sandbox, online
•Status: incubation
Hyperledger Fabric v. Composer

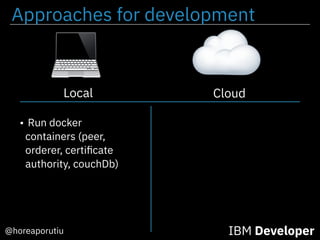

14. Approaches for development
@horeaporutiu IBM Developer
Cloud
• Run docker
containers (peer,
orderer, certificate
authority, couchDb)
Local
• Inviting other orgs,
viewing blocks is hard

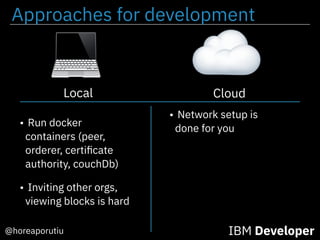

15. Approaches for development
@horeaporutiu IBM Developer
Cloud
• Run docker
containers (peer,
orderer, certificate
authority, couchDb)
• Network setup is
done for you
Local
• Inviting other orgs,
viewing blocks is hard

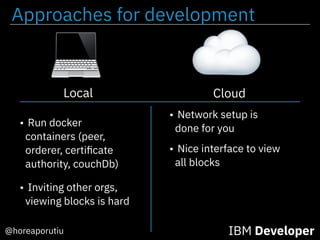

16. Approaches for development
@horeaporutiu IBM Developer
Cloud
• Run docker
containers (peer,
orderer, certificate
authority, couchDb)
• Network setup is
done for you
Local
• Nice interface to view
all blocks
• Inviting other orgs,
viewing blocks is hard
17. Approaches for development
@horeaporutiu IBM Developer
Cloud
• Run docker
containers (peer,
orderer, certificate
authority, couchDb)
• Network setup is
done for you
Local
• Nice interface to view
all blocks
• Easy to invite other
organizations to the
network
• Inviting other orgs,
viewing blocks is hard

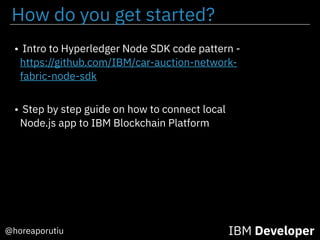

20. How do you get started?
@horeaporutiu IBM Developer
• Intro to Hyperledger Node SDK code pattern -
https://github.com/IBM/car-auction-network-
fabric-node-sdk
• Step by step guide on how to connect local
Node.js app to IBM Blockchain Platform
21. Actors in Hyperledger
@horeaporutiu IBM Developer
•Michael Scott,
a.k.a. the peer
node. The peer,
(M. Scott) runs
the show
(chaincode). The
manager of The
Office.
http://mtncatholic.com/2016/10/06/no-joke-dante-puts-michael-scott-hell/
• Toby, a.k.a the
CA(Certificate
Authority). The
CA hands out
certificates to
members of the
network. The
H.R. of The
Office - hands
out offer letters.
http://theoffice.wikia.com/wiki/Toby_Flenderson https://www.dailybreak.com/break/chilis-lifts-ban-on-pam-beesly
• Pam, a.k.a. the
orderer
broadcasts
messages to
peers. As the
receptionist in the
office, she relays
messages to other
employees.

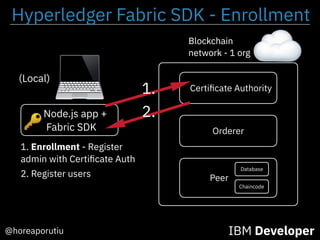

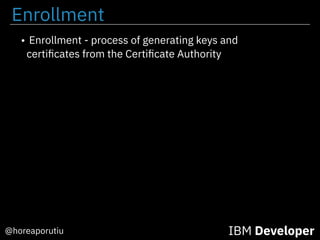

25. Enrollment
IBM Developer@horeaporutiu
• First generate certificate for our admin identity
and use those to register a new client identity
• Enrollment - process of generating keys and
certificates from the Certificate Authority

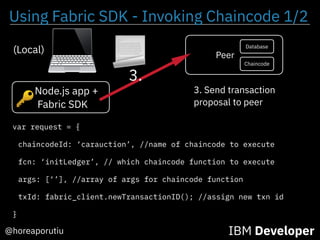

29. Using Fabric SDK - Invoking Chaincode 1/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
(Local)
3. Send transaction
proposal to peer
var request = {
chaincodeId: ‘carauction’, //name of chaincode to execute
fcn: ‘initLedger’, // which chaincode function to execute
args: [‘’], //array of args for chaincode function
txId: fabric_client.newTransactionID(); //assign new txn id
}
🔑
Peer
Chaincode
Database
3.

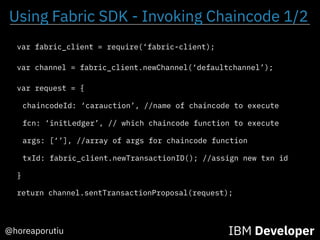

30. Using Fabric SDK - Invoking Chaincode 1/2
IBM Developer@horeaporutiu
var request = {
chaincodeId: ‘carauction’, //name of chaincode to execute
fcn: ‘initLedger’, // which chaincode function to execute
args: [‘’], //array of args for chaincode function
txId: fabric_client.newTransactionID(); //assign new txn id
}
var channel = fabric_client.newChannel(‘defaultchannel’);
return channel.sentTransactionProposal(request);
var fabric_client = require(‘fabric-client);
31. Using Fabric SDK - Invoking Chaincode 1/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
(Local)
3. Send transaction
proposal to peer🔑
Peer
Chaincode
Database
3.
• Check endorsement policy - which peers need to
endorse transaction
32. Using Fabric SDK - Invoking Chaincode 1/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
(Local)
3. Send transaction
proposal to peer🔑
Peer
Chaincode
Database
3.
• Check endorsement policy - which peers need to
endorse transaction
• The transaction proposal will go to the peers in the
endorsement policy

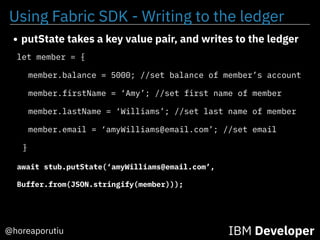

33. Using Fabric SDK - Writing to the ledger
IBM Developer@horeaporutiu
let member = {
member.balance = 5000; //set balance of member’s account
member.firstName = ‘Amy’; //set first name of member
member.lastName = ‘Williams’; //set last name of member
member.email = ‘amyWilliams@email.com’; //set email
}
await stub.putState(‘amyWilliams@email.com’,
Buffer.from(JSON.stringify(member)));
• putState takes a key value pair, and writes to the ledger
35. Using Fabric SDK - Reading from the ledger
IBM Developer@horeaporutiu
await stub.getState(‘amyWilliams@email.com’);
• getState reads the member object from the ledger.
Note, this does not create a block on the network.
• This will return:
{
balance: ‘5000’;
firstName: ’Amy’;
lastName: ‘Williams’;
email: ‘amyWilliams@email.com’;
}
36. Using Fabric SDK - Invoking Chaincode 2/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Peer
(Local)
4. Peers return endorsed
transaction
4.
• Check transaction proposal has not been submitted in
the past and is well formed
🔑

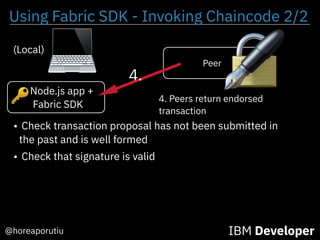

37. Using Fabric SDK - Invoking Chaincode 2/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Peer
(Local)
4. Peers return endorsed
transaction
4.
• Check transaction proposal has not been submitted in
the past and is well formed
• Check that signature is valid
🔑

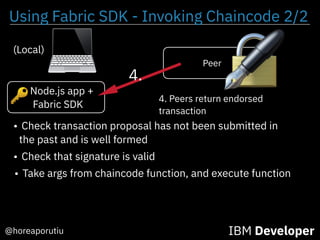

38. Using Fabric SDK - Invoking Chaincode 2/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Peer
(Local)
4. Peers return endorsed
transaction
4.
• Check transaction proposal has not been submitted in
the past and is well formed
• Check that signature is valid
• Take args from chaincode function, and execute function
🔑
39. Using Fabric SDK - Invoking Chaincode 2/2
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Peer
(Local)
4. Peers return endorsed
transaction
4.
• Check transaction proposal has not been submitted in
the past and is well formed
• Check that signature is valid
• Take args from chaincode function, and execute function
• Transaction results + enduring peer signature is sent
back to SDK
🔑

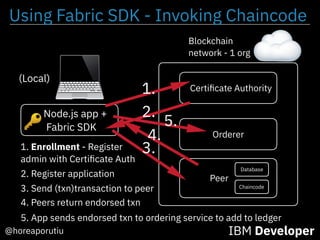

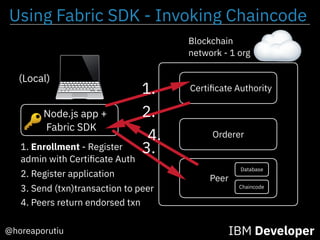

40. Node.js app +
Fabric SDK
IBM Developer@horeaporutiu
Blockchain
network - 1 org
Certificate Authority
Orderer
Peer
(Local)
1.
1. Enrollment - Register
admin with Certificate Auth
2. Register application
2.
3. Send (txn)transaction to peer
4. Peers return endorsed txn
Using Fabric SDK - Invoking Chaincode
🔑
Peer
Chaincode
Database
4.
3.
5. App sends endorsed txn to ordering service to add to ledger
5.

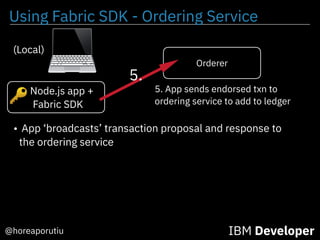

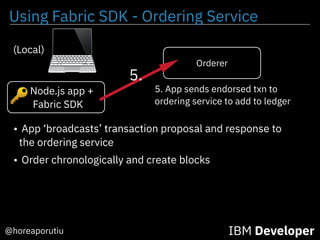

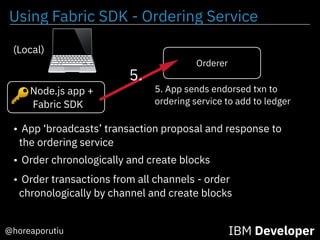

41. Using Fabric SDK - Ordering Service
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Orderer
(Local)
5. App sends endorsed txn to
ordering service to add to ledger
• App ‘broadcasts’ transaction proposal and response to
the ordering service
5.
🔑
42. Using Fabric SDK - Ordering Service
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Orderer
(Local)
5. App sends endorsed txn to
ordering service to add to ledger
• App ‘broadcasts’ transaction proposal and response to
the ordering service
5.
• Order chronologically and create blocks
🔑
43. Using Fabric SDK - Ordering Service
IBM Developer@horeaporutiu
Node.js app +
Fabric SDK
Orderer
(Local)
5. App sends endorsed txn to
ordering service to add to ledger
• App ‘broadcasts’ transaction proposal and response to
the ordering service
5.
• Order chronologically and create blocks
• Order transactions from all channels - order
chronologically by channel and create blocks
🔑

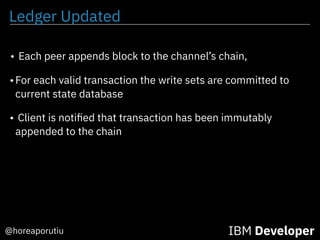

44. Ledger Updated
IBM Developer@horeaporutiu
• Each peer appends block to the channel’s chain,
•For each valid transaction the write sets are committed to
current state database
• Client is notified that transaction has been immutably
appended to the chain

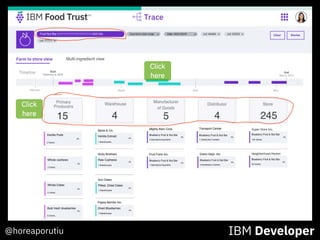

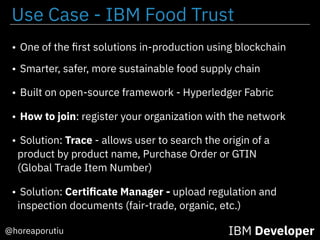

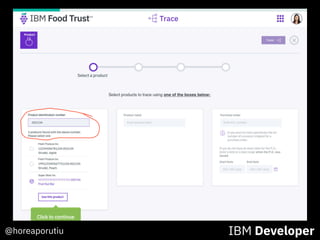

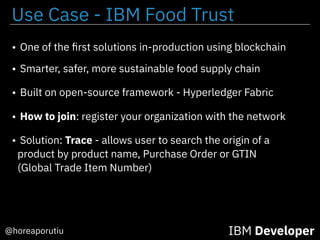

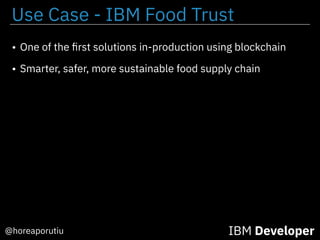

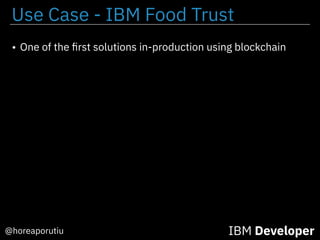

47. Use Case - IBM Food Trust
IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
48. IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
• Smarter, safer, more sustainable food supply chain
Use Case - IBM Food Trust

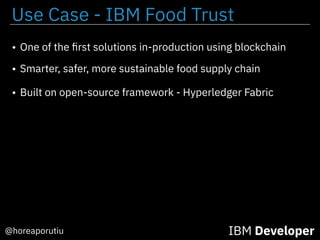

49. IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
• Smarter, safer, more sustainable food supply chain
• Built on open-source framework - Hyperledger Fabric
Use Case - IBM Food Trust
50. IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
• Smarter, safer, more sustainable food supply chain
• Built on open-source framework - Hyperledger Fabric
• How to join: register your organization with the network
Use Case - IBM Food Trust
51. IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
• Smarter, safer, more sustainable food supply chain
• Built on open-source framework - Hyperledger Fabric
• How to join: register your organization with the network
• Solution: Trace - allows user to search the origin of a
product by product name, Purchase Order or GTIN
(Global Trade Item Number)
Use Case - IBM Food Trust
52. IBM Developer@horeaporutiu
• One of the first solutions in-production using blockchain
• Smarter, safer, more sustainable food supply chain
• Built on open-source framework - Hyperledger Fabric
• How to join: register your organization with the network
• Solution: Trace - allows user to search the origin of a
product by product name, Purchase Order or GTIN
(Global Trade Item Number)
• Solution: Certificate Manager - upload regulation and
inspection documents (fair-trade, organic, etc.)
Use Case - IBM Food Trust
58. Hopefully you will feel like this after
IBM Developer@horeaporutiu https://www.pinterest.com/pin/427630927097492361
59. IBM Blockchain Starter Plan
IBM Developer@horeaporutiu
•http://goo.gl/i9WZcH
• Need either business or student
email address, gmail wont work
• Takes a few business days to
process, please be patient
60. Code Patterns
• Hello world Hyperledger Fabric Car Auction -
https://github.com/IBM/car-auction-network-
fabric-node-sdk
@horeaporutiu IBM Code
• Blockchain Bean UI - https://www.ibm.com/
thought-leadership/blockchainbean/index.html
• Blockchain Bean Code -https://github.com/IBM/
blockchainbean
