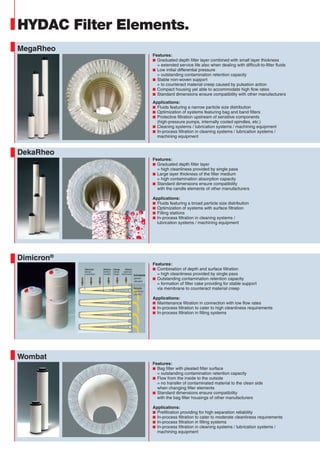

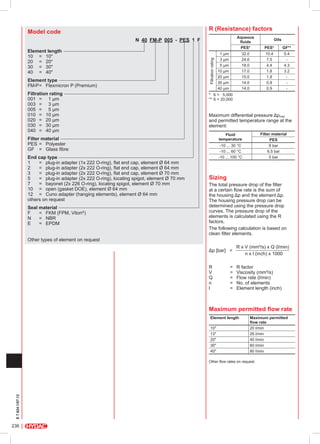

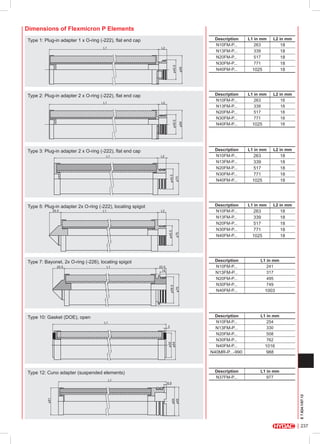

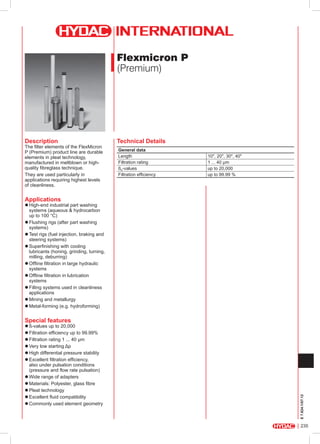

![R (Resistance) factors
Model code
Aqueous
fluids
PES*
Element type
FM-P = Flexmicron P (Premium)
Filtration rating
001 = 1 µm
003 = 3 µm
005 = 5 µm
010 = 10 µm
020 = 20 µm
030 = 30 µm
040 = 40 µm
Filtration rating
Element length
10 = 10"
20 = 20"
30 = 30"
40 = 40"
Seal material
F = FKM (FPM, Viton®)
N = NBR
E = EPDM
Other types of element on request
GF**
10.4
7.5
4.4
1.8
1.8
0.9
0.9
5.4
4.3
3.2
-
1 µm
3 µm
5 µm
10 µm
20 µm
30 µm
40 µm
Oils
* ß > 5,000
** ß > 20,000
Maximum differential pressure Δpmax
and permitted temperature range at the
element:
Filter material
PES
8 bar
6.5 bar
5 bar
Fluid
temperature
Filter material
PES = Polyester
GF = Glass fibre
End cap type
1 = plug-in adapter (1x 222 O-ring), flat end cap, element Ø 64 mm
2 = plug-in adapter (2x 222 O-ring), flat end cap, element Ø 64 mm
3 = plug-in adapter (2x 222 O-ring), flat end cap, element Ø 70 mm
5 = plug-in adapter (2x 222 O-ring), locating spigot, element Ø 70 mm
7 = bayonet (2x 226 O-ring), locating spigot, element Ø 70 mm
10 = open (gasket DOE), element Ø 64 mm
12 = Cuno adapter (hanging elements), element Ø 64 mm
others on request
PES*
32.0
24.0
18.0
17.0
15.0
14.0
14.0
N 40 FM-P 005 - PES 1 F
-10 ... 30 °C
-10 ... 60 °C
-10 ... 100 °C
Sizing
The total pressure drop of the filter
at a certain flow rate is the sum of
the housing Δp and the element Δp.
The housing pressure drop can be
determined using the pressure drop
curves. The pressure drop of the
elements is calculated using the R
factors.
The following calculation is based on
clean filter elements.
Δp [bar] =
R x V (mm²/s) x Q (l/min)
n x l (inch) x 1000
R
V
Q
n
l
R factor
Viscosity (mm²/s)
Flow rate (l/min)
No. of elements
Element length (inch)
=
=
=
=
=
Maximum permitted flow rate
Element length
10"
13"
20"
30"
40"
Maximum permitted
flow rate
20 l/min
26 l/min
40 l/min
60 l/min
80 l/min
E 7.624.1/07.12
Other flow rates on request.
236](https://image.slidesharecdn.com/hydac-filter-element-131125202820-phpapp02/85/Hydac-filter-element-com-4-320.jpg)

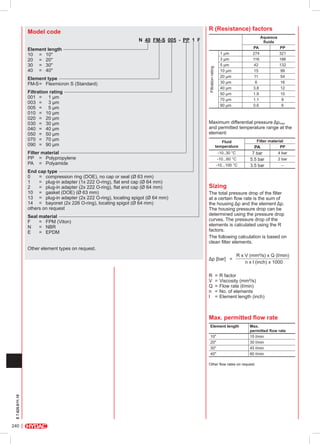

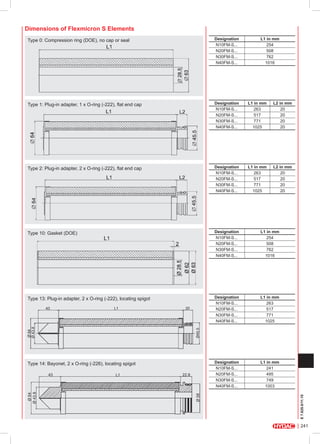

![R (Resistance) factors
Model code
Aqueous
fluids
N 40 FM-S 005 - PP 1 F
Element type
FM-S = Flexmicron S (Standard)
Filtration rating
001 = 1 µm
003 = 3 µm
005 = 5 µm
010 = 10 µm
020 = 20 µm
030 = 30 µm
040 = 40 µm
050 = 50 µm
070 = 70 µm
090 = 90 µm
Filter material
PP = Polypropylene
PA = Polyamide
End cap type
0 = compression ring (DOE), no cap or seal (Ø 63 mm)
1 = plug-in adapter (1x 222 O-ring), flat end cap (Ø 64 mm)
2 = plug-in adapter (2x 222 O-ring), flat end cap (Ø 64 mm)
10 = gasket (DOE) (Ø 63 mm)
13 = plug-in adapter (2x 222 O-ring), locating spigot (Ø 64 mm)
14 = bayonet (2x 226 O-ring), locating spigot (Ø 64 mm)
others on request
Seal material
F = FPM (Viton)
N = NBR
E = EPDM
PA
274
116
42
15
11
6
3.8
1.9
1.1
0.6
1 µm
3 µm
5 µm
10 µm
20 µm
30 µm
40 µm
50 µm
70 µm
90 µm
Filtration rating
Element length
10 = 10"
20 = 20"
30 = 30"
40 = 40"
PP
321
186
132
99
54
16
12
10
8
6
Maximum differential pressure Δpmax
and permitted temperature range at the
element:
Fluid
temperature
-10..30 °C
-10...60 °C
-10...100 °C
Filter material
PP
PA
7 bar
5.5 bar
3.5 bar
4 bar
2 bar
–
Sizing
The total pressure drop of the filter
at a certain flow rate is the sum of
the housing Δp and the element Δp.
The housing pressure drop can be
determined using the pressure drop
curves. The pressure drop of the
elements is calculated using the R
factors.
The following calculation is based on
clean filter elements.
Other element types on request.
Δp [bar] =
R x V (mm²/s) x Q (l/min)
n x l (inch) x 1000
R = R factor
V = Viscosity (mm²/s)
Q = Flow rate (l/min)
n = No. of elements
l = Element length (inch)
Max. permitted flow rate
Element length
10"
20"
30"
40"
Max.
permitted flow rate
15 l/min
30 l/min
45 l/min
60 l/min
E 7.625.0/11.10
Other flow rates on request.
240](https://image.slidesharecdn.com/hydac-filter-element-131125202820-phpapp02/85/Hydac-filter-element-com-8-320.jpg)

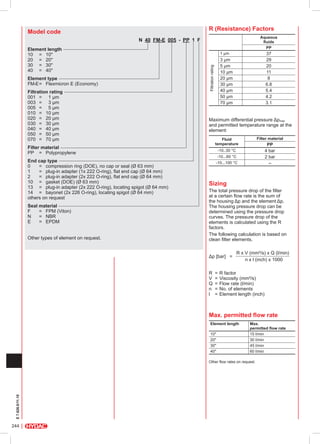

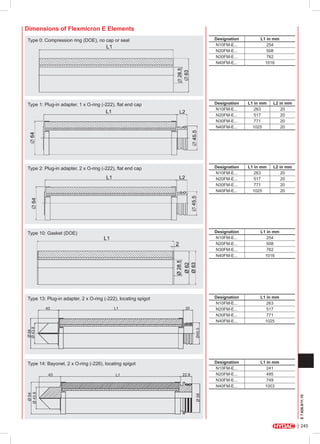

![R (Resistance) Factors
Model code
Aqueous
fluids
PP
N 40 FM-E 005 - PP 1 F
Element type
FM-E = Flexmicron E (Economy)
Filtration rating
001 = 1 µm
003 = 3 µm
005 = 5 µm
010 = 10 µm
020 = 20 µm
030 = 30 µm
040 = 40 µm
050 = 50 µm
070 = 70 µm
Filter material
PP = Polypropylene
End cap type
0 = compression ring (DOE), no cap or seal (Ø 63 mm)
1 = plug-in adapter (1x 222 O-ring), flat end cap (Ø 64 mm)
2 = plug-in adapter (2x 222 O-ring), flat end cap (Ø 64 mm)
10 = gasket (DOE) (Ø 63 mm)
13 = plug-in adapter (2x 222 O-ring), locating spigot (Ø 64 mm)
14 = bayonet (2x 226 O-ring), locating spigot (Ø 64 mm)
others on request
Seal material
F = FPM (Viton)
N = NBR
E = EPDM
Other types of element on request.
37
29
20
11
8
6.8
5.4
4.2
3.1
1 µm
3 µm
5 µm
10 µm
20 µm
30 µm
40 µm
50 µm
70 µm
Filtration rating
Element length
10 = 10"
20 = 20"
30 = 30"
40 = 40"
Maximum differential pressure Δpmax
and permitted temperature range at the
element:
Filter material
Fluid
temperature
PP
4 bar
2 bar
–
-10..30 °C
-10...60 °C
-10...100 °C
Sizing
The total pressure drop of the filter
at a certain flow rate is the sum of
the housing Δp and the element Δp.
The housing pressure drop can be
determined using the pressure drop
curves. The pressure drop of the
elements is calculated using the R
factors.
The following calculation is based on
clean filter elements.
Δp [bar] =
R x V (mm²/s) x Q (l/min)
n x l (inch) x 1000
R = R factor
V = Viscosity (mm²/s)
Q = Flow rate (l/min)
n = No. of elements
l = Element length (inch)
Max. permitted flow rate
Element length
10"
20"
30"
40"
Max.
permitted flow rate
15 l/min
30 l/min
45 l/min
60 l/min
E 7.626.0/11.10
Other flow rates on request.
244](https://image.slidesharecdn.com/hydac-filter-element-131125202820-phpapp02/85/Hydac-filter-element-com-12-320.jpg)

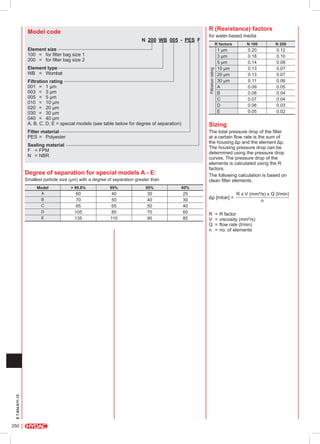

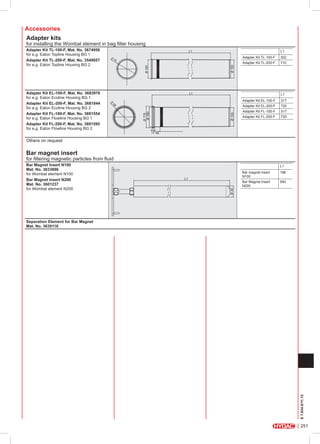

![R (Resistance) factors
Model code
N 200 WB 005 - PES F
for water-based media
R factors
Element size
100 = for filter bag size 1
200 = for filter bag size 2
Filtration rating
Element type
WB = Wombat
Filtration rating
001 = 1 µm
003 = 3 µm
005 = 5 µm
010 = 10 µm
020 = 20 µm
030 = 30 µm
040 = 40 µm
A, B, C, D, E = special models (see table below for degree of separation)
Degree of separation for special models A - E:
Smallest particle size (µm) with a degree of separation greater than
C
D
E 7.634.0/11.12
E
250
0.12
0.10
0.08
0.07
0.07
0.06
0.05
0.04
0.04
0.03
0.02
The total pressure drop of the filter
at a certain flow rate is the sum of
the housing Δp and the element Δp.
The housing pressure drop can be
determined using the pressure drop
curves. The pressure drop of the
elements is calculated using the R
factors.
The following calculation is based on
clean filter elements.
Sealing material
F = FPM
N = NBR
B
N 200
0.20
0.18
0.14
0.13
0.13
0.11
0.09
0.08
0.07
0.06
0.05
Sizing
Filter material
PES = Polyester
Model
A
N 100
1 µm
3 µm
5 µm
10 µm
20 µm
30 µm
A
B
C
D
E
> 99.8%
99%
95%
80%
60
70
85
105
135
40
50
65
85
110
30
40
50
70
95
25
30
40
60
85
Δp [mbar] =
R x V (mm²/s) x Q (l/min)
n
R = R factor
V = viscosity (mm²/s)
Q = flow rate (l/min)
n = no. of elements](https://image.slidesharecdn.com/hydac-filter-element-131125202820-phpapp02/85/Hydac-filter-element-com-18-320.jpg)
