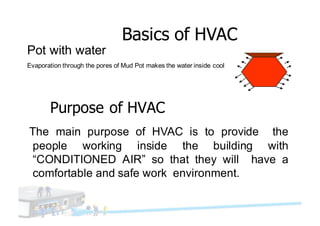

The main purpose of HVAC is to provide the people working inside the building with “CONDITIONED AIR” so that they will have a comfortable and safe work environment.

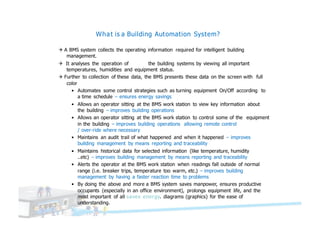

A BMS system collects the operating information required for intelligent building management.
It analyses the operation of the building systems by viewing all important temperatures, humidities and equipment status.
To:
Ensures energy savings
Improves building operations
Improves building operations allowing remote control/over-ride where necessary
Improves building management by means reporting and traceability
Improves building management by means reporting and traceability
Improves building management by having a faster reaction time to problems
A Building Management System (BMS) offers greater visibility and control of energy use. A fully integrated solution can have up to 84% of a building’s energy consuming devices directly under its control
Fundamentals of HVAC Systems is a thorough introduction on how HVAC systems control temperature, air quality and air circulation in a conditioned space.
Ideal for recent engineering graduates working in the HVAC&R industry, experienced engineers entering HVAC&R from another engineering area, as well as architects, technicians, construction or building management professionals who need to increase their knowledge of HVAC systems.
This course reader can function as a stand-alone reference, or may accompany the eLearning course, Fundamentals of HVAC Systems, online modules.
A Building Management System (BMS) offers greater visibility and control of energy use. A fully integrated solution can have up to 84% of a building’s energy consuming devices directly under its control
Fundamentals of HVAC Systems is a thorough introduction on how HVAC systems control temperature, air quality and air circulation in a conditioned space.
Ideal for recent engineering graduates working in the HVAC&R industry, experienced engineers entering HVAC&R from another engineering area, as well as architects, technicians, construction or building management professionals who need to increase their knowledge of HVAC systems.
This course reader can function as a stand-alone reference, or may accompany the eLearning course, Fundamentals of HVAC Systems, online modules.
Electrical rooms provide safe and secure spaces for the operation and maintenance of electrical equipment. While electrical equipment types and ratings can have significant impacts on electrical room requirements, distributing the electrical power to the rest of the building via wiring, busways, and raceways can also affect electrical room design.
Switchboards, switchgear, transformers, generators, and UPSs require space for installation, maintenance, heat dissipation, and possible future expansion. And the wiring, busways, and raceways that distribute the electrical power must be accounted for—now, and in the future. Documentation and monitoring of electrical system’s equipment and how it connects to the rest of the facility must be accurately maintained.
The design of electrical rooms requires an integrated approach among disciplines. Architects and structural, mechanical, and fire protection engineers should work as a team in designing these rooms. NFPA 70: National Electrical Code (NEC) is the main source for electrical room requirements, but other codes, good practices, and recommendations should be considered. The result will be a room that is safe and secure, and provides for the functional operation and maintenance of the specific electrical equipment located within.
Building management system (LINK IN DESCRIPTION FOR DOWNLOAD)Dimple Poddar
Report on Building Management System, how it works, components of BMS, Advantages & Disadvantages of BMS, Costing of BMS and its vendors, etc
LINK TO DOWNLOAD: https://dimpstrail.gumroad.com/l/yyifk
Electrical rooms provide safe and secure spaces for the operation and maintenance of electrical equipment. While electrical equipment types and ratings can have significant impacts on electrical room requirements, distributing the electrical power to the rest of the building via wiring, busways, and raceways can also affect electrical room design.
Switchboards, switchgear, transformers, generators, and UPSs require space for installation, maintenance, heat dissipation, and possible future expansion. And the wiring, busways, and raceways that distribute the electrical power must be accounted for—now, and in the future. Documentation and monitoring of electrical system’s equipment and how it connects to the rest of the facility must be accurately maintained.
The design of electrical rooms requires an integrated approach among disciplines. Architects and structural, mechanical, and fire protection engineers should work as a team in designing these rooms. NFPA 70: National Electrical Code (NEC) is the main source for electrical room requirements, but other codes, good practices, and recommendations should be considered. The result will be a room that is safe and secure, and provides for the functional operation and maintenance of the specific electrical equipment located within.
Building management system (LINK IN DESCRIPTION FOR DOWNLOAD)Dimple Poddar
Report on Building Management System, how it works, components of BMS, Advantages & Disadvantages of BMS, Costing of BMS and its vendors, etc
LINK TO DOWNLOAD: https://dimpstrail.gumroad.com/l/yyifk
Building Management System-CPD - Part 1.pdfSilva104866
Why BAS ( BMS)…?
• Early days buildings were very simple with few facilities and services
• With time many services were introduced & crowded
• Now-a-days buildings are very complex with many services and higher
occupancy ( high consumptions of energy)
• Central Monitoring and controlling needed
Siemens Terminal Box Controller (APOGEE Automation System )CONTROLS & SYSTEMS
In This PPT we are discussed about complete details of that product (Use,Operation, Technical details, Dimensions, Wiring, and etc..)
Please Support us and Follow our other Sites
https://www.instagram.com/controlsandsystems.offical
https://twitter.com/ControlsSystems
https://automationtechplc2.blogspot.com
https://humidificationcontrol.blogspot.com
https://controlsandsystems.business.site
www.controls.systemsdm@gmail.com
If you enjoyed this article, share it with your friends and colleagues
The presentation gives you the basics of Programmable logic controller(PLC) and its use in industrial Automation along with
Supervisory control and Data Acquisition(SCADA).
contact for any info "nikhilbrahmas@gmail.com"
Catalog Frenic-HVAC (Fuji Electric): Biến tần Frenic-HVAC
Beeteco.com là trang mua sắm trực tuyến thiết bị điện - Tự động hóa uy tín tại Việt Nam.
Chuyên cung cấp các thiết bị: Đèn báo nút nhấn, Relay, Timer, Contactor, MCCB ELCB, Biến tần, Van, Thiết bị cảm biến, phụ kiện tủ điện, .... Từ các thương hiệu hàng đầu trên thế giới.
www.beeteco.com @ Công ty TNHH TM KT ASTER
Số 7 Đại Lộ Độc Lập, KCN Sóng Thần 1, P. Dĩ An, Tx. Dĩ An, Bình Dương
www.facebook.com/beeteco
Tel: 0650 3617 012
DĐ: 0904 676 925
Similar to HVAC, Heating Ventilation Air Conditioning BMS (20)
Professionalism in the workplace refers to the conduct, behavior, and attitudes expected of individuals while on the job. It encompasses qualities such as reliability, integrity, respect, accountability, and ethical behavior. Professionalism involves adhering to company policies, meeting deadlines, communicating effectively, and maintaining a positive attitude. It also includes dressing appropriately, demonstrating competence in one's role, and treating colleagues, clients, and customers with courtesy and respect. Overall, professionalism contributes to a productive work environment, fosters trust and credibility, and enhances the reputation of individuals and organizations.
Facility management (FM) is a profession that encompasses multiple disciplines to ensure functionality, comfort, safety and efficiency of the built environment by integrating people, place, process and technology.
Working elements of Pneumatic System with Circuits, Safety, InstallationMohammad Azam Khan
A pneumatic circuit is usually designed to implement the desired logics. However, there are several basics circuits, which can be integrated into the final circuit
Classification of Pneumatic Elements Included Valves, CompressorMohammad Azam Khan
Pneumatic systems range from simple air-driven pistons to multiple-actuator mining operations. All pneumatic systems use a source of compressed air to power moving parts, or actuators. Pneumatic systems commonly use compressed atmospheric air, as it is abundant and inexpensive. Atomized oil is added to the air in some blends to ease its passage through mechanical systems. Pneumatic systems are generally preferred over similar, liquid-using hydraulic systems, due to their quietness, ease of use and cost efficiency.
Applications for Pneumatic Controls. Pneumatic systems are used in many places in our everyday world, including train doors, automatic production lines, mechanical clamps, and more. A pneumatic system uses air that is compressed in order to transmit and control energy.
Protecting what needs to be protected with the available technologies!
• Access control is the heart of Information Security!
• The right
• Flow of information between subject and object
• Mechanism to protect the assets!
The Four Major Elements are:
Identification,
Authentication,
Authorization and main is CONTROLLING !!
Fire Alarm Systems fall broadly into two groups - Conventional Systems or Analogue Addressable Systems.
• Conventional Fire Alarm Control System
• Analogue Addressable Fire Alarm System
Intelligent Addressable Fire Alarm System
Closed-circuit television (CCTV) is the use of video cameras to transmit a signal to a specific place, on a limited set of monitors. It differs from broadcast television in that the signal is not openly transmitted, though it may employ point to point (P2P), point to multipoint, or mesh wireless links.
The fluid discharged by the pump is directed to the ‘hydraulic actuator’.Theactuatorconvertthepressureenergyofthefluid into mechanical energy. There are 3 basic type of hydraulic actuator.
• Theactuatorsconvertthefluidpressuretoasuitablelinearor rotary motion.
• Linearmotion–Hydrauliccylinder
• Rotary motion – Hydro motor
• Rotarymotion–Semi-rotaryactuator
The pressure energy is fed to the actuator through a number of control block called valves.
• Various type of valve are used in hydraulic system to control or regulate the flow medium.
• Basicallyvalvesareexpectedtocontrol: – Direction
– Pressure
– Flow
– Otherspecialfunctions.
The hydraulic power unit (power supply unit) provides the energy required for the hydraulic installation. Its most important components are
The reservoir (tank) , Drive (electric motor), Hydraulic pump, Pressure relief valve , Filter and cooler.
Hydraulic accumulator is an accessory of a hydraulic system.
A hydraulic accumulator is a pressure storage reservoir in which a non-compressible hydraulic fluid is held under pressure by an external source.
The external source can be a spring, a raised weight, or a compressed gas. An accumulator enables a hydraulic system to cope with extremes of demand using a less powerful pump, to respond more quickly to a temporary demand, and to smooth out pulsations. It is a type of energy storage device.
• A pump is the heart of the hydraulic system, convert mechanical energy into hydraulic energy.
• Main purpose of the pump is to create the flow of oil through the system & thus assist transfer of power & motion.
• The combined pumping and driving motor unit is known as hydraulic pump.
• The hydraulic pump takes hydraulic fluid (mostly some oil) from the storage tank and delivers it to the rest of the hydraulic circuit.
• In general, the speed of pump is constant and the pump delivers an equal volume of oil in each revolution.
They have the following primary tasks:
– Power transmission (pressure and motion transmission) – Signal transmission for control
• Secondarytasks:
Lubrication of rotating and translating components to avoid friction and wear
Heat transport, away from the location of heat generation, usually into the reservoir
Transport of particles to the filter
Protection of surfaces from chemical attack, especially corrosion
The study of hydraulics deals with system operated with hydraulic oil media to impart power or to control power.
• Hydraulicpoweristhepowerthatistransmittedbypressurizedoil.
• It may be used to power machines or to control or to regulate machines.

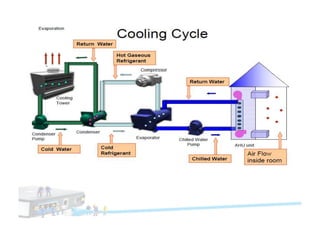

Condensers and evaporators are basically heat exchangers in which the refrigerant undergoes a phase change. Next to compressors, proper design and selection of condensers and evaporators is very important for satisfactory performance of any refrigeration system.
A throttling device is the generic name of any device or process that simply dissipates pressure energy by irreversibly converting it into thermal energy. Unlike nozzles and diffusers, throttling devices provide no form of useful energy recovery. They merely convert pressure energy into thermal energy through dissipative viscous flow processes. A throttle need not have same inlet and outlet flow velocities, and, therefore, it may have a significant specific kinetic energy changes across it.
A compressor is a mechanical device that increases the pressure of a gas by reducing its volume. An air compressor is a specific type of gas compressor.
Kaizen, also known as continuous improvement.
It is a long-term approach to work, that systematically seeks to achieve small, increased changes in processes in order to improve efficiency and quality.
Lean Manufacturing (Concepts, Tools and Quality Management)Mohammad Azam Khan
Lean manufacturing began in Japanese manufacturing in the late 1980s and early 1990s. It is most often associated with Toyota. Its basic usefulness is in providing the tools to identify and eliminate waste throughout the manufacturing process, thereby increasing efficiency and profit. Quality improves as production time and cost are reduced. Toyota added an additional element, evenness of work flow, which helps expose inefficiencies in production that allow companies to redesign manufacturing processes for maximum profit.
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Sachpazis:Terzaghi Bearing Capacity Estimation in simple terms with Calculati...Dr.Costas Sachpazis
Terzaghi's soil bearing capacity theory, developed by Karl Terzaghi, is a fundamental principle in geotechnical engineering used to determine the bearing capacity of shallow foundations. This theory provides a method to calculate the ultimate bearing capacity of soil, which is the maximum load per unit area that the soil can support without undergoing shear failure. The Calculation HTML Code included.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
3. In BMS
INPUTS:- Sensors
Temperature(of room)
Humidity (of room)
Flow Rate (chilled Water)
Pressure(of Fire Hydrant)

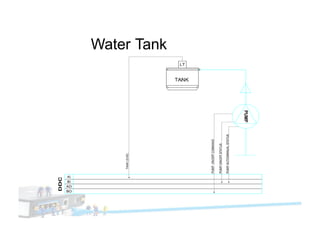

Level (of a Tank)
Run status (Pumps, Fans)

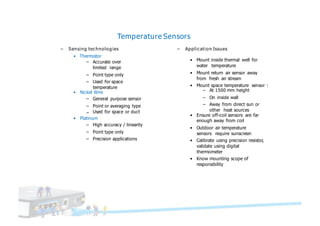

4. Temperature Sensors
– Sensing technologies
• Thermistor
– Accurate over
limited range
– Point type only
– Used for space
temperature
• Nickel Wire
– General purpose sensor
– Point or averaging type
– Used for space or duct
– Application Issues
• Mount inside thermal well for
water temperature
• Mount return air sensor away
from fresh air stream
• Mount space temperature sensor :
– At 1500 mm height
– On inside wall
– Away from direct sun or
other heat sources
• Platinum
– High accuracy / linearity
– Point type only
– Precision applications
• Ensure off-coil sensors are far
enough away from coil
• Outdoor air temperature
sensors require sunscreen
• Calibrate using precision resistor,
validate using digital
thermometer
• Know mounting scope of
responsibility

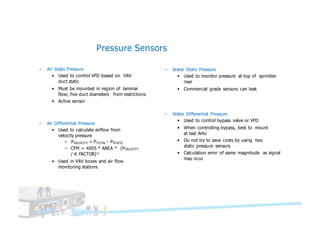

5. Pressure Sensors
– Air Static Pressure
• Used to control VFD based on VAV
duct static
• Must be mounted in region of laminar
flow; five duct diameters from restrictions
• Active sensor
– Water Static Pressure
• Used to monitor pressure at top of sprinkler
riser
• Commercial grade sensors can leak
– Air Differential Pressure
• Used to calculate airflow from
velocity pressure
– PVELOCITY = PTOTAL - PSTATIC
– CFM = 4005 * AREA * (PVELOCITY
/ K FACTOR)½
• Used in VAV boxes and air flow
monitoring stations
– Water Differential Pressure
• Used to control bypass valve or VFD
• When controlling bypass, best to mount
at last AHU
• Do not try to save costs by using two
static pressure sensors
• Calculation error of same magnitude as signal
may ocur.

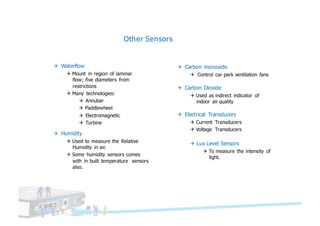

6. Other Sensors
Q Carbon monoxide
Q Control car park ventilation fans
Q Carbon Dioxide
Q Used as indirect indicator of
indoor air quality
Q Waterflow
Q Mount in region of laminar
flow; five diameters from
restrictions
Q Many technologies:
Q Annubar
Q Paddlewheel
Q Electromagnetic
Q Turbine
Q Humidity
Q Used to measure the Relative
Humidity in air.
Q Some humidity sensors comes
with in built temperature sensors
also.
Q Electrical Transducers
Q Current Transducers
Q Voltage Transducers
Q Lux Level Sensors
Q To measure the intensity of
light.

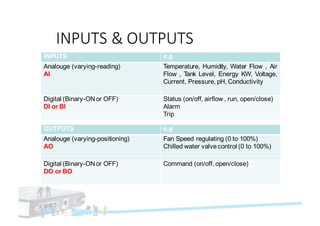

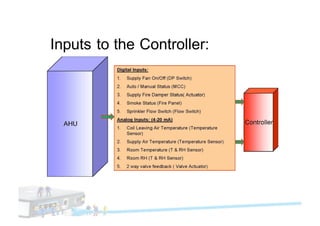

8. INPUTS & OUTPUTS
INPUTS e.g
Analouge (varying-reading)
AI
Temperature, Humidity, Water Flow , Air
Flow , Tank Level, Energy KW, Voltage,
Current, Pressure, pH, Conductivity
Digital (Binary-ON or OFF)
DI or BI
Status (on/off, airflow , run, open/close)
Alarm
Trip

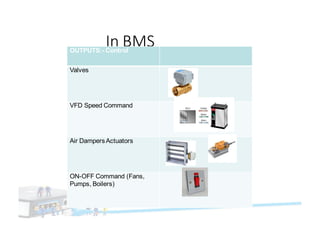

OUTPUTS e.g
Analouge (varying-positioning)
AO
Fan Speed regulating (0 to 100%)
Chilled water valvecontrol (0 to 100%)
Digital (Binary-ON or OFF)
DO or BO
Command (on/off, open/close)

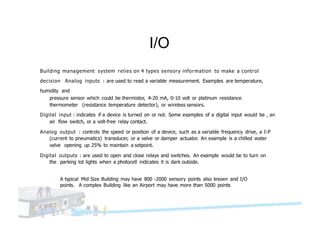

9. I/O
Building management system relies on 4 types sensory information to make a control
decision Analog inputs : are used to read a variable measurement. Examples are temperature,
humidity and
pressure sensor which could be thermistor, 4-20 mA, 0-10 volt or platinum resistance
thermometer (resistance temperature detector), or wireless sensors.
Digital input : indicates if a device is turned on or not. Some examples of a digital input would be , an
air flow switch, or a volt-free relay contact.
Analog output : controls the speed or position of a device, such as a variable frequency drive, a I-P
(current to pneumatics) transducer, or a valve or damper actuator. An example is a chilled water
valve opening up 25% to maintain a setpoint.
Digital outputs : are used to open and close relays and switches. An example would be to turn on
the parking lot lights when a photocell indicates it is dark outside.
A typical Mid Size Building may have 800 -2000 sensory points also known and I/O
points. A complex Building like an Airport may have more than 5000 points

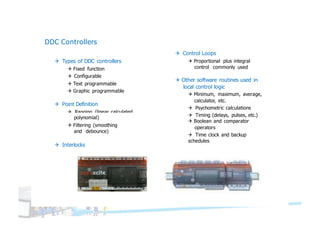

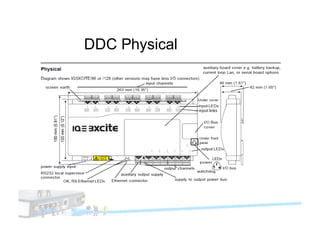

10. DDC Controllers
Q Types of DDC controllers
Q Fixed function
Q Configurable
Q Text programmable
Q Graphic programmable
Q Point Definition
Q Ranging (linear, calculated,

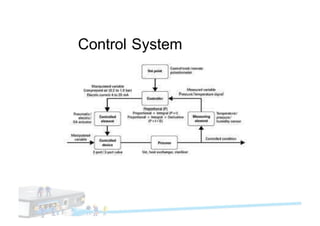

Q Control Loops
Q Proportional plus integral
control commonly used
polynomial)
Q Filtering (smoothing
and debounce)
Q Interlocks
Q Other software routines used in
local control logic
Q Minimum, maximum, average,
calculator, etc.
Q Psychometric calculations
Q Timing (delays, pulses, etc.)
Q Boolean and comparator
operators
Q Time clock and backup
schedules

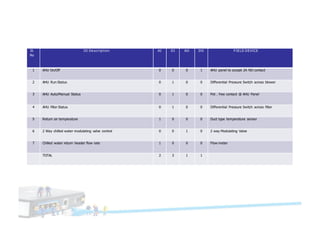

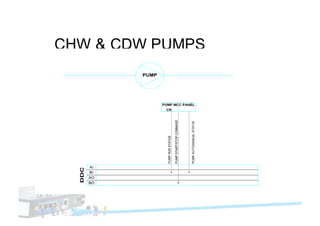

13. Sl.
No
IO Description AI DI AO DO FIELD DEVICE
1 AHU On/Off 0 0 0 1 AHU panel to accept 2A NO contact
2 AHU Run Status 0 1 0 0 Differential Pressure Switch across blower
3 AHU Auto/Manual Status 0 1 0 0 Pot . free contact @ AHU Panel
4 AHU filter Status 0 1 0 0 Differential Pressure Switch across filter
5 Return air temperature 1 0 0 0 Duct type temperature sensor
6 2 Way chilled water modulating valve control 0 0 1 0 2 way Modulating Valve
7 Chilled water return header flow rate 1 0 0 0 Flow meter
TOTAL 2 3 1 1
14. Basics of HVAC
Pot with water
Evaporation through the pores of Mud Pot makes the water inside cool
Purpose of HVAC
The main purpose of HVAC is to provide the
people working inside the building with
“CONDITIONED AIR” so that they will have a
comfortable and safe work environment.

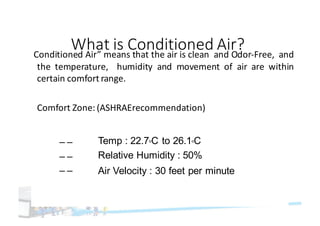

15. What is Conditioned Air?Conditioned Air” means that the air is clean and Odor-Free, and
the temperature, humidity and movement of air are within
certain comfort range.
Comfort Zone: (ASHRAErecommendation)
– –
– –
– –
Temp : 22.7oC to 26.1oC
Relative Humidity : 50%
Air Velocity : 30 feet per minute

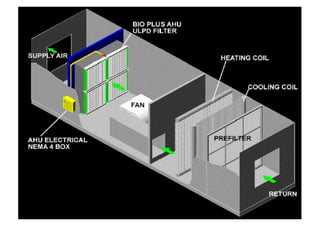

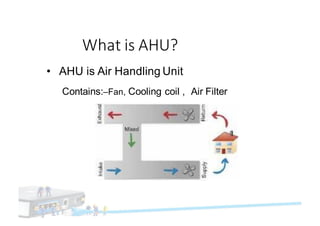

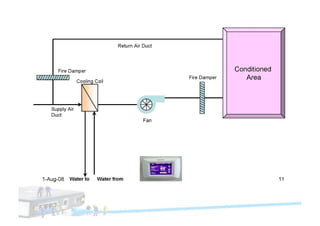

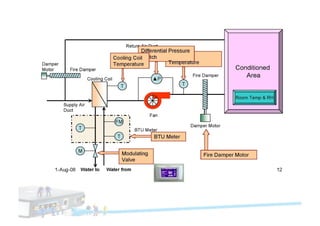

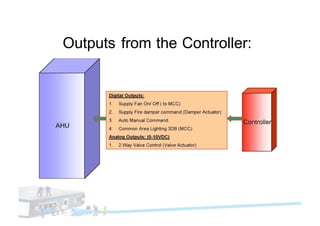

16. What is AHU?
• AHU is Air Handling Unit
Contains:–Fan, Cooling coil , Air Filter

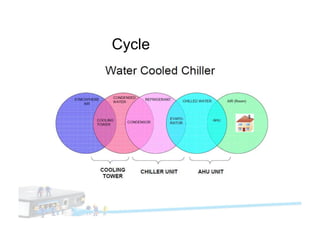

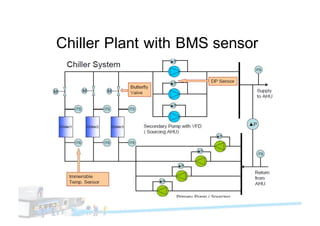

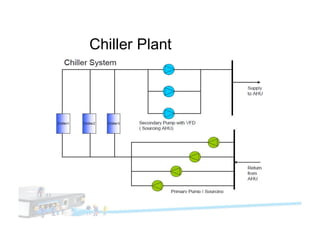

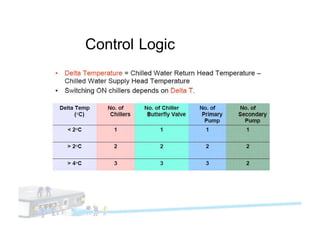

24. What is a Chiller
• A heat exchanger using air, refrigerant, water and evaporation to transfer
heat (BTUs) to produce air conditioning (measured in tons).
• A chiller is comprisedof an evaporator, compressor, condenser and
expansion valvesystem.

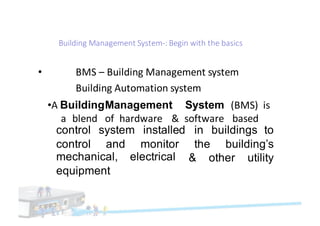

33. Building Management System-: Begin with the basics
• BMS – Building Management system
Building Automation system
•A BuildingManagement System (BMS) is
a blend of hardware & software based
control
control
system
and
installed
monitor
electrical
in buildings to
the building’s
& other utilitymechanical,
equipment

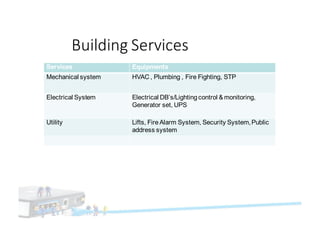

34. Building Services
Services Equipments
Mechanical system HVAC , Plumbing , Fire Fighting, STP
Electrical System Electrical DB’s/Lighting control & monitoring,
Generator set, UPS
Utility Lifts, FireAlarm System, Security System,Public
address system
35. What is a Building Automation System?
Q A BMS system collects the operating information required for intelligent building
management.
Q It analyses the operation of the building systems by viewing all important
temperatures, humidities and equipment status.
Q Further to collection of these data, the BMS presents these data on the screen with full
color
• Automates some control strategies such as turning equipment On/Off according to
a time schedule – ensures energy savings
• Allows an operator sitting at the BMS work station to view key information about
the building – improves building operations
• Allows an operator sitting at the BMS work station to control some of the equipment
in the building – improves building operations allowing remote control
/ over-ride where necessary
• Maintains an audit trail of what happened and when it happened – improves
building management by means reporting and traceability
• Maintains historical data for selected information (like temperature, humidity
..etc) – improves building management by means reporting and traceability
• Alerts the operator at the BMS work station when readings fall outside of normal
range (i.e. breaker trips, temperature too warm, etc.) – improves building
management by having a faster reaction time to problems
• By doing the above and more a BMS system saves manpower, ensures productive
occupants (especially in an office environment), prolongs equipment life, and the
most important of all saves energy. diagrams (graphics) for the ease of
understanding.

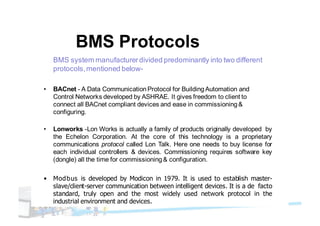

36. BMS Protocols
BMS system manufacturerdivided predominantly into two different
protocols,mentioned below-
• BACnet - A Data CommunicationProtocol for BuildingAutomation and
Control Networks developed by ASHRAE. It gives freedom to client to
connect all BACnet compliant devices and ease in commissioning&
configuring.
• Lonworks -Lon Works is actually a family of products originally developed by
the Echelon Corporation. At the core of this technology is a proprietary
communications protocol called Lon Talk. Here one needs to buy license for
each individual controllers & devices. Commissioning requires software key
(dongle) all the time for commissioning& configuration.
• Modbus is developed by Modicon in 1979. It is used to establish master-
slave/client-server communication between intelligent devices. It is a de facto
standard, truly open and the most widely used network protocol in the
industrial environment and devices.

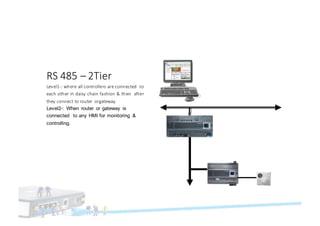

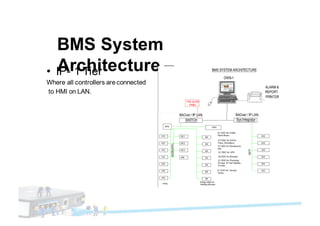

38. RS 485 – 2Tier
Level1-: where all controllers are connected to
each other in daisy chain fashion & then after
they connect to router orgateway.
Level2-: When router or gateway is
connected to any HMI for monitoring &
controlling.

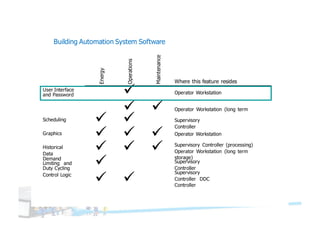

39. Building Automation System Software
User Interface
and Password
Energy
Operations
Maintenance
Operator Workstation (long term
storage)
Operator Workstation
Where this feature resides
ü
ü ü
Control Logic
Demand
Limiting and
Duty Cycling
Historical
Data
Graphics
Scheduling
Supervisory
Controller DDC
Controller
Supervisory
Controller
Operator Workstation
Supervisory
Controller
Supervisory Controller (processing)
Operator Workstation (long term
storage)
ü ü
ü ü ü
ü ü ü
ü
ü ü
40. BMS Typical BOQ-
It can be categorized in 3 broad categories-
POT(Portable Operator1. BMS controllers, Softwares,
Terminal),integration & PC.
2. Field Devices- It comprises different kind of sensors,
switches, actuators, Transmitters etc
3. Cables & conduits

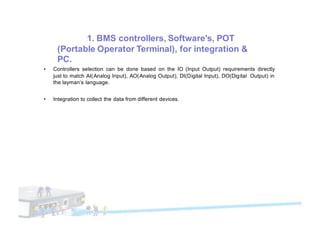

41. 1. BMS controllers, Software's, POT
(Portable Operator Terminal), for integration &
PC.
• Controllers selection can be done based on the IO (Input Output) requirements directly
just to match AI(Analog Input), AO(Analog Output), DI(Digital Input), DO(Digital Output) in
the layman’s language.
• Integration to collect the data from different devices.

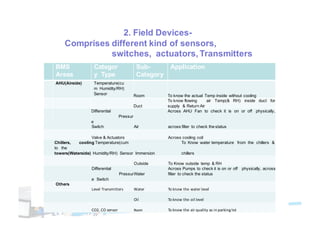

42. 2. Field Devices-
Comprises different kind of sensors,
switches, actuators, Transmitters
BMS
Areas
Categor
y Type
Sub-
Category
Application
AHU(Airside) Temperature(cu
m Humidity/RH)
Sensor Room To know the actual Temp inside without cooling
Duct
To know flowing
supply & Return Air
air Temp(& RH) inside duct for
Differential
Pressur
e
Across AHU Fan to check it is on or off physically,
Switch Air across filter to check the status
Valve & Actuators Across cooling coil

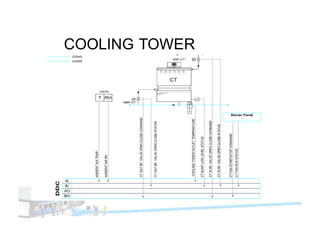

Chillers, cooling Temperature(cum To Know water temperature from the chillers &
to the
towers(Waterside) Humidity/RH) Sensor Immersion chillers
Outside To Know outside temp & RH
Differential
Pressur
e Switch
Water
Across Pumps to check it is on or off
filter to check the status
physically, across
Others
Level Transmitters Water To know the water level
Oil To know the oil level
CO2, CO sensor Room To know the air quality as in parking lot

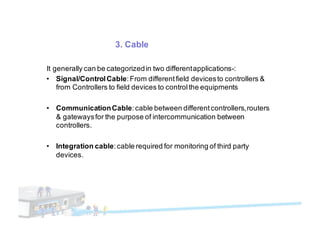

43. 3. Cable
It generally can be categorizedin two differentapplications-:
• Signal/ControlCable:From differentfield devicesto controllers &
from Controllers to field devices to controlthe equipments
• CommunicationCable:cable between differentcontrollers,routers
& gatewaysfor the purpose of intercommunication between
controllers.
• Integration cable:cable required for monitoring of third party
devices.
44. Cable Selection
BMS
Areas Category CableType Application
AHU Duct, Room Temp sensor 2c x 1 sqmm shielded PassiveTemp(2c) signals from sensor to controllers
Temp cum humidity sensor 4c x 1sqmm shielded
Passive Temperature(2c) & Active(2c-power) RH measurement from
sensor to controllers
DP Switch for Air 2c x 1 sqmm shielded Passive Temp(2c) signals from switch to controllers
AHU FAN VFD 2c x 1 sqmm shielded Run status
2c x 1 sqmm shielded On/off status
2c x 1 sqmm shielded Relay output for VFD On/OFFOperation
Valve & Actuator 5c x 1sqmm shielded Control & Power (3c power and command) & Monitor (2c)

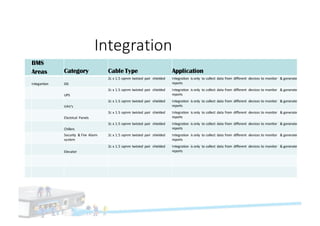

45. Integration
BMS
Areas Category CableType Application
Integartion DG
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
UPS
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
VAV's
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
Electrical Panels
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
Chillers
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
Security & Fire Alarm
system
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports
Elevator
2c x 1.5 sqmm twisted pair shielded Integration is only to collect data from different devices to monitor & generate
reports

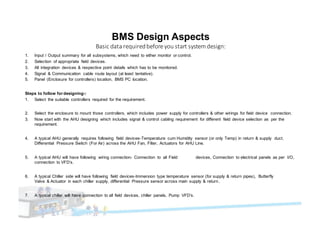

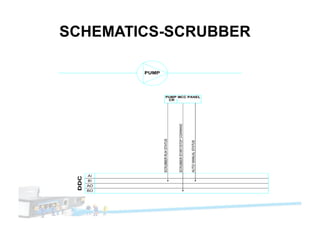

46. BMS Design Aspects
Basic data required before you start system design:
1. Input / Output summary for all subsystems, which need to either monitor or control.
2. Selection of appropriate field devices.
3. All integration devices & respective point details which has to be monitored.
4. Signal & Communication cable route layout (at least tentative).
5. Panel (Enclosure for controllers) location, BMS PC location.
Steps to follow for designing-:
1. Select the suitable controllers required for the requirement.
2. Select the enclosure to mount those controllers, which includes power supply for controllers & other wirings for field device connection.

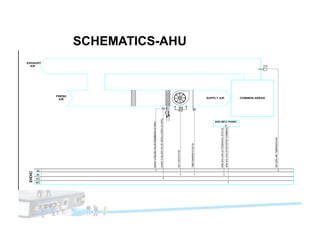

3. Now start with the AHU designing which includes signal & control cabling requirement for different field device selection as per the
requirement.

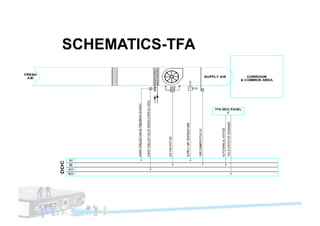

4. A typical AHU generally requires following field devices-Temperature cum Humidity sensor (or only Temp) in return & supply duct.
Differential Pressure Switch (For Air) across the AHU Fan, Filter, Actuators for AHU Line.
5. A typical AHU will have following wiring connection- Connection to all Field devices, Connection to electrical panels as per I/O,
connection to VFD’s.
6. A typical Chiller side will have following field devices-Immersion type temperature sensor (for supply & return pipes), Butterfly
Valve & Actuator in each chiller supply, differential Pressure sensor across main supply & return .
7. A typical chiller will have connection to all field devices, chiller panels, Pump VFD’s.
47. BMS Commissioning Aspects –
Air Side Commissioning- It comprises individual commissioning of AHU (Air handling Unit),
CSU (Ceiling Suspended Unit), Fans & associated field devices.
• We need to measure each field devices value during AHU commissioning as first task to
make sure all field devices are working & then all points can be put in alogic.
Water side commissioning – It comprises individual commissioning of Water cooled chillers,
Air cooled chillers, Cooling towers, Primary pumps, Secondary pumps, VFD’s & associated
field devices
• We need to measure each field device value & other connected points value individually
before putting them into logic.
Integration of Air side & water side in a logic-This is to integrate all independent system in
logic. Which can work automatically based on the user defined parameters without any
conflict of individual system functionality.

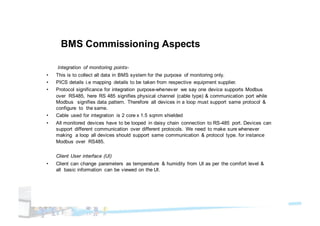

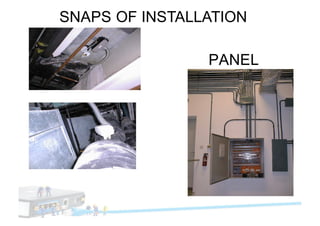

48. BMS Commissioning Aspects
Integration of monitoring points-
• This is to collect all data in BMS system for the purpose of monitoring only.
• PICS details i.e mapping details to be taken from respective equipment supplier.
• Protocol significance for integration purpose-whenever we say one device supports Modbus
over RS485, here RS 485 signifies physical channel (cable type) & communication port while
Modbus signifies data pattern. Therefore all devices in a loop must support same protocol &
configure to the same.
• Cable used for integration is 2 core x 1.5 sqmm shielded
• All monitored devices have to be looped in daisy chain connection to RS-485 port. Devices can
support different communication over different protocols. We need to make sure whenever
making a loop all devices should support same communication & protocol type. for instance
Modbus over RS485.
Client User interface (UI)
• Client can change parameters as temperature & humidity from UI as per the comfort level &
all basic information can be viewed on the UI.
