HTML

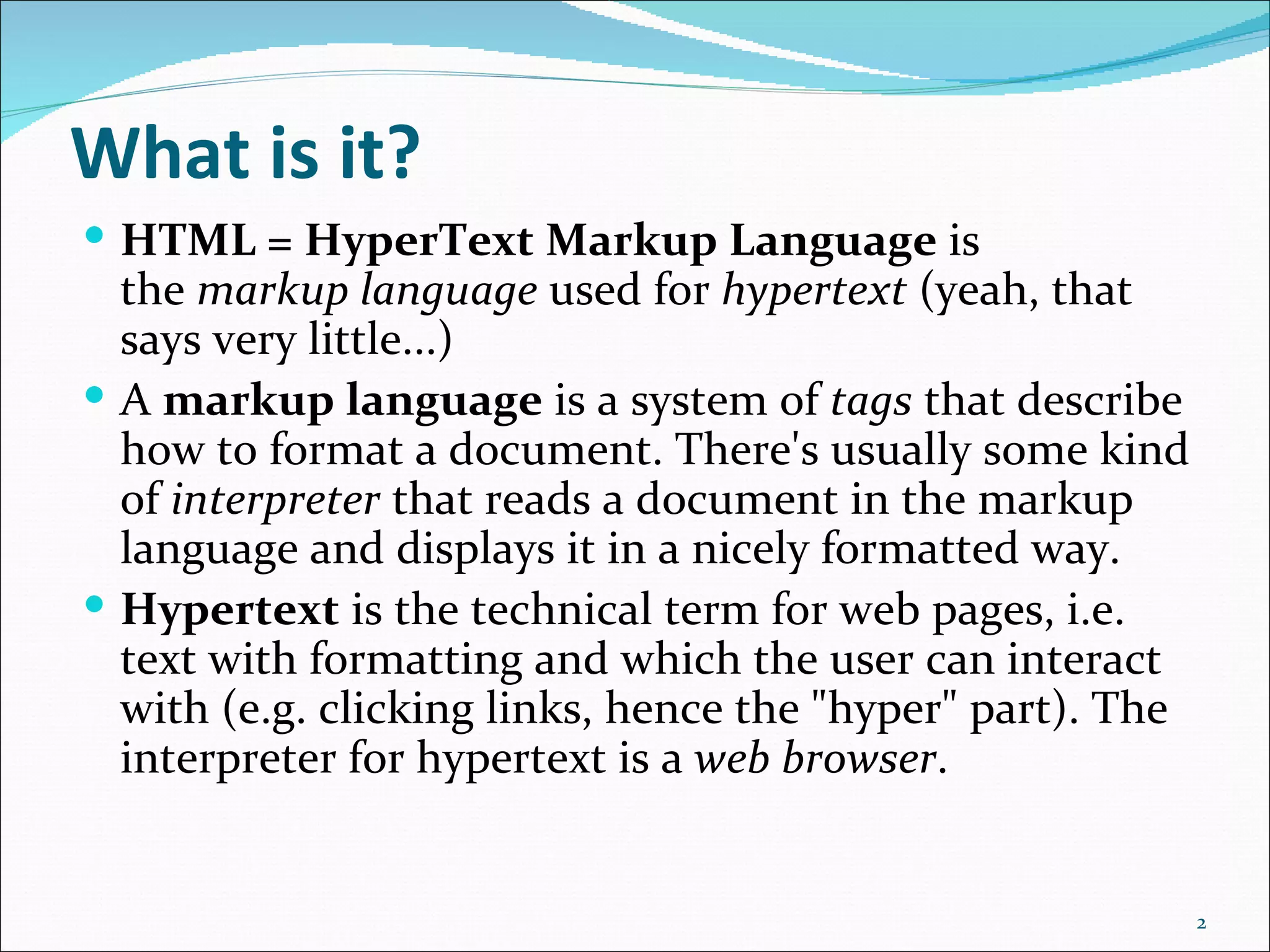

What is it?
 HTML = HyperText Markup Language is
the markup language used for hypertext (yeah, that
says very little...)
 A markup language is a system of tags that describe
how to format a document. There's usually some kind
of interpreter that reads a document in the markup
language and displays it in a nicely formatted way.
 Hypertext is the technical term for web pages, i.e.
text with formatting and which the user can interact
with (e.g. clicking links, hence the "hyper" part). The
interpreter for hypertext is a web browser.

2

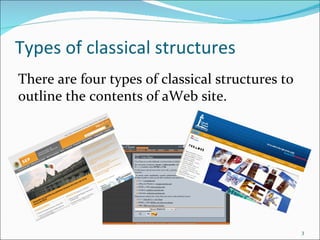

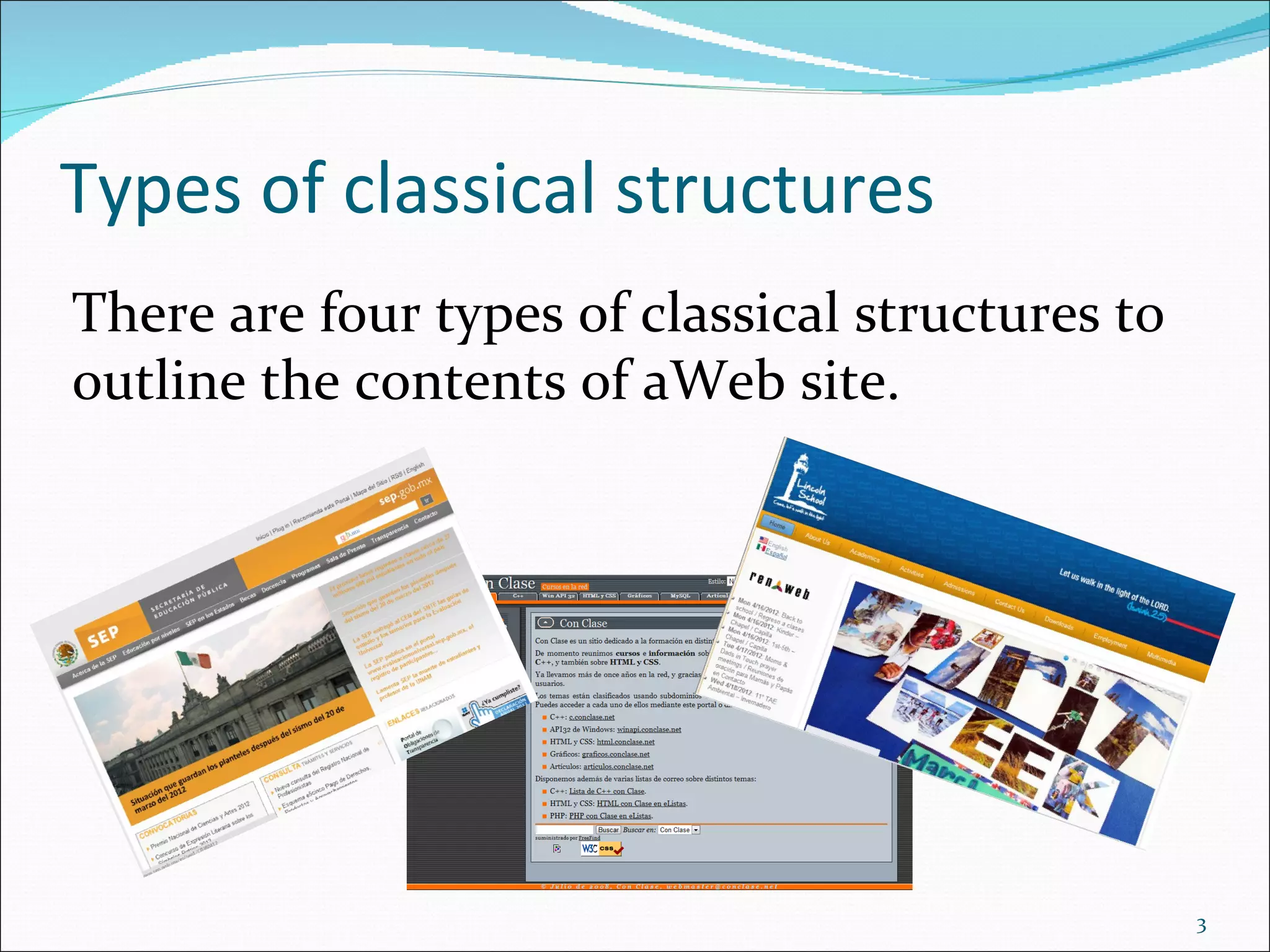

Types of classical structures
There are four types of classical structures to
outline the contents of aWeb site.

3

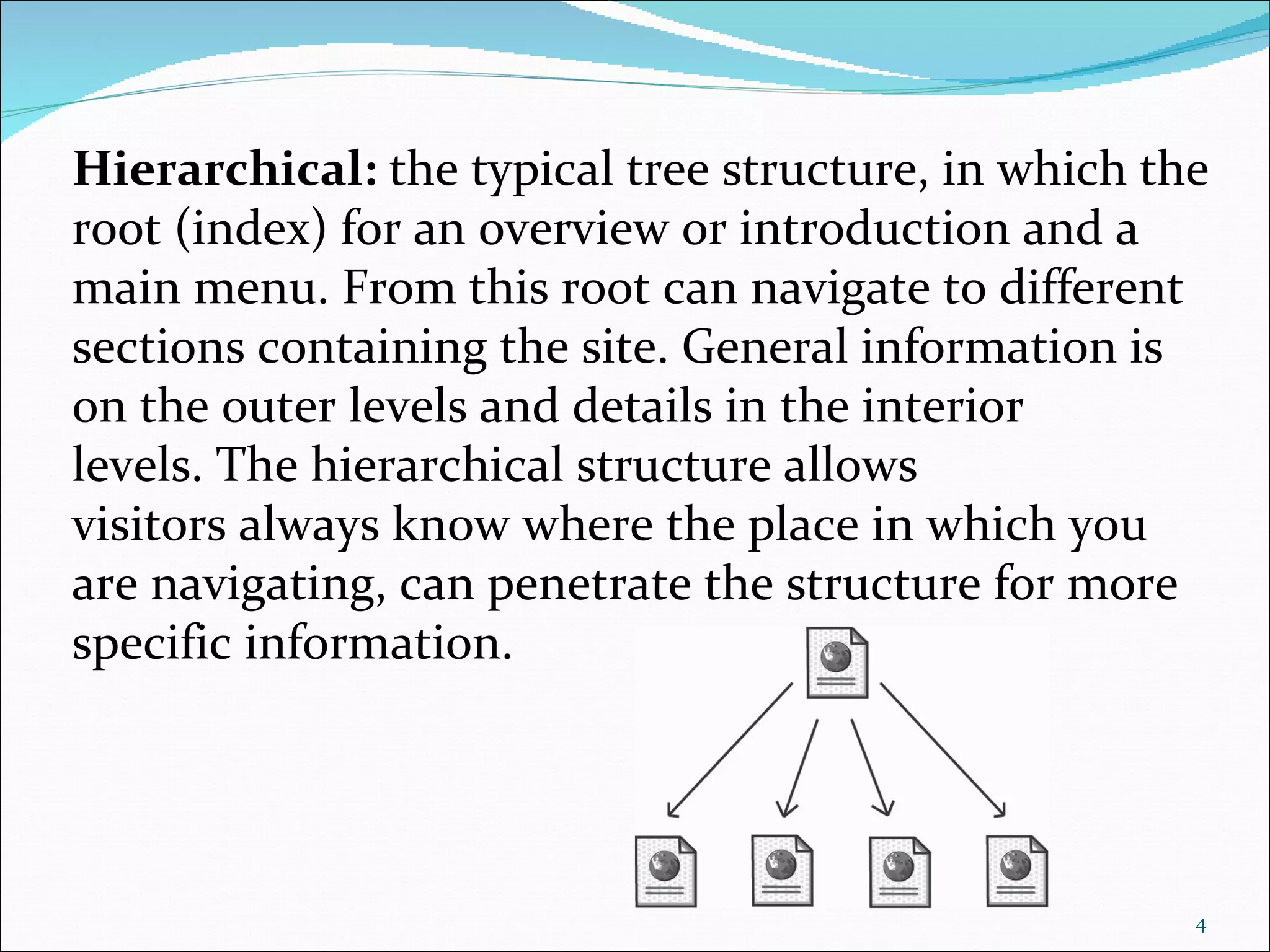

Hierarchical: the typical tree structure, in which the
root (index) for an overview or introduction and a
main menu. From this root can navigate to different
sections containing the site. General information is
on the outer levels and details in the interior
levels. The hierarchical structure allows
visitors always know where the place in which you
are navigating, can penetrate the structure for more
specific information.

4

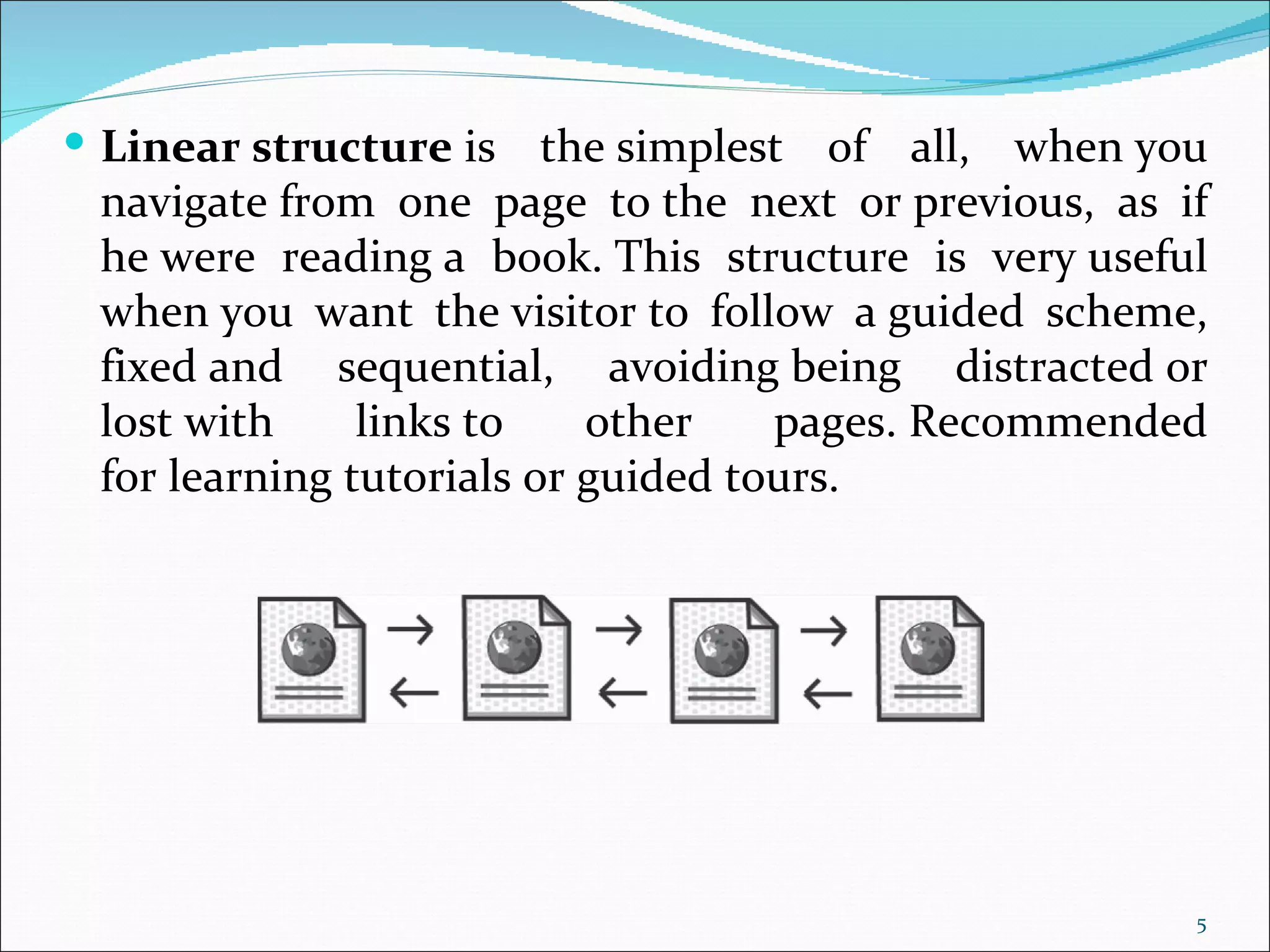

 Linear structure is the simplest of all, when you
navigate from one page to the next or previous, as if
he were reading a book. This structure is very useful
when you want the visitor to follow a guided scheme,
fixed and sequential, avoiding being distracted or
lost with links to other pages. Recommended
for learning tutorials or guided tours.

5

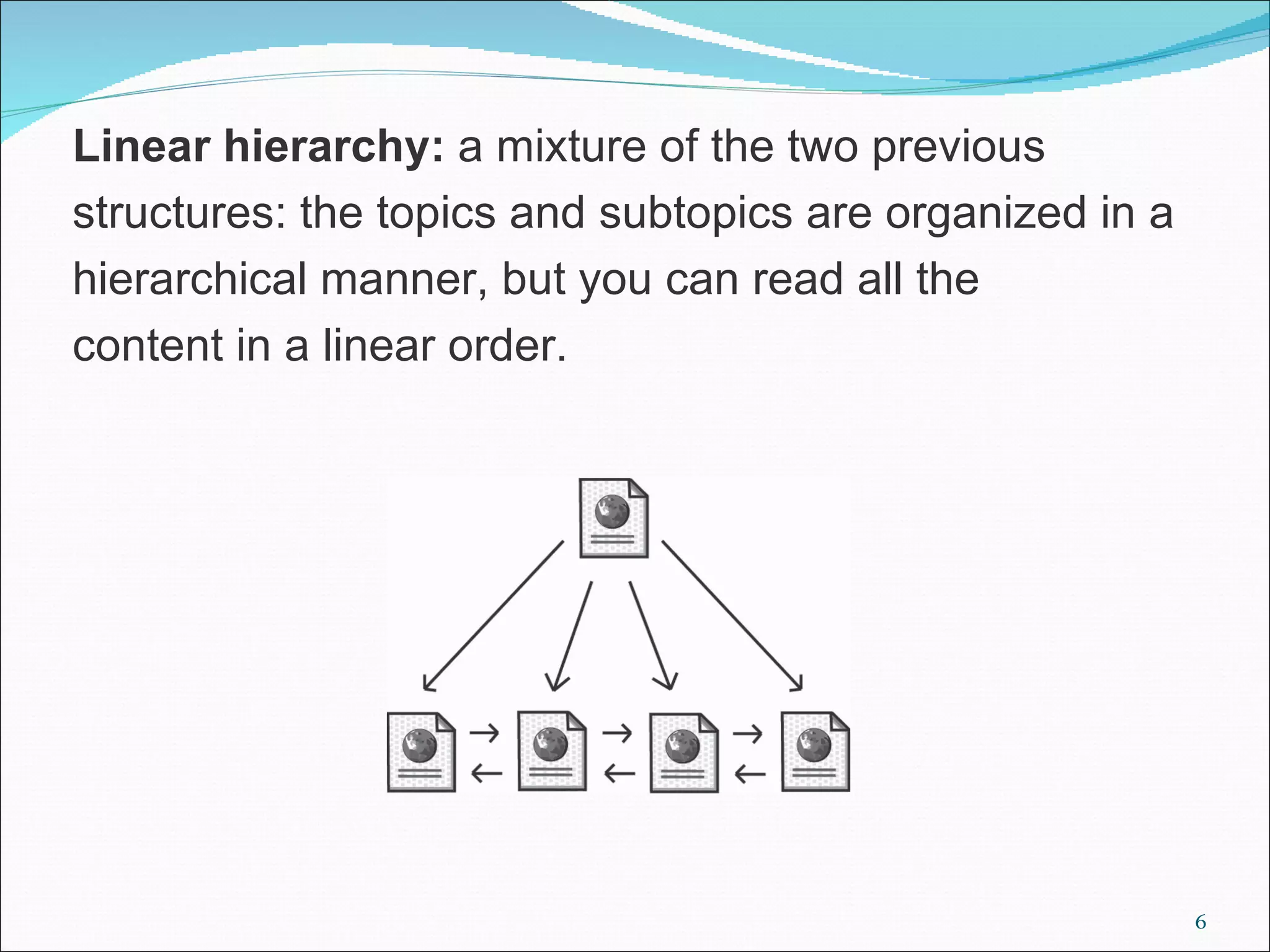

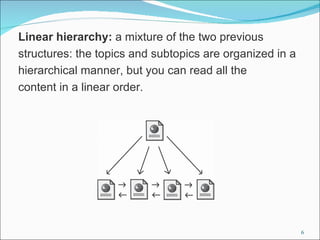

Linear hierarchy: a mixture of the two previous
structures: the topics and subtopics are organized in a
hierarchical manner, but you can read all the
content in a linear order.

6

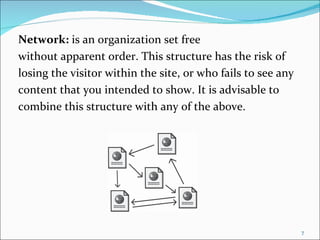

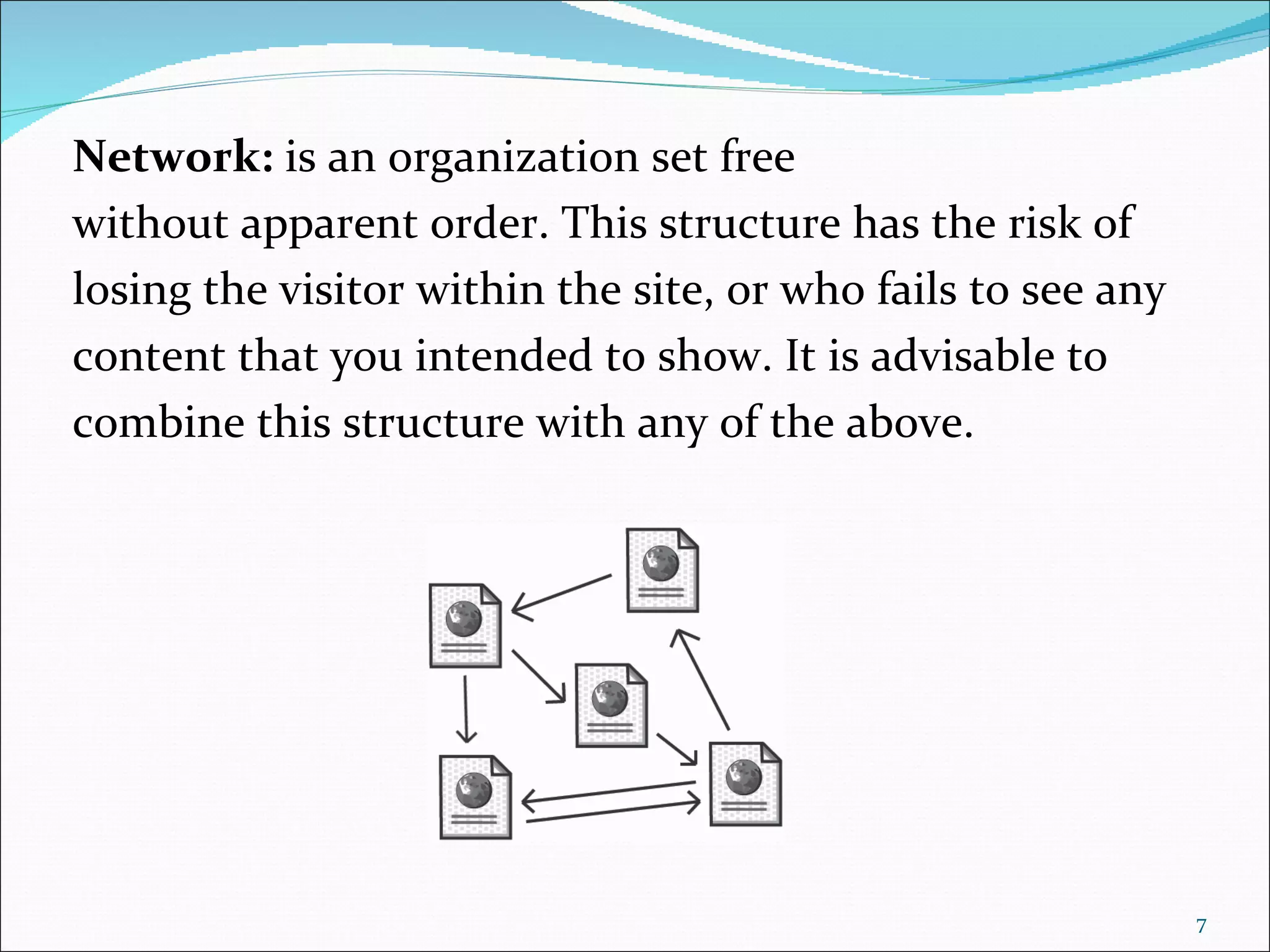

Network: is an organization set free
without apparent order. This structure has the risk of
losing the visitor within the site, or who fails to see any
content that you intended to show. It is advisable to
combine this structure with any of the above.

7

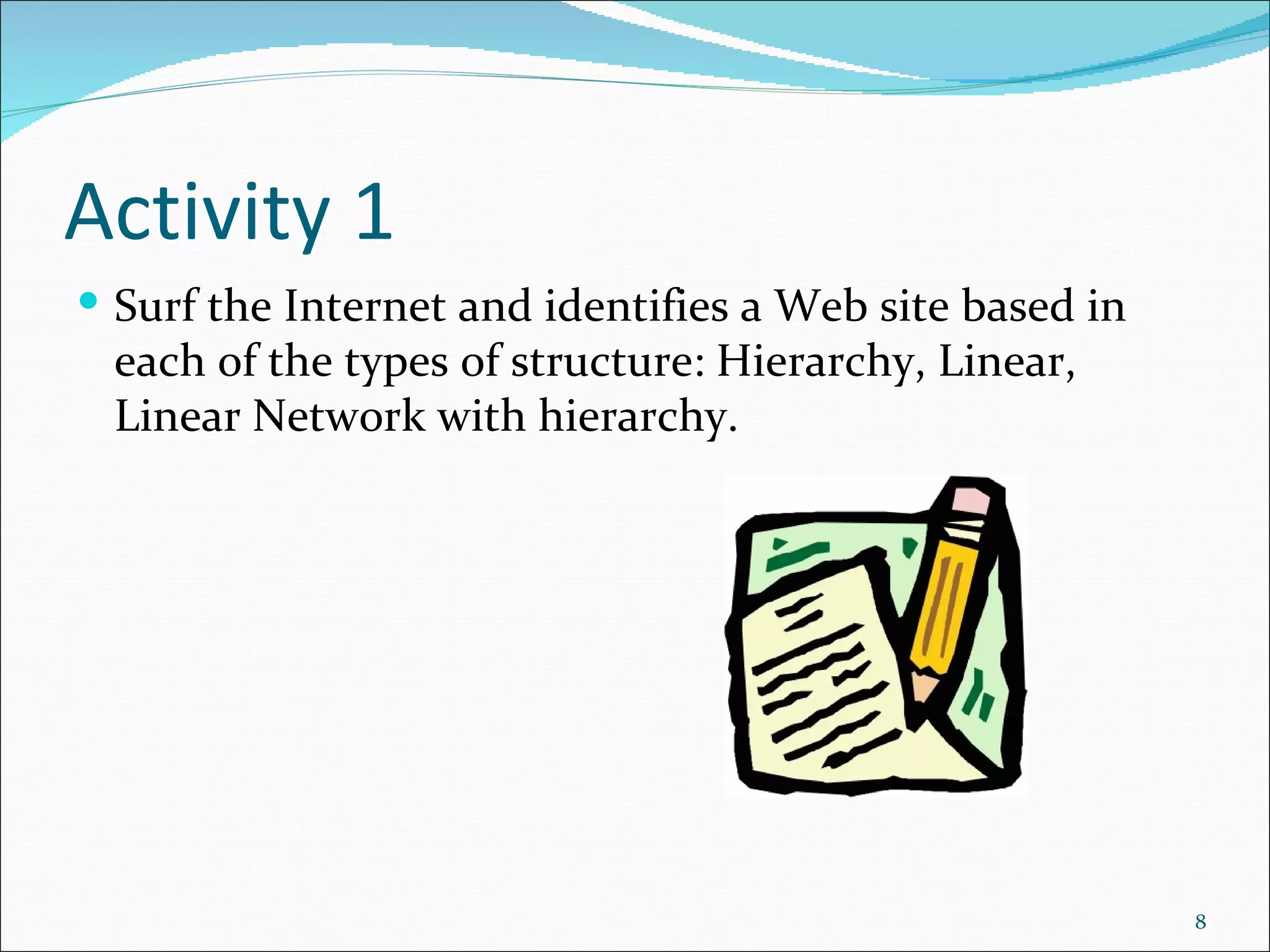

Activity 1
 Surf the Internet and identifies a Web site based in
each of the types of structure: Hierarchy, Linear,
Linear Network with hierarchy.

8

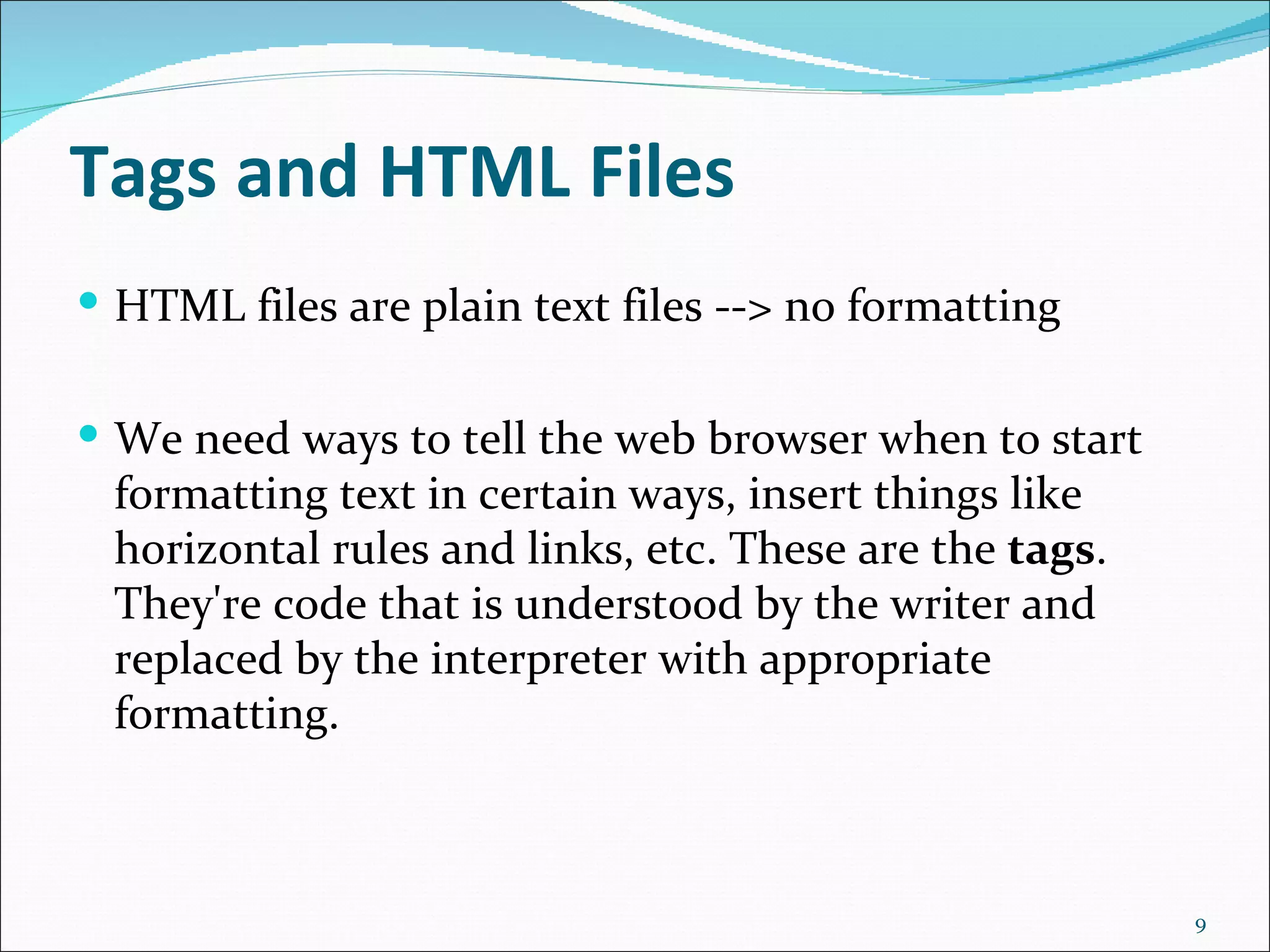

Tags and HTML Files
 HTML files are plain text files --> no formatting

 We need ways to tell the web browser when to start
formatting text in certain ways, insert things like
horizontal rules and links, etc. These are the tags.
They're code that is understood by the writer and
replaced by the interpreter with appropriate
formatting.

9

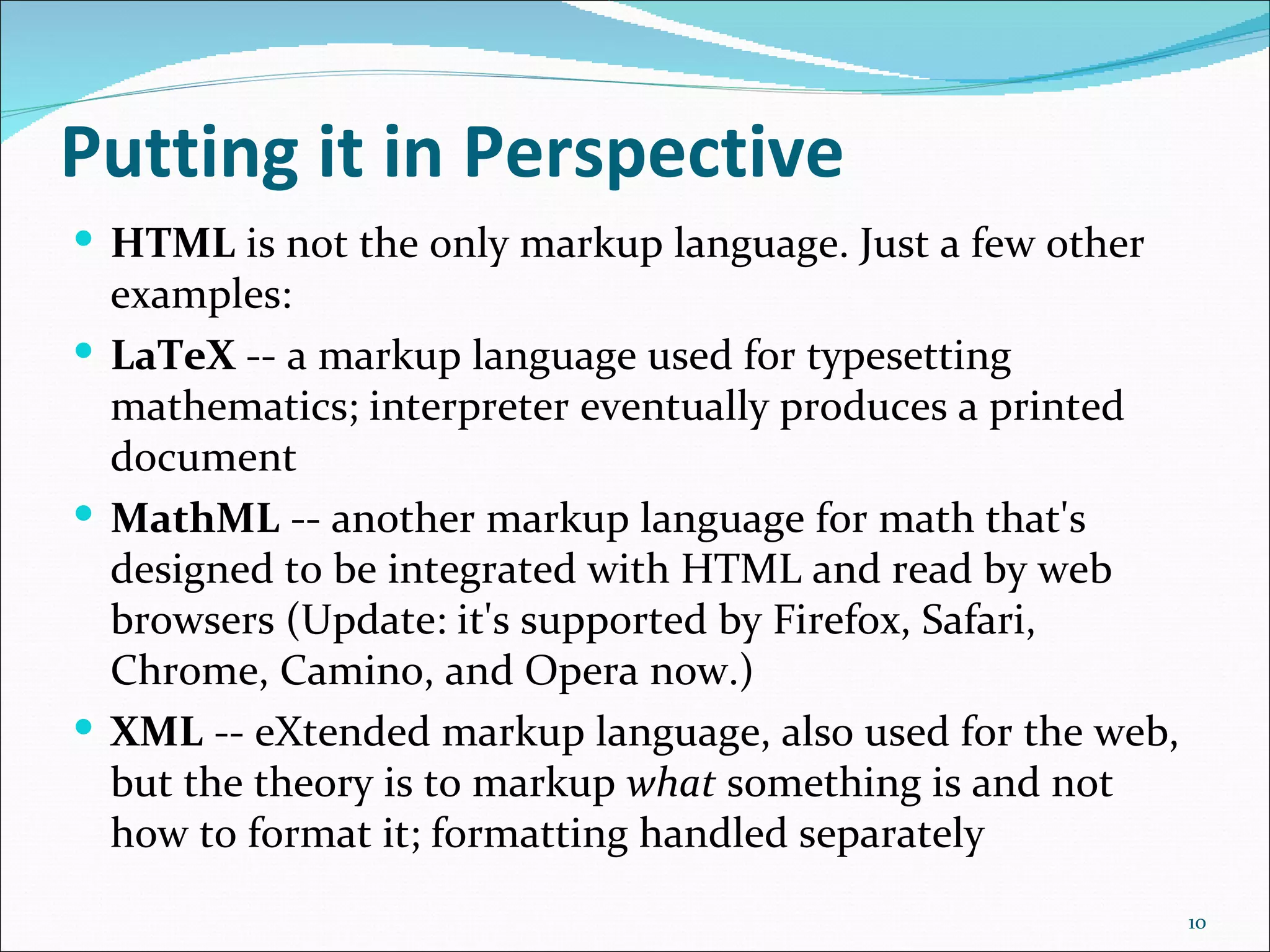

Putting it in Perspective
 HTML is not the only markup language. Just a few other
examples:
 LaTeX -- a markup language used for typesetting
mathematics; interpreter eventually produces a printed
document
 MathML -- another markup language for math that's
designed to be integrated with HTML and read by web
browsers (Update: it's supported by Firefox, Safari,
Chrome, Camino, and Opera now.)
 XML -- eXtended markup language, also used for the web,
but the theory is to markup what something is and not
how to format it; formatting handled separately
10

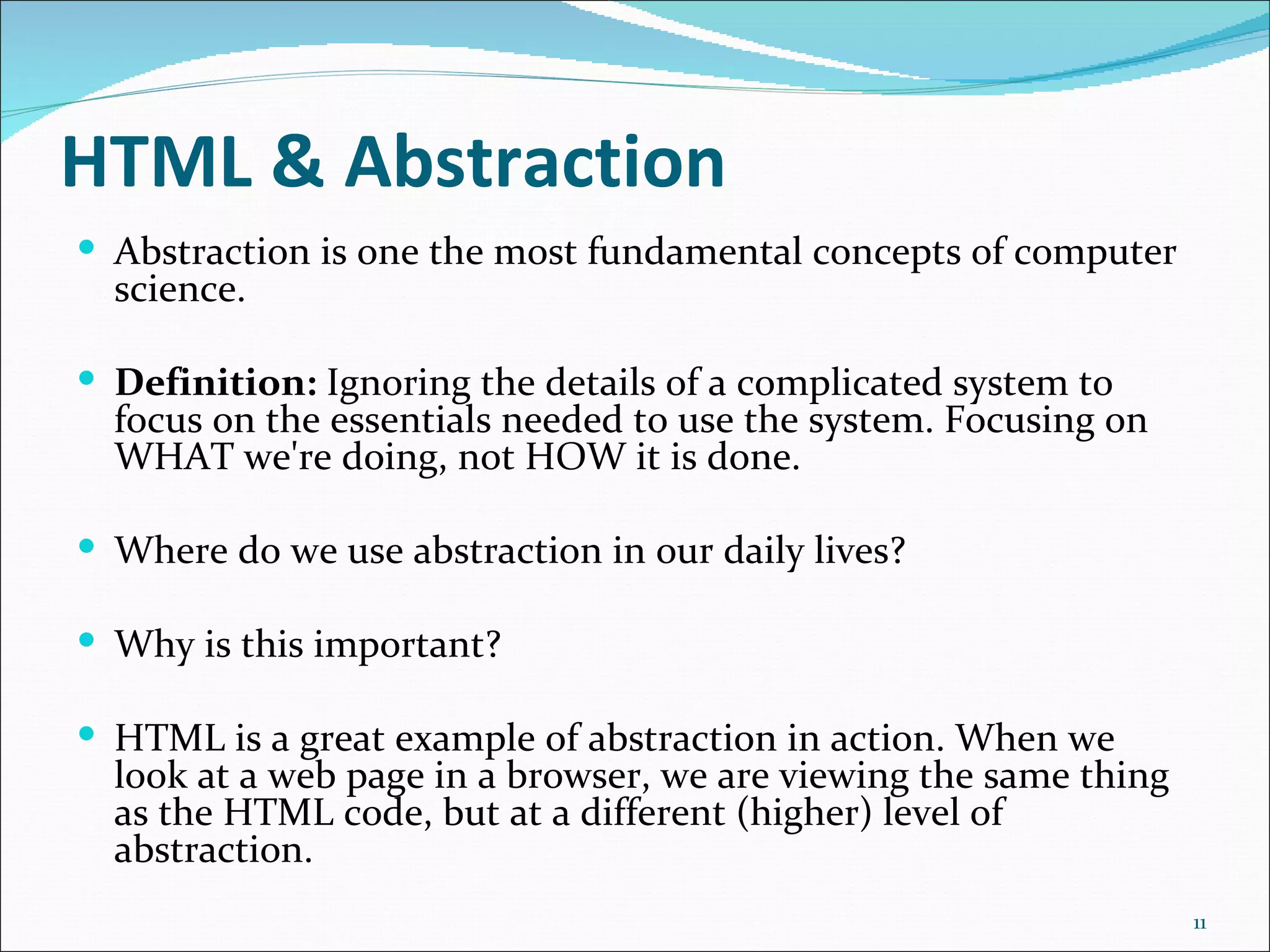

HTML & Abstraction
 Abstraction is one the most fundamental concepts of computer
science.

 Definition: Ignoring the details of a complicated system to
focus on the essentials needed to use the system. Focusing on
WHAT we're doing, not HOW it is done.

 Where do we use abstraction in our daily lives?

 Why is this important?

 HTML is a great example of abstraction in action. When we
look at a web page in a browser, we are viewing the same thing
as the HTML code, but at a different (higher) level of
abstraction.
11

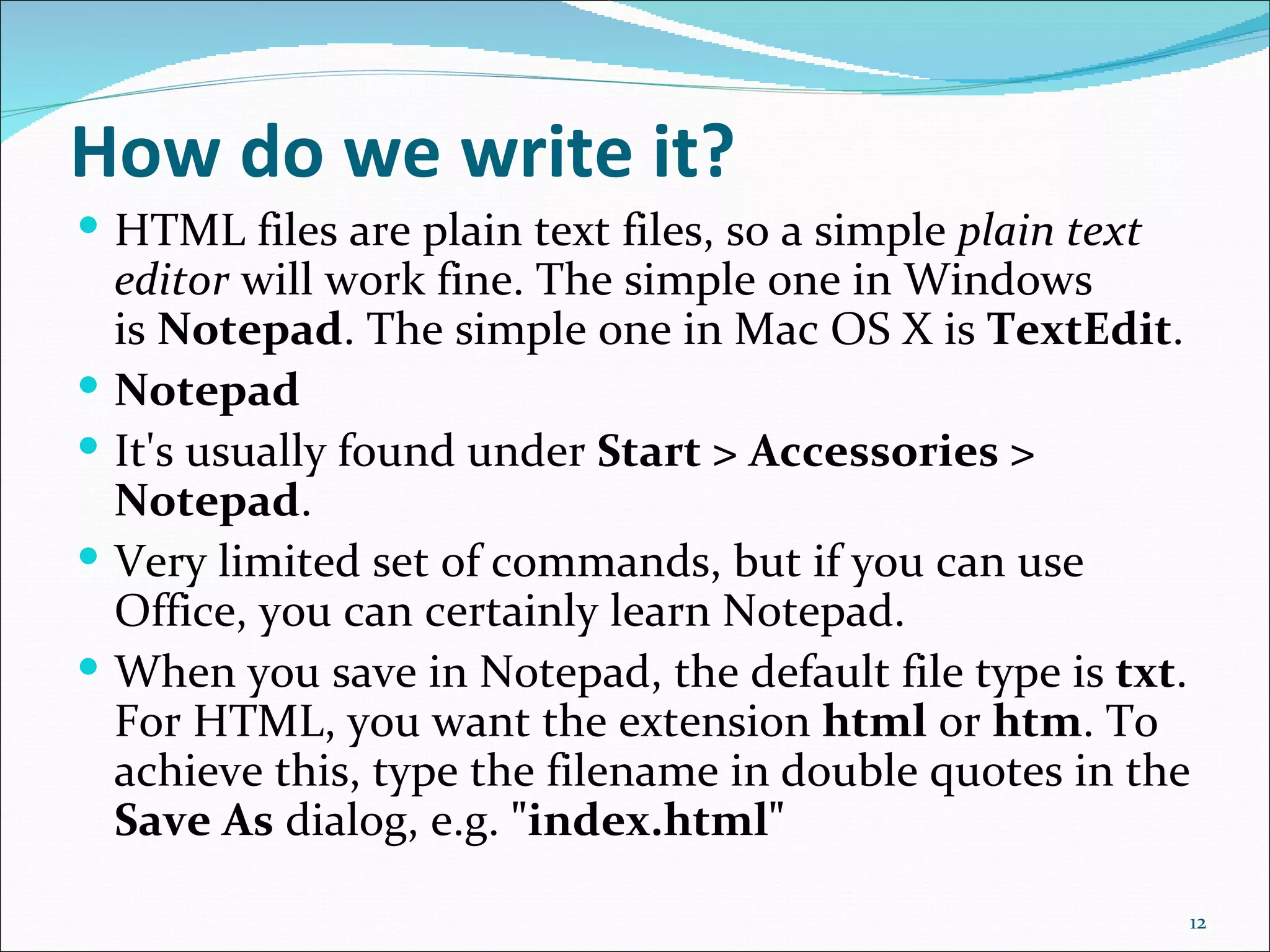

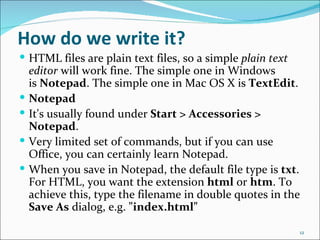

How do we write it?
 HTML files are plain text files, so a simple plain text
editor will work fine. The simple one in Windows
is Notepad. The simple one in Mac OS X is TextEdit.
 Notepad
 It's usually found under Start > Accessories >
Notepad.
 Very limited set of commands, but if you can use
Office, you can certainly learn Notepad.
 When you save in Notepad, the default file type is txt.
For HTML, you want the extension html or htm. To
achieve this, type the filename in double quotes in the
Save As dialog, e.g. "index.html"

12

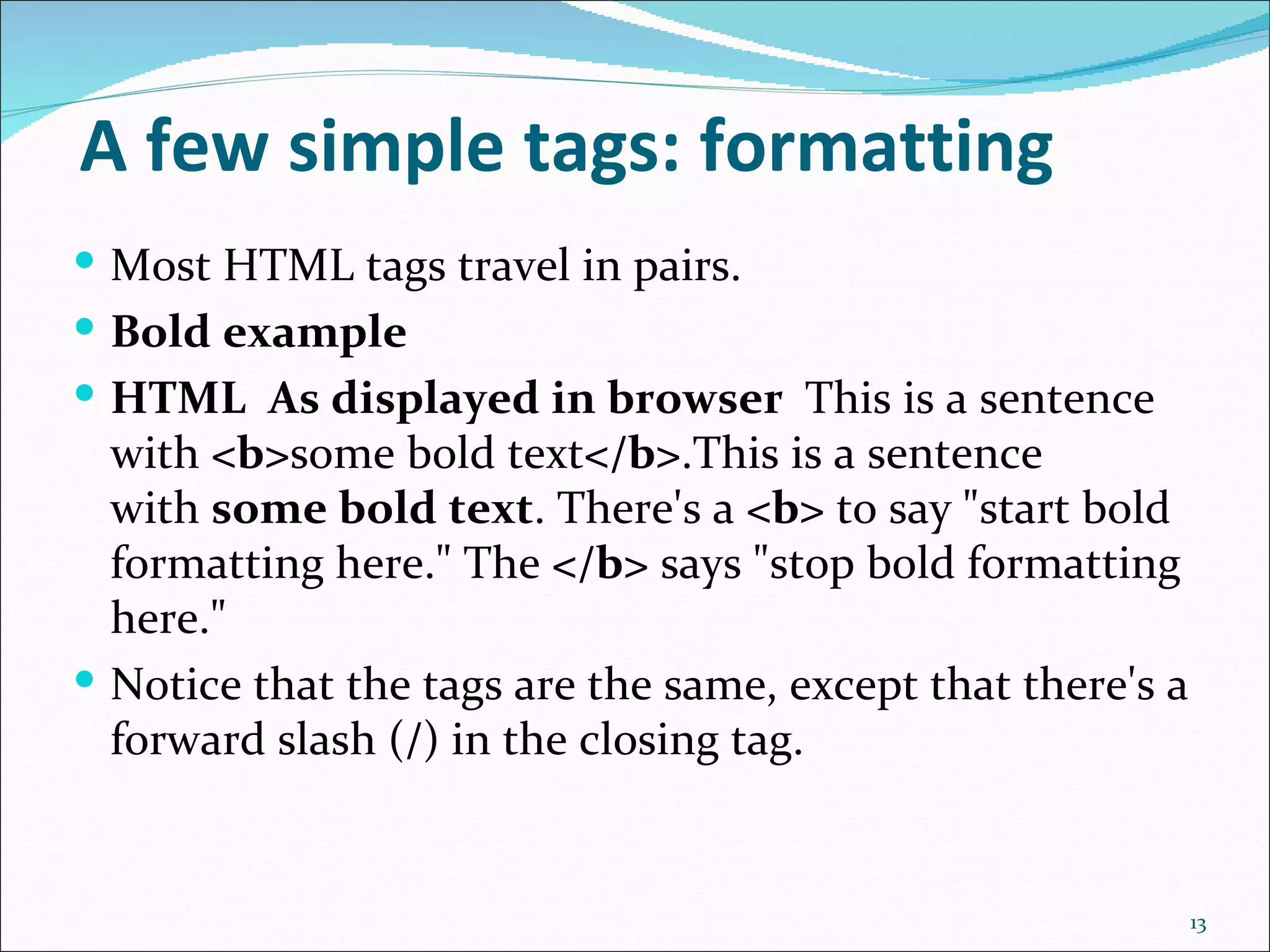

A few simple tags: formatting
 Most HTML tags travel in pairs.
 Bold example
 HTML As displayed in browser This is a sentence
with some bold text.This is a sentence
with some bold text. There's a to say "start bold
formatting here." The says "stop bold formatting
here."
 Notice that the tags are the same, except that there's a
forward slash (/) in the closing tag.

13

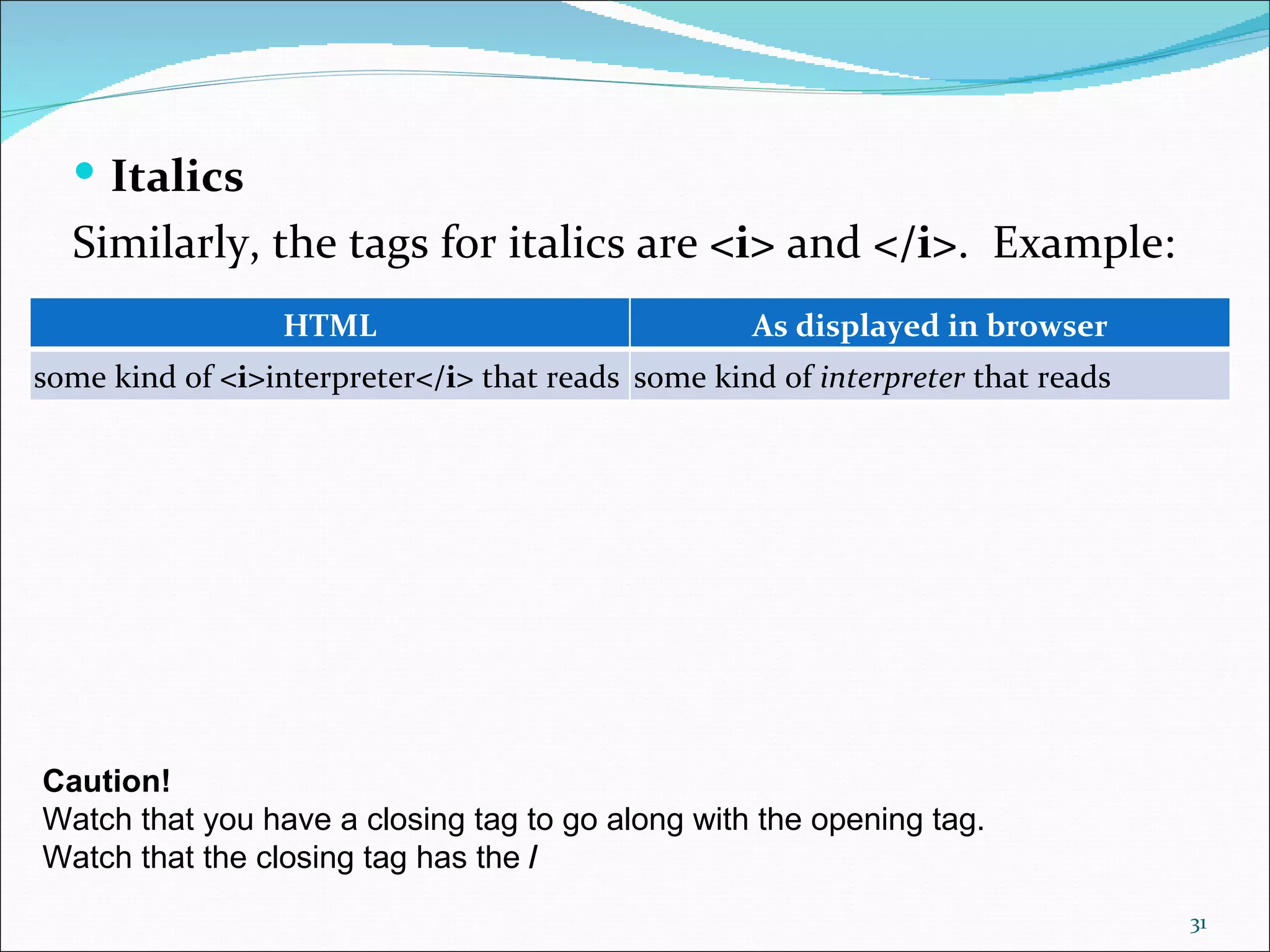

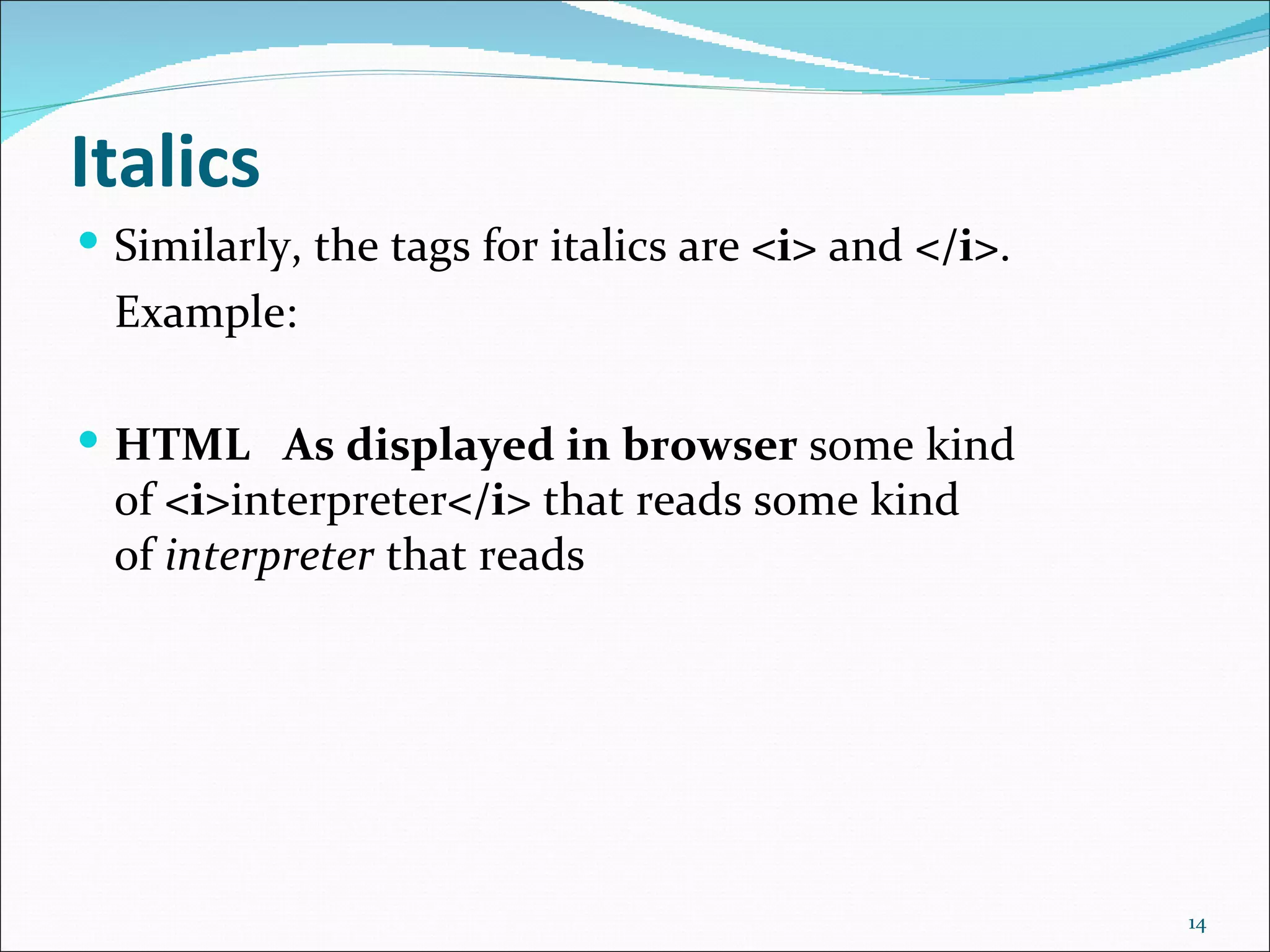

Italics
 Similarly, the tags for italics are and .
Example:

 HTML As displayed in browser some kind
of interpreter that reads some kind
of interpreter that reads

14

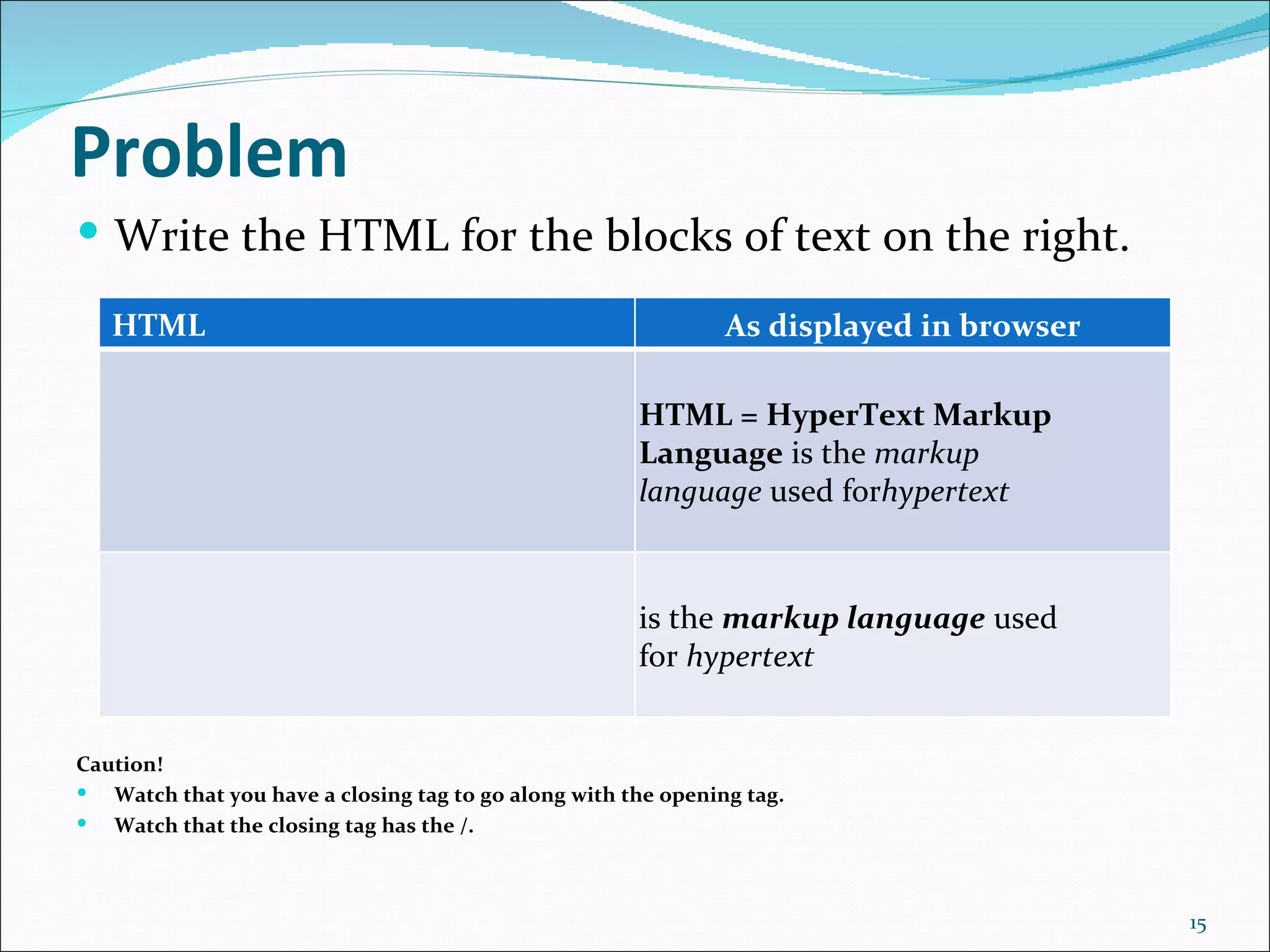

Problem
 Write the HTML for the blocks of text on the right.

HTML As displayed in browser

HTML = HyperText Markup
Language is the markup
language used forhypertext

is the markup language used
for hypertext

Caution!
 Watch that you have a closing tag to go along with the opening tag.
 Watch that the closing tag has the /.

15

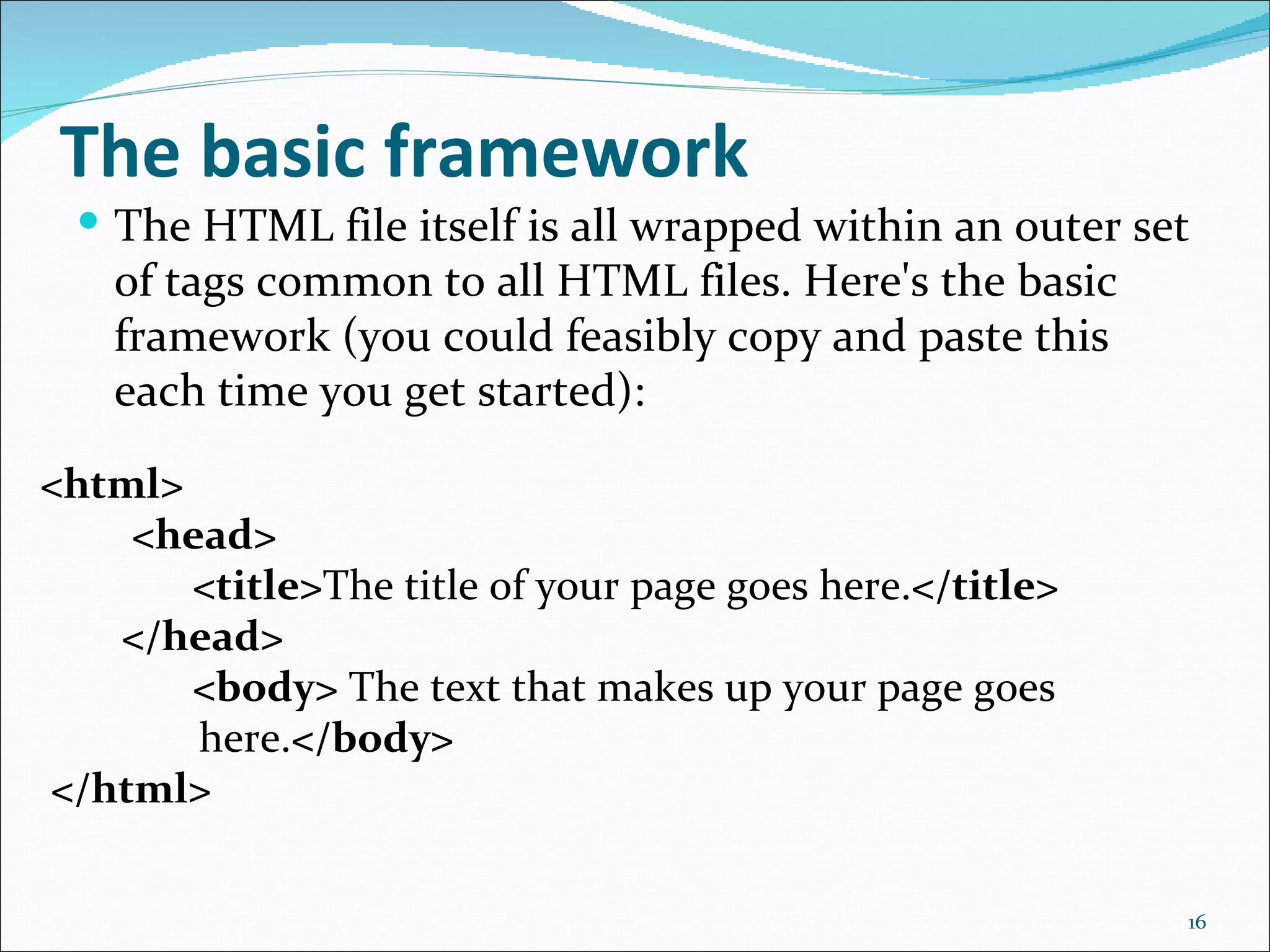

The basic framework
 The HTML file itself is all wrapped within an outer set
of tags common to all HTML files. Here's the basic
framework (you could feasibly copy and paste this
each time you get started):

<html>
<head>
<title>The title of your page goes here.</title>
</head>
<body> The text that makes up your page goes
here.</body>
</html>

16

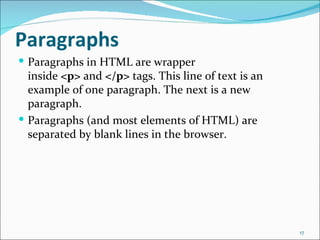

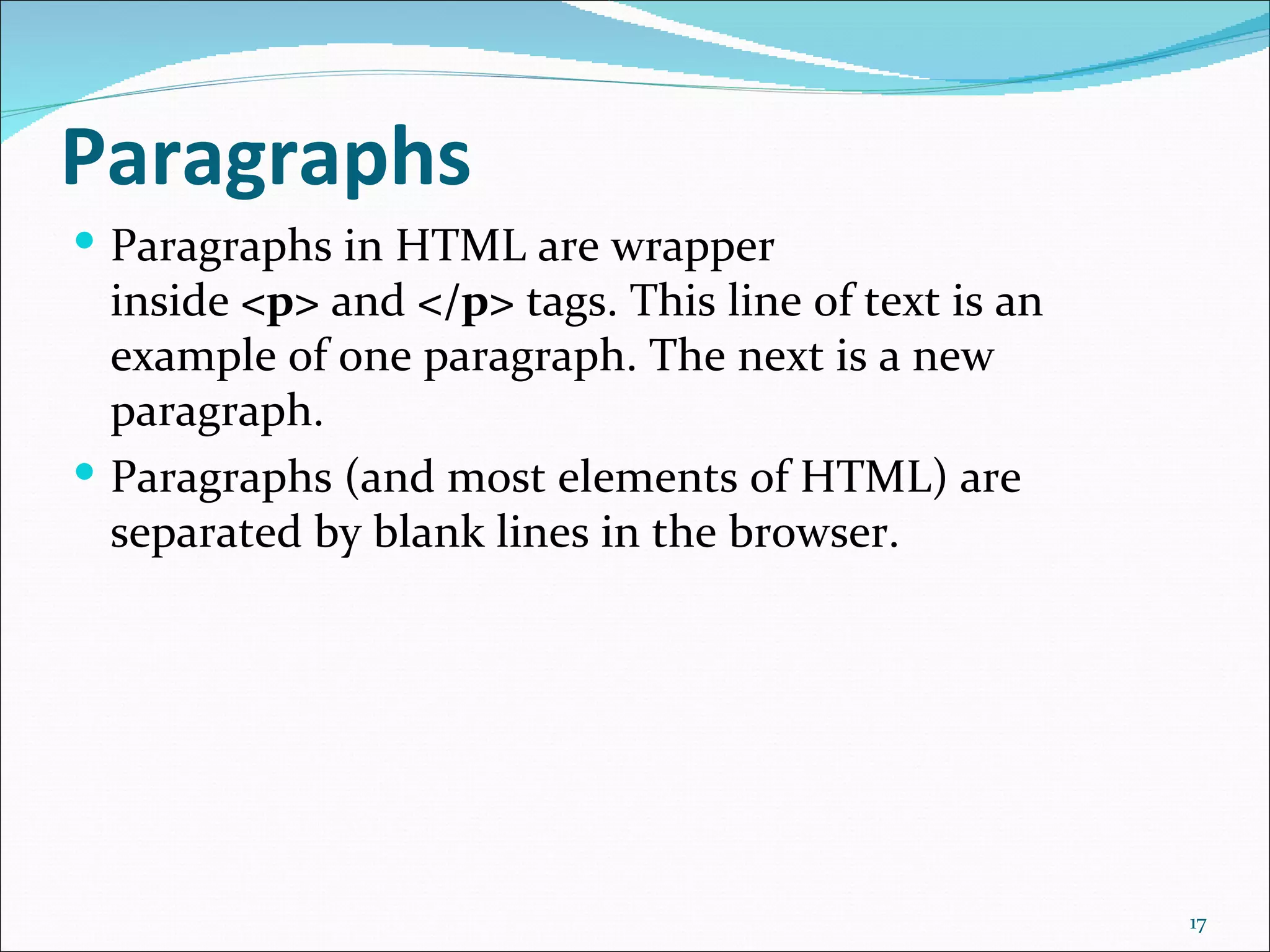

Paragraphs
 Paragraphs in HTML are wrapper
inside and tags. This line of text is an
example of one paragraph. The next is a new
paragraph.
 Paragraphs (and most elements of HTML) are
separated by blank lines in the browser.

17

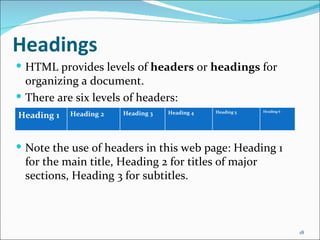

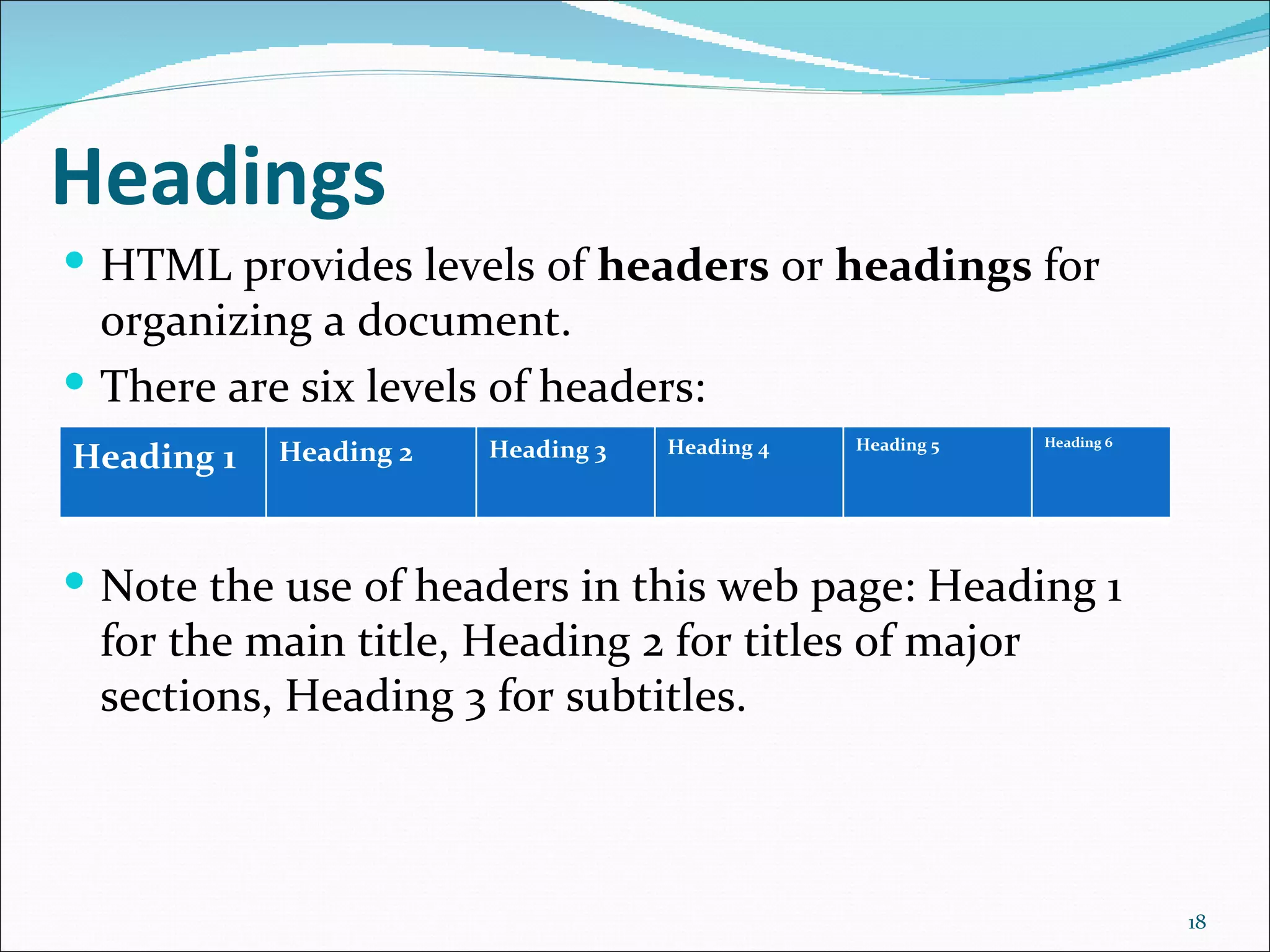

Headings
 HTML provides levels of headers or headings for
organizing a document.
 There are six levels of headers:
Heading 5 Heading 6
Heading 2 Heading 3 Heading 4
Heading 1

 Note the use of headers in this web page: Heading 1
for the main title, Heading 2 for titles of major
sections, Heading 3 for subtitles.

18

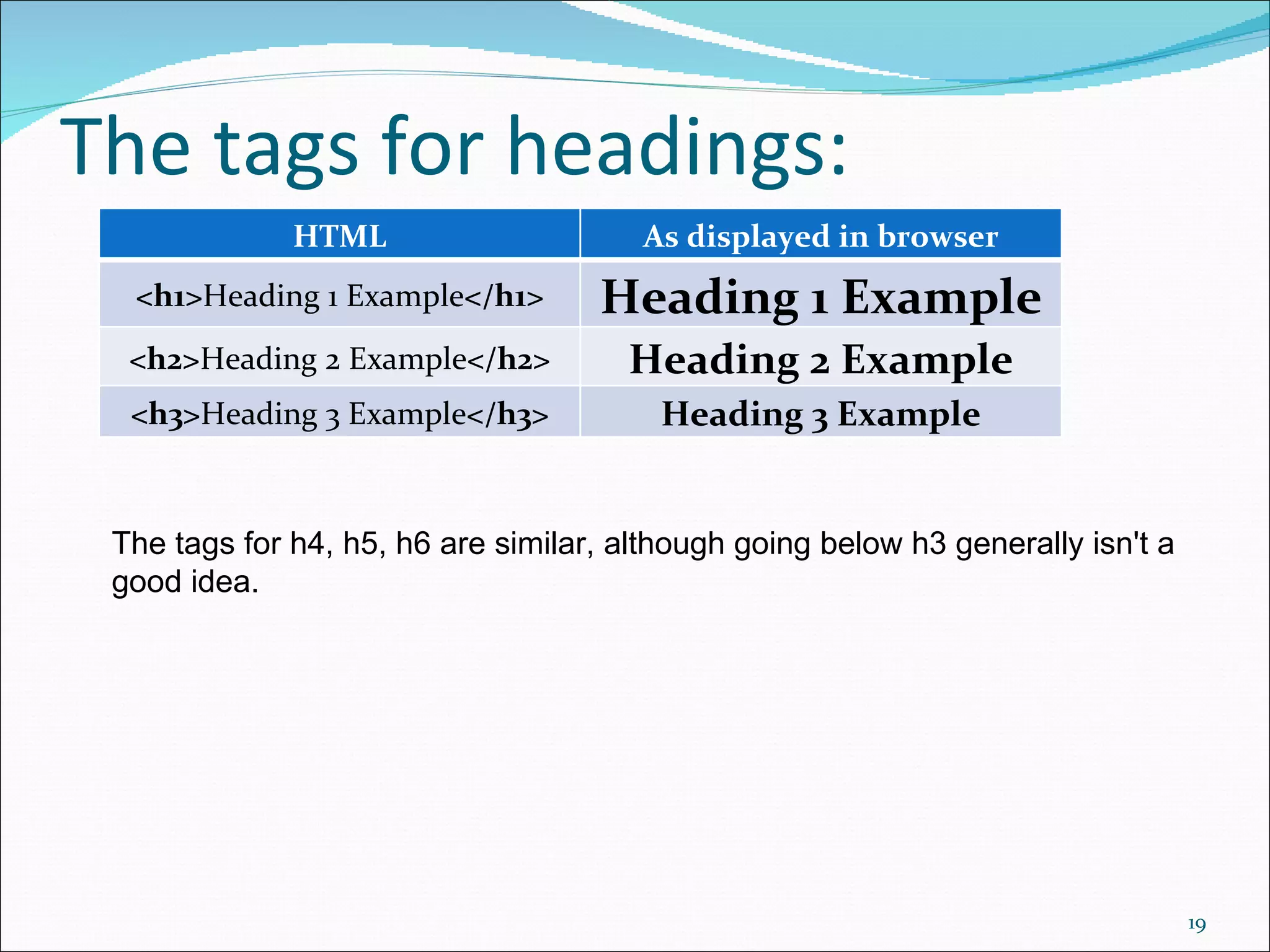

The tags for headings:
<h1>Heading 1 Example</h1> Heading 1 Example

The tags for h4, h5, h6 are similar, although going below h3 generally isn't a
good idea.

19

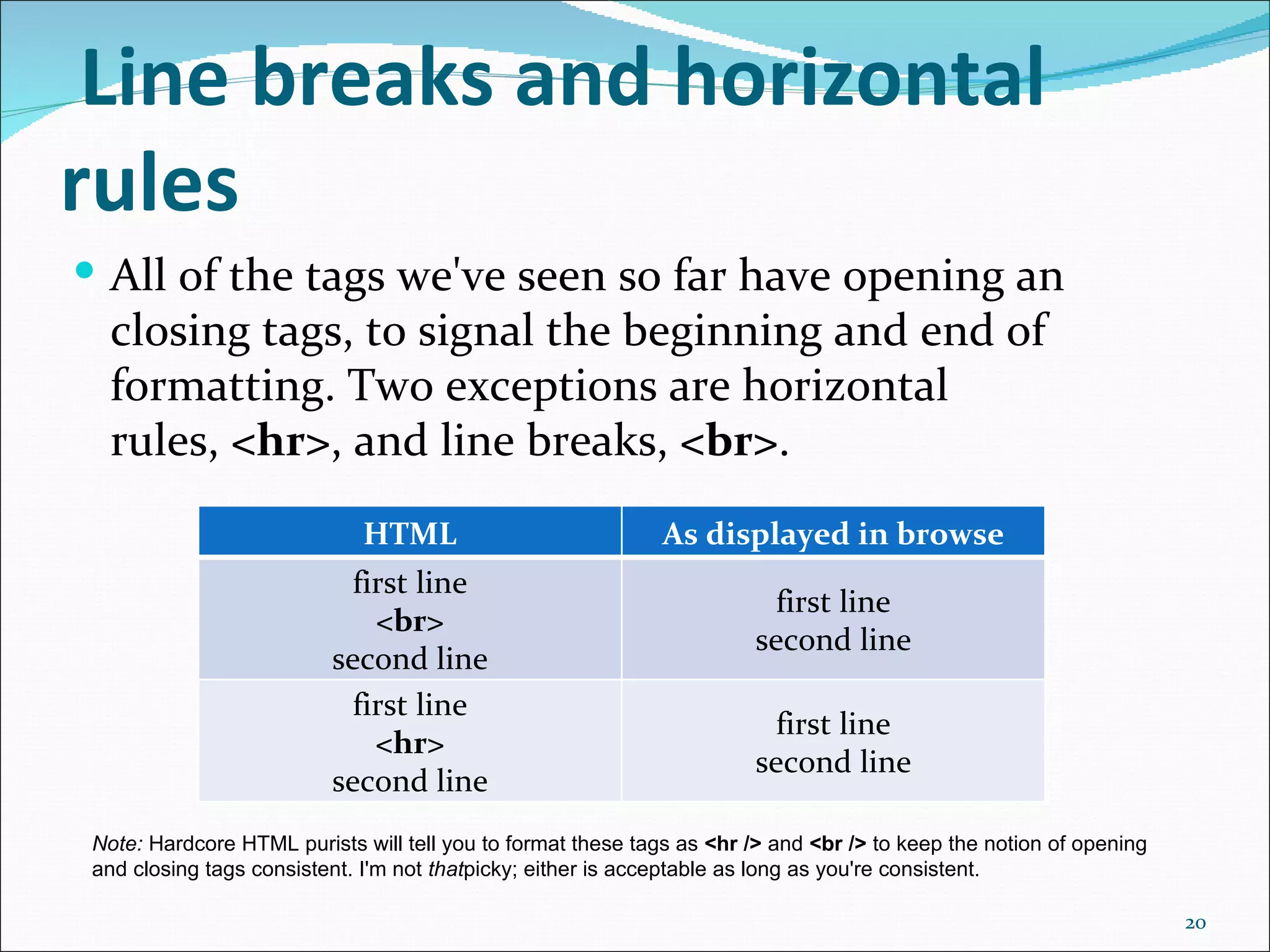

Line breaks and horizontal
rules
 All of the tags we've seen so far have opening an
closing tags, to signal the beginning and end of
formatting. Two exceptions are horizontal
rules, <hr>, and line breaks, .
HTML As displayed in browse
first line
first line

second line
second line
first line
first line
<hr>
second line
second line
Note: Hardcore HTML purists will tell you to format these tags as <hr /> and to keep the notion of opening
and closing tags consistent. I'm not thatpicky; either is acceptable as long as you're consistent.

20

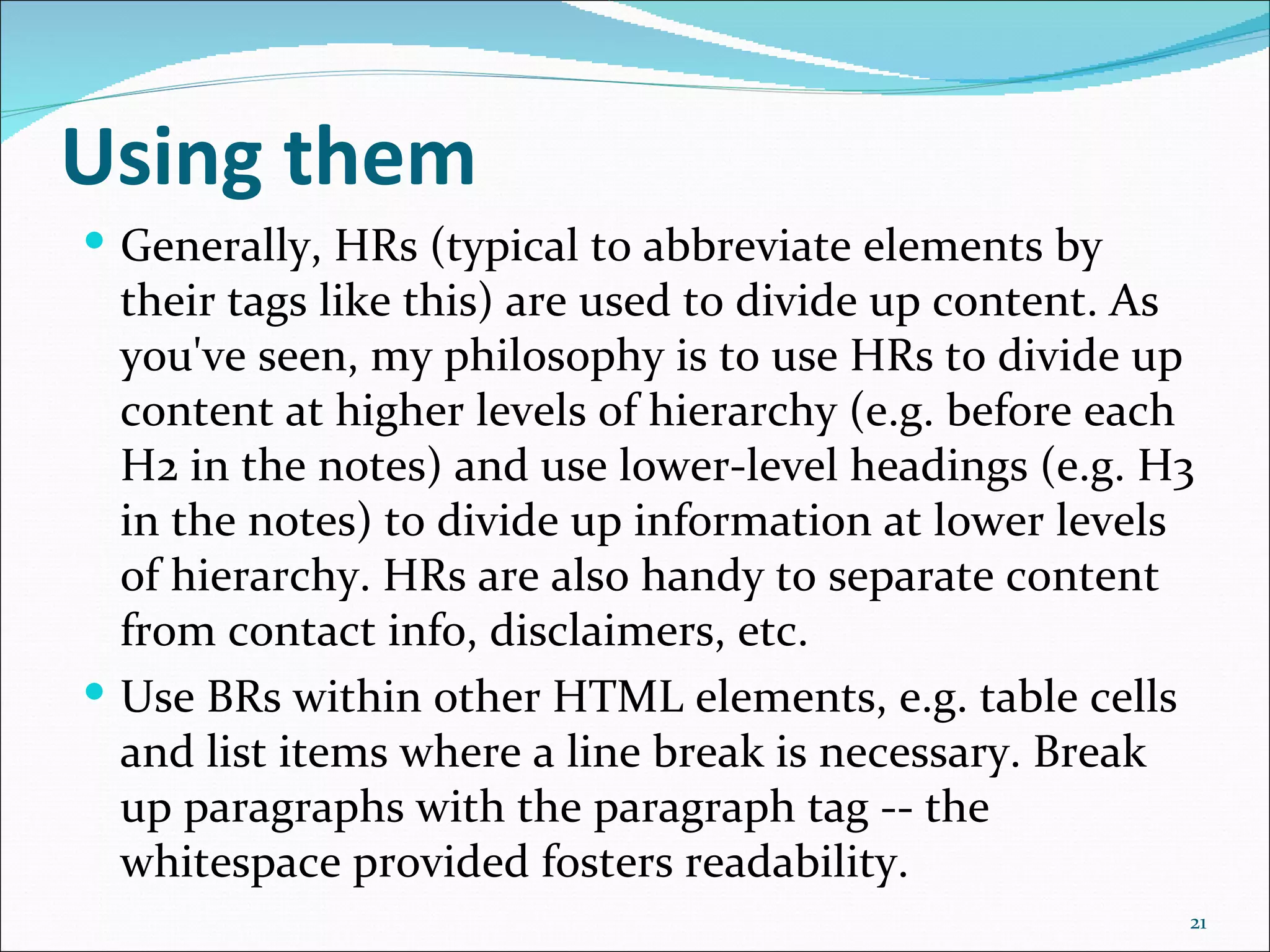

Using them
 Generally, HRs (typical to abbreviate elements by
their tags like this) are used to divide up content. As
you've seen, my philosophy is to use HRs to divide up
content at higher levels of hierarchy (e.g. before each
H2 in the notes) and use lower-level headings (e.g. H3
in the notes) to divide up information at lower levels
of hierarchy. HRs are also handy to separate content
from contact info, disclaimers, etc.
 Use BRs within other HTML elements, e.g. table cells
and list items where a line break is necessary. Break
up paragraphs with the paragraph tag -- the
whitespace provided fosters readability.
21

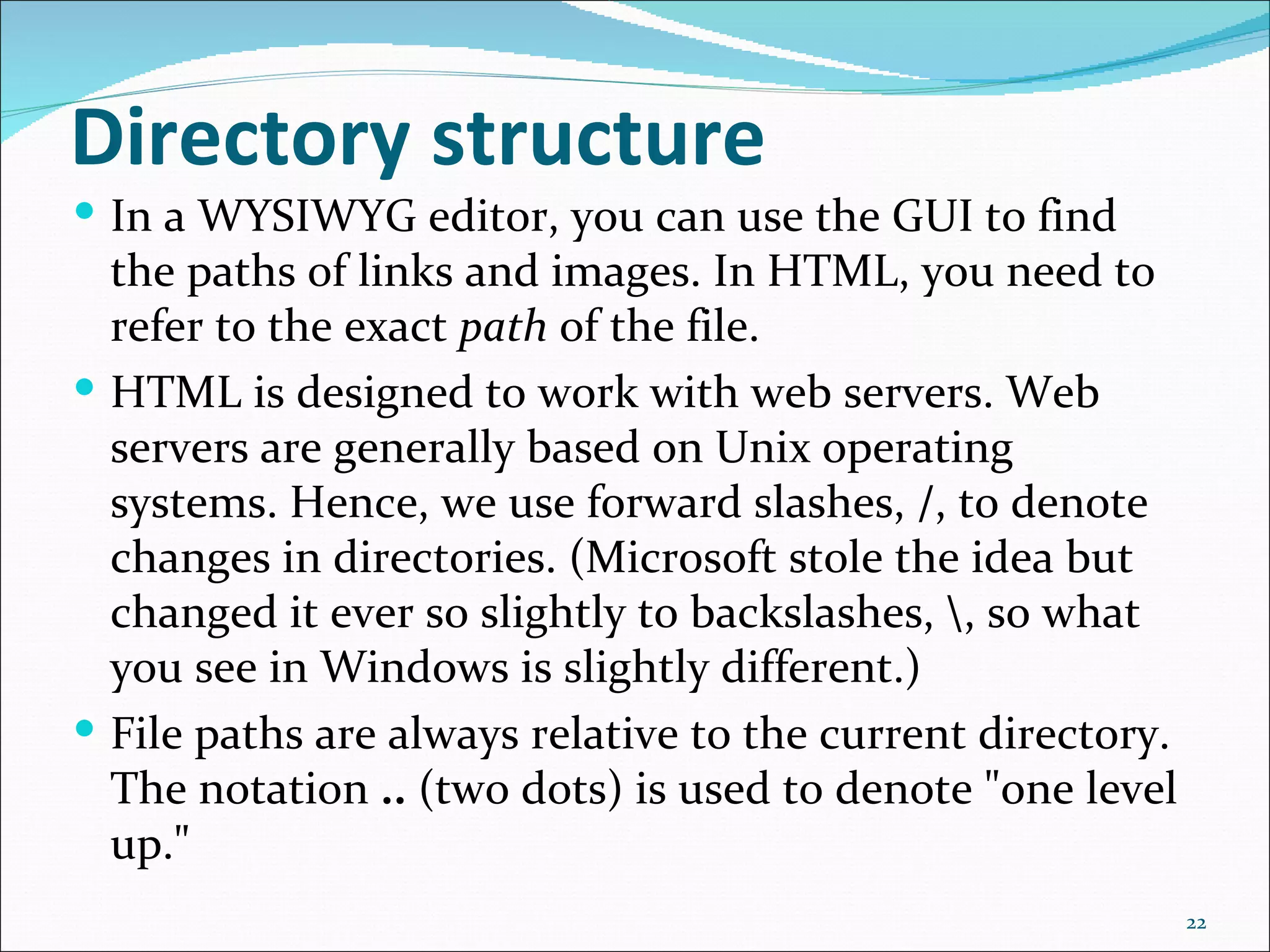

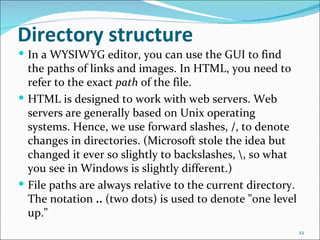

Directory structure
 In a WYSIWYG editor, you can use the GUI to find
the paths of links and images. In HTML, you need to
refer to the exact path of the file.
 HTML is designed to work with web servers. Web
servers are generally based on Unix operating
systems. Hence, we use forward slashes, /, to denote
changes in directories. (Microsoft stole the idea but
changed it ever so slightly to backslashes, , so what
you see in Windows is slightly different.)
 File paths are always relative to the current directory.
The notation .. (two dots) is used to denote "one level
up."
22

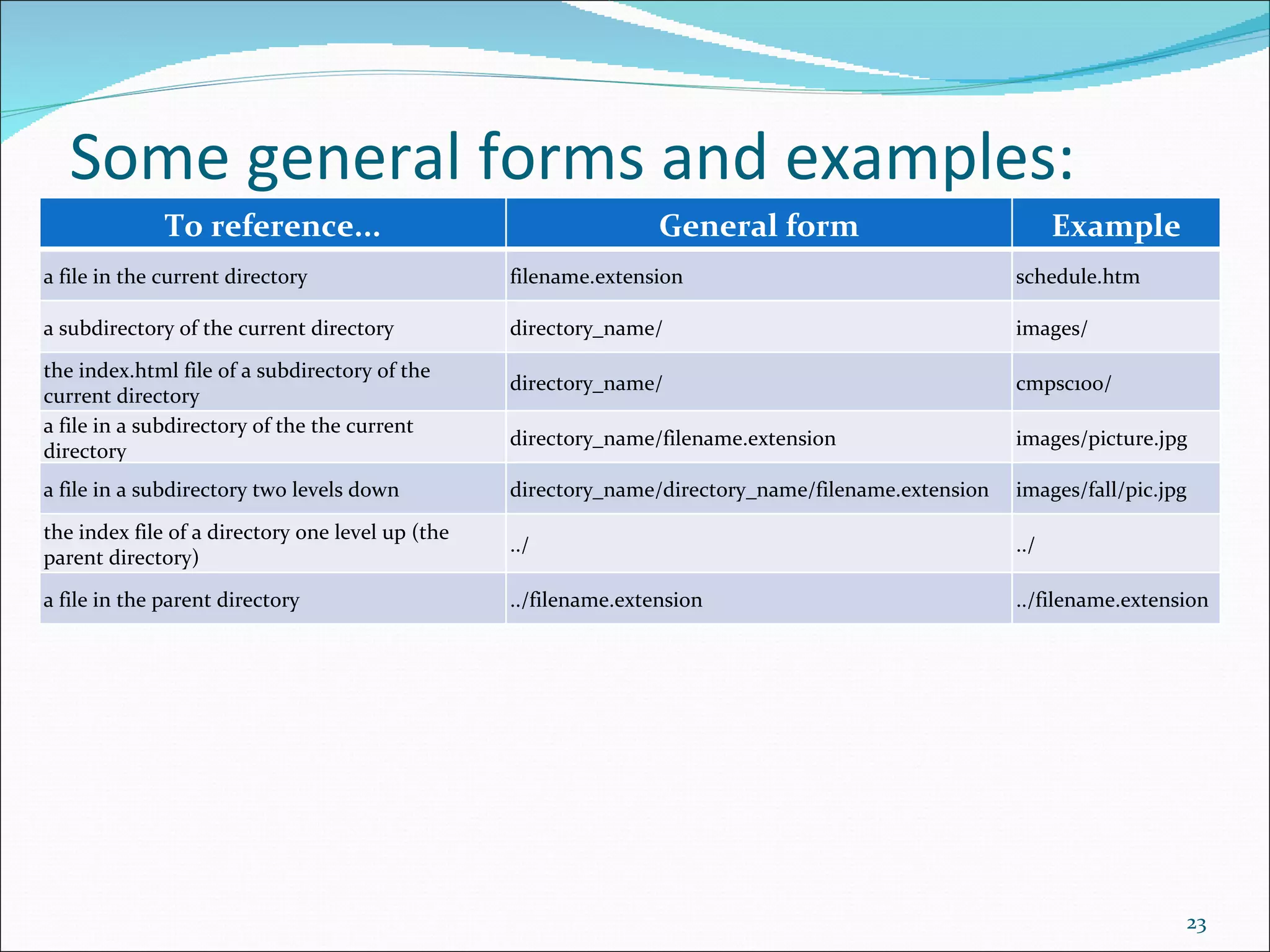

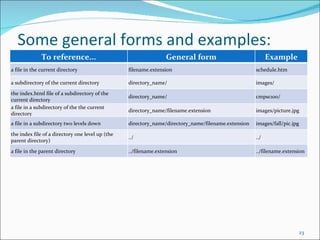

Some general forms and examples:
To reference... General form Example
a file in the current directory filename.extension schedule.htm

a subdirectory of the current directory directory_name/ images/

the index.html file of a subdirectory of the
directory_name/ cmpsc100/
current directory
a file in a subdirectory of the the current
directory_name/filename.extension images/picture.jpg
directory
a file in a subdirectory two levels down directory_name/directory_name/filename.extension images/fall/pic.jpg

the index file of a directory one level up (the
../ ../
parent directory)

a file in the parent directory ../filename.extension ../filename.extension

23

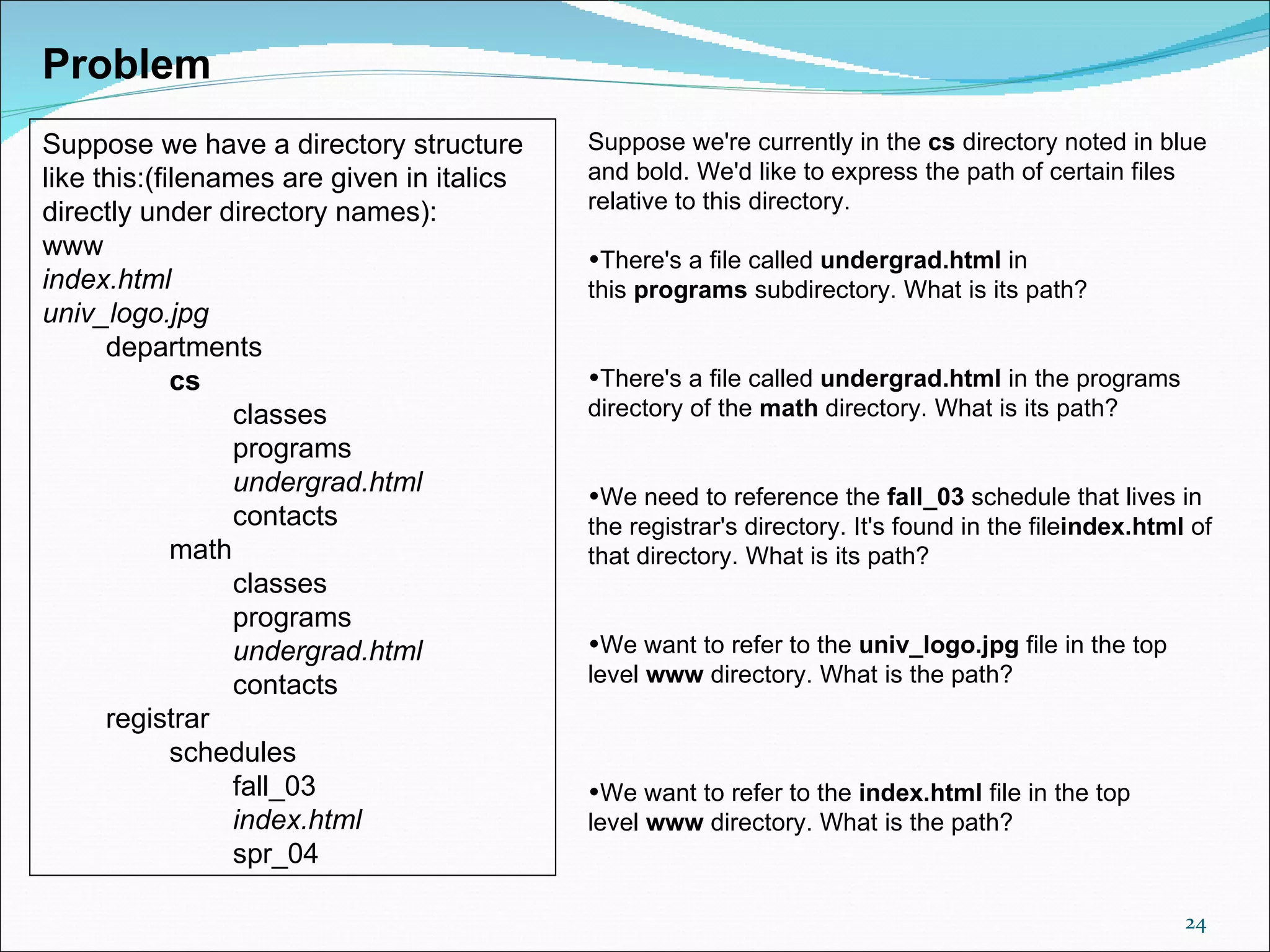

Problem
Suppose we have a directory structure Suppose we're currently in the cs directory noted in blue
like this:(filenames are given in italics and bold. We'd like to express the path of certain files
directly under directory names): relative to this directory.
www •There's a file called undergrad.html in
index.html this programs subdirectory. What is its path?
departments
cs •There's a file called undergrad.html in the programs
classes directory of the math directory. What is its path?
programs
undergrad.html •We need to reference the fall_03 schedule that lives in
contacts the registrar's directory. It's found in the fileindex.html of
math that directory. What is its path?
classes
programs
undergrad.html •We want to refer to the univ_logo.jpg file in the top
contacts level www directory. What is the path?
registrar
schedules
fall_03 •We want to refer to the index.html file in the top
index.html level www directory. What is the path?
spr_04

24

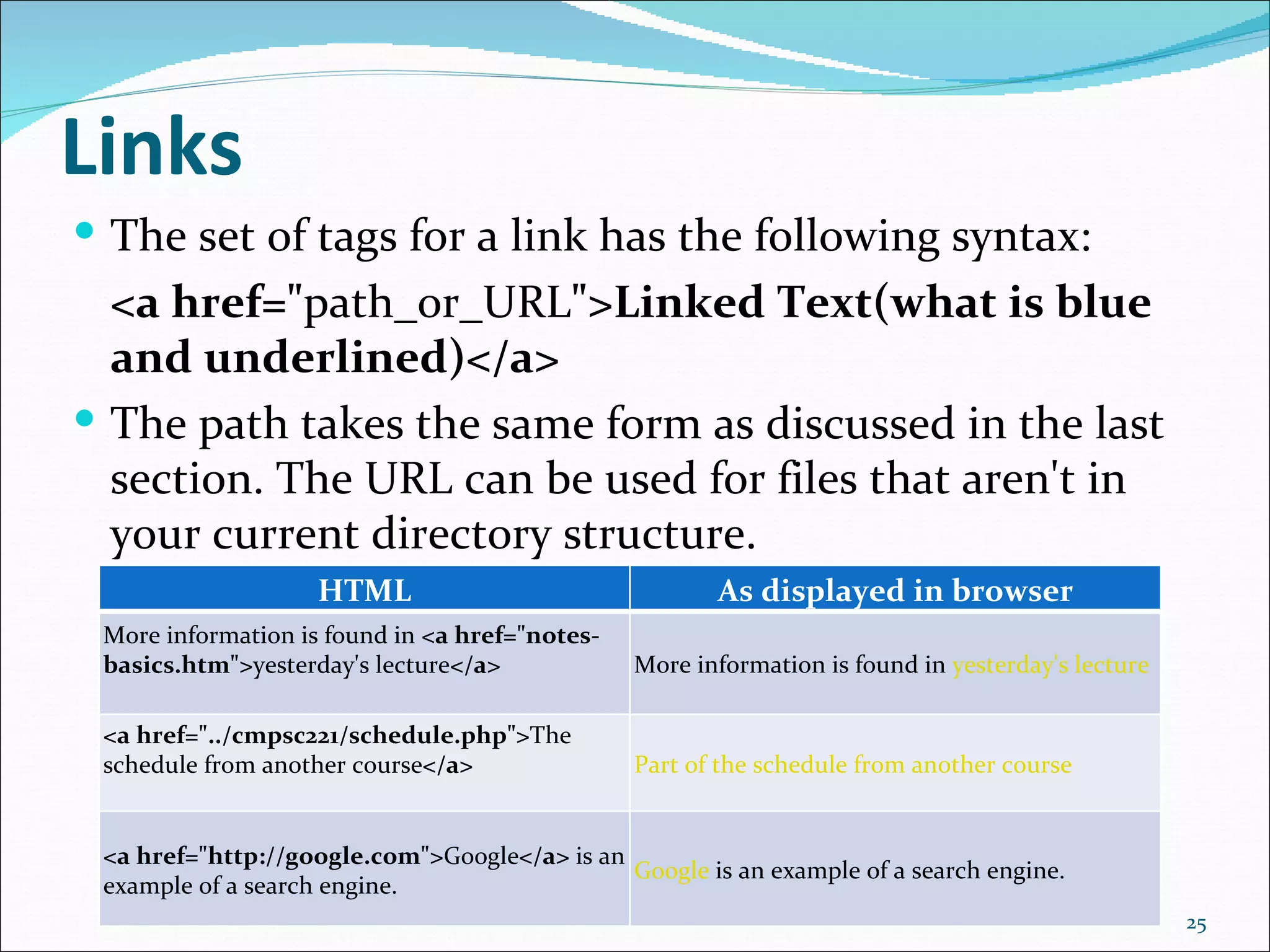

Links
 The set of tags for a link has the following syntax:
<a href="path_or_URL">Linked Text(what is blue
and underlined)</a>
 The path takes the same form as discussed in the last
section. The URL can be used for files that aren't in
your current directory structure.
More information is found in <a href="notes-
basics.htm">yesterday's lecture</a> More information is found in yesterday's lecture

<a href="../cmpsc221/schedule.php">The
schedule from another course</a> Part of the schedule from another course

<a href="http://google.com">Google</a> is an
Google is an example of a search engine.
example of a search engine.
25

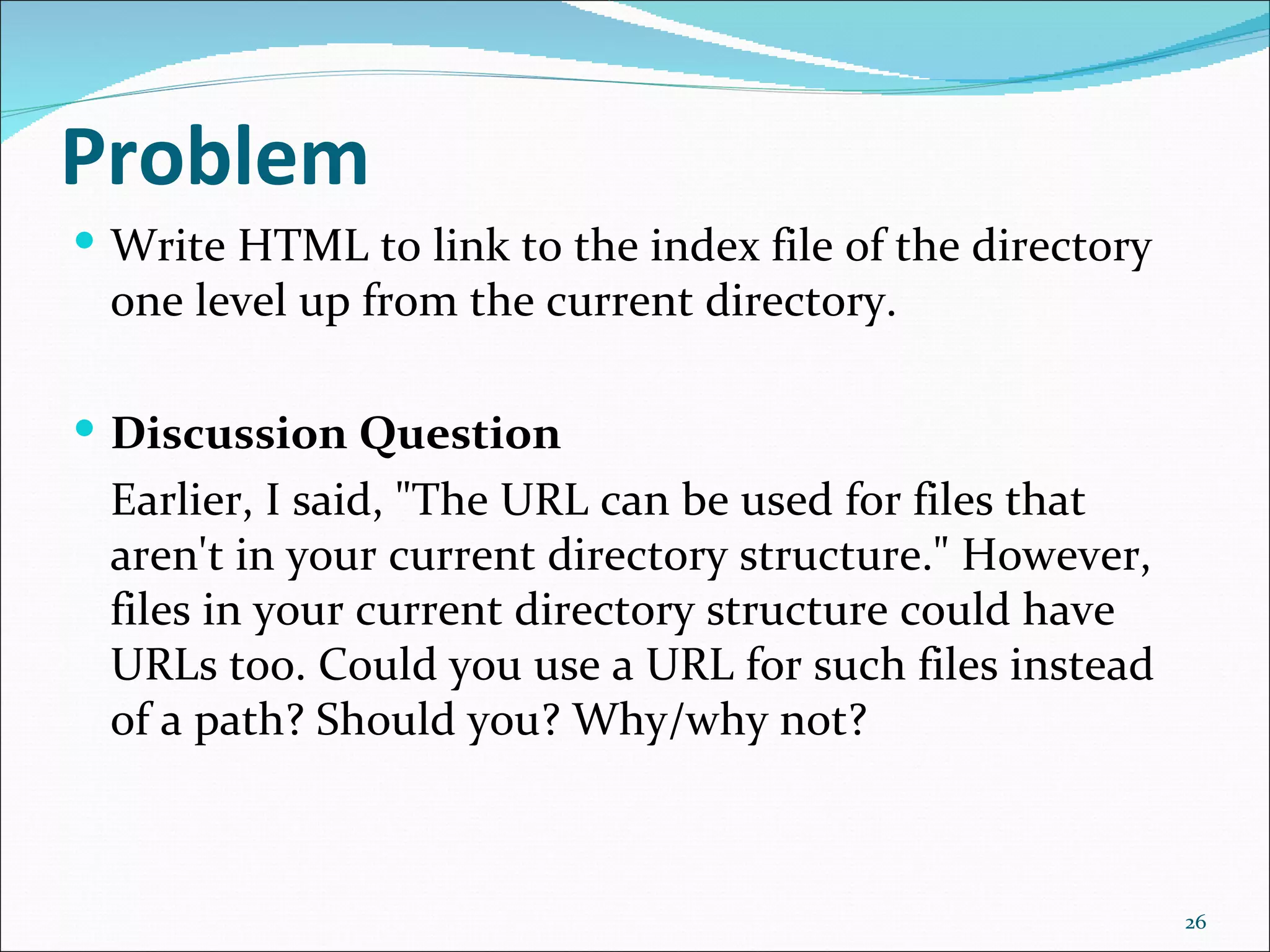

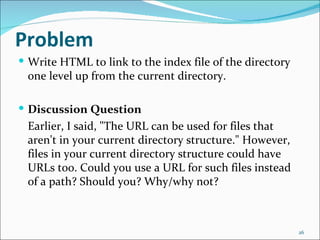

Problem
 Write HTML to link to the index file of the directory
one level up from the current directory.

 Discussion Question
Earlier, I said, "The URL can be used for files that
aren't in your current directory structure." However,
files in your current directory structure could have
URLs too. Could you use a URL for such files instead
of a path? Should you? Why/why not?

26

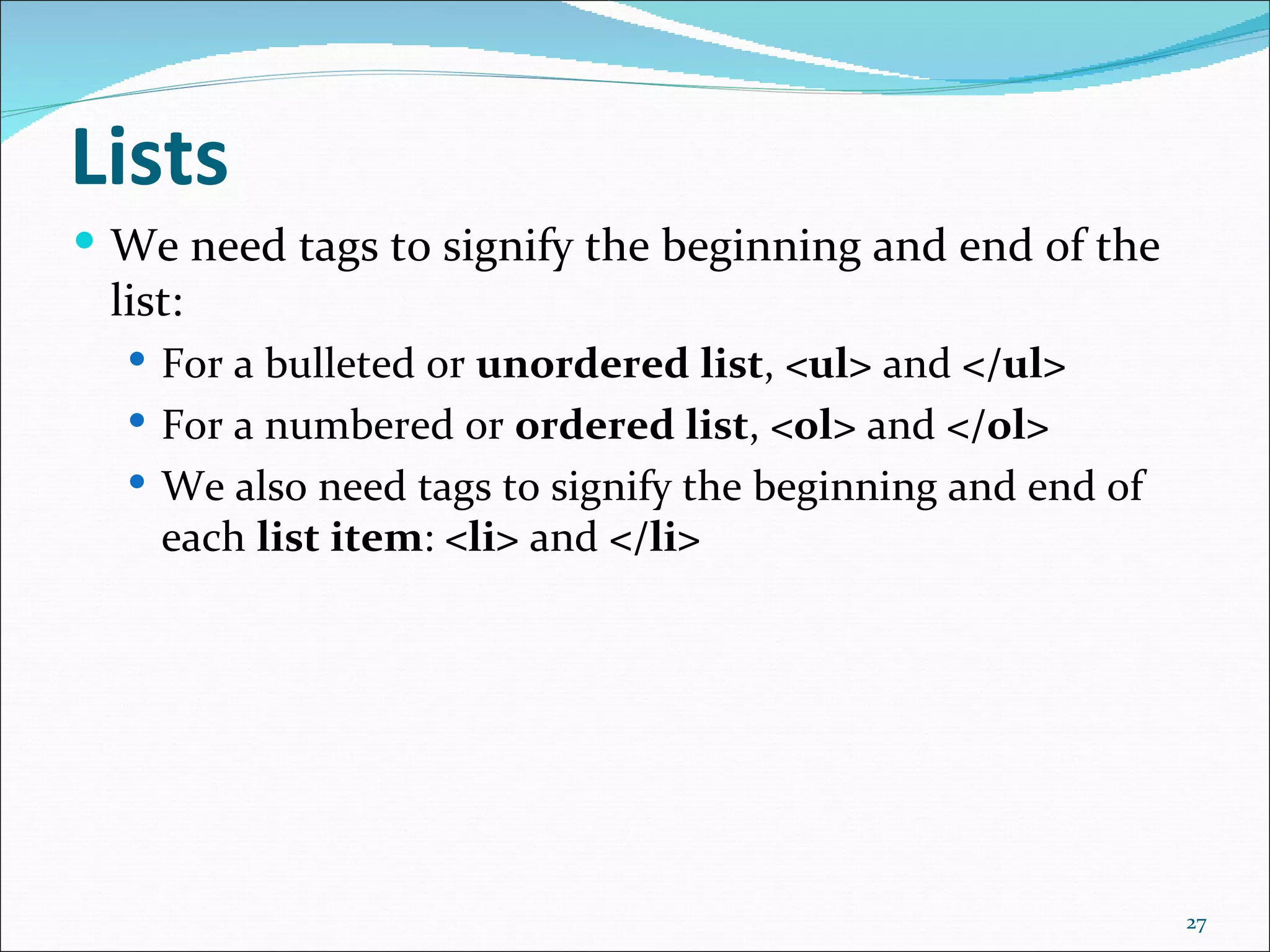

Lists
 We need tags to signify the beginning and end of the
list:
 For a bulleted or unordered list, <ul> and </ul>
 For a numbered or ordered list, <ol> and </ol>
 We also need tags to signify the beginning and end of
each list item: <li> and </li>

27

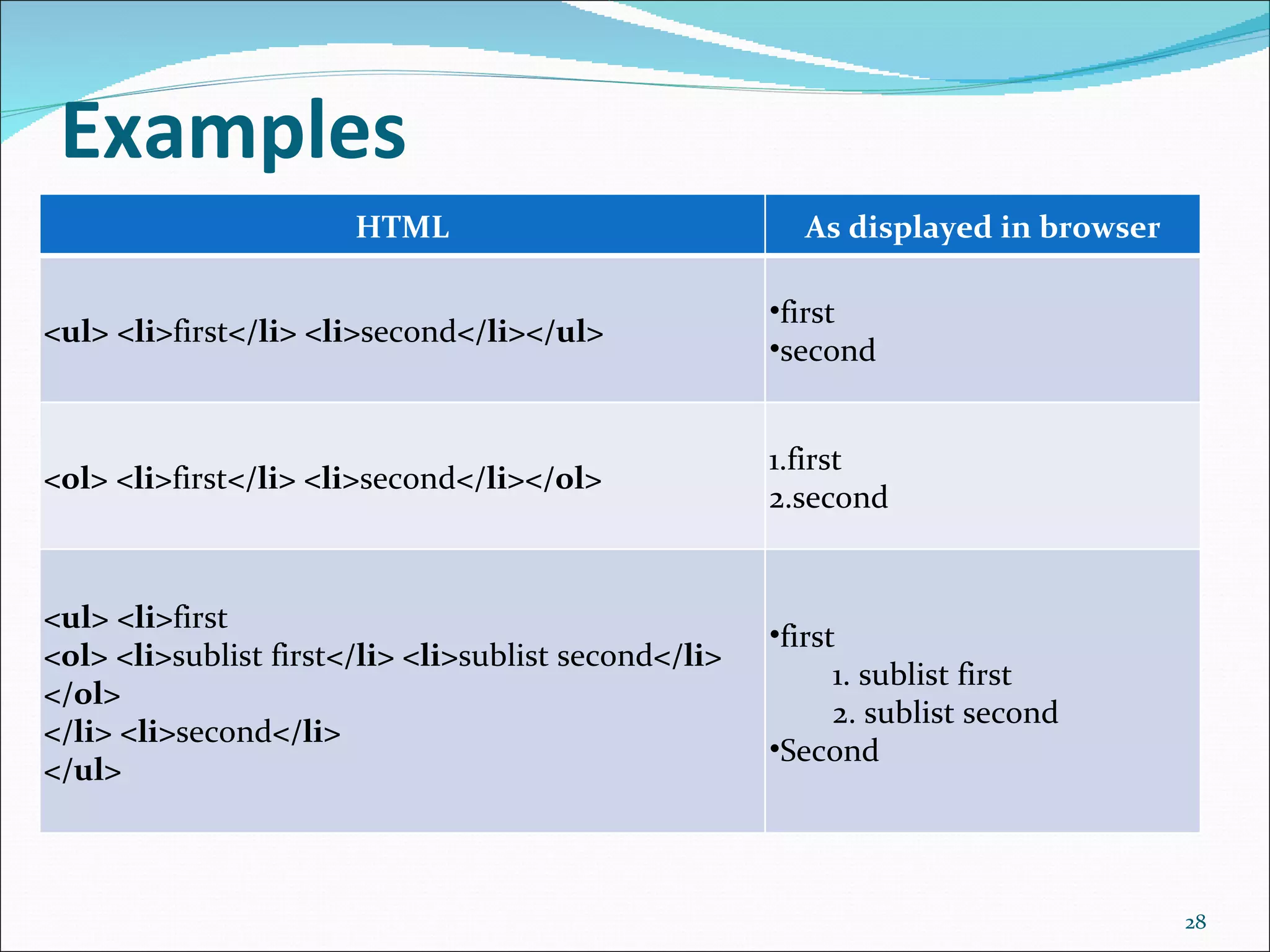

Examples

•first
<ul> <li>first</li> <li>second</li></ul>
•second

1.first
<ol> <li>first</li> <li>second</li></ol>
2.second

<ul> <li>first
•first
<ol> <li>sublist first</li> <li>sublist second</li>
1. sublist first
</ol>
2. sublist second
</li> <li>second</li>
•Second
</ul>

28

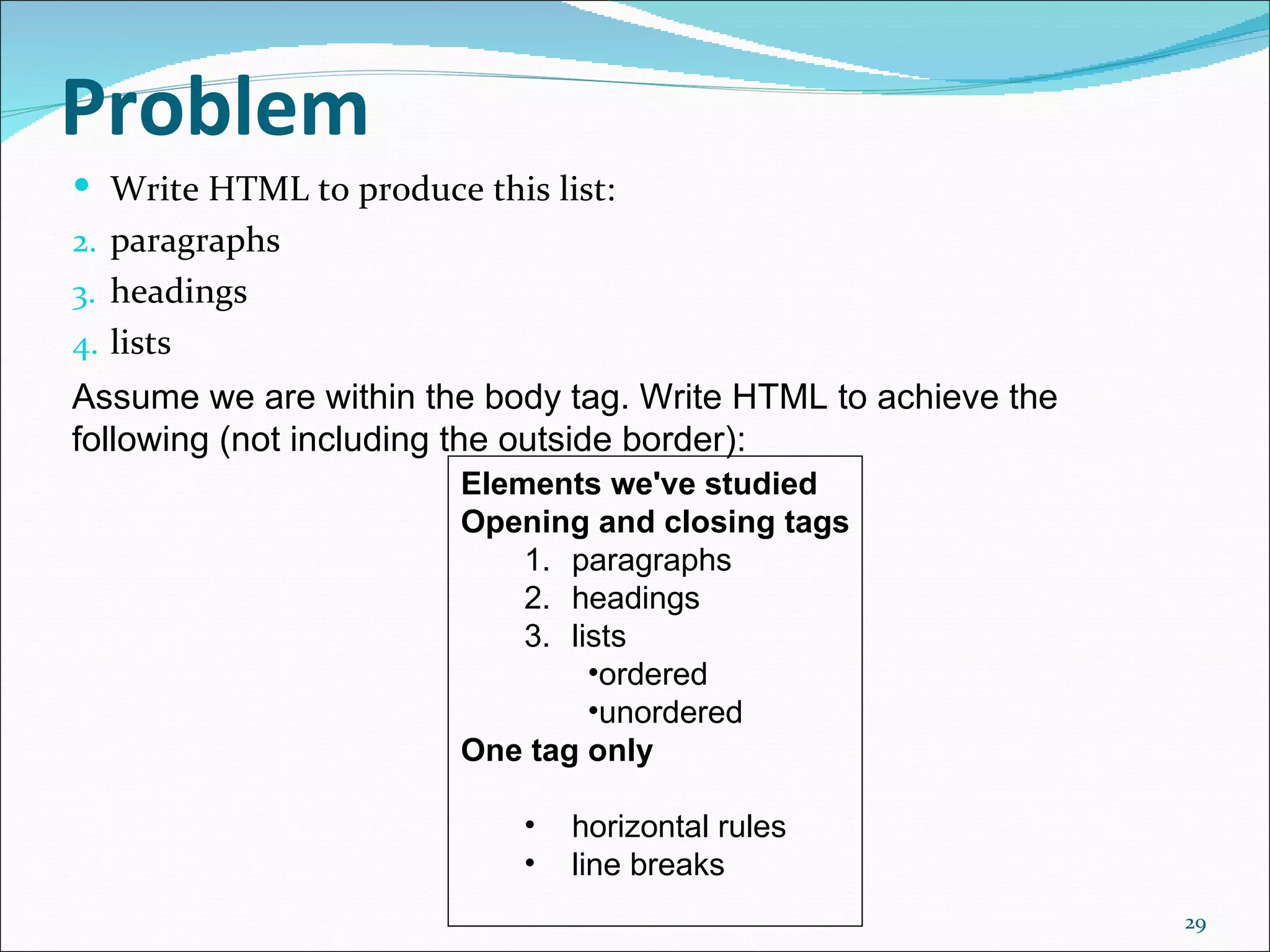

Problem
 Write HTML to produce this list:
2. paragraphs
3. headings
4. lists
Assume we are within the body tag. Write HTML to achieve the
following (not including the outside border):
Elements we've studied
Opening and closing tags
1. paragraphs
2. headings
3. lists
•ordered
•unordered
One tag only

• horizontal rules
• line breaks
29

Text Formatting in HTML
 Basic Toggled Formats
 First, recall the and tags for bold and italics...
Bold example

This is a sentence with some bold
This is a sentence with some bold text.
text.

There's a to say "start bold formatting here." The says "stop bold
formatting here."

Notice that the tags are the same, except that there's a forward slash (/) in the
closing tag.

30

 Italics
Similarly, the tags for italics are and . Example:
some kind of interpreter that reads some kind of interpreter that reads

Caution!
Watch that you have a closing tag to go along with the opening tag.
Watch that the closing tag has the /
31

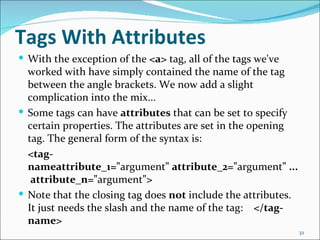

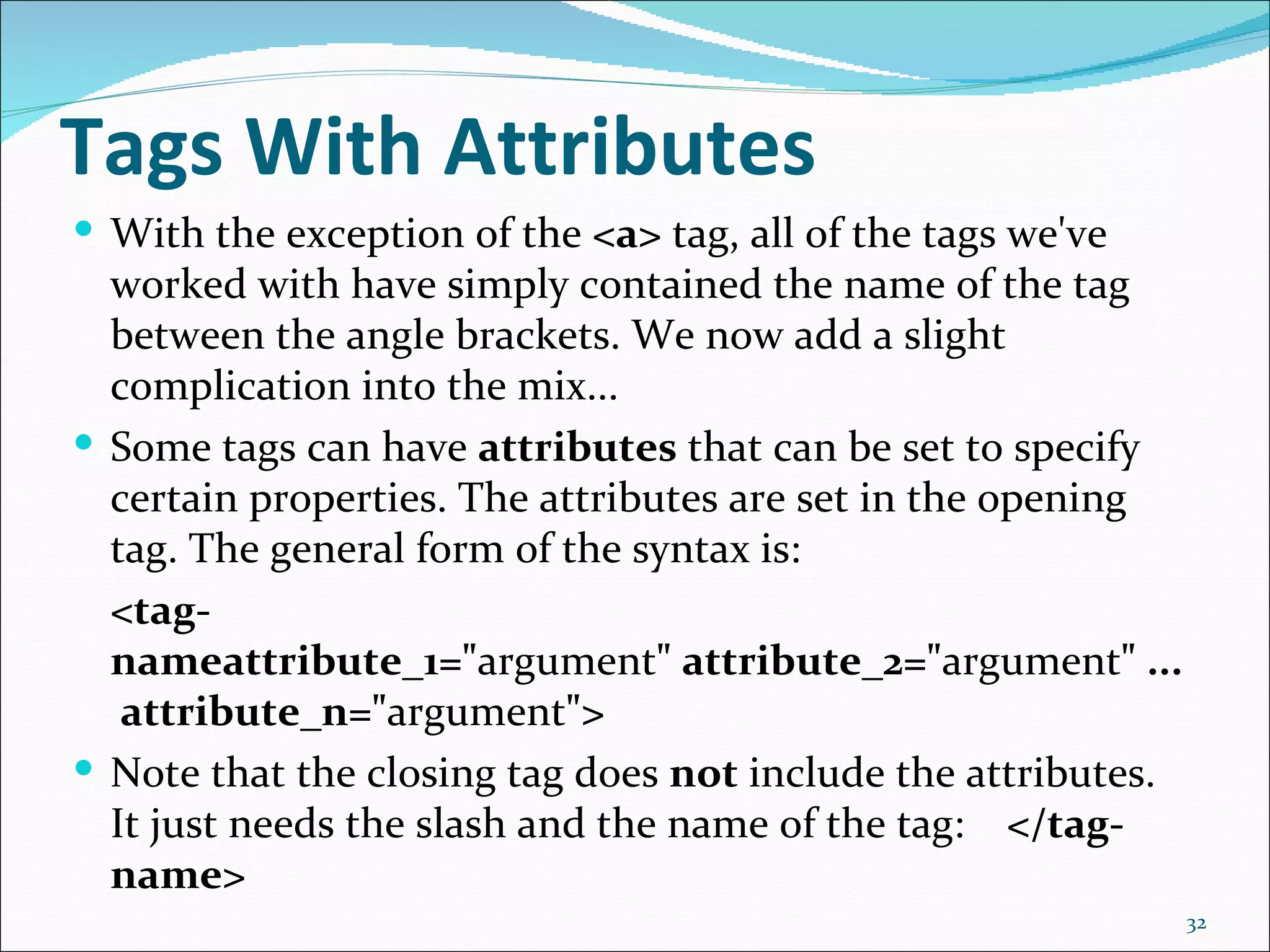

Tags With Attributes
 With the exception of the <a> tag, all of the tags we've
worked with have simply contained the name of the tag
between the angle brackets. We now add a slight
complication into the mix...
 Some tags can have attributes that can be set to specify
certain properties. The attributes are set in the opening
tag. The general form of the syntax is:
<tag-
nameattribute_1="argument" attribute_2="argument" ...
attribute_n="argument">
 Note that the closing tag does not include the attributes.
It just needs the slash and the name of the tag: </tag-
name>
32

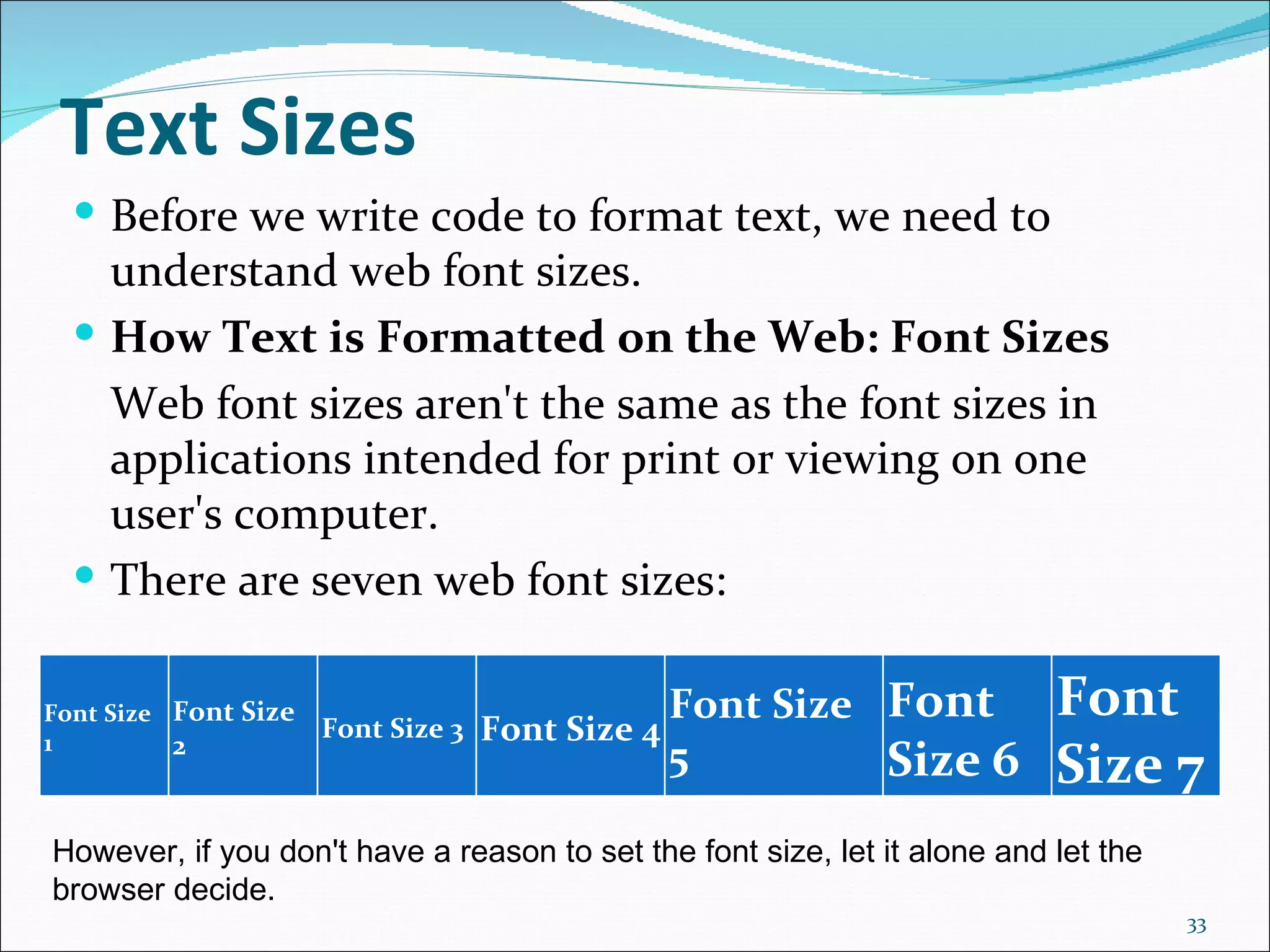

Text Sizes
 Before we write code to format text, we need to
understand web font sizes.
 How Text is Formatted on the Web: Font Sizes
Web font sizes aren't the same as the font sizes in
applications intended for print or viewing on one
user's computer.
 There are seven web font sizes:

Font Size Font Size
Font Size 3 Font Size 4
Font Size Font Font
1 2 5 Size 6 Size 7
However, if you don't have a reason to set the font size, let it alone and let the
browser decide.
33

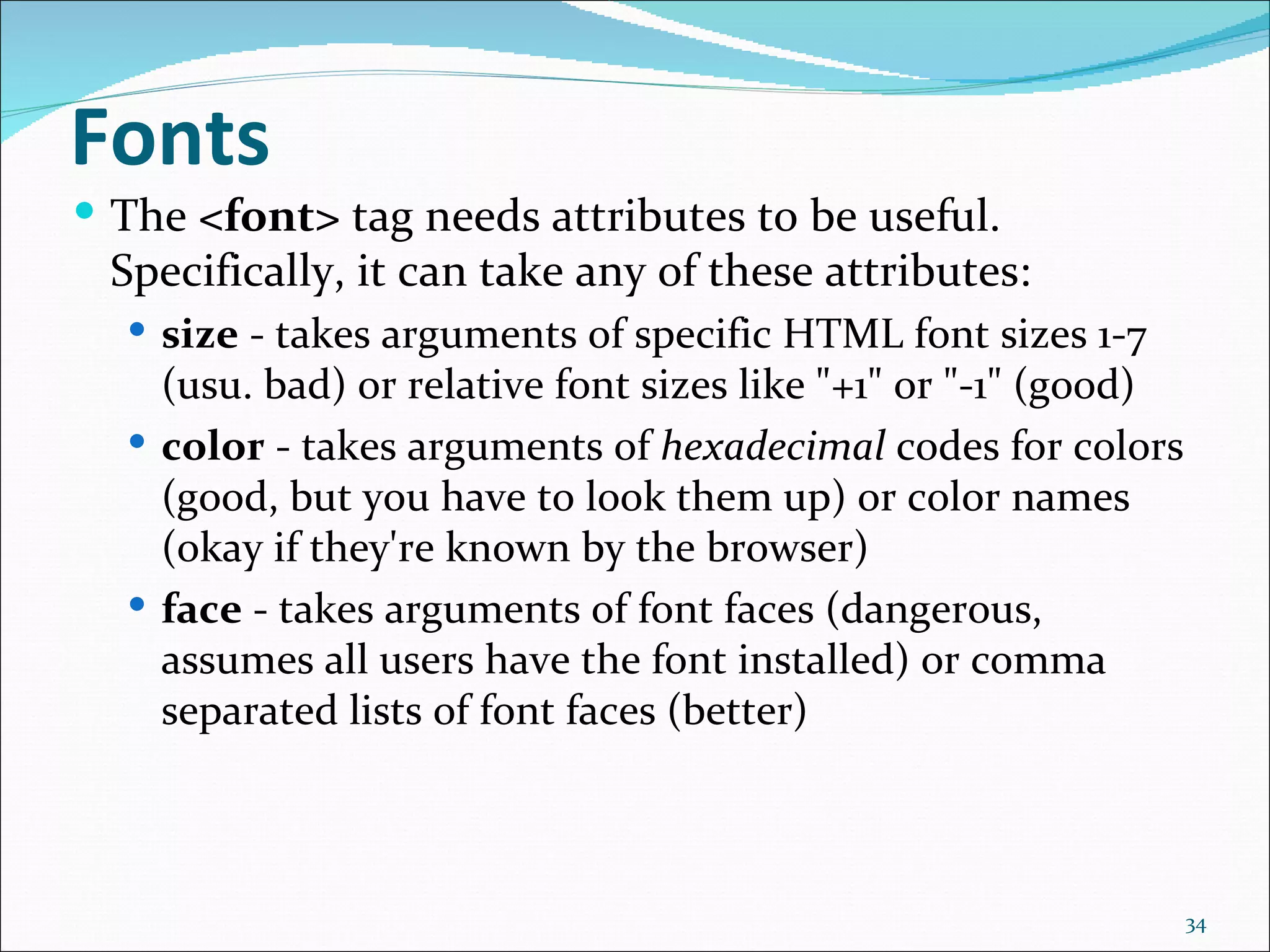

Fonts
 The tag needs attributes to be useful.
Specifically, it can take any of these attributes:
 size - takes arguments of specific HTML font sizes 1-7
(usu. bad) or relative font sizes like "+1" or "-1" (good)
 color - takes arguments of hexadecimal codes for colors
(good, but you have to look them up) or color names
(okay if they're known by the browser)
 face - takes arguments of font faces (dangerous,
assumes all users have the font installed) or comma
separated lists of font faces (better)

34

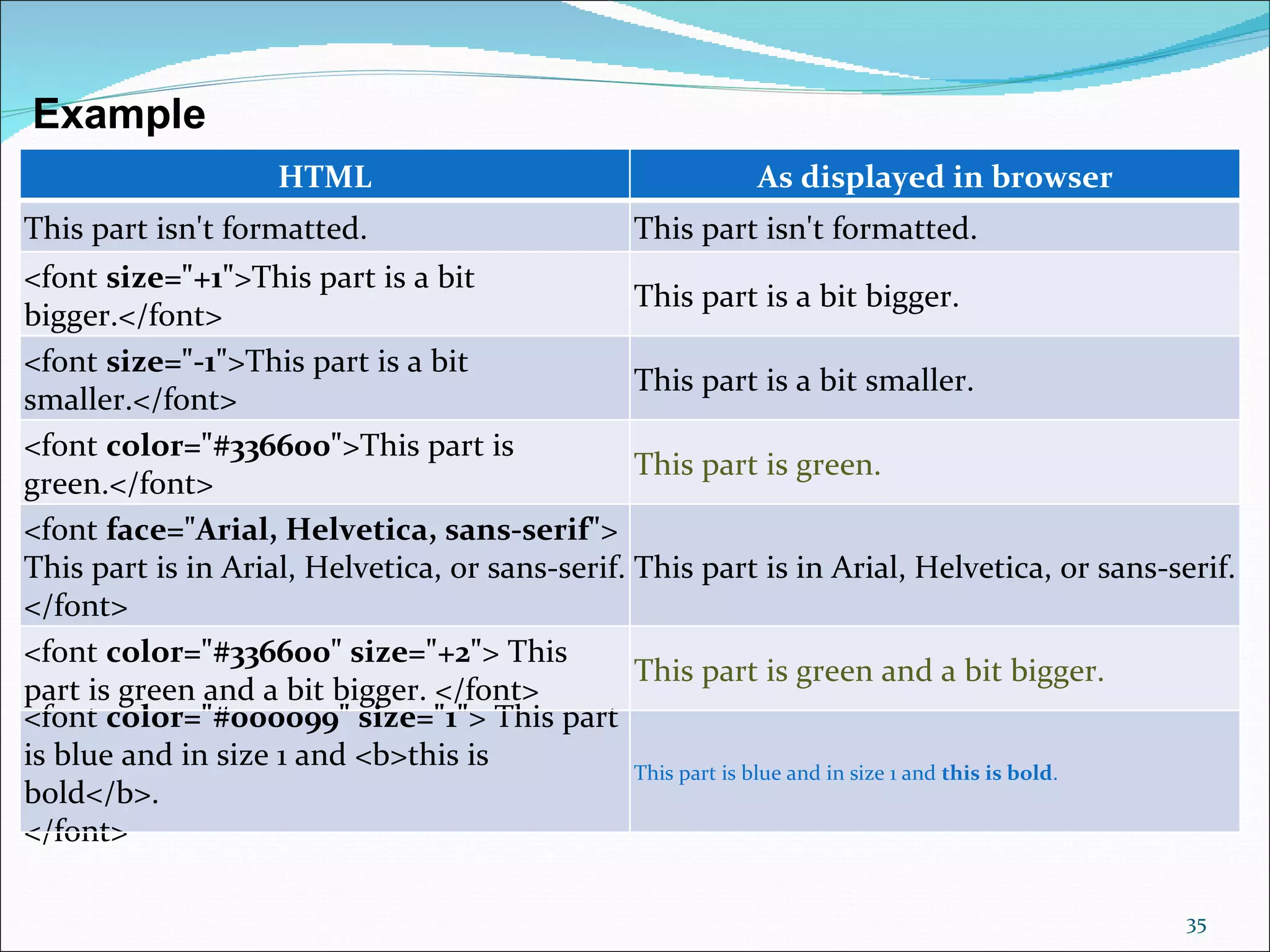

Example
This part isn't formatted. This part isn't formatted.
This part is a bit
This part is a bit bigger.
bigger.
This part is a bit
This part is a bit smaller.
smaller.
This part is
This part is green.
green.

This part is in Arial, Helvetica, or sans-serif. This part is in Arial, Helvetica, or sans-serif.

 This
This part is green and a bit bigger.
part is green and a bit bigger.
 This part
is blue and in size 1 and this is This part is blue and in size 1 and this is bold.
bold.


35

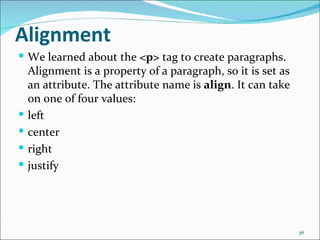

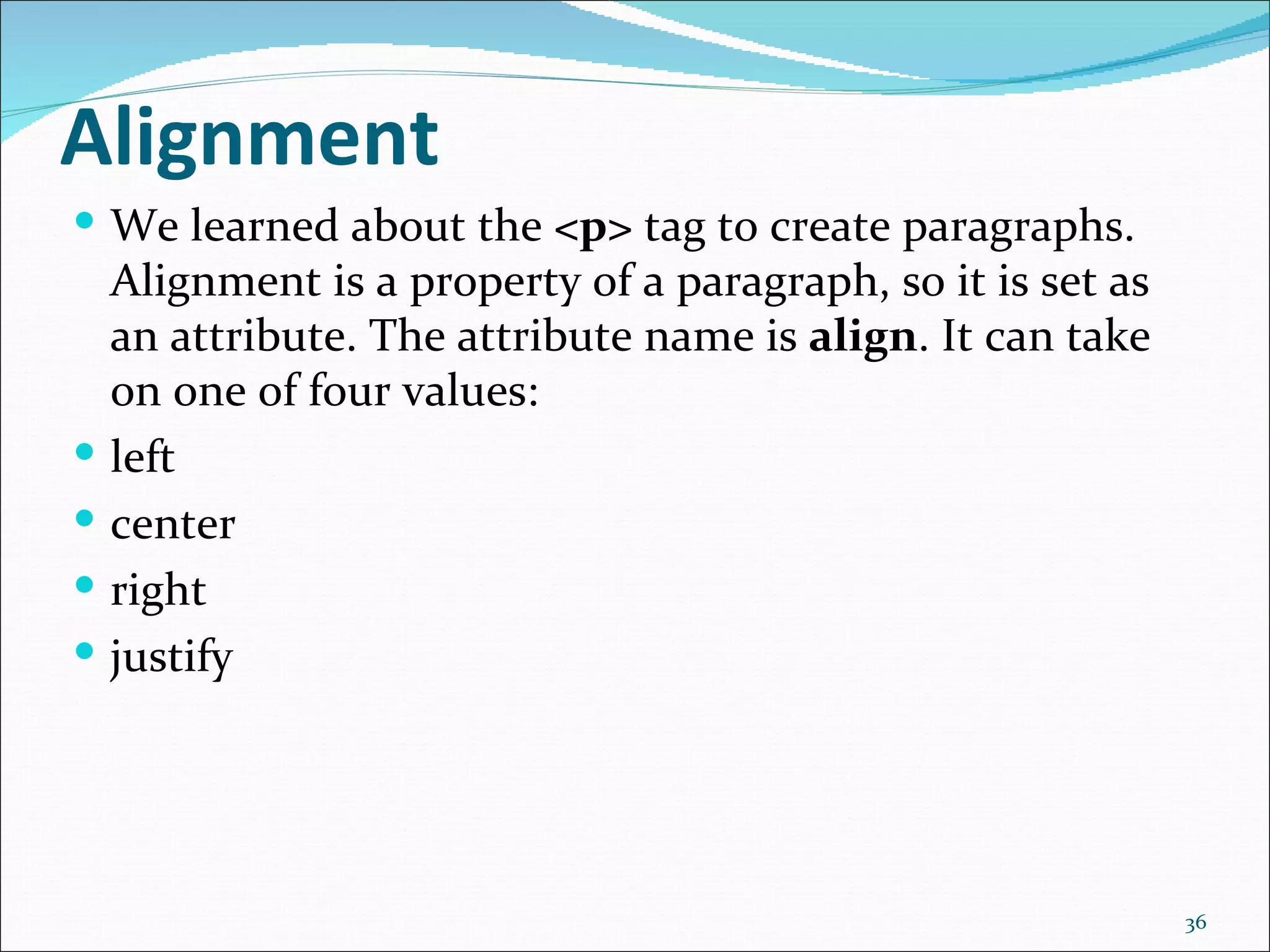

Alignment
 We learned about the tag to create paragraphs.
Alignment is a property of a paragraph, so it is set as
an attribute. The attribute name is align. It can take
on one of four values:
 left
 center
 right
 justify

36

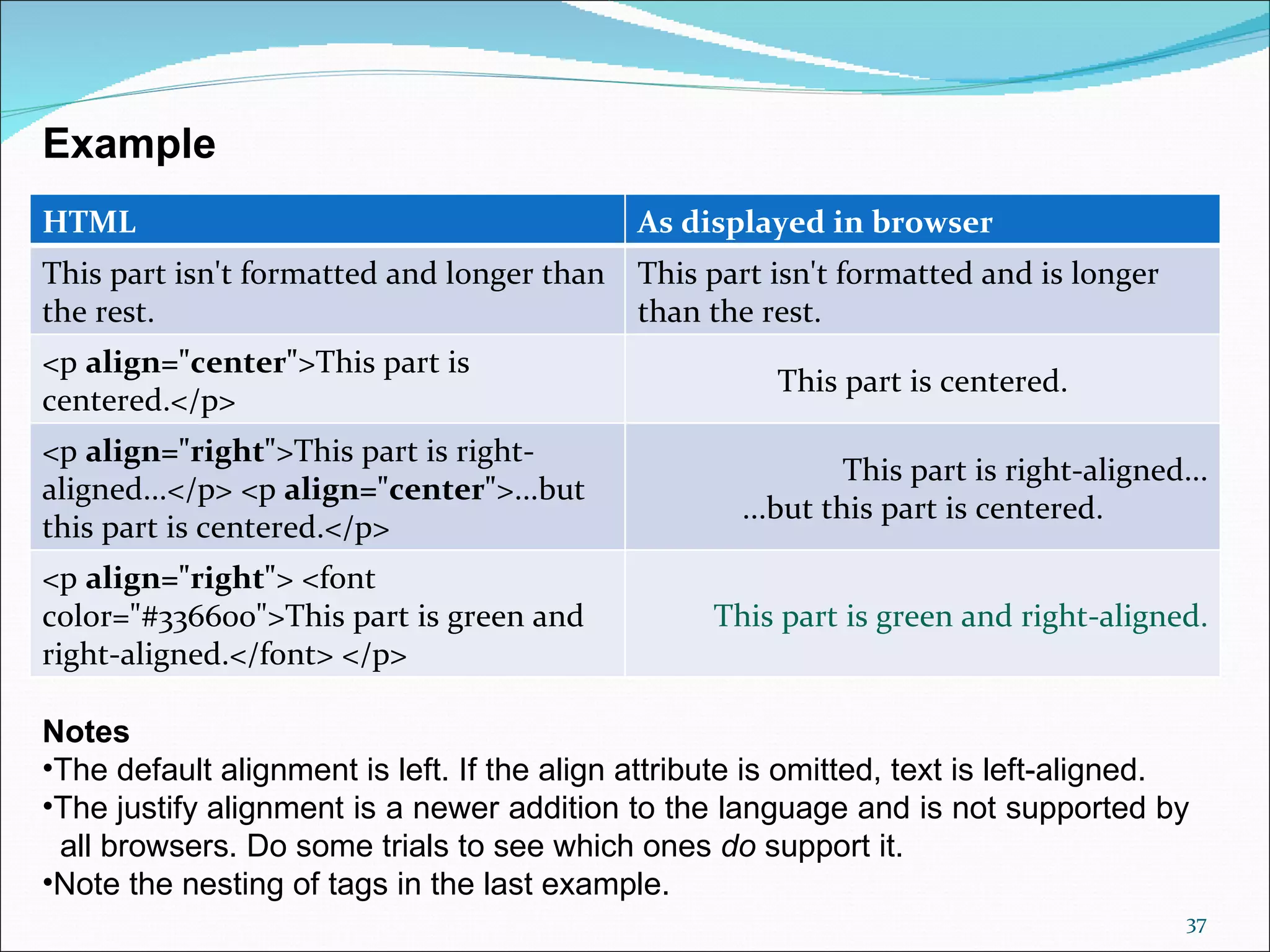

Example
This part isn't formatted and longer than This part isn't formatted and is longer
the rest. than the rest.
This part is
This part is centered.
centered.
This part is right-
This part is right-aligned...
aligned... ...but
...but this part is centered.
this part is centered.
 This part is green and This part is green and right-aligned.
right-aligned.

Notes
•The default alignment is left. If the align attribute is omitted, text is left-aligned.
•The justify alignment is a newer addition to the language and is not supported by
all browsers. Do some trials to see which ones do support it.
•Note the nesting of tags in the last example.
37

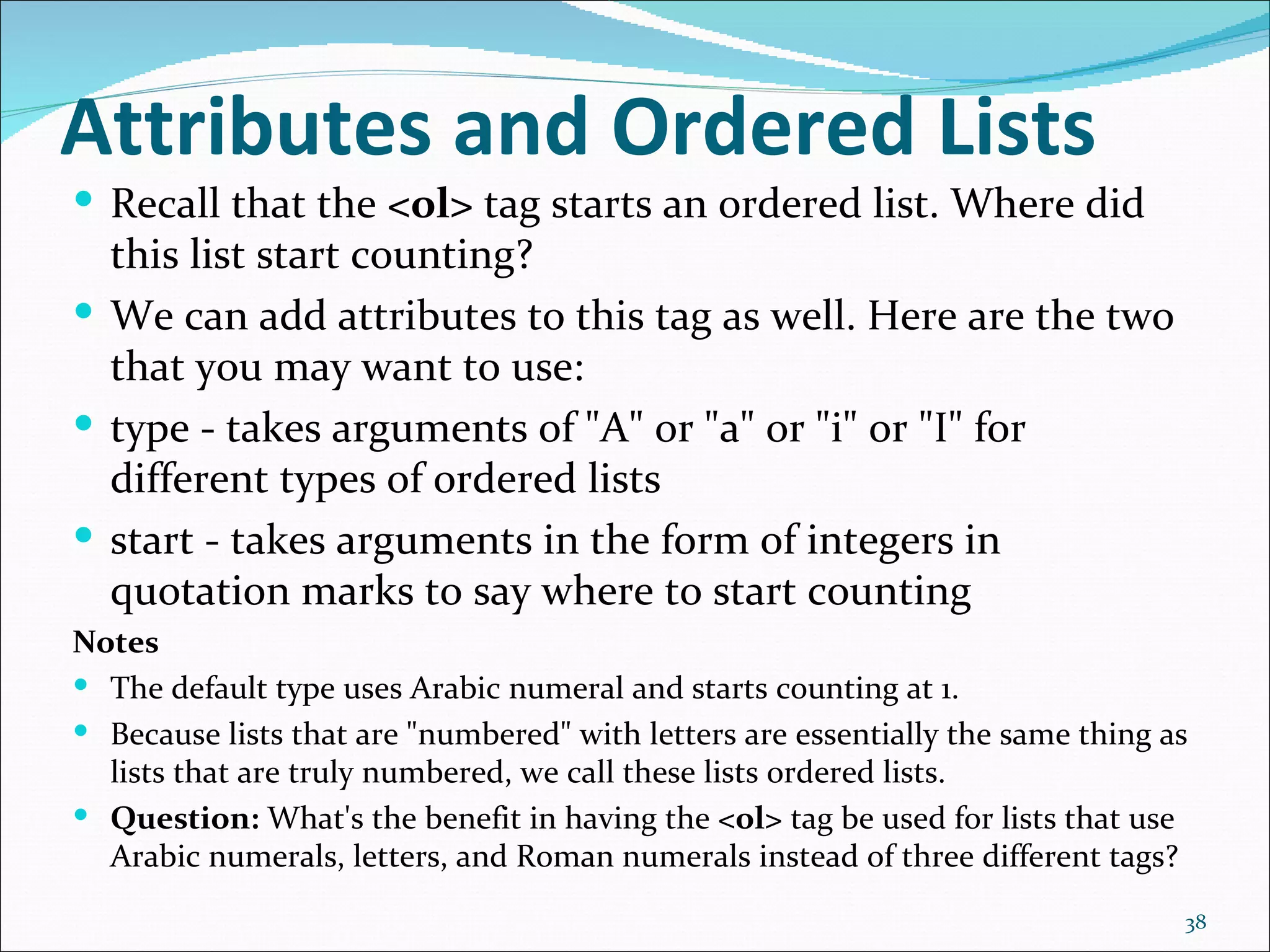

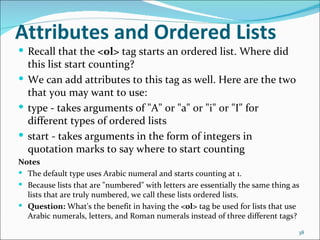

Attributes and Ordered Lists
 Recall that the <ol> tag starts an ordered list. Where did
this list start counting?
 We can add attributes to this tag as well. Here are the two
that you may want to use:
 type - takes arguments of "A" or "a" or "i" or "I" for
different types of ordered lists
 start - takes arguments in the form of integers in
quotation marks to say where to start counting
Notes
 The default type uses Arabic numeral and starts counting at 1.
 Because lists that are "numbered" with letters are essentially the same thing as
lists that are truly numbered, we call these lists ordered lists.
 Question: What's the benefit in having the <ol> tag be used for lists that use
Arabic numerals, letters, and Roman numerals instead of three different tags?
38

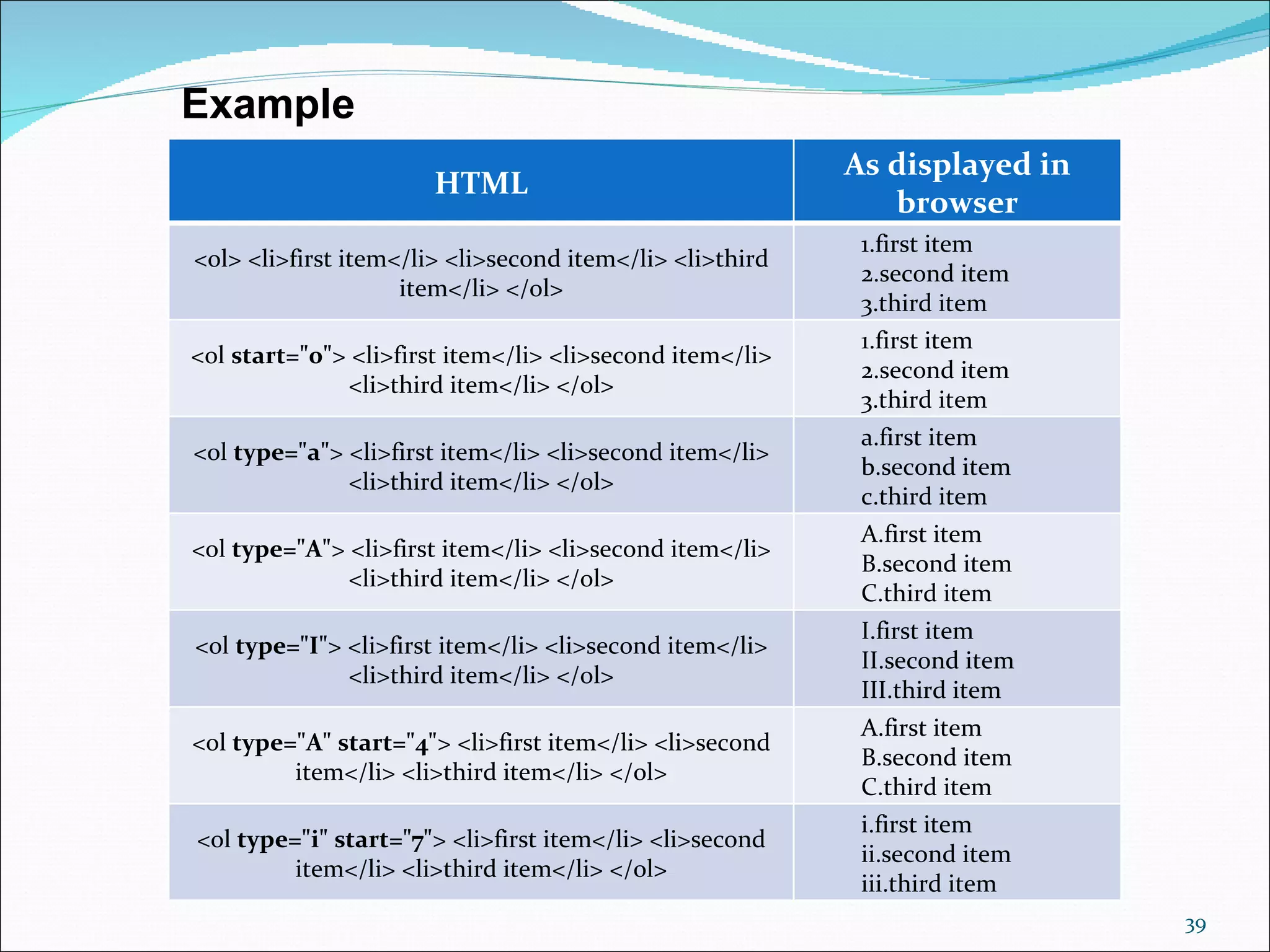

Example
As displayed in
HTML
browser
1.first item
<ol> <li>first item</li> <li>second item</li> <li>third
2.second item
item</li> </ol>
3.third item
1.first item
<ol start="0"> <li>first item</li> <li>second item</li>
2.second item
<li>third item</li> </ol>
3.third item
a.first item
<ol type="a"> <li>first item</li> <li>second item</li>
b.second item
c.third item
A.first item
<ol type="A"> <li>first item</li> <li>second item</li>
B.second item
C.third item
I.first item
<ol type="I"> <li>first item</li> <li>second item</li>
II.second item
III.third item
A.first item
<ol type="A" start="4"> <li>first item</li> <li>second
B.second item
item</li> <li>third item</li> </ol>
C.third item
i.first item
<ol type="i" start="7"> <li>first item</li> <li>second
ii.second item
item</li> <li>third item</li> </ol>
iii.third item
39

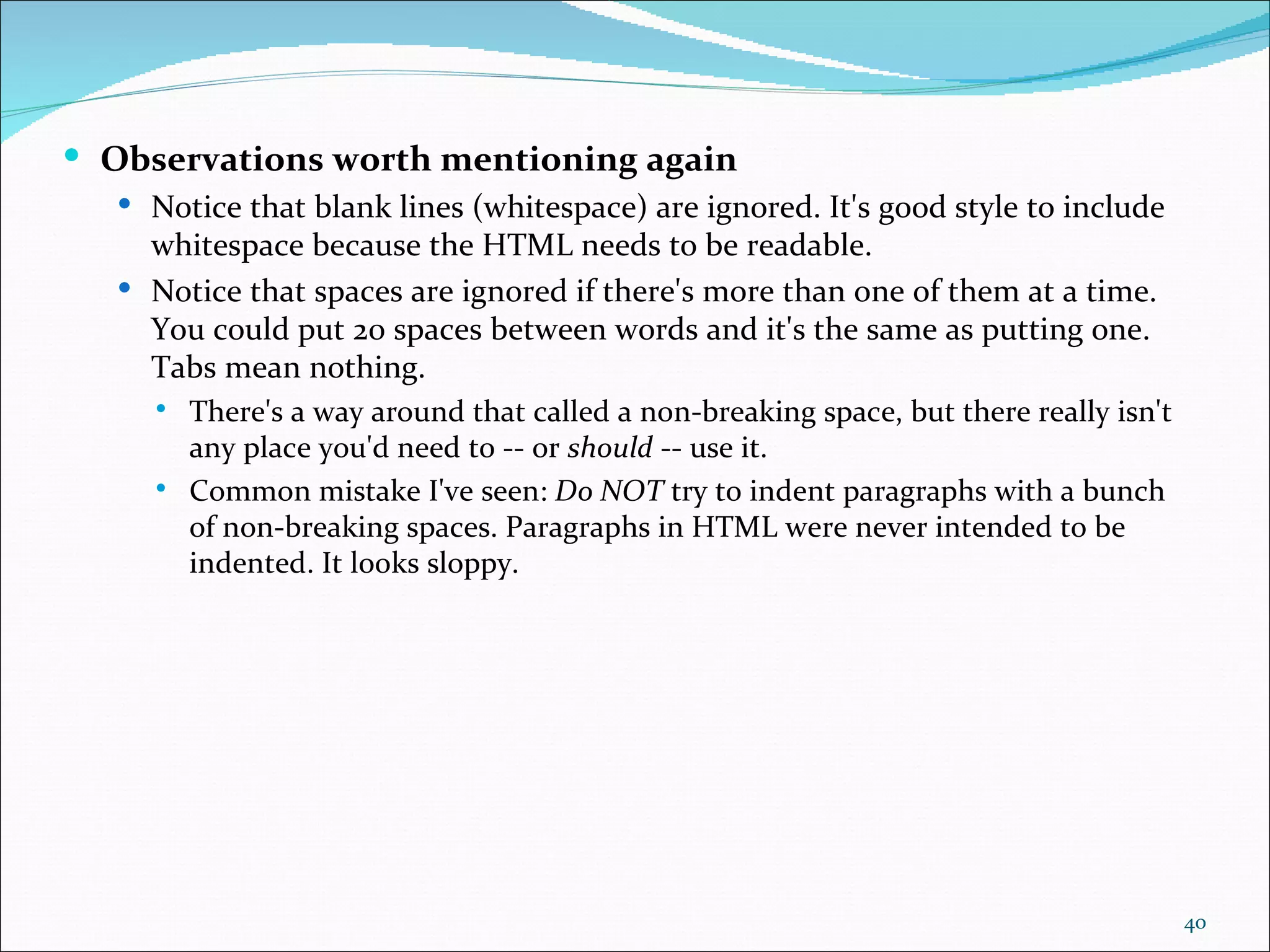

 Observations worth mentioning again
 Notice that blank lines (whitespace) are ignored. It's good style to include
whitespace because the HTML needs to be readable.
 Notice that spaces are ignored if there's more than one of them at a time.
You could put 20 spaces between words and it's the same as putting one.
Tabs mean nothing.
 There's a way around that called a non-breaking space, but there really isn't
any place you'd need to -- or should -- use it.
 Common mistake I've seen: Do NOT try to indent paragraphs with a bunch
of non-breaking spaces. Paragraphs in HTML were never intended to be
indented. It looks sloppy.

40

HTML

More Related Content

What's hot

Viewers also liked

Similar to HTML

Recently uploaded

HTML
