1. MeaNstack on Docker
-- Daniel Ku (http://kjunine.net/)

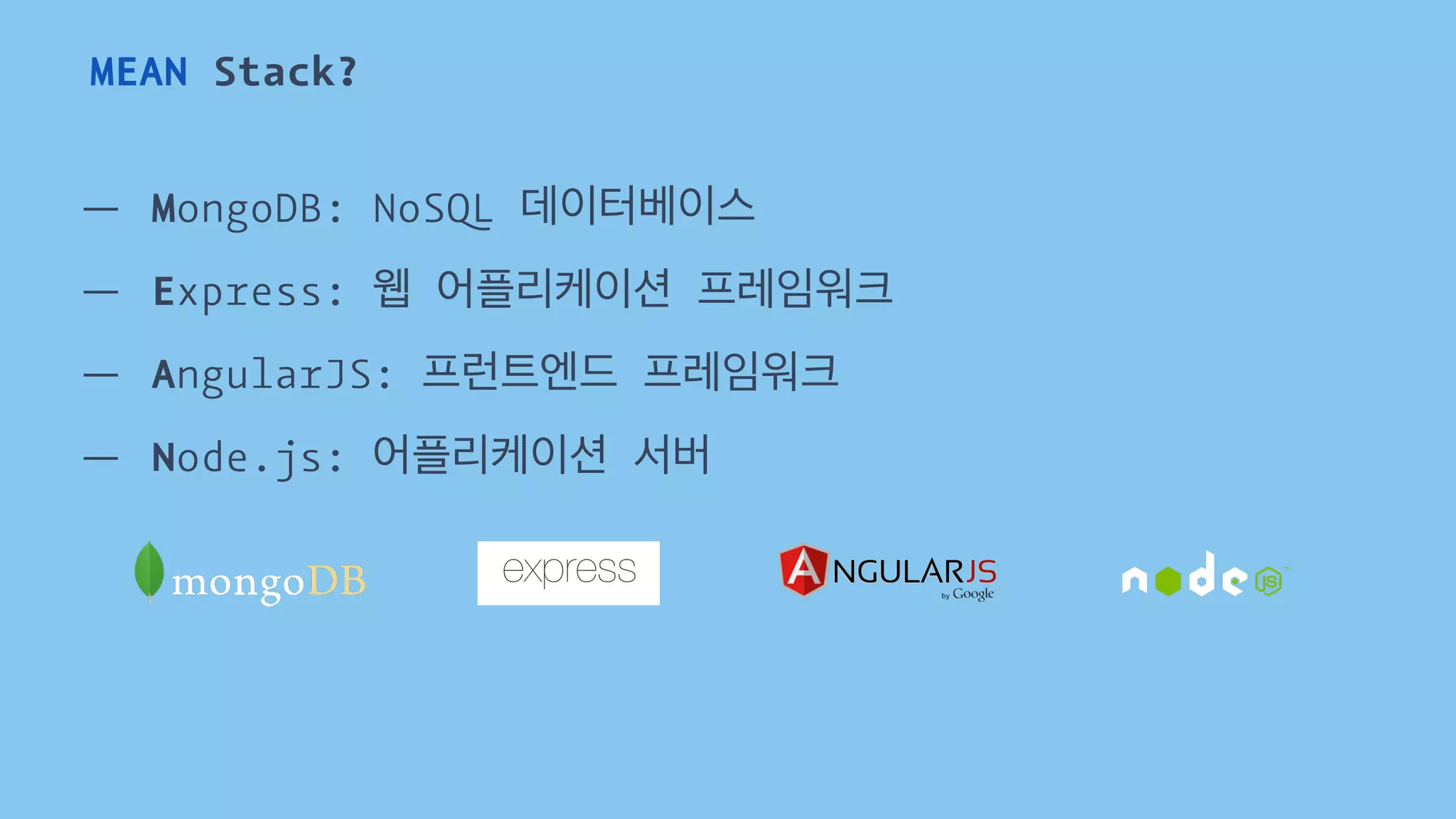

2. MEAN Stack?
— MongoDB: NoSQL 데이터베이스
— Express: 웹 어플리케이션 프레임워크
— AngularJS: 프런트엔드 프레임워크
— Node.js: 어플리케이션 서버

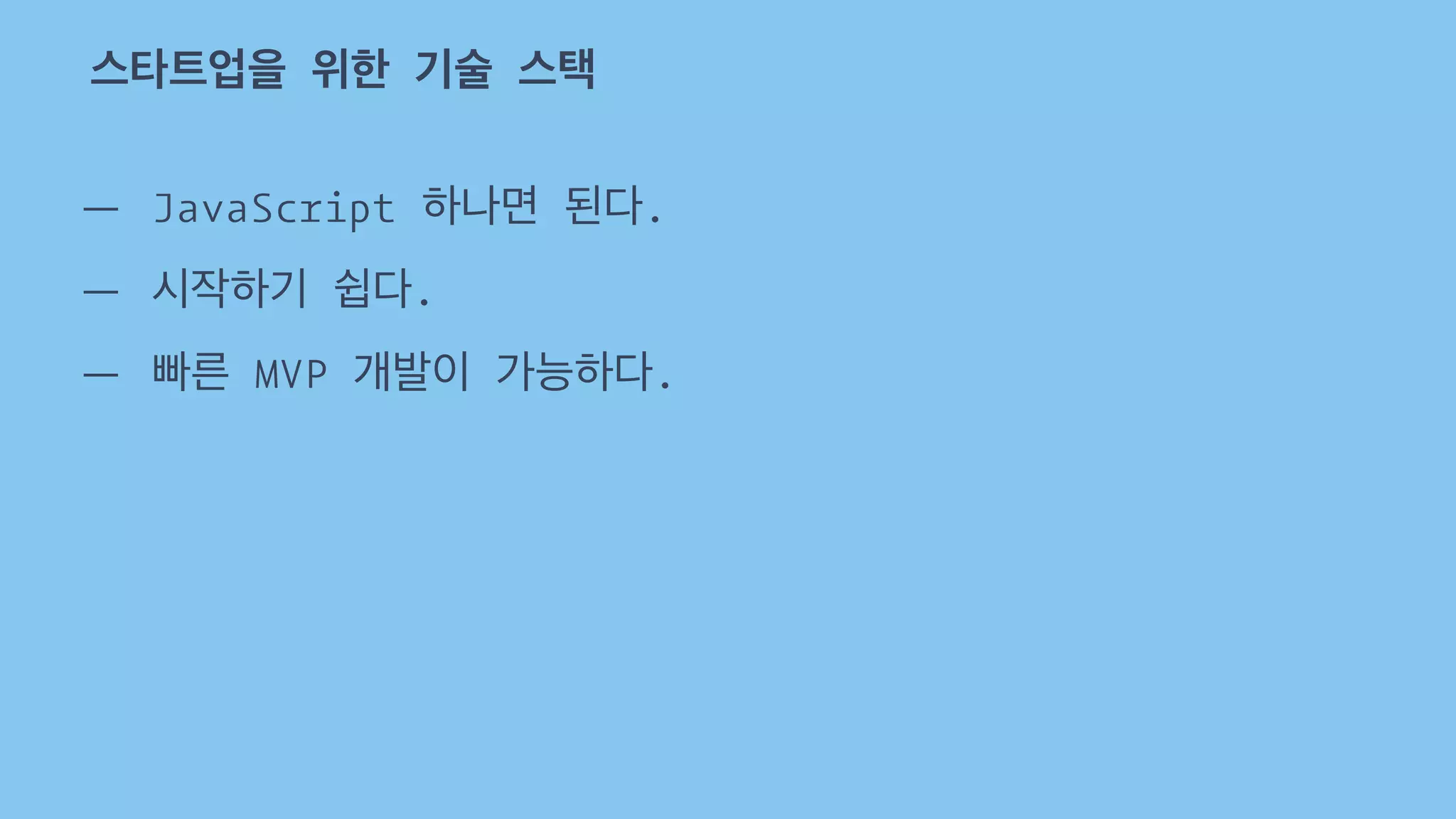

3. 스타트업을 위한 기술 스택
— JavaScript 하나면 된다.
— 시작하기 쉽다.
— 빠른 MVP 개발이 가능하다.

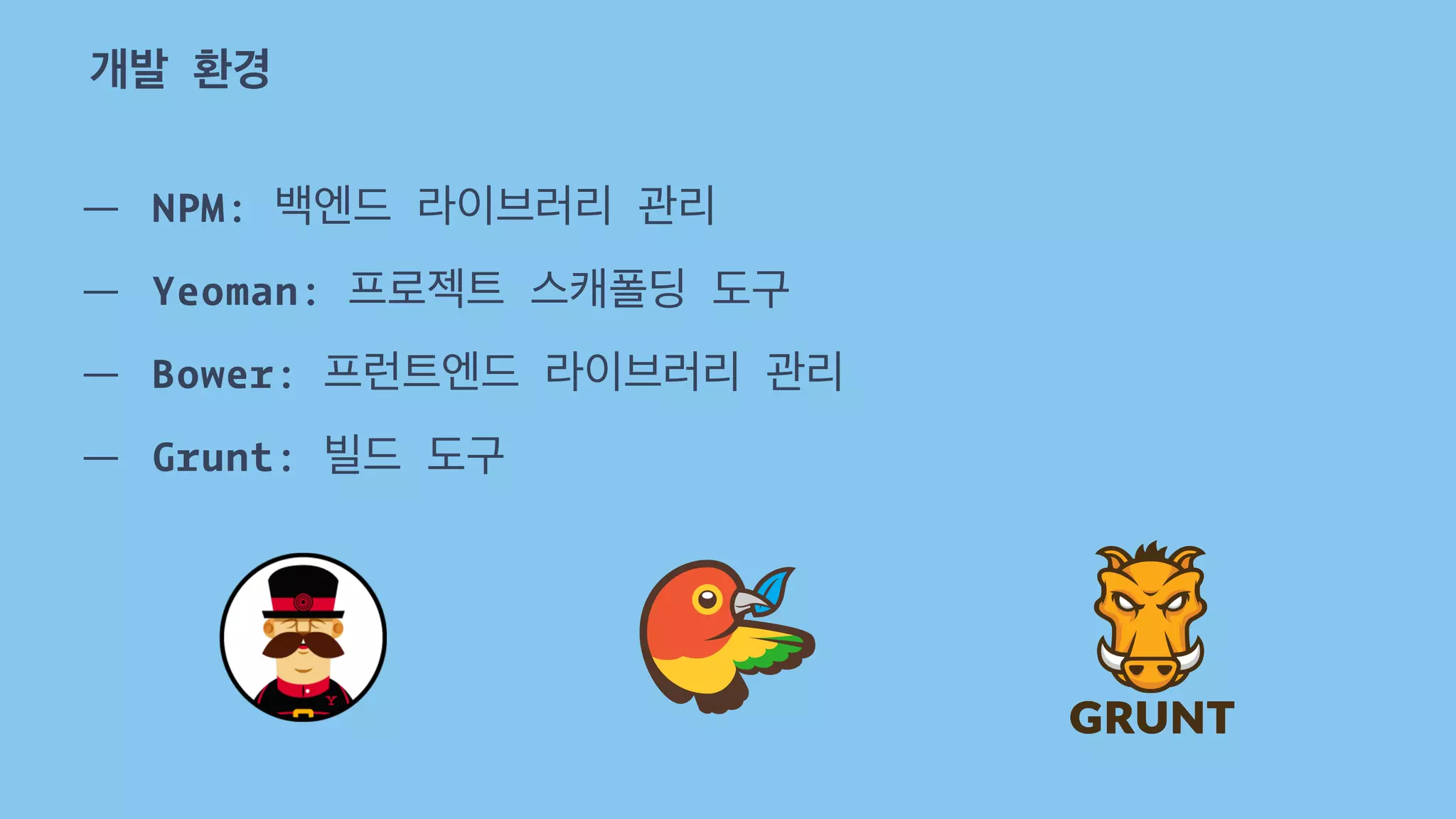

4. 개발 환경
— NPM: 백엔드 라이브러리 관리
— Yeoman: 프로젝트 스캐폴딩 도구
— Bower: 프런트엔드 라이브러리 관리
— Grunt: 빌드 도구

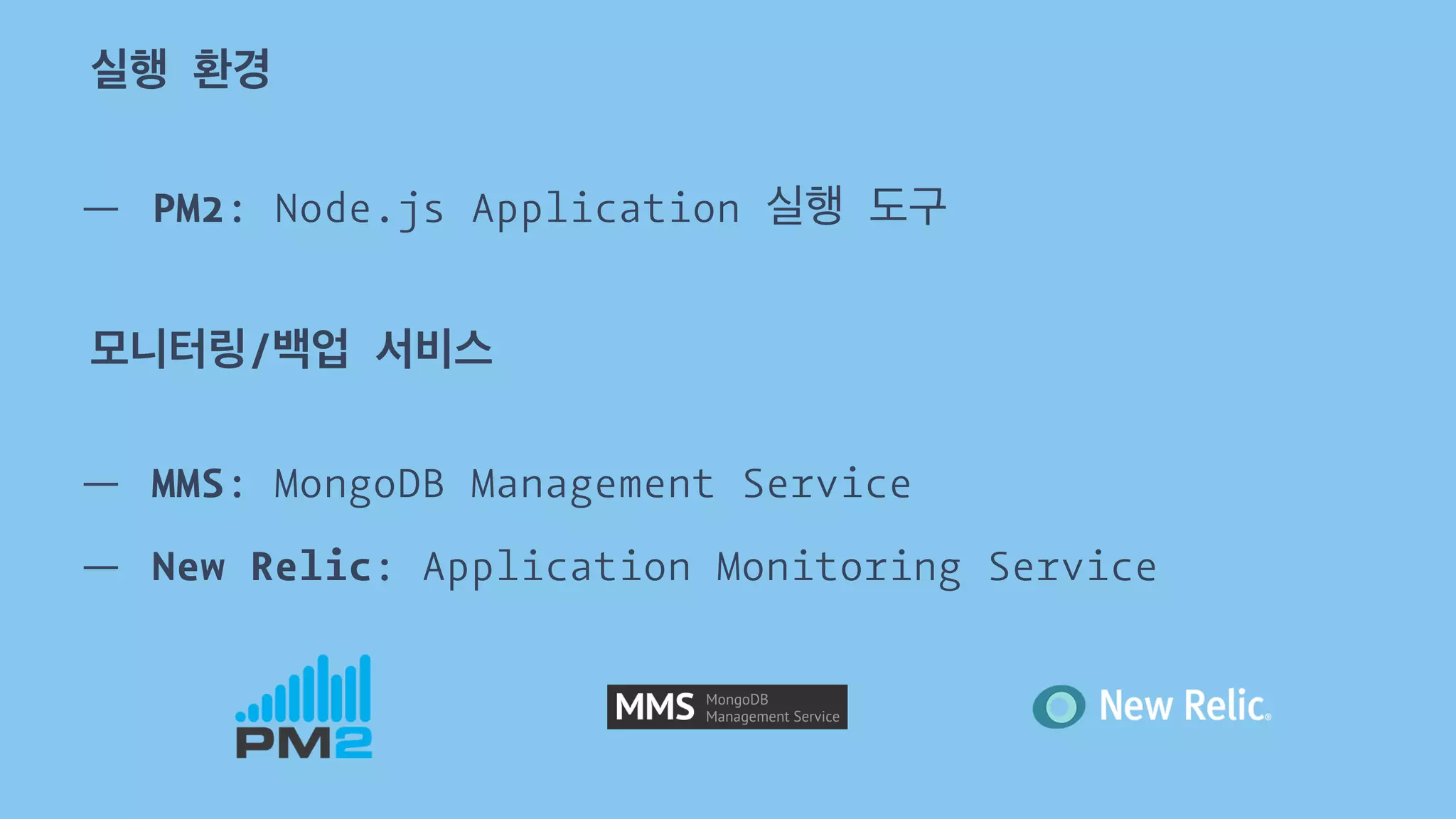

5. 실행 환경
— PM2: Node.js Application 실행 도구
모니터링/백업 서비스
— MMS: MongoDB Management Service
— New Relic: Application Monitoring Service

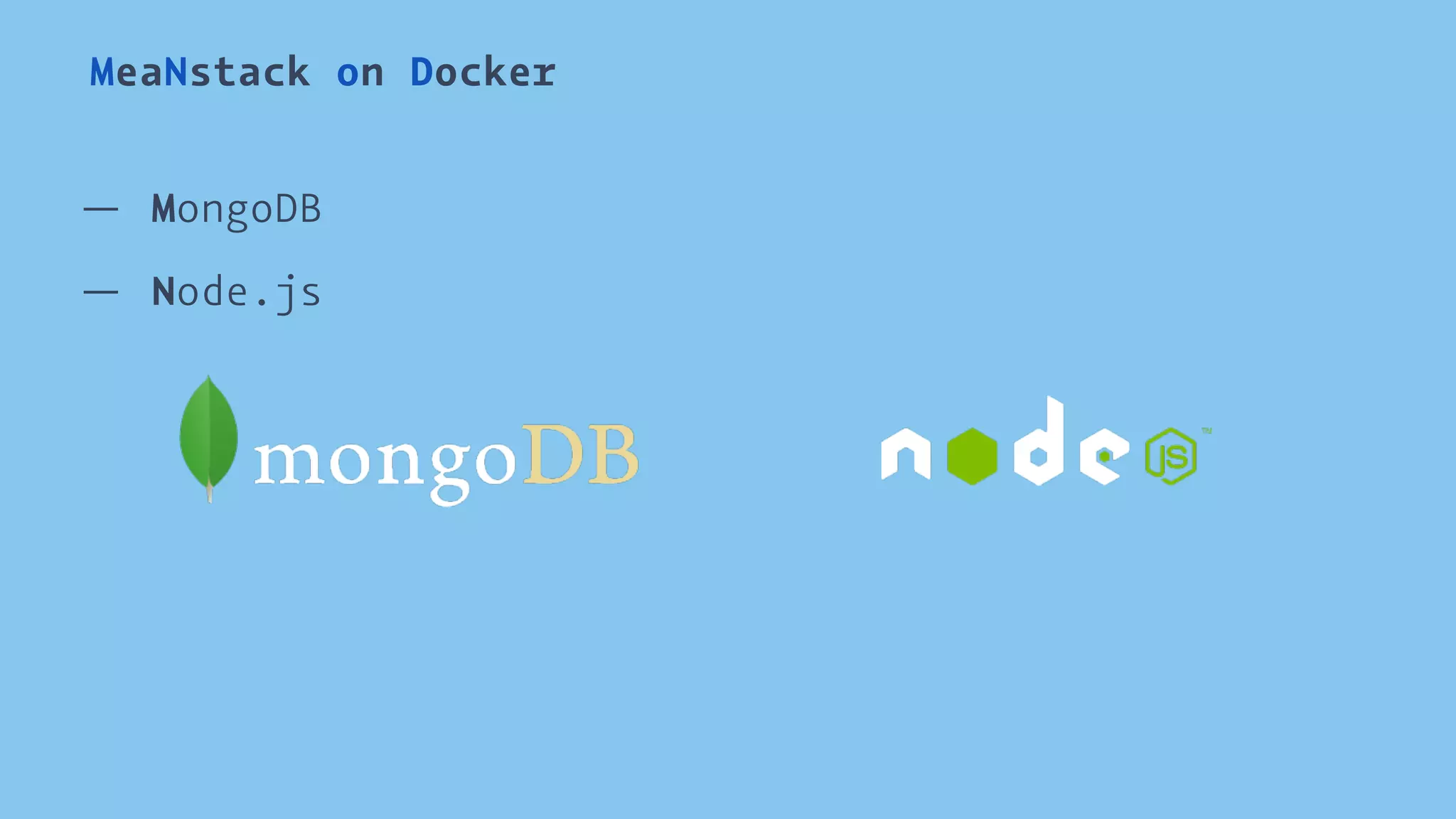

6. MeaNstack on Docker
— MongoDB
— Node.js

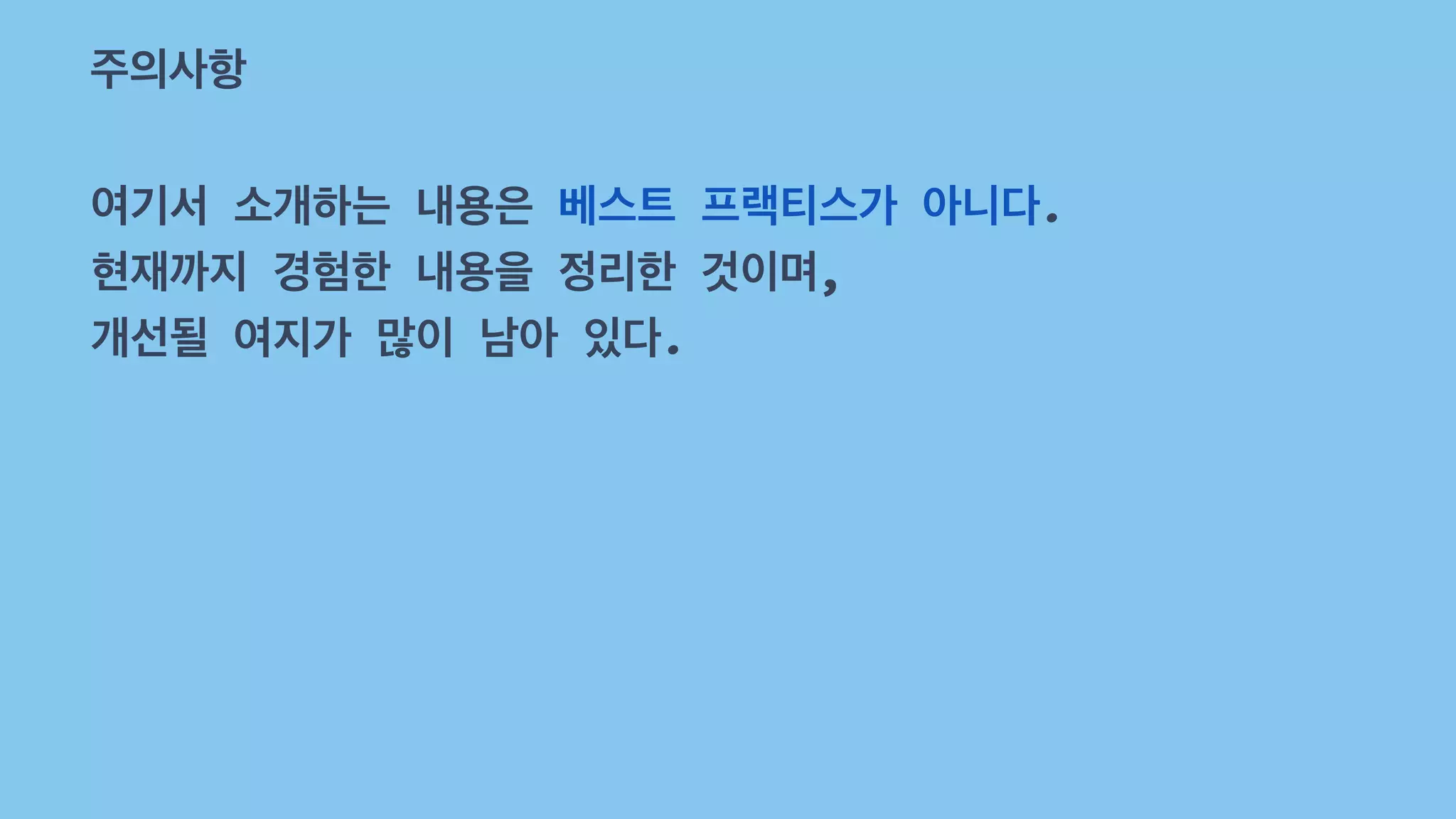

7. 주의사항
여기서 소개하는 내용은 베스트 프랙티스가 아니다.
현재까지 경험한 내용을 정리한 것이며,
개선될 여지가 많이 남아 있다.

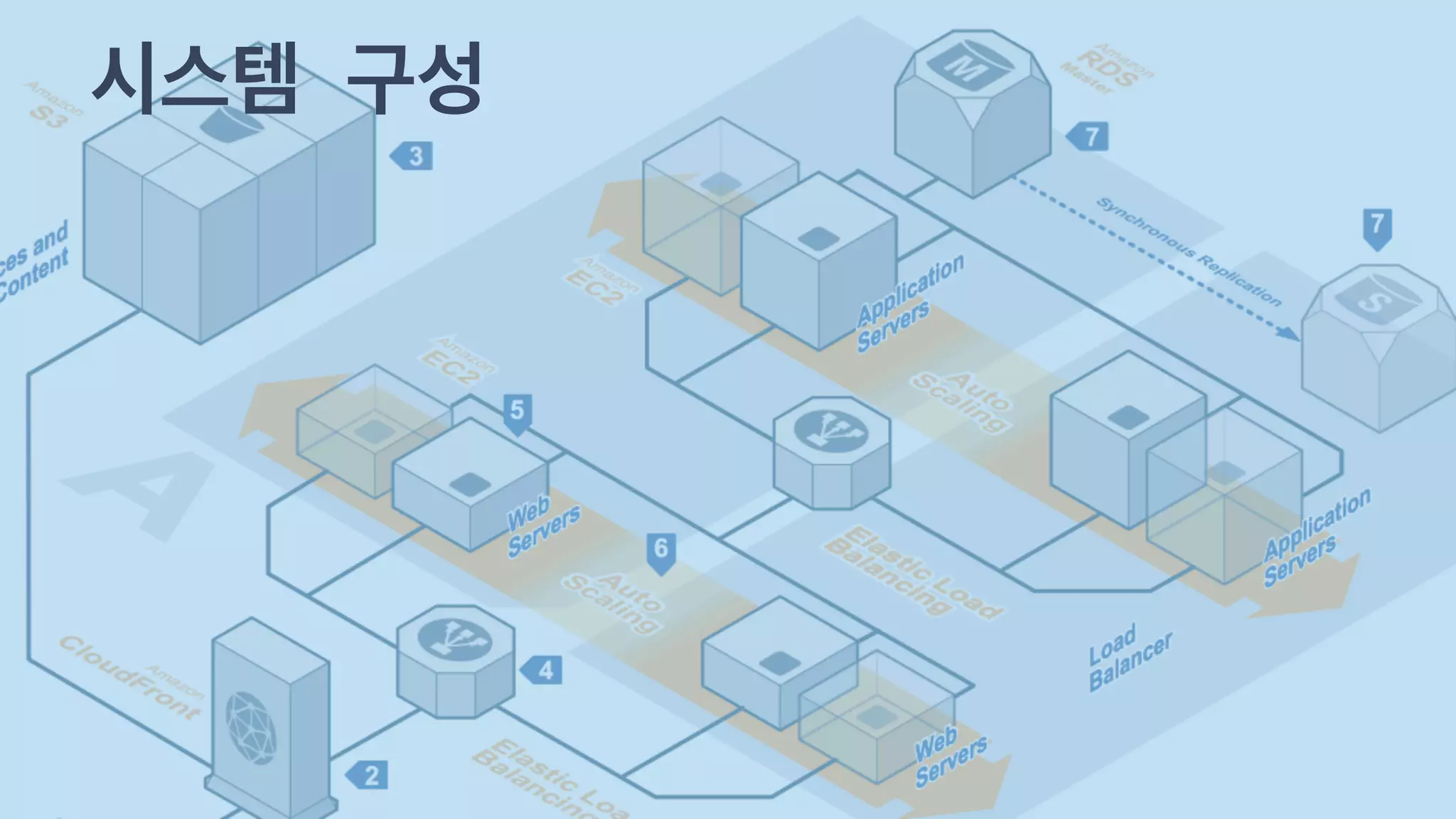

8. 시스템 구성

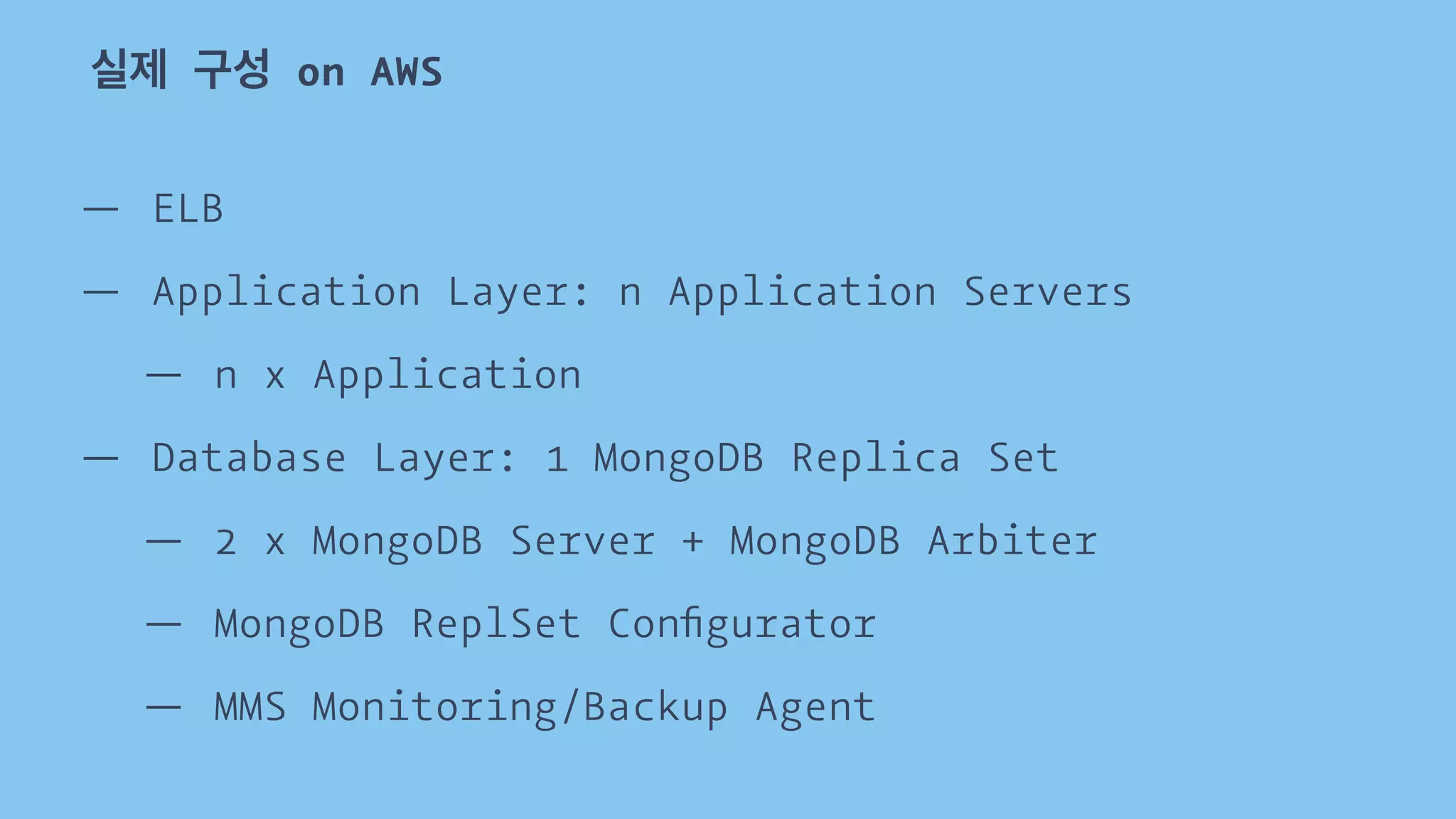

9. 실제 구성 on AWS
— ELB
— Application Layer: n Application Servers
— n x Application
— Database Layer: 1 MongoDB Replica Set
— 2 x MongoDB Server + MongoDB Arbiter
— MongoDB ReplSet Configurator
— MMS Monitoring/Backup Agent

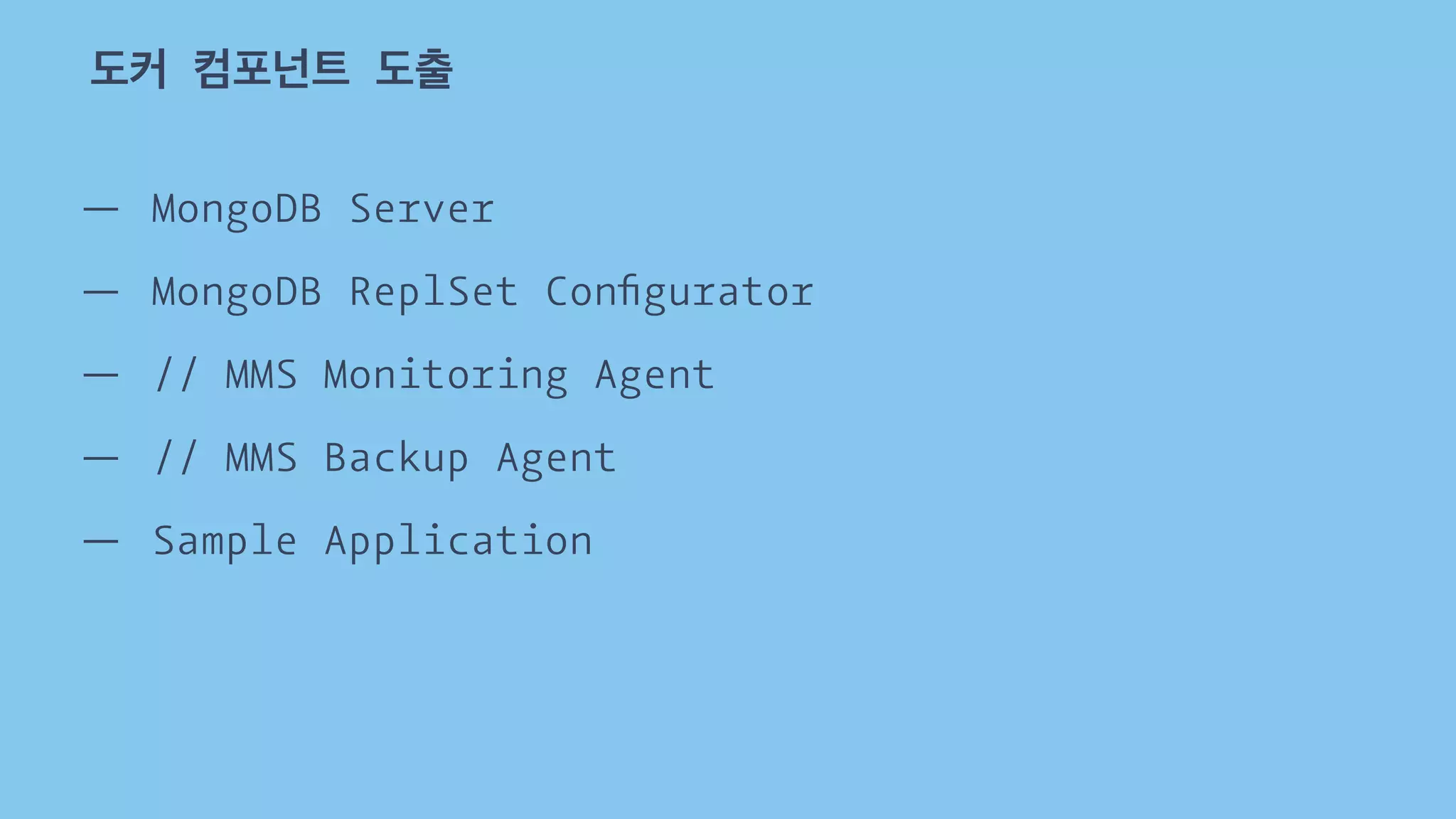

10. 도커 컴포넌트 도출
— MongoDB Server
— MongoDB ReplSet Configurator
— // MMS Monitoring Agent
— // MMS Backup Agent
— Sample Application

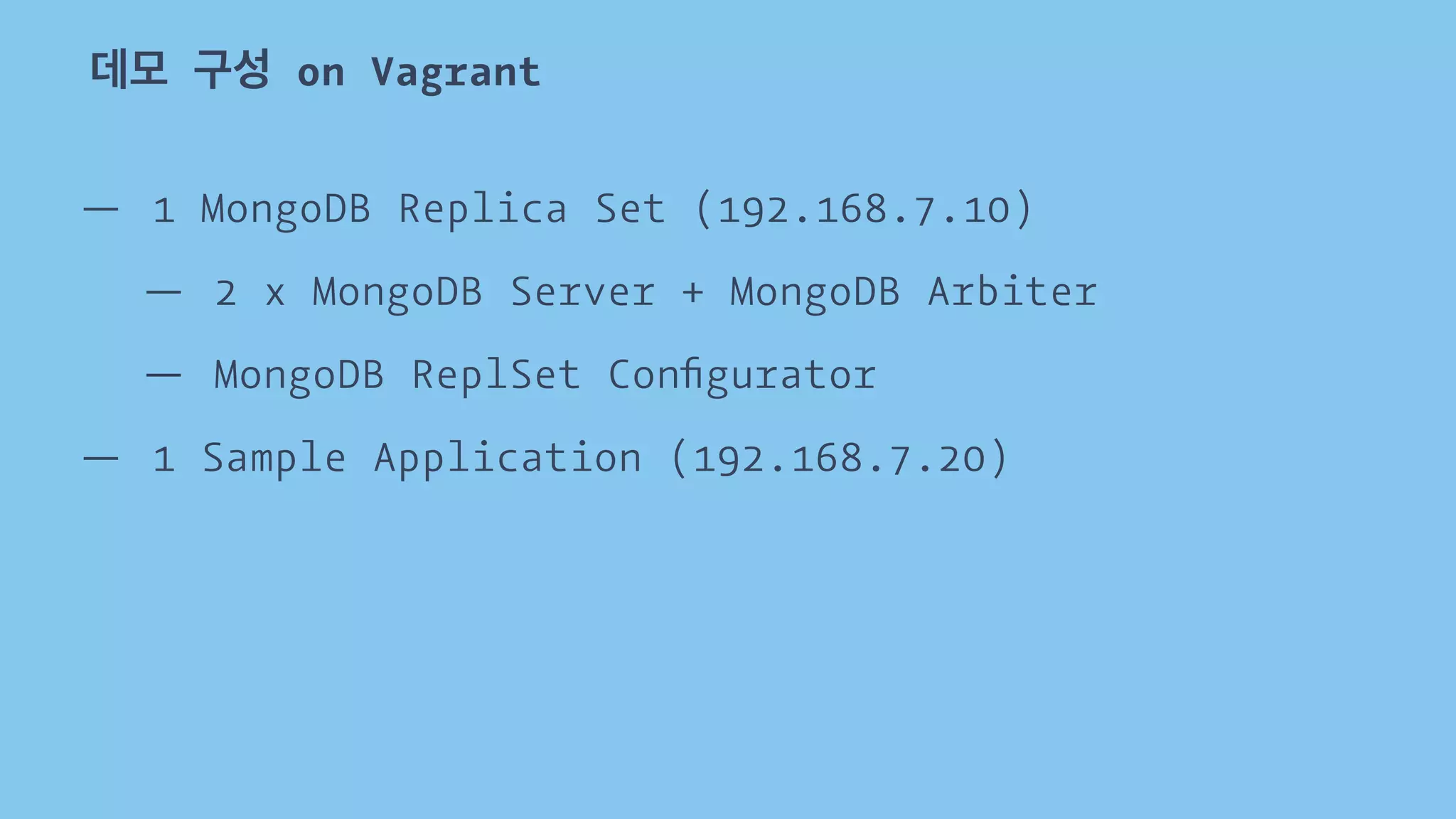

11. 데모 구성 on Vagrant
— 1 MongoDB Replica Set (192.168.7.10)
— 2 x MongoDB Server + MongoDB Arbiter
— MongoDB ReplSet Configurator
— 1 Sample Application (192.168.7.20)

12. MongoDB

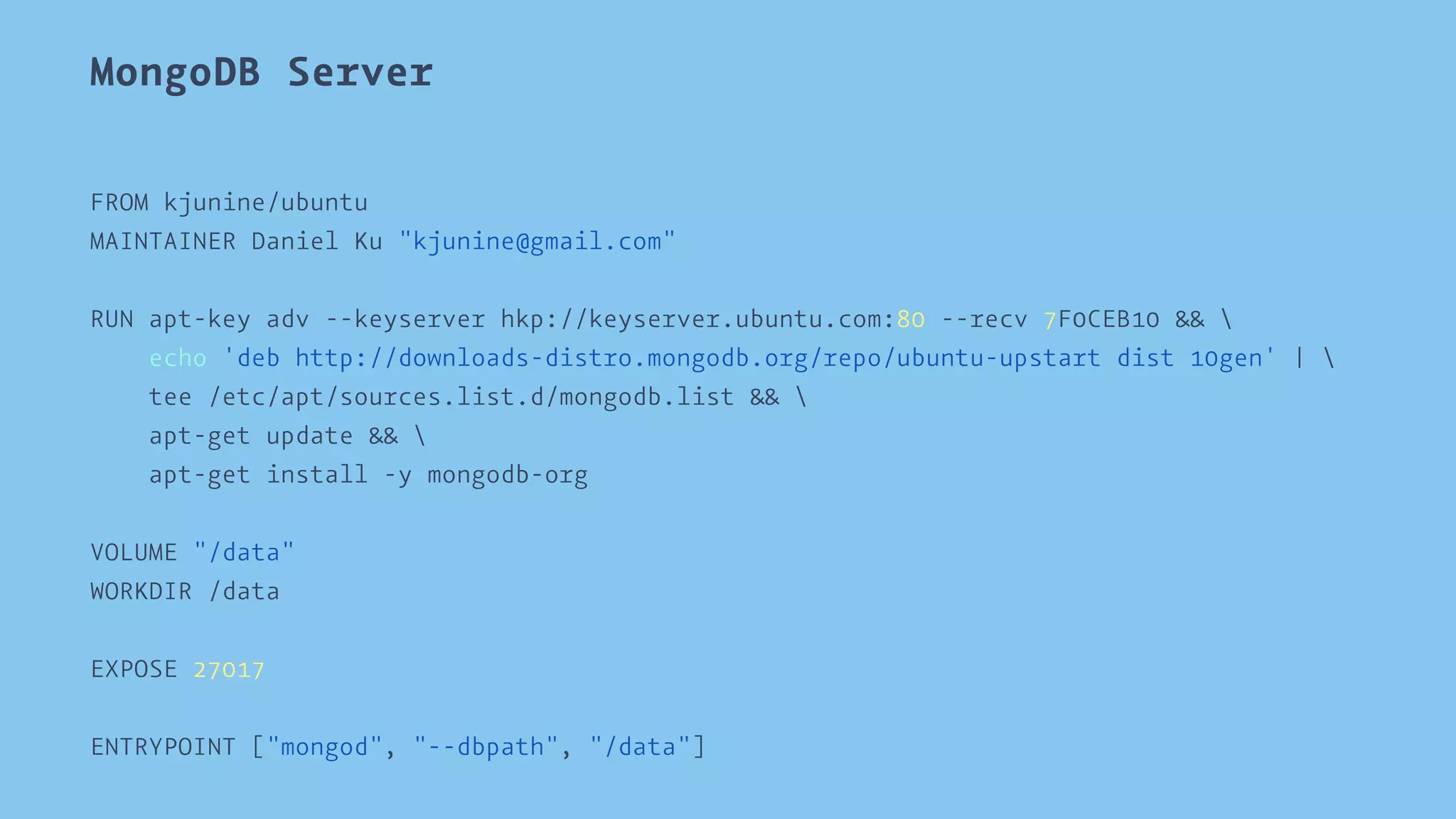

13. MongoDB Server
FROM kjunine/ubuntu
MAINTAINER Daniel Ku "kjunine@gmail.com"
RUN apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv 7F0CEB10 &&
echo 'deb http://downloads-distro.mongodb.org/repo/ubuntu-upstart dist 10gen' |
tee /etc/apt/sources.list.d/mongodb.list &&
apt-get update &&
apt-get install -y mongodb-org
VOLUME "/data"
WORKDIR /data
EXPOSE 27017
ENTRYPOINT ["mongod", "--dbpath", "/data"]

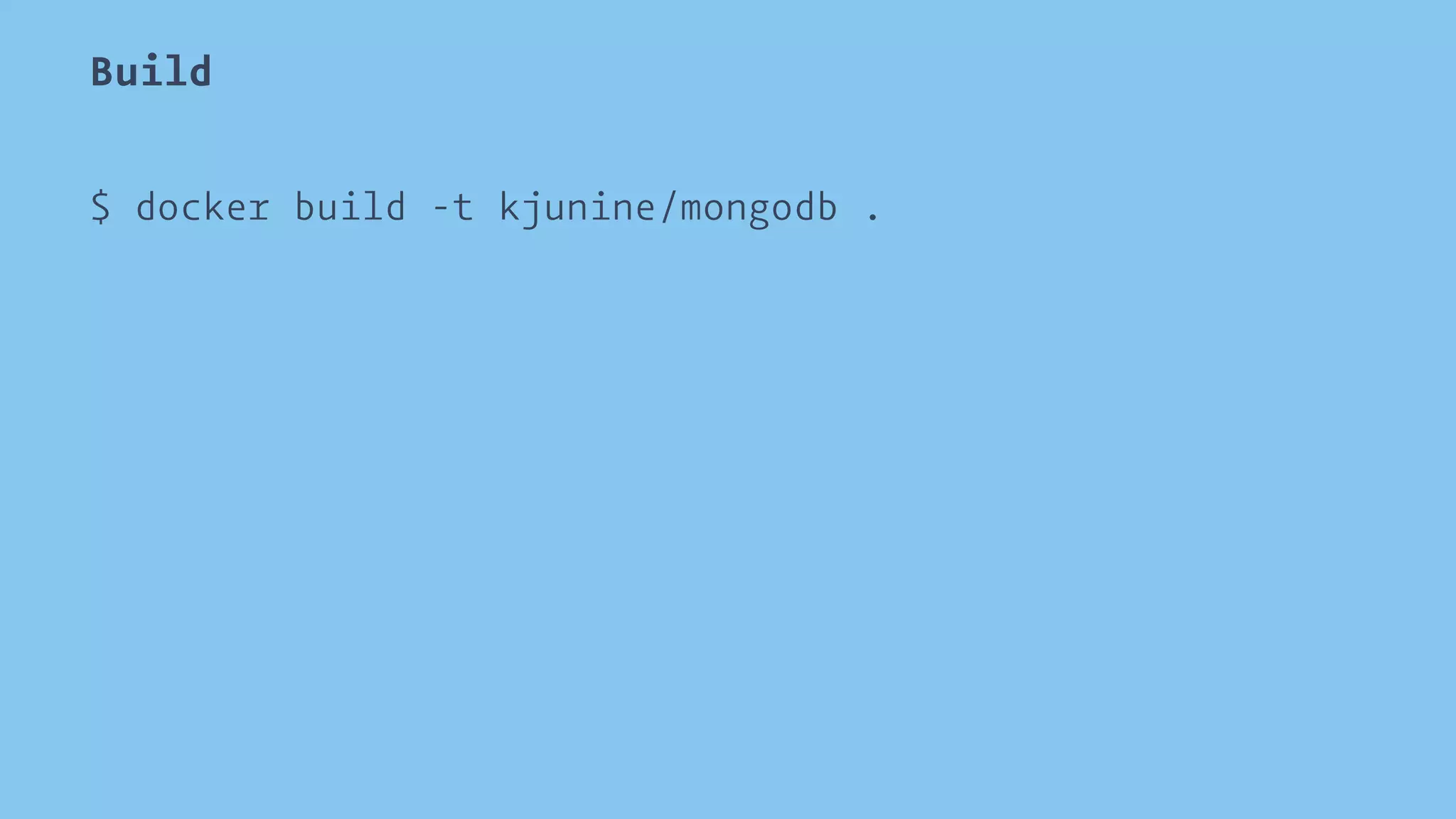

14. Build
$ docker build -t kjunine/mongodb .

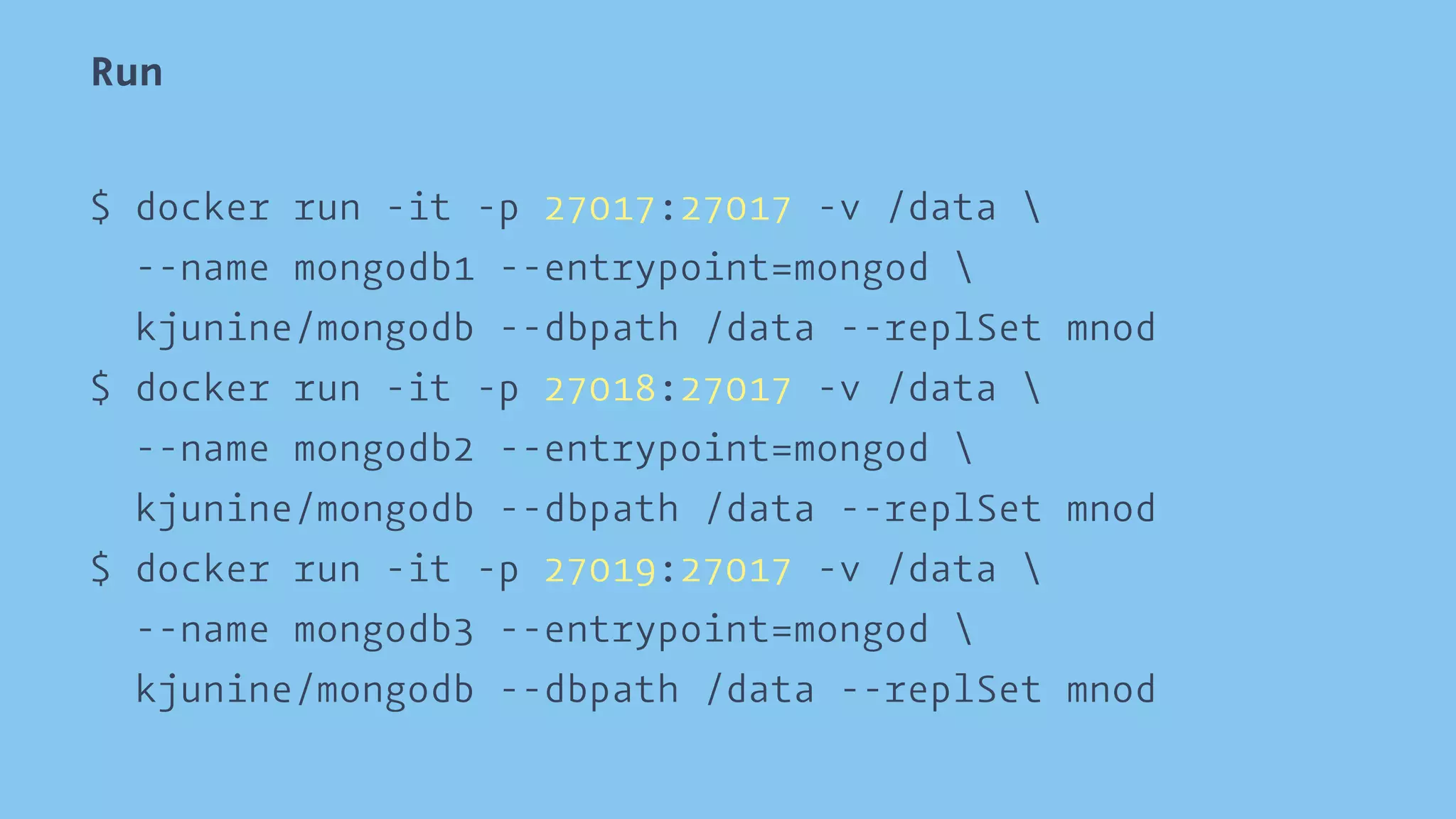

15. Run
$ docker run -it -p 27017:27017 -v /data
--name mongodb1 --entrypoint=mongod
kjunine/mongodb --dbpath /data --replSet mnod
$ docker run -it -p 27018:27017 -v /data
--name mongodb2 --entrypoint=mongod
kjunine/mongodb --dbpath /data --replSet mnod
$ docker run -it -p 27019:27017 -v /data
--name mongodb3 --entrypoint=mongod
kjunine/mongodb --dbpath /data --replSet mnod

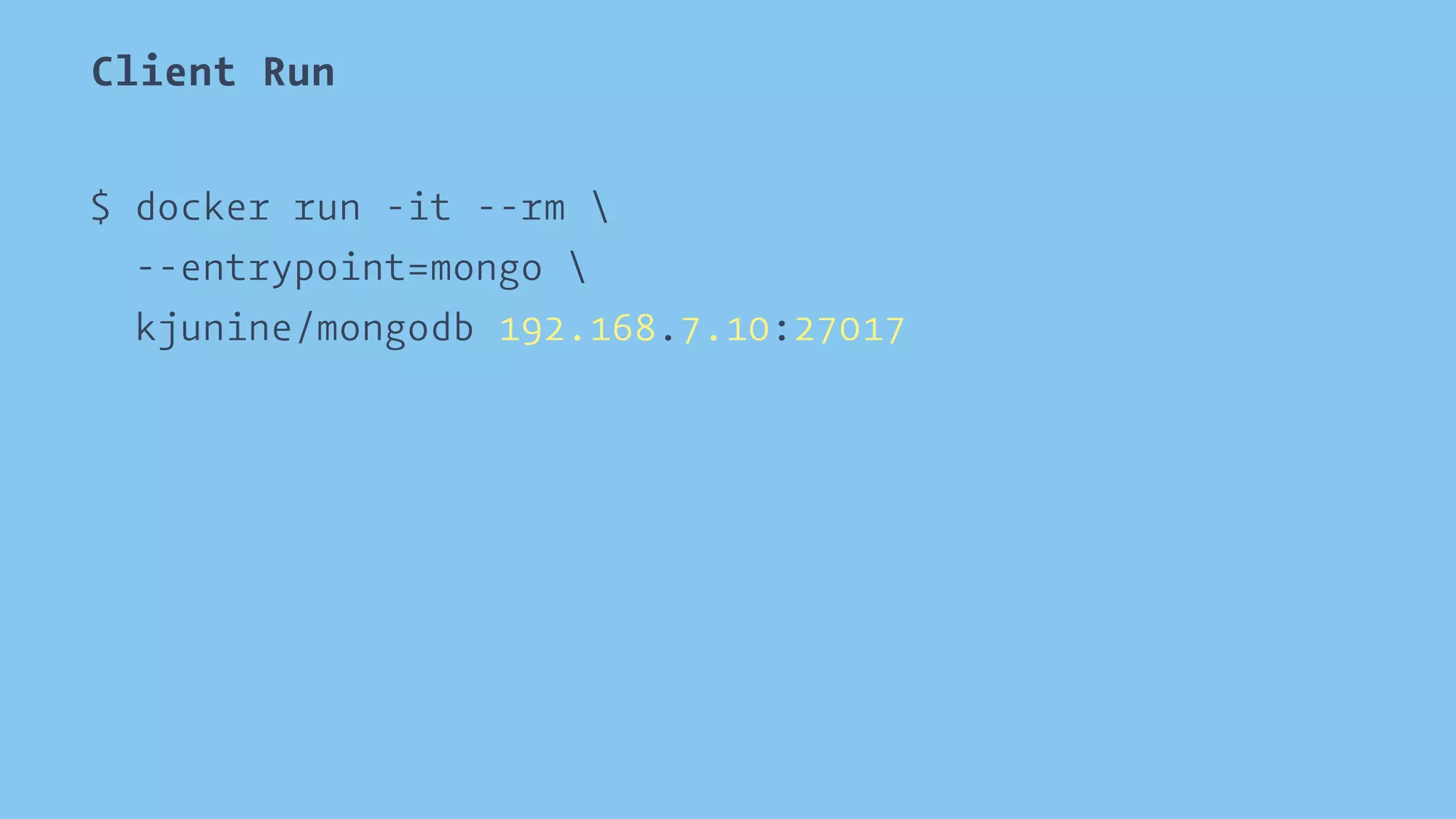

16. Client Run
$ docker run -it --rm
--entrypoint=mongo
kjunine/mongodb 192.168.7.10:27017

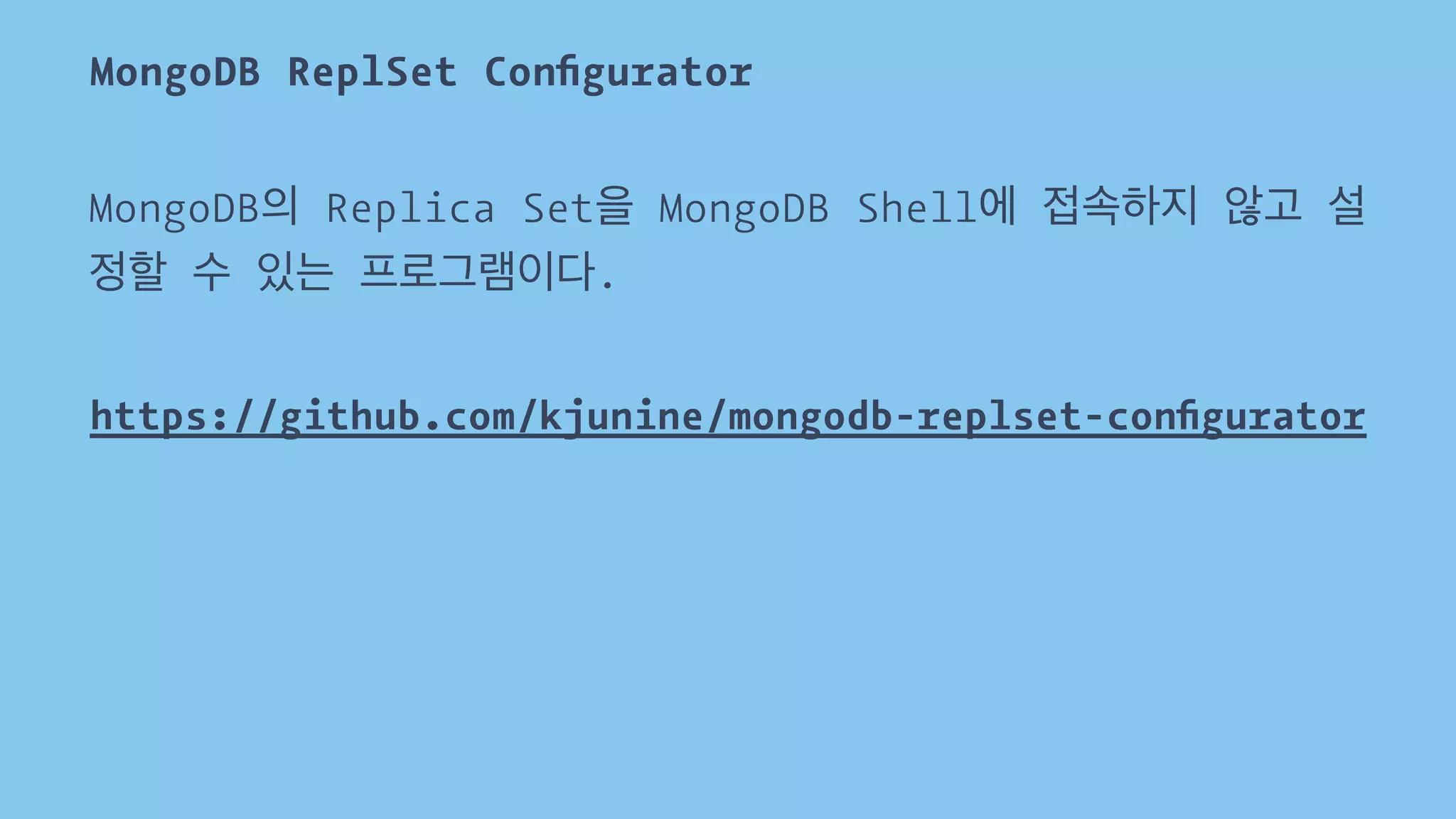

17. MongoDB ReplSet Configurator
MongoDB의 Replica Set을 MongoDB Shell에 접속하지 않고 설
정할 수 있는 프로그램이다.
https://github.com/kjunine/mongodb-replset-configurator

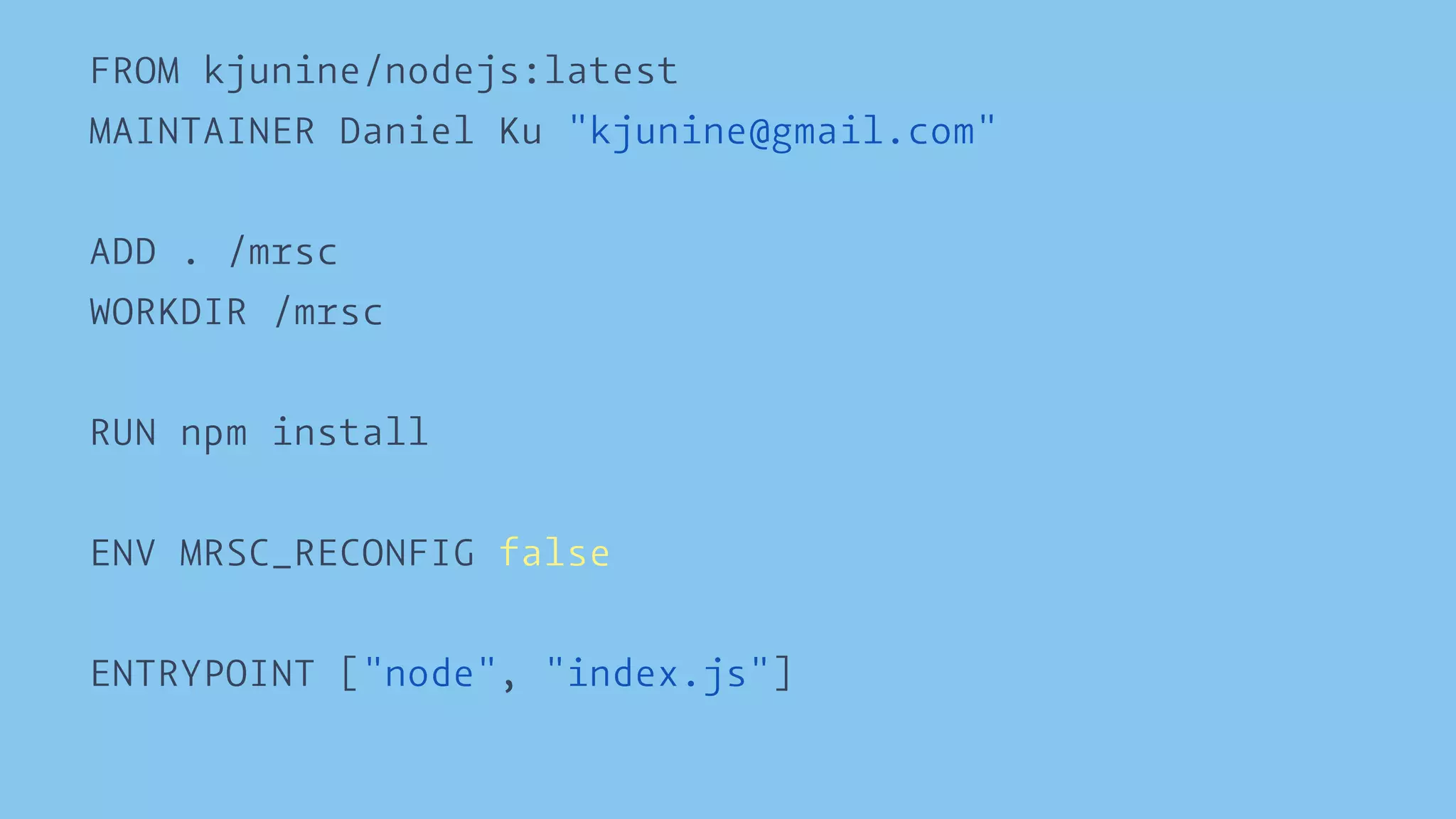

18. FROM kjunine/nodejs:latest
MAINTAINER Daniel Ku "kjunine@gmail.com"
ADD . /mrsc
WORKDIR /mrsc
RUN npm install
ENV MRSC_RECONFIG false
ENTRYPOINT ["node", "index.js"]

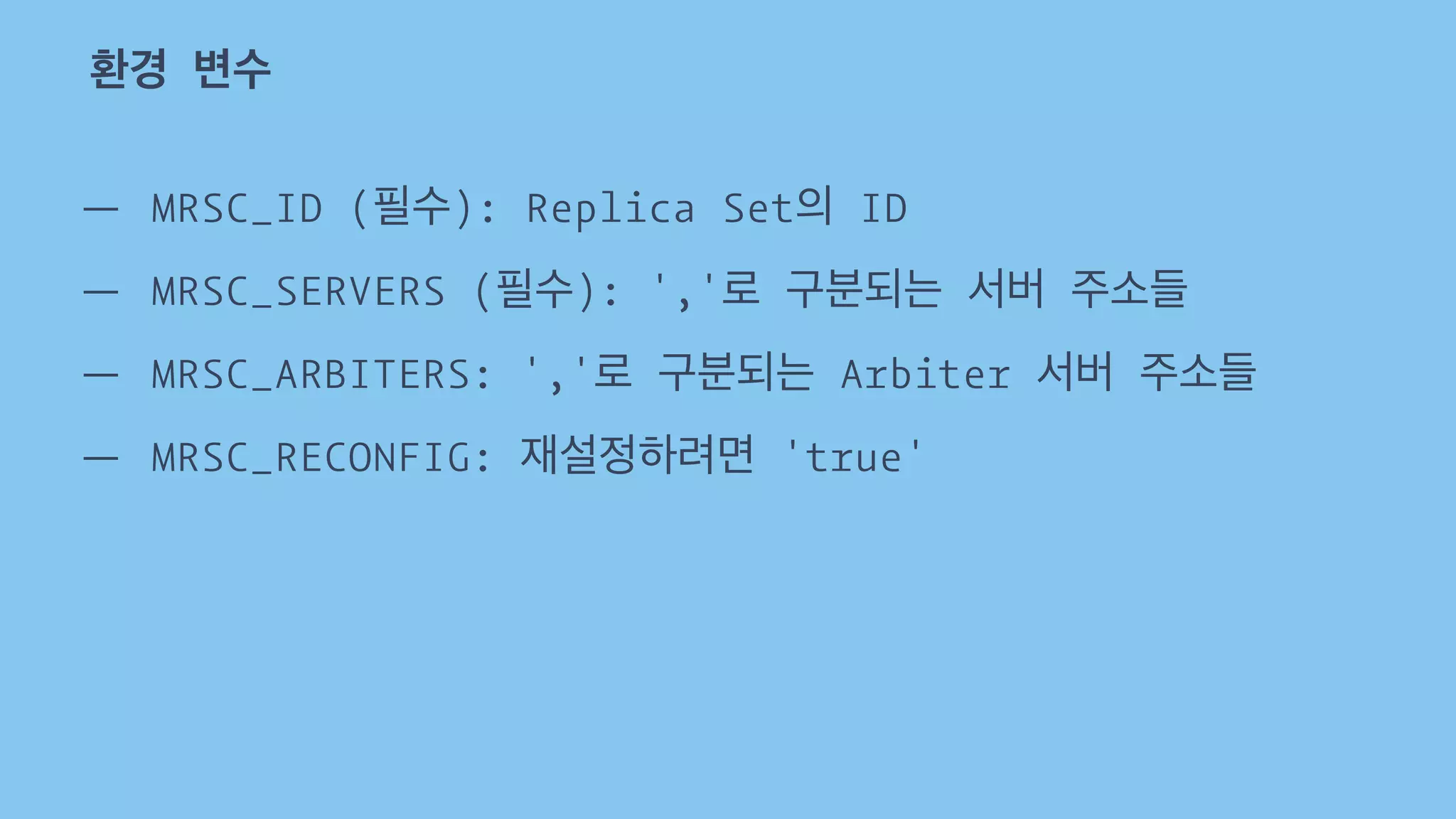

19. 환경 변수
— MRSC_ID (필수): Replica Set의 ID
— MRSC_SERVERS (필수): ','로 구분되는 서버 주소들
— MRSC_ARBITERS: ','로 구분되는 Arbiter 서버 주소들
— MRSC_RECONFIG: 재설정하려면 'true'

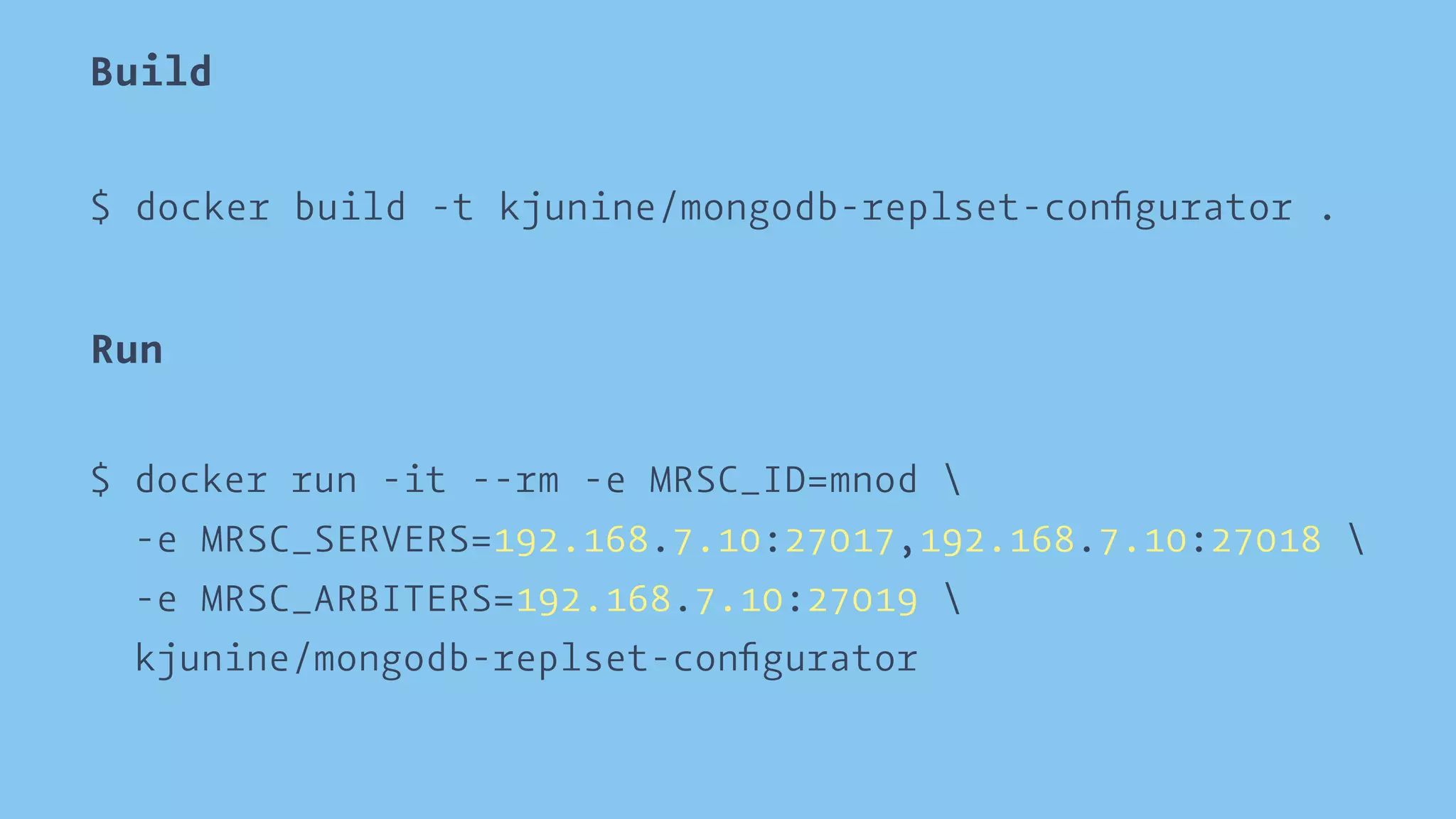

20. Build
$ docker build -t kjunine/mongodb-replset-configurator .
Run
$ docker run -it --rm -e MRSC_ID=mnod
-e MRSC_SERVERS=192.168.7.10:27017,192.168.7.10:27018
-e MRSC_ARBITERS=192.168.7.10:27019
kjunine/mongodb-replset-configurator

21. Demo

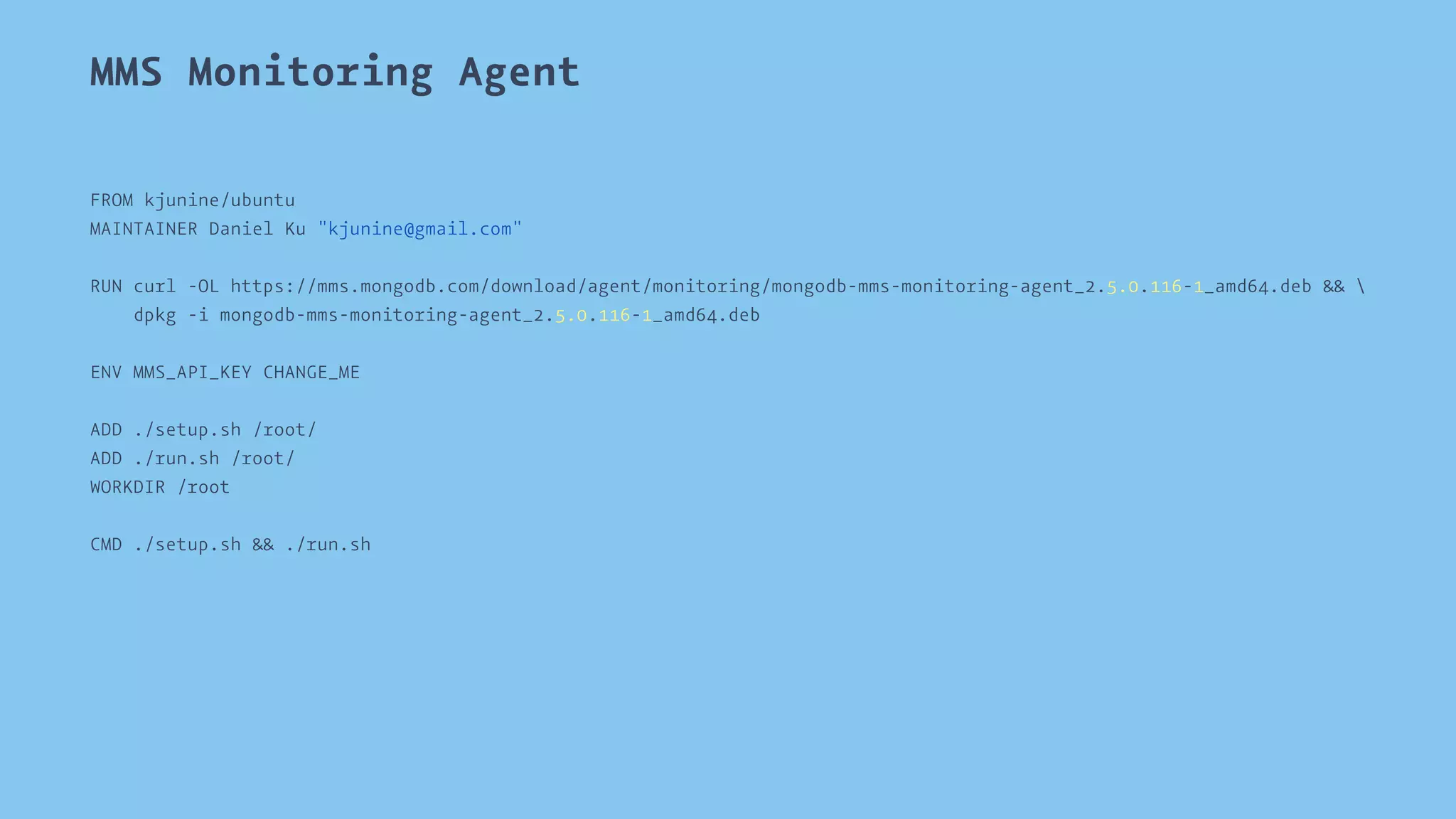

22. MMS Monitoring Agent
FROM kjunine/ubuntu
MAINTAINER Daniel Ku "kjunine@gmail.com"
RUN curl -OL https://mms.mongodb.com/download/agent/monitoring/mongodb-mms-monitoring-agent_2.5.0.116-1_amd64.deb &&
dpkg -i mongodb-mms-monitoring-agent_2.5.0.116-1_amd64.deb
ENV MMS_API_KEY CHANGE_ME
ADD ./setup.sh /root/
ADD ./run.sh /root/
WORKDIR /root
CMD ./setup.sh && ./run.sh

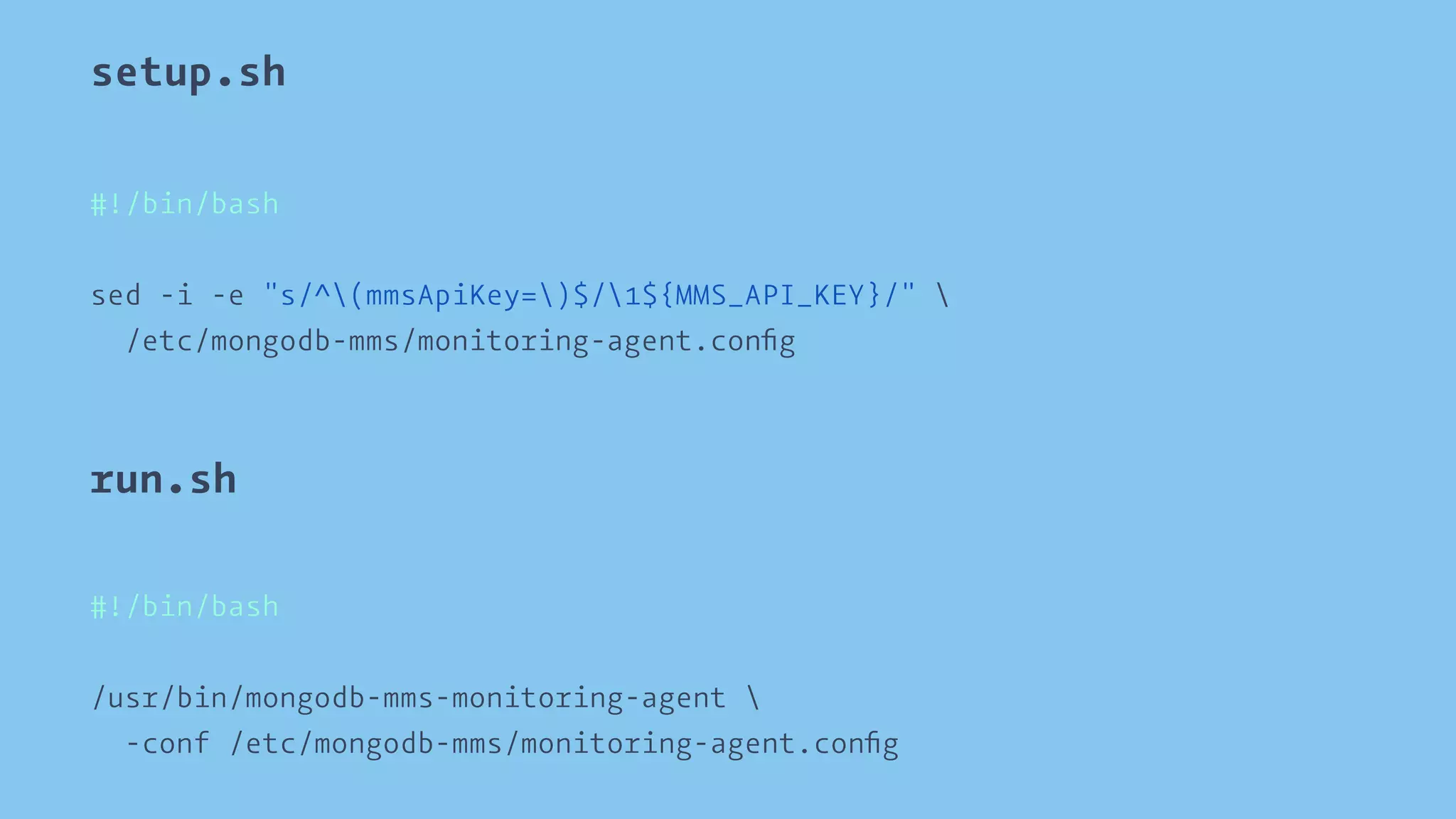

23. setup.sh
#!/bin/bash
sed -i -e "s/^(mmsApiKey=)$/1${MMS_API_KEY}/"
/etc/mongodb-mms/monitoring-agent.config
run.sh
#!/bin/bash
/usr/bin/mongodb-mms-monitoring-agent
-conf /etc/mongodb-mms/monitoring-agent.config

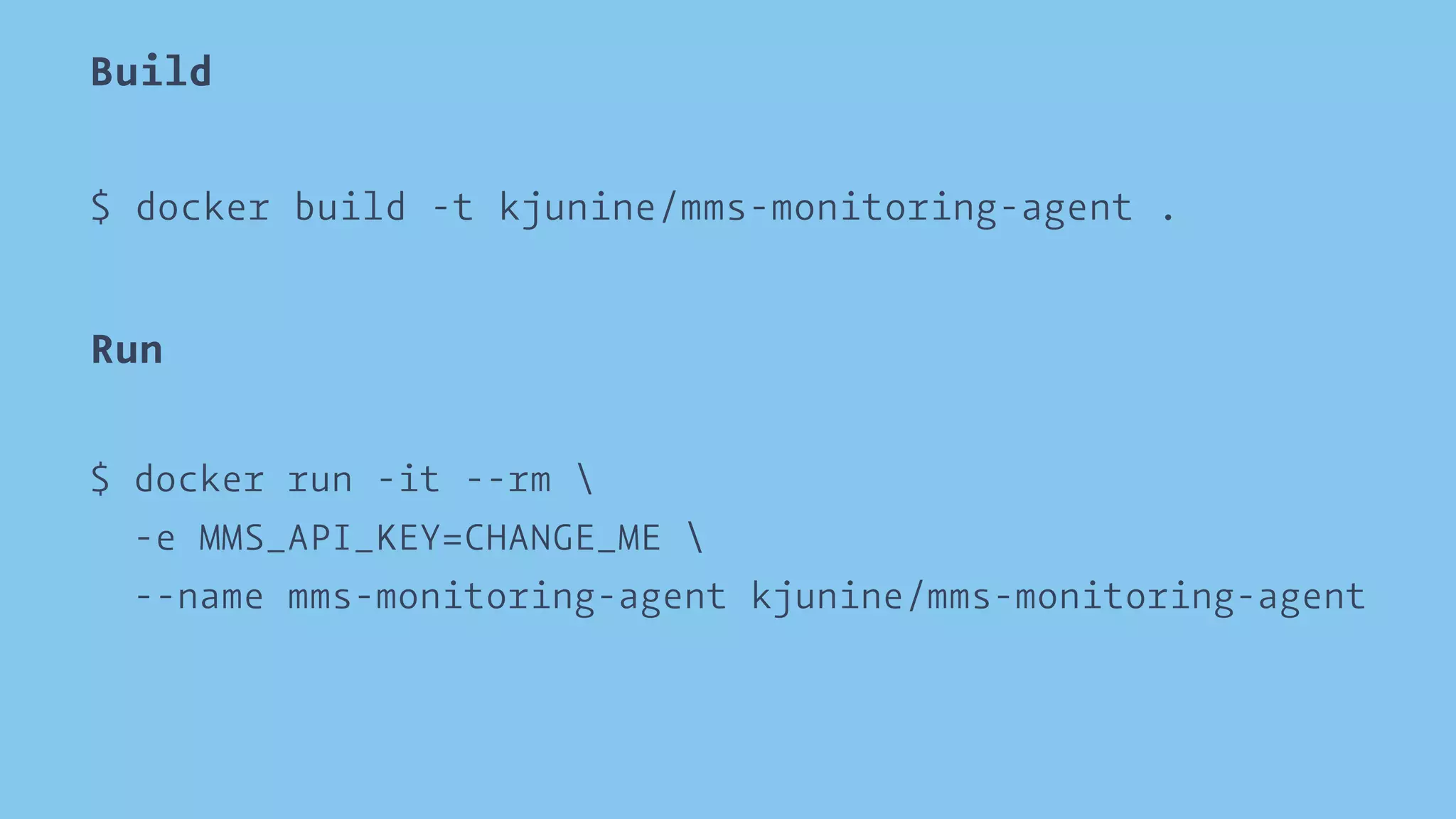

24. Build
$ docker build -t kjunine/mms-monitoring-agent .
Run
$ docker run -it --rm
-e MMS_API_KEY=CHANGE_ME
--name mms-monitoring-agent kjunine/mms-monitoring-agent

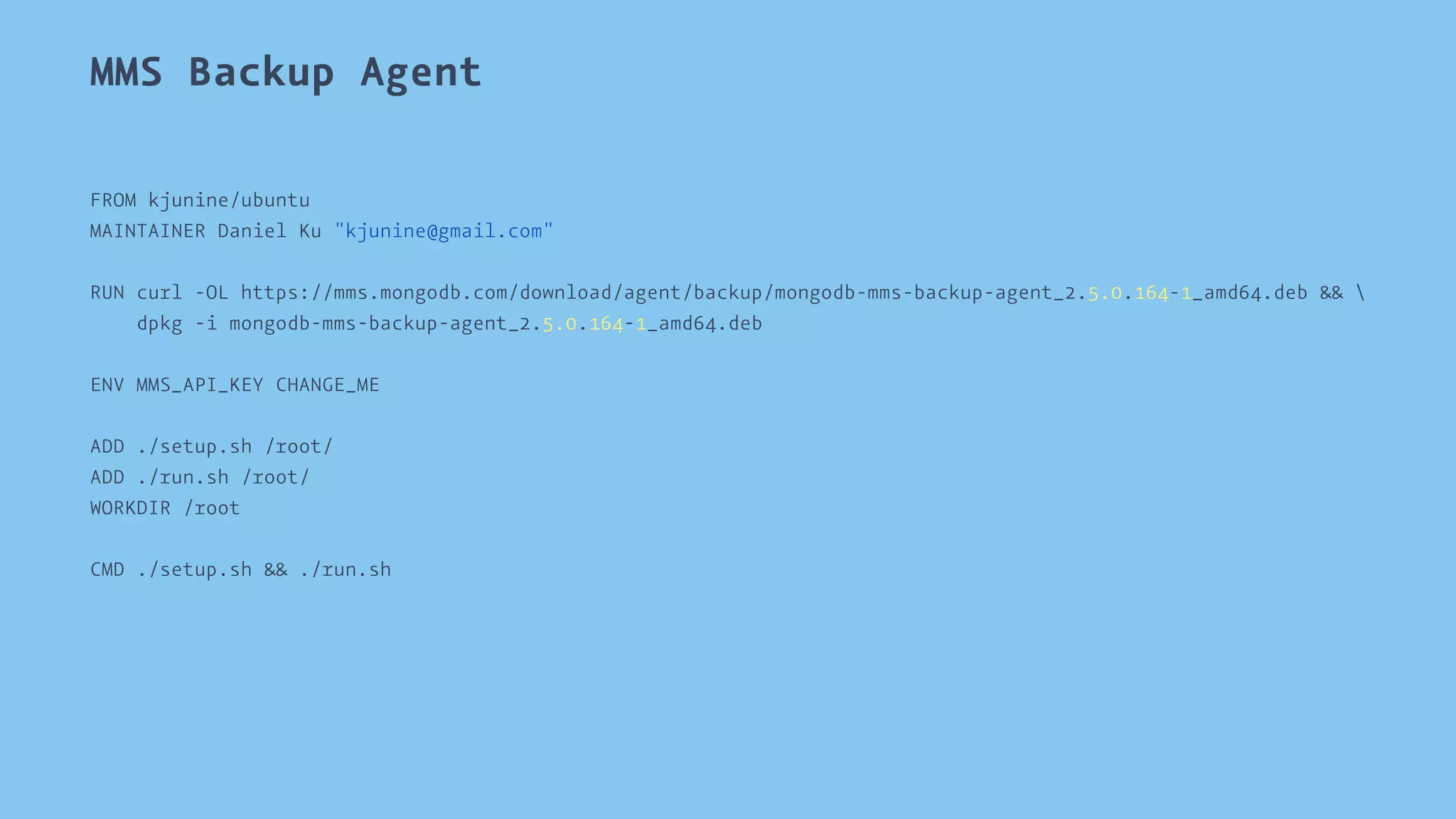

25. MMS Backup Agent
FROM kjunine/ubuntu
MAINTAINER Daniel Ku "kjunine@gmail.com"
RUN curl -OL https://mms.mongodb.com/download/agent/backup/mongodb-mms-backup-agent_2.5.0.164-1_amd64.deb &&
dpkg -i mongodb-mms-backup-agent_2.5.0.164-1_amd64.deb
ENV MMS_API_KEY CHANGE_ME
ADD ./setup.sh /root/
ADD ./run.sh /root/
WORKDIR /root
CMD ./setup.sh && ./run.sh

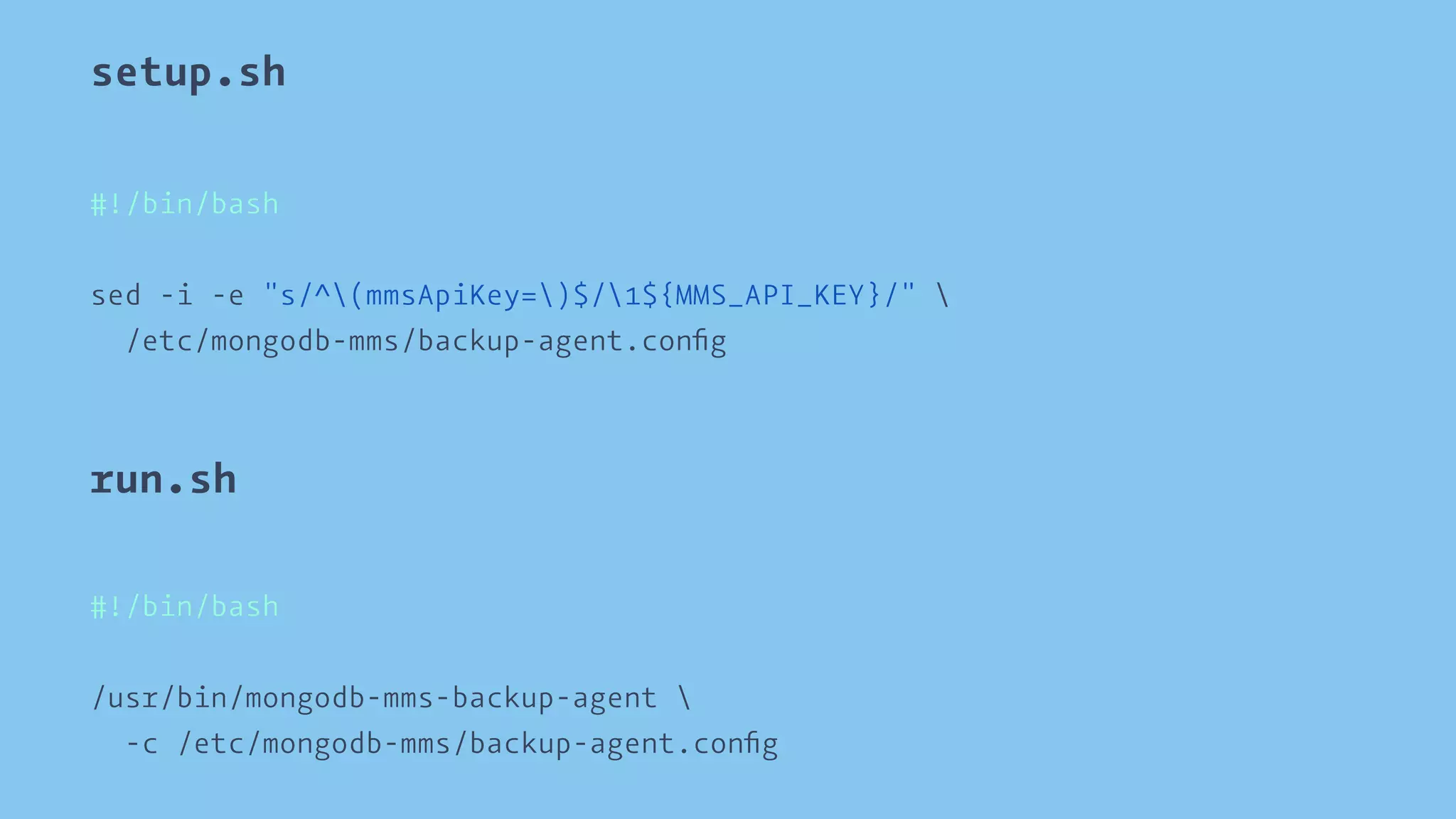

26. setup.sh
#!/bin/bash
sed -i -e "s/^(mmsApiKey=)$/1${MMS_API_KEY}/"
/etc/mongodb-mms/backup-agent.config
run.sh
#!/bin/bash
/usr/bin/mongodb-mms-backup-agent
-c /etc/mongodb-mms/backup-agent.config

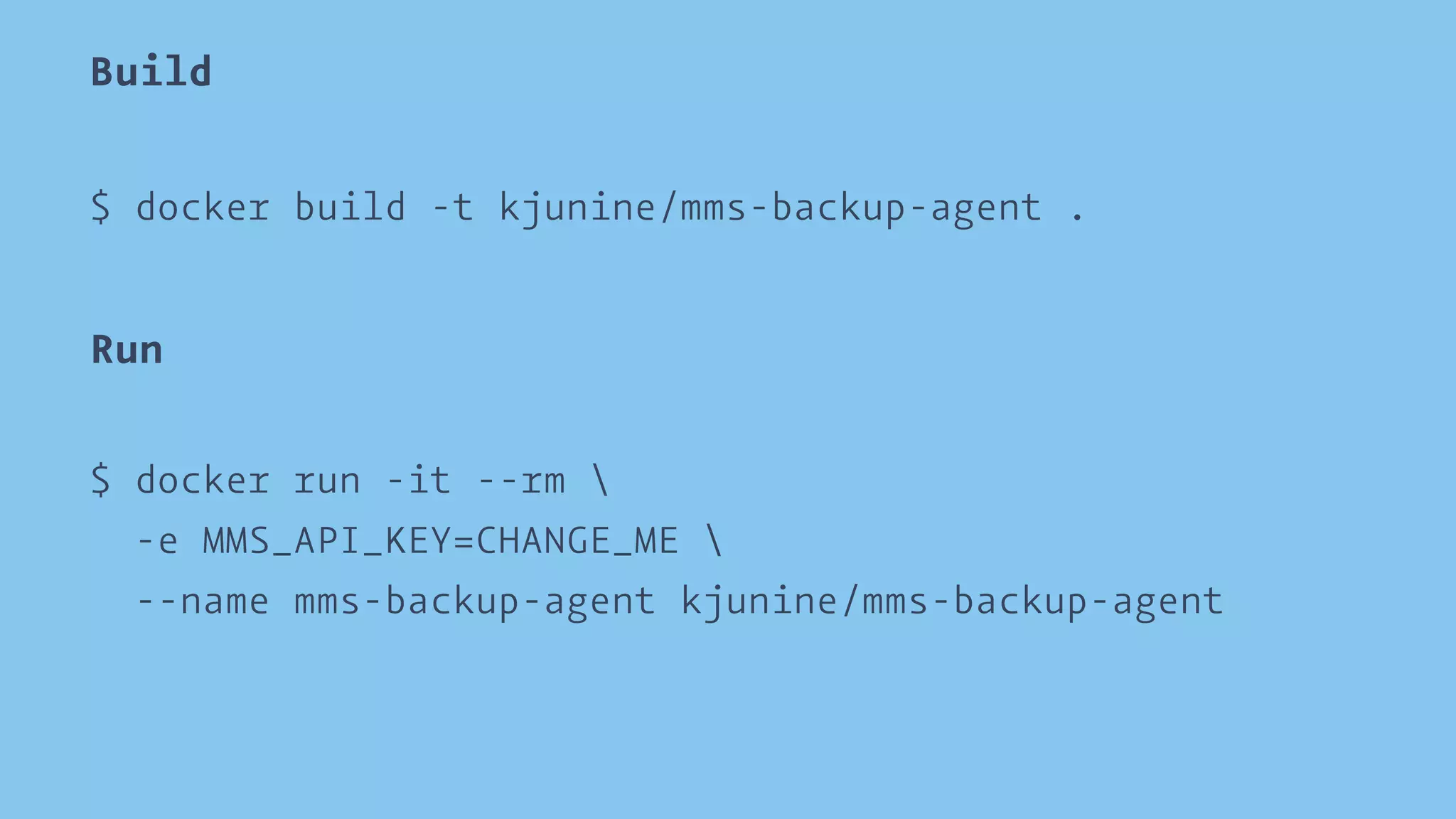

27. Build
$ docker build -t kjunine/mms-backup-agent .
Run
$ docker run -it --rm
-e MMS_API_KEY=CHANGE_ME
--name mms-backup-agent kjunine/mms-backup-agent

28. Node.js

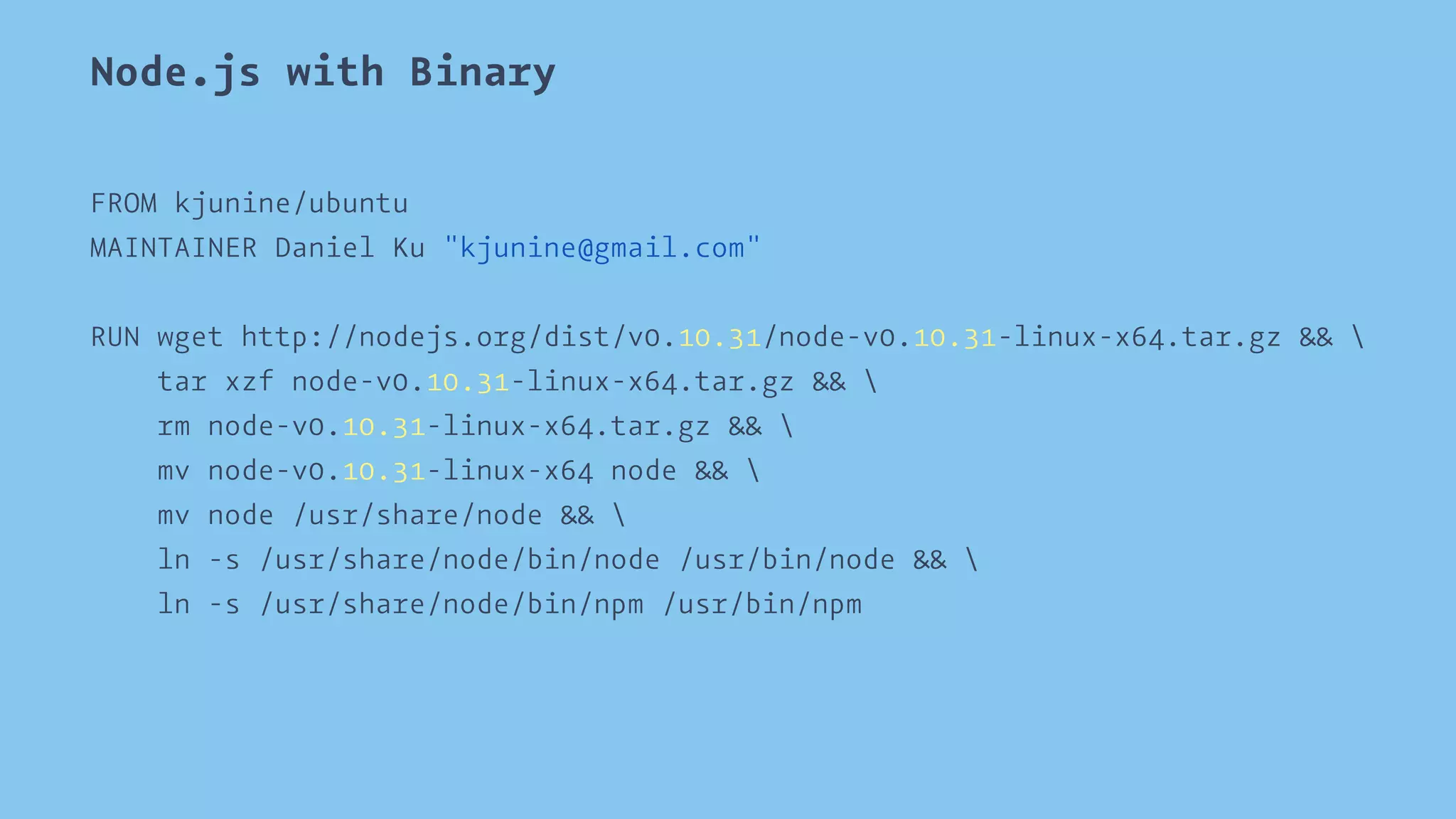

29. Node.js with Binary
FROM kjunine/ubuntu
MAINTAINER Daniel Ku "kjunine@gmail.com"
RUN wget http://nodejs.org/dist/v0.10.31/node-v0.10.31-linux-x64.tar.gz &&
tar xzf node-v0.10.31-linux-x64.tar.gz &&
rm node-v0.10.31-linux-x64.tar.gz &&
mv node-v0.10.31-linux-x64 node &&
mv node /usr/share/node &&
ln -s /usr/share/node/bin/node /usr/bin/node &&
ln -s /usr/share/node/bin/npm /usr/bin/npm

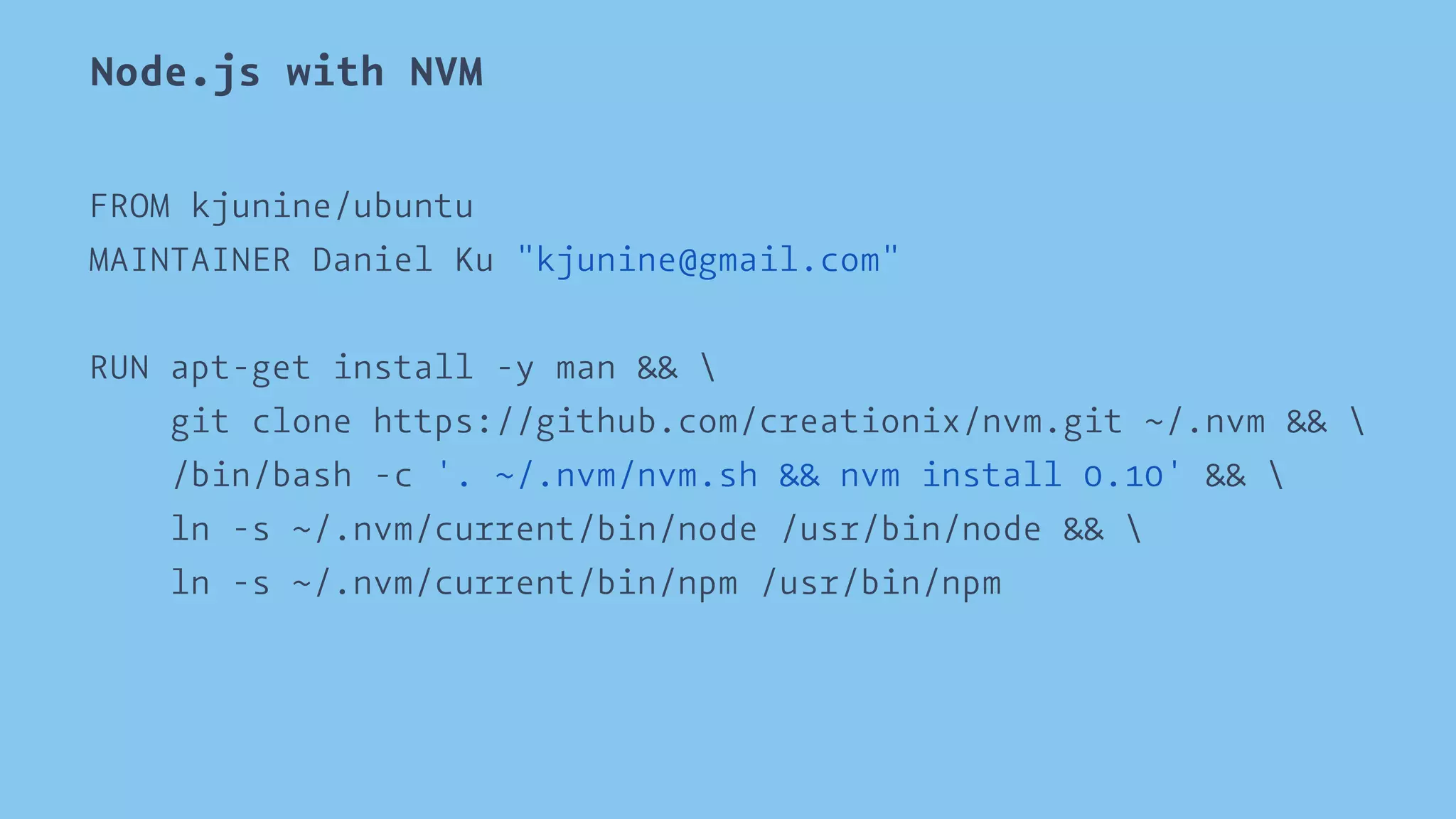

30. Node.js with NVM
FROM kjunine/ubuntu
MAINTAINER Daniel Ku "kjunine@gmail.com"
RUN apt-get install -y man &&
git clone https://github.com/creationix/nvm.git ~/.nvm &&
/bin/bash -c '. ~/.nvm/nvm.sh && nvm install 0.10' &&
ln -s ~/.nvm/current/bin/node /usr/bin/node &&
ln -s ~/.nvm/current/bin/npm /usr/bin/npm

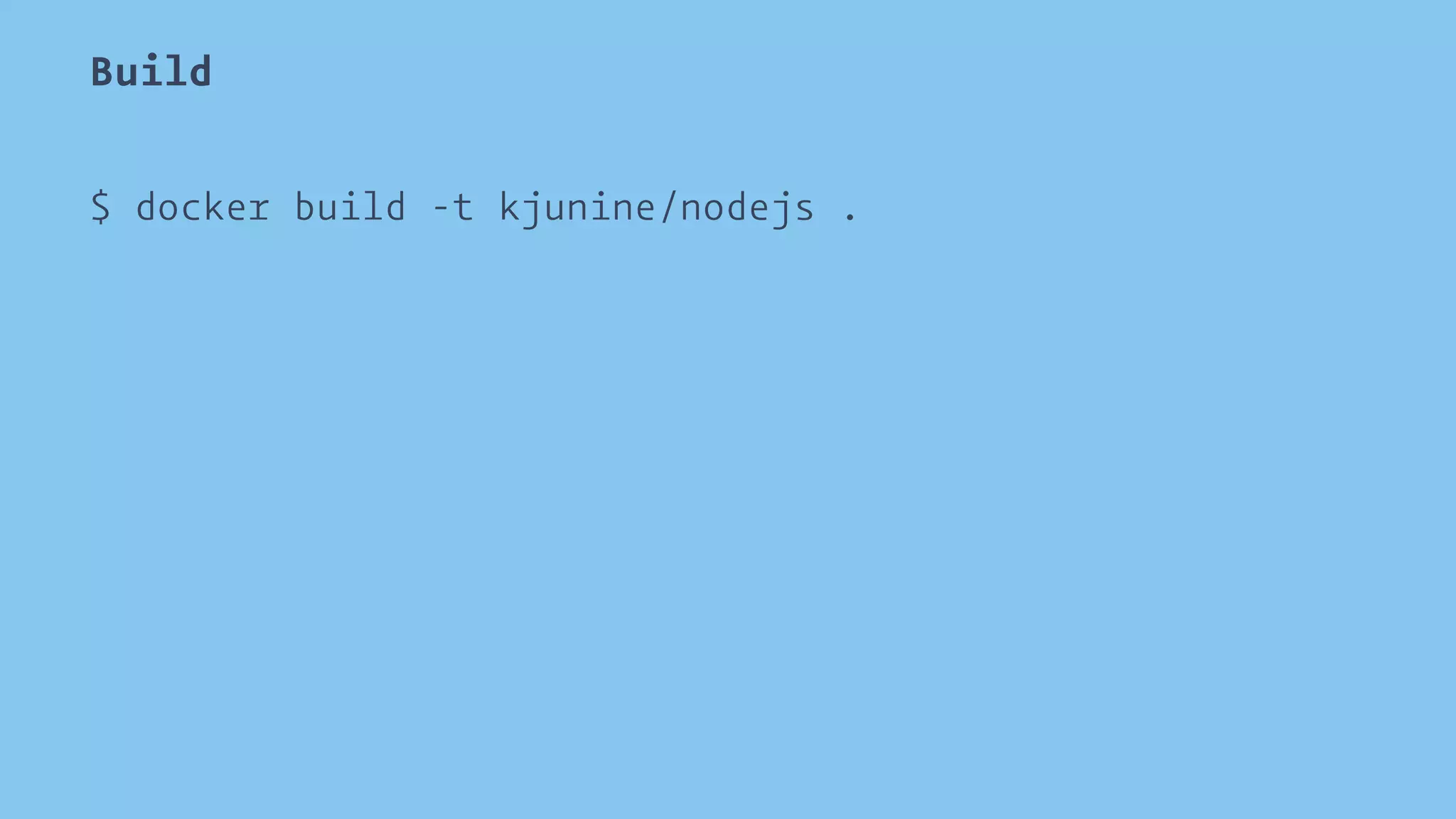

31. Build
$ docker build -t kjunine/nodejs .

32. Sample Application

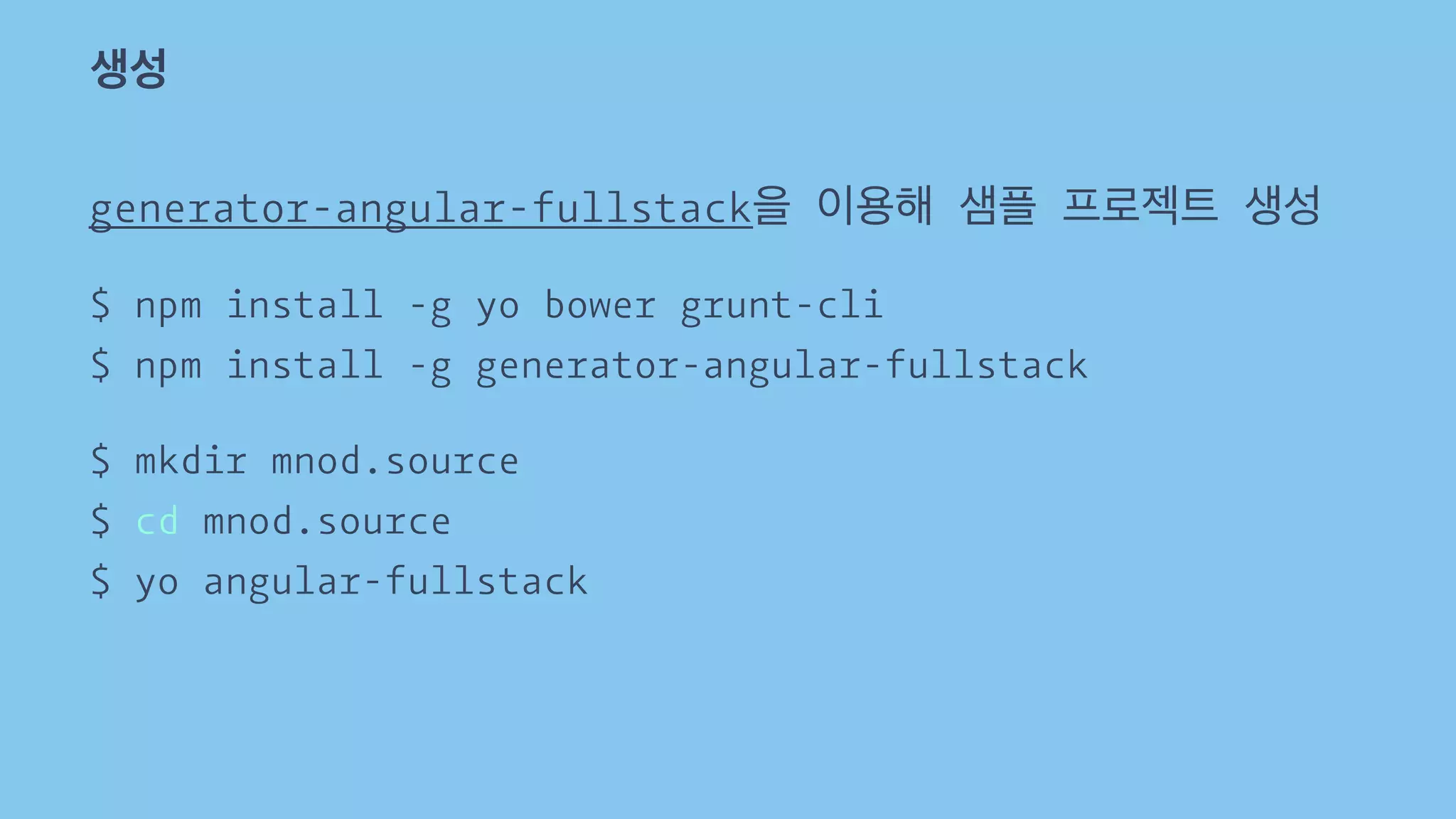

33. 생성
generator-angular-fullstack을 이용해 샘플 프로젝트 생성
$ npm install -g yo bower grunt-cli
$ npm install -g generator-angular-fullstack
$ mkdir mnod.source
$ cd mnod.source
$ yo angular-fullstack

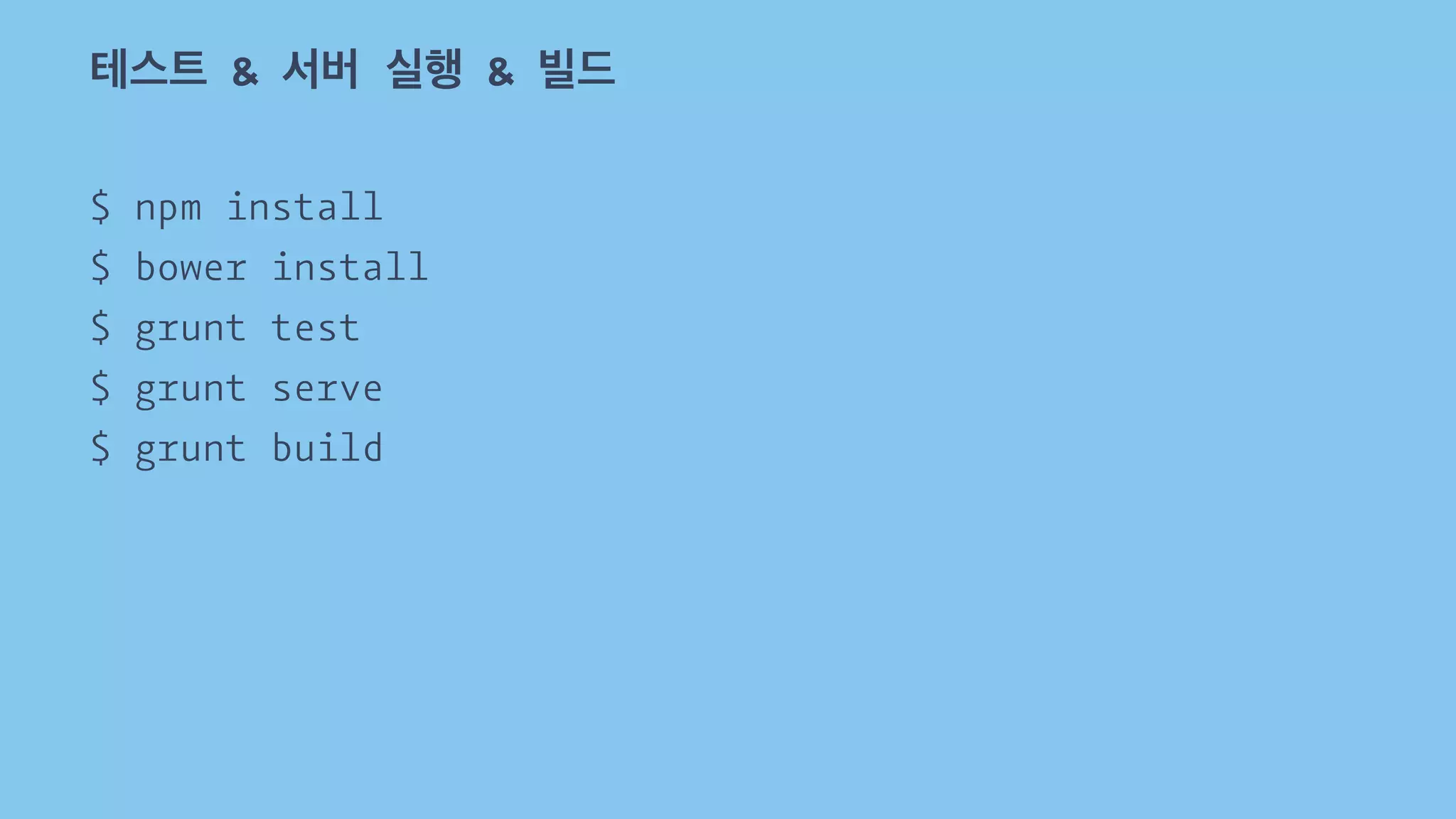

34. 테스트 & 서버 실행 & 빌드
$ npm install
$ bower install
$ grunt test
$ grunt serve
$ grunt build

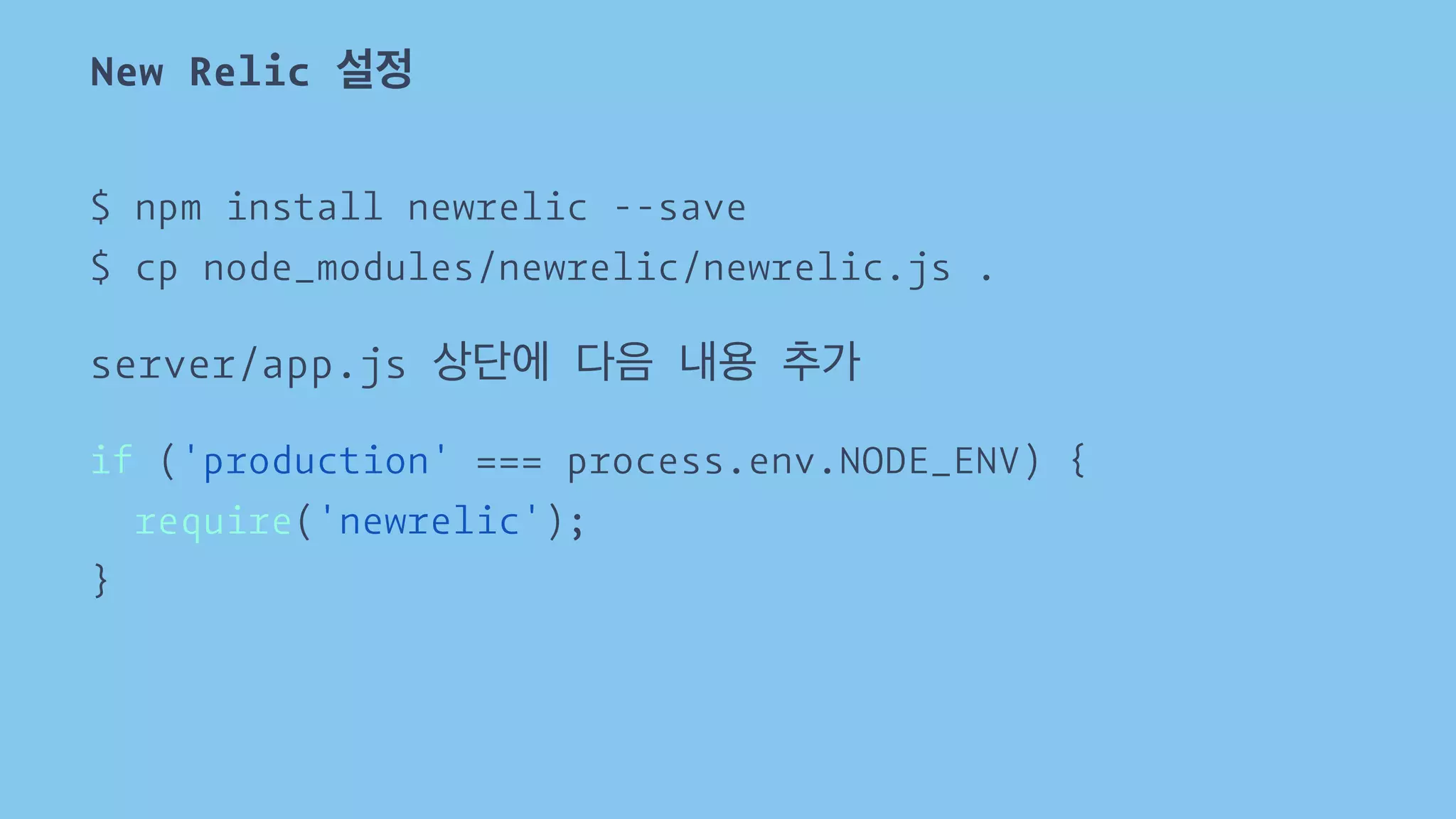

35. New Relic 설정
$ npm install newrelic --save
$ cp node_modules/newrelic/newrelic.js .
server/app.js 상단에 다음 내용 추가
if ('production' === process.env.NODE_ENV) {
require('newrelic');
}

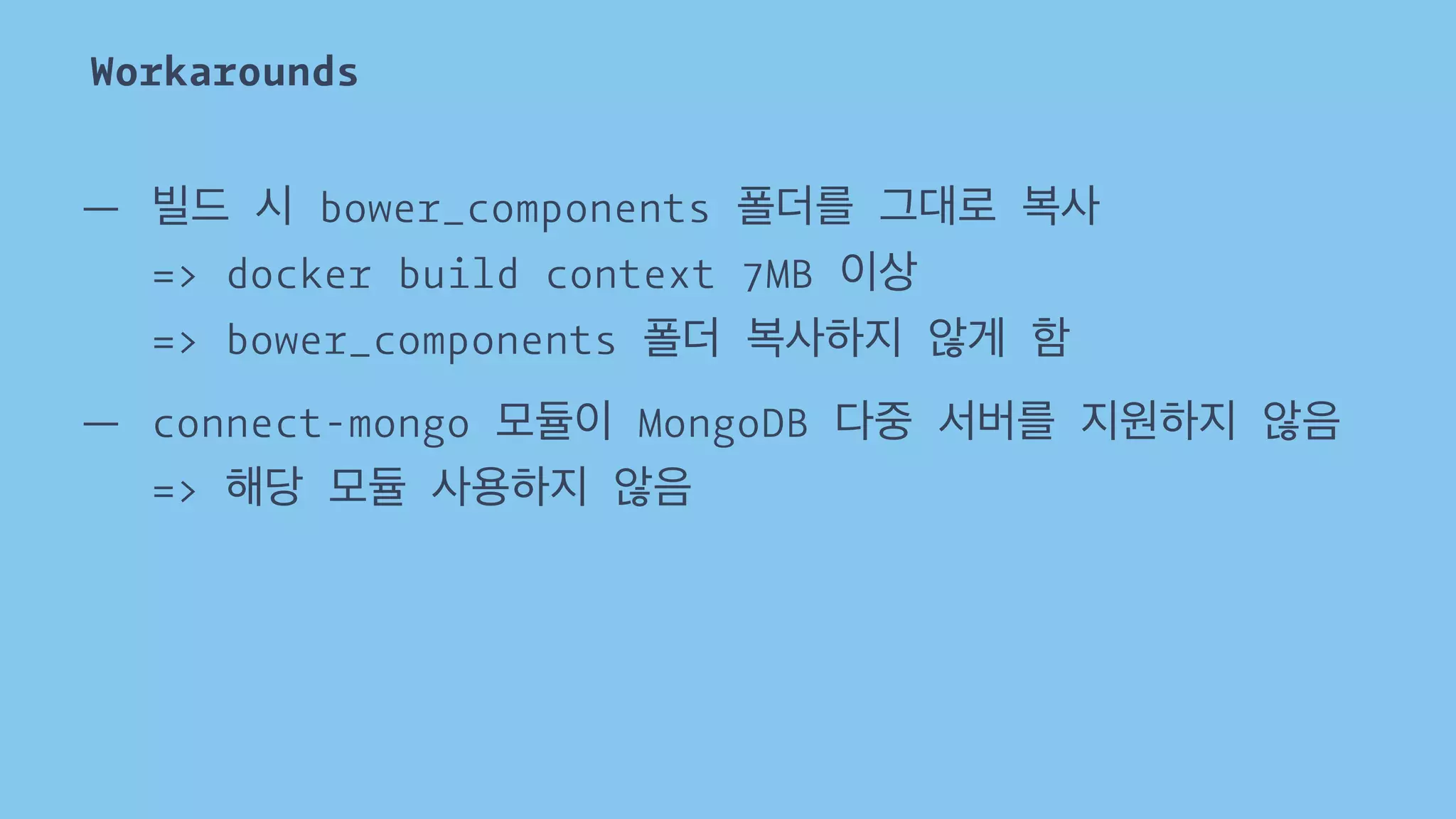

36. Workarounds
— 빌드 시 bower_components 폴더를 그대로 복사
=> docker build context 7MB 이상
=> bower_components 폴더 복사하지 않게 함
— connect-mongo 모듈이 MongoDB 다중 서버를 지원하지 않음
=> 해당 모듈 사용하지 않음

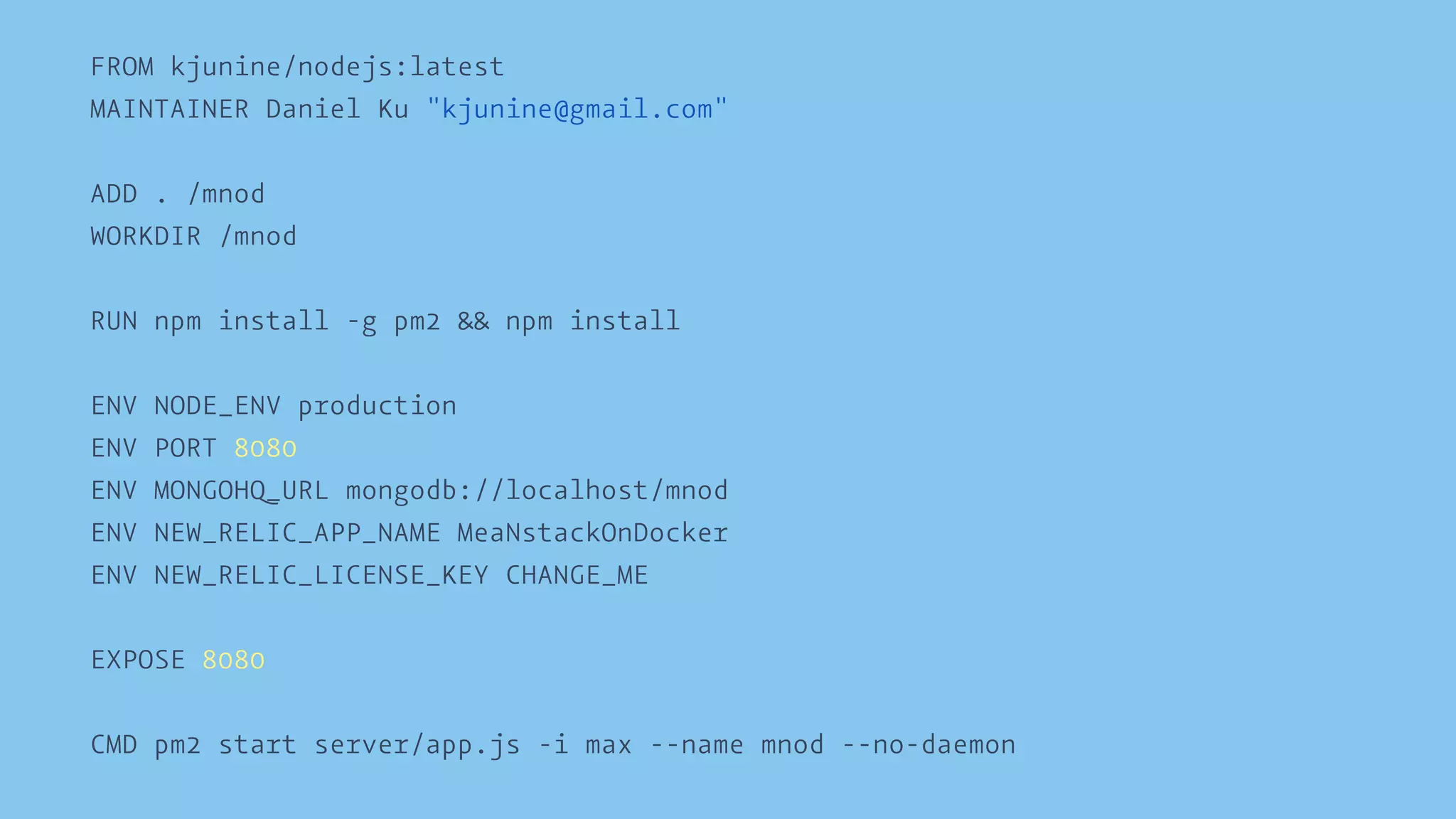

37. FROM kjunine/nodejs:latest
MAINTAINER Daniel Ku "kjunine@gmail.com"
ADD . /mnod
WORKDIR /mnod
RUN npm install -g pm2 && npm install
ENV NODE_ENV production
ENV PORT 8080
ENV MONGOHQ_URL mongodb://localhost/mnod
ENV NEW_RELIC_APP_NAME MeaNstackOnDocker
ENV NEW_RELIC_LICENSE_KEY CHANGE_ME
EXPOSE 8080
CMD pm2 start server/app.js -i max --name mnod --no-daemon

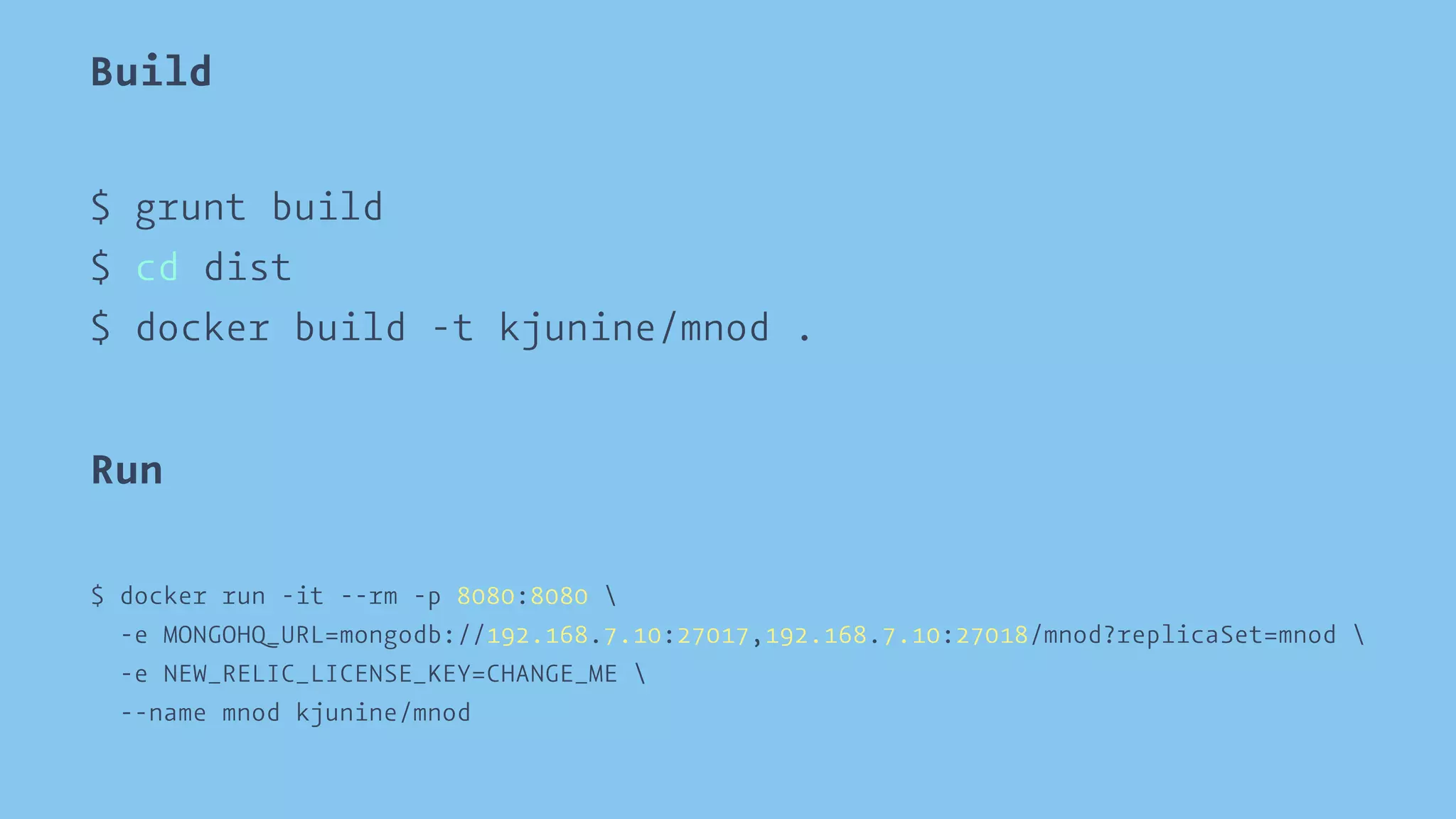

38. Build
$ grunt build
$ cd dist
$ docker build -t kjunine/mnod .
Run
$ docker run -it --rm -p 8080:8080
-e MONGOHQ_URL=mongodb://192.168.7.10:27017,192.168.7.10:27018/mnod?replicaSet=mnod
-e NEW_RELIC_LICENSE_KEY=CHANGE_ME
--name mnod kjunine/mnod

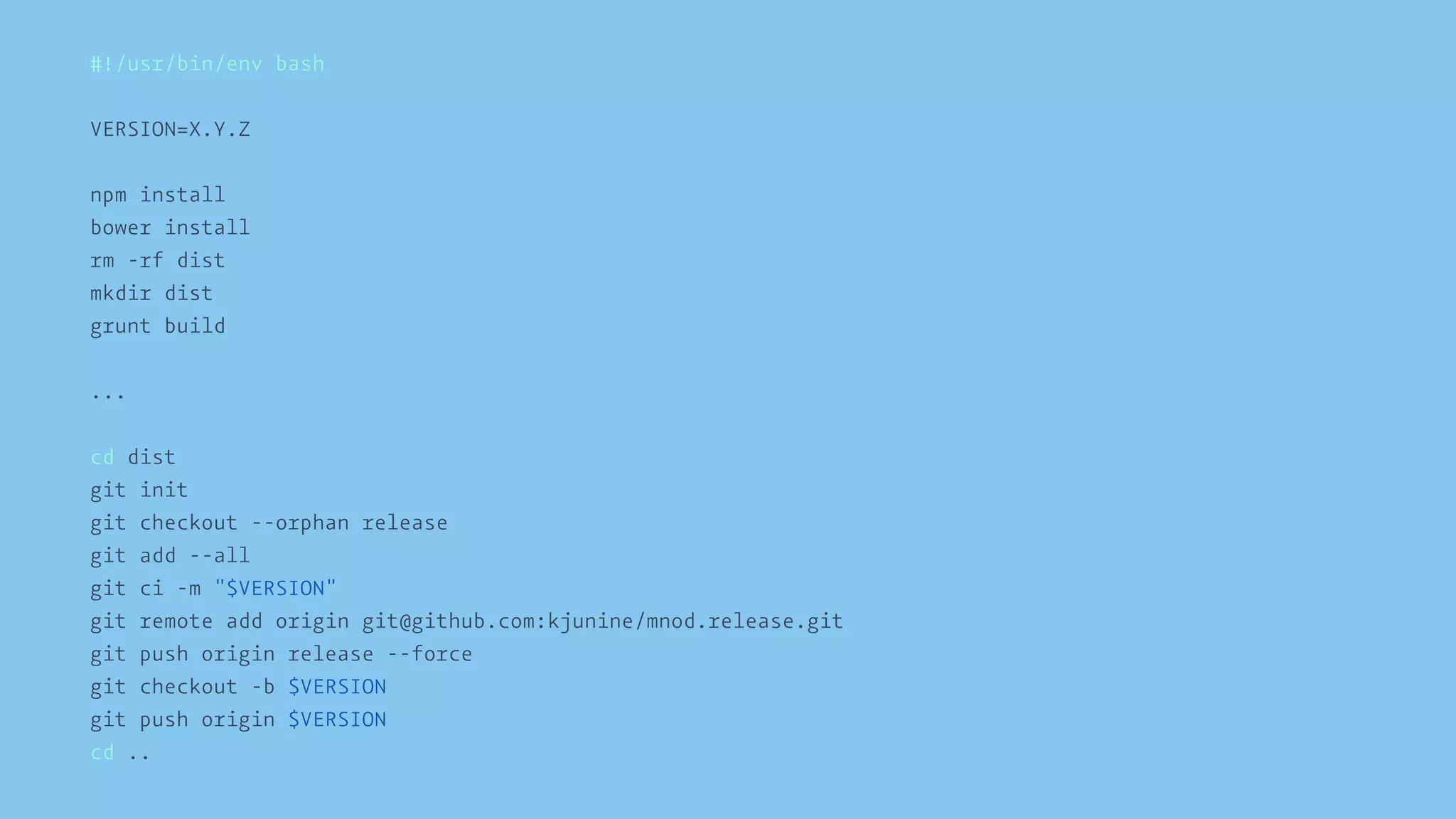

39. #!/usr/bin/env bash
VERSION=X.Y.Z
npm install
bower install
rm -rf dist
mkdir dist
grunt build
...
cd dist
git init
git checkout --orphan release
git add --all
git ci -m "$VERSION"
git remote add origin git@github.com:kjunine/mnod.release.git
git push origin release --force
git checkout -b $VERSION
git push origin $VERSION
cd ..

40. Demo

41. Vagrant with Docker
Provisioner

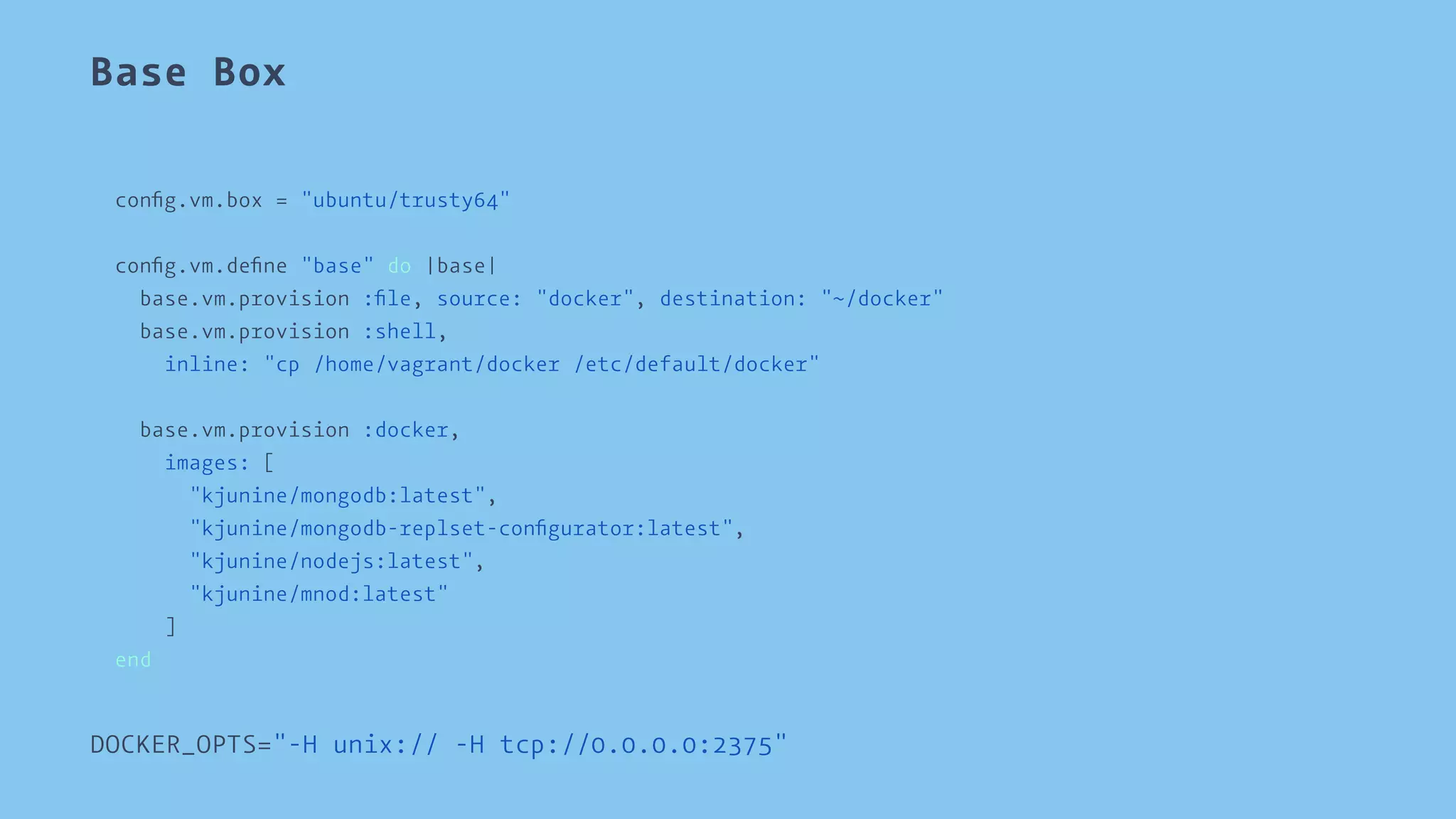

42. Base Box
config.vm.box = "ubuntu/trusty64"
config.vm.define "base" do |base|
base.vm.provision :file, source: "docker", destination: "~/docker"
base.vm.provision :shell,
inline: "cp /home/vagrant/docker /etc/default/docker"
base.vm.provision :docker,
images: [
"kjunine/mongodb:latest",
"kjunine/mongodb-replset-configurator:latest",
"kjunine/nodejs:latest",
"kjunine/mnod:latest"
]
end
DOCKER_OPTS="-H unix:// -H tcp://0.0.0.0:2375"

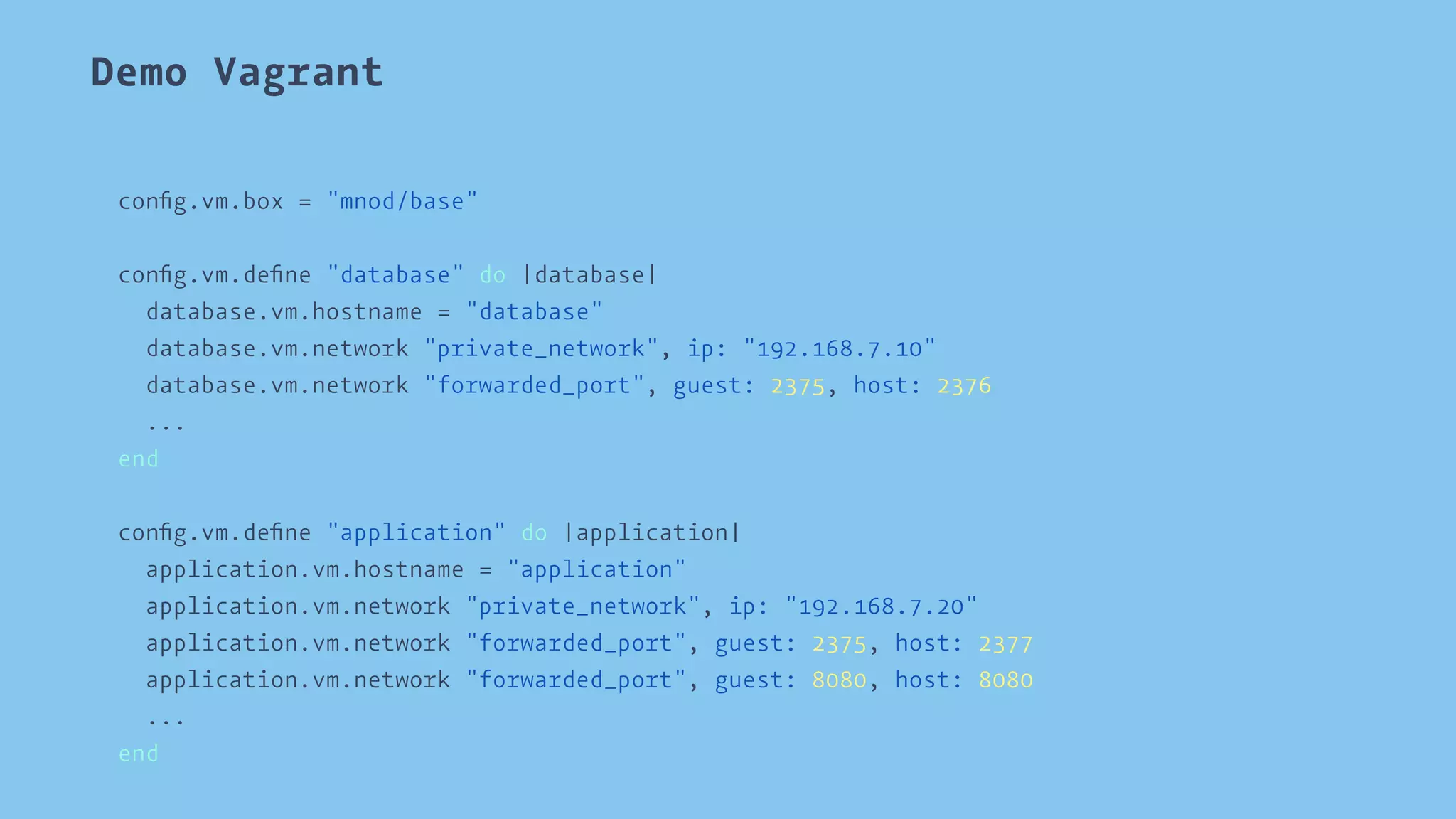

43. Demo Vagrant
config.vm.box = "mnod/base"
config.vm.define "database" do |database|
database.vm.hostname = "database"
database.vm.network "private_network", ip: "192.168.7.10"
database.vm.network "forwarded_port", guest: 2375, host: 2376
...
end
config.vm.define "application" do |application|
application.vm.hostname = "application"
application.vm.network "private_network", ip: "192.168.7.20"
application.vm.network "forwarded_port", guest: 2375, host: 2377
application.vm.network "forwarded_port", guest: 8080, host: 8080
...
end

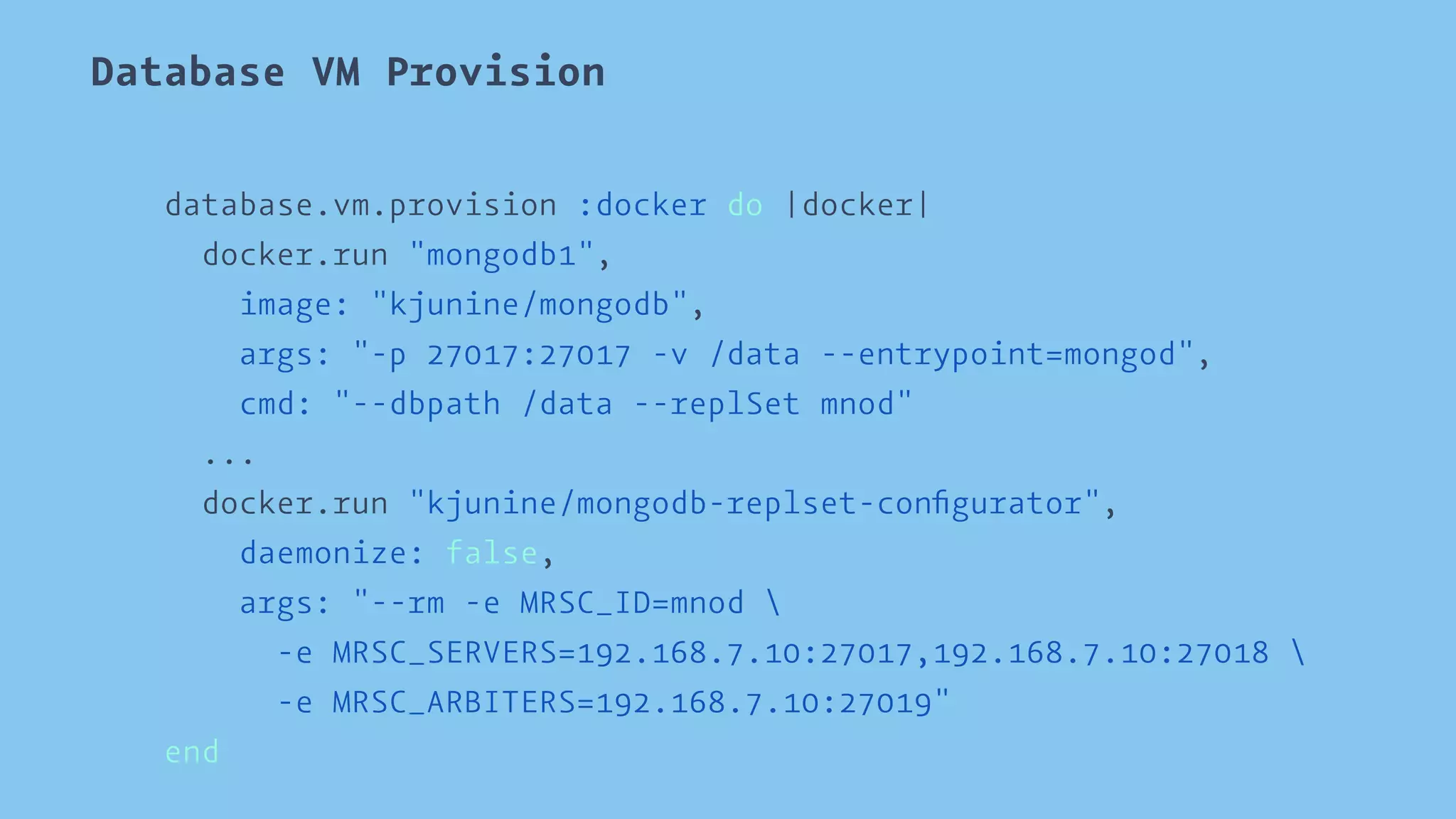

44. Database VM Provision
database.vm.provision :docker do |docker|
docker.run "mongodb1",
image: "kjunine/mongodb",
args: "-p 27017:27017 -v /data --entrypoint=mongod",
cmd: "--dbpath /data --replSet mnod"
...
docker.run "kjunine/mongodb-replset-configurator",
daemonize: false,
args: "--rm -e MRSC_ID=mnod
-e MRSC_SERVERS=192.168.7.10:27017,192.168.7.10:27018
-e MRSC_ARBITERS=192.168.7.10:27019"
end

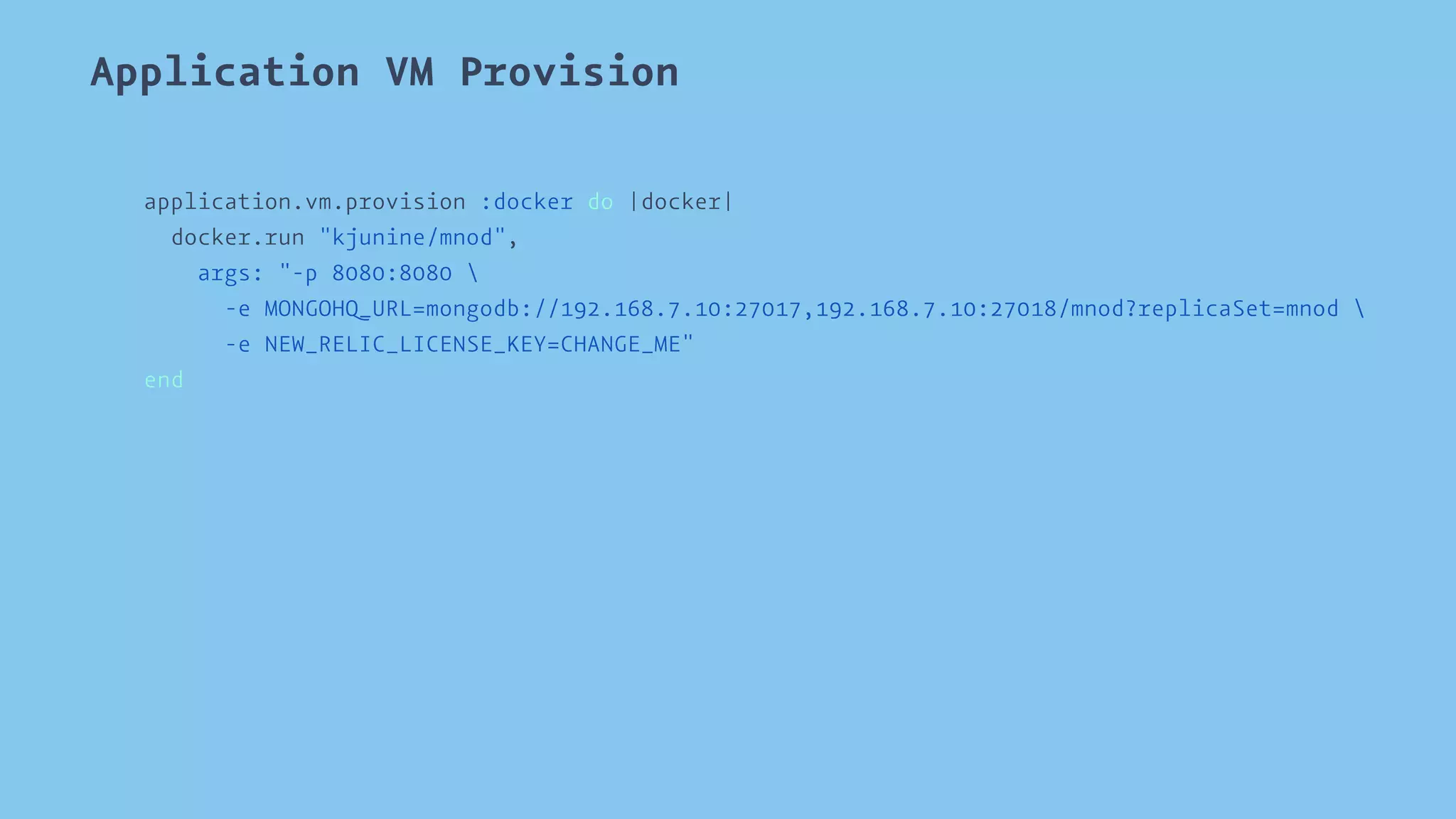

45. Application VM Provision
application.vm.provision :docker do |docker|
docker.run "kjunine/mnod",
args: "-p 8080:8080
-e MONGOHQ_URL=mongodb://192.168.7.10:27017,192.168.7.10:27018/mnod?replicaSet=mnod
-e NEW_RELIC_LICENSE_KEY=CHANGE_ME"
end

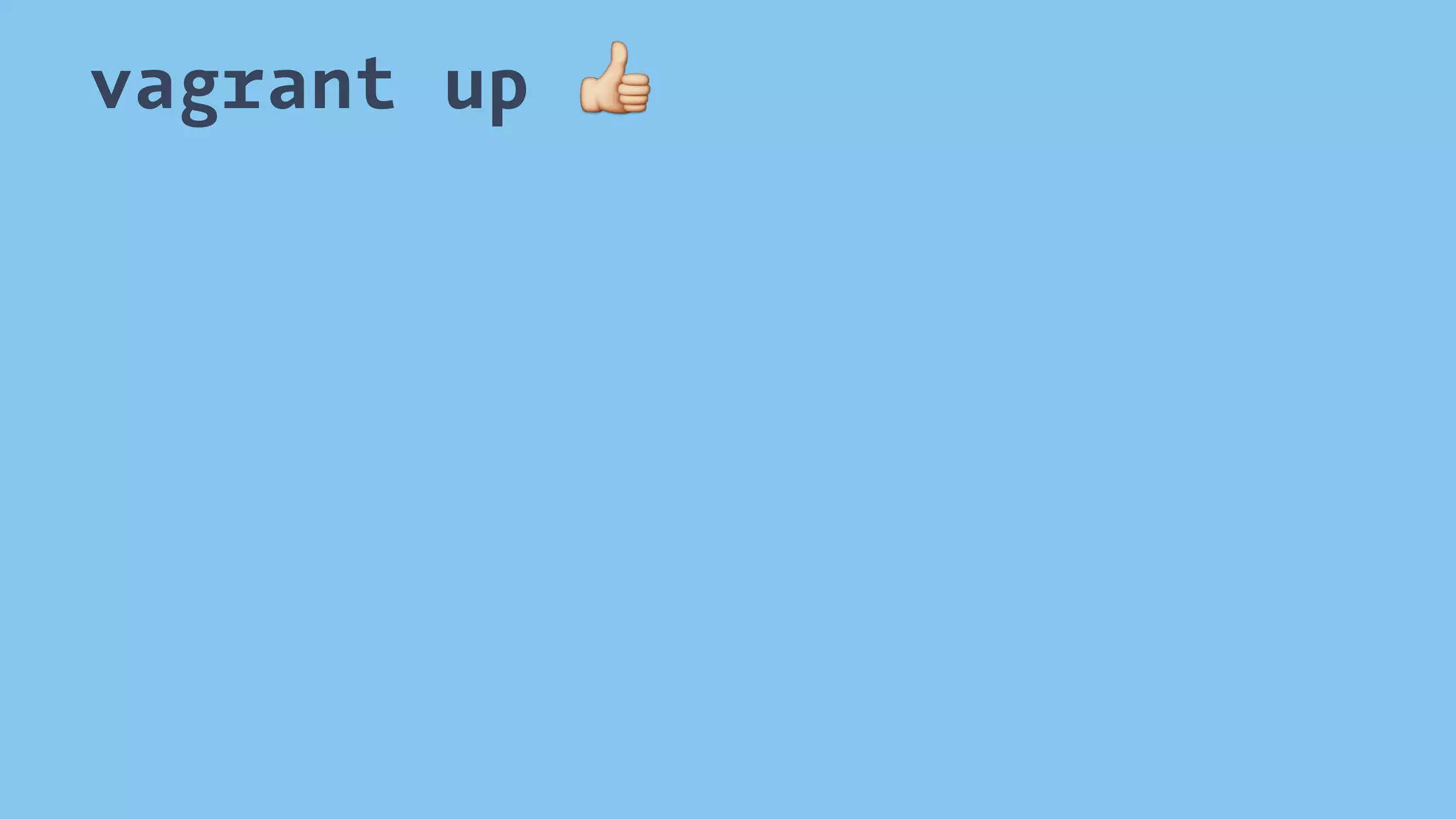

46. vagrant up !

47. Demo

50. 끝

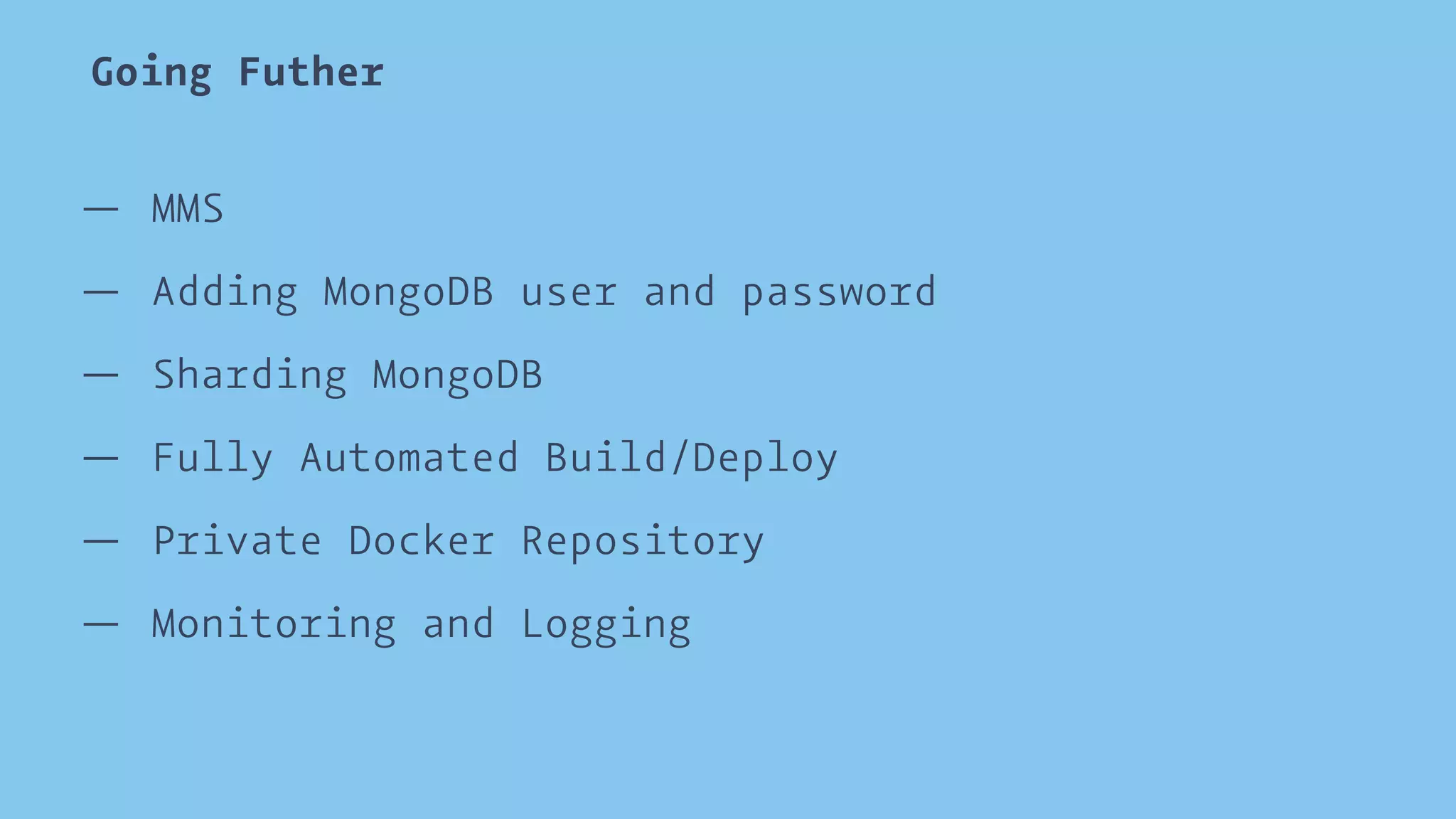

51. Going Futher
— MMS
— Adding MongoDB user and password
— Sharding MongoDB
— Fully Automated Build/Deploy
— Private Docker Repository
— Monitoring and Logging

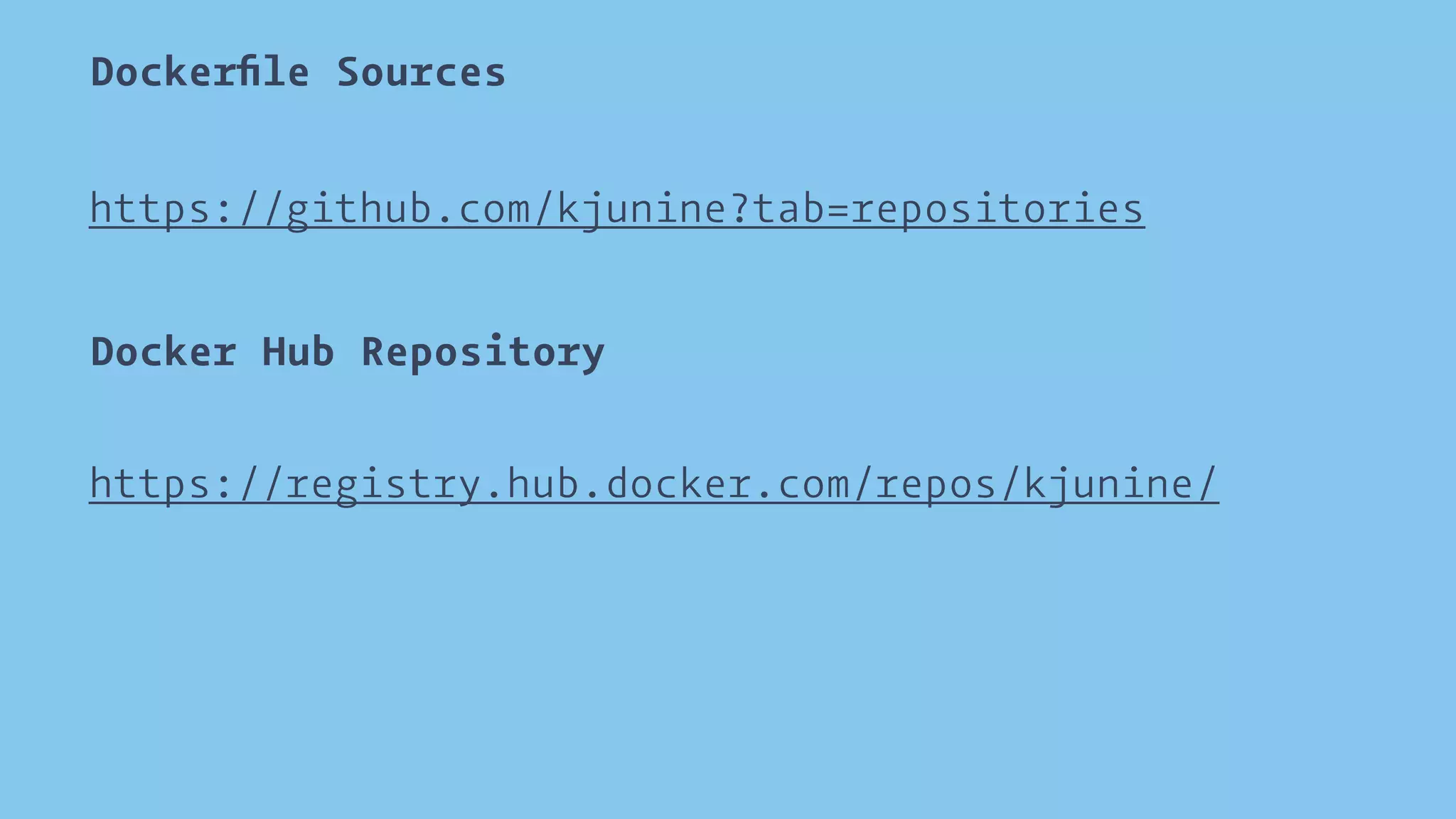

52. Dockerfile Sources
https://github.com/kjunine?tab=repositories
Docker Hub Repository
https://registry.hub.docker.com/repos/kjunine/

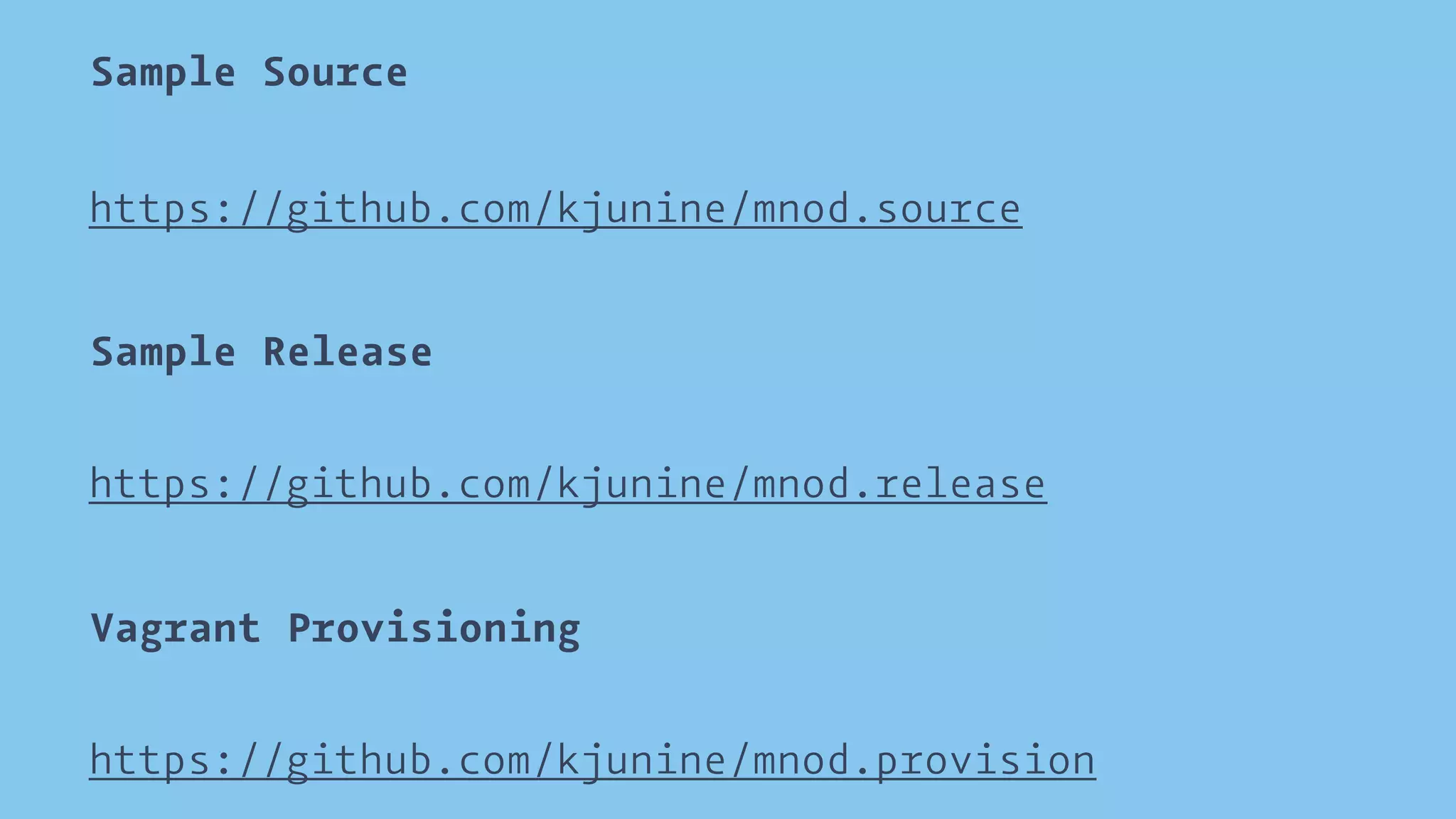

53. Sample Source
https://github.com/kjunine/mnod.source
Sample Release
https://github.com/kjunine/mnod.release
Vagrant Provisioning
https://github.com/kjunine/mnod.provision
