The document describes how to configure Interior Gateway Routing Protocol (IGRP) on three routers to enable connectivity between three networks. It provides the configuration steps for each router, including setting hostnames, IP addresses on interfaces, and enabling IGRP with the network commands. It also shows how to verify the routing tables and connectivity between networks using the ping command.
This document discusses the Exterior Gateway Protocol (EGP), including its origins as a way to scale routing between autonomous systems, how it establishes and maintains neighbor relationships to exchange reachability information, and its limitations that led to the development of the Border Gateway Protocol (BGP).
The document discusses the Interior Gateway Routing Protocol (IGRP) and Enhanced Interior Gateway Routing Protocol (EIGRP). IGRP was developed by Cisco in 1986 as an alternative to RIP routing, which had limitations like metric hop count and routing overhead. IGRP uses a composite metric including bandwidth, delay, reliability, and loading to determine the best path. It supports unequal cost load balancing and converges faster than RIP. EIGRP is an enhanced version of IGRP that uses the same metric system and supports features like variable length subnet masking.
It is an open standard, distance vector, classfull routing protocol. Rip version 2 supports classless.
It sends the complete routing table out to all active interfaces every 30 seconds. Rip only uses hop count
to determine the best way to a remote network, but it has a maximum allowable hop count of 15 by
default, meaning that 16 is deemed unreachable. RIP works well in small networks, but it’s inefficient on
large networks with slow WAN links or on networks with a large number of routers installed.
EIGRP is a cisco proprietary, Advance distance vector, classless Interior gateway routing protocol.
Released in-1994.
It works on Network Layer of OSI Model.
It use the IP protocol no 88. (It doesn’t use TCP or UDP)
EIGRP AD – 90
Eigrp External routes AD – 170
EIGRP has a maximum hop-count of 224, though the default maximum hop-count is set to 100
EIGRP and OSPF are routing protocols. EIGRP uses the DUAL algorithm and metric to select fast, loop-free routes. It supports multiple network layers and rapid convergence. OSPF is an open standard link-state protocol that provides a common network view and calculates the shortest path. It can route between autonomous systems and uses link state updates and SPF algorithm. Configuring OSPF involves assigning networks to areas and defining the routing process. Verification includes checking neighbors, routes, and topology tables.
Packet Tracer: Routing protocols EIGRP and OSPFRafat Khandaker
The document summarizes an experiment in Packet Tracer where the routing protocols EIGRP and OSPF were implemented on a simulated enterprise network with multiple hosts and routers. EIGRP and OSPF were configured on the 3 routers to exchange routing update tables and allow routing between all hosts. The experiment demonstrated how each protocol operates, including configuration of EIGRP with autonomous system numbers and OSPF with areas to establish routing adjacencies between routers. Pings between hosts across the routers confirmed correct routing was achieved with both protocols.
This document discusses the Exterior Gateway Protocol (EGP), including its origins as a way to scale routing between autonomous systems, how it establishes and maintains neighbor relationships to exchange reachability information, and its limitations that led to the development of the Border Gateway Protocol (BGP).
The document discusses the Interior Gateway Routing Protocol (IGRP) and Enhanced Interior Gateway Routing Protocol (EIGRP). IGRP was developed by Cisco in 1986 as an alternative to RIP routing, which had limitations like metric hop count and routing overhead. IGRP uses a composite metric including bandwidth, delay, reliability, and loading to determine the best path. It supports unequal cost load balancing and converges faster than RIP. EIGRP is an enhanced version of IGRP that uses the same metric system and supports features like variable length subnet masking.
It is an open standard, distance vector, classfull routing protocol. Rip version 2 supports classless.
It sends the complete routing table out to all active interfaces every 30 seconds. Rip only uses hop count
to determine the best way to a remote network, but it has a maximum allowable hop count of 15 by
default, meaning that 16 is deemed unreachable. RIP works well in small networks, but it’s inefficient on
large networks with slow WAN links or on networks with a large number of routers installed.
EIGRP is a cisco proprietary, Advance distance vector, classless Interior gateway routing protocol.
Released in-1994.
It works on Network Layer of OSI Model.
It use the IP protocol no 88. (It doesn’t use TCP or UDP)
EIGRP AD – 90
Eigrp External routes AD – 170
EIGRP has a maximum hop-count of 224, though the default maximum hop-count is set to 100
EIGRP and OSPF are routing protocols. EIGRP uses the DUAL algorithm and metric to select fast, loop-free routes. It supports multiple network layers and rapid convergence. OSPF is an open standard link-state protocol that provides a common network view and calculates the shortest path. It can route between autonomous systems and uses link state updates and SPF algorithm. Configuring OSPF involves assigning networks to areas and defining the routing process. Verification includes checking neighbors, routes, and topology tables.
Packet Tracer: Routing protocols EIGRP and OSPFRafat Khandaker
The document summarizes an experiment in Packet Tracer where the routing protocols EIGRP and OSPF were implemented on a simulated enterprise network with multiple hosts and routers. EIGRP and OSPF were configured on the 3 routers to exchange routing update tables and allow routing between all hosts. The experiment demonstrated how each protocol operates, including configuration of EIGRP with autonomous system numbers and OSPF with areas to establish routing adjacencies between routers. Pings between hosts across the routers confirmed correct routing was achieved with both protocols.
- An autonomous system (AS) is a group of networks under single administrative control, each with a unique ID number. Interior gateway protocols (IGPs) like RIP, IGRP, EIGRP, OSPF route within an AS, while exterior gateway protocols like BGP route between ASes.
- IGRP is a distance vector protocol that uses a composite metric and broadcasts updates. EIGRP is an advanced hybrid protocol that uses multicast updates and three tables to store routing information. OSPF is a link-state protocol that forms adjacencies and uses areas and least-cost routing.
- Configuring these protocols involves enabling IP routing, specifying the routing protocol and associated networks, and verifying
This document provides instructions for configuring a network topology in Packet Tracer using 3 routers and 3 switches. It describes connecting the routers and switches with cables and configuring the IP addresses and default gateways for 6 PCs connected to the routers. It also includes directions for connecting the routers together with fiber cables and configuring RIP routing between the routers to establish communication between all devices on the 3 subnetworks.
This document discusses configuring route redistribution between OSPF and EIGRP routing protocols. It describes configuring EIGRP on Router1 for networks 10.0.0.0 and 192.168.0.0, EIGRP on Router2 for 192.168.0.0, and OSPF on Router2 and Router3 for various networks including 192.168.1.0. It then explains how to redistribute EIGRP routes into OSPF by configuring redistribution on Router2, and how to redistribute OSPF routes into EIGRP by configuring redistribution on the same router. Verifying the routing tables on Router1 and Router3 is used to confirm the redist
This document provides an overview of dynamic routing protocols. It discusses interior gateway protocols like RIP, IGRP, and EIGRP which are used within an autonomous system to share routing information. Exterior gateway protocols like BGP are used between autonomous systems. Key concepts covered include autonomous systems, administrative distance, distance vector protocols, routing metrics, loop avoidance techniques, and configuration of RIP, IGRP and EIGRP.
Routing information protocol & rip configuration3Anetwork com
Routing Information Protocol (RIP) is a distance-vector routing protocol that uses hop count as its routing metric. RIP version 1 (RIPv1) uses broadcast updates every 30 seconds and has a maximum hop count of 15. RIPv1 supports classful routing only. RIP version 2 (RIPv2) is an enhanced protocol that uses multicasts, supports classless routing with VLSM, and allows for authentication. The document then provides the configuration and verification steps to implement RIPv2 routing between three routers connected in a network.
Comparision between the most common routing protocols used by a networking geek in a largescale environment.Gives a detailed view into its application and advantages. Credited to Lucent technologies project documentation.
- Packet Tracer is a program used to illustrate basic network concepts and allow users to build and test networks in real-time.
- A router is a networking device that connects different networks and selects the best path to forward packets between them based on its routing table. Cisco is the leading manufacturer of routers.
- There are different modes that allow administrators to monitor and configure routers, including setup, user, privileged, global configuration, and interface modes. Static and dynamic routing can be configured to determine the best paths between networks.
This document summarizes a chapter about EIGRP and OSPF routing protocols. It discusses key aspects of configuring and verifying EIGRP like using the router eigrp command to enable EIGRP on interfaces, and show commands to view EIGRP neighbor relationships and routing tables. It also covers fundamental OSPF concepts like using network statements to assign interfaces to areas, and show commands to verify the OSPF configuration and neighbor adjacencies. The document provides configuration examples and explains OSPF terminology regarding neighbors, designated routers, and using wildcards in network statements.
RIP is an interior gateway protocol that employs distance-vector routing and uses hop count as its routing metric. It works by periodically sharing full routing tables between neighboring routers to detect changes in network reachability. The maximum number of hops allowed in the RIP protocol is 15, which limits the size of networks it can support. There are two versions of RIP - version 1 lacks support for VLSM and authentication, while version 2 adds these features and multicasts updates. RIP has limitations such as slow convergence, count to infinity problems, and an inability to support networks larger than 15 hops without extensions.
The document discusses configuring EIGRP on routers. EIGRP configuration requires enabling EIGRP using the "router eigrp ASN_NUMBER" command and specifying networks to advertise using the "network SUBNET" command. The ASN number must match across routers to establish neighbor relationships. The network command can use a wildcard mask to enable EIGRP on specific interfaces rather than all interfaces in a classful network. Verification commands like "show ip eigrp neighbors" and "show ip route" are provided to check neighbor relationships and exchanged routes.
EIGRP is an advanced distance-vector routing protocol created by Cisco that uses the Diffusing Update Algorithm (DUAL) to calculate paths and back-up paths. It establishes neighbor adjacencies, uses reliable transport to deliver packets to neighbors, and sends partial and bounded updates only when there is a change.
VRRP (Virtual Router Redundancy Protocol) is a computer networking protocol that provides for
automatic assignment of available Internet Protocol (IP) routers to participating hosts. This increases the
availability and reliability of routing paths via automatic default gateway selections on an IP subnetwork.
The Virtual Router Redundancy Protocol (VRRP) eliminates the single point of failure inherent in the
static default routed environment. VRRP specifies an election protocol that dynamically assigns
responsibility for a virtual router (a VPN 3000 Series Concentrator cluster) to one of the VPN
Concentrators on a LAN. The VRRP VPN Concentrator that controls the IP address(es) associated with a
virtual router is called the Master, and forwards packets sent to those IP addresses.
IPV6 uses a 128-bit address with 8 groups of 16 bits each. It does not support broadcast, NAT, or subnetting like IPv4. Communication types include unicast (one-to-one), multicast (one-to-many), and anycast (one-to-nearest). Special IP addresses include the loopback (::1), invalid (::), multicast (ff80::), link-local (fe80::), global unicast (2000::), and unique local (fc00::). WAN connections can be via dedicated lines, packet switching like Frame Relay, or protocols including HDLC, PPP, and Frame Relay which is configured between routers with DLCI, IP
The document discusses the Routing Information Protocol (RIP). It describes that RIP is a distance-vector interior gateway protocol that uses hop count as its routing metric. It discusses the two versions of RIP - RIPv1 and RIPv2, and their differences in areas like classful/classless operation, broadcast/multicast updates. It also covers RIP configuration, operation, timers, authentication, route filtering, and other features.
OSPF is a link-state routing protocol that uses the Shortest Path First algorithm to calculate the shortest path to destinations. It propagates link-state advertisements rather than routing table updates. OSPF supports hierarchical routing to minimize routing updates. Single-area OSPF configurations assign networks to areas using the network command under the OSPF routing process.
ACLs (Access Control Lists) are used to control network traffic through routers by permitting or denying traffic based on conditions like source/destination IP addresses. There are two types: standard ACLs filter based on source IP and are configured on destination routers, while extended ACLs filter on source/destination IP and can block specific protocols. NAT (Network Address Translation) converts private IP addresses to public IP addresses to avoid IP address depletion and implement network security through configurations like static, dynamic, or port address translation which maps private ports to a public IP address.
The document provides an overview of static and dynamic routing concepts, protocols, and configuration. It discusses static and default routing, as well as dynamic routing protocols including RIP, IGRP, EIGRP, OSPF, BGP, and their characteristics. Troubleshooting commands are also listed to verify routing tables and debug routing issues.
The document discusses OSPF internal route summarization. It explains that OSPF summarization can only be configured on area border routers (ABRs) between areas, and that it involves using a route range to join multiple routes into fewer summary routes. Configuring summarization reduces routing table and link state database sizes. The example shows routing tables and link state databases before and after configuring a route range on an ABR to summarize two networks in an area into a single inter-area route.
This document discusses redistributing routes between OSPF and EIGRP routing protocols. There are two types of external routes when redistributing into OSPF - E1 and E2. E1 routes are redistributed with the default metric plus the internal OSPF cost, while E2 routes are redistributed with the default metric unchanged. The example topology redistributes routes between two EIGRP domains into an OSPF domain, marking one set of redistributed routes as E1 and the other as E2. Verification commands are provided to check the redistribution.
How to Configure Routing Information Protocol (RIP)IT Tech
The document describes how to configure Routing Information Protocol (RIP) version 2 on three routers to enable routing between connected networks. It provides the configuration steps for setting hostnames, IP addresses and RIP on each router. It also shows how to verify the routing tables and connectivity between hosts on different networks using the ping command.
The document provides information about configuring a router, including:
- Configuring passwords, interfaces, banners, and host tables
- Using commands like hostname, enable password, interface type, ip address, no shut, banner motd, clock timezone, and ip host
- Verifying configurations with show commands
- Saving configurations to NVRAM and erasing startup configurations
- An autonomous system (AS) is a group of networks under single administrative control, each with a unique ID number. Interior gateway protocols (IGPs) like RIP, IGRP, EIGRP, OSPF route within an AS, while exterior gateway protocols like BGP route between ASes.
- IGRP is a distance vector protocol that uses a composite metric and broadcasts updates. EIGRP is an advanced hybrid protocol that uses multicast updates and three tables to store routing information. OSPF is a link-state protocol that forms adjacencies and uses areas and least-cost routing.
- Configuring these protocols involves enabling IP routing, specifying the routing protocol and associated networks, and verifying
This document provides instructions for configuring a network topology in Packet Tracer using 3 routers and 3 switches. It describes connecting the routers and switches with cables and configuring the IP addresses and default gateways for 6 PCs connected to the routers. It also includes directions for connecting the routers together with fiber cables and configuring RIP routing between the routers to establish communication between all devices on the 3 subnetworks.
This document discusses configuring route redistribution between OSPF and EIGRP routing protocols. It describes configuring EIGRP on Router1 for networks 10.0.0.0 and 192.168.0.0, EIGRP on Router2 for 192.168.0.0, and OSPF on Router2 and Router3 for various networks including 192.168.1.0. It then explains how to redistribute EIGRP routes into OSPF by configuring redistribution on Router2, and how to redistribute OSPF routes into EIGRP by configuring redistribution on the same router. Verifying the routing tables on Router1 and Router3 is used to confirm the redist
This document provides an overview of dynamic routing protocols. It discusses interior gateway protocols like RIP, IGRP, and EIGRP which are used within an autonomous system to share routing information. Exterior gateway protocols like BGP are used between autonomous systems. Key concepts covered include autonomous systems, administrative distance, distance vector protocols, routing metrics, loop avoidance techniques, and configuration of RIP, IGRP and EIGRP.
Routing information protocol & rip configuration3Anetwork com
Routing Information Protocol (RIP) is a distance-vector routing protocol that uses hop count as its routing metric. RIP version 1 (RIPv1) uses broadcast updates every 30 seconds and has a maximum hop count of 15. RIPv1 supports classful routing only. RIP version 2 (RIPv2) is an enhanced protocol that uses multicasts, supports classless routing with VLSM, and allows for authentication. The document then provides the configuration and verification steps to implement RIPv2 routing between three routers connected in a network.
Comparision between the most common routing protocols used by a networking geek in a largescale environment.Gives a detailed view into its application and advantages. Credited to Lucent technologies project documentation.
- Packet Tracer is a program used to illustrate basic network concepts and allow users to build and test networks in real-time.
- A router is a networking device that connects different networks and selects the best path to forward packets between them based on its routing table. Cisco is the leading manufacturer of routers.
- There are different modes that allow administrators to monitor and configure routers, including setup, user, privileged, global configuration, and interface modes. Static and dynamic routing can be configured to determine the best paths between networks.
This document summarizes a chapter about EIGRP and OSPF routing protocols. It discusses key aspects of configuring and verifying EIGRP like using the router eigrp command to enable EIGRP on interfaces, and show commands to view EIGRP neighbor relationships and routing tables. It also covers fundamental OSPF concepts like using network statements to assign interfaces to areas, and show commands to verify the OSPF configuration and neighbor adjacencies. The document provides configuration examples and explains OSPF terminology regarding neighbors, designated routers, and using wildcards in network statements.
RIP is an interior gateway protocol that employs distance-vector routing and uses hop count as its routing metric. It works by periodically sharing full routing tables between neighboring routers to detect changes in network reachability. The maximum number of hops allowed in the RIP protocol is 15, which limits the size of networks it can support. There are two versions of RIP - version 1 lacks support for VLSM and authentication, while version 2 adds these features and multicasts updates. RIP has limitations such as slow convergence, count to infinity problems, and an inability to support networks larger than 15 hops without extensions.
The document discusses configuring EIGRP on routers. EIGRP configuration requires enabling EIGRP using the "router eigrp ASN_NUMBER" command and specifying networks to advertise using the "network SUBNET" command. The ASN number must match across routers to establish neighbor relationships. The network command can use a wildcard mask to enable EIGRP on specific interfaces rather than all interfaces in a classful network. Verification commands like "show ip eigrp neighbors" and "show ip route" are provided to check neighbor relationships and exchanged routes.
EIGRP is an advanced distance-vector routing protocol created by Cisco that uses the Diffusing Update Algorithm (DUAL) to calculate paths and back-up paths. It establishes neighbor adjacencies, uses reliable transport to deliver packets to neighbors, and sends partial and bounded updates only when there is a change.
VRRP (Virtual Router Redundancy Protocol) is a computer networking protocol that provides for
automatic assignment of available Internet Protocol (IP) routers to participating hosts. This increases the
availability and reliability of routing paths via automatic default gateway selections on an IP subnetwork.
The Virtual Router Redundancy Protocol (VRRP) eliminates the single point of failure inherent in the
static default routed environment. VRRP specifies an election protocol that dynamically assigns
responsibility for a virtual router (a VPN 3000 Series Concentrator cluster) to one of the VPN
Concentrators on a LAN. The VRRP VPN Concentrator that controls the IP address(es) associated with a
virtual router is called the Master, and forwards packets sent to those IP addresses.
IPV6 uses a 128-bit address with 8 groups of 16 bits each. It does not support broadcast, NAT, or subnetting like IPv4. Communication types include unicast (one-to-one), multicast (one-to-many), and anycast (one-to-nearest). Special IP addresses include the loopback (::1), invalid (::), multicast (ff80::), link-local (fe80::), global unicast (2000::), and unique local (fc00::). WAN connections can be via dedicated lines, packet switching like Frame Relay, or protocols including HDLC, PPP, and Frame Relay which is configured between routers with DLCI, IP
The document discusses the Routing Information Protocol (RIP). It describes that RIP is a distance-vector interior gateway protocol that uses hop count as its routing metric. It discusses the two versions of RIP - RIPv1 and RIPv2, and their differences in areas like classful/classless operation, broadcast/multicast updates. It also covers RIP configuration, operation, timers, authentication, route filtering, and other features.
OSPF is a link-state routing protocol that uses the Shortest Path First algorithm to calculate the shortest path to destinations. It propagates link-state advertisements rather than routing table updates. OSPF supports hierarchical routing to minimize routing updates. Single-area OSPF configurations assign networks to areas using the network command under the OSPF routing process.
ACLs (Access Control Lists) are used to control network traffic through routers by permitting or denying traffic based on conditions like source/destination IP addresses. There are two types: standard ACLs filter based on source IP and are configured on destination routers, while extended ACLs filter on source/destination IP and can block specific protocols. NAT (Network Address Translation) converts private IP addresses to public IP addresses to avoid IP address depletion and implement network security through configurations like static, dynamic, or port address translation which maps private ports to a public IP address.
The document provides an overview of static and dynamic routing concepts, protocols, and configuration. It discusses static and default routing, as well as dynamic routing protocols including RIP, IGRP, EIGRP, OSPF, BGP, and their characteristics. Troubleshooting commands are also listed to verify routing tables and debug routing issues.
The document discusses OSPF internal route summarization. It explains that OSPF summarization can only be configured on area border routers (ABRs) between areas, and that it involves using a route range to join multiple routes into fewer summary routes. Configuring summarization reduces routing table and link state database sizes. The example shows routing tables and link state databases before and after configuring a route range on an ABR to summarize two networks in an area into a single inter-area route.
This document discusses redistributing routes between OSPF and EIGRP routing protocols. There are two types of external routes when redistributing into OSPF - E1 and E2. E1 routes are redistributed with the default metric plus the internal OSPF cost, while E2 routes are redistributed with the default metric unchanged. The example topology redistributes routes between two EIGRP domains into an OSPF domain, marking one set of redistributed routes as E1 and the other as E2. Verification commands are provided to check the redistribution.
How to Configure Routing Information Protocol (RIP)IT Tech
The document describes how to configure Routing Information Protocol (RIP) version 2 on three routers to enable routing between connected networks. It provides the configuration steps for setting hostnames, IP addresses and RIP on each router. It also shows how to verify the routing tables and connectivity between hosts on different networks using the ping command.
The document provides information about configuring a router, including:
- Configuring passwords, interfaces, banners, and host tables
- Using commands like hostname, enable password, interface type, ip address, no shut, banner motd, clock timezone, and ip host
- Verifying configurations with show commands
- Saving configurations to NVRAM and erasing startup configurations
Here are the key steps to reset the router configuration to factory defaults:
1. Access privileged EXEC mode by entering "enable"
2. Erase the startup configuration file by entering "erase startup-config", then confirm by pressing enter. This removes any saved configuration.
3. Reload the router by entering "reload". This will perform a soft reboot and reload the factory default configuration stored in ROM.
The router is now reset to its original factory settings. The IP addresses, passwords, and all other configuration changes made are erased.
CCNA Routing Protocol Commands.IP ROUTING, Static Routing, RIP (Routing Information Protocol), EIGRP, Verifying EIGRP and more.
Follow us : http://www.actsupport.com/blog
The document discusses Cisco routers and routing concepts. It provides details about Cisco router components, configuration, interfaces, routing protocols like RIP and IGRP, and autonomous systems. Cisco routers range from small access layer routers like the 700 series to large core routers like the 12000 series. Configuration is done through the console port initially and involves tasks like setting the hostname, passwords, interfaces and routing.
Cisco Internetworking Operating System (ios)Netwax Lab
Cisco IOS (originally Internetwork Operating
System) is software used on most Cisco Systems
routers and current Cisco network switches.
(Earlier switches ran CatOS.) IOS is a package of
routing, switching, internetworking and
telecommunications functions integrated into a
multitasking operating system.
The document describes the configuration of two routers, R1 and R2. On each router, serial interface S0/0 and Fast Ethernet interface F0/0 are configured with IP addresses and enabled. Ping tests are then able to reach the IP address of F0/0 on R1, indicating basic connectivity is established between the two routers.
The document discusses various IP routing protocols and configuration techniques used on Cisco routers. It covers static and default routing, as well as distance vector protocols like RIP and IGRP. It also covers link-state protocols like OSPF and EIGRP, explaining their basic configurations. Other topics include loopback interfaces, VLAN configuration on switches, trunking, inter-VLAN routing, VTP, device management, and access control lists.
The document discusses various IP routing protocols and configuration topics for Cisco routers and switches. It covers static and default routing, as well as distance vector protocols like RIP and IGRP. It also covers link-state protocols like OSPF and EIGRP, and how to configure them on Cisco devices. Additionally, it discusses topics like VLAN configuration, trunking, inter-VLAN routing, VTP, CDP, Telnet, DNS, network connectivity testing, and access control lists.
This document provides instructions for configuring a Cisco router, including:
- Accessing the Cisco IOS command-line interface via console, AUX, or Telnet connections
- Establishing a terminal session and logging into the router
- Navigating the different command modes like global configuration, interface configuration, and entering commands to configure settings like the router name, IP addresses, and enabling protocols
- The importance of copying the running configuration to startup configuration so configurations are preserved after reboots
- Using show commands to examine interface status and configurations
- Resetting the router configuration by erasing the startup configuration file and reloading
This document discusses static route configurations using four different router platforms covered in the CCNA exam. It provides configuration steps to create a topology with four subnets and configure static routes on each router to establish connectivity between all networks. Static routes are manually configured on each router with the IP address of the next hop router for each subnet.
Detailed explanation of Basic router configurationsamreenghauri786
This document provides instructions on configuring basic settings on a Cisco router, including:
1) Configuring initial settings such as the device name, passwords, and banner.
2) Configuring two router interfaces including IP addresses, descriptions, and activating the interfaces.
3) Verifying the interface configurations using commands like show ip interface brief and show interfaces.
Router connects different networks located at geographical locations. It has various interfaces like Ethernet, Serial and supports protocols like RIP, OSPF for dynamic routing. The document provides details about Cisco router components, configuration, interfaces, routing protocols, troubleshooting commands and backup/restoration process using TFTP server.
This lab report summarizes the experiments conducted in a computer networks lab from the first to last class. It includes configurations of basic networking, connecting two PCs through a router, static routing with three routers, dynamic routing using RIP, static NAT configuration, and VLAN configuration. The report demonstrates how to configure IP addresses, routing protocols, and interconnections to establish end-to-end connectivity across multiple devices in a network.
The document provides an overview of common CCNA commands for configuring routing protocols like RIP, OSPF, EIGRP, and IGRP on Cisco routers. It also covers topics like static routing, default routing, VLAN configuration on switches, trunking, ACLs, and basic router and switch configuration/management. The commands are organized by topic and include brief explanations and examples.
This study guide is intended to provide those pursuing the CCNA certification with a framework of what concepts need to be studied. This is not a comprehensive document containing all the secrets of the CCNP nor is it a “braindump” of questions and answers.
I sincerely hope that this document provides some assistance and clarity in your studies.
The document provides information on configuring Cisco routers, including:
- Cisco IOS software uses different command modes to access groups of commands, including user EXEC, privileged EXEC, and configuration modes.
- IP addresses, routing protocols, and other settings are configured in privileged EXEC or configuration modes using commands like interface, ip address, router rip/ospf/eigrp, and more.
- Router and link status can be checked using LED indicators on ports and transceiver modules.
The document provides commands and configuration examples for CCNA topics including IP routing, static routing, RIP, IGRP, EIGRP, OSPF, VLANs, trunking, VTP, CDP, Telnet, DNS, and access lists. Key points covered include how to view and configure routing tables, routing protocols, VLANs, trunks, switch ports, inter-VLAN routing, VTP, CDP settings, Telnet sessions, hostname resolution, and network access control using standard and extended access lists.
The document provides instructions and examples for configuring various routing protocols like RIP, IGRP, EIGRP, OSPF on Cisco routers and switches. It also includes commands for configuring basic device settings like IP addresses, passwords, VLANs, trunk ports and CDP. Examples are given for initial configurations of Cisco 1900 and 2950 switches.
This document provides commands and examples for configuring routing protocols like RIP, IGRP, EIGRP, OSPF, static routing and default routing on Cisco routers. It also covers IP routing commands, switching configuration for VLANs, trunking, inter-VLAN routing and VTP on Cisco switches. Basic router and switch configurations including passwords, interfaces, IP addresses are demonstrated along with backup, restore and recovery procedures.
Similar to How to configure interior gateway routing protocol (igrp) (20)
The Cisco IP Phone 8800 Key Expansion Module adds extra programmable buttons to the phone. The programmable buttons can be set up as phone speed-dial buttons, or phone feature buttons.
Cisco catalyst 9200 series platform spec, licenses, transition guideIT Tech
The Cisco Catalyst 9200 Series switches are Cisco’s latest addition to the fixed enterprise switching access platform, and are built for security, resiliency, and programmability.
The 900 ISRs offer easy management and pro-visioning capabilities through Cisco Configuration Professional Express, Cisco DNA Center, and Cisco IOS Software, with full visibility into and control of network configurations and applications.
Hpe pro liant gen9 to gen10 server transition guideIT Tech
The document summarizes the key features and benefits of HPE ProLiant Gen10 servers. It introduces the new Gen10 servers as offering high performance, security, and flexibility to run demanding applications and workloads. Specific Gen10 server models highlighted include the DL360 and DL380 for compute environments, the ML110 and ML350 for versatility, and the MicroServer for small offices. Key security capabilities of the HPE iLO 5 management tool are also outlined.
Cisco ISR 4461 is the newest number of Cisco 4000 Family Integrated Services Router. Now the Cisco 4000 Family contains the following platforms: the 4461 ISR, 4451 ISR, 4431 ISR, 4351 ISR, 4331 ISR, 4321 ISR and 4221 ISR.
New nexus 400 gigabit ethernet (400 g) switchesIT Tech
Cisco unveiled new 400 Gigabit Ethernet (400G) switches to help large cloud and data center customers meet modern network challenges of high scale and bandwidth. The new portfolio includes the Nexus 3400 fixed switches and Nexus 9000 switches for Cisco's ACI architecture. The 400G switches bring more than just increased speed, with flexible deployment options and support for features like superfast policy enforcement, packet visibility, smart buffering, and low latency traffic prioritization.
Tested cisco isr 1100 delivers the richest set of wi-fi featuresIT Tech
Cisco ISR 1000 offers a branch-in-a-box solution with various types of uplink connectivity, multiple Power over Ethernet (PoE) and PoE+ capable Gigabit-Ethernet ports, and built-in Cisco Mobility Express Solution for WLAN access and SD-WAN capability.
Aruba’s modern, programmable switches easily integrate with our industry leading network management solutions, either cloud-based Aruba Central or on premise Aruba AirWave.
Cisco IOS XE opens a completely new paradigm in network configuration, operation, and monitoring through network automation. Cisco’s automation solution is open, standards-based, and extensible across the entire lifecycle of a network device. The various automation mechanisms are outlined here.
Cisco's wireless solutions can be broadly classified into Standalone systems that operate Cisco Aironet Access Points individually and Controller-based systems that centrally manage multiple Cisco Aironet Access Points using a Cisco Wireless Controller. Multiple expansion modes are also supported in Controller-based systems.
Four reasons to consider the all in-one isr 1000IT Tech
The document discusses the benefits of Cisco's 1000 Series Integrated Services Routers for small and medium-sized businesses. It provides an all-in-one solution for routing, switching, wireless access and security in a single device. Key benefits include advanced wired and wireless connectivity, enterprise-class security features, and the ability to evolve the software-defined WAN over time through centralized management and policies. The 1000 Series offers an affordable way for SMBs to securely connect endpoints, devices and networks.
The difference between yellow and white labeled ports on a nexus 2300 series fexIT Tech
What is the Difference between Yellow and White Labeled Ports on a Nexus 2300 Series FEX?
The Cisco Nexus 2300 platform provides two types of ports: ports for end-host attachment (host interfaces) and uplink ports (fabric interfaces). Both yellow and white colored fabric interfaces can be used to provide connectivity to the upstream parent Cisco Nexus switch. There is no difference between yellow labeled and white labeled uplink ports.
The Cisco 892F ISRs have an SFP port that supports auto-media-detection, auto-failover, and remote fault indication (RFI), as described in the IEEE 802.3ah specification.
The Nexus 7000 Series switches form the core data center networking fabric. There are multiple chassis options from the Nexus 7000 and Nexus 7700 product family. The Nexus 7000 and the Nexus 7700 switches offer a comprehensive set of features for the data center network.
The document discusses the replacement of legacy Cisco transceiver modules that have reached end-of-sale and end-of-life with newer models. It provides a table listing the legacy modules and their replacement modules. It also discusses the target end-of-sale dates for legacy modules and features of the new modules, including backward compatibility and enhanced monitoring. Finally, it lists and describes the newest Cisco SFP transceiver modules.
How to configure interior gateway routing protocol (igrp)
1. http://blog.router-switch.com/
How to Configure Interior Gateway Routing Protocol (IGRP)?
If you are not familiar with Interior Gateway Routing Protocol (IGRP), click the
following link to view an introduction to Interior Gateway Routing Protocol (IGRP).
Interior Gateway Routing Protocol (IGRP) Configuration
Interior Gateway Routing Protocol (IGRP) can be configured in a router using the
following IOS commands. If you have a new router with a latest IOS release, you may
not find Interior Gateway Routing Protocol (IGRP) configuration commands because
Interior Gateway Routing Protocol (IGRP) is removed from new IOS releases.
Router(config)# router igrp ASN
Router(config-router)# network Network_ID
ASN in the above IOS command stands for Autonomous System Number.
Interior Gateway Routing Protocol (IGRP) - Lab Practice
The following diagram shows our lab setup. We have three routers, three switches
and three hosts connected as below. The host names, IP addresses and the interfaces
of the routers are shown in diagram. The IP addresses of the hosts are also shown in
the diagram.
Notes: If you are not familiar with a router console connection, click the following link
to learn how to connect the serial port of your computer to router console port.
Click the following link to learn how to connect to the console port of the router if
there is no serial port in your computer.
2. http://blog.router-switch.com/

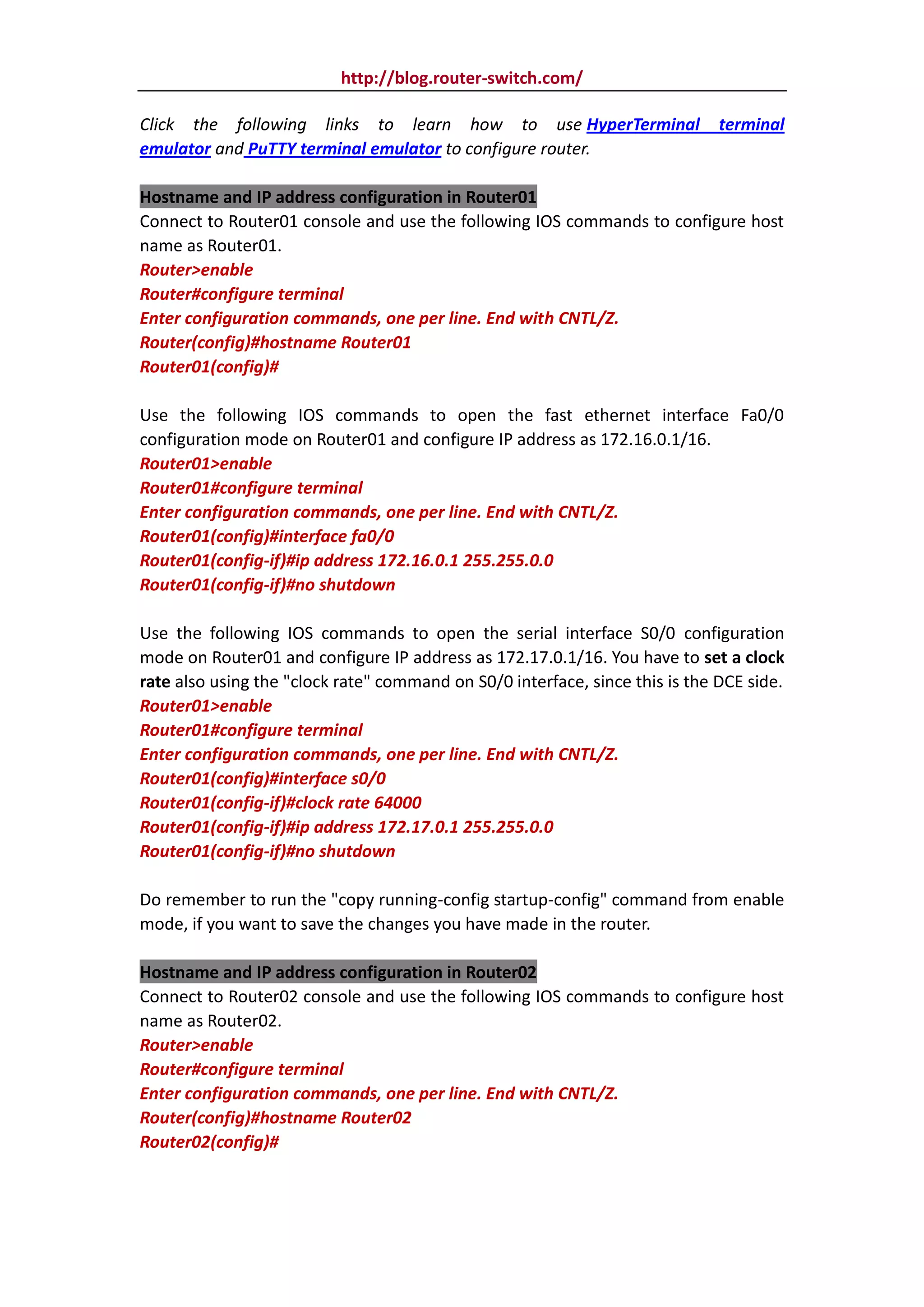

Click the following links to learn how to use HyperTerminal terminal
emulator and PuTTY terminal emulator to configure router.
Hostname and IP address configuration in Router01
Connect to Router01 console and use the following IOS commands to configure host
name as Router01.
Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname Router01
Router01(config)#
Use the following IOS commands to open the fast ethernet interface Fa0/0
configuration mode on Router01 and configure IP address as 172.16.0.1/16.
Router01>enable
Router01#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router01(config)#interface fa0/0
Router01(config-if)#ip address 172.16.0.1 255.255.0.0
Router01(config-if)#no shutdown
Use the following IOS commands to open the serial interface S0/0 configuration
mode on Router01 and configure IP address as 172.17.0.1/16. You have to set a clock
rate also using the "clock rate" command on S0/0 interface, since this is the DCE side.
Router01>enable
Router01#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router01(config)#interface s0/0
Router01(config-if)#clock rate 64000
Router01(config-if)#ip address 172.17.0.1 255.255.0.0
Router01(config-if)#no shutdown
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
Hostname and IP address configuration in Router02
Connect to Router02 console and use the following IOS commands to configure host
name as Router02.
Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname Router02
Router02(config)#
3. http://blog.router-switch.com/
Use the following IOS commands to open the fast ethernet interface Fa0/0
configuration mode on Router02 and configure IP address as 172.18.0.1/16.
Router02>enable
Router02#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router02(config)#interface fa0/0
Router02(config-if)#ip address 172.18.0.1 255.255.0.0
Router02(config-if)#no shutdown
Use the following IOS commands to open the serial interface S0/0 configuration
mode on Router02 and configure IP address as 172.17.0.2/16.
Router02>enable
Router02#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router02(config)#interface s0/0
Router02(config-if)#ip address 172.17.0.2 255.255.0.0
Router02(config-if)#no shutdown
Use the following IOS commands to open the serial interface S0/1 configuration
mode on Router02 and configure IP address as 172.19.0.1/16. You have to set a clock
rate also using the "clock rate" command on S0/1 interface, since this is the DCE side.
Router02>enable
Router02#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router02(config)#interface s0/1
Router02(config-if)#clock rate 64000
Router02(config-if)#ip address 172.19.0.1 255.255.0.0
Router02(config-if)#no shutdown
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
Hostname and IP address configuration in Router03
Connect to Router03 console and use the following IOS commands to configure host
name as Router03.
Router>enable
Router#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#hostname Router03
Router03(config)#
Use the following IOS commands to open the fast ethernet interface Fa0/0
configuration mode on Router03 and configure IP address as 172.20.0.1/16.
Router03>enable
4. http://blog.router-switch.com/
Router03#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router03(config)#interface fa0/0
Router03(config-if)#ip address 172.20.0.1 255.255.0.0
Router03(config-if)#no shutdown
Use the following IOS commands to open the serial interface S0/1 configuration
mode on Router03 and configure IP address as 172.19.0.2/16.
Router03>enable
Router03#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router03(config)#interface s0/1
Router03(config-if)#ip address 172.19.0.2 255.255.0.0
Router03(config-if)#no shutdown
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
Interior Gateway Routing Protocol (IGRP) configuration in Router01
Connect to Router01 console and use the following IOS commands to configure
Interior Gateway Routing Protocol (IGRP) in Router01. Please refer the beginning of
this lesson to view the Interior Gateway Routing Protocol (IGRP) configuration IOS
command.
In the IOS "network" command, shown below, we specify only the directly connected
networks of this router.
Router01>enable
Router01#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router01(config)# router igrp 1
Router01(config-router)# network 172.16.0.0
Router01(config-router)# network 172.17.0.0
Router01(config-router)#exit
Router01(config)#exit
Router01#
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
Interior Gateway Routing Protocol (IGRP) configuration in Router02
Connect to Router02 console and use the following IOS commands to configure
Interior Gateway Routing Protocol (IGRP) in Router02. Please refer the beginning of
this lesson to view the Interior Gateway Routing Protocol (IGRP) configuration IOS
command.
5. http://blog.router-switch.com/
In the IOS "network" command, shown below, we specify only the directly connected
networks of this router.
Router02>enable
Router02#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router02(config)# router igrp 1
Router02(config-router)# network 172.17.0.0
Router02(config-router)# network 172.18.0.0
Router02(config-router)# network 172.19.0.0
Router02(config-router)#exit
Router02(config)#exit
Router02#
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
Interior Gateway Routing Protocol (IGRP) configuration in Router03
Connect to Router03 console and use the following IOS commands to configure
Interior Gateway Routing Protocol (IGRP) in Router03. Please refer the beginning of
this lesson to view the Interior Gateway Routing Protocol (IGRP) configuration IOS
command.
In the IOS "network" command, shown below, we specify only the directly connected
networks of this router.
Router03>enable
Router03#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router03(config)# router igrp 1
Router03(config-router)# network 172.19.0.0
Router03(config-router)# network 172.20.0.0
Router03(config-router)#exit
Router03(config)#exit
Router03#
Do remember to run the "copy running-config startup-config" command from enable
mode, if you want to save the changes you have made in the router.
How to View the Routing Table in Router01
After the network is converged after the initial configuration and Interior Gateway
Routing Protocol (IGRP) configuration, we can use the "show ip route" to view the
routing table in Router01, as shown below.
Router01>enable
Router01#show ip route
6. http://blog.router-switch.com/
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
C 172.16.0.0/16 is directly connected, FastEthernet0/0
C 172.17.0.0/16 is directly connected, Serial0/0
I 172.18.0.0/16 [120/1] via 172.17.0.2, 00:00:22, Serial0/0
I 172.19.0.0/16 [120/1] via 172.17.0.2, 00:00:22, Serial0/0
I 172.20.0.0/16 [120/2] via 172.17.0.2, 00:00:22, Serial0/0
The "I" character at the beginning of a line in routing table shows that it is a route
discovered byInterior Gateway Routing Protocol (IGRP) and "C" character shows that
it is a directly connected network.
How to View the Routing Table in Router02?
When the network is converged after the initial configuration and Interior Gateway
Routing Protocol (IGRP) configuration, we can use the "show ip route" to view the
routing table in Router02, as shown below.
Router02>enable
Router02#show ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
I 172.16.0.0/16 [120/1] via 172.17.0.1, 00:00:07, Serial0/0
C 172.17.0.0/16 is directly connected, Serial0/0
C 172.18.0.0/16 is directly connected, FastEthernet0/0
C 172.19.0.0/16 is directly connected, Serial0/1
I 172.20.0.0/16 [120/1] via 172.19.0.2, 00:00:20, Serial0/1
The "I" character at the beginning of a line in routing table shows that it is a route
discovered by Interior Gateway Routing Protocol (IGRP) and "C" character shows that
it is a directly connected network.
How to View the Routing Table in Router03?
When the network is converged after the initial configuration and Interior Gateway
7. http://blog.router-switch.com/
Routing Protocol (IGRP) configuration, we can use the "show ip route" to view the
routing table in Router03, as shown below.
Router03>enable
Router03#show ip route
Codes: C - connected, S - static, I - IGRP, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2, E - EGP
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default, U - per-user static route, o - ODR
P - periodic downloaded static route
Gateway of last resort is not set
I 172.16.0.0/16 [120/2] via 172.19.0.1, 00:00:02, Serial0/1
I 172.17.0.0/16 [120/1] via 172.19.0.1, 00:00:02, Serial0/1
I 172.18.0.0/16 [120/1] via 172.19.0.1, 00:00:02, Serial0/1
C 172.19.0.0/16 is directly connected, Serial0/1
C 172.20.0.0/16 is directly connected, FastEthernet0/0
The "I" character at the beginning of a line in routing table shows that it is a route
discovered by Interior Gateway Routing Protocol (IGRP) and "C" character shows that
it is a directly connected network.
Verify the Connectivity between Networks Using the Ping Command
To verify the Interior Gateway Routing Protocol (IGRP) routes and the connectivity
between networks, run the ping command from Host01 (IP address: 172.16.0.10/16)
to Host03 (IP address: 172.20.0.10/16).
C:>ping 172.20.0.10
Pinging 172.20.0.10 with 32 bytes of data:
Reply from 172.20.0.10: bytes=32 time=172ms TTL=125
Reply from 172.20.0.10: bytes=32 time=188ms TTL=125
Reply from 172.20.0.10: bytes=32 time=157ms TTL=125
Reply from 172.20.0.10: bytes=32 time=188ms TTL=125
Ping statistics for 172.20.0.10:
Packets: Sent = 4, Received = 4, Lost = 0 (0% loss),
Approximate round trip times in milli-seconds:
Minimum = 157ms, Maximum = 188ms, Average = 176ms
The ping reply from Host03 (IP address: 172.20.0.10/16) shows that the Interior
Gateway Routing Protocol (IGRP) is configured well in three routers and there is
network connectivity between different networks.
---Reference from
http://www.omnisecu.com/cisco-certified-network-associate-ccna/how-to-configure-
interior-gateway-routing-protocol-igrp.htm
