Board of Education - USB
Take a look at your board to get familiar with its parts.
1. 9V Battery Clip : You can use alkaline or rechargeable 9 volt batteries. The battery
clip and barrel jack are intentionally positioned so you cannot use both at once.
2. Barrel Jack : This accepts a 2.1 mm center-positive barrel plug from a 6-9 V wall-
mount supply or from a battery pack. You cannot use the barrel jack and a 9 volt
battery at the same time.
3. Voltage regulator : Supplies regulated 5 V (up to 1 amp of current) for sockets and
pins labeled Vdd. Vdd sockets are convenient for supplying 5 V to circuits you will
build on the breadboard area.
4. Power Indicator LED : This LED will light up when power is supplied to your board
and the power switch is in position 1 or 2.
5. Servo headers (X4 and X5) and Power Select Jumper : These each have two 3-pin
connectors that bring power, ground, and I/O pin access together so you can easily
plug in servos or other 3-pin devices. The power connection is pre-set to Vdd (+5 V)
but you can set it to Vin (the board's supply voltage) by moving the shorting block on
the jumper between the headers. Each 3-pin row is labeled with an I/O pin number
above it. The 12, 13, 14, and 15 signal lines for the servo headers are also accessible
as P12, P13, P14, and P15 I/O pin sockets on the X1 and X2 headers. This can be
useful for building a servo signal indicator light on the breadboard as you may do in
some Stamps in Class activities. For independent projects, keep these shared
connections in mind, especially to avoid inadvertently connecting circuits with
conflicting functions to the same I/O pin.
6. Power header (X3) : The sockets labeled Vdd connect to +5 VDC, Vin connects
Page 1 of 3Board of Education - USB
directly to the power supplied to the board by the battery clip or barrel jack, and Vss
connects to 0 V (ground).
7. Breadboard :The breadboard has metal clips that run underneath the white plastic
board in a horizontal fashion. Each strip connects a 5-socket group, with two groups to
each row, separated by a center trench. Wires or legs of components plugged into the
same 5-socket group will be electrically connected. Components with many legs (such
as pushbuttons or ICs), are placed in the middle of the board so that half of the legs
are on the left side and half are on the right side of the trench. Note: Always
disconnect power before building or modifying circuits!
8. I/O Pin Access Header (X2) :The BASIC Stamp module's 16 I/O pins, labeled 0 to
15, are connected to this header. Its location adjacent to the breadboard makes it
convenient for connecting circuits to I/O pins. Keep in mind that I/O pin access is also
brought to the X4, X5, and X1 headers, so be careful not to build conflicting
breadboard circuits if you are using these other headers as well.
9. AppMod header (X1) :The AppMod header provides power, I/O pins, Vdd, Vin, and
Vss access for any devic.
The document provides instructions for building a simple circuit on a breadboard using a circuit schematic. It begins by explaining the differences between a circuit schematic and physical diagram. It then instructs the reader to build the circuit shown in the schematic in two loops. The first loop adds a 1kΩ resistor between the positive and negative rails. The second loop adds another 1kΩ resistor and an LED, connected such that the LED's shorter lead is towards the negative rail. Color coding is used to identify the nodes for clear implementation.
A breadboard is a temporary prototyping circuit board that allows components to be connected without soldering. It has rows of metal terminals underneath that connect holes on top to allow wires and leads to be inserted. Breadboards come in various sizes and are useful for testing circuits before building a permanent version on a circuit board. They allow for easy reconfiguration and reuse of components without damage.
This document discusses the hardware connections between an Arduino Uno and an IMU-MPU9150 sensor. It describes how to connect the components using an I2C communication bus with pull-up resistors. Specifically, it provides the steps to connect the Arduino's 3.3V and SDA/SCL pins to the corresponding pins on the IMU. Resistors are added between the I2C lines and power to enable communication over the bus. The finished assembly allows the Arduino to collect motion data captured by the IMU.
Dropbox is a free service that automatically syncs and saves files across a user's devices. Any file saved to the Dropbox folder on one device is instantly available on all other linked devices. This allows users to access their files from any computer or phone and work seamlessly across multiple devices. The Dropbox folder works just like any other folder but syncs file changes in real-time. Installation is easy and only requires dragging files into the Dropbox folder to sync them.
Introduction to Physical Computing Using ArduinoCyberRad
Conrad Brown presented on physical computing and the Arduino open source platform. Physical computing involves using sensors and microcontrollers to translate analog inputs to digital outputs or control devices like motors and lights. The Arduino platform allows coding on the Arduino IDE, uploading code to an Arduino board, and running the code to control inputs and outputs through the board's digital and analog pins.
Securing links can be tough, and it's not about how creative or productive or smart we are, but how persuasive we are. Kirsty will walk you through how to get clients and managers to say yes to your best ideas, how to get interesting, affordable data, how to get experts to collaborate with you, and how to create outreach emails that compel people to cover your campaign.
Board of Education - USBTake a look at your board to get f.docxmoirarandell
Board of Education - USB
Take a look at your board to get familiar with its parts.
1. 9V Battery Clip : You can use alkaline or rechargeable 9 volt batteries. The battery
clip and barrel jack are intentionally positioned so you cannot use both at once.
2. Barrel Jack : This accepts a 2.1 mm center-positive barrel plug from a 6-9 V wall-
mount supply or from a battery pack. You cannot use the barrel jack and a 9 volt
battery at the same time.
3. Voltage regulator : Supplies regulated 5 V (up to 1 amp of current) for sockets and
pins labeled Vdd. Vdd sockets are convenient for supplying 5 V to circuits you will
build on the breadboard area.
4. Power Indicator LED : This LED will light up when power is supplied to your board
and the power switch is in position 1 or 2.
5. Servo headers (X4 and X5) and Power Select Jumper : These each have two 3-pin
connectors that bring power, ground, and I/O pin access together so you can easily
plug in servos or other 3-pin devices. The power connection is pre-set to Vdd (+5 V)
but you can set it to Vin (the board's supply voltage) by moving the shorting block on
the jumper between the headers. Each 3-pin row is labeled with an I/O pin number
above it. The 12, 13, 14, and 15 signal lines for the servo headers are also accessible
as P12, P13, P14, and P15 I/O pin sockets on the X1 and X2 headers. This can be
useful for building a servo signal indicator light on the breadboard as you may do in
some Stamps in Class activities. For independent projects, keep these shared
connections in mind, especially to avoid inadvertently connecting circuits with
conflicting functions to the same I/O pin.
6. Power header (X3) : The sockets labeled Vdd connect to +5 VDC, Vin connects
Page 1 of 3Board of Education - USB
directly to the power supplied to the board by the battery clip or barrel jack, and Vss
connects to 0 V (ground).
7. Breadboard :The breadboard has metal clips that run underneath the white plastic
board in a horizontal fashion. Each strip connects a 5-socket group, with two groups to
each row, separated by a center trench. Wires or legs of components plugged into the
same 5-socket group will be electrically connected. Components with many legs (such
as pushbuttons or ICs), are placed in the middle of the board so that half of the legs
are on the left side and half are on the right side of the trench. Note: Always
disconnect power before building or modifying circuits!
8. I/O Pin Access Header (X2) :The BASIC Stamp module's 16 I/O pins, labeled 0 to
15, are connected to this header. Its location adjacent to the breadboard makes it
convenient for connecting circuits to I/O pins. Keep in mind that I/O pin access is also
brought to the X4, X5, and X1 headers, so be careful not to build conflicting
breadboard circuits if you are using these other headers as well.
9. AppMod header (X1) :The AppMod header provides power, I/O pins, Vdd, Vin, and
Vss access for any devic.
The document provides instructions for building a simple circuit on a breadboard using a circuit schematic. It begins by explaining the differences between a circuit schematic and physical diagram. It then instructs the reader to build the circuit shown in the schematic in two loops. The first loop adds a 1kΩ resistor between the positive and negative rails. The second loop adds another 1kΩ resistor and an LED, connected such that the LED's shorter lead is towards the negative rail. Color coding is used to identify the nodes for clear implementation.
A breadboard is a temporary prototyping circuit board that allows components to be connected without soldering. It has rows of metal terminals underneath that connect holes on top to allow wires and leads to be inserted. Breadboards come in various sizes and are useful for testing circuits before building a permanent version on a circuit board. They allow for easy reconfiguration and reuse of components without damage.
This document discusses the hardware connections between an Arduino Uno and an IMU-MPU9150 sensor. It describes how to connect the components using an I2C communication bus with pull-up resistors. Specifically, it provides the steps to connect the Arduino's 3.3V and SDA/SCL pins to the corresponding pins on the IMU. Resistors are added between the I2C lines and power to enable communication over the bus. The finished assembly allows the Arduino to collect motion data captured by the IMU.
Noriyuki Aibe, "High Efficiency Connection Method on Electric Signal Lines be...直久 住川
This document presents a novel connection method called "Bit-shift connection" for electric signal lines between modular circuit boards. The method allows for independent connection of interfaces like FPGA and CPLD boards using a limited board area and number of connector pins. It works by reassigning connection pins on each board in a shifted pattern, so any module can connect to another without needing to designate pin assignments in advance. This flexible approach allows boards to be stacked and reordered freely while maintaining independent connections between the CPU board and all interfaces. The document provides examples to illustrate how the Bit-shift connection method works and compares it to conventional bus-based and independent connection topologies.
This document provides instructions for building a simple audio amplifier circuit using only a few basic components. The circuit uses two LM386 integrated circuits to provide amplification with a gain of 200. It can be built and tested on a breadboard before permanently assembling the circuit on a small printed circuit board. The assembled amplifier requires only a 9V battery, audio input, and speaker to operate and provides excellent sound quality with a minimal component design.
Study of evolution in different charger pinsRajat Shukla
This document discusses the evolution of mobile phone chargers from 1980s nickel-cadmium battery chargers that took 10 hours to charge to modern chargers. It covers various charger types including wall chargers, USB chargers, wireless chargers, solar chargers, and car chargers. The document also examines different charging port types and proposes a universal charger design that uses a magnetic USB-C cable and detachable magnetic adapters to charge devices of any port type. The proposed charger brick would have a variable output to match a device's power needs.
A breadboard is a plastic board with rows of small holes used to prototype electronic circuits. Components simply press into the holes, allowing for easy changes without soldering. The holes internally connect in sets, so components placed across holes in a row are electrically joined. Breadboards come in various sizes and have rows labeled like a spreadsheet to identify connection points. Diagrams and instructions specify where to place components on breadboards to construct circuits. Jumper wires connect components and power sources, with flexible or pre-cut wires available.
The document provides an overview of the key components inside a typical computer case and descriptions of the ports and connections on both the front and back panels. It discusses the power supply, motherboard, drives, processor, RAM, ports, buttons and lights. Components covered include USB, Ethernet, audio and video ports. Examples of associated cables for connecting these components are also shown.
This document provides instructions for building music reactive multicolor LED lights that change color in response to the beat of music. The lights are made using an Arduino, RGB LED strip, audio input jack, and transistor circuit to amplify the Arduino signal. The 11 step instructions cover preparing an enclosure, soldering components, connecting the circuit to Arduino, adding an audio input, power, code upload, and using the finished project.
This document provides an overview of LEDs and solar cells. It defines LEDs as light emitting diodes that give off visible light when forward biased using elements like gallium, phosphorus, and arsenic. It describes the internal structure of LEDs and how different colors are produced. It then defines solar cells as structures that convert solar energy directly to DC electricity. It explains the basics of solar cells including the p-n junction and how they operate in the fourth quadrant to generate power. Finally, it describes LED solar cells which can produce voltage when light falls on the LED and the advantages and disadvantages of LED solar cells.
A book for students and hobbyists to learn basic electronics through practical presentable circuits.
A handy guide for school science fair projects or for making personal hobby gadgets.
Design new panels and make new circuit designs.
For more info : please visit www.hobbyelectronics.in
This document provides instructions for creating a self-sustaining Arduino board powered by solar energy. It describes connecting a solar panel, 9V rechargeable battery, diode, and capacitor to allow the Arduino to be powered without being plugged into a computer or wall outlet. The solar panel charges the battery during the day. The battery then powers the Arduino and continues charging from the solar panel, allowing the project to function untethered and for extended periods without additional power sources.
The document is an introduction guide to using Arduino microcontrollers. It describes that the Arduino is an open-source hardware platform used for building interactive objects and prototypes. The guide covers what is needed to set up an Arduino system, including the hardware components, software installation, and how to write basic programs to control an LED using the Arduino board.
The document provides safety precautions and assembly instructions for building a desktop computer. It describes how to:
1) Take anti-static precautions like wearing a wrist strap to avoid damaging components. Connect the wrist strap to the power supply case when working.
2) Turn off and unplug the computer before installing or removing any components to avoid damage from electricity.
3) Follow steps to assemble the motherboard, install the CPU and heat sink, add RAM modules, install the power supply, and connect front panel connectors and peripheral devices.
4) Take care when handling sharp edges on cases and avoid cutting yourself. High voltage capacitors can also cause electric shocks, so avoid dismantling power supplies
Flexibility of household electrical installations is partly necessary because people’s needs change over the time they live in a home, and because houses and flats are sometimes leased or sold. The new occupants want the electrical installation to be adaptable to their needs and wishes as far as possible.
With a strictly conventional electrical installation there is virtually no flexibility. It is usually difficult to add a switch somewhere if you are not prepared to open up the wall, to cut off and install new wiring. However, there are a number of techniques and solutions to overcome this problem, although they must be planned when the system is originally designed.
This white paper is one of a series of thematic white papers covering various aspects of electrical installations in houses, flats and residential units. They are aimed at architects, designers, specification writers, decision makers, installers and students.
This document provides parts lists and instructions for a basic electricity/electronics workshop. It lists required parts like a power supply, multimeter, breadboard, wires, LED, resistors, capacitor, and transistor. It then provides explanations of key electrical concepts like current, voltage, resistance, and Ohm's law. It also explains how to identify the positive and negative terminals of a power supply using a multimeter and how breadboards work for building circuits.
This document provides instructions for an electrical seminar on pinspotter troubleshooting and repair. It covers safety procedures, using a multimeter to test voltages, ohms and amps, crimping terminals, soldering, and understanding AMP terminals and components. The last section provides step-by-step instructions to build a diagnostic tool for troubleshooting pinspotter control problems using wire, terminals, and an AMP connector block.
This document is a semester report by Adam Carroll describing his project to design an analog to digital converter circuit board and write code for an Arduino Uno32 board. The project involved designing the circuit board in Multisim and Ultiboard software, writing code in Mpide to interface with sensors and an LCD display, and soldering surface mount components. The report provides details of the circuit design including use of data buses, the power supply design, and transferring the design to a PCB. It also outlines the code development and testing processes.
The document discusses laptop components including AC/DC power adapters, batteries, motherboards, keyboards, processors, cooling fans, and CMOS batteries. It provides instructions on testing and replacing these components if faulty. The main points are that power adapters must match the laptop's voltage/polarity, batteries can be tested but usually must be replaced if faulty, and motherboard or keyboard failures may require replacing the entire component.
Wireless Power Room Description:
The Wireless Power Room represents a cutting-edge advancement in modern technology, where the limitations of traditional power outlets are transcended by the innovation of wireless power transfer. This revolutionary concept aims to redefine convenience, accessibility, and user experience within living and working spaces.
Key Features:
Seamless Charging: The Wireless Power Room is designed to seamlessly integrate wireless charging capabilities into the environment. This eliminates the need for multiple power outlets and cumbersome charging cables, allowing devices to charge effortlessly by simply being within the room.
Efficient Charging Infrastructure: The room is equipped with strategically placed wireless power transmitters that utilize electromagnetic fields to transfer energy to compatible devices. This ensures efficient and rapid charging without compromising safety.
Device Compatibility: A wide range of devices, including smartphones, tablets, laptops, wearable devices, and even certain household appliances, can be charged wirelessly in the room. These devices must support the wireless charging standard for compatibility.
Spatial Freedom: Users experience a newfound spatial freedom as they are no longer constrained by the proximity of power outlets. This promotes greater flexibility in arranging furniture and designing interior spaces.
Safety Measures: The Wireless Power Room incorporates advanced safety mechanisms to prevent energy wastage and minimize electromagnetic interference. The technology is engineered to prioritize user safety while maintaining optimal functionality.
Intelligent Energy Management: The room can be equipped with smart energy management features, such as energy consumption monitoring, automated power allocation, and scheduling. This ensures optimal energy utilization and cost savings.
Future-Proof Design: The Wireless Power Room is designed with scalability in mind, enabling easy upgrades to accommodate evolving wireless charging standards and the integration of emerging technologies.
Fueling AI with Great Data with Airbyte WebinarZilliz
This talk will focus on how to collect data from a variety of sources, leveraging this data for RAG and other GenAI use cases, and finally charting your course to productionalization.
More Related Content
Similar to How to build an arduino compatible physical computing platform on a solderless breadboard v1.1
Noriyuki Aibe, "High Efficiency Connection Method on Electric Signal Lines be...直久 住川
This document presents a novel connection method called "Bit-shift connection" for electric signal lines between modular circuit boards. The method allows for independent connection of interfaces like FPGA and CPLD boards using a limited board area and number of connector pins. It works by reassigning connection pins on each board in a shifted pattern, so any module can connect to another without needing to designate pin assignments in advance. This flexible approach allows boards to be stacked and reordered freely while maintaining independent connections between the CPU board and all interfaces. The document provides examples to illustrate how the Bit-shift connection method works and compares it to conventional bus-based and independent connection topologies.
This document provides instructions for building a simple audio amplifier circuit using only a few basic components. The circuit uses two LM386 integrated circuits to provide amplification with a gain of 200. It can be built and tested on a breadboard before permanently assembling the circuit on a small printed circuit board. The assembled amplifier requires only a 9V battery, audio input, and speaker to operate and provides excellent sound quality with a minimal component design.
Study of evolution in different charger pinsRajat Shukla
This document discusses the evolution of mobile phone chargers from 1980s nickel-cadmium battery chargers that took 10 hours to charge to modern chargers. It covers various charger types including wall chargers, USB chargers, wireless chargers, solar chargers, and car chargers. The document also examines different charging port types and proposes a universal charger design that uses a magnetic USB-C cable and detachable magnetic adapters to charge devices of any port type. The proposed charger brick would have a variable output to match a device's power needs.
A breadboard is a plastic board with rows of small holes used to prototype electronic circuits. Components simply press into the holes, allowing for easy changes without soldering. The holes internally connect in sets, so components placed across holes in a row are electrically joined. Breadboards come in various sizes and have rows labeled like a spreadsheet to identify connection points. Diagrams and instructions specify where to place components on breadboards to construct circuits. Jumper wires connect components and power sources, with flexible or pre-cut wires available.
The document provides an overview of the key components inside a typical computer case and descriptions of the ports and connections on both the front and back panels. It discusses the power supply, motherboard, drives, processor, RAM, ports, buttons and lights. Components covered include USB, Ethernet, audio and video ports. Examples of associated cables for connecting these components are also shown.
This document provides instructions for building music reactive multicolor LED lights that change color in response to the beat of music. The lights are made using an Arduino, RGB LED strip, audio input jack, and transistor circuit to amplify the Arduino signal. The 11 step instructions cover preparing an enclosure, soldering components, connecting the circuit to Arduino, adding an audio input, power, code upload, and using the finished project.
This document provides an overview of LEDs and solar cells. It defines LEDs as light emitting diodes that give off visible light when forward biased using elements like gallium, phosphorus, and arsenic. It describes the internal structure of LEDs and how different colors are produced. It then defines solar cells as structures that convert solar energy directly to DC electricity. It explains the basics of solar cells including the p-n junction and how they operate in the fourth quadrant to generate power. Finally, it describes LED solar cells which can produce voltage when light falls on the LED and the advantages and disadvantages of LED solar cells.
A book for students and hobbyists to learn basic electronics through practical presentable circuits.
A handy guide for school science fair projects or for making personal hobby gadgets.
Design new panels and make new circuit designs.
For more info : please visit www.hobbyelectronics.in
This document provides instructions for creating a self-sustaining Arduino board powered by solar energy. It describes connecting a solar panel, 9V rechargeable battery, diode, and capacitor to allow the Arduino to be powered without being plugged into a computer or wall outlet. The solar panel charges the battery during the day. The battery then powers the Arduino and continues charging from the solar panel, allowing the project to function untethered and for extended periods without additional power sources.
The document is an introduction guide to using Arduino microcontrollers. It describes that the Arduino is an open-source hardware platform used for building interactive objects and prototypes. The guide covers what is needed to set up an Arduino system, including the hardware components, software installation, and how to write basic programs to control an LED using the Arduino board.
The document provides safety precautions and assembly instructions for building a desktop computer. It describes how to:
1) Take anti-static precautions like wearing a wrist strap to avoid damaging components. Connect the wrist strap to the power supply case when working.
2) Turn off and unplug the computer before installing or removing any components to avoid damage from electricity.
3) Follow steps to assemble the motherboard, install the CPU and heat sink, add RAM modules, install the power supply, and connect front panel connectors and peripheral devices.
4) Take care when handling sharp edges on cases and avoid cutting yourself. High voltage capacitors can also cause electric shocks, so avoid dismantling power supplies
Flexibility of household electrical installations is partly necessary because people’s needs change over the time they live in a home, and because houses and flats are sometimes leased or sold. The new occupants want the electrical installation to be adaptable to their needs and wishes as far as possible.
With a strictly conventional electrical installation there is virtually no flexibility. It is usually difficult to add a switch somewhere if you are not prepared to open up the wall, to cut off and install new wiring. However, there are a number of techniques and solutions to overcome this problem, although they must be planned when the system is originally designed.
This white paper is one of a series of thematic white papers covering various aspects of electrical installations in houses, flats and residential units. They are aimed at architects, designers, specification writers, decision makers, installers and students.
This document provides parts lists and instructions for a basic electricity/electronics workshop. It lists required parts like a power supply, multimeter, breadboard, wires, LED, resistors, capacitor, and transistor. It then provides explanations of key electrical concepts like current, voltage, resistance, and Ohm's law. It also explains how to identify the positive and negative terminals of a power supply using a multimeter and how breadboards work for building circuits.
This document provides instructions for an electrical seminar on pinspotter troubleshooting and repair. It covers safety procedures, using a multimeter to test voltages, ohms and amps, crimping terminals, soldering, and understanding AMP terminals and components. The last section provides step-by-step instructions to build a diagnostic tool for troubleshooting pinspotter control problems using wire, terminals, and an AMP connector block.
This document is a semester report by Adam Carroll describing his project to design an analog to digital converter circuit board and write code for an Arduino Uno32 board. The project involved designing the circuit board in Multisim and Ultiboard software, writing code in Mpide to interface with sensors and an LCD display, and soldering surface mount components. The report provides details of the circuit design including use of data buses, the power supply design, and transferring the design to a PCB. It also outlines the code development and testing processes.
The document discusses laptop components including AC/DC power adapters, batteries, motherboards, keyboards, processors, cooling fans, and CMOS batteries. It provides instructions on testing and replacing these components if faulty. The main points are that power adapters must match the laptop's voltage/polarity, batteries can be tested but usually must be replaced if faulty, and motherboard or keyboard failures may require replacing the entire component.
Wireless Power Room Description:
The Wireless Power Room represents a cutting-edge advancement in modern technology, where the limitations of traditional power outlets are transcended by the innovation of wireless power transfer. This revolutionary concept aims to redefine convenience, accessibility, and user experience within living and working spaces.
Key Features:
Seamless Charging: The Wireless Power Room is designed to seamlessly integrate wireless charging capabilities into the environment. This eliminates the need for multiple power outlets and cumbersome charging cables, allowing devices to charge effortlessly by simply being within the room.
Efficient Charging Infrastructure: The room is equipped with strategically placed wireless power transmitters that utilize electromagnetic fields to transfer energy to compatible devices. This ensures efficient and rapid charging without compromising safety.
Device Compatibility: A wide range of devices, including smartphones, tablets, laptops, wearable devices, and even certain household appliances, can be charged wirelessly in the room. These devices must support the wireless charging standard for compatibility.
Spatial Freedom: Users experience a newfound spatial freedom as they are no longer constrained by the proximity of power outlets. This promotes greater flexibility in arranging furniture and designing interior spaces.
Safety Measures: The Wireless Power Room incorporates advanced safety mechanisms to prevent energy wastage and minimize electromagnetic interference. The technology is engineered to prioritize user safety while maintaining optimal functionality.
Intelligent Energy Management: The room can be equipped with smart energy management features, such as energy consumption monitoring, automated power allocation, and scheduling. This ensures optimal energy utilization and cost savings.
Future-Proof Design: The Wireless Power Room is designed with scalability in mind, enabling easy upgrades to accommodate evolving wireless charging standards and the integration of emerging technologies.
Similar to How to build an arduino compatible physical computing platform on a solderless breadboard v1.1 (20)
Fueling AI with Great Data with Airbyte WebinarZilliz
This talk will focus on how to collect data from a variety of sources, leveraging this data for RAG and other GenAI use cases, and finally charting your course to productionalization.
Unlock the Future of Search with MongoDB Atlas_ Vector Search Unleashed.pdfMalak Abu Hammad
Discover how MongoDB Atlas and vector search technology can revolutionize your application's search capabilities. This comprehensive presentation covers:
* What is Vector Search?
* Importance and benefits of vector search
* Practical use cases across various industries
* Step-by-step implementation guide
* Live demos with code snippets
* Enhancing LLM capabilities with vector search
* Best practices and optimization strategies
Perfect for developers, AI enthusiasts, and tech leaders. Learn how to leverage MongoDB Atlas to deliver highly relevant, context-aware search results, transforming your data retrieval process. Stay ahead in tech innovation and maximize the potential of your applications.
#MongoDB #VectorSearch #AI #SemanticSearch #TechInnovation #DataScience #LLM #MachineLearning #SearchTechnology
Let's Integrate MuleSoft RPA, COMPOSER, APM with AWS IDP along with Slackshyamraj55
Discover the seamless integration of RPA (Robotic Process Automation), COMPOSER, and APM with AWS IDP enhanced with Slack notifications. Explore how these technologies converge to streamline workflows, optimize performance, and ensure secure access, all while leveraging the power of AWS IDP and real-time communication via Slack notifications.
Ocean lotus Threat actors project by John Sitima 2024 (1).pptxSitimaJohn
Ocean Lotus cyber threat actors represent a sophisticated, persistent, and politically motivated group that poses a significant risk to organizations and individuals in the Southeast Asian region. Their continuous evolution and adaptability underscore the need for robust cybersecurity measures and international cooperation to identify and mitigate the threats posed by such advanced persistent threat groups.
Your One-Stop Shop for Python Success: Top 10 US Python Development Providersakankshawande
Simplify your search for a reliable Python development partner! This list presents the top 10 trusted US providers offering comprehensive Python development services, ensuring your project's success from conception to completion.
HCL Notes und Domino Lizenzkostenreduzierung in der Welt von DLAUpanagenda
Webinar Recording: https://www.panagenda.com/webinars/hcl-notes-und-domino-lizenzkostenreduzierung-in-der-welt-von-dlau/
DLAU und die Lizenzen nach dem CCB- und CCX-Modell sind für viele in der HCL-Community seit letztem Jahr ein heißes Thema. Als Notes- oder Domino-Kunde haben Sie vielleicht mit unerwartet hohen Benutzerzahlen und Lizenzgebühren zu kämpfen. Sie fragen sich vielleicht, wie diese neue Art der Lizenzierung funktioniert und welchen Nutzen sie Ihnen bringt. Vor allem wollen Sie sicherlich Ihr Budget einhalten und Kosten sparen, wo immer möglich. Das verstehen wir und wir möchten Ihnen dabei helfen!
Wir erklären Ihnen, wie Sie häufige Konfigurationsprobleme lösen können, die dazu führen können, dass mehr Benutzer gezählt werden als nötig, und wie Sie überflüssige oder ungenutzte Konten identifizieren und entfernen können, um Geld zu sparen. Es gibt auch einige Ansätze, die zu unnötigen Ausgaben führen können, z. B. wenn ein Personendokument anstelle eines Mail-Ins für geteilte Mailboxen verwendet wird. Wir zeigen Ihnen solche Fälle und deren Lösungen. Und natürlich erklären wir Ihnen das neue Lizenzmodell.
Nehmen Sie an diesem Webinar teil, bei dem HCL-Ambassador Marc Thomas und Gastredner Franz Walder Ihnen diese neue Welt näherbringen. Es vermittelt Ihnen die Tools und das Know-how, um den Überblick zu bewahren. Sie werden in der Lage sein, Ihre Kosten durch eine optimierte Domino-Konfiguration zu reduzieren und auch in Zukunft gering zu halten.
Diese Themen werden behandelt
- Reduzierung der Lizenzkosten durch Auffinden und Beheben von Fehlkonfigurationen und überflüssigen Konten
- Wie funktionieren CCB- und CCX-Lizenzen wirklich?
- Verstehen des DLAU-Tools und wie man es am besten nutzt
- Tipps für häufige Problembereiche, wie z. B. Team-Postfächer, Funktions-/Testbenutzer usw.
- Praxisbeispiele und Best Practices zum sofortigen Umsetzen
TrustArc Webinar - 2024 Global Privacy SurveyTrustArc
How does your privacy program stack up against your peers? What challenges are privacy teams tackling and prioritizing in 2024?
In the fifth annual Global Privacy Benchmarks Survey, we asked over 1,800 global privacy professionals and business executives to share their perspectives on the current state of privacy inside and outside of their organizations. This year’s report focused on emerging areas of importance for privacy and compliance professionals, including considerations and implications of Artificial Intelligence (AI) technologies, building brand trust, and different approaches for achieving higher privacy competence scores.
See how organizational priorities and strategic approaches to data security and privacy are evolving around the globe.
This webinar will review:
- The top 10 privacy insights from the fifth annual Global Privacy Benchmarks Survey
- The top challenges for privacy leaders, practitioners, and organizations in 2024
- Key themes to consider in developing and maintaining your privacy program
Skybuffer SAM4U tool for SAP license adoptionTatiana Kojar
Manage and optimize your license adoption and consumption with SAM4U, an SAP free customer software asset management tool.
SAM4U, an SAP complimentary software asset management tool for customers, delivers a detailed and well-structured overview of license inventory and usage with a user-friendly interface. We offer a hosted, cost-effective, and performance-optimized SAM4U setup in the Skybuffer Cloud environment. You retain ownership of the system and data, while we manage the ABAP 7.58 infrastructure, ensuring fixed Total Cost of Ownership (TCO) and exceptional services through the SAP Fiori interface.
Programming Foundation Models with DSPy - Meetup SlidesZilliz
Prompting language models is hard, while programming language models is easy. In this talk, I will discuss the state-of-the-art framework DSPy for programming foundation models with its powerful optimizers and runtime constraint system.
Introduction of Cybersecurity with OSS at Code Europe 2024Hiroshi SHIBATA
I develop the Ruby programming language, RubyGems, and Bundler, which are package managers for Ruby. Today, I will introduce how to enhance the security of your application using open-source software (OSS) examples from Ruby and RubyGems.
The first topic is CVE (Common Vulnerabilities and Exposures). I have published CVEs many times. But what exactly is a CVE? I'll provide a basic understanding of CVEs and explain how to detect and handle vulnerabilities in OSS.
Next, let's discuss package managers. Package managers play a critical role in the OSS ecosystem. I'll explain how to manage library dependencies in your application.
I'll share insights into how the Ruby and RubyGems core team works to keep our ecosystem safe. By the end of this talk, you'll have a better understanding of how to safeguard your code.
GraphRAG for Life Science to increase LLM accuracyTomaz Bratanic
GraphRAG for life science domain, where you retriever information from biomedical knowledge graphs using LLMs to increase the accuracy and performance of generated answers
Dive into the realm of operating systems (OS) with Pravash Chandra Das, a seasoned Digital Forensic Analyst, as your guide. 🚀 This comprehensive presentation illuminates the core concepts, types, and evolution of OS, essential for understanding modern computing landscapes.
Beginning with the foundational definition, Das clarifies the pivotal role of OS as system software orchestrating hardware resources, software applications, and user interactions. Through succinct descriptions, he delineates the diverse types of OS, from single-user, single-task environments like early MS-DOS iterations, to multi-user, multi-tasking systems exemplified by modern Linux distributions.
Crucial components like the kernel and shell are dissected, highlighting their indispensable functions in resource management and user interface interaction. Das elucidates how the kernel acts as the central nervous system, orchestrating process scheduling, memory allocation, and device management. Meanwhile, the shell serves as the gateway for user commands, bridging the gap between human input and machine execution. 💻
The narrative then shifts to a captivating exploration of prominent desktop OSs, Windows, macOS, and Linux. Windows, with its globally ubiquitous presence and user-friendly interface, emerges as a cornerstone in personal computing history. macOS, lauded for its sleek design and seamless integration with Apple's ecosystem, stands as a beacon of stability and creativity. Linux, an open-source marvel, offers unparalleled flexibility and security, revolutionizing the computing landscape. 🖥️
Moving to the realm of mobile devices, Das unravels the dominance of Android and iOS. Android's open-source ethos fosters a vibrant ecosystem of customization and innovation, while iOS boasts a seamless user experience and robust security infrastructure. Meanwhile, discontinued platforms like Symbian and Palm OS evoke nostalgia for their pioneering roles in the smartphone revolution.
The journey concludes with a reflection on the ever-evolving landscape of OS, underscored by the emergence of real-time operating systems (RTOS) and the persistent quest for innovation and efficiency. As technology continues to shape our world, understanding the foundations and evolution of operating systems remains paramount. Join Pravash Chandra Das on this illuminating journey through the heart of computing. 🌟
Driving Business Innovation: Latest Generative AI Advancements & Success StorySafe Software
Are you ready to revolutionize how you handle data? Join us for a webinar where we’ll bring you up to speed with the latest advancements in Generative AI technology and discover how leveraging FME with tools from giants like Google Gemini, Amazon, and Microsoft OpenAI can supercharge your workflow efficiency.
During the hour, we’ll take you through:
Guest Speaker Segment with Hannah Barrington: Dive into the world of dynamic real estate marketing with Hannah, the Marketing Manager at Workspace Group. Hear firsthand how their team generates engaging descriptions for thousands of office units by integrating diverse data sources—from PDF floorplans to web pages—using FME transformers, like OpenAIVisionConnector and AnthropicVisionConnector. This use case will show you how GenAI can streamline content creation for marketing across the board.
Ollama Use Case: Learn how Scenario Specialist Dmitri Bagh has utilized Ollama within FME to input data, create custom models, and enhance security protocols. This segment will include demos to illustrate the full capabilities of FME in AI-driven processes.
Custom AI Models: Discover how to leverage FME to build personalized AI models using your data. Whether it’s populating a model with local data for added security or integrating public AI tools, find out how FME facilitates a versatile and secure approach to AI.
We’ll wrap up with a live Q&A session where you can engage with our experts on your specific use cases, and learn more about optimizing your data workflows with AI.
This webinar is ideal for professionals seeking to harness the power of AI within their data management systems while ensuring high levels of customization and security. Whether you're a novice or an expert, gain actionable insights and strategies to elevate your data processes. Join us to see how FME and AI can revolutionize how you work with data!
In the rapidly evolving landscape of technologies, XML continues to play a vital role in structuring, storing, and transporting data across diverse systems. The recent advancements in artificial intelligence (AI) present new methodologies for enhancing XML development workflows, introducing efficiency, automation, and intelligent capabilities. This presentation will outline the scope and perspective of utilizing AI in XML development. The potential benefits and the possible pitfalls will be highlighted, providing a balanced view of the subject.
We will explore the capabilities of AI in understanding XML markup languages and autonomously creating structured XML content. Additionally, we will examine the capacity of AI to enrich plain text with appropriate XML markup. Practical examples and methodological guidelines will be provided to elucidate how AI can be effectively prompted to interpret and generate accurate XML markup.
Further emphasis will be placed on the role of AI in developing XSLT, or schemas such as XSD and Schematron. We will address the techniques and strategies adopted to create prompts for generating code, explaining code, or refactoring the code, and the results achieved.
The discussion will extend to how AI can be used to transform XML content. In particular, the focus will be on the use of AI XPath extension functions in XSLT, Schematron, Schematron Quick Fixes, or for XML content refactoring.
The presentation aims to deliver a comprehensive overview of AI usage in XML development, providing attendees with the necessary knowledge to make informed decisions. Whether you’re at the early stages of adopting AI or considering integrating it in advanced XML development, this presentation will cover all levels of expertise.
By highlighting the potential advantages and challenges of integrating AI with XML development tools and languages, the presentation seeks to inspire thoughtful conversation around the future of XML development. We’ll not only delve into the technical aspects of AI-powered XML development but also discuss practical implications and possible future directions.
Ivanti’s Patch Tuesday breakdown goes beyond patching your applications and brings you the intelligence and guidance needed to prioritize where to focus your attention first. Catch early analysis on our Ivanti blog, then join industry expert Chris Goettl for the Patch Tuesday Webinar Event. There we’ll do a deep dive into each of the bulletins and give guidance on the risks associated with the newly-identified vulnerabilities.
How to build an arduino compatible physical computing platform on a solderless breadboard v1.1
1. DaleWheat.com 1 September 2009
How to Build an Arduino-compatible
Physical Computing Platform on a
Solderless Breadboard
Build your own Arduino-compatible microcomputer in about an hour – with your bare hands!
Dale Wheat – Version 1.1 – September 2009
Prerequisites: Personal computer running the Arduino IDE (see http://arduino.cc for details), USB port
Photo 1. The official Arduino Duemilanove (Italian for "2009"). Photo by Arduino team (probably).
Photo 2. The completed breadboard equivalent circuit. Well, mostly equivalent.
2. DaleWheat.com 2 September 2009
Table of Contents
Course Materials...........................................................................................................................................3
Introduction to the Solderless Breadboard ..................................................................................................4
Install the USB Module .................................................................................................................................6
Power Indicator LED......................................................................................................................................8
First Test........................................................................................................................................................8
Plug It In!...................................................................................................................................................8

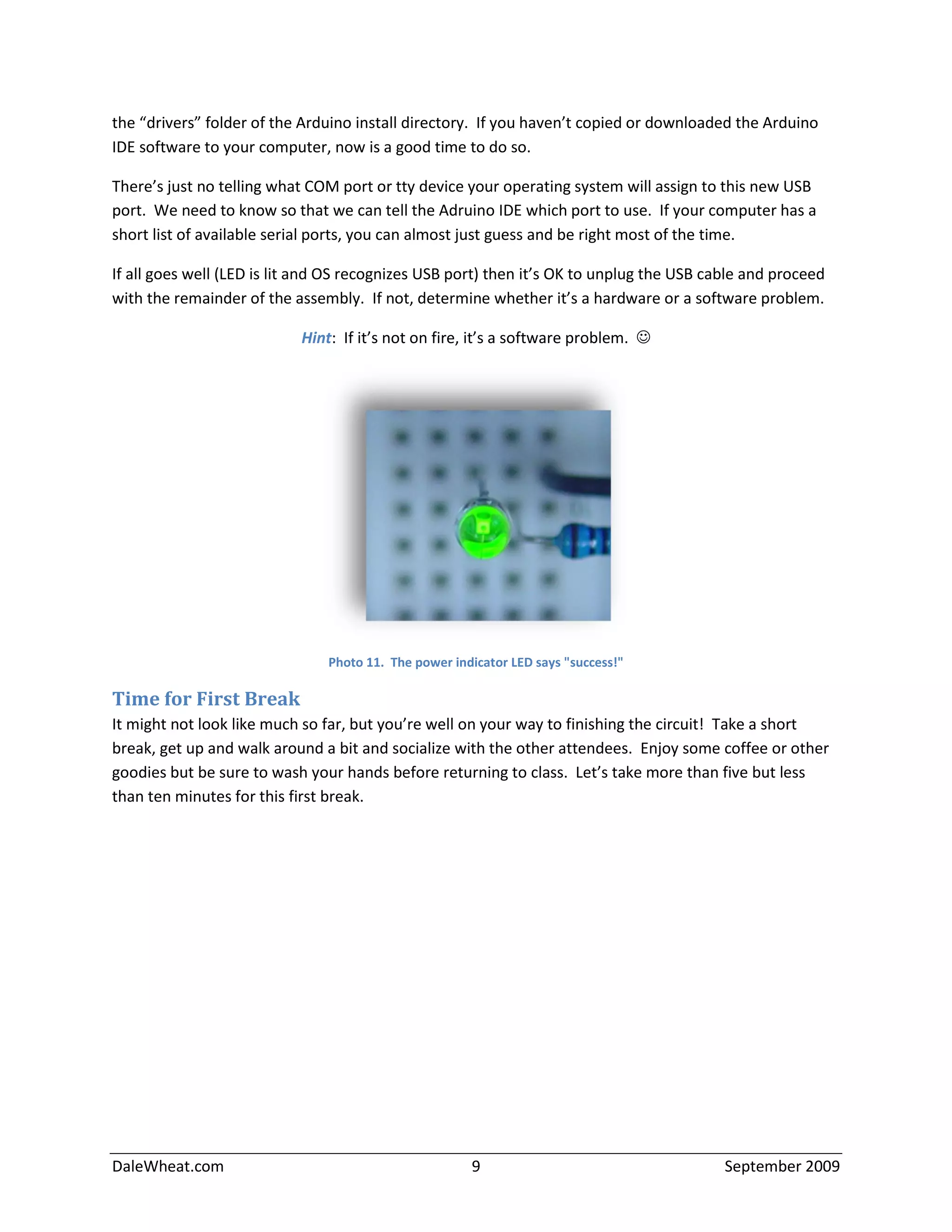

Time for First Break...................................................................................................................................9

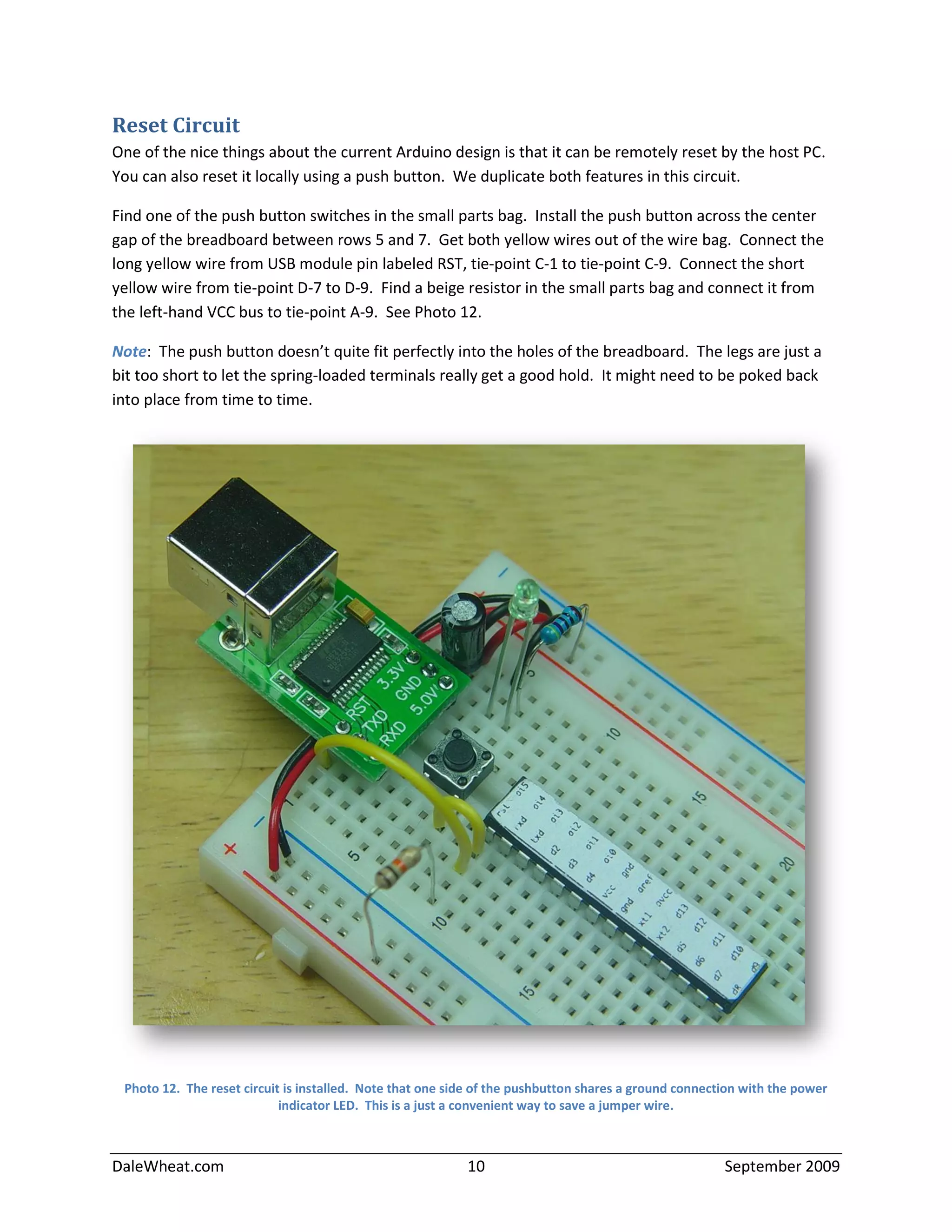

Reset Circuit................................................................................................................................................10
Brain Time...................................................................................................................................................11
Install the Transmit and Receive Lines........................................................................................................12
Power and Ground for the Microcontroller................................................................................................13
Quartz Crystal..............................................................................................................................................14
Programmable LED .....................................................................................................................................15
Second Test.................................................................................................................................................15
Time for Second Break............................................................................................................................15
The Arduino IDE ..........................................................................................................................................16

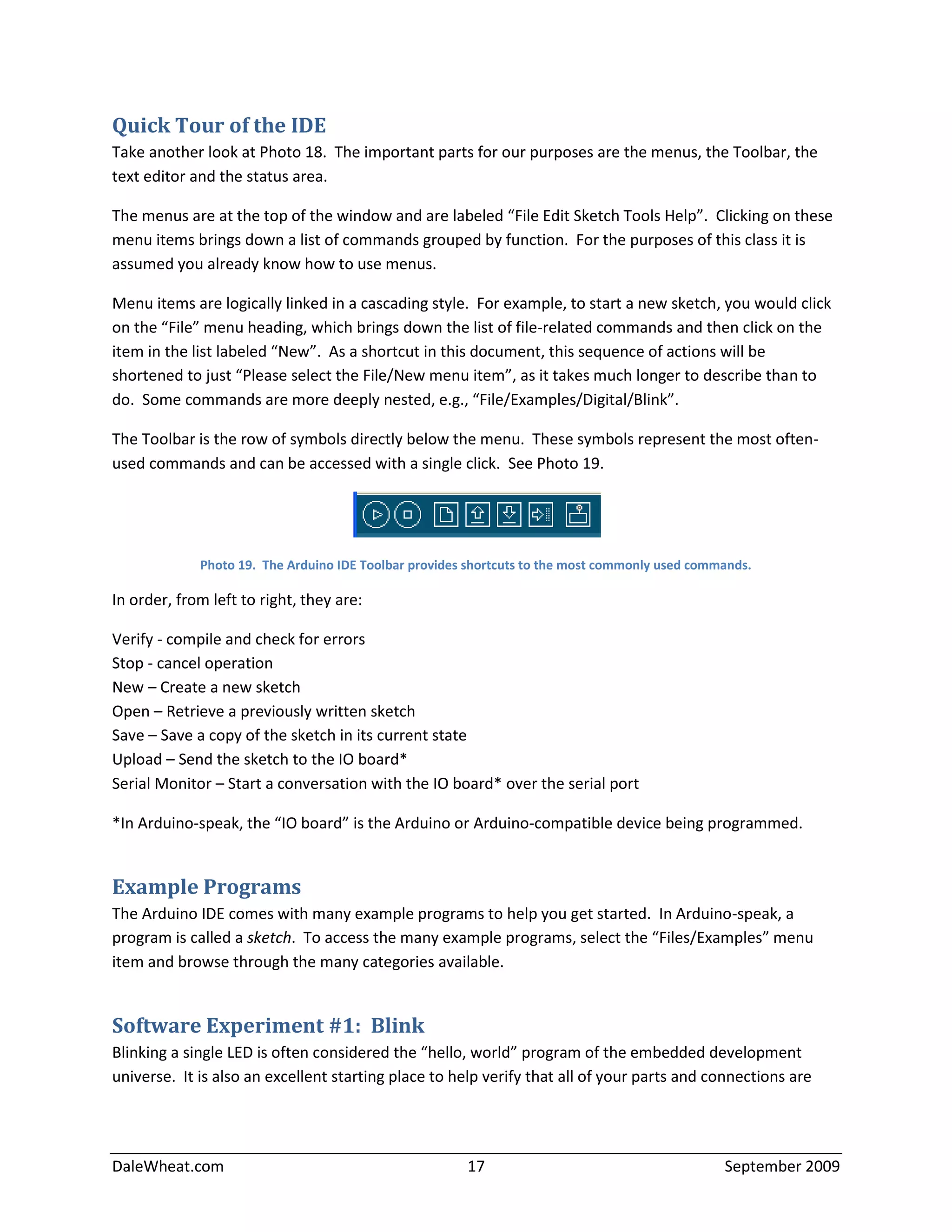

Quick Tour of the IDE..................................................................................................................................17
Example Programs ......................................................................................................................................17

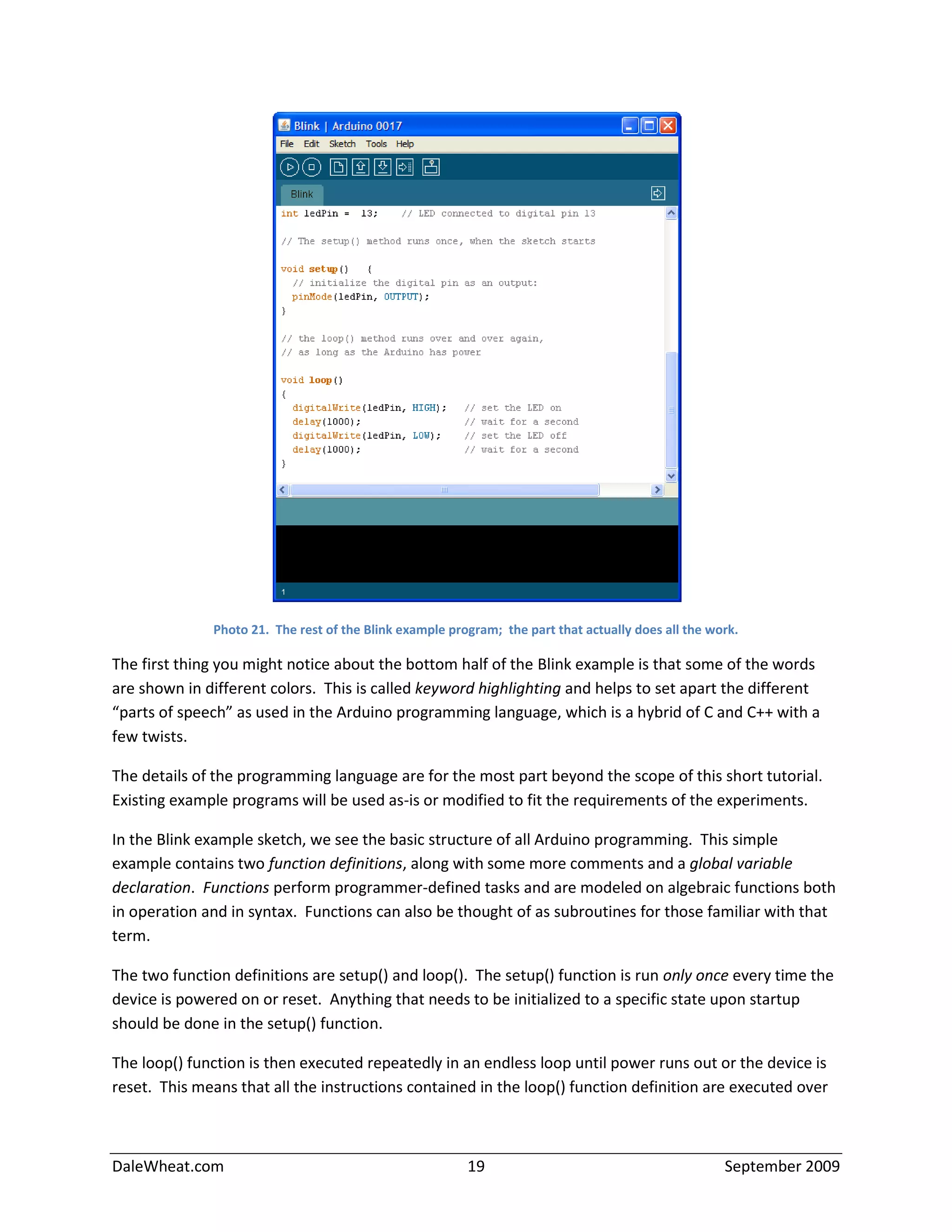

Software Experiment #1: Blink...................................................................................................................17
Select the Correct Board.............................................................................................................................21
Compiling the Blink Example Sketch...........................................................................................................21
Select the Correct Port................................................................................................................................21
Uploading a Sketch .....................................................................................................................................21
Software Experiment #2: Blink Faster........................................................................................................22
Software Experiment #3: Blink Without Delay ..........................................................................................23
Software Experiment #4: Button ...............................................................................................................24
Software Experiment #4a: Not Button...................................................................................................25
Software Experiment #4b: Eliminating the External Pull Up Resistor....................................................25

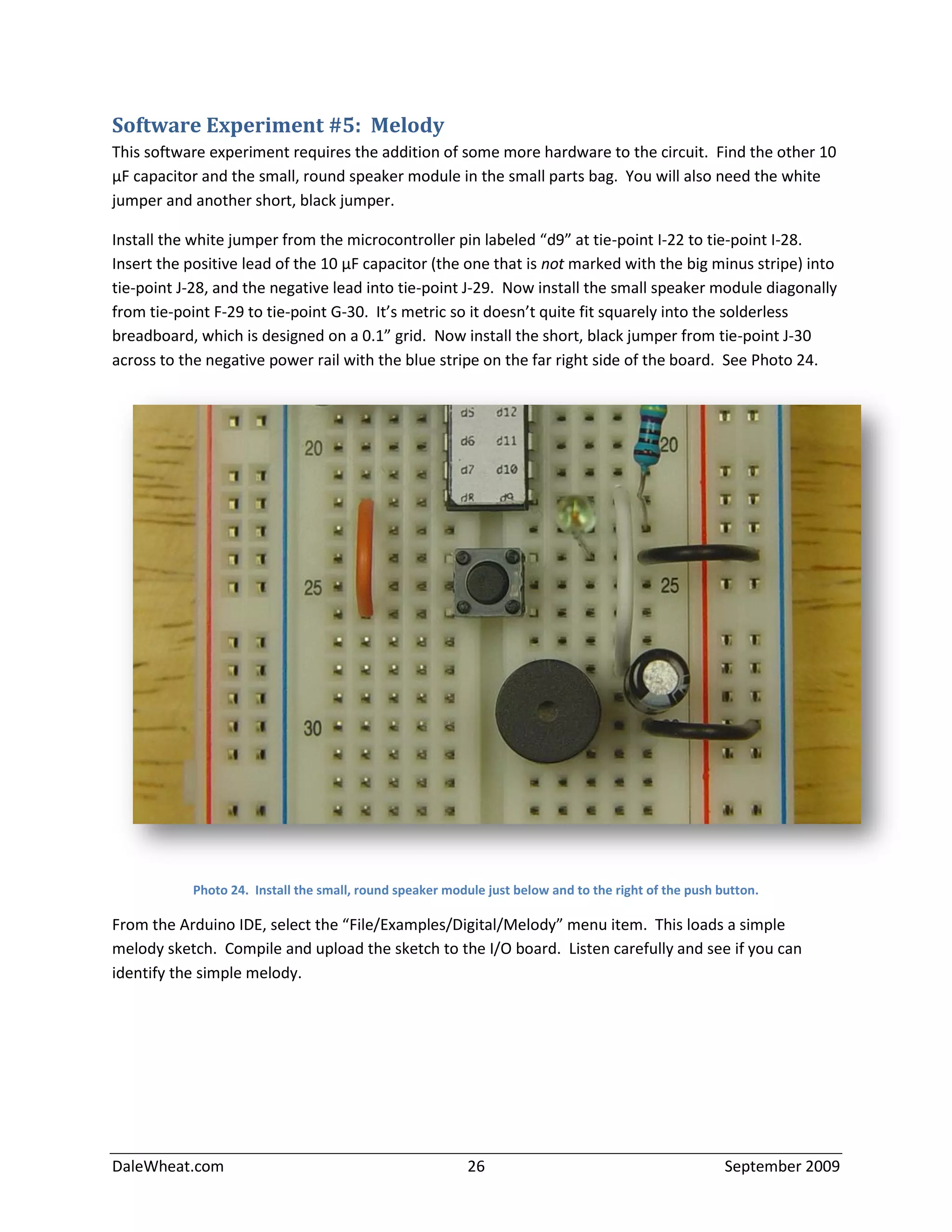

Software Experiment #5: Melody ..............................................................................................................26

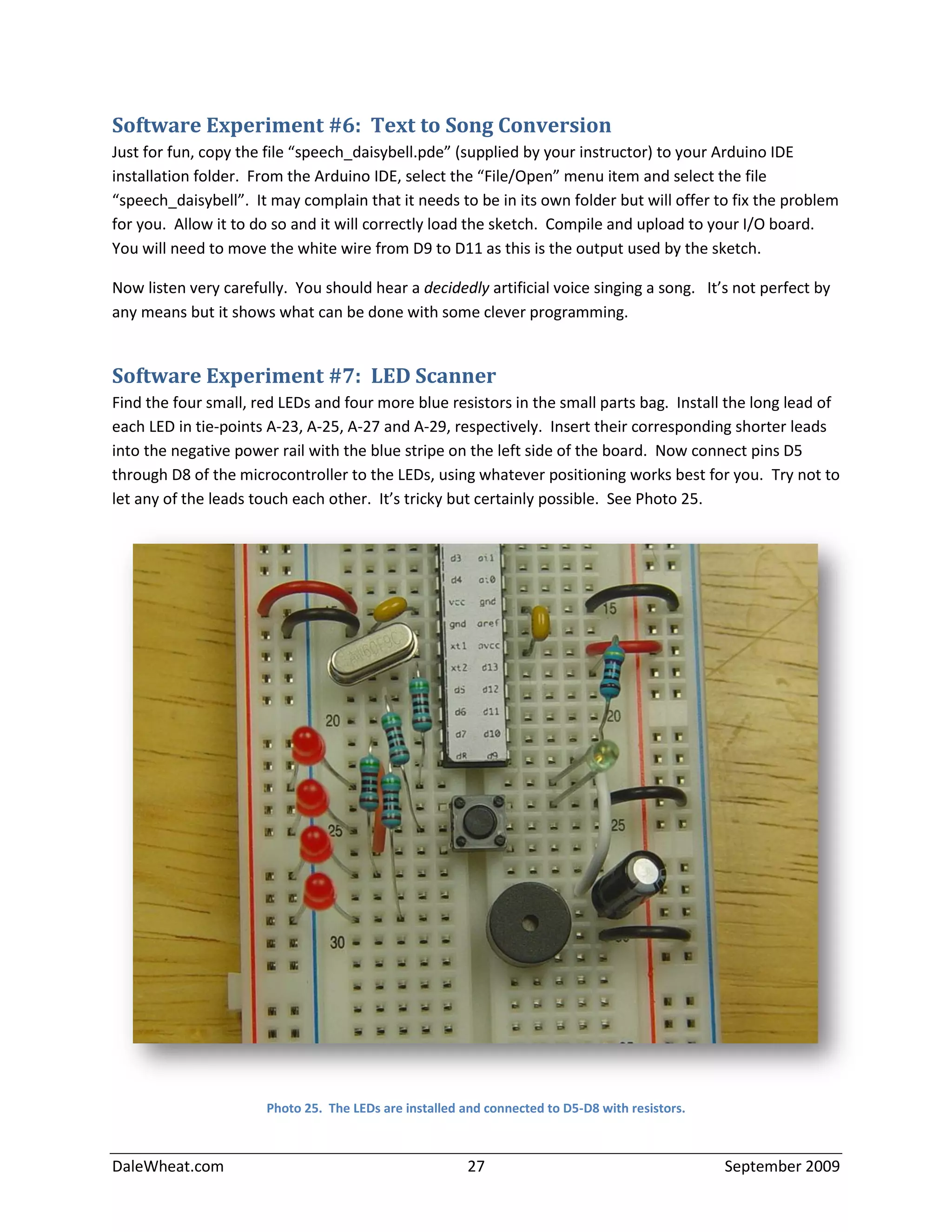

Software Experiment #6: Text to Song Conversion ...................................................................................27
Software Experiment #7: LED Scanner.......................................................................................................27

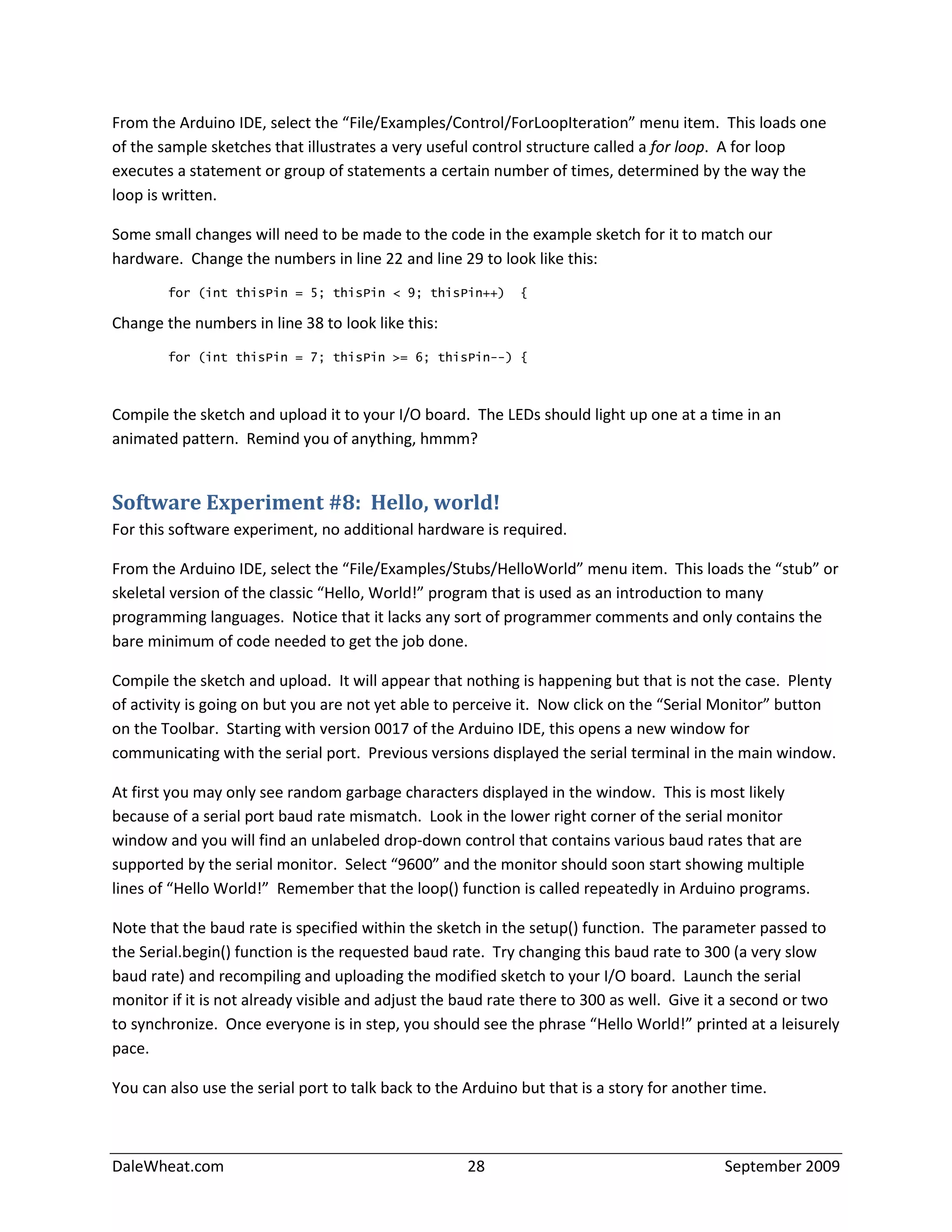

Software Experiment #8: Hello, world!......................................................................................................28
3. DaleWheat.com 3 September 2009

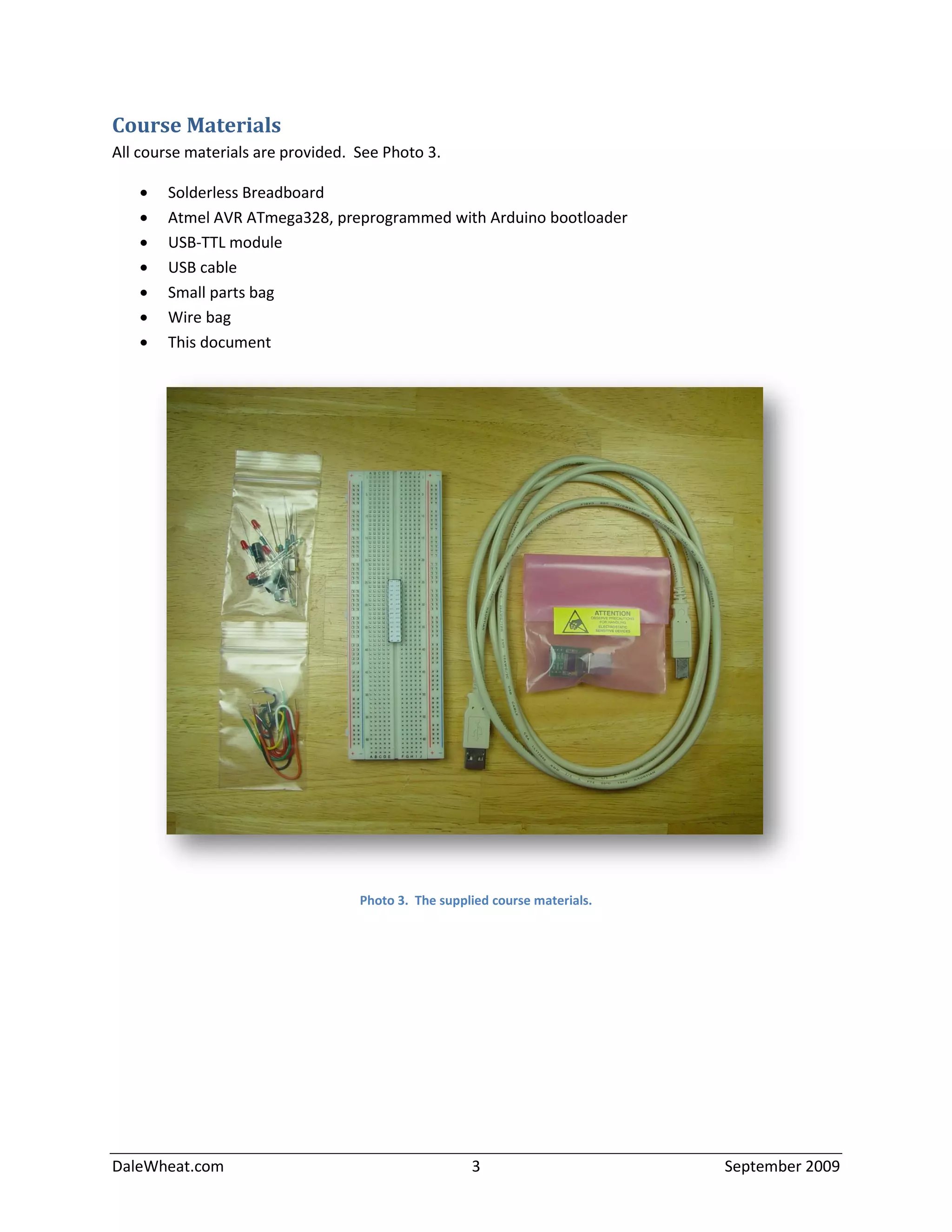

Course Materials
All course materials are provided. See Photo 3.
Solderless Breadboard
Atmel AVR ATmega328, preprogrammed with Arduino bootloader
USB-TTL module
USB cable
Small parts bag
Wire bag
This document
Photo 3. The supplied course materials.
4. DaleWheat.com 4 September 2009
Introduction to the Solderless Breadboard
The solderless breadboard is a versatile prototyping tool that facilitates rapidly building and testing
electronic circuits. See Photo 4.
Each of the small, square holes contains a spring-
loaded electrical terminal. A wire inserted into
the hole will make an electrical connection and be
physically retained in place by the spring.
The terminals are internally connected in two
ways. The two rows running up and down each
side are the power buses. All the holes marked by
the red stripe are internally connected, forming a
single circuit. The same is true of the holes
marked with the blue stripe. The two sides,
however, are not connected together. It will later
prove convenient for us for them to be
connected, so we will connect the left red stripe
to the right red stripe, using the long red wire.
Likewise, connect the two blue stripes using the
long black wire. Your breadboard should look
like Photo 5.
Photo 5. Connect the power buses together.
Note: Red is positive. Black is negative. Just like the battery terminals in your car. Not like the ink in
your back account.
Photo 4. The solderless breadboard.
5. DaleWheat.com 5 September 2009
The other holes on the solderless breadboard are connected sideways. See Photo 6. Each group of five
holes in a row is internally connected and forms a single circuit. There is a gap running down the center
of the breadboard. There is no electrical connection across the center gap.
Photo 6. The internal electrical connections of the solderless breadboard.
The holes of the breadboard are labeled with letters ABCDE and FGHIJ for the columns and 1-63 for the
rows. Including the power buses, there are a total of 830 tie-points, or holes that are electrically
connected. The letters and numbers allow an individual tie-point among the 830 to be exactly specified;
for example, A-1 or B-5.
Note: You can install the parts any way you want. You can use any color wire you like. There are a lot
of possible combinations that will work perfectly well. Use the examples given in this document the first
time through and you are guaranteed to succeed. Then you can go nuts rearranging everything later.
6. DaleWheat.com 6 September 2009

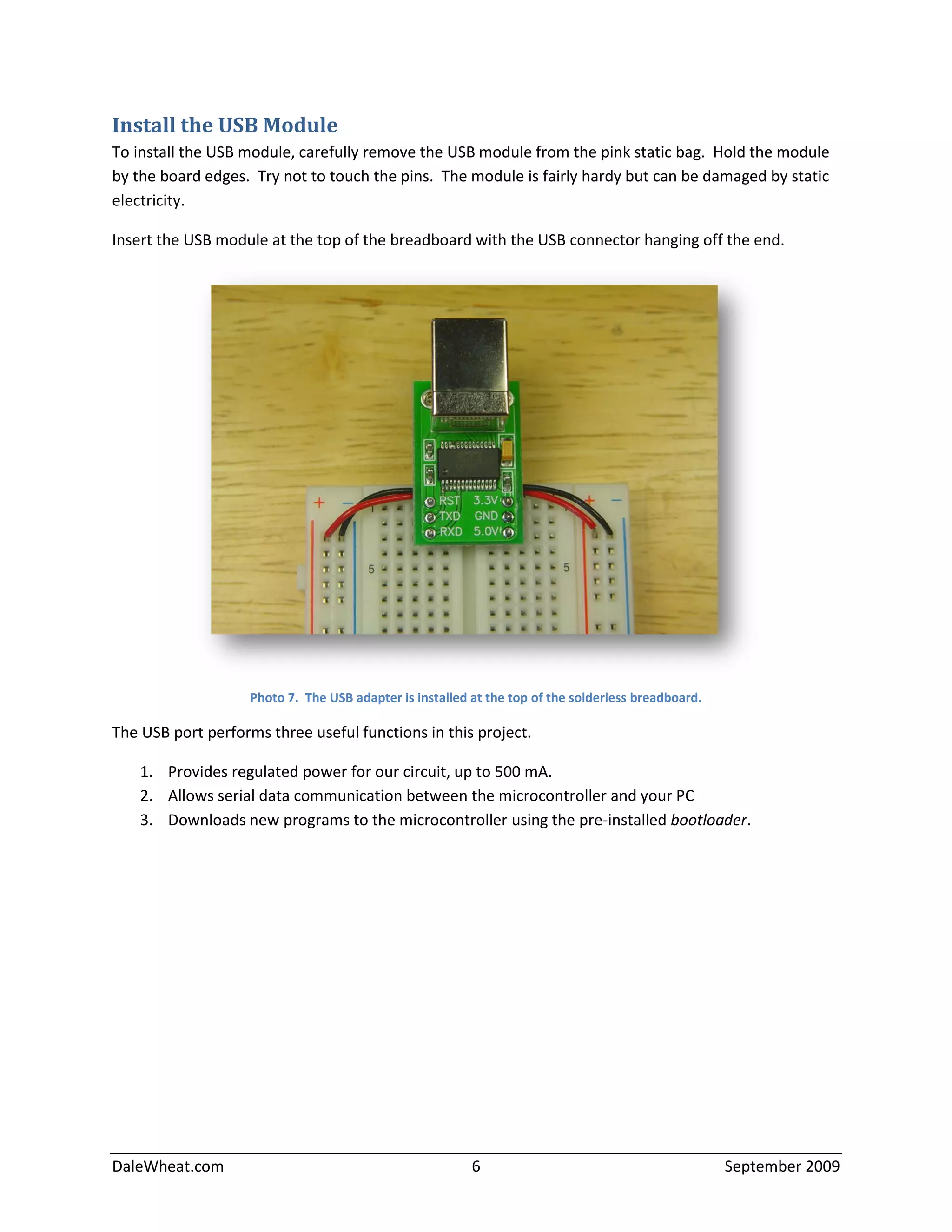

Install the USB Module
To install the USB module, carefully remove the USB module from the pink static bag. Hold the module
by the board edges. Try not to touch the pins. The module is fairly hardy but can be damaged by static
electricity.
Insert the USB module at the top of the breadboard with the USB connector hanging off the end.
Photo 7. The USB adapter is installed at the top of the solderless breadboard.
The USB port performs three useful functions in this project.
1. Provides regulated power for our circuit, up to 500 mA.
2. Allows serial data communication between the microcontroller and your PC
3. Downloads new programs to the microcontroller using the pre-installed bootloader.
7. DaleWheat.com 7 September 2009
Photo 8. The completed power connections from the USB module.
Using a short black wire, connect the pin of the USB module labeled “GND” (which should be plugged
into tie-point G-2) to the right-hand ground bus (the negative power bus). Insert the wire in tie-point J-2
and across to the power bus with the blue stripe.
Using a short red wire, connect the pin of the USB module labeled “5.0V” (which should be plugged into
tie-point G-3) to the right-hand VCC bus (the positive power bus with the red stripe).
Find the 10 μF electrolytic capacitor. There are two identical 10 μF capacitors in the small parts bag.
Insert it immediately adjacent to the 5.0V and GND pins, next to the red and black jumper wires. Orient
the capacitor so that the stripe on the side of the package is facing the GND pin. See Photo 9.
Photo 9. The capacitor is polarized. Install the negative lead to GND.
8. DaleWheat.com 8 September 2009
Power Indicator LED
From the small parts bag, find one of the green LEDs, a blue resistor and another short, black wire.
Below the USB module and on the right side of the breadboard, insert the blue resistor from the right
VCC bus (the positive power bus) to tie-point I-6. Insert the short, black jumper from the right-hand
ground bus (the negative power bus) to tie-point J-5. Finally, insert the long lead of the green LED (one
lead is longer than the other one; this indicates the anode, or positive terminal) into tie-point H-6, with
the short lead going into tie-point H-5. See Photo 10.
Photo 10. The power indicator LED in installed on the right side.
First Test
Now it’s time to double check your wiring before continuing. Review the instructions and the
photographs provided and then have the instructor or assistant verify your connections before
proceeding to the next step.
Plug It In!
Ok, get ready! A lot happens all at once at this point. Find an available USB port on your PC. Plug the
“A” end of the provided USB cable into the port. Nothing happens yet. Now plug the “B” end of the
cable into the USB module on your breadboard. Here’s what should happen, in this order:
1. The green LED lights up and stays lit. See Photo 11.
2. Your computer recognizes the USB device as “Dale Wheat’s USB to TTL”.
Now if you’ve previously installed a similar device in the past, you probably already have the correct
drivers loaded. The USB module uses the popular FTDI FT232 USB USART chip (see
http://www.ftdichip.com). If your computer asks for a driver, point it to the “FTDI USB Drivers” folder in
9. DaleWheat.com 9 September 2009
the “drivers” folder of the Arduino install directory. If you haven’t copied or downloaded the Arduino
IDE software to your computer, now is a good time to do so.
There’s just no telling what COM port or tty device your operating system will assign to this new USB
port. We need to know so that we can tell the Adruino IDE which port to use. If your computer has a
short list of available serial ports, you can almost just guess and be right most of the time.
If all goes well (LED is lit and OS recognizes USB port) then it’s OK to unplug the USB cable and proceed
with the remainder of the assembly. If not, determine whether it’s a hardware or a software problem.
Hint: If it’s not on fire, it’s a software problem.
Photo 11. The power indicator LED says "success!"
Time for First Break
It might not look like much so far, but you’re well on your way to finishing the circuit! Take a short
break, get up and walk around a bit and socialize with the other attendees. Enjoy some coffee or other
goodies but be sure to wash your hands before returning to class. Let’s take more than five but less
than ten minutes for this first break.
10. DaleWheat.com 10 September 2009
Reset Circuit
One of the nice things about the current Arduino design is that it can be remotely reset by the host PC.
You can also reset it locally using a push button. We duplicate both features in this circuit.
Find one of the push button switches in the small parts bag. Install the push button across the center
gap of the breadboard between rows 5 and 7. Get both yellow wires out of the wire bag. Connect the
long yellow wire from USB module pin labeled RST, tie-point C-1 to tie-point C-9. Connect the short
yellow wire from tie-point D-7 to D-9. Find a beige resistor in the small parts bag and connect it from
the left-hand VCC bus to tie-point A-9. See Photo 12.
Note: The push button doesn’t quite fit perfectly into the holes of the breadboard. The legs are just a
bit too short to let the spring-loaded terminals really get a good hold. It might need to be poked back
into place from time to time.
Photo 12. The reset circuit is installed. Note that one side of the pushbutton shares a ground connection with the power
indicator LED. This is a just a convenient way to save a jumper wire.
11. DaleWheat.com 11 September 2009
Brain Time
If your breadboard looks remarkably like Photo 12 at this point, as determined by the instructor or the
instructor’s assistant, you will be issued the Atmel AVR ATmega328 microcontroller chip. This is the
“main brain” of the Arduino circuit. Like the USB module, the chip is rather rugged but can possibly be
damaged by static electricity. Handle the chip only by the ends, not the pins, or allow the instructor or
assistant to insert the chip and seat it onto the breadboard.
The chip comes with a handy, if weensy, label affixed to the top that identifies the pins as they are used
in the Arduino circuit. Pin 1 is labeled “rst” for “Reset” and should be lined up with row 9. This should
make the last pins on each side land on row 22. See Photo 13.
Photo 13. The main brain of the Arduino is the Atmel AVR ATmega328 microcontroller. Handle with care.
12. DaleWheat.com 12 September 2009
Install the Transmit and Receive Lines
Find the long green and orange wires in the wire bag. Connect the green wire from the USB module TXD
pin, tie-point B-2, to tie-point B-10. Connect the orange wire from the USB module RXD pin, tie-point A-
3, to tie-point A-11. See Photo 14.
Photo 14. The transmit and receive lines from the USB module to the microcontroller.
Note: The TXD (transmit data) line on the USB module is connected to the “rxd” (receive) line on the
ATmega328 with the green wire. Likewise, the RXD (receive data) line on the USB module is connected
to the “txd” (transmit) line of the ATmega328 with the orange. It makes sense if you think about it,
except maybe the color choices. Ask me sometime and I will elaborate.
13. DaleWheat.com 13 September 2009
Power and Ground for the Microcontroller
The ATmega328 has two sets of power and ground pins. One set is for the digital section of the chip and
the other set is for the analog parts. Both sections must be connected, even if you do not plan to use
the analog parts.
Find two more short, black wires and two more short, red wires from the wire bag. On the left side,
connect the VCC bus to tie-point A-15 using a red wire. Use a black wire to connect the ground bus to
tie-point A-16. On the right side, connect a black wire to connect the ground bus to tie-point J-15. Use a
red wire to connect the VCC bus to J-17.
Important Note: It’s easy to get these wrong so please double check your work.
Now find two of the small, 0.1 μF capacitors and straddle them across the power and ground pins on
each side of the microcontroller chip. These are called decoupling capacitors. They help filter high-
frequency electrical noise from the power supply and prevent erratic behavior of the microcontroller, at
least until you start programming it. See Photo 15.
Photo 15. Power and ground connections and proper placement of decoupling capacitors.
14. DaleWheat.com 14 September 2009
Quartz Crystal
The ATmega328 has several selectable clock sources. The fastest and most accurate clock circuit uses an
external quartz crystal. The chip contains a relatively accurate (±1%) clock but it only operates up to 8
MHz. “MHz” stands for megaHertz, or one million cycles per second. The standard clock frequency for
Arduino circuits is 16 MHz, which is twice as fast. The chip supplied with this kit can actually run as fast
as 20 MHz.
The quartz crystal is contained in a steel can with two leads. Find the crystal in the small parts bag and
install it diagonally from tie-point A-18 to tie-point C-17. See Photo 16.
Photo 16. Connect the crystal between the pins labeled “xt1” and “xt2”.
15. DaleWheat.com 15 September 2009
Programmable LED
Find another blue resistor, another green LED and another short, black jumper wire. Install the resistor
from tie-point J-18 to tie-point J-23. Install the long lead of the LED (the anode) to tie-point H-23 and at
the same time insert the shorter lead into tie-point H-24. Connect the black jumper from the right-hand
side ground bus to tie-point J-24. See Photo 17.
Photo 17. The programmable LED is your friend. It is used in many Arduino example programs.
Second Test
The core circuit is now complete! Have the instructor or assistant double-check your wiring and parts
placement. If all looks good, plug in the USB cable again. The power indicator LED should light up again
and stay lit. Your computer should ding or beep or in some manner acknowledge that the USB port has
been detected. Also, after a few seconds, the programmable LED should start to slowly and regularly
blink. If this is what you see, then congratulations! You’ve successfully built your very own physical
computing platform. If not, ask for some help and figure out what went wrong.
Time for Second Break
Your Arduino-compatible physical computing platform is now complete. It’s time to take another break
before we launch into some programming using the Arduino integrated development environment.
16. DaleWheat.com 16 September 2009
The Arduino IDE
We will be using the Arduino integrated development environment (IDE) to program your new Arduino-
compatible computer. The software includes a text editor for writing and editing your programs, a
compiler to convert what you’ve written into instructions that the processor can understand and
additional utilities that allow you to transfer your program into the memory of your Arduino-compatible
device. It does a lot more than that but those are the basic functions that we will explore for now.
You can get the latest version of the Arduino IDE (version 0017 at the time of this writing) at the Arduino
web site: http://arduino.cc/en/Main/Software. Different flavors are available for Microsoft Windows,
Linux and Apple Macintosh computers. Your instructor will also most likely have the latest versions
available on a USB drive if you were not able to install the software before the class. Just ask for
assistance and make sure the software works on your computer before trying to proceed with the
following experiments.
Once you’ve successfully installed the Arduino IDE, run the program and let’s take a quick tour of the
software. This will not be an exhaustive tutorial on the subject by any means. There are much better
resources available for free elsewhere. Let’s just take a look at the features we need to run some simple
example programs and get an overview of the basic development process. See Photo 18.
Photo 18. The Arduino IDE is a cross-platform integrated development environment that allows you to write, compile and
download programs to your Arduino-compatible circuit.
17. DaleWheat.com 17 September 2009
Quick Tour of the IDE
Take another look at Photo 18. The important parts for our purposes are the menus, the Toolbar, the
text editor and the status area.
The menus are at the top of the window and are labeled “File Edit Sketch Tools Help”. Clicking on these
menu items brings down a list of commands grouped by function. For the purposes of this class it is
assumed you already know how to use menus.
Menu items are logically linked in a cascading style. For example, to start a new sketch, you would click
on the “File” menu heading, which brings down the list of file-related commands and then click on the
item in the list labeled “New”. As a shortcut in this document, this sequence of actions will be
shortened to just “Please select the File/New menu item”, as it takes much longer to describe than to
do. Some commands are more deeply nested, e.g., “File/Examples/Digital/Blink”.
The Toolbar is the row of symbols directly below the menu. These symbols represent the most often-
used commands and can be accessed with a single click. See Photo 19.
Photo 19. The Arduino IDE Toolbar provides shortcuts to the most commonly used commands.
In order, from left to right, they are:
Verify - compile and check for errors
Stop - cancel operation
New – Create a new sketch
Open – Retrieve a previously written sketch
Save – Save a copy of the sketch in its current state
Upload – Send the sketch to the IO board*
Serial Monitor – Start a conversation with the IO board* over the serial port
*In Arduino-speak, the “IO board” is the Arduino or Arduino-compatible device being programmed.
Example Programs
The Arduino IDE comes with many example programs to help you get started. In Arduino-speak, a
program is called a sketch. To access the many example programs, select the “Files/Examples” menu
item and browse through the many categories available.
Software Experiment #1: Blink
Blinking a single LED is often considered the “hello, world” program of the embedded development
universe. It is also an excellent starting place to help verify that all of your parts and connections are
18. DaleWheat.com 18 September 2009
correct and functioning properly. Using the Arduino IDE, select the “File/Examples/Digital/Blink” menu
item. This loads the built-in program called “Blink” into the editor. See Photo 20.
Photo 20. The Blink example program is provided in the Digital section.
Looking at Photo 20 it might be hard to see how the program, or sketch, works, or even where the
program part, i.e., the telling-the-computer-what-to-do part, lives. The whole first page as seen in the
text editor is nothing but program comments. Comments are ignored by the compiler and do not affect
the operation of the device. Comments are important, however, because they are an opportunity for
the program writer to describe in non-technical language what is going on and how it is being
accomplished. Do not underestimate the value of well-written comments in your programs, especially if
you plan on sharing your code with others or working on it again in the future. Comment early,
comment often.
To see the working parts of the sketch, scroll down using either the built-in scroll bars of the text editor
window or the arrow keys on the keyboard. Go all the way to the bottom of the sketch and you should
see something very similar to Photo 21.
19. DaleWheat.com 19 September 2009
Photo 21. The rest of the Blink example program; the part that actually does all the work.
The first thing you might notice about the bottom half of the Blink example is that some of the words
are shown in different colors. This is called keyword highlighting and helps to set apart the different
“parts of speech” as used in the Arduino programming language, which is a hybrid of C and C++ with a
few twists.
The details of the programming language are for the most part beyond the scope of this short tutorial.
Existing example programs will be used as-is or modified to fit the requirements of the experiments.
In the Blink example sketch, we see the basic structure of all Arduino programming. This simple
example contains two function definitions, along with some more comments and a global variable
declaration. Functions perform programmer-defined tasks and are modeled on algebraic functions both
in operation and in syntax. Functions can also be thought of as subroutines for those familiar with that
term.
The two function definitions are setup() and loop(). The setup() function is run only once every time the
device is powered on or reset. Anything that needs to be initialized to a specific state upon startup
should be done in the setup() function.
The loop() function is then executed repeatedly in an endless loop until power runs out or the device is
reset. This means that all the instructions contained in the loop() function definition are executed over
20. DaleWheat.com 20 September 2009
and over again. Why this is useful should hopefully become apparent soon as we look at more
examples.
Notice that both the setup() and loop() functions call, i.e., execute other functions that are not defined
in the Blink example sketch. For example, in the setup() function, the pinMode() function is called with
two parameters, or values. The value of the ledPin variable identifies the input or output (I/O) pin of
interest and the OUTPUT predefined constant value indicates the desired mode. The pinMode()
function is defined in a library of commonly useful functions that are available to all Arduino sketches.
A list of available functions and other handy Arduino-specific information is available on the Arduino
web site at http://arduino.cc/en/Reference/HomePage or by selecting the “Help/Reference” menu item
from the Arduino IDE.
The pinMode() function must be called from the setup() function because, by default, all of the I/O pins
of the Atmel AVR ATmega328 (the Arduino’s brain chip) are configured as inputs when the chip first
starts. To use the pin to blink an LED, it has to be reconfigured as an output. The pinMode() function
takes care of that for us. It only has to be executed once and the pin stays in the output mode until
something else comes along and changes it. If nothing else ever changes it, it stays that way until the
chip loses power or is otherwise reset.
Now take a look at the loop() function. The first function called is digitalWrite(), which is passed the
parameters to identify the pin to write as well as the value to be written. The ledPin variable still
contains the number of the pin we want to blink (all pins are individually numbered for easy reference in
Arduino-Land). The predefined constant HIGH tells the function to write a digital value of 1, i.e., a digital
high level, to the pin. Since you wired up the user programmable LED to this pin in the previous section,
this will cause the LED to light.
Next a call is made to the delay() function. The parameter specifies the number of milliseconds, or
thousandths of a second to wait. Nothing useful happens during the waiting period; time passes and
that is all. Since 1,000 milliseconds were specified, one full second elapses and then the delay function
returns.
Another call to the digitalWrite() function occurs but this time the value to be written is LOW. This
writes a digital low level to the I/O pin, effectively turning off the LED. Another call to the delay()
function is made and the loop() function terminates.
The delay() function is required in this example because the ATmega328, operating at 16 MHz, can turn
the LED on and off many thousands of times a second, which we would perceive as being lit up as a
steady dot with about half the normal brightness. Since we want a human-perceptible blinking of the
LED, the delay() function slows things down enough for our eyes to tell what is happening.
Since the loop() function is called over and over again, the cycle repeats, ad infinitum. The LED blinks on
and off until the novelty wears off and we make it do something else.
21. DaleWheat.com 21 September 2009
Select the Correct Board
The Arduino IDE needs to know which of the many Arduino variants is attached, as it currently has no
way to determine this information itself. Using the “Tools/Board” menu item, select the “Arduino
Duemilanove or Nano w/ ATmega328”, as those are functionally identical to the circuit you just built.
You MUST select the correct board before compiling the sketch. Different boards have different
memory capacities and this is handled automatically by the Arduino software once the correct board is
specified.
Compiling the Blink Example Sketch
Let’s test out the Blink example exactly as it was delivered to us. Click on the “Verify” button in the
Toolbar. “Verify” is Arduino-speak for “compile”. It’s true that the process of compilation reveals errors
so there is a “verification” aspect to this action. You should see the message “Compiling…” displayed in
the status area at the bottom of the Arduino IDE. This can take several seconds to complete depending
on your computer’s resources. Once completed, you should see a “Done compiling.” status message
and the following message below that:
Binary sketch size: 896 bytes (of a 30720 byte maximum)
If not, please ask for assistance at this point. Something is not configured correctly.
Select the Correct Port
The Arduino IDE is likewise unaware of which port to use to talk to your device. With your board
plugged in to the USB port of your computer, select the “Tools/Serial Port” menu item and select the
appropriate port from the available list. Your breadboarded Arduino MUST be plugged in and powered
on and working for the right port to be listed in the menu.
Uploading a Sketch
Now it is time to send the Blink sketch down the wire from your computer to your device. This process
is called “uploading” in Arduino-speak. You may also hear people refer to this process as (device)
programming, writing, flashing or downloading. If all the above steps have been completed successfully,
click on the “Upload” Toolbar button. You should see the status message “Uploading to I/O Board…”
while the sketch is sent from the big computer to the little computer. This will take several seconds to
complete. During the upload process, the user programmable LED will blink sporadically. Once finished,
you should see the status message change to “Done uploading”. The LED should start to blink slowly on
and off: one second on, one second off, repeat.
If not, please doubled check that everything is connected properly and that the correct board and serial
port are selected within the Arduino IDE.
22. DaleWheat.com 22 September 2009
Software Experiment #2: Blink Faster
Using the text editor of the Arduino IDE, change the parameters of the delay() functions from 1,000 to
250 milliseconds in both places. See Photo 22.
Photo 22. Replace the delay() function parameters with 250 in both places. This will speed up the blinking rate of the LED.
Compile the altered sketch by pressing the “Verify” button. If compilation succeeds, go ahead and
upload the newly compiled sketch to your board by clicking on the “Upload” button in the Toolbar.
Once the upload process completes successfully, you should see the user programmable LED blinking in
a more rapid fashion.
Since the delay between the HIGH and LOW writes to the LED has been decreased by a factor of four,
the frequency of the blinking has been increased by a factor of four, in this case from 0.5 Hz to 2 Hz.
Experiment with other values for the delay() function. Nothing says they have to be the same value.
Note that the Arduino IDE still thinks you are working with the Blink example sketch. To save this newly
altered sketch for later, select the “File/Save As…” menu item and specify a new name for the sketch. I
would suggest “BlinkFaster” but you are free to choose any name you like. I recommend not saving it as
“Blink” as you will overwrite the supplied example program. There’s nothing wrong with that, but it is
good to be able to return to a “known good state” when working with software and the supplied
example sketches do work.
23. DaleWheat.com 23 September 2009
Software Experiment #3: Blink Without Delay
As mentioned previously in the discussion of the original Blink example sketch, the microcontroller
wastes time in the delay() function to provide a slow-enough or human-perceptible delay between
events, in this case the turning on and off of the LED, which otherwise would be an imperceptible blur.
This time is literally wasted, as no useful work is performed, nor can it be when using this technique.
An alternative to wasting this time is to use it to do some other task and then periodically check to see if
it is time to turn the LED on or off. This involves a little more work on the part of the programmer but
then enables the Arduino to appear to be doing more than one thing at a time.
From the Arduino IDE, select the “File/Examples/Digital/BlinkWithoutDelay” menu item:
/* Blink without Delay
Turns on and off a light emitting diode(LED) connected to a digital
pin, without using the delay() function. This means that other code
can run at the same time without being interrupted by the LED code.
The circuit:
* LED attached from pin 13 to ground.
* Note: on most Arduinos, there is already an LED on the board
that's attached to pin 13, so no hardware is needed for this example.
created 2005
by David A. Mellis
modified 17 Jun 2009
by Tom Igoe
http://www.arduino.cc/en/Tutorial/BlinkWithoutDelay
*/
// constants won't change. Used here to
// set pin numbers:
const int ledPin = 13; // the number of the LED pin
// Variables will change:
int ledState = LOW; // ledState used to set the LED
long previousMillis = 0; // will store last time LED was updated
// the follow variables is a long because the time, measured in miliseconds,
// will quickly become a bigger number than can be stored in an int.
long interval = 1000; // interval at which to blink (milliseconds)
void setup() {
// set the digital pin as output:
pinMode(ledPin, OUTPUT);
}
void loop()
{
// here is where you'd put code that needs to be running all the time.
// check to see if it's time to blink the LED; that is, is the difference
// between the current time and last time we blinked the LED bigger than
// the interval at which we want to blink the LED.
if (millis() - previousMillis > interval) {
// save the last time you blinked the LED
previousMillis = millis();
// if the LED is off turn it on and vice-versa:
if (ledState == LOW)
ledState = HIGH;
else
ledState = LOW;
// set the LED with the ledState of the variable:
digitalWrite(ledPin, ledState);
}
}
24. DaleWheat.com 24 September 2009
Software Experiment #4: Button
This software experiment requires the addition of some extra hardware to the circuit. Look in the small
parts bag and find the other push button. You installed the first push button as part of the reset
circuitry when originally building your circuit. You also need another beige resistor and the short orange
jumper wire.
Install the push button across the center gap of the solderless breadboard with the pins in rows 24 and
26. The top pins of the switch should line up with the cathode of the user programmable LED and the
black jumper wire to ground. We borrow (share) this connection to ground instead of using another
black jumper wire.
Connect the bottom left pin of the push button (tie-point B-26) to I/O pin D8 (tie-point B-22) using the
short orange jumper wire. Install one end of the beige resistor at tie-point A-26 and the other end into
the positive voltage supply, or red rail on the left.
Using the Arduino IDE’s text editor, change the value of the buttonPin variable on program line 27 from
2 to 8. We could use 2 but 8 is physically closer to the push button as installed in this example. See
Photo 23.
Photo 23. Install the other push button just below the microcontroller chip.
Compile and upload the sketch to the I/O board. As you can see, the LED comes on and nothing else
happens. Now try pushing the button. The LED should go out while the button is pushed.
25. DaleWheat.com 25 September 2009
Software Experiment #4a: Not Button
On program line 46, change the double equal signs (“==”) to an exclamation point and a single equal
sign, with no intervening spaces (“!=”). This changes the program meaning from “is equal to” to “is not
equal to” in the evaluation section of the sketch. Those just happen to be the symbols used by the C
programming language to represent those operators. Recompile the sketch and upload it. Now the LED
stays off until the push button is pushed. It stays lit as long as the button remains pressed.
Being able to change the logic of a program gives you a lot of versatility in designing user interface
circuits and other applications. You could also require the button to be pressed for a certain length of
time before starting some process. There are a lot of possible variations.
Software Experiment #4b: Eliminating the External Pull Up Resistor
The beige resistor in this circuit acts as a pullup resistor. The push button either connects the
microcontroller input to ground (when pressed) or to nothing at all (when released). In the released
state, there is nothing connected in the circuit to influence the voltage at that point, other than stray
interference from radio waves in the air. With the addition of the pullup resistor, the voltage present at
the input to the microcontroller pin is always at a known high state until the push button is pressed, at
which time the voltage drops to nearly zero. The relatively high resistance of the pullup resistor only
permits a very small amount of current to flow through the circuit.
Remove the beige pullup resistor from the circuit and observe the resulting behavior. Sometimes it will
work and sometimes it won’t. Reinstall the resistor to confirm that it works properly again.
An alternative to using the external pullup resistor is to enable the pullup resistor that is present on
every input of the microcontroller chip. This is done by writing a digital high value to the pin even
though it is configured as an input. Add this line to the setup() function:
digitalWrite(buttonPin, HIGH);
Recompile the program and upload it to the board. Remove the beige pullup resistor from the circuit
and confirm that it is working properly, even with the pullup missing from the circuit.
26. DaleWheat.com 26 September 2009
Software Experiment #5: Melody
This software experiment requires the addition of some more hardware to the circuit. Find the other 10
μF capacitor and the small, round speaker module in the small parts bag. You will also need the white
jumper and another short, black jumper.
Install the white jumper from the microcontroller pin labeled “d9” at tie-point I-22 to tie-point I-28.
Insert the positive lead of the 10 μF capacitor (the one that is not marked with the big minus stripe) into
tie-point J-28, and the negative lead into tie-point J-29. Now install the small speaker module diagonally
from tie-point F-29 to tie-point G-30. It’s metric so it doesn’t quite fit squarely into the solderless
breadboard, which is designed on a 0.1” grid. Now install the short, black jumper from tie-point J-30
across to the negative power rail with the blue stripe on the far right side of the board. See Photo 24.
Photo 24. Install the small, round speaker module just below and to the right of the push button.
From the Arduino IDE, select the “File/Examples/Digital/Melody” menu item. This loads a simple
melody sketch. Compile and upload the sketch to the I/O board. Listen carefully and see if you can
identify the simple melody.
27. DaleWheat.com 27 September 2009
Software Experiment #6: Text to Song Conversion
Just for fun, copy the file “speech_daisybell.pde” (supplied by your instructor) to your Arduino IDE
installation folder. From the Arduino IDE, select the “File/Open” menu item and select the file
“speech_daisybell”. It may complain that it needs to be in its own folder but will offer to fix the problem
for you. Allow it to do so and it will correctly load the sketch. Compile and upload to your I/O board.
You will need to move the white wire from D9 to D11 as this is the output used by the sketch.
Now listen very carefully. You should hear a decidedly artificial voice singing a song. It’s not perfect by
any means but it shows what can be done with some clever programming.
Software Experiment #7: LED Scanner
Find the four small, red LEDs and four more blue resistors in the small parts bag. Install the long lead of
each LED in tie-points A-23, A-25, A-27 and A-29, respectively. Insert their corresponding shorter leads
into the negative power rail with the blue stripe on the left side of the board. Now connect pins D5
through D8 of the microcontroller to the LEDs, using whatever positioning works best for you. Try not to
let any of the leads touch each other. It’s tricky but certainly possible. See Photo 25.
Photo 25. The LEDs are installed and connected to D5-D8 with resistors.
28. DaleWheat.com 28 September 2009
From the Arduino IDE, select the “File/Examples/Control/ForLoopIteration” menu item. This loads one
of the sample sketches that illustrates a very useful control structure called a for loop. A for loop
executes a statement or group of statements a certain number of times, determined by the way the
loop is written.
Some small changes will need to be made to the code in the example sketch for it to match our
hardware. Change the numbers in line 22 and line 29 to look like this:
for (int thisPin = 5; thisPin < 9; thisPin++) {
Change the numbers in line 38 to look like this:
for (int thisPin = 7; thisPin >= 6; thisPin--) {
Compile the sketch and upload it to your I/O board. The LEDs should light up one at a time in an
animated pattern. Remind you of anything, hmmm?
Software Experiment #8: Hello, world!
For this software experiment, no additional hardware is required.
From the Arduino IDE, select the “File/Examples/Stubs/HelloWorld” menu item. This loads the “stub” or
skeletal version of the classic “Hello, World!” program that is used as an introduction to many
programming languages. Notice that it lacks any sort of programmer comments and only contains the
bare minimum of code needed to get the job done.
Compile the sketch and upload. It will appear that nothing is happening but that is not the case. Plenty
of activity is going on but you are not yet able to perceive it. Now click on the “Serial Monitor” button
on the Toolbar. Starting with version 0017 of the Arduino IDE, this opens a new window for
communicating with the serial port. Previous versions displayed the serial terminal in the main window.
At first you may only see random garbage characters displayed in the window. This is most likely
because of a serial port baud rate mismatch. Look in the lower right corner of the serial monitor
window and you will find an unlabeled drop-down control that contains various baud rates that are
supported by the serial monitor. Select “9600” and the monitor should soon start showing multiple
lines of “Hello World!” Remember that the loop() function is called repeatedly in Arduino programs.
Note that the baud rate is specified within the sketch in the setup() function. The parameter passed to
the Serial.begin() function is the requested baud rate. Try changing this baud rate to 300 (a very slow
baud rate) and recompiling and uploading the modified sketch to your I/O board. Launch the serial
monitor if it is not already visible and adjust the baud rate there to 300 as well. Give it a second or two
to synchronize. Once everyone is in step, you should see the phrase “Hello World!” printed at a leisurely
pace.
You can also use the serial port to talk back to the Arduino but that is a story for another time.
