How Scylla Manager Handles Backups
The document outlines the features and advancements of Scylla Manager, focusing on backup and repair functionalities across various versions. It emphasizes integrations with cloud storage solutions like Azure and S3, as well as improvements in security and monitoring. Future developments for Scylla Manager 4.x include Kubernetes operator support and enhanced admin security features.
More Related Content
Similar to How Scylla Manager Handles Backups
How Scylla Manager Handles Backups
- 1. How Scylla Manager HandlesBackups Michał Matczuk, Scylla Manager Team Leader
- 2. One to rulethem all One to find them One to repair them One to backup them One to manage them...
- 3. Presenter Michał Matczuk Team Leaderof Scylla Manager Contributor to C* Go driver Author of C* ORM scylladb/gocqlx Father of 3
- 4. Backup to Azure, Google,Dropbox,... Faster repair Maintenance windows Clone cluster Scylla Manager Repair Healthcheck SD for Monitoring SSH node access 1.x (current) 2.0 (in few weeks) 2.x (Q1/Q2 2020) 3.x (Q3/Q4 2020) Backup to S3 Agent HTTPS node access Integrated Monitoring Basic UI Out/down scale Rolling upgrade Rolling config update Log collection
- 5.
- 6. No sidecar in1.x It was a nice hack: + SSH server as a reverse-proxy + HTTP client with libssh session dial + No aux ports opened Go SSH goodies are now Open-Sourced github.com/scylladb/go-sshtools
- 7. Deployment in 1.x sctoolScylla Manager server Scylla node REST API (localhost) Scylla REST API SSH
- 8. Problems with SSH Notoriousscyllamgr_ssh_setup bash script When it works it works. Field issues: + Wild SSHd configurations + Timeouts on reverse DNS + Proxying - keepalives + User model mismatch

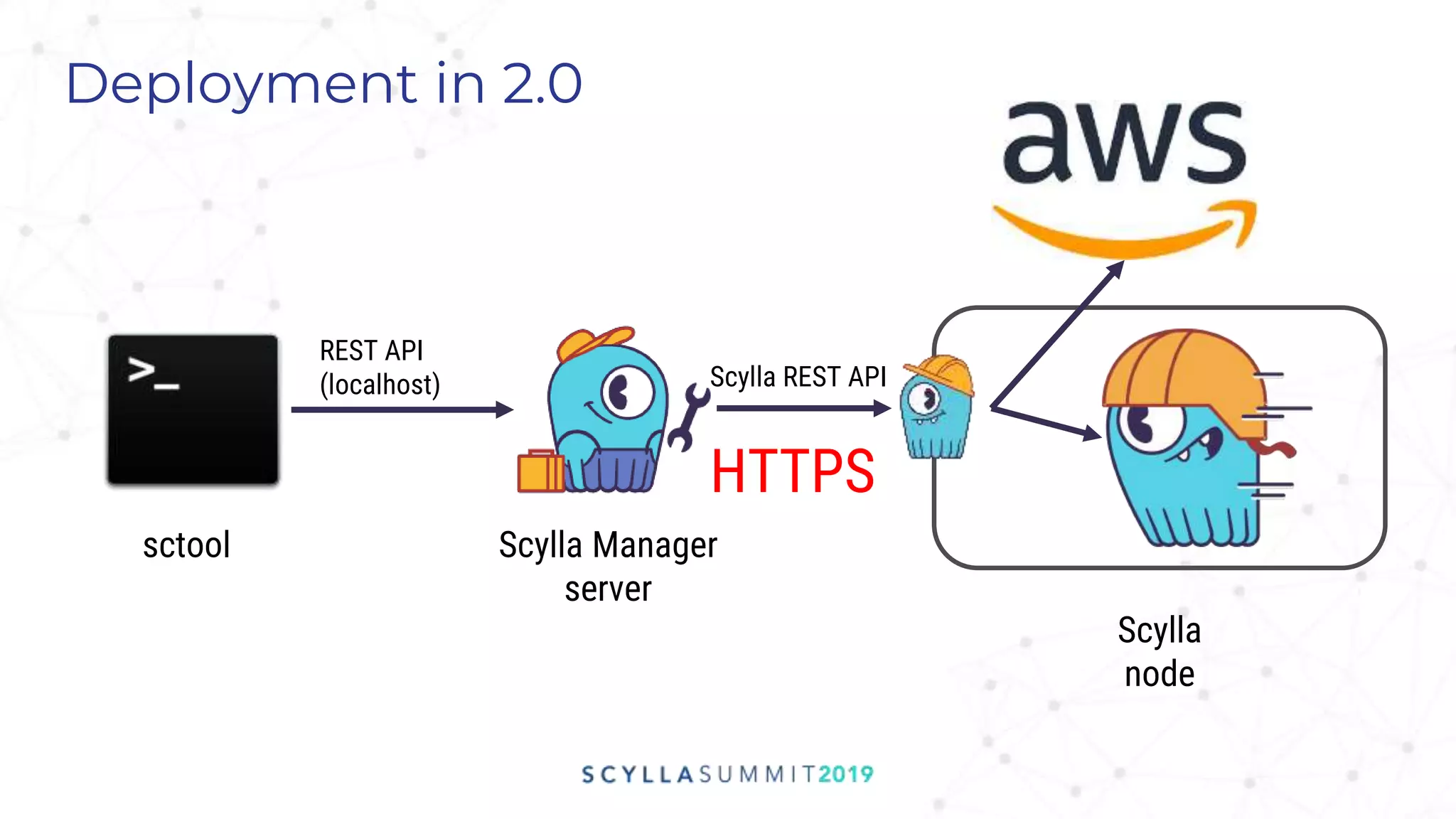

- 9. Deployment in 2.0 sctoolScylla Manager server Scylla node REST API (localhost) Scylla REST API HTTPS
- 10. Agent the benefits Lowimpact on Scylla nodes + CPU pinning + Systemd slices Just works™ + Installs with Scylla + Auto configures from Scylla API Simplified security + Bearer Authentication + Mutual TLS + Scylla data dir jail
- 11. Agent integrates Rclonehttps://rclone.org/ + "rsync for cloud storage" + Virtually any Object Storage, SFTP, localdir + Vibrant community + Mature, written in Go + MIT licensed Extensibility!
- 12. Rclone - arewe done? CLI + Global state + "Operation at a time" assumption + Lots of small bugs when run as a server Transfer cancelation #3257 Polluting Linux page cache #3413 Performance audit #3419 Accounting of in-flight transfers only File based configuration
- 13.
- 14. Backup Parallel snapshot &upload + Control parallelism level + Control upload speed Retention policy Deduplication Retries (rclone, http, scheduler) --snapshot-parallel --upload-parallel --rate-limit --rate-limit 10,us-east:20,us-west:30
- 15. DC aware backuplocation DC filtering with glob patterns Flexible keyspace/table filtering with glob patterns Backup --location us-east:s3:east-bucket, us-west:s3:west-bucket, default-bucket --dc 'us-*' -K 'shopping_cart*,!old_orders'
- 16. Low impact onnode and cluster + CPU pinning + Systemd slices + Fadvise free pages + Adjustable parallelism levels + Upload Rate limit Backup
- 17. Secure API + Authentication token +Mutual TLS Rclone + Credentials agnostic (IAM Roles) + Scylla data dir jail (read from API) Backup

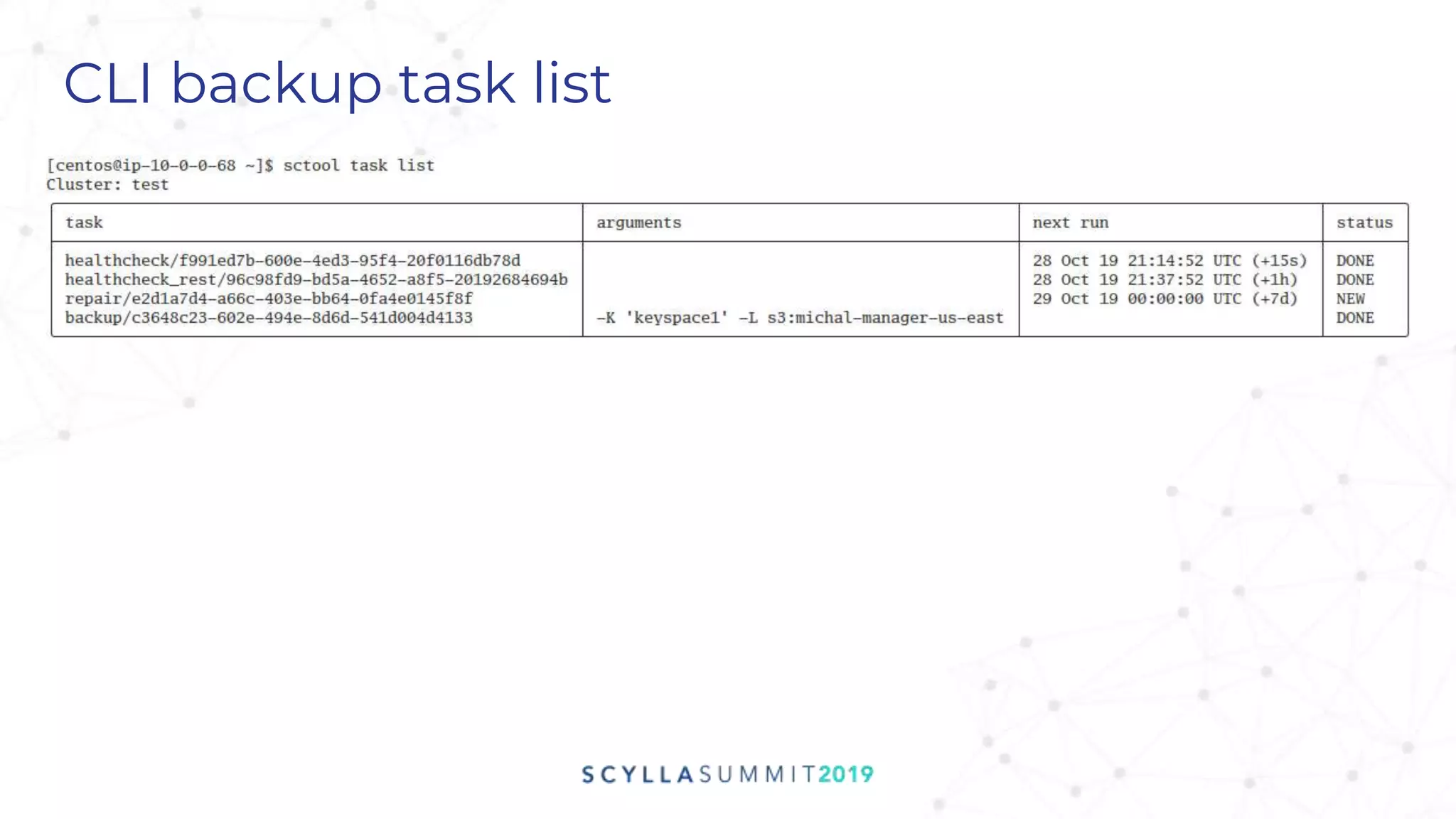

- 18. CLI backup tasklist

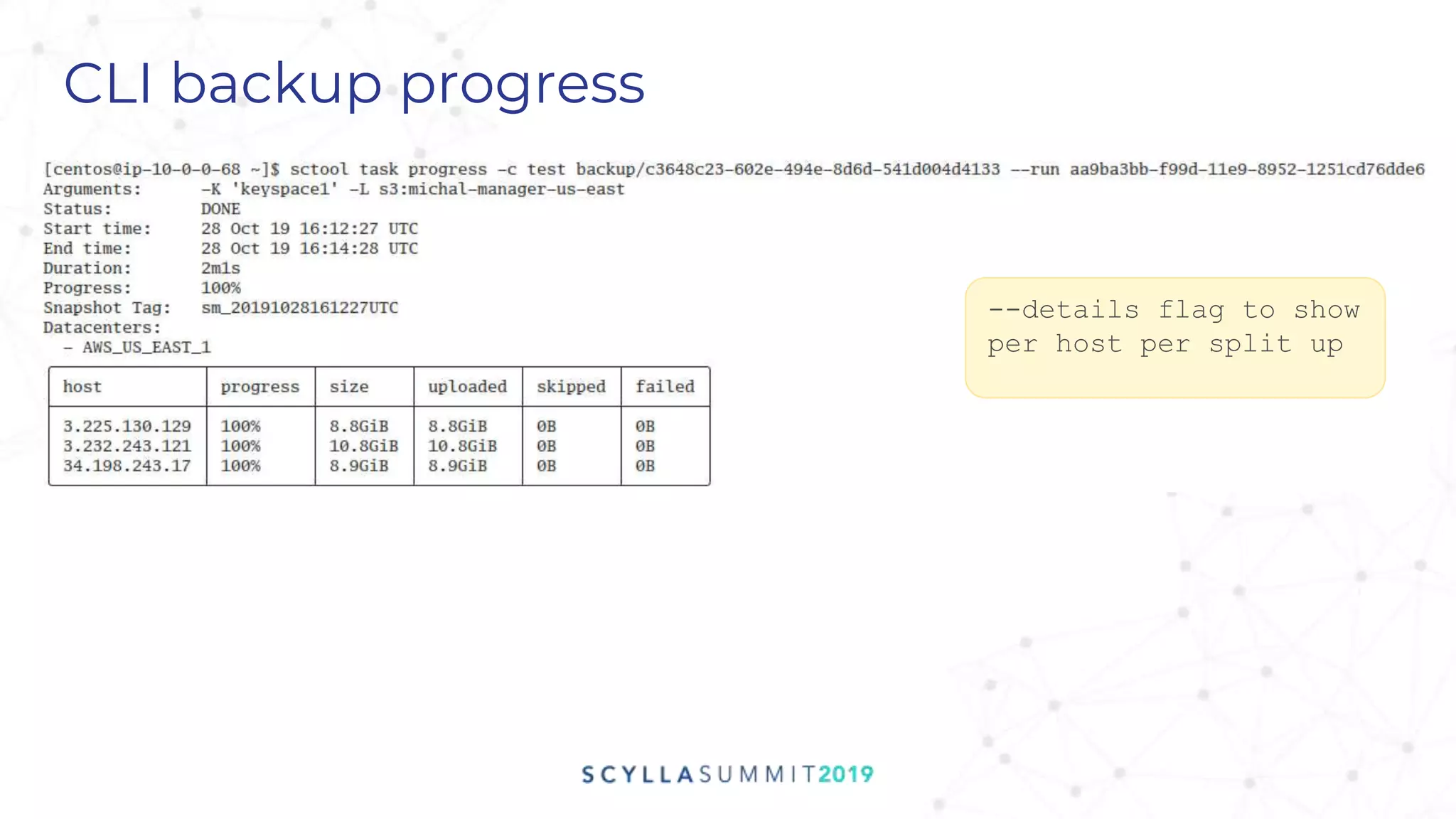

- 19. CLI backup progress --detailsflag to show per host per split up
- 20. Restore S3 buckets aresource of truth Paths encode information /backup/meta/cluster/48b9f020-be12-4c4e-8009-aee16131b51f/dc/dc1/node/4ebbf3b1-9871-44b1- bfef-7c993ff8e933/keyspace/backuptest_purge/table/big_table/task/b81dd5e7-34d8-4dee-b611- 42fe34f02b10/tag/sm_20191025123826UTC/445cda50f72411e98345000000000001/manifest.json + List backup + grouped by target (keyspaces and tables) + keyspace/table filtering with glob patterns + List S3 paths for given snapshot tag + keyspace/table filtering with glob patterns
- 21.
- 22.
- 23. Scylla Manager 4.x +Kubernetes Operator (WIP) + All (centralised components) in one + Scylla UI + Scylla cloud on premise + Security + Admin Security + LDAP integration + Role Based Auth + Audit
- 24. Thank you Stayin touch Any questions? Michal Matczuk michal@scylladb.com @michalmatczuk
Editor's Notes
- #5 Repair Recurrent and ah hoc repairs Pause and resume Flexible keyspace, DCs selection using glob patterns Progress information - CLI, merics and alerts Scylla Shard aware Resilient to temporary failures Healthcheck REST, CQL Credentials agnostic Automatically detects TLS
- #7 Was it simple, easy.
- #9 UseDNS no, maybe dns config need fixing.
- #12 Free testing
- #13 Has HTTP API out of the box We need to have the ability to execute the following operations on the Scylla nodes: Determine disk usage List (recursively) files and directories within scylla data directory Copy single file to and from the remote location (only if it’s missing) Copy directory to and from the remote location with file filtering (only if it’s missing) Delete files on both nodes, and remote locations Manage bandwidth limits for the file transfers Get progress for the running transfers Performance analysis * Unnecessary hash calculation * Parallelizing hash calculation * Local to local file copy 1G from 16s to 1s Praise Nick
