This document discusses using JavaScript in databases. It describes how JavaScript can be used in the database for transactions defined as functions, graph traversal, and having no backend code, just an API. It provides examples of using JavaScript for transactions and graph traversal in ArangoDB.

1. JavaScript in the Database
Frank Celler & Lucas Dohmen
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

2. The NoSQL Movement
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

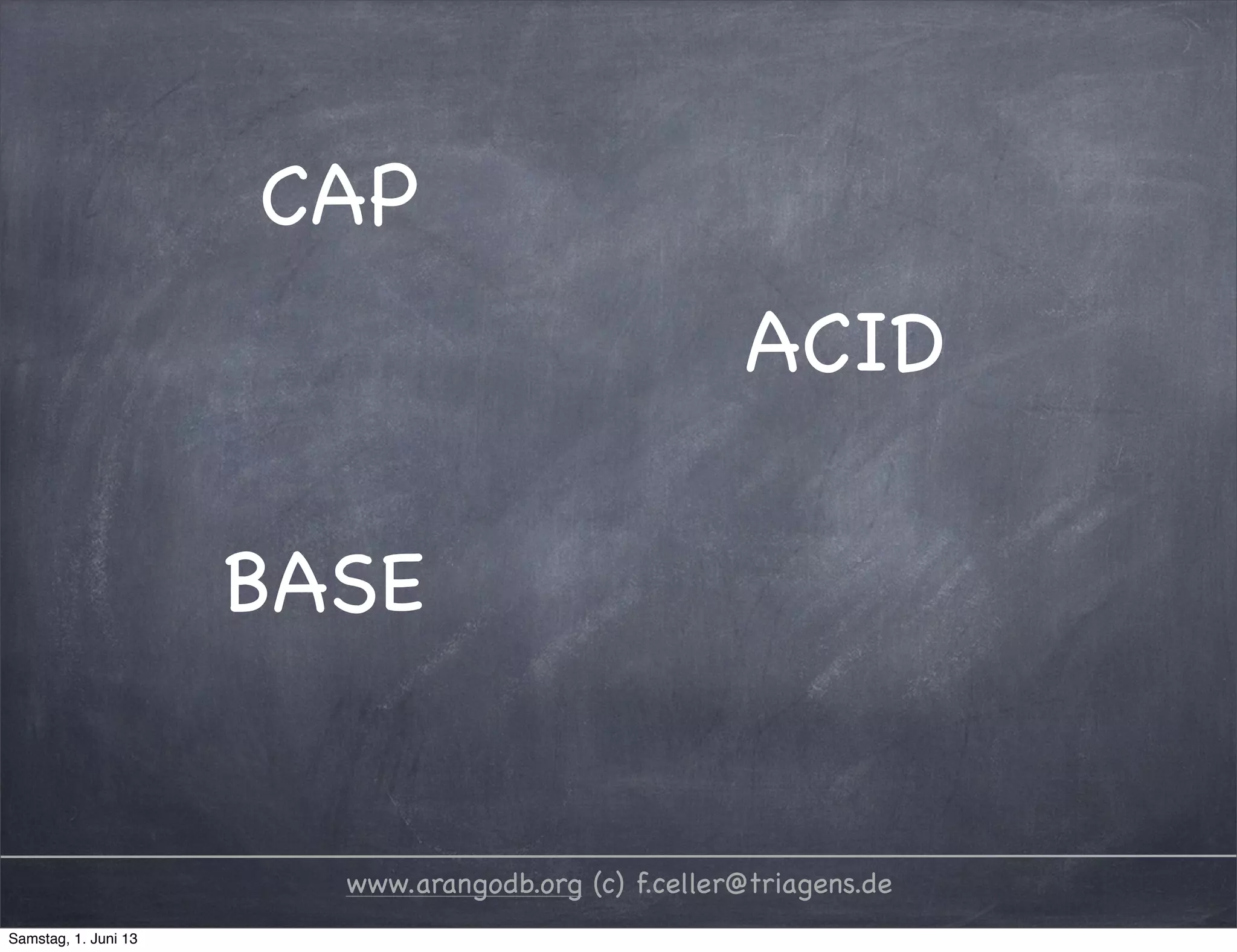

3. CAP
www.arangodb.org (c) f.celler@triagens.de
ACID
BASE
Samstag, 1. Juni 13

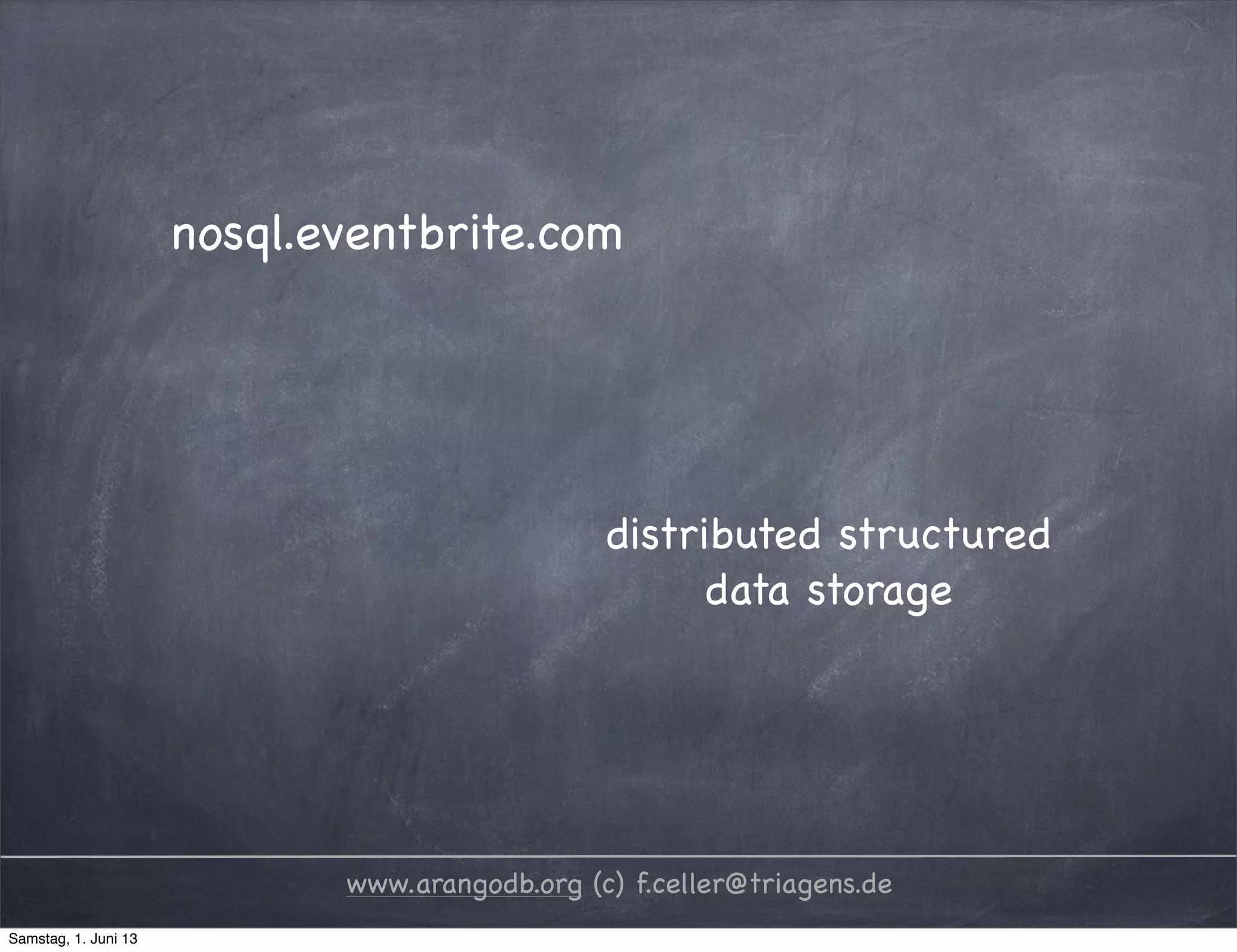

4. www.arangodb.org (c) f.celler@triagens.de
nosql.eventbrite.com
distributed structured
data storage
Samstag, 1. Juni 13

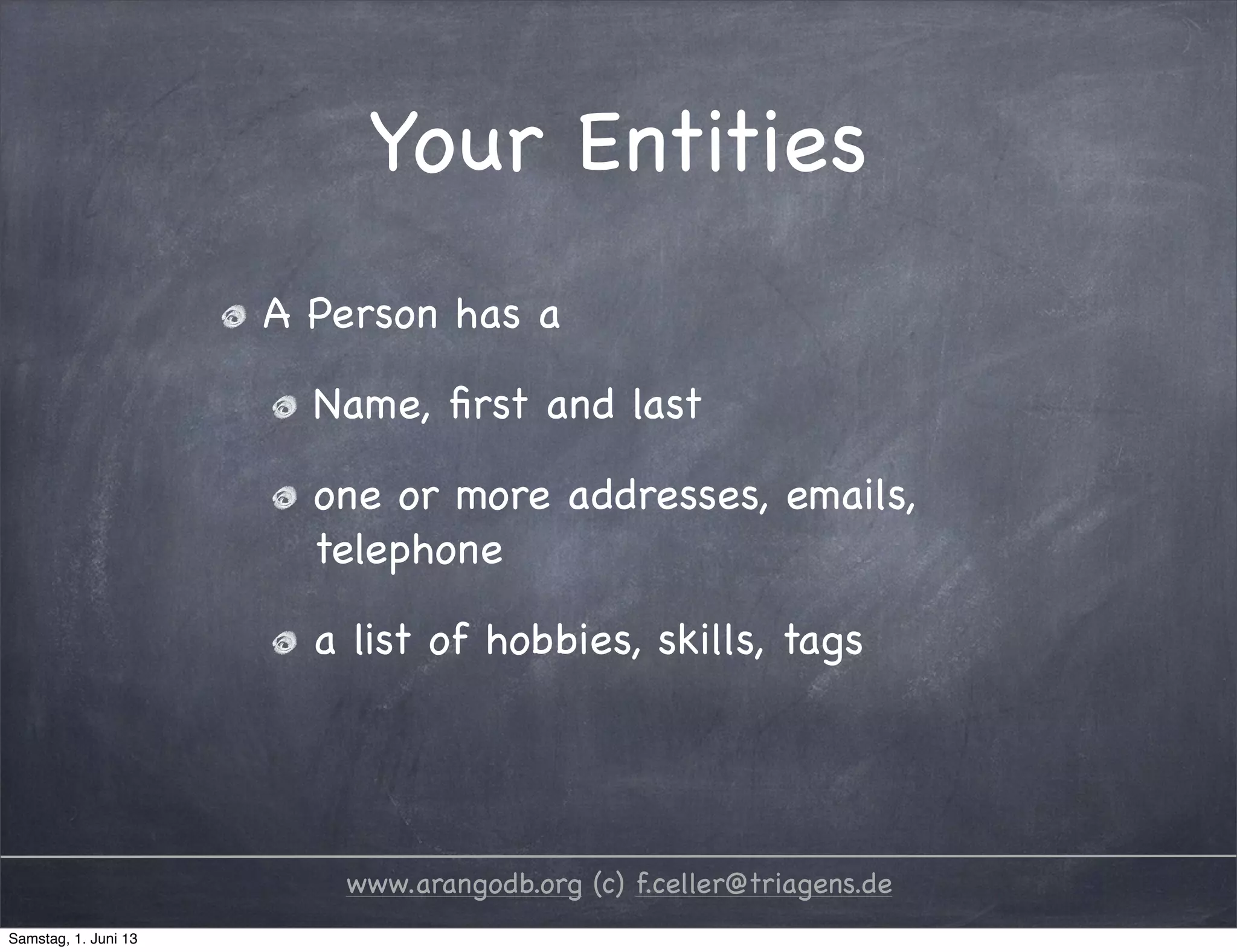

5. Your Entities
A Person has a
Name, first and last
one or more addresses, emails,
telephone
a list of hobbies, skills, tags
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

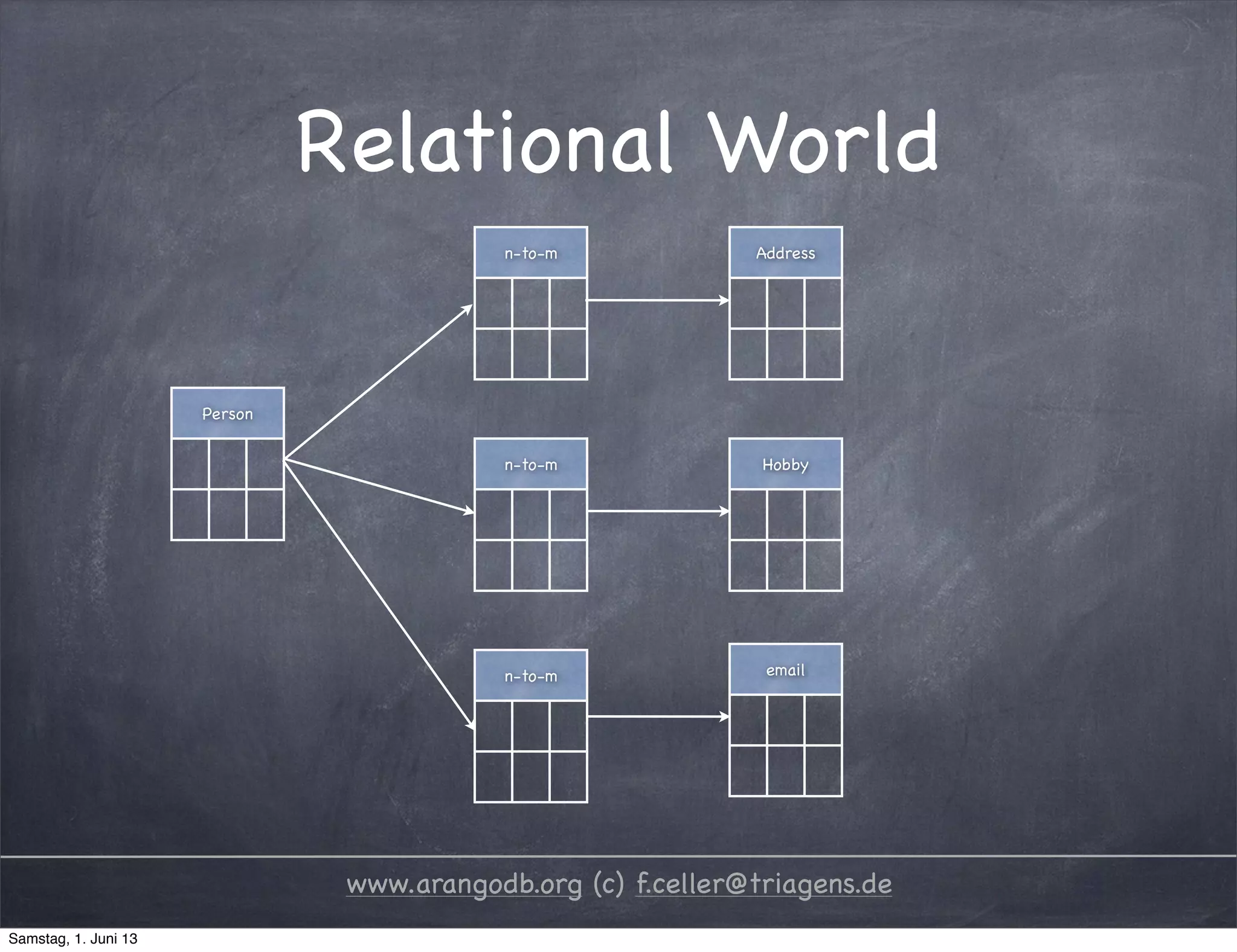

6. Relational World
www.arangodb.org (c) f.celler@triagens.de
PersonPersonPerson
AddressAddressAddress
HobbyHobbyHobby
emailemailemail
n-to-mn-to-mn-to-m
n-to-mn-to-mn-to-m
n-to-mn-to-mn-to-m
Samstag, 1. Juni 13

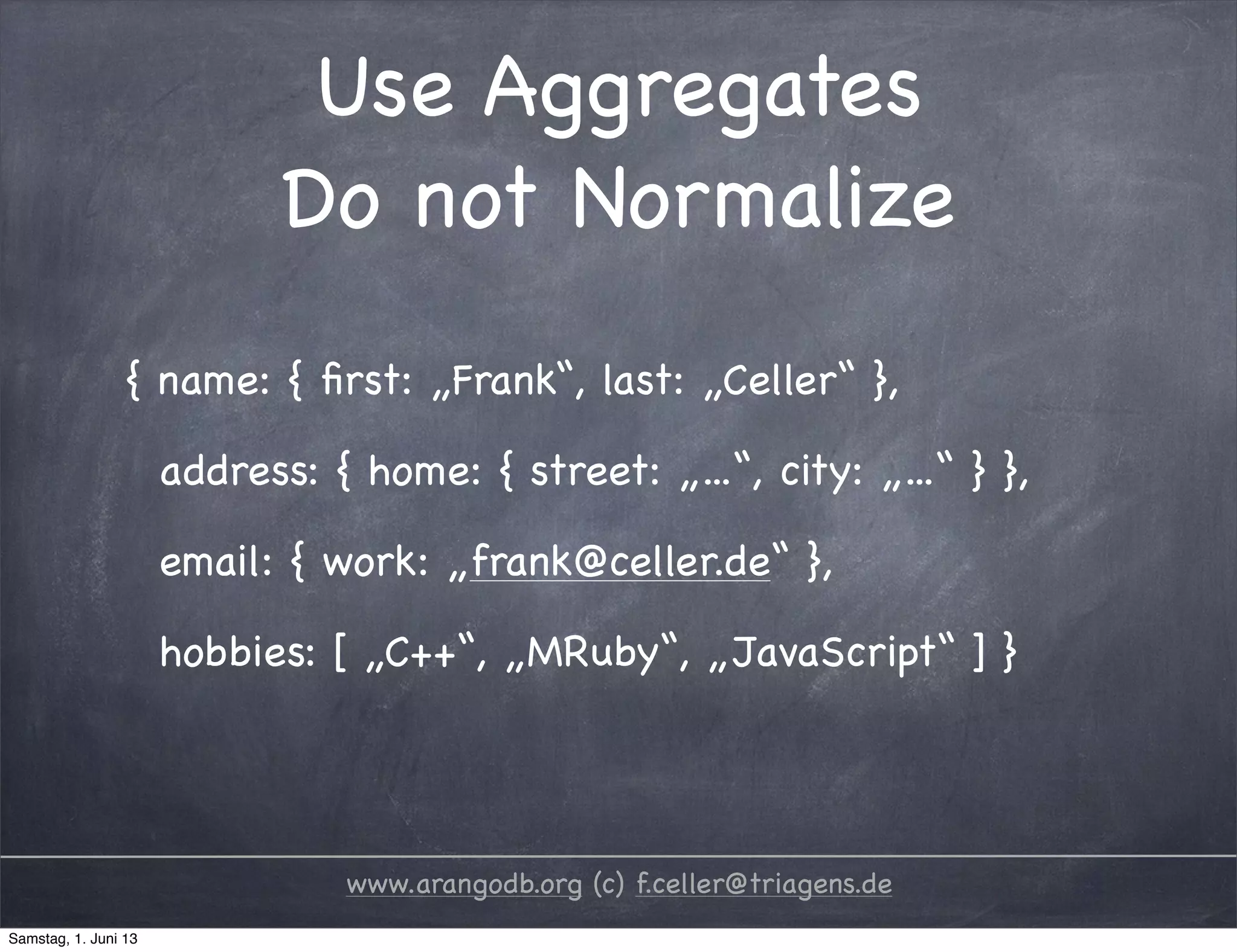

7. Use Aggregates
Do not Normalize
www.arangodb.org (c) f.celler@triagens.de
{ name: { first: „Frank“, last: „Celler“ },
address: { home: { street: „...“, city: „...“ } },
email: { work: „frank@celler.de“ },
hobbies: [ „C++“, „MRuby“, „JavaScript“ ] }
Samstag, 1. Juni 13

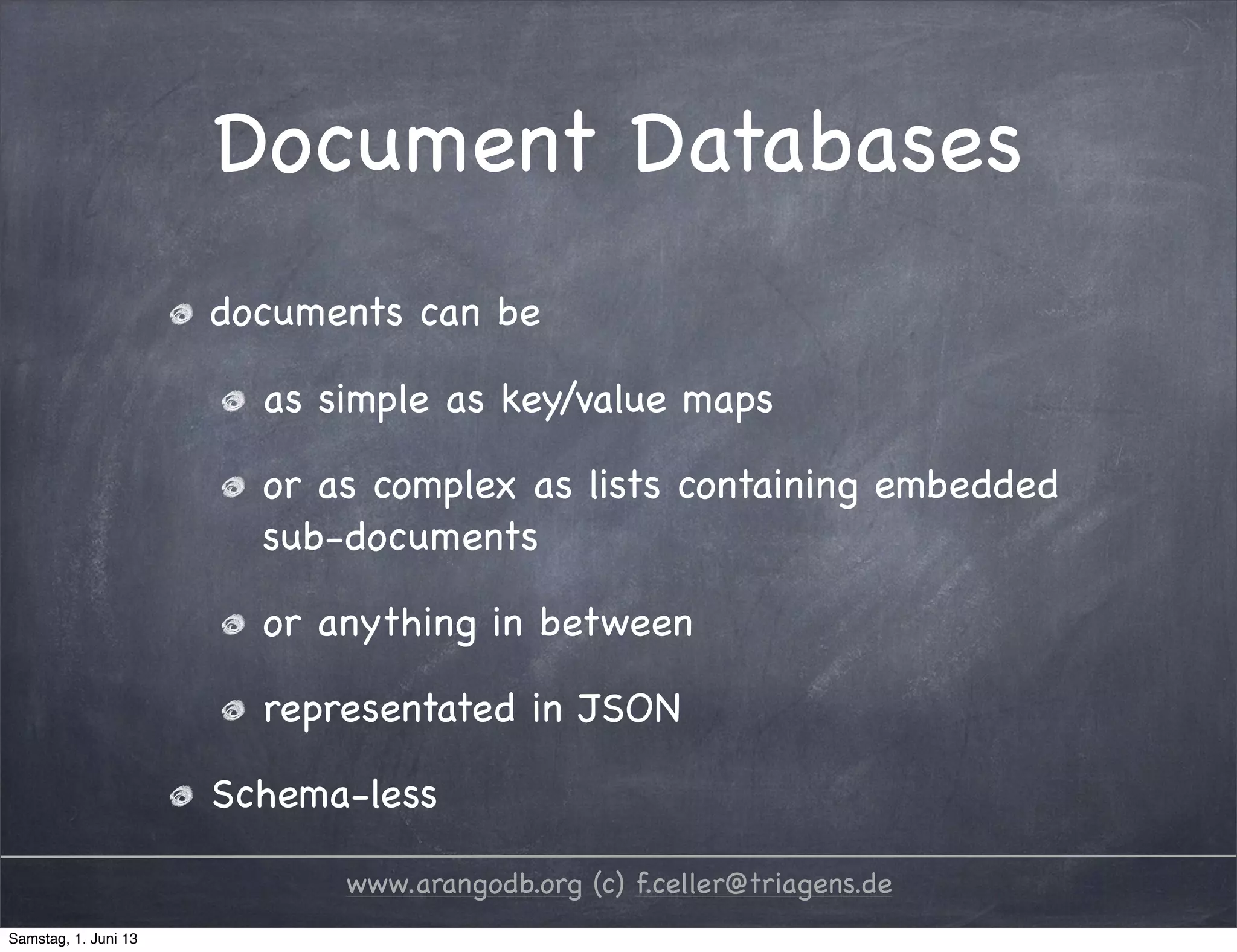

8. Document Databases
documents can be
as simple as key/value maps
or as complex as lists containing embedded
sub-documents
or anything in between
representated in JSON
Schema-less
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

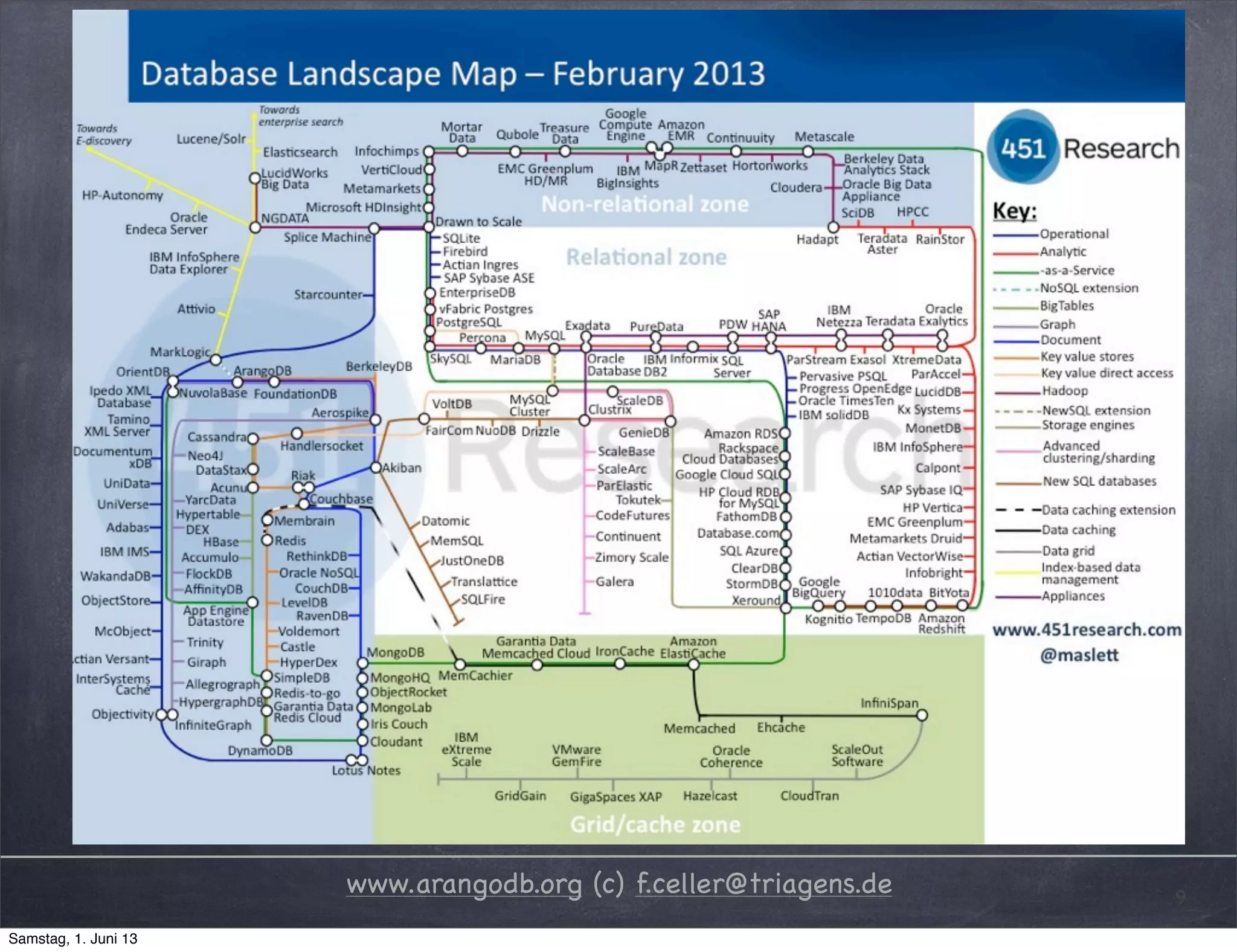

9. www.arangodb.org (c) f.celler@triagens.de 9
Samstag, 1. Juni 13

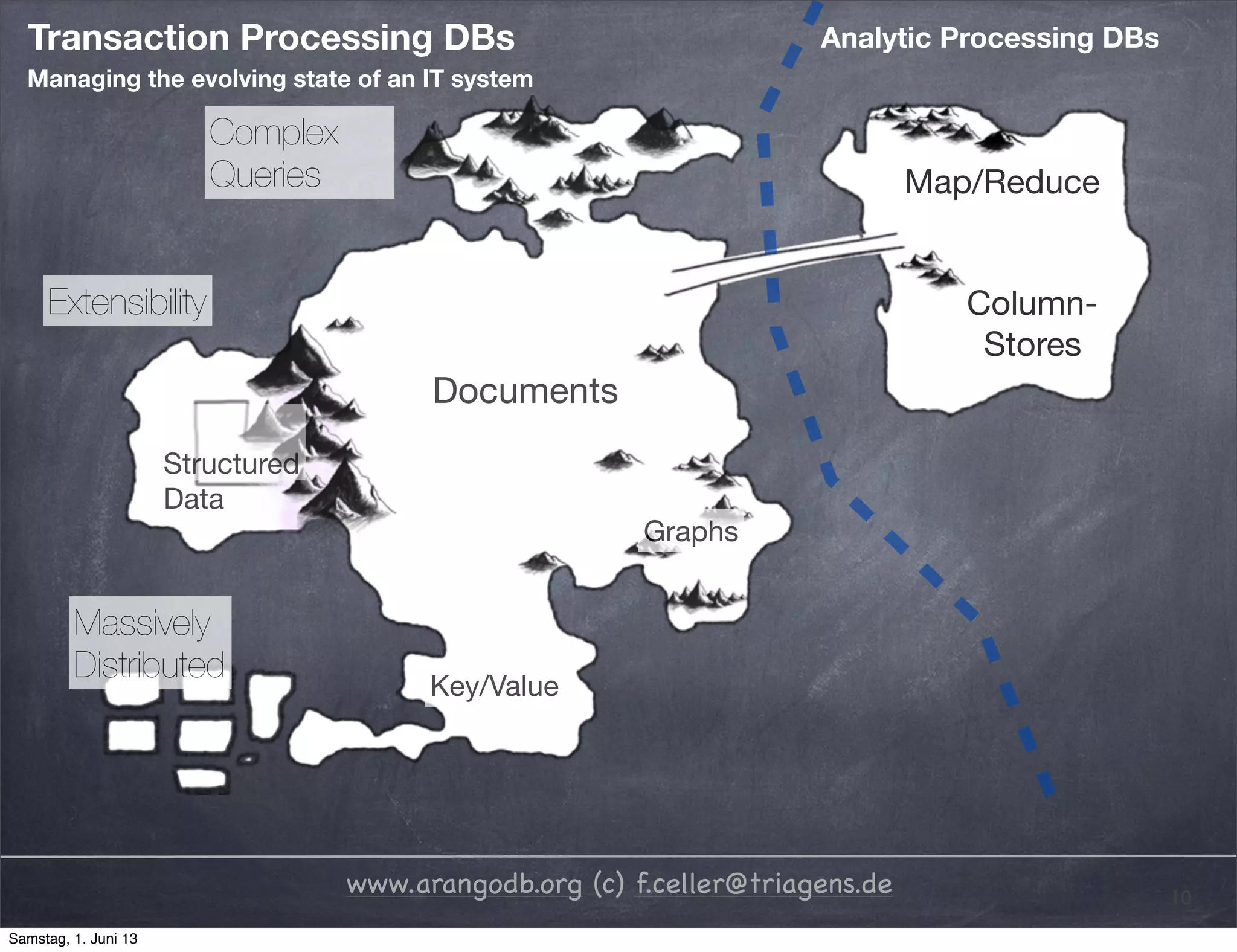

10. www.arangodb.org (c) f.celler@triagens.de 10
Analytic Processing DBsTransaction Processing DBs
Managing the evolving state of an IT system
Map/Reduce
Graphs
Extensibility
Key/Value
Column-
Stores
Complex
Queries
Structured
Data
Massively
Distributed
Documents
Samstag, 1. Juni 13

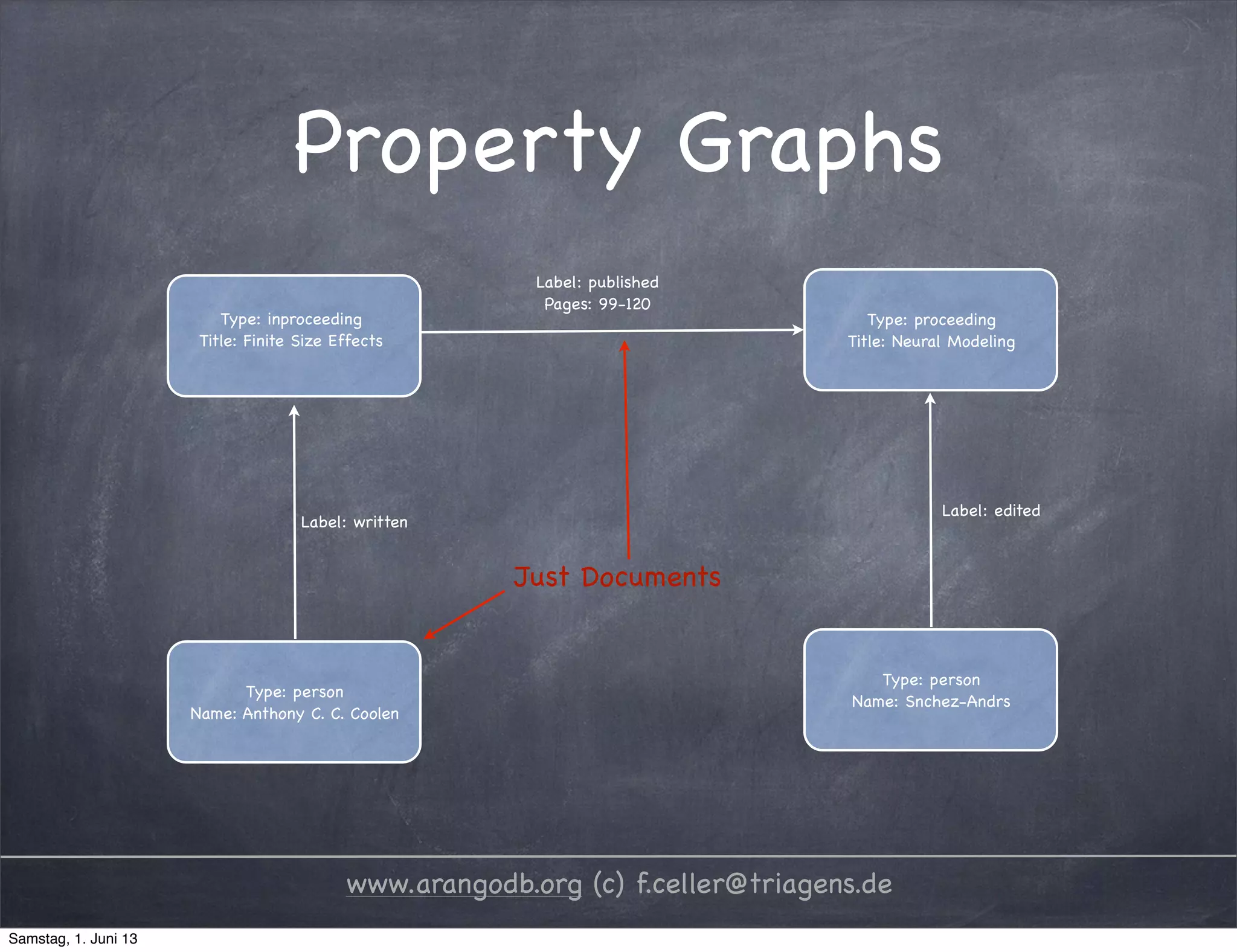

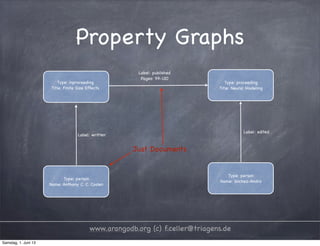

11. Property Graphs
www.arangodb.org (c) f.celler@triagens.de
Type: inproceeding
Title: Finite Size Effects
Type: proceeding
Title: Neural Modeling
Type: person
Name: Anthony C. C. Coolen
Label: written
Label: published
Pages: 99-120
Type: person
Name: Snchez-Andrs
Label: edited
Just Documents
Samstag, 1. Juni 13

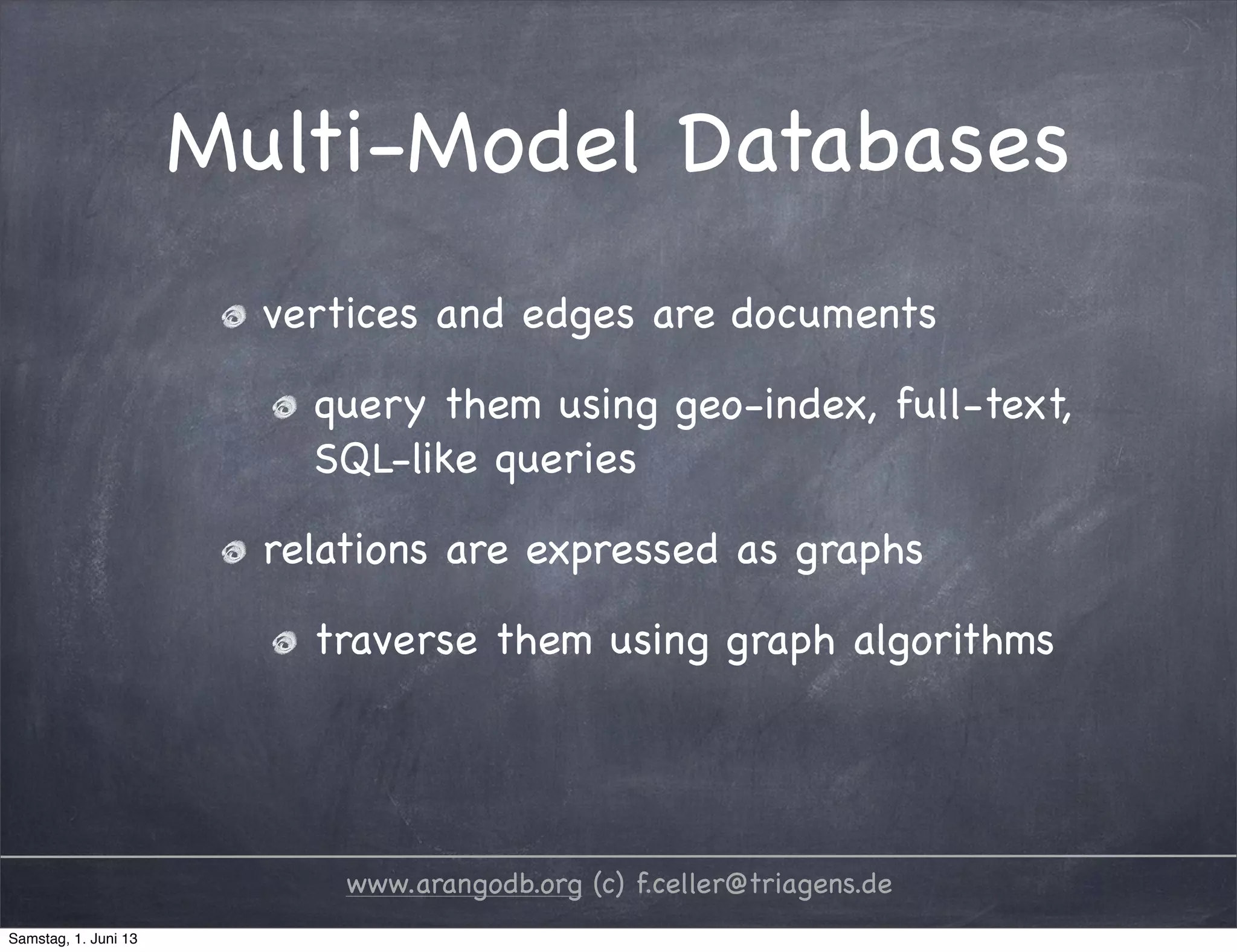

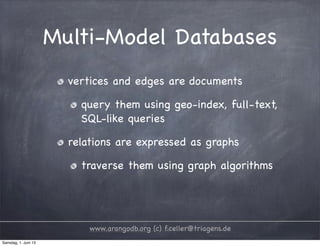

12. Multi-Model Databases
www.arangodb.org (c) f.celler@triagens.de
vertices and edges are documents
query them using geo-index, full-text,
SQL-like queries
relations are expressed as graphs
traverse them using graph algorithms
Samstag, 1. Juni 13

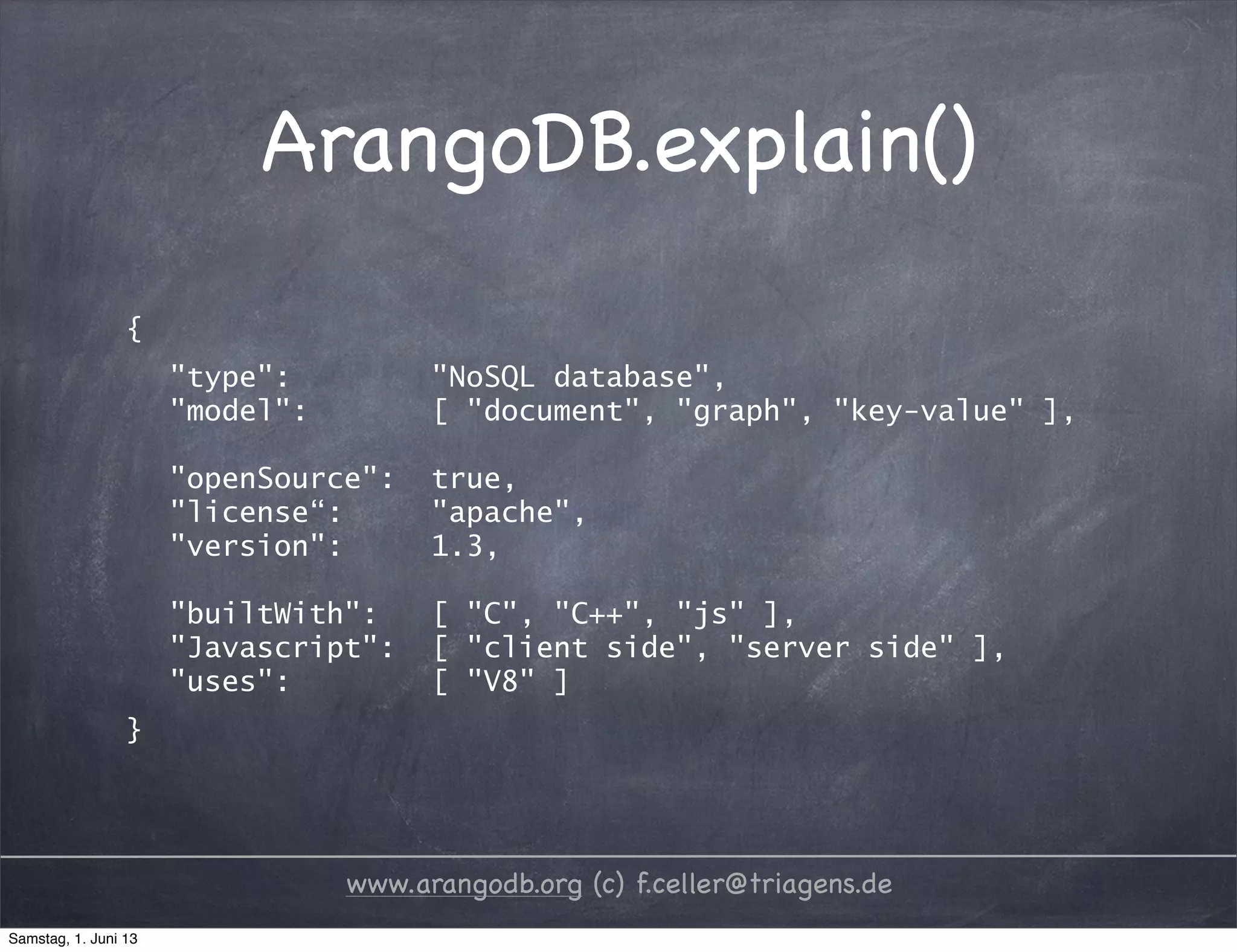

13. ArangoDB.explain()
www.arangodb.org (c) f.celler@triagens.de
{
"type": "NoSQL database",
"model": [ "document", "graph", "key-value" ],
"openSource": true,
"license“: "apache",
"version": 1.3,
"builtWith": [ "C", "C++", "js" ],
"Javascript": [ "client side", "server side" ],
"uses": [ "V8" ]
}
Samstag, 1. Juni 13

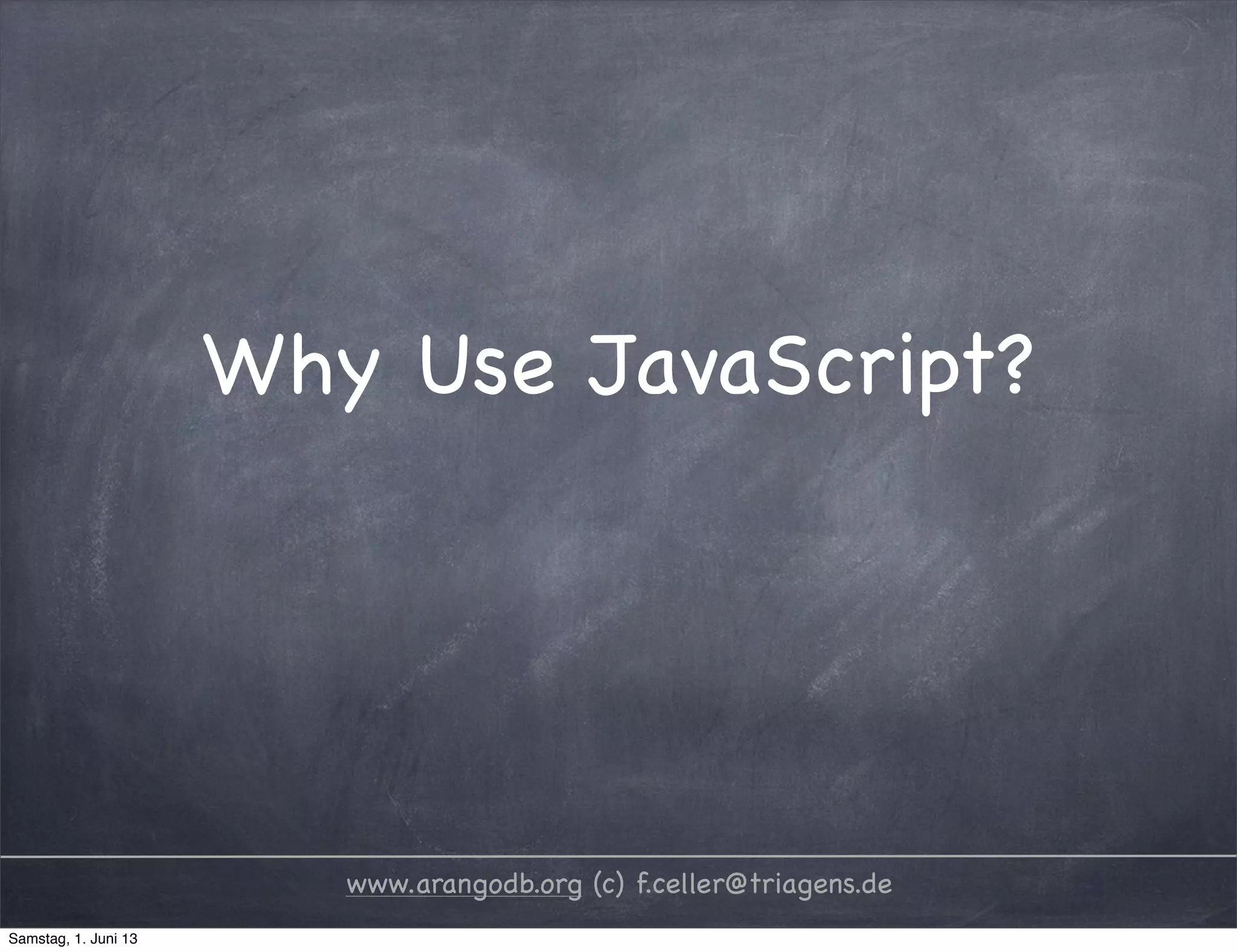

14. Why Use JavaScript?
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

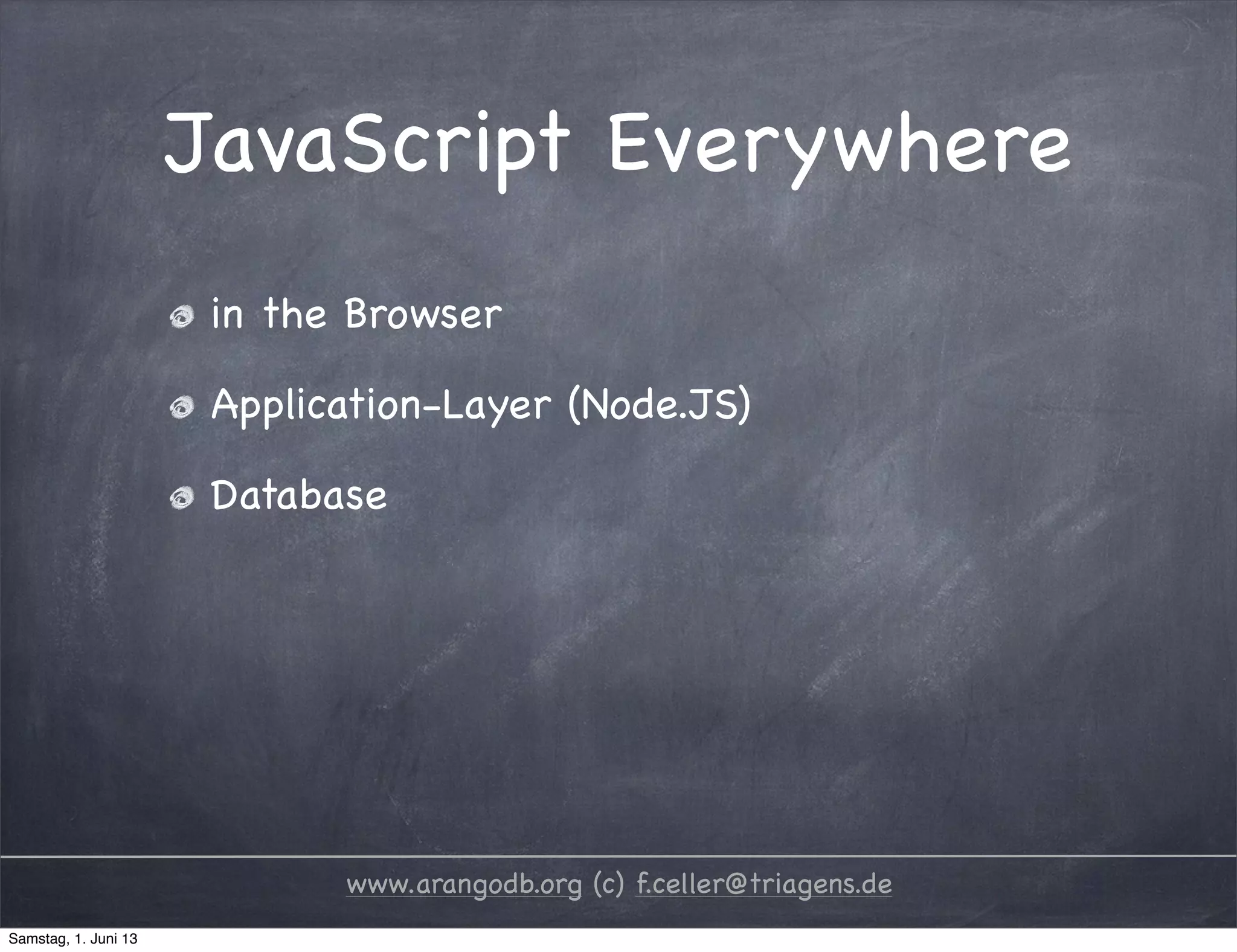

15. JavaScript Everywhere
in the Browser
Application-Layer (Node.JS)
Database
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

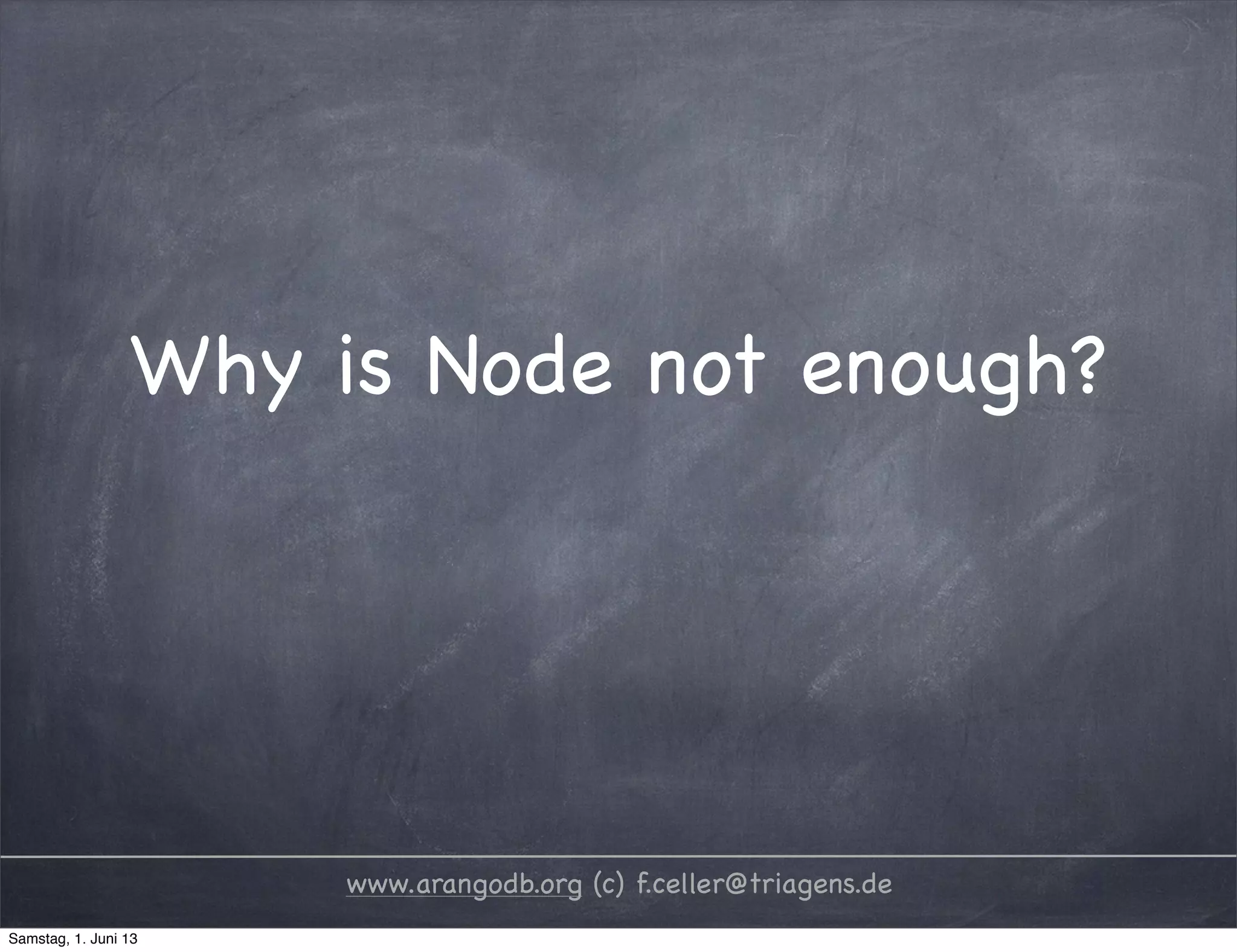

16. Why is Node not enough?
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

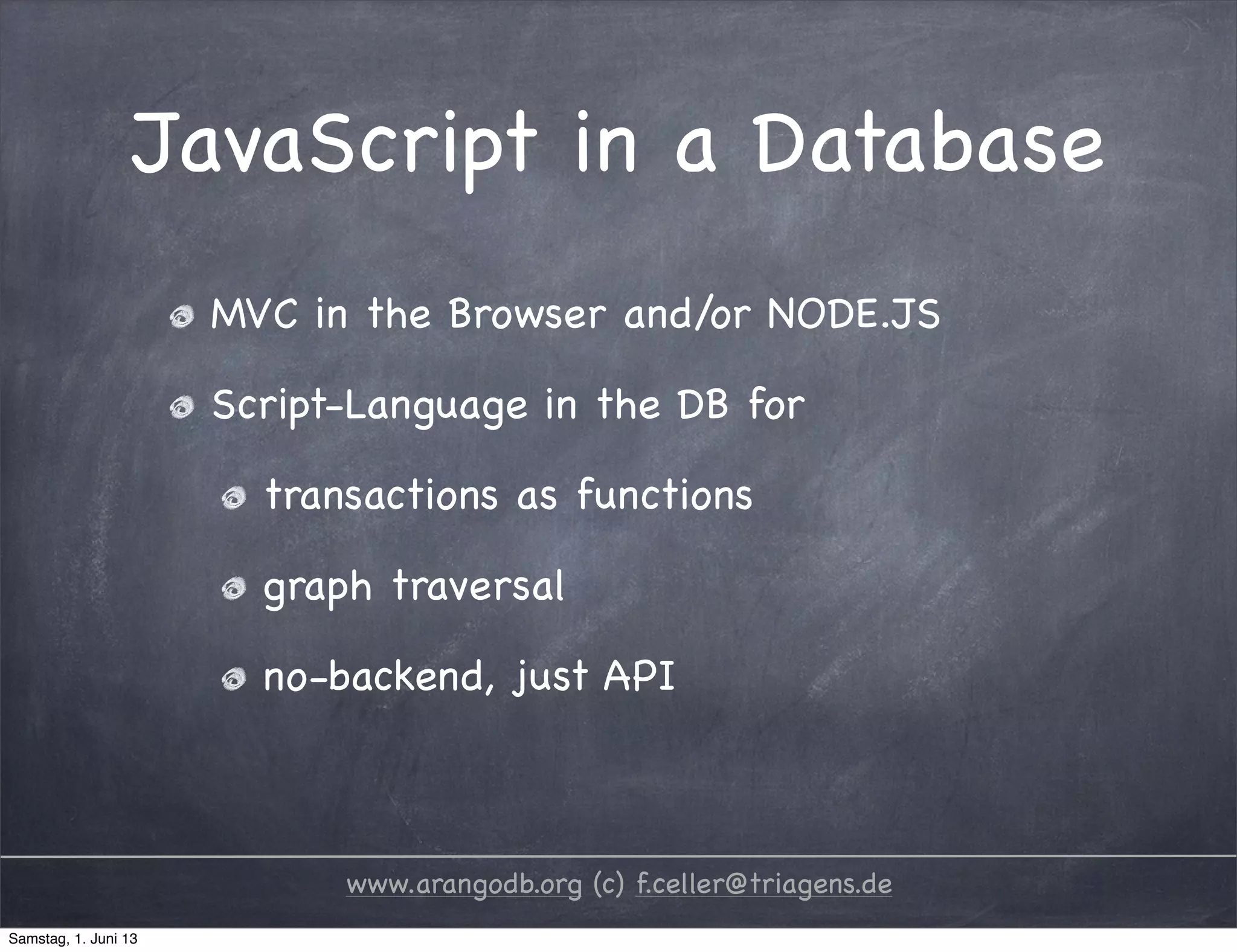

17. JavaScript in a Database
MVC in the Browser and/or NODE.JS
Script-Language in the DB for
transactions as functions
graph traversal
no-backend, just API
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

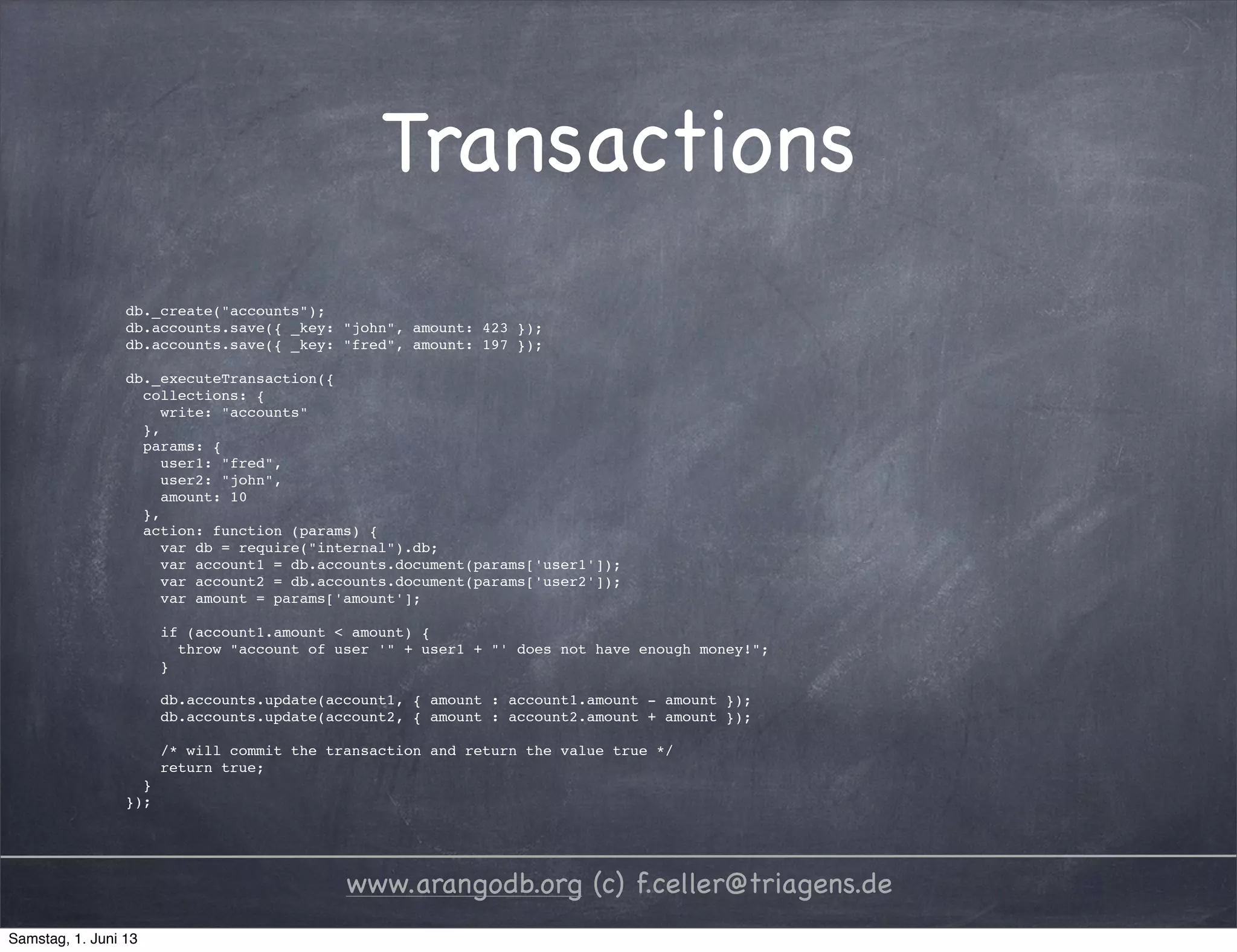

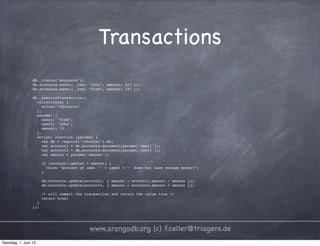

18. db._create("accounts");
db.accounts.save({ _key: "john", amount: 423 });
db.accounts.save({ _key: "fred", amount: 197 });
db._executeTransaction({
collections: {
write: "accounts"
},
params: {
user1: "fred",
user2: "john",
amount: 10
},
action: function (params) {
var db = require("internal").db;
var account1 = db.accounts.document(params['user1']);
var account2 = db.accounts.document(params['user2']);
var amount = params['amount'];
if (account1.amount < amount) {
throw "account of user '" + user1 + "' does not have enough money!";
}
db.accounts.update(account1, { amount : account1.amount - amount });
db.accounts.update(account2, { amount : account2.amount + amount });
/* will commit the transaction and return the value true */
return true;
}
});
www.arangodb.org (c) f.celler@triagens.de
Transactions
Samstag, 1. Juni 13

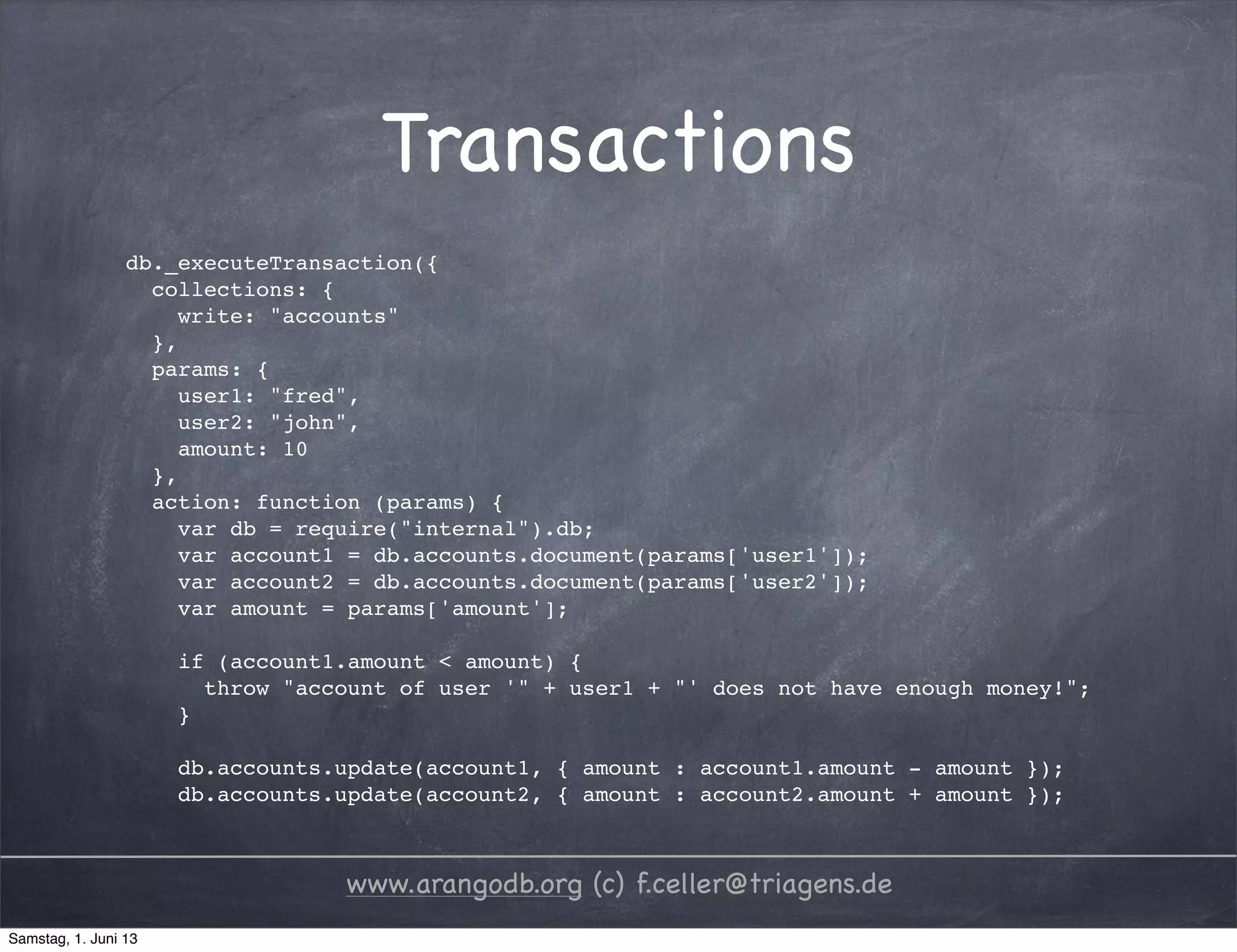

19. db._executeTransaction({
collections: {
write: "accounts"
},
params: {
user1: "fred",
user2: "john",
amount: 10
},
action: function (params) {
var db = require("internal").db;
var account1 = db.accounts.document(params['user1']);
var account2 = db.accounts.document(params['user2']);
var amount = params['amount'];
if (account1.amount < amount) {
throw "account of user '" + user1 + "' does not have enough money!";
}
db.accounts.update(account1, { amount : account1.amount - amount });
db.accounts.update(account2, { amount : account2.amount + amount });
www.arangodb.org (c) f.celler@triagens.de
Transactions
Samstag, 1. Juni 13

20. function traverse (graph, start, depth, maxlen) {
var config = {
datasource: traversal.collectionDatasourceFactory(graph._edges),
strategy: Traverser.BREADTH_FIRST,
expander: traversal.anyExpander,
filter: traversal.maxDepthFilter,
maxDepth: depth,
uniqueness: { edges: Traverser.UNIQUE_GLOBAL, vertices: Traverser.UNIQUE_NONE },
visitor: coauthorVisitor(maxlen)
};
var traverser = new Traverser(config);
var result = { positions: {}, vertices: [], links: [], minYear: 0, maxYear: 0 };
var first = graph._vertices.firstExample({ name: start });
if (first !== null) {
traverser.traverse(result, first);
}
return {
start: start,
depth: depth,
minYear: result.minYear,
maxYear: result.maxYear,
vertices: result.vertices,
links: result.links };
}
www.arangodb.org (c) f.celler@triagens.de
Graph Traversal
Samstag, 1. Juni 13

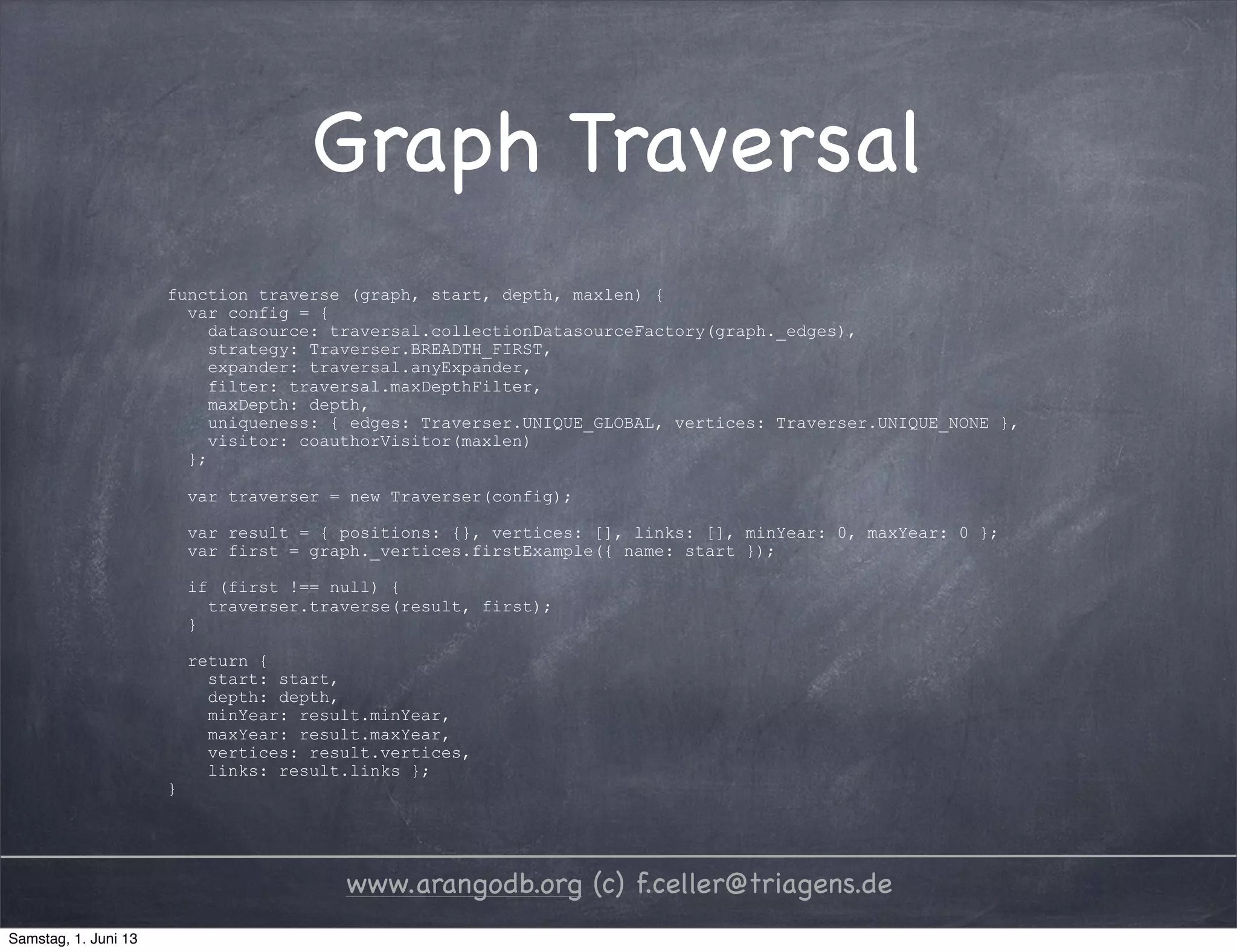

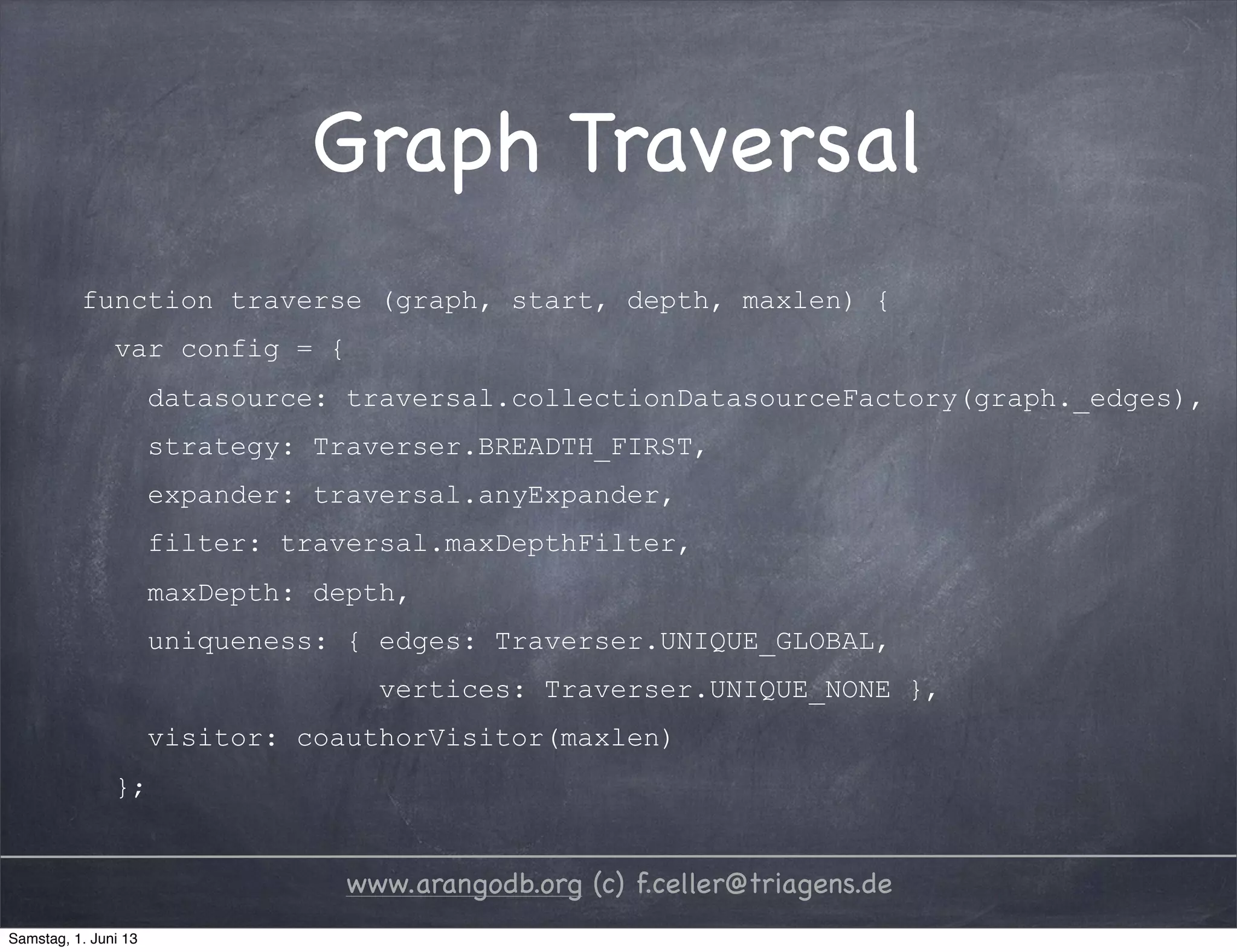

21. function traverse (graph, start, depth, maxlen) {
var config = {
datasource: traversal.collectionDatasourceFactory(graph._edges),
strategy: Traverser.BREADTH_FIRST,
expander: traversal.anyExpander,
filter: traversal.maxDepthFilter,
maxDepth: depth,
uniqueness: { edges: Traverser.UNIQUE_GLOBAL,
vertices: Traverser.UNIQUE_NONE },
visitor: coauthorVisitor(maxlen)
};
www.arangodb.org (c) f.celler@triagens.de
Graph Traversal
Samstag, 1. Juni 13

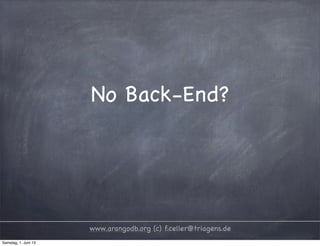

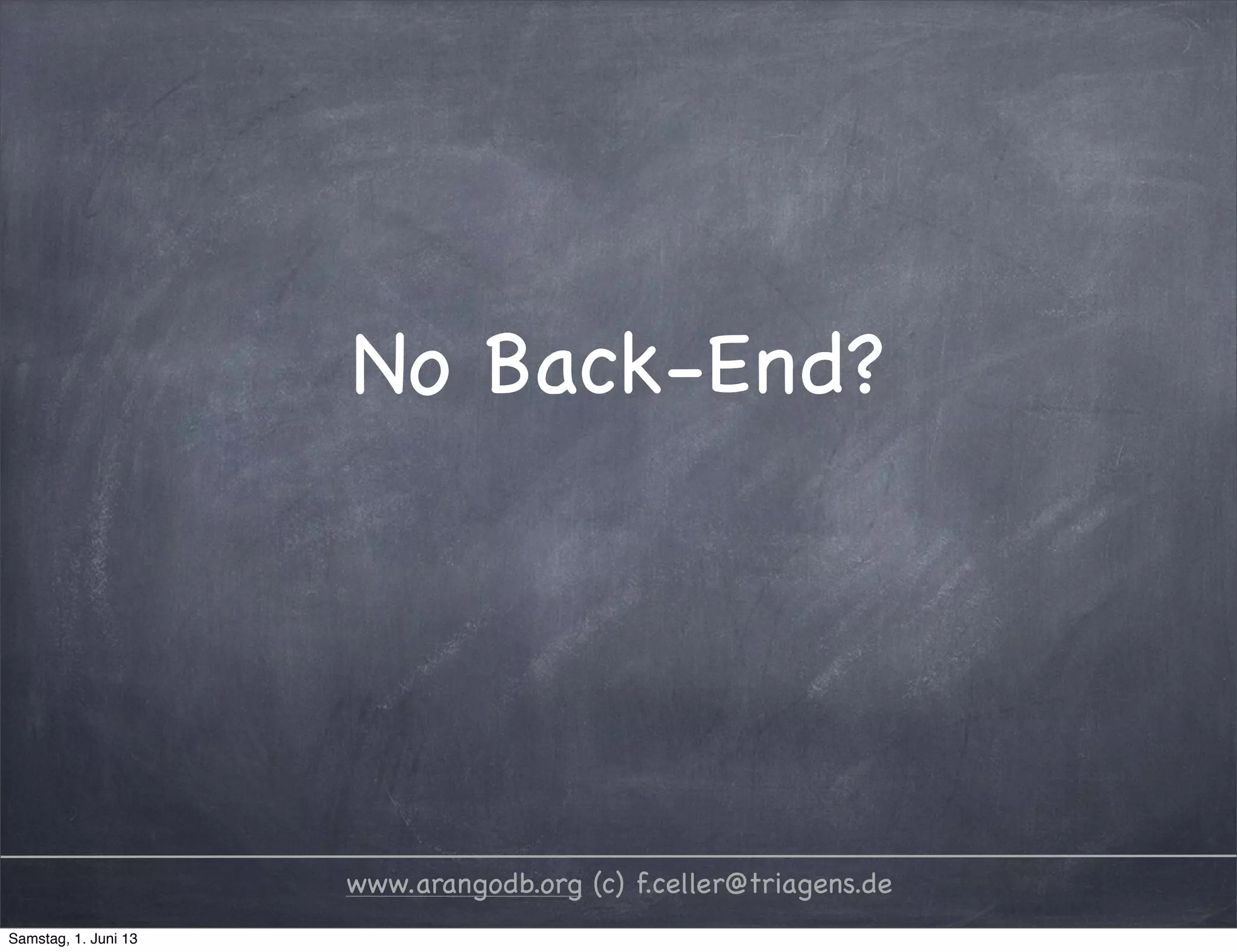

22. No Back-End?
www.arangodb.org (c) f.celler@triagens.de
Samstag, 1. Juni 13

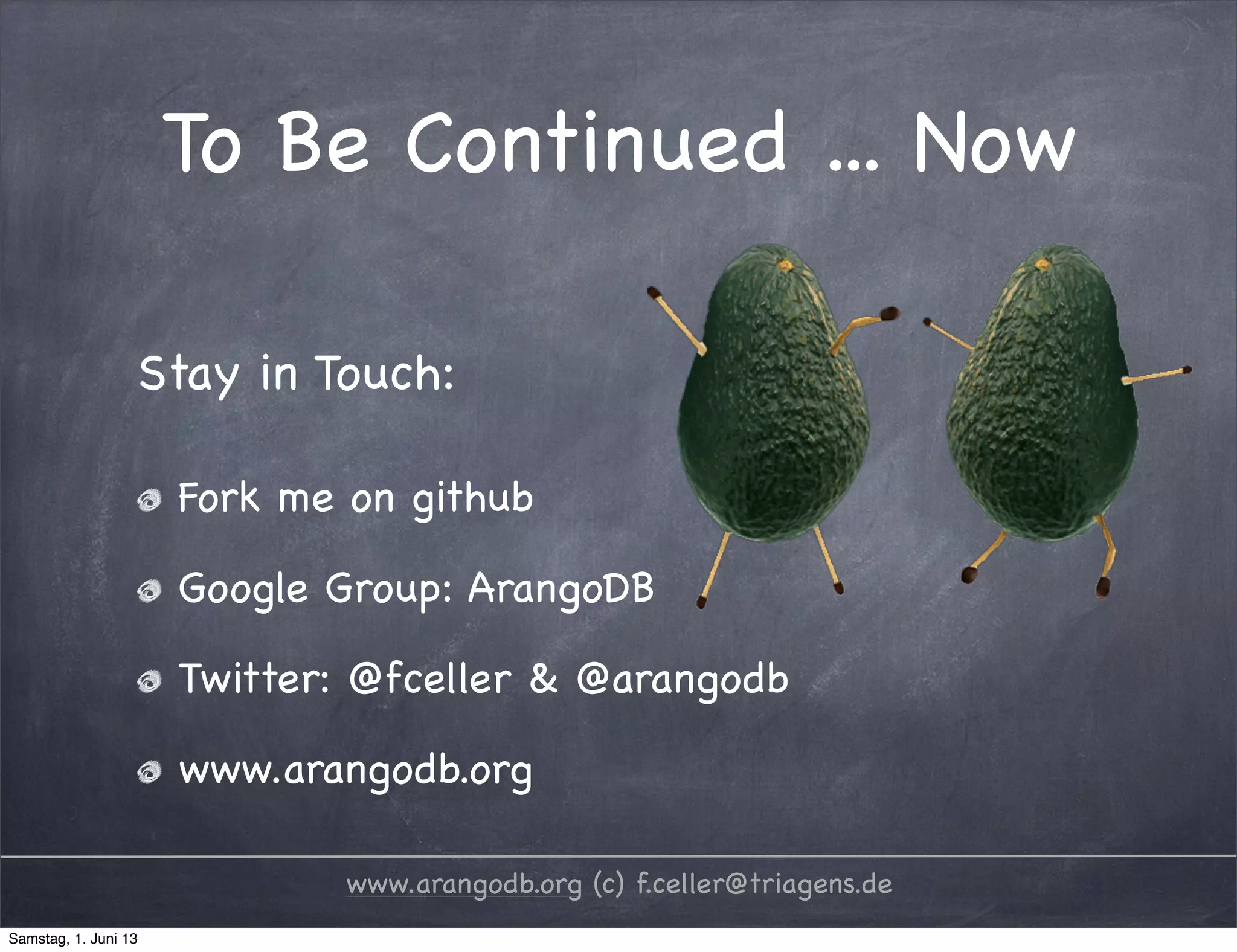

23. To Be Continued ... Now
Fork me on github
Google Group: ArangoDB
Twitter: @fceller & @arangodb
www.arangodb.org
www.arangodb.org (c) f.celler@triagens.de
Stay in Touch:
Samstag, 1. Juni 13
