High availability for puppet - 2016
- 1. High Availability for Puppet RussMull - @mullr Senior Software Engineer Zack Smith - @acidprime Principal Professional Services Engineer
- 2. Puppet Services relatedto High Availability The important bits of Puppet to make highly available

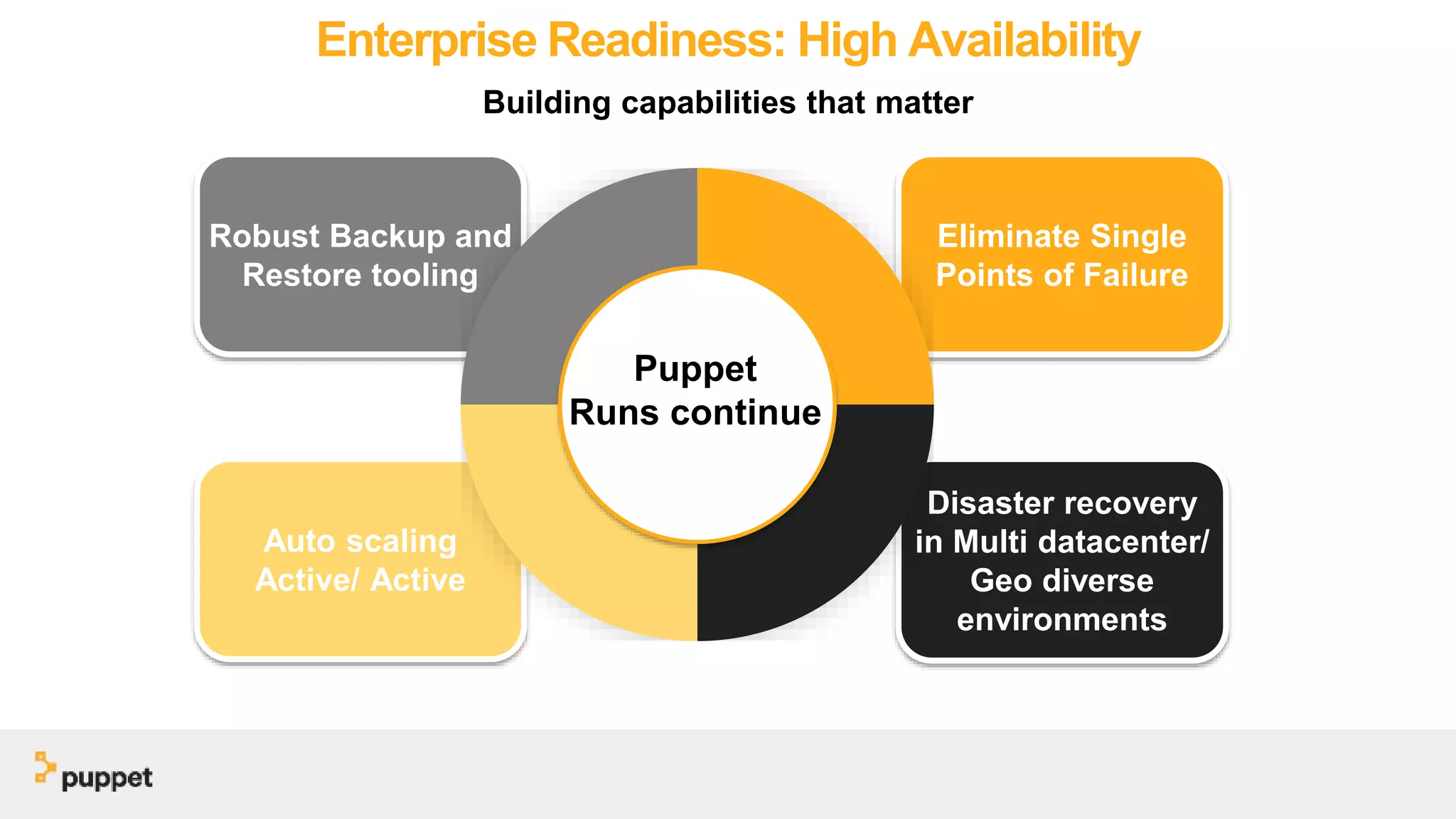

- 3. Enterprise Readiness: HighAvailability Auto scaling Active/ Active Robust Backup and Restore tooling Disaster recovery in Multi datacenter/ Geo diverse environments Eliminate Single Points of Failure Building capabilities that matter Puppet Runs continue

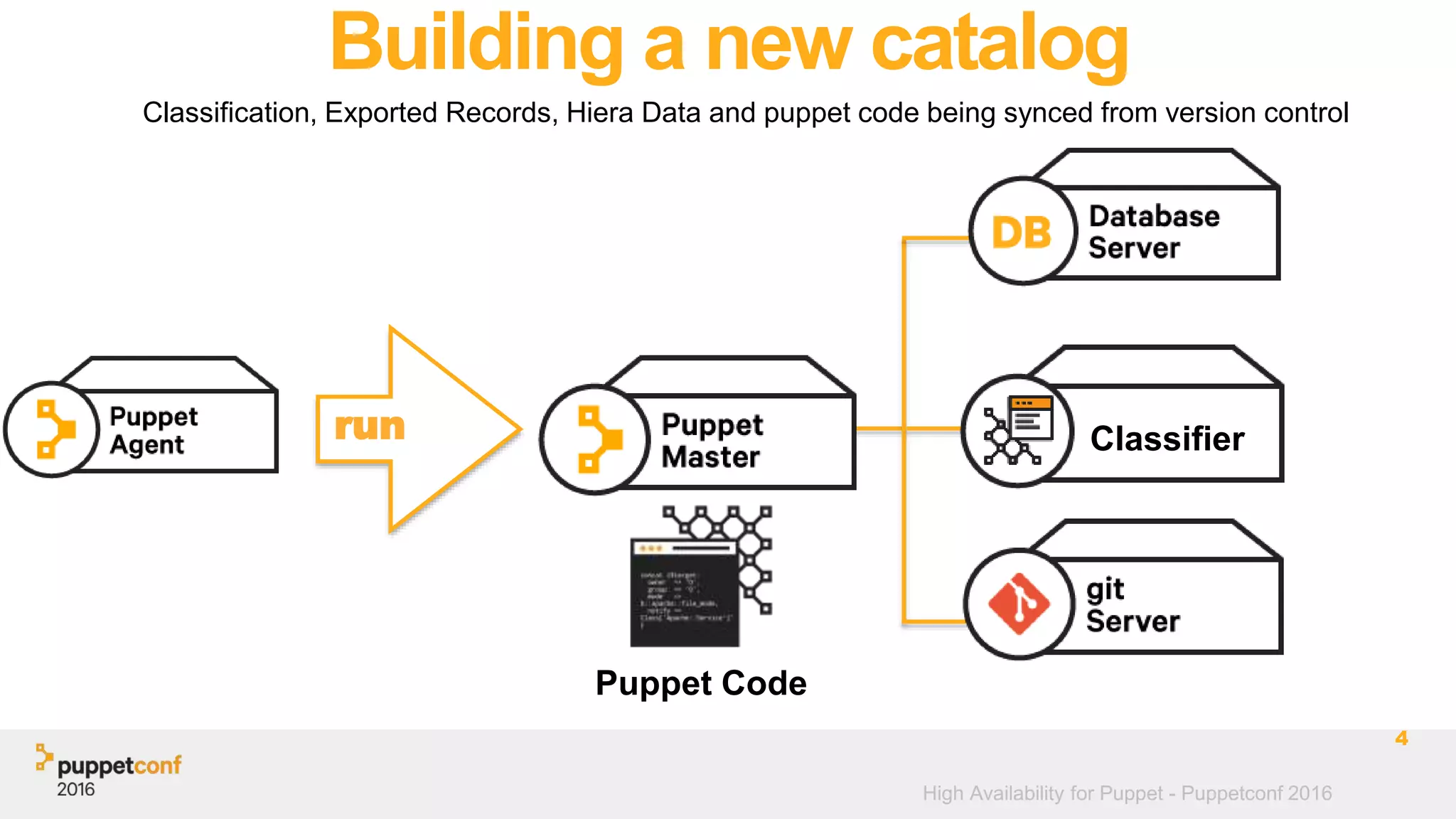

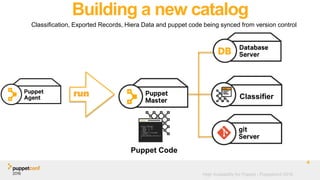

- 4. High Availability forPuppet - Puppetconf 2016 Building a new catalog Classification, Exported Records, Hiera Data and puppet code being synced from version control 4 run Puppet Code Classifier
- 5. High Availability forPuppet - Puppetconf 2016 Two of Everything! don’t forget about your external services like git, ldap etc 5 Cl as sifi er Pup pet Cod e Classifier Pup pet Cod e Classifier Balancer “Load” check check backup
- 6. Lets start withthe basics
- 7. Certificate Authority Files PuppetsSSL implementation 7

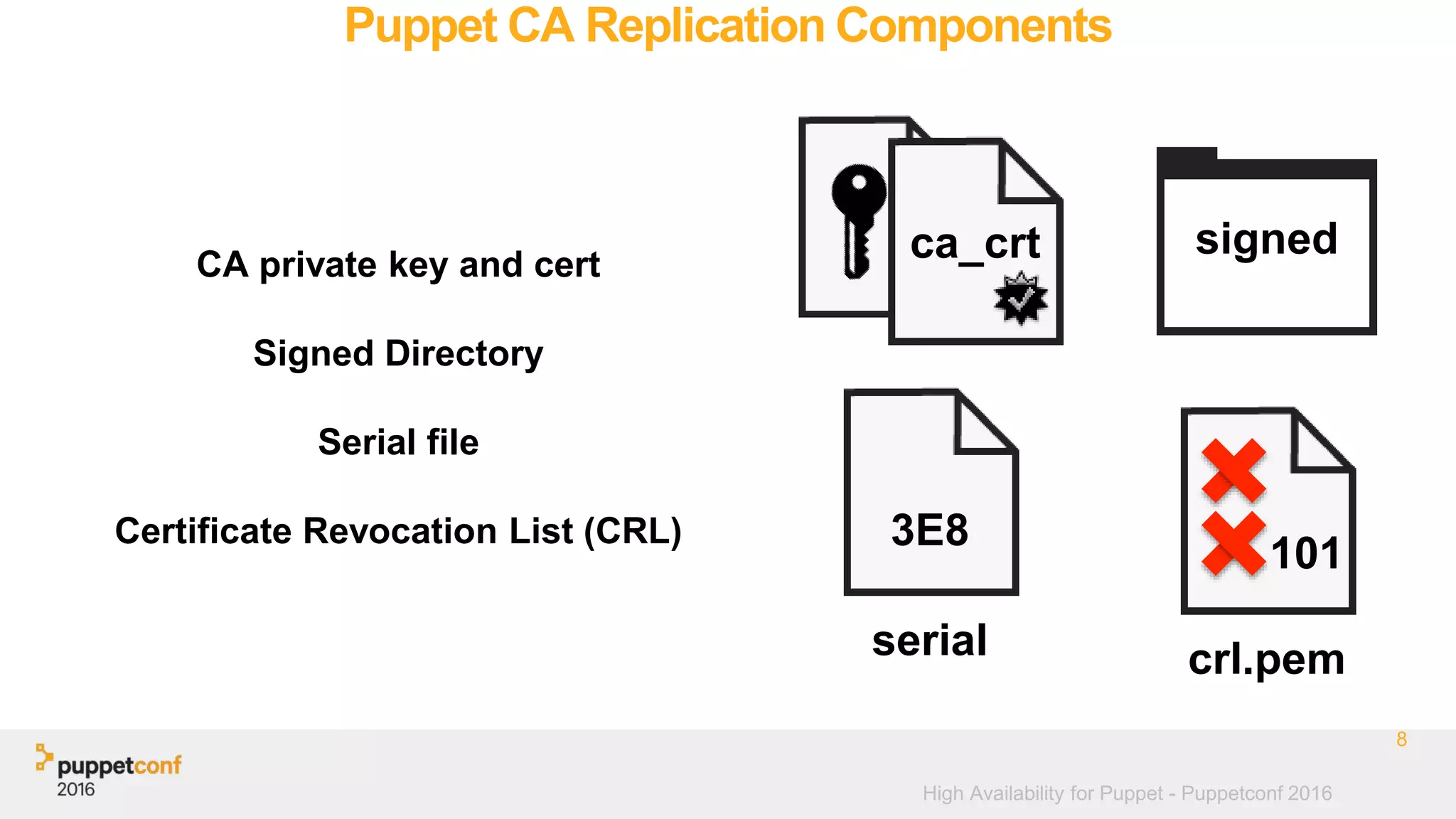

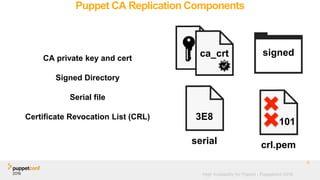

- 8. High Availability forPuppet - Puppetconf 2016 Puppet CA Replication Components CA private key and cert Signed Directory Serial file Certificate Revocation List (CRL) 8 serial 3E8 crl.pem signed 101 ca_crt

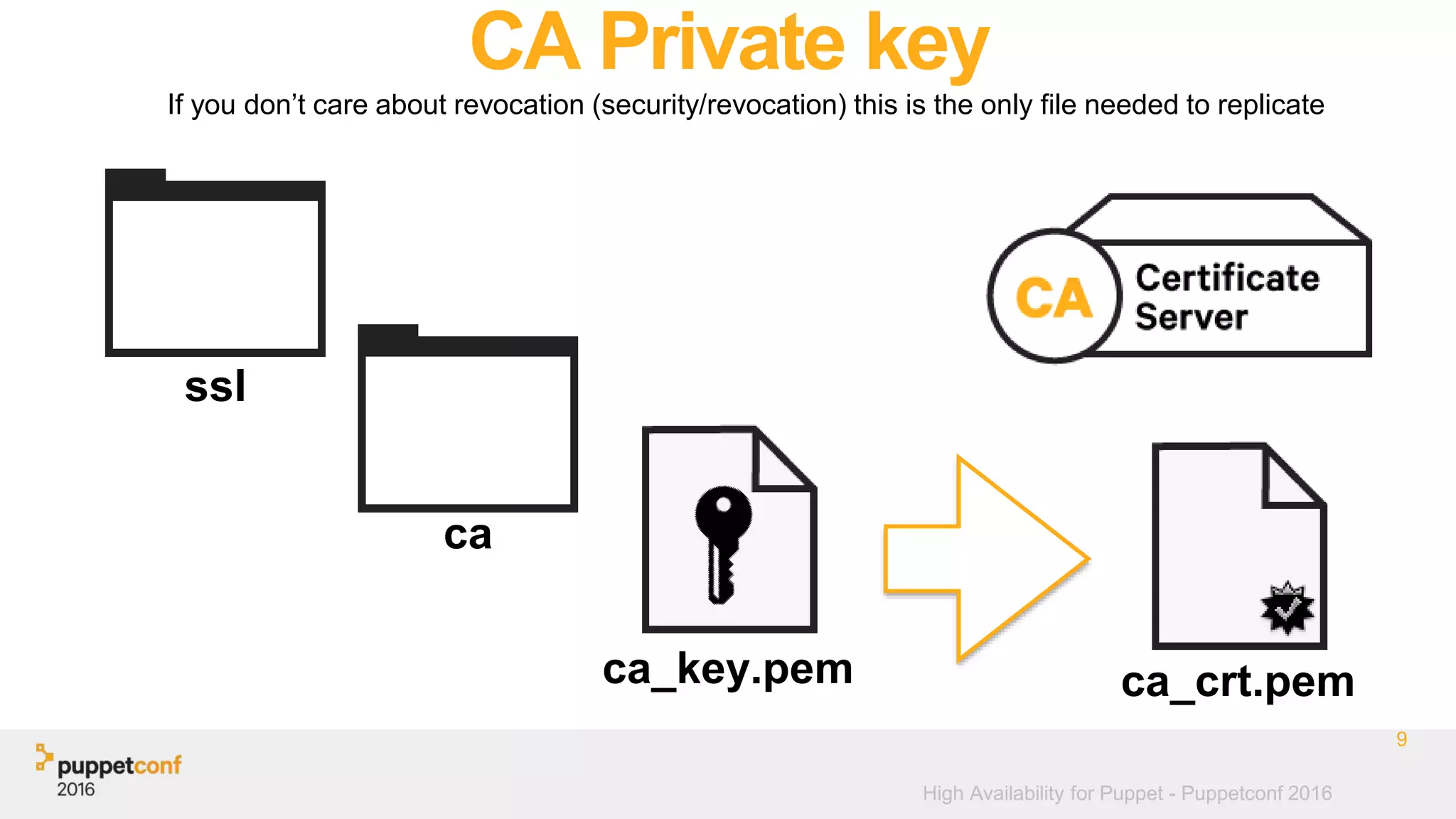

- 9. High Availability forPuppet - Puppetconf 2016 CA Private key ca If you don’t care about revocation (security/revocation) this is the only file needed to replicate 9 ca_key.pem ssl ca_crt.pem

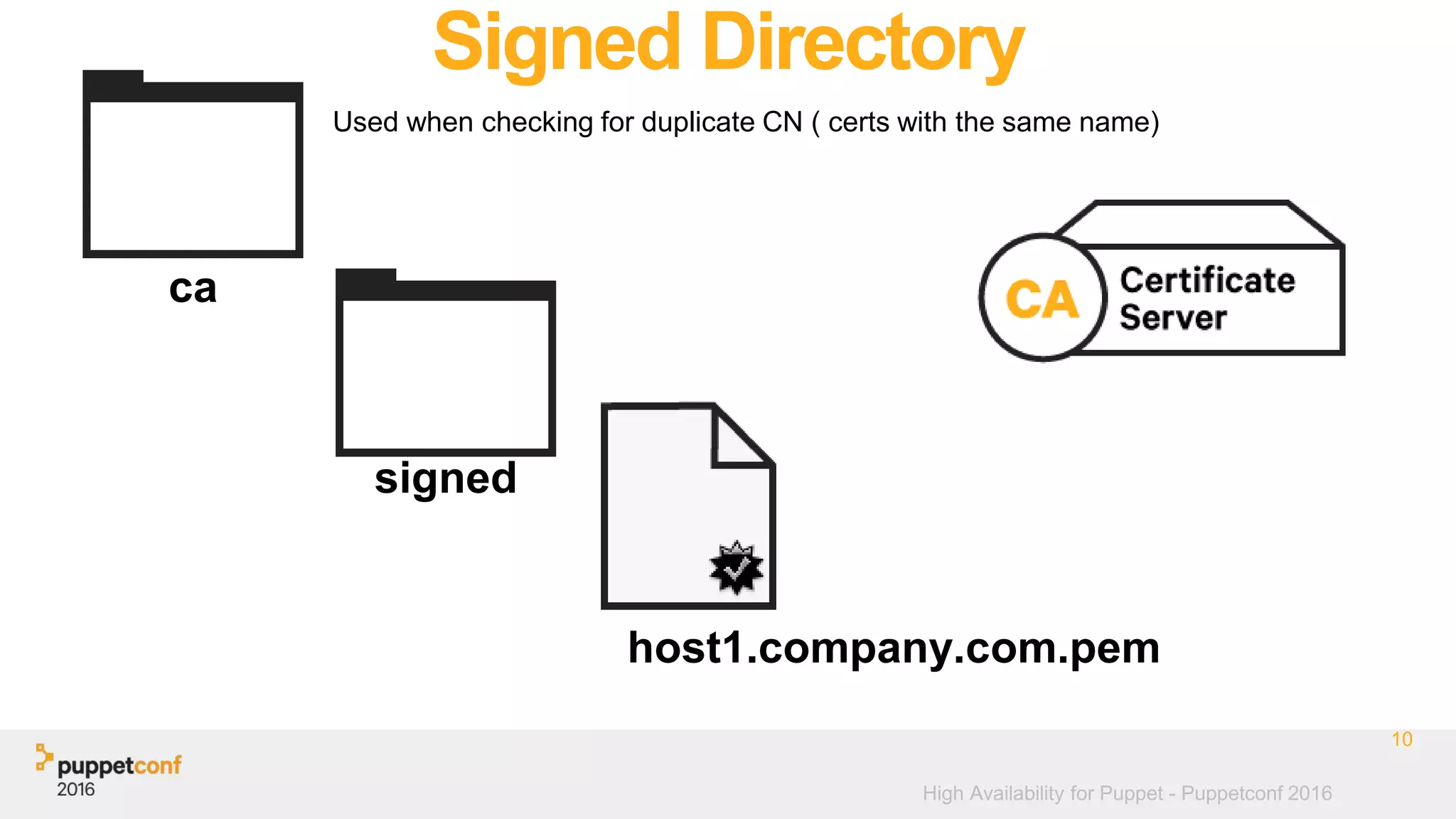

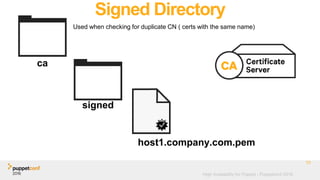

- 10. High Availability forPuppet - Puppetconf 2016 Signed Directory signed Used when checking for duplicate CN ( certs with the same name) 10 host1.company.com.pem ca

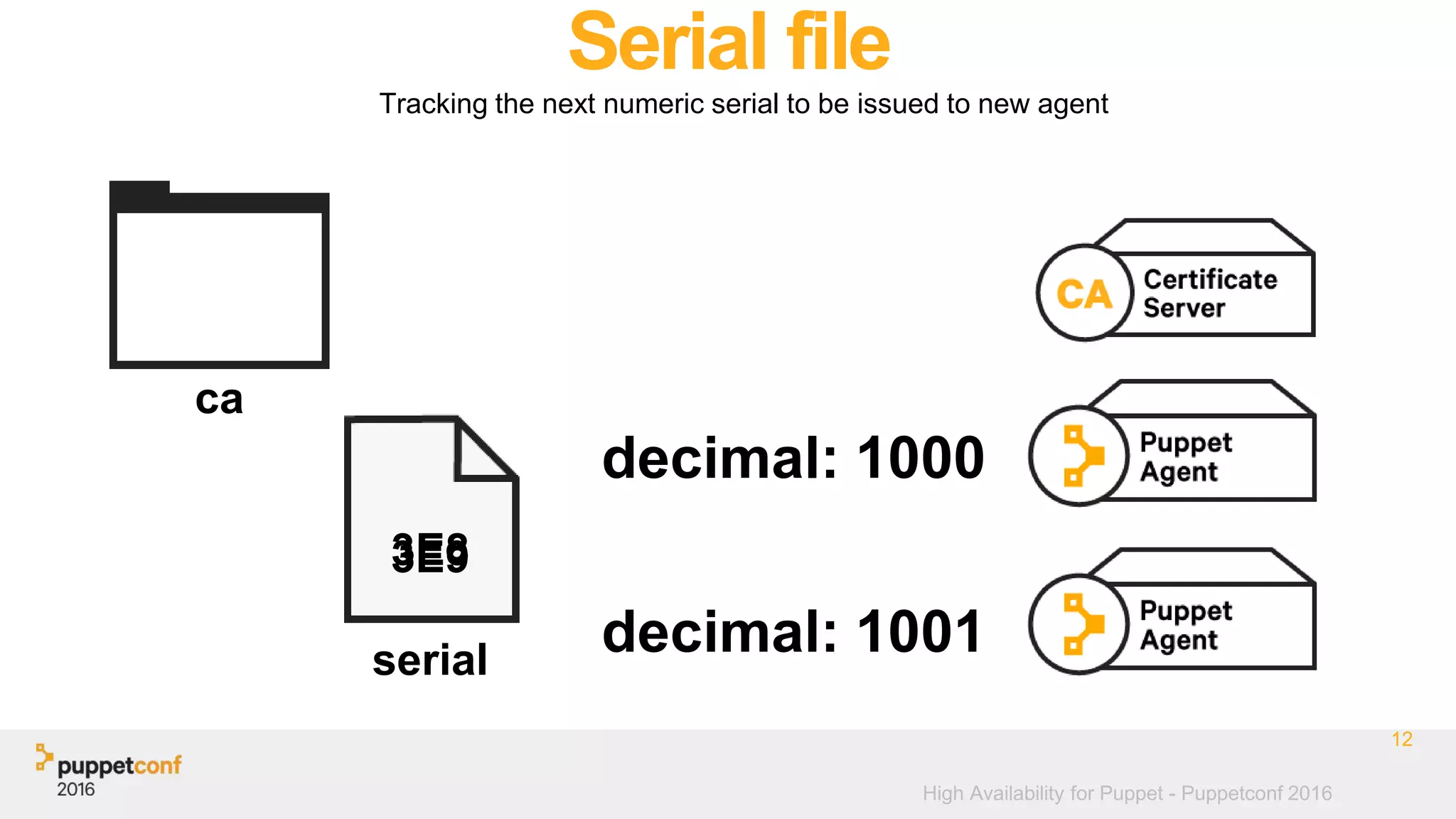

- 11. High Availability forPuppet - Puppetconf 2016 Serial file Tracking the next numeric serial to be issued to new agent 12 serial ca 3E8 decimal: 1000 decimal: 1001 3E9

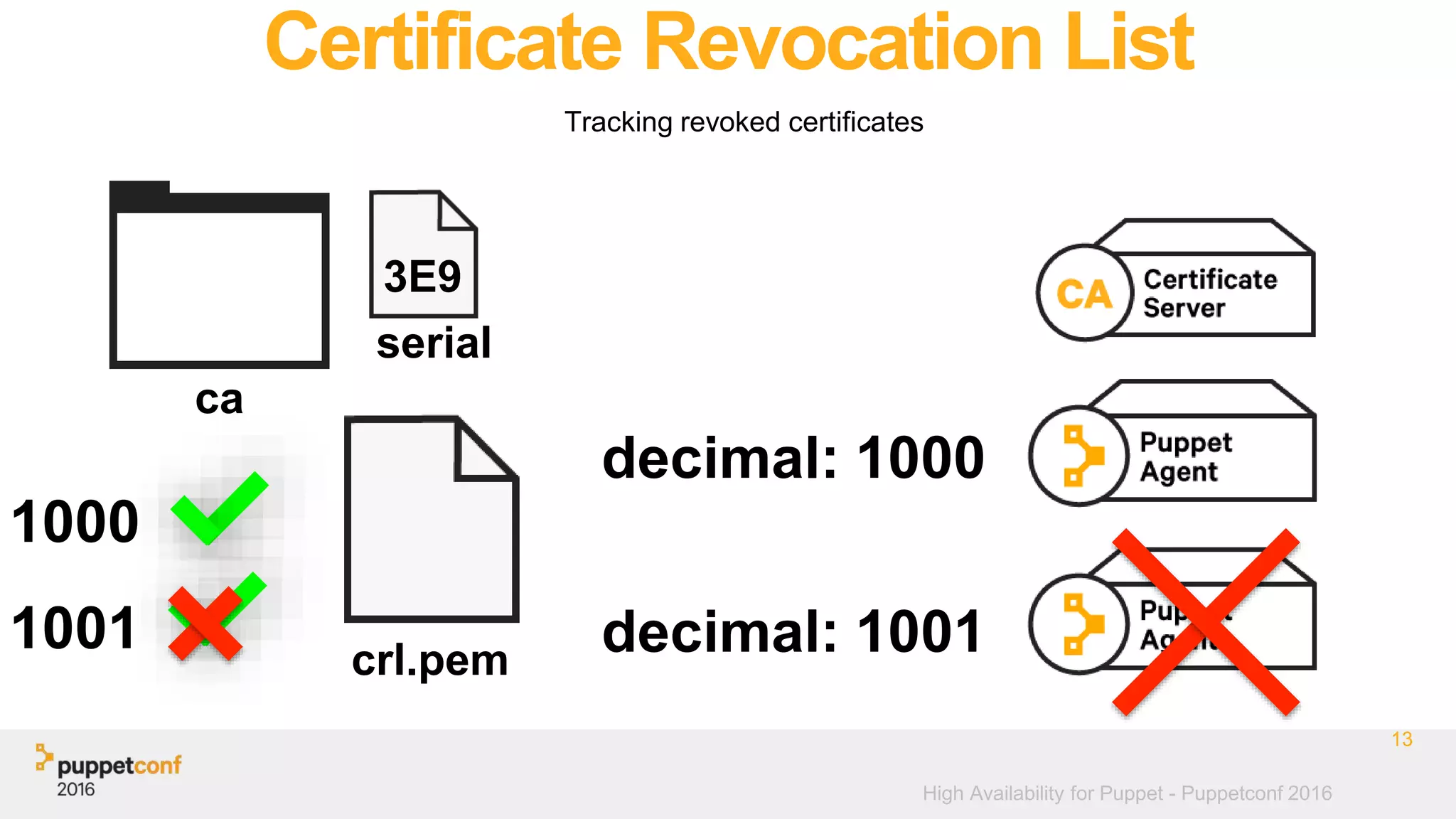

- 12. High Availability forPuppet - Puppetconf 2016 Certificate Revocation List Tracking revoked certificates 13 crl.pem ca decimal: 1000 decimal: 1001 1000 1001 serial 3E9

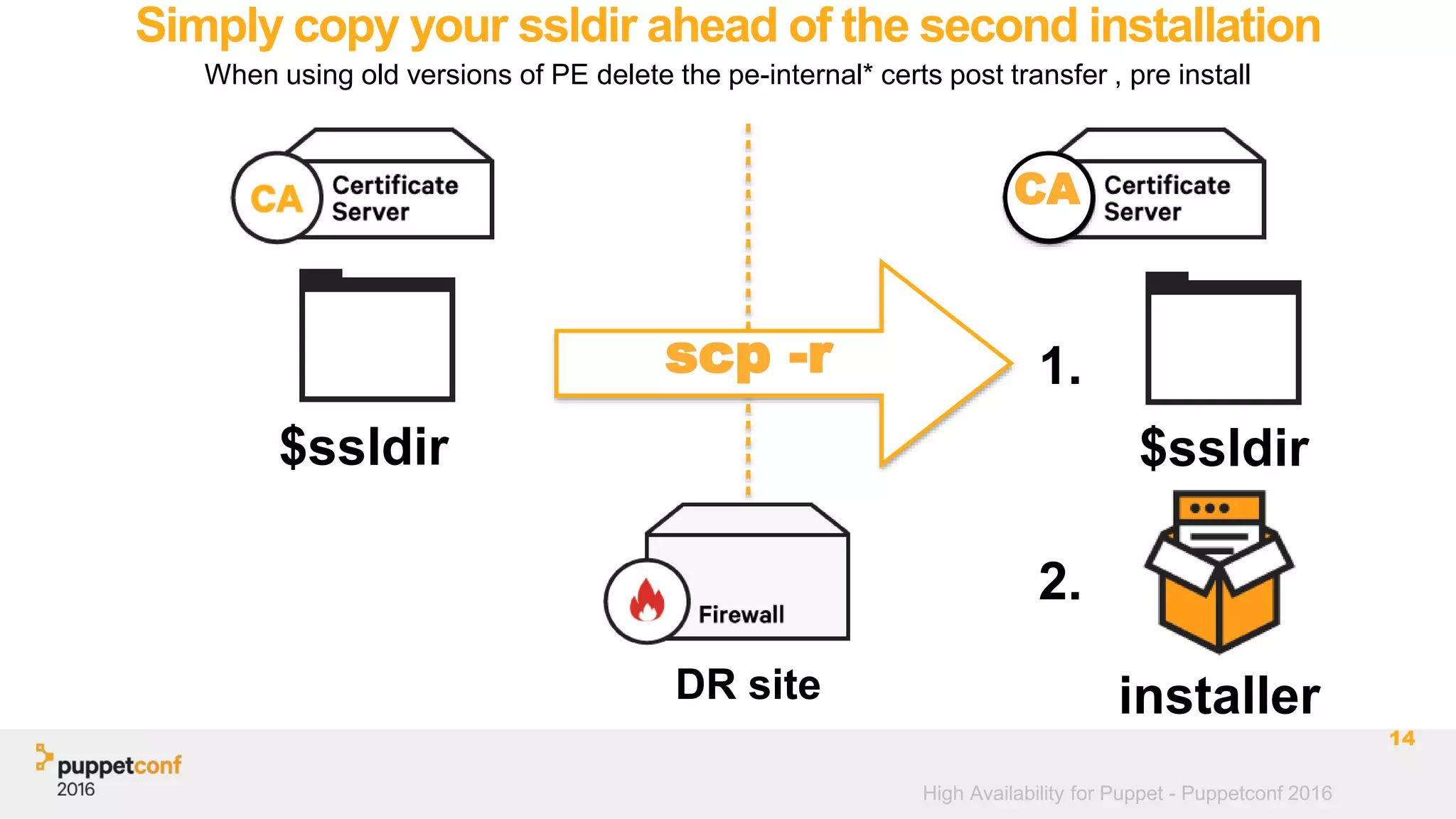

- 13. High Availability forPuppet - Puppetconf 2016 Simply copy your ssldir ahead of the second installation 14 $ssldir scp -r $ssldir installer CA When using old versions of PE delete the pe-internal* certs post transfer , pre install DR site 1. 2.
- 14. PostgreSQL Replication Database levelsynchronization 17

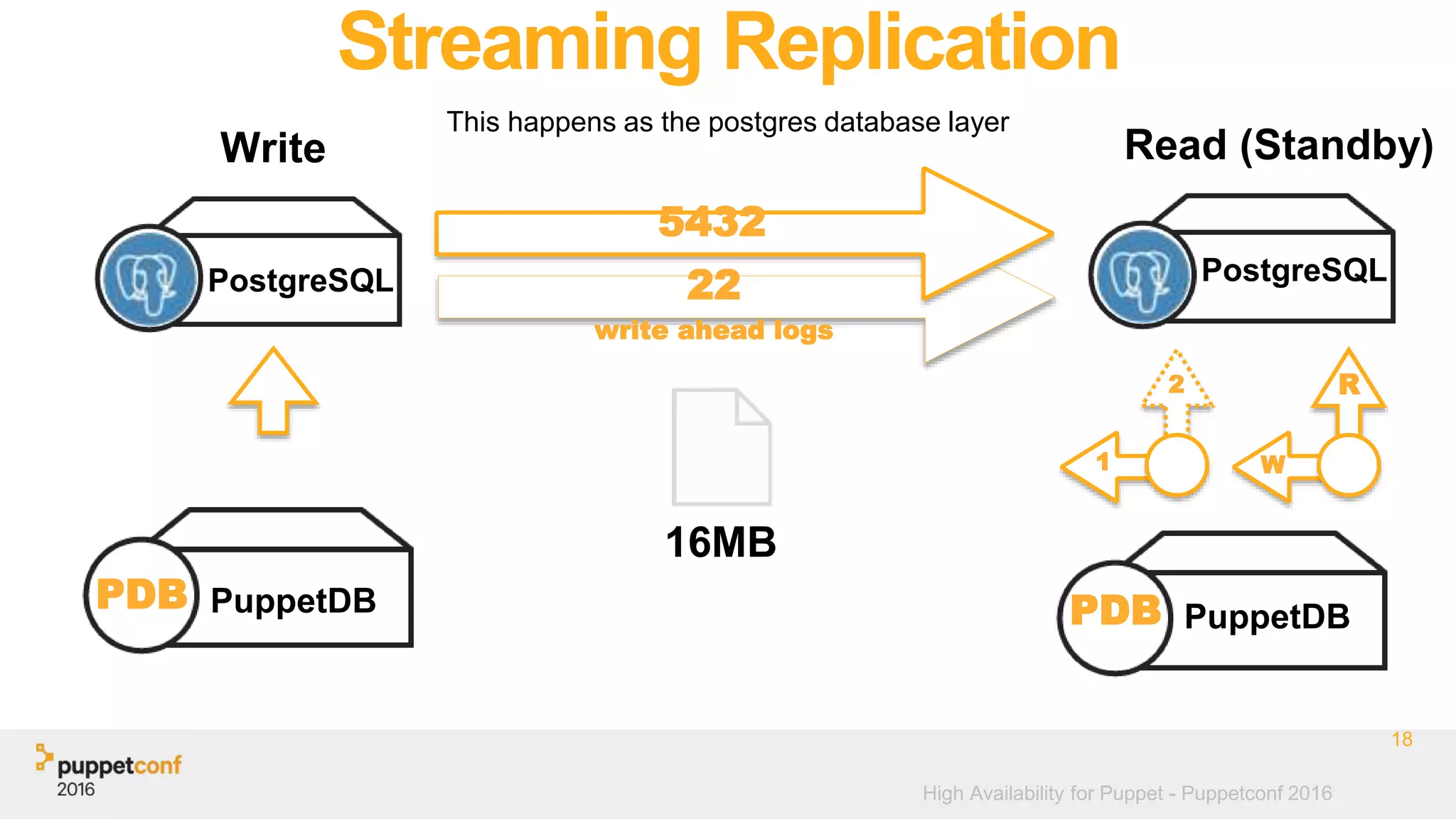

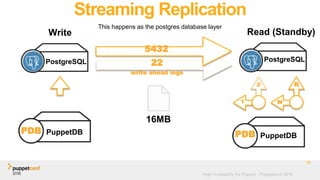

- 15. High Availability forPuppet - Puppetconf 2016 Streaming Replication This happens as the postgres database layer 18 PostgreSQL PostgreSQL PuppetDBPDB PuppetDBPDB 22 Read (Standby)Write 5432 write ahead logs R W1 2 16MB

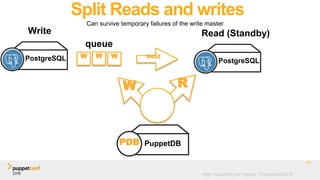

- 16. High Availability forPuppet - Puppetconf 2016 Split Reads and writes Can survive temporary failures of the write master 19 PostgreSQL PostgreSQL PuppetDBPDB Read (Standby)Write 5432 W R WWW queue

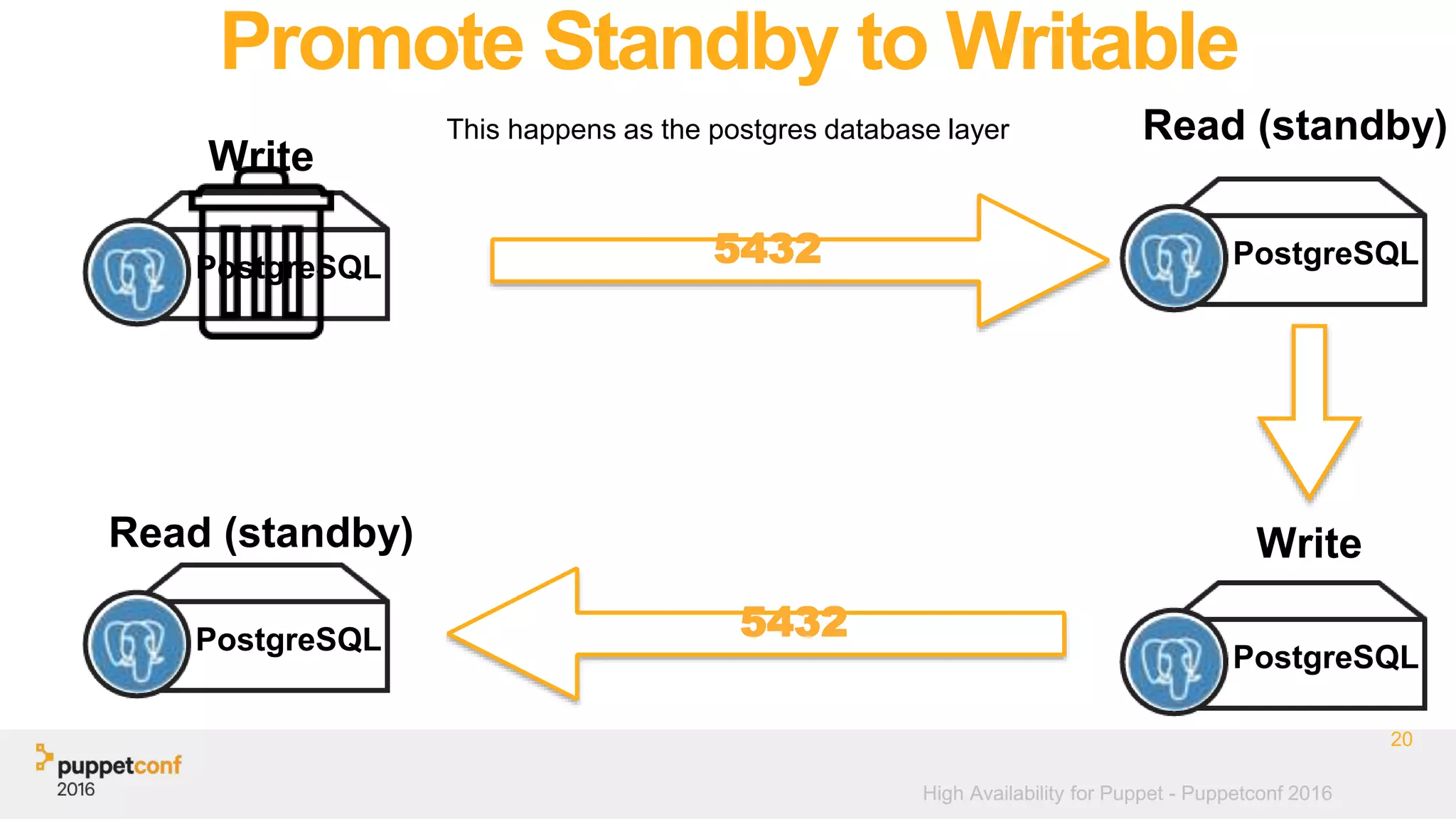

- 17. High Availability forPuppet - Puppetconf 2016 Promote Standby to Writable This happens as the postgres database layer 20 PostgreSQL Write Read (standby) PostgreSQL PostgreSQL Write 5432 PostgreSQL Read (standby) 5432
- 18. Multi master PuppetDBBeta Puppet Enterprise Only 21

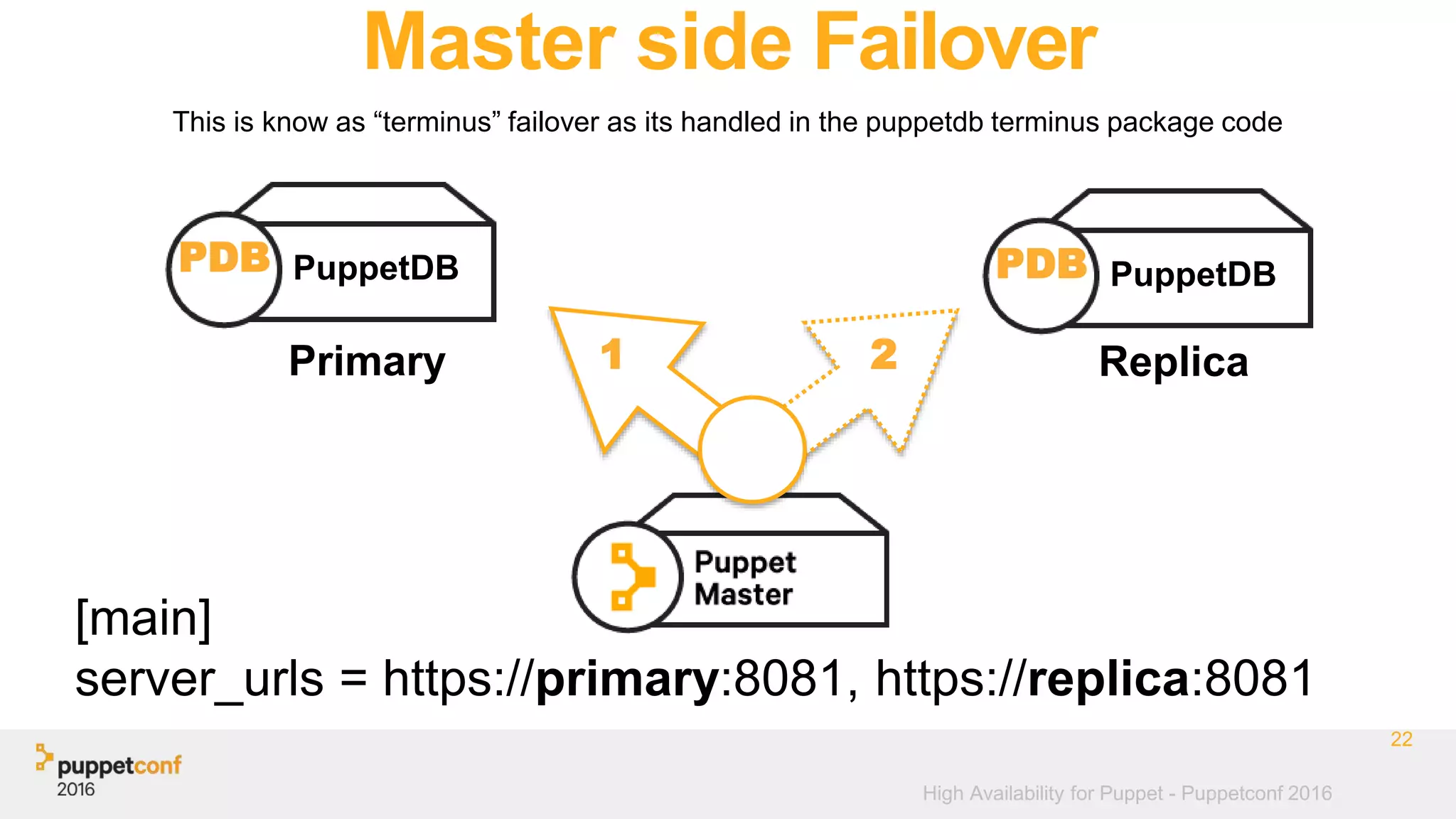

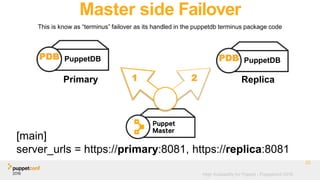

- 19. High Availability forPuppet - Puppetconf 2016 Master side Failover This is know as “terminus” failover as its handled in the puppetdb terminus package code 22 PuppetDBPDB [main] server_urls = https://primary:8081, https://replica:8081 Primary PuppetDBPDB Replica1 2

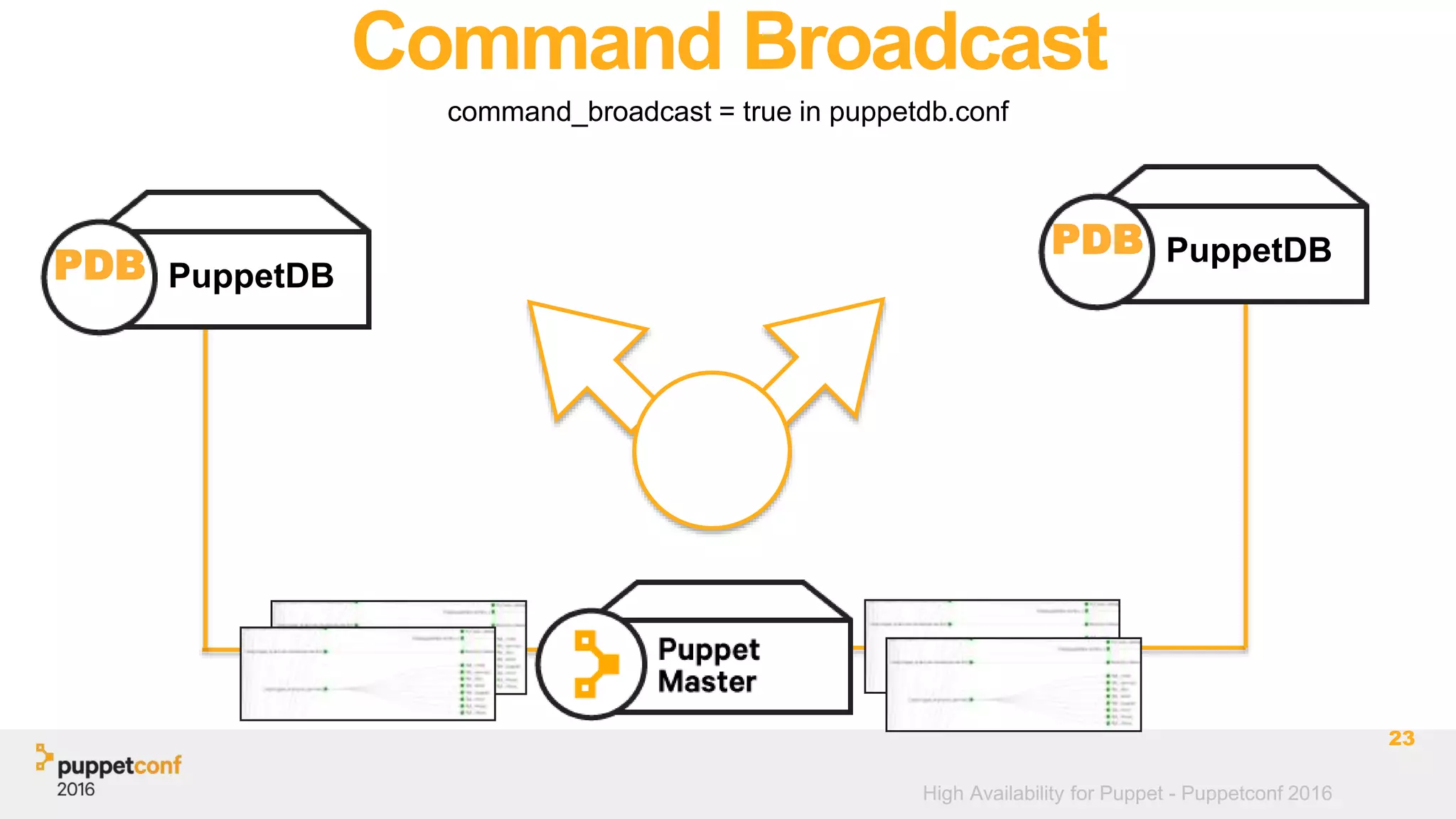

- 20. High Availability forPuppet - Puppetconf 2016 Command Broadcast command_broadcast = true in puppetdb.conf 23 PuppetDBPDB PuppetDBPDB

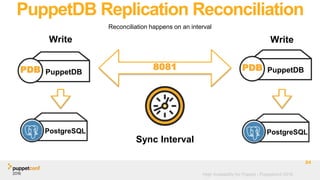

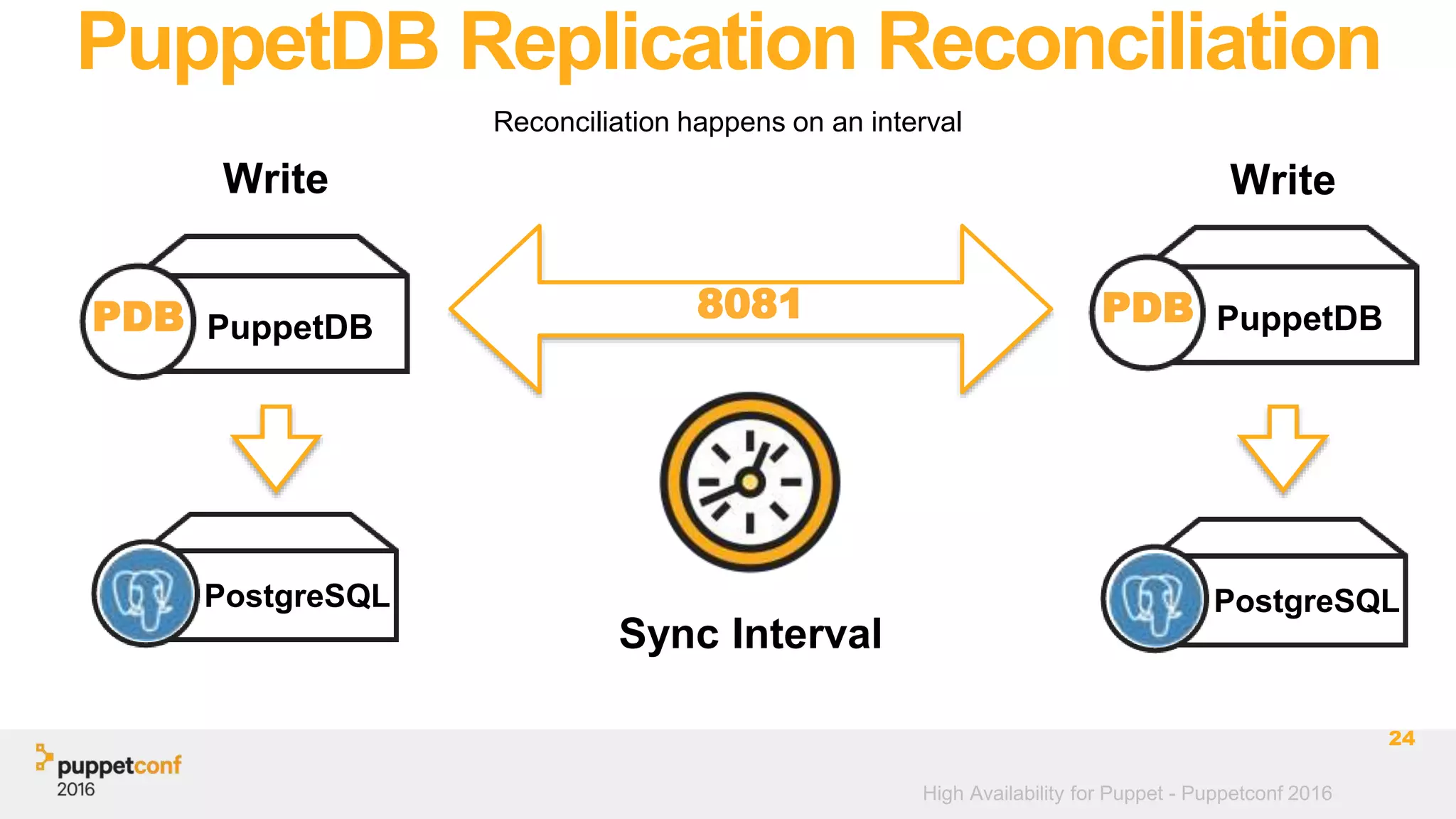

- 21. High Availability forPuppet - Puppetconf 2016 PuppetDB Replication Reconciliation Reconciliation happens on an interval 24 PostgreSQL 8081 Write PostgreSQL PuppetDBPDB Write PuppetDBPDB Sync Interval
- 22. Puppet Enterprise HA Comingsoon… 25

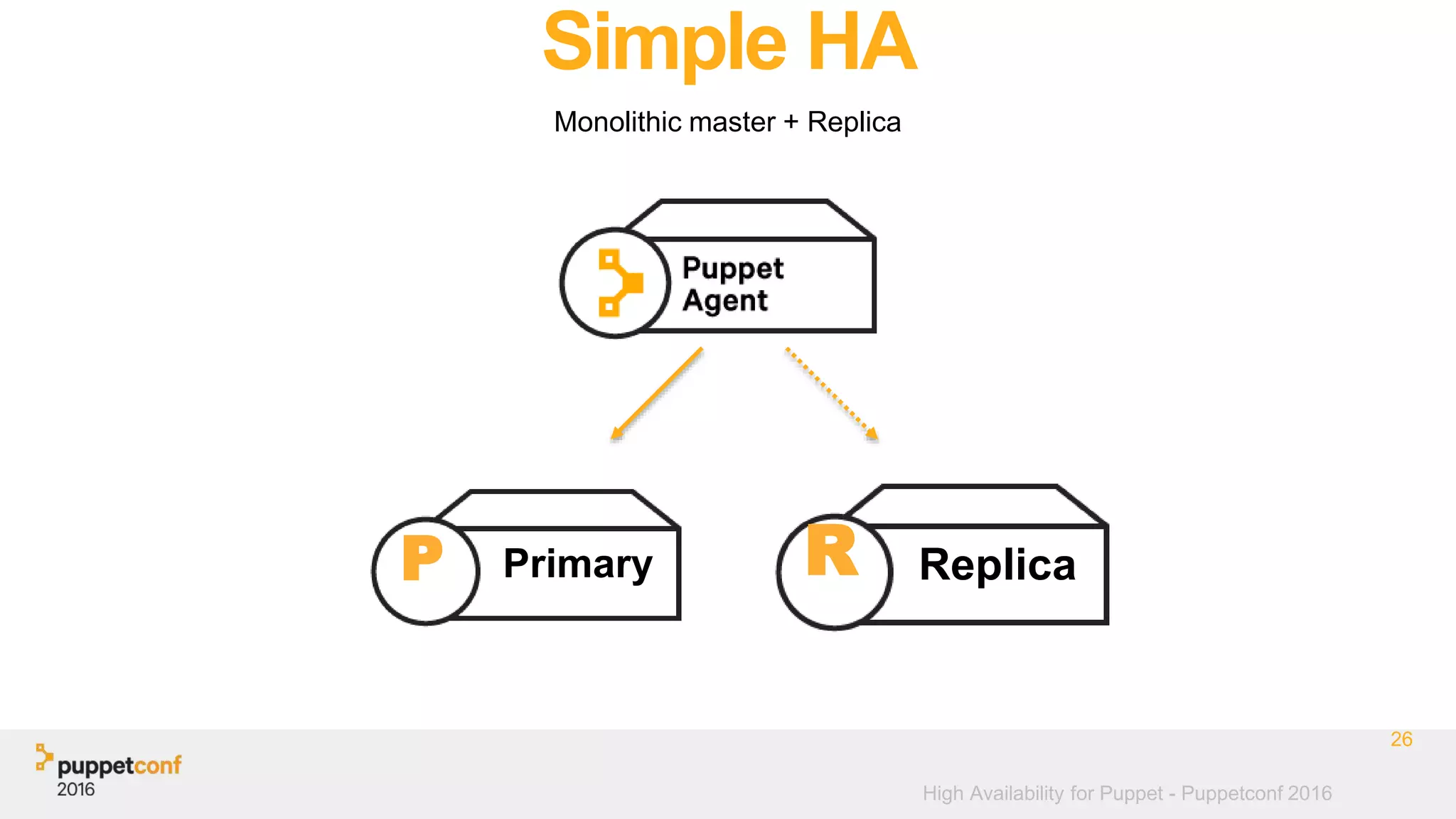

- 23. High Availability forPuppet - Puppetconf 2016 Simple HA Monolithic master + Replica 26 P Primary R Replica

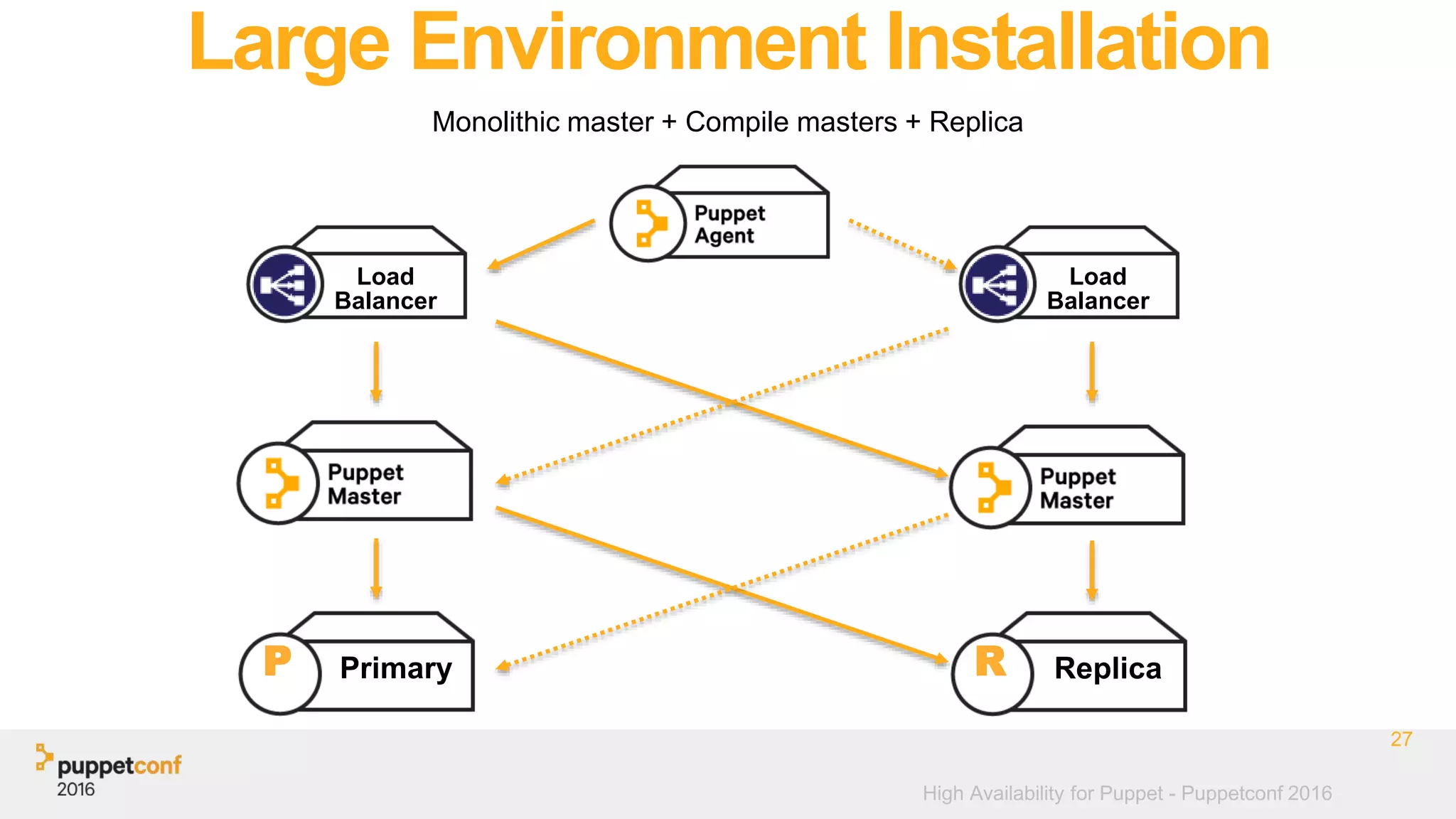

- 24. High Availability forPuppet - Puppetconf 2016 Large Environment Installation Monolithic master + Compile masters + Replica 27 R Replica Balancer Load P Primary Balancer Load

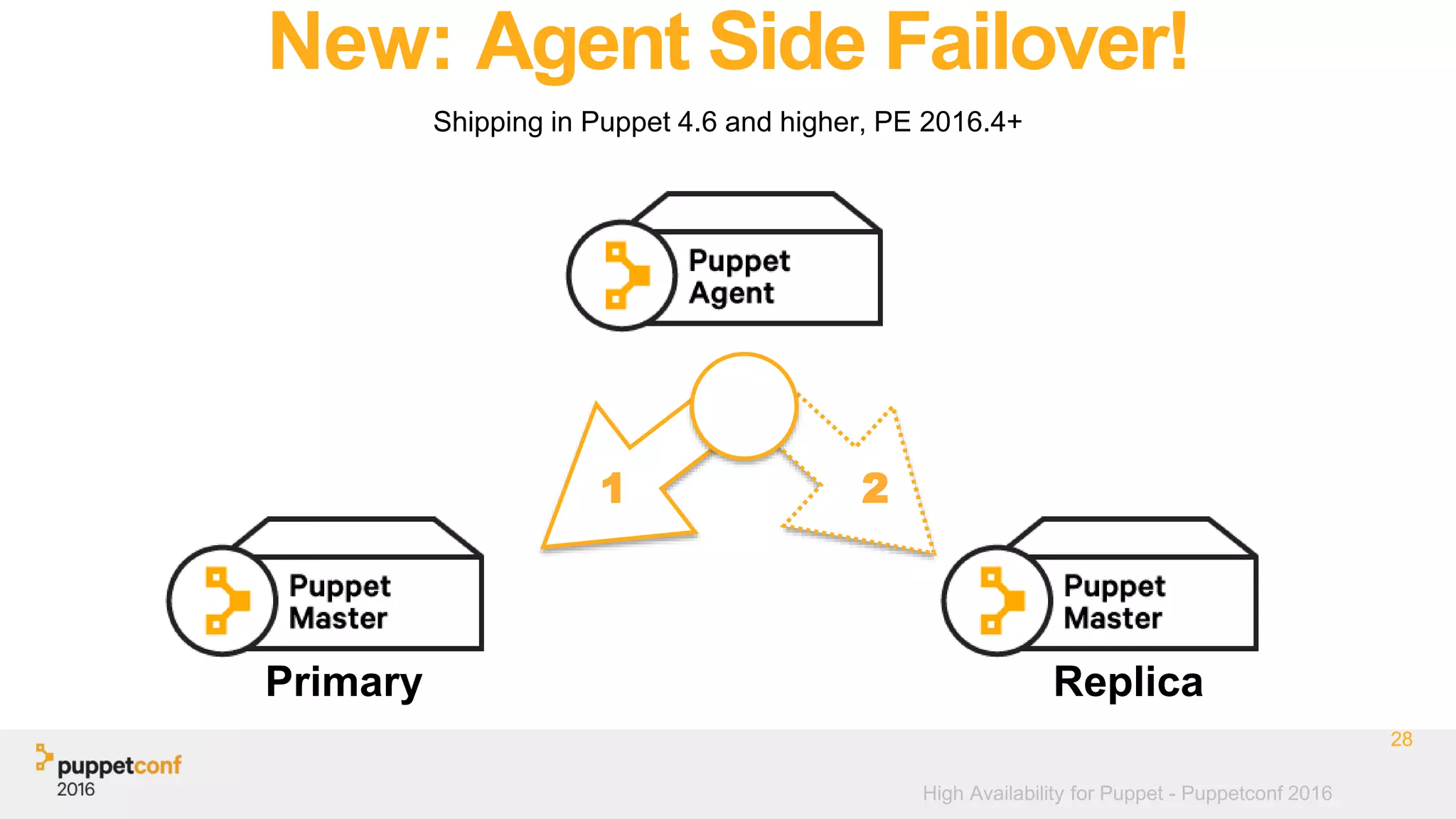

- 25. High Availability forPuppet - Puppetconf 2016 New: Agent Side Failover! Shipping in Puppet 4.6 and higher, PE 2016.4+ 28 Primary Replica 1 2

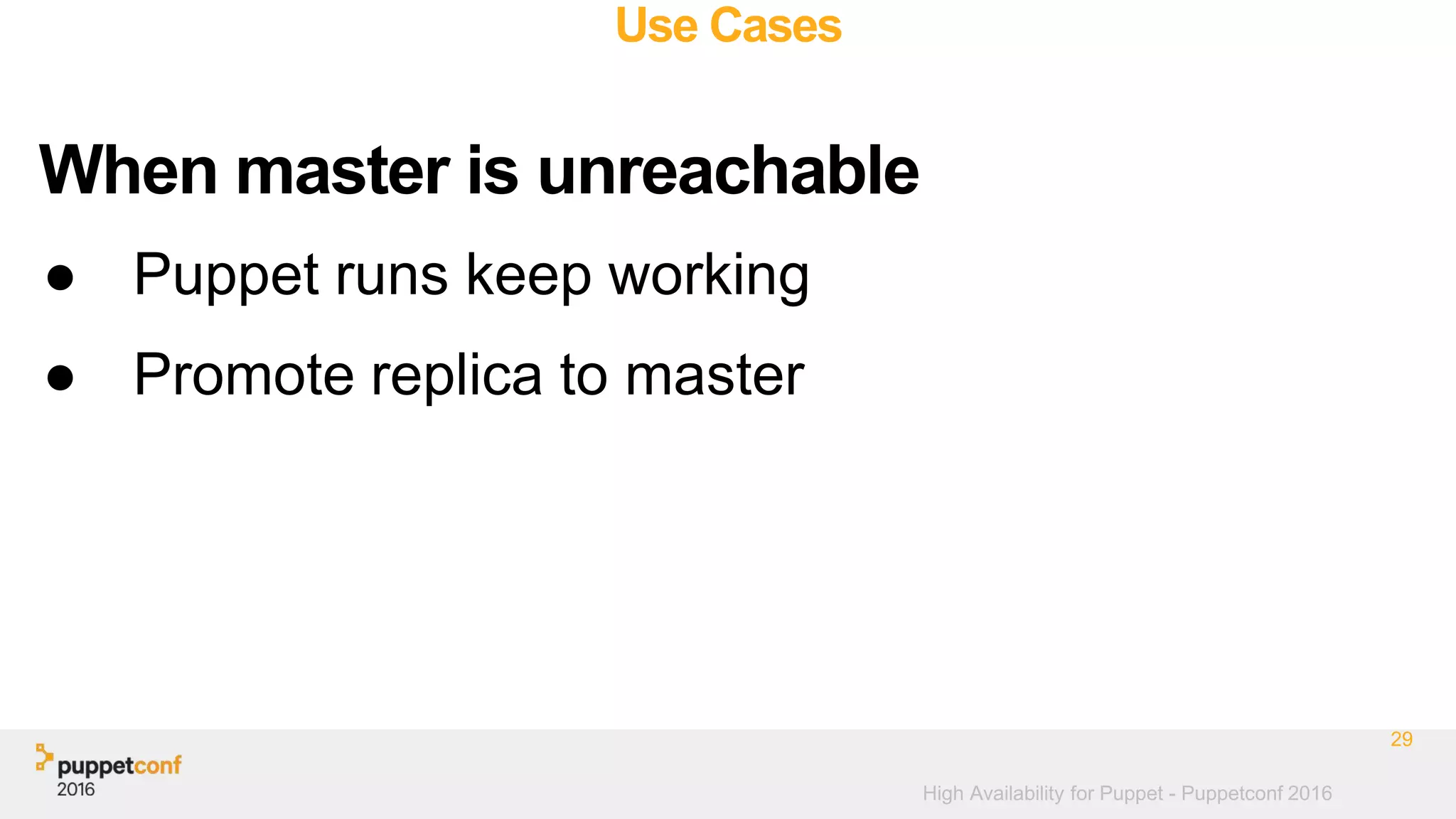

- 26. High Availability forPuppet - Puppetconf 2016 Use Cases ● Puppet runs keep working ● Promote replica to master 29 When master is unreachable

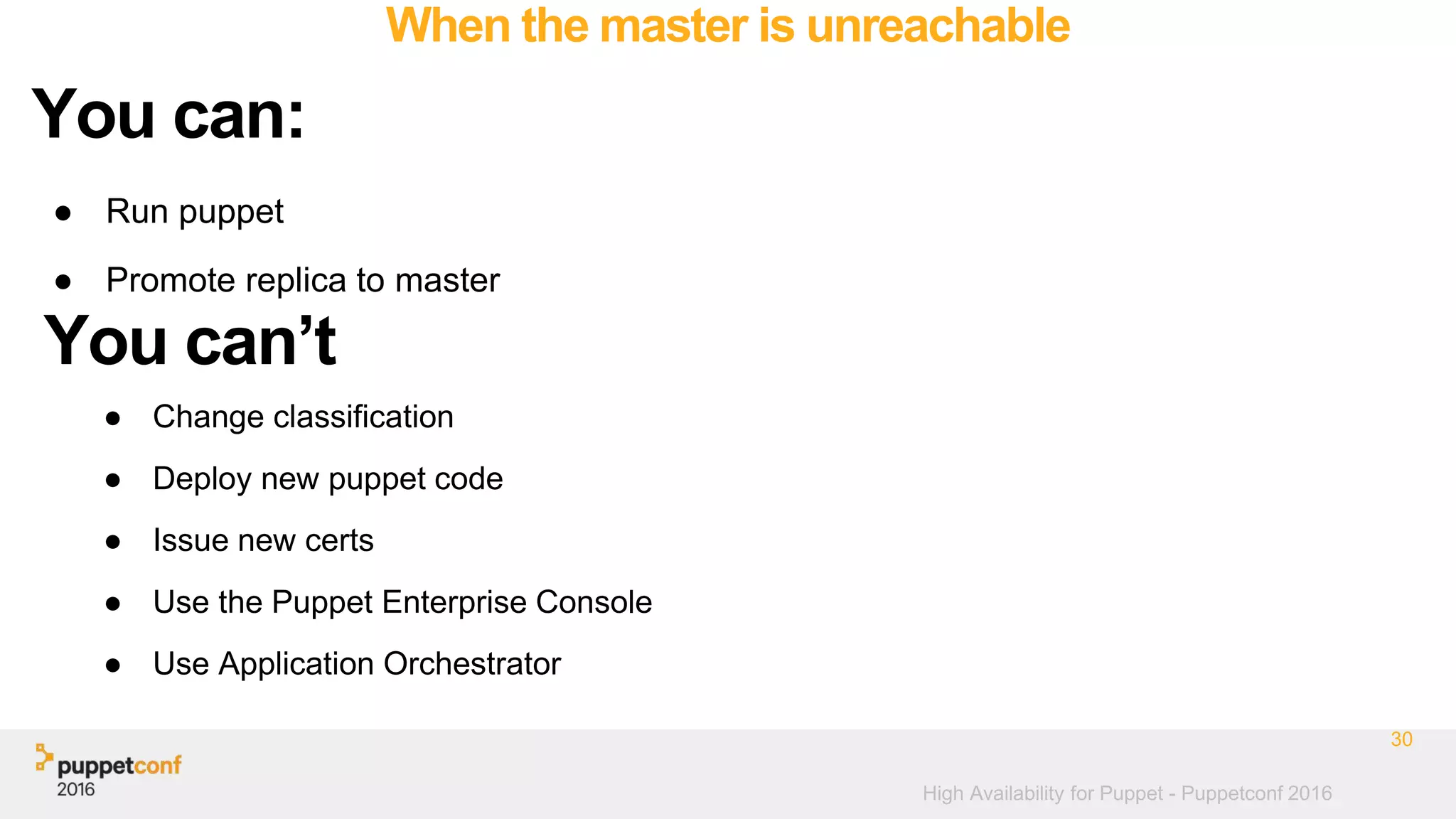

- 27. High Availability forPuppet - Puppetconf 2016 When the master is unreachable ● Run puppet ● Promote replica to master 30 You can: You can’t ● Change classification ● Deploy new puppet code ● Issue new certs ● Use the Puppet Enterprise Console ● Use Application Orchestrator
- 28.

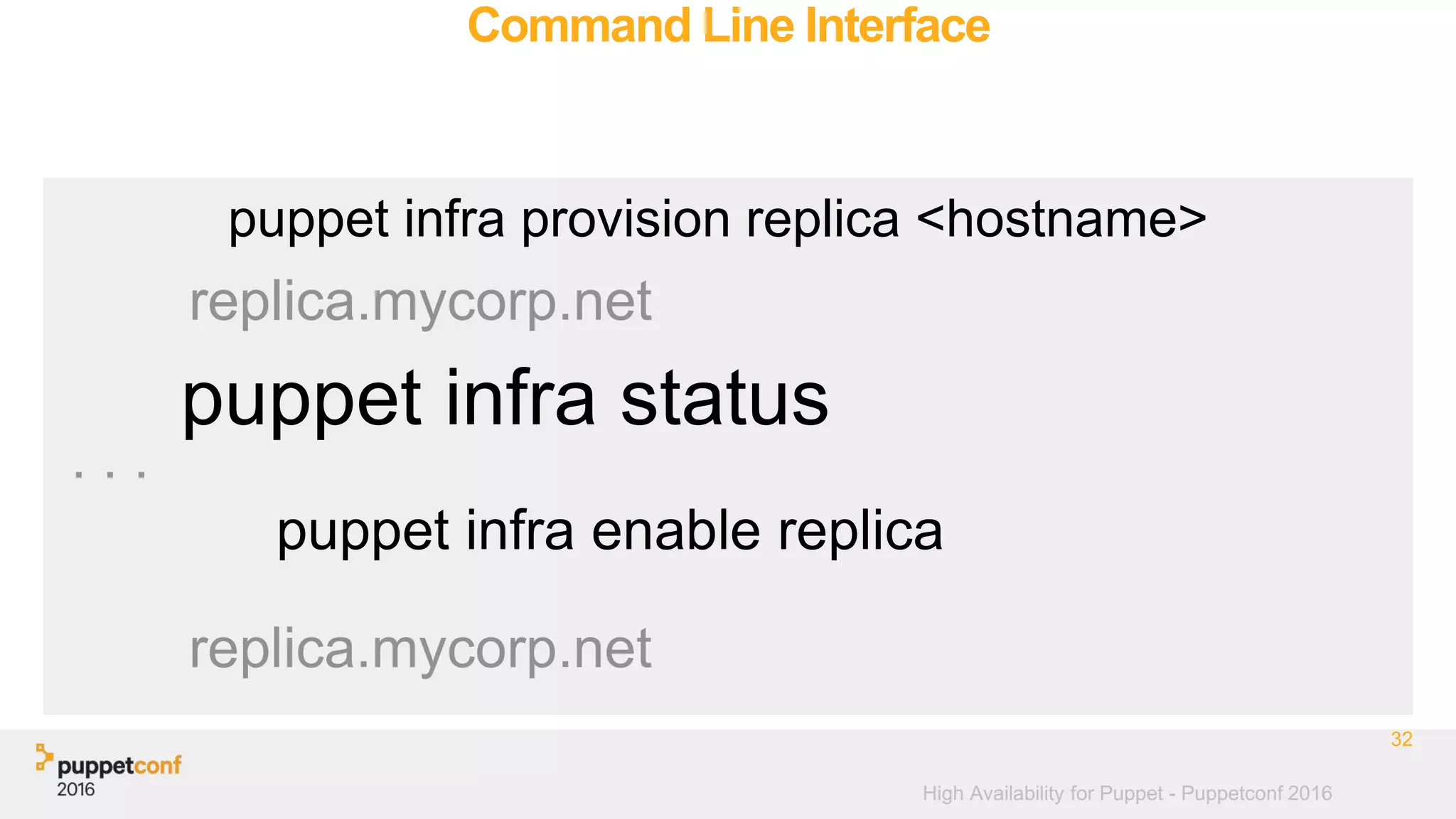

- 29. High Availability forPuppet - Puppetconf 2016 Command Line Interface 32 puppet infra provision replica <hostname> replica.mycorp.net puppet infra enable replica replica.mycorp.net puppet infra status . . .

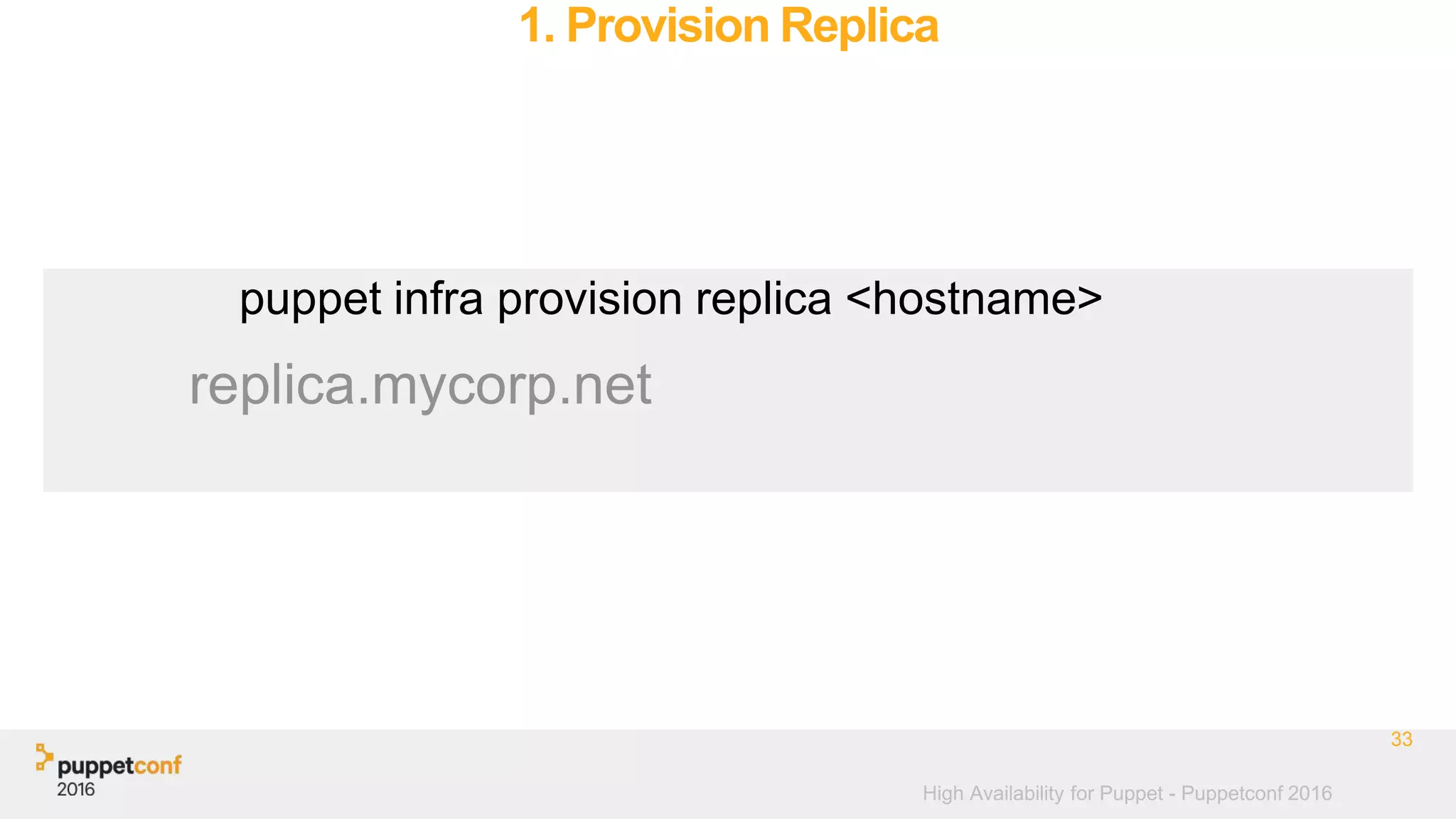

- 30. High Availability forPuppet - Puppetconf 2016 1. Provision Replica 33 puppet infra provision replica <hostname> replica.mycorp.net

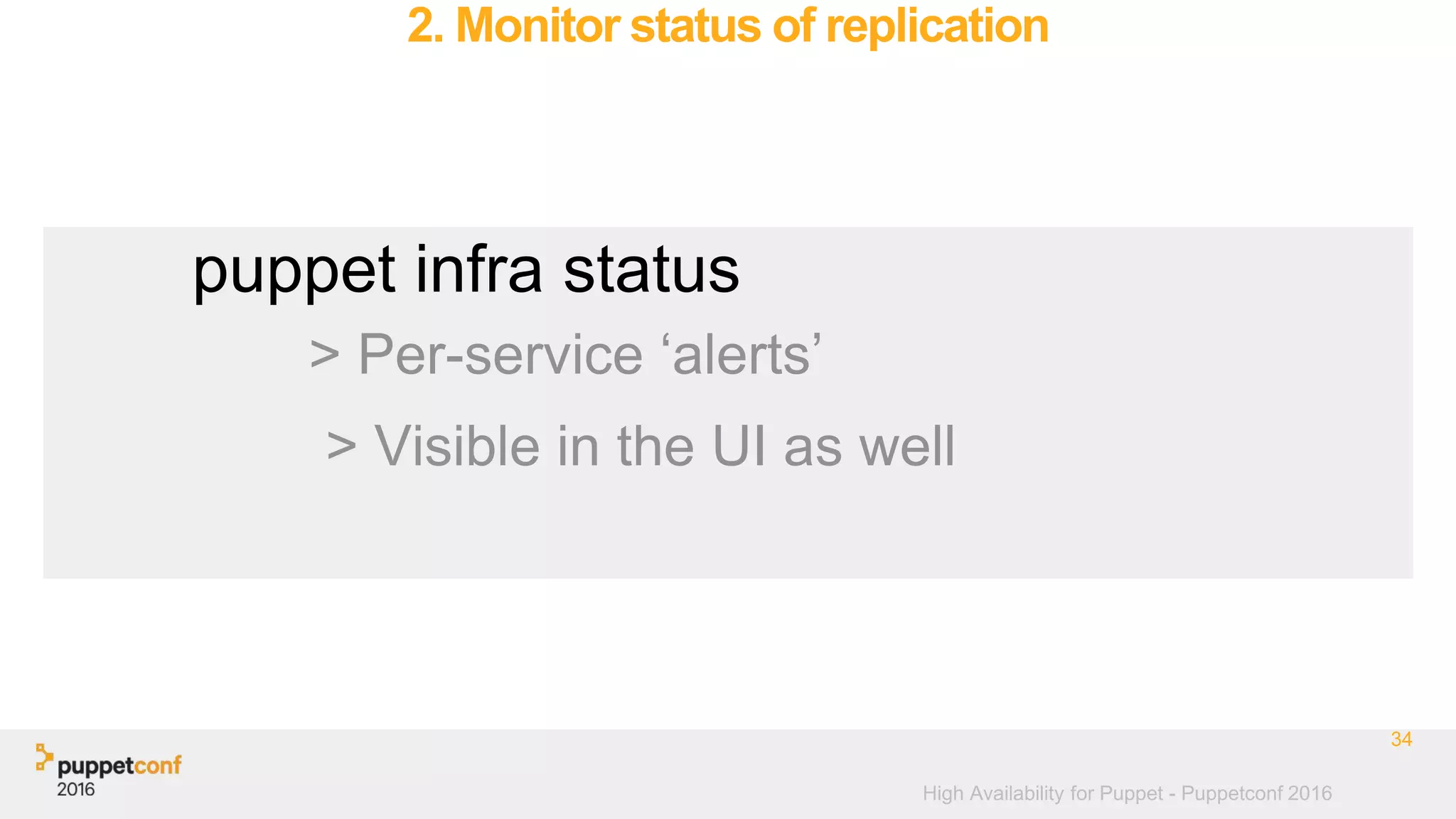

- 31. High Availability forPuppet - Puppetconf 2016 2. Monitor status of replication 34 puppet infra status > Per-service ‘alerts’ > Visible in the UI as well

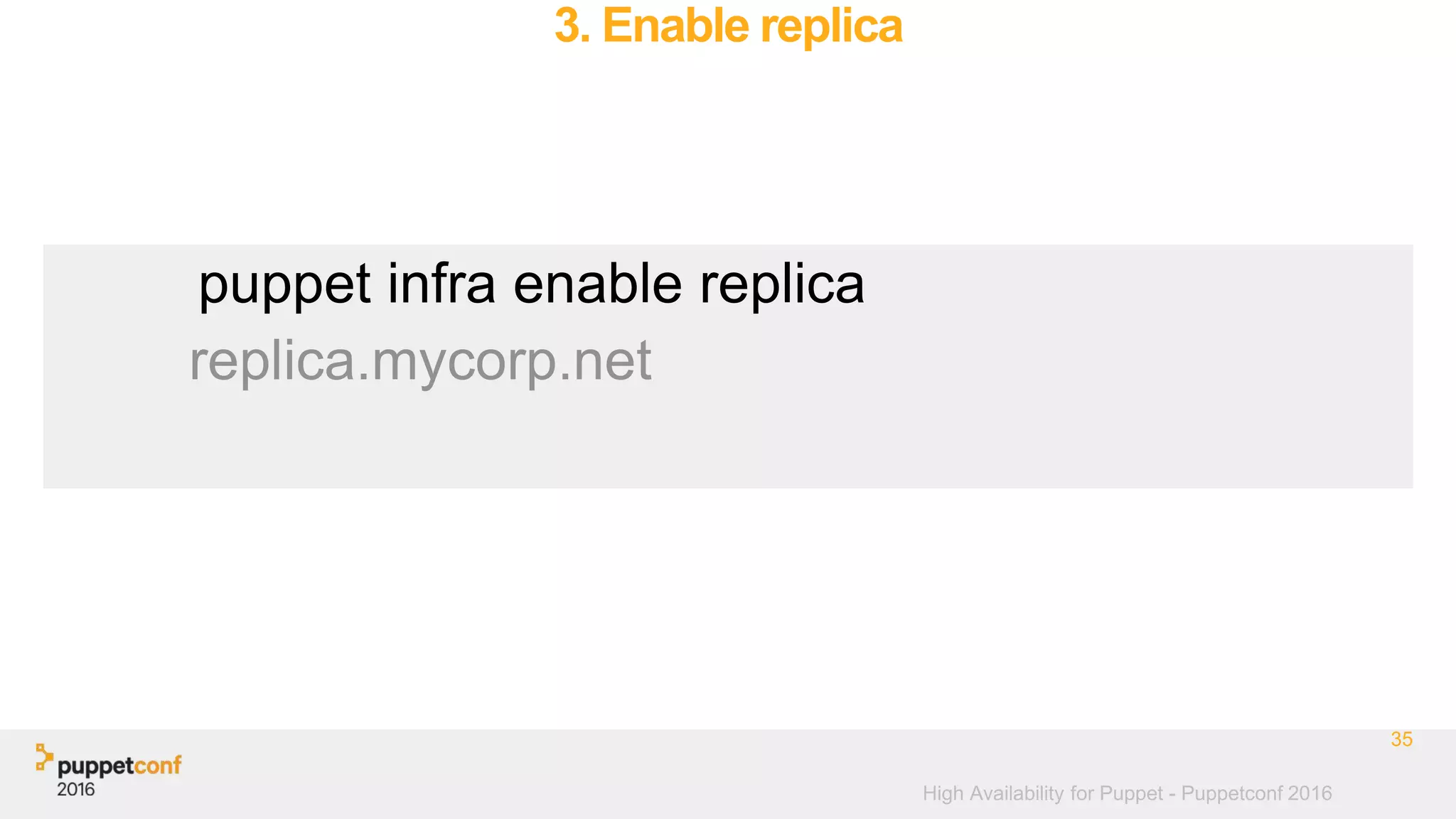

- 32. High Availability forPuppet - Puppetconf 2016 3. Enable replica 35 puppet infra enable replica replica.mycorp.net
- 33. Replica Services Services ona provisioned replica 36

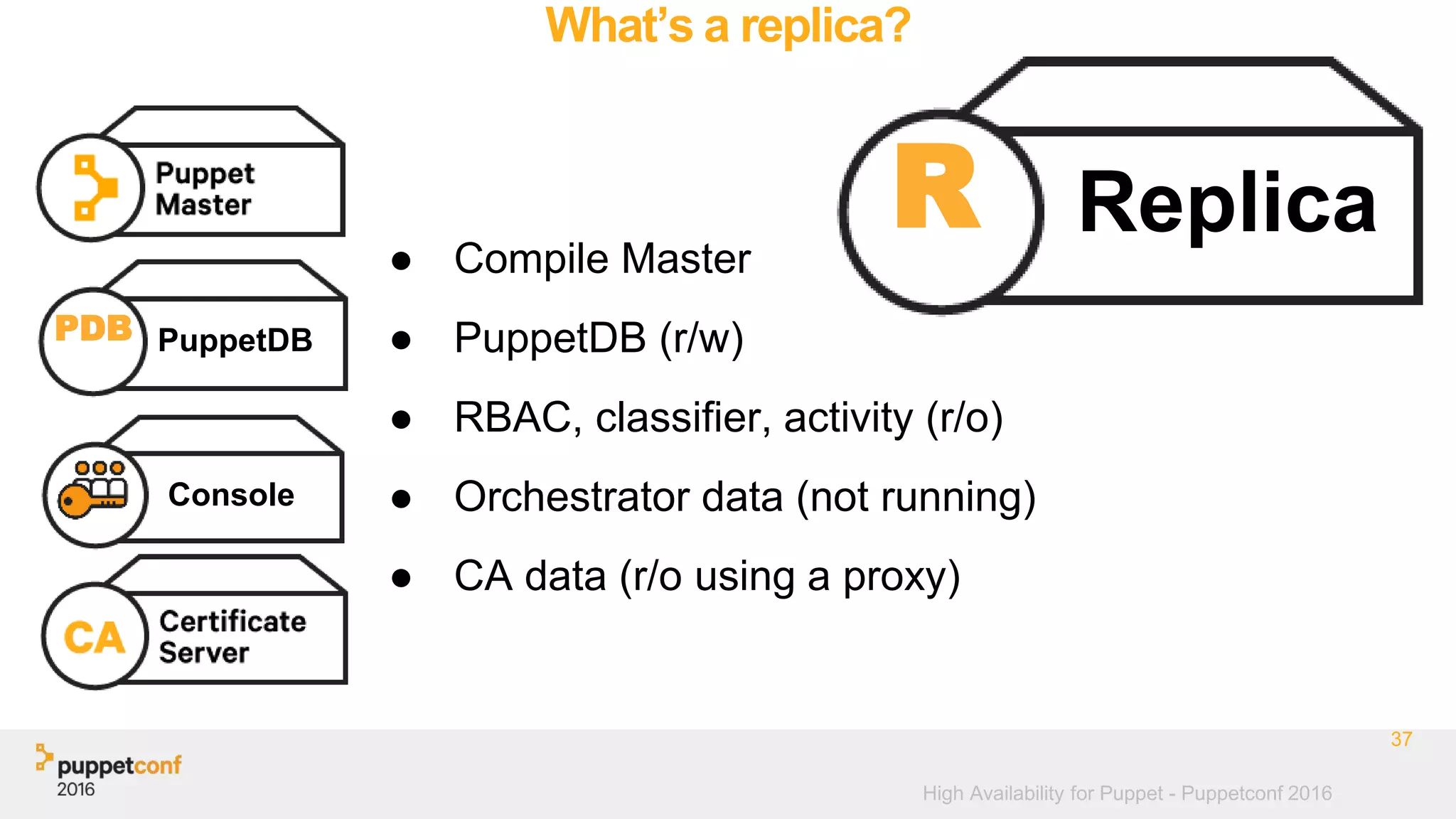

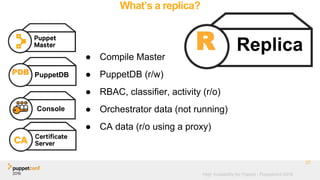

- 34. High Availability forPuppet - Puppetconf 2016 What’s a replica? ● Compile Master ● PuppetDB (r/w) ● RBAC, classifier, activity (r/o) ● Orchestrator data (not running) ● CA data (r/o using a proxy) 37 R Replica PuppetDBPDB Console

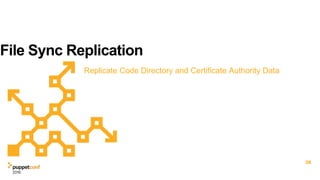

- 35. File Sync Replication ReplicateCode Directory and Certificate Authority Data 38

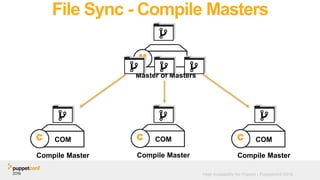

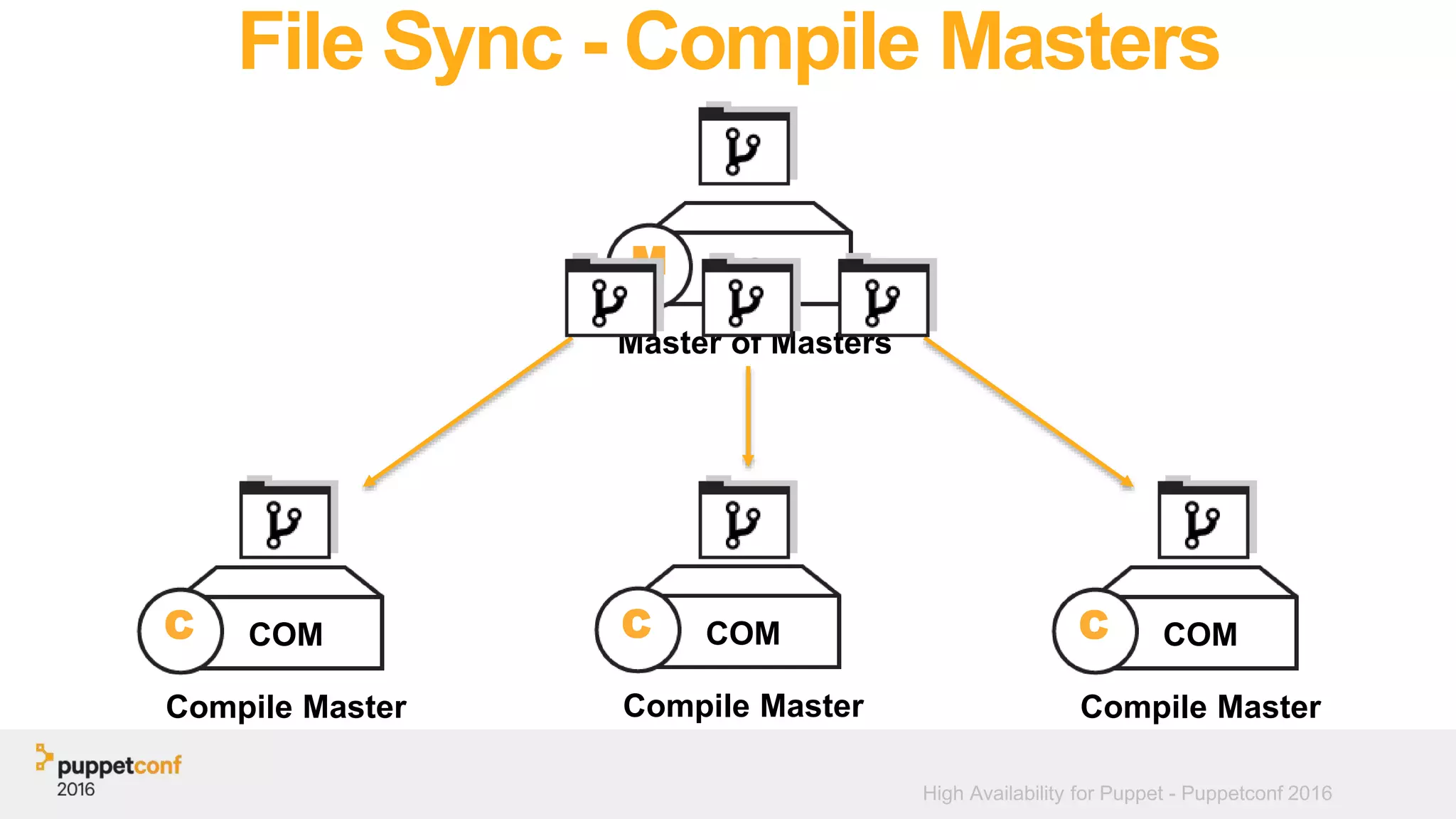

- 36. High Availability forPuppet - Puppetconf 2016 File Sync - Compile Masters M Master of Masters MOM Compile Master COMC Compile Master COMC Compile Master COMC

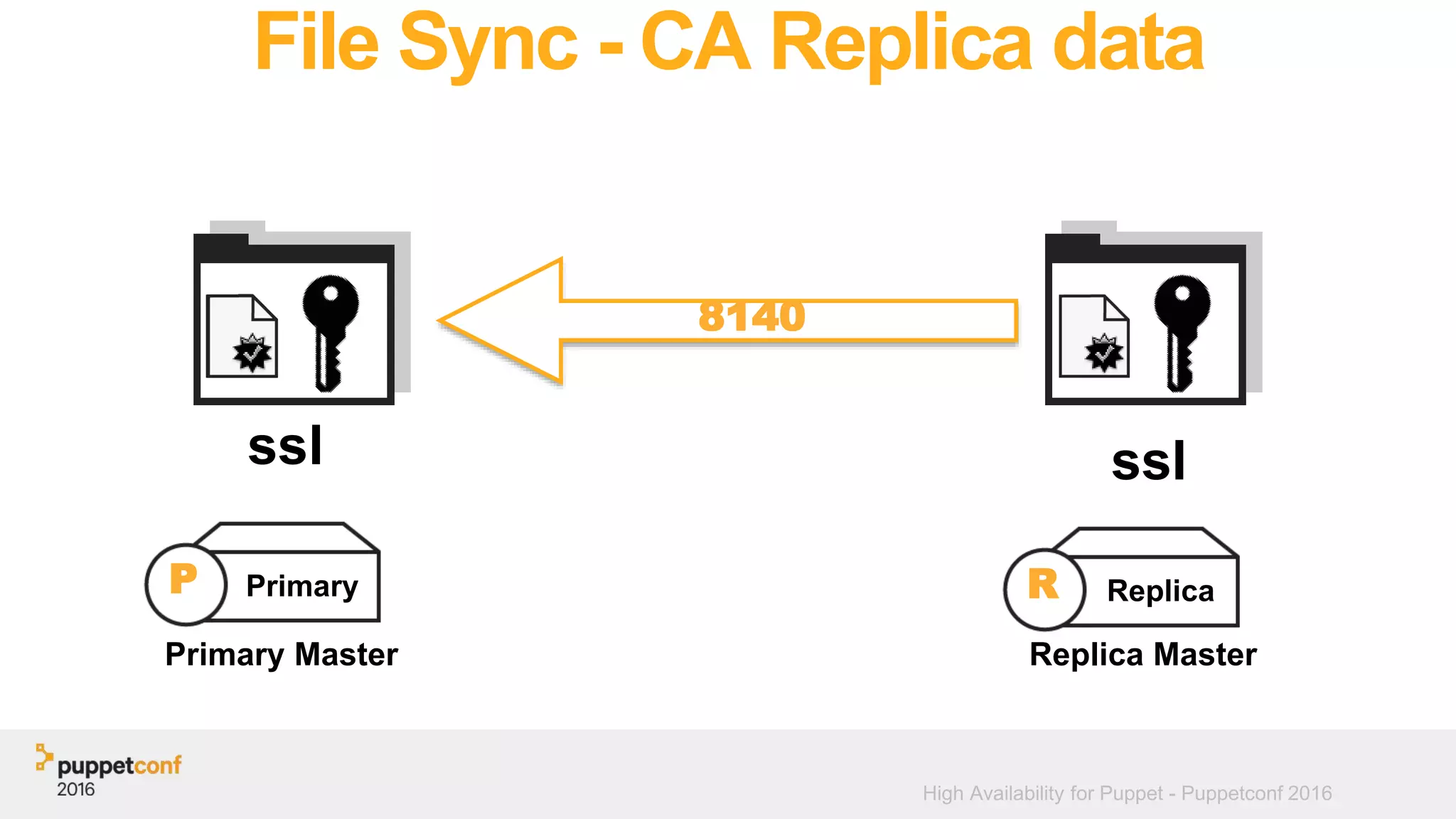

- 37. High Availability forPuppet - Puppetconf 2016 File Sync - CA Replica data Primary Master Replica Master R ReplicaP Primary 8140 ssl ssl

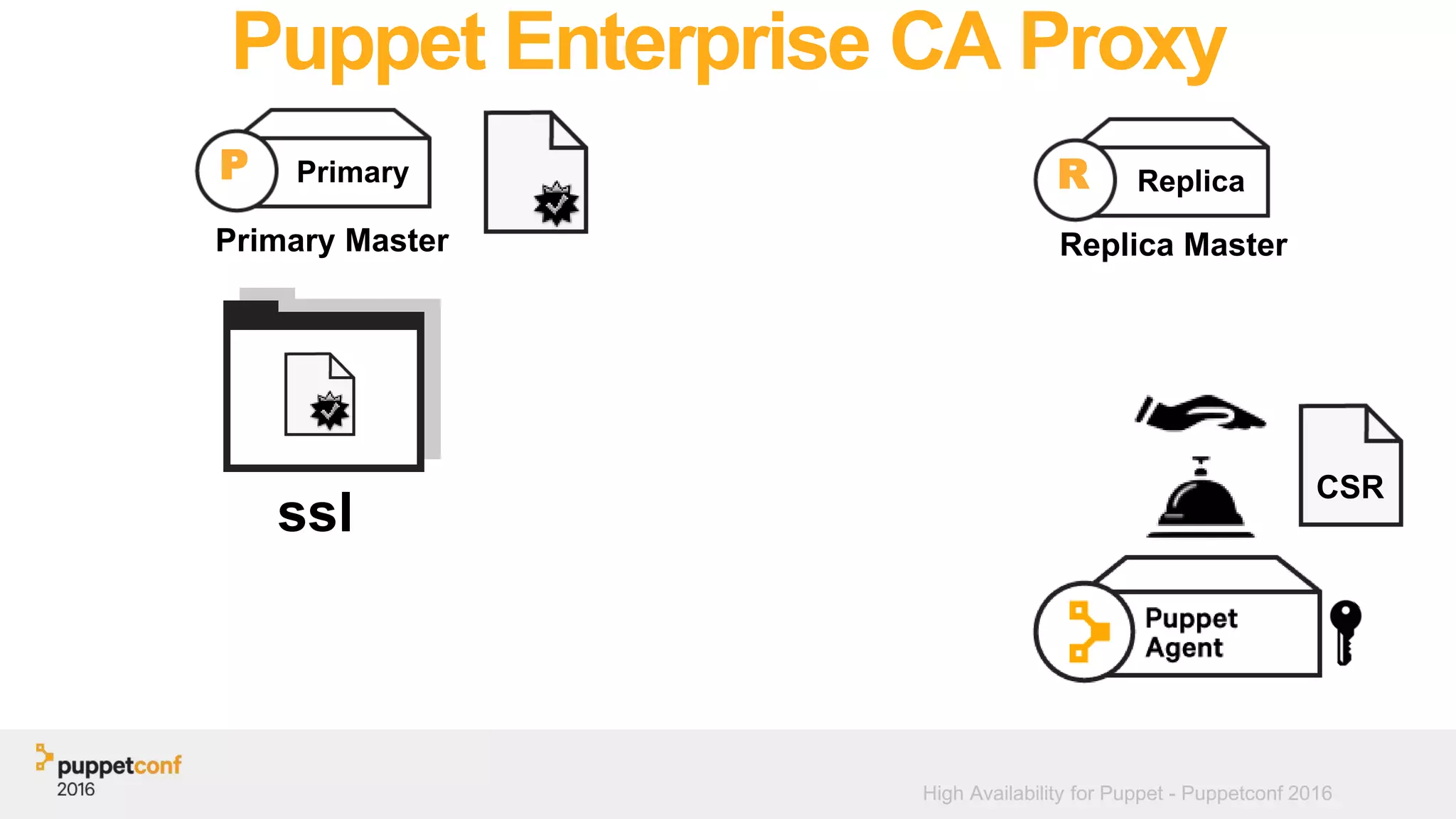

- 38. High Availability forPuppet - Puppetconf 2016 Puppet Enterprise CA Proxy Primary Master Replica Master R ReplicaP Primary ssl CSR
- 39. Database Replication Replicate thedata used in your PE deployment 42

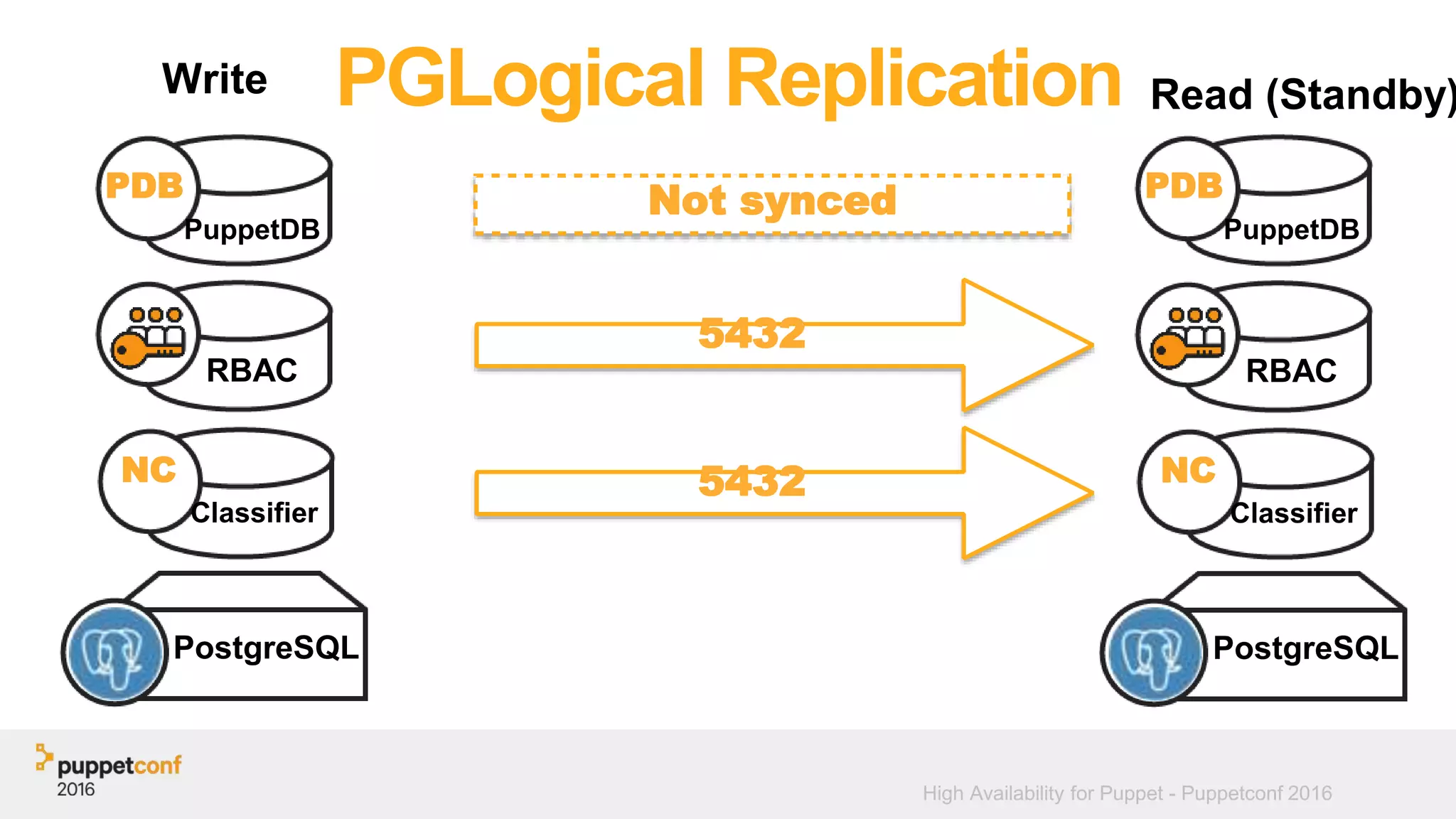

- 40. High Availability forPuppet - Puppetconf 2016 PGLogical Replication PostgreSQL RBAC NC Classifier 5432 5432 PostgreSQL RBAC NC Classifier Write Read (Standby) PuppetDB PDB PuppetDB PDBNot synced

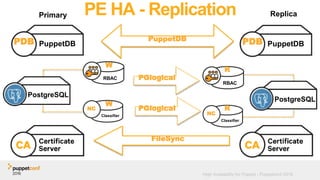

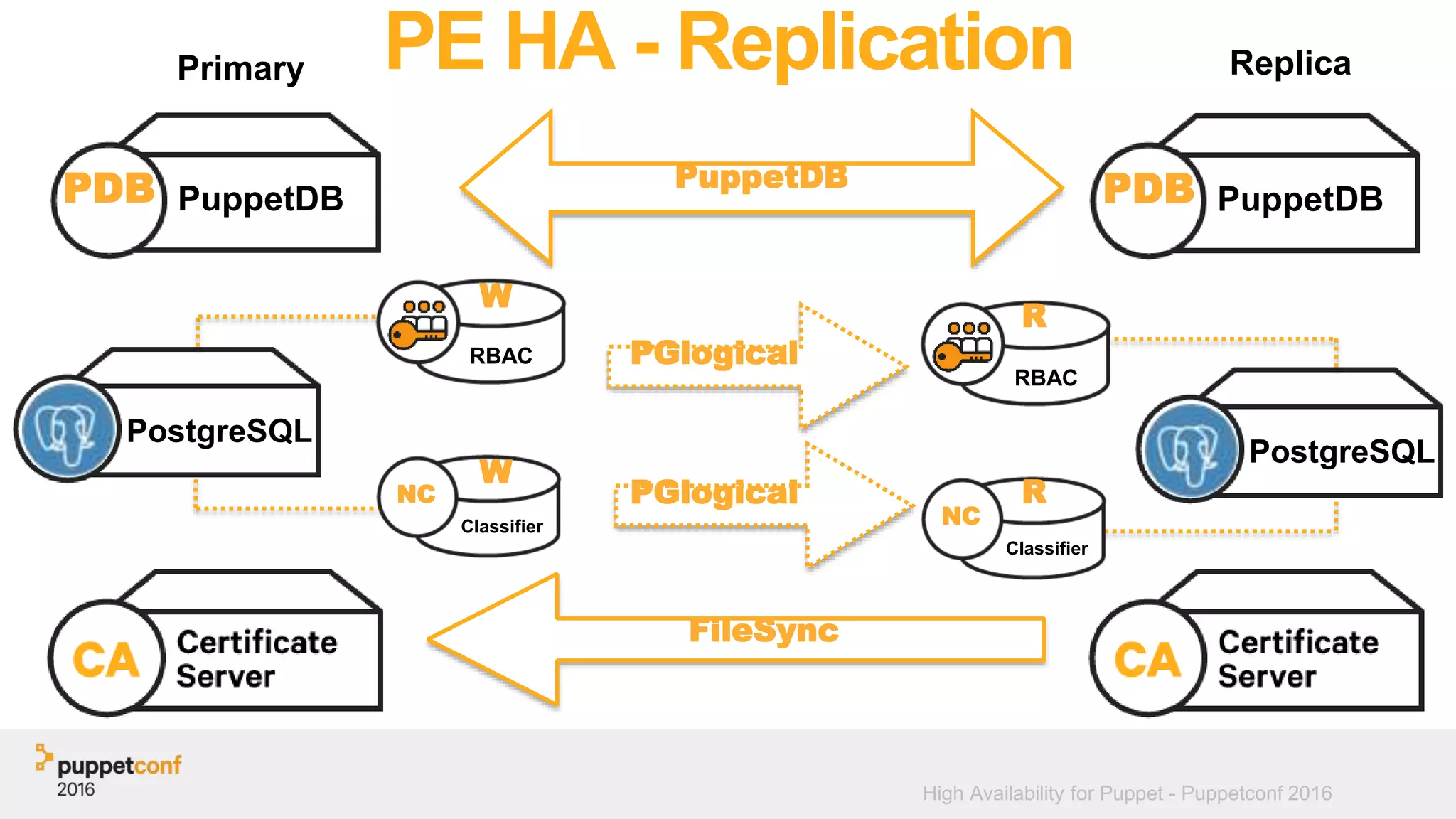

- 41. High Availability forPuppet - Puppetconf 2016 PE HA - Replication PuppetDB PuppetDBPDB PuppetDBPDB PostgreSQL PostgreSQL PGlogical PGlogical FileSync Primary Replica RBAC NC Classifier W W RBAC NC Classifier R R
- 42. High Availability forPuppet - Puppetconf 2016 Puppet Enterprise HA - Beta Signup Interested in what you heard? Please signup for our HA beta program through the Puppet Enterprise Support portal 45
- 43. High Availability forPuppet - Puppetconf 2016 46 https://goo.gl/Z85HLS PE HA Beta Signup Support Knowledge base Z 8 5 H L S
