1. Woonsan Ko
Nov. 15, 2018
(By courtesy of USFWS Mountain-Prairie, licensed by CC BY 2.0)

2. ● slideshare.net/woonsan
● woonsanko.blogspot.com

3. “What is Apache Jackrabbit?
Is it what I need to know?”

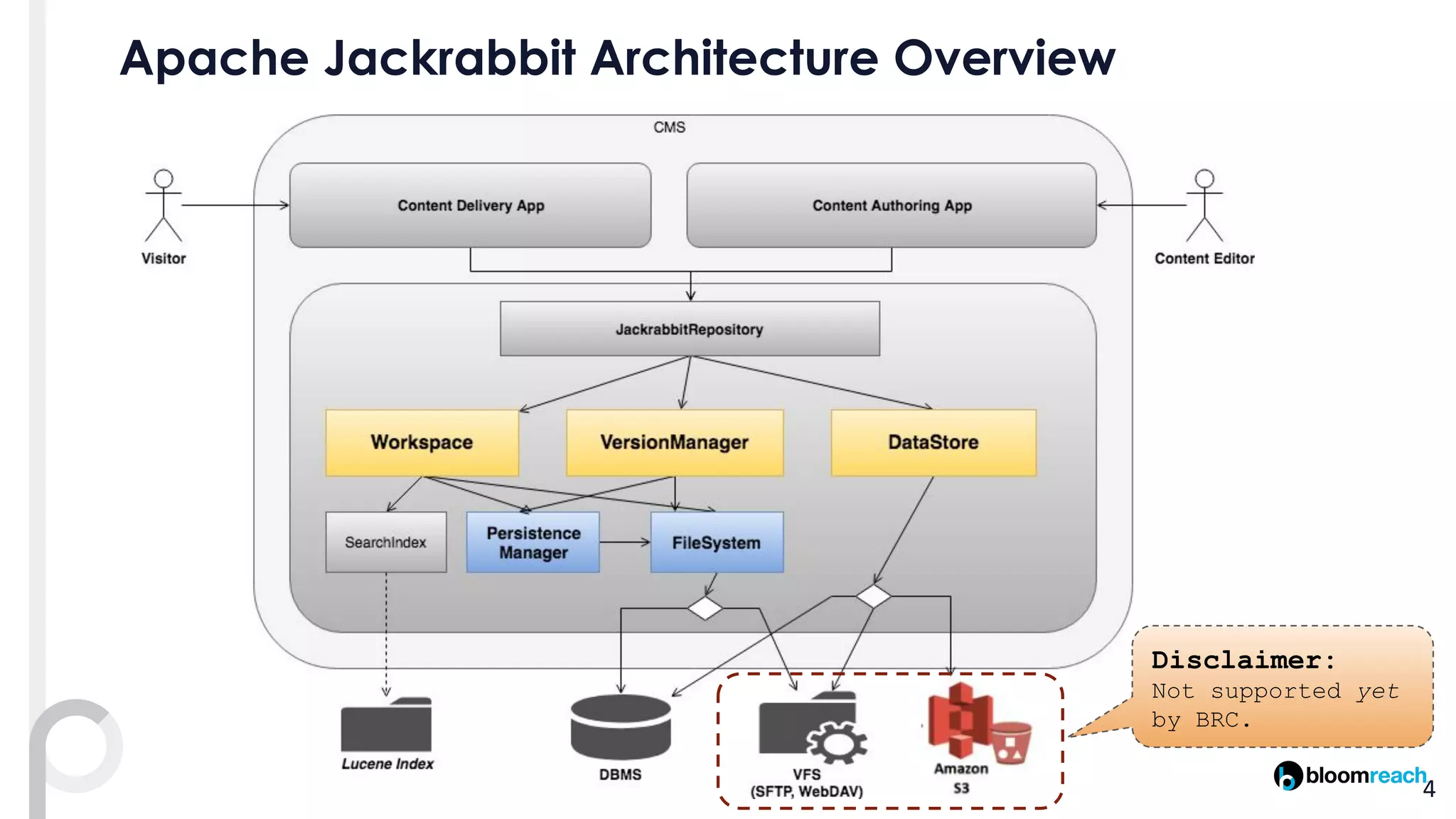

4. Disclaimer:
Not supported yet
by BRC.

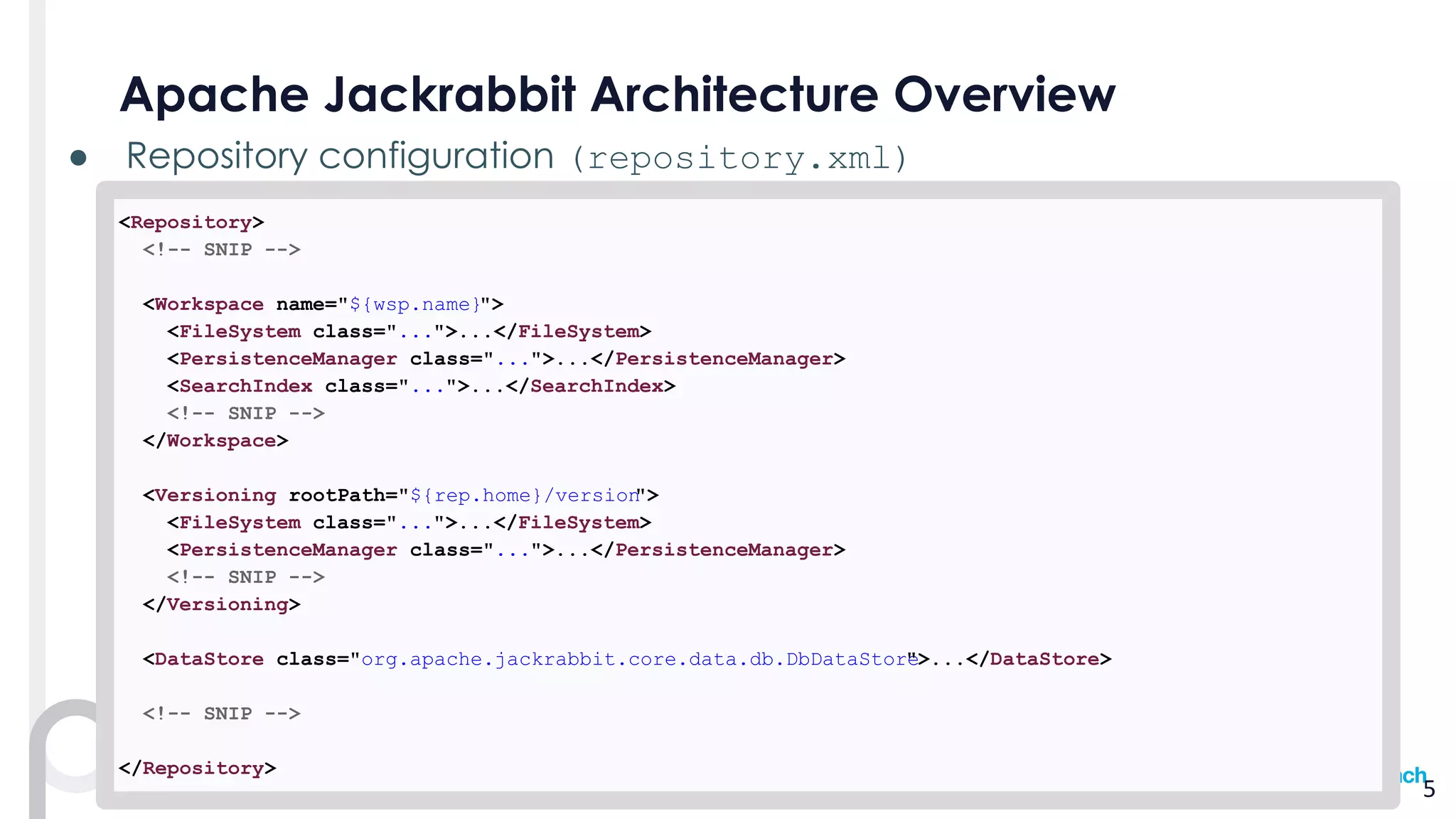

5. ● (repository.xml)
<Repository>
<!-- SNIP -->
<Workspace name="${wsp.name}">
<FileSystem class="...">...</FileSystem>
<PersistenceManager class="...">...</PersistenceManager>
<SearchIndex class="...">...</SearchIndex>
<!-- SNIP -->
</Workspace>
<Versioning rootPath="${rep.home}/version">
<FileSystem class="...">...</FileSystem>
<PersistenceManager class="...">...</PersistenceManager>
<!-- SNIP -->
</Versioning>
<DataStore class="org.apache.jackrabbit.core.data.db.DbDataStore">...</DataStore>
<!-- SNIP -->
</Repository>

6. “Can’t we store huge amount of binary data in JCR?” *
* https://woonsanko.blogspot.com/2016/08/cant-we-store-huge-amount-of-binary.html

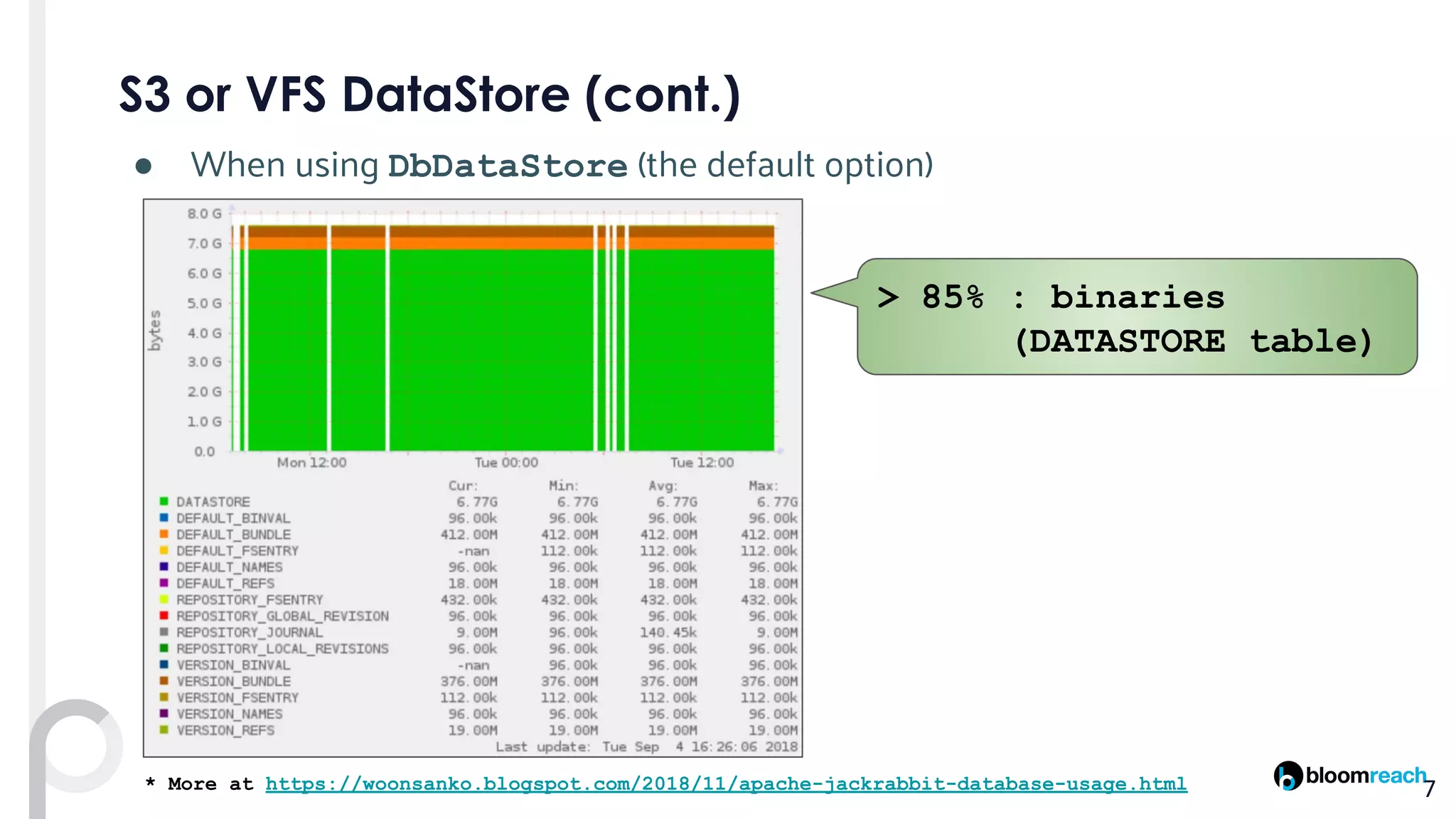

7. ● When using DbDataStore (the default option)
> 85% : binaries
(DATASTORE table)
* More at https://woonsanko.blogspot.com/2018/11/apache-jackrabbit-database-usage.html

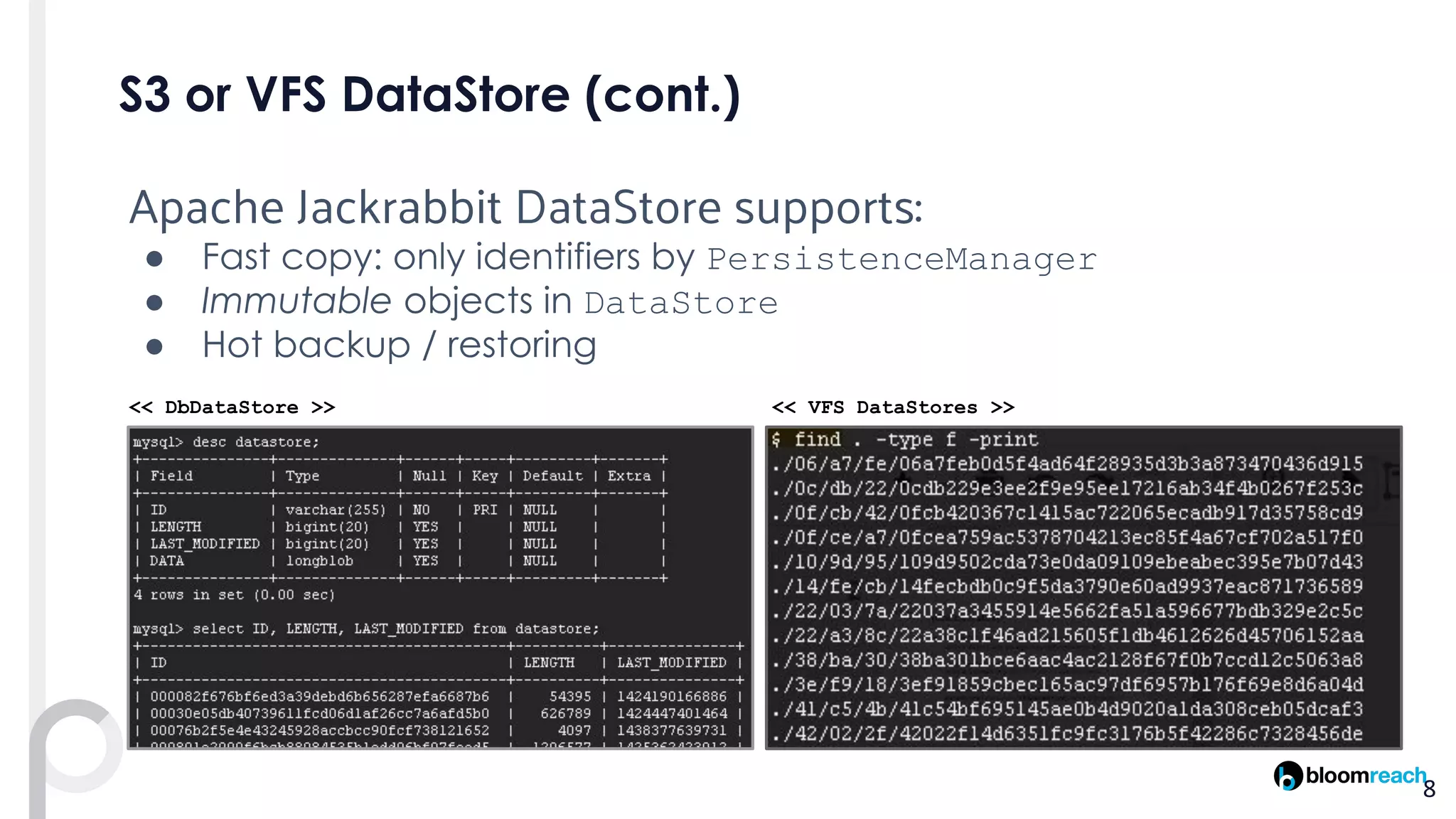

8. Apache Jackrabbit DataStore supports:
● PersistenceManager
● DataStore
●
<< DbDataStore >> << VFS DataStores >>

9. AbstractDataStore
DbDataStore CachingDataStore
S3DataStoreVFSDataStore
LocalCache
E.g, ./datastore/

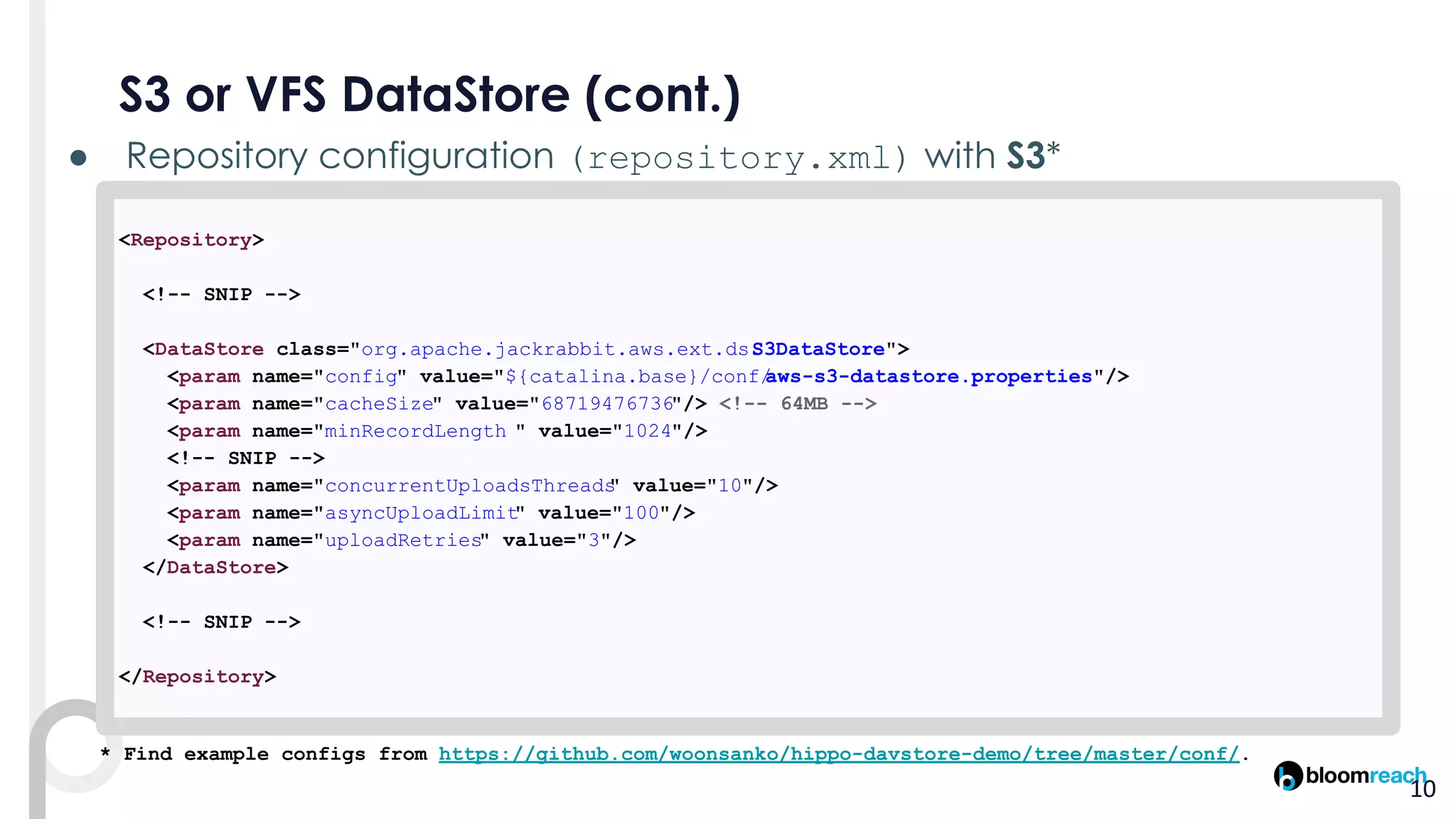

10. ● (repository.xml)
<Repository>
<!-- SNIP -->
<DataStore class="org.apache.jackrabbit.aws.ext.ds.S3DataStore">
<param name="config" value="${catalina.base}/conf/aws-s3-datastore.properties"/>
<param name="cacheSize" value="68719476736"/> <!-- 64MB -->
<param name="minRecordLength " value="1024"/>
<!-- SNIP -->
<param name="concurrentUploadsThreads" value="10"/>
<param name="asyncUploadLimit" value="100"/>
<param name="uploadRetries" value="3"/>
</DataStore>
<!-- SNIP -->
</Repository>
* Find example configs from https://github.com/woonsanko/hippo-davstore-demo/tree/master/conf/.

11. ● (repository.xml)
<Repository>
<!-- SNIP -->
<DataStore class="org.apache.jackrabbit.vfs.ext.ds.VFSDataStore">
<param name="config" value="${catalina.base}/conf/vfs2-datastore-sftp.properties" />
<param name="cacheSize" value="68719476736"/> <!-- 64MB -->
<param name="minRecordLength" value="1024"/>
<!-- SNIP -->
<param name="asyncWritePoolSize" value="10" />
</DataStore>
<!-- SNIP -->
</Repository>
* Find example configs from https://github.com/woonsanko/hippo-davstore-demo/tree/master/conf/.

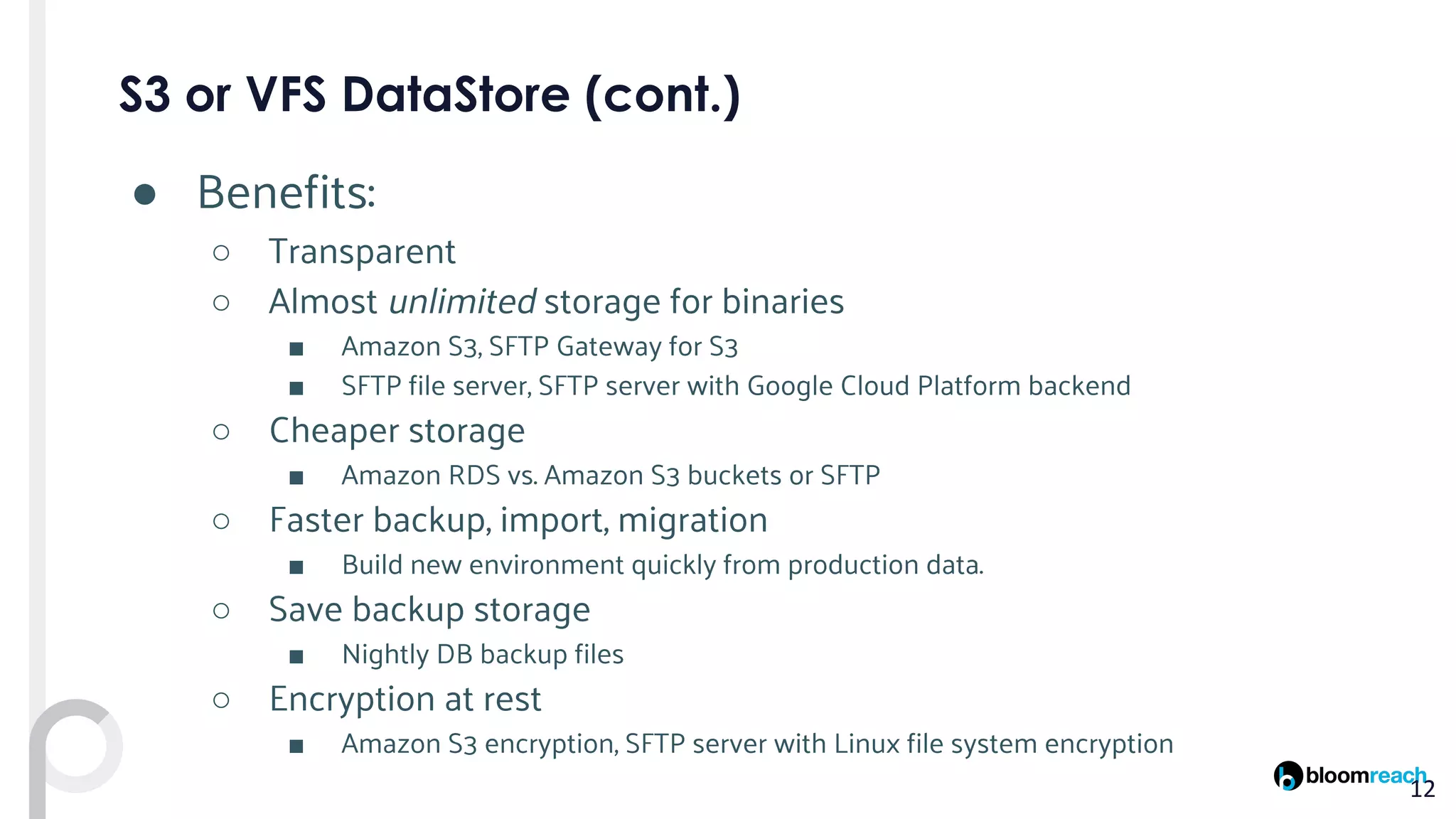

12. ● Benefits:
○ Transparent
○ Almost unlimited storage for binaries
■ Amazon S3, SFTP Gateway for S3
■ SFTP file server, SFTP server with Google Cloud Platform backend
○ Cheaper storage
■ Amazon RDS vs. Amazon S3 buckets or SFTP
○ Faster backup, import, migration
■ Build new environment quickly from production data.
○ Save backup storage
■ Nightly DB backup files
○ Encryption at rest
■ Amazon S3 encryption, SFTP server with Linux file system encryption

13. “Can’t we keep unlimited amount of revision history?”
* https://woonsanko.blogspot.com/2018/11/externalizing-jcr-version-storage-with.html

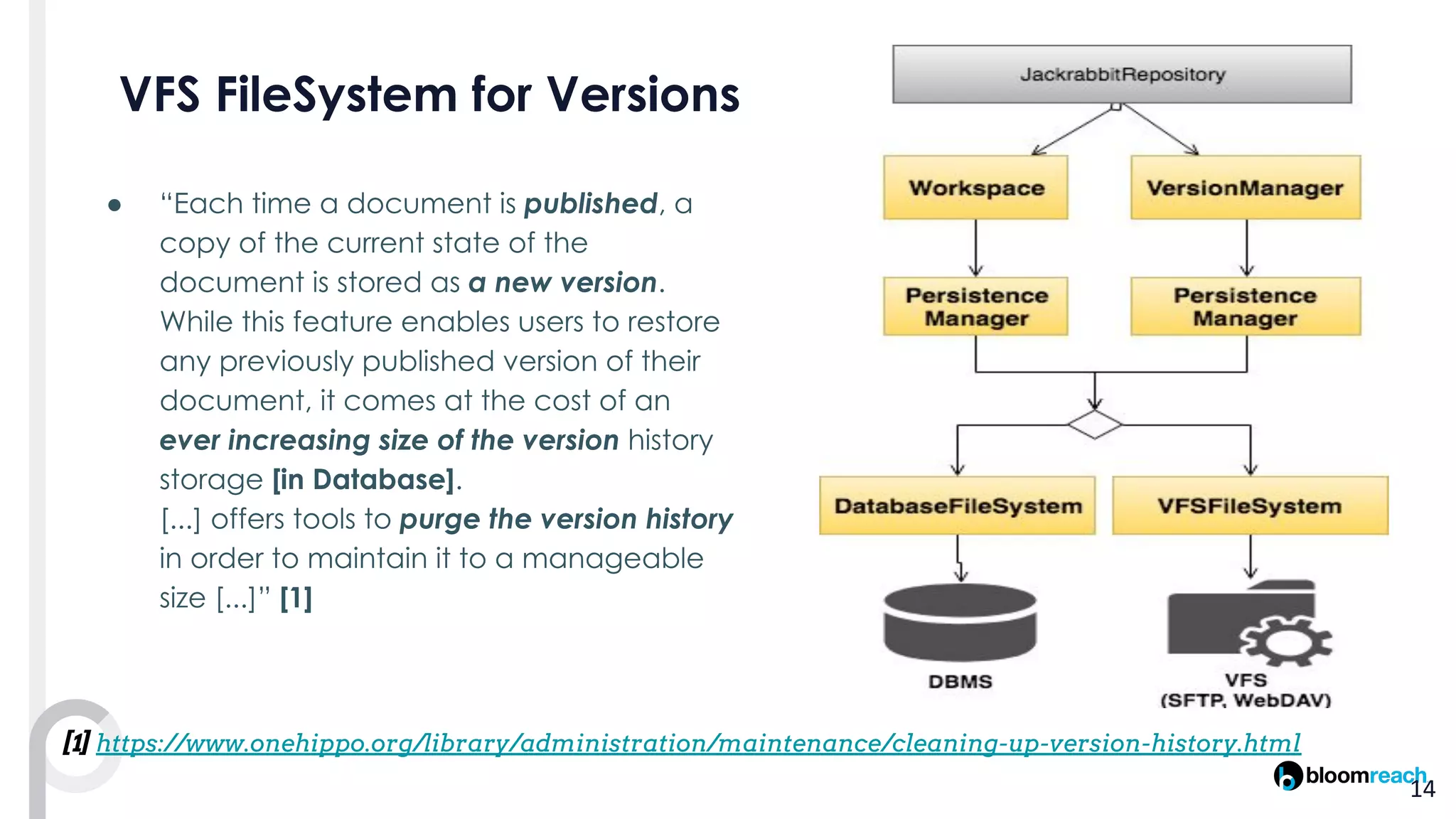

14. ●
[1] https://www.onehippo.org/library/administration/maintenance/cleaning-up-version-history.html

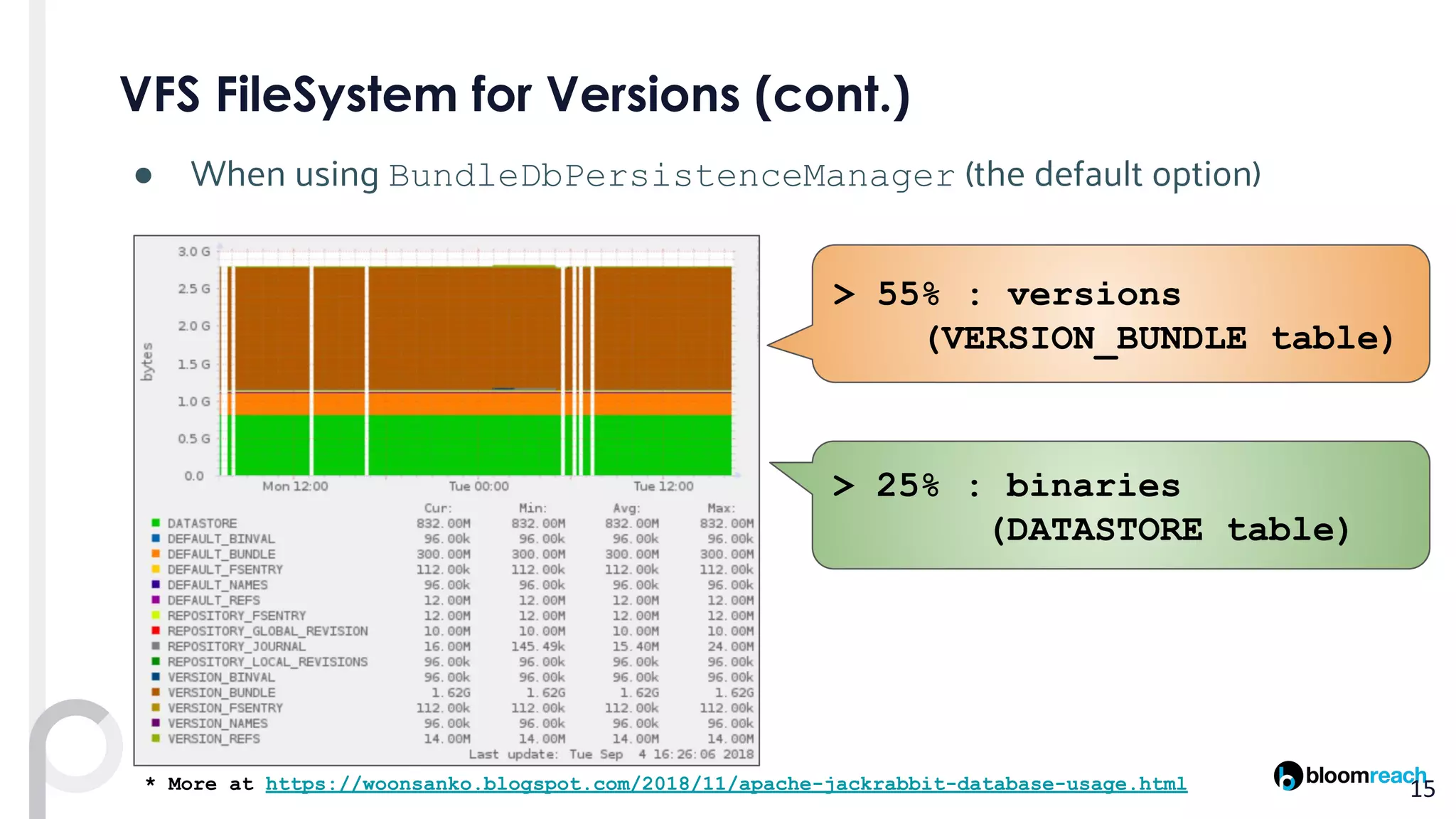

15. > 55% : versions
(VERSION_BUNDLE table)
● When using BundleDbPersistenceManager (the default option)
> 25% : binaries
(DATASTORE table)
* More at https://woonsanko.blogspot.com/2018/11/apache-jackrabbit-database-usage.html

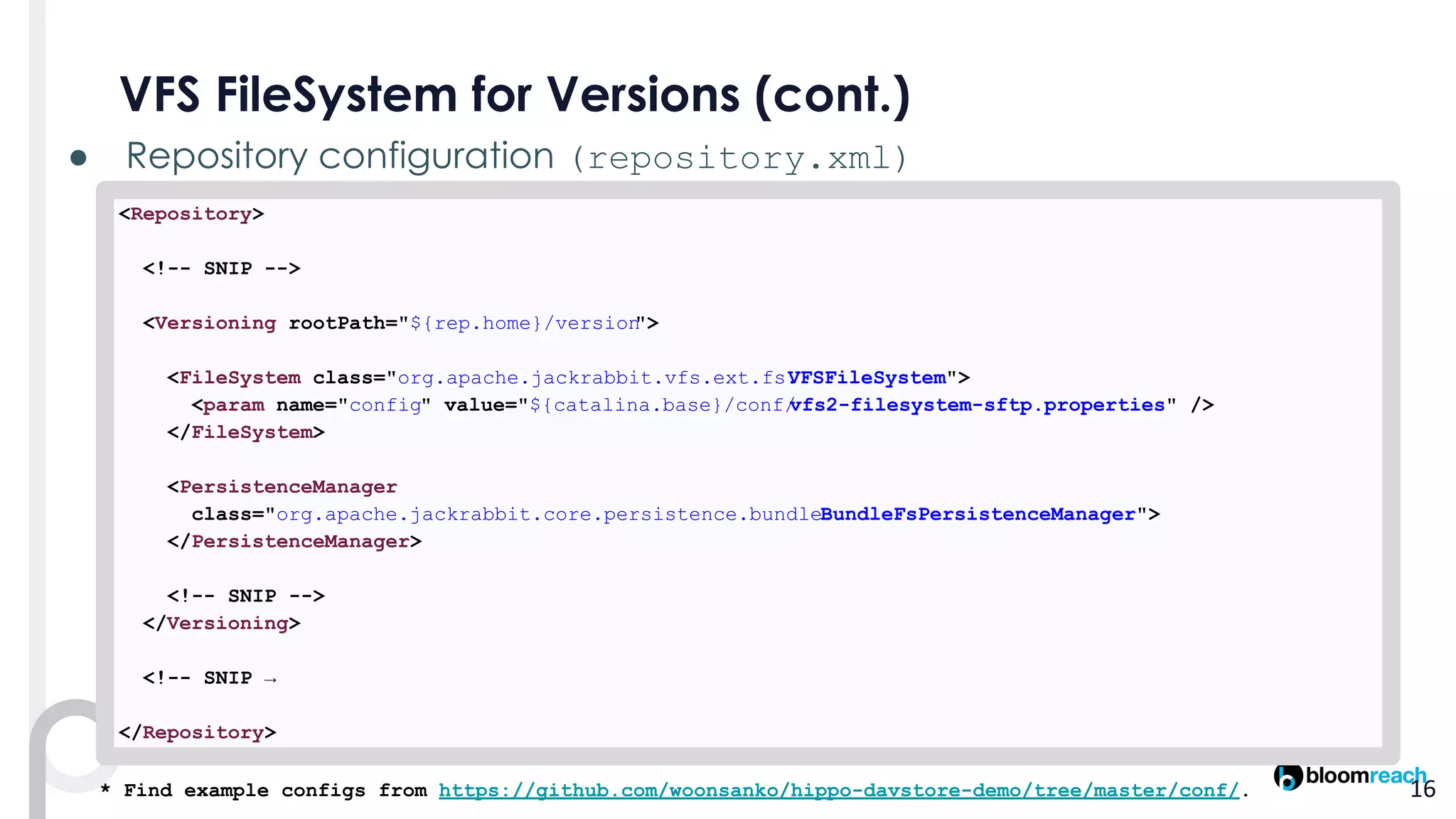

16. ● (repository.xml)
<Repository>
<!-- SNIP -->
<Versioning rootPath="${rep.home}/version">
<FileSystem class="org.apache.jackrabbit.vfs.ext.fs.VFSFileSystem">
<param name="config" value="${catalina.base}/conf/vfs2-filesystem-sftp.properties" />
</FileSystem>
<PersistenceManager
class="org.apache.jackrabbit.core.persistence.bundle.BundleFsPersistenceManager">
</PersistenceManager>
<!-- SNIP -->
</Versioning>
<!-- SNIP →
</Repository>
* Find example configs from https://github.com/woonsanko/hippo-davstore-demo/tree/master/conf/.

17. - The first project, FeedbackPlugin, started on 2008-01-11.
- boudekerk did the first SVN commit at 2008-01-15 14:20:15 CEST.
- arjecahn made the second commit on that day at 14:49 CEST.
- ...
- jeroenhoffman: “Moving to github is done!” at 2017-02-17 13:34:00 CEST.
- 32 active projects... welcoming your participation!
- ...

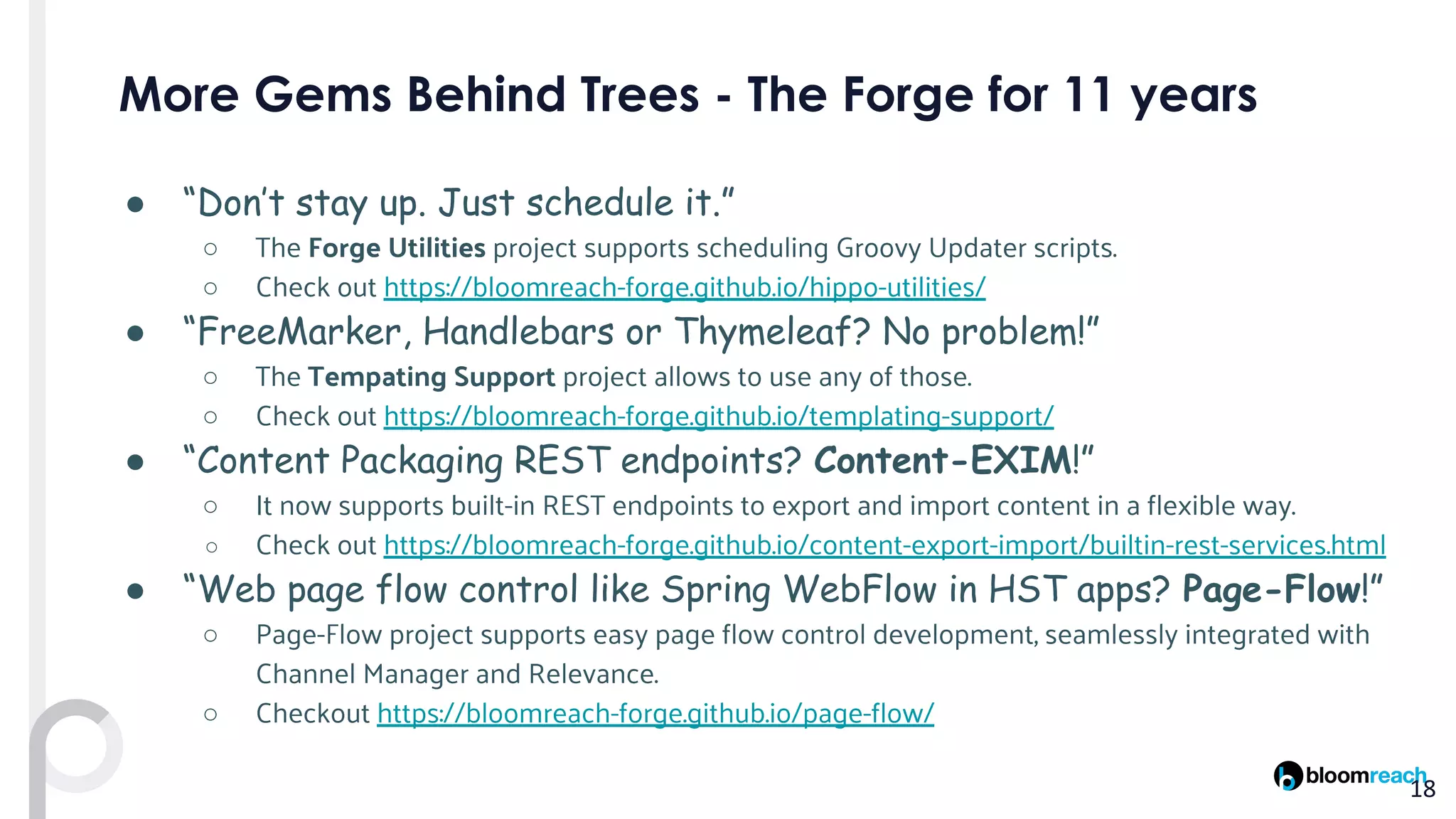

18. ● “Don’t stay up. Just schedule it.”
○ The Forge Utilities project supports scheduling Groovy Updater scripts.
○ Check out https://bloomreach-forge.github.io/hippo-utilities/
● “FreeMarker, Handlebars or Thymeleaf? No problem!”
○ The Tempating Support project allows to use any of those.
○ Check out https://bloomreach-forge.github.io/templating-support/
● “Content Packaging REST endpoints? Content-EXIM!”
○ It now supports built-in REST endpoints to export and import content in a flexible way.
○ Check out https://bloomreach-forge.github.io/content-export-import/builtin-rest-services.html
● “Web page flow control like Spring WebFlow in HST apps? Page-Flow!”
○ Page-Flow project supports easy page flow control development, seamlessly integrated with
Channel Manager and Relevance.
○ Checkout https://bloomreach-forge.github.io/page-flow/

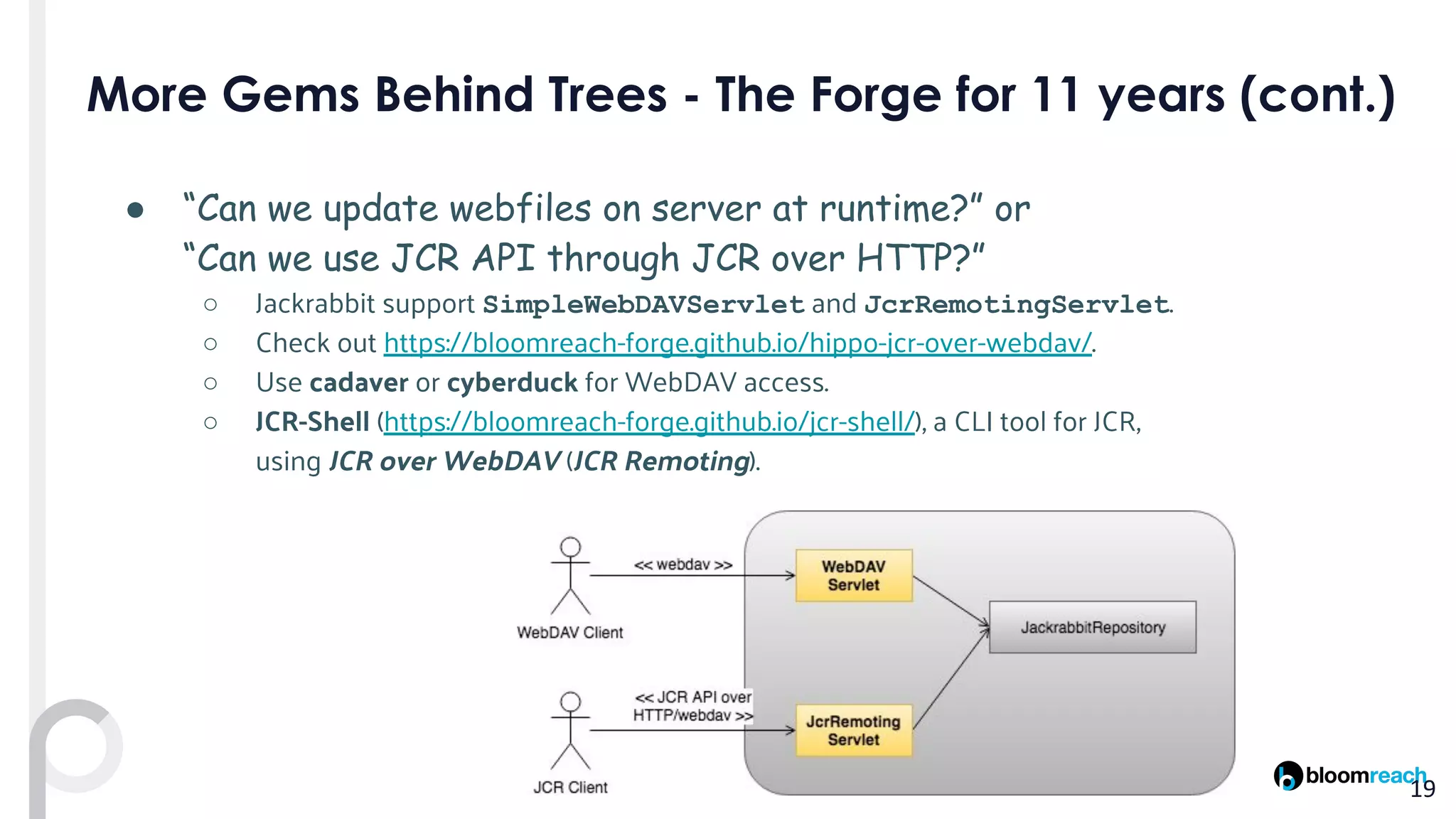

19. ● “Can we update webfiles on server at runtime?” or
“Can we use JCR API through JCR over HTTP?”
○ Jackrabbit support SimpleWebDAVServlet and JcrRemotingServlet.
○ Check out https://bloomreach-forge.github.io/hippo-jcr-over-webdav/.
○ Use cadaver or cyberduck for WebDAV access.
○ JCR-Shell (https://bloomreach-forge.github.io/jcr-shell/), a CLI tool for JCR,
using JCR over WebDAV (JCR Remoting).

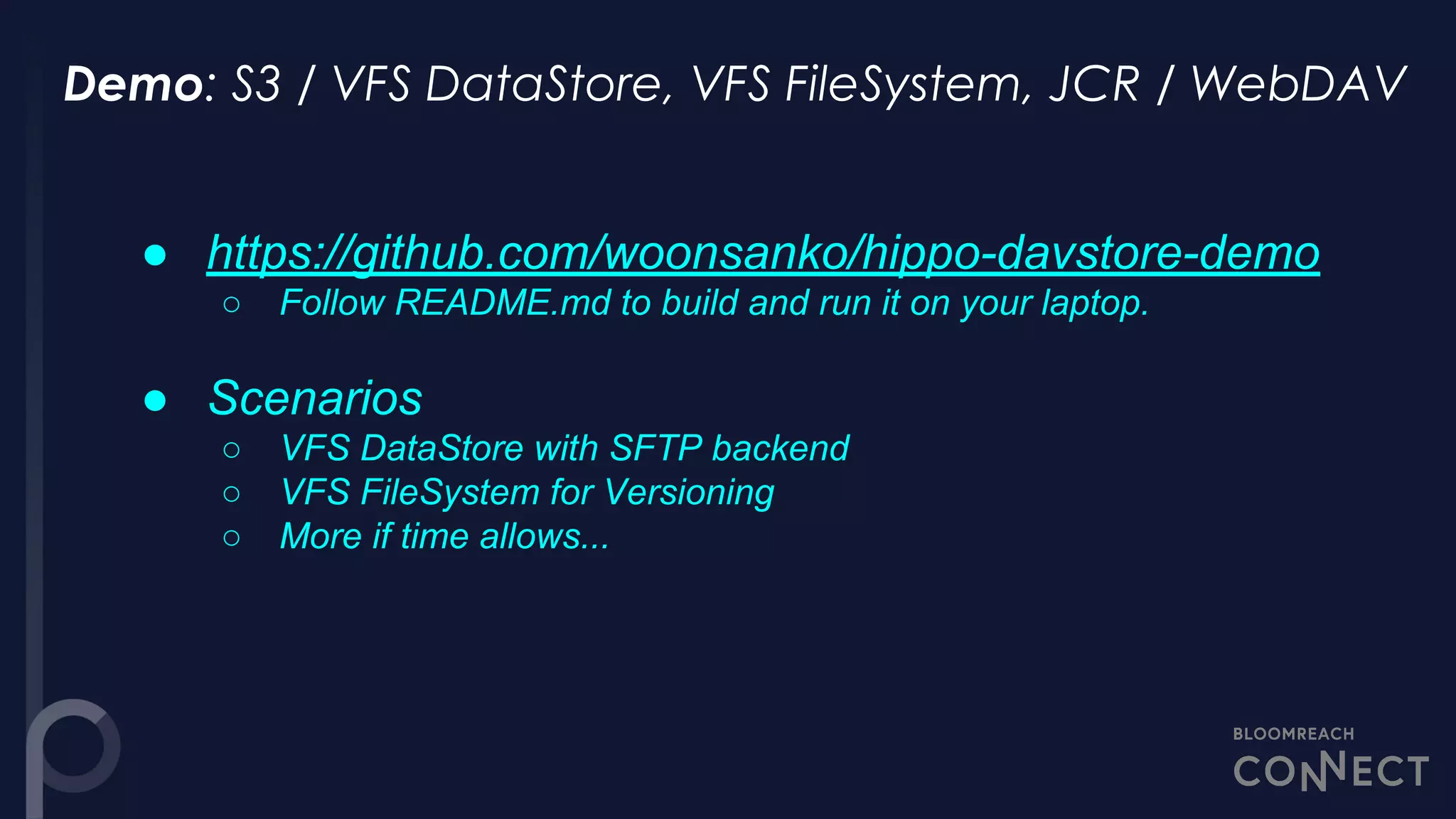

20. ● https://github.com/woonsanko/hippo-davstore-demo
○ Follow README.md to build and run it on your laptop.
● Scenarios
○ VFS DataStore with SFTP backend
○ VFS FileSystem for Versioning
○ More if time allows...

21. https://bloomreach-forge.github.io/
https://github.com/bloomreach-forge

22. ...
● jackrabbit.apache.org
● developers.bloomreach.com / www.onehippo.org
● bloomreach-forge.github.io/
