Building Progressive UIs with Grails
- 1. Building Progressive UIs with Grails Rob Fletcher Energized Work
- 2. Who am I?

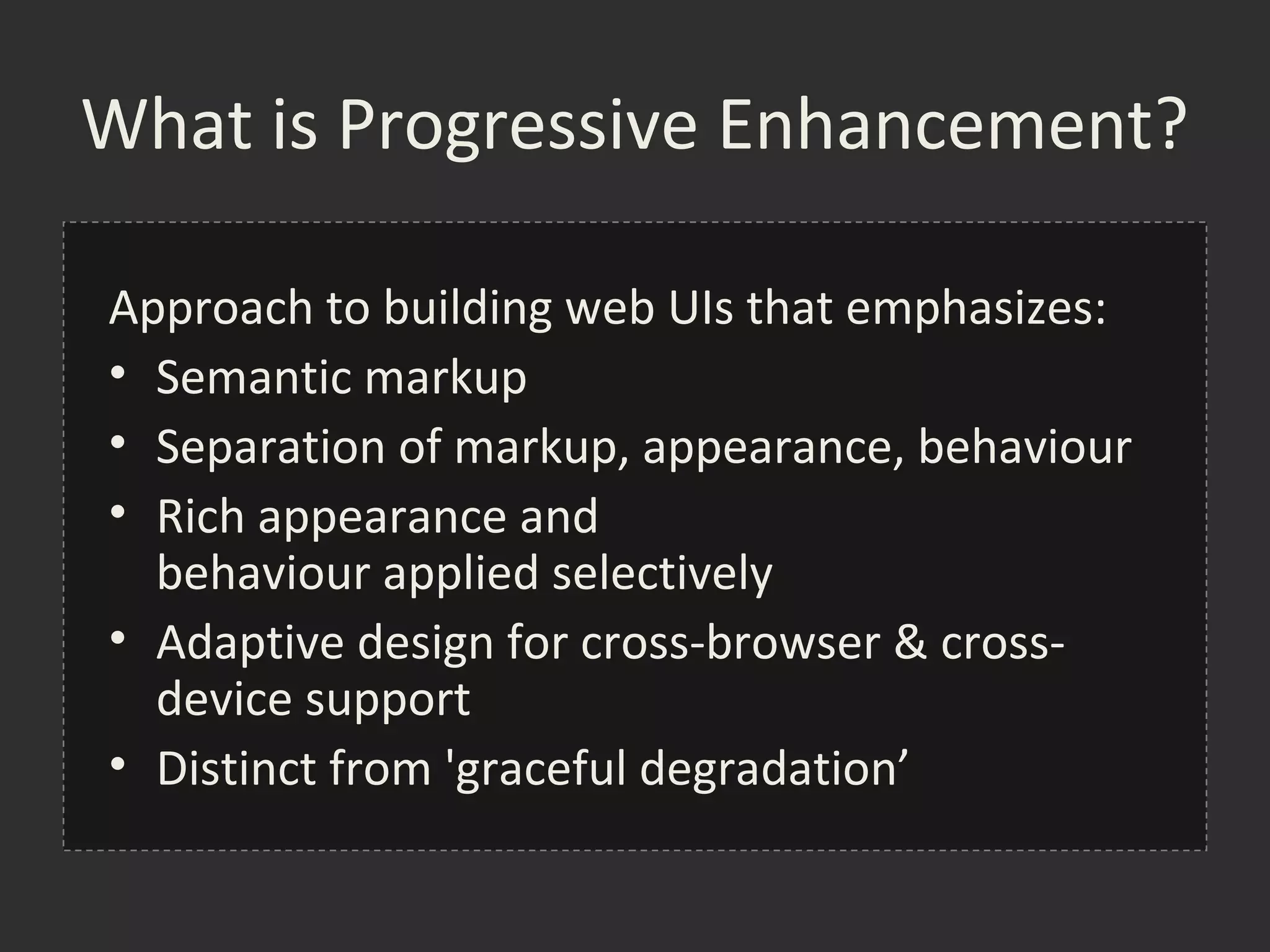

- 4. What is Progressive Enhancement? Approach to building web UIs that emphasizes: • Semantic markup • Separation of markup, appearance, behaviour • Rich appearance and behaviour applied selectively • Adaptive design for cross-browser & cross- device support • Distinct from 'graceful degradation’
- 5. Designing with Progressive Enhancement http://filamentgroup.com/dwpe/

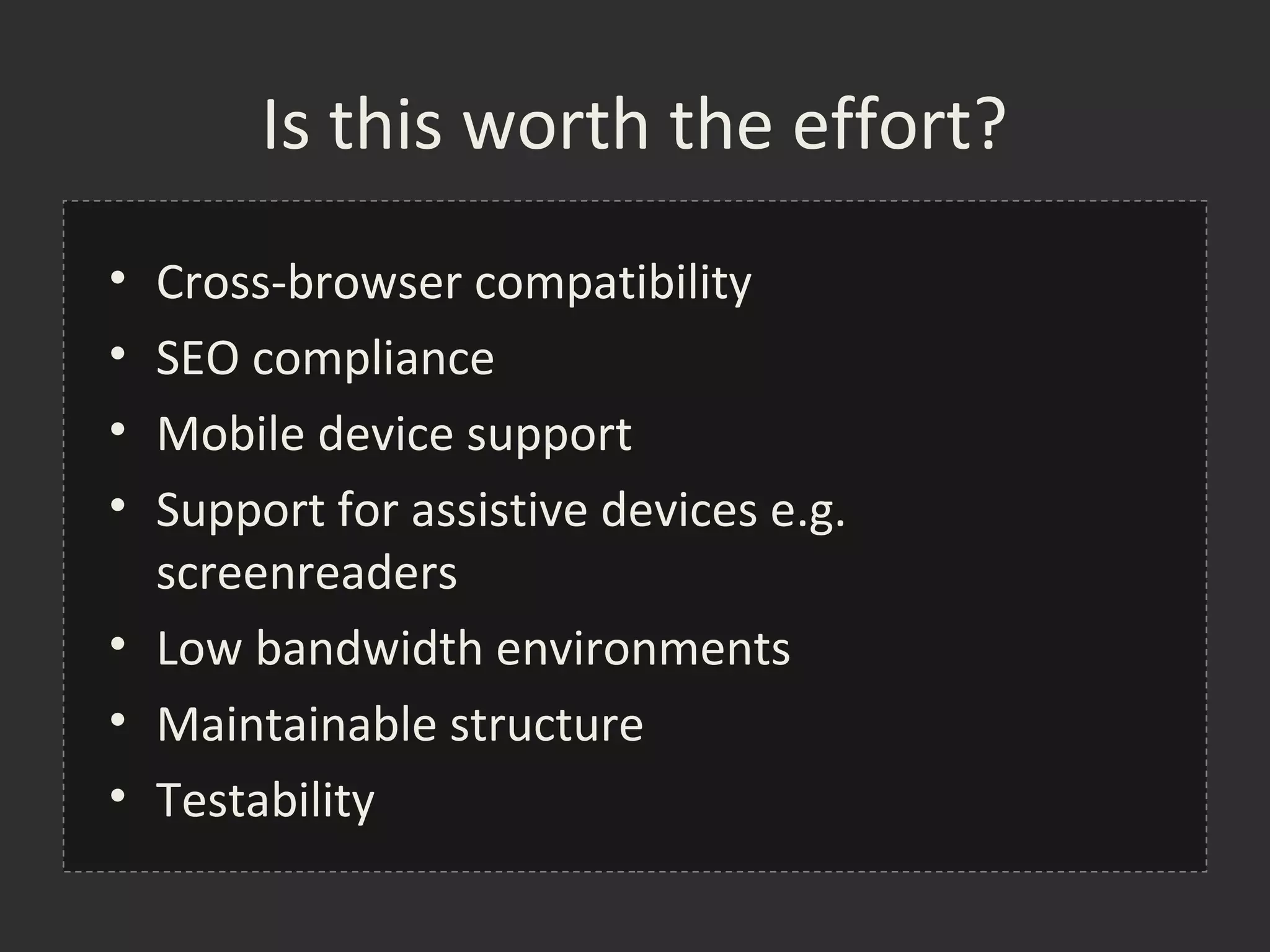

- 6. Is this worth the effort? • Cross-browser compatibility • SEO compliance • Mobile device support • Support for assistive devices e.g. screenreaders • Low bandwidth environments • Maintainable structure • Testability

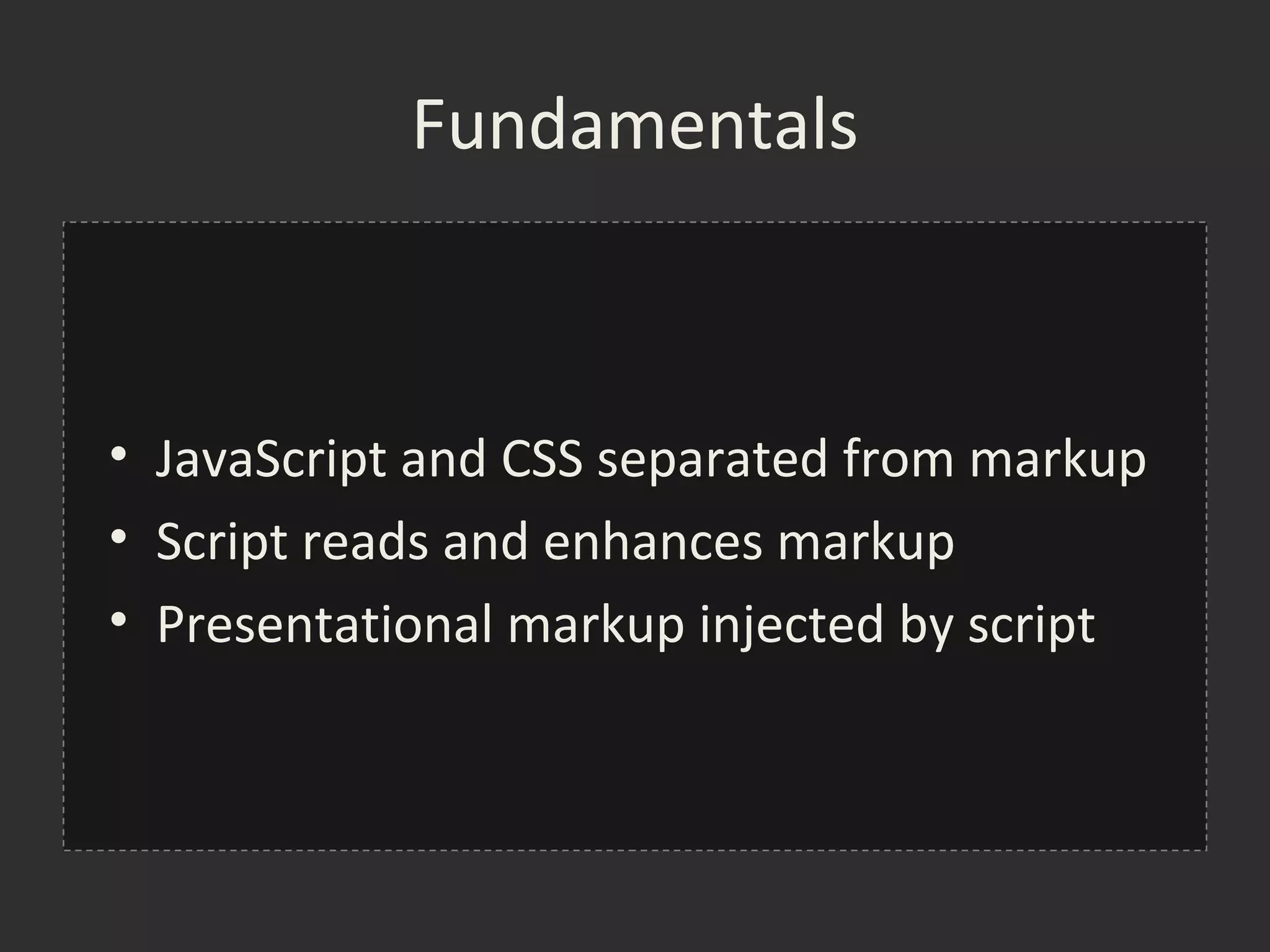

- 7. Fundamentals • JavaScript and CSS separated from markup • Script reads and enhances markup • Presentational markup injected by script

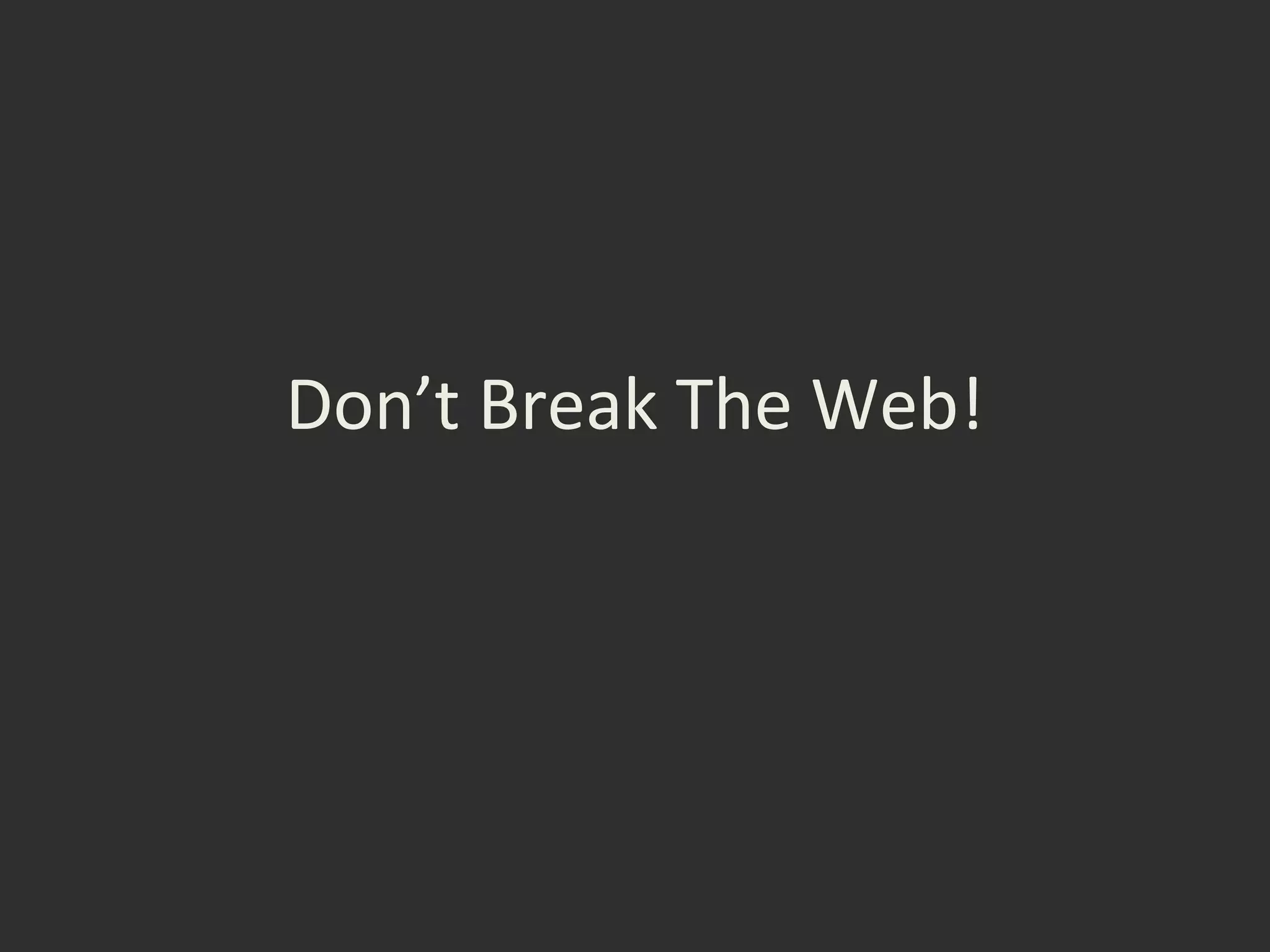

- 9. Don’t Break The Web!

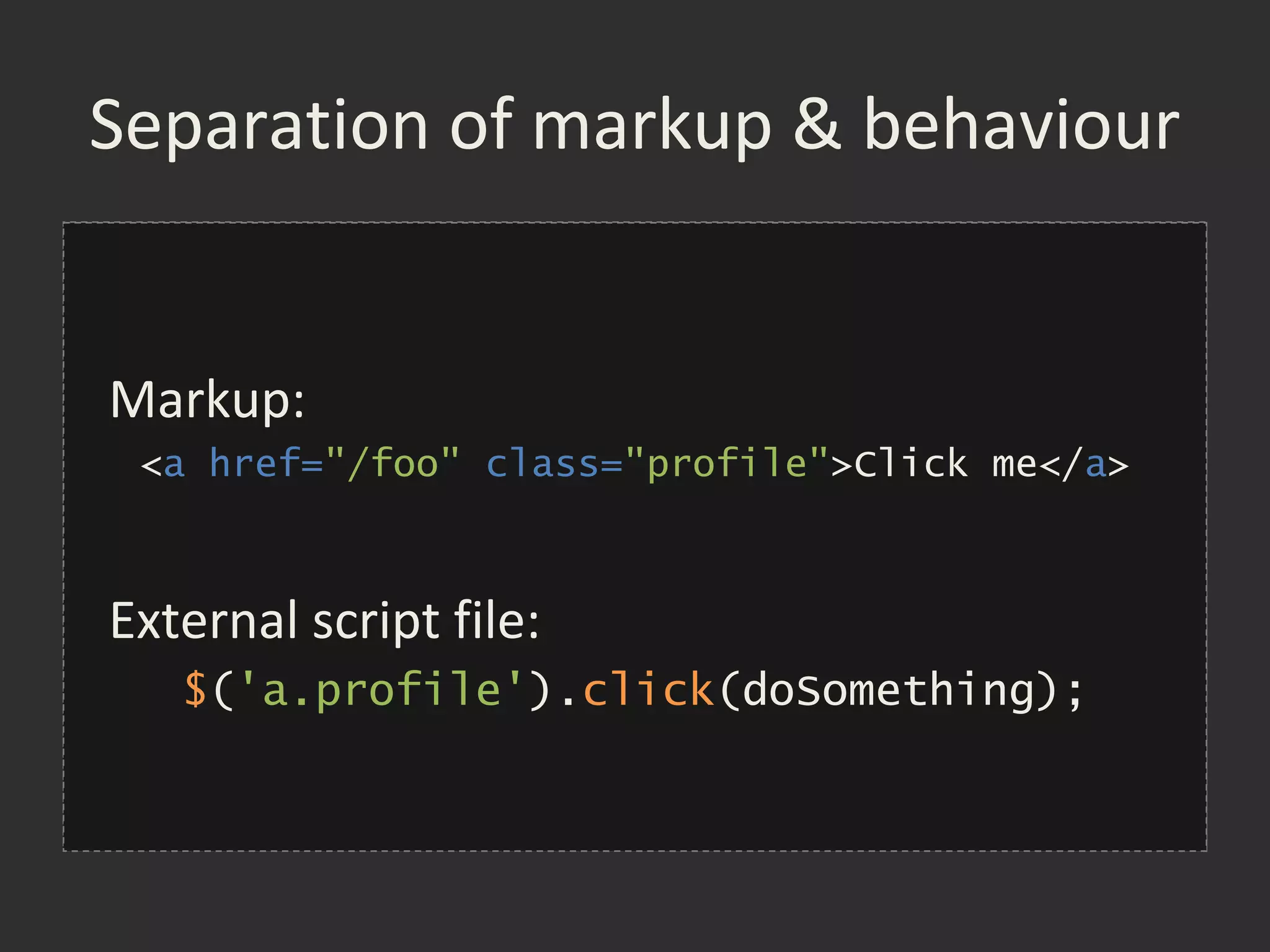

- 10. Separation of markup & behaviour Markup: <a href="/foo” class="profile">Click me</a> <a href="/foo" onclick="return doSomething()"> Click me External script file: </a> $('a.profile').click(doSomething);

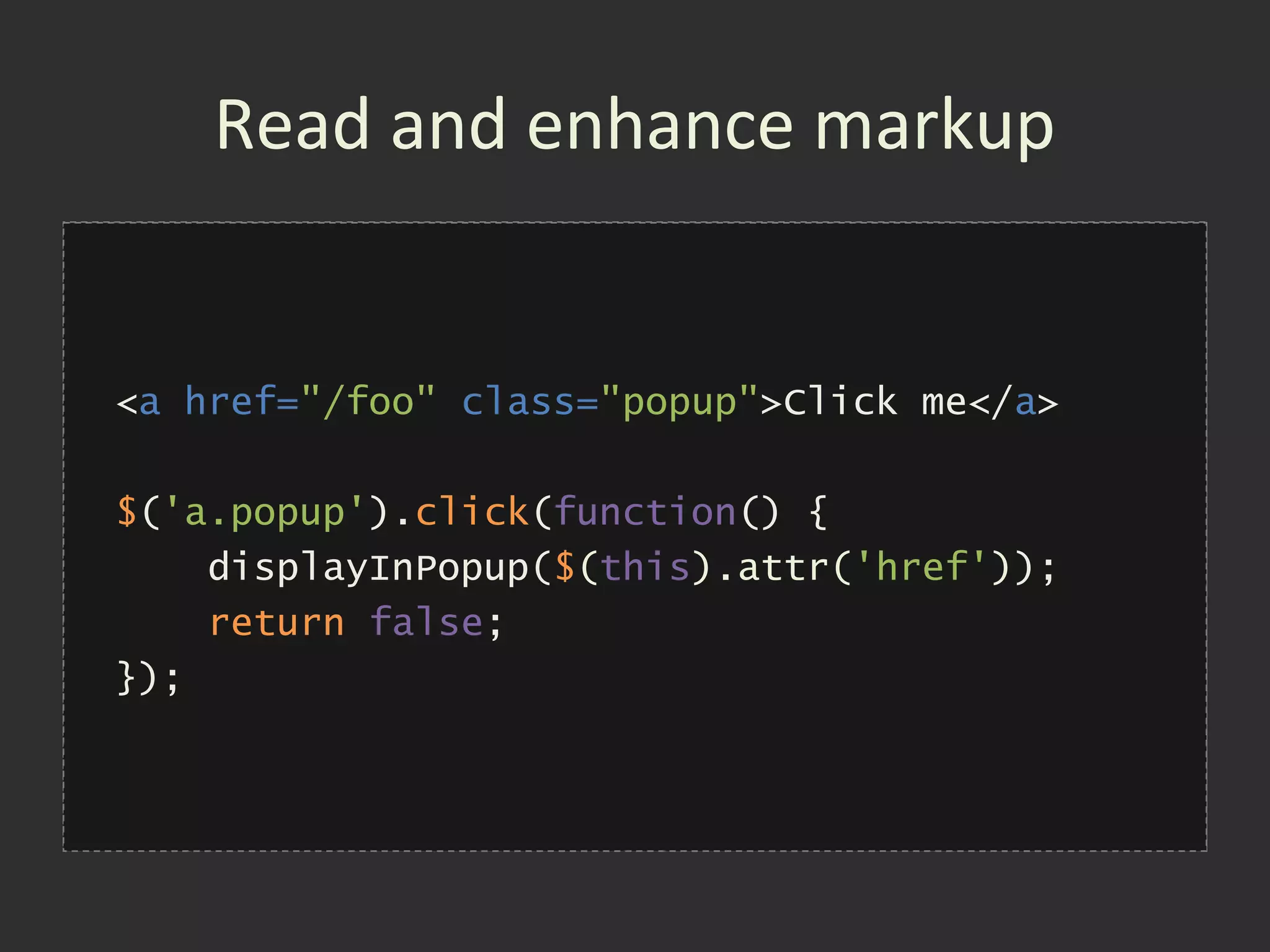

- 11. Read and enhance markup <a href="/foo" class="popup">Click me</a> $('a.popup').click(function() { displayInPopup('/foo'); displayInPopup($(this).attr('href')); return false; });

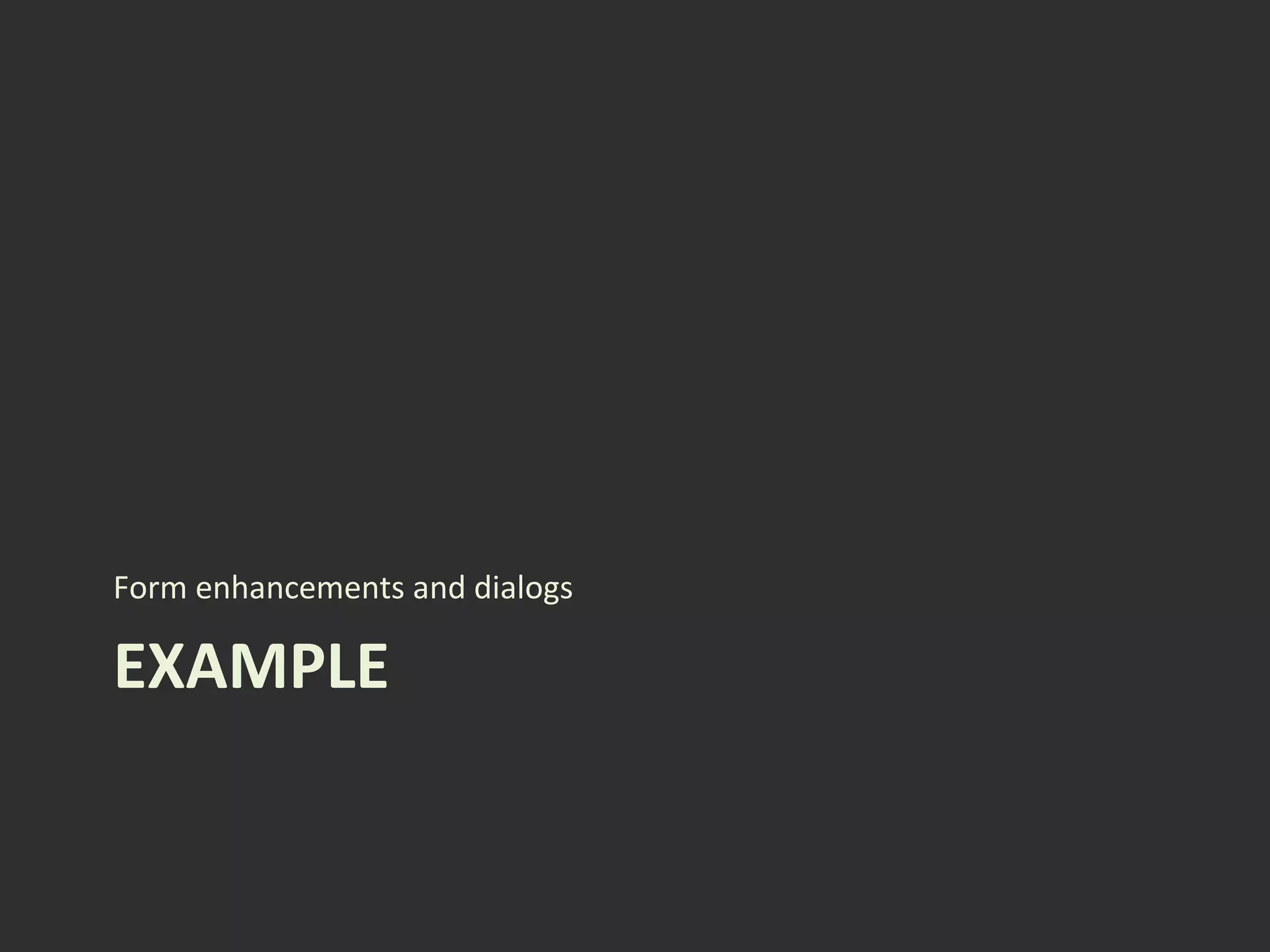

- 12. Form enhancements and dialogs EXAMPLE

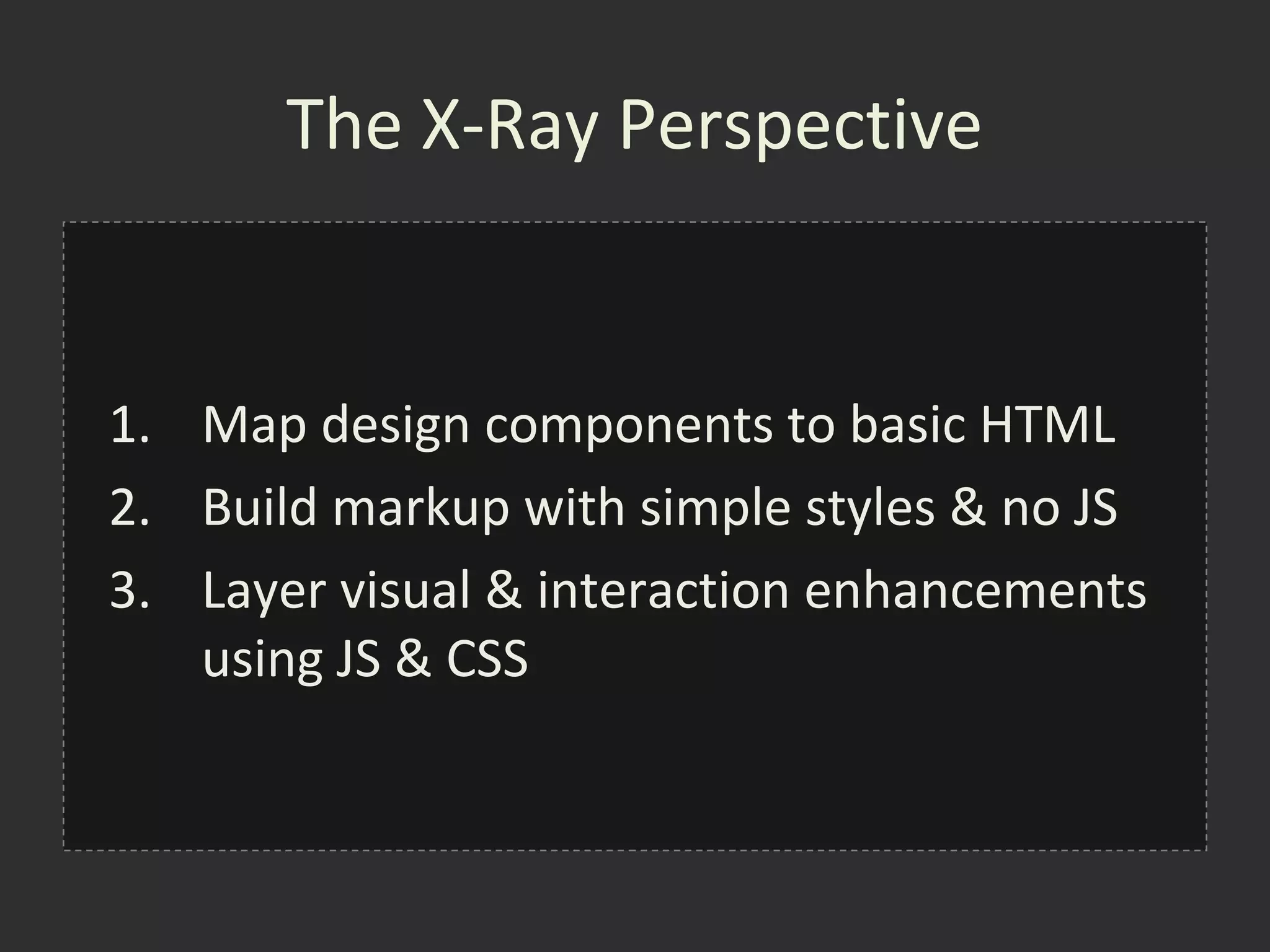

- 13. The X-Ray Perspective 1. Map design components to basic HTML 2. Build markup with simple styles & no JS 3. Layer visual & interaction enhancements using JS & CSS

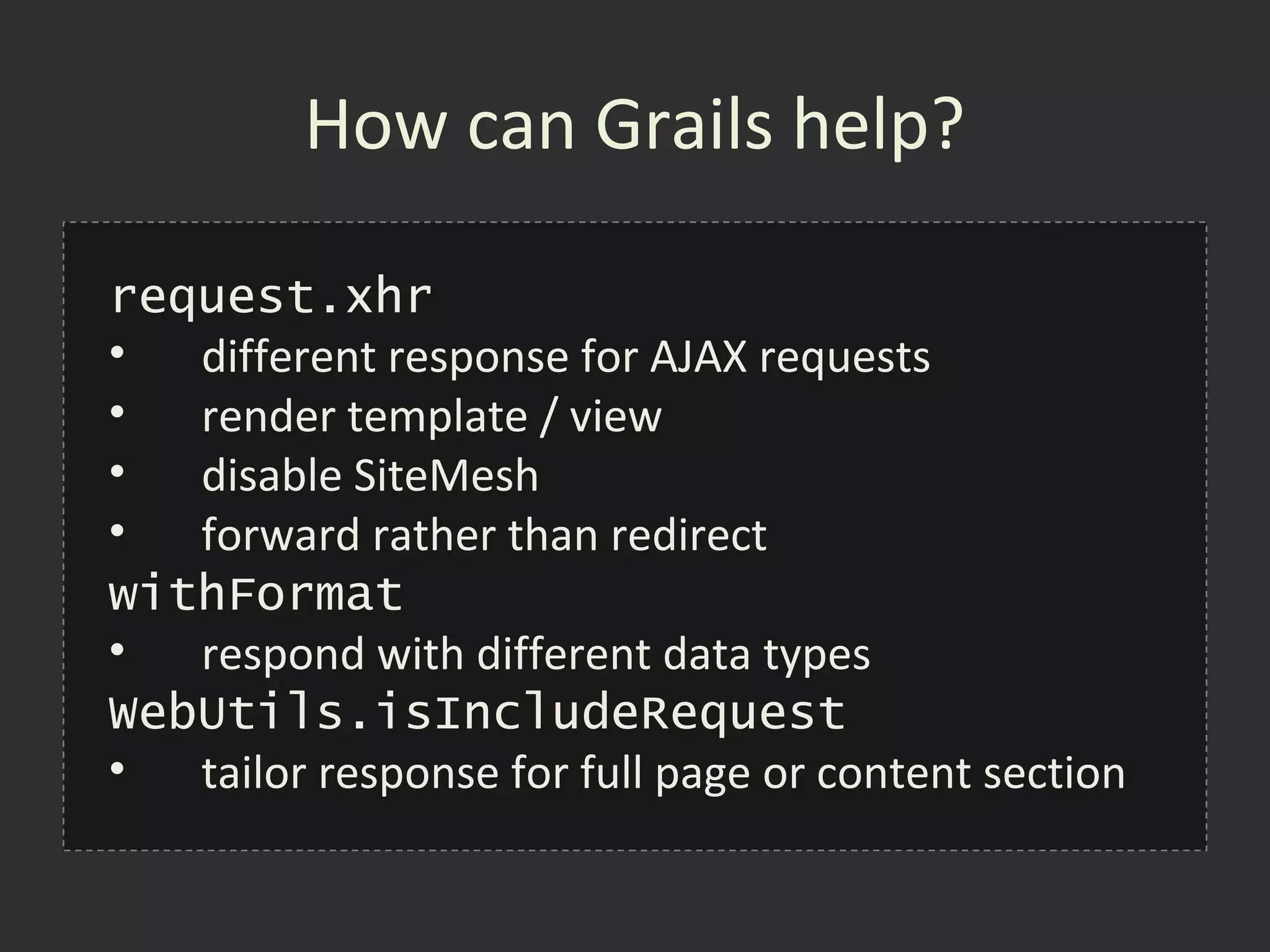

- 15. How can Grails help? request.xhr • different response for AJAX requests • render template / view • disable SiteMesh • forward rather than redirect withFormat • respond with different data types WebUtils.isIncludeRequest • tailor response for full page or content section

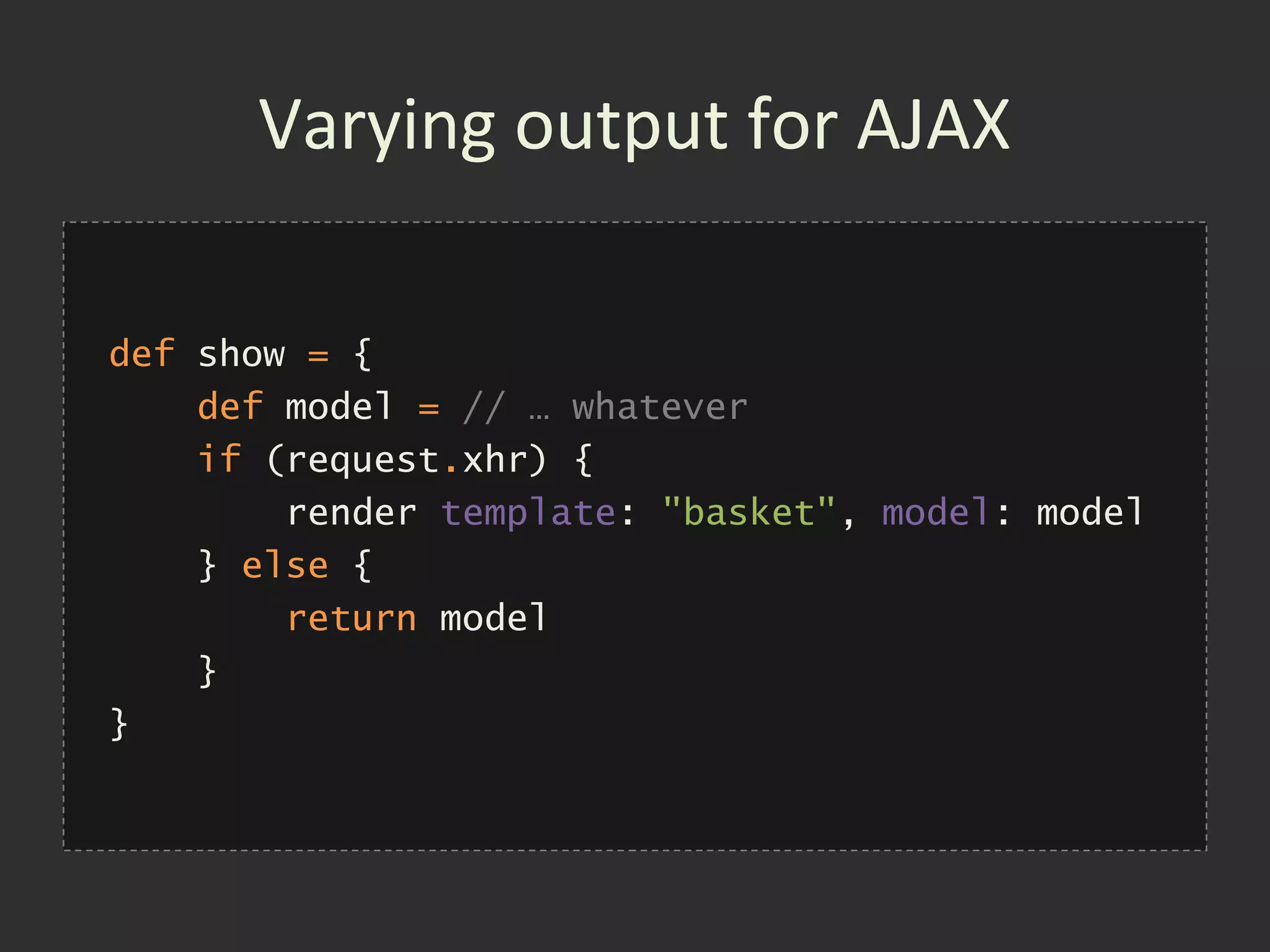

- 16. Varying output for AJAX def show = { def model = // … whatever if (request.xhr) { render template: "basket", model: model } else { return model } }

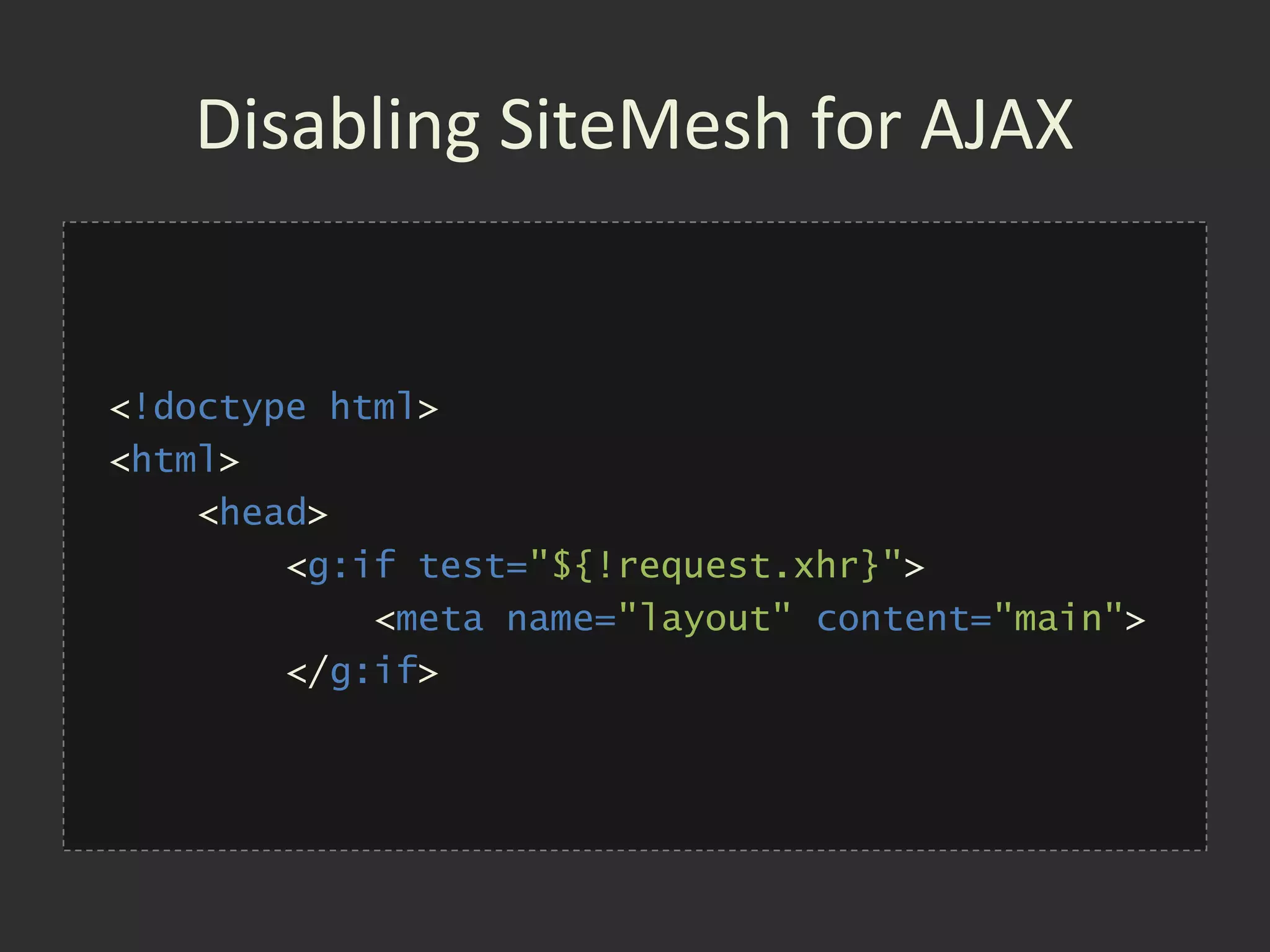

- 17. Disabling SiteMesh for AJAX <!doctype html> <html> <head> <g:if test="${!request.xhr}"> <meta name="layout" content="main"> </g:if>

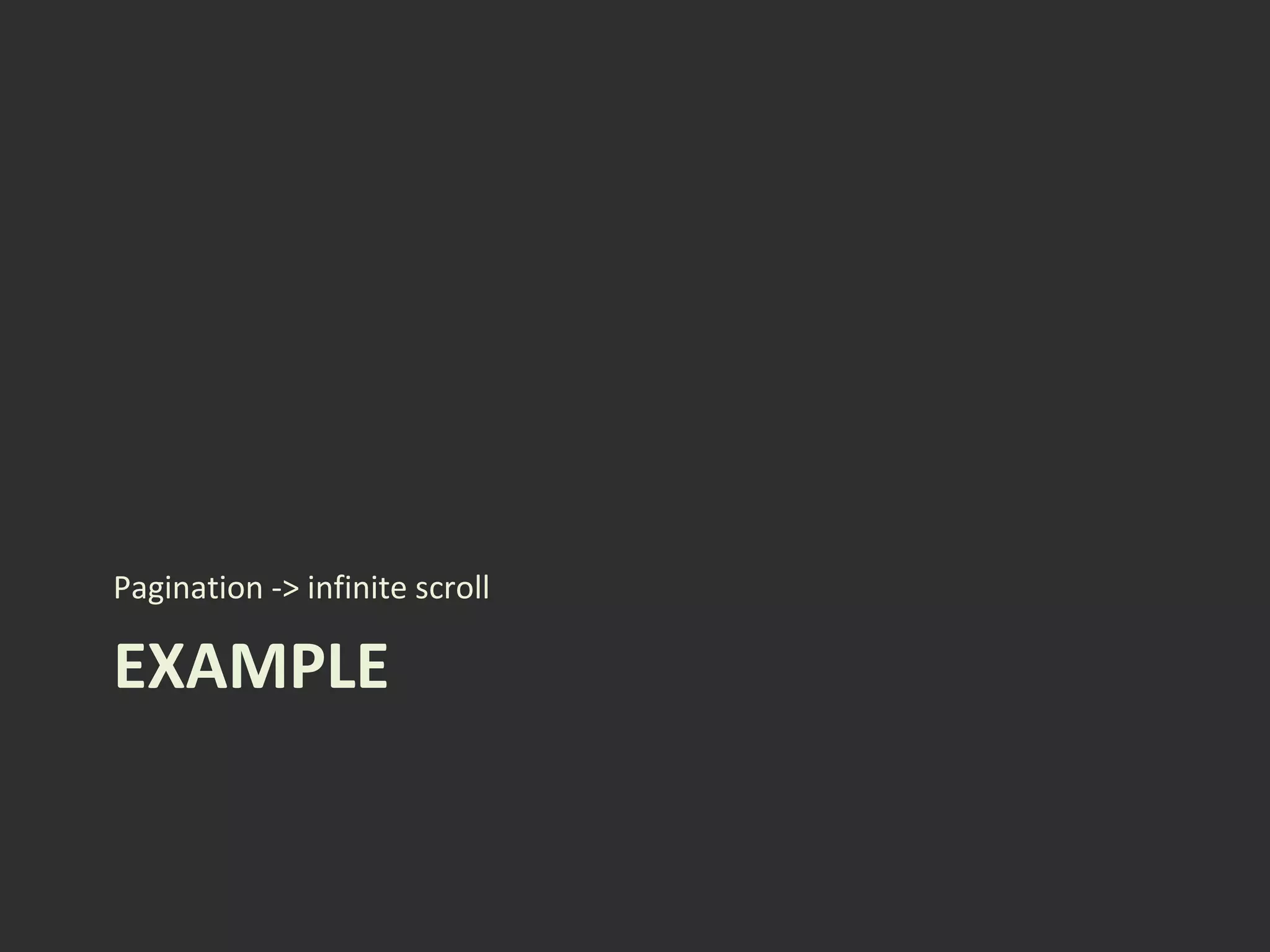

- 18. Pagination -> infinite scroll EXAMPLE

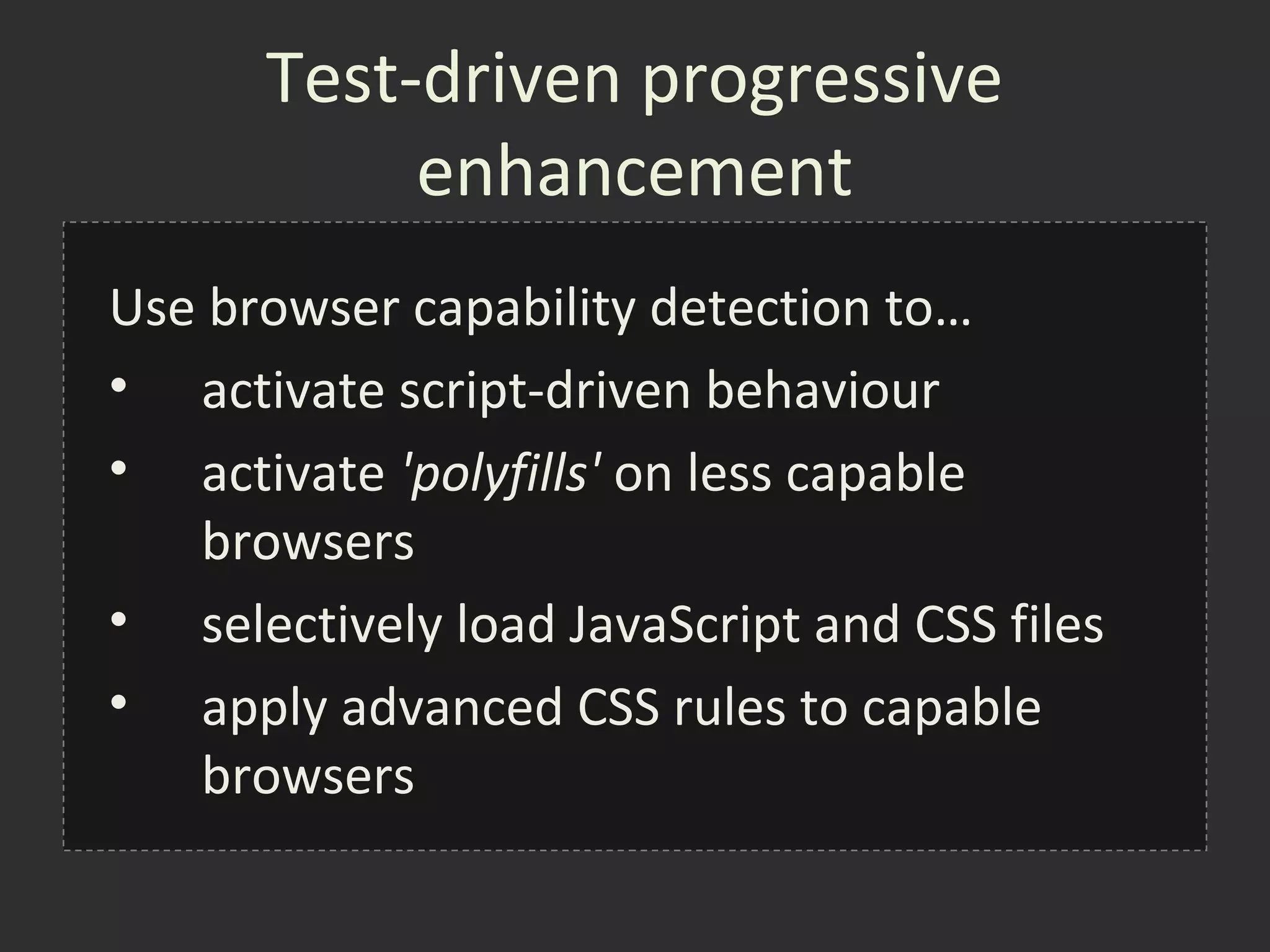

- 19. Test-driven progressive enhancement Use browser capability detection to… • activate script-driven behaviour • activate 'polyfills' on less capable browsers • selectively load JavaScript and CSS files • apply advanced CSS rules to capable browsers

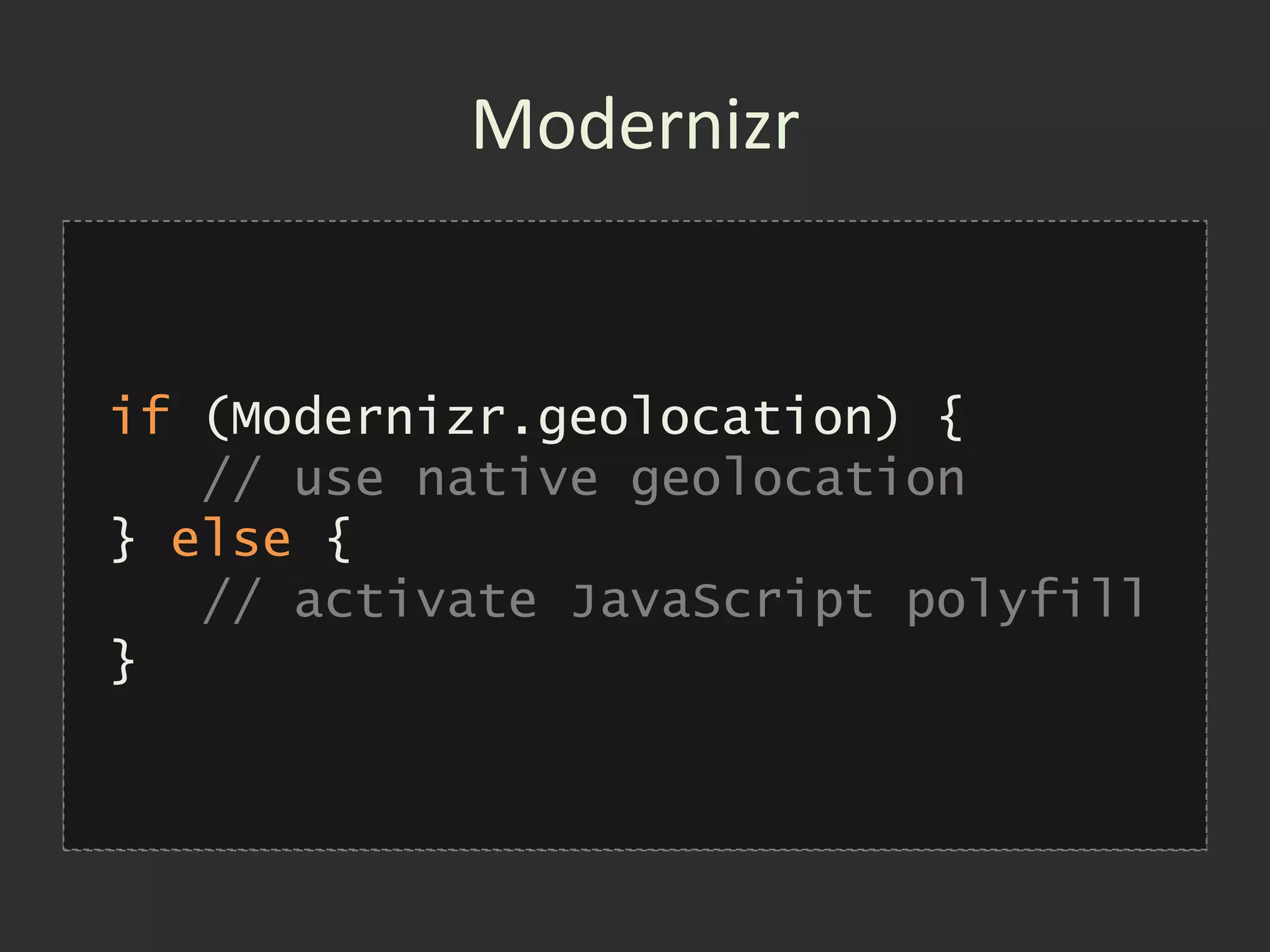

- 20. Modernizr <html class="js flexbox canvas canvastext webgl no-touch geolocation postmessage no-websqldatabase indexeddb hashchange .dialog { if (Modernizr.geolocation) { rgba history draganddrop no-websockets background-color: #ccc; hsla multiplebgs backgroundsize // use native geolocation borderimage borderradius boxshadow } } else { textshadow opacity no-cssanimations .rgba .dialog cssgradients no-cssreflections csscolumns { // activate JavaScript polyfill csstransforms no-csstransforms3d0, 0.3); background-color: rgba(0, 0, } csstransitions fontface video audio } localstorage sessionstorage webworkers applicationcache svg inlinesvg smil svgclippaths">

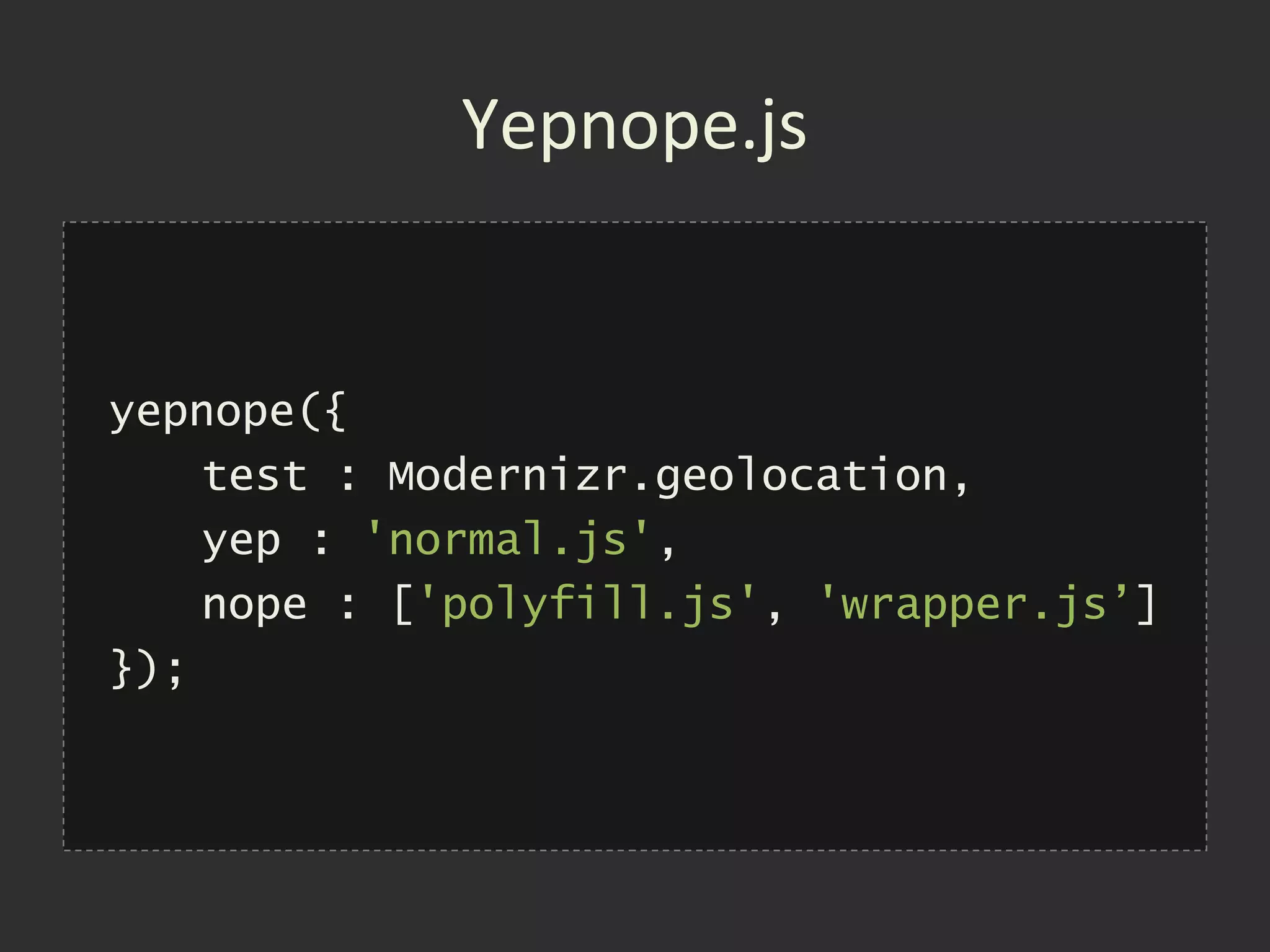

- 22. Yepnope.js yepnope({ test : Modernizr.geolocation, yep : 'normal.js', nope : ['polyfill.js', 'wrapper.js’] });

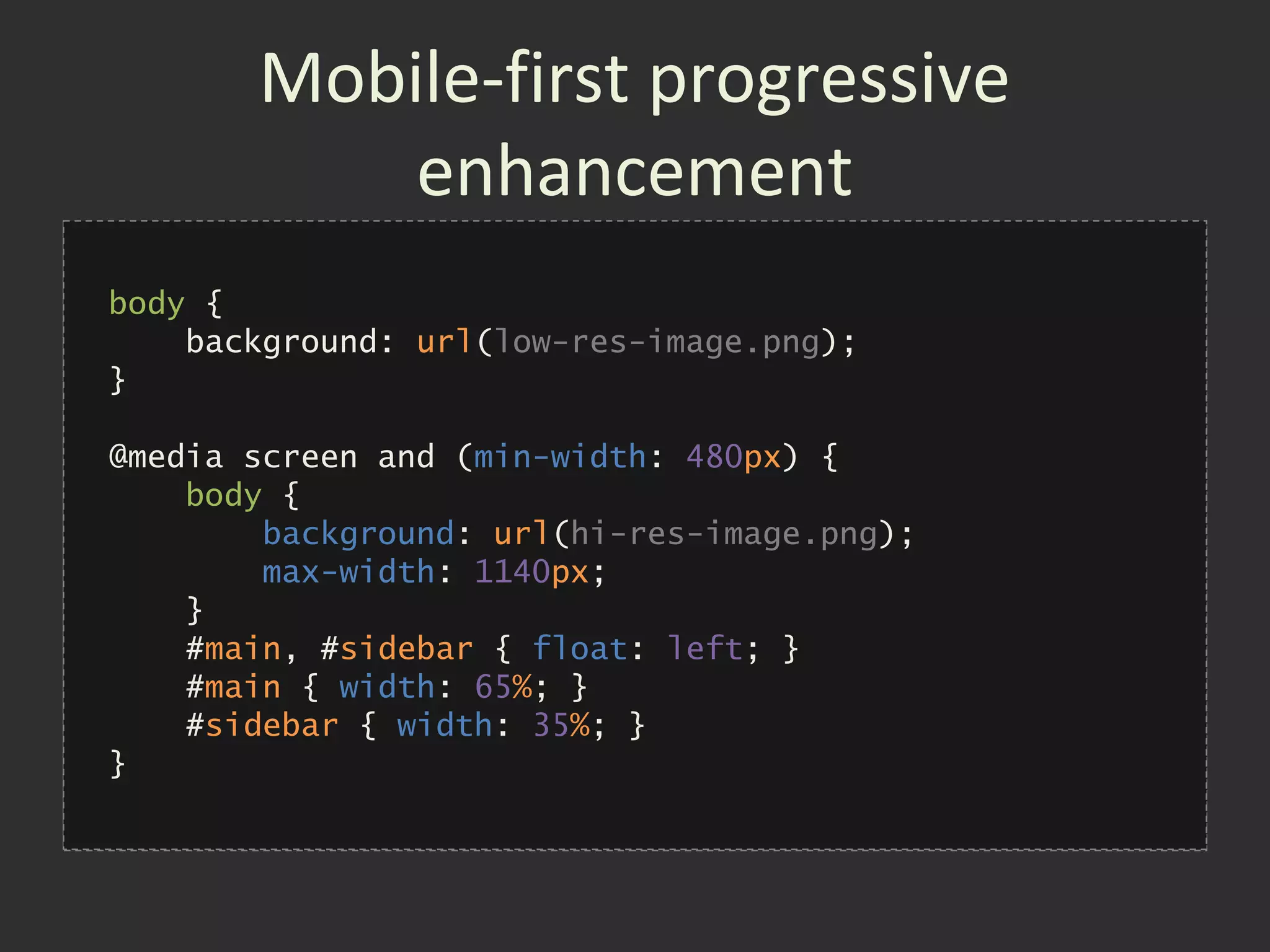

- 24. Mobile-first progressive enhancement body { background: url(low-res-image.png); } • Build for mobile devices first @media screen and (min-width: 480px) { • Layer up to desktop using media queries body { background: url(hi-res-image.png); • }Prevent large images & supplementary max-width: 1140px; content sections loading #main, #sidebar { float: left; } #main { width: 65%; } #sidebar { width: 35%; } }

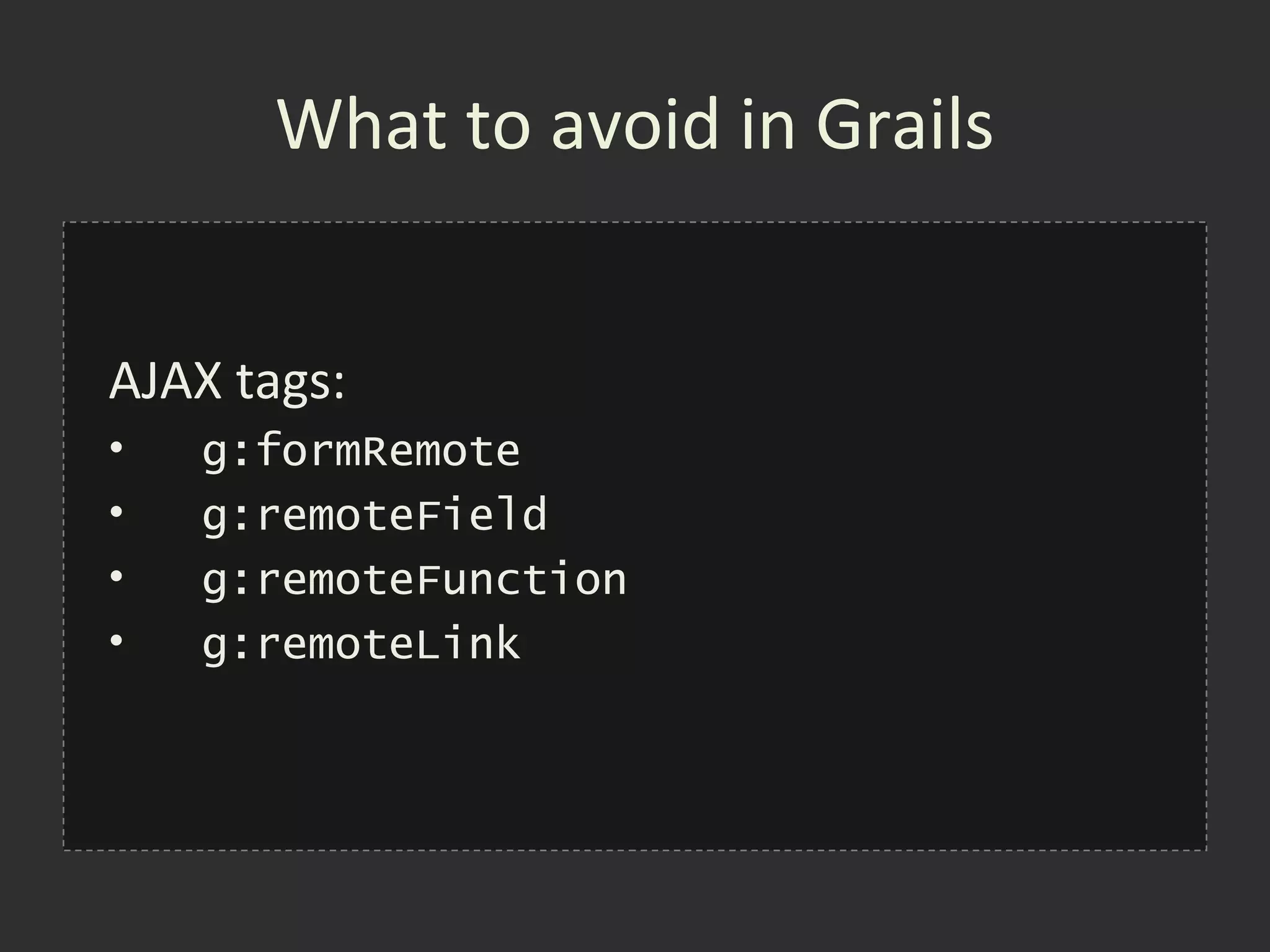

- 25. What to avoid in Grails AJAX tags: • g:formRemote • g:remoteField • g:remoteFunction • g:remoteLink

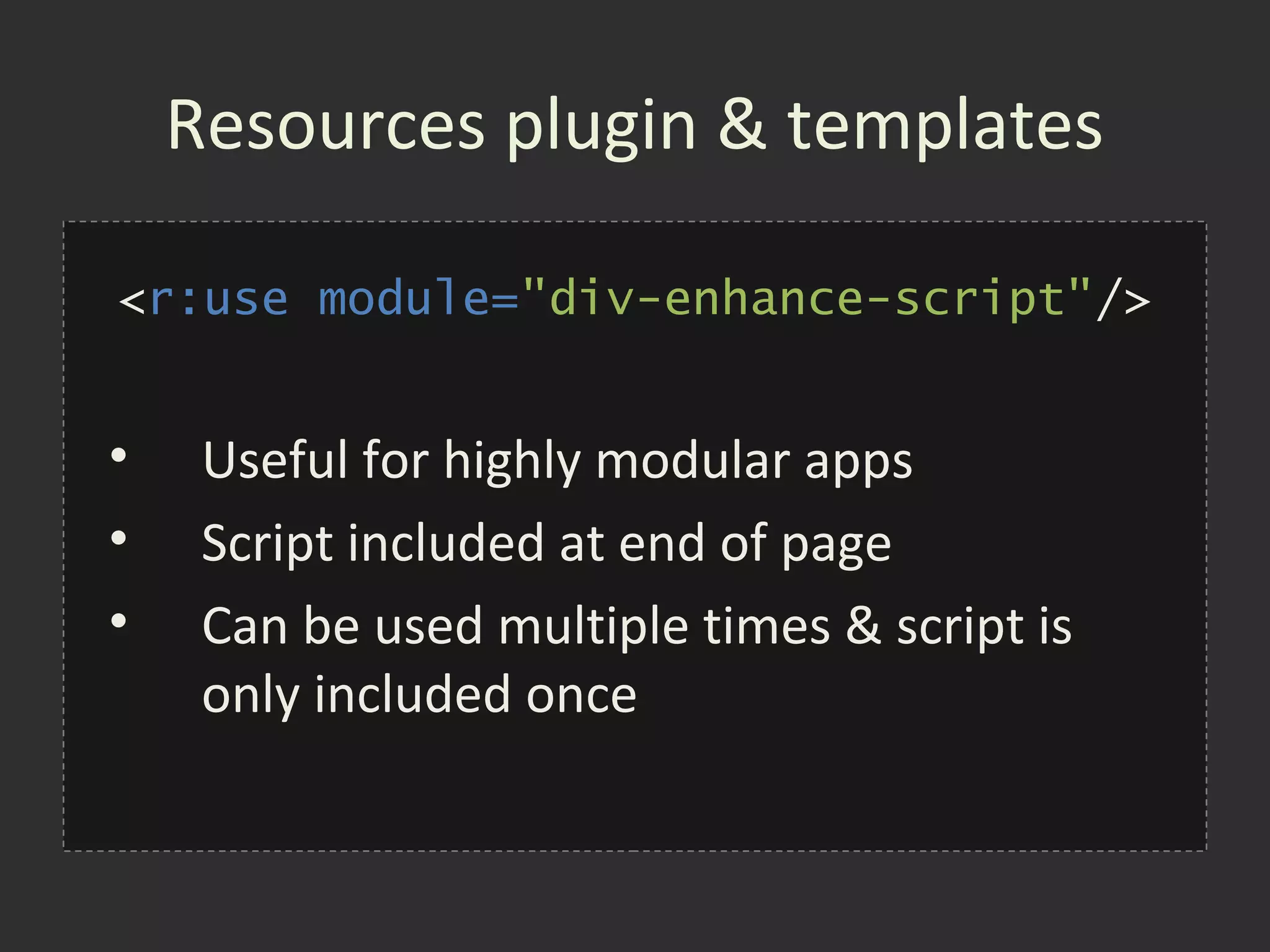

- 26. Resources plugin & templates <r:use module="div-enhance-script"/> • Useful for highly modular apps • Script included at end of page • Can be used multiple times & script is only included once

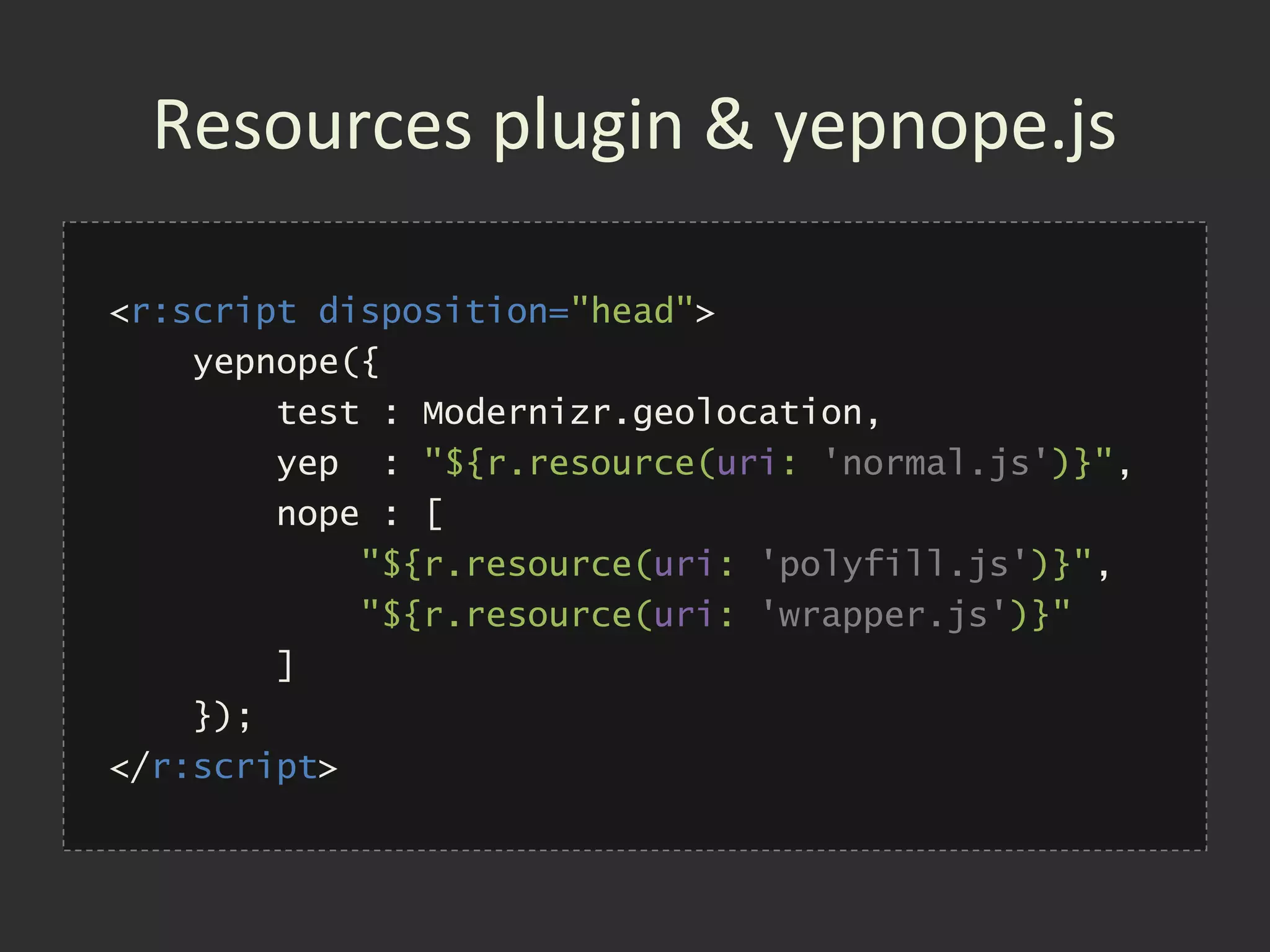

- 27. Resources plugin & yepnope.js <r:script disposition="head"> yepnope({ test : Modernizr.geolocation, yep : "${r.resource(uri: 'normal.js')}", nope : [ "${r.resource(uri: 'polyfill.js')}", "${r.resource(uri: 'wrapper.js')}" ] }); </r:script>
