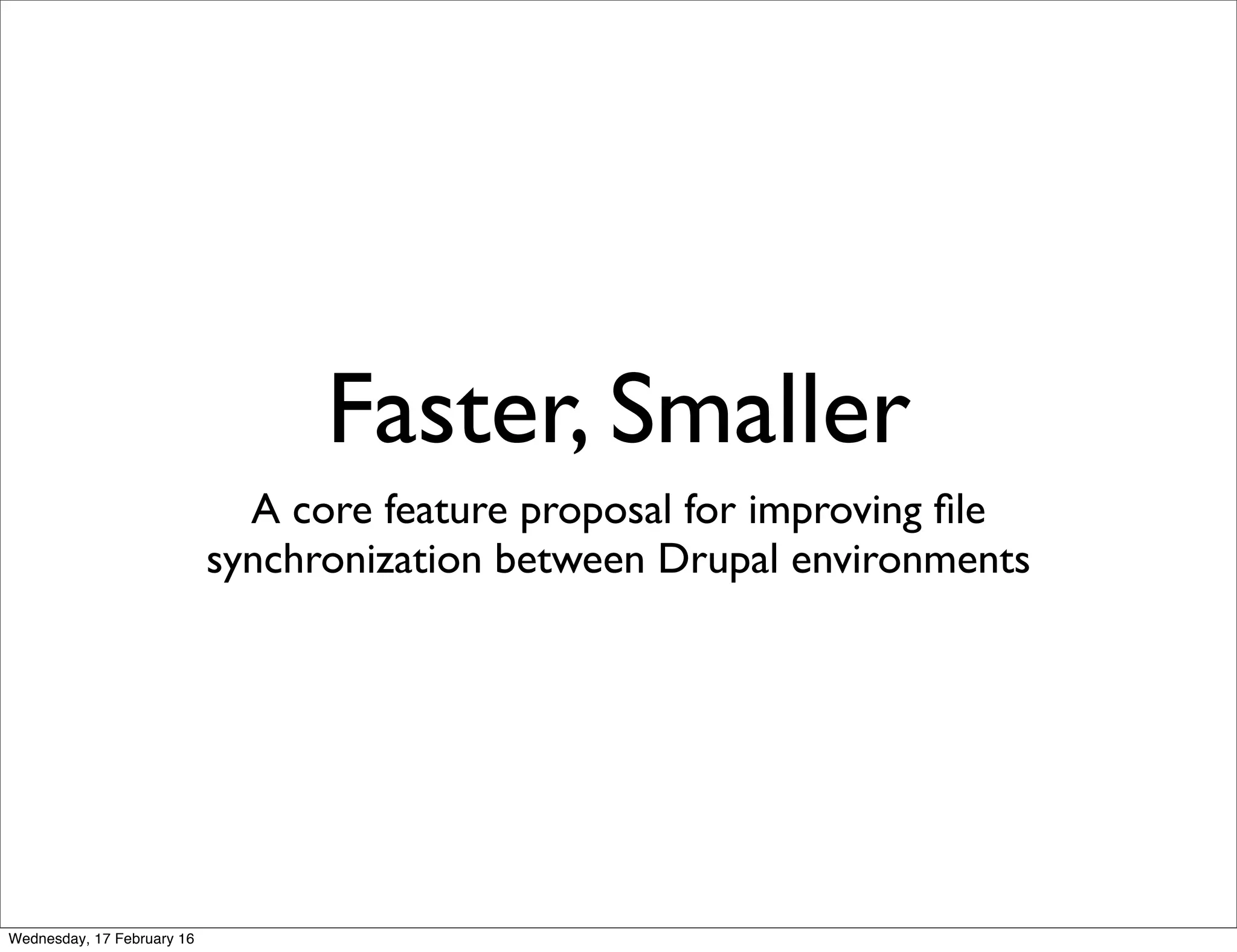

Faster, Smaller
A core feature proposal for improving file
synchronization between Drupal environments
Wednesday, 17 February 16

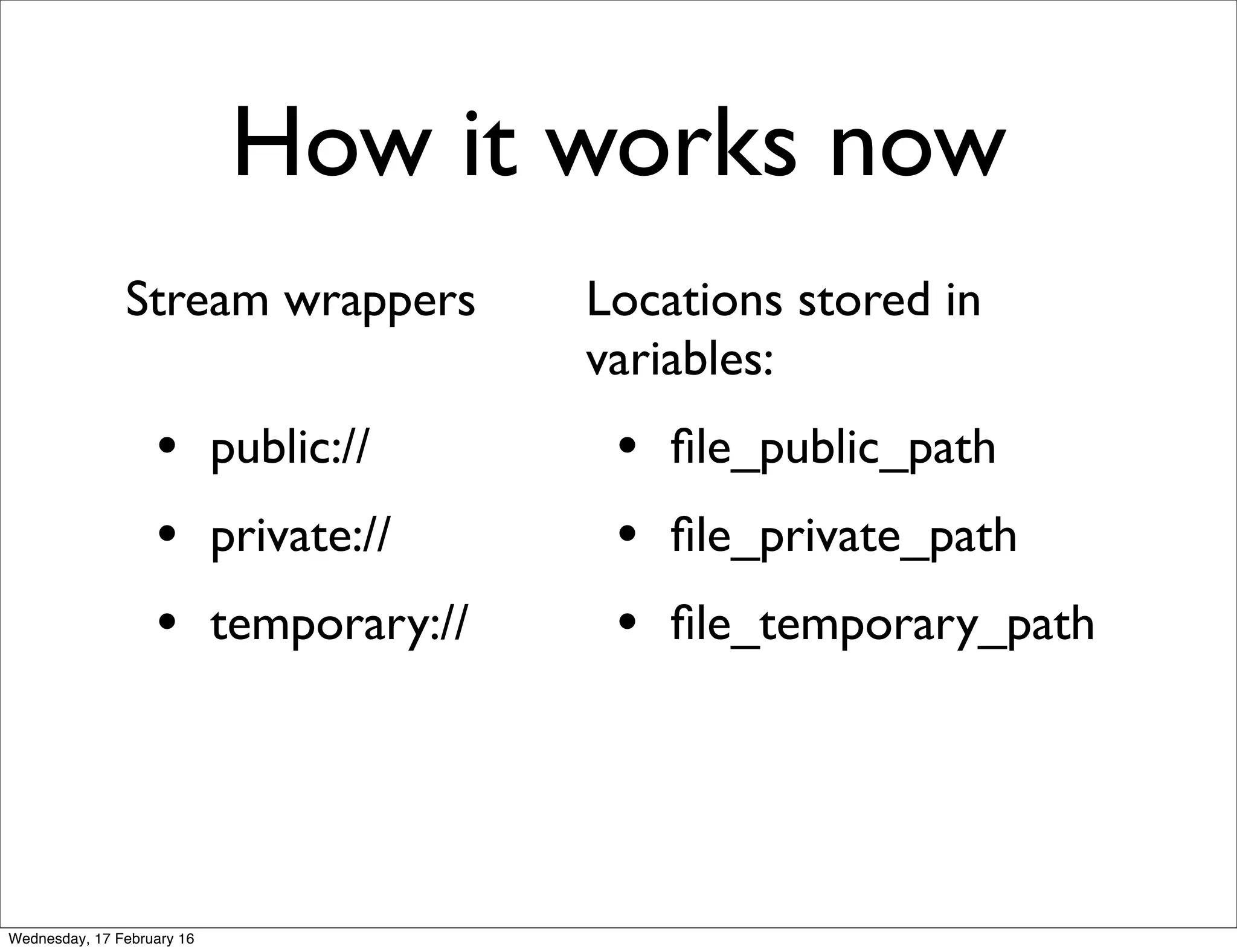

How it works now
Stream wrappers
• public://
• private://
• temporary://
Locations stored in
variables:
• file_public_path
• file_private_path
• file_temporary_path
Wednesday, 17 February 16

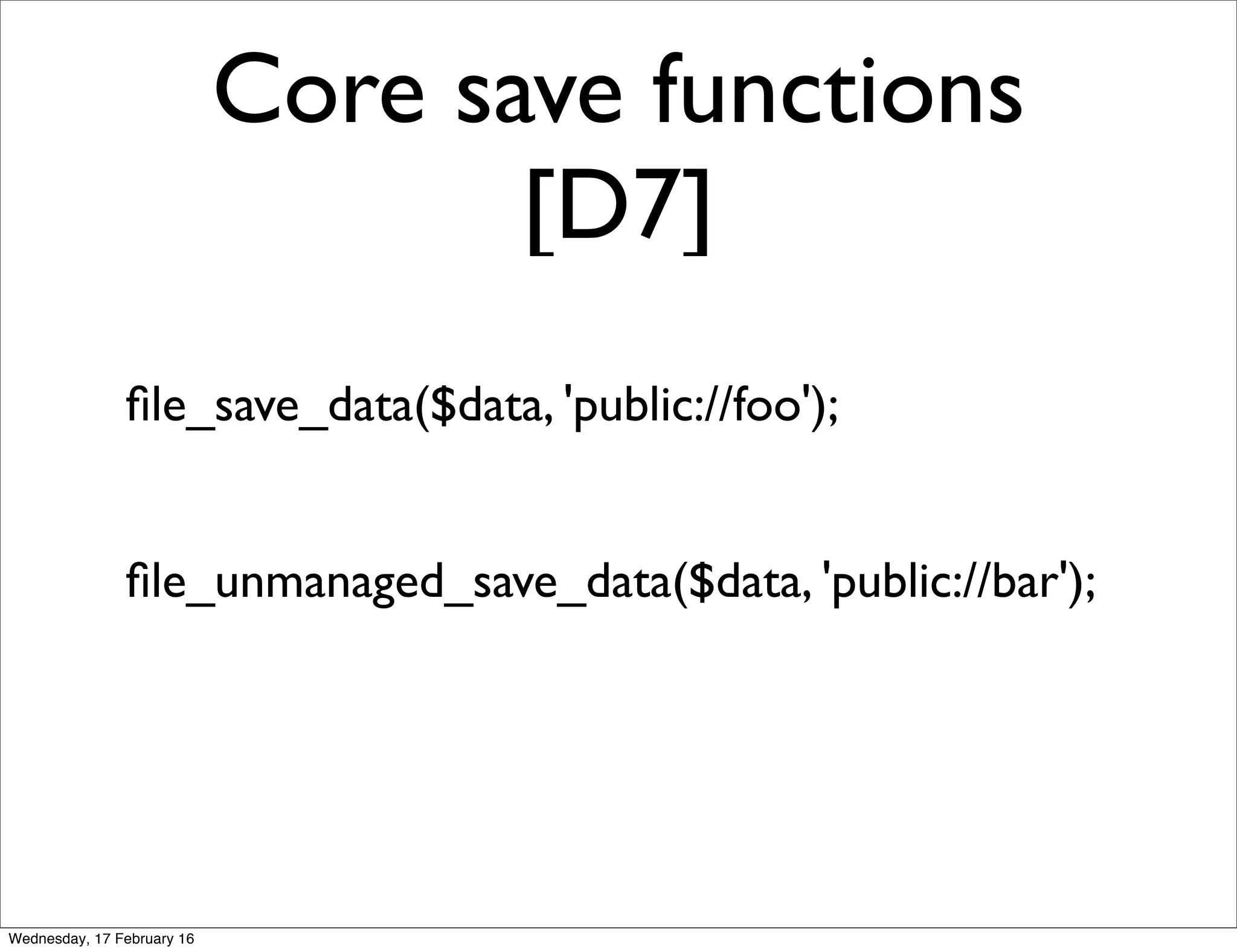

Core save functions
[D7]
file_save_data($data, 'public://foo');
file_unmanaged_save_data($data, 'public://bar');
Wednesday, 17 February 16

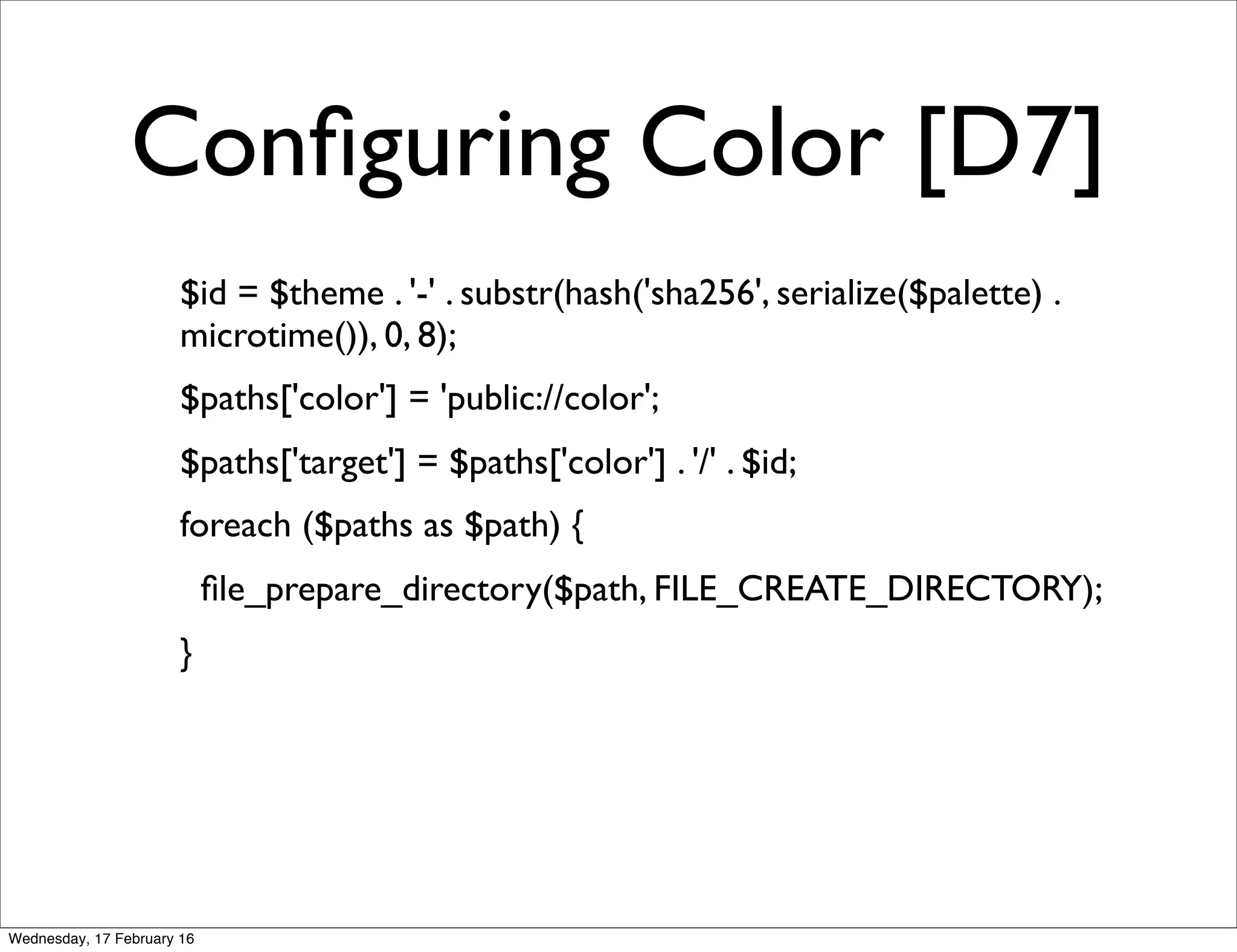

Configuring Color [D7]
$id = $theme . '-' . substr(hash('sha256',
serialize($palette) . microtime()), 0, 8);
$paths['color'] = 'public://color';
$paths['target'] = $paths['color'] . '/' .
$id;
foreach ($paths as $path) {
file_prepare_directory($path,
FILE_CREATE_DIRECTORY);
}
Wednesday, 17 February 16

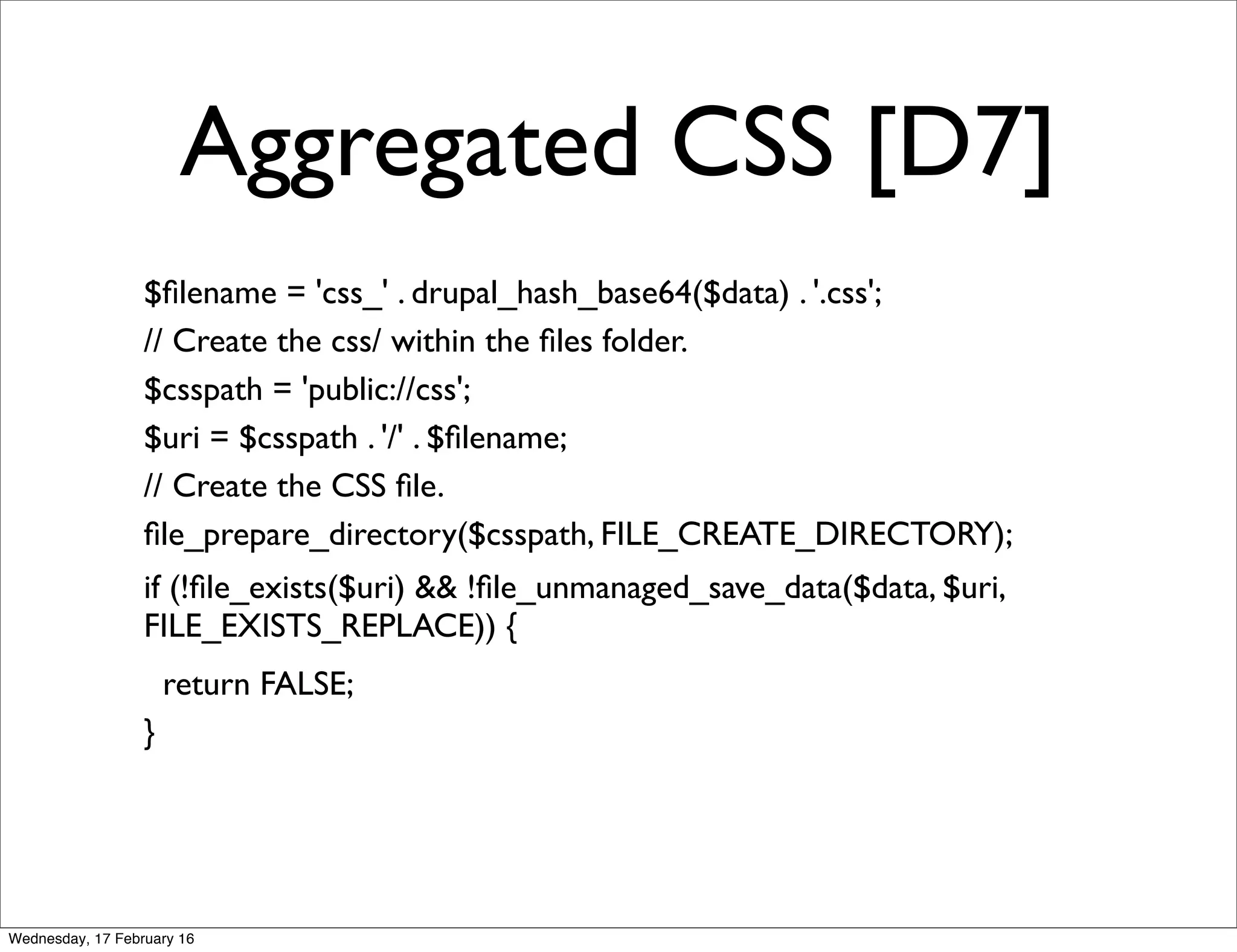

Aggregated CSS [D7]
$filename = 'css_' . drupal_hash_base64($data) .
'.css';
// Create the css/ within the files folder.
$csspath = 'public://css';
$uri = $csspath . '/' . $filename;
// Create the CSS file.
file_prepare_directory($csspath,
FILE_CREATE_DIRECTORY);
if (!file_exists($uri) && !
file_unmanaged_save_data($data, $uri,
FILE_EXISTS_REPLACE)) {
return FALSE;
}
Wednesday, 17 February 16

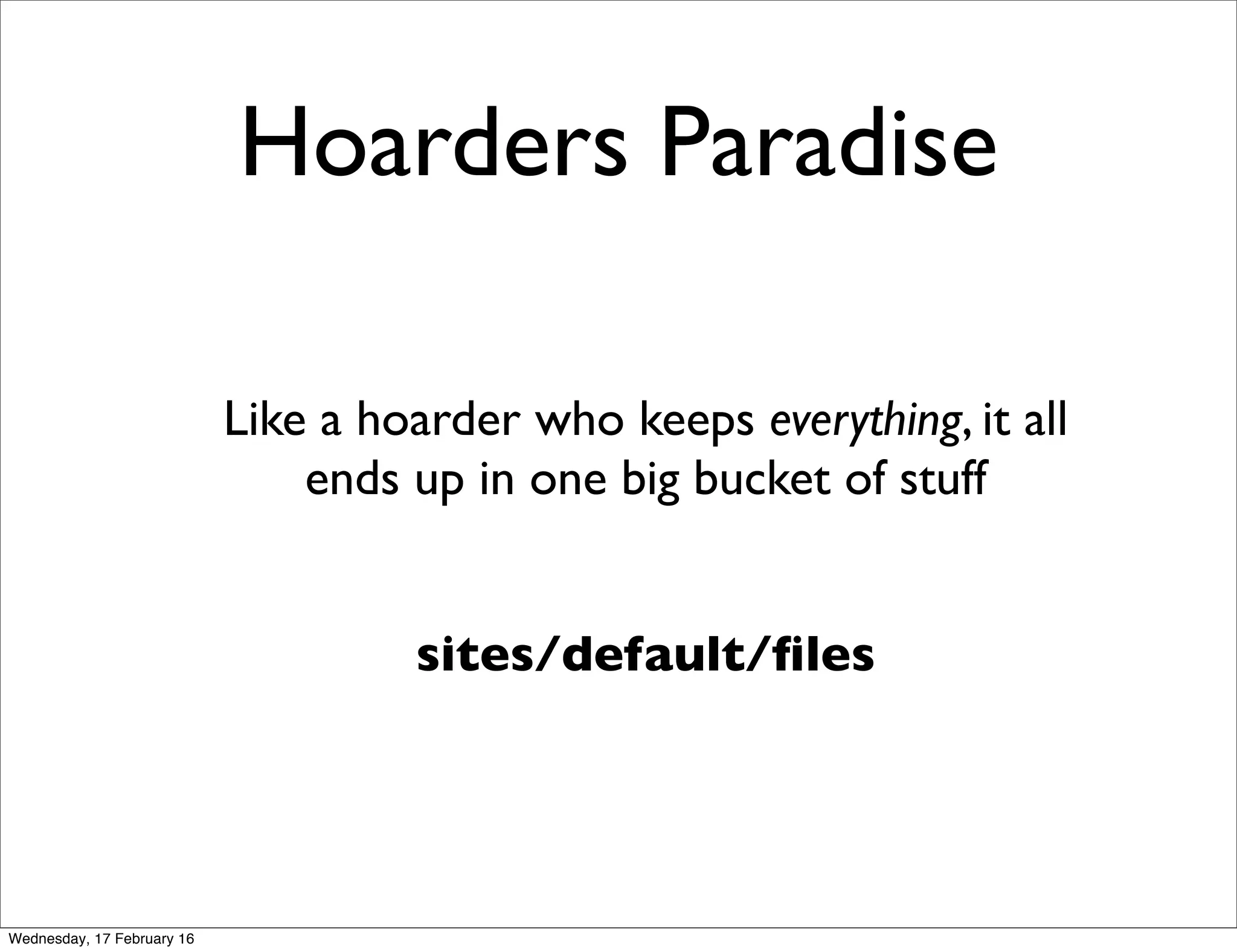

Hoarders Paradise
Like a hoarder who keeps everything, it all
ends up in one big bucket of stuff
sites/default/files
Wednesday, 17 February 16

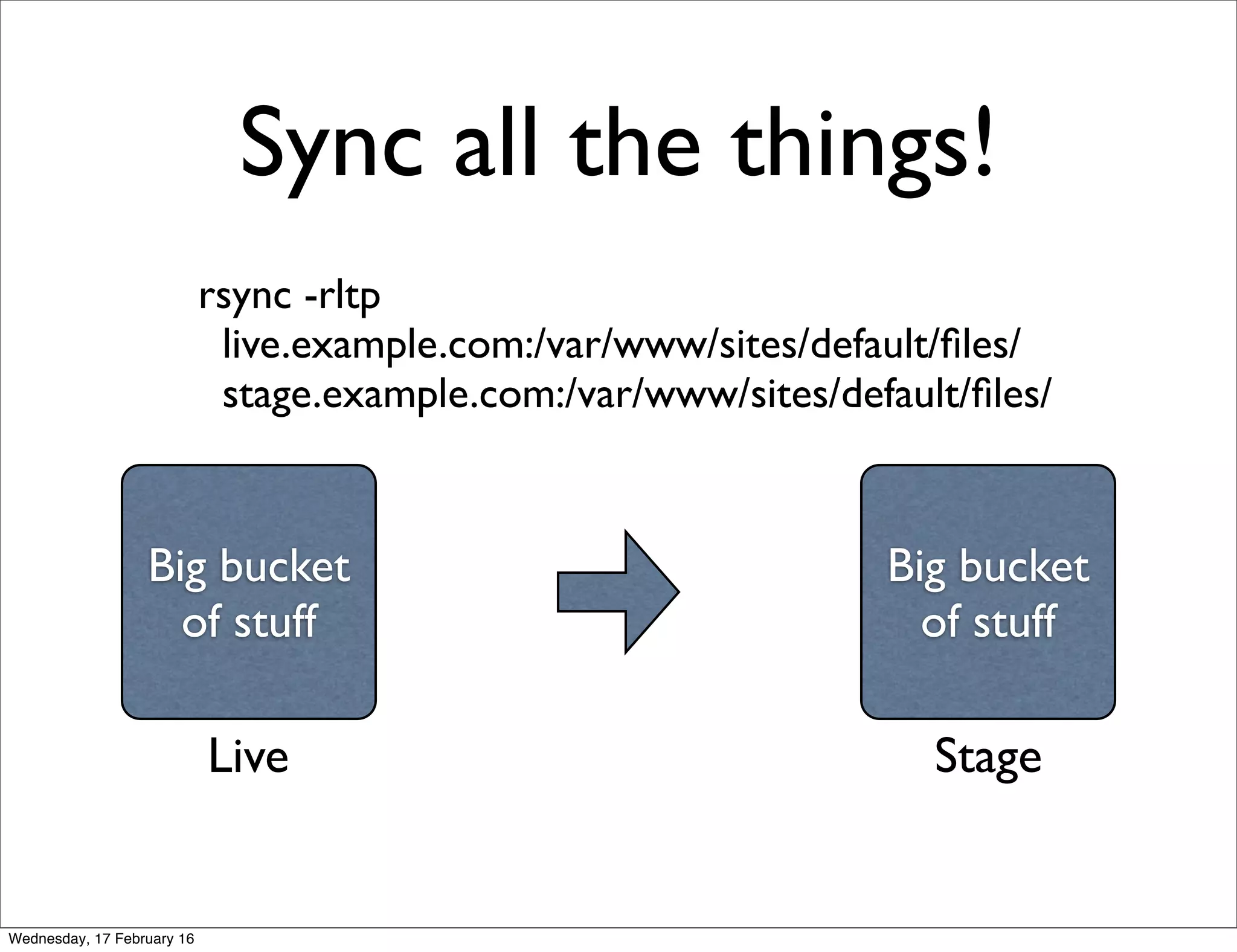

Sync all the things!
rsync -rltp
live.example.com:/var/www/sites/default/files/
stage.example.com:/var/www/sites/default/files/
Big bucket
of stuff
Big bucket
of stuff
Live Stage
Wednesday, 17 February 16
Several hours later…
Wednesday, 17 February 16

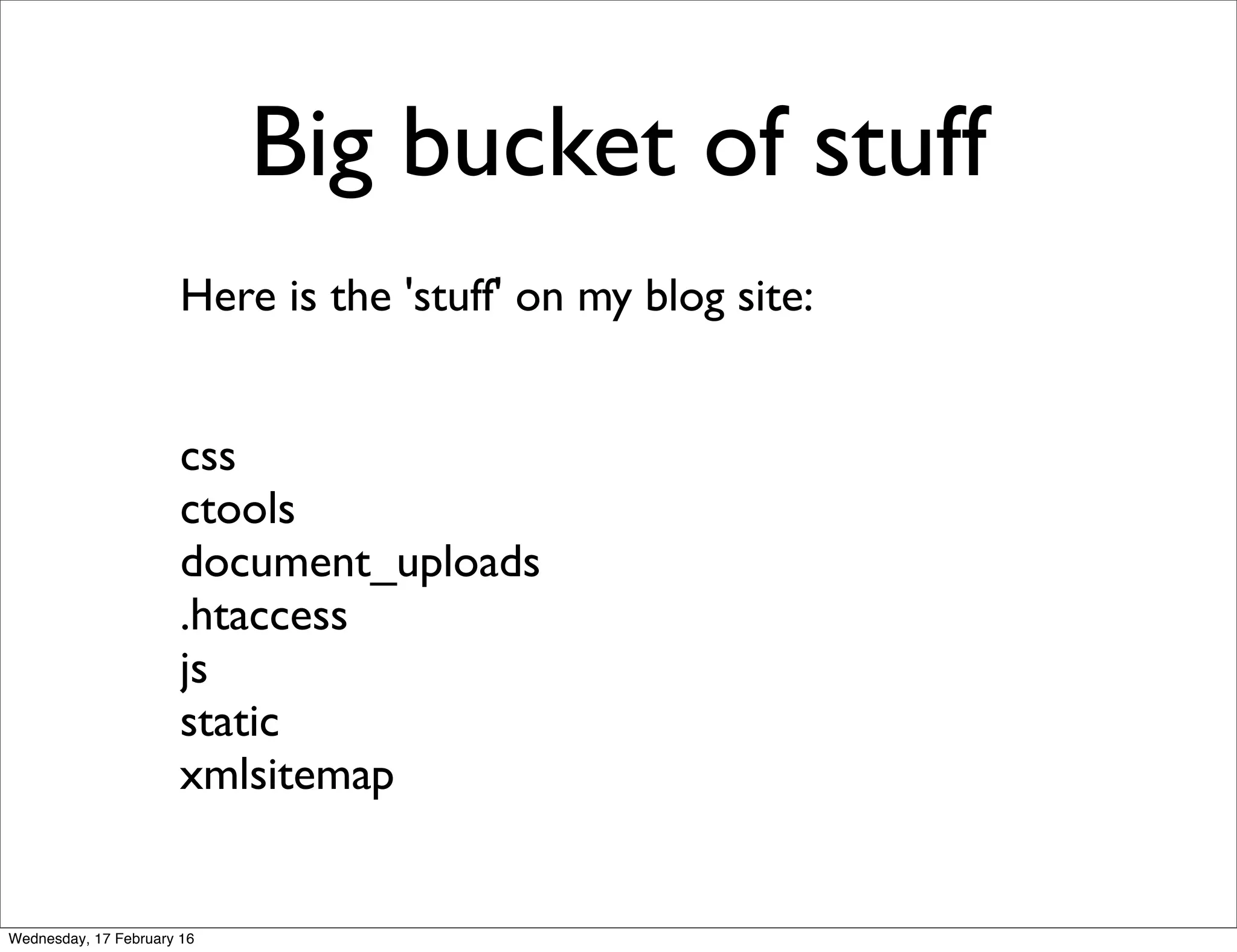

Big bucket of stuff
Here is the 'stuff' on my blog site:
css
ctools
document_uploads
.htaccess
js
static
xmlsitemap
Wednesday, 17 February 16

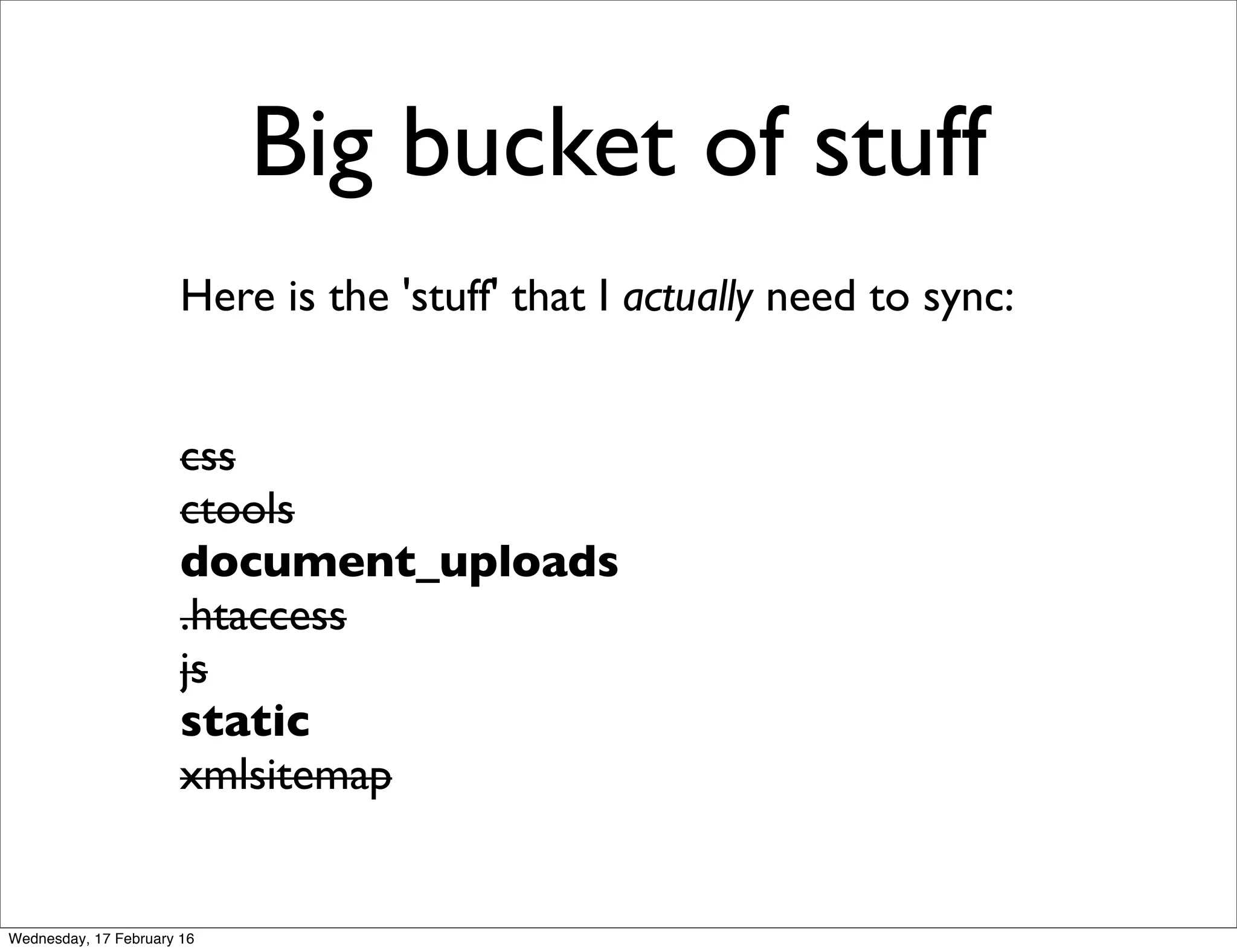

Big bucket of stuff
Here is the 'stuff' that I actually need to sync:
css
ctools
document_uploads
.htaccess
js
static
xmlsitemap
Wednesday, 17 February 16

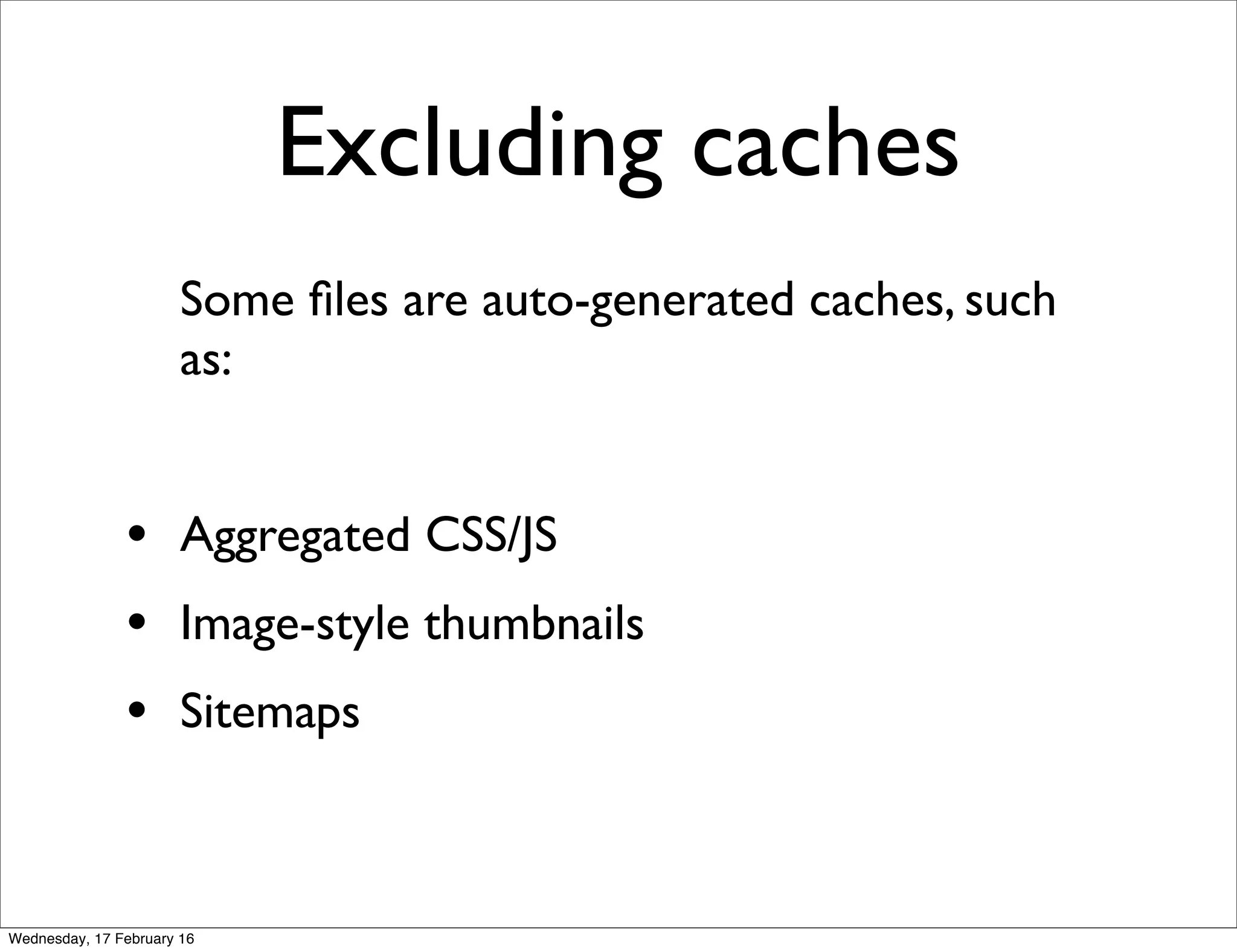

Excluding caches
Some files are auto-generated caches, such
as:
• Aggregated CSS/JS
• Image-style thumbnails
• Sitemaps
Wednesday, 17 February 16

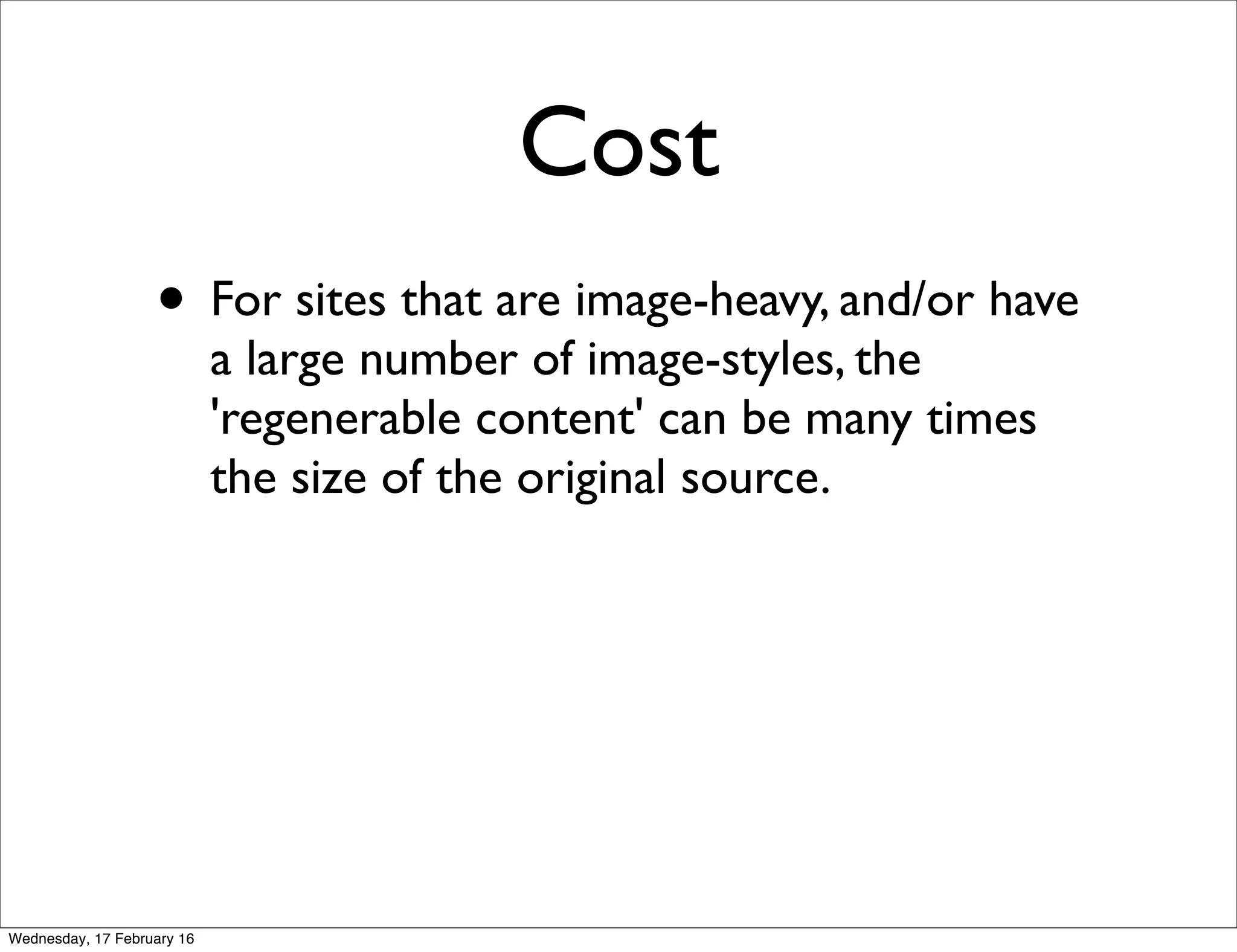

Cost
For sites that are image-heavy, and/or have a
large number of image-styles, the
'regenerable content' can be many times the
size of the original source.
Wednesday, 17 February 16

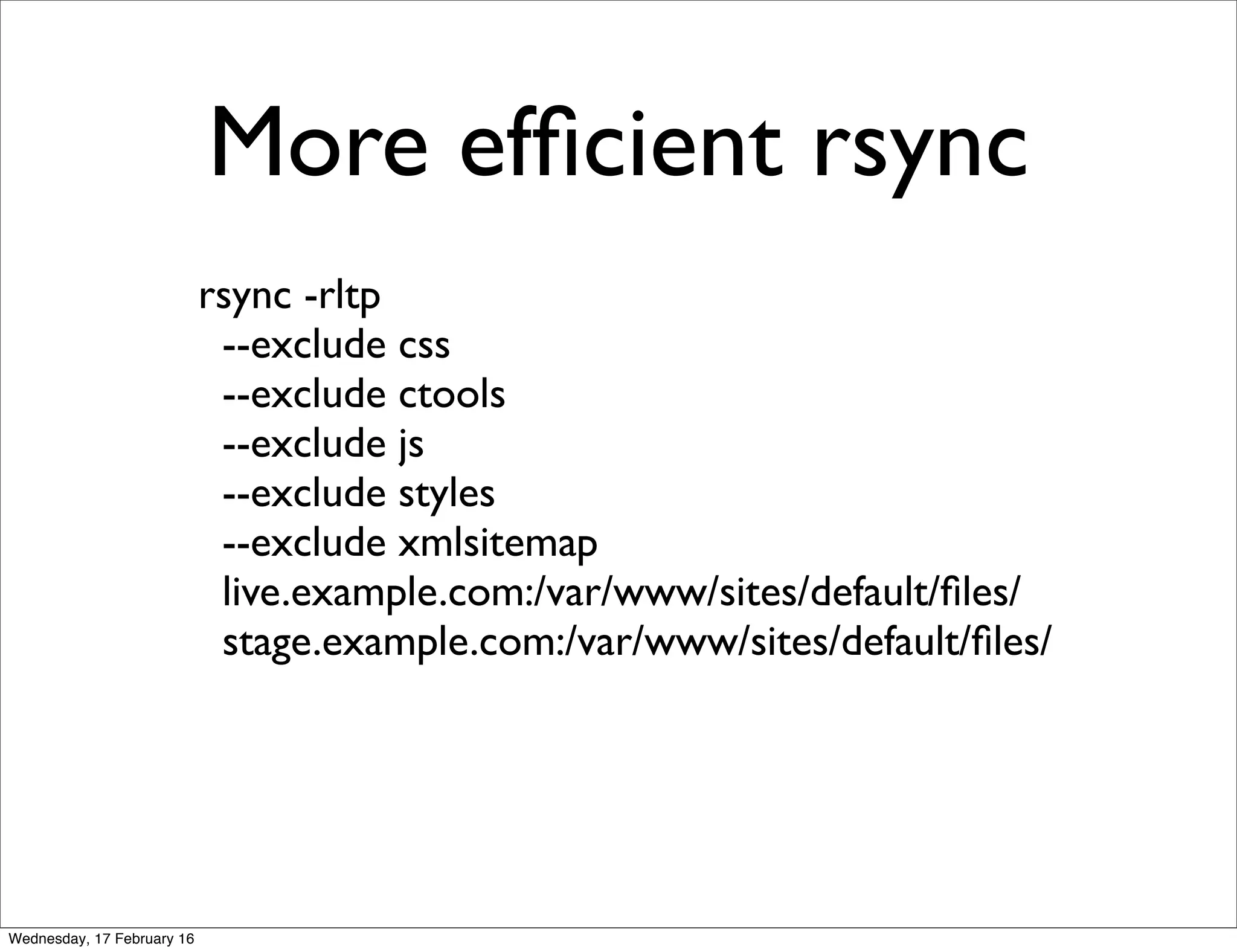

More efficient rsync
rsync -rltp
--exclude css
--exclude ctools
--exclude js
--exclude styles
--exclude xmlsitemap
live.example.com:/var/www/sites/default/files/
stage.example.com:/var/www/sites/default/files/
Wednesday, 17 February 16

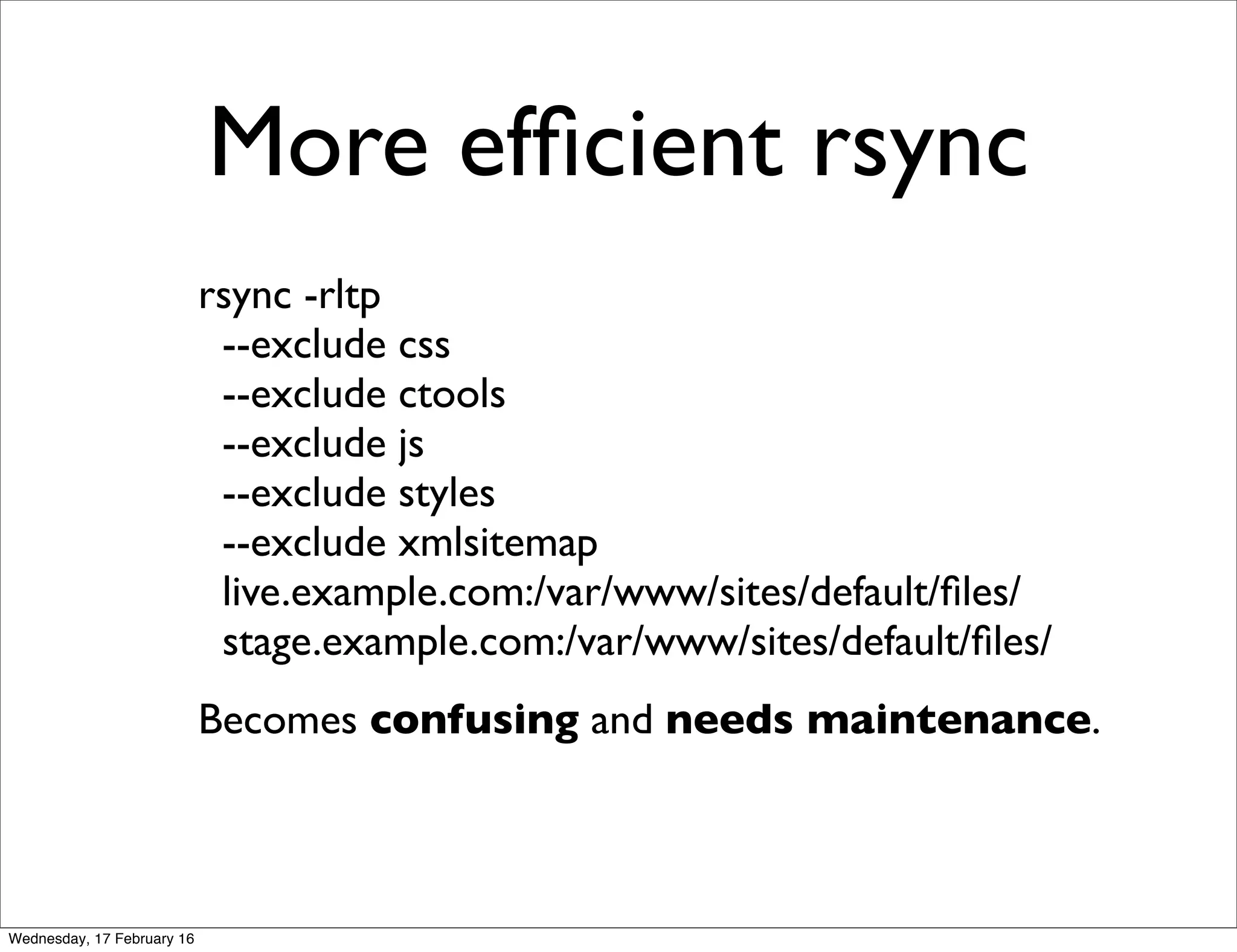

More efficient rsync
rsync -rltp
--exclude css
--exclude ctools
--exclude js
--exclude styles
--exclude xmlsitemap
live.example.com:/var/www/sites/default/files/
stage.example.com:/var/www/sites/default/files/
Becomes confusing and needs maintenance.
Wednesday, 17 February 16

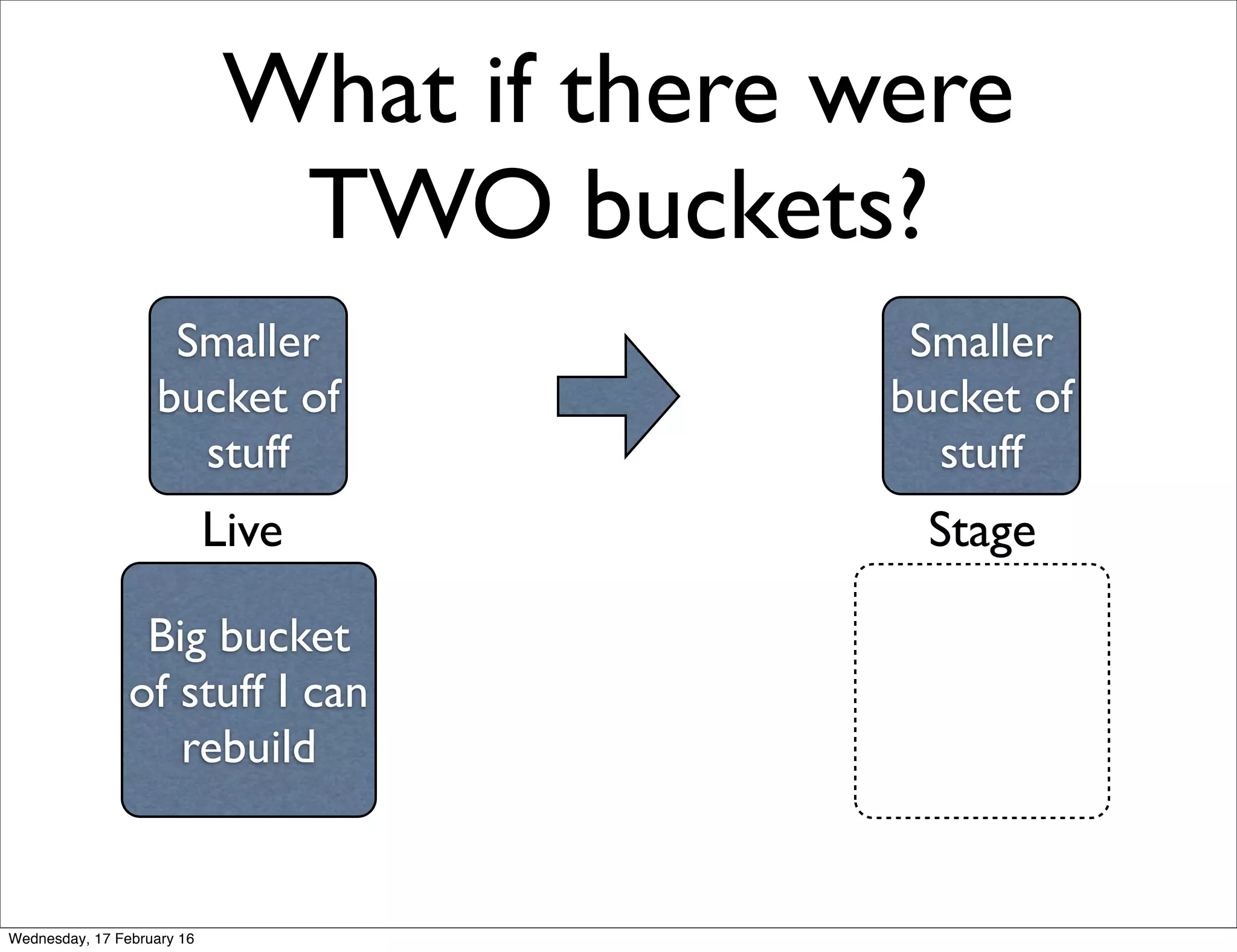

What if there were
TWO buckets?
Smaller
bucket of
stuff
Big bucket
of stuff I can
rebuild
Smaller
bucket of
stuff
Live Stage
Wednesday, 17 February 16

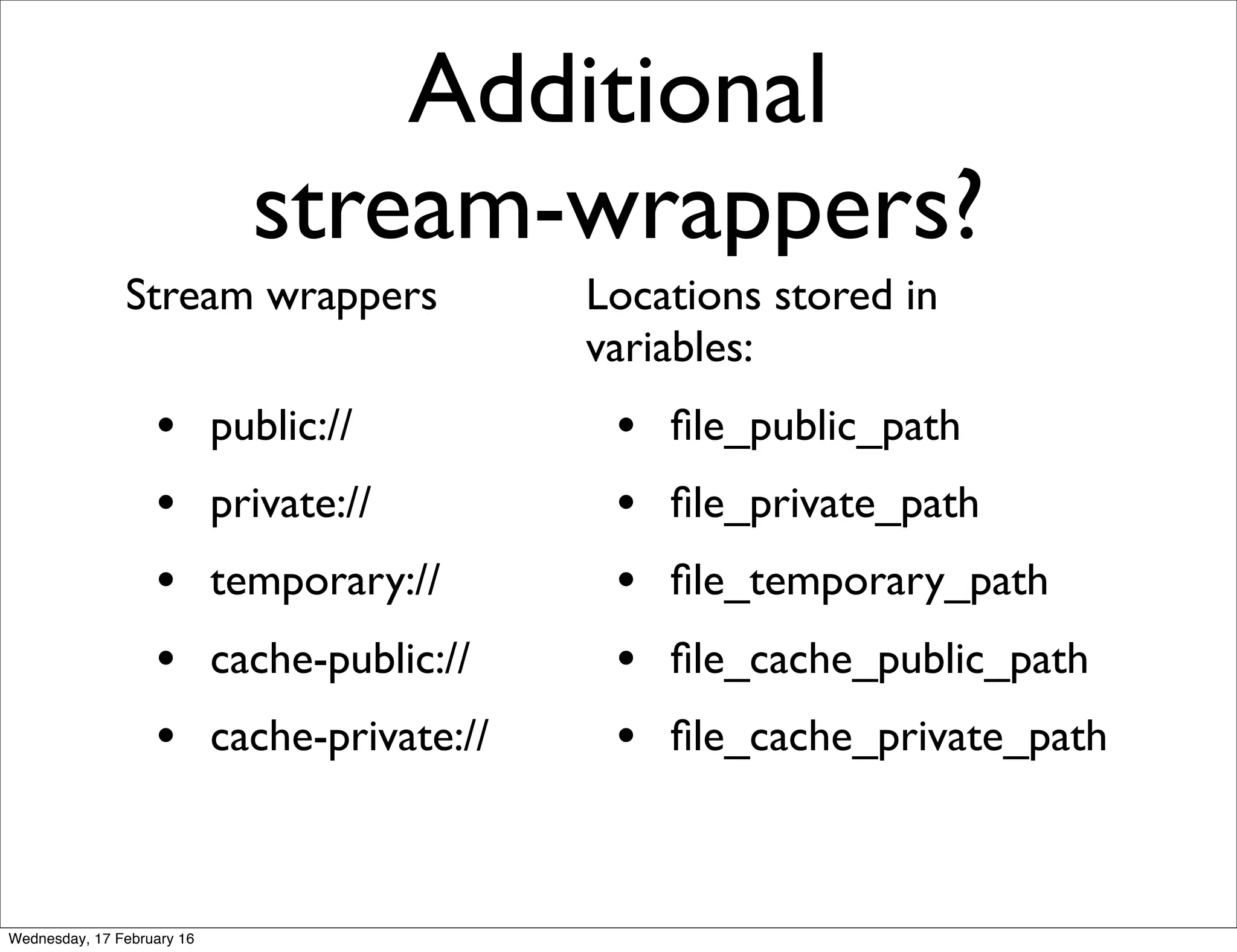

Additional
stream-wrappers?
Stream wrappers
• public://
• private://
• temporary://
• cache-public://
• cache-private://
Locations stored in
variables:
• file_public_path
• file_private_path
• file_temporary_path
• file_cache_public_path
• file_cache_private_path
Wednesday, 17 February 16

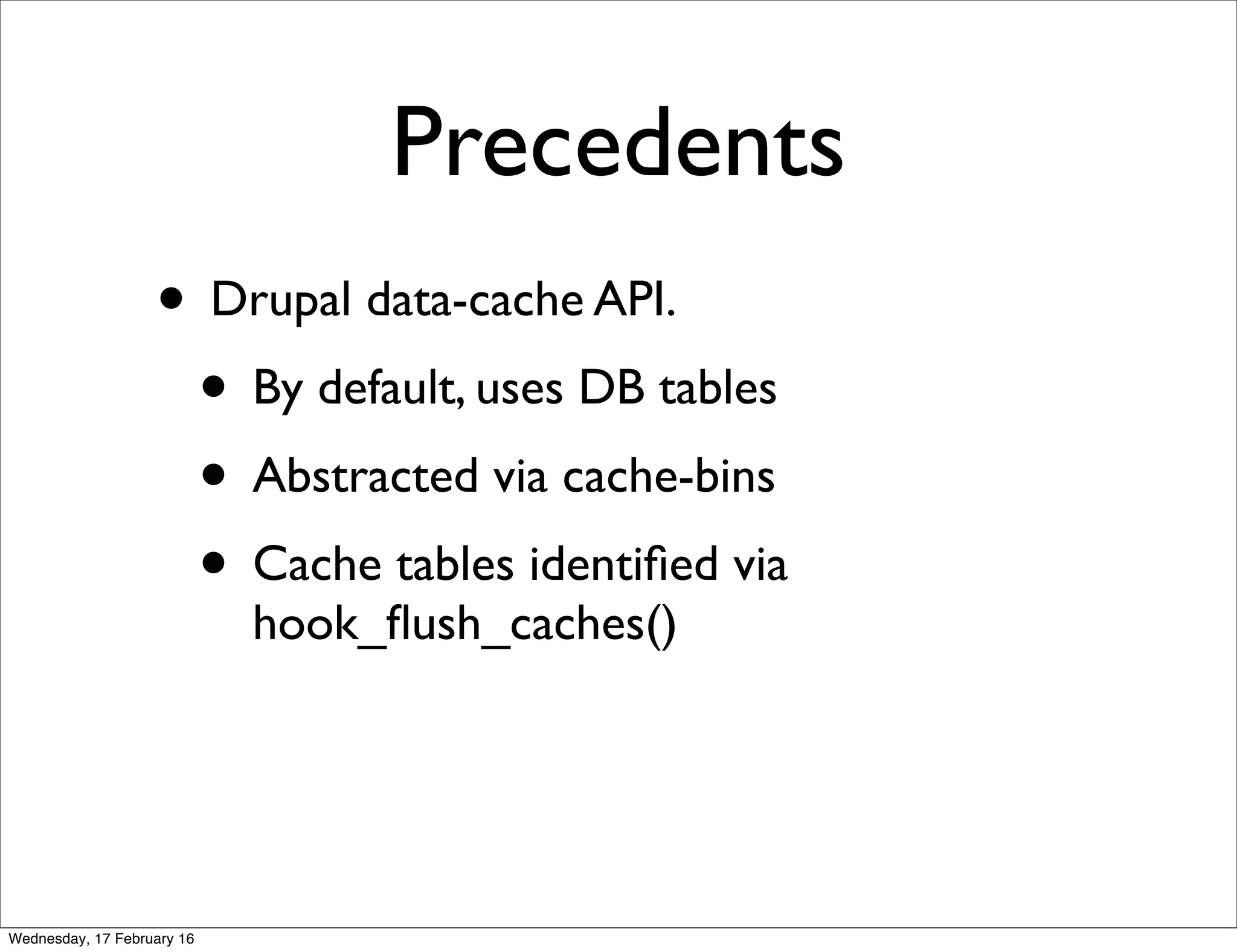

Precedents
• Drupal data-cache API.
• By default, uses DB tables
• Abstracted via cache-bins
• Cache tables identified via
hook_flush_caches()
Wednesday, 17 February 16

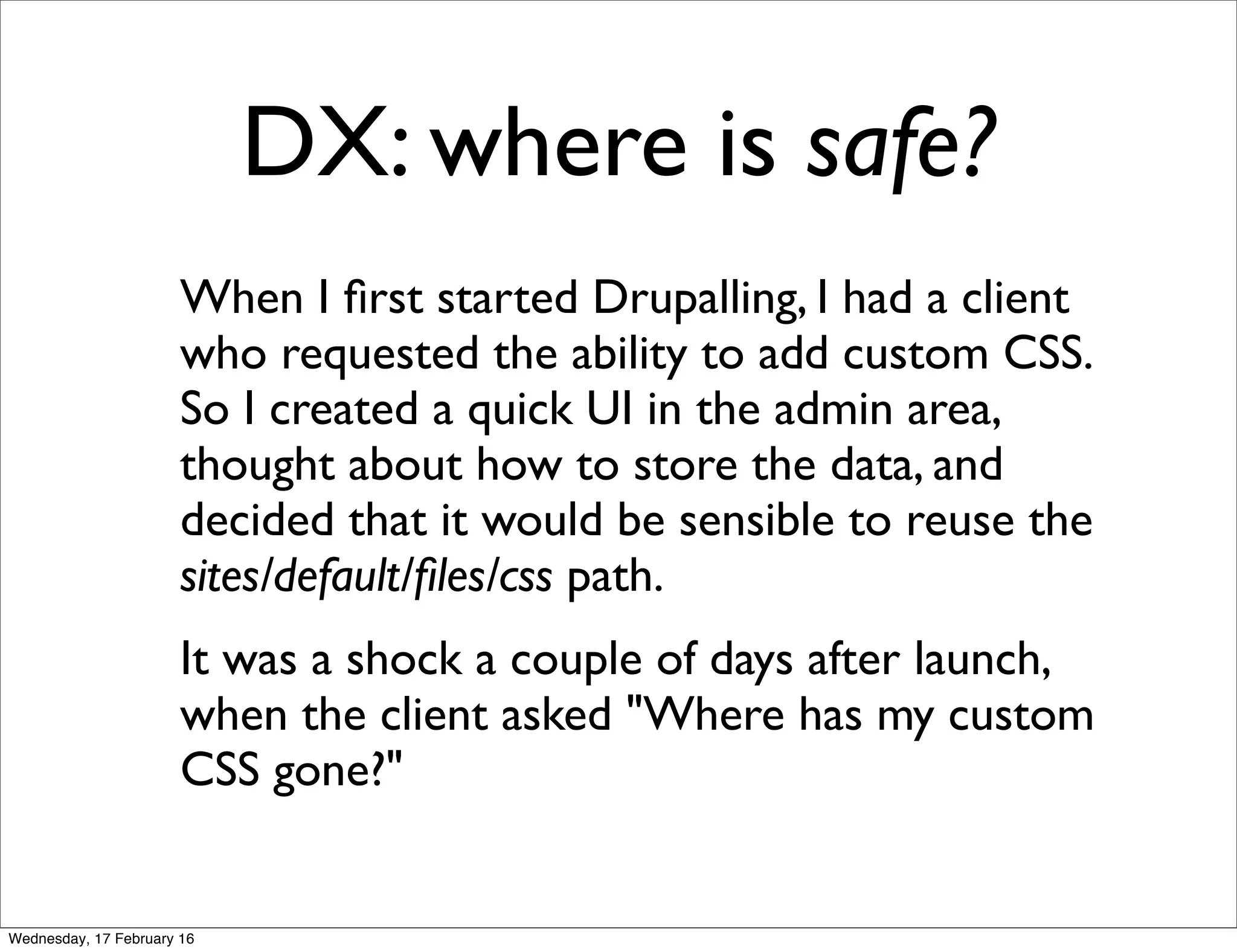

DX: where is safe?
When I first started Drupalling, I had a client
who requested the ability to add custom CSS.
So I created a quick UI in the admin area,
thought about how to store the data, and
decided that it would be sensible to reuse the
sites/default/files/css path.
It was a shock a couple of days after launch,
when the client asked "Where has my custom
CSS gone?"
Wednesday, 17 February 16

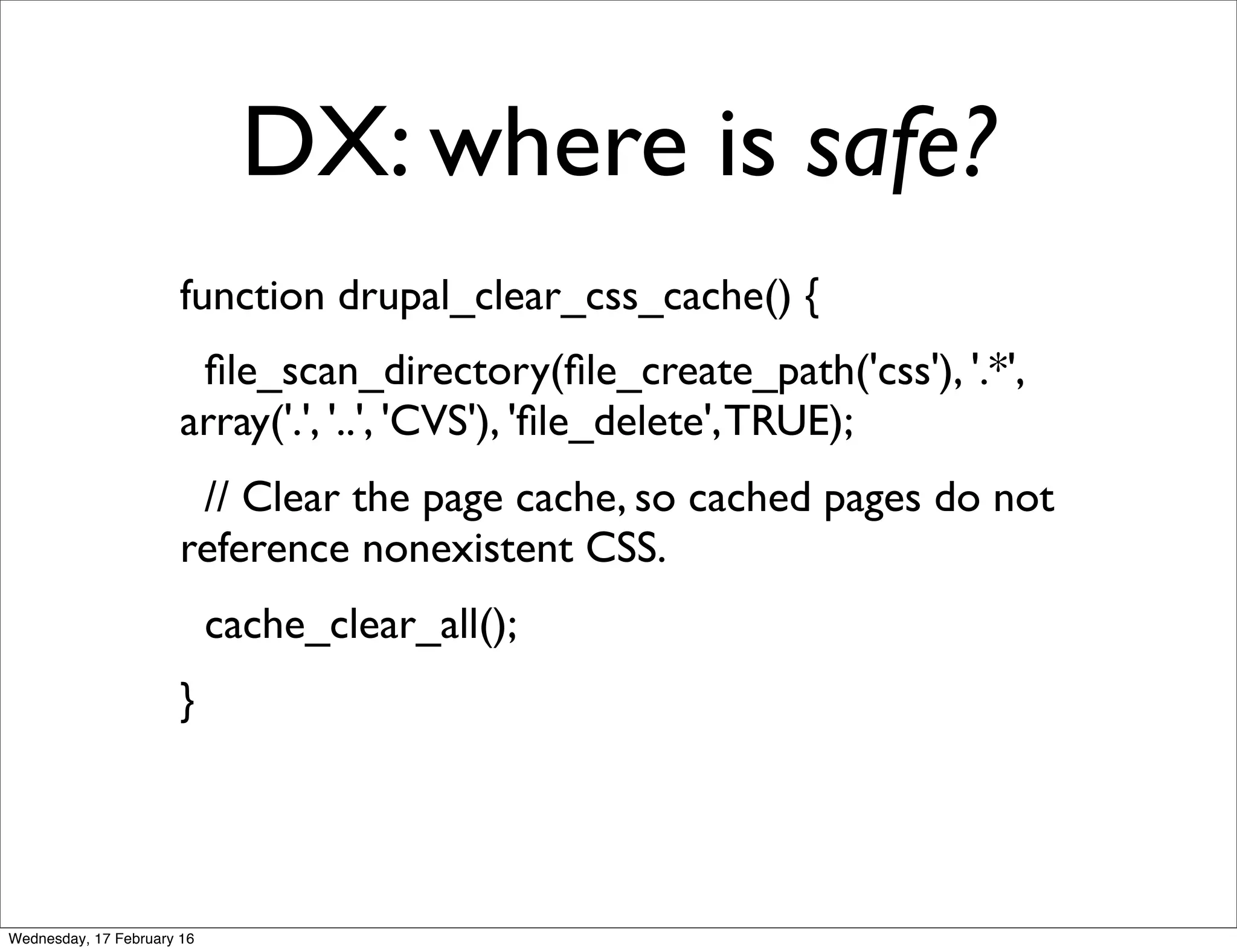

DX: where is safe?
function drupal_clear_css_cache() {
file_scan_directory(file_create_path('c
ss'), '.*', array('.', '..', 'CVS'),
'file_delete', TRUE);
// Clear the page cache, so cached
pages do not reference nonexistent CSS.
cache_clear_all();
}
Wednesday, 17 February 16

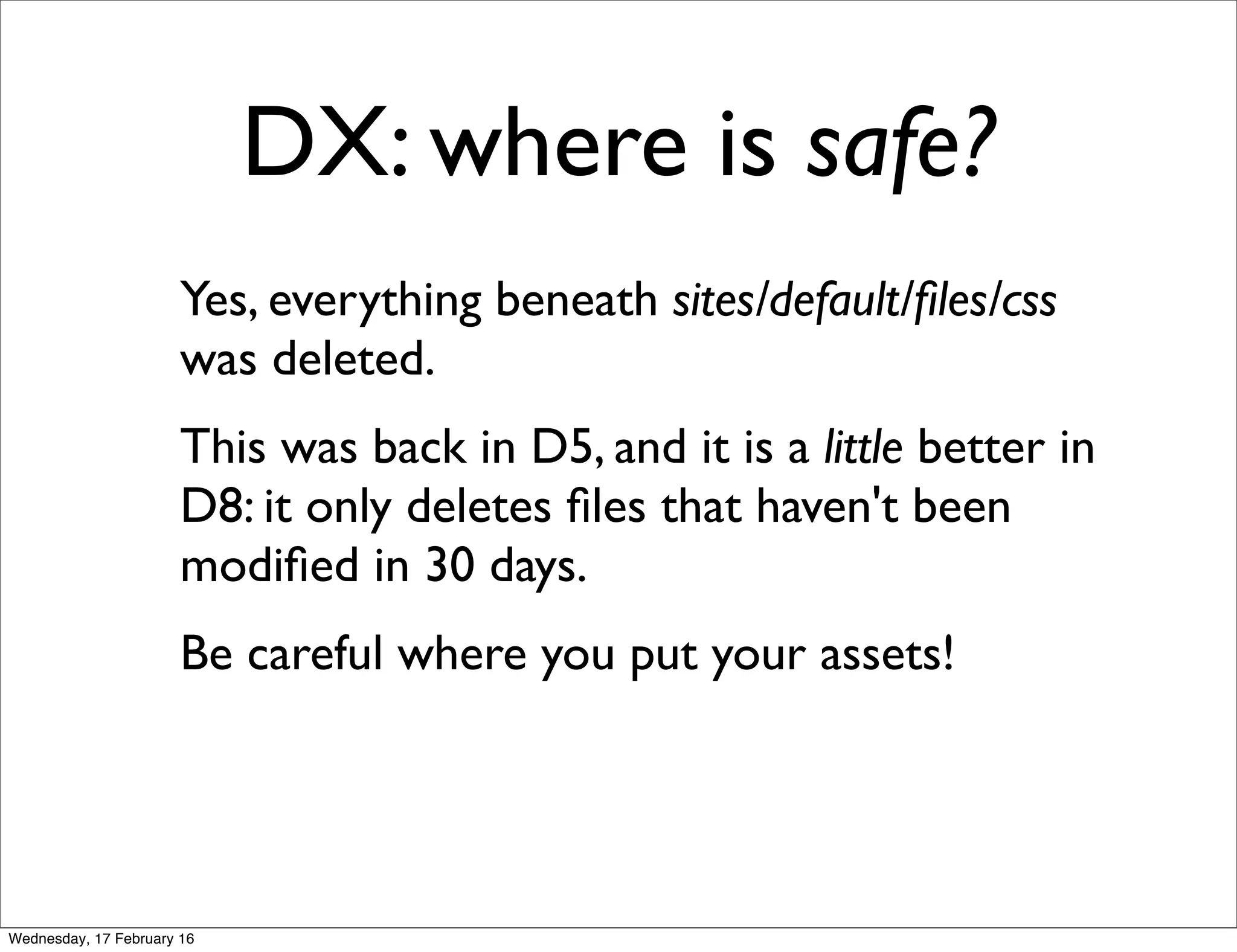

DX: where is safe?
Yes, everything beneath sites/default/files/css
was deleted.
This was back in D5, and it is a little better in
D8: it only deletes files that haven't been
modified in 30 days.
Be careful where you put your assets!
Wednesday, 17 February 16

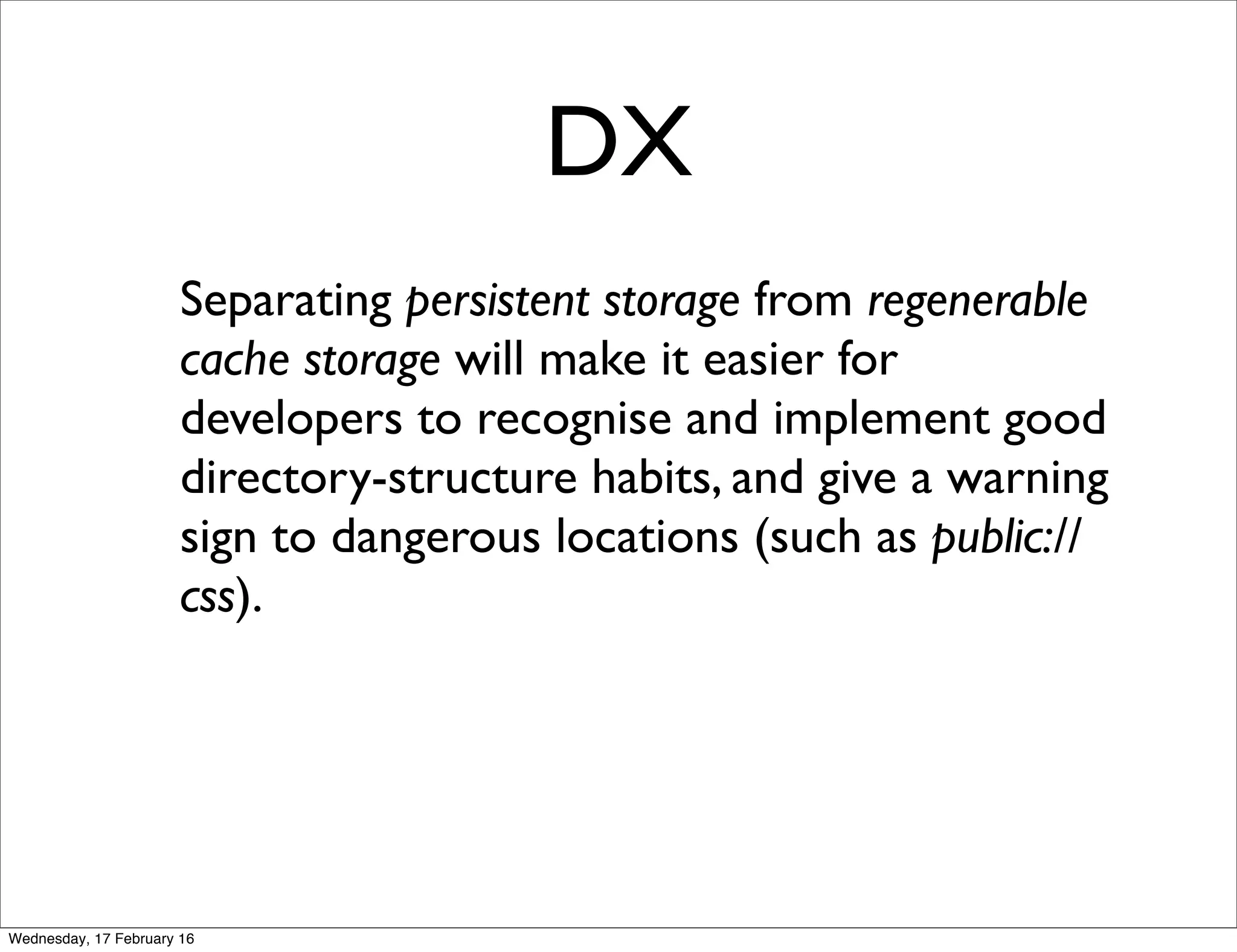

DX
Separating persistent storage from regenerable
cache storage will make it easier for
developers to recognise and implement
good directory-structure habits, and give a
warning sign to dangerous locations (e.g.
cache-public://css is more obviously risky a
place to store persistent files than public://
css).
Wednesday, 17 February 16

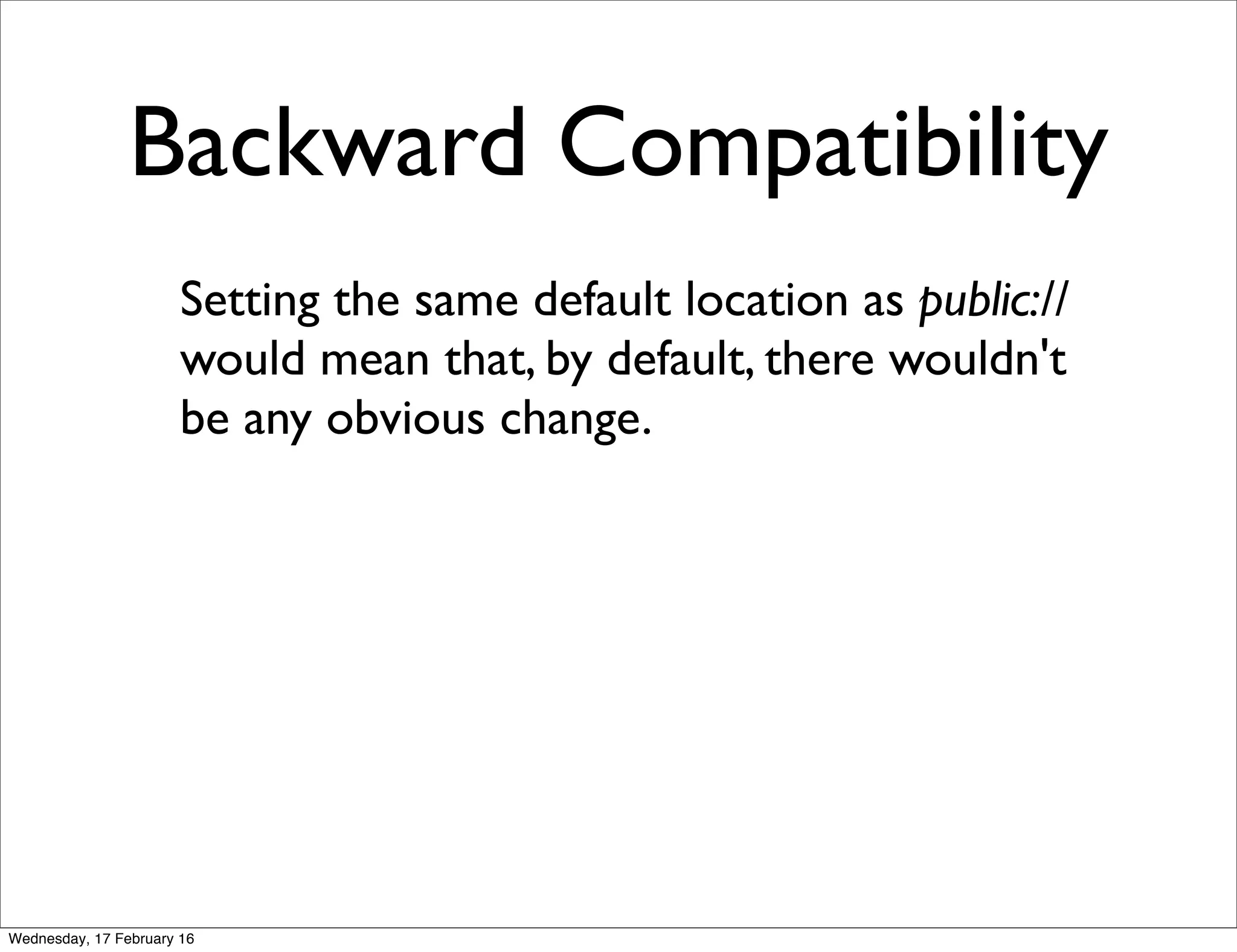

Backward Compatibility
If the variable for cache-public:// doesn't
exist, it could inherit the setting used by
public://.
Reusing the same location as public:// would
mean that for most users, there wouldn't be
any noticeable change, or any break in their
configuration.
Wednesday, 17 February 16
Risky synchronization?
In some cases, running rsync on the entirety of
sites/default/files can be harmful.
Some autogenerated content - such as XML
sitemaps - may be specific to an environment: for
example, the base URL is often different between
stage and live.
This could cause all sorts of unwanted side-effects:
duplicate notifications and inaccurate test results
are just two that immediately spring to mind.
Wednesday, 17 February 16

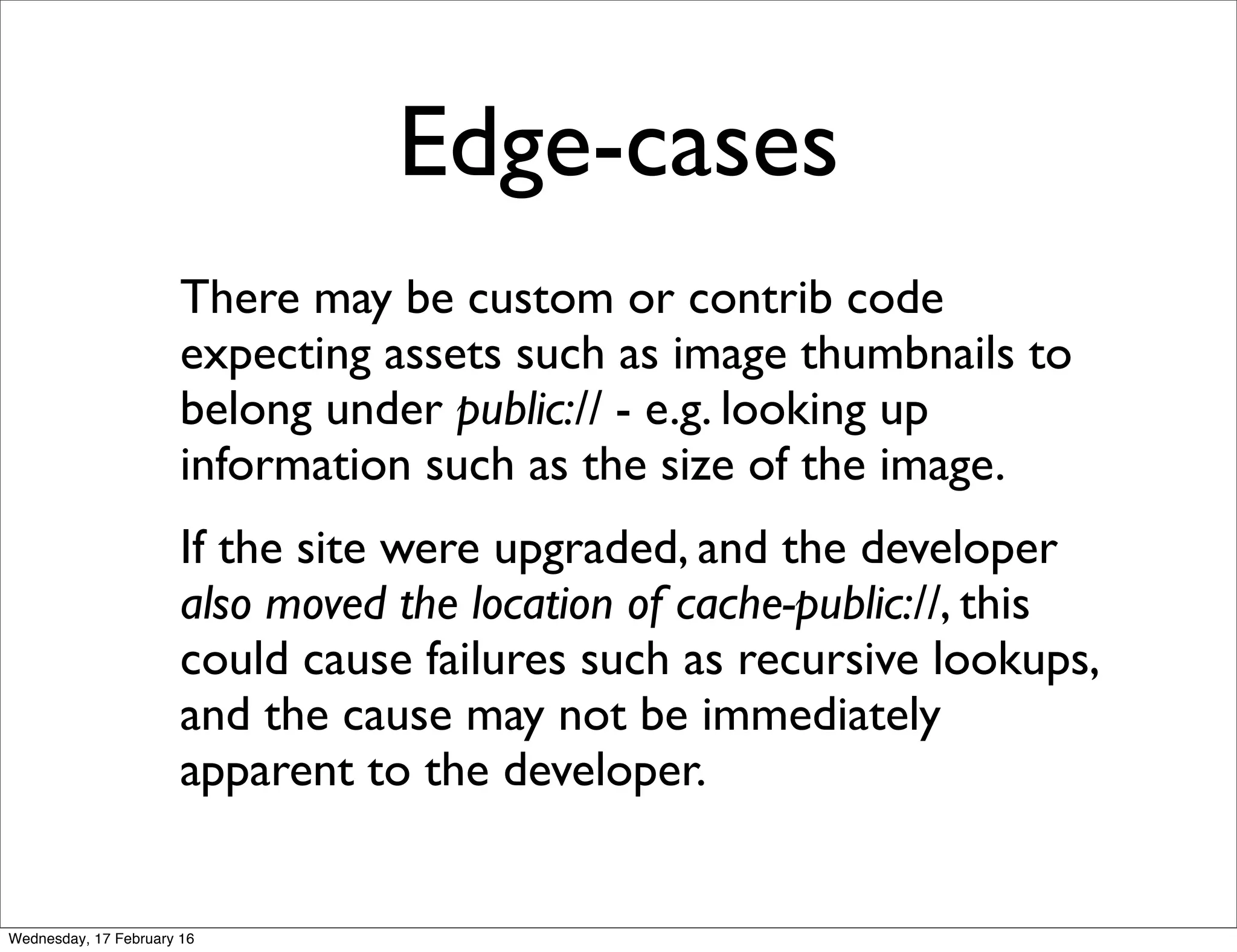

Edge-cases
There may be custom or contrib code
expecting assets such as image thumbnails to
belong under public:// - e.g. looking up
information such as the size of the image.
If the site were upgraded, and the developer
also moved the location of cache-public://, this
could cause failures such as recursive lookups,
and the cause may not be immediately
apparent to the developer.
Wednesday, 17 February 16

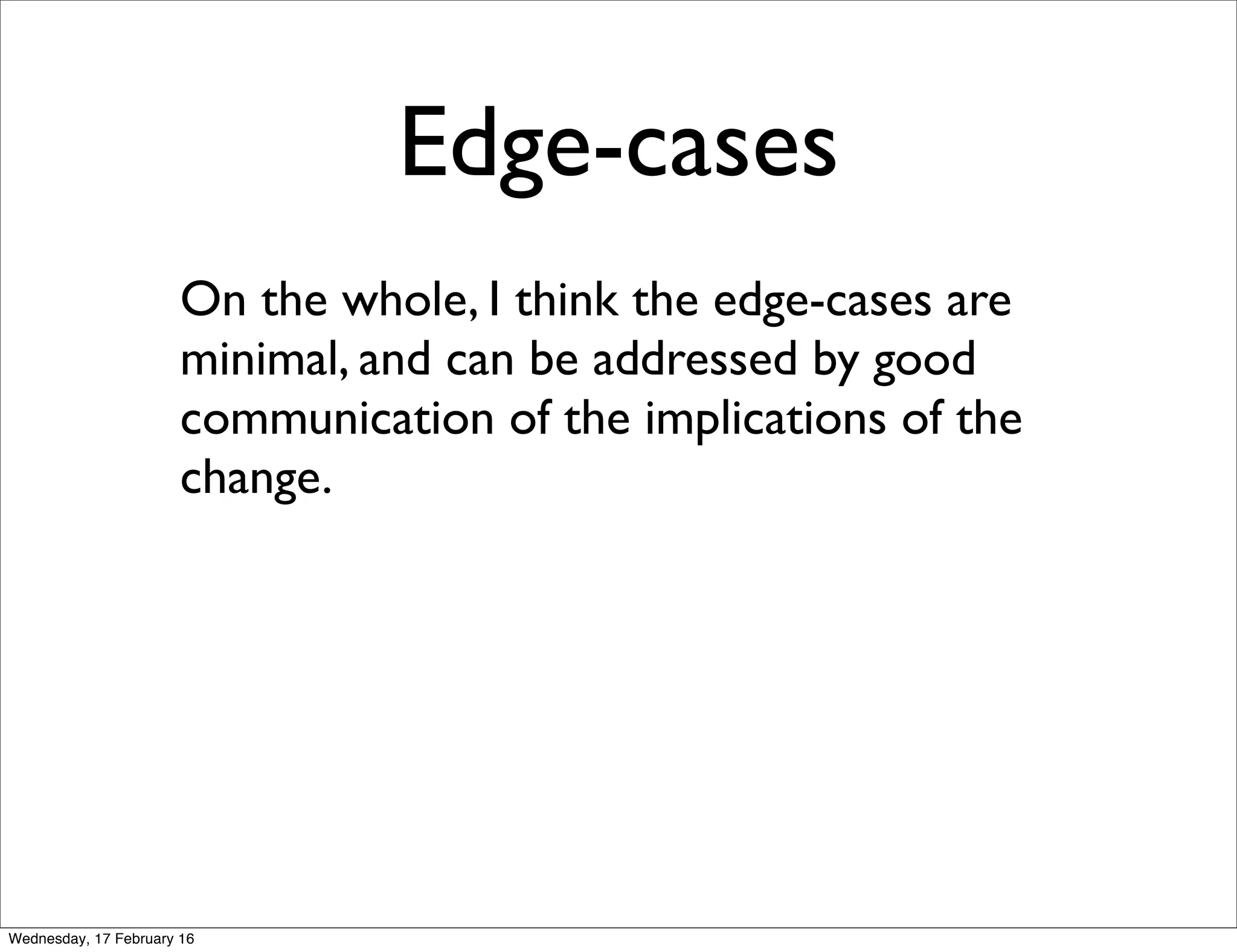

Edge-cases
On the whole, I think the edge-cases are
minimal, and can be addressed by good
communication of the implications of the
change.
Wednesday, 17 February 16
Potential use-cases
• Synchronization of files between
environments (e.g. live to staging)
• Backups
• Proxies/CDN delivery
• Garbage collection: scanning for orphaned/
removable files
Wednesday, 17 February 16

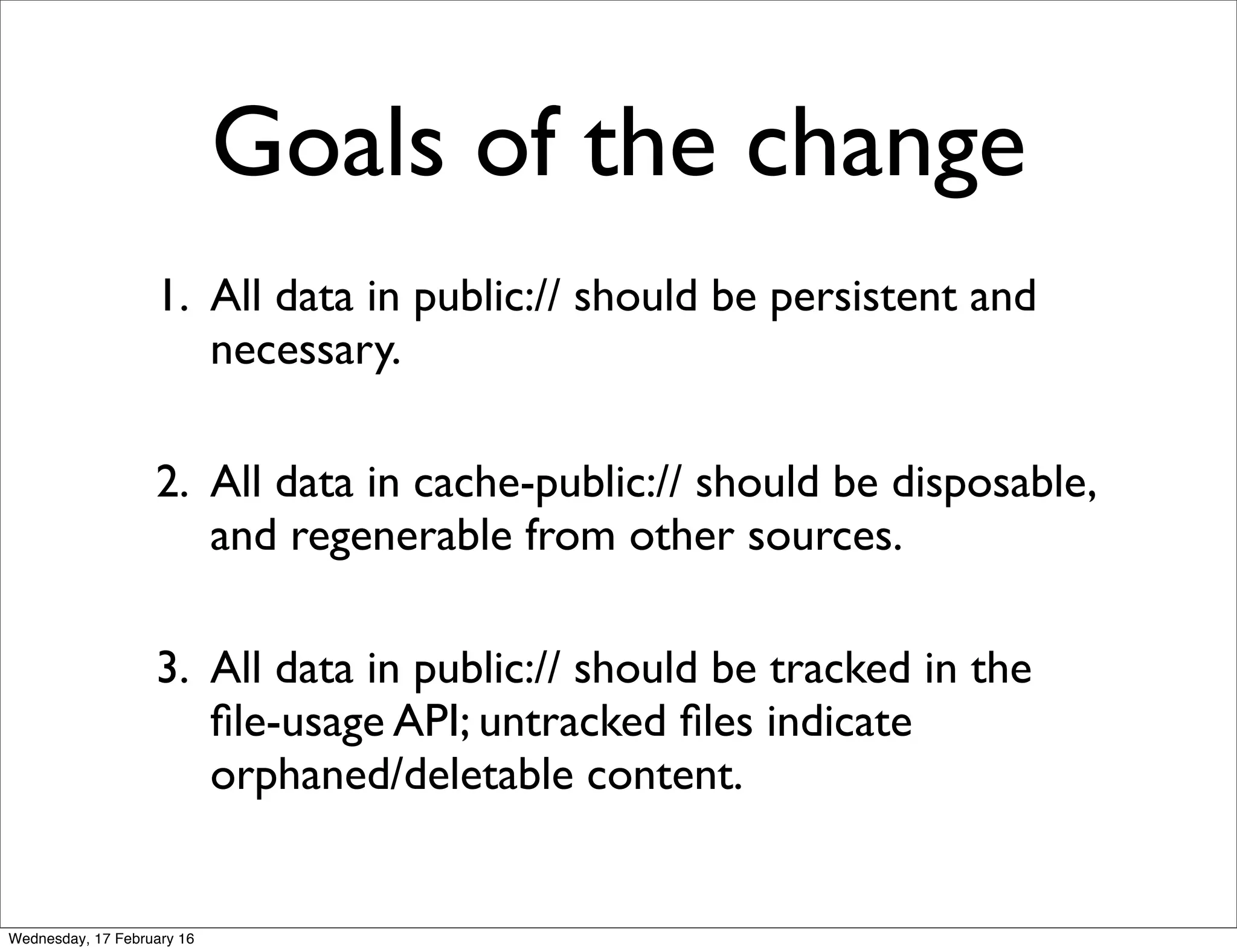

Goals of the change
1. All data in public:// should be persistent and
necessary.
2. All data in cache-public:// should be disposable,
and regenerable from other sources.
3. All data in public:// should be tracked in the
file-usage API; untracked files indicate
orphaned/deletable content.
Wednesday, 17 February 16
Summary
Adding two stream-wrappers to core would allow
regenerable content to be stored separately from
persistent content, simplifying a number of tasks
such as back and synchronization between
environments.
This change would be backwards-compatible, would
not affect existing sites without action from the
site-owner, and would improve developer's
understanding of directory structures created by
modules.
Wednesday, 17 February 16
