Luis Majano discusses ORM and his CBORM module. He argues that ORM is not a silver bullet and presents 10 keys to ORM success: 1) OO modeling is key; 2) avoid bad engine defaults; 3) understand the Hibernate session; 4) use transaction demarcation; 5) use laziness; 6) avoid bi-directional relationships; 7) do not store entities in scopes; 8) use database indexes; 9) cache for performance boosts; and 10) use HQL maps. CBORM provides base ORM services, virtual ORM services, active entities, entity populators, validation, and event handlers to improve on ORM.

2. Slaying the ORM Dragons
with CBORM

3. WHO AM I?
• Luis Majano - Computer Engineer
• Imported from El Salvador----------->
• Architecture + Software Design
• CEO of Ortus Solutions
• Adobe Community Professional
• Creator of all things Box:
ColdBox, ContentBox,
CommandBox,WireBox….

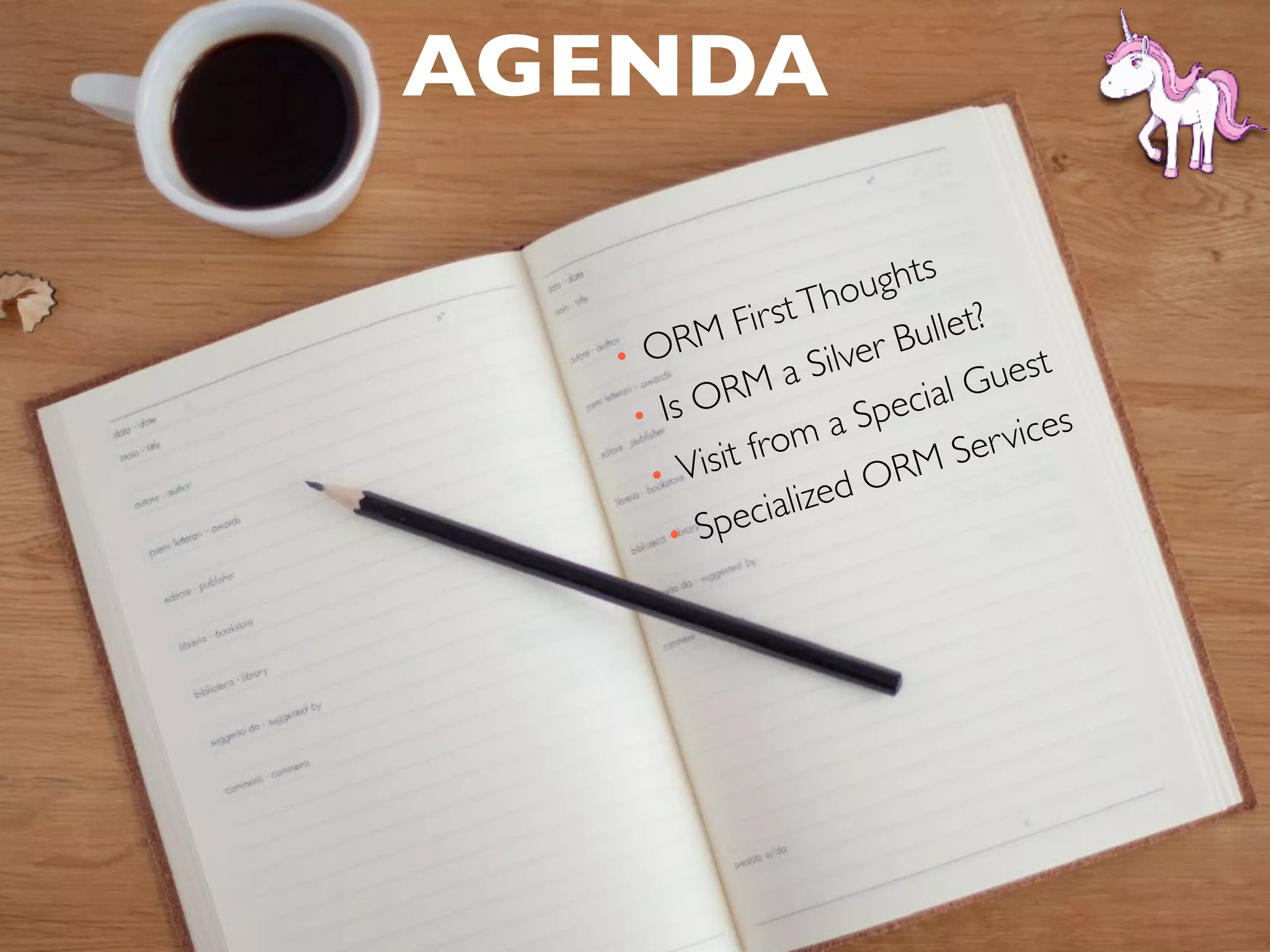

4. AGENDA
• ORM FirstThoughts
• Is ORM a Silver Bullet?
• Visit from a Special Guest
• Specialized ORM Services

5. ORMThoughts?
CF ORM was
easier to use?
OO way to
query
ORM was fast
80% of API
Querying
Extensible
way to finish
the remaining
20%
When is
HappyBox?
Auto build
relationships

6. CONCLUSIONS
• Can’t or doesn’t exist
• Sounds like bull…..
• What’s this latino up to?
• Is he trying to get my money
PROVE IT!

7. ORM is NOT a silver bullet
• Just another tool
• Times you need the power of the database: reports, legacy, sp, etc.
• Mix and match
• What if you wanted array of structs, or lists or queries or arrays of data?
• There is a learning curve, but it is worth the investment

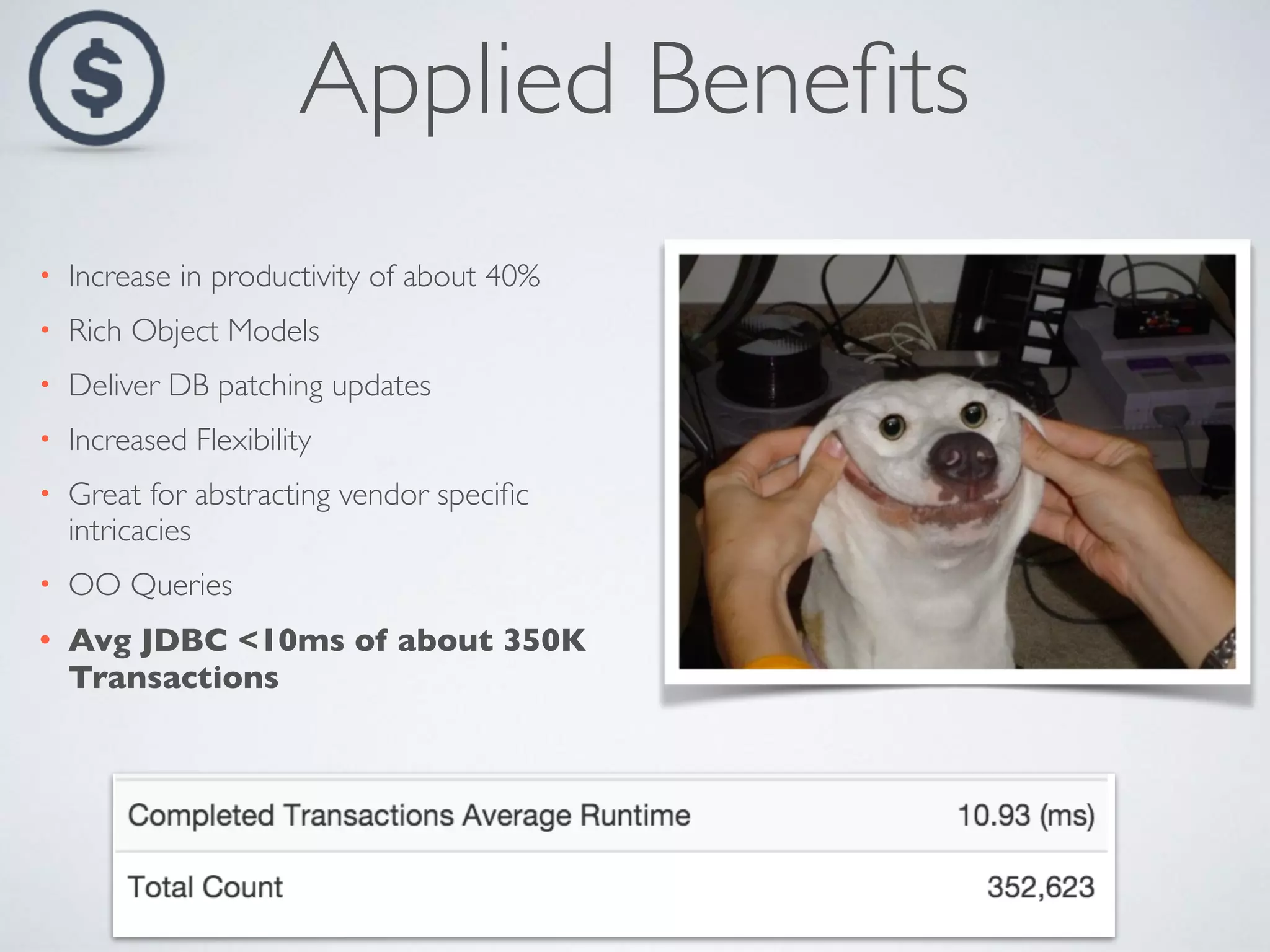

8. Applied Benefits
• Increase in productivity of about 40%
• Rich Object Models
• Deliver DB patching updates
• Increased Flexibility
• Great for abstracting vendor specific
intricacies
• OO Queries
• Avg JDBC <10ms of about 350K
Transactions

9. How do we start?
coldfusionormbook.com amazon

10. Guru ORMLui
10 keys to ORM Success!

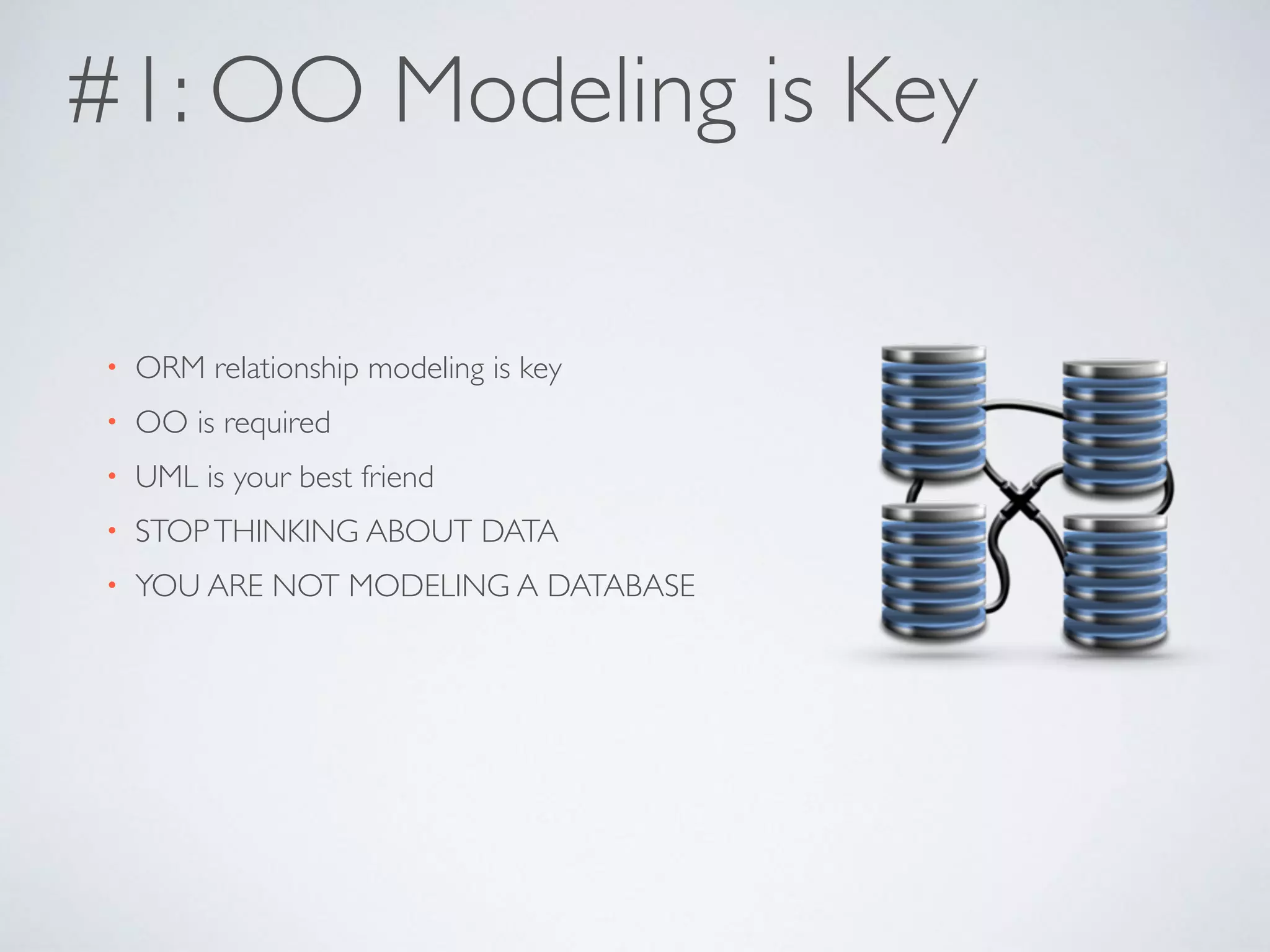

11. #1: OO Modeling is Key
• ORM relationship modeling is key
• OO is required
• UML is your best friend
• STOPTHINKING ABOUT DATA
• YOU ARE NOT MODELING A DATABASE

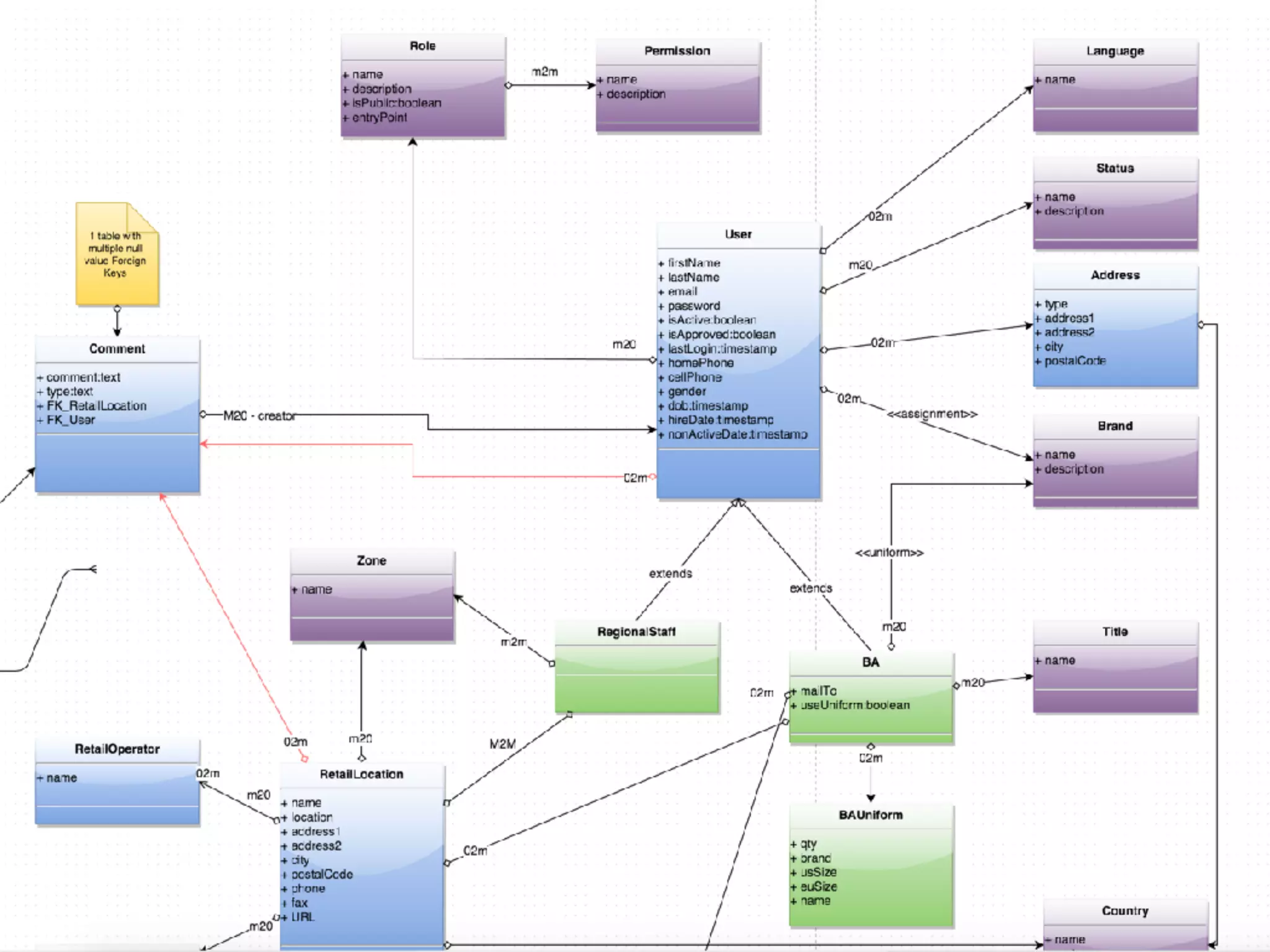

12. #1: OO Modeling is Key

13. #1: OO Modeling is Key
Query Object
Data Data + Behavior

14. #2: Bad Engine Defaults
Do not use engine defaults:
Control Data Flushing +Transaction Borders:
ormsettings.flushAtRequestEnd=false
ormsettings.autoManageSession=false
Control Database Dialects (If Possible)
ormsettings.dialect=“MySQLwithInnoDB”

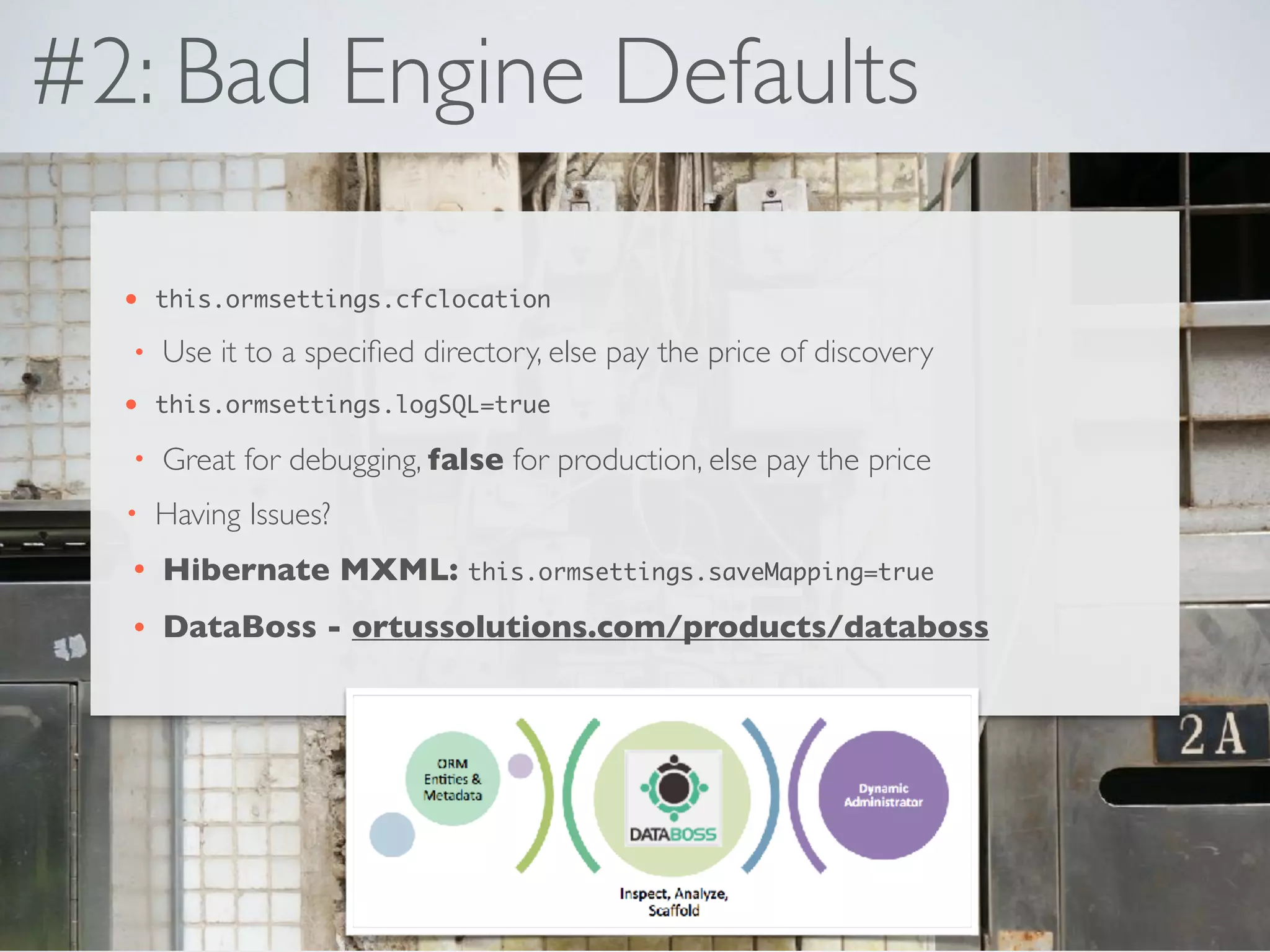

15. #2: Bad Engine Defaults
• this.ormsettings.cfclocation
• Use it to a specified directory, else pay the price of discovery
• this.ormsettings.logSQL=true
• Great for debugging, false for production, else pay the price
• Having Issues?
• Hibernate MXML: this.ormsettings.saveMapping=true
• DataBoss - ortussolutions.com/products/databoss

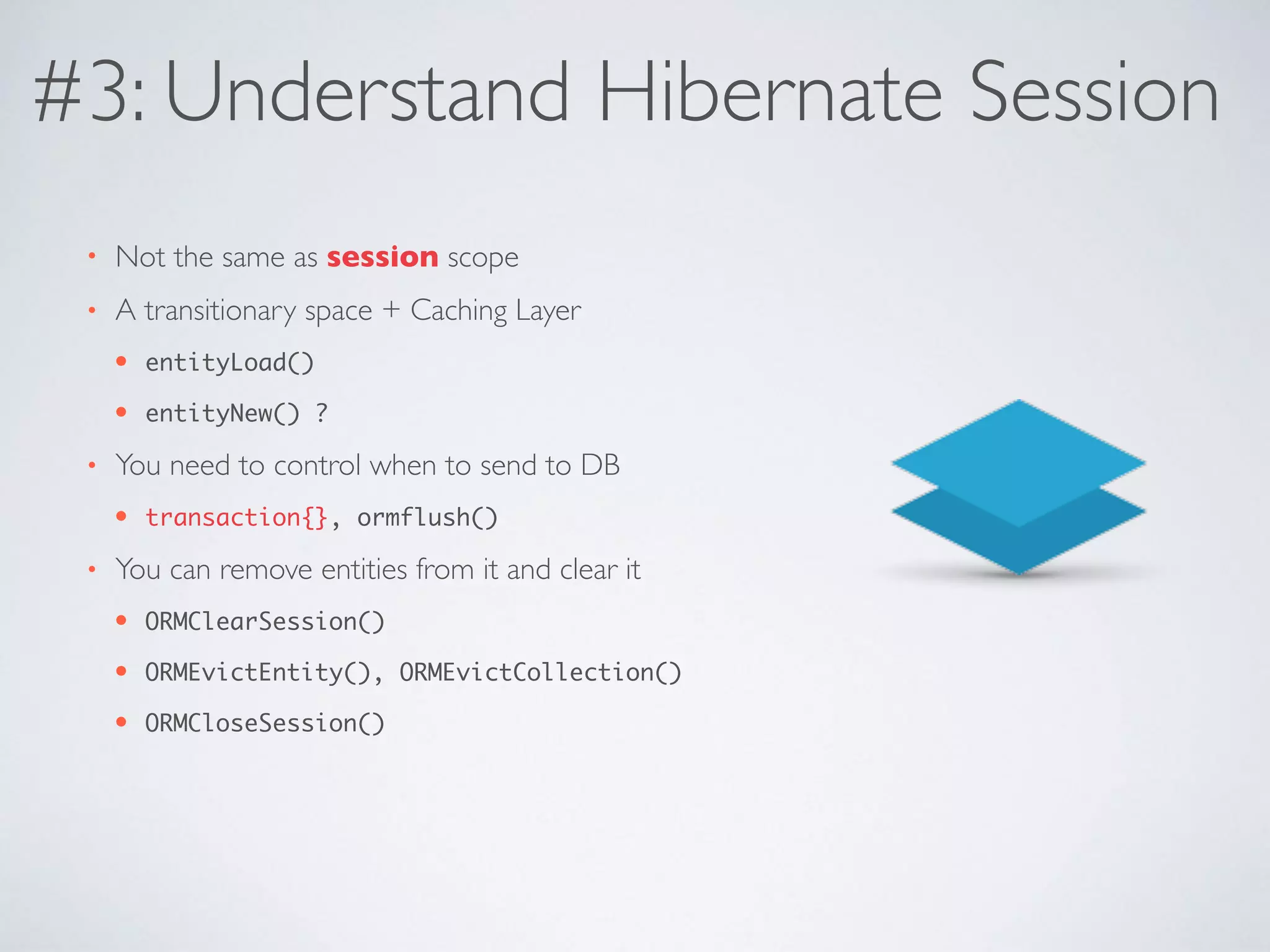

16. #3: Understand Hibernate Session
• Not the same as session scope
• A transitionary space + Caching Layer
• entityLoad()
• entityNew() ?
• You need to control when to send to DB
• transaction{}, ormflush()
• You can remove entities from it and clear it
• ORMClearSession()
• ORMEvictEntity(), ORMEvictCollection()
• ORMCloseSession()

17. #3: Understand Hibernate Session
Hibernate Session
(Conversation - Request)
DB
Eu
Ex EzEy
Cache
ehCache/
Couchbase
Batched SQL
EntityNew()
EntityLoad()
Data (!CFCs)
Hibernate Session
Factory (application)
CRUD
When?
ORMClearSession()

18. #3: Understand Hibernate Session
DB Sync
Insertions in order
updates
Collection deletions
collection deletion, updates, inserts
collection insertions
deletions in order

19. #4:Transaction Demarcation
• Transactions demarcate SQL boundaries
• Important Imperative for ORM + SQL
• No communication to DB should occur without one
• Reactive programming, expect the worst
• cftransaction or Hibernate transactions

20. #4:Transaction Demarcation
• Transaction Theory:
• Any existing ORM session is flushed and reused
• Data can be committed or rollback
• ORMFlush() is ignored in transactions
• If commit, then flushed to database
• If rollback, session is cleared

21. #5 Lazyness
• Immediate Fetching (Default)
• select with left outer join
poor, poor, poor, poor performance
• Use lazy For ALL Relationships or pay the price
• Three types of laziness:
• lazy=“true”
• all relationships
• Loads all the relationship data when called upon (Batch sizes if used)
• lazy=“extra”
• one-to-many, many-to-many
• Loads proxies with primary keys (Event better - Batch sizes if used)
• lazy=“proxy”
• one-to-one, many-to-one
• Loads proxy with primary key

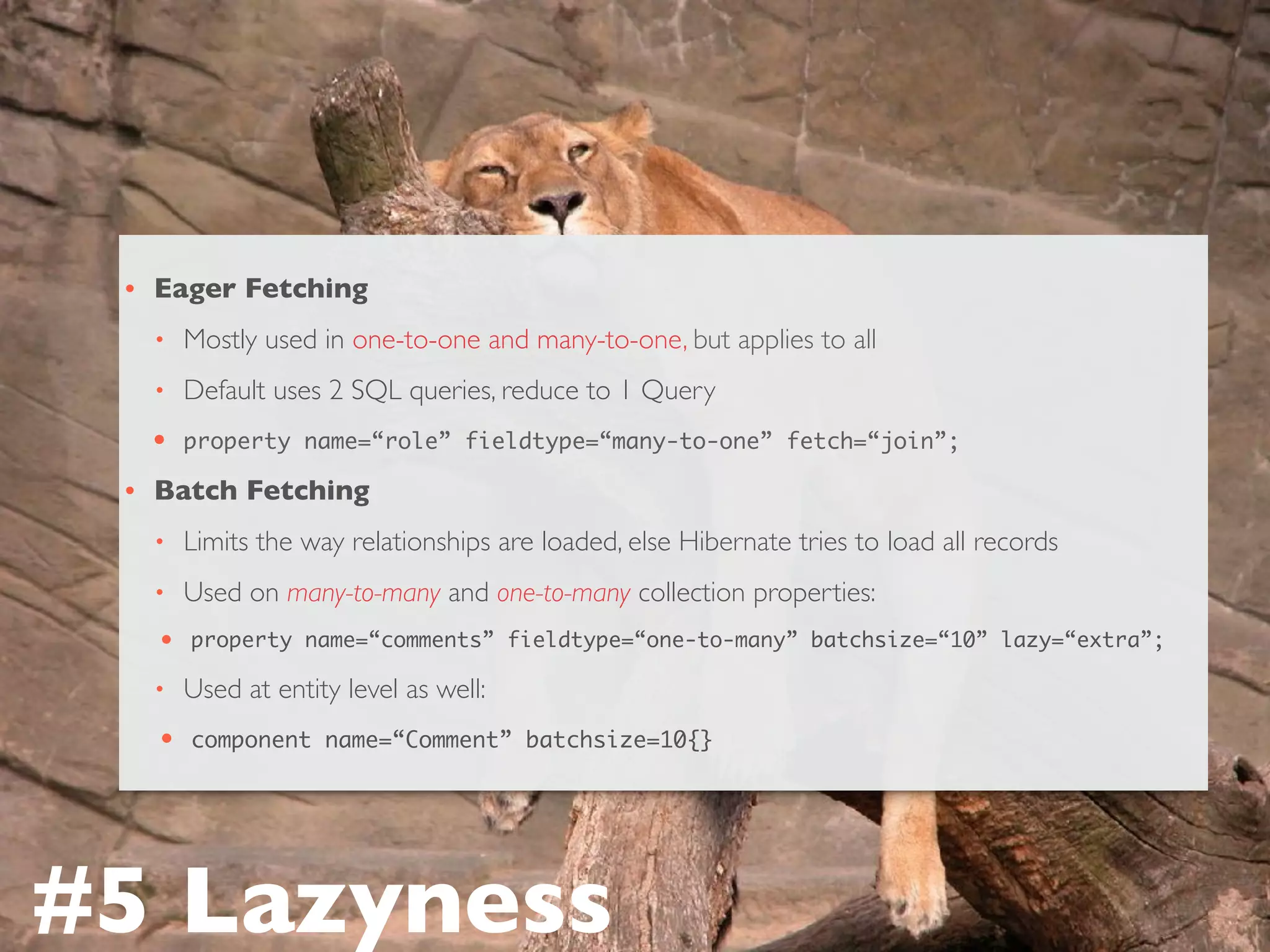

22. • Eager Fetching
• Mostly used in one-to-one and many-to-one, but applies to all
• Default uses 2 SQL queries, reduce to 1 Query
• property name=“role” fieldtype=“many-to-one” fetch=“join”;
• Batch Fetching
• Limits the way relationships are loaded, else Hibernate tries to load all records
• Used on many-to-many and one-to-many collection properties:
• property name=“comments” fieldtype=“one-to-many” batchsize=“10” lazy=“extra”;
• Used at entity level as well:
• component name=“Comment” batchsize=10{}
#5 Lazyness

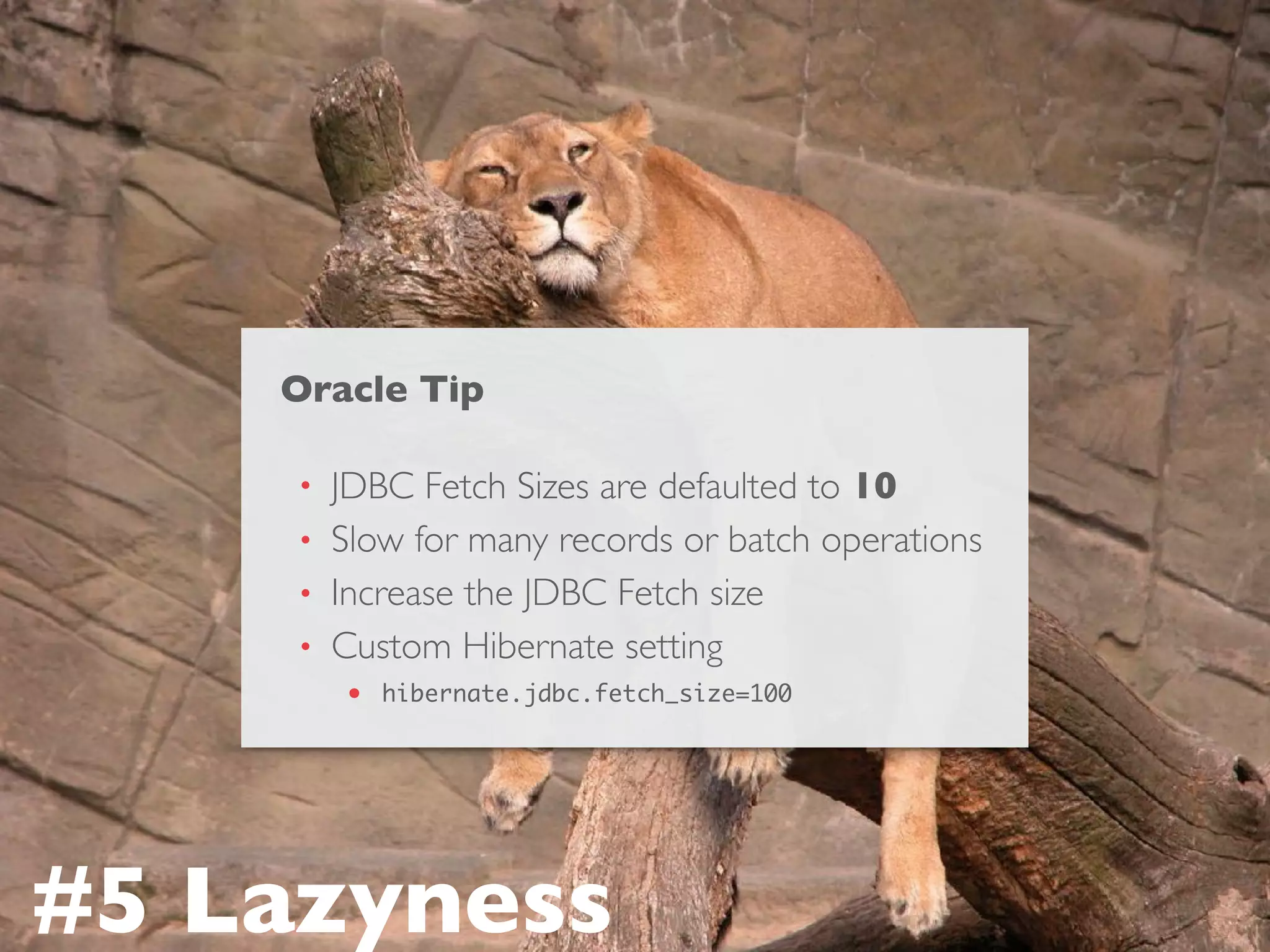

23. Oracle Tip
• JDBC Fetch Sizes are defaulted to 10
• Slow for many records or batch operations
• Increase the JDBC Fetch size
• Custom Hibernate setting
• hibernate.jdbc.fetch_size=100
#5 Lazyness

24. #6:Avoid bi-directional
• They can be more of a headache
• Cascading Deletes
• Choose the master relationship
• inverse=true
• Else double queries
• Does it make sense?
• Supporting methods for bi-directional linkage
• Supporting methods for un-linkages

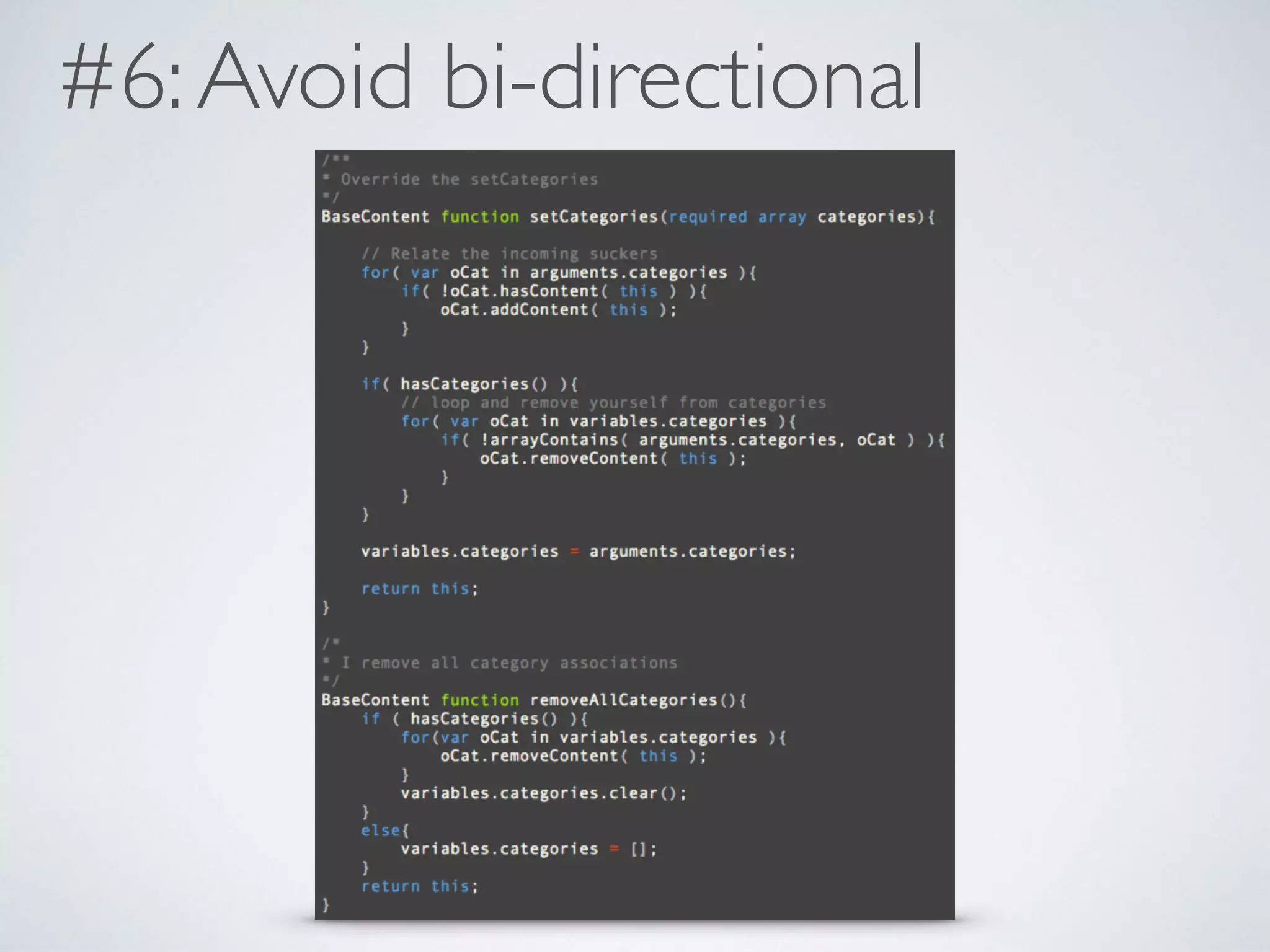

25. #6:Avoid bi-directional

26. #6:Avoid bi-directional

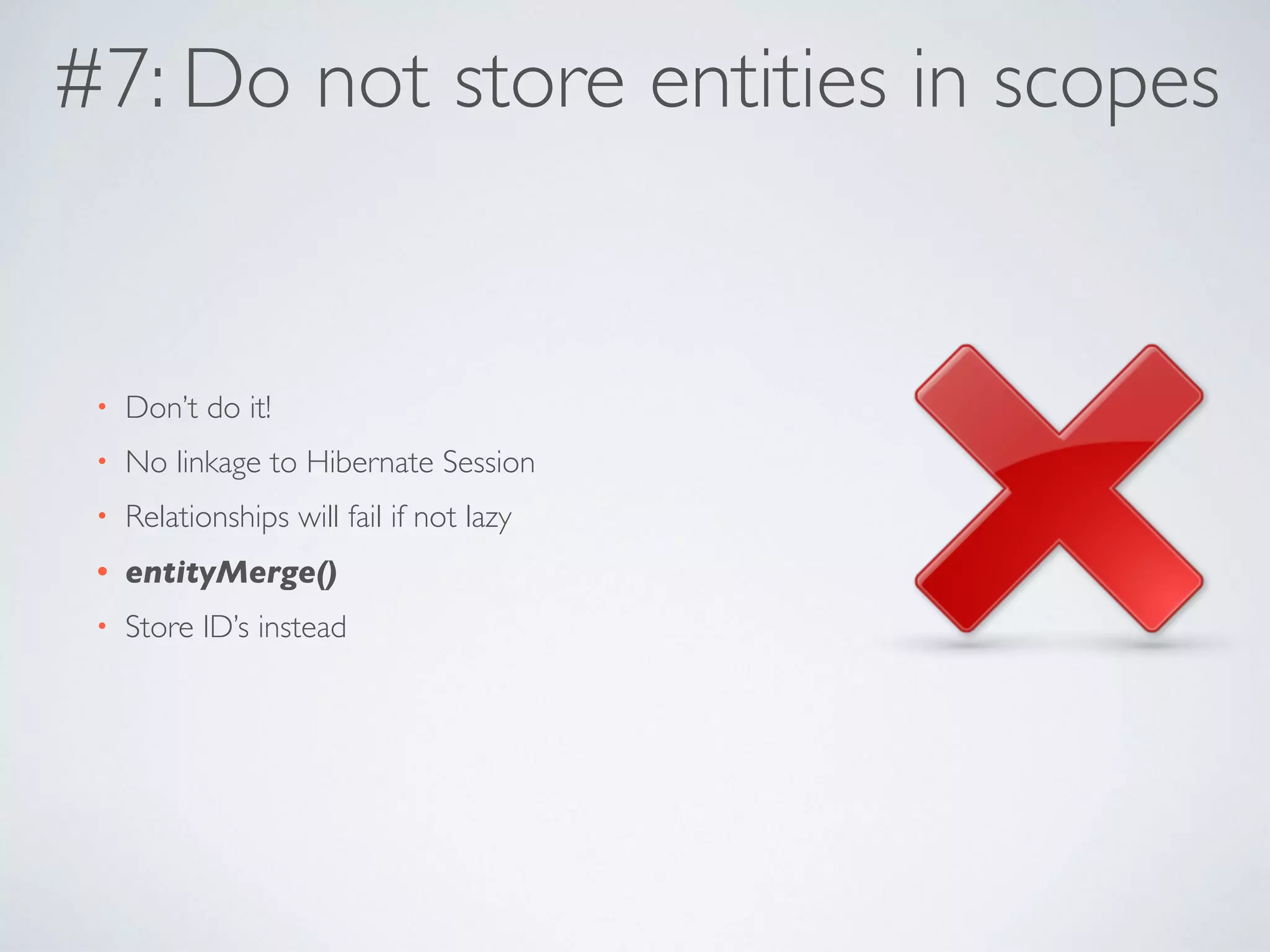

27. #7: Do not store entities in scopes
• Don’t do it!
• No linkage to Hibernate Session
• Relationships will fail if not lazy
• entityMerge()
• Store ID’s instead

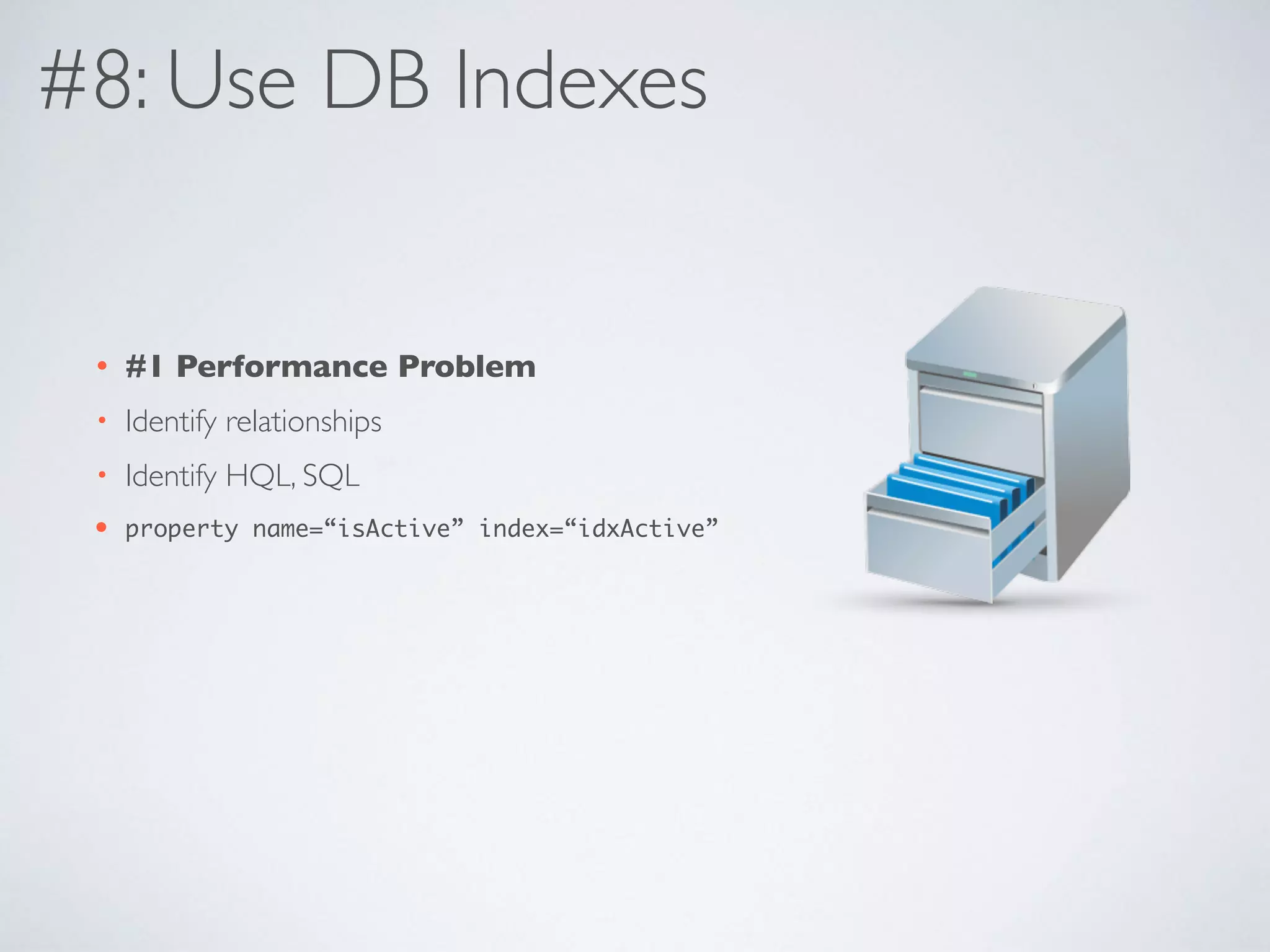

28. #8: Use DB Indexes
• #1 Performance Problem
• Identify relationships
• Identify HQL, SQL
• property name=“isActive” index=“idxActive”

29. #9: Cache = BOOST!
• Don’t go cache crazy
• Develop a strategy
• Does not store CFC, stores individual property values
• Use distributed caches: ehcache, couchbase
• You can cache:
• Entity property data : Only caches properties data values
• Entity association data : Only caches primary keys
• Query data : HQL, ORMExecuteQuery()
• Evictions:
• ORMEvictEntity(), ORMEvictCollection()

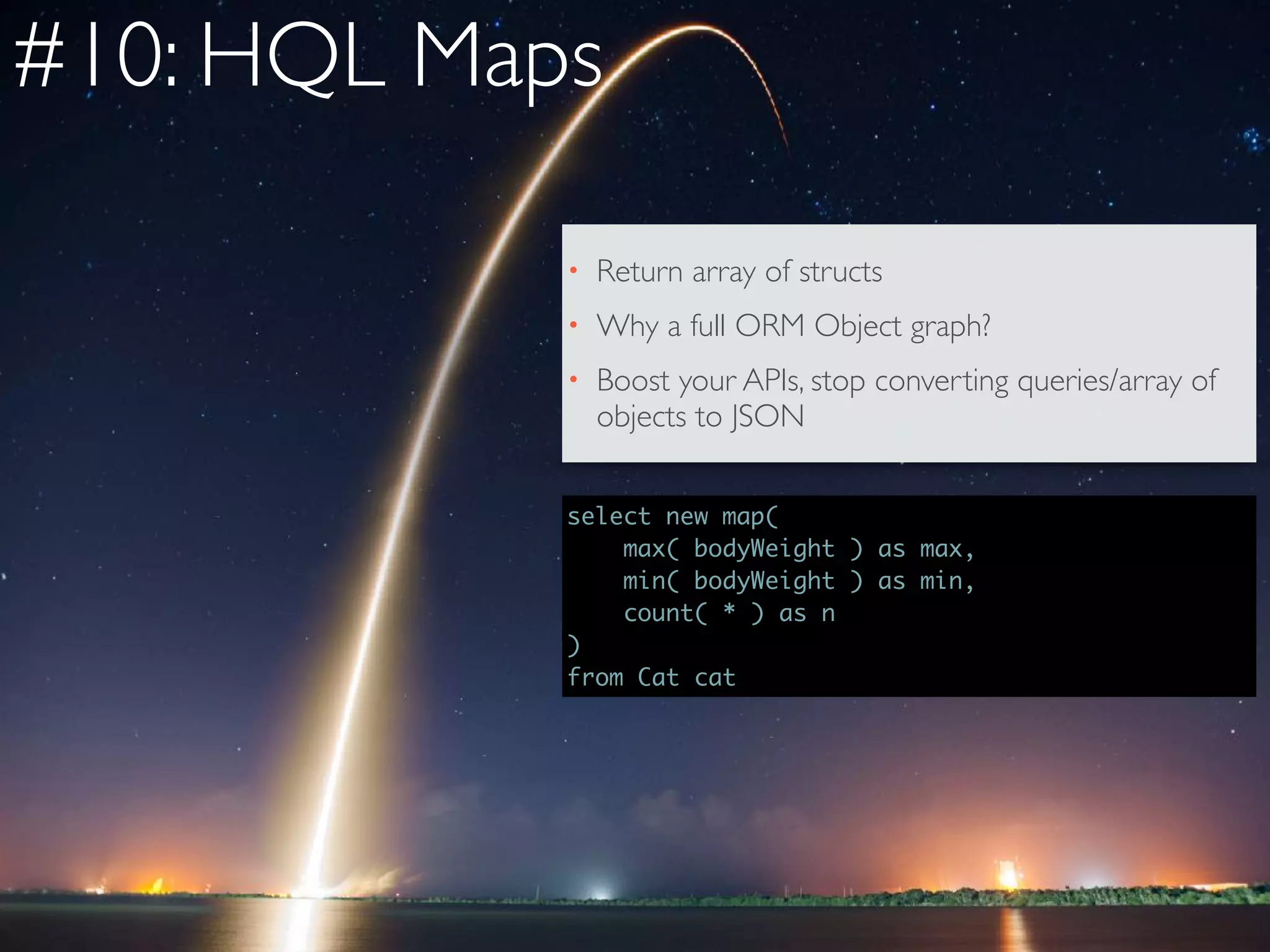

30. #10: HQL Maps
select new map(
max( bodyWeight ) as max,
min( bodyWeight ) as min,
count( * ) as n
)
from Cat cat
• Return array of structs
• Why a full ORM Object graph?
• Boost your APIs, stop converting queries/array of
objects to JSON

31. ORM Module
install cborm

32. ORM Module
Base ORM Service
Virtual ORM Service
Active Entity
Entity Populators
Validation
Event Handlers
DI/AOP

33. Base ORM Service
• Service layer for any entity
• OO Querying, caching, transactions
• Dynamic finders, getters, counters
• Object metadata & session management
• Exposes more features from Hibernate
• 90% Foundation

34. • Extends Base ORM Services
• Roots itself to a single entity = LessTyping
• You can build the 10%
Virtual/Concrete ORM
Services

35. • Active Record Pattern
• Sweet validation integration
• DI/AOP Available

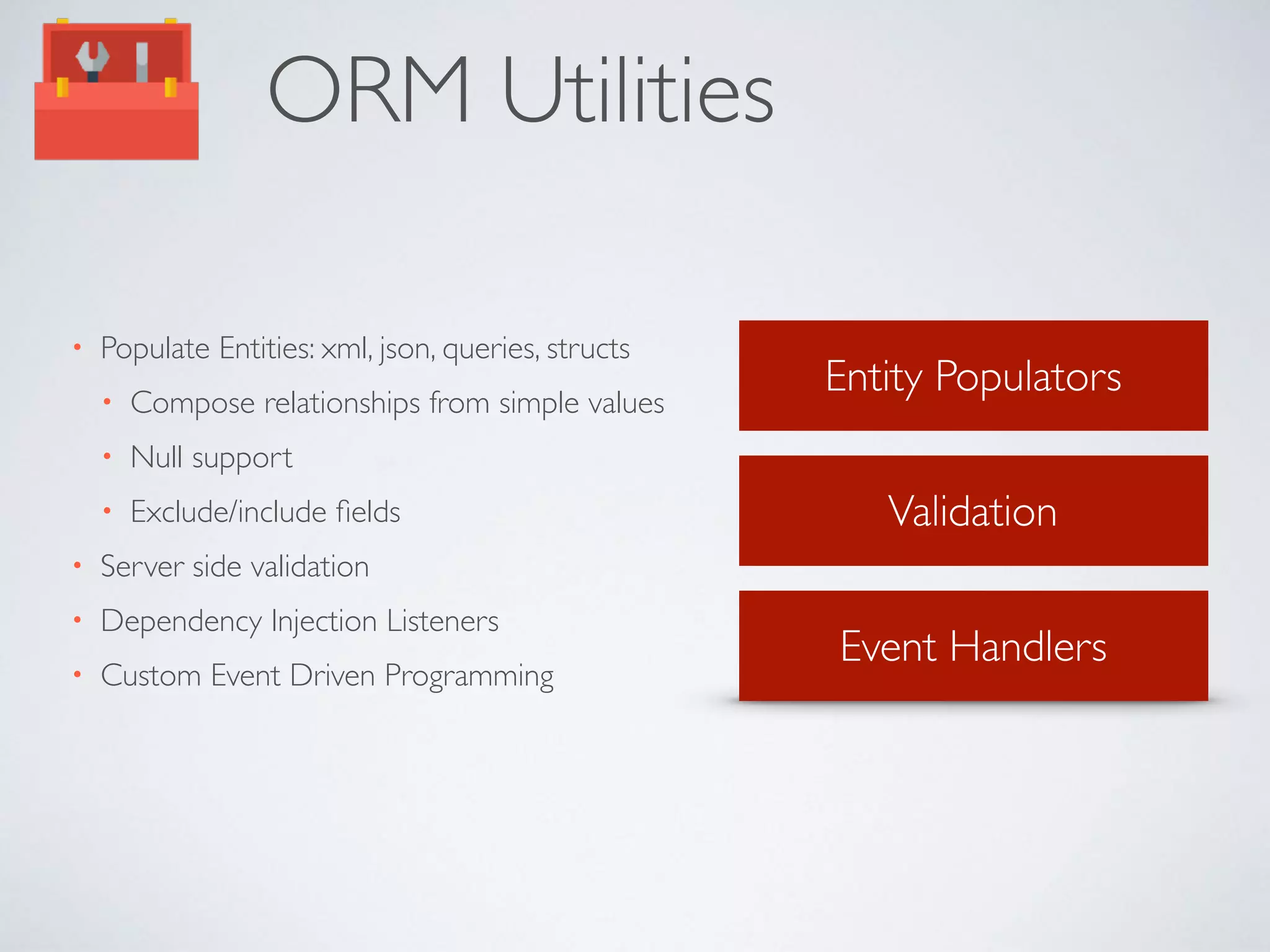

Active Entity

36. • Populate Entities: xml, json, queries, structs
• Compose relationships from simple values
• Null support
• Exclude/include fields
• Server side validation
• Dependency Injection Listeners
• Custom Event Driven Programming
Entity Populators
Validation
Event Handlers
ORM Utilities

37. ORM Services in Action
box install cartracker-demo

38. Base ORM Service
• count(), countWhere()
• delete(), deleteAll(), deleteByID(), deleteByQuery(), delete Where()
• evict(), evictEntity(), evictQueries()
• executeQuery(), list()
• exists()
• findAll(), findAllWhere(), findByExample(), findIt(), findWhere()
• get(), getAll(),
• getKey(), getPropertyNames(), getSessionStatistics(), getTableName()
• clear(), merge(), new(), refresh()
• populate(), populateFromJSON(), populateFromXML(), populateFromQuery()
• save(), saveAll()

39. Base ORM Service
Dynamic Finders/Counters
• Expressive Programming
• Three types of dynamic Finders/Counters
• findBy : find ONE entity
• findAllBy : find ALL entities
• countBy: Give you a count

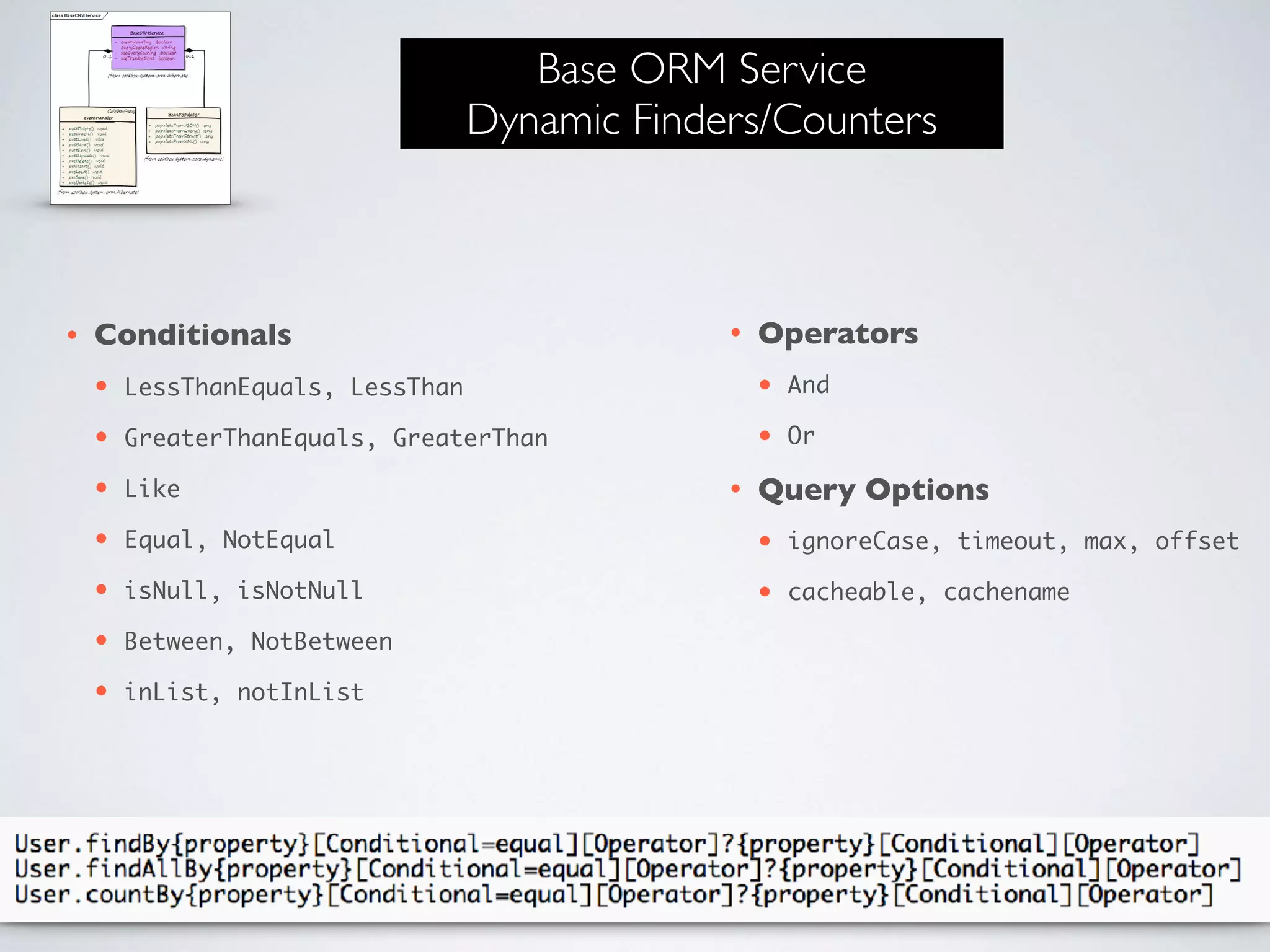

40. Base ORM Service
Dynamic Finders/Counters
• Conditionals
• LessThanEquals, LessThan
• GreaterThanEquals, GreaterThan
• Like
• Equal, NotEqual
• isNull, isNotNull
• Between, NotBetween
• inList, notInList
• Operators
• And
• Or
• Query Options
• ignoreCase, timeout, max, offset
• cacheable, cachename

41. Criteria Builder
Awesome OO Queries

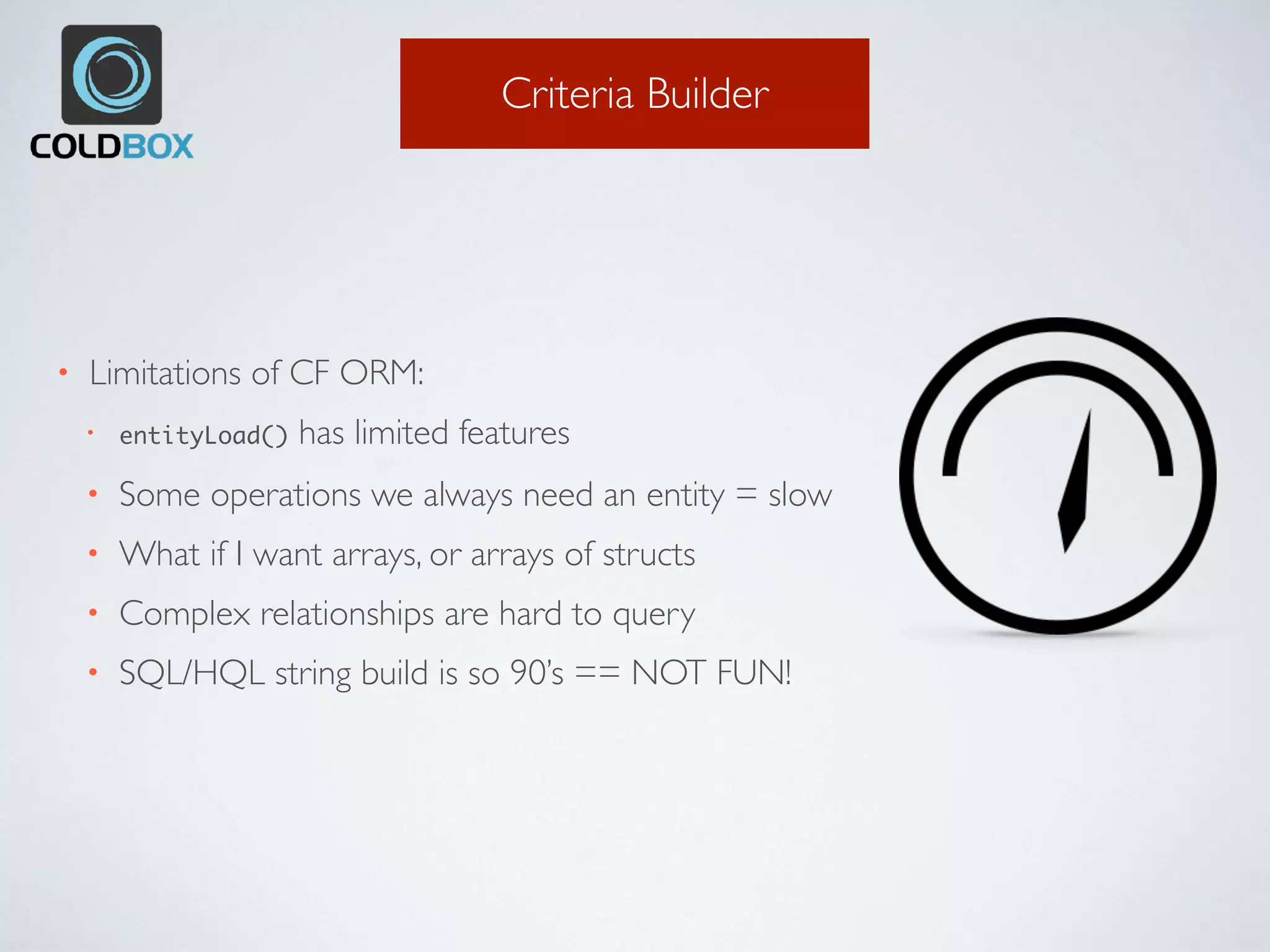

42. Criteria Builder
• Limitations of CF ORM:
• entityLoad() has limited features
• Some operations we always need an entity = slow
• What if I want arrays, or arrays of structs
• Complex relationships are hard to query
• SQL/HQL string build is so 90’s == NOT FUN!

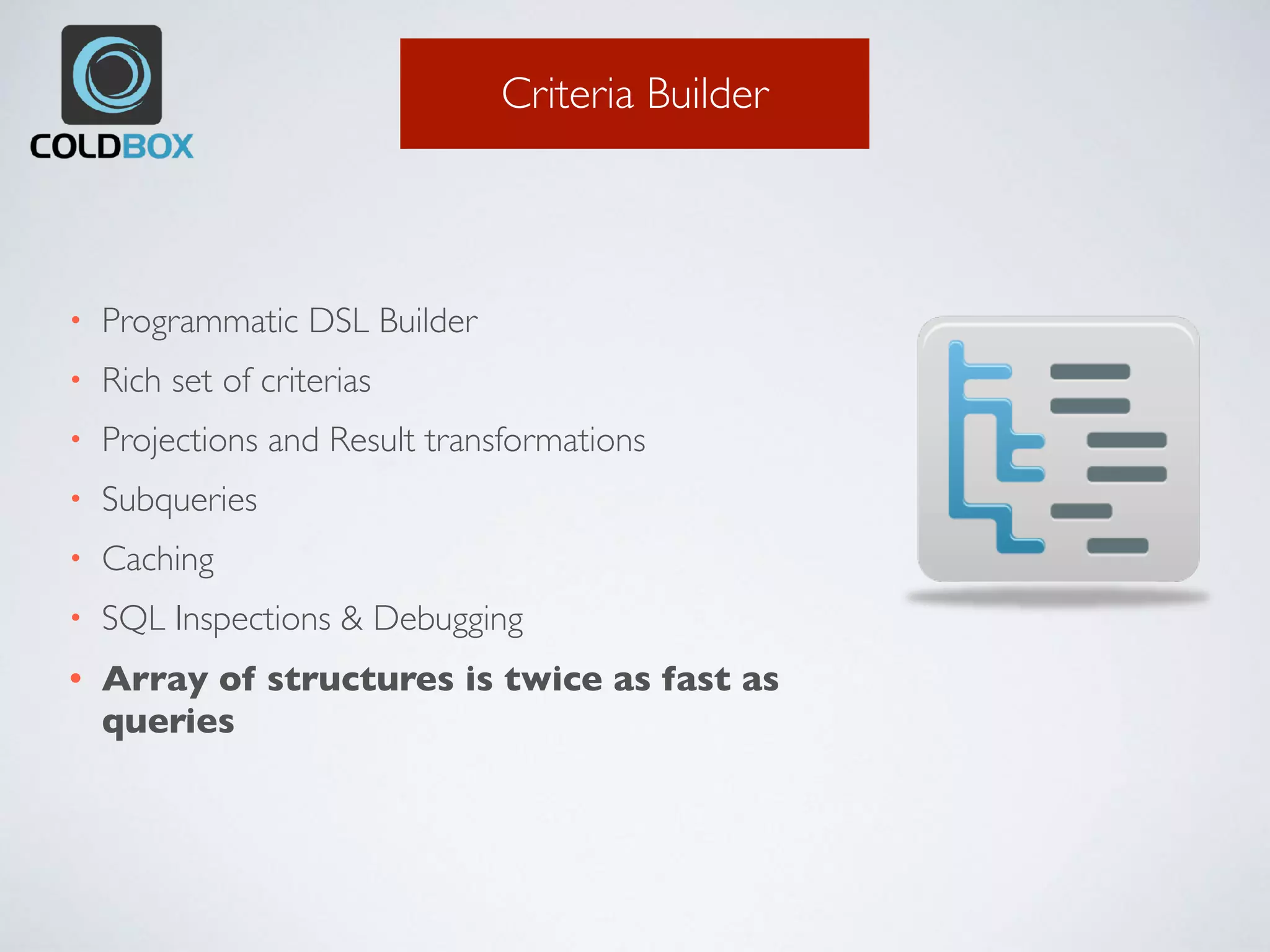

43. Criteria Builder
• Programmatic DSL Builder
• Rich set of criterias
• Projections and Result transformations
• Subqueries
• Caching
• SQL Inspections & Debugging
• Array of structures is twice as fast as
queries

44. Criteria Builder

45. Criteria Builder
• Request new criteria
• newCriteria()
• Add simple restriction(s)
• Find all cars sold between April and July
• Use between()
• Get results
• Use list( max, offset, timeout, sortOrder, ignoreCase, asQuery )
• Get counts
• Use count()

46. Criteria Builder
Restrictions
• between()
• eq()
• gt()
• ge()
• gtProperty()
• isEmpty()
• isNull()
• ne()
• ilike()
• and()
• or()
• not()
• conjunction()
• disjunction()
• isTrue()
• isFalse()
• sqlRestriction()
• ...much more!

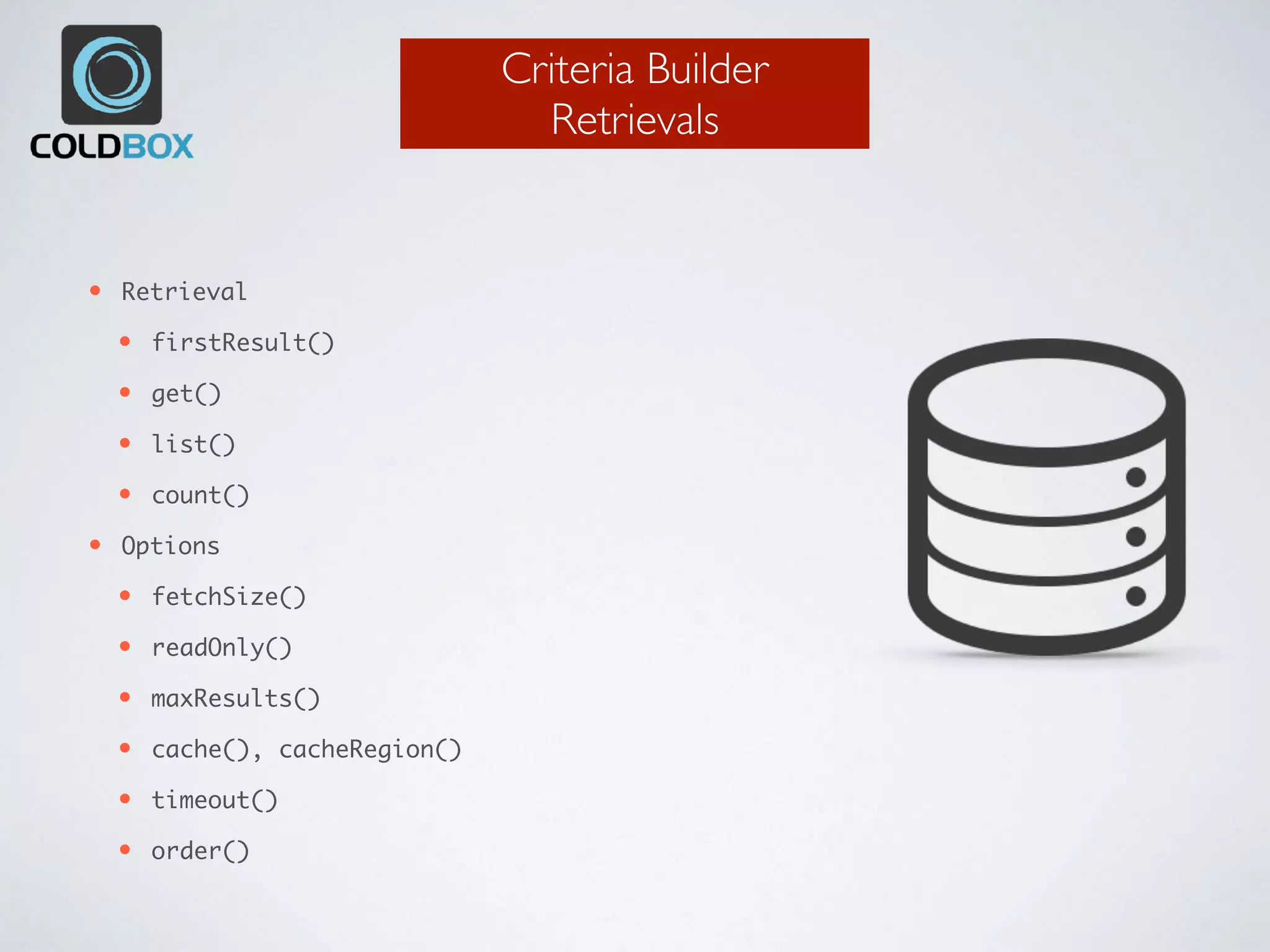

47. Criteria Builder
Retrievals
• Retrieval
• firstResult()
• get()
• list()
• count()
• Options
• fetchSize()
• readOnly()
• maxResults()
• cache(), cacheRegion()
• timeout()
• order()

48. Criteria Builder
Aliases -> Joins
• Allows you to do queries within
relationships
• Creates SQL Joins
• Aliases can be nested, so if your entity
knows about it, you can query it!

49. Criteria Builder
Projections
• Projects change nature of results
• Arrays of data, or arrays of structs (Mighty Fast)
• Once its added its there forever
• avg
• count
• countDistinct
• distinct
• groupProperty
• max
• min
• property
• sum
• rowCount
• id
• sqlProjection
• sqlGroupProjection
• detachedSQLProjection

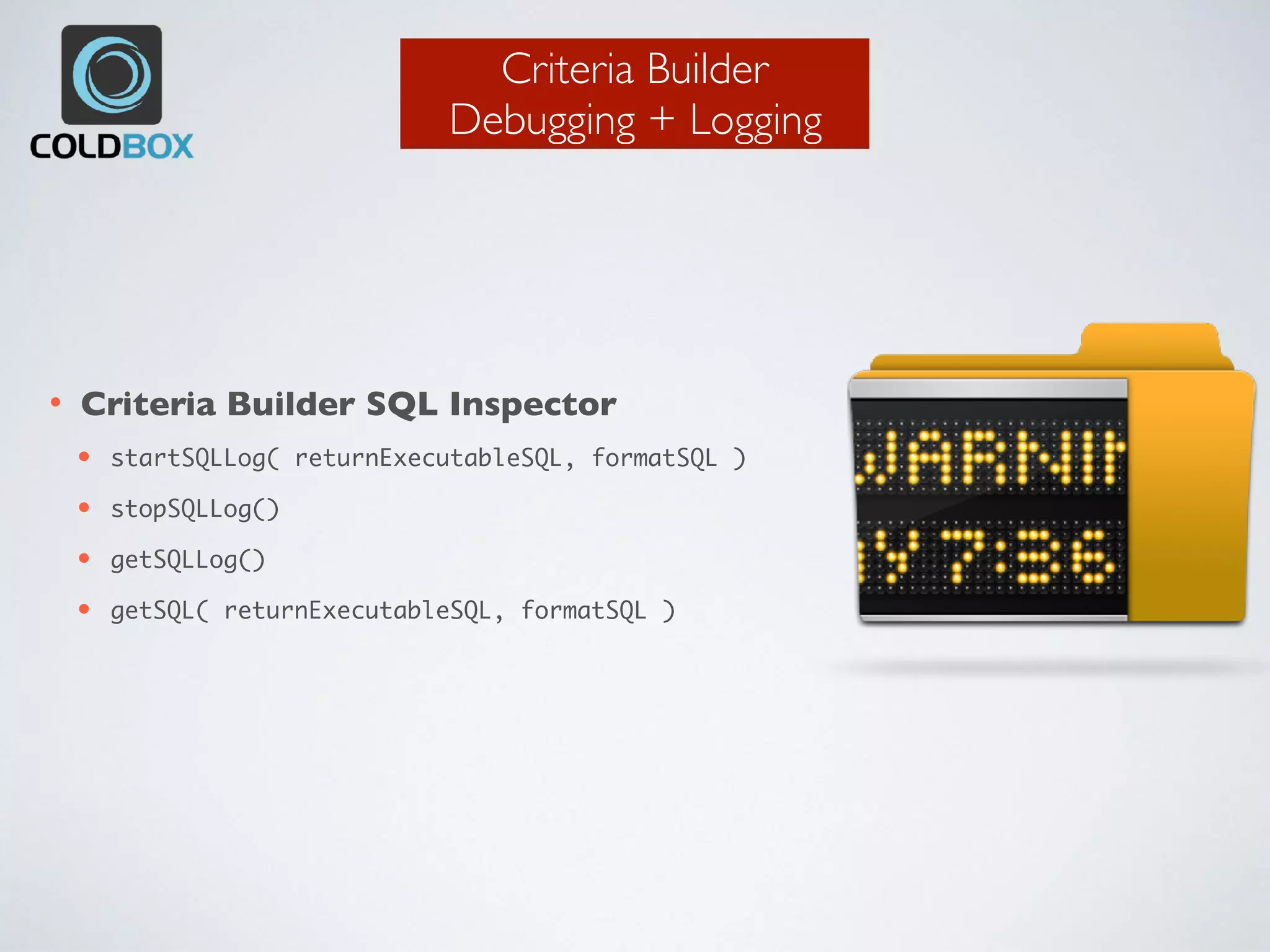

50. Criteria Builder
Debugging + Logging
• Criteria Builder SQL Inspector
• startSQLLog( returnExecutableSQL, formatSQL )
• stopSQLLog()
• getSQLLog()
• getSQL( returnExecutableSQL, formatSQL )

51. Thanks!
Q & A
