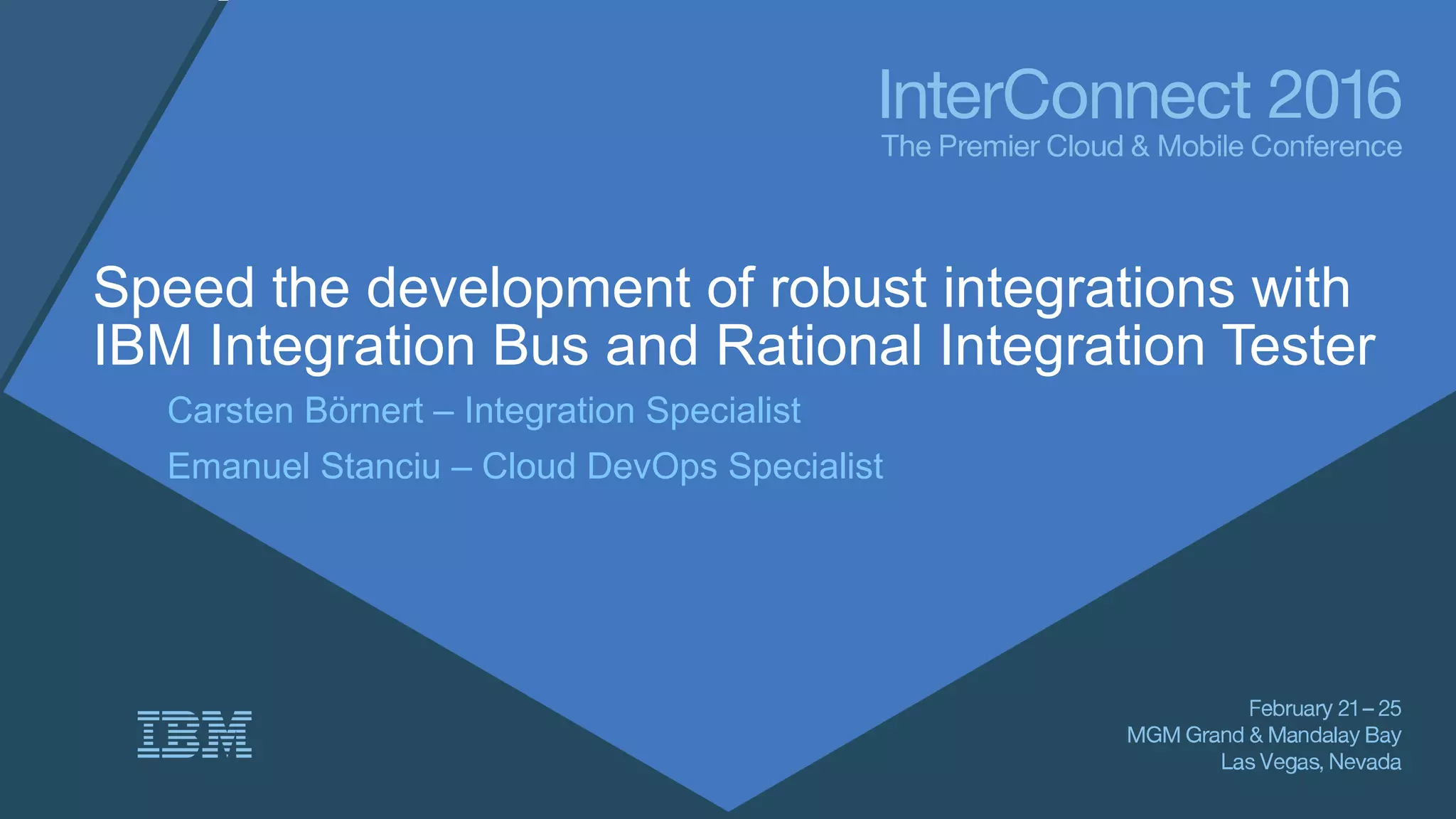

1. Speed the development of robust integrations with
IBM Integration Bus and Rational Integration Tester
Carsten Börnert – Integration Specialist
Emanuel Stanciu – Cloud DevOps Specialist

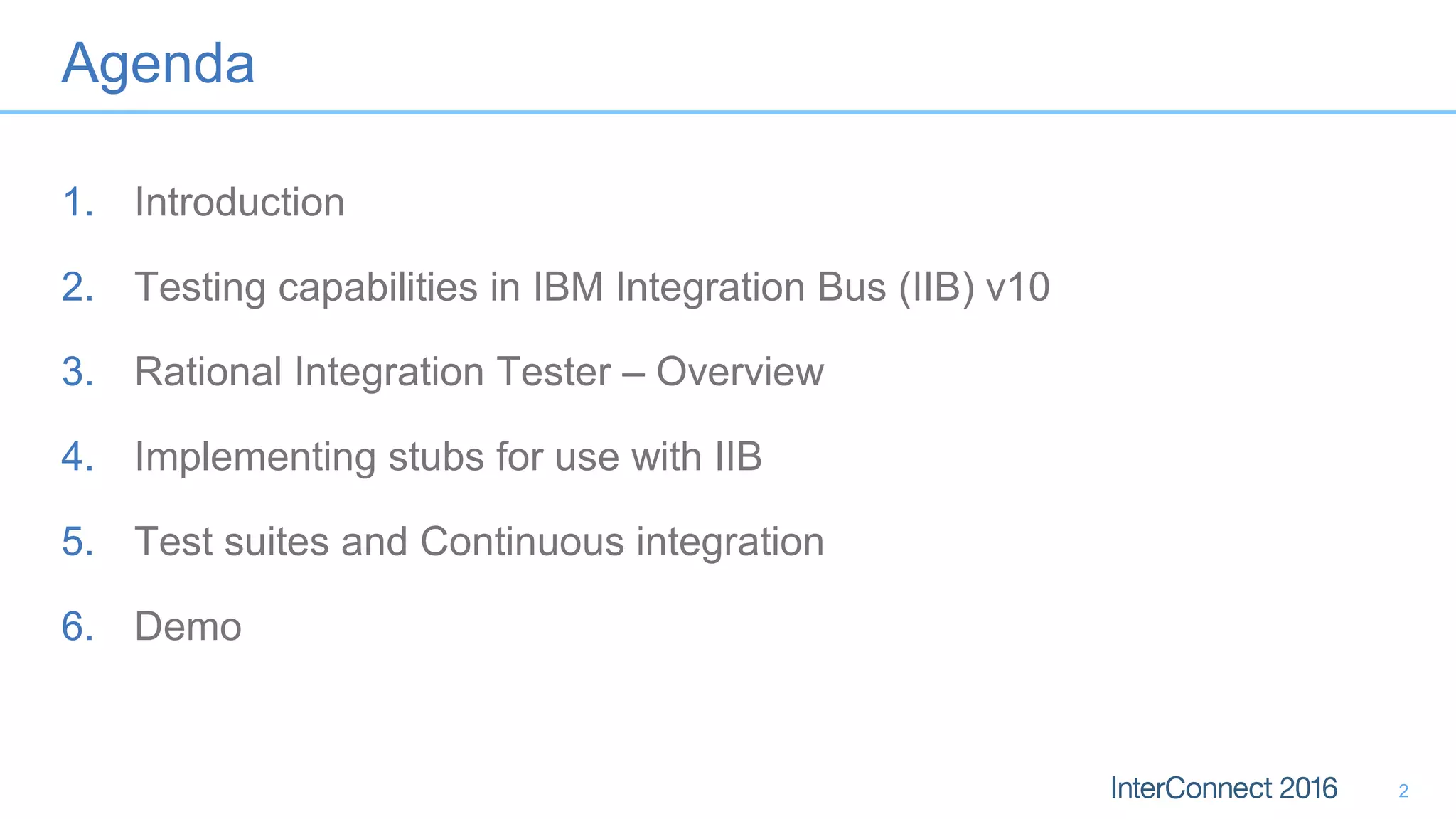

2. Agenda
1. Introduction
2. Testing capabilities in IBM Integration Bus (IIB) v10
3. Rational Integration Tester – Overview
4. Implementing stubs for use with IIB
5. Test suites and Continuous integration
6. Demo
2

3. Introduction

4. Scope of testing
• Applications, Services, Libraries using a variety of transports, formats
and subflows
• Unit testing – how big/small is a unit?
• Message transformation
• Message routing
• Subflows
• System testing – what exactly constitutes the system?
• The system is the Message Flow
• System integration testing
• End-to-end interactions
4

5. Testing capabilities in IBM
Integration Bus v10

6. IIB v10 Flow Exerciser
• Introducing the flow exerciser
• Save messages
• Trace path through flow
• Inject messages
• Supported nodes
• MQInput, HTTPInput, SOAPInput
• Use for testing of
• Subflows
• Message transformations
• Message model testing
• Error handling
• Using API to automate
• Java or REST
6
Check out the blog on developer.ibm.com/integration
https://developer.ibm.com/integration/blog/2015/06/03/using-flow-exerciser-iib-v10/

7. Rational Integration Tester
Overview
7

8. Presentation layer
Integrations, data
and business logic
Only one-tenth of an iceberg is above water
Traditional UI testing
Automated Integration Testing and
Service Virtualization
The majority of risk in modern systems is
seldom tested as it is unseen.

9. Today, integration of enterprise applications still
follow the “big-bang” approach …
• Integration amongst different components of the enterprise application occur at the end of a
milestone in a “big-bang”
• Difficult to continuously integrate and deploy across different technology stacks and varying
delivery schedules. Very hard for different teams to collaborate together on interim builds inside a
milestone
Mobile
component
Web
component
Mainframe
component
1 week
Big
Bang
!
1 week
Big
Bang
!

10. Tests can bypass the UI and
execute beneath the iceberg.
Test while your system is being
built and at an accelerated rate.
Much greater coverage = much
greater confidence
Introduces the concept of testing side effects.
Validate the contents of message queues, log files
and databases as well as simple inputs/outputs.
Shift Left with Automated Integration Testing

11. The Continuous Testing Solution: RTW, RPTS, RTVS
• IBM Rational Test Workbench
– Enable functional, performance and integration testing
throughout your project lifecycle
– With a scriptless, wizard-driven test authoring
environment and support for more than 70 technologies
and protocols
• IBM Rational Performance Test Server
– Save time and effort by reusing your functional integration
tests for performance testing
– Combine your tests to model real-world scenarios and
assess the impact of load on your integrated
infrastructure.
• IBM Rational Test Virtualization Server
– Model real system behavior to eliminate test
dependencies and simulate production,
– Accelerate testing and reduce the setup and
infrastructure costs of traditional testing environments.
Test
Servers
Load Agents
Virtualization Agents
QA DEV

12. The bottom line
Using IBM’s test automation and
virtualization can eliminate long
back-end test cycles, increase
quality, and lower risk.
Test early and continuously with virtualization
•Verify and validate the
technical solution for a
business change without
waiting for the complete
technical solution to be
built.
Test integrations
•Most of the risk of business
change lies at the
integration layer and
WebSphere solutions need to
be tested below the UI.
•Verify side effects such as
database writes or log file
updates for greater
confidence.
Test performance
•Verify scalability after
upgrading or migrating to the
WebSphere platform.
•Be confident before you add
Minimize Risk with RTW and RTVS

13. IBM Rational Test Virtualization Server
supports multiple platforms and protocols
Transport/Protocol Message Formats Technologies
• ActiveMQ
• Email (SMTP, IMAP)
• Files
• FTP/S
• HTTP/S
• WebSphere MQ
• Java RMI
• JMS
• SAP IDoc, BAPI, RFC
• Software AG’s IB & IS
• Sonic MQ
• TCP/IP
• TIBCO Rendezvous, Smart
Sockets & EMS
• CICS TG
• CICS IPIC
• IMS Connect
• MQTT
• .Net Objects
• Bytes
• COBOL Copybook
• ebXML
• ASC X12
• UN/EDIFACT
• DFDL
• Fixed Width
• Java Objects
• MIME
• SOAP
• Software AG Broker Docs
• SWIFT
• CHIPS
• FedWire
• TIBCO ActiveEnterprise
• HL7 v3
• XML (DTD, XSD, WSDL)
• ISO8583
• Custom
• CentraSite
• Oracle Fusion
• SCA Domain
• Software AG IS, Broker,
BPMS
• WebSphere Application
Server
• WebSphere Message Broker
• WebSphere MQ
• Websphere SI Bus
• Sonic ESB
• System z (CICS and IMS)
• TIBCO ActiveMatrix
• UDDI
• Web Services
• WebSphere RR
• WSDL
• BPM
• Databases
• Log Files
Supporting technologies the business depends on
Protocols, message formats, and technologies

14. Test suites and Continuous Integration

15. Continuous testing with virtualized services
Automating deployment and testing to production-like environments
Databases Mainframe
applications
Third-party
Services
Rational Test Virtualization Server
Deploy
Application
changes
being tested
virtualized services
DevDev QAQA
Rational
Team
Concert
Jenkins
Build
Deploy
Rational Test Workbench
Test
Deploy
IBM UrbanCode Deploy
RTW
plugin
RTVS
plugin

16. Testing and Virtualizing Web
Technologies
HTTP(s)HTTP(s)
XMLXML RESTREST
SOAPSOAP JSONJSON
TCPTCP UDPUDP
XSDXSD
WSDLWSDL
WADLWADL
RECORDRECORD
RECORD
RECORD
AcceleratorAccelerator
AcceleratorAccelerator

17. SWIFT/MQ
HL7/TCP
X12/SOAP
JSON/RES
T
IBM
Integration
Bus
SAP PI
CICS
Database
App Server
Integration Testing and Service
Virtualization can significantly de-
risk the migration and reduce the
time required.
Development/test teams can
build against virtual services and
test early and test continuously
using messages captured from
the real systems.
Exception/edge case testing is
much easier to do.
RTW understands a wide range
of technologies and messaging
protocols (including DFDL)
making it well-aligned to IIB
users
Most Orchestration Engines have their own proprietary runtime (unlike JEE) which means migration between vendors
involves risk as development is required. Test environments are expensive and it is extremely difficult to fault-find in an
environment with many moving parts
Example Scenario:
IBM Integration Bus – Migration from other vendors

18. WebSphere ESB Support Timeline
WESB 6.2WESB 6.2
WESB 7.0WESB 7.0
WESB 7.5, 7.5.1WESB 7.5, 7.5.1
IBM Integration BusIBM Integration BusMessage BrokerMessage Broker
2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019
Convert
artefacts
for use with
IIB
Convert
artefacts
for use with
IIB
Previously
Announced EOS for
WESB 6.2
Previously
Announced EOS for
WESB 6.2
Re-announced
EOS for WESB 6.2
April 2018
Re-announced
EOS for WESB 6.2
April 2018
Convert

19. Demo

20. Thank You
Your Feedback is Important!
Access the InterConnect 2016 Conference Attendee
Portal to complete your session surveys from your
smartphone,
laptop or conference kiosk.
