© Hortonworks Inc. 2011
Compaction Improvements in Apache HBase
Sergey Shelukhin
sergey@hortonworks.com
© Hortonworks Inc. 2011
About me
•HBase committer since February 2013
•Member of Technical Staff at Hortonworks
•Twitter @sershe84
Architecting the Future of Big Data
© Hortonworks Inc. 2011

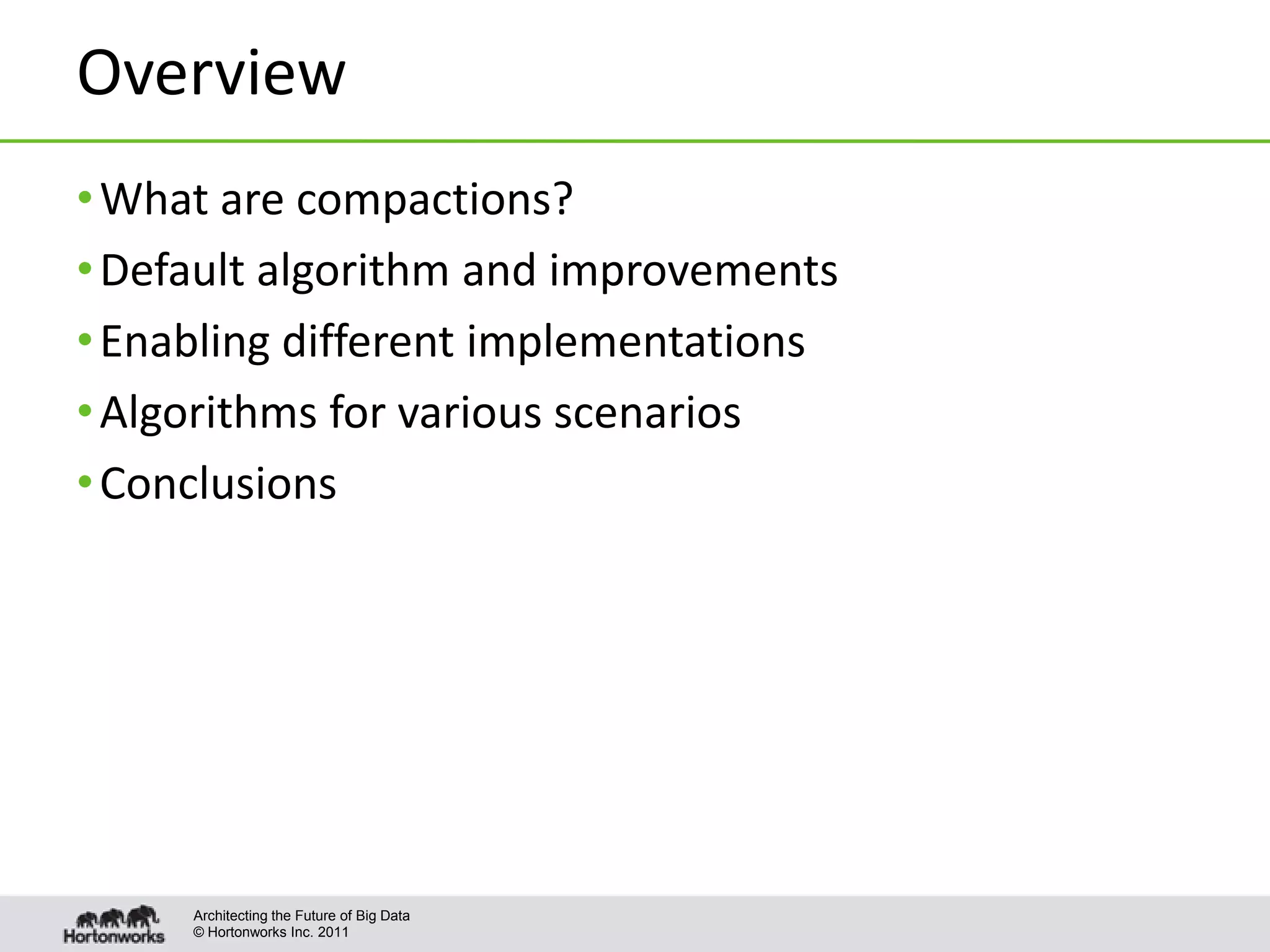

Overview
•What are compactions?
•Default algorithm and improvements
•Enabling different implementations
•Algorithms for various scenarios
•Conclusions
Architecting the Future of Big Data
© Hortonworks Inc. 2011

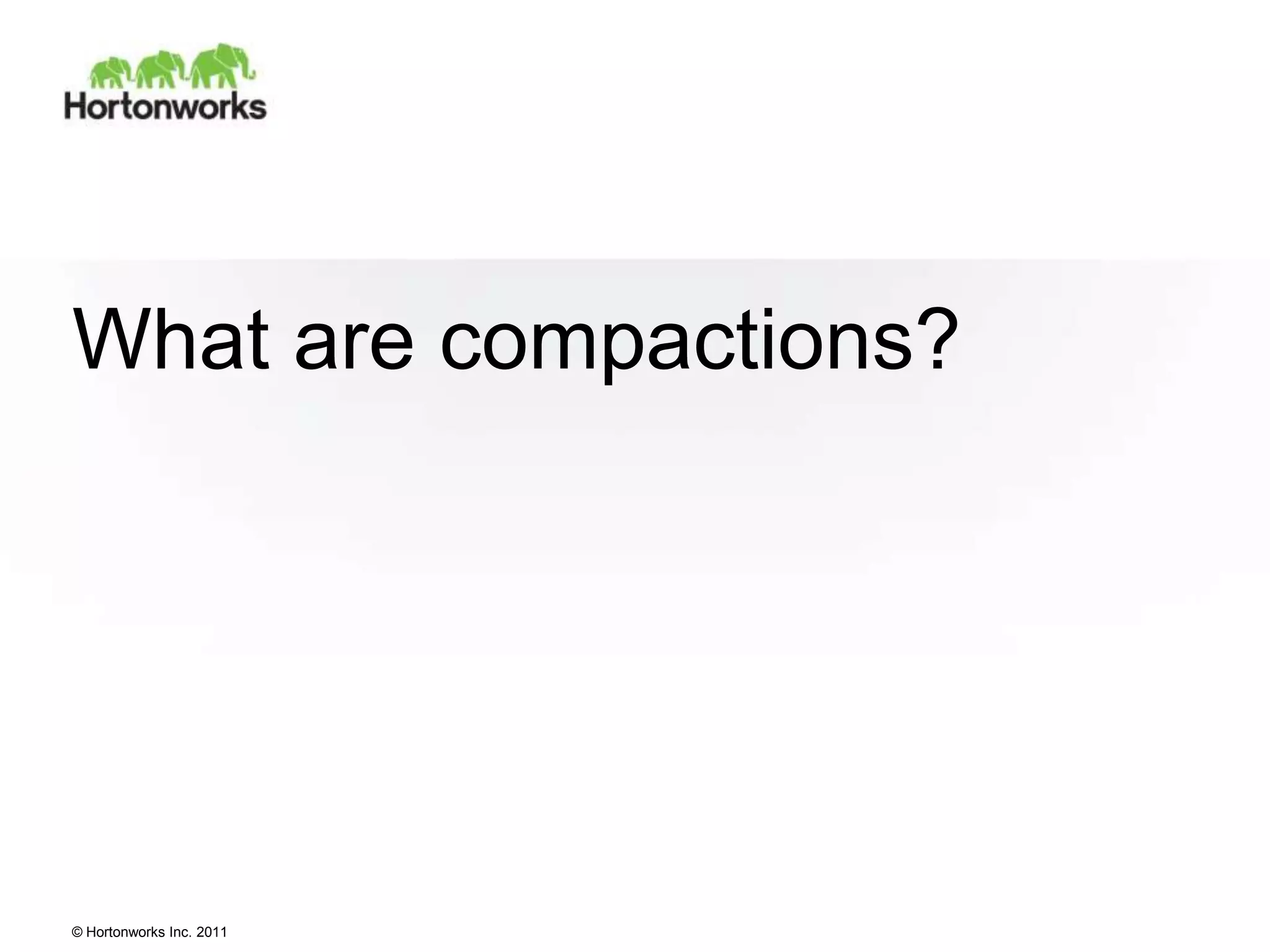

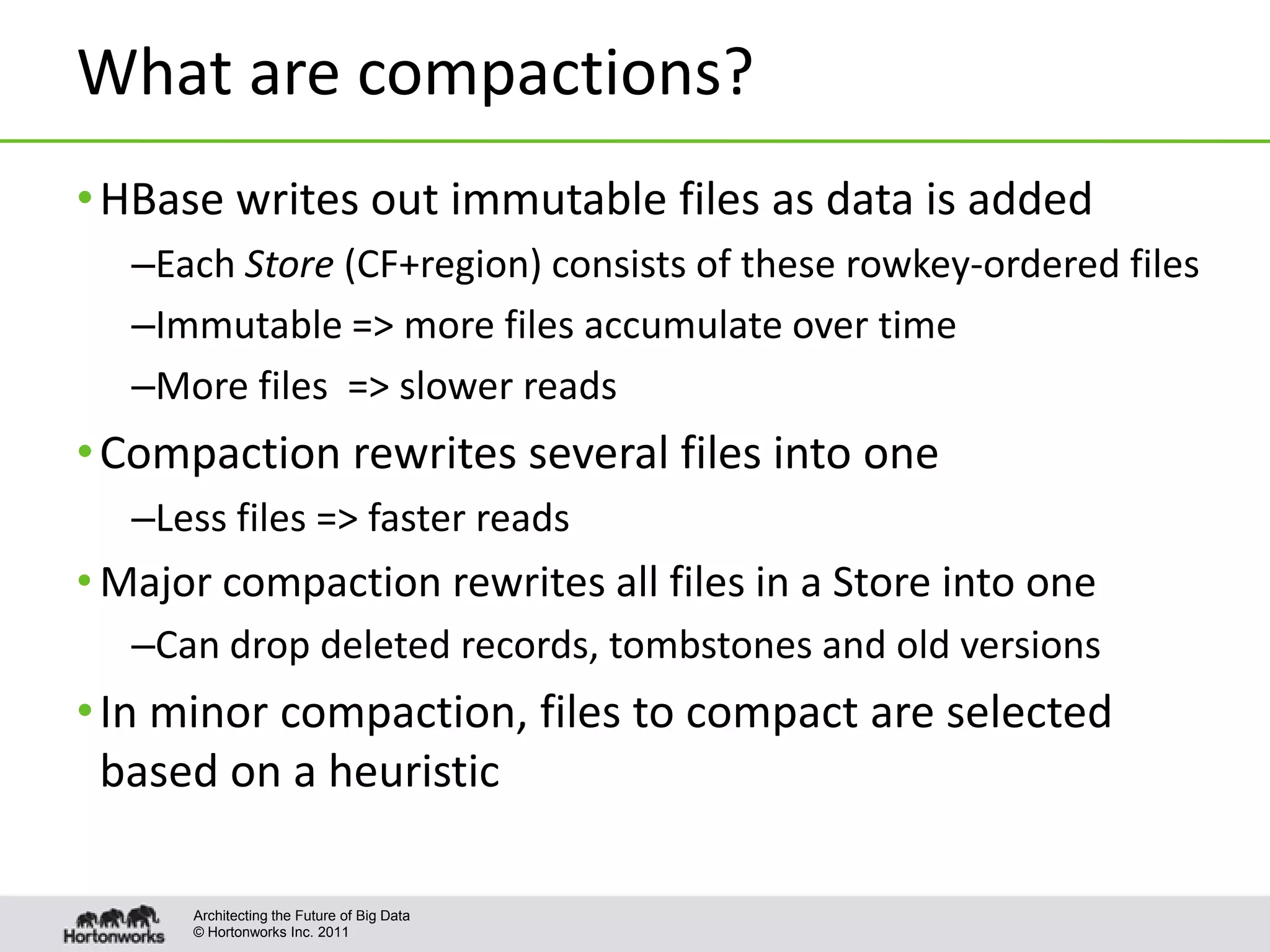

What are compactions?
© Hortonworks Inc. 2011
What are compactions?
•HBase writes out immutable files as data is added
–Each Store (CF+region) consists of these rowkey-ordered files
–Immutable => more files accumulate over time
–More files => slower reads
•Compaction rewrites several files into one
–Less files => faster reads
• Major compaction rewrites all files in a Store into one
–Can drop deleted records, tombstones and old versions
•In minor compaction, files to compact are selected
based on a heuristic
Architecting the Future of Big Data
© Hortonworks Inc. 2011

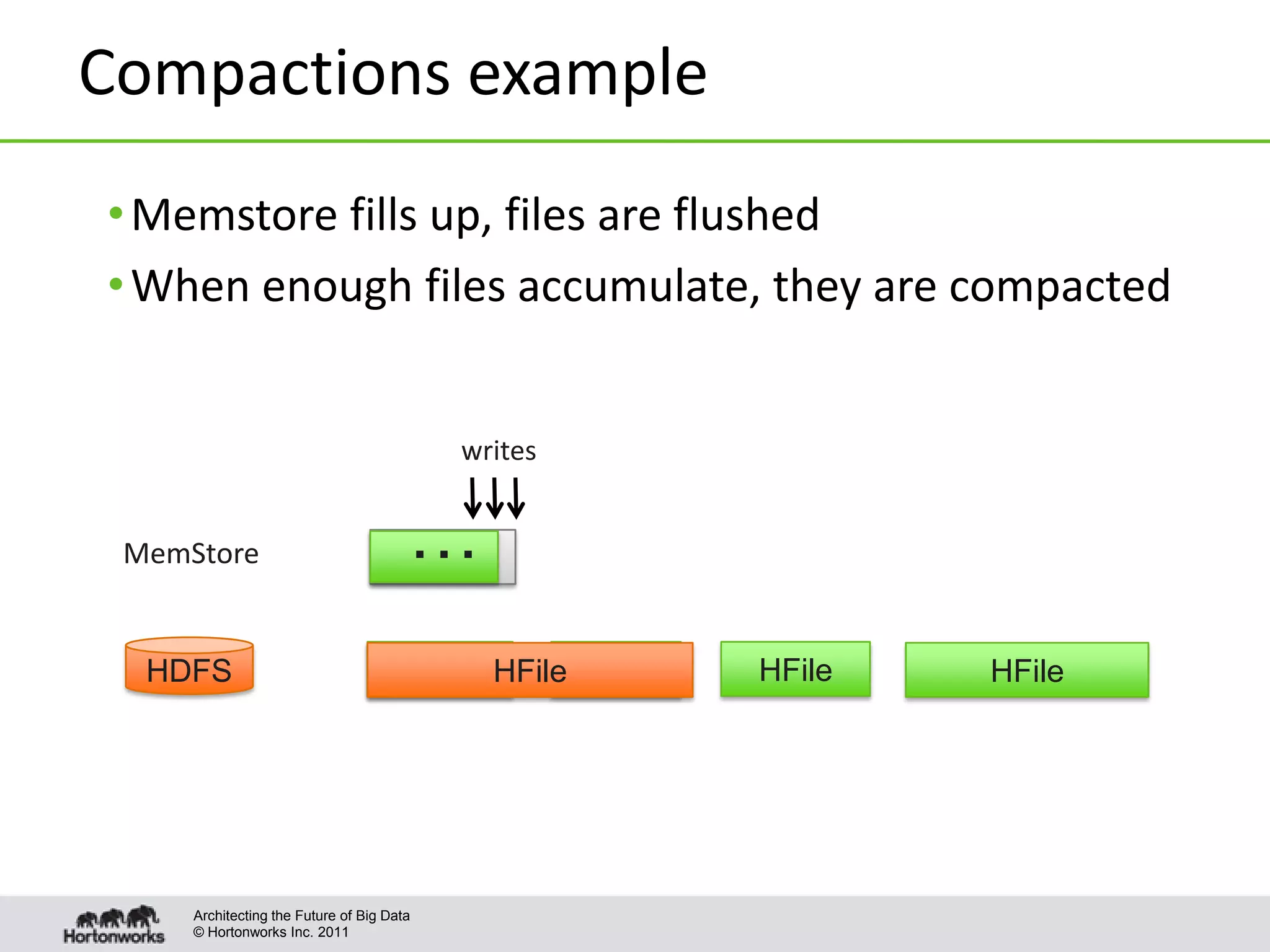

Compactions example
Architecting the Future of Big Data
•Memstore fills up, files are flushed
•When enough files accumulate, they are compacted
MemStore
HDFS
writes
HFile
…
HFile HFile HFileHFile
© Hortonworks Inc. 2011

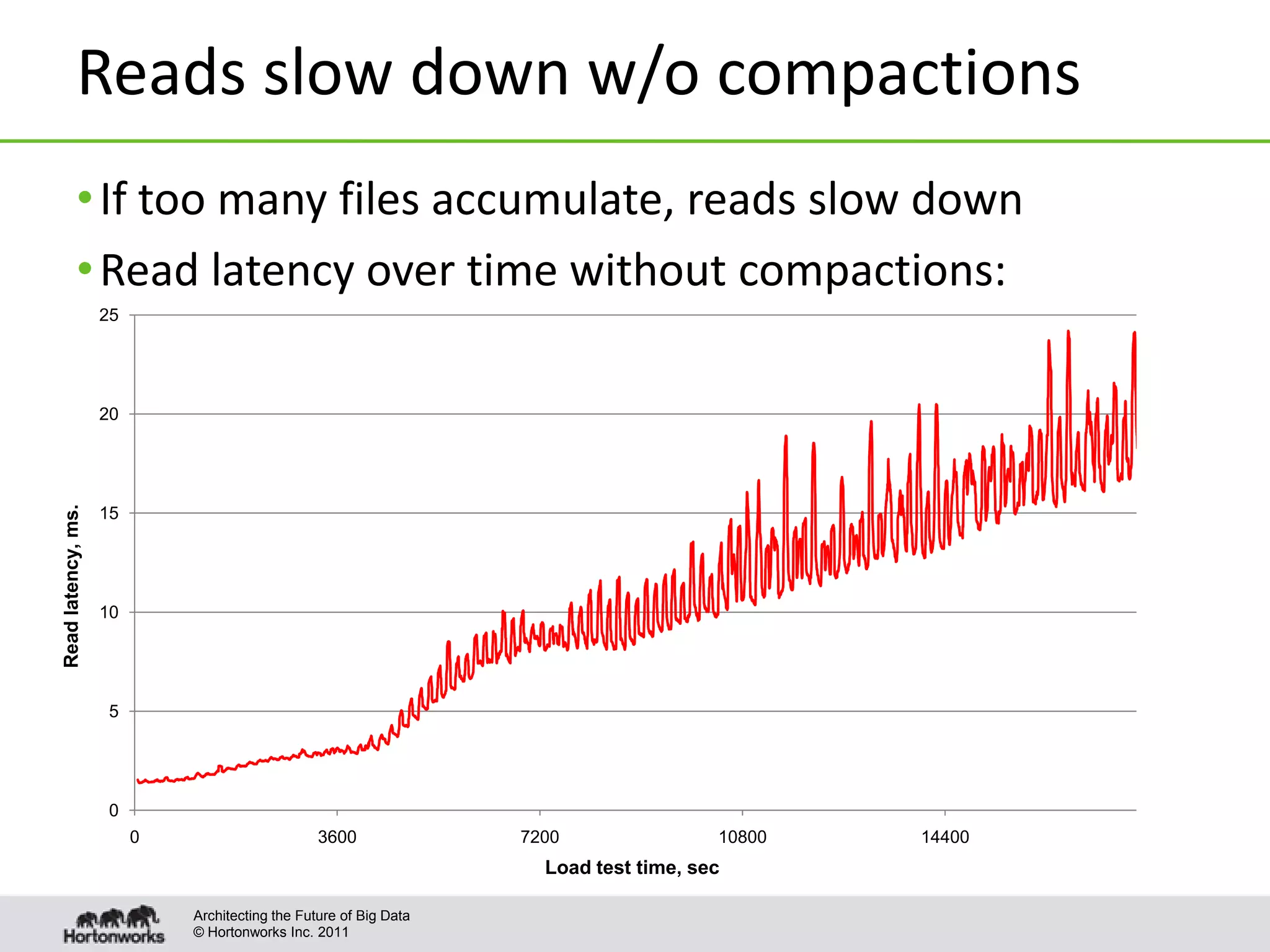

Reads slow down w/o compactions
•If too many files accumulate, reads slow down
•Read latency over time without compactions:
Architecting the Future of Big Data
0
5
10
15
20
25
0 3600 7200 10800 14400
Readlatency,ms.
Load test time, sec
© Hortonworks Inc. 2011

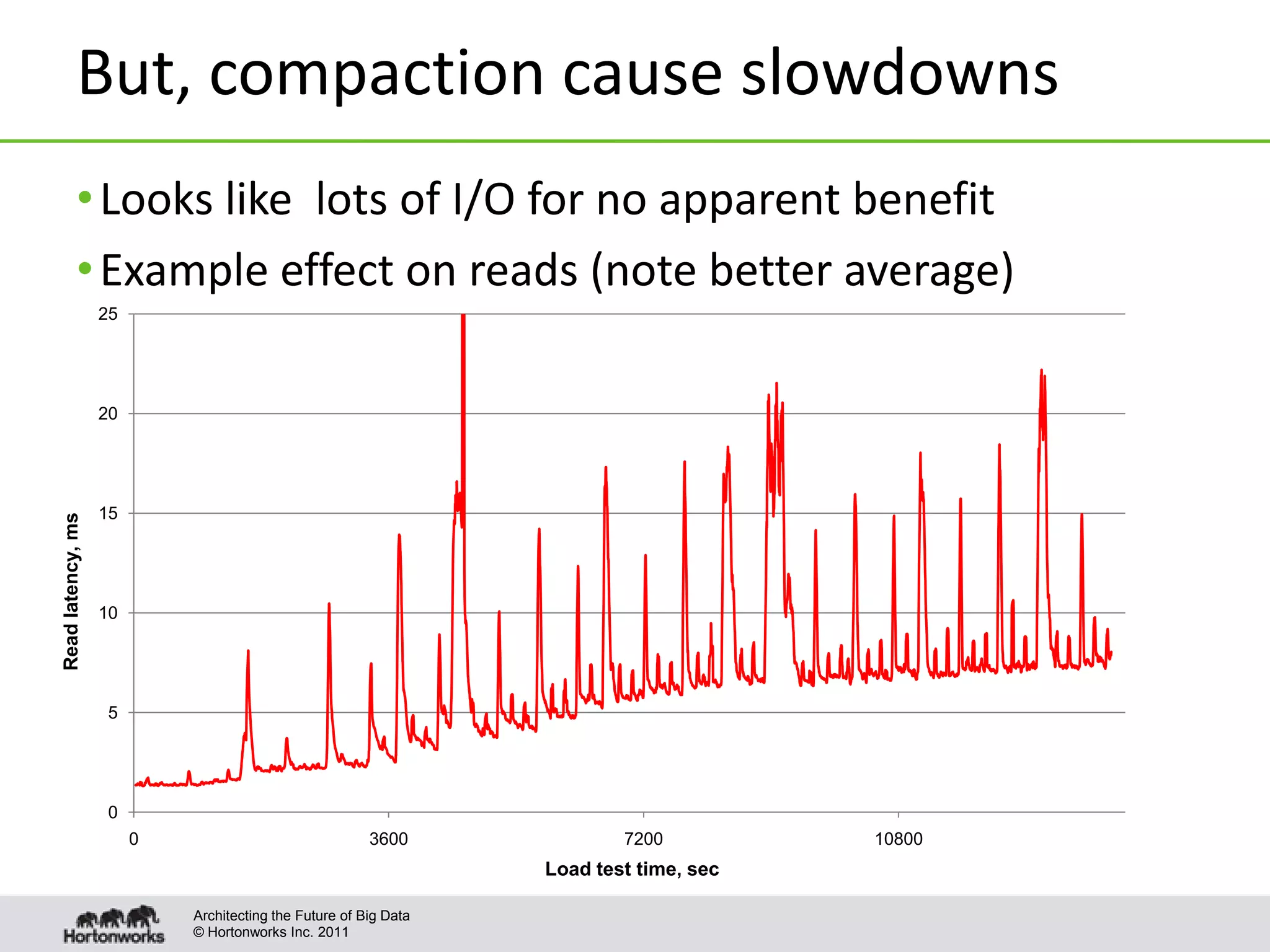

But, compaction cause slowdowns
•Looks like lots of I/O for no apparent benefit
•Example effect on reads (note better average)
Architecting the Future of Big Data
0
5
10
15
20
25
0 3600 7200 10800
Readlatency,ms
Load test time, sec
© Hortonworks Inc. 2011

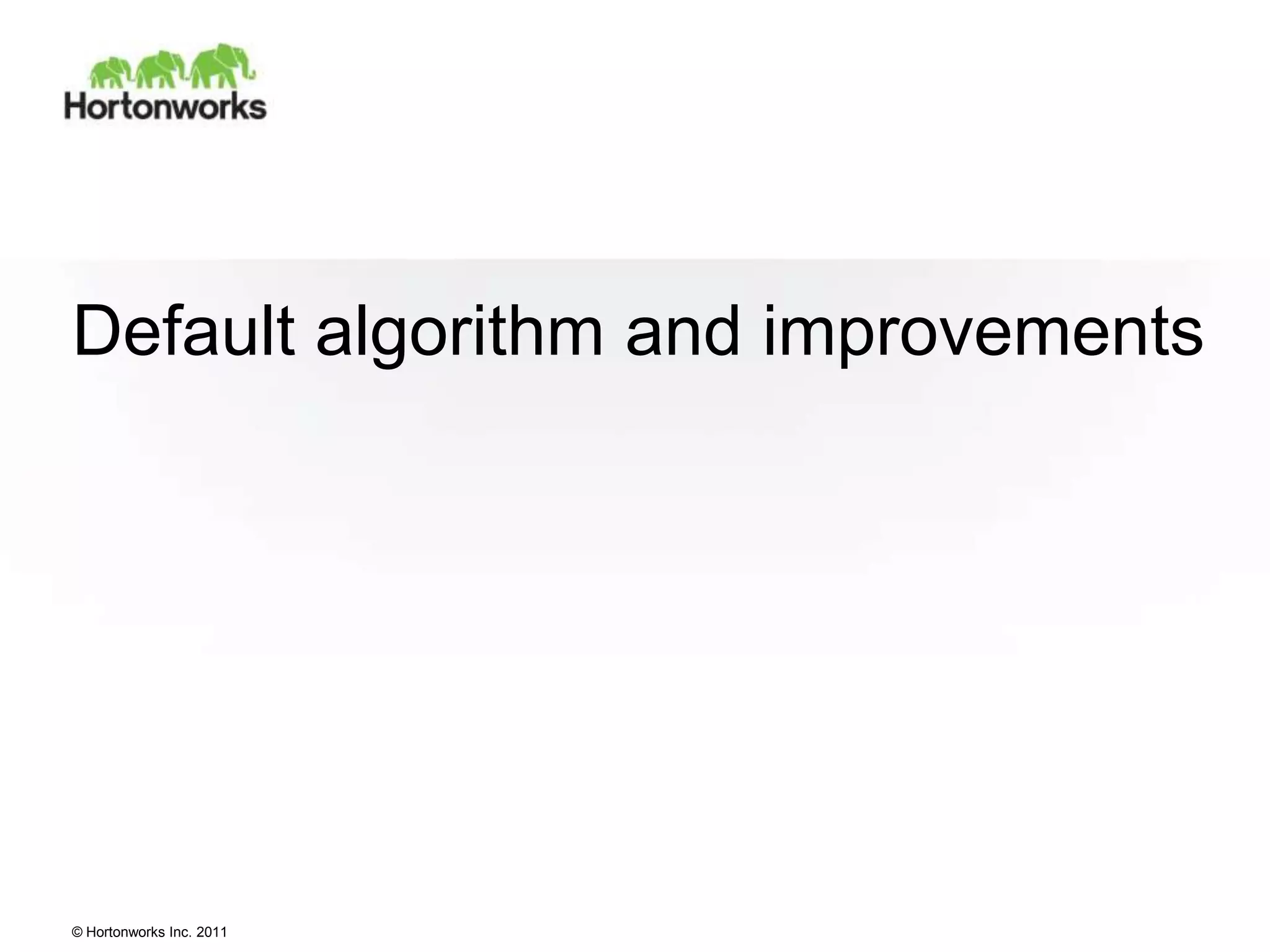

Default algorithm and improvements
© Hortonworks Inc. 2011

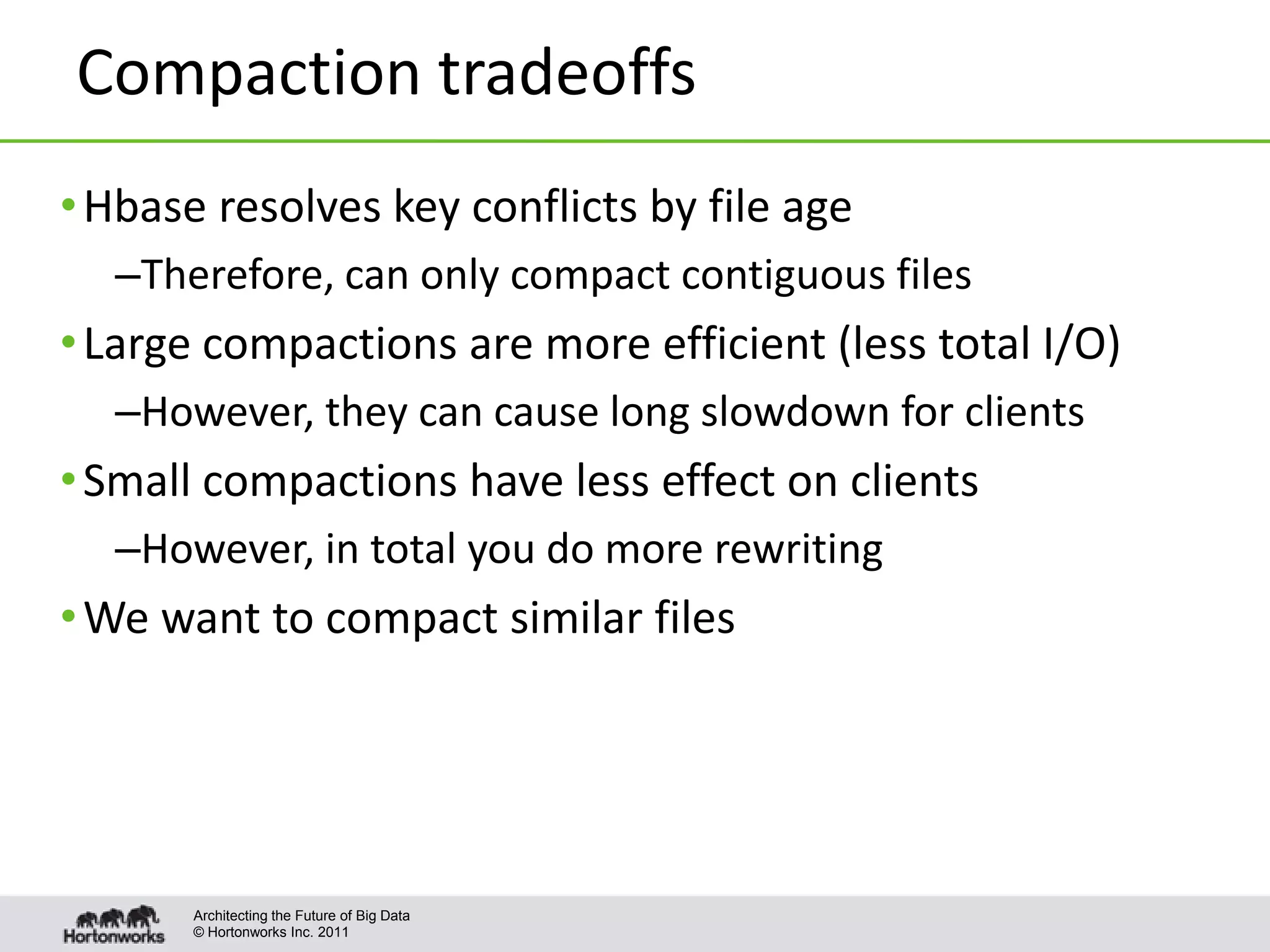

Compaction tradeoffs
•Hbase resolves key conflicts by file age
–Therefore, can only compact contiguous files
•Large compactions are more efficient (less total I/O)
–However, they can cause long slowdown for clients
•Small compactions have less effect on clients
–However, in total you do more rewriting
•We want to compact similar files
Architecting the Future of Big Data
© Hortonworks Inc. 2011

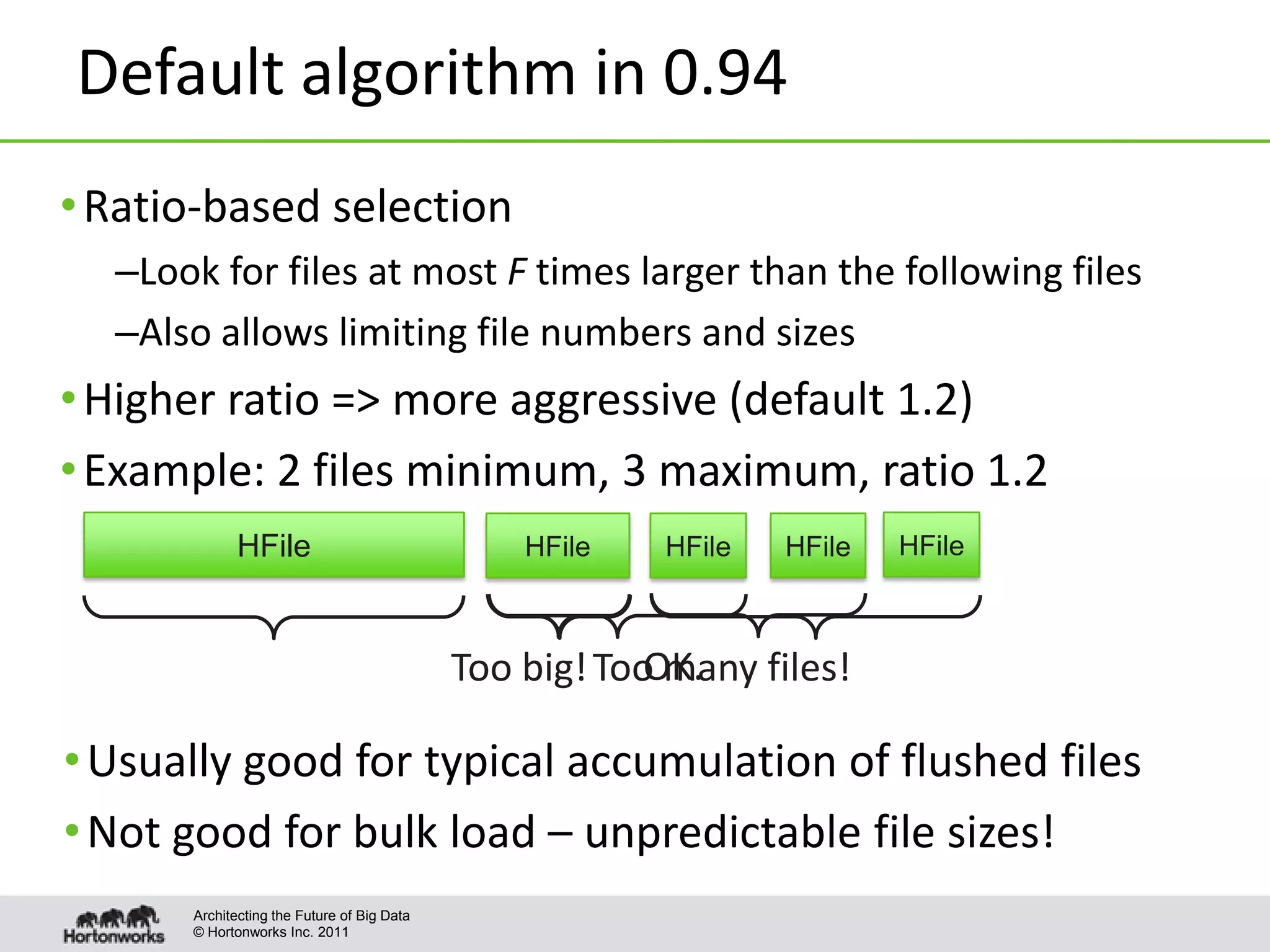

Default algorithm in 0.94
•Ratio-based selection
–Look for files at most F times larger than the following files
–Also allows limiting file numbers and sizes
•Higher ratio => more aggressive (default 1.2)
•Example: 2 files minimum, 3 maximum, ratio 1.2
Architecting the Future of Big Data
HFile HFile HFile HFile HFile
Too big!Too many files!OK.
•Usually good for typical accumulation of flushed files
•Not good for bulk load – unpredictable file sizes!
© Hortonworks Inc. 2011

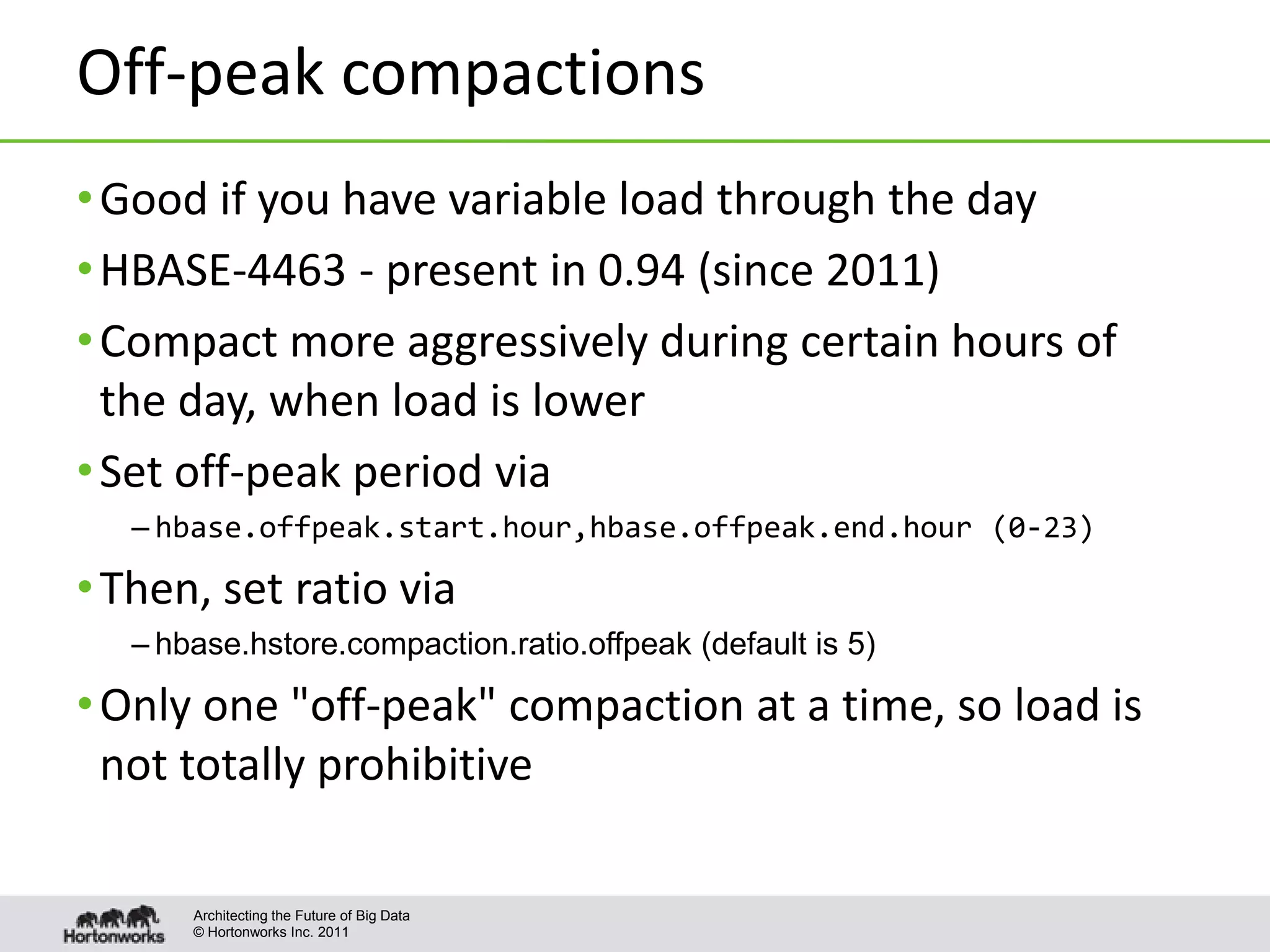

Off-peak compactions
•Good if you have variable load through the day
•HBASE-4463 - present in 0.94 (since 2011)
•Compact more aggressively during certain hours of
the day, when load is lower
•Set off-peak period via
– hbase.offpeak.start.hour,hbase.offpeak.end.hour (0-23)
•Then, set ratio via
– hbase.hstore.compaction.ratio.offpeak (default is 5)
•Only one "off-peak" compaction at a time, so load is
not totally prohibitive
Architecting the Future of Big Data
© Hortonworks Inc. 2011

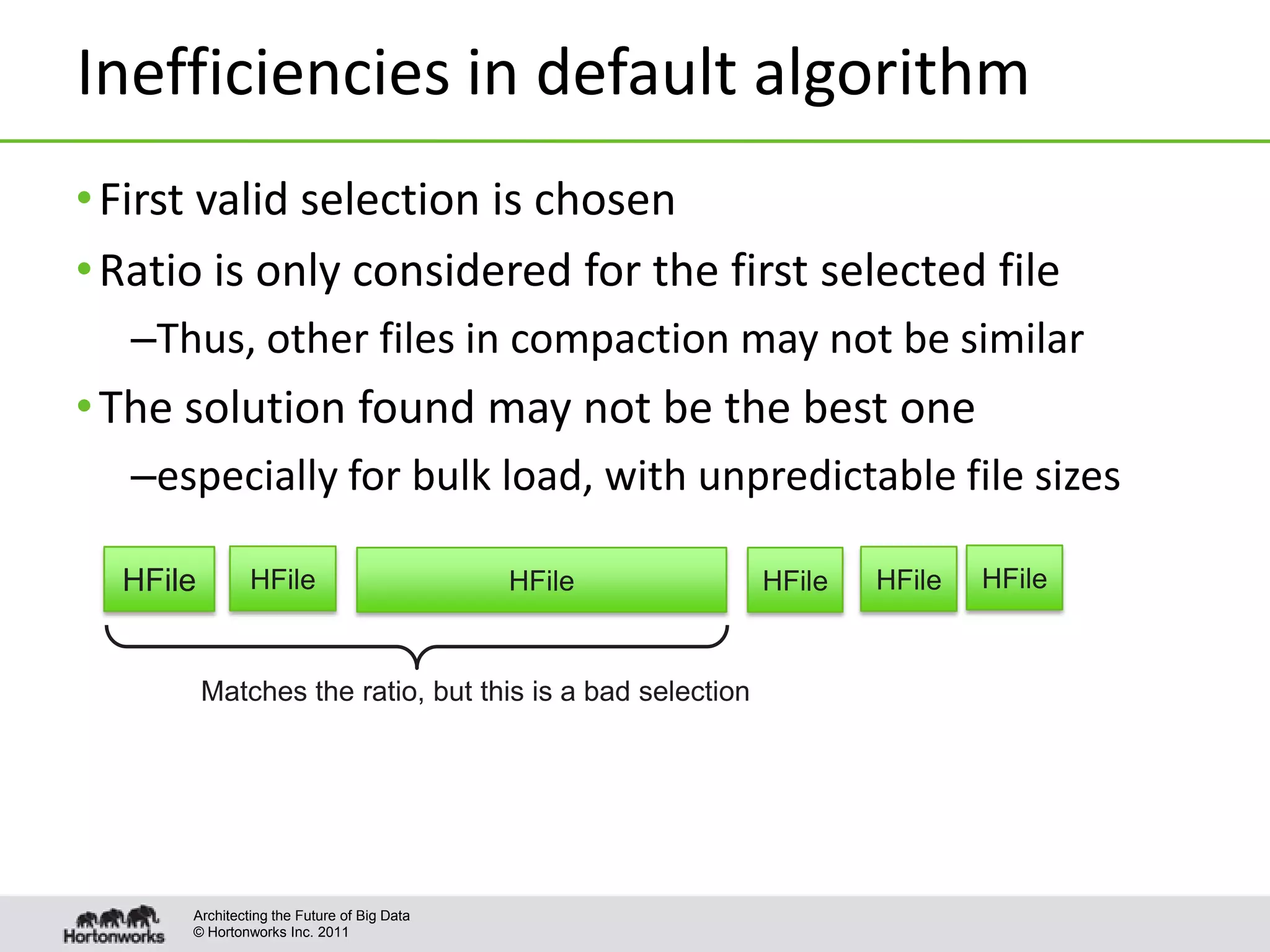

Inefficiencies in default algorithm
•First valid selection is chosen
•Ratio is only considered for the first selected file
–Thus, other files in compaction may not be similar
•The solution found may not be the best one
–especially for bulk load, with unpredictable file sizes
Architecting the Future of Big Data
HFile HFile HFile HFile HFile
Matches the ratio, but this is a bad selection
HFile
© Hortonworks Inc. 2011

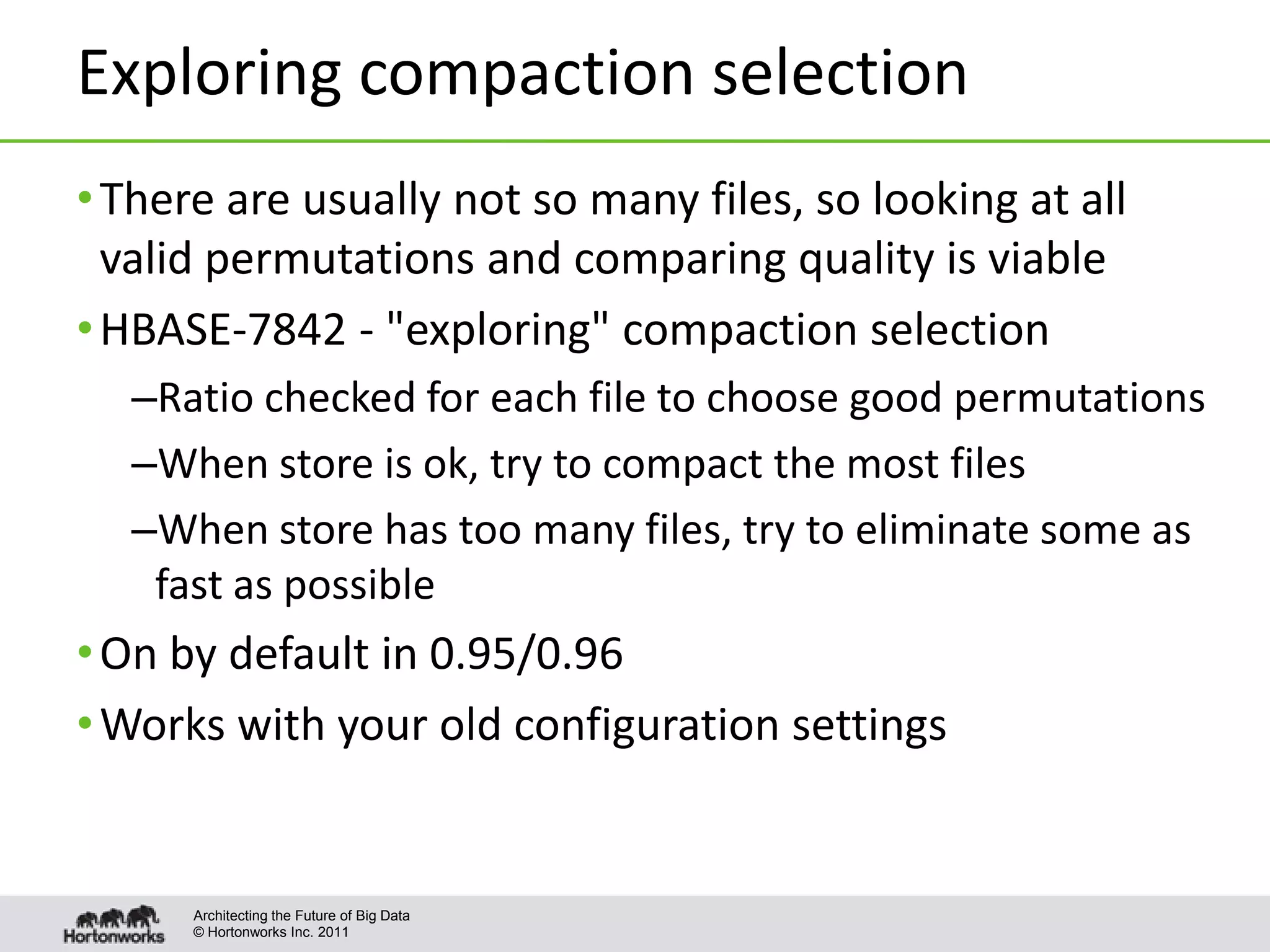

Exploring compaction selection
•There are usually not so many files, so looking at all
valid permutations and comparing quality is viable
•HBASE-7842 - "exploring" compaction selection
–Ratio checked for each file to choose good permutations
–When store is ok, try to compact the most files
–When store has too many files, try to eliminate some as
fast as possible
•On by default in 0.95/0.96
•Works with your old configuration settings
Architecting the Future of Big Data
© Hortonworks Inc. 2011

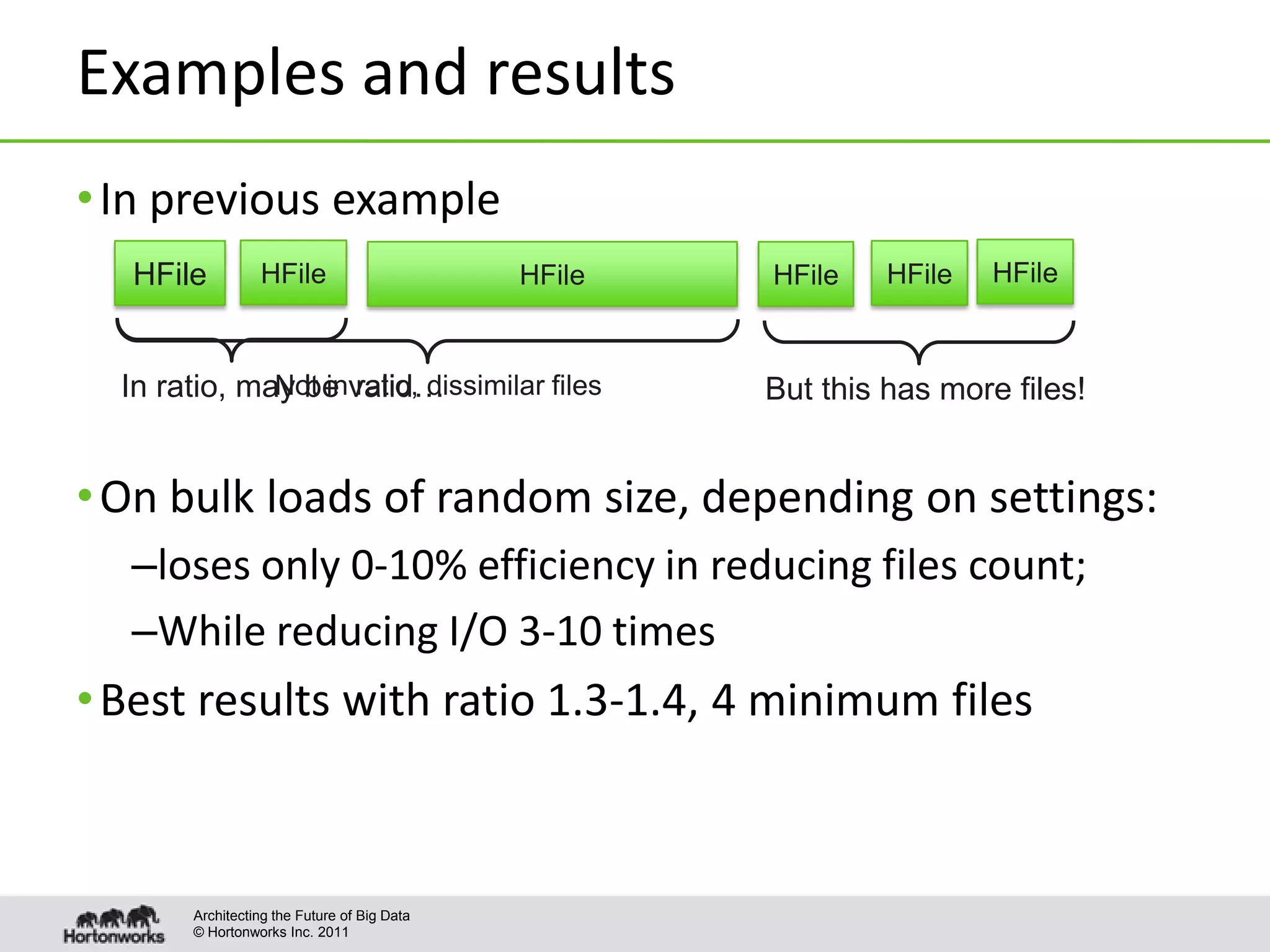

Examples and results
•In previous example
Architecting the Future of Big Data
HFile HFile HFile HFile HFile
Not in ratio, dissimilar files
HFile
•On bulk loads of random size, depending on settings:
–loses only 0-10% efficiency in reducing files count;
–While reducing I/O 3-10 times
•Best results with ratio 1.3-1.4, 4 minimum files
In ratio, may be valid… But this has more files!
© Hortonworks Inc. 2011

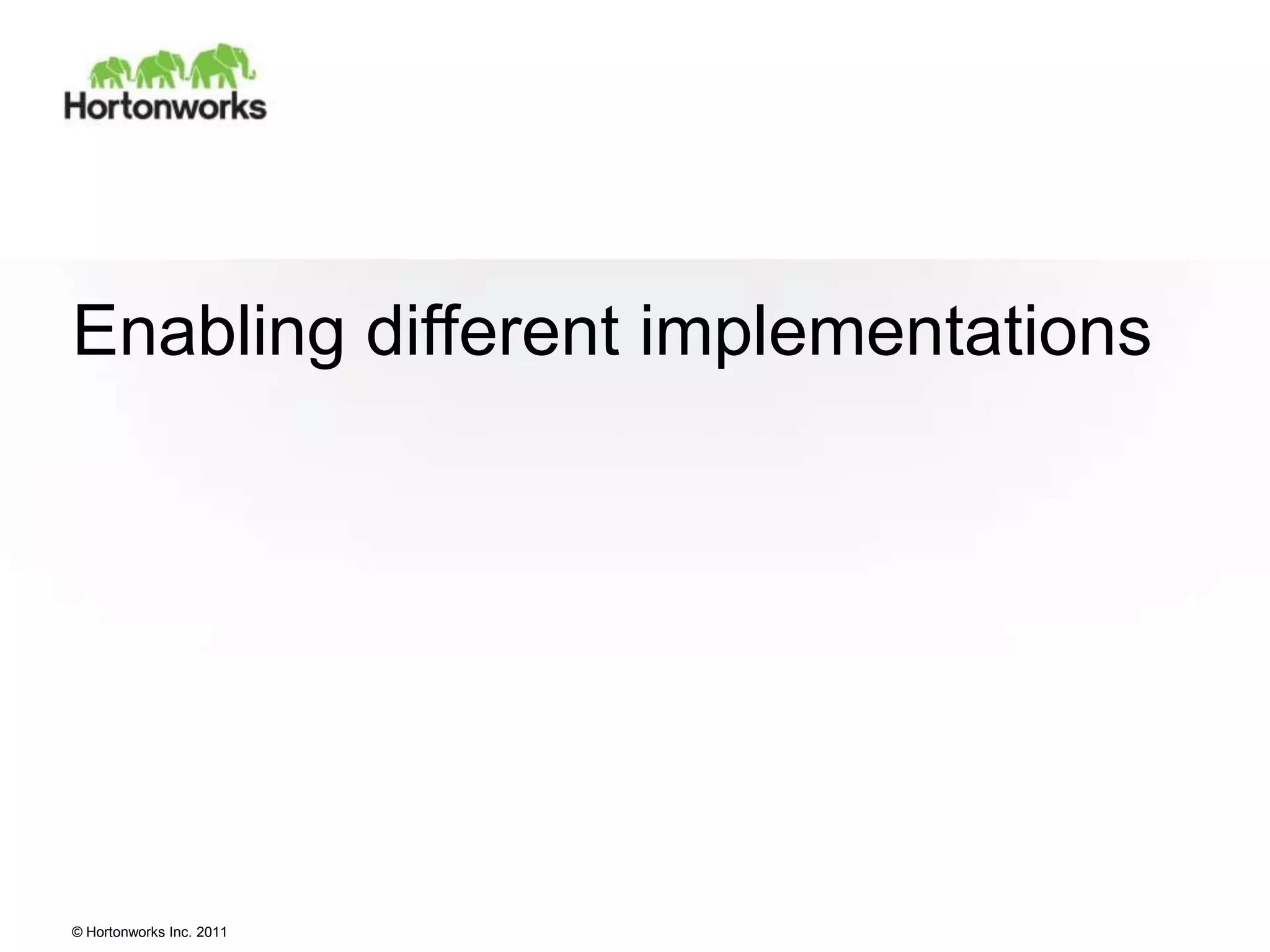

Enabling different implementations
© Hortonworks Inc. 2011

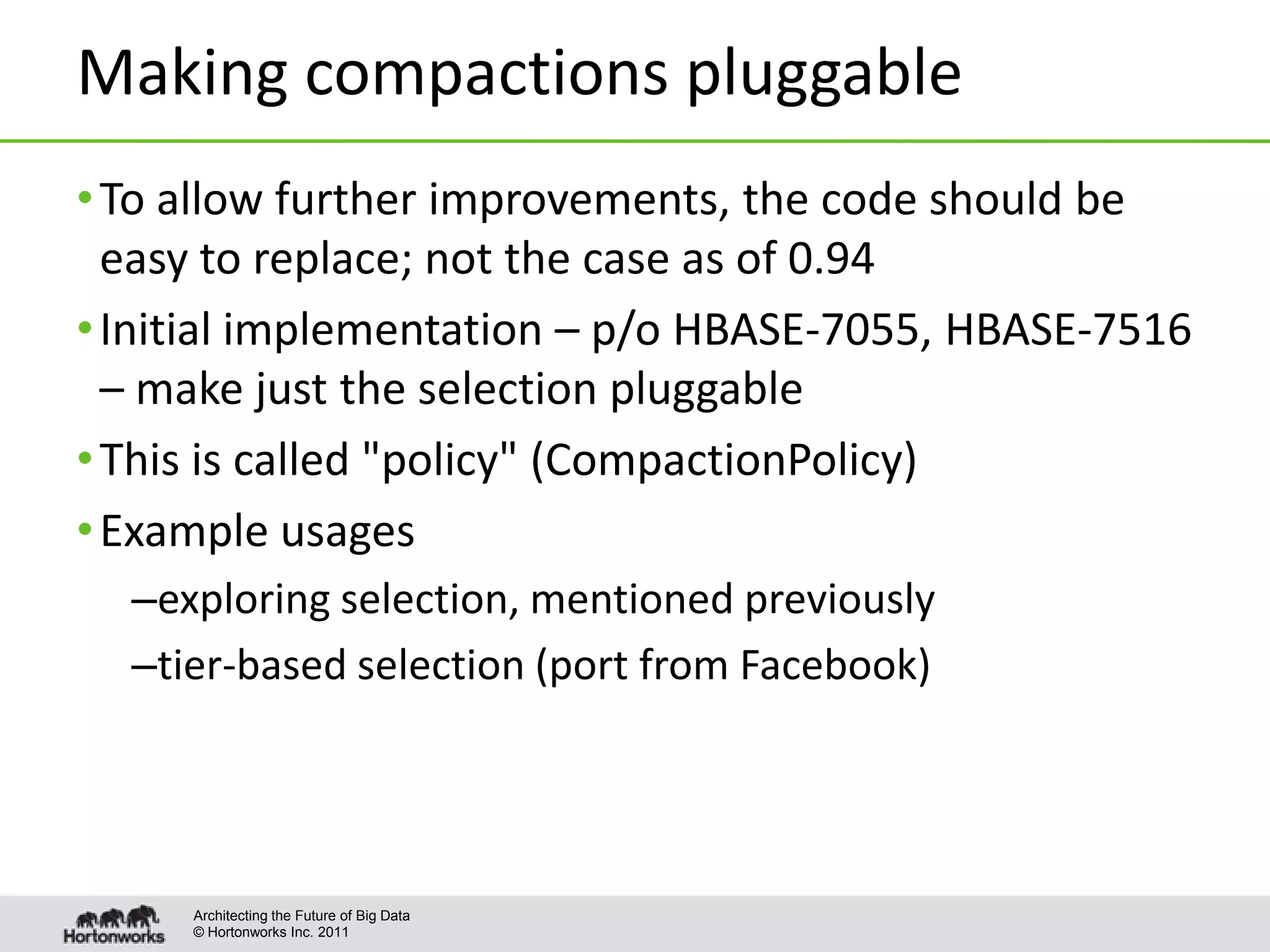

Making compactions pluggable
•To allow further improvements, the code should be
easy to replace; not the case as of 0.94
•Initial implementation – p/o HBASE-7055, HBASE-7516
– make just the selection pluggable
•This is called "policy" (CompactionPolicy)
•Example usages
–exploring selection, mentioned previously
–tier-based selection (port from Facebook)
Architecting the Future of Big Data
© Hortonworks Inc. 2011

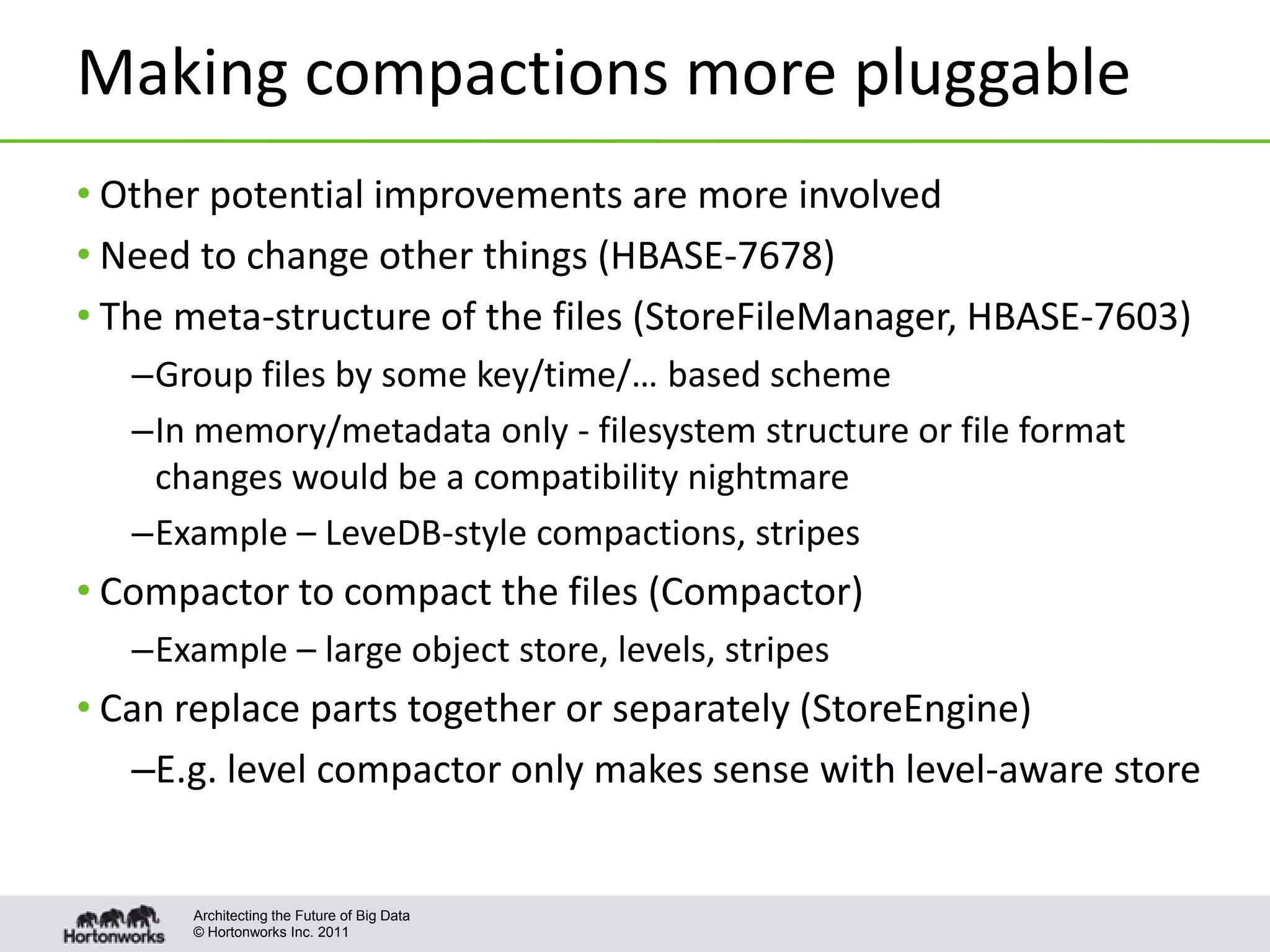

Making compactions more pluggable
• Other potential improvements are more involved
• Need to change other things (HBASE-7678)
• The meta-structure of the files (StoreFileManager, HBASE-7603)
–Group files by some key/time/… based scheme
–In memory/metadata only - filesystem structure or file format
changes would be a compatibility nightmare
–Example – LeveDB-style compactions, stripes
• Compactor to compact the files (Compactor)
–Example – large object store, levels, stripes
• Can replace parts together or separately (StoreEngine)
–E.g. level compactor only makes sense with level-aware store
Architecting the Future of Big Data
© Hortonworks Inc. 2011

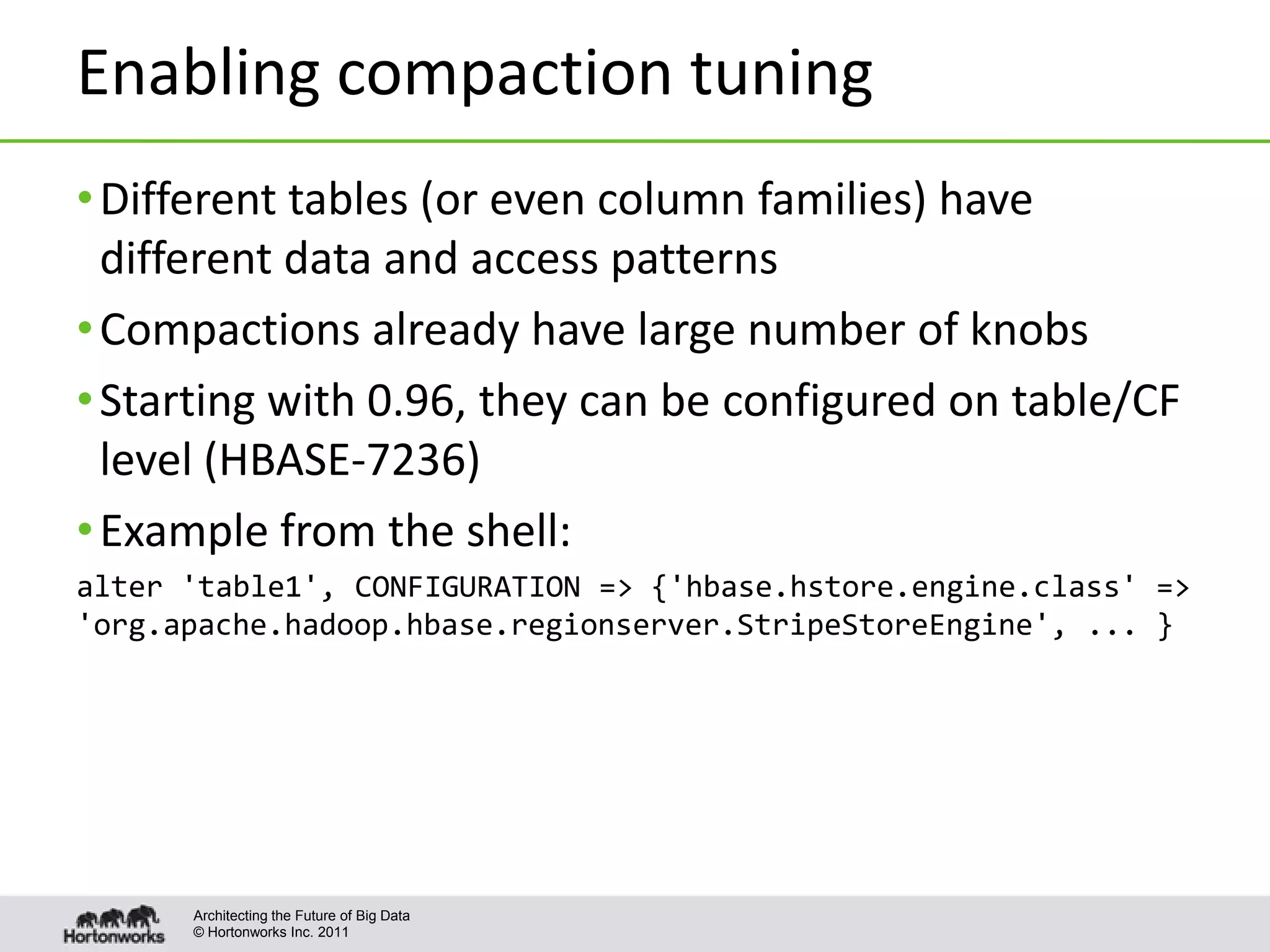

Enabling compaction tuning
•Different tables (or even column families) have
different data and access patterns
•Compactions already have large number of knobs
•Starting with 0.96, they can be configured on table/CF
level (HBASE-7236)
•Example from the shell:
alter 'table1', CONFIGURATION => {'hbase.hstore.engine.class' =>
'org.apache.hadoop.hbase.regionserver.StripeStoreEngine', ... }
Architecting the Future of Big Data
© Hortonworks Inc. 2011
Algorithms for various scenarios
© Hortonworks Inc. 2011

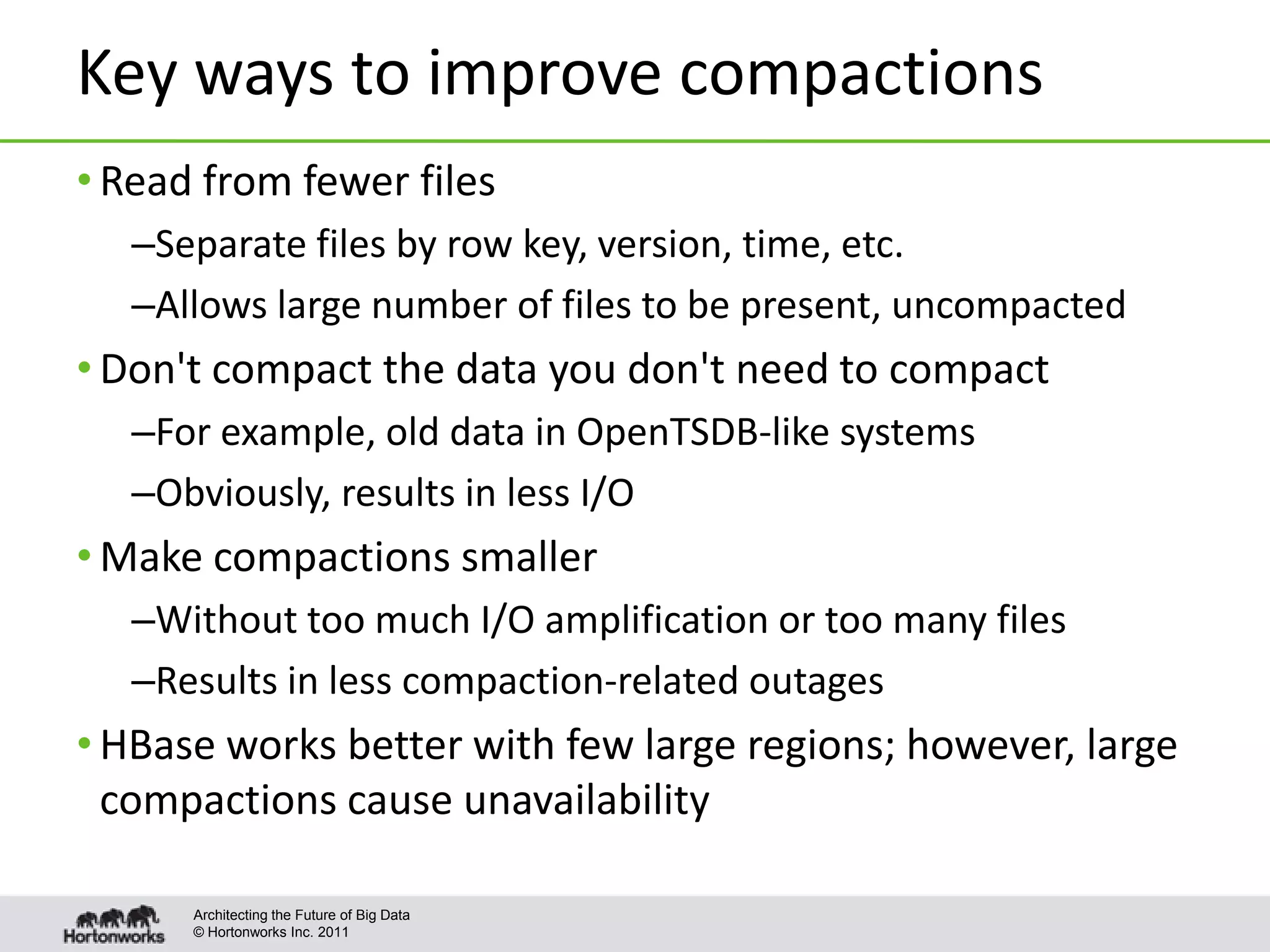

Key ways to improve compactions
Architecting the Future of Big Data
• Read from fewer files
–Separate files by row key, version, time, etc.
–Allows large number of files to be present, uncompacted
• Don't compact the data you don't need to compact
–For example, old data in OpenTSDB-like systems
–Obviously, results in less I/O
• Make compactions smaller
–Without too much I/O amplification or too many files
–Results in less compaction-related outages
• HBase works better with few large regions; however, large
compactions cause unavailability
© Hortonworks Inc. 2011

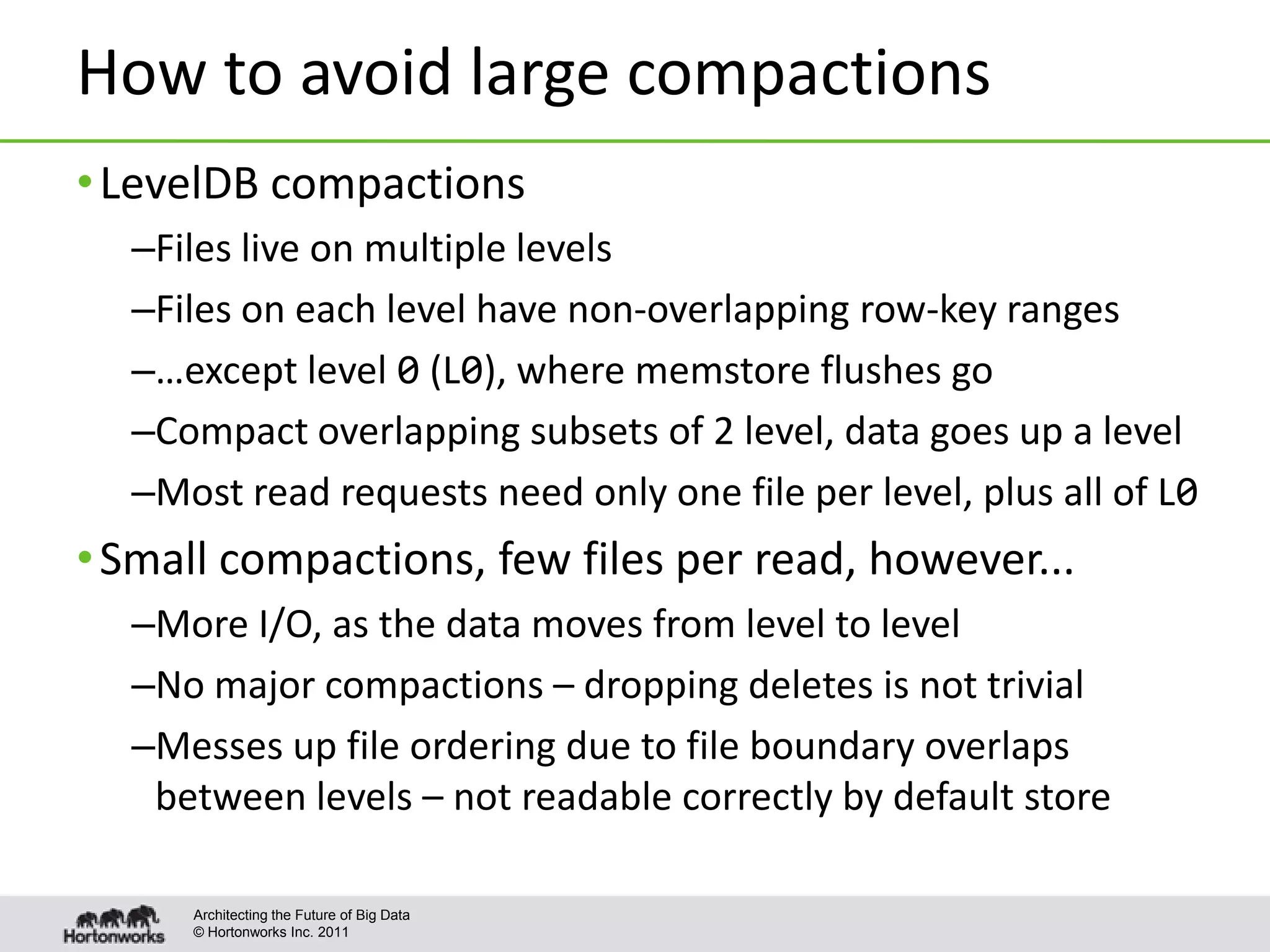

How to avoid large compactions
Architecting the Future of Big Data
•LevelDB compactions
–Files live on multiple levels
–Files on each level have non-overlapping row-key ranges
–…except level 0 (L0), where memstore flushes go
–Compact overlapping subsets of 2 level, data goes up a level
–Most read requests need only one file per level, plus all of L0
•Small compactions, few files per read, however...
–More I/O, as the data moves from level to level
–No major compactions – dropping deletes is not trivial
–Messes up file ordering due to file boundary overlaps
between levels – not readable correctly by default store
© Hortonworks Inc. 2011

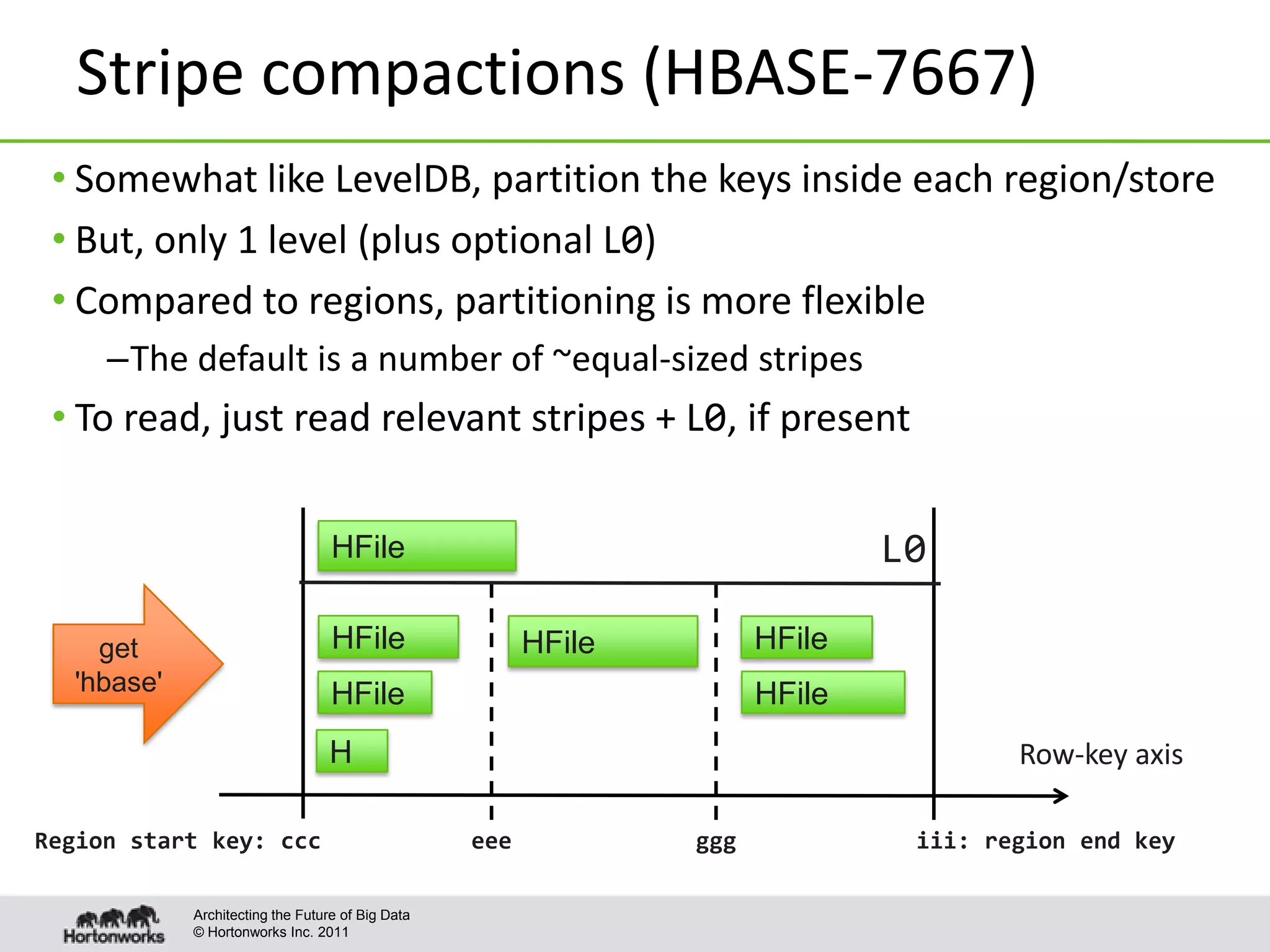

Stripe compactions (HBASE-7667)
Architecting the Future of Big Data
• Somewhat like LevelDB, partition the keys inside each region/store
• But, only 1 level (plus optional L0)
• Compared to regions, partitioning is more flexible
–The default is a number of ~equal-sized stripes
• To read, just read relevant stripes + L0, if present
HFile HFile
Region start key: ccc eee
Row-key axis
iii: region end keyggg
H
HFileHFileHFile
HFile L0
get
'hbase'
© Hortonworks Inc. 2011
Stripe compactions – writes
Architecting the Future of Big Data
•Data flushed from MemStore into several files
•Each stripe compacts separately most of the time
MemStore
HDFS
HFile HFile
H
HFileHFileHFile
H
H
H
HFile
© Hortonworks Inc. 2011

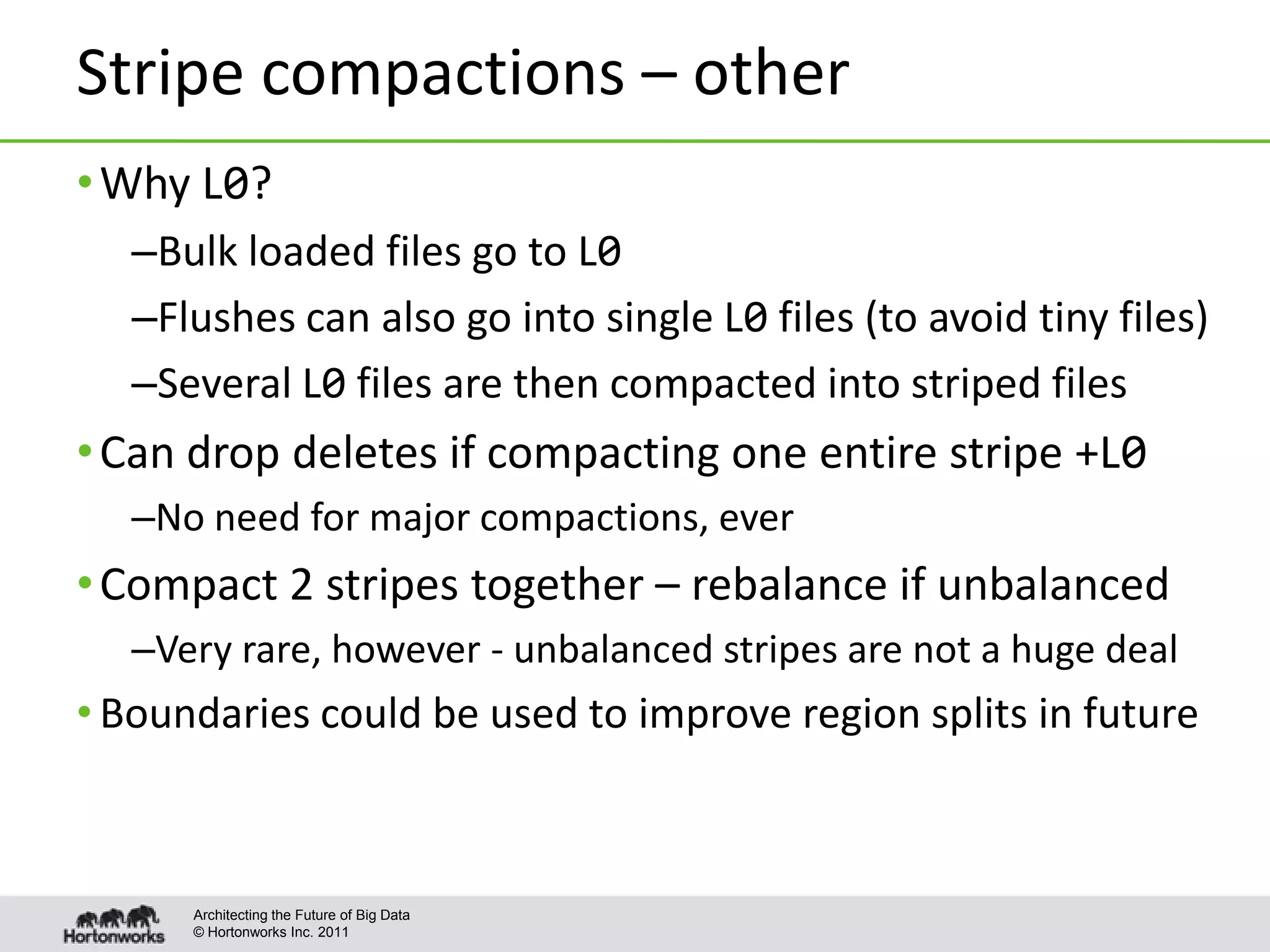

Stripe compactions – other
Architecting the Future of Big Data
•Why L0?
–Bulk loaded files go to L0
–Flushes can also go into single L0 files (to avoid tiny files)
–Several L0 files are then compacted into striped files
•Can drop deletes if compacting one entire stripe +L0
–No need for major compactions, ever
•Compact 2 stripes together – rebalance if unbalanced
–Very rare, however - unbalanced stripes are not a huge deal
• Boundaries could be used to improve region splits in future
© Hortonworks Inc. 2011

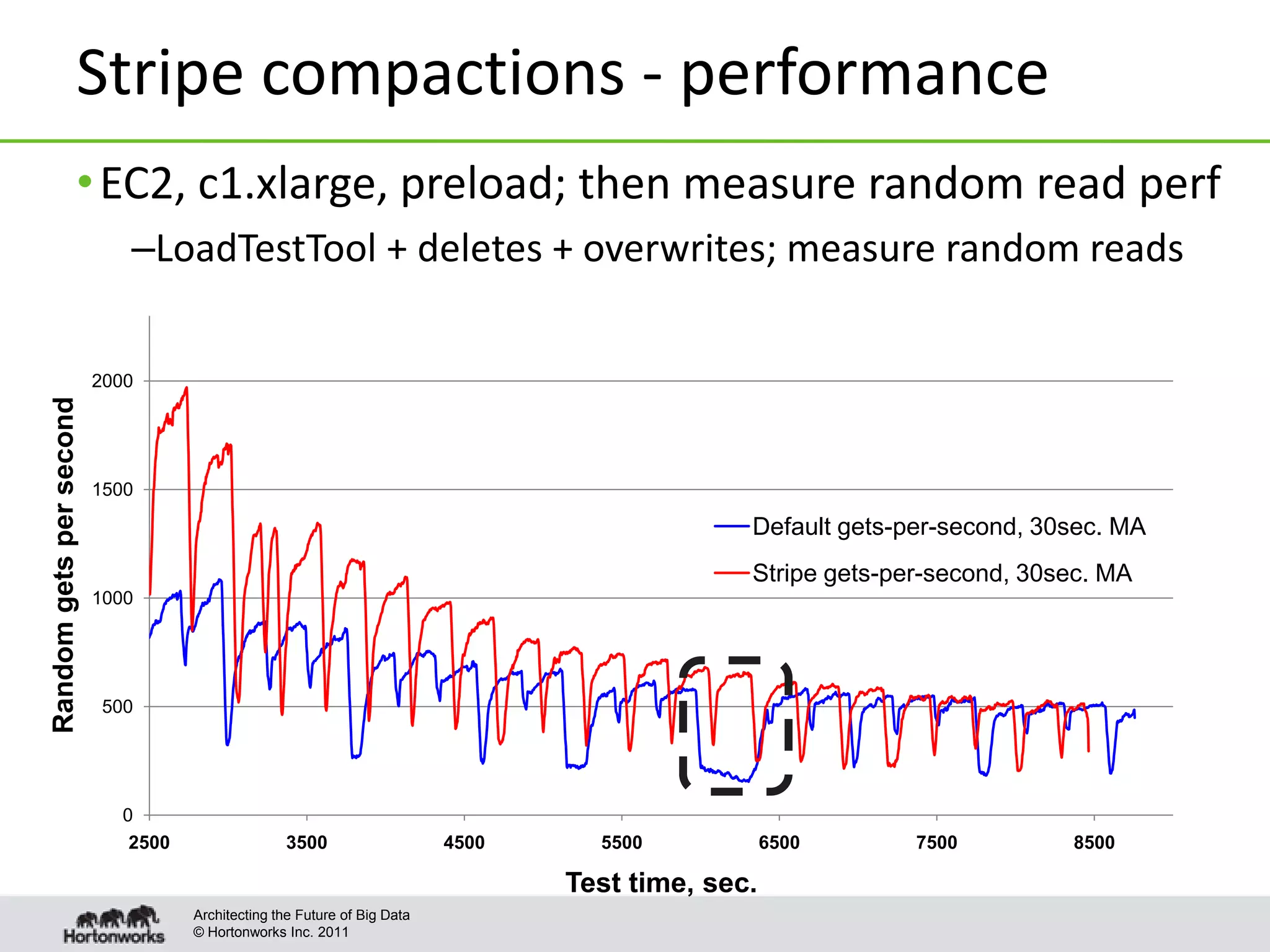

Stripe compactions - performance
Architecting the Future of Big Data
•EC2, c1.xlarge, preload; then measure random read perf
–LoadTestTool + deletes + overwrites; measure random reads
0
500
1000
1500
2000
2500 3500 4500 5500 6500 7500 8500
Randomgetspersecond
Test time, sec.
Default gets-per-second, 30sec. MA
Stripe gets-per-second, 30sec. MA
© Hortonworks Inc. 2011

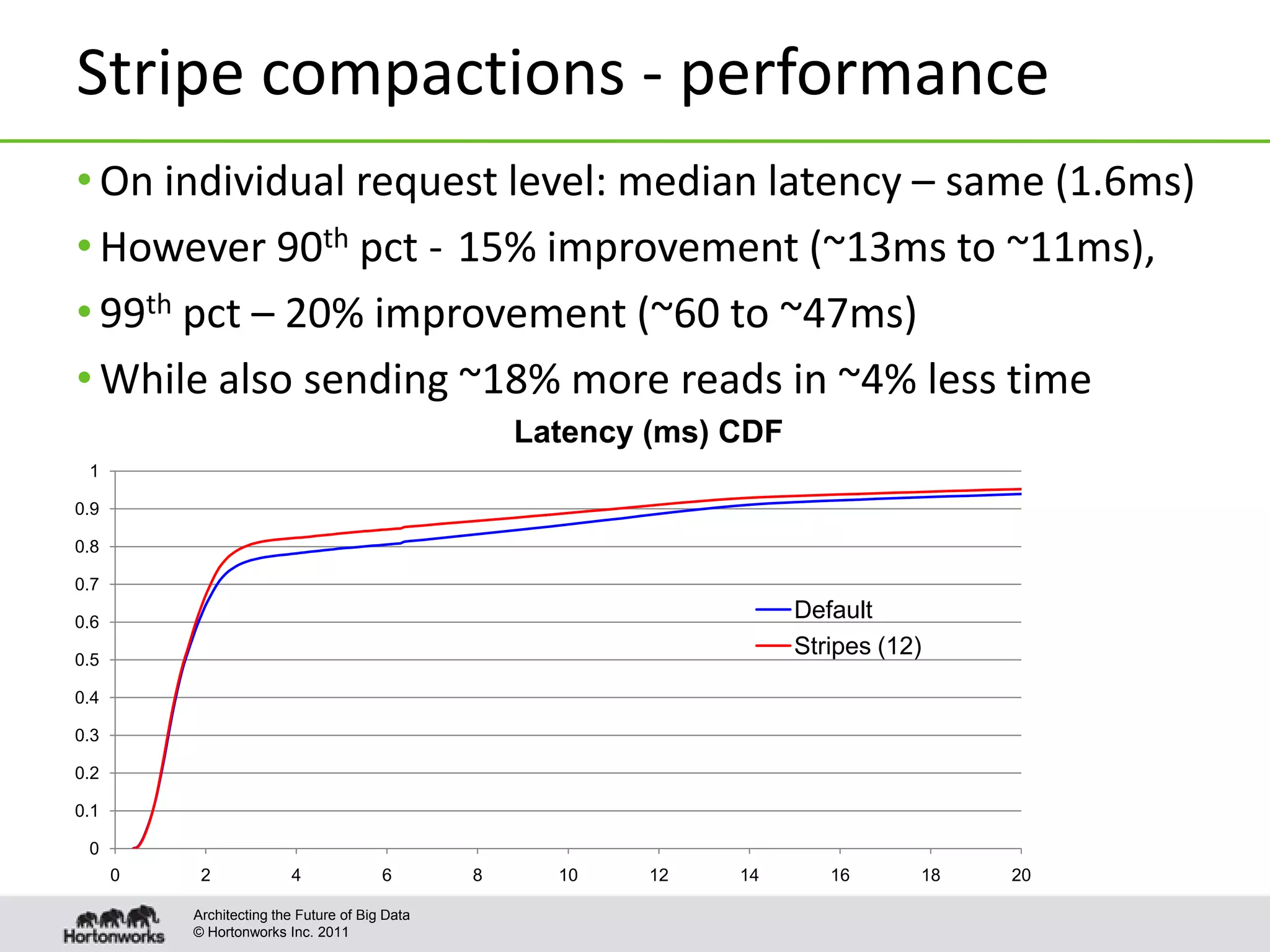

Stripe compactions - performance
Architecting the Future of Big Data
• On individual request level: median latency – same (1.6ms)
• However 90th pct - 15% improvement (~13ms to ~11ms),
• 99th pct – 20% improvement (~60 to ~47ms)
• While also sending ~18% more reads in ~4% less time
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
0 2 4 6 8 10 12 14 16 18 20
Latency (ms) CDF
Default
Stripes (12)
© Hortonworks Inc. 2011

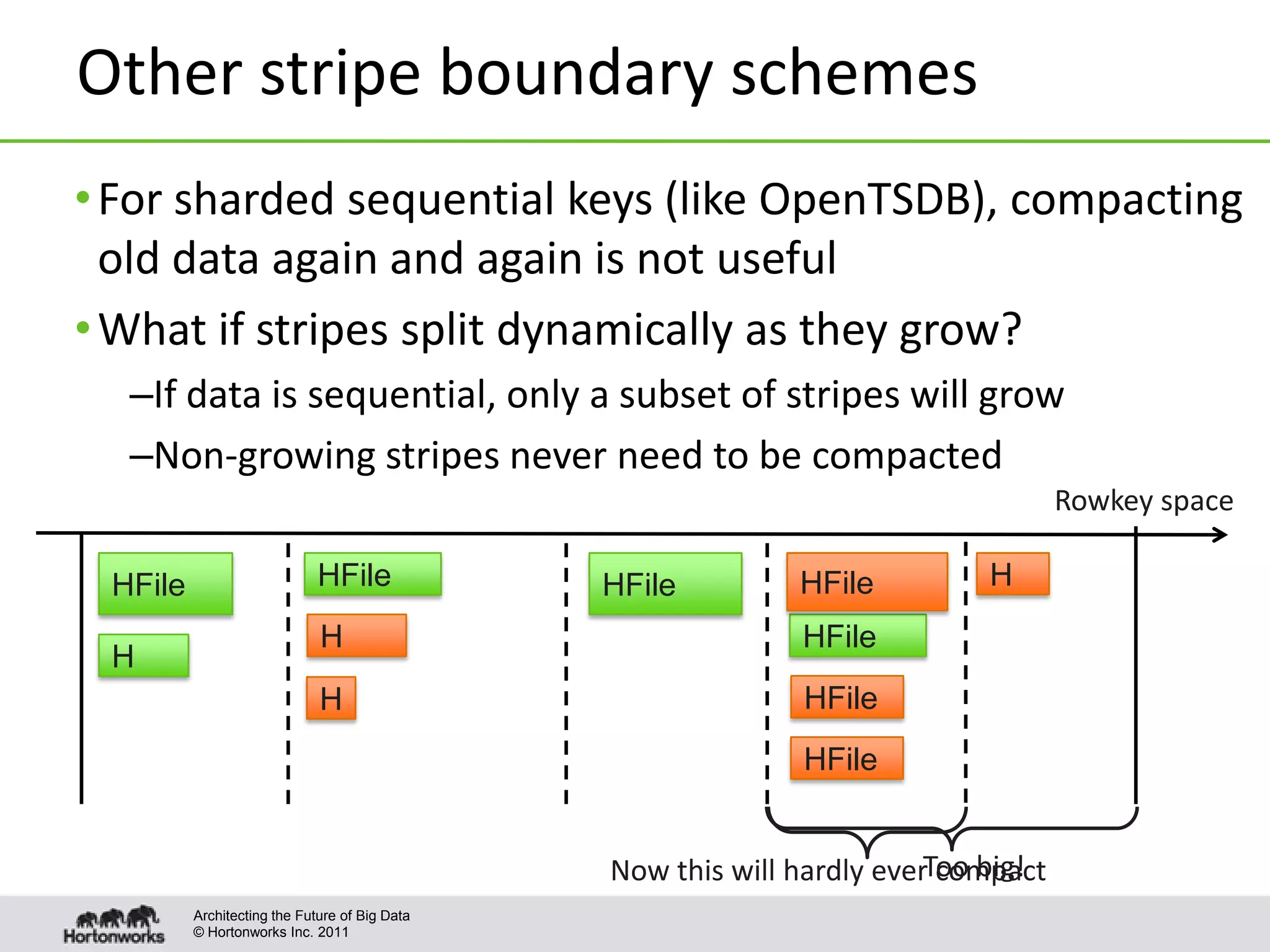

Other stripe boundary schemes
•For sharded sequential keys (like OpenTSDB), compacting
old data again and again is not useful
•What if stripes split dynamically as they grow?
–If data is sequential, only a subset of stripes will grow
–Non-growing stripes never need to be compacted
Architecting the Future of Big Data
HFileHFile HFile HFile
H
H
HFile
HFile
HFile
H
Rowkey space
Too big!
HFile H
Now this will hardly ever compact
© Hortonworks Inc. 2011

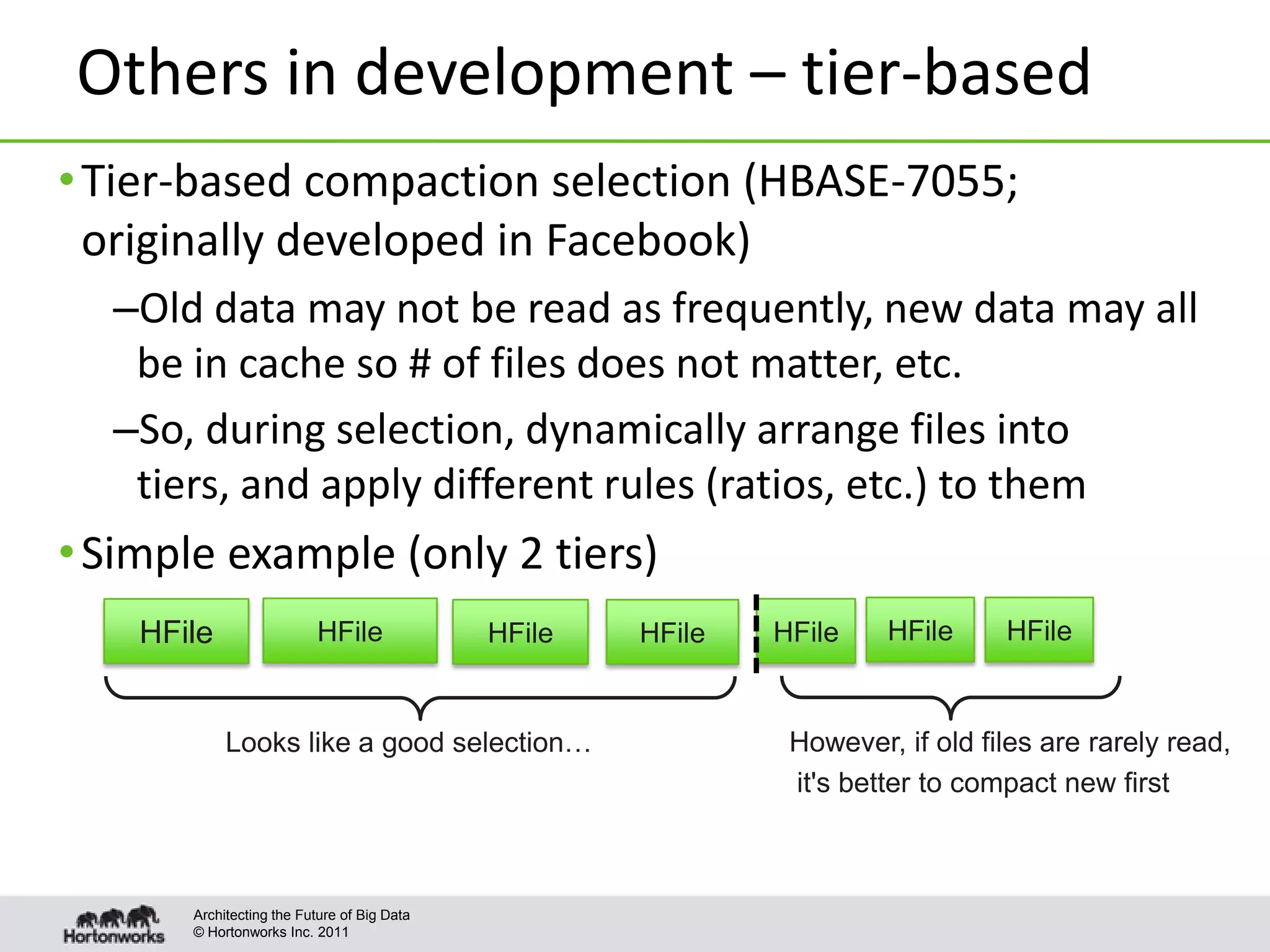

Others in development – tier-based
Architecting the Future of Big Data
•Tier-based compaction selection (HBASE-7055;
originally developed in Facebook)
–Old data may not be read as frequently, new data may all
be in cache so # of files does not matter, etc.
–So, during selection, dynamically arrange files into
tiers, and apply different rules (ratios, etc.) to them
•Simple example (only 2 tiers)
HFile HFile HFile
However, if old files are rarely read,
it's better to compact new first
HFile HFile HFile HFile
Looks like a good selection…
© Hortonworks Inc. 2011

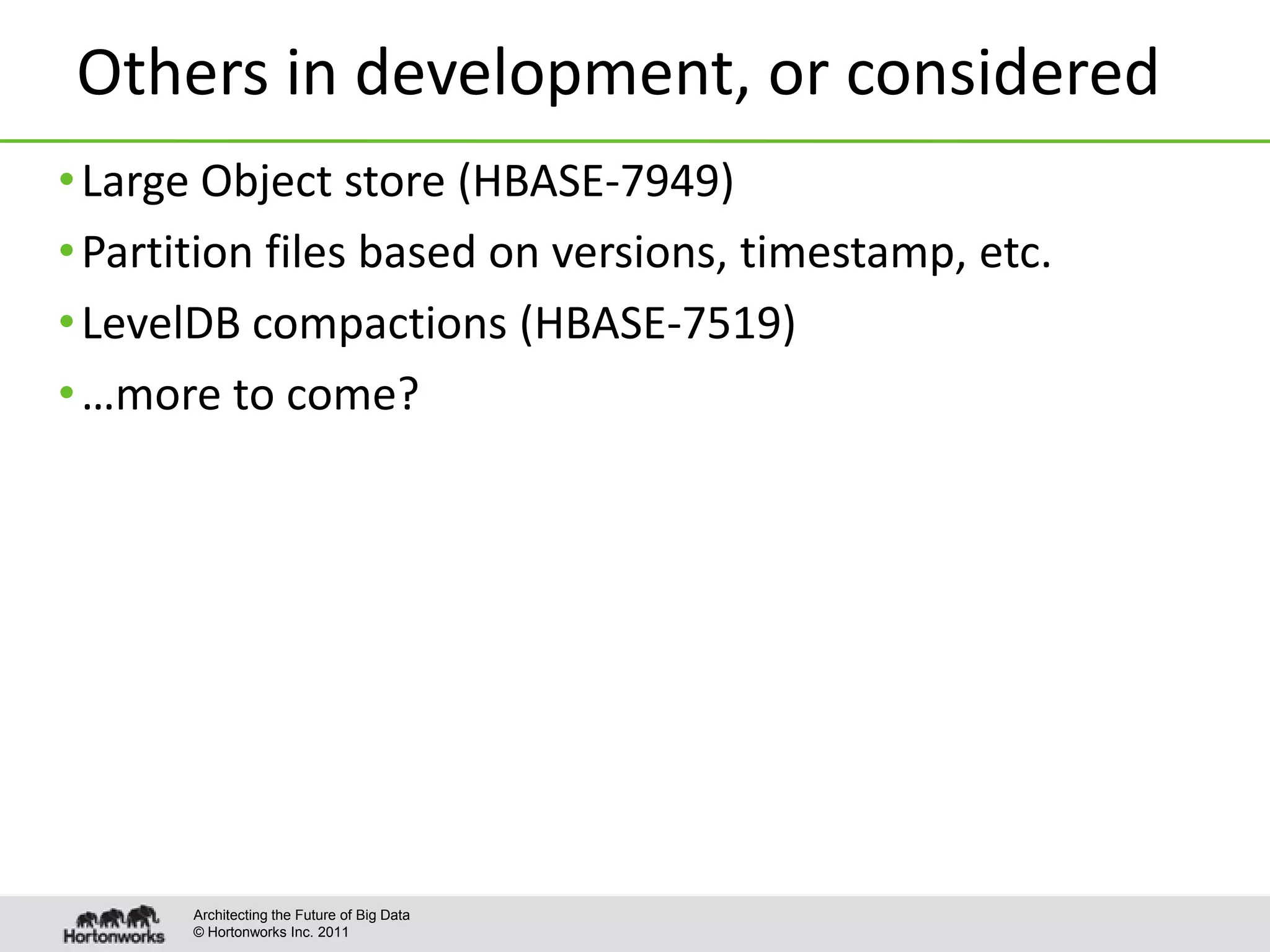

Others in development, or considered
Architecting the Future of Big Data
•Large Object store (HBASE-7949)
•Partition files based on versions, timestamp, etc.
•LevelDB compactions (HBASE-7519)
•…more to come?
© Hortonworks Inc. 2011

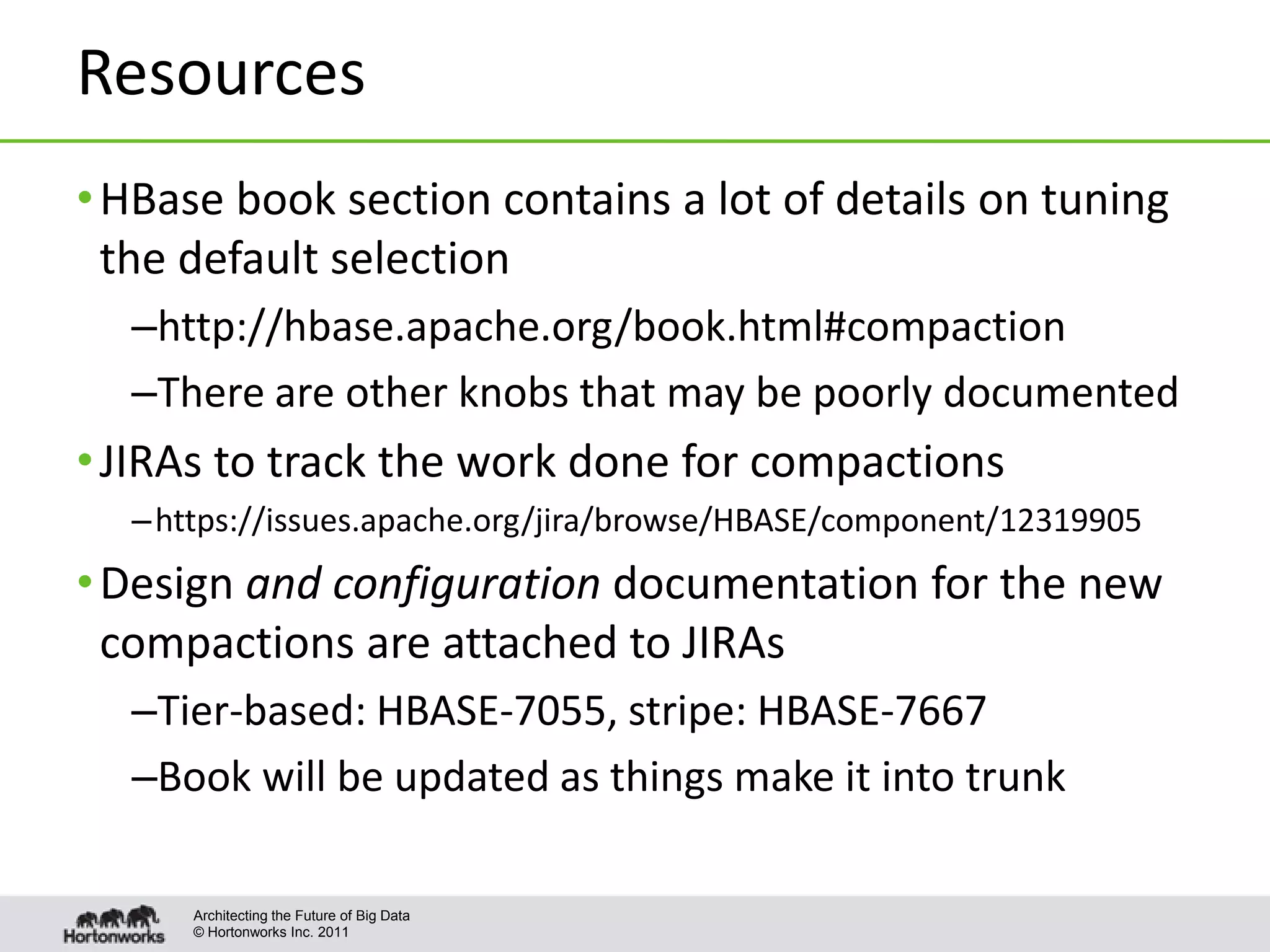

Resources
•HBase book section contains a lot of details on tuning
the default selection
–http://hbase.apache.org/book.html#compaction
–There are other knobs that may be poorly documented
•JIRAs to track the work done for compactions
–https://issues.apache.org/jira/browse/HBASE/component/12319905
•Design and configuration documentation for the new
compactions are attached to JIRAs
–Tier-based: HBASE-7055, stripe: HBASE-7667
–Book will be updated as things make it into trunk
Architecting the Future of Big Data
© Hortonworks Inc. 2011

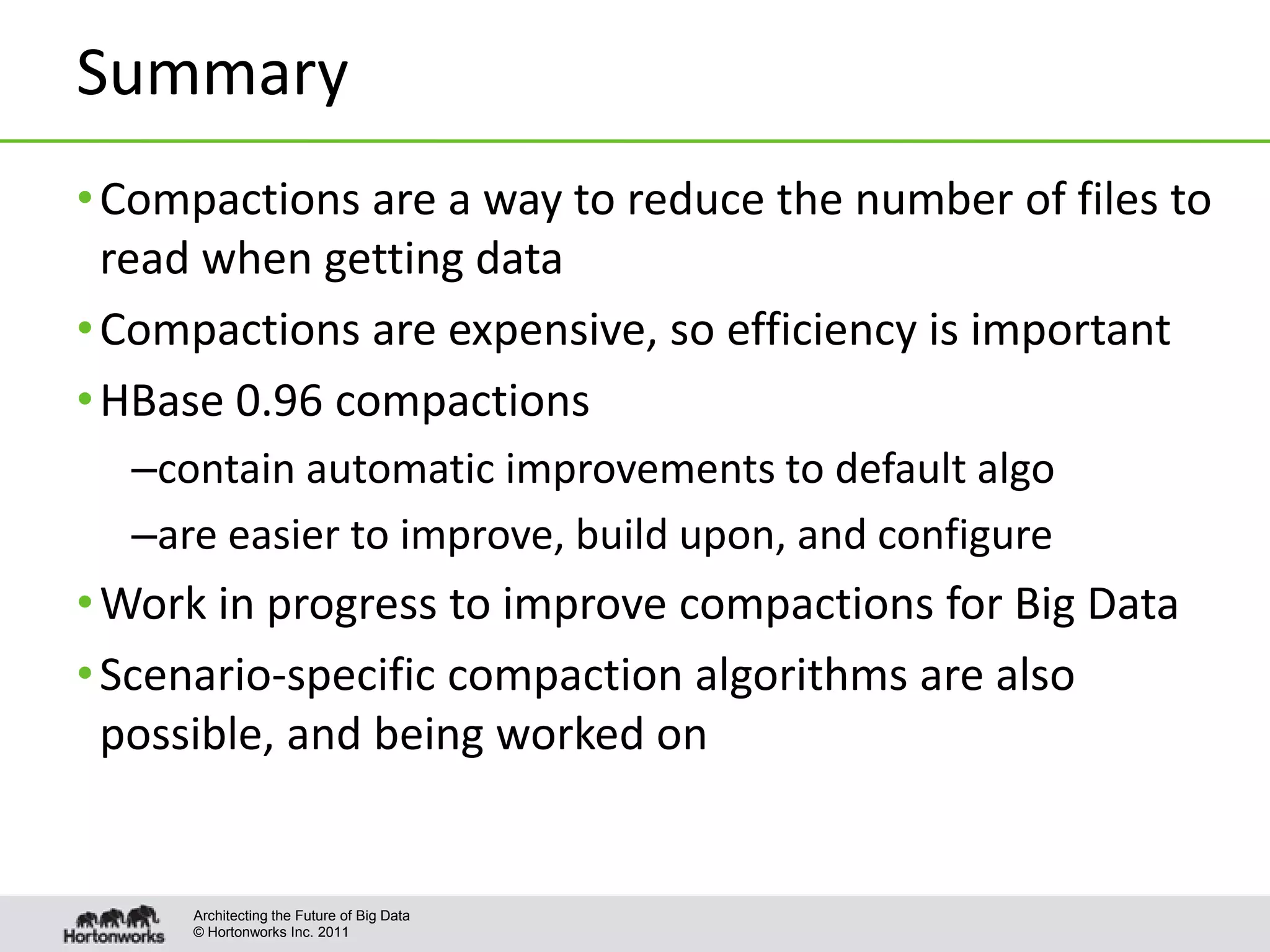

Summary
•Compactions are a way to reduce the number of files to
read when getting data
•Compactions are expensive, so efficiency is important
•HBase 0.96 compactions
–contain automatic improvements to default algo
–are easier to improve, build upon, and configure
•Work in progress to improve compactions for Big Data
•Scenario-specific compaction algorithms are also
possible, and being worked on
Architecting the Future of Big Data
© Hortonworks Inc. 2011
Q & A

More Related Content

What's hot

Hive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep DiveHive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep Dive
DataWorks Summit

Apache Tez - A New Chapter in Hadoop Data Processing
Apache Tez - A New Chapter in Hadoop Data ProcessingApache Tez - A New Chapter in Hadoop Data Processing
Apache Tez - A New Chapter in Hadoop Data Processing
DataWorks Summit


What's hot (20)

Ozone: scaling HDFS to trillions of objects
Ozone: scaling HDFS to trillions of objectsOzone: scaling HDFS to trillions of objects
Ozone: scaling HDFS to trillions of objects

Apache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at XiaomiApache HBase Improvements and Practices at Xiaomi
Apache HBase Improvements and Practices at Xiaomi

ORC File - Optimizing Your Big Data
ORC File - Optimizing Your Big DataORC File - Optimizing Your Big Data
ORC File - Optimizing Your Big Data

HBase Low Latency
HBase Low LatencyHBase Low Latency
HBase Low Latency

Hive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep DiveHive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep Dive

Hive+Tez: A performance deep dive
Hive+Tez: A performance deep diveHive+Tez: A performance deep dive
Hive+Tez: A performance deep dive

Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3Migrating your clusters and workloads from Hadoop 2 to Hadoop 3
Migrating your clusters and workloads from Hadoop 2 to Hadoop 3

HBase Storage Internals
HBase Storage InternalsHBase Storage Internals
HBase Storage Internals

Operating and Supporting Apache HBase Best Practices and Improvements
Operating and Supporting Apache HBase Best Practices and ImprovementsOperating and Supporting Apache HBase Best Practices and Improvements
Operating and Supporting Apache HBase Best Practices and Improvements

Apache Tez - A New Chapter in Hadoop Data Processing
Apache Tez - A New Chapter in Hadoop Data ProcessingApache Tez - A New Chapter in Hadoop Data Processing
Apache Tez - A New Chapter in Hadoop Data Processing

Time-Series Apache HBase
Time-Series Apache HBaseTime-Series Apache HBase
Time-Series Apache HBase

Apache Phoenix + Apache HBase
Apache Phoenix + Apache HBaseApache Phoenix + Apache HBase
Apache Phoenix + Apache HBase

Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing Apache Tez: Accelerating Hadoop Query Processing
Apache Tez: Accelerating Hadoop Query Processing

HBase Tales From the Trenches - Short stories about most common HBase operati...
HBase Tales From the Trenches - Short stories about most common HBase operati...HBase Tales From the Trenches - Short stories about most common HBase operati...
HBase Tales From the Trenches - Short stories about most common HBase operati...

HBase HUG Presentation: Avoiding Full GCs with MemStore-Local Allocation Buffers
HBase HUG Presentation: Avoiding Full GCs with MemStore-Local Allocation BuffersHBase HUG Presentation: Avoiding Full GCs with MemStore-Local Allocation Buffers
HBase HUG Presentation: Avoiding Full GCs with MemStore-Local Allocation Buffers

Securing Hadoop with Apache Ranger
Securing Hadoop with Apache RangerSecuring Hadoop with Apache Ranger
Securing Hadoop with Apache Ranger

Apache phoenix: Past, Present and Future of SQL over HBAse
Apache phoenix: Past, Present and Future of SQL over HBAseApache phoenix: Past, Present and Future of SQL over HBAse
Apache phoenix: Past, Present and Future of SQL over HBAse

Apache Phoenix and HBase: Past, Present and Future of SQL over HBase
Apache Phoenix and HBase: Past, Present and Future of SQL over HBaseApache Phoenix and HBase: Past, Present and Future of SQL over HBase
Apache Phoenix and HBase: Past, Present and Future of SQL over HBase

Hadoop Backup and Disaster Recovery
Hadoop Backup and Disaster RecoveryHadoop Backup and Disaster Recovery
Hadoop Backup and Disaster Recovery

Hive 3 - a new horizon
Hive 3 - a new horizonHive 3 - a new horizon
Hive 3 - a new horizon


Similar to HBaseCon 2013: Compaction Improvements in Apache HBase

Storage Infrastructure Behind Facebook Messages
Storage Infrastructure Behind Facebook MessagesStorage Infrastructure Behind Facebook Messages
Storage Infrastructure Behind Facebook Messages
feng1212


Similar to HBaseCon 2013: Compaction Improvements in Apache HBase (20)

HBaseCon 2013: Apache HBase and HDFS - Understanding Filesystem Usage in HBase
HBaseCon 2013: Apache HBase and HDFS - Understanding Filesystem Usage in HBaseHBaseCon 2013: Apache HBase and HDFS - Understanding Filesystem Usage in HBase
HBaseCon 2013: Apache HBase and HDFS - Understanding Filesystem Usage in HBase

Ozone and HDFS’s evolution
Ozone and HDFS’s evolutionOzone and HDFS’s evolution
Ozone and HDFS’s evolution

Evolving HDFS to a Generalized Storage Subsystem
Evolving HDFS to a Generalized Storage SubsystemEvolving HDFS to a Generalized Storage Subsystem
Evolving HDFS to a Generalized Storage Subsystem

Ozone and HDFS's Evolution
Ozone and HDFS's EvolutionOzone and HDFS's Evolution
Ozone and HDFS's Evolution

Evolving HDFS to Generalized Storage Subsystem
Evolving HDFS to Generalized Storage SubsystemEvolving HDFS to Generalized Storage Subsystem
Evolving HDFS to Generalized Storage Subsystem

Storage Infrastructure Behind Facebook Messages
Storage Infrastructure Behind Facebook MessagesStorage Infrastructure Behind Facebook Messages
Storage Infrastructure Behind Facebook Messages

HBase Applications - Atlanta HUG - May 2014
HBase Applications - Atlanta HUG - May 2014HBase Applications - Atlanta HUG - May 2014
HBase Applications - Atlanta HUG - May 2014

hbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architecturehbaseconasia2017: Large scale data near-line loading method and architecture
hbaseconasia2017: Large scale data near-line loading method and architecture

Hadoop & cloud storage object store integration in production (final)
Hadoop & cloud storage  object store integration in production (final)Hadoop & cloud storage  object store integration in production (final)
Hadoop & cloud storage object store integration in production (final)

Ozone and HDFS’s evolution
Ozone and HDFS’s evolutionOzone and HDFS’s evolution
Ozone and HDFS’s evolution

Large-scale Web Apps @ Pinterest
Large-scale Web Apps @ PinterestLarge-scale Web Apps @ Pinterest
Large-scale Web Apps @ Pinterest

Meet HBase 2.0 and Phoenix-5.0
Meet HBase 2.0 and Phoenix-5.0Meet HBase 2.0 and Phoenix-5.0
Meet HBase 2.0 and Phoenix-5.0

Hadoop & Cloud Storage: Object Store Integration in Production
Hadoop & Cloud Storage: Object Store Integration in ProductionHadoop & Cloud Storage: Object Store Integration in Production
Hadoop & Cloud Storage: Object Store Integration in Production

Optimizing Hive Queries
Optimizing Hive QueriesOptimizing Hive Queries
Optimizing Hive Queries

Optimizing Hive Queries
Optimizing Hive QueriesOptimizing Hive Queries
Optimizing Hive Queries

HBase for Architects
HBase for ArchitectsHBase for Architects
HBase for Architects

Hadoop & Cloud Storage: Object Store Integration in Production
Hadoop & Cloud Storage: Object Store Integration in ProductionHadoop & Cloud Storage: Object Store Integration in Production
Hadoop & Cloud Storage: Object Store Integration in Production

Still All on One Server: Perforce at Scale
Still All on One Server: Perforce at Scale Still All on One Server: Perforce at Scale
Still All on One Server: Perforce at Scale

LLAP: Building Cloud First BI
LLAP: Building Cloud First BILLAP: Building Cloud First BI
LLAP: Building Cloud First BI

Dancing elephants - efficiently working with object stores from Apache Spark ...
Dancing elephants - efficiently working with object stores from Apache Spark ...Dancing elephants - efficiently working with object stores from Apache Spark ...
Dancing elephants - efficiently working with object stores from Apache Spark ...


More from Cloudera, Inc.

More from Cloudera, Inc. (20)

Partner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptxPartner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptx

Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists

2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists

Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019

Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19

Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19

Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19

Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19

Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19

Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19

Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19

Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18

Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3

Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2

Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1

Extending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the PlatformExtending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the Platform

Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18

Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360

Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18

Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18


Recently uploaded

Recently uploaded (20)

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

TopCryptoSupers 12thReport OrionX May2024
TopCryptoSupers 12thReport OrionX May2024TopCryptoSupers 12thReport OrionX May2024
TopCryptoSupers 12thReport OrionX May2024

Powerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara LaskowskaPowerful Start- the Key to Project Success, Barbara Laskowska
Powerful Start- the Key to Project Success, Barbara Laskowska

WebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM PerformanceWebAssembly is Key to Better LLM Performance
WebAssembly is Key to Better LLM Performance

Google I/O Extended 2024 Warsaw
Google I/O Extended 2024 WarsawGoogle I/O Extended 2024 Warsaw
Google I/O Extended 2024 Warsaw

Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...
Choosing the Right FDO Deployment Model for Your Application _ Geoffrey at In...

Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdfIntroduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf
Introduction to FDO and How It works Applications _ Richard at FIDO Alliance.pdf

PLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. StartupsPLAI - Acceleration Program for Generative A.I. Startups
PLAI - Acceleration Program for Generative A.I. Startups

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...Integrating Telephony Systems with Salesforce: Insights and Considerations, B...
Integrating Telephony Systems with Salesforce: Insights and Considerations, B...

IESVE for Early Stage Design and Planning
IESVE for Early Stage Design and PlanningIESVE for Early Stage Design and Planning
IESVE for Early Stage Design and Planning

Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024Enterprise Knowledge Graphs - Data Summit 2024
Enterprise Knowledge Graphs - Data Summit 2024

The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdfThe Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf
The Value of Certifying Products for FDO _ Paul at FIDO Alliance.pdf

Using IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & IrelandUsing IESVE for Room Loads Analysis - UK & Ireland
Using IESVE for Room Loads Analysis - UK & Ireland

Syngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdfSyngulon - Selection technology May 2024.pdf
Syngulon - Selection technology May 2024.pdf

Microsoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - QuestionnaireMicrosoft CSP Briefing Pre-Engagement - Questionnaire
Microsoft CSP Briefing Pre-Engagement - Questionnaire

Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024Extensible Python: Robustness through Addition - PyCon 2024
Extensible Python: Robustness through Addition - PyCon 2024

What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024What's New in Teams Calling, Meetings and Devices April 2024
What's New in Teams Calling, Meetings and Devices April 2024

Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdfSimplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf
Simplified FDO Manufacturing Flow with TPMs _ Liam at Infineon.pdf


HBaseCon 2013: Compaction Improvements in Apache HBase

  • 1. © Hortonworks Inc. 2011 Compaction Improvements in Apache HBase Sergey Shelukhin sergey@hortonworks.com
  • 2. © Hortonworks Inc. 2011 About me •HBase committer since February 2013 •Member of Technical Staff at Hortonworks •Twitter @sershe84 Architecting the Future of Big Data
  • 3. © Hortonworks Inc. 2011 Overview •What are compactions? •Default algorithm and improvements •Enabling different implementations •Algorithms for various scenarios •Conclusions Architecting the Future of Big Data
  • 4. © Hortonworks Inc. 2011 What are compactions?
  • 5. © Hortonworks Inc. 2011 What are compactions? •HBase writes out immutable files as data is added –Each Store (CF+region) consists of these rowkey-ordered files –Immutable => more files accumulate over time –More files => slower reads •Compaction rewrites several files into one –Less files => faster reads • Major compaction rewrites all files in a Store into one –Can drop deleted records, tombstones and old versions •In minor compaction, files to compact are selected based on a heuristic Architecting the Future of Big Data
  • 6. © Hortonworks Inc. 2011 Compactions example Architecting the Future of Big Data •Memstore fills up, files are flushed •When enough files accumulate, they are compacted MemStore HDFS writes HFile … HFile HFile HFileHFile
  • 7. © Hortonworks Inc. 2011 Reads slow down w/o compactions •If too many files accumulate, reads slow down •Read latency over time without compactions: Architecting the Future of Big Data 0 5 10 15 20 25 0 3600 7200 10800 14400 Readlatency,ms. Load test time, sec
  • 8. © Hortonworks Inc. 2011 But, compaction cause slowdowns •Looks like lots of I/O for no apparent benefit •Example effect on reads (note better average) Architecting the Future of Big Data 0 5 10 15 20 25 0 3600 7200 10800 Readlatency,ms Load test time, sec
  • 9. © Hortonworks Inc. 2011 Default algorithm and improvements
  • 10. © Hortonworks Inc. 2011 Compaction tradeoffs •Hbase resolves key conflicts by file age –Therefore, can only compact contiguous files •Large compactions are more efficient (less total I/O) –However, they can cause long slowdown for clients •Small compactions have less effect on clients –However, in total you do more rewriting •We want to compact similar files Architecting the Future of Big Data
  • 11. © Hortonworks Inc. 2011 Default algorithm in 0.94 •Ratio-based selection –Look for files at most F times larger than the following files –Also allows limiting file numbers and sizes •Higher ratio => more aggressive (default 1.2) •Example: 2 files minimum, 3 maximum, ratio 1.2 Architecting the Future of Big Data HFile HFile HFile HFile HFile Too big!Too many files!OK. •Usually good for typical accumulation of flushed files •Not good for bulk load – unpredictable file sizes!
  • 12. © Hortonworks Inc. 2011 Off-peak compactions •Good if you have variable load through the day •HBASE-4463 - present in 0.94 (since 2011) •Compact more aggressively during certain hours of the day, when load is lower •Set off-peak period via – hbase.offpeak.start.hour,hbase.offpeak.end.hour (0-23) •Then, set ratio via – hbase.hstore.compaction.ratio.offpeak (default is 5) •Only one "off-peak" compaction at a time, so load is not totally prohibitive Architecting the Future of Big Data
  • 13. © Hortonworks Inc. 2011 Inefficiencies in default algorithm •First valid selection is chosen •Ratio is only considered for the first selected file –Thus, other files in compaction may not be similar •The solution found may not be the best one –especially for bulk load, with unpredictable file sizes Architecting the Future of Big Data HFile HFile HFile HFile HFile Matches the ratio, but this is a bad selection HFile
  • 14. © Hortonworks Inc. 2011 Exploring compaction selection •There are usually not so many files, so looking at all valid permutations and comparing quality is viable •HBASE-7842 - "exploring" compaction selection –Ratio checked for each file to choose good permutations –When store is ok, try to compact the most files –When store has too many files, try to eliminate some as fast as possible •On by default in 0.95/0.96 •Works with your old configuration settings Architecting the Future of Big Data
  • 15. © Hortonworks Inc. 2011 Examples and results •In previous example Architecting the Future of Big Data HFile HFile HFile HFile HFile Not in ratio, dissimilar files HFile •On bulk loads of random size, depending on settings: –loses only 0-10% efficiency in reducing files count; –While reducing I/O 3-10 times •Best results with ratio 1.3-1.4, 4 minimum files In ratio, may be valid… But this has more files!
  • 16. © Hortonworks Inc. 2011 Enabling different implementations
  • 17. © Hortonworks Inc. 2011 Making compactions pluggable •To allow further improvements, the code should be easy to replace; not the case as of 0.94 •Initial implementation – p/o HBASE-7055, HBASE-7516 – make just the selection pluggable •This is called "policy" (CompactionPolicy) •Example usages –exploring selection, mentioned previously –tier-based selection (port from Facebook) Architecting the Future of Big Data
  • 18. © Hortonworks Inc. 2011 Making compactions more pluggable • Other potential improvements are more involved • Need to change other things (HBASE-7678) • The meta-structure of the files (StoreFileManager, HBASE-7603) –Group files by some key/time/… based scheme –In memory/metadata only - filesystem structure or file format changes would be a compatibility nightmare –Example – LeveDB-style compactions, stripes • Compactor to compact the files (Compactor) –Example – large object store, levels, stripes • Can replace parts together or separately (StoreEngine) –E.g. level compactor only makes sense with level-aware store Architecting the Future of Big Data
  • 19. © Hortonworks Inc. 2011 Enabling compaction tuning •Different tables (or even column families) have different data and access patterns •Compactions already have large number of knobs •Starting with 0.96, they can be configured on table/CF level (HBASE-7236) •Example from the shell: alter 'table1', CONFIGURATION => {'hbase.hstore.engine.class' => 'org.apache.hadoop.hbase.regionserver.StripeStoreEngine', ... } Architecting the Future of Big Data
  • 20. © Hortonworks Inc. 2011 Algorithms for various scenarios
  • 21. © Hortonworks Inc. 2011 Key ways to improve compactions Architecting the Future of Big Data • Read from fewer files –Separate files by row key, version, time, etc. –Allows large number of files to be present, uncompacted • Don't compact the data you don't need to compact –For example, old data in OpenTSDB-like systems –Obviously, results in less I/O • Make compactions smaller –Without too much I/O amplification or too many files –Results in less compaction-related outages • HBase works better with few large regions; however, large compactions cause unavailability
  • 22. © Hortonworks Inc. 2011 How to avoid large compactions Architecting the Future of Big Data •LevelDB compactions –Files live on multiple levels –Files on each level have non-overlapping row-key ranges –…except level 0 (L0), where memstore flushes go –Compact overlapping subsets of 2 level, data goes up a level –Most read requests need only one file per level, plus all of L0 •Small compactions, few files per read, however... –More I/O, as the data moves from level to level –No major compactions – dropping deletes is not trivial –Messes up file ordering due to file boundary overlaps between levels – not readable correctly by default store
  • 23. © Hortonworks Inc. 2011 Stripe compactions (HBASE-7667) Architecting the Future of Big Data • Somewhat like LevelDB, partition the keys inside each region/store • But, only 1 level (plus optional L0) • Compared to regions, partitioning is more flexible –The default is a number of ~equal-sized stripes • To read, just read relevant stripes + L0, if present HFile HFile Region start key: ccc eee Row-key axis iii: region end keyggg H HFileHFileHFile HFile L0 get 'hbase'
  • 24. © Hortonworks Inc. 2011 Stripe compactions – writes Architecting the Future of Big Data •Data flushed from MemStore into several files •Each stripe compacts separately most of the time MemStore HDFS HFile HFile H HFileHFileHFile H H H HFile
  • 25. © Hortonworks Inc. 2011 Stripe compactions – other Architecting the Future of Big Data •Why L0? –Bulk loaded files go to L0 –Flushes can also go into single L0 files (to avoid tiny files) –Several L0 files are then compacted into striped files •Can drop deletes if compacting one entire stripe +L0 –No need for major compactions, ever •Compact 2 stripes together – rebalance if unbalanced –Very rare, however - unbalanced stripes are not a huge deal • Boundaries could be used to improve region splits in future
  • 26. © Hortonworks Inc. 2011 Stripe compactions - performance Architecting the Future of Big Data •EC2, c1.xlarge, preload; then measure random read perf –LoadTestTool + deletes + overwrites; measure random reads 0 500 1000 1500 2000 2500 3500 4500 5500 6500 7500 8500 Randomgetspersecond Test time, sec. Default gets-per-second, 30sec. MA Stripe gets-per-second, 30sec. MA
  • 27. © Hortonworks Inc. 2011 Stripe compactions - performance Architecting the Future of Big Data • On individual request level: median latency – same (1.6ms) • However 90th pct - 15% improvement (~13ms to ~11ms), • 99th pct – 20% improvement (~60 to ~47ms) • While also sending ~18% more reads in ~4% less time 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 0 2 4 6 8 10 12 14 16 18 20 Latency (ms) CDF Default Stripes (12)
  • 28. © Hortonworks Inc. 2011 Other stripe boundary schemes •For sharded sequential keys (like OpenTSDB), compacting old data again and again is not useful •What if stripes split dynamically as they grow? –If data is sequential, only a subset of stripes will grow –Non-growing stripes never need to be compacted Architecting the Future of Big Data HFileHFile HFile HFile H H HFile HFile HFile H Rowkey space Too big! HFile H Now this will hardly ever compact
  • 29. © Hortonworks Inc. 2011 Others in development – tier-based Architecting the Future of Big Data •Tier-based compaction selection (HBASE-7055; originally developed in Facebook) –Old data may not be read as frequently, new data may all be in cache so # of files does not matter, etc. –So, during selection, dynamically arrange files into tiers, and apply different rules (ratios, etc.) to them •Simple example (only 2 tiers) HFile HFile HFile However, if old files are rarely read, it's better to compact new first HFile HFile HFile HFile Looks like a good selection…
  • 30. © Hortonworks Inc. 2011 Others in development, or considered Architecting the Future of Big Data •Large Object store (HBASE-7949) •Partition files based on versions, timestamp, etc. •LevelDB compactions (HBASE-7519) •…more to come?
  • 31. © Hortonworks Inc. 2011 Resources •HBase book section contains a lot of details on tuning the default selection –http://hbase.apache.org/book.html#compaction –There are other knobs that may be poorly documented •JIRAs to track the work done for compactions –https://issues.apache.org/jira/browse/HBASE/component/12319905 •Design and configuration documentation for the new compactions are attached to JIRAs –Tier-based: HBASE-7055, stripe: HBASE-7667 –Book will be updated as things make it into trunk Architecting the Future of Big Data
  • 32. © Hortonworks Inc. 2011 Summary •Compactions are a way to reduce the number of files to read when getting data •Compactions are expensive, so efficiency is important •HBase 0.96 compactions –contain automatic improvements to default algo –are easier to improve, build upon, and configure •Work in progress to improve compactions for Big Data •Scenario-specific compaction algorithms are also possible, and being worked on Architecting the Future of Big Data
  • 33. © Hortonworks Inc. 2011 Q & A

Editor's Notes

  1. Example of CF delete processing
