1. Hacking Movable Type
Italian Perl Workshop 2006
Stefano Rodighiero - stefano.rodighiero@dada.net

2. “Movable Type 3.2 is the
premier weblog publishing
platform for businesses,
organizations, developers,
and web designers”

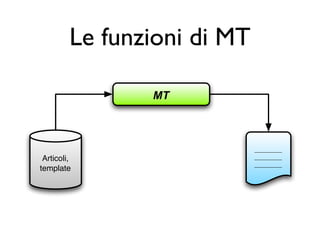

3. Le funzioni di MT
MT
________
________
Articoli,
________
template

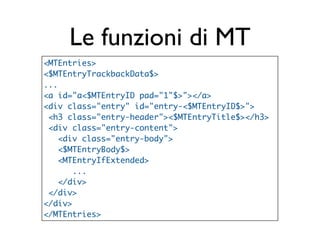

4. Le funzioni di MT
<MTEntries>
<$MTEntryTrackbackData$>
...
<a id=quot;a<$MTEntryID pad=quot;1quot;$>quot;></a>
<div class=quot;entryquot; id=quot;entry-<$MTEntryID$>quot;>
<h3 class=quot;entry-headerquot;><$MTEntryTitle$></h3>
<div class=quot;entry-contentquot;>
<div class=quot;entry-bodyquot;>
<$MTEntryBody$>
<MTEntryIfExtended>
...
</div>
</div>
</div>
</MTEntries>

5. Le caratteristiche di MT
• Interfaccia web completa ma affidabile
• Sistema di gestione degli autori (con
abbozzo di gestione di ruoli e permessi)
• Sistema potente per la gestione dei template

6. Inoltre...

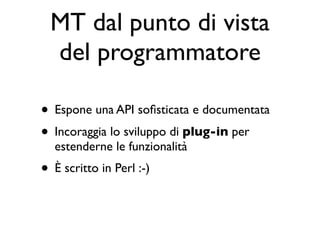

7. MT dal punto di vista
del programmatore
• Espone una API sofisticata e documentata
• Incoraggia lo sviluppo di plug-in per
estenderne le funzionalità
• È scritto in Perl :-)

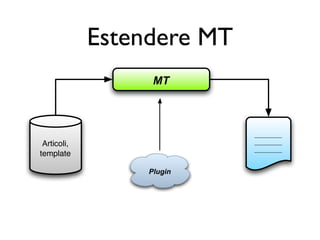

8. Estendere MT
MT
________
________
Articoli,
________
template
Plugin

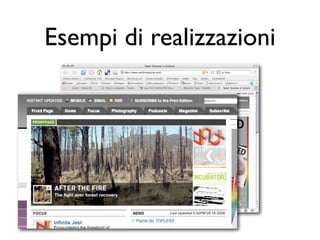

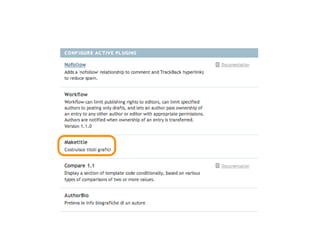

9. Esempi di realizzazioni

10. Esempi di realizzazioni

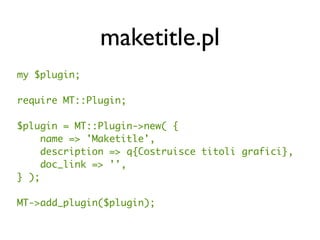

11. maketitle.pl
my $plugin;
require MT::Plugin;
$plugin = MT::Plugin->new( {
name => 'Maketitle',
description => q{Costruisce titoli grafici},
doc_link => '',
} );
MT->add_plugin($plugin);

13. maketitle.pl /2
# ... continua
MT::Template::Context->add_tag(
MakeGraphicTitle => &make_graphic_title
);

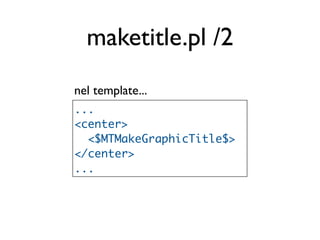

14. maketitle.pl /2
nel template...
...
<center>
<$MTMakeGraphicTitle$>
</center>
...

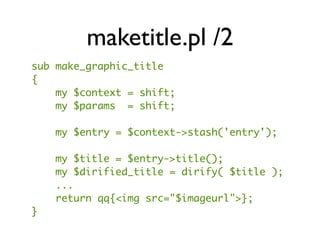

15. maketitle.pl /2
sub make_graphic_title
{
my $context = shift;
my $params = shift;
my $entry = $context->stash('entry');
my $title = $entry->title();
my $dirified_title = dirify( $title );
...
return qq{<img src=quot;$imageurlquot;>};
}

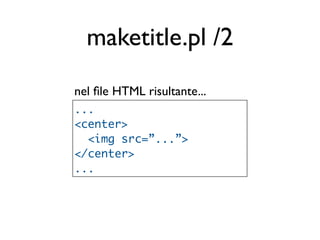

16. maketitle.pl /2
nel file HTML risultante...
...
<center>
<img src=”...”>
</center>
...

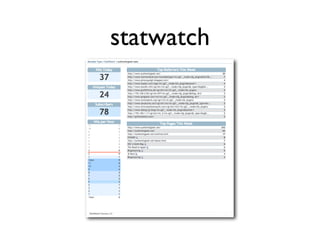

17. statwatch

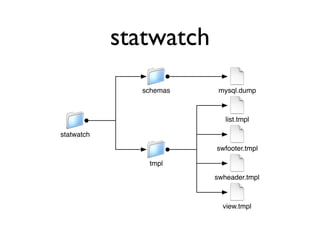

18. statwatch
schemas mysql.dump
list.tmpl
statwatch
swfooter.tmpl
tmpl
swheader.tmpl
view.tmpl

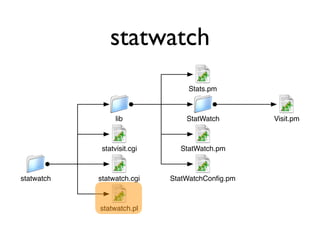

19. statwatch
Stats.pm
lib StatWatch Visit.pm
statvisit.cgi StatWatch.pm
statwatch statwatch.cgi StatWatchConfig.pm
statwatch.pl

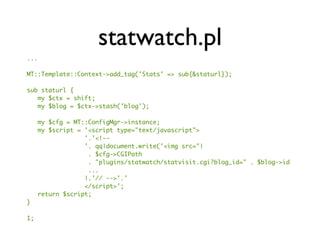

20. statwatch.pl
...
MT::Template::Context->add_tag('Stats' => sub{&staturl});
sub staturl {
my $ctx = shift;
my $blog = $ctx->stash('blog');
my $cfg = MT::ConfigMgr->instance;
my $script = '<script type=quot;text/javascriptquot;>
'.'<!--
'. qq|document.write('<img src=quot;|
. $cfg->CGIPath
. quot;plugins/statwatch/statvisit.cgi?blog_id=quot; . $blog->id
...
|.'// -->'.'
</script>';
return $script;
}
1;

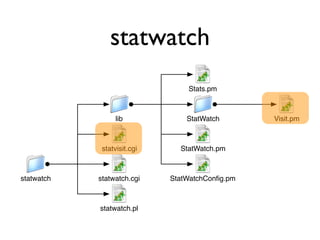

21. statwatch
Stats.pm
lib StatWatch Visit.pm
statvisit.cgi StatWatch.pm
statwatch statwatch.cgi StatWatchConfig.pm
statwatch.pl

22. Visit.pm
# StatWatch - lib/StatWatch/Visit.pm
# Nick O'Neill (http://www.raquo.net/statwatch/)
package StatWatch::Visit;
use strict;
use MT::App;
@StatWatch::Visit::ISA = qw( MT::App );
use Stats;
my $VERSION = '1.2';
my $DEBUG = 0;

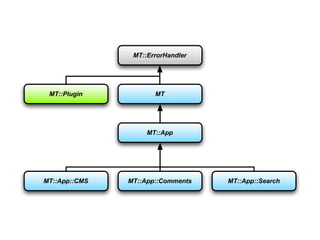

23. MT::ErrorHandler
MT::Plugin MT
MT::App
MT::App::CMS MT::App::Comments MT::App::Search

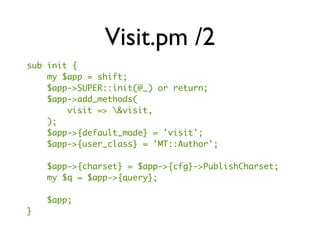

24. Visit.pm /2
sub init {
my $app = shift;
$app->SUPER::init(@_) or return;
$app->add_methods(
visit => &visit,
);
$app->{default_mode} = 'visit';
$app->{user_class} = 'MT::Author';
$app->{charset} = $app->{cfg}->PublishCharset;
my $q = $app->{query};
$app;
}

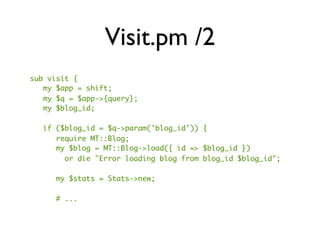

25. Visit.pm /2
sub visit {
my $app = shift;
my $q = $app->{query};
my $blog_id;
if ($blog_id = $q->param('blog_id')) {
require MT::Blog;
my $blog = MT::Blog->load({ id => $blog_id })
or die quot;Error loading blog from blog_id $blog_idquot;;
my $stats = Stats->new;
# ...

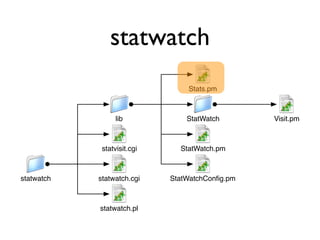

26. statwatch
Stats.pm
lib StatWatch Visit.pm
statvisit.cgi StatWatch.pm
statwatch statwatch.cgi StatWatchConfig.pm
statwatch.pl

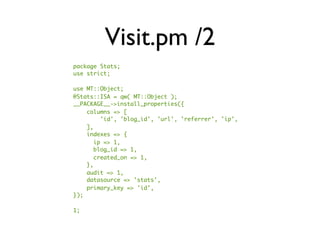

27. Visit.pm /2
package Stats;
use strict;
use MT::Object;
@Stats::ISA = qw( MT::Object );
__PACKAGE__->install_properties({
columns => [
'id', 'blog_id', 'url', 'referrer', 'ip',
],
indexes => {
ip => 1,
blog_id => 1,
created_on => 1,
},
audit => 1,
datasource => 'stats',
primary_key => 'id',
});
1;

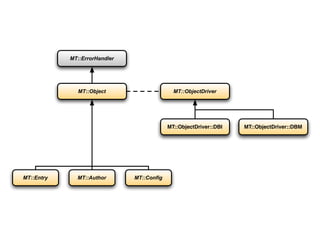

28. MT::ErrorHandler
MT::Object MT::ObjectDriver
MT::ObjectDriver::DBI MT::ObjectDriver::DBM
MT::Entry MT::Author MT::Config

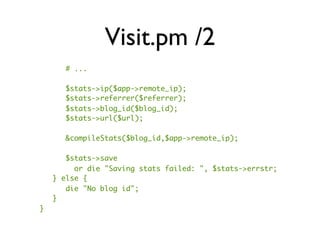

29. Visit.pm /2
# ...
$stats->ip($app->remote_ip);
$stats->referrer($referrer);
$stats->blog_id($blog_id);
$stats->url($url);
&compileStats($blog_id,$app->remote_ip);
$stats->save
or die quot;Saving stats failed: quot;, $stats->errstr;
} else {
die quot;No blog idquot;;
}
}

30. statwatch
Stats.pm
lib StatWatch Visit.pm
statvisit.cgi StatWatch.pm
statwatch statwatch.cgi StatWatchConfig.pm
statwatch.pl

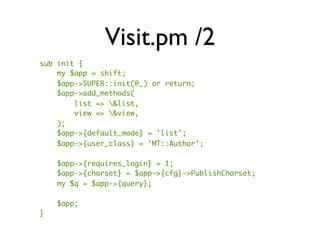

31. Visit.pm /2
sub init {
my $app = shift;
$app->SUPER::init(@_) or return;
$app->add_methods(
list => &list,
view => &view,
);
$app->{default_mode} = 'list';
$app->{user_class} = 'MT::Author';
$app->{requires_login} = 1;
$app->{charset} = $app->{cfg}->PublishCharset;
my $q = $app->{query};
$app;
}

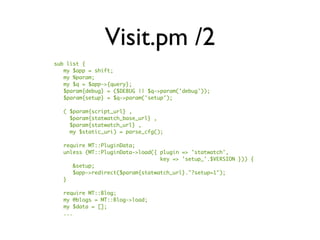

32. Visit.pm /2
sub list {
my $app = shift;
my %param;
my $q = $app->{query};
$param{debug} = ($DEBUG || $q->param('debug'));
$param{setup} = $q->param('setup');
( $param{script_url} ,
$param{statwatch_base_url} ,
$param{statwatch_url} ,
my $static_uri) = parse_cfg();
require MT::PluginData;
unless (MT::PluginData->load({ plugin => 'statwatch',
key => 'setup_'.$VERSION })) {
&setup;
$app->redirect($param{statwatch_url}.quot;?setup=1quot;);
}
require MT::Blog;
my @blogs = MT::Blog->load;
my $data = [];
...

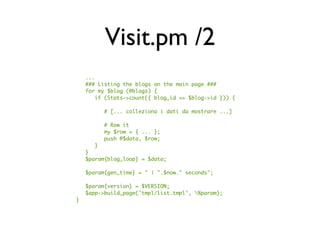

33. Visit.pm /2
...
### Listing the blogs on the main page ###
for my $blog (@blogs) {
if (Stats->count({ blog_id => $blog->id })) {
# [... colleziona i dati da mostrare ...]
# Row it
my $row = { ... };
push @$data, $row;
}
}
$param{blog_loop} = $data;
$param{gen_time} = quot; | quot;.$now.quot; secondsquot;;
$param{version} = $VERSION;
$app->build_page('tmpl/list.tmpl', %param);
}

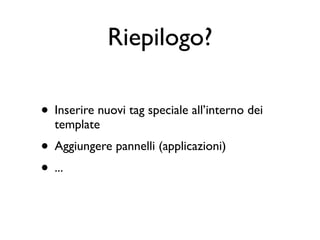

34. Riepilogo?
• Inserire nuovi tag speciale all’interno dei
template
• Aggiungere pannelli (applicazioni)
• ...

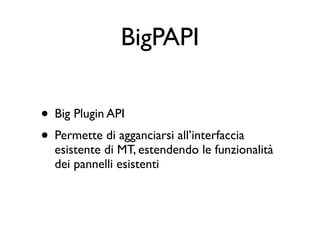

35. BigPAPI
• Big Plugin API
• Permette di agganciarsi all’interfaccia
esistente di MT, estendendo le funzionalità
dei pannelli esistenti

36. Perchè?

37. RightFields
MT->add_callback( 'bigpapi::template::edit_entry::top',
9,
$rightfields,
&edit_entry_template );
MT->add_callback( 'bigpapi::param::edit_entry',
9,
$rightfields,
&edit_entry_param );
MT->add_callback( 'bigpapi::param::preview_entry',
9,
$rightfields,
&preview_entry_param);

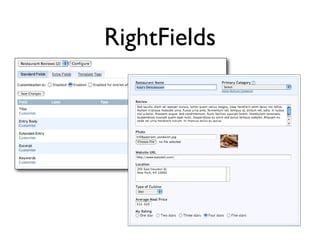

38. RightFields

39. Approfondimenti
• Six Apart Developer Wiki
http://www.lifewiki.net/sixapart/
• Seedmagazine.com — Lookin’ Good
http://o2b.net/archives/seedmagazine
• Beyond the blog
http://a.wholelottanothing.org/features/2003/07/beyond_the_blog
• http://del.icio.us/slr/movabletype :-)

40. Grazie :)
Stefano Rodighiero
stefano.rodighiero@dada.net
